20 LED’s on Mobile Charger

Intro.

Many of my friends at Instructables asked me to glow some LED’s by a mobile Charger. Most of the time your Mobile Charger is not in use. So I thought of using it to glow a LED Night lamp as it has a DC power supply.

Mobile Charger – one

Specification---Input 240VAC Output 5.3 VDC 500mA.

20 Very bright White LED’s. of 5mm size.

A piece of Flex Board to use as base for the LED’s.

A female socket for the Mobile Charger Pin.

Wire, solder etc.

Fix the LED’s 5 to a row of 4.

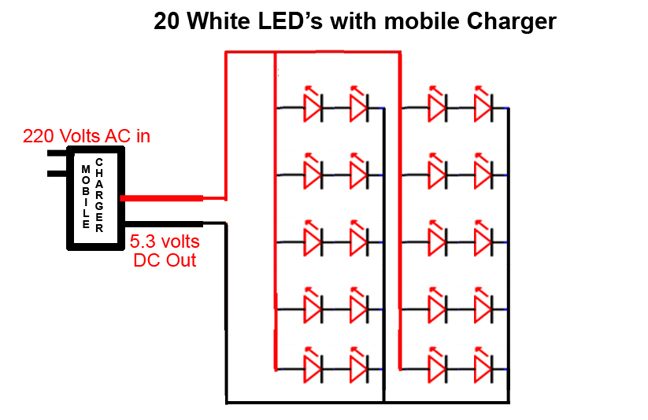

Follow the Circuit Diagram.

Maintain Polarity.

Connect the Mobile Charger to the LED Light and
plug in the Charger.

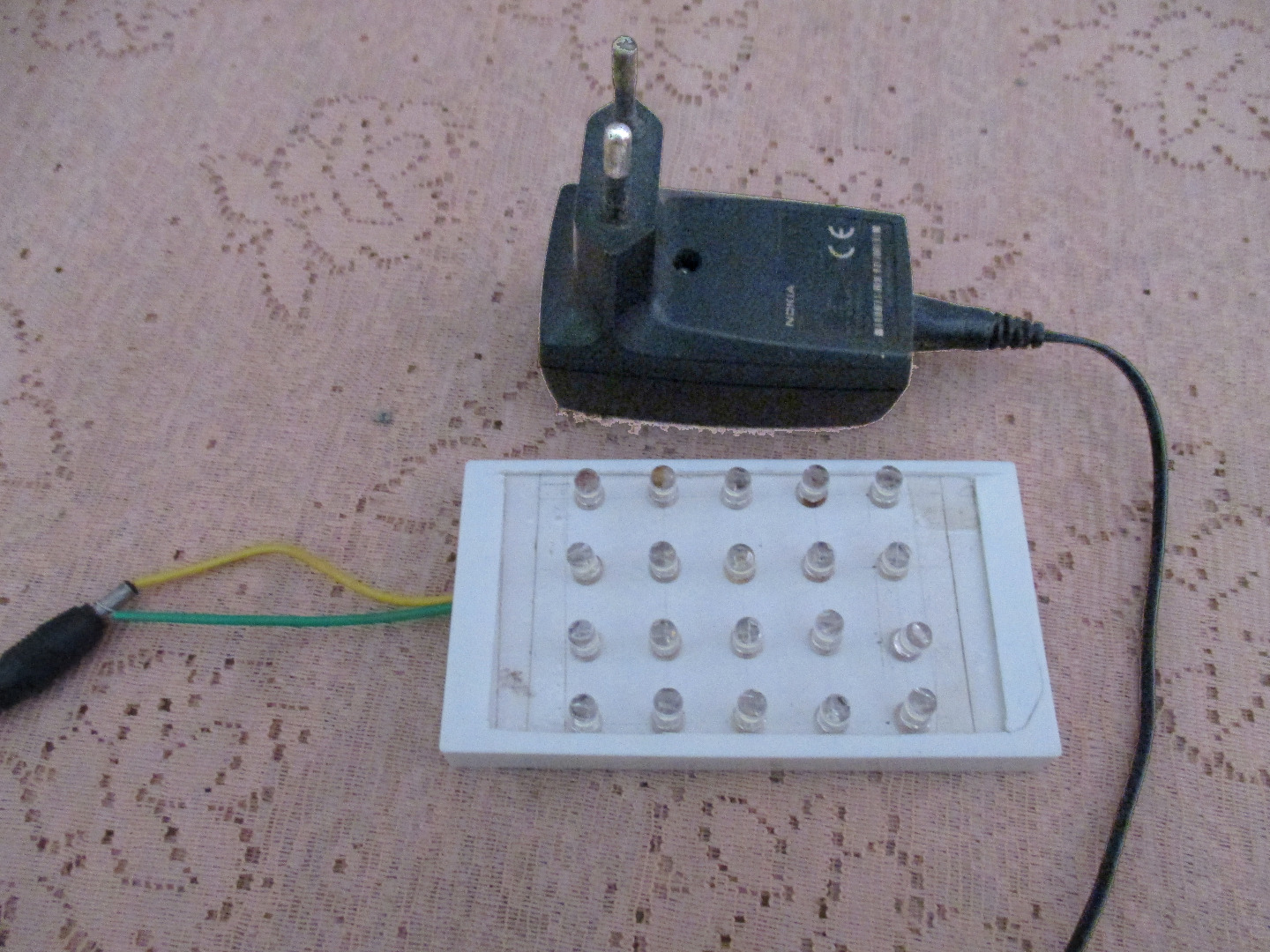

Your night lamp is ON.
