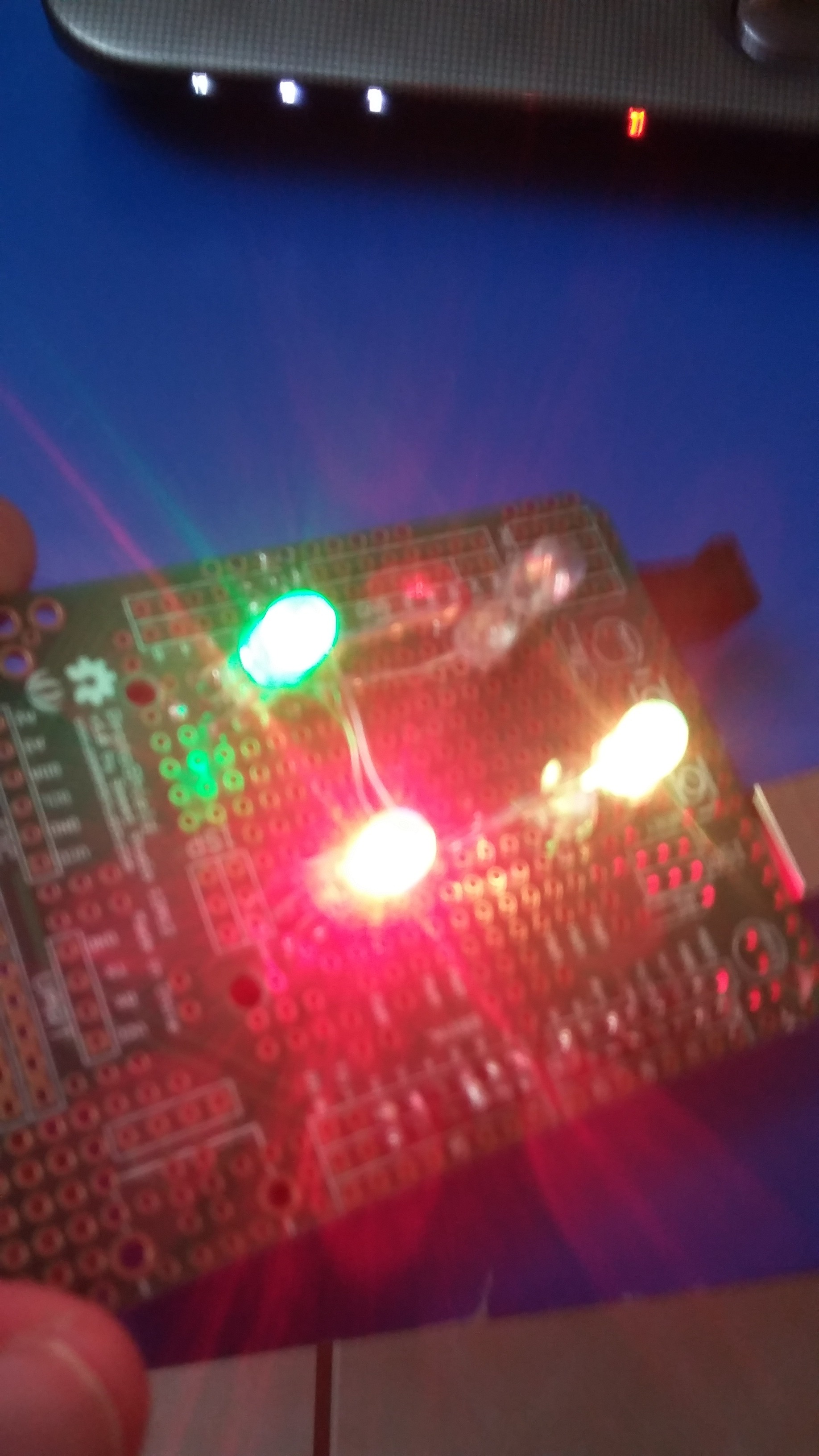

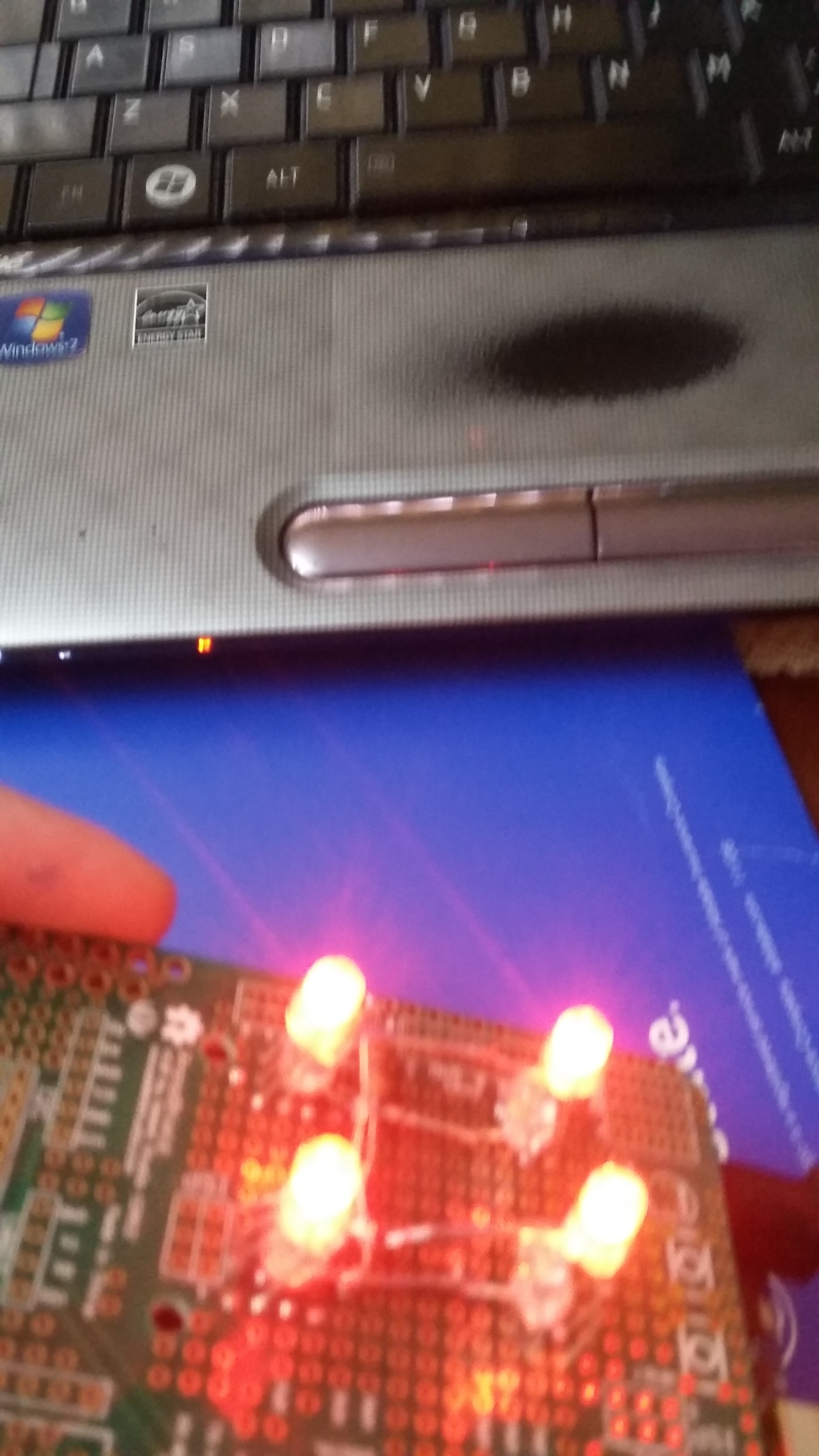

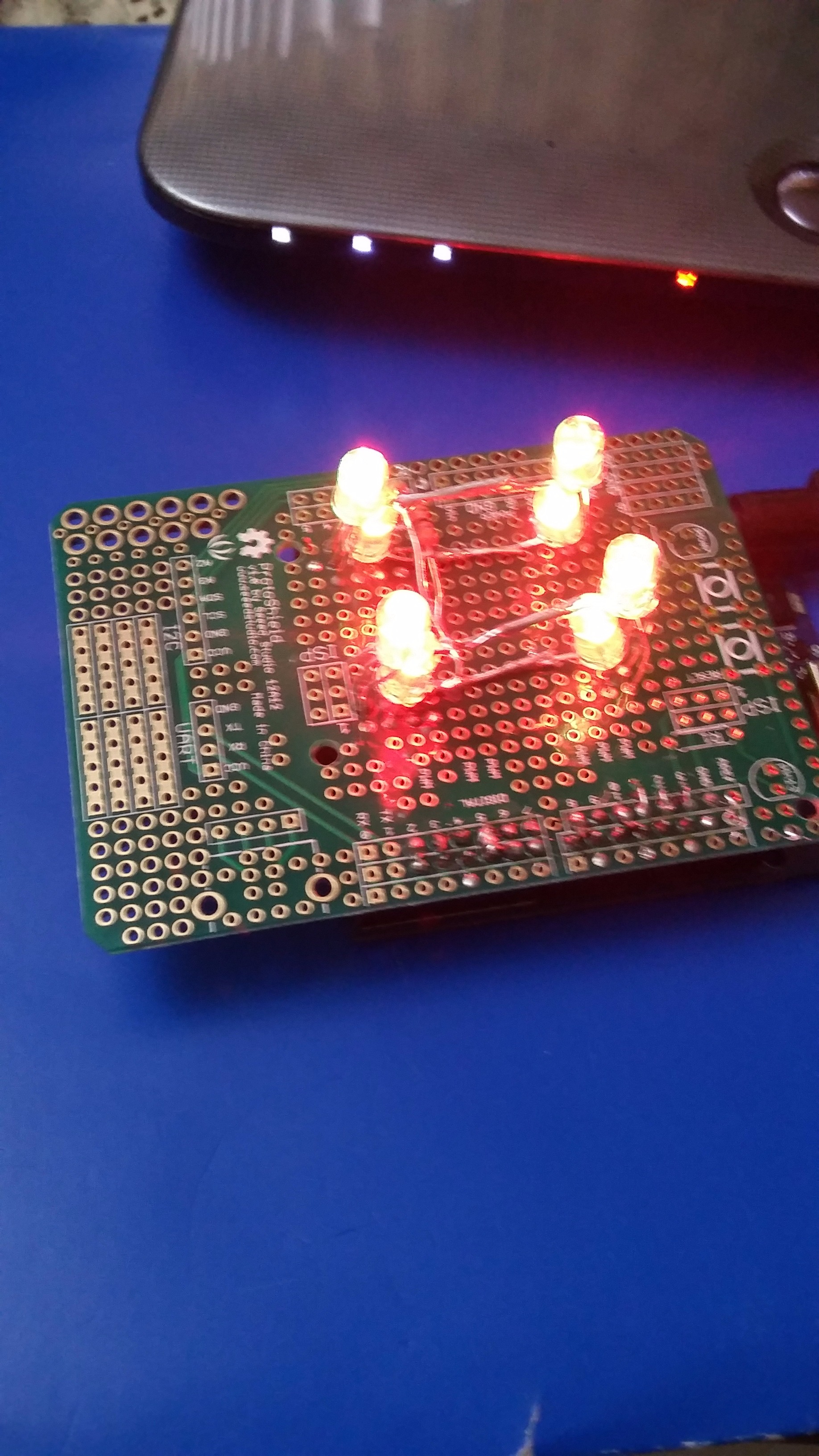

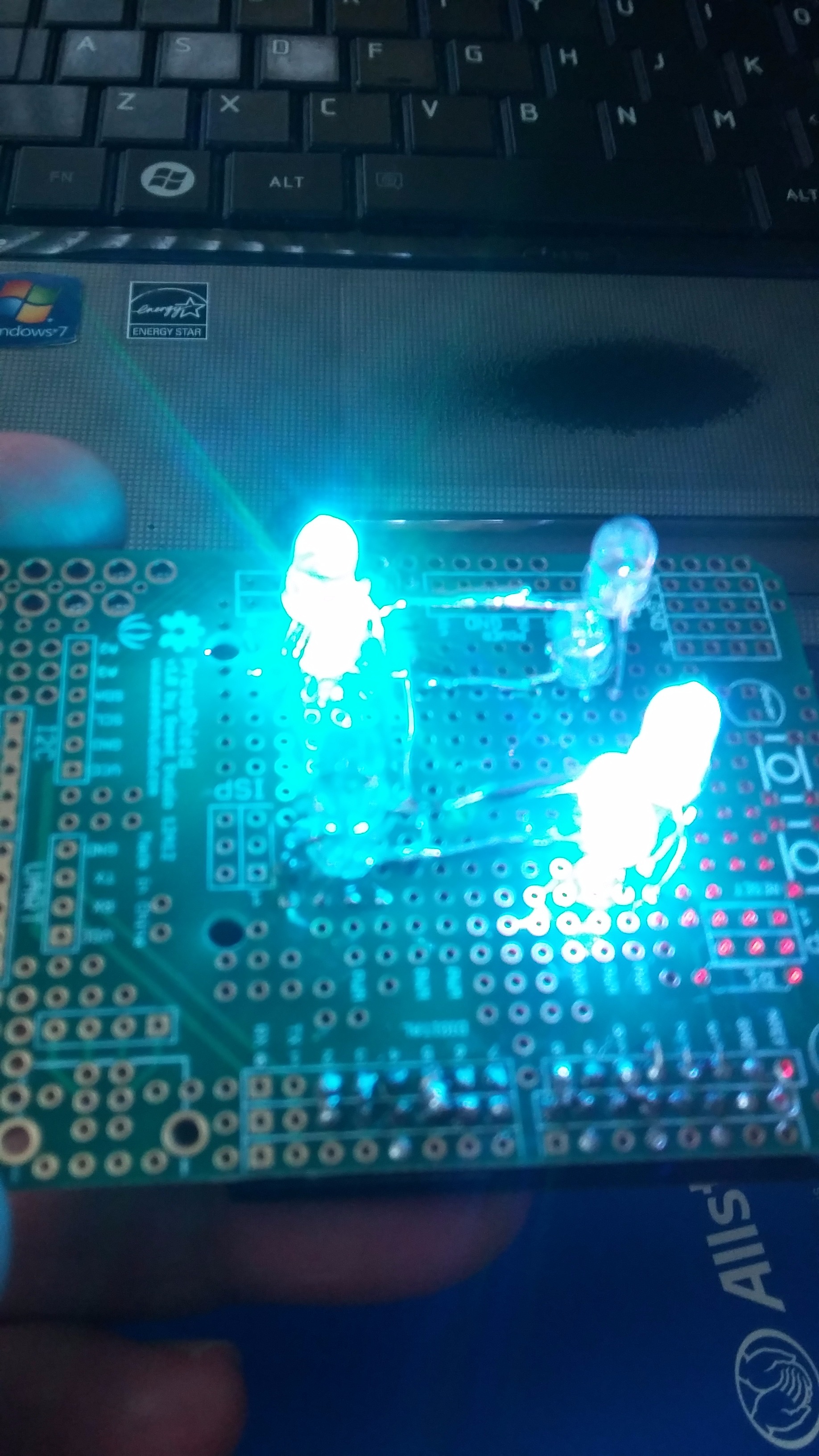

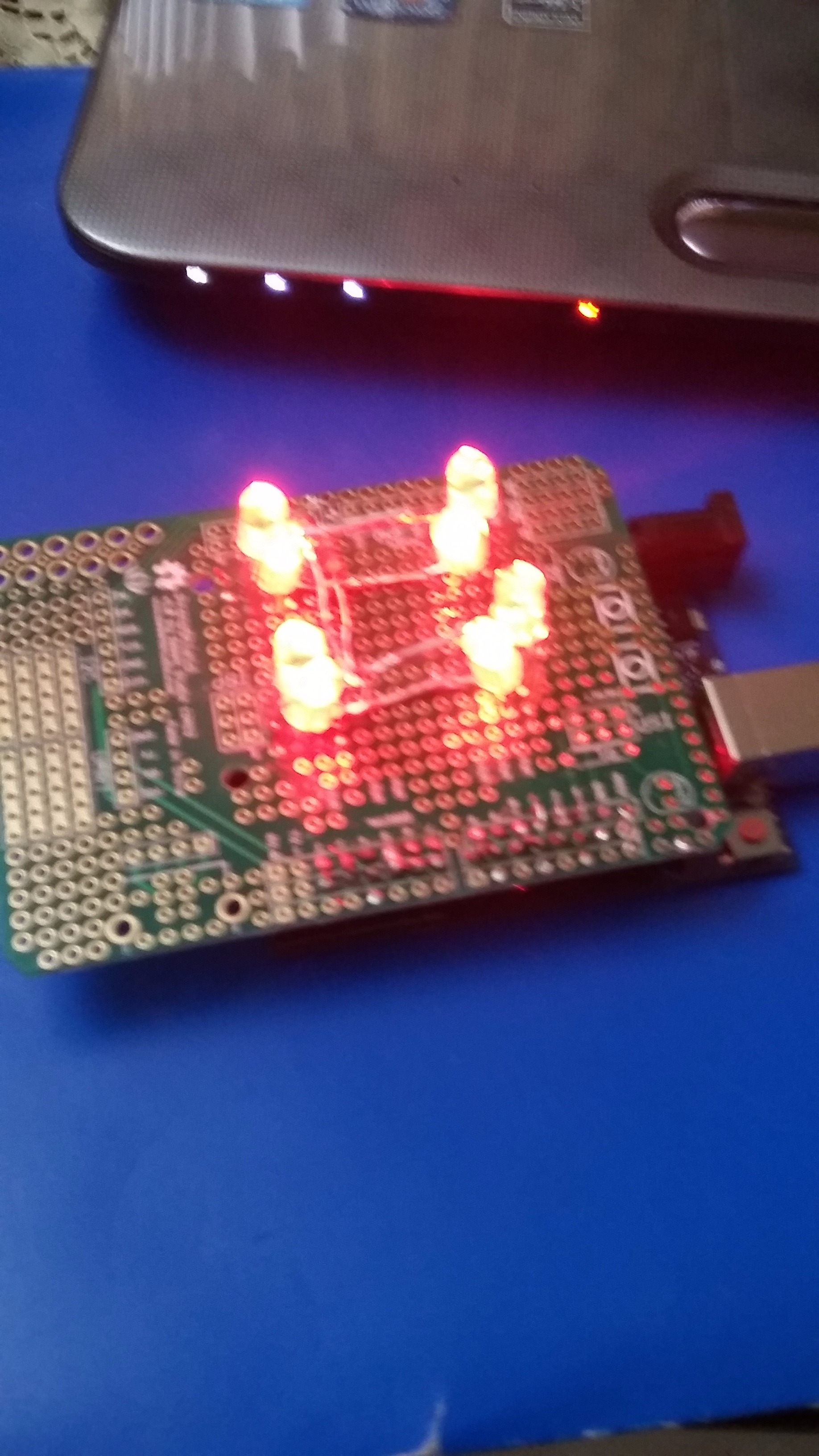

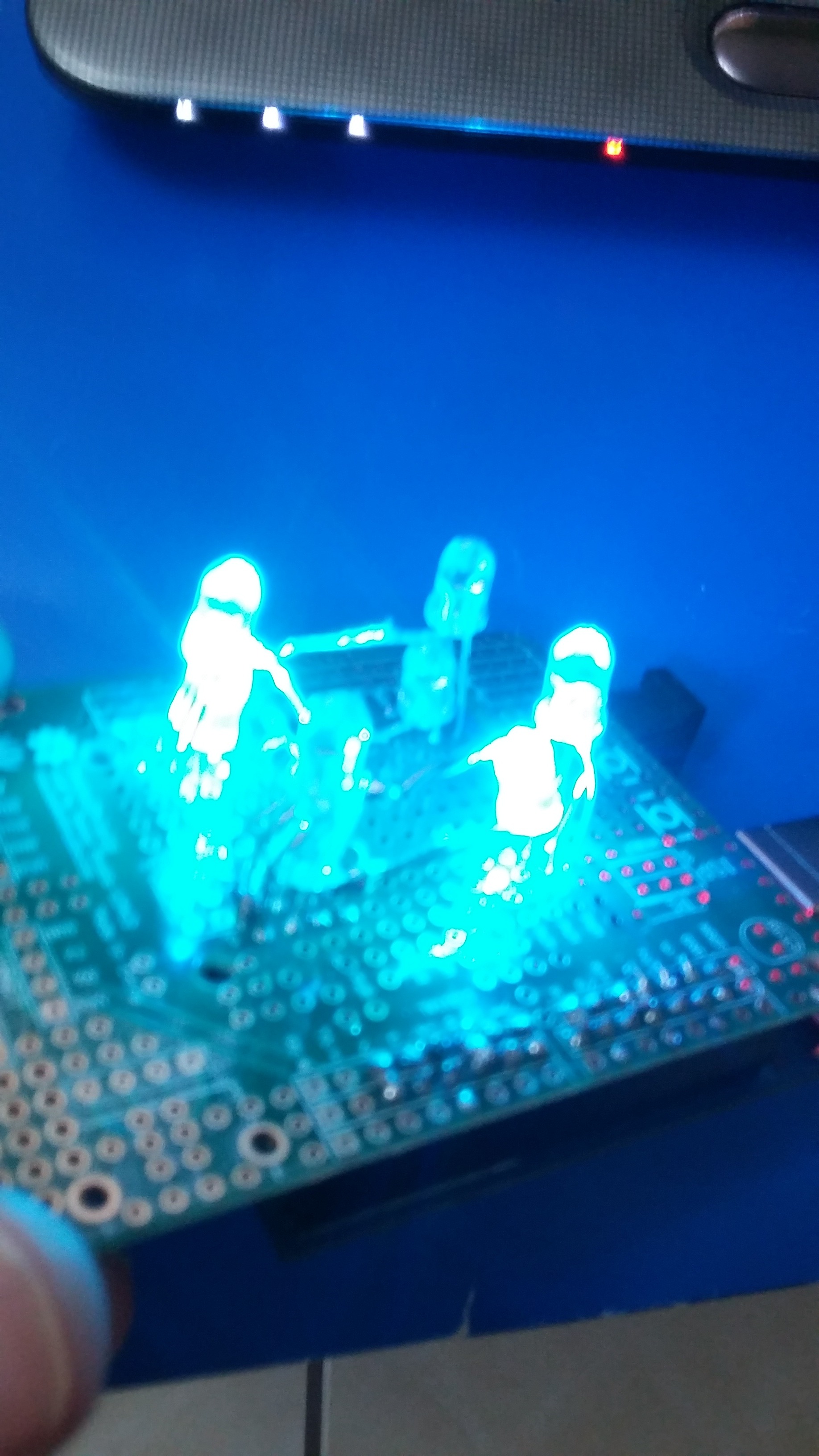

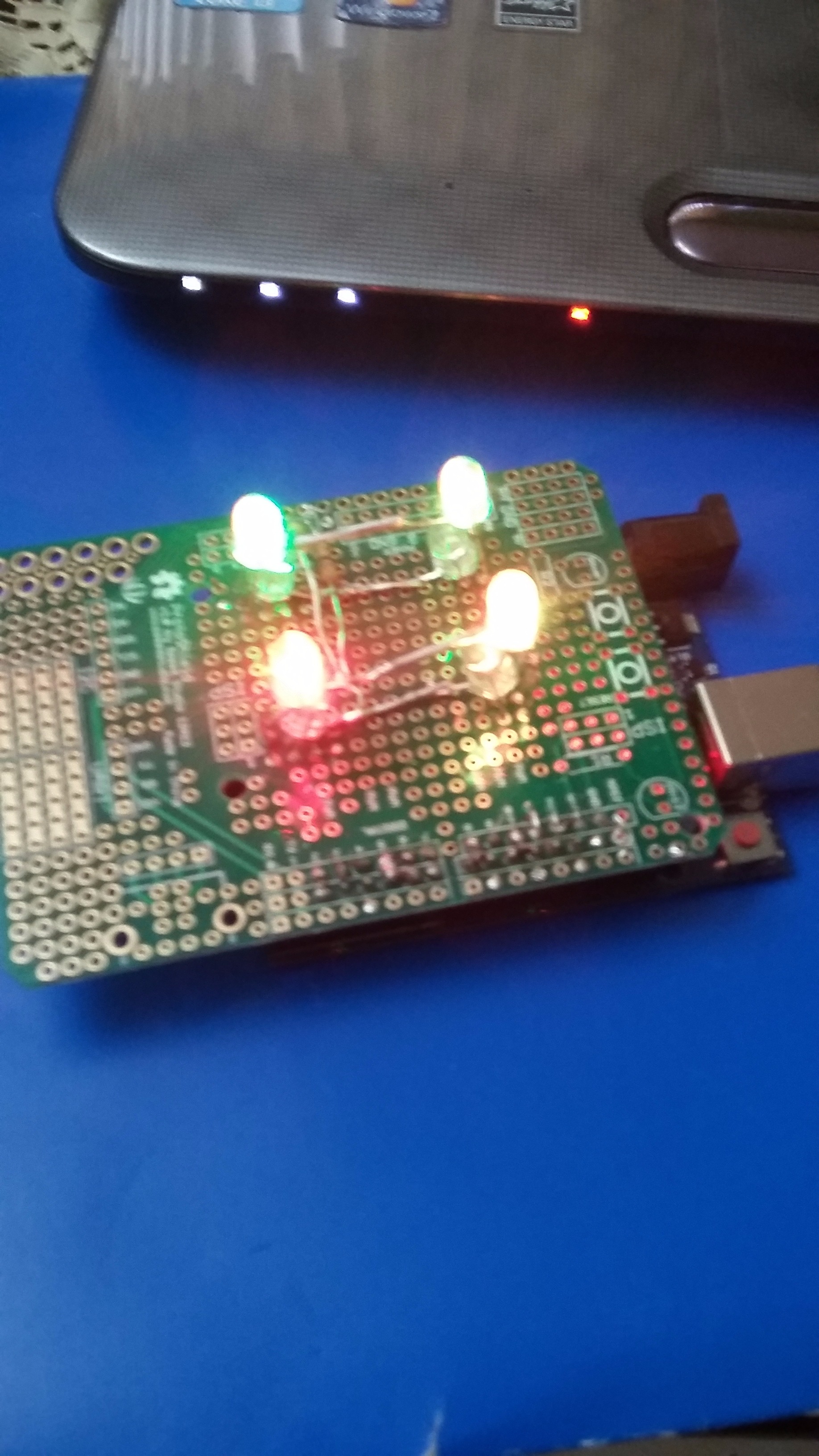

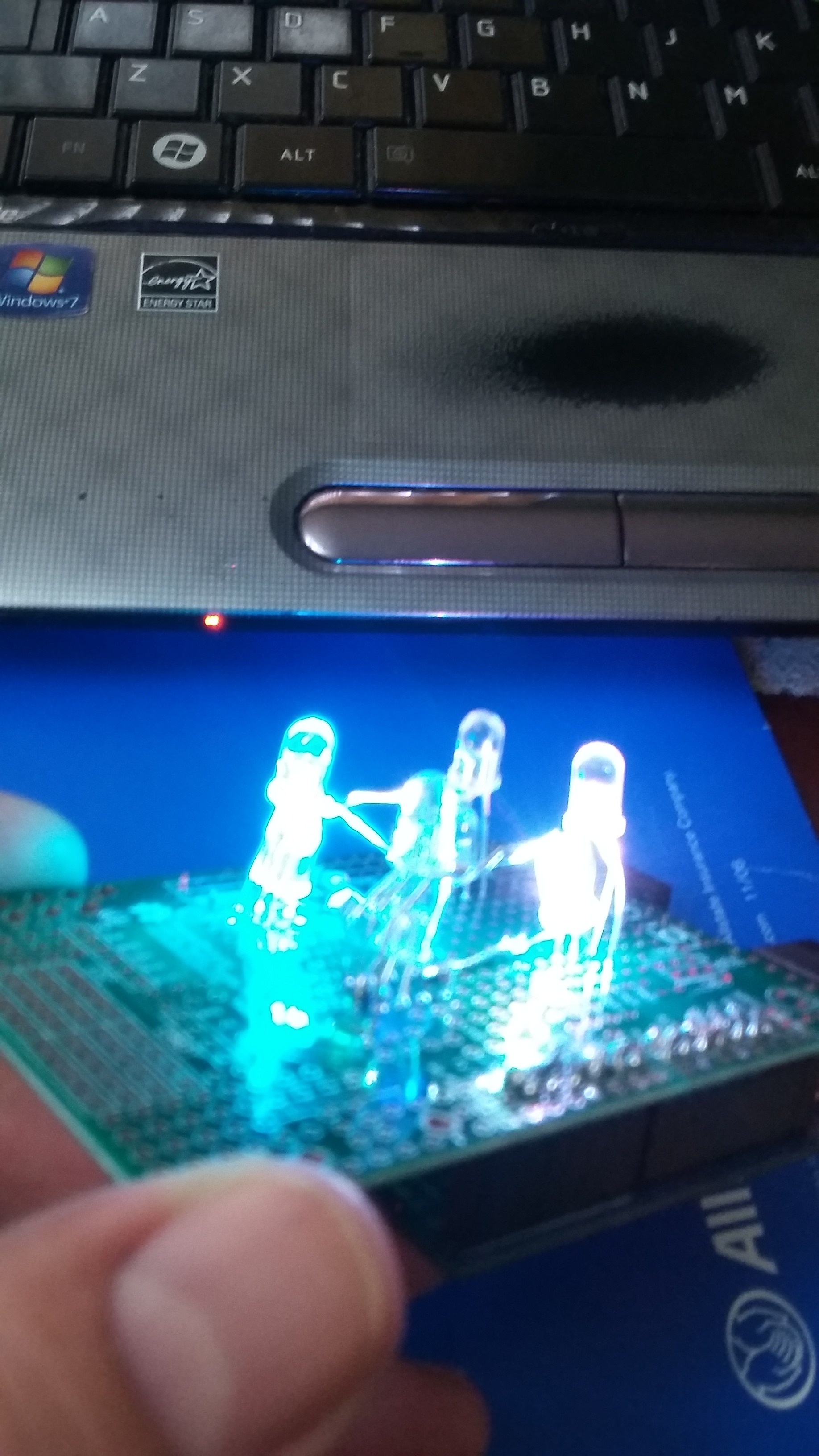

A Simple RGB LED Cube 2X2X2

This project is an RGB LED Cube because it lets to you multiply the amount of colors that you obtain from a cube using 14 outputs from an Arduino uno so you use 12 outputs to control the LEDs and 2 outputs for controling the cube's planes through 2 resistors of 100 Ohm. For uploading the code, go to the following website: http://pastebin.com/Vt96H2pi

What you will need:

1 Arduino Uno

1 PCB for Arduino

8 Common cathode RGB LEDs

2 100 Ohm resistor

1 #22 copper wire (1 meter)

1 Heat Shrink Tube (1meter)

1 40-pin array for Arduino shield

1 Solder Roll

1 Soldering station

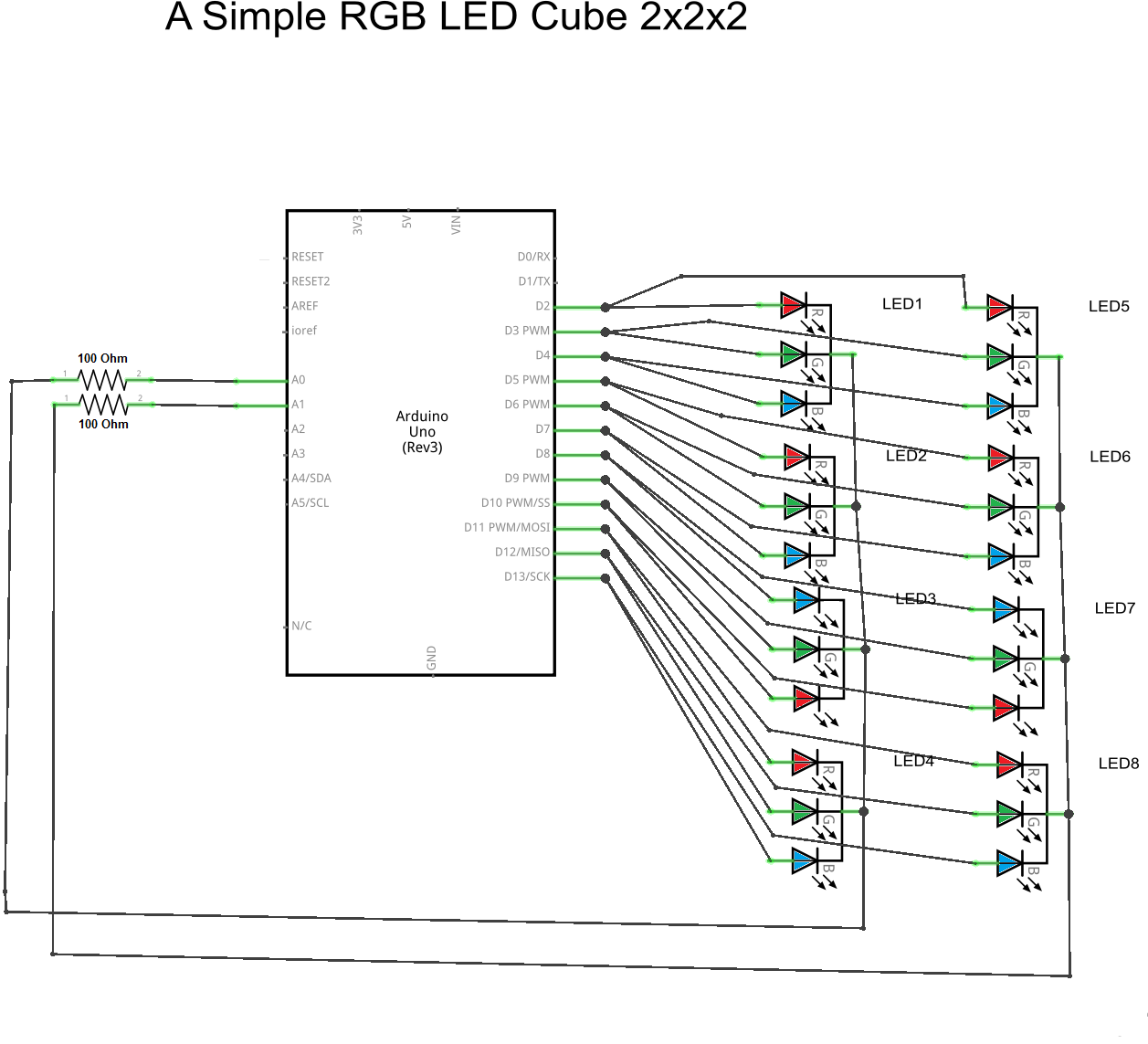

The diagram of your project is the most important thiing that you should take accounting so that you have success and can work without any problem. Follow carefully the schematic!!!!

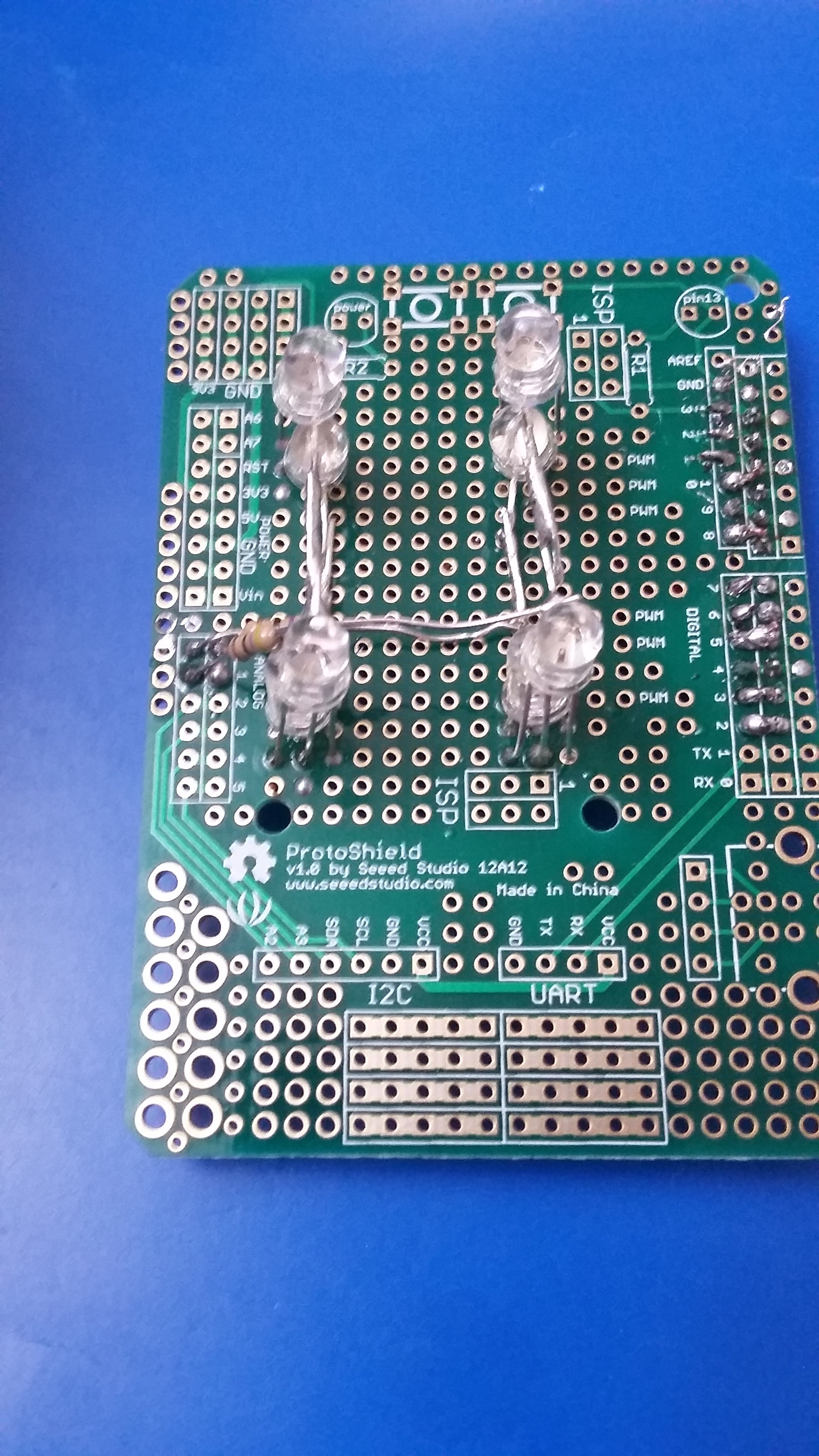

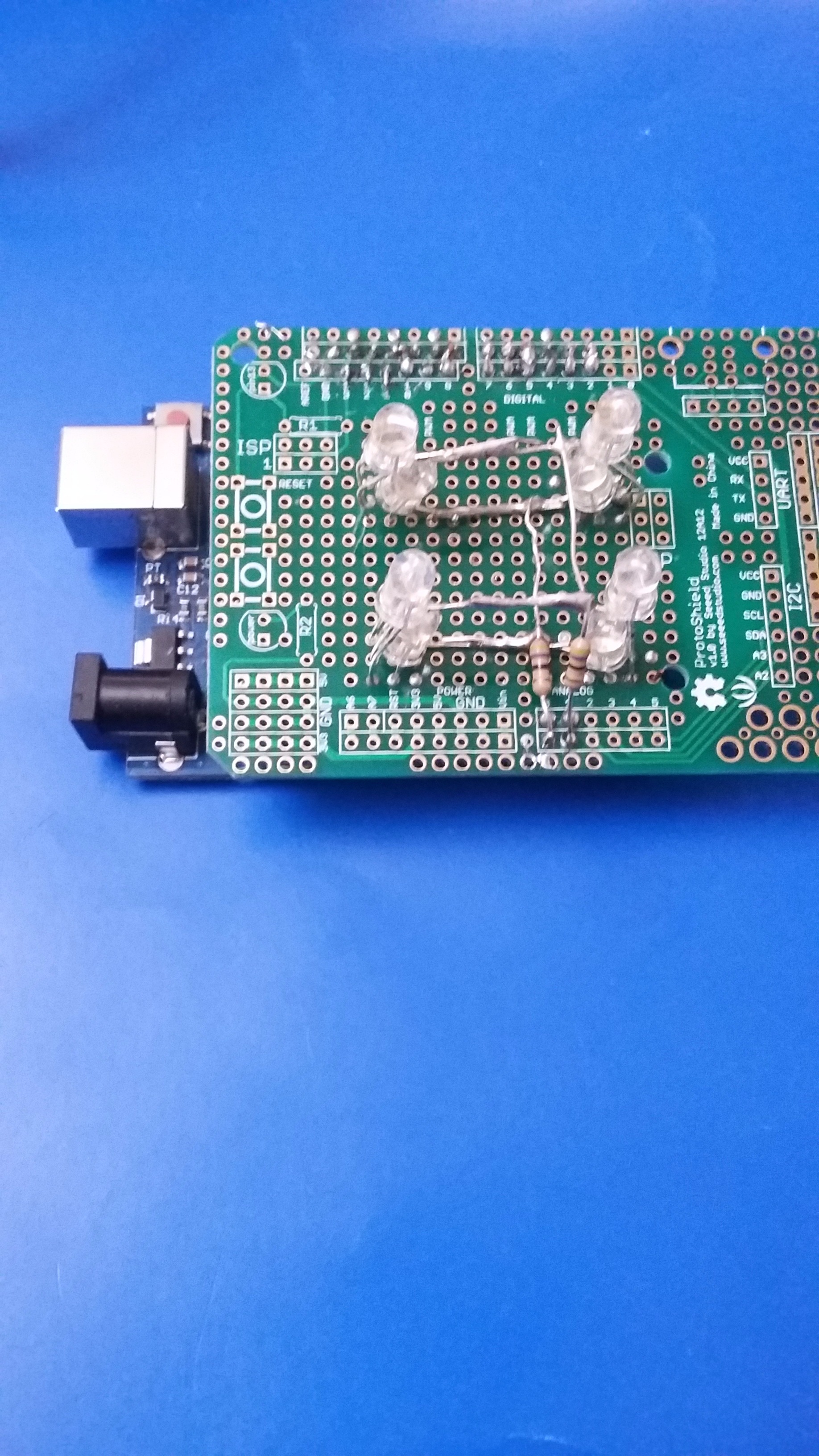

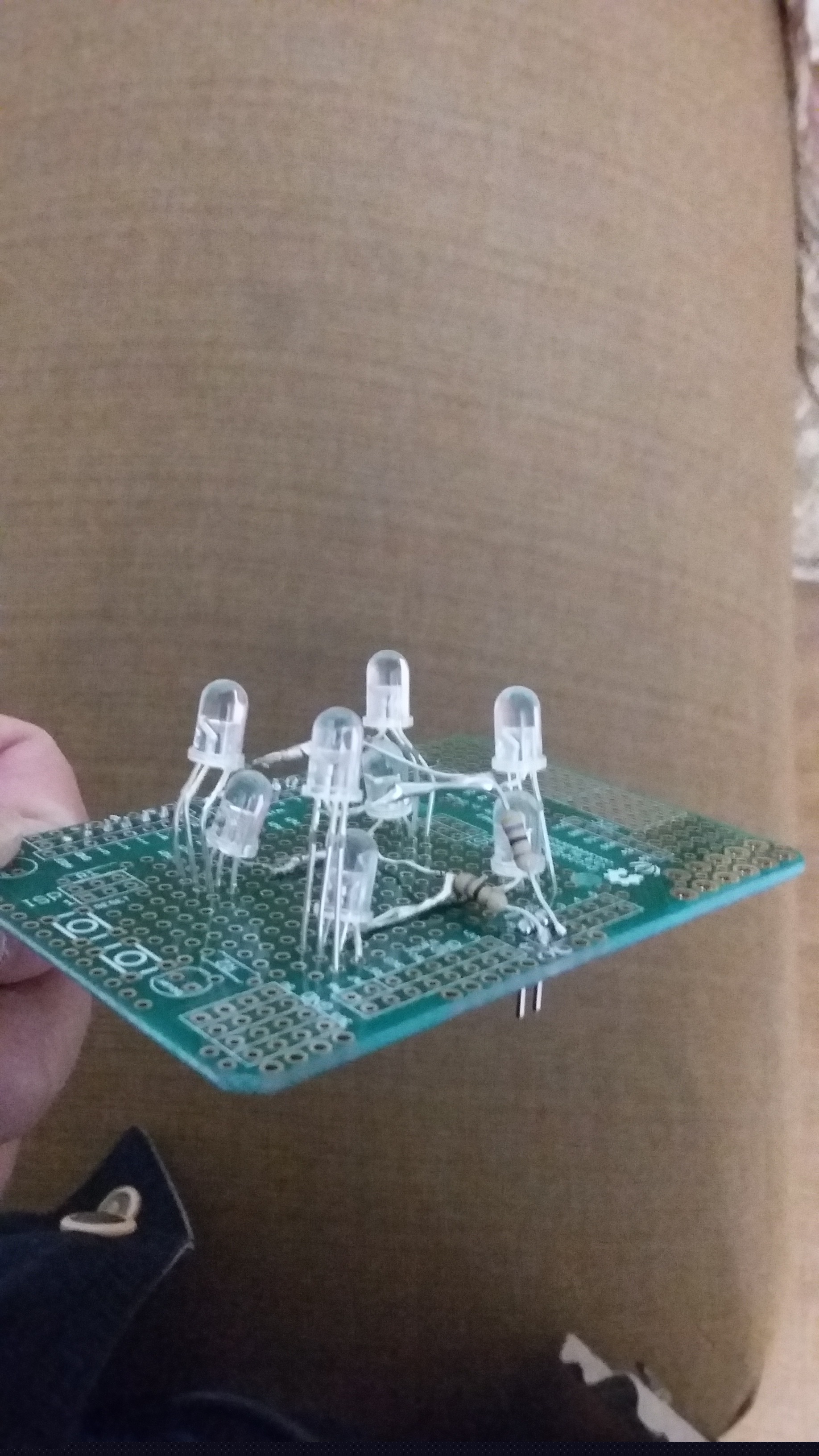

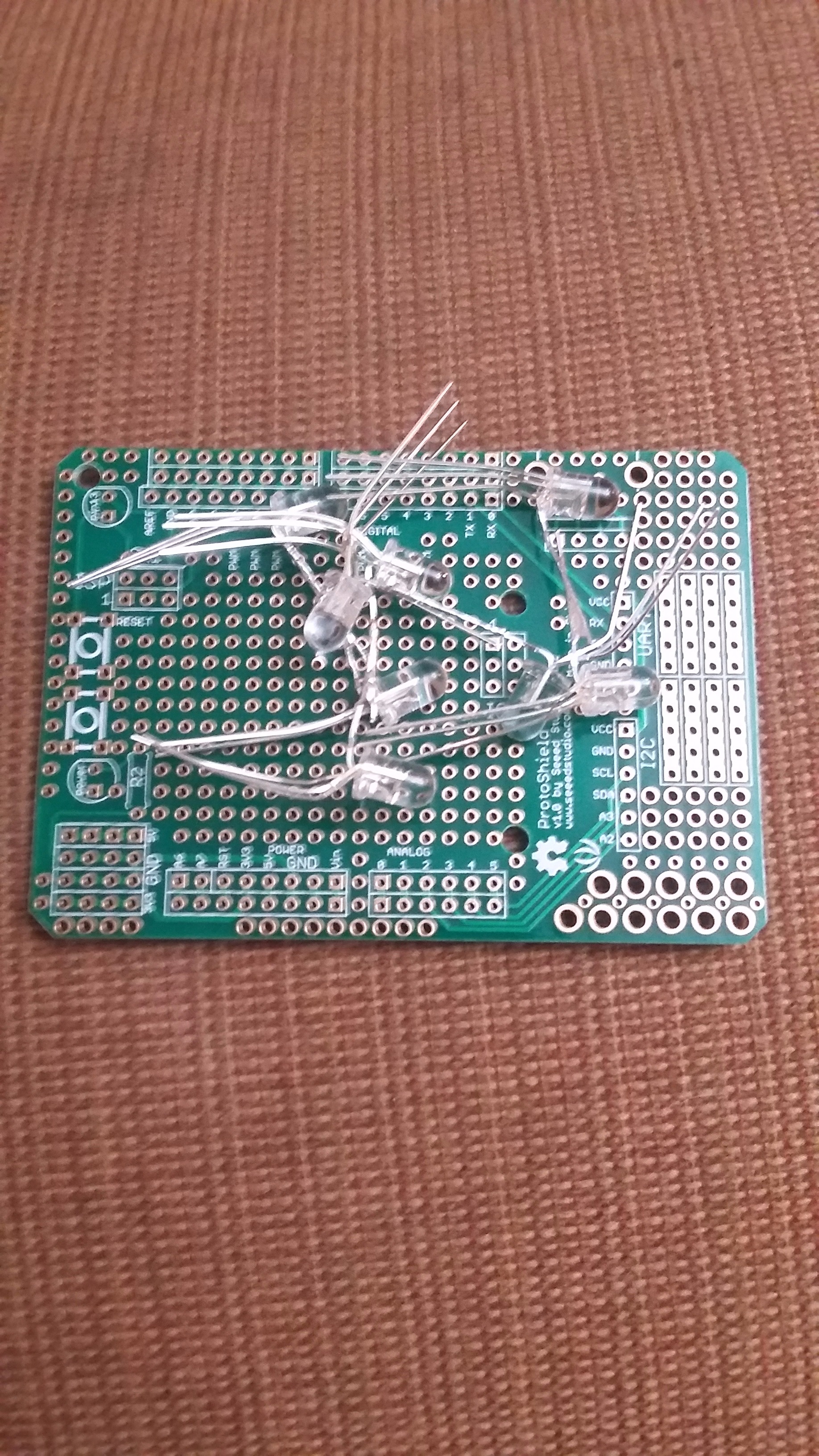

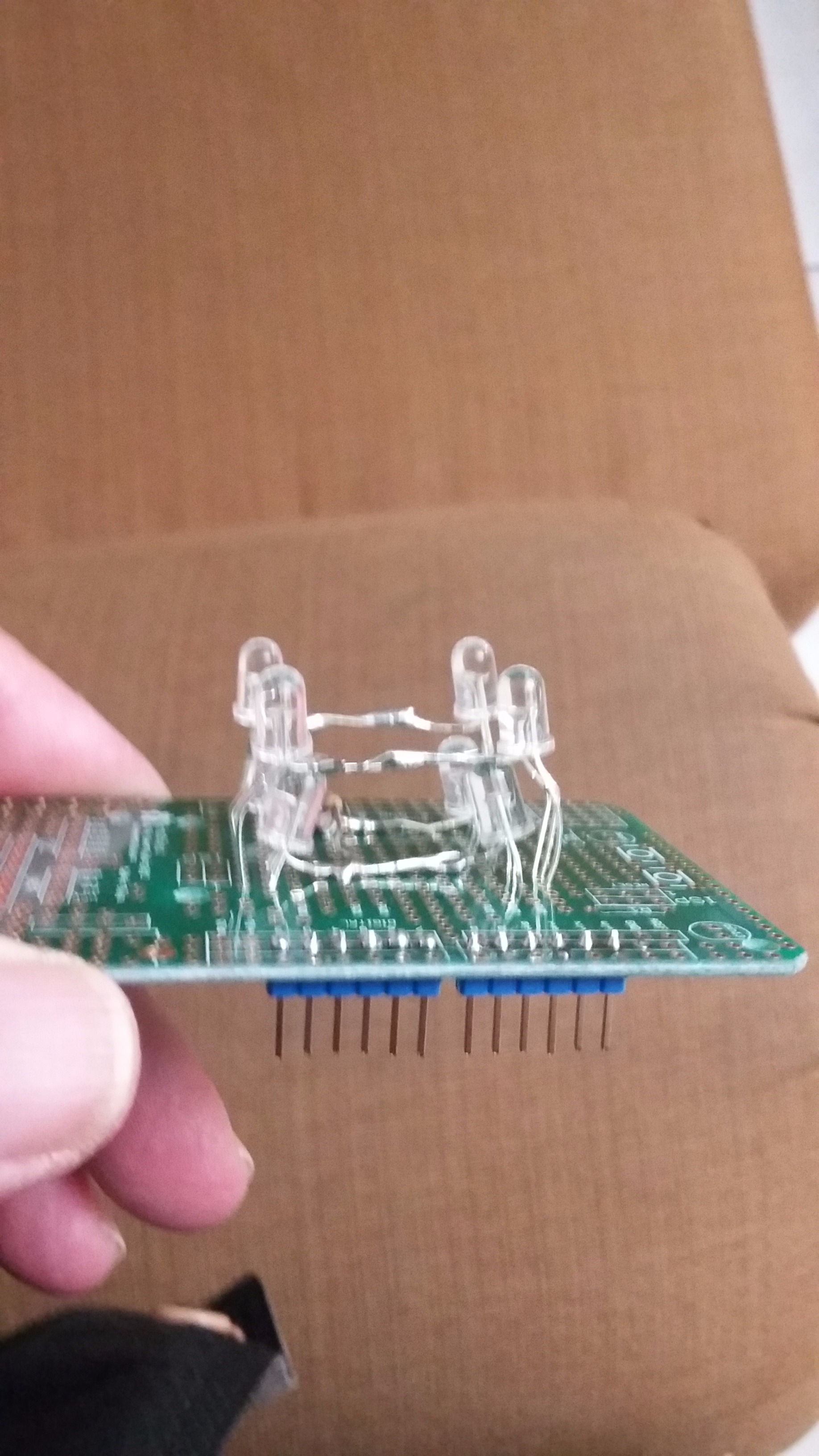

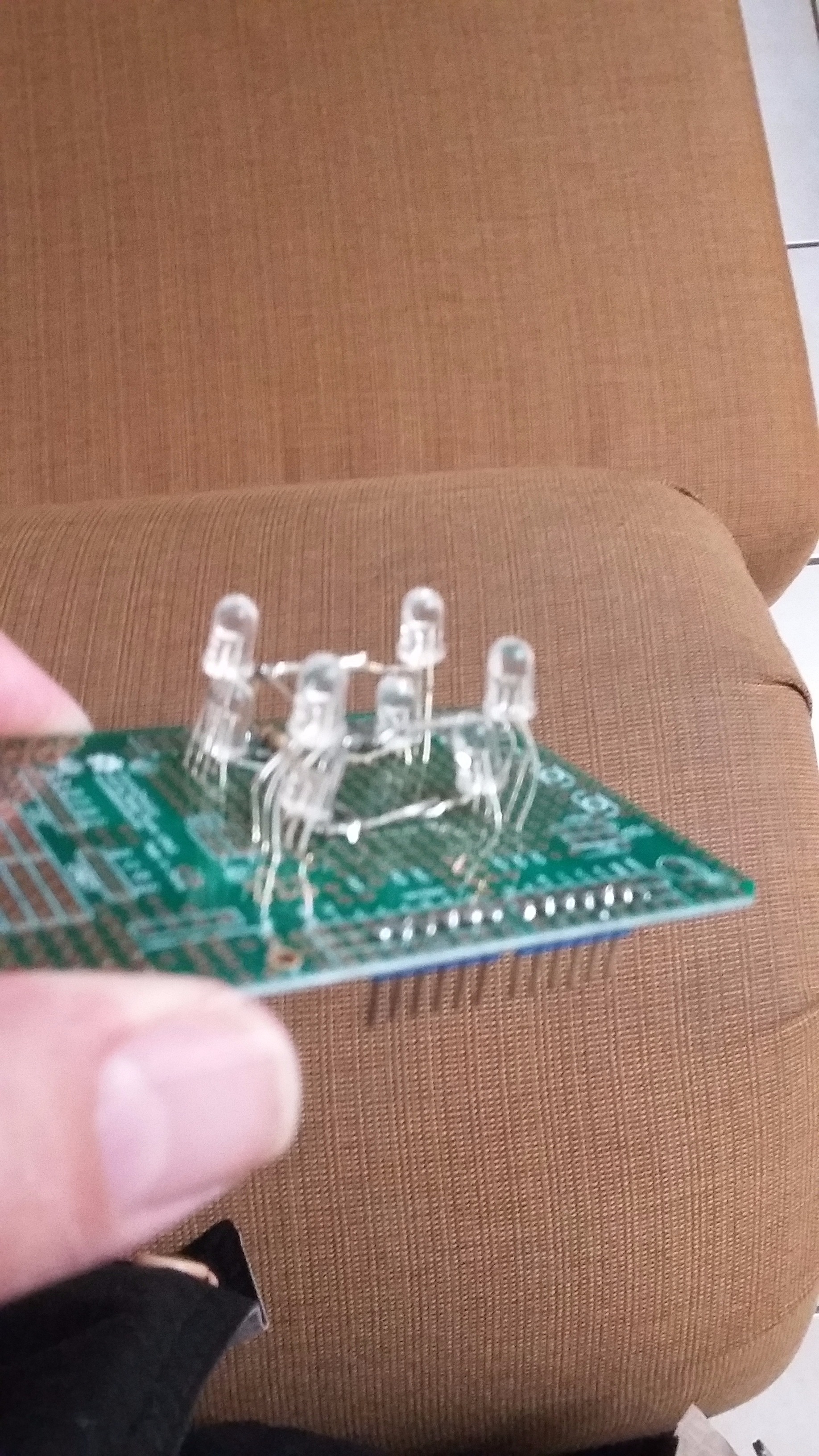

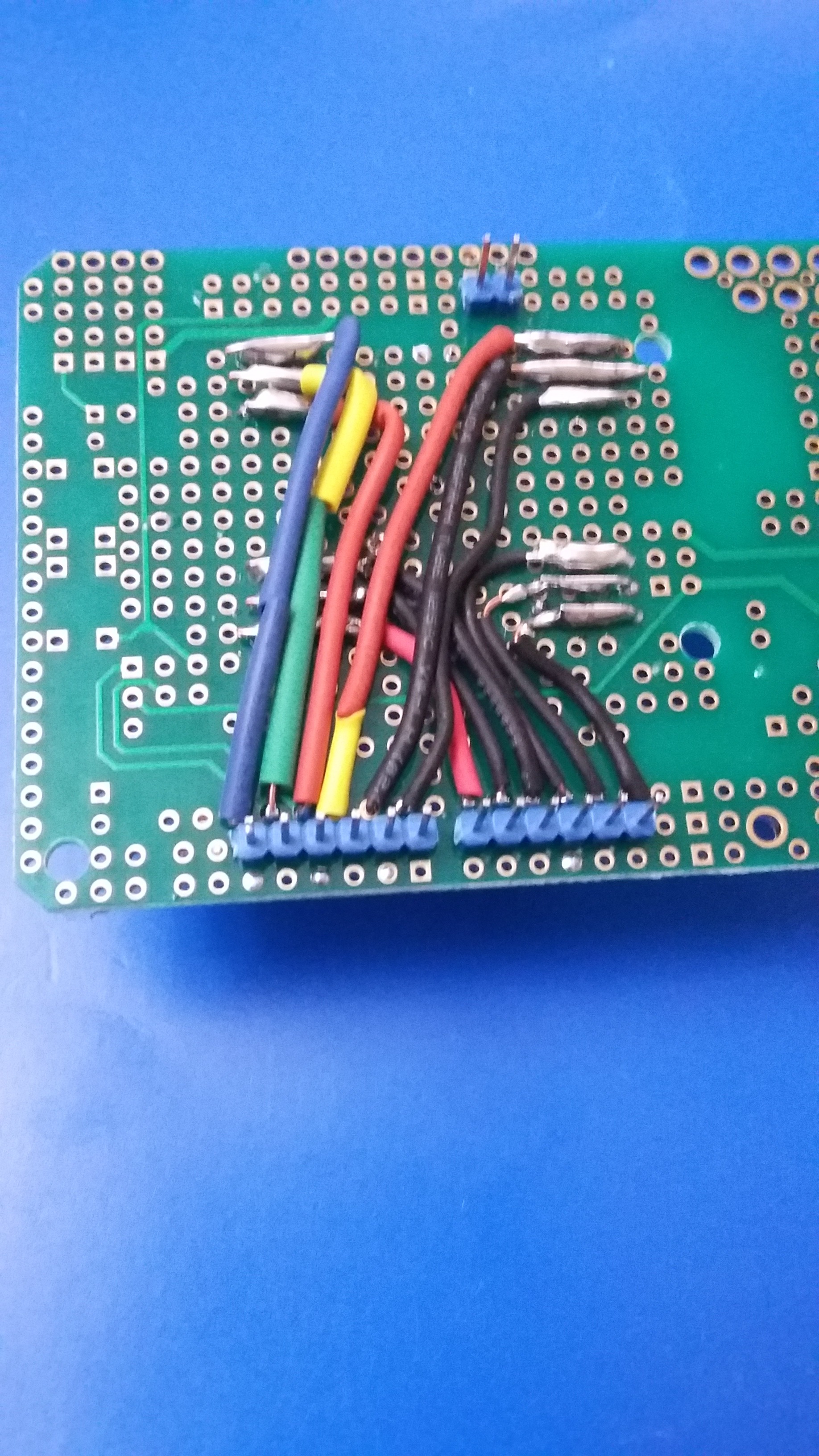

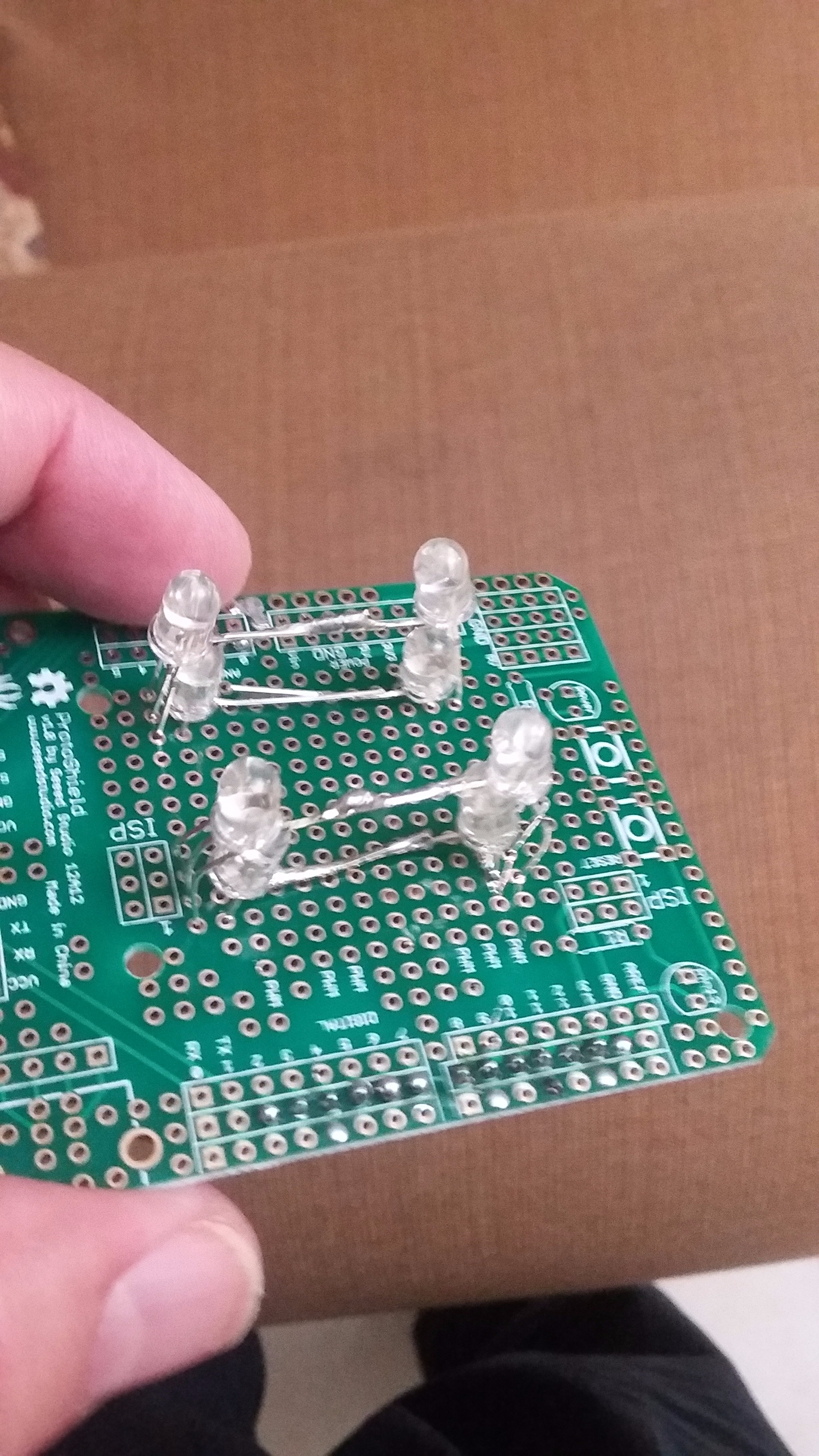

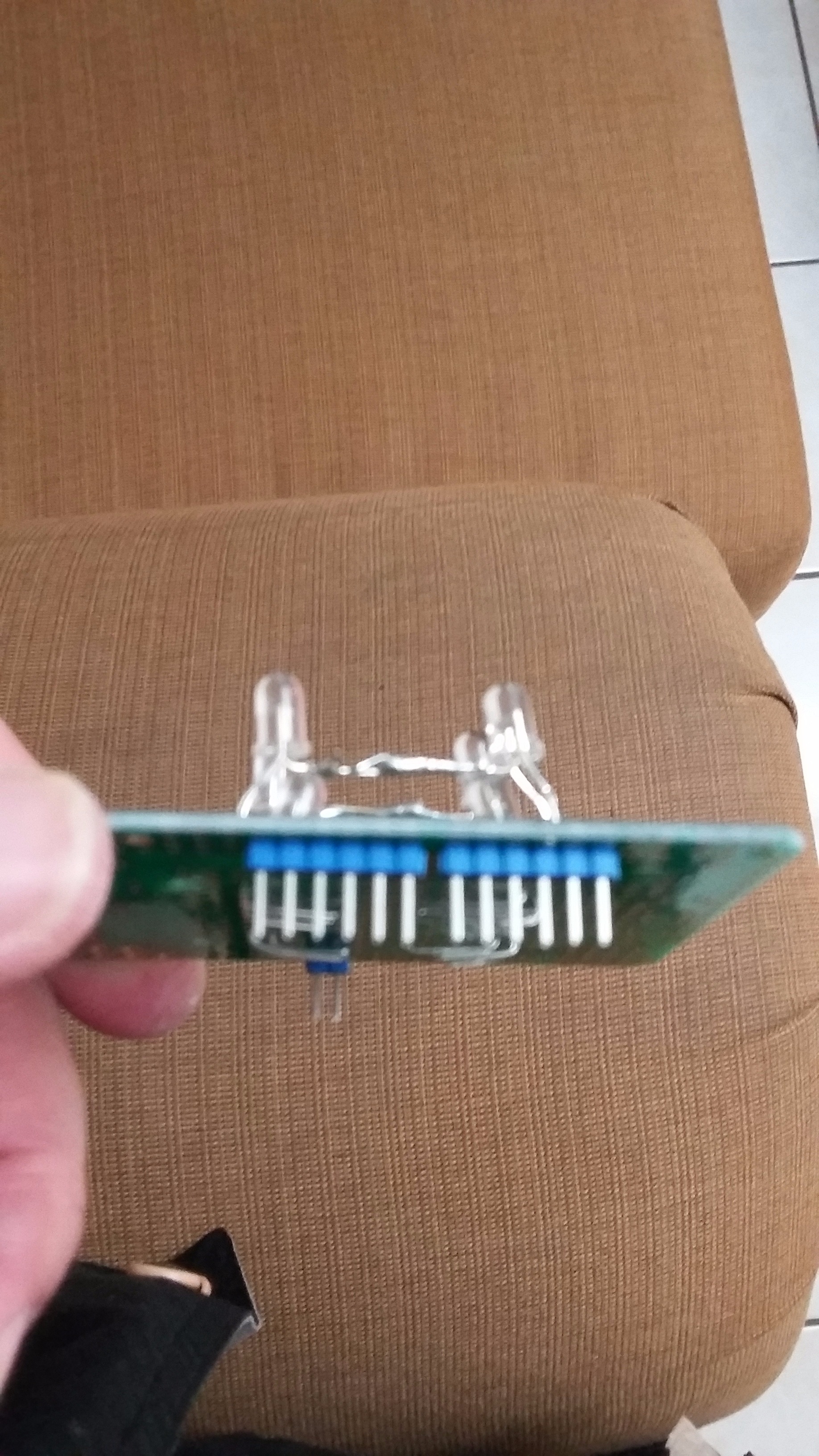

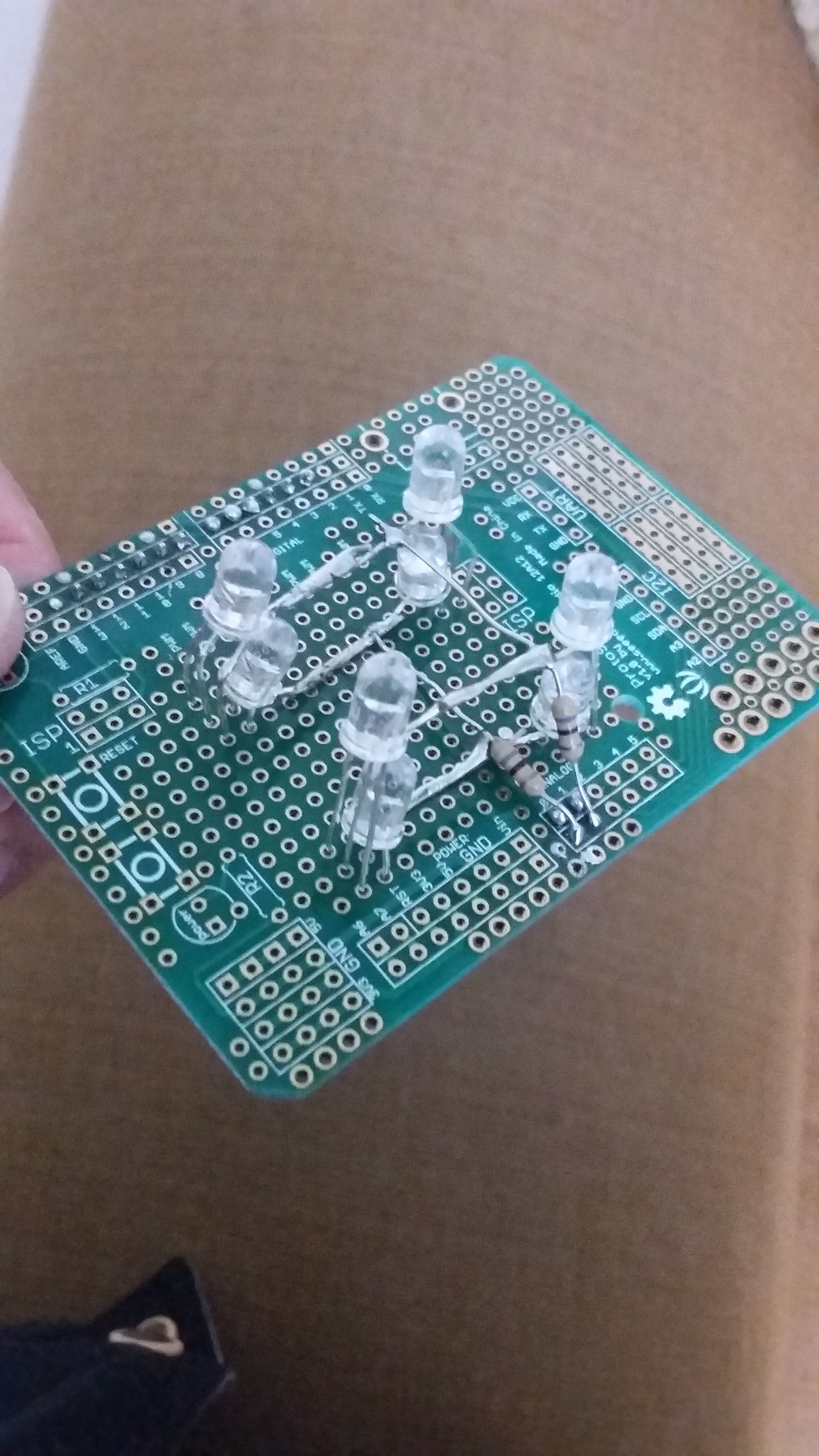

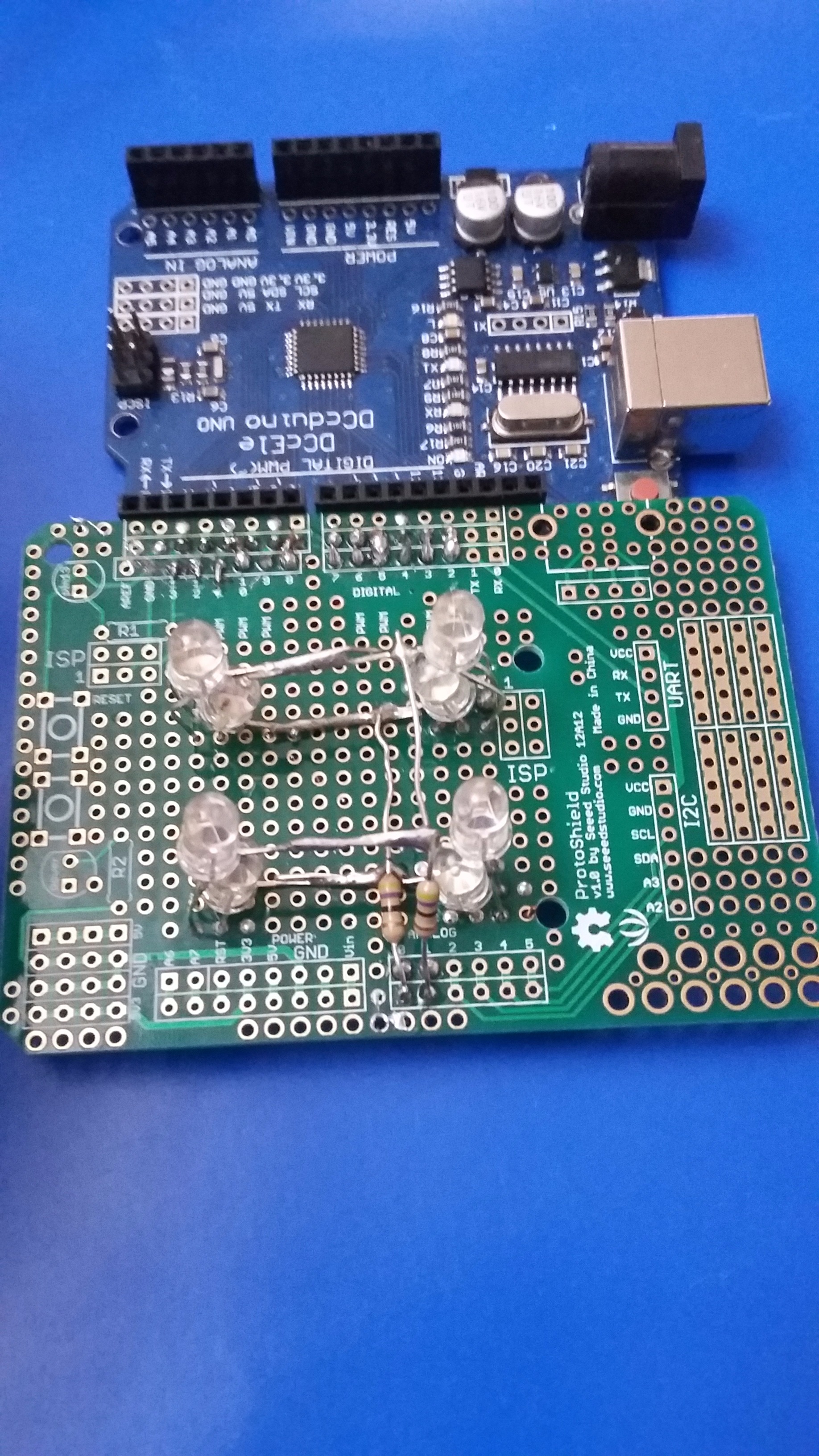

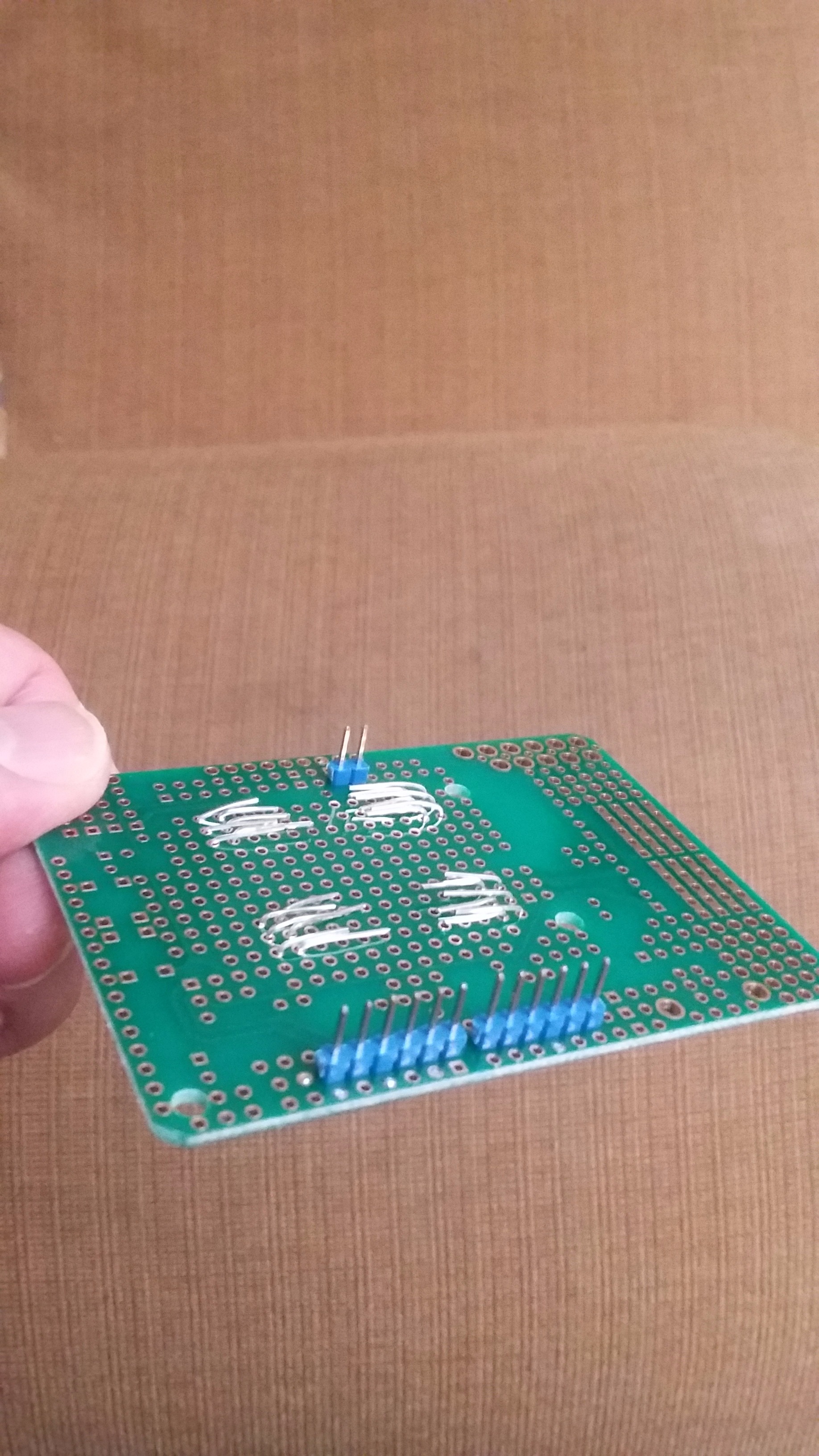

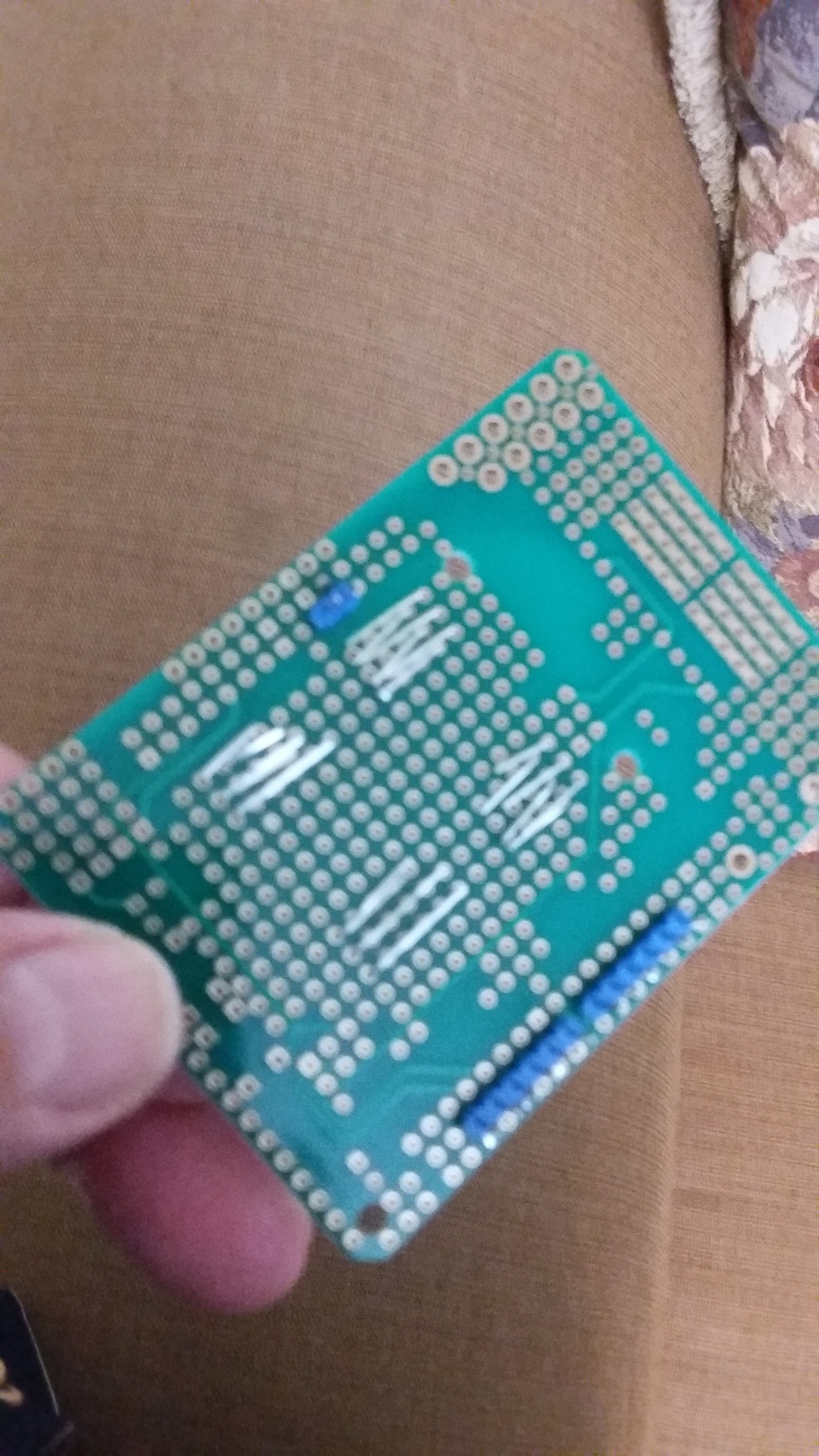

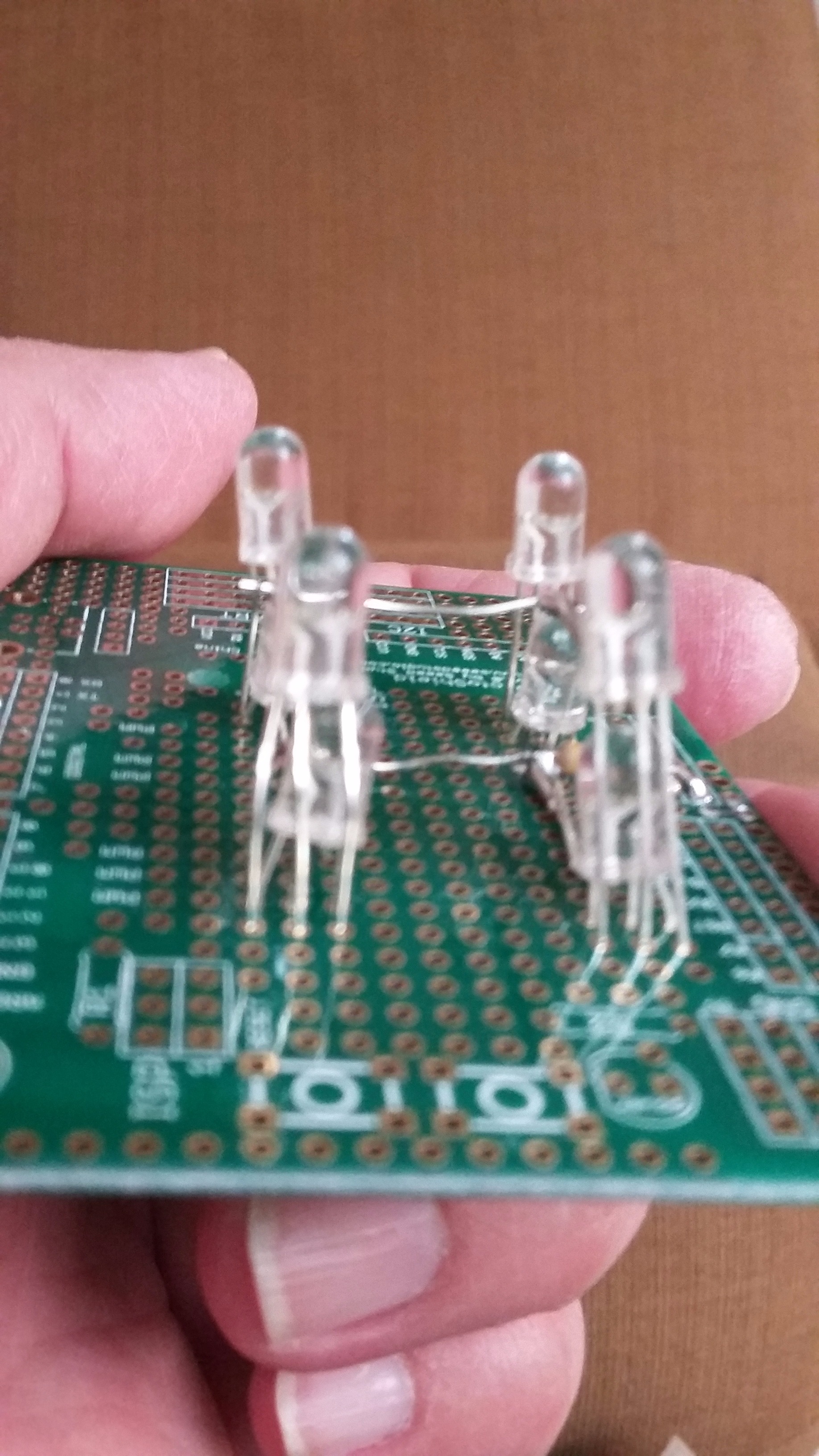

Assemble your project carefully so that you don't have any problem in each step and can enjoy it once concluded. Good Luck with your project. You have a great partner with the schematic of your project.

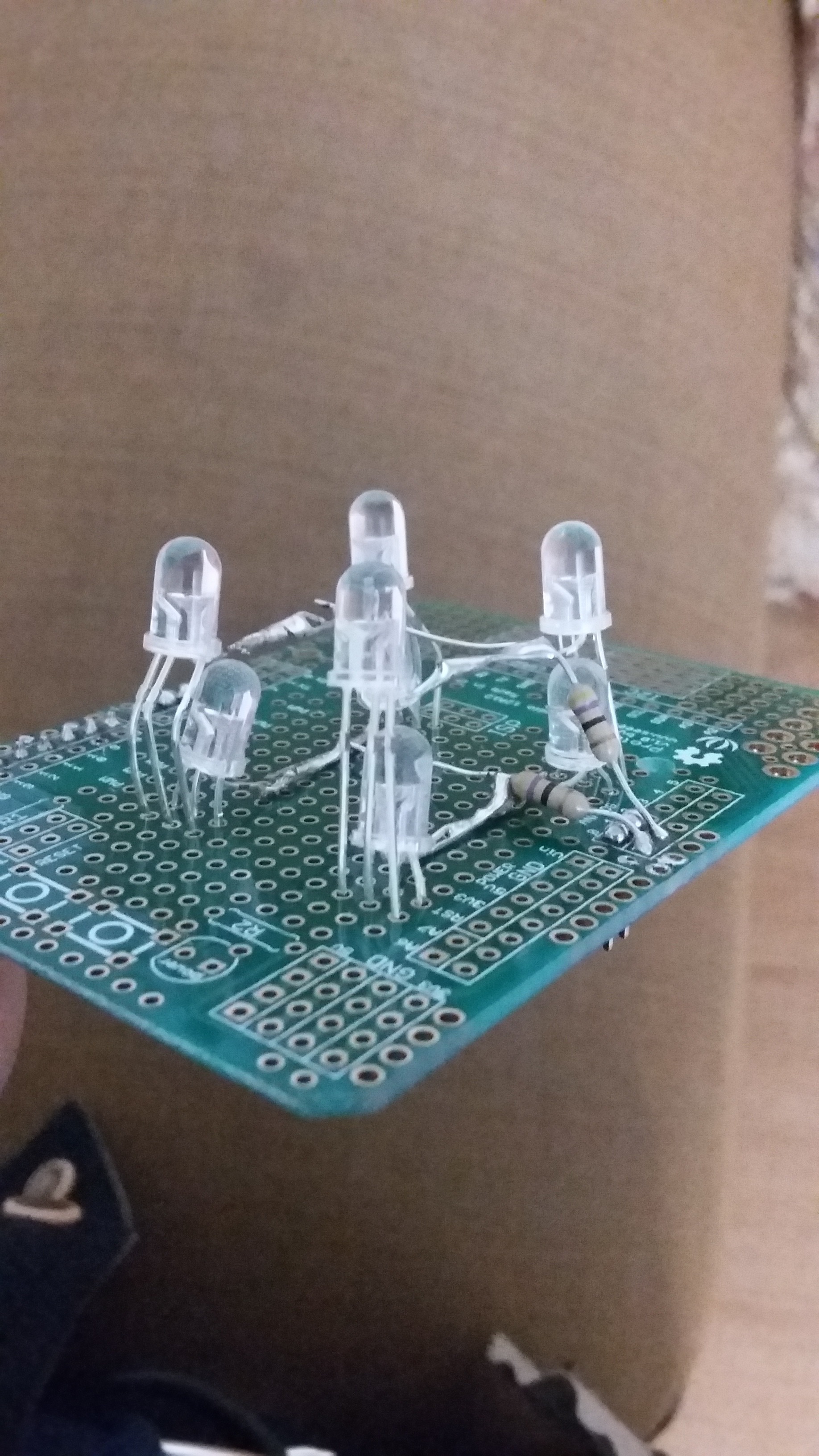

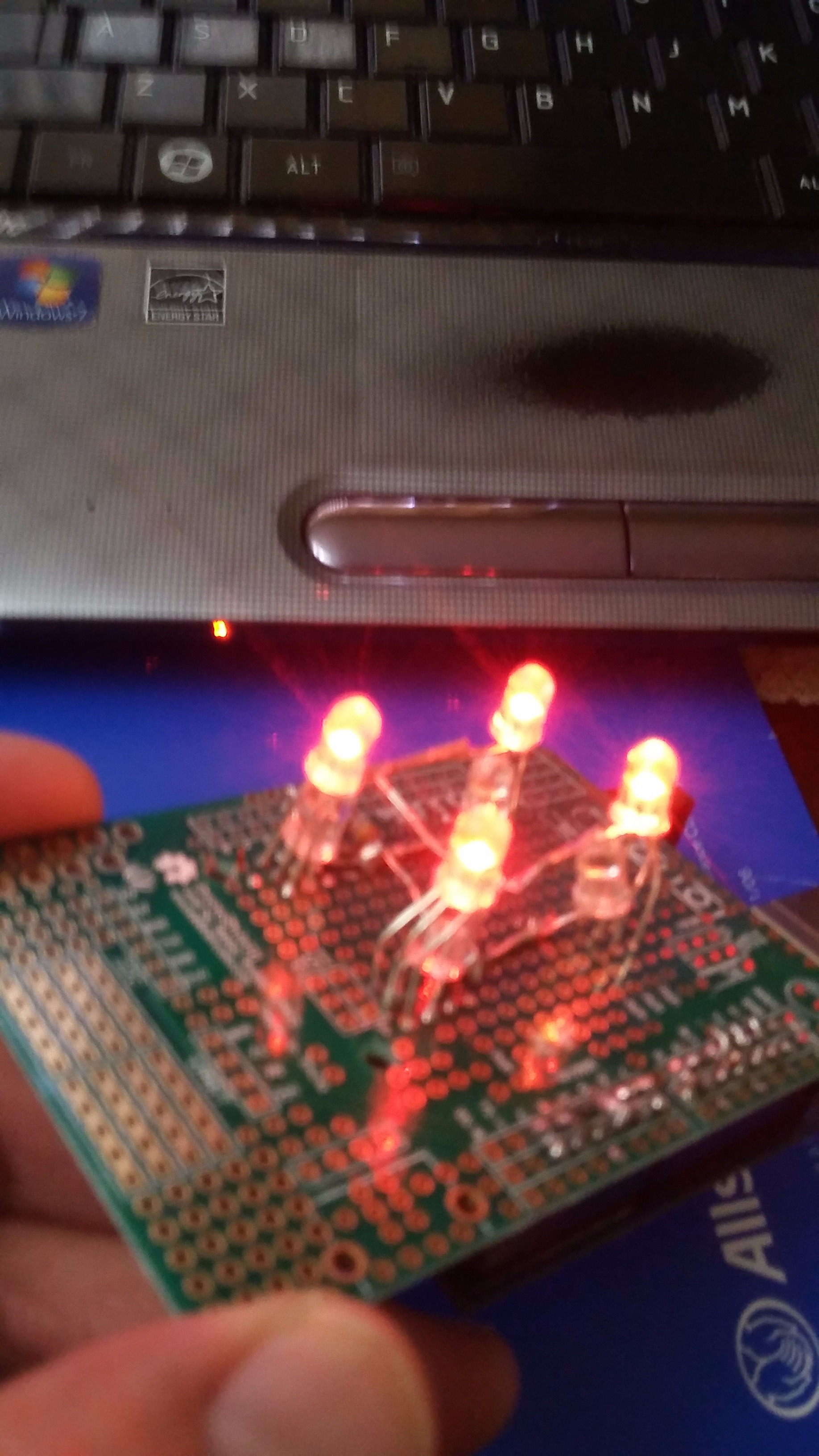

Complete your project.

Once completed the project, visit: http://pastebin.com

Then, upload the code from http://pastebin.com/Vt96H2pi

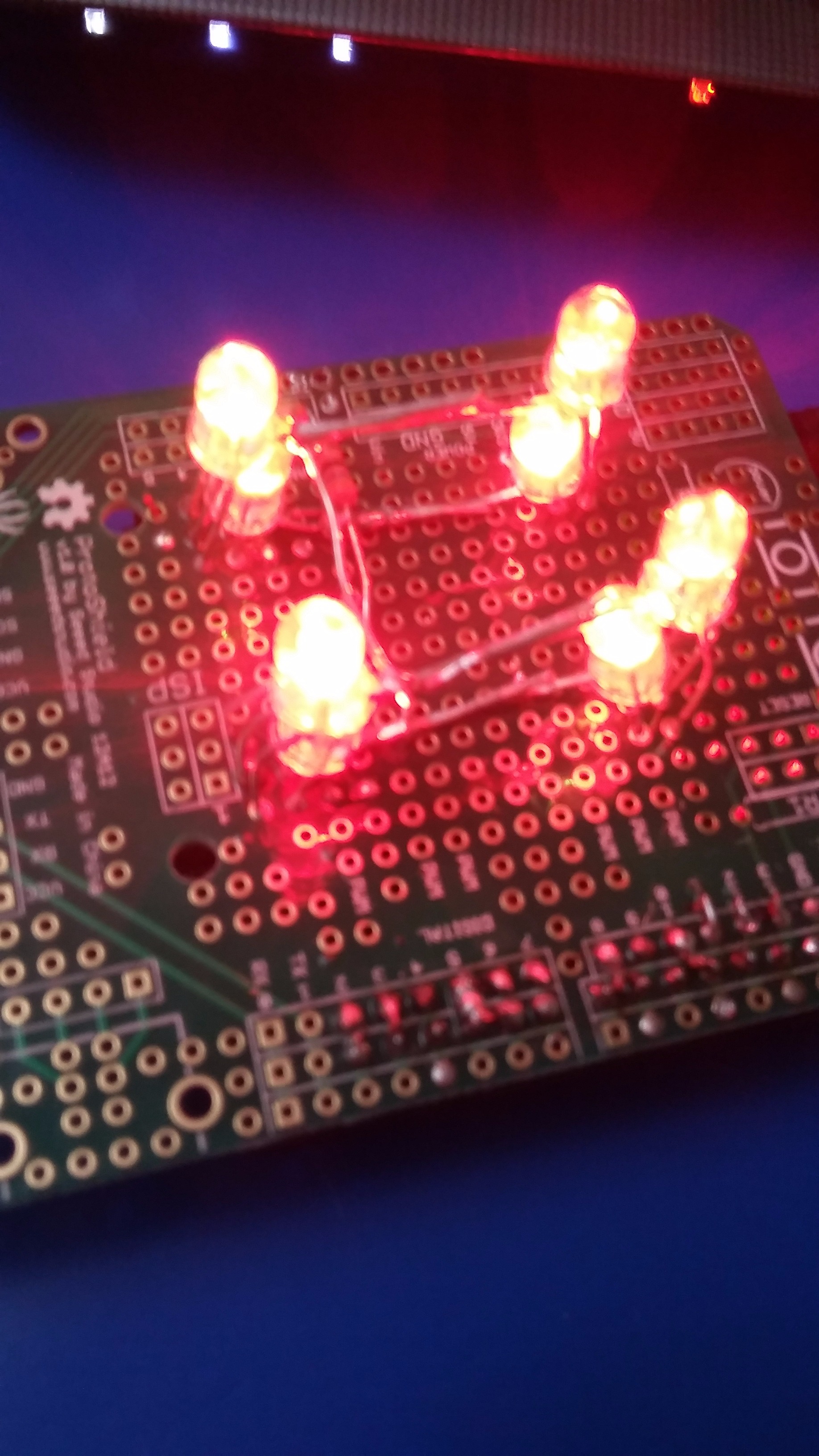

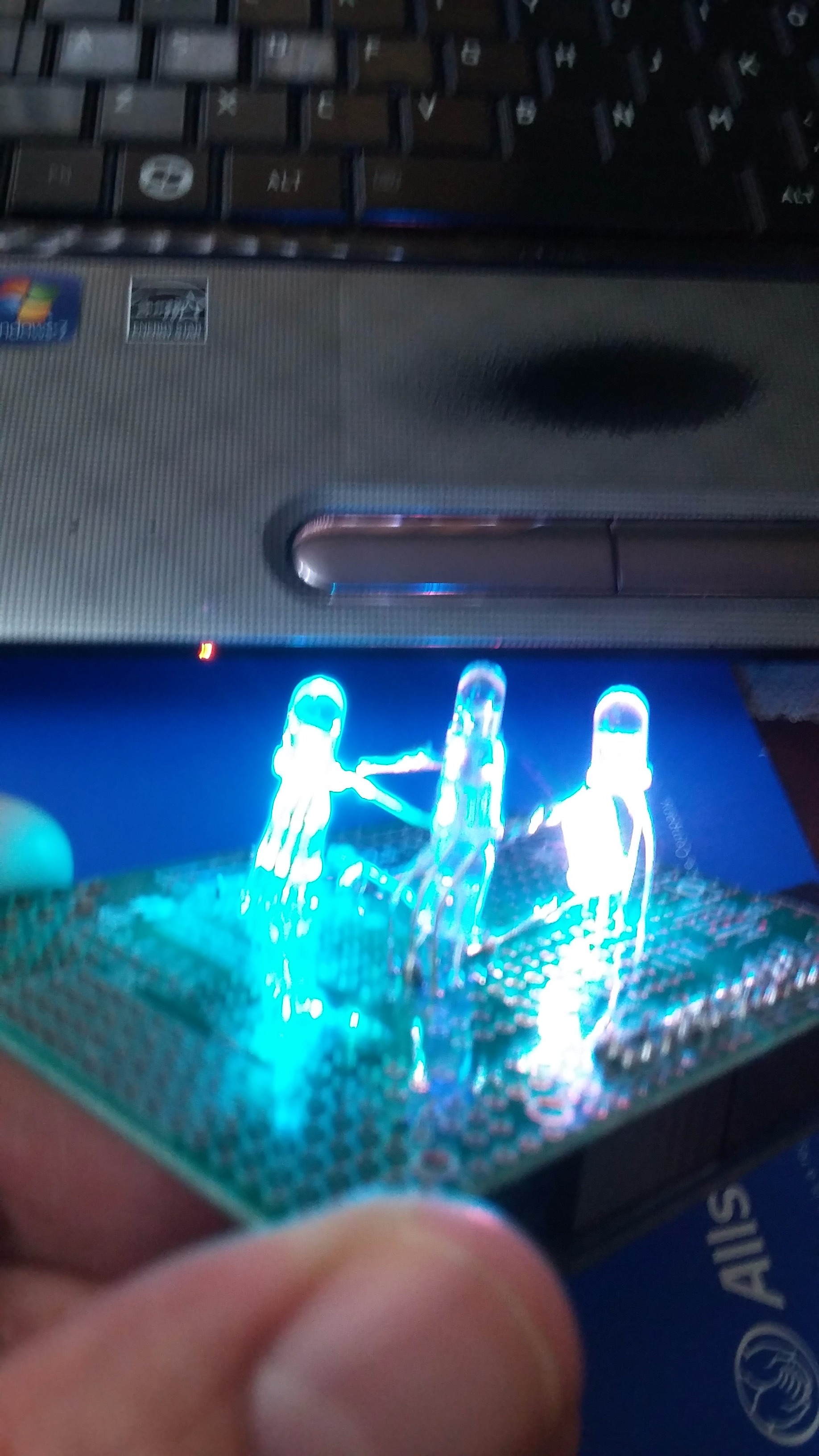

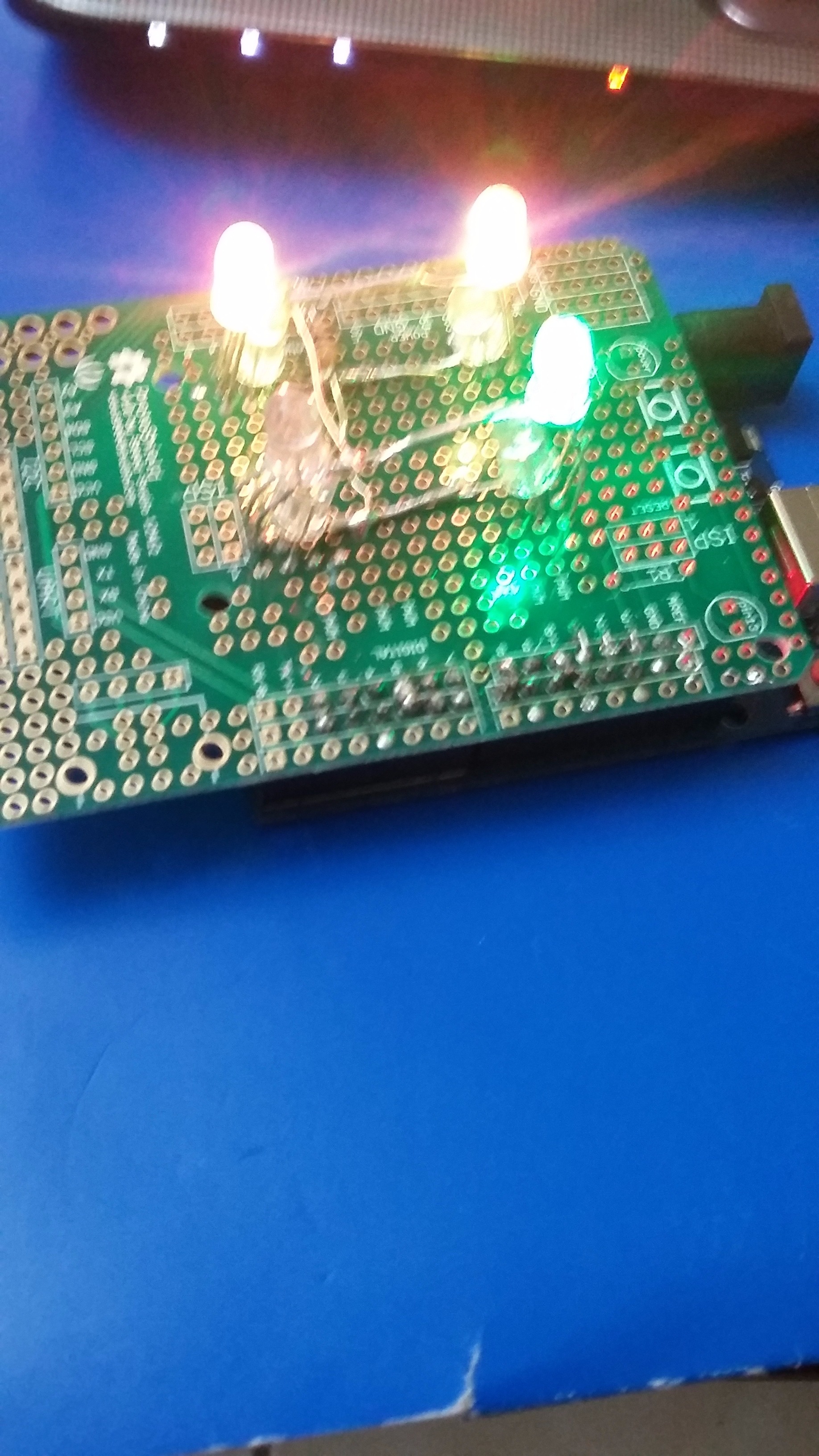

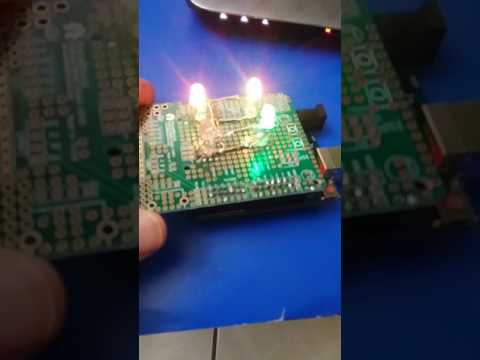

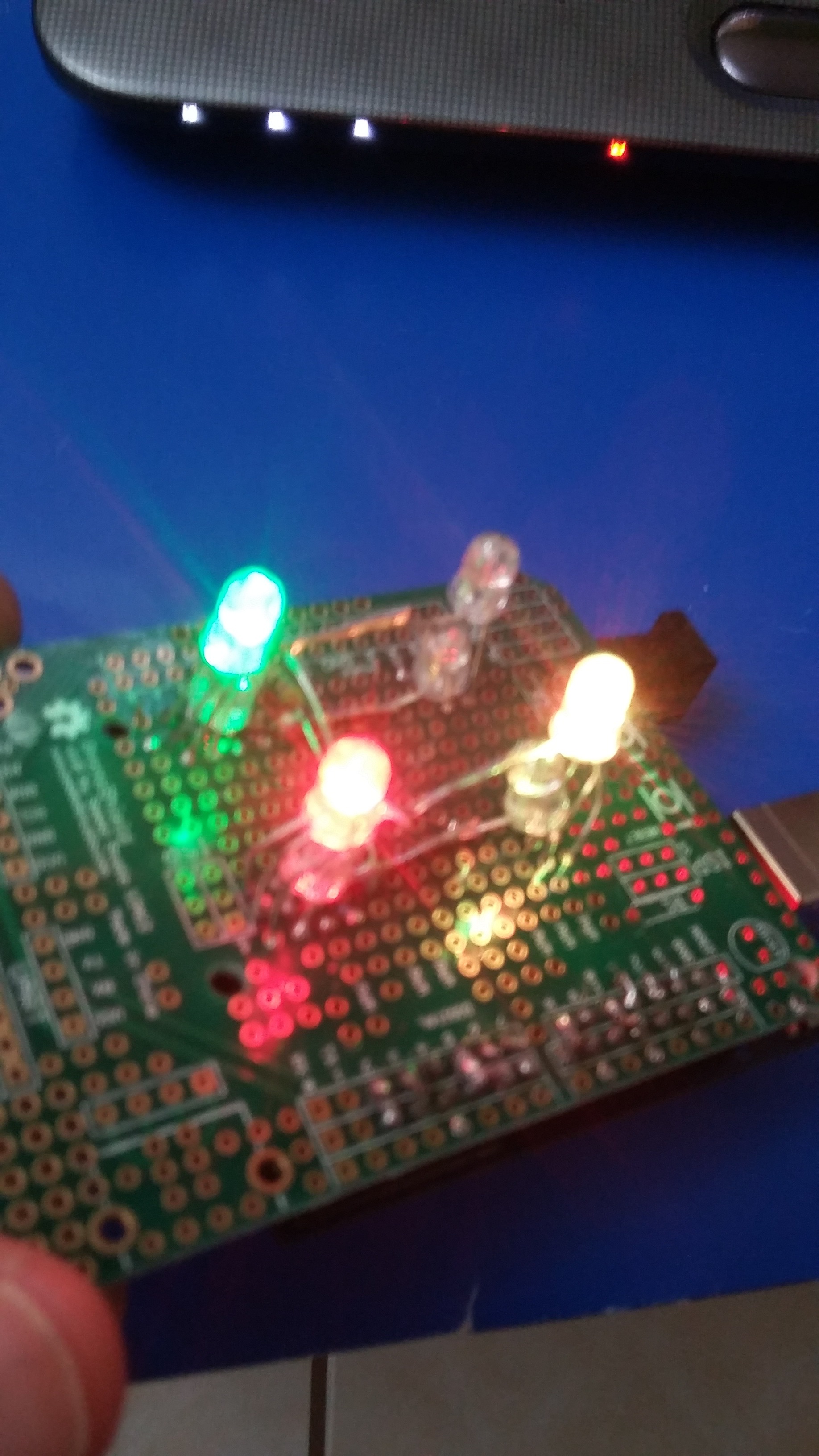

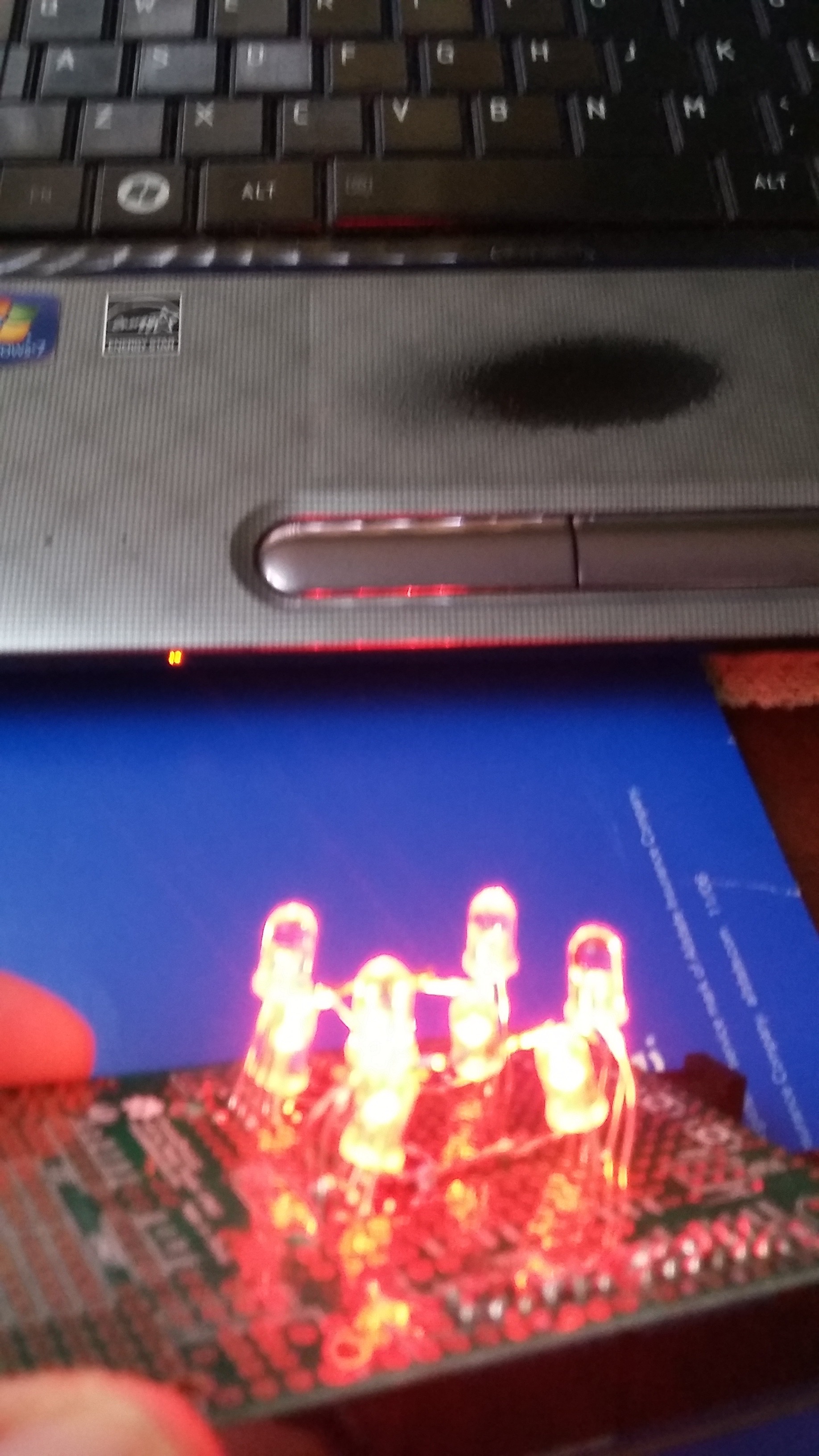

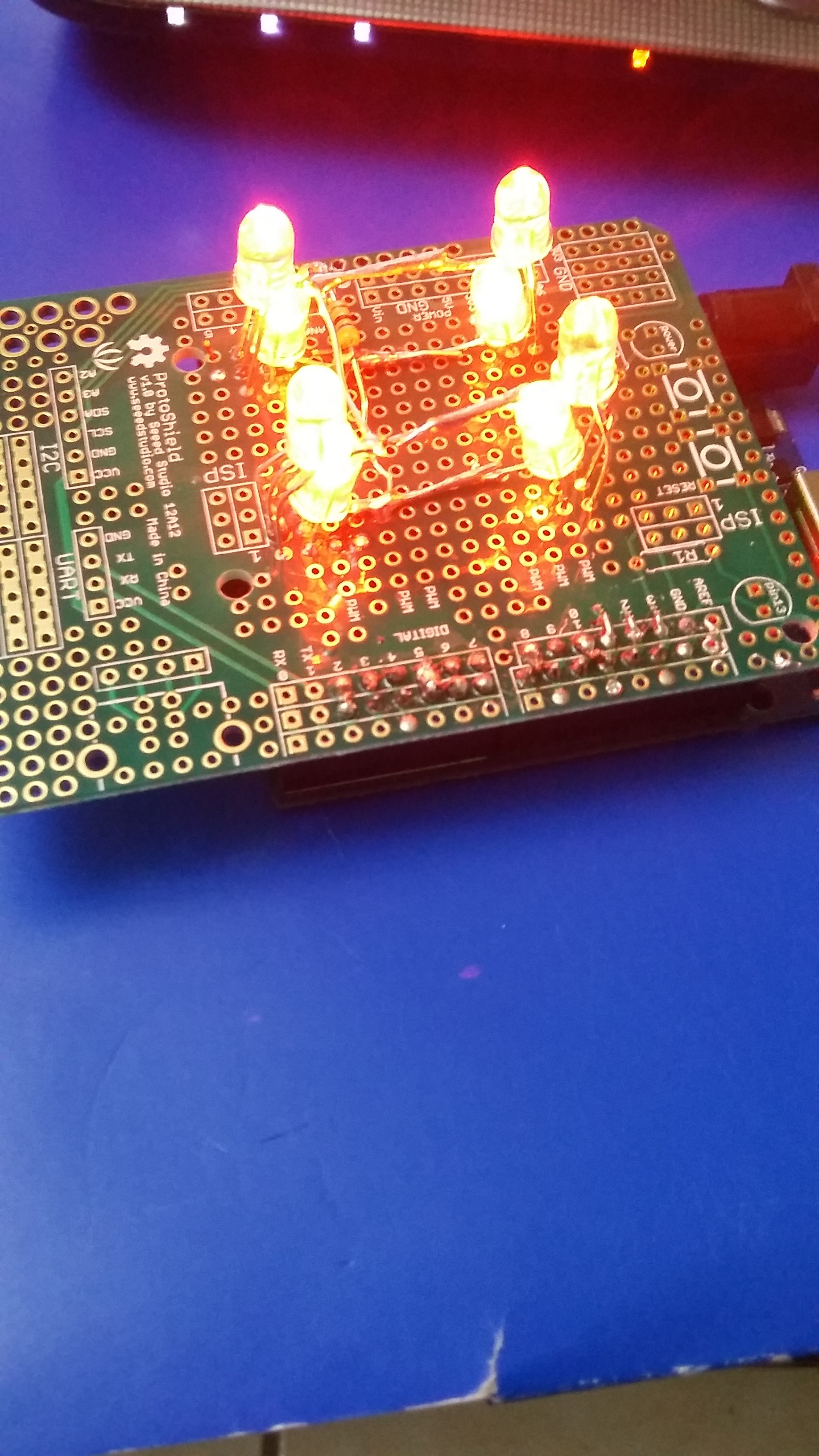

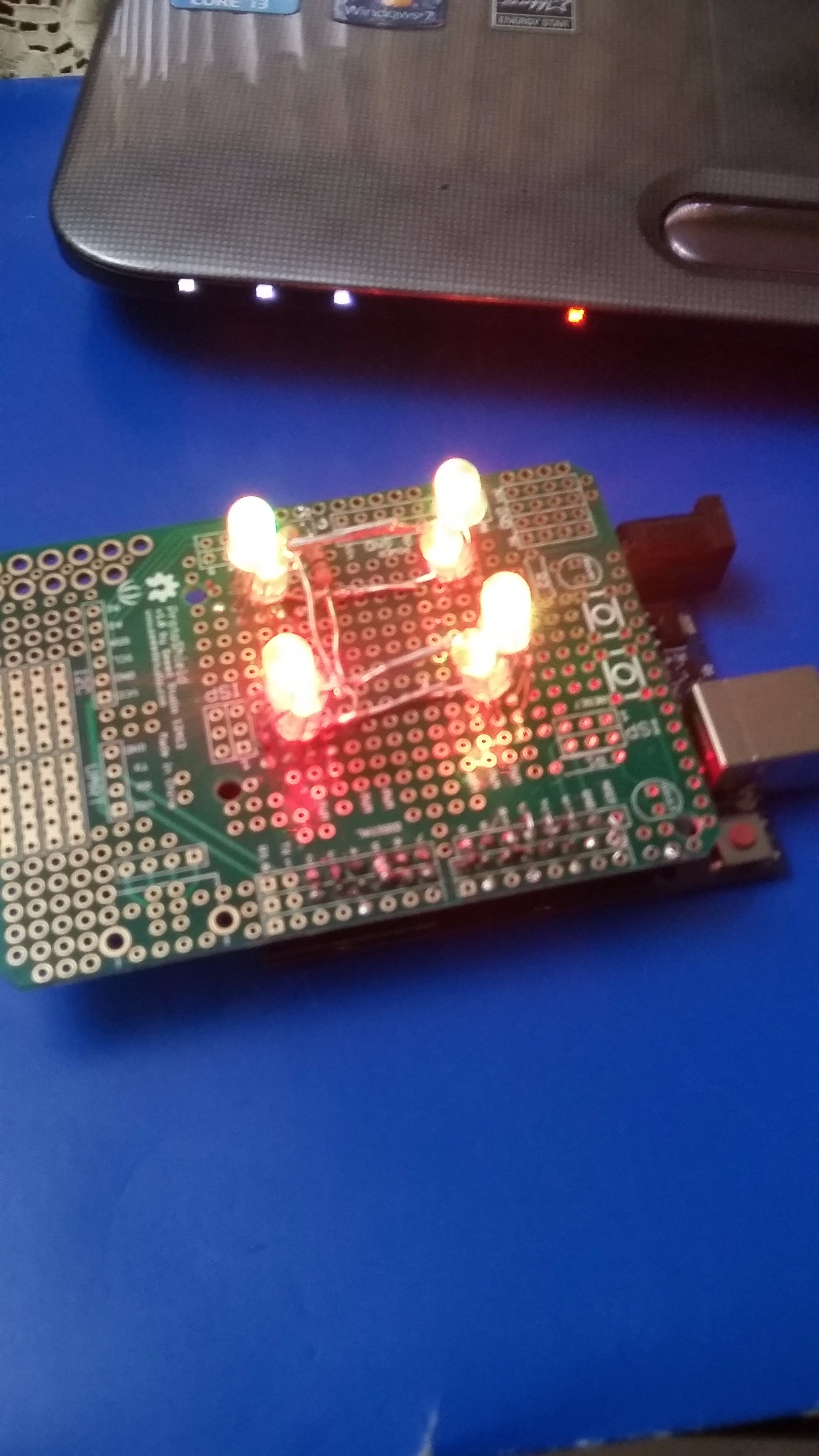

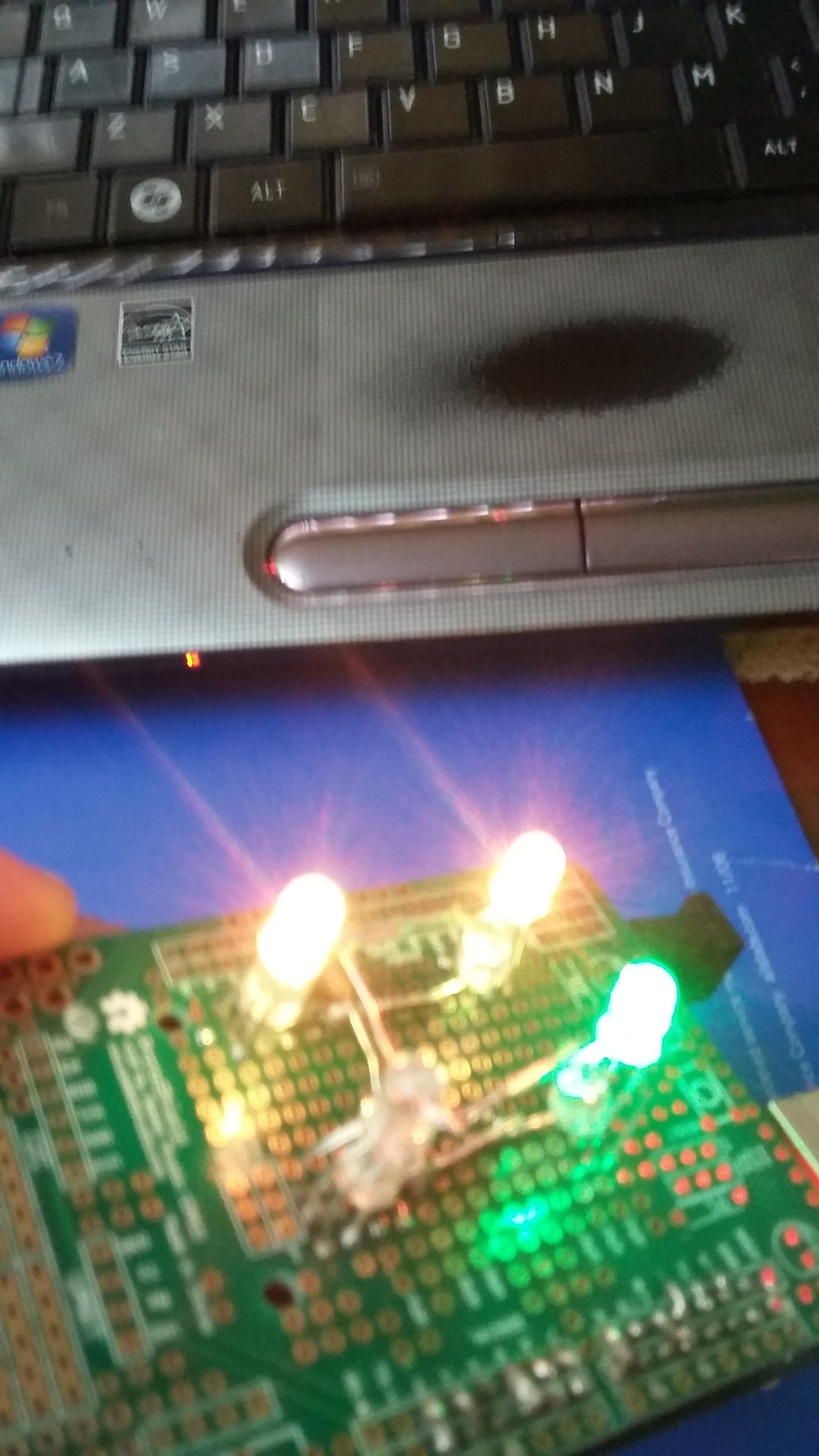

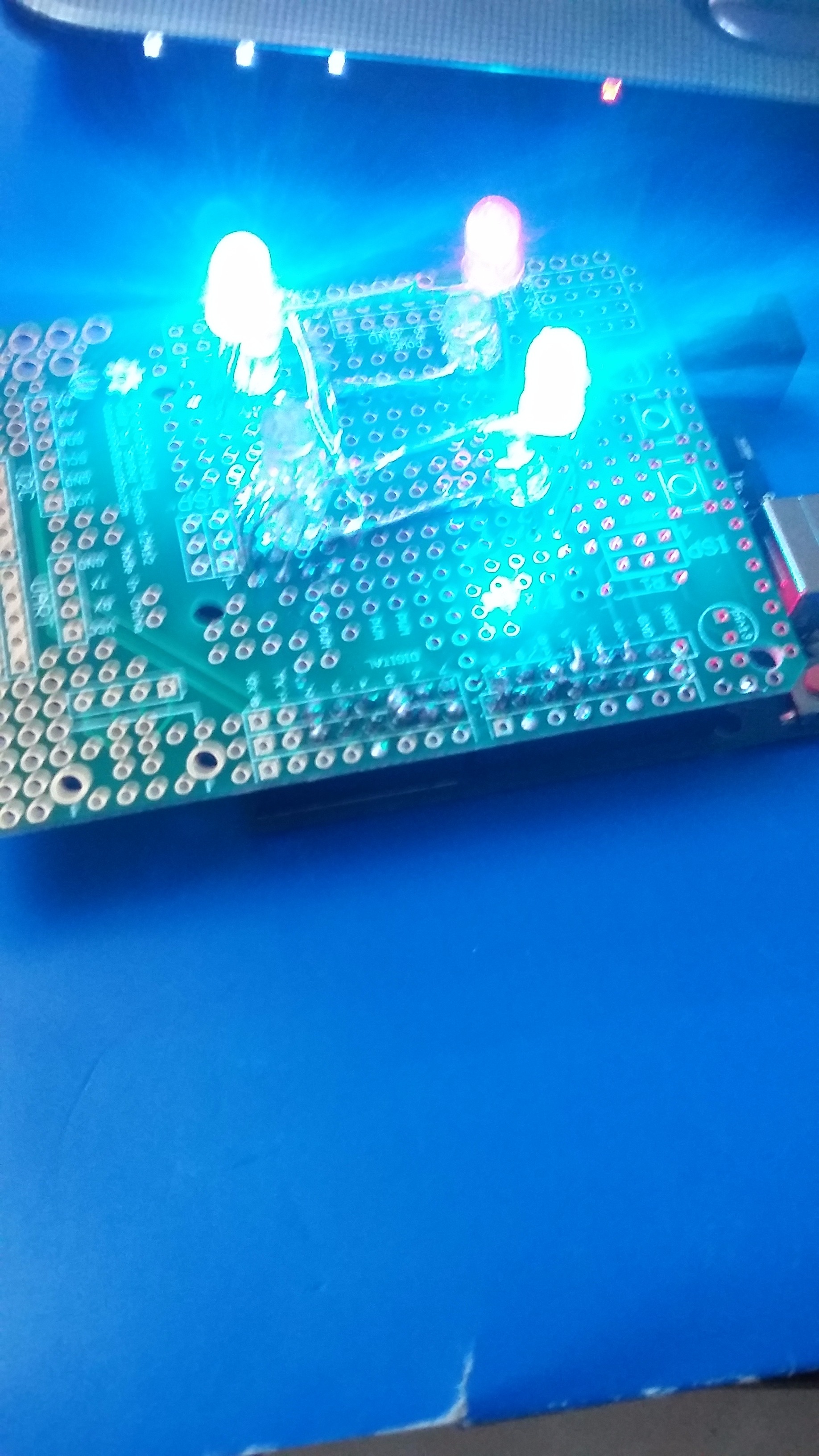

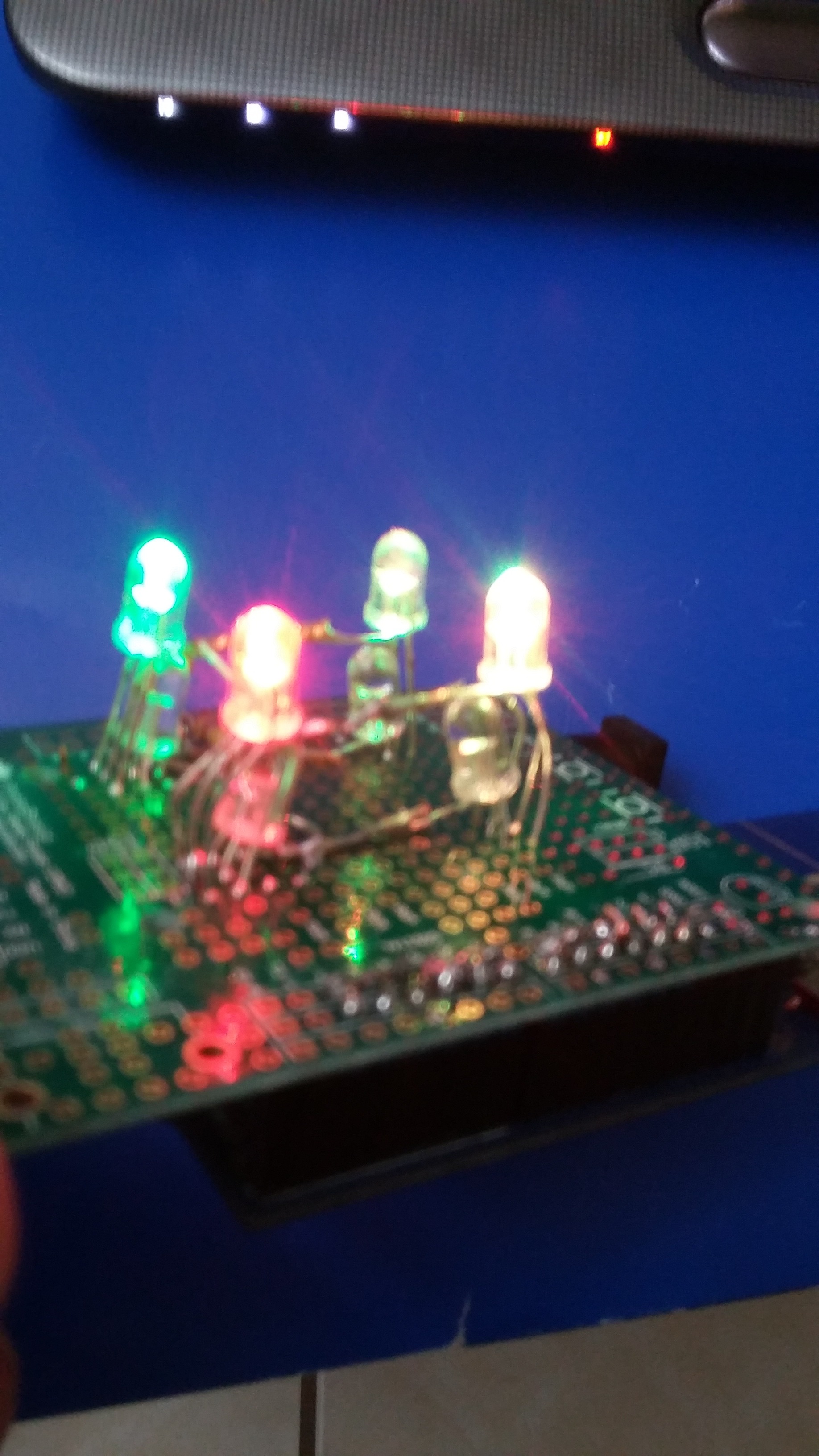

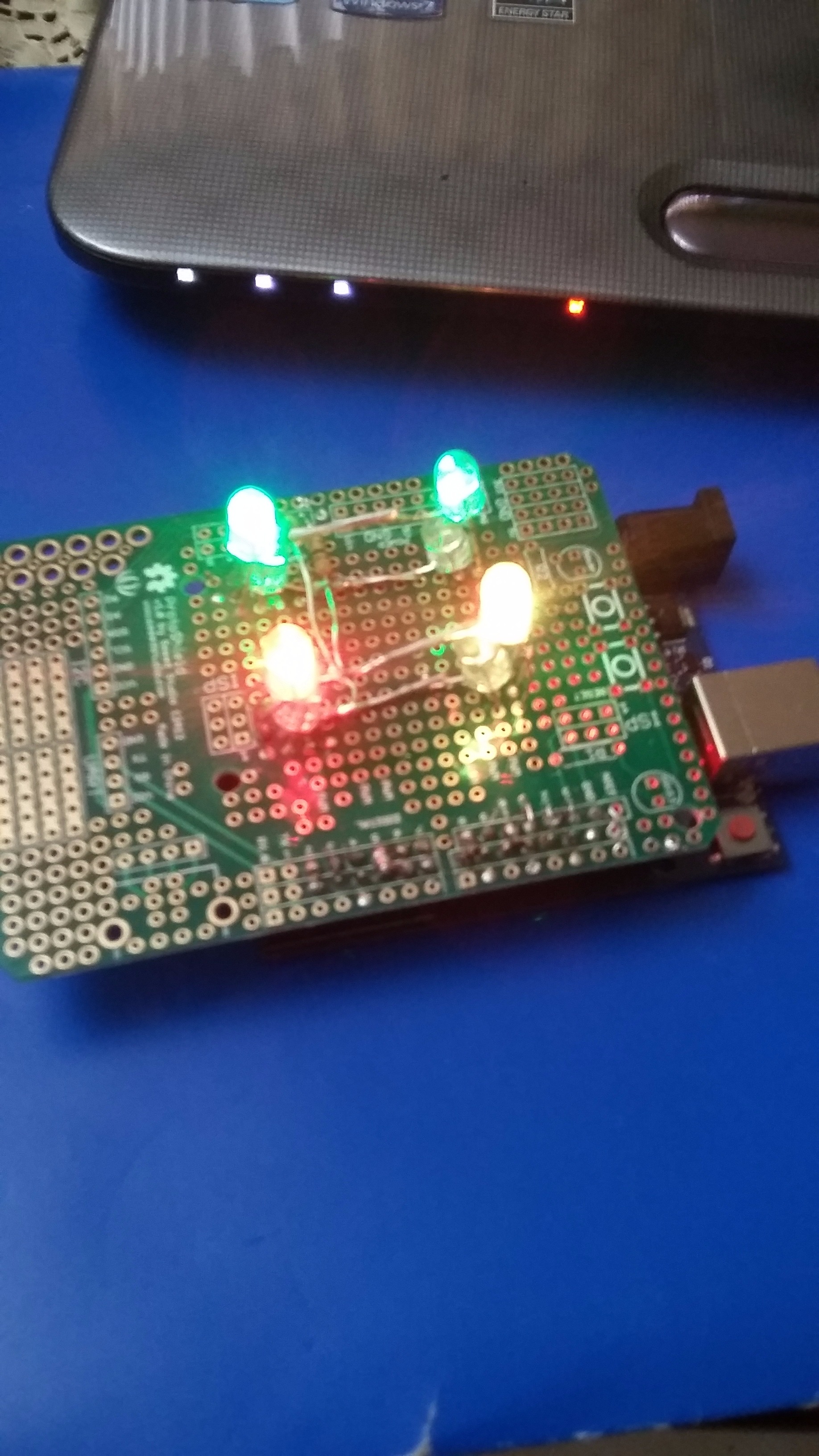

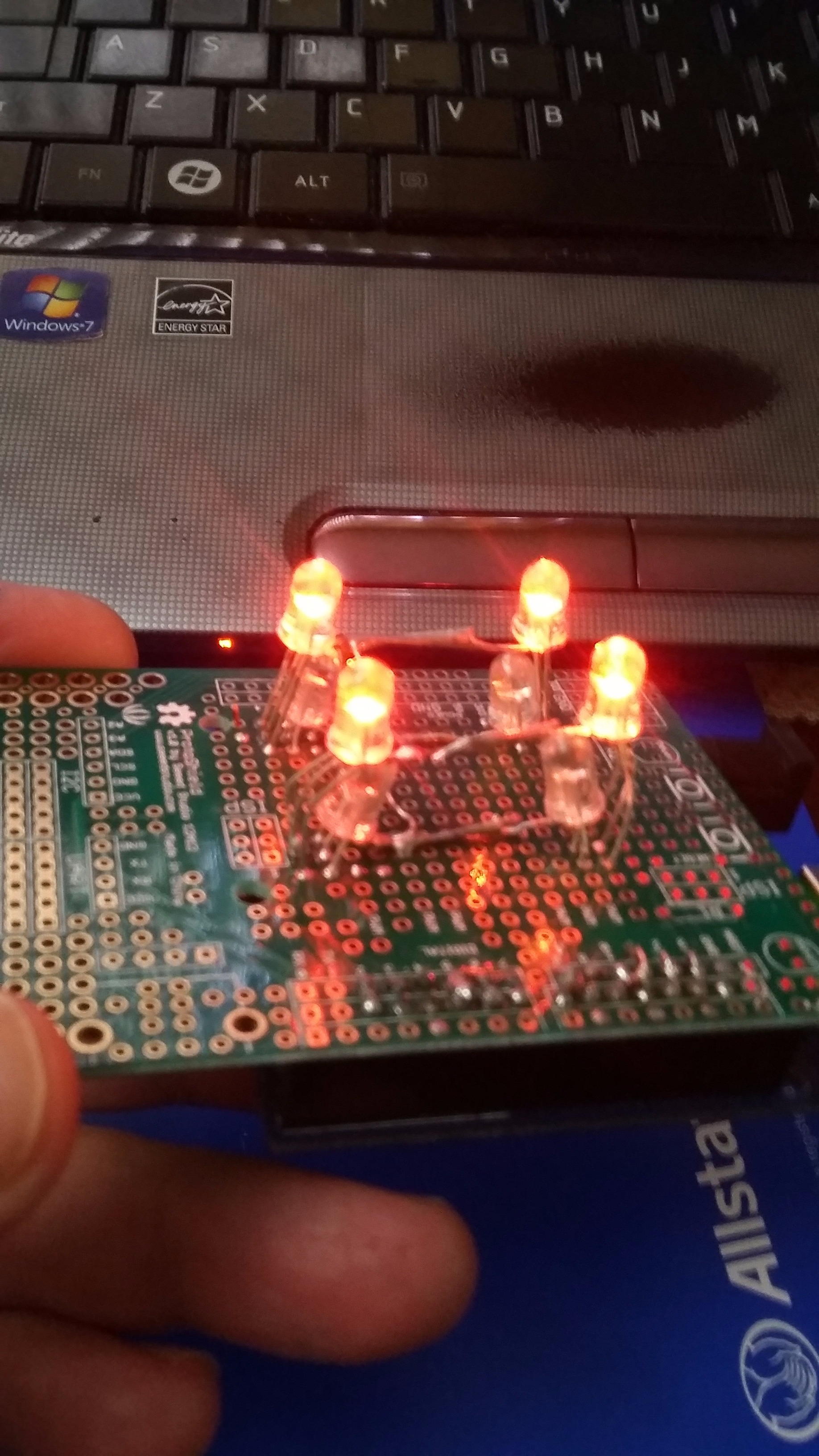

Enjoy the project if you did everything well!!
