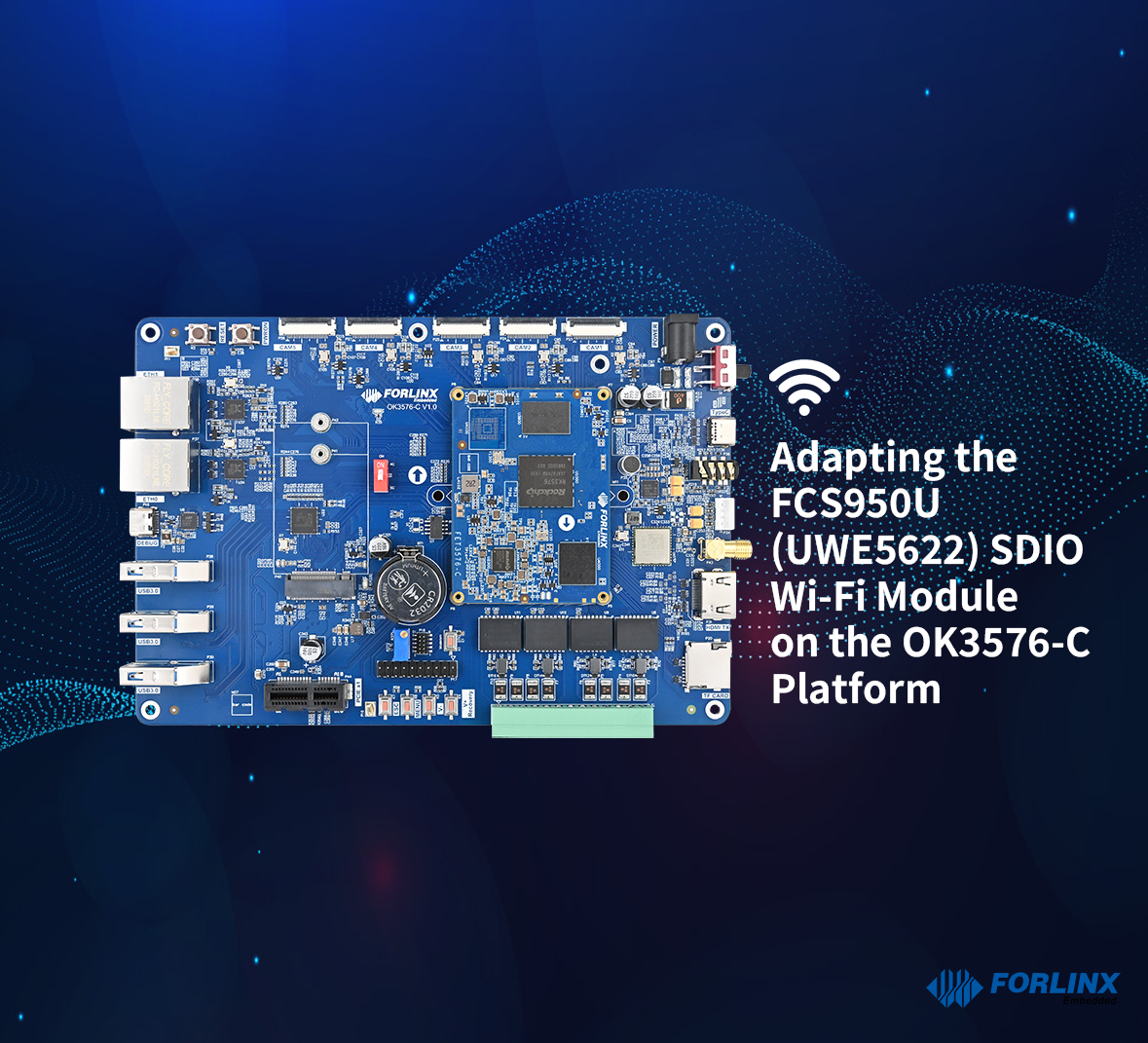

Adapting the FCS950U (UWE5622) SDIO Wi-Fi Module on the OK3576-C Platform

Porting wireless modules to modern Android GKI architectures often brings roadblocks—#SDIO recognition failures, missing interface nodes, and DLKM driver loading errors.

Our latest technical guide covers the end-to-end adaptation of the FCS950U (UNISOC UWE5622) SDIO Wi-Fi + Bluetooth combo module onto the Forlinx OK3576-C (Rockchip RK3576) running Android 14 (Linux 6.1).

On the Rockchip Android platform, the Wi-Fi module generally goes through four stages from power-up to becoming operational: ‘hardware scan’, ‘device identification’, ‘driver loading’ and ‘user-space service launch’. Understanding this flow is crucial for quickly pinpointing whether an issue lies at the hardware, kernel, or Android framework level.

1. Hardware Scan: The system powers the Wi-Fi module upon boot, and the SDIO controller automatically scans for devices on the bus.
2. Device Identification: When the user turns on Wi-Fi, the system reads uevent information from directories like /sys/bus/sdio, /sys/bus/usb, or PCI/PCIe device paths.
3. Driver Loading: The system extracts the device VID/PID or corresponding identifier from the uevent and loads the matching Wi-Fi kernel module (.ko).
4. Service Initialization: After Wi-Fi type identification, Android selects the appropriate wpa_supplicant parameters and Wi-Fi HAL based on the chipset, ultimately creating the wlan0 interface and initiating the connection process.

Therefore, during debugging, problems can be categorized into three layers:

1. Layer 1: Can the SDIO bus scan and detect the device?
2. Layer 2: Can the kernel driver and firmware load normally, and does the wlan0 interface get created?
3. Layer 3: Do the Android Wi-Fi HAL, wpa_supplicant, and Framework correctly recognize and invoke the driver?

2.1 Pre-provisioning FCS950U Driver Source Code

Copy the UNISOC driver directory from the FCS950U driver source package to the external/wifi_driver directory in the Android source tree. The source material path is as follows:

After source code pre-provisioning, the kernel build system will compile the corresponding WCN BSP, Wi-Fi, and Bluetooth modules from the external/wifi_driver directory.

2.2 Adapting cfg80211 Interface for Linux 6.1.75

Due to changes in cfg80211 interface parameters across different kernel versions, the original driver’s calls to cfg80211_ch_switch_notify() need adjustment to match the Linux 6.1.75 interface. The following two files were modified in this project:

File 1: cfg80211.c

This modification is located in the SoftAP channel switch notification flow and is used to adapt the function prototype of the current kernel.

File 2: cmdevt.c

The corresponding section describes the cfg80211 notification flow after the firmware reports a channel change event. If the number of parameters does not match, a compilation error will typically occur directly during the build phase.

2.3 Google GKI-Related Configuration

Android 14 source code enables Google GKI-related mechanisms by default. Since GKI restricts external drivers from calling certain unexported kernel symbols—such as functions like kernel_read—Unisoc drivers provide the CONFIG_WCN_GKI macro to switch between compatible implementations.

1. In external/wifi_driver/unisoc/unisocwcn/Kbuild, enable the CONFIG_WCN_GKI macro.
2. In external/wifi_driver/unisoc/unisocwifi/Kbuild, check for the macro with the same name.
3. When enabling the GKI-compatible path, turn off the READ_INI_FILP macro to avoid using restricted file-reading interfaces.

The project documentation indicates that even if the current project does not actually use a GKI kernel, enabling CONFIG_WCN_GKI did not affect compilation. However, during actual porting, it is still recommended to verify this based on the current kernel configuration and driver version.

2.4 Configuring the Main Control Platform, Chip Model, and Hardware Interface

The driver package supports multiple main control platforms and various Unisoc WCN chips. Before porting, confirm the following three key variables in external/wifi_driver/unisoc/Makefile:

Variables:

Configuration:

Description

COUSTOM_PLATFORM

rk

Main Control Platform: Rockchip Variable names have been retained exactly as they appear in the driver source code.

UNISOC_WCN_CHIP_ID

uwe5622

The FCS950U corresponds to the UWE5622.

UNISOC_WCN_HW_TYPE

sdio

The module connects to the main controller via SDIO.

Source code path: external/wifi_driver/unisoc/Makefile

Specifically, unisocwcn is responsible for the WCN low-level bus, firmware download and power management; unisocwifi is responsible for the Wi-Fi network interface; and unisocbt is responsible for Bluetooth-related functions.

2.5 Integrating the Unisoc Driver into external/wifi_driver Compilation

Source code path: external/wifi_driver/Makefile

After adding CONFIG_UNISOC, the relevant Wi-Fi/BT kernel modules will be built when compiling the kernel. When building the Android image, these modules will then be pre-installed into the vendor_dlkm.img. The corresponding directory in the running system is /vendor_dlkm/lib/modules.

Android 14 places vendor kernel modules in the Vendor DLKM (Dynamically Loadable Kernel Modules) partition. Understanding the path from the compiled artifacts to vendor_dlkm.img helps troubleshoot issues like ''the driver is compiled but the .ko file is missing from the image. ''

3.1 Enabling the Vendor DLKM Image

Once BOARD_VENDOR_DLKMIMAGE_FILE_SYSTEM_TYPE has been defined, the Android build system will enable BOARD_USES_VENDOR_DLKMIMAGE and generate vendor_dlkm.img.

3.2 Module Directory Compatibility Soft Links

After enabling the Vendor DLKM partition, the system creates a compatibility access path from /vendor/lib/modules to /vendor_dlkm/lib/modules. Applications and underlying components should prioritize using the module path defined by the Android build system.

3.3 external/wifi_driver Entering BOARD_VENDOR_KERNEL_MODULES

wifi.mk will search for all generated .ko files under external/wifi_driver and add them to BOARD_VENDOR_KERNEL_MODULES. Subsequently, the Android build system copies the modules into the Vendor DLKM image through processes such as build-image-kernel-modules and copy-many-files.

The FCS950U communicates with the host via 4-bit SDIO, while utilizing independent module enable, reset, and wake-up pins. During adaptation, it’s essential to simultaneously verify the SDIO bus, power sequencing, GPIO polarity, and the specific module variant.

4.1 SDIO Controller Configuration

Key Configuration Notes:

1. bus-width = <4>: Uses a 4-bit SDIO data bus.
2. non-removable: Indicates the module is an onboard device, not handled as a removable SD card.
3. keep-power-in-suspend: Maintains power to the module during system suspend to support wake-up functionality.
4. cap-sdio-irq: Declares controller support for SDIO interrupts.
5. mmc-pwrseq: Binds to the module’s power-on/reset sequencing node.
6. sd-uhs-sdr104: Enables SDR104 capability. Actual frequency and stability are still affected by PCB layout, module characteristics, and controller configuration.

4.2 Unisoc Marlin3 and Wi-Fi Device Node Configuration

Configurations:

Purpose and Project Notes

sprd,btwf-file-name

Configures the path for the CP2 firmware wcnmodem.bin. This path must match the actual pre-installed location in the Android image.

sdio-irq-type

If not configured, an external GPIO interrupt is used by default (recommended in source material). data-irq uses SDIO_DATA1; rx-polling uses a polling method.

sdio-irq-gpio

FCS851U requires esmd3 to be configured; FCS950U should remain commented out (as per the original note).

m2-wakeup-ap-gpios

The WLAN_WAKE signal, used by the Wi-Fi module to send RX interrupts to the host.

m2-to-ap-irq-gpios

The BT_WAKE_HOST related INT signal, used for sleep/wake control.

reset-gpios

Module RESET_N signal, active low, optional.

enable-gpios

Module CHIP_EN/WIFI_REG_ON enable signal, optional.

adma-tx / adma-rx

Configures SDIO to use ADMA. If not configured, SDMA is used by default.

4.3 SDIO Power Sequencing Node

During project debugging, initially the reset pin was configured in the reset-gpios of the sprd_marlin3 node, and the system could not scan the SDIO card. Once the reset operation was reassigned to be performed by sdio-pwrseq, the module was recognised correctly. This phenomenon indicates that the timing stage of the reset operation affects SDIO enumeration.

As seen from the timing diagram, a reasonable sequential relationship must be maintained among VIO, VBAT, CHIP_EN, and RESET_N. Project experience shows that the interval between power-up of RESET and VIO/VBAT should not be too long; otherwise, the module may not have entered an enumerable state when the host controller begins scanning.

4.4 Differences in Wake-up Pins for FCS950U Different OC Models

Different OC models of the module may use different physical pins as WLAN_WAKE. FCS950UAAMD corresponds to WLAN_WAKE1 (Pin 6).

FCS950UABMD corresponds to WLAN_WAKE2 (Pin 13).

4.5 Verifying Whether the SDIO Device Has Been Enumerated

The SDIO_ID of the FCS950U in this project is 0000:0000. Subsequently, the Android auto-detection logic will use this identifier to match SPRDWL devices. Therefore, this ID needs to be added to supported_wifi_devices.

5.1 Preloading Wi-Fi Firmware and Board-Level Configuration Files

Copy the corresponding wcnmodem.bin and wifi_board_config.ini for the FCS950U from the driver package to the Rockchip common Wi-Fi firmware directory.

Among these:

wcnmodem.bin is the WCN/CP2 firmware.

wifi_board_config.ini is used to load board-level radio frequency and Wi-Fi configurations. The sprd,btwf-file-name in the device tree must match the final firmware path in the image.

5.2 Adding Unisoc wpa_supplicant Startup Parameters

When the system identifies the sprdwl driver, it will use this configuration to launch wpa_supplicant. The parameters specify the control socket directory, P2P group interface policy, and global control interface, respectively.

5.3 Adding libwifi-hal-sprd to the public Wi-Fi HAL

This modification ensures that the Wi-Fi HAL dynamic library corresponding to Unisoc is generated and preloaded during product build.

5.4 Adding Android.mk for Unisoc Wi-Fi HAL

The source material requires creating a unisoc directory under the Rockchip Wi-Fi HAL’s vendor directory, adding Android.mk, and copying the wifihal source code from the driver package to the hardware directory. The core build configuration is as follows:

5.5 Adding Automatic Wi-Fi Device Recognition

Uncomment the SPRDWL device in the Rockchip Wi-Fi control logic and use the ID 0000:0000 read from the SDIO uevent as the matching ID.

After the system reads the SDIO device ID, it can recognize the module as the SPRDWL type and proceed to the corresponding driver loading and HAL selection process.

5.6 Adding BSP Module Pre-loading Logic

sprdwl_ng.ko relies on the underlying UWE5622 BSP and SDIO transmission capabilities. Therefore, before loading the main Wi-Fi driver, it is necessary to insert uwe5622_bsp_sdio.ko first and wait for module initialization.

5.7 Building Android Image

After compilation is complete, verify that the Kernel modules, vendor_dlkm.img, vendor.img, and related system images have been updated. Merely replacing boot.img or the kernel image may not synchronously update the HAL, firmware, and Vendor DLKM modules.

6.1 Checking SDIO Enumeration

If the directory is empty, prioritize checking the SDIO controller, pin multiplexing, power supply, and the timing of RESET and CHIP_EN instead of continuing to troubleshoot the Android HAL.

6.2 Checking if Driver Modules are Preloaded

This project requires at least uwe5622_bsp_sdio.ko and sprdwl_ng.ko. The Bluetooth function will also use sprdbt_tty_sdio.ko.

6.3 Checking Module Loading Dependencies

The Used by field can confirm that both Wi-Fi and Bluetooth drivers depend on the underlying uwe5622_bsp_sdio module. If loading only sprdwl_ng fails, check whether the BSP module was loaded in advance and whether the dependency symbols are satisfied.

6.4 Checking the wlan0 Network Interface

The appearance of wlan0 with the driver unisoc_wifi indicates that the kernel driver, firmware startup, and network interface creation have been completed. You can then proceed to Android Settings for scanning, connecting, and network verification.

Phenomenon

Priority Troubleshooting Direction

Unable to scan SDIO card

Check SDIO controller configuration, pin multiplexing, power supply, and RESET/CHIP_EN power-up timing.

Card scanned but driver not loaded

Check Android auto-recognition ID, module preloading, module path, and wifi_load_driver logic.

Driver loaded but no wlan0

Capture dmesg, check firmware download, wifi_board_config.ini, and BSP & sprdwl initialization logs.

wlan0 exists but Wi-Fi cannot be enabled in settings interface

Check libwifi-hal-sprd, wpa_config, framework recognition, and SELinux/permission logs.

Can connect but cannot access the internet

Check DHCP, routing, DNS, and Captive Portal detection related logcat messages.

7.1 Enabling or Disabling WCN Driver Logs

You can also modify the default log level in the driver source code.

During the development phase, it is recommended to retain the INFO level. For the product version, the log volume can be appropriately reduced to avoid continuous logging affecting performance or overwhelming other kernel logs.

7.2 Capturing CP2 Firmware Logs

You can also adjust the default behavior in the platform configuration header file:

7.3 Capturing Dmesg

The default kernel log buffer in Android might be small, causing old logs to be overwritten by new ones during issue reproduction. Before capturing, you can increase the ''Logger Buffer Sizes '' in Developer Options.

Figure 5: Logger Buffer Sizes in Android Developer Options

After capturing, you can prioritize filtering for keywords related to sprdwl, WCN, SDIO, and unisoc:

7.4 Key Phases of Successful Driver Load Logs

The complete log can be lengthy. You can assess the initialization progress according to the following phases.

Phase 1: Device Tree Parsing and Low-level Driver Probe

Driver match successful indicates that the sprd-marlin3 node has matched with the WCN low-level driver.

Phase 2: Module Power-up and SDIO Scanning

scan card successful is the key log for determining whether the SDIO link and power-up timing are normal.

Phase 3: Downloading wcnmodem.bin Firmware

Firmware download logs will print repeatedly in fixed fragment lengths. As long as download_firmware successfully appears at the end, it indicates the firmware file is accessible and the download is complete.

Phase 4: SDIO Parameter Synchronization and CP Startup

Here, you can confirm the use of SDMA, 512-byte block size, and GPIO interrupts. Once the synchronization value enters the ready state, the CP firmware begins normal operation.

Phase 5: Reading Version, Loading INI, and Creating wlan0

Finally, the appearance of open wifi_board_config.ini and iface wlan0 added indicates that the main Wi-Fi driver has completed configuration and successfully created the network interface.

7.5 Capturing Android logcat

Android upper-layer logs can be used to analyze Wi-Fi toggling, scanning, connecting, P2P, and internet connectivity detection. After entering Developer Mode and raising the log level, capture logs in real-time via ADB:

Start capturing, reproduce the issue, then press Ctrl+C to end Common keywords are as follows:

Keywords:

Meaning

AP-ENABLED

SoftAP has been successfully enabled.

freq = 2412

The current channel frequency of the SoftAP, for example 2412 MHz.

setWifiEnabled

Wi-Fi switch call; ''true '' indicates on, ''false '' indicates off.

package=com.android.settings uid=1000 enable=true

Enable Wi-Fi via the Android settings menu.

wifi state: 0

Wi-Fi is being switched off

wifi state: 1

Wi-Fi has been switched off.

wifi state: 2

Wi-Fi is being switched on.

wifi state: 3

Wi-Fi has been switched on.

connectToUserSelectNetwork

Begin connecting to the network selected by the user.

prepareForForcedConnection: SSID="AP"

Prepare to connect to the target network named ‘AP’.

wlan0: CTRL-EVENT-CONNECTED

The Wi-Fi STA connection was successful.

isCaptivePortal: isSuccessful()=true

Internet connectivity test successful; ‘false’ indicates that a connection may not be possible.

P2P-DEVICE-FOUND

Scan for a Wi-Fi Direct/P2P device.

p2p-wlan0-0: CTRL-EVENT-CONNECTED

The P2P connection has been established.

8.1 No mmc2:8800:1 in the SDIO Directory

1. Confirm the VIO and VBAT voltages for the FCS950U, as well as the power-up sequence.
2. Verify the active levels and release timing for CHIP_EN and RESET_N.
3. Check the pin multiplexing and hardware pull-up resistors for SDIO CMD, CLK, and DATA0~DATA3.
4. Attempt using the sdio-pwrseq or performing the reset earlier in the U-Boot stage.
5. Reduce max-frequency to investigate signal integrity issues.

8.2 SDIO Enumerated, but the System Does Not Automatically Load the Driver

1. Read the uevent to confirm if the SDIO_ID is still 0000:0000.
2. Check if SPRDWL and its corresponding ID have been added in rk_wifi_ctrl.cpp.
3. Verify the existence of uwe5622_bsp_sdio.ko and sprdwl_ng.ko in /vendor_dlkm/lib/modules.
4. Ensure wifi_hal_common.cpp loads the BSP module first.
5. Check modules.dep and kernel symbol dependencies.

8.3 Driver Modules Loaded, but No wlan0 Interface

1. Check if marlin btwifi_download_firmware successfully appears in the logs.
2. Confirm the actual path, permissions, and integrity of the wcnmodem.bin file.
3. Verify that wifi_board_config.ini is loaded correctly.
4. Inspect if check_cp_ready ultimately enters the ready state.
5. Enable bsplog and cp2log to examine errors on the WCN firmware side.

8.4 wlan0 Exists, but Wi-Fi is Abnormal in Android Settings

1. Confirm that libwifi-hal-sprd has been built and is a dependency for the product.
2. Ensure the wpa_config.txt file contains the [sprdwl] configuration.
3. Check the consistency between the HAL source directory and LOCAL_PATH in the Android.mk file.
4. Capture logcat and observe errors related to setWifiEnabled, wifi state, and wpa_supplicant.
5. Check for SELinux denials, missing dynamic libraries, or service startup failures.

Adapting the FCS950U SDIO Wi-Fi module on the OK3576 Android 14 platform does not revolve around modifying a single driver file in isolation. Instead, the core is to establish the complete chain from hardware power-up to the Android Framework:

During actual debugging, it is recommended to always follow the order of ''First the bus, then the driver, and finally Android '' for problem localization. If SDIO is not enumerated successfully, troubleshooting should not immediately jump to the HAL.If the wlan0 interface has not been created, network connection logs should not be the primary focus. By verifying each layer step-by-step using uevent, lsmod, dmesg, cp2log, and logcat, the time required for problem diagnosis can be significantly reduced.

This project also highlights two common risks:

1. The timing of the RESET signal release directly affects SDIO enumeration.
2. Naming discrepancies may exist between the module’s part number (OC), schematic net names, and device tree GPIOs. For wireless module adaptation, the hardware datasheet, physical component markings, schematics, and system logs must be cross-referenced. One should not rely solely on a single configuration example.

Appendix: Quick Checklist After Successful Adaptation

Check Item

Passing Criteria

Power supply

VIO/VBAT stable; CHIP_EN and RESET_N timing meet module requirements.

SDIO Enumeration

mmc2:8800:1 appears under /sys/bus/sdio/devices.

Device ID

SDIO_ID=0000:0000 can be read from uevent.

Module Pre-installed

uwe5622_bsp_sdio.ko and sprdwl_ng.ko exist in /vendor_dlkm/lib/modules.

Module Loading

lsmod shows that sprdwl_ng depends on uwe5622_bsp_sdio.

Firmware Download

dmesg shows btwifi_download_firmware successfully.

Board Configuration

dmesg shows open wifi_board_config.ini.

Network Interface

The command ifconfig / ip link shows wlan0, with its Driver listed as unisoc_wifi.

Android HAL

libwifi-hal-sprd has been built, and Wi-Fi can be enabled in the Settings app.

Connection Verification

Logcat shows CTRL-EVENT-CONNECTED, and network connectivity tests succeed.

Logging Capability

Able to capture dmesg, cp2log, and logcat normally.
