A Simple Voltmeter

This project was developed using OLED 128X64 LED Display 12C interface in conjunction with an Arduino Uno for measuring voltage. For uploading the code, go to the following website: http://pastebin.com/wBz3RVgr

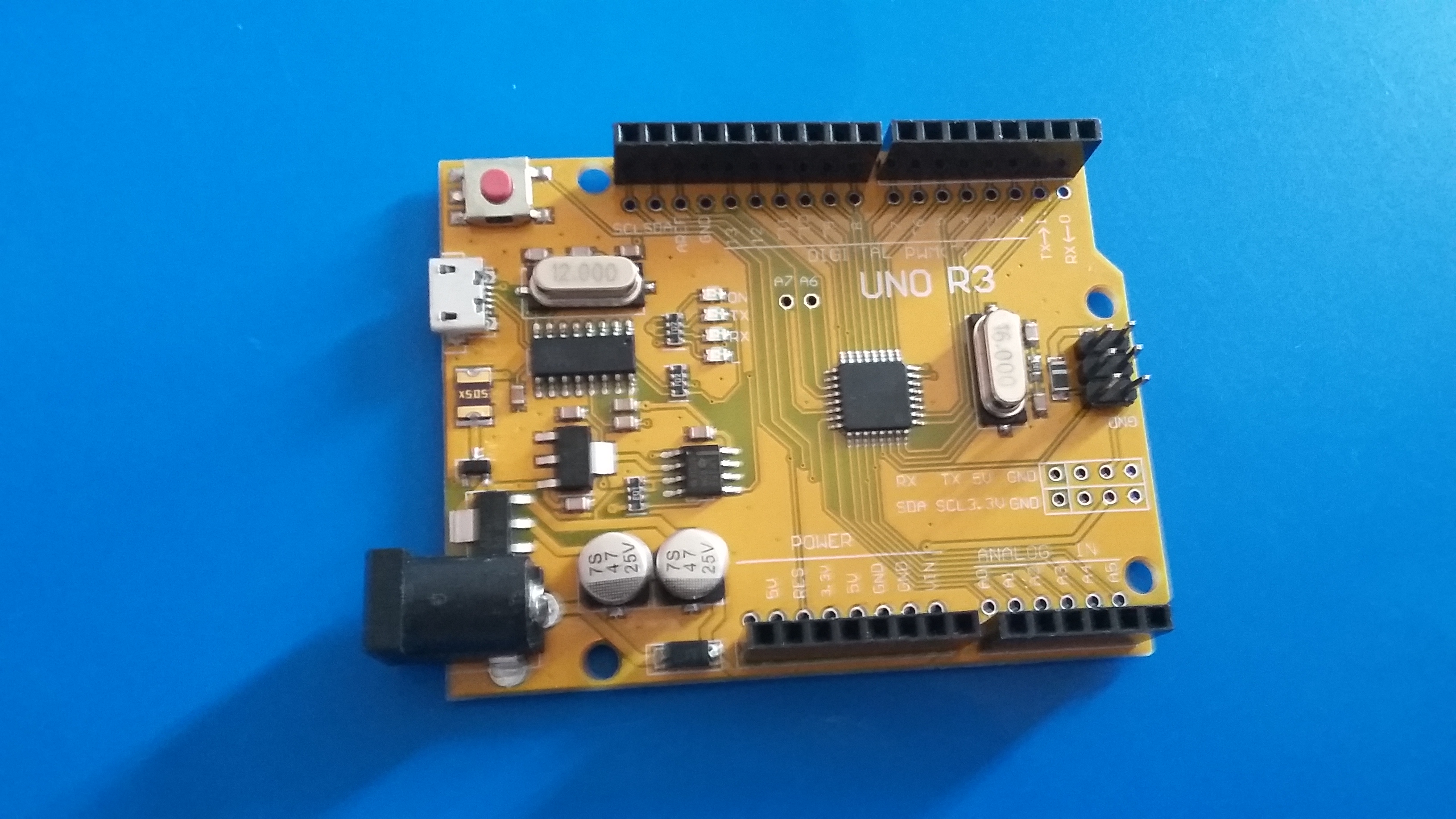

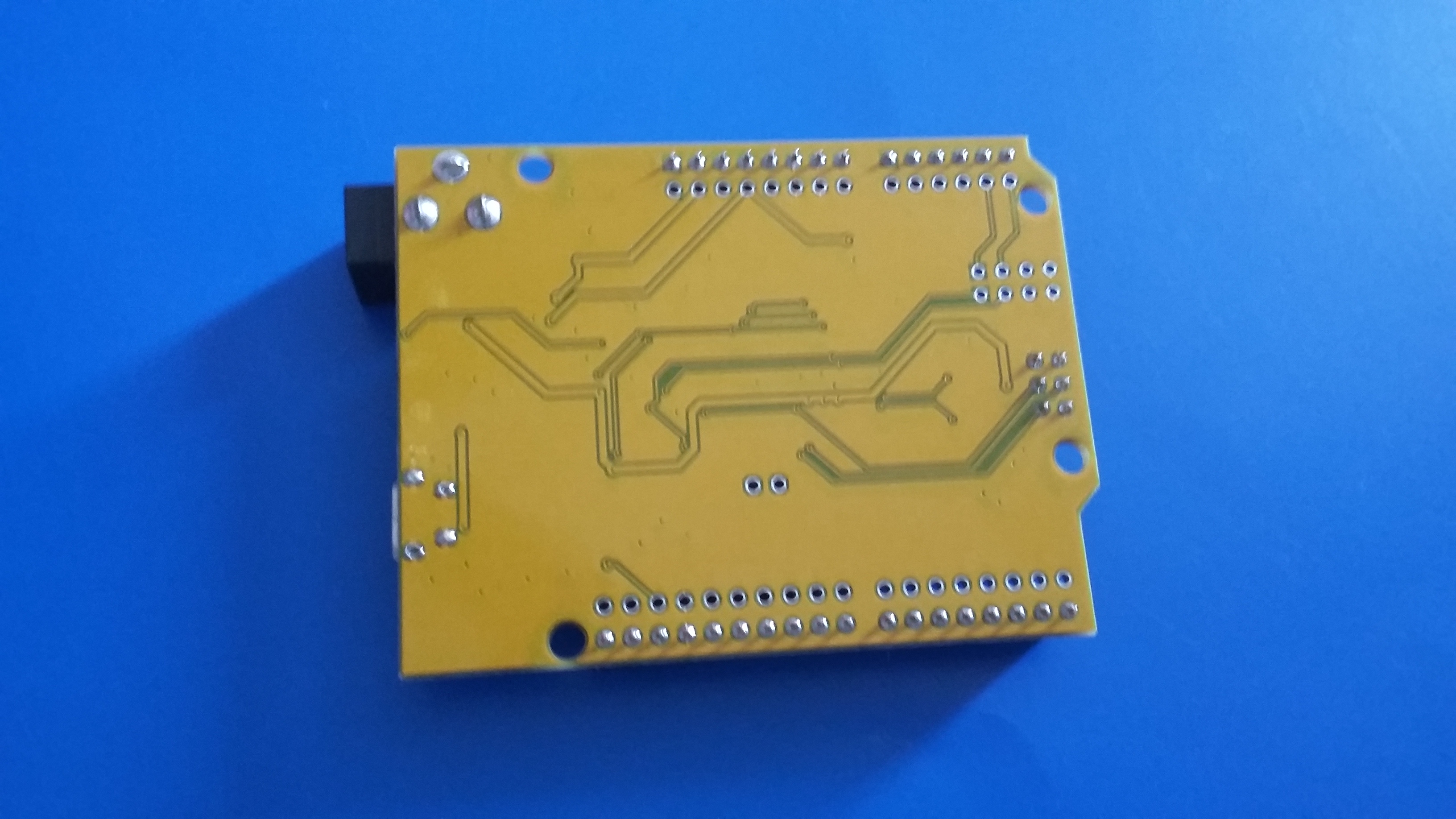

1 Arduino Uno R3

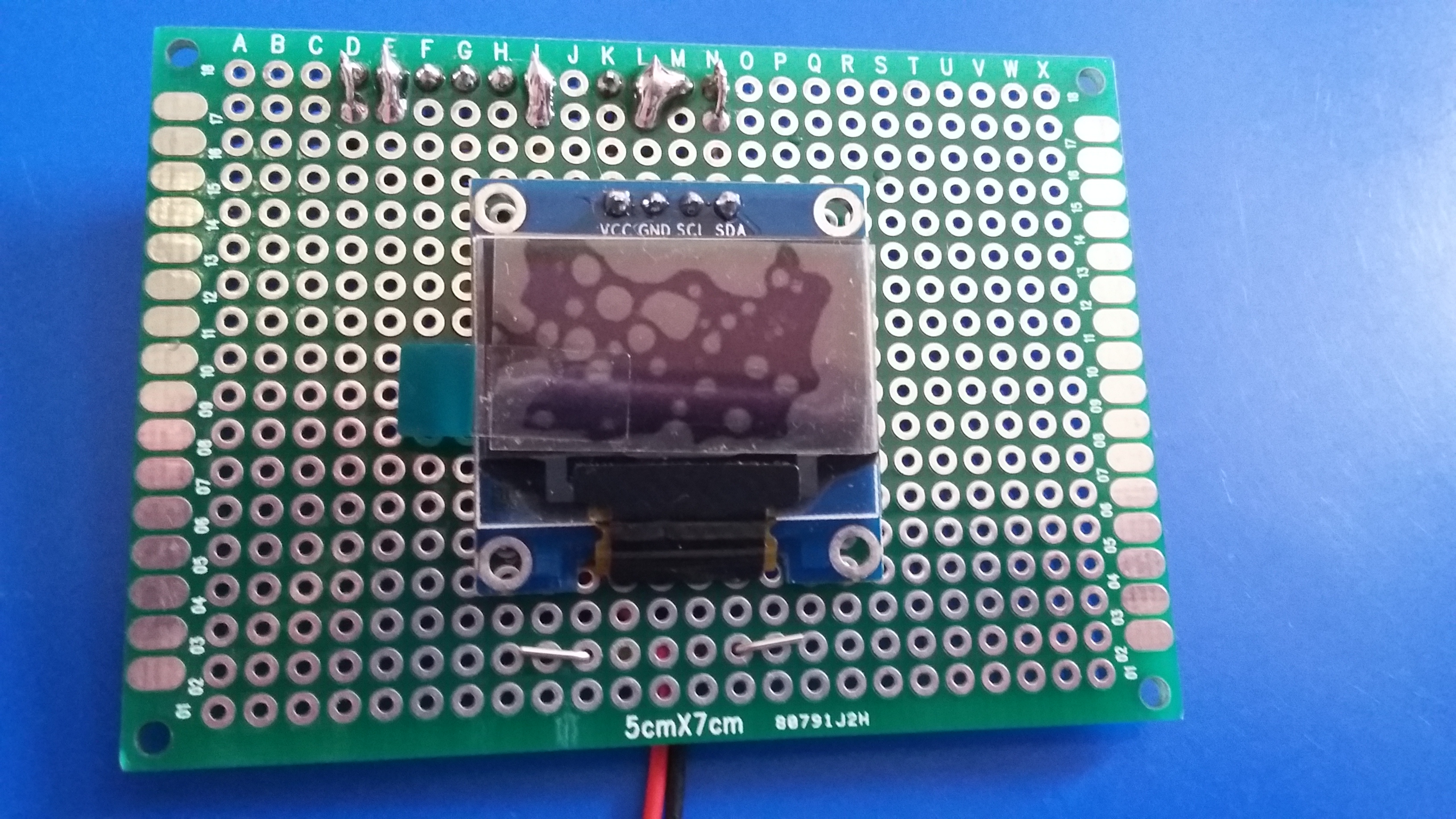

1 12C OLED 128X64 Display

1 Header of 40-pin

1 5cm X 7cm PCB

2 Wire jumpers for Arduino

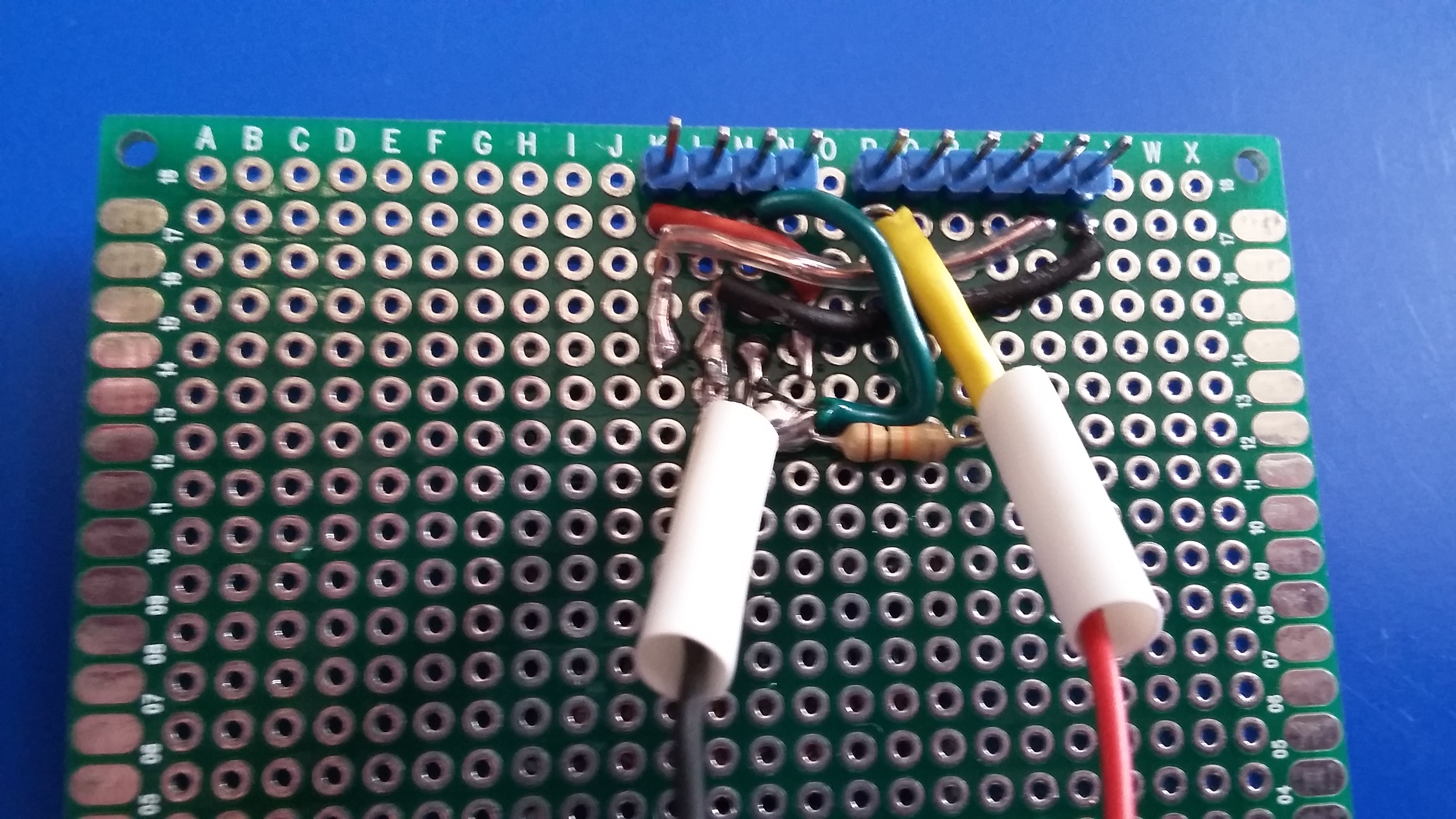

1 12 in Heat Shrink tube (any color)

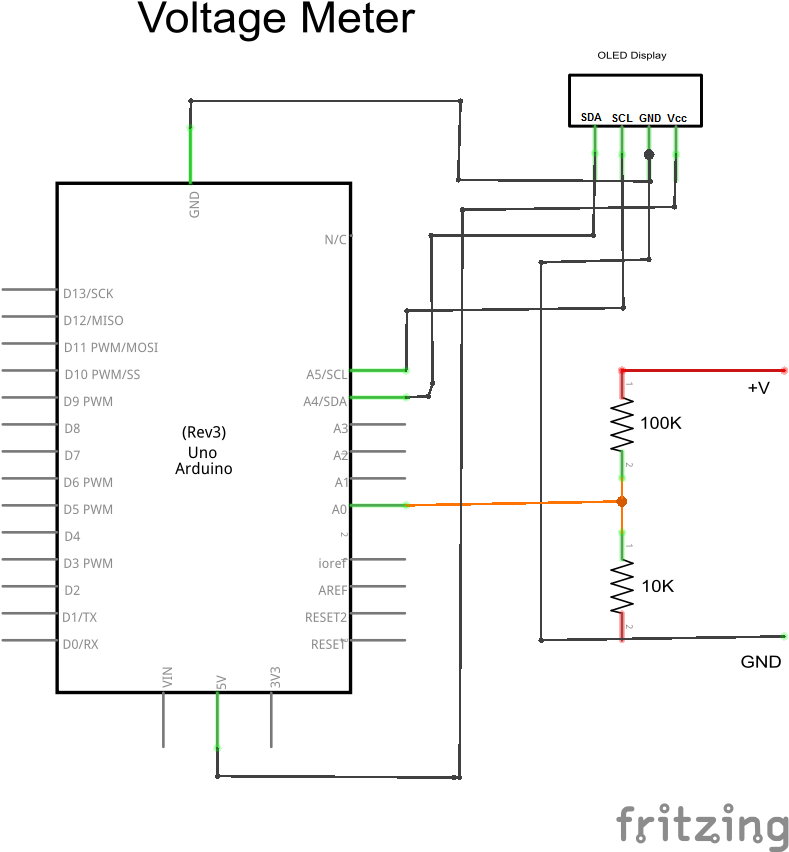

Follow step by step the diagram of your project so that you can complete it successfully. All of instructions are in this schematic and the indications are very clear so that you can undertand it and so you can do a great project because with this project, you could be measuring until 50V without problem.

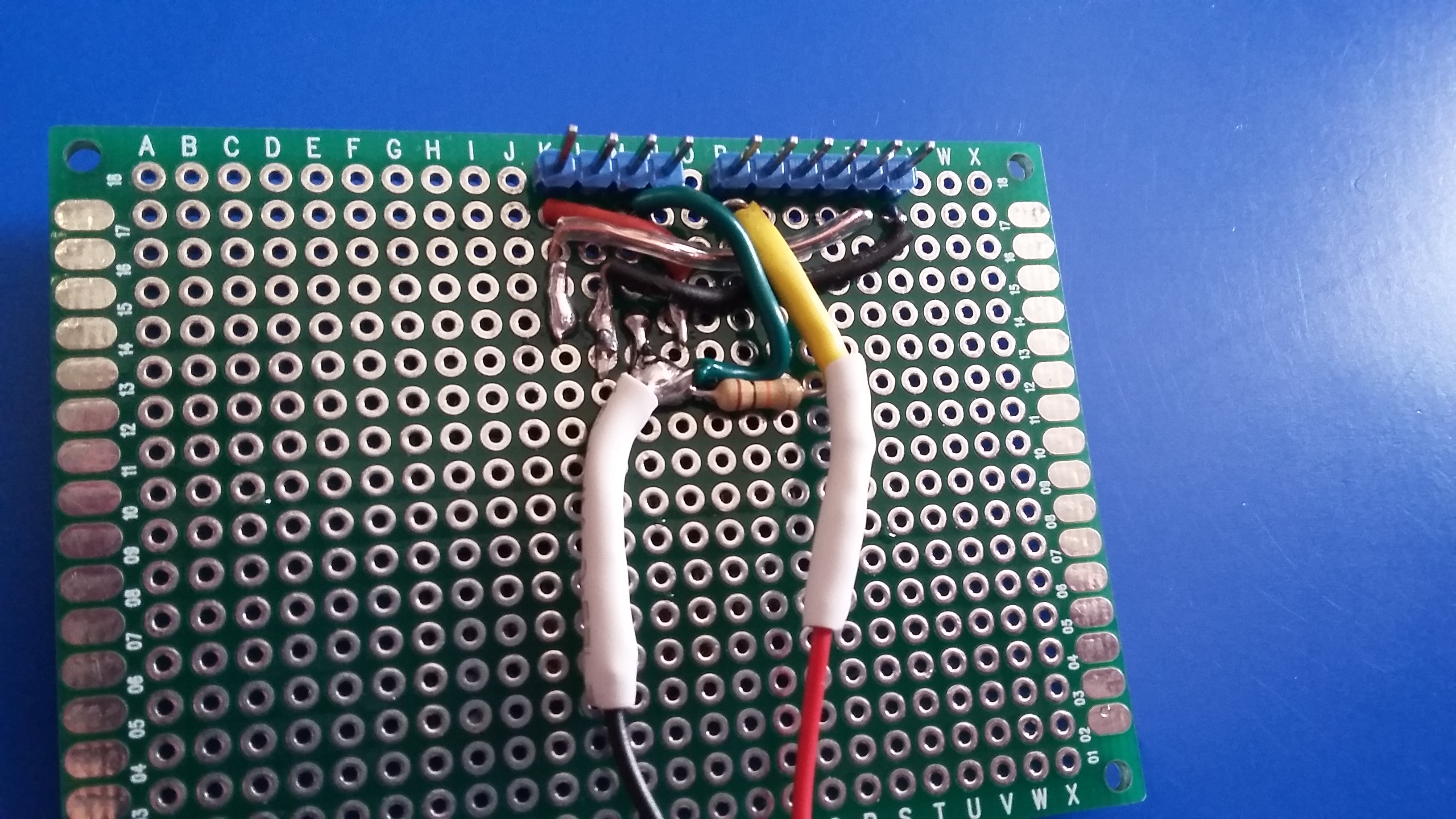

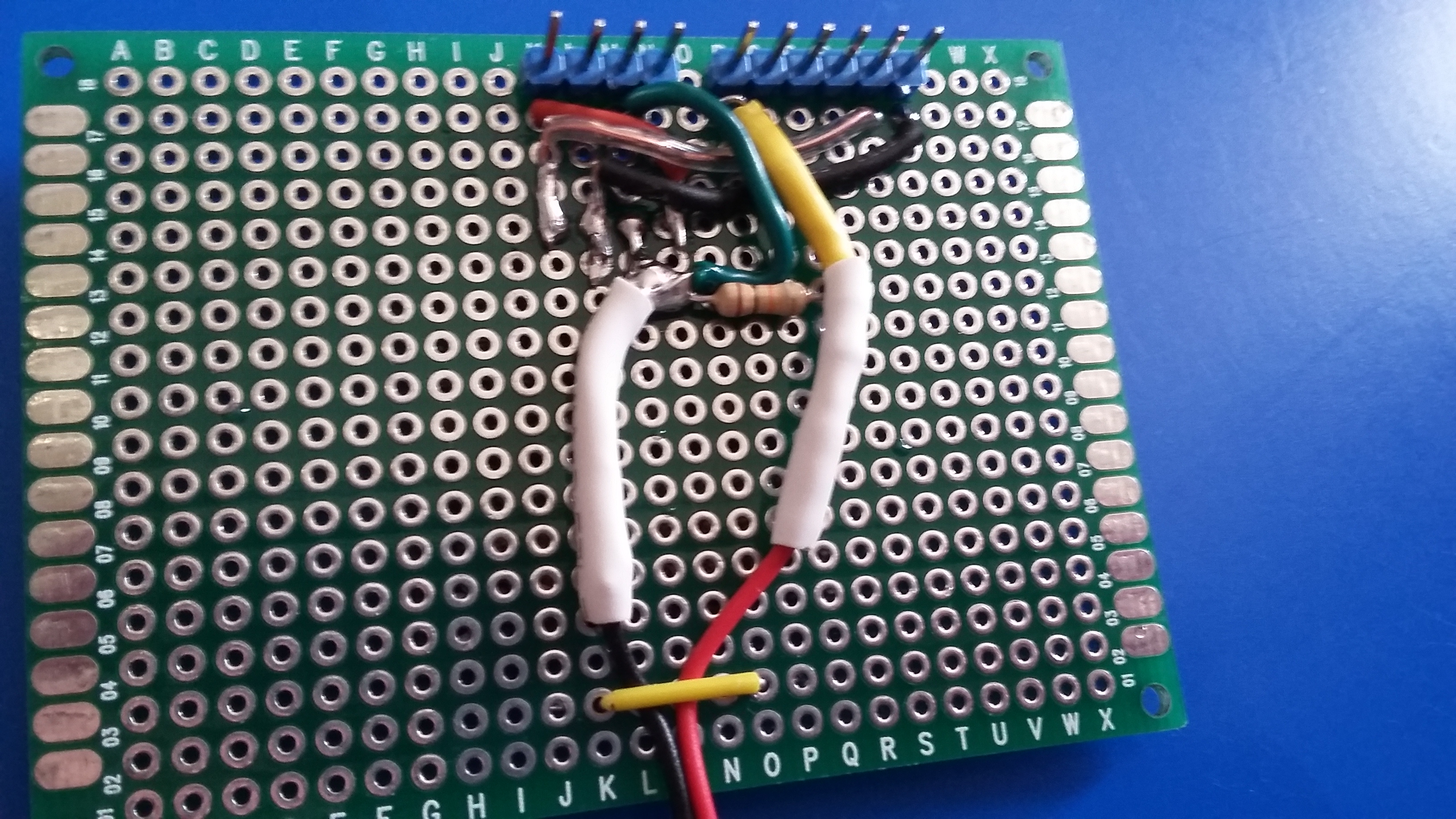

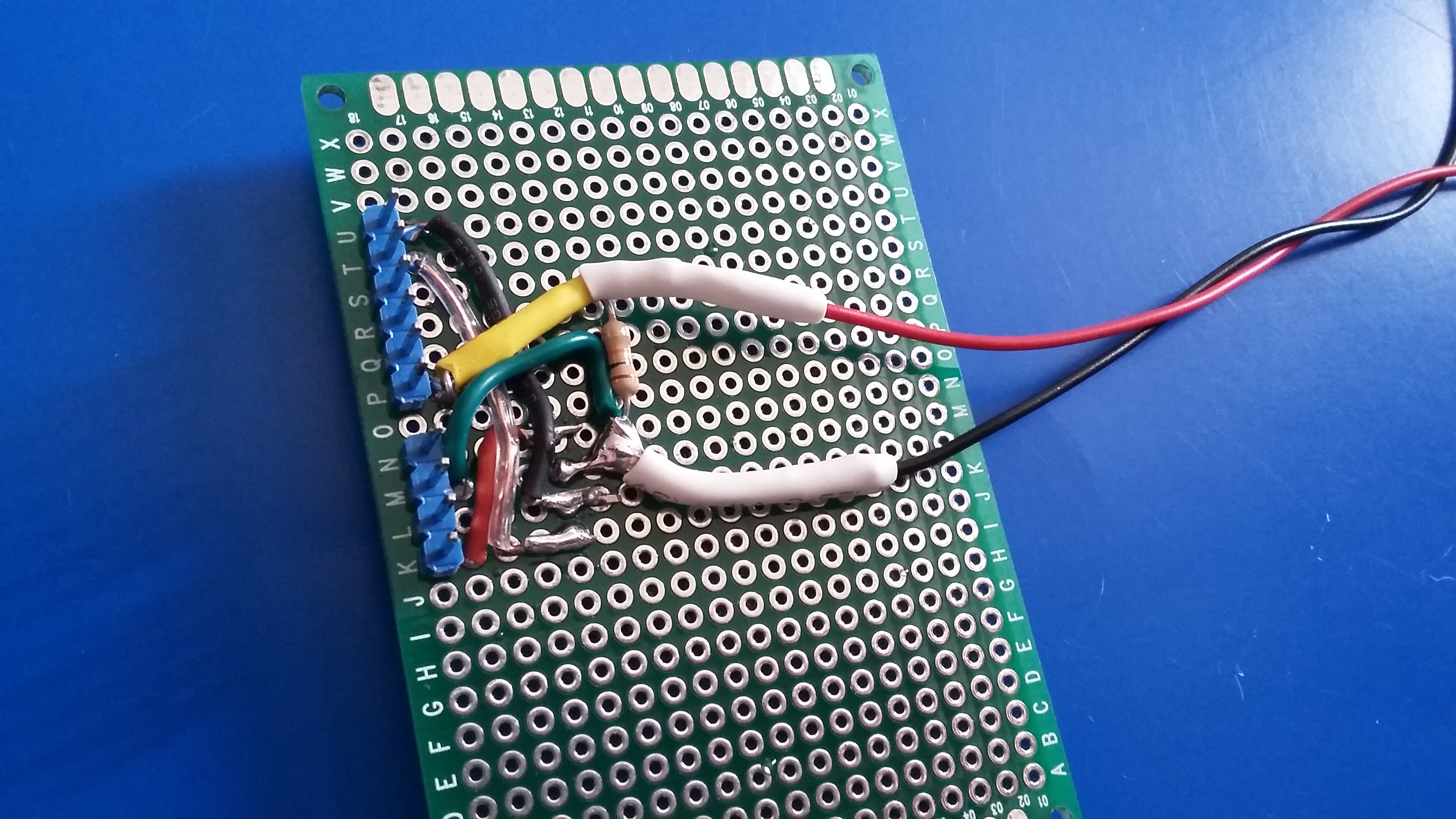

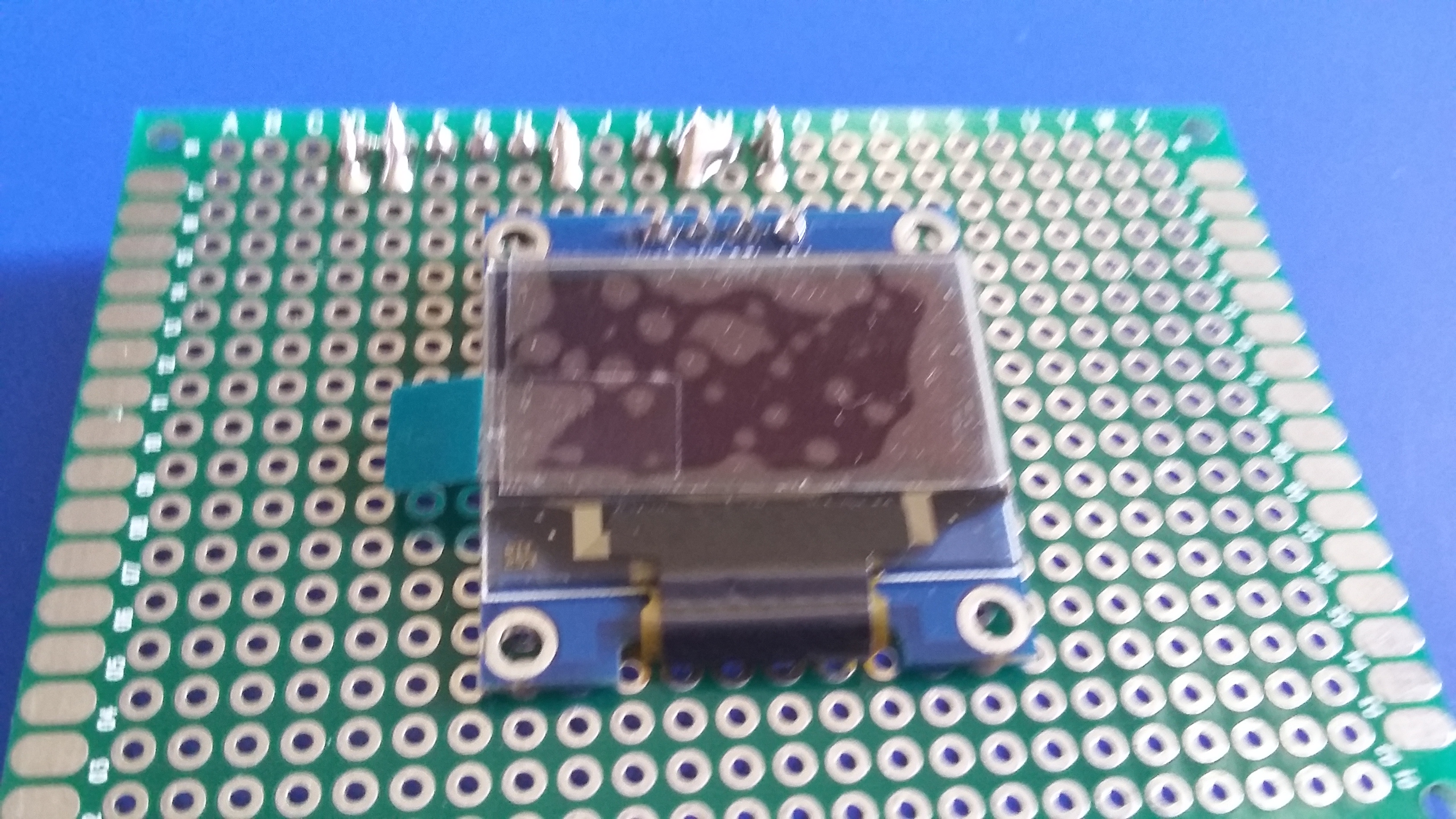

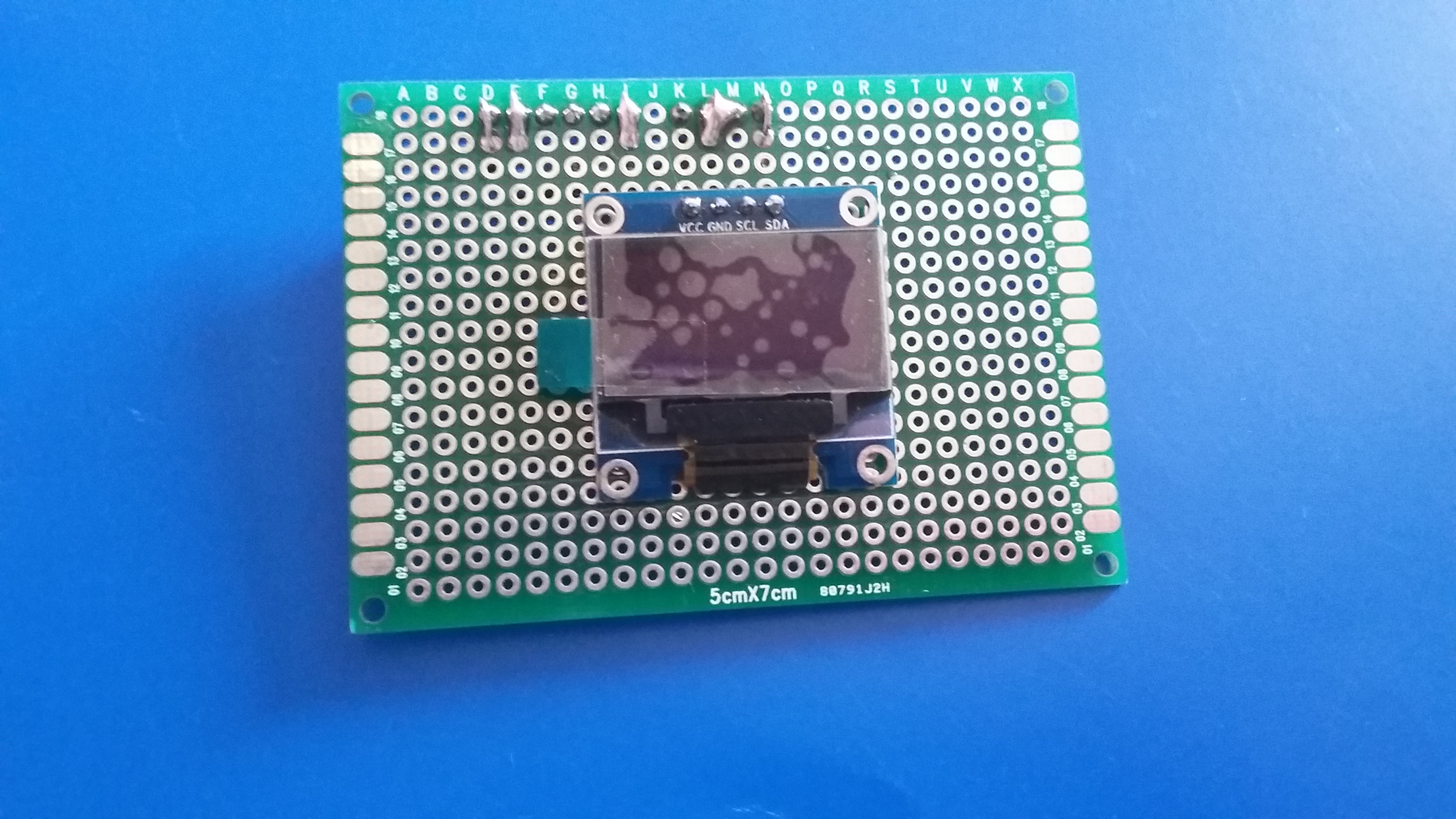

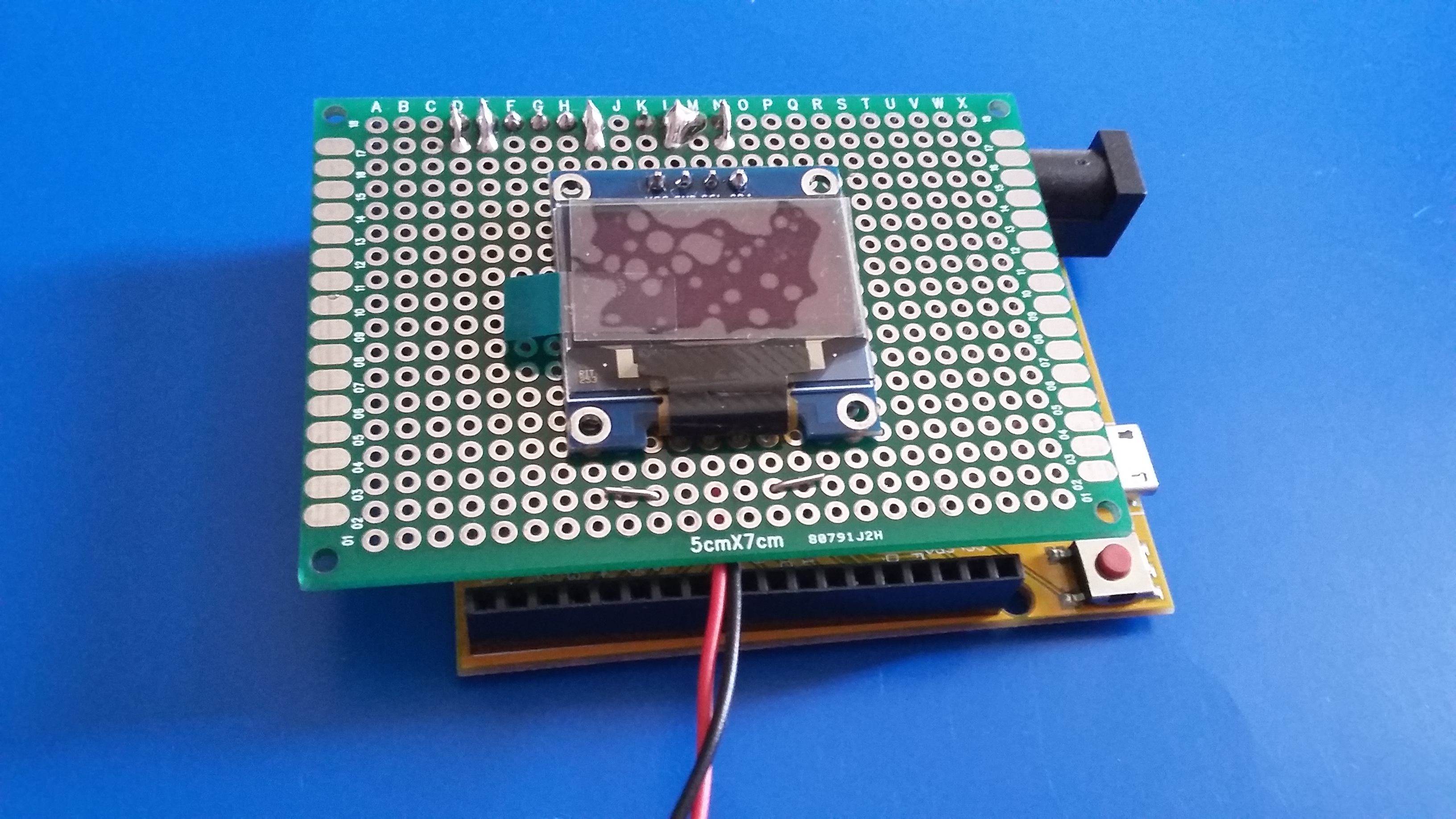

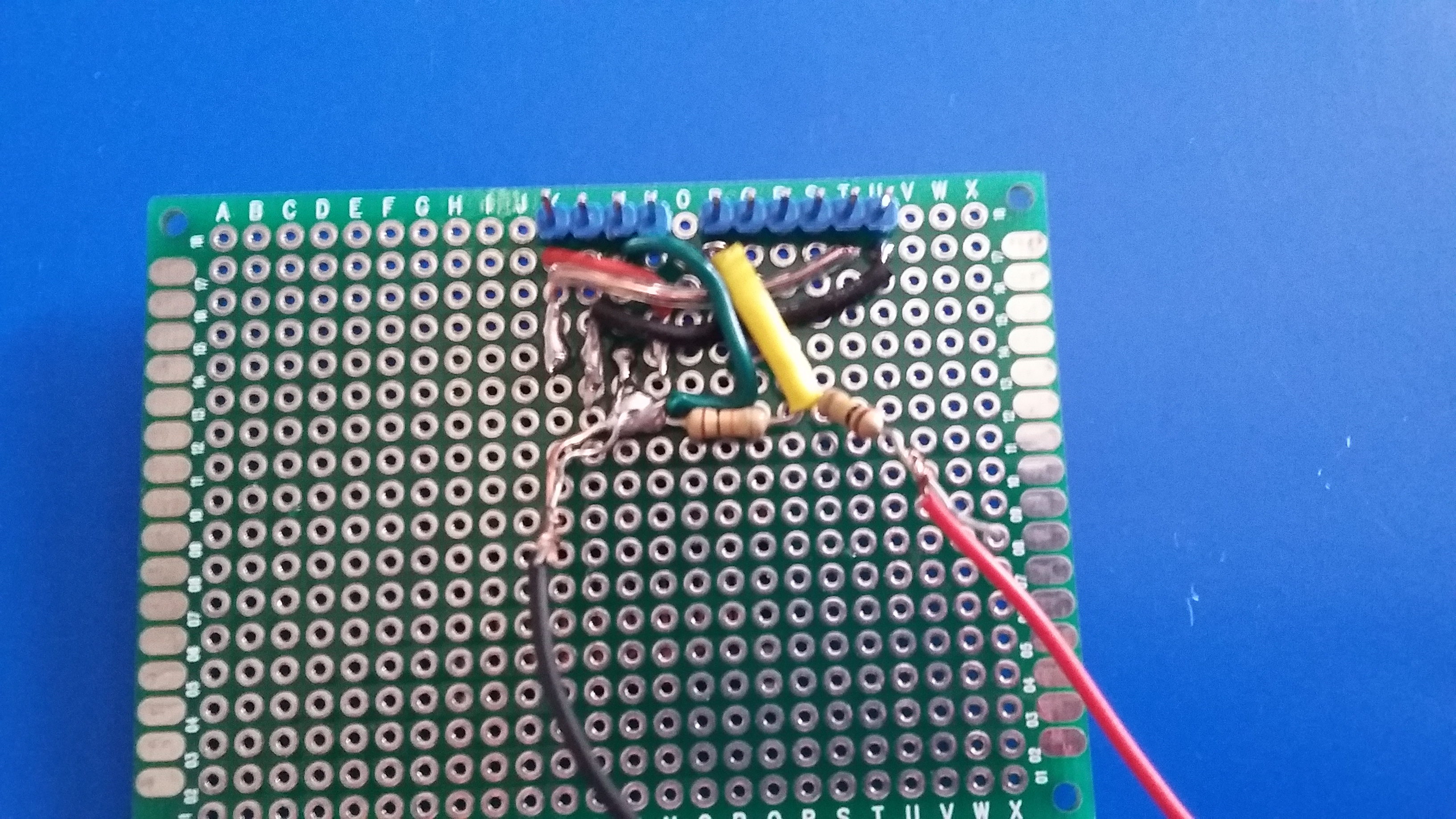

Following your schematic, complete step by step correctly before uploading the code.

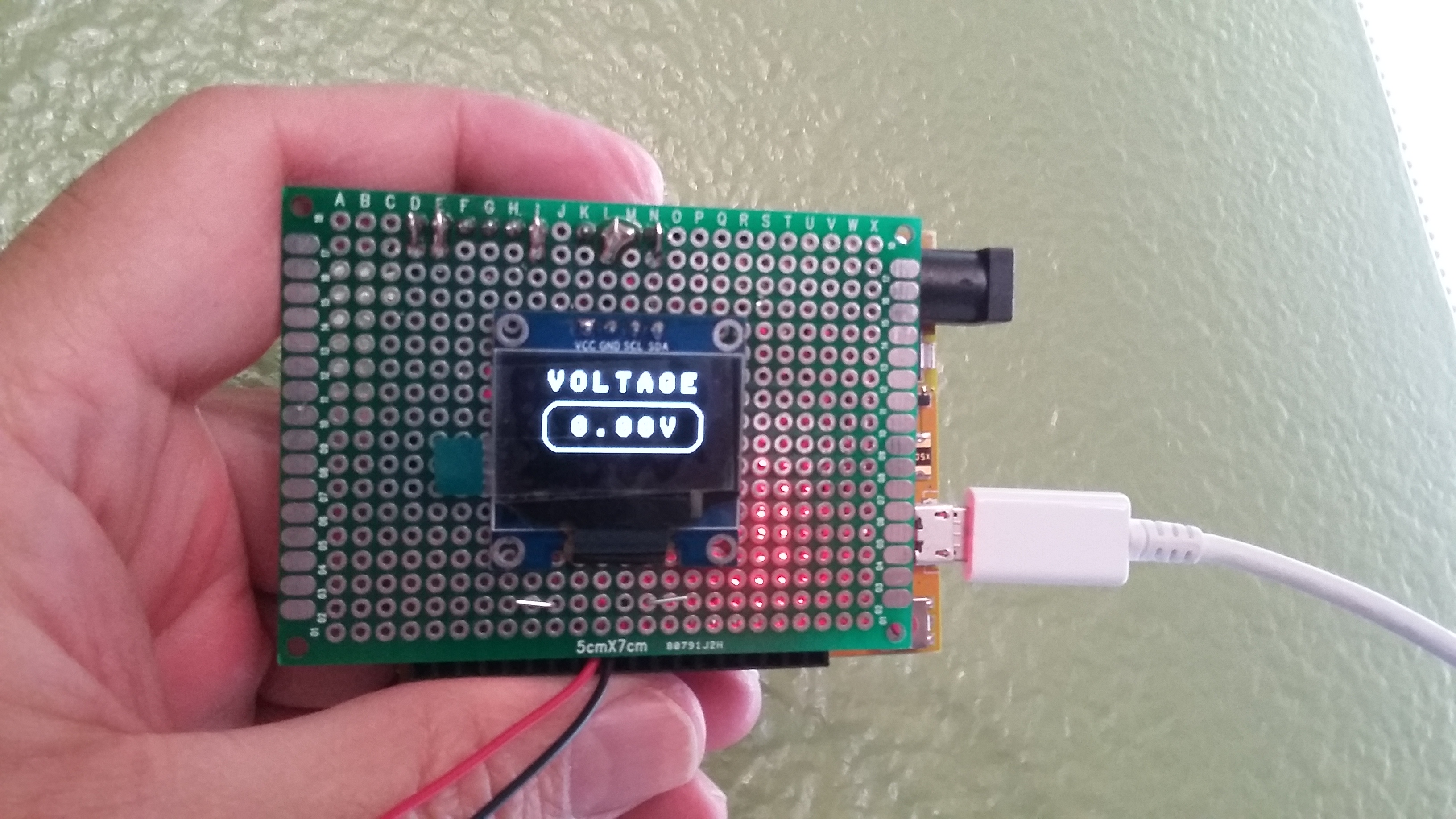

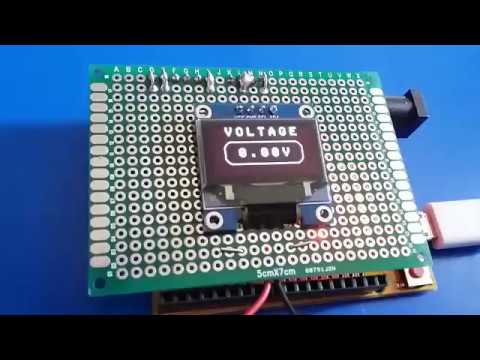

Now, it's time of uploading your code so that you can enjoy this interesting project. Then, remember to visit the following website: http://pastebin.com/wBz3RVgr
