Bandwidth PiMonitor

Turn your Raspberry Pi into a simple Bandwidth monitor.

Constantly monitor your internet connection speed to ensure it's consistent.

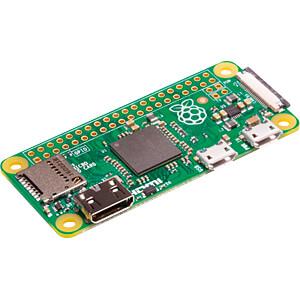

Raspberry Pi Zero W (you can also use other models)

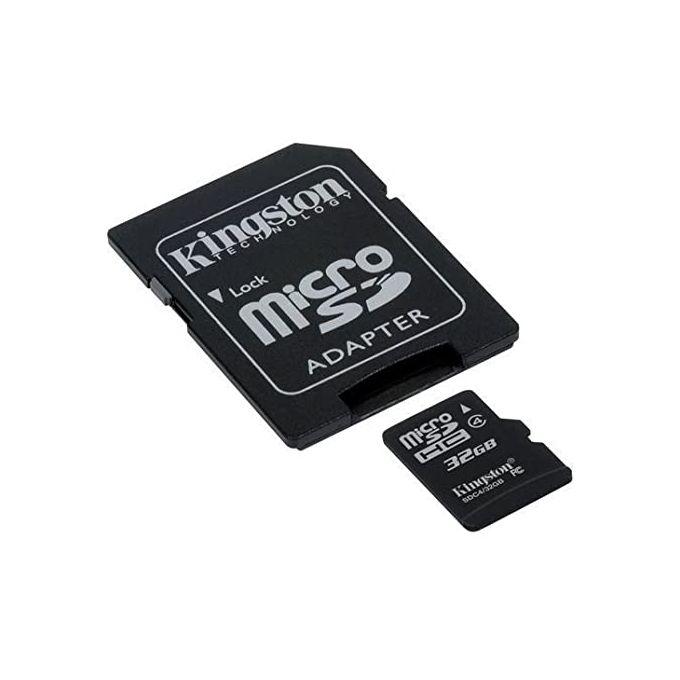

MicroSD card

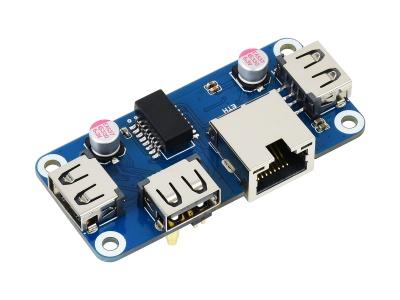

Waveshare ETH/USB HUB HAT

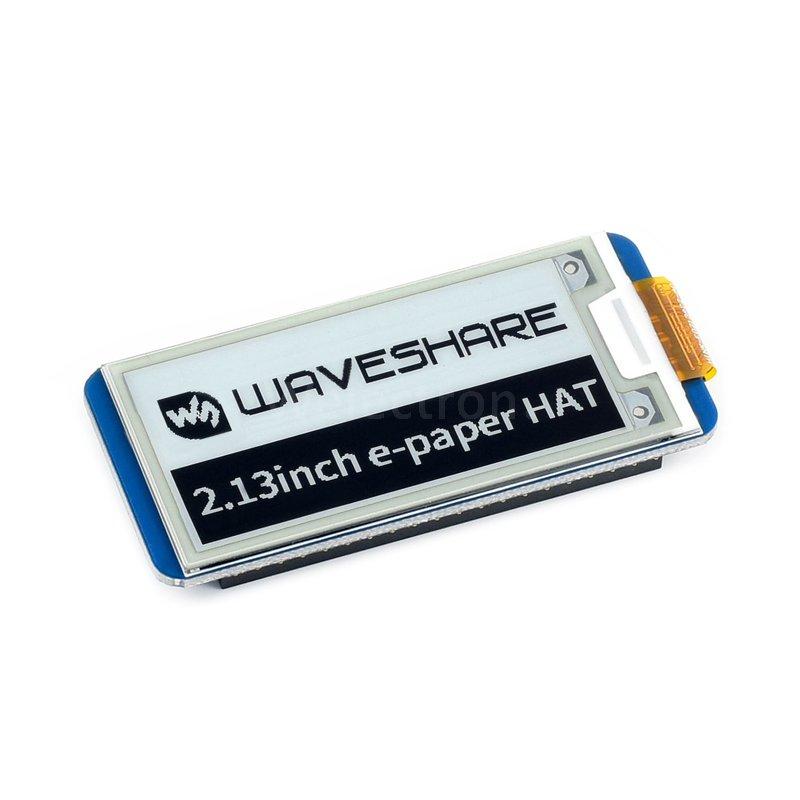

Waveshare 2.13inch e-Paper HAT

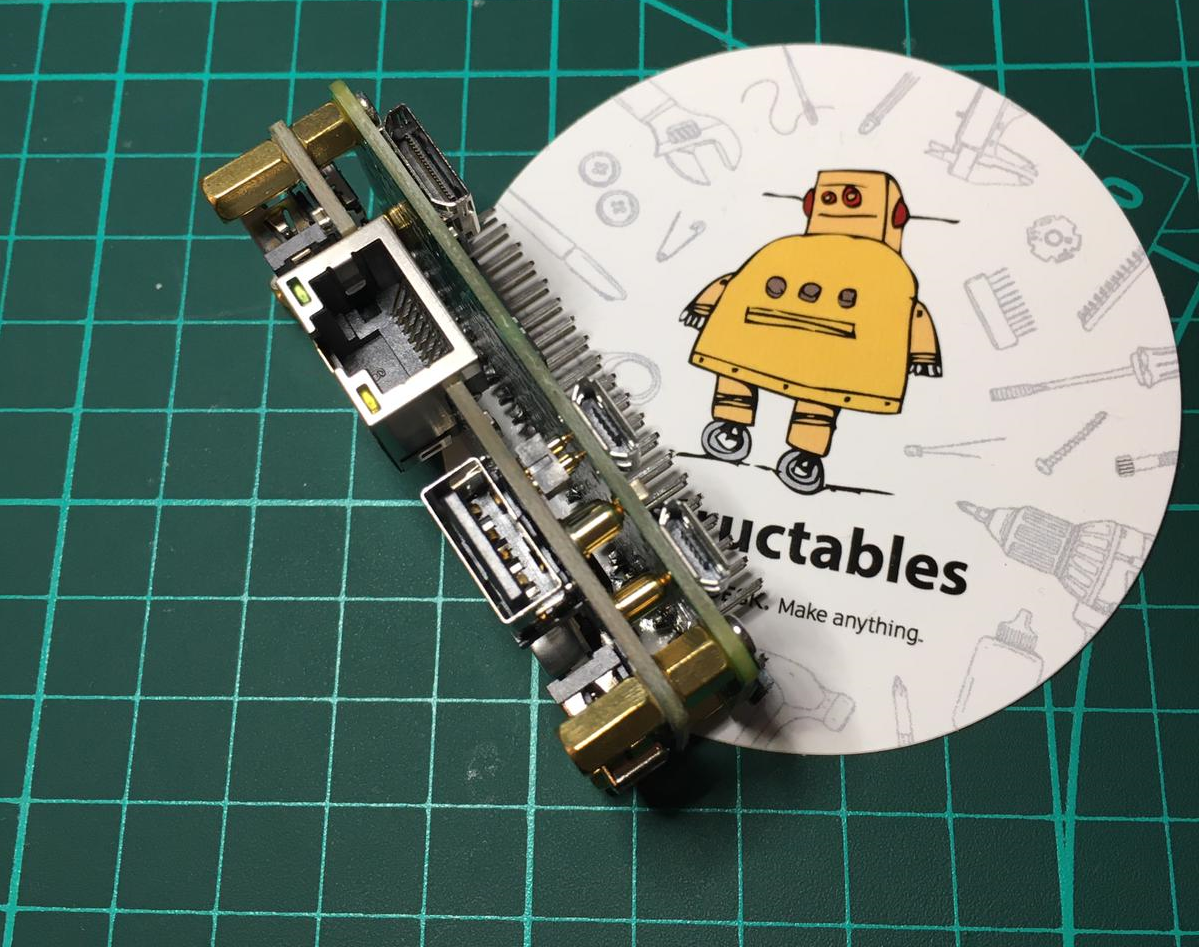

Connect the boards together.

First connect the ethernet HAT to the Pi by using the included screws, then add the e-Paper HAT on top.

There is also the possibility of using a Raspberry pi B that already has the ethernet port. Another option would be to connect the Pi using WiFi, but the speed might be limited.

Install a fresh copy of Raspbian lite.

I like to use Raspberry Pi Imager

SSH is disabled by default so you need to enable it by adding a file called "ssh" in /boot.

Once the Pi is up you can SSH into it and continue with the next steps.

Enable the SPI interface

sudo raspi-config

Choose Interfacing Options -> SPI -> Yes

sudo reboot

Install BCM2835 libraries

wget http://www.airspayce.com/mikem/bcm2835/bcm2835-1.60.tar.gz
tar zxvf bcm2835-1.60.tar.gz
cd bcm2835-1.60/
sudo ./configure
sudo make
sudo make check
sudo make install

Install WiringPi libraries

sudo apt-get install wiringpi
wget https://project-downloads.drogon.net/wiringpi-latest.deb
sudo dpkg -i wiringpi-latest.deb
gpio -v

Install Python2 libraries

sudo apt-get update
sudo apt-get install python-pip python-pil python-numpy
sudo pip install RPi.GPIO
sudo pip install spidev

Install Python3 libraries

sudo apt-get update
sudo apt-get install python3-pip python3-pil python3-numpy
sudo pip3 install RPi.GPIO
sudo pip3 install spidev

Install the speedtest-cli module

pip install speedtest-cli

Clone the project files:

sudo git clone https://github.com/zangaby/bpimon

Test the python script:

sudo python bpimon.py

or

sudo python3 bpimon.py

Add a cronjob to perform the test every 1 hour.

sudo crontab -e

add the following line

0 * * * * /usr/bin/python /home/pi/bpimon.py

Few things that might be added to the project.

• Add mqtt integration
• Add thingsboard.io integration

Credits: https://www.instructables.com/Bandwidth-Monitor/

Hope you enjoyed this project and if you have any questions feel free to ask.

Thank you for reading!
