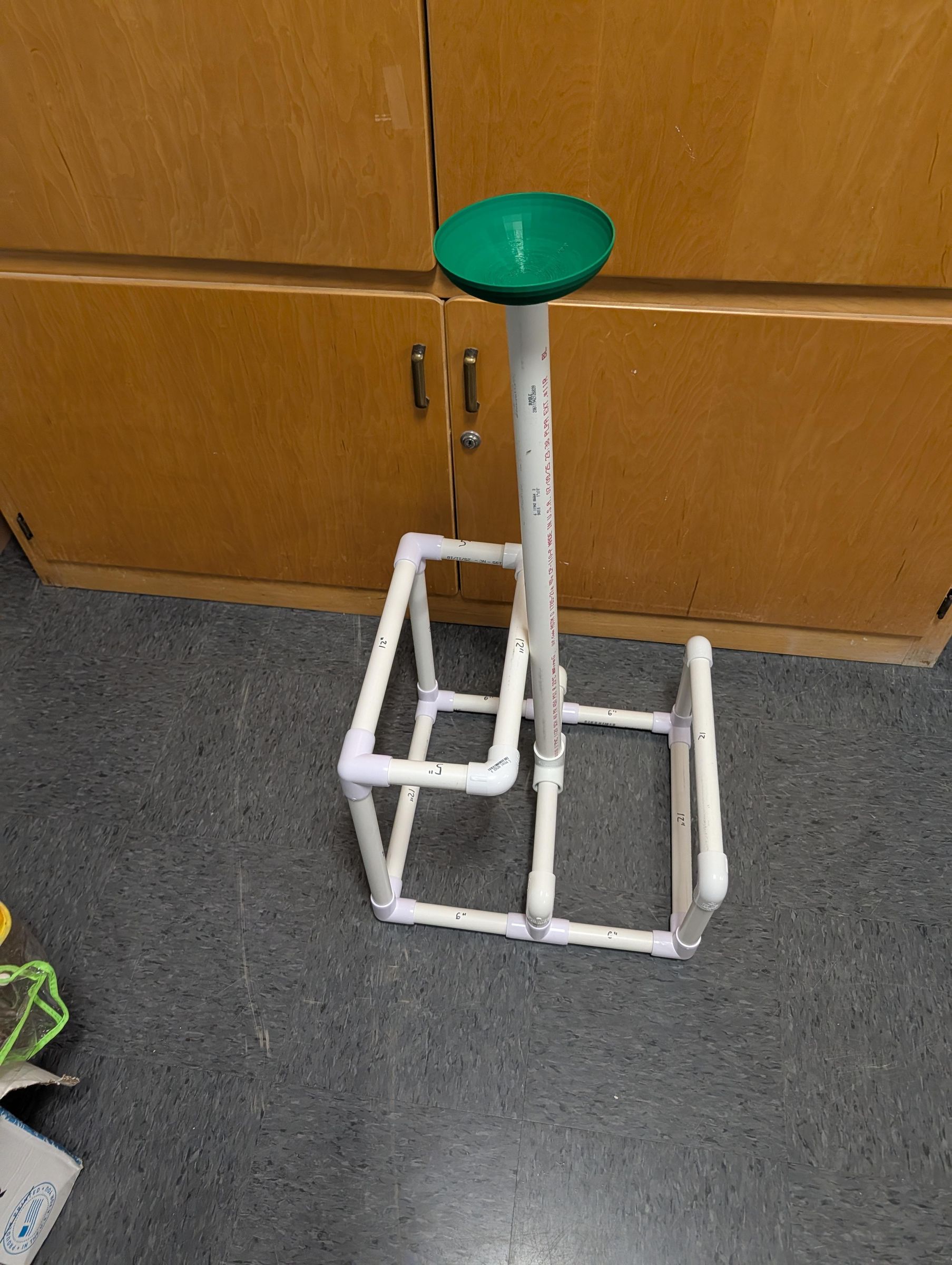

Basketball Shooter

This design was inspired by this design from Nicole McCoy.

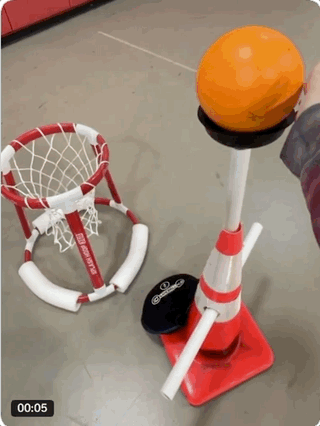

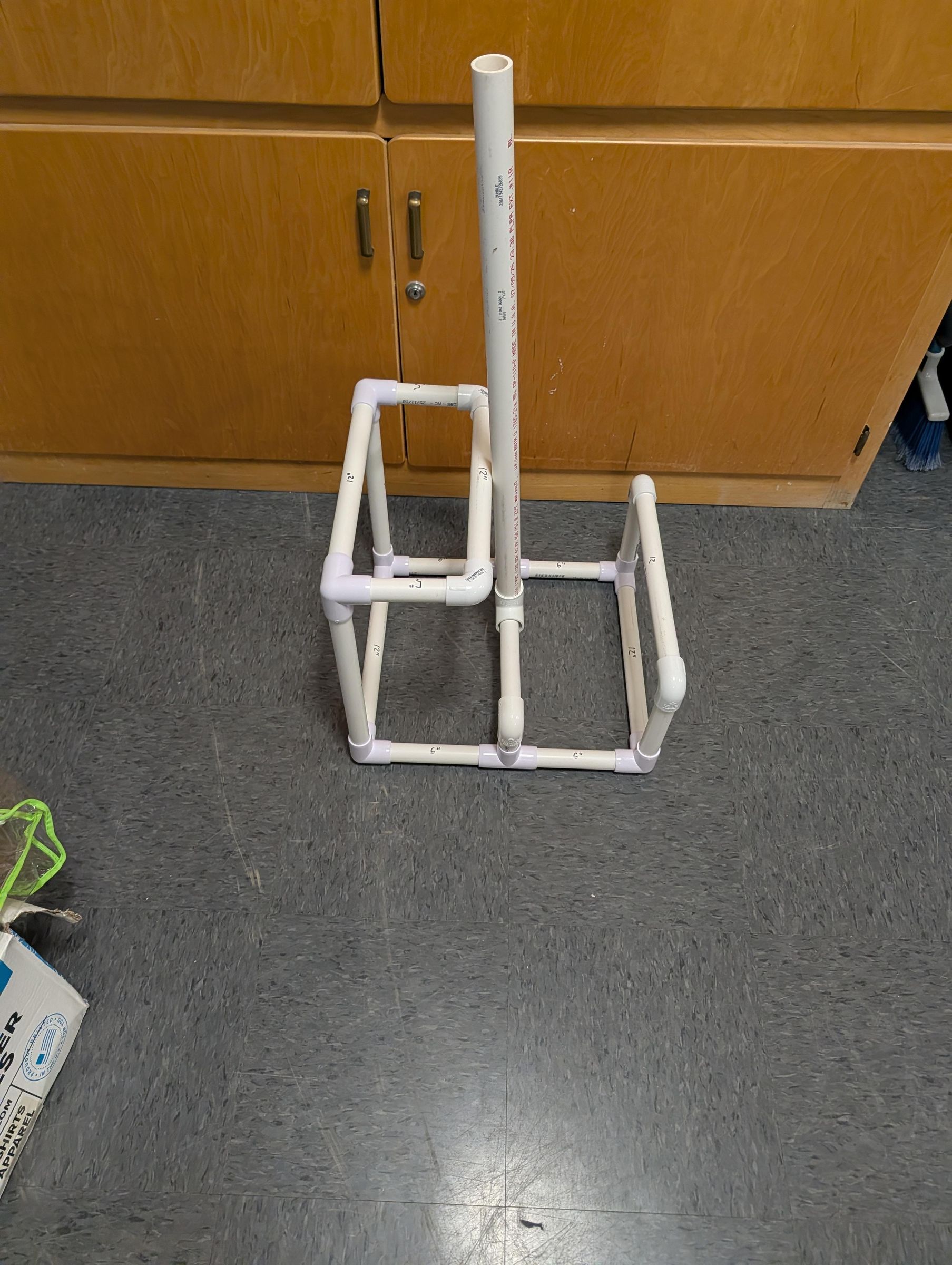

This device allows someone with limited range of motion or grasp to shoot a basketball.

Most of this is PVC. I used 3/4 inch PVC to make the frame with a 1-inch t-joint and 1-inch pipe for the swinging arm because that's what I have. I used PVC glue to hold it together.

I 3D printed the "plunger" piece (.stl file is attached) but you could use an actual toilet plunger if you wanted.

Cut list for 3/4-inch PVC pipe

1. 8 12-inch
2. 6 6-inch
3. 2 5-inch
4. 2 2-inch

3/4-inch joints

1. 6 90-degree elbow joints
2. 6 90-degree three-way joints
3. 2 T-joints

Cut list for 1-inch PVC pipe

1. 1 27-inch pipe

1-inch joints

1. 1 T-joint

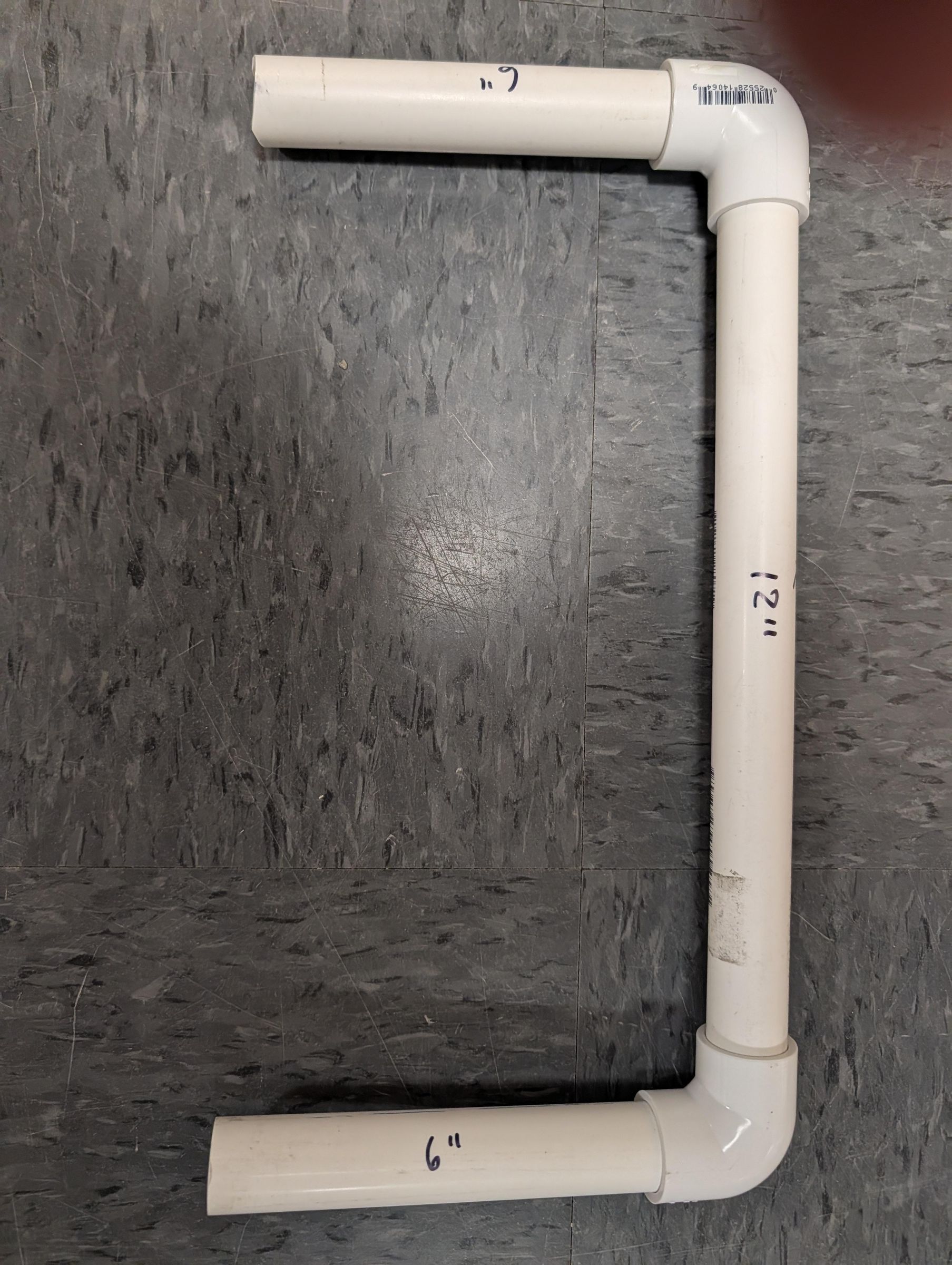

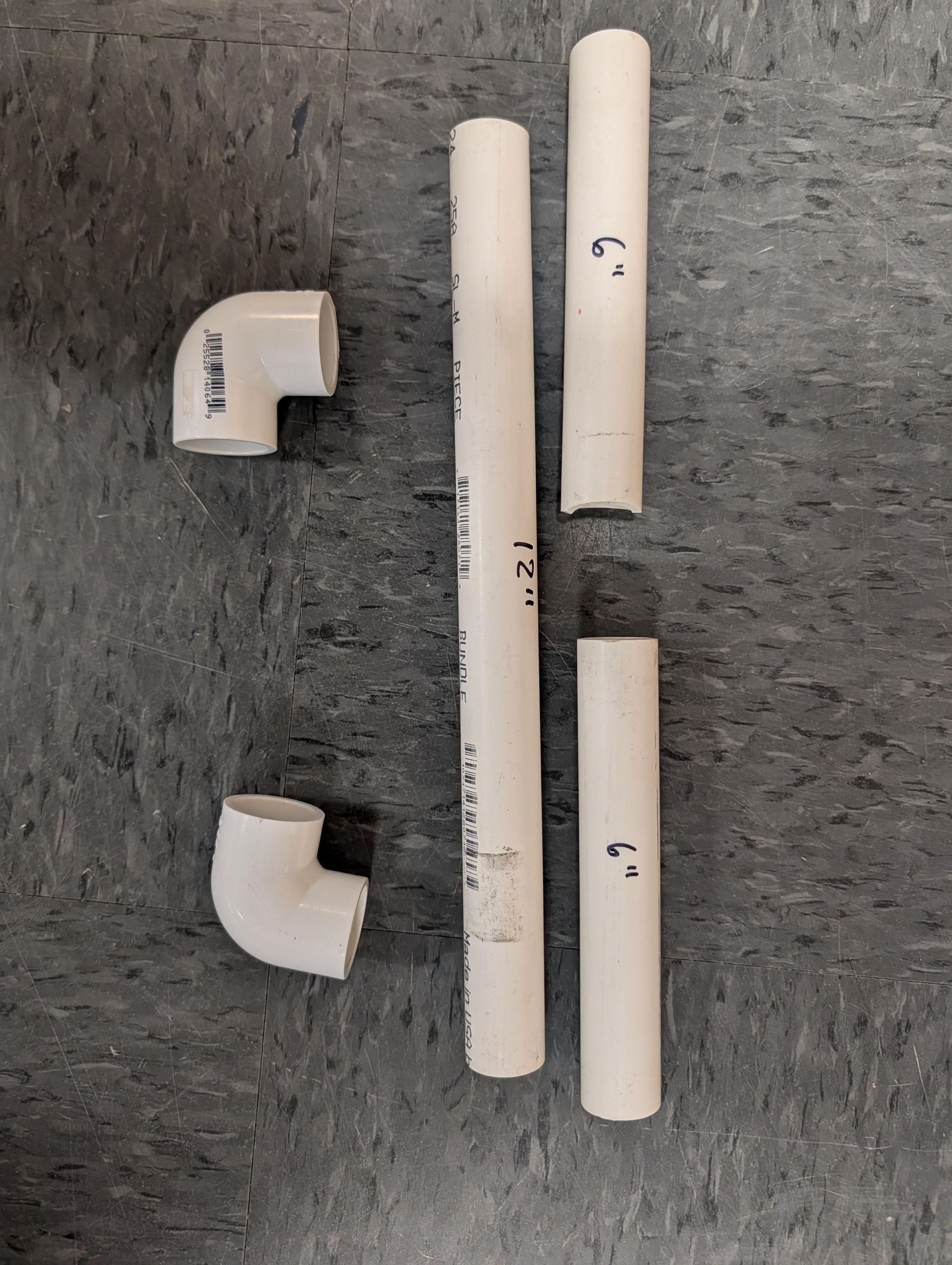

You will need:

2 90-degree 3/4-inch elbow joints

1 12-inch-long 3/4-inch pipe

2 6-inch-long 3/4-inch pipes

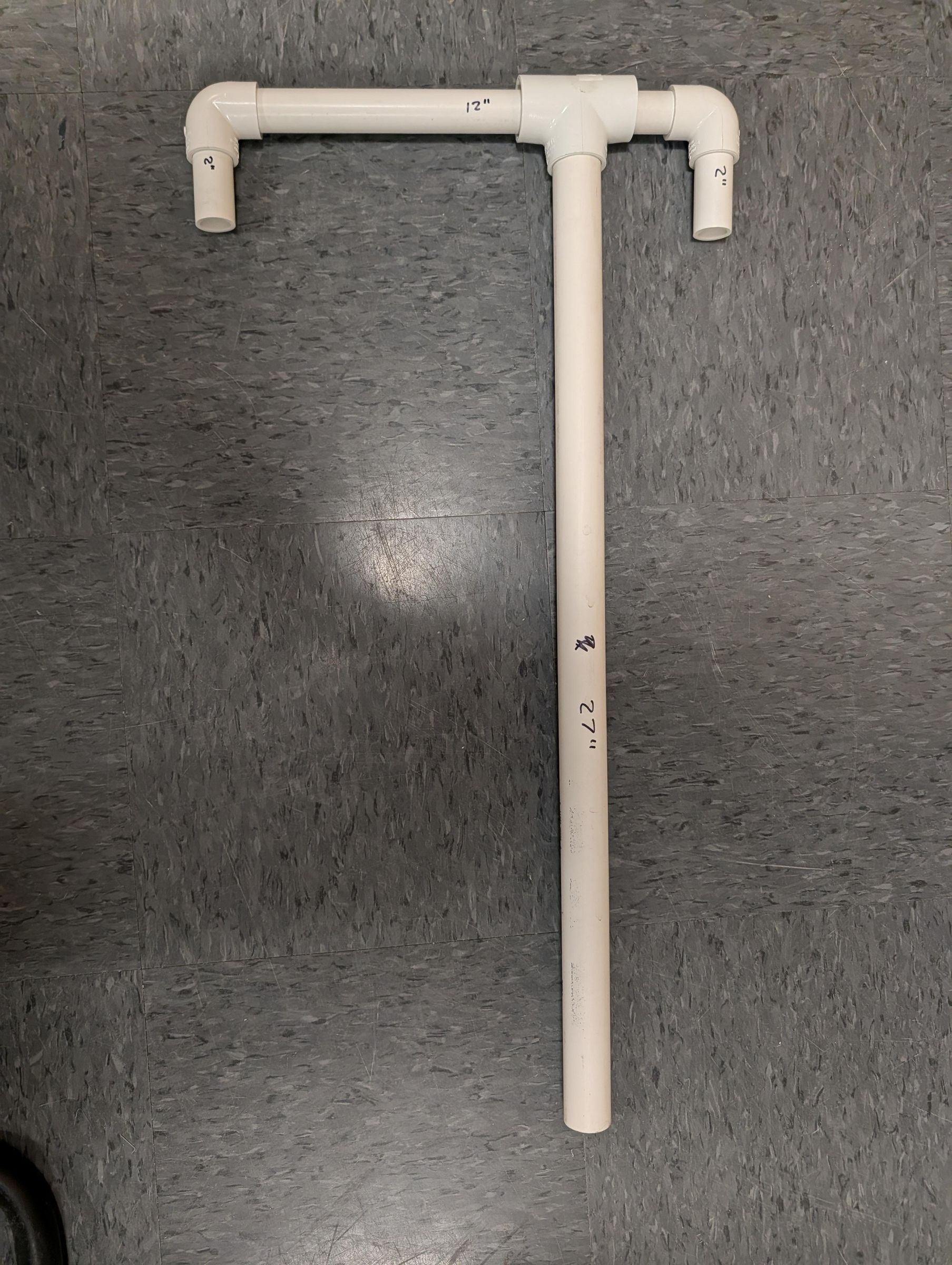

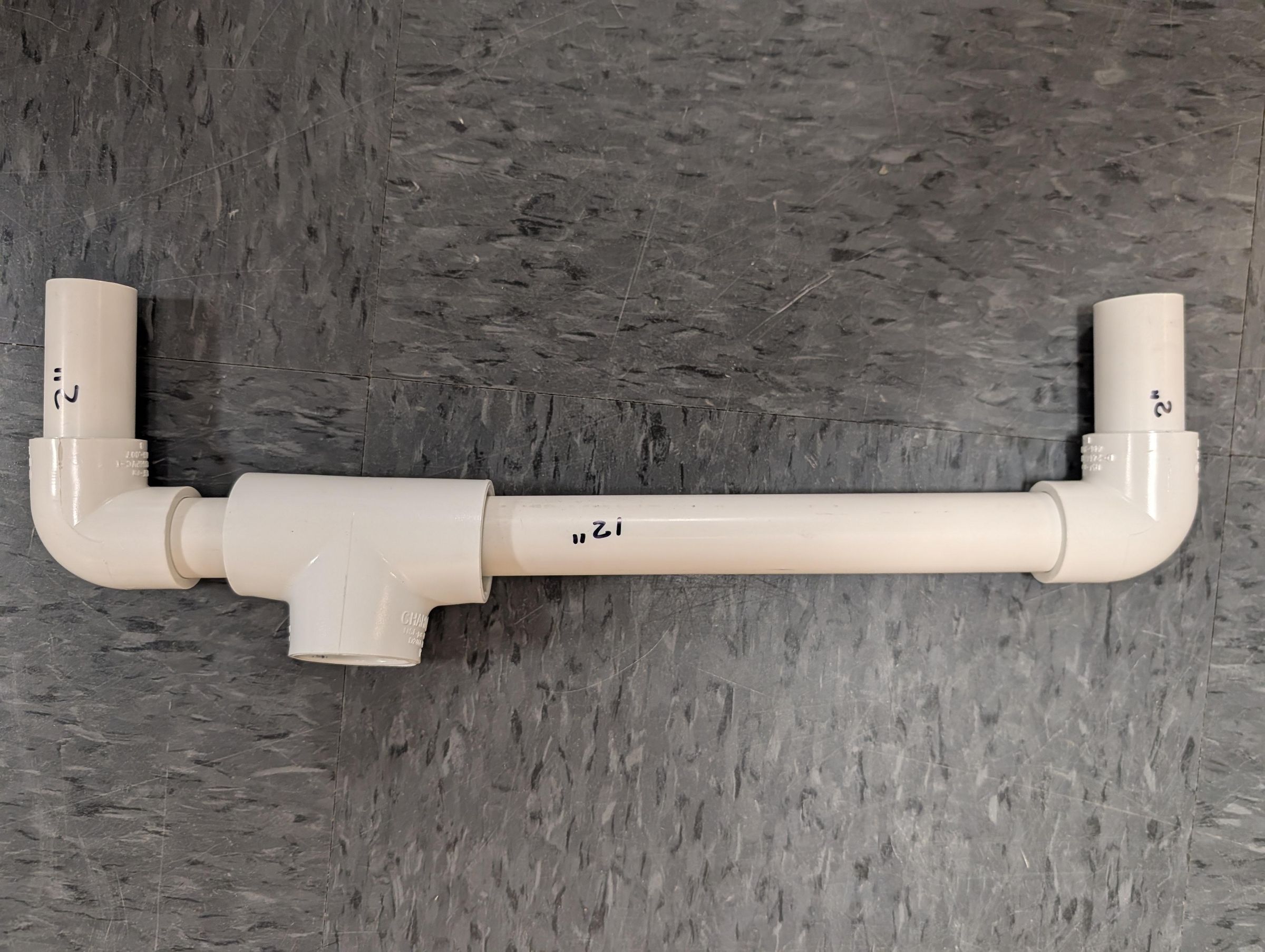

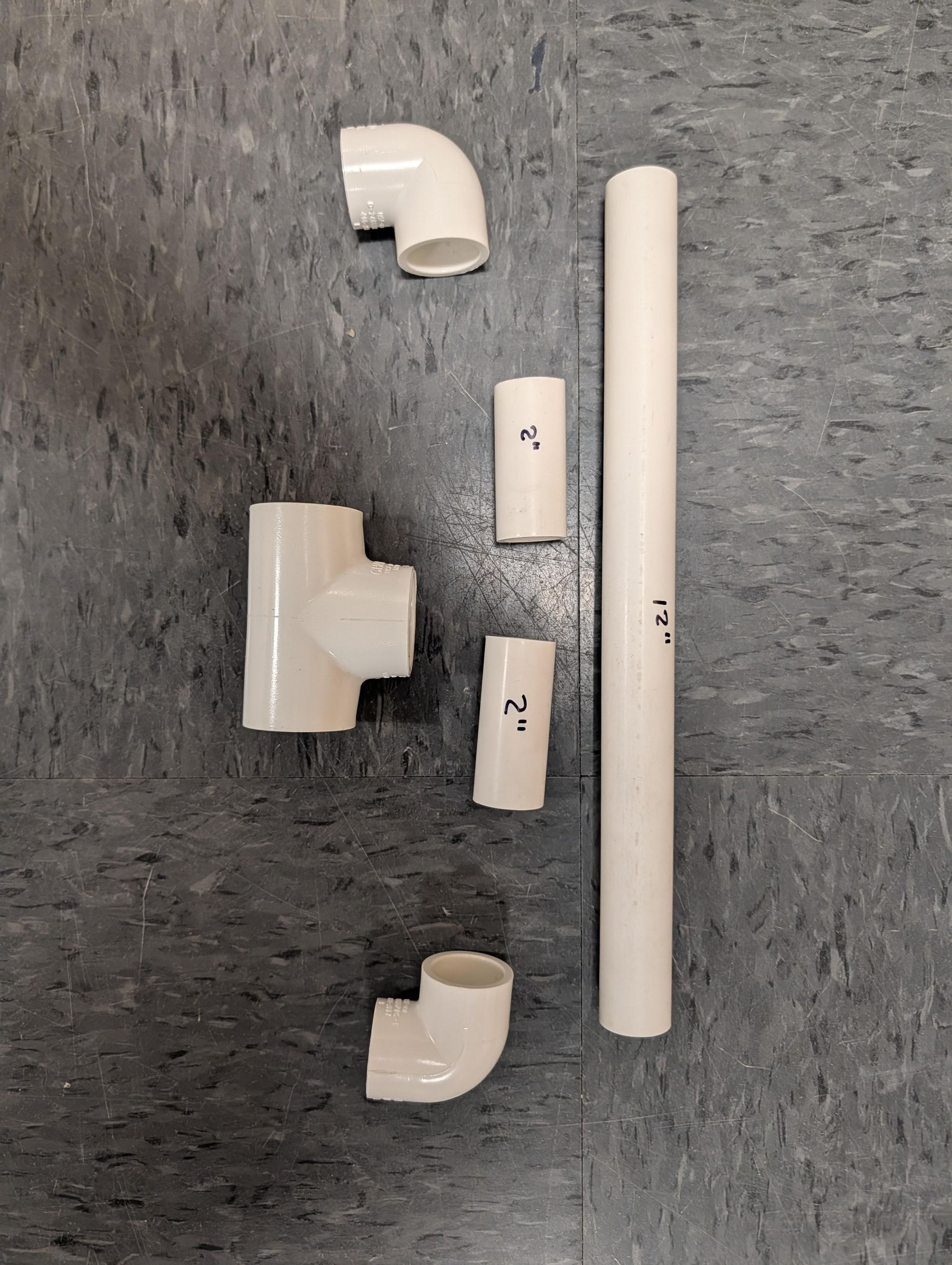

You will need:

1 12-inch-long 3/4-inch pipe

2 2-inch-long 3/4-inch pipe

2 90-degree 3/4-inch elbow joints

1 1-inch T-joint

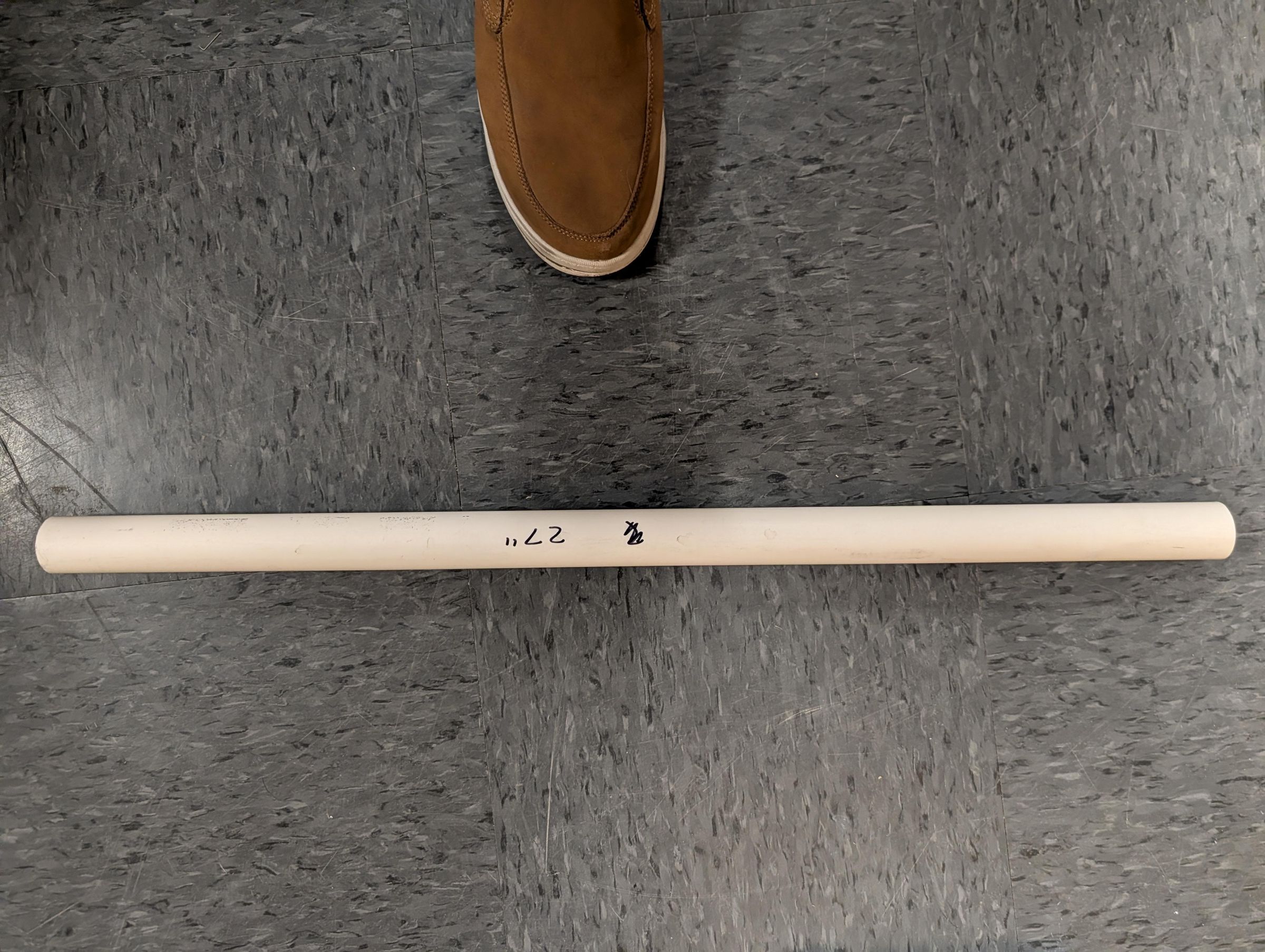

1 27-inch-long 1-inch pipe

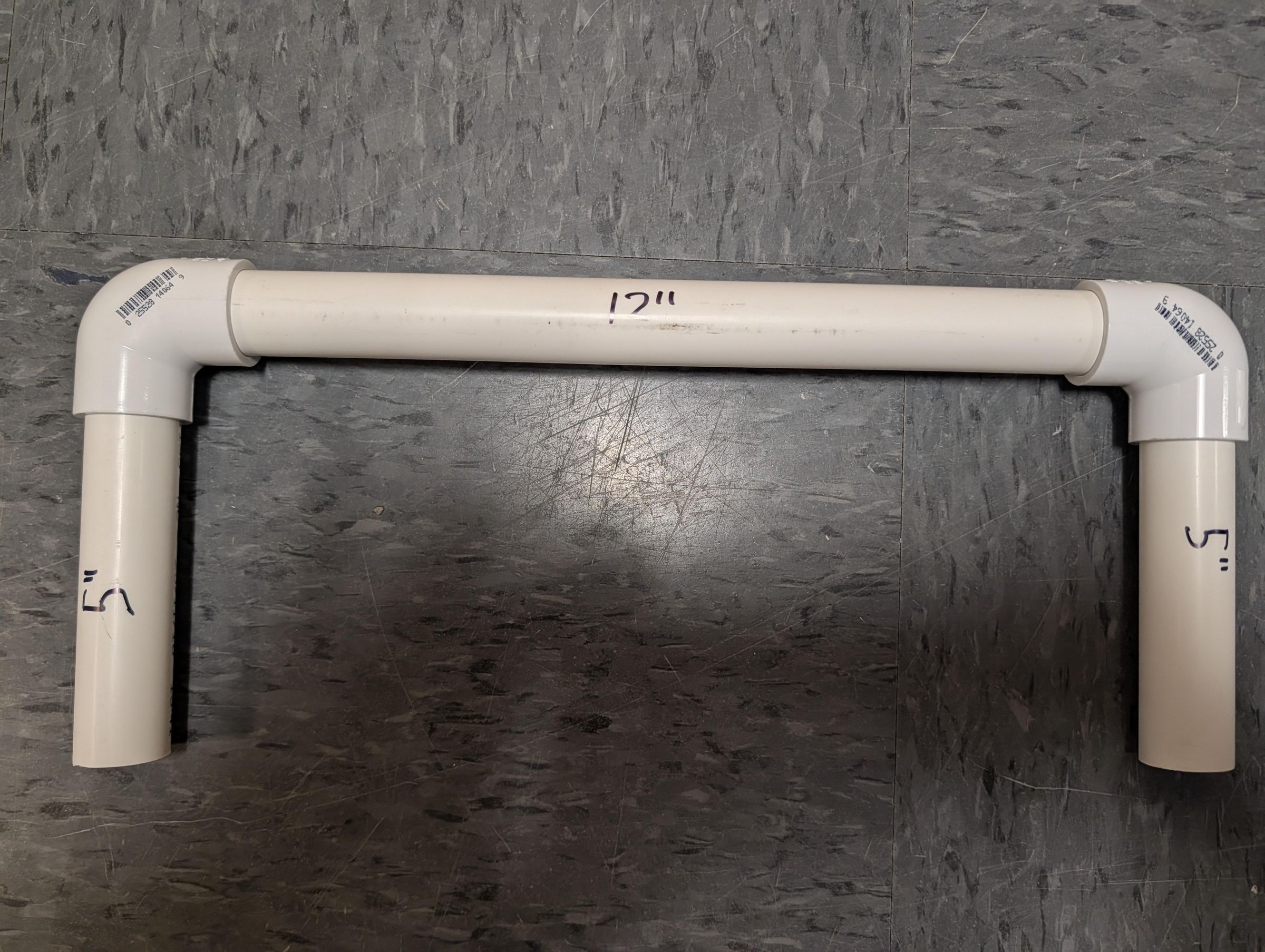

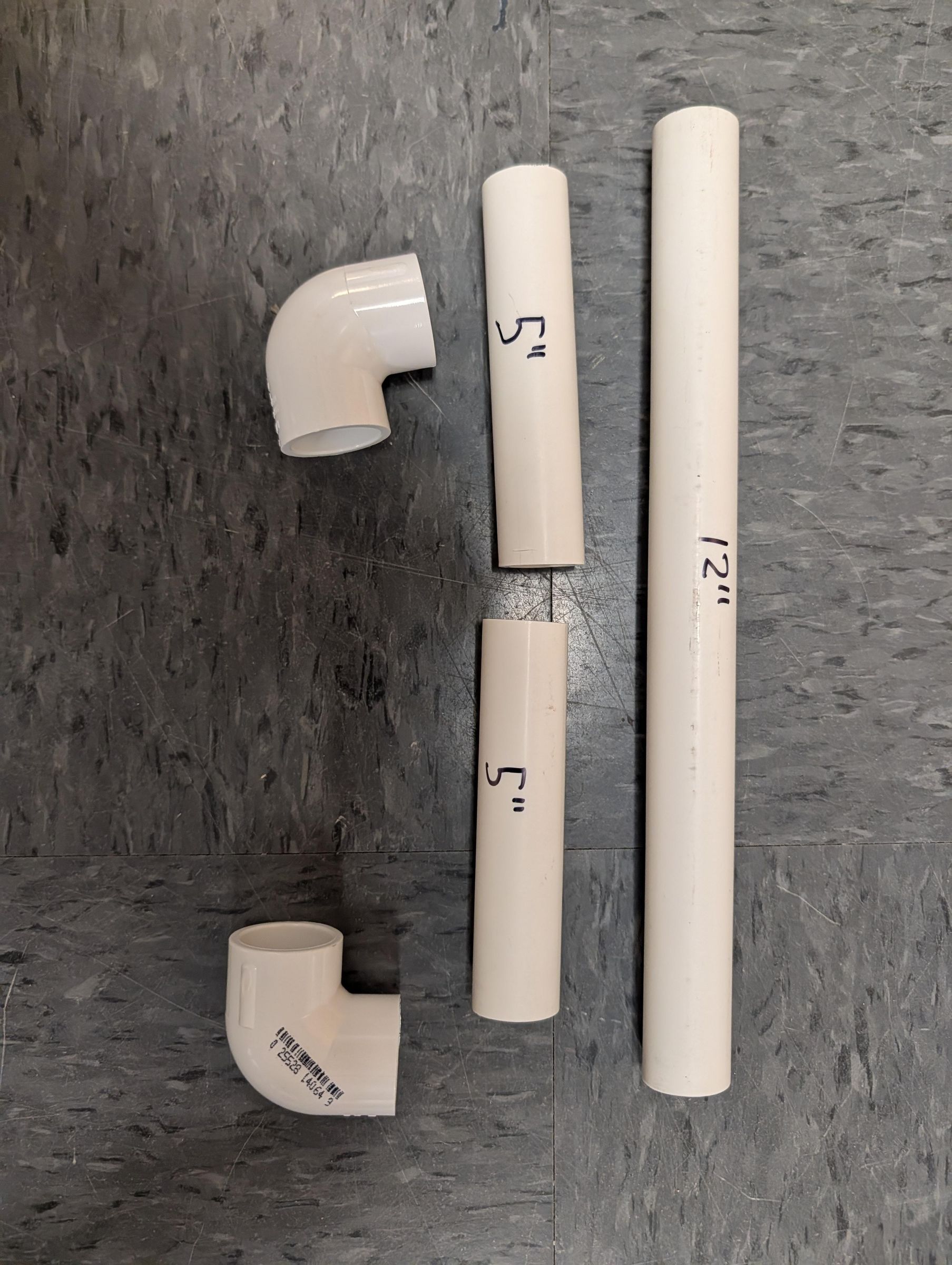

You will need:

1 12-inch-long 3/4-inch pipe

2 5-inch-long 3/4-inch pipe

2 90-degree 3/4-inch elbow joints

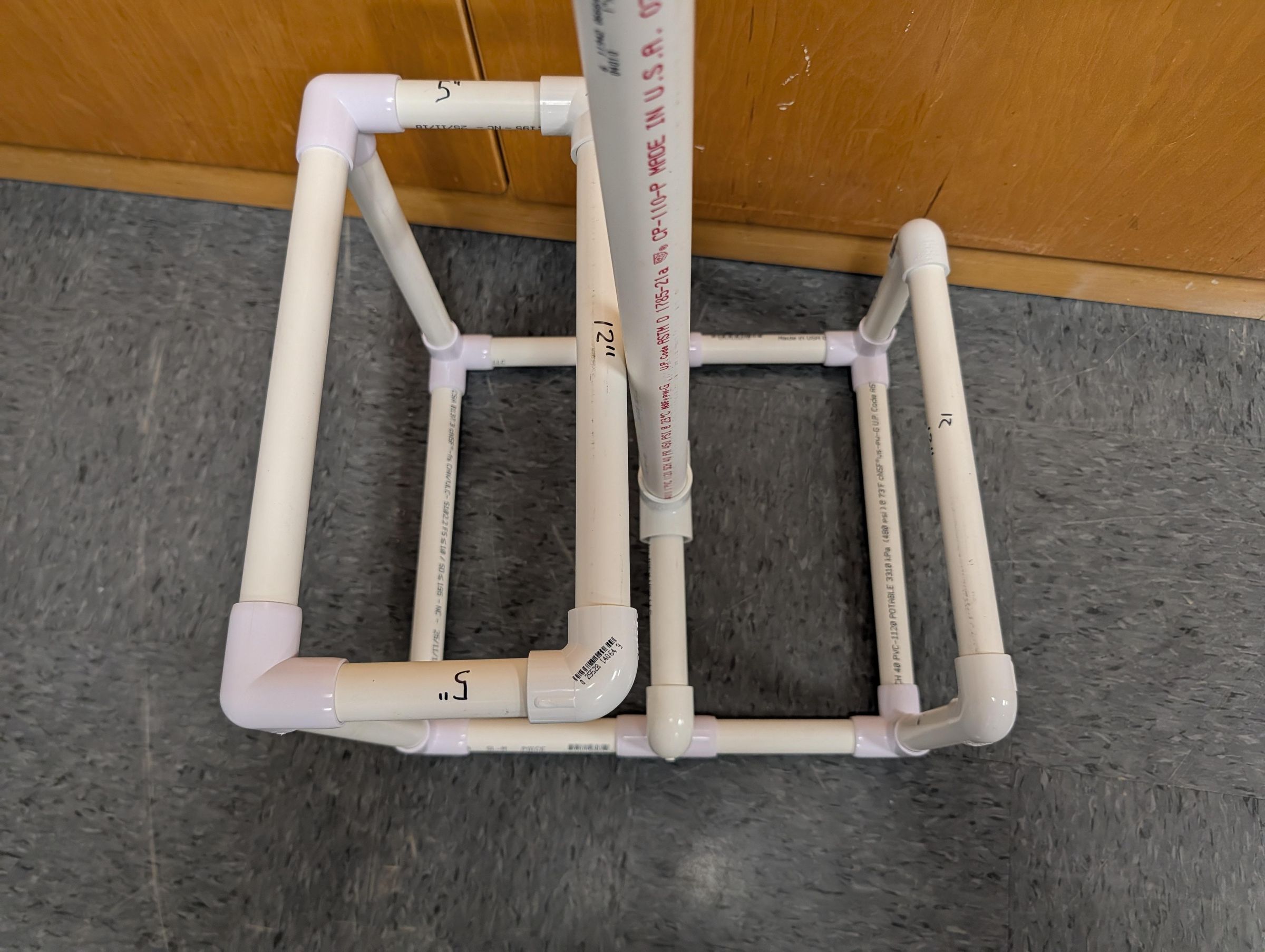

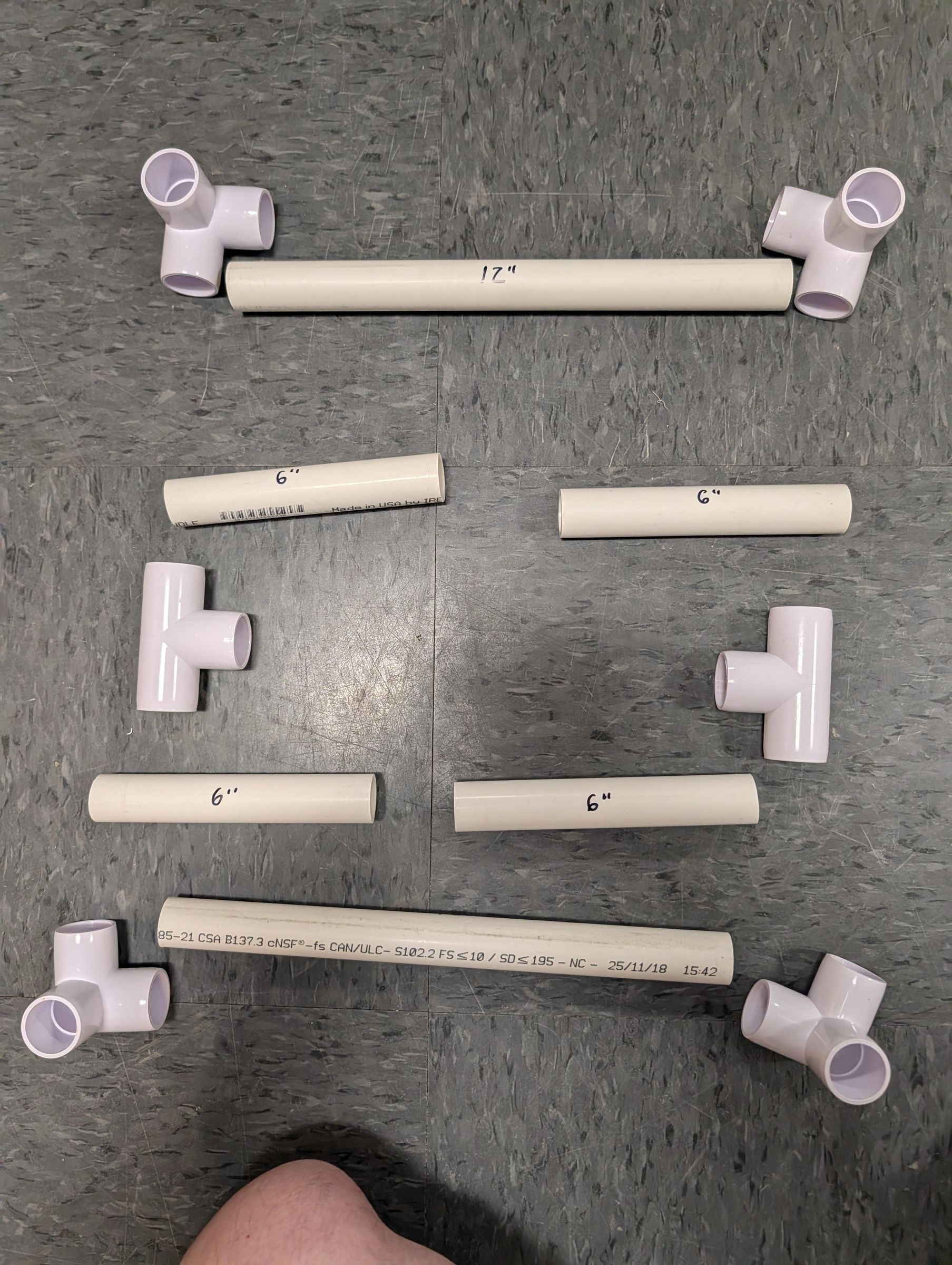

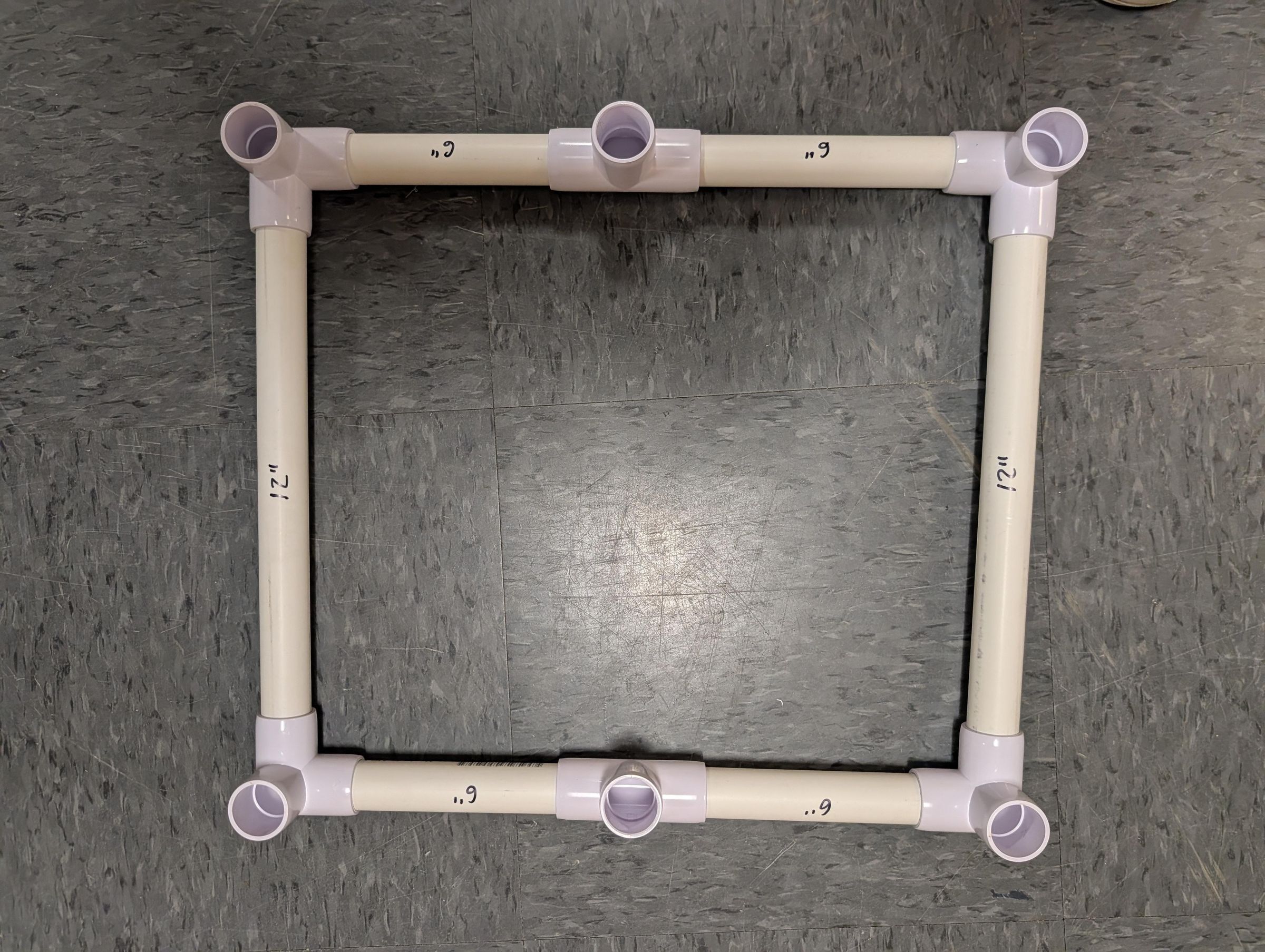

You will need

4 90-degree 3-way 3/4-inch joints

2 3/4-inch T-joints

4 6-inch-long 3/4-inch pipes

2 12-inch-long 3/4-inch pipes

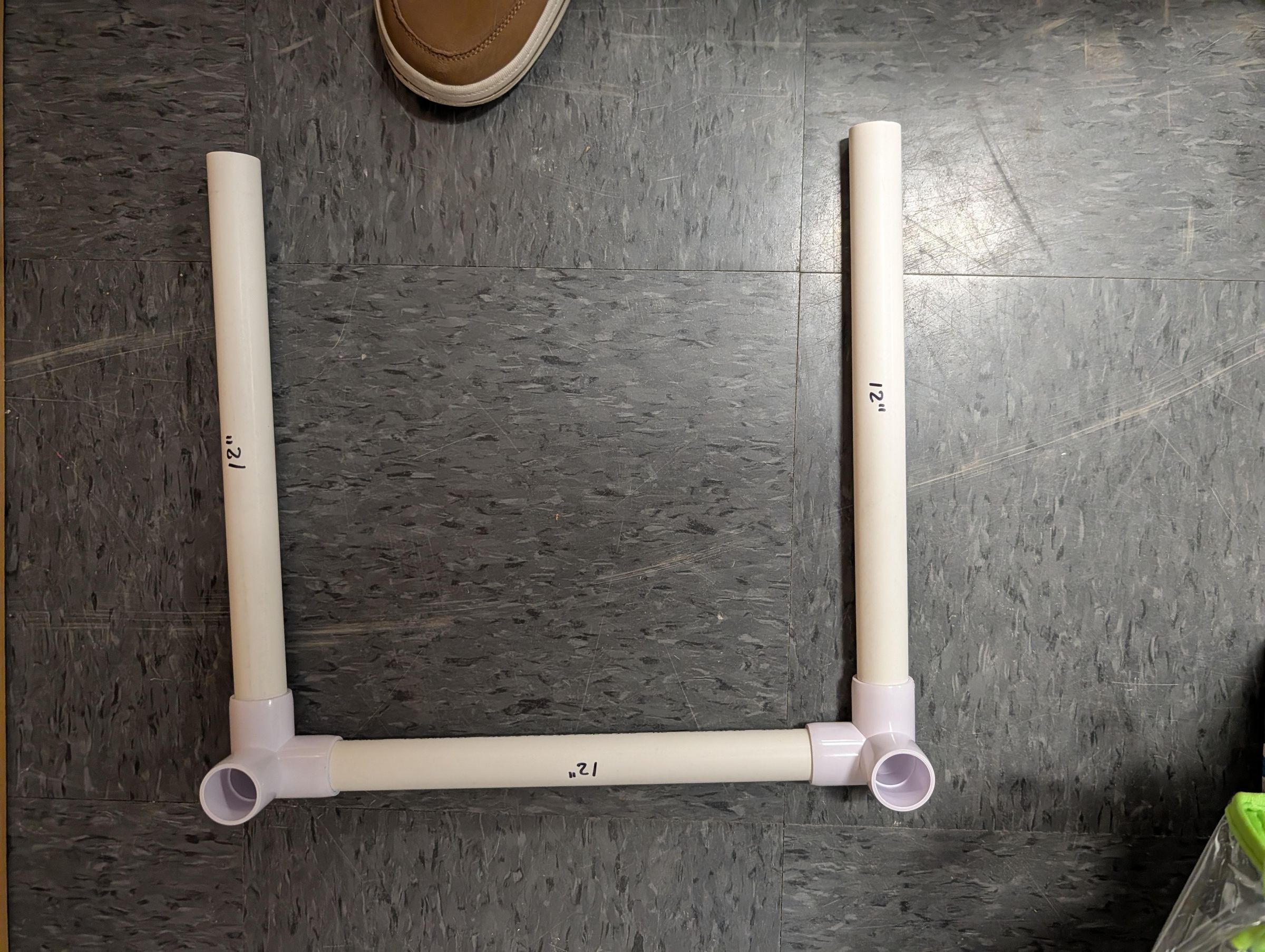

You will need:

2 90-degree 3-way 3/4-inch joints

3 12-inch-long 3/4-inch pipes

Use PVC glue to hold everything together.
