Beginner LED Arduino Project

Learn to light an LED with Arduino microcontroller board.

Have you ever heard of a microprocessor? A microprocessor is “an integrated circuit that contains all the functions of a central processing unit of a computer” (Google). A type of microprocessor is an Arduino. One of the many things that the Arduino can do is light up an LED light.

YADI

Our first microprocessor project using Arduino to illuminate and LED light. The DIS Demons Makers do it all!

• 2x male to male jumper wires
• Arduino Uno
• Resistors (as many as how many LEDs are used)
• LED lights (any amount)
• Breadboard
• Laptop,computer, mac, etc
• Arduino Software

Buy an Arduino Kit (optional)

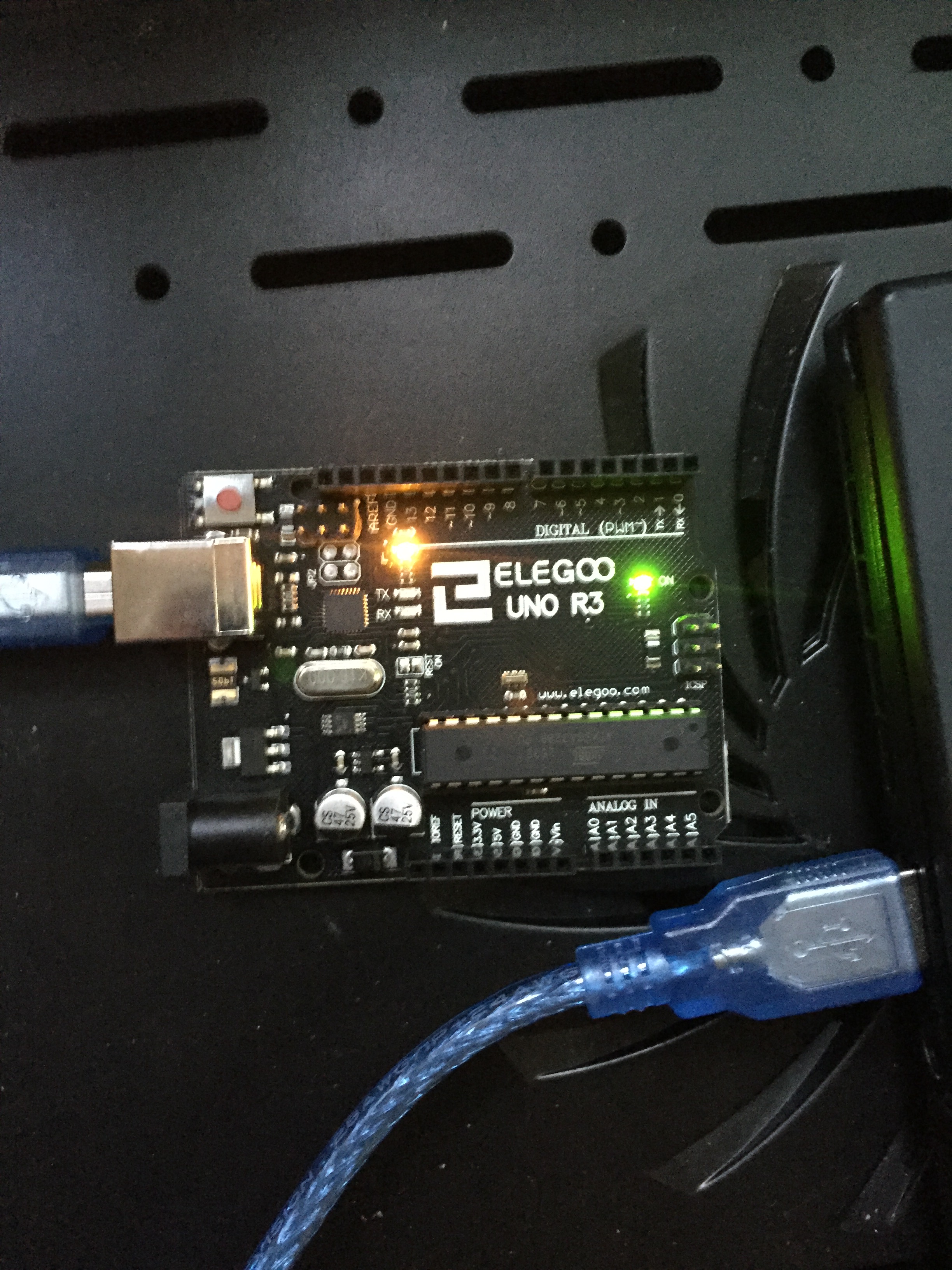

Connect Arduino to power source (laptop, Comp, Etc.)

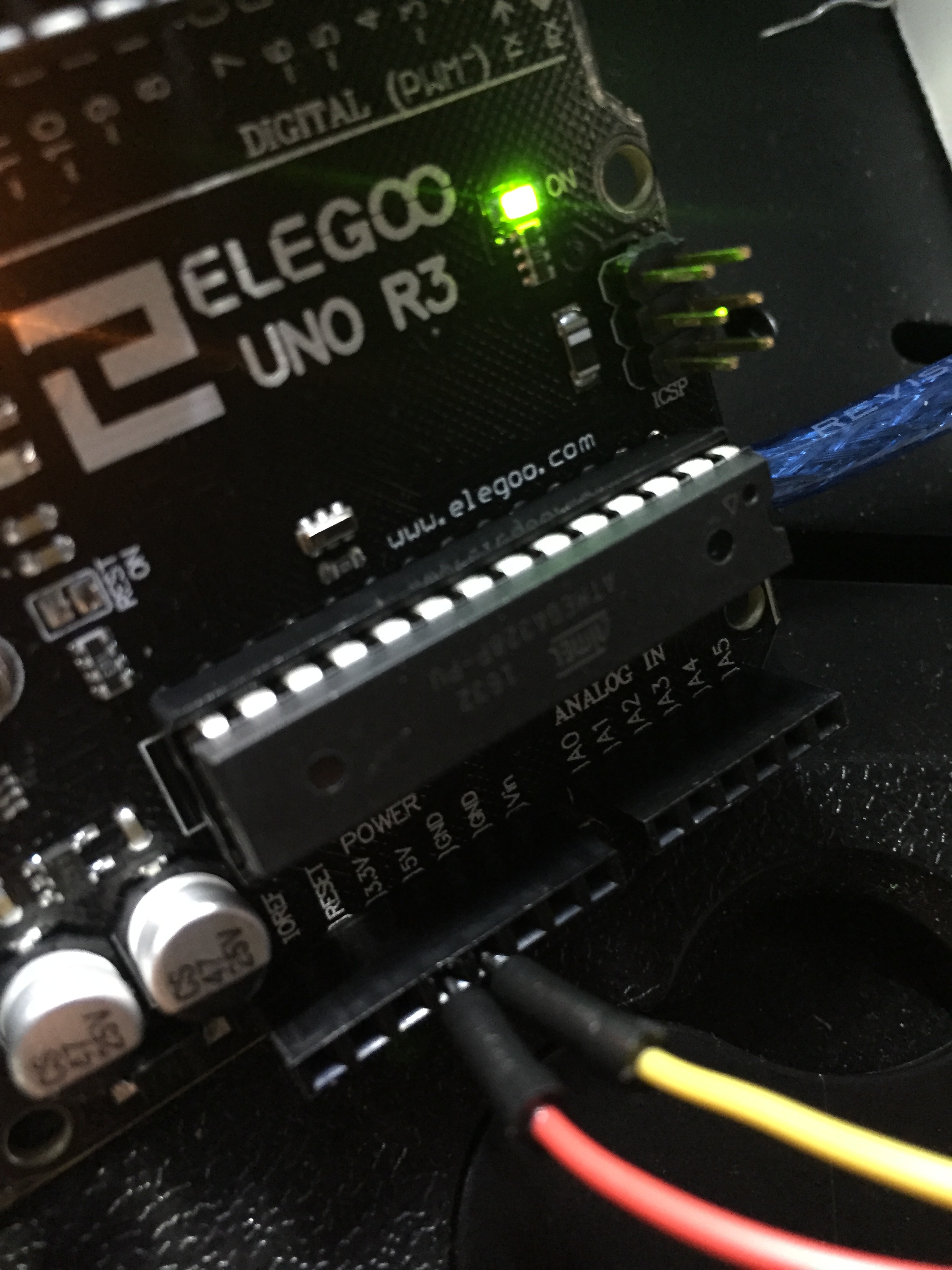

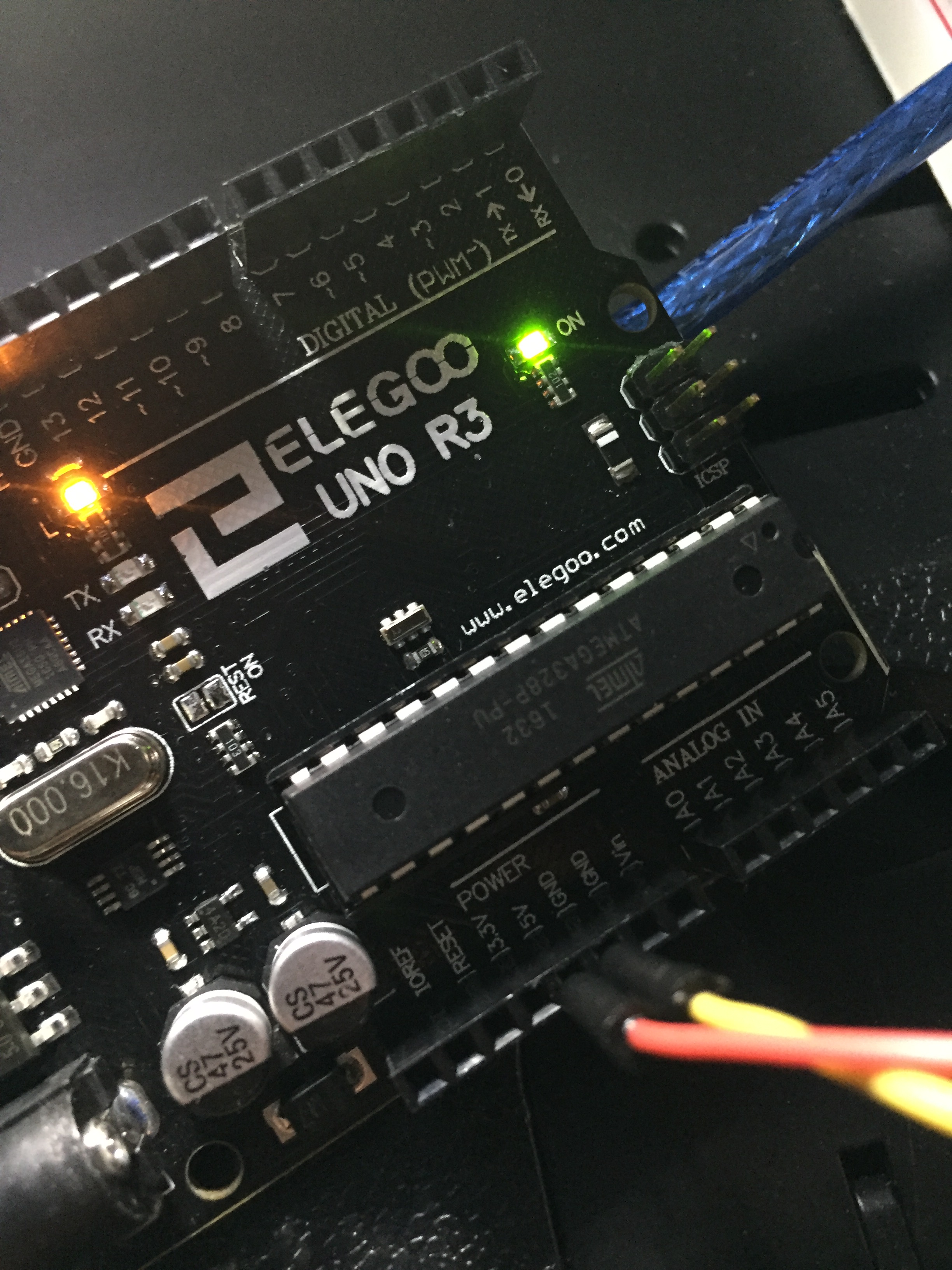

Connect one male to male jumper wire to GND and another to 5V

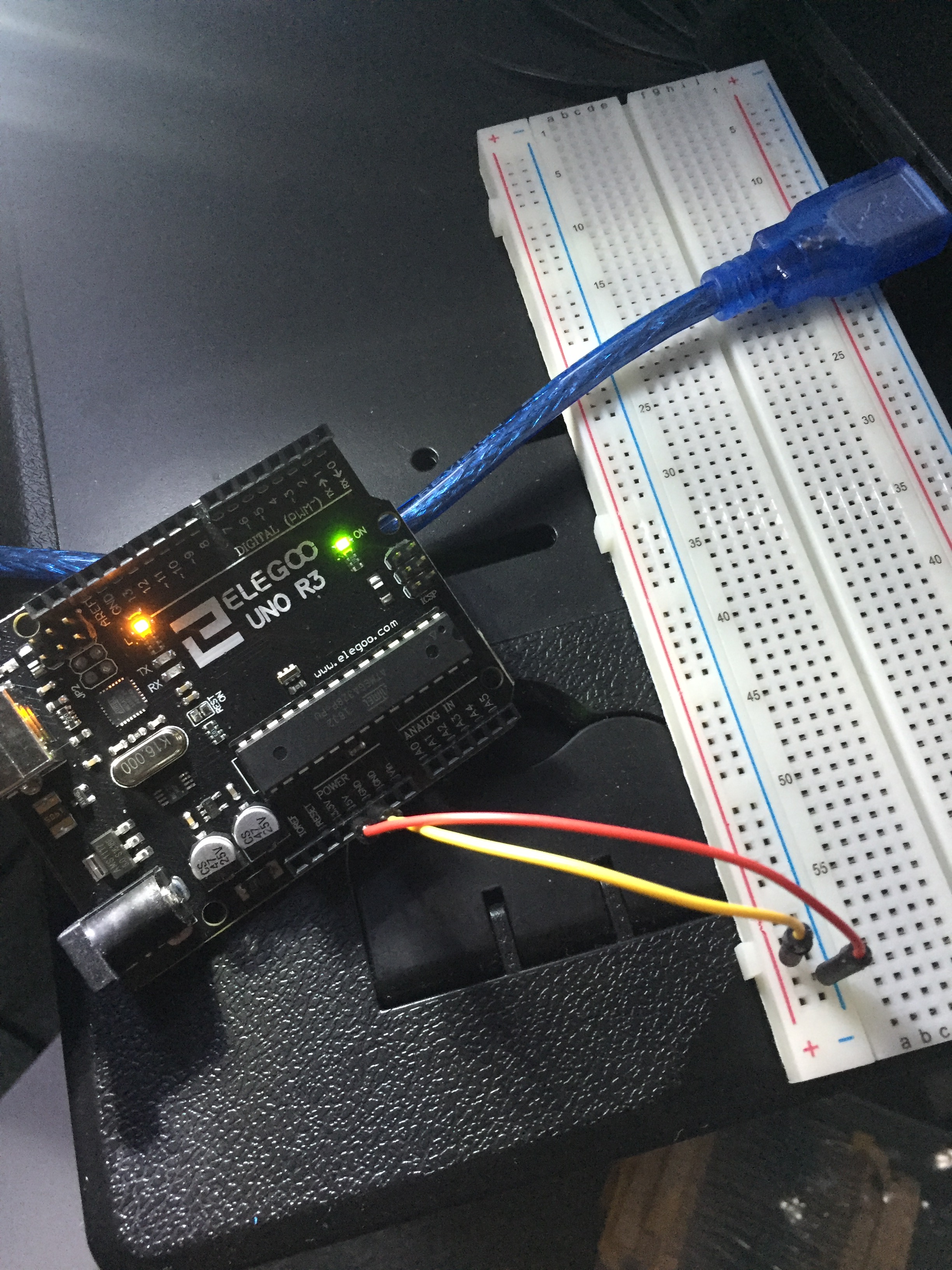

Connect the GND (yellow) to the positive side and 5v (red) to the negative side

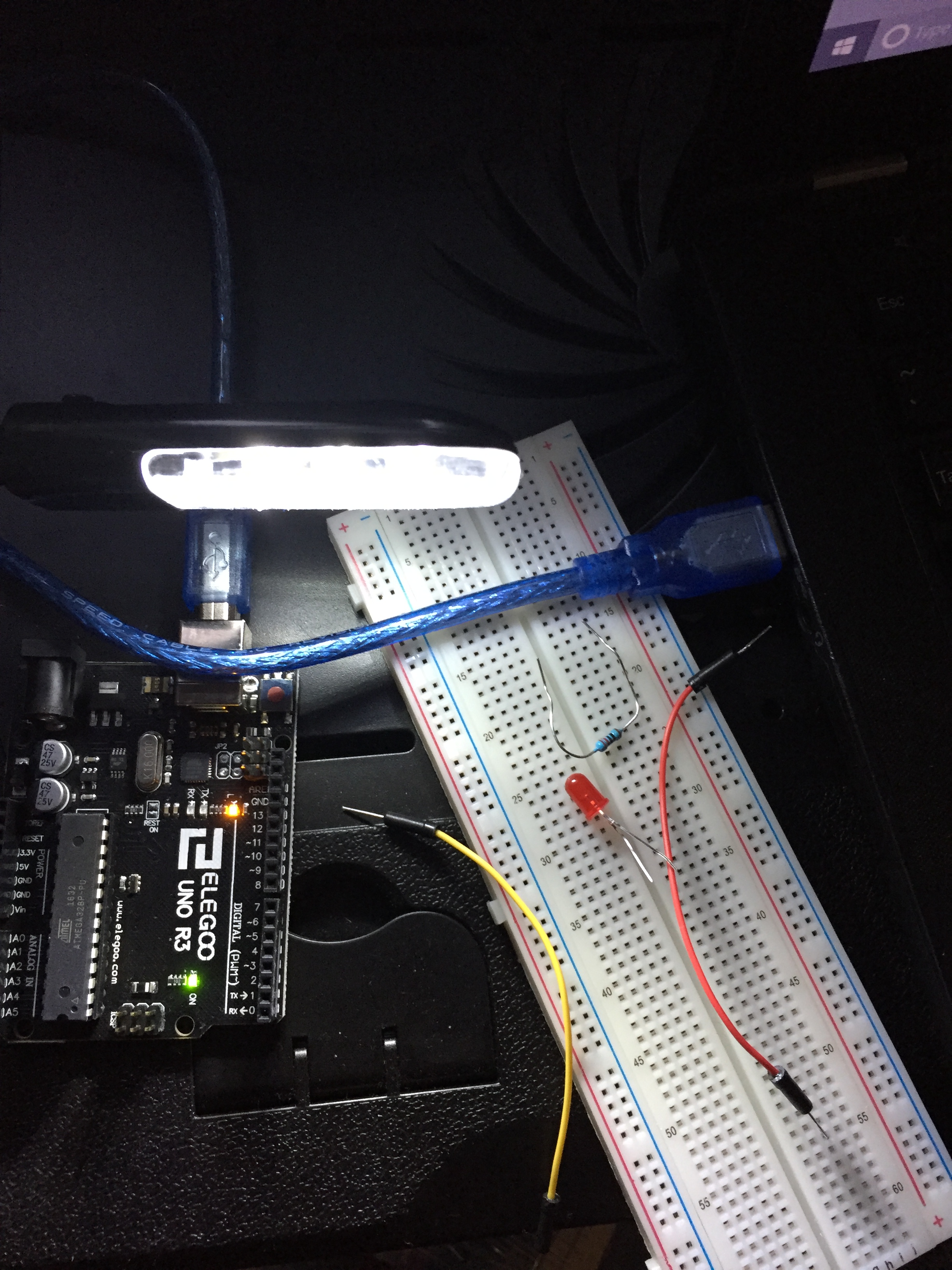

Now connect one part of the resistor you are using to the positive row/column and the other part to a hole on the breadboard, afterwards, add the small part of the LED light to the negative row/column and the long part to the same row/column as the resistor

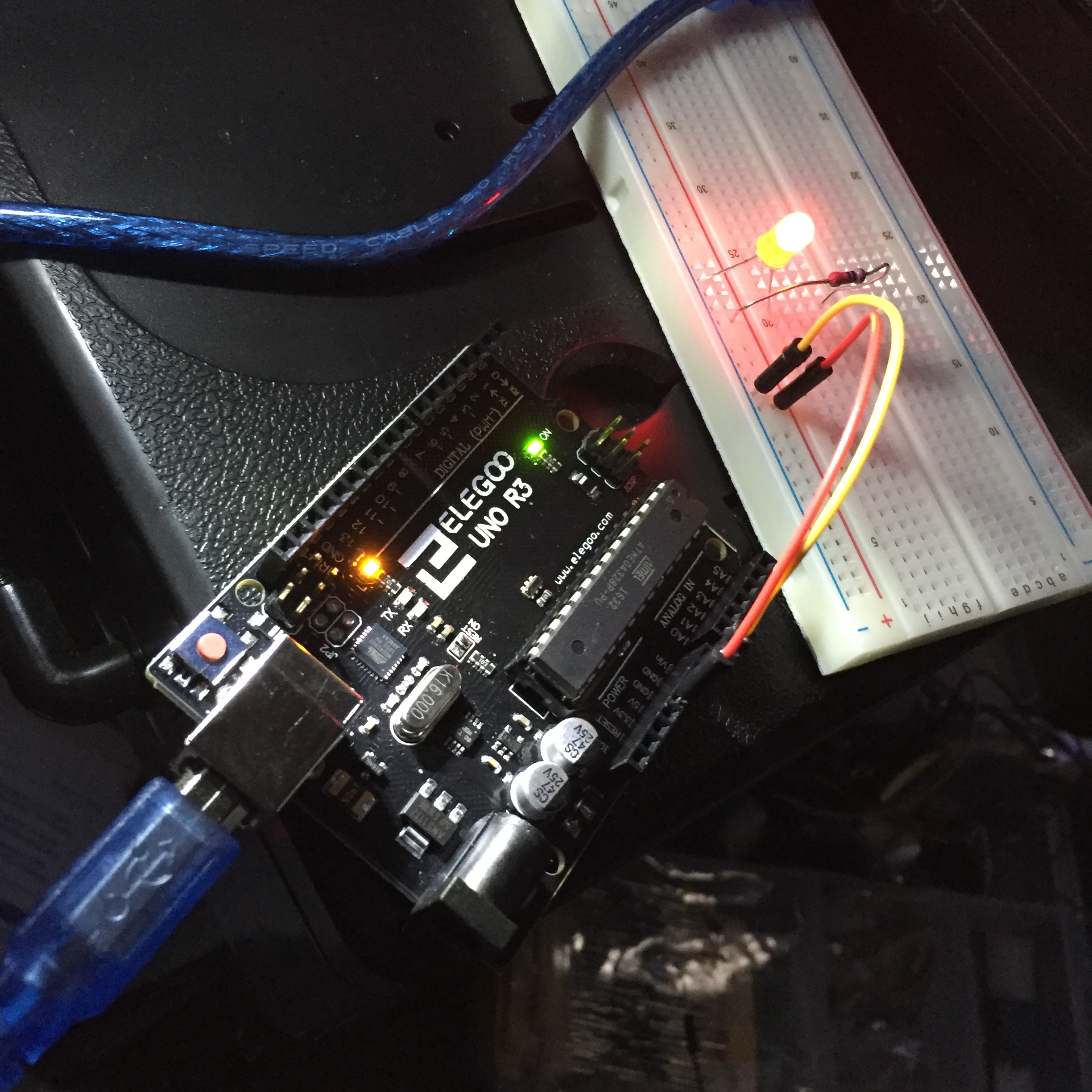

The light bulb should light up if the steps were followed carefully and correctly. If the LED doesn’t light up then try another LED and check your connections.This is a fun learning experience in technology and you can do many more different things with the Arduino.
