Cheap DIY WiFi Booster for Router Antenna


Cheap, Simple & Effective WIFI Antenna Signal Booster

Downloads

zayaan1.pdf

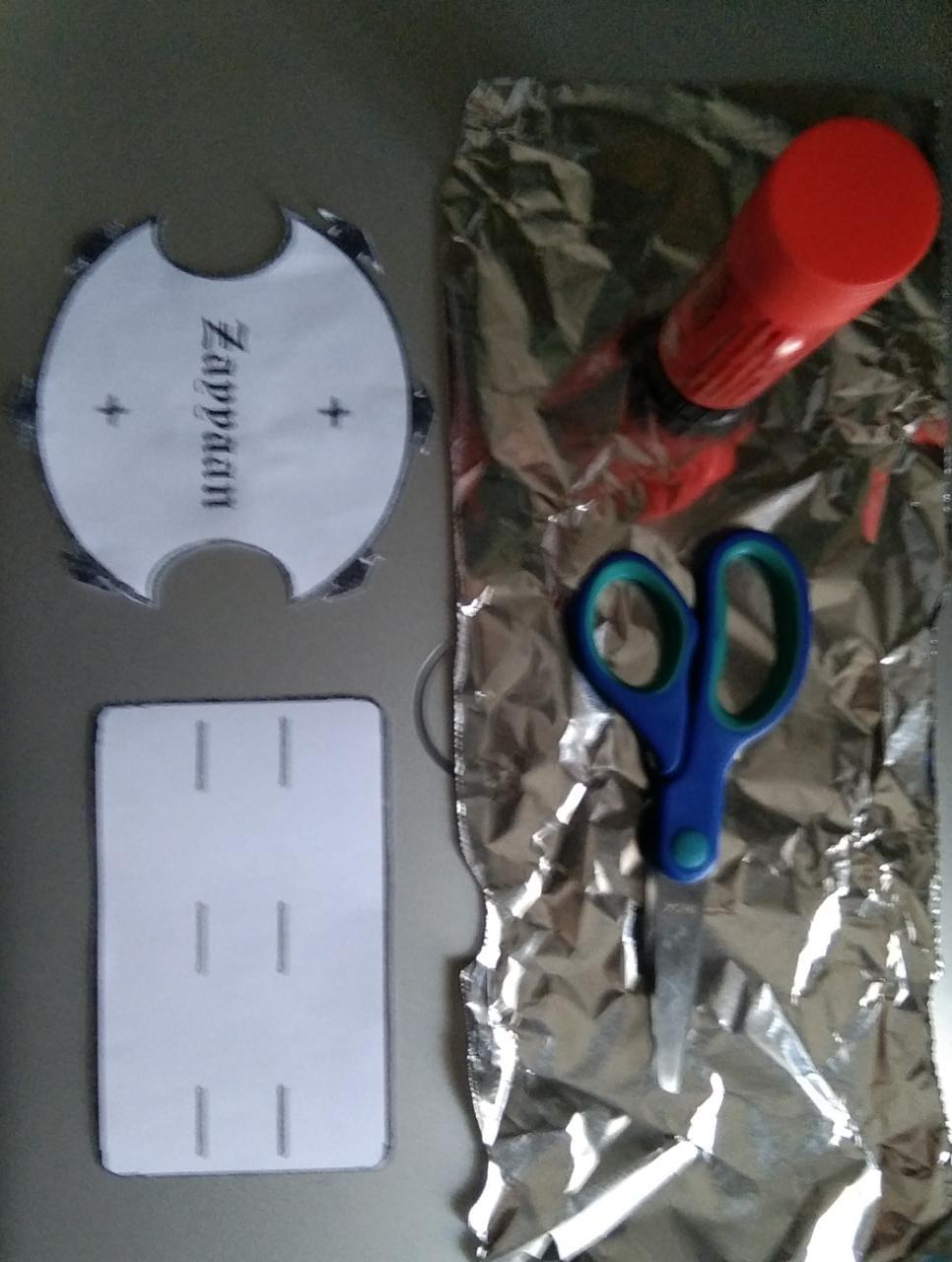

Supplies

Items required.jpeg

Attached Template

Glue Stick

Scissor

Foil

Downloads

zayaan1.pdf

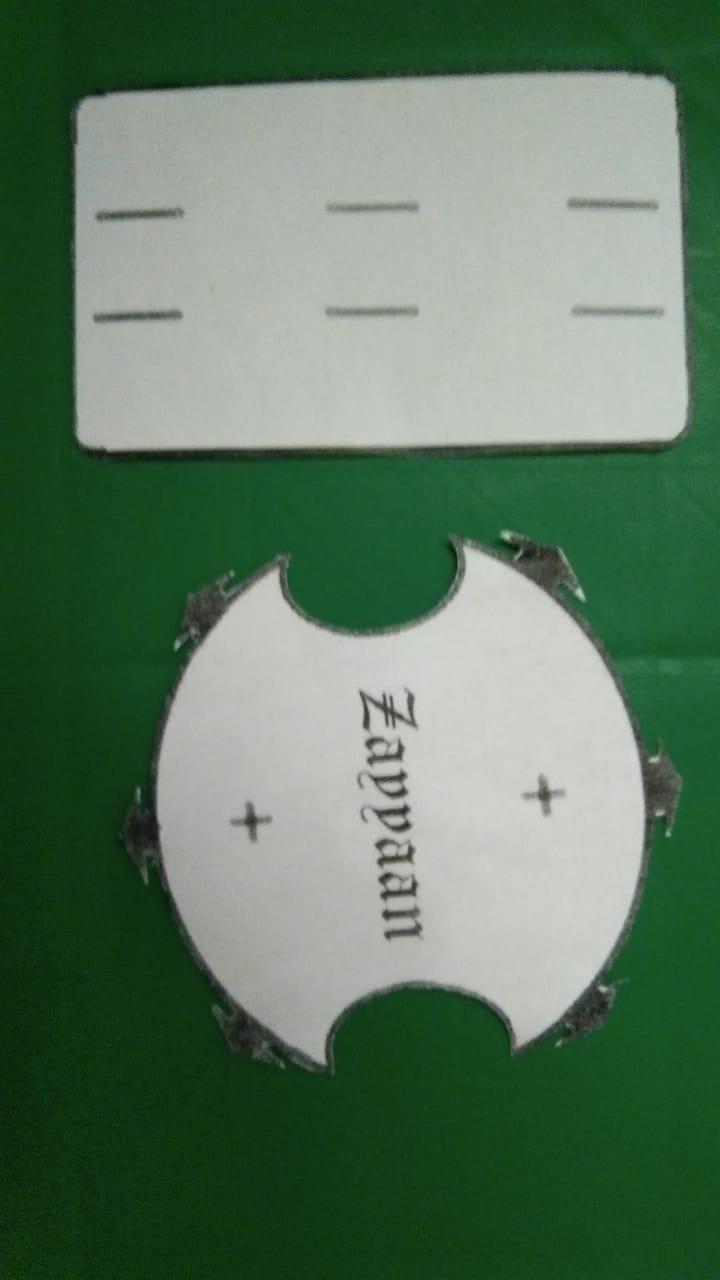

Cut Out Template

Cut out Template.jpeg

Cut out Template as in picture

Glue Foil

Step 1.jpeg

Glue foil to rectangle as shown in image

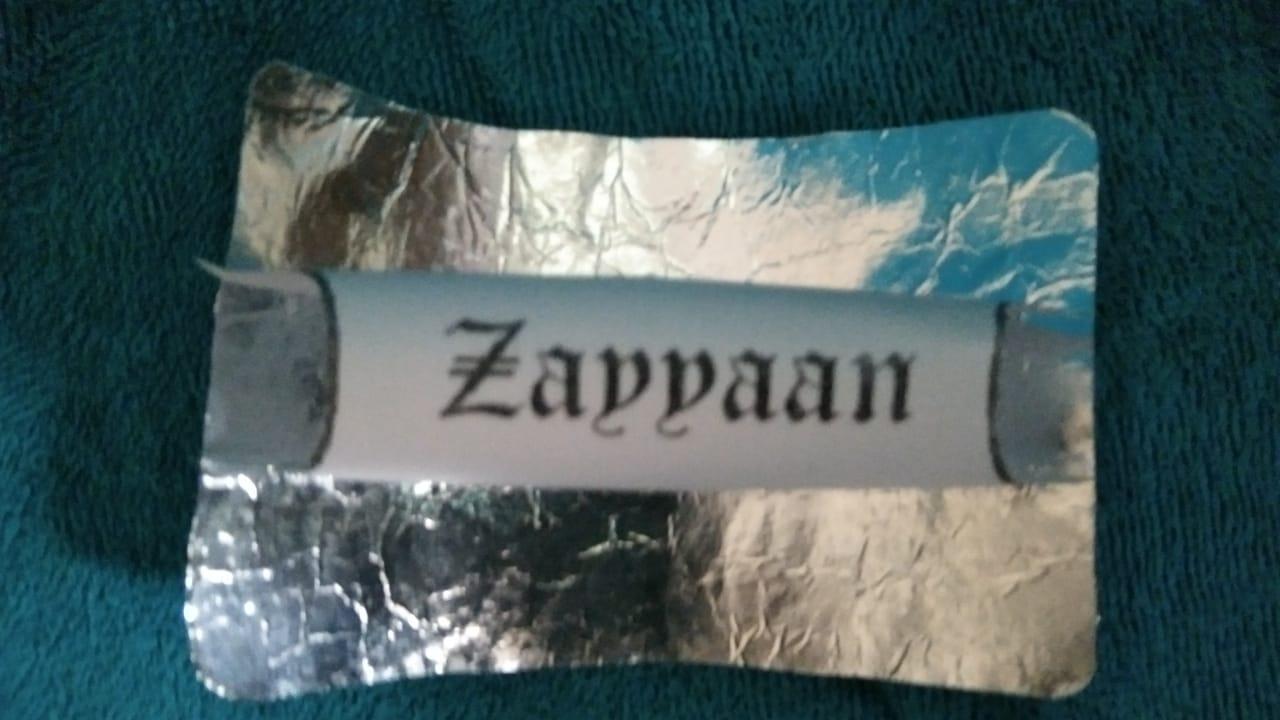

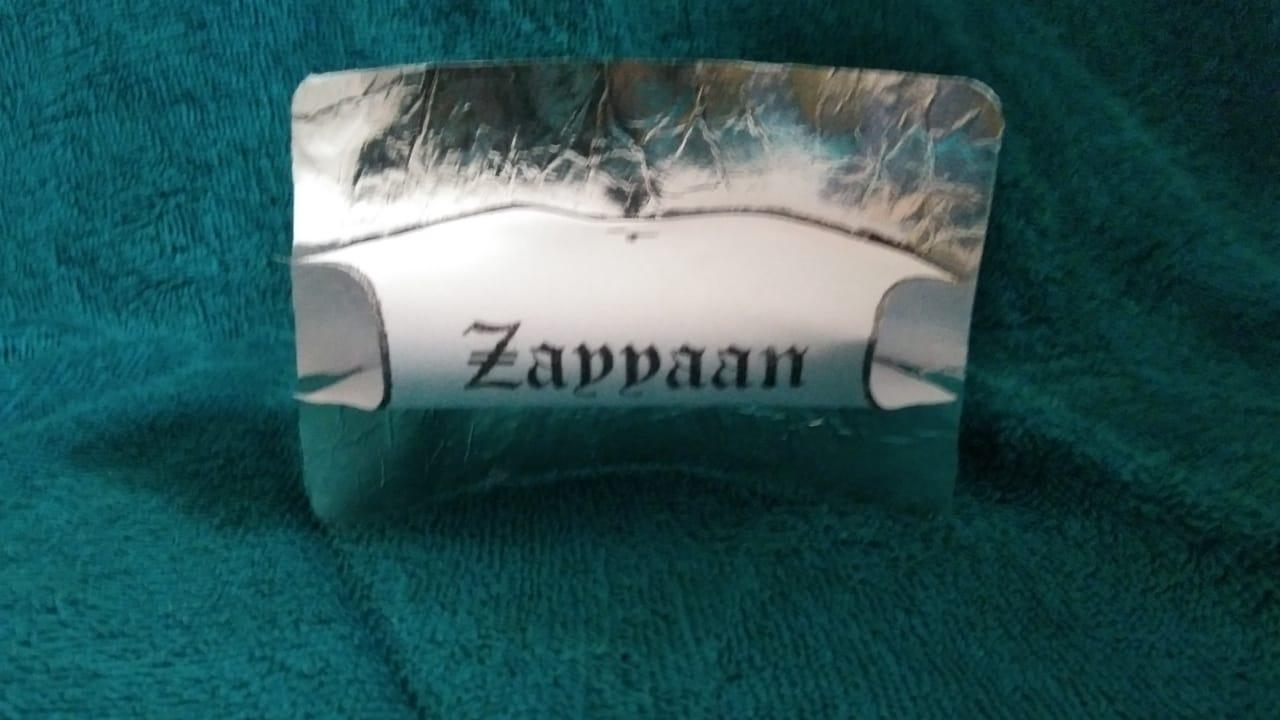

Assembly of Parabolic Antenna Booster

Step 3.1.jpeg
Step 3.jpeg

Attach part A (foil) to part B (Zayyaan)

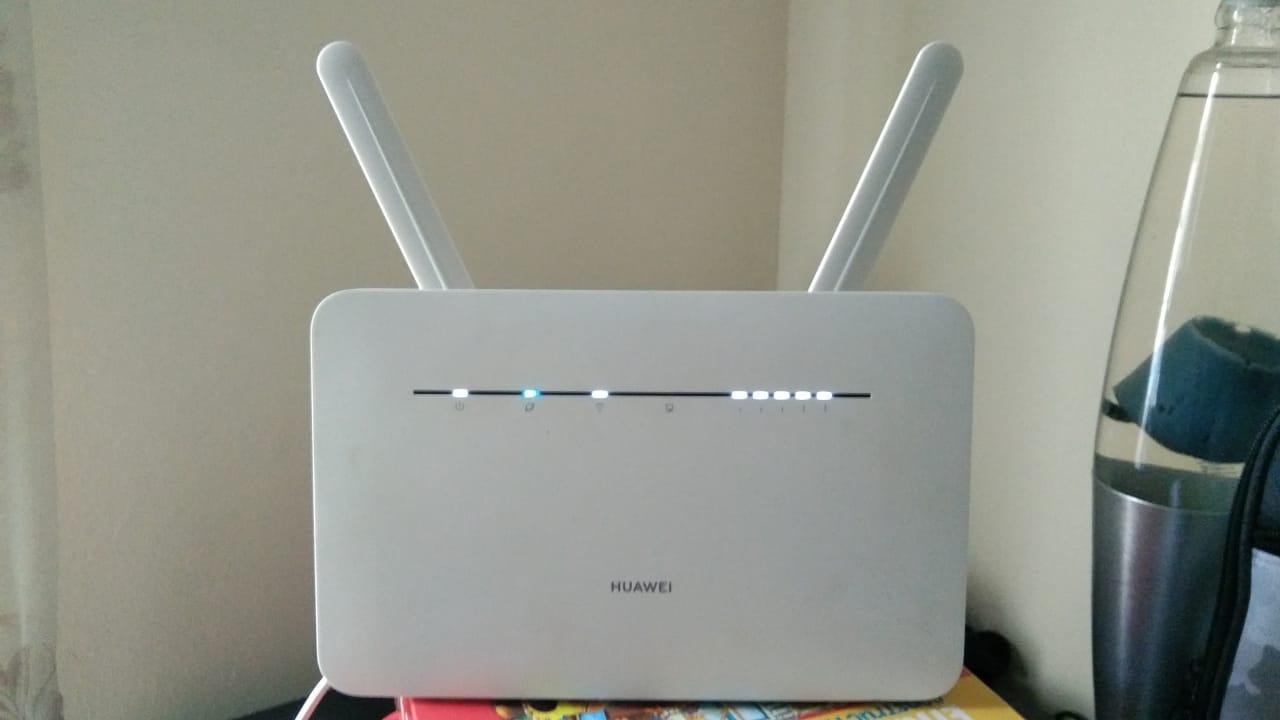

Antennae

Router With Out.jpeg
Speed test with out.jpeg

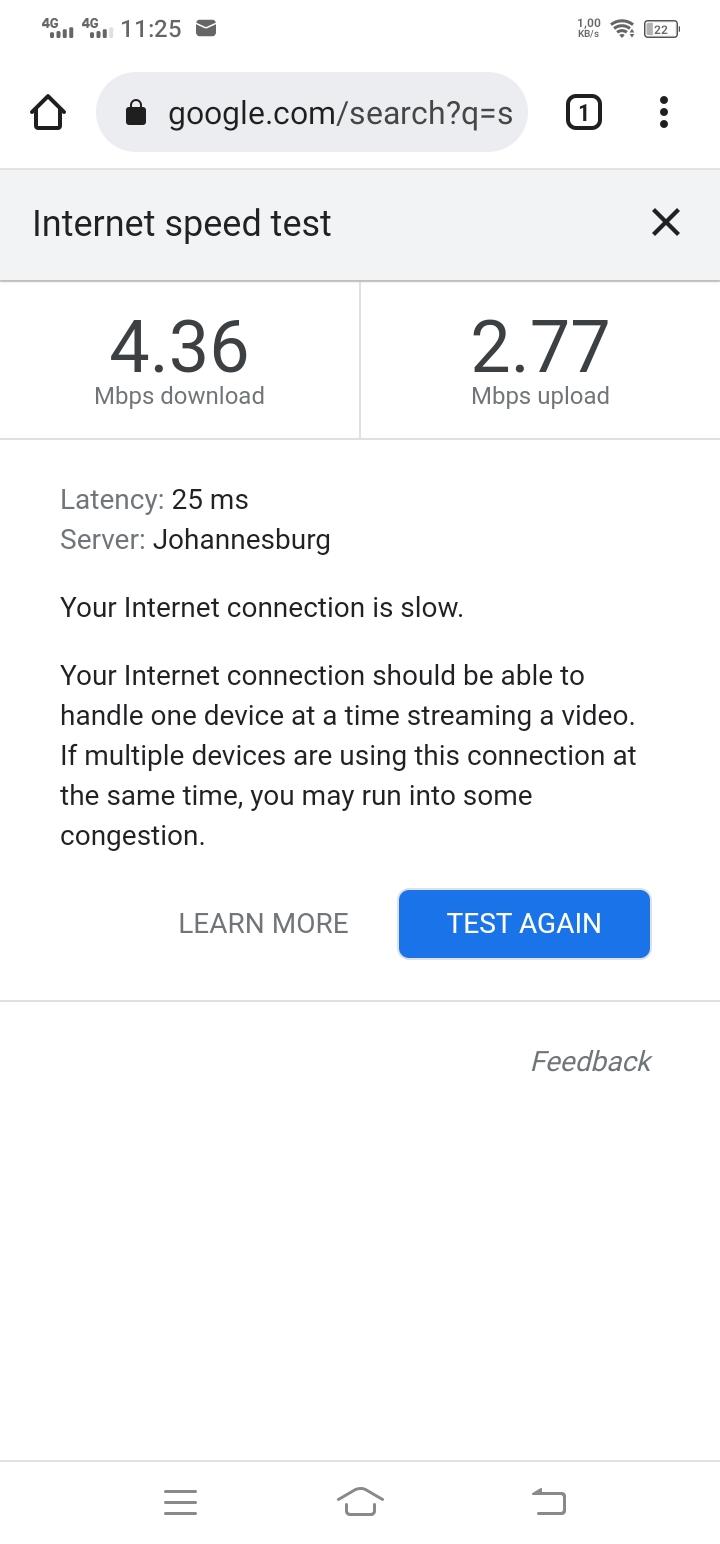

Speed test with out booster

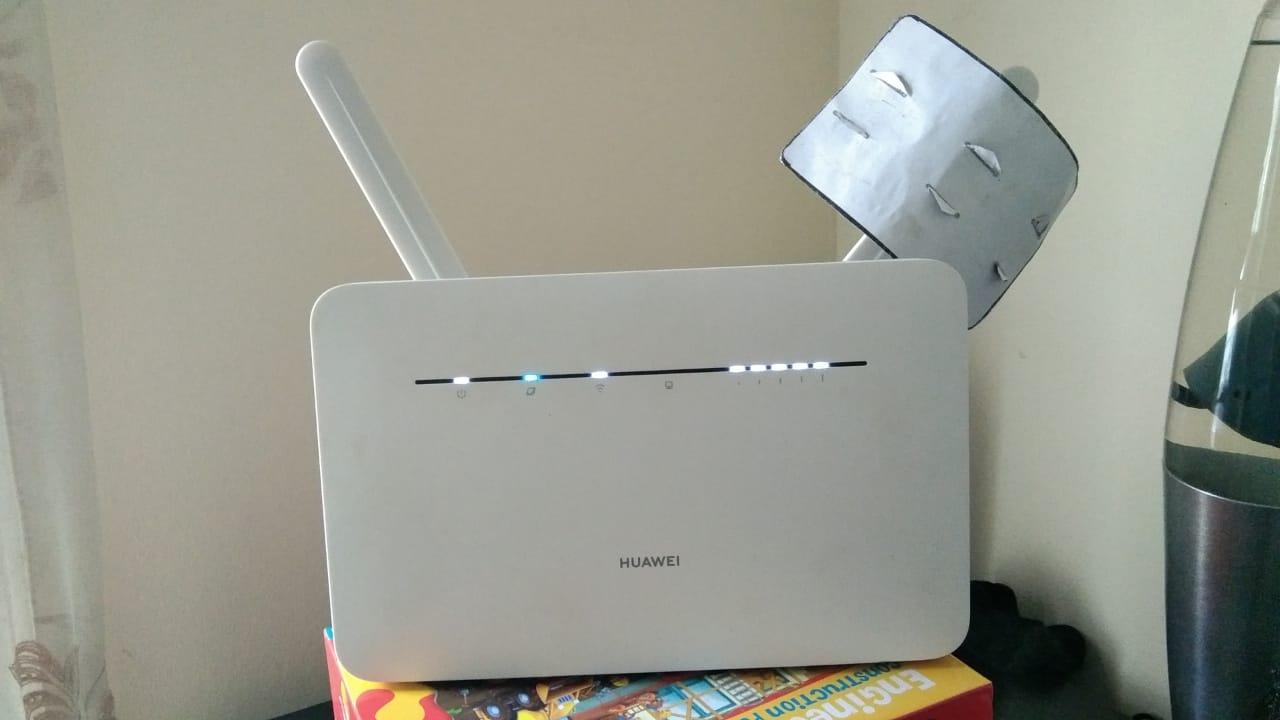

Attach to Antennae

Router with 1.jpeg
Router with.jpeg
Speed test with.jpeg

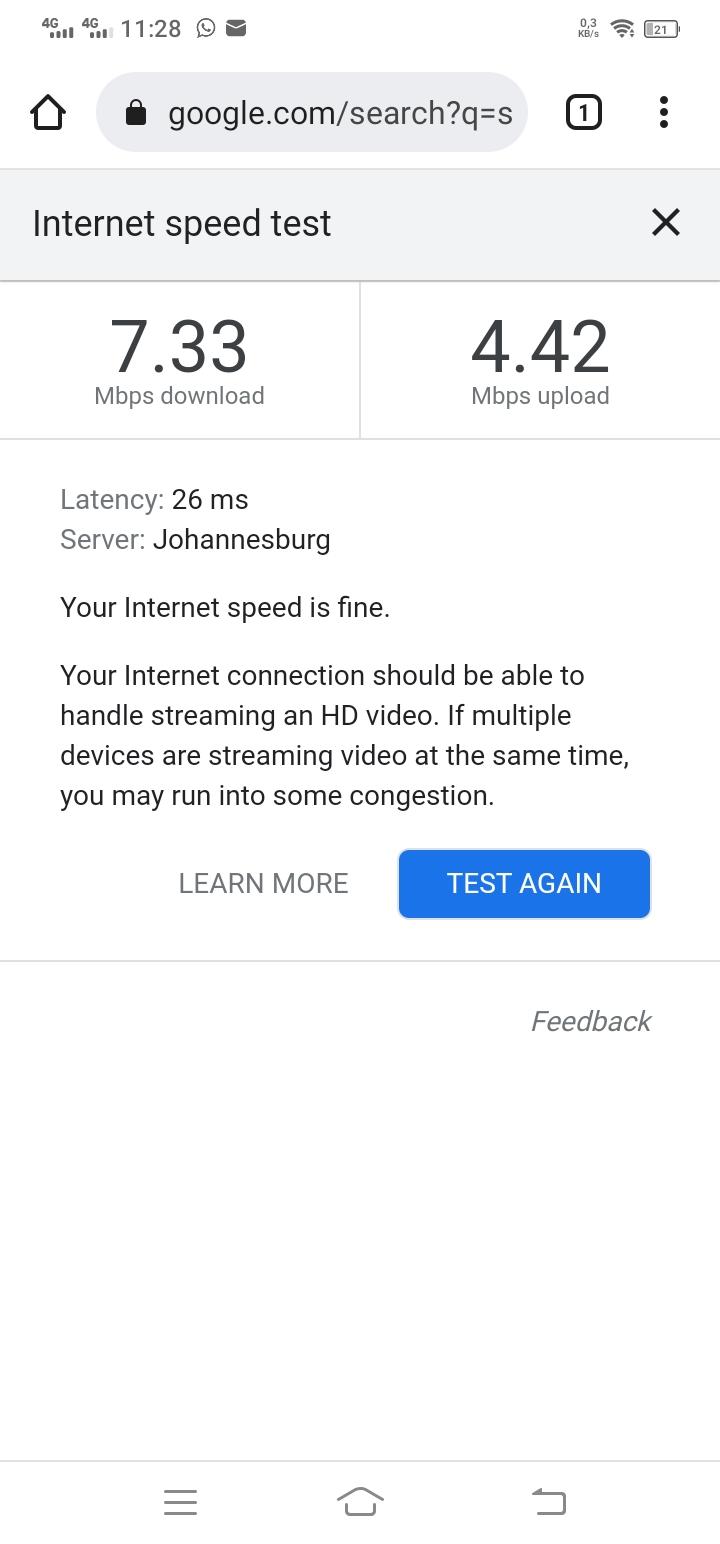

Speed test with booster and adjusting no router settings

It appears Aluminum foil blocks the signal from going in one direction and concentrating it in the other direction, hence increasing their range and also their strength.

In the process, you get to experience faster internet speed.

This is very useful as it doesn't cost much.
