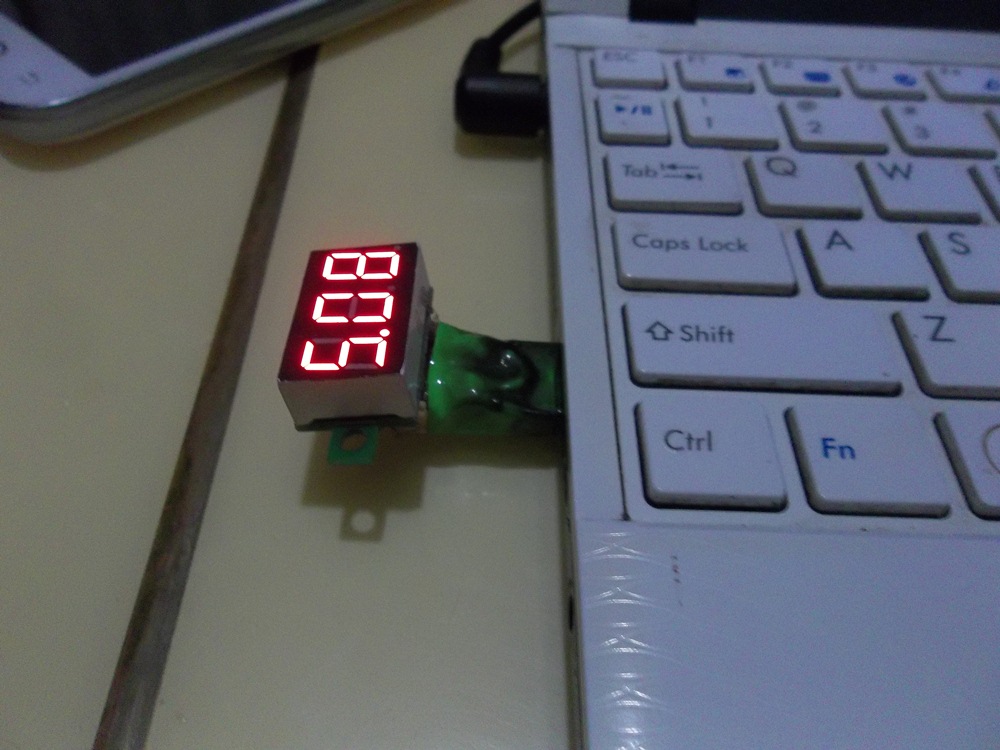

Cheap USB Digital Voltmeter

Digital voltmeter+USB = USB digital Voltmeter.

If you finish make charger, power bank, or any device for charging. You need to check the output voltage to use it, if the output voltage is too high or too low? you need this tools.

This tool can measure the voltage from 3v - 30v!

This tool will protect you of damage to other devices!

• Easy to use!
• Easy to carry!
• Works with any usb plugs! (Pc usb, powerbank, laptop usb, and any others)

• Very sensitive

• Cheap!
• And anything!

Ok Lets make it!

• USB male and female
• Cheap mini digital voltmeter
• Solder iron
• Hot glue gun
• Heat shrink tubing / case
• & creativity

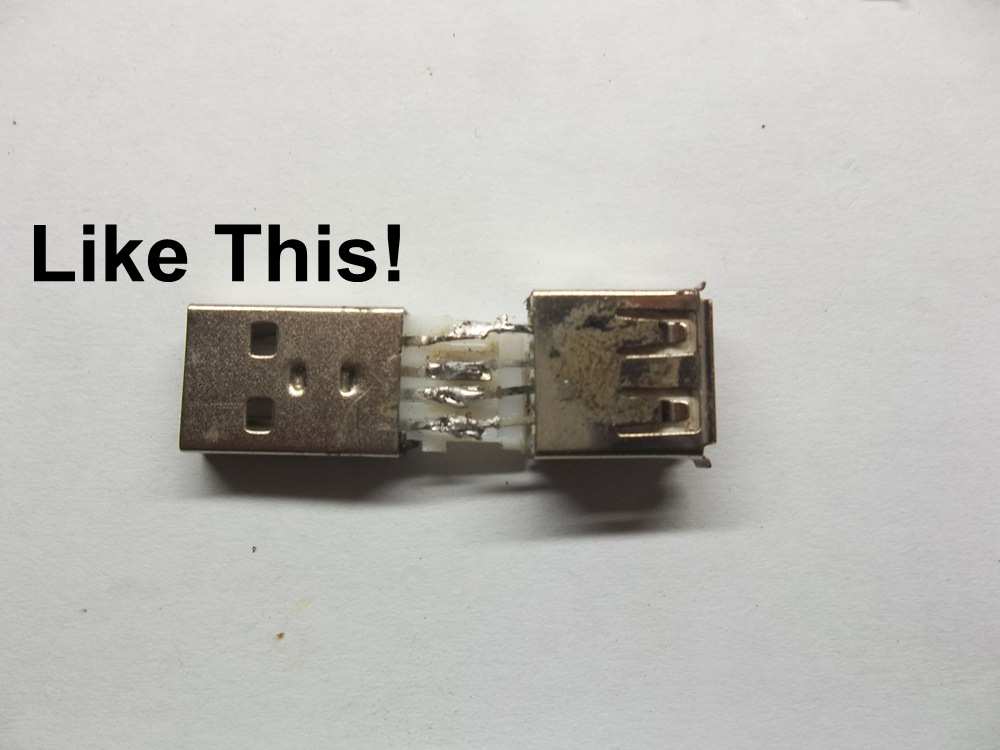

Solder the male and female usb like image. Slowly but good! Dont make any contact to another pins

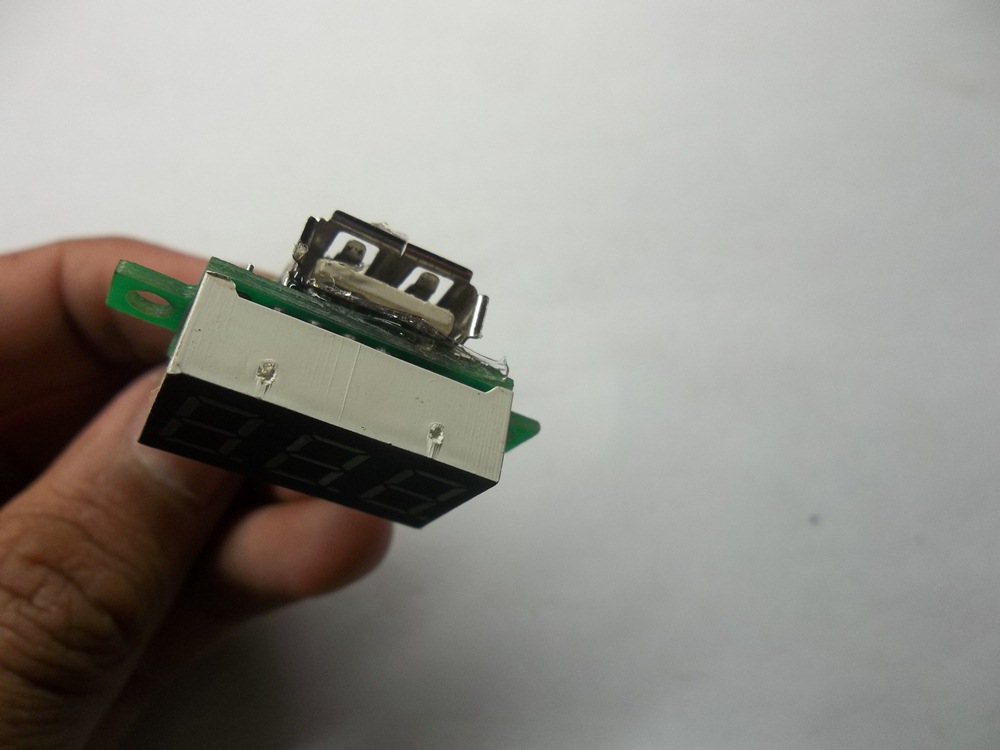

Solder the voltmeter like image.

• Negative is right
• Positive is left

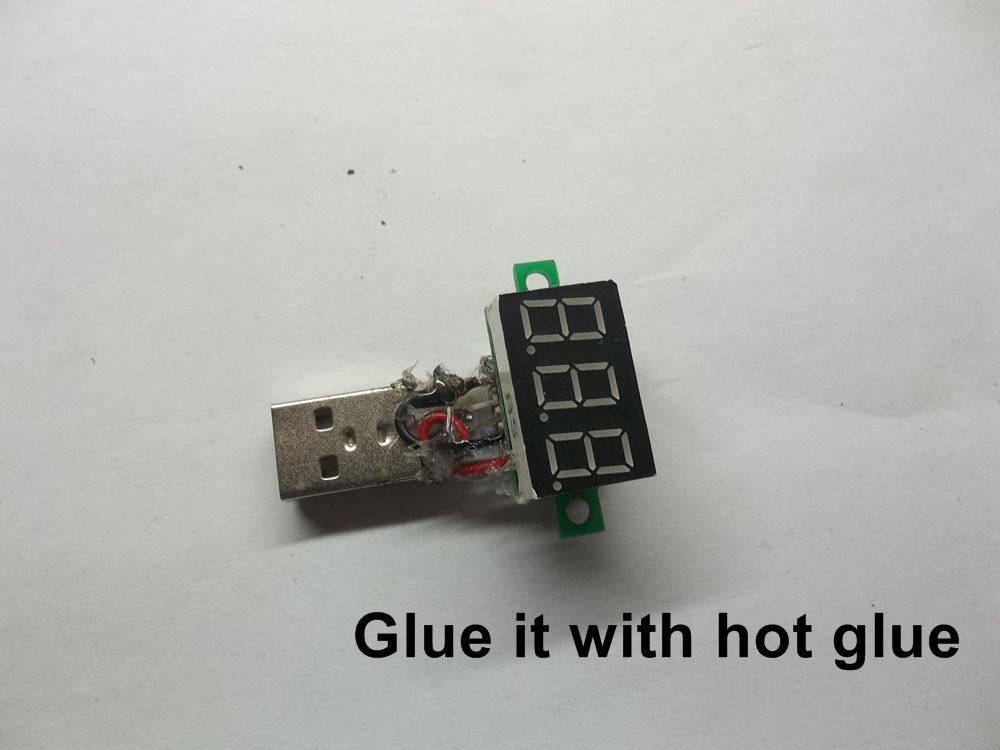

Join the usb & the voltmeter use hot glue. Don't make any contact with usb plug & the voltmeter!!

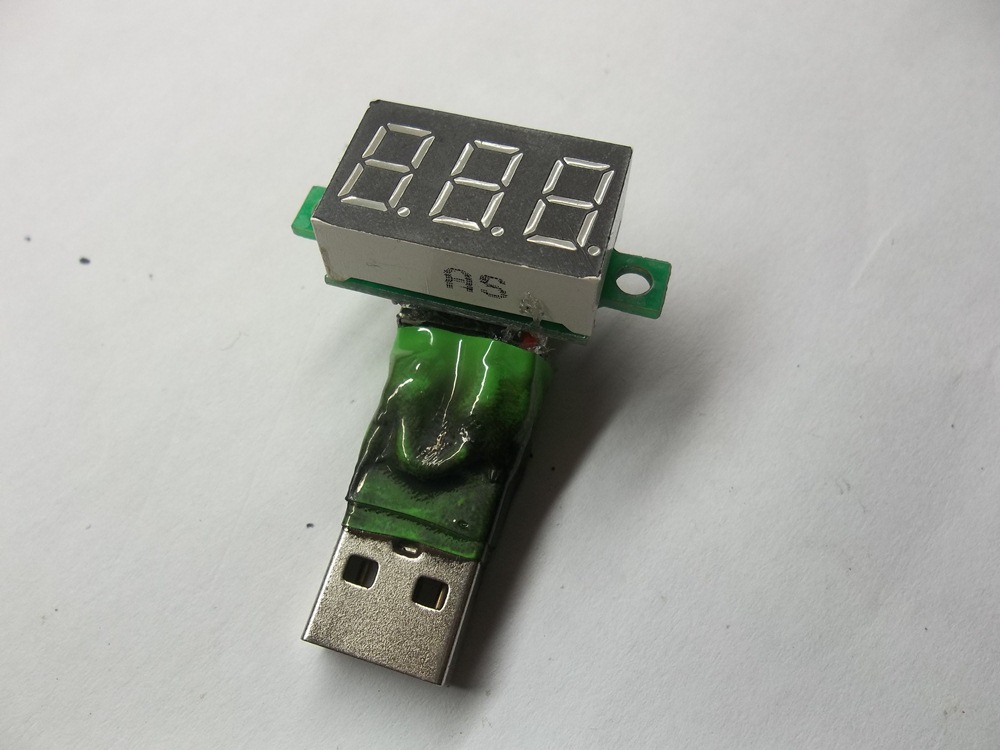

Add case to make it better and stronger! I use heat shrink tubing to make the case, but you can make the case with anything you want!

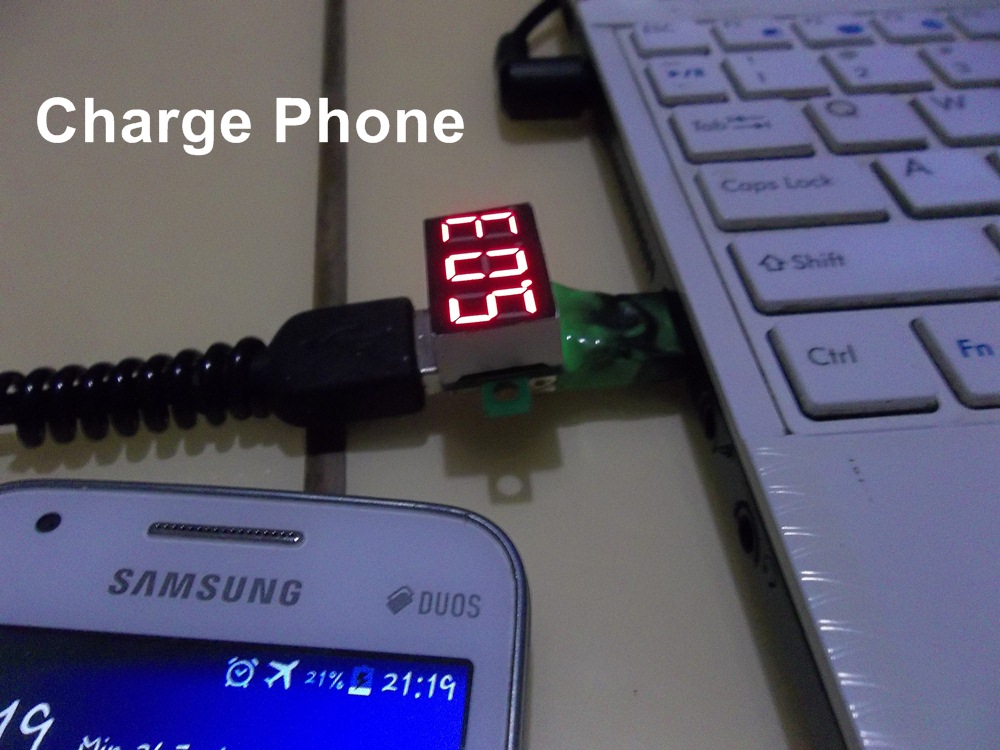

Plug in this tools into charger and test it!

Thanks for Look my works

I hope you can make it better than me!

sorry for my bad english!

please share this instructables and check my other instructables

HAPPY MAKING
