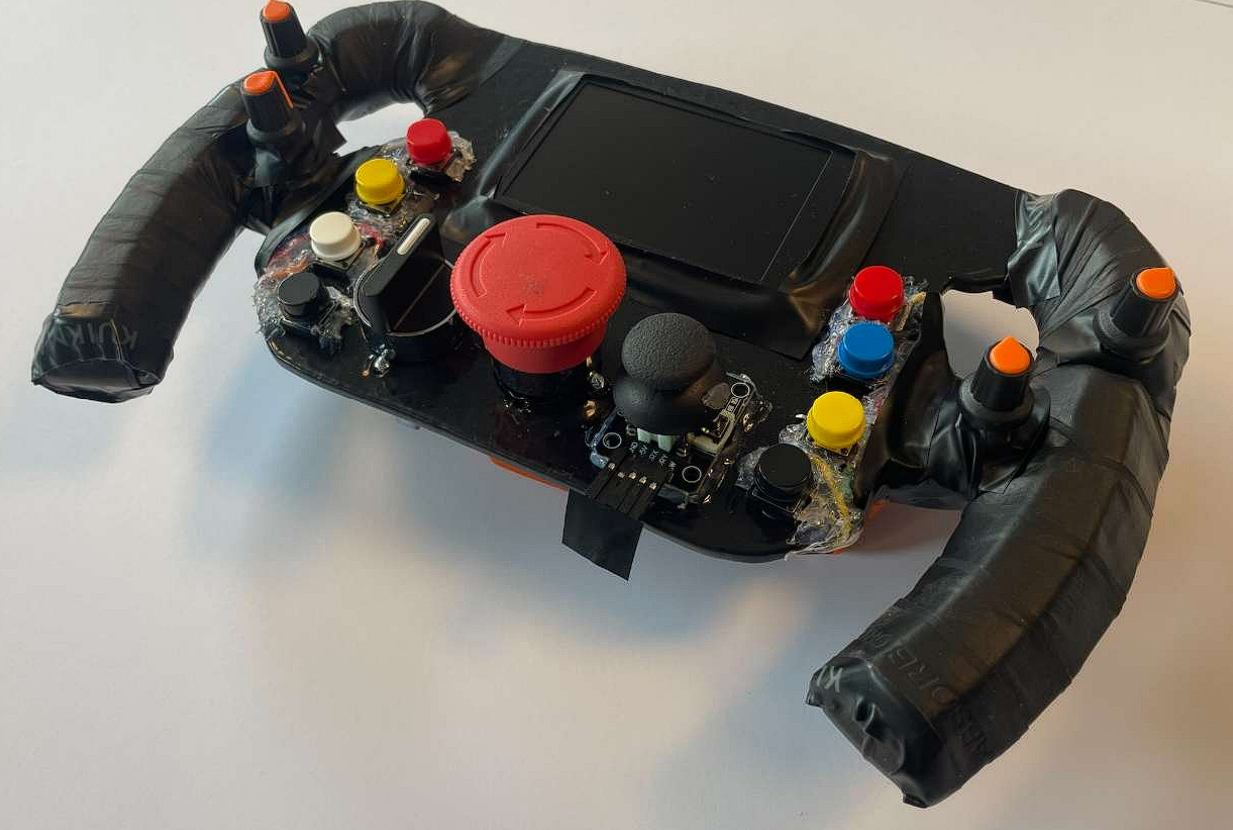

Custom F1 Style Steering Wheel for Logitech G923

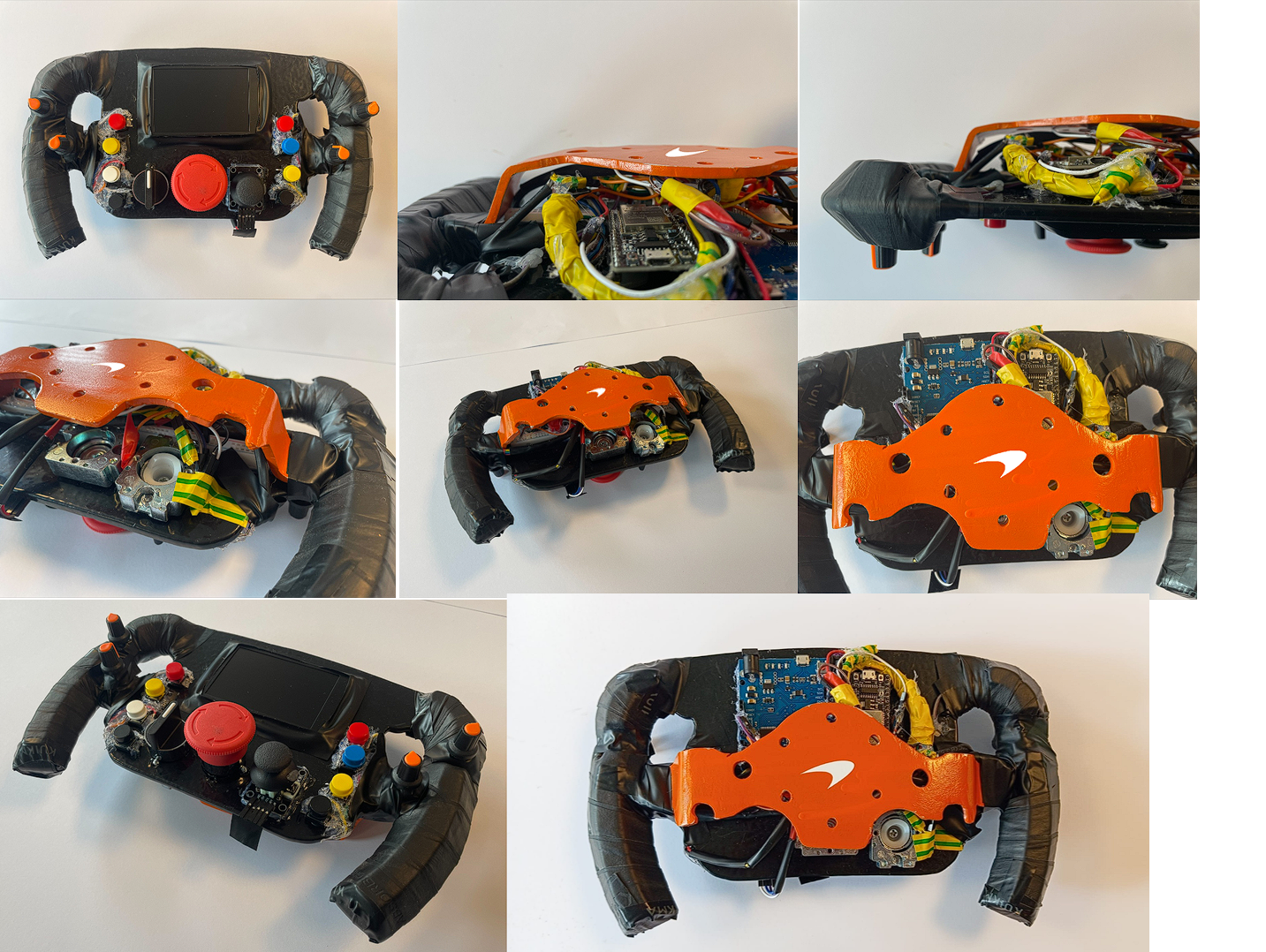

1. This is a steering wheel I made with the same design of the Mclaren Formula 1 Steering Wheel
2. I designed this to be compatible with my Logitech G923
3. This is fully functional with live telemetry feeding from game to steering wheel In-built screen
4. This was part of my Design and Technology (DT) coursework

All tools are listed in the instructions below

Components were all purchased from AliExpress here:

Dupont cables - https://www.aliexpress.com/item/1005007138874742.html?spm=a2g0o.order_list.order_list_main.44.1e8c1802gWKnUj

Heat shrink tubes - https://www.aliexpress.com/item/1005005673195054.html?spm=a2g0o.order_list.order_list_main.35.1e8c1802gWKnUj

ESP32 - https://www.aliexpress.com/item/1005004476867346.html?spm=a2g0o.order_list.order_list_main.30.1e8c1802gWKnUj

Display screen - https://www.aliexpress.com/item/1005006175220737.html?spm=a2g0o.order_list.order_list_main.50.59c11802C7uBTM

Joystick - https://www.aliexpress.com/item/1005007561985496.html?spm=a2g0o.order_list.order_list_main.45.59c11802C7uBTM

Emergency stop - https://www.aliexpress.com/item/1005002461045529.html?spm=a2g0o.order_list.order_list_main.40.59c11802C7uBTM

Selector switch - https://www.aliexpress.com/item/1005006827053825.html?spm=a2g0o.order_list.order_list_main.30.59c11802C7uBTM

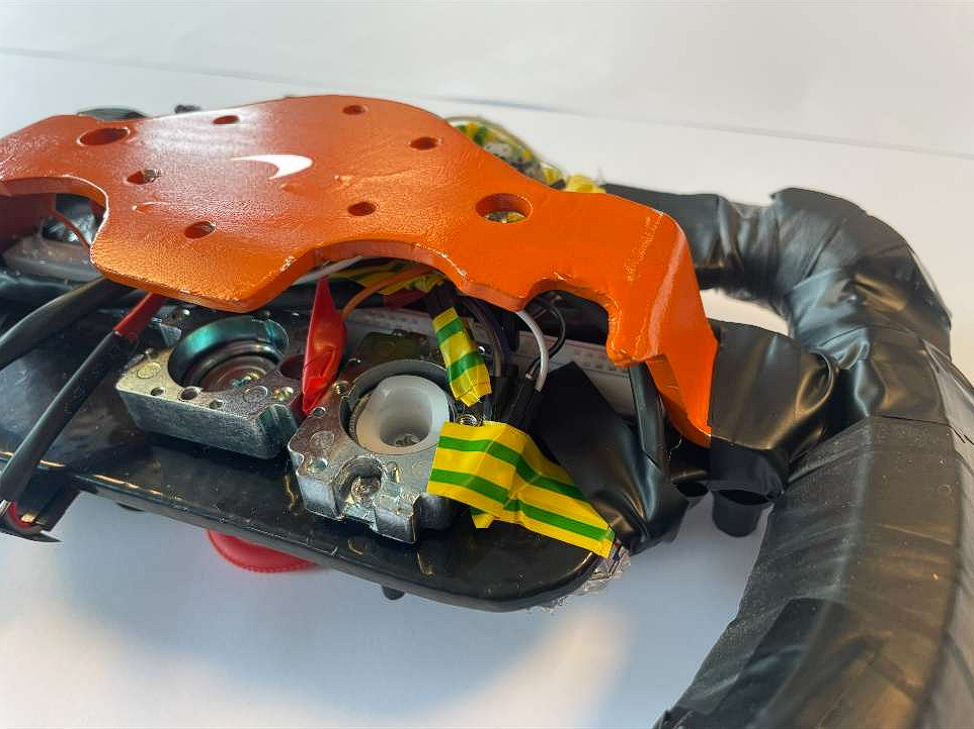

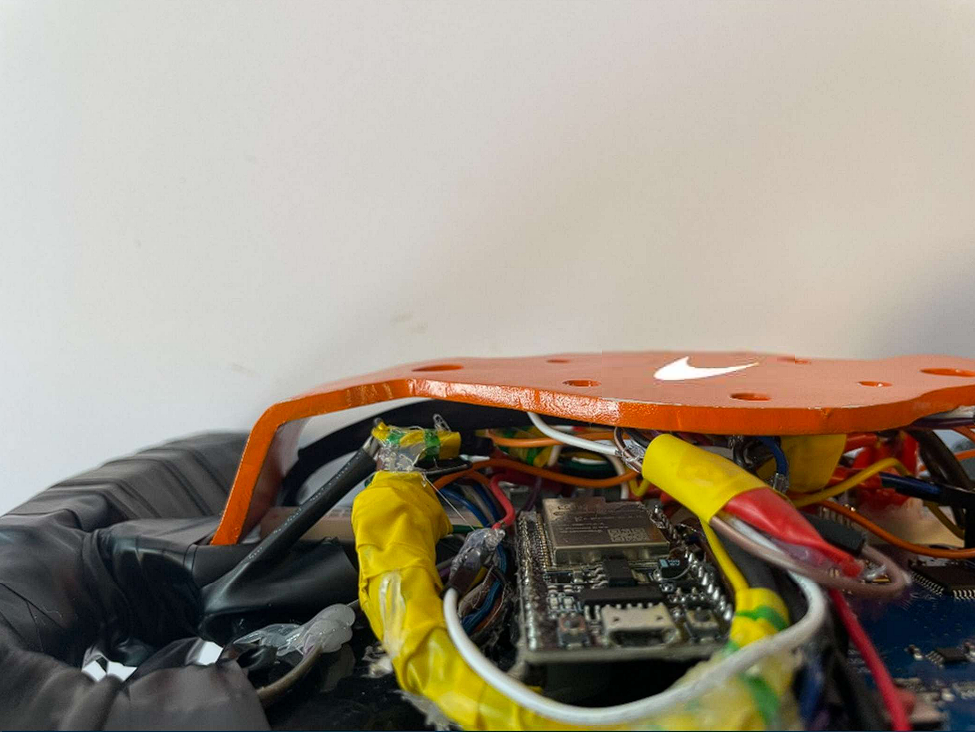

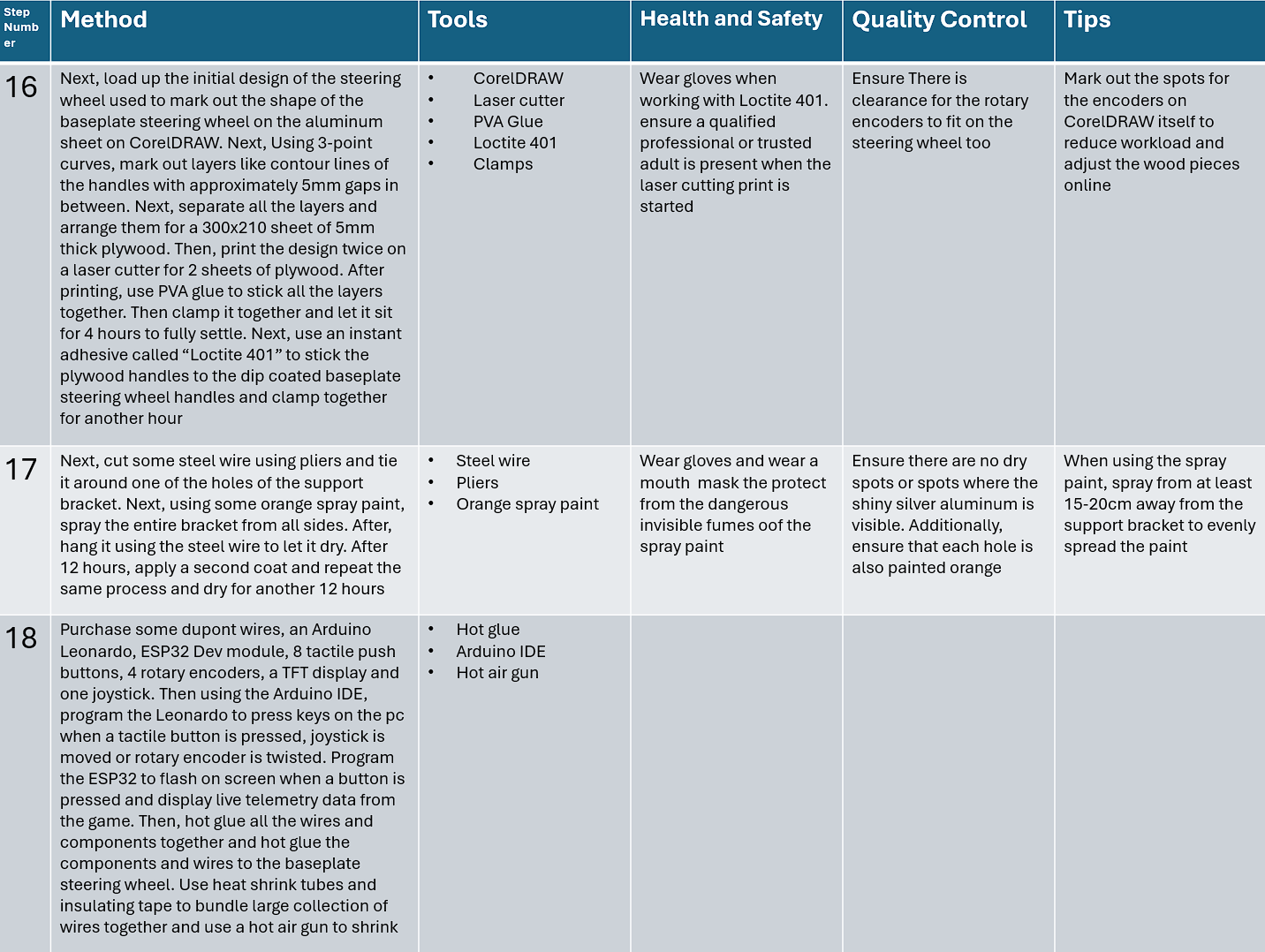

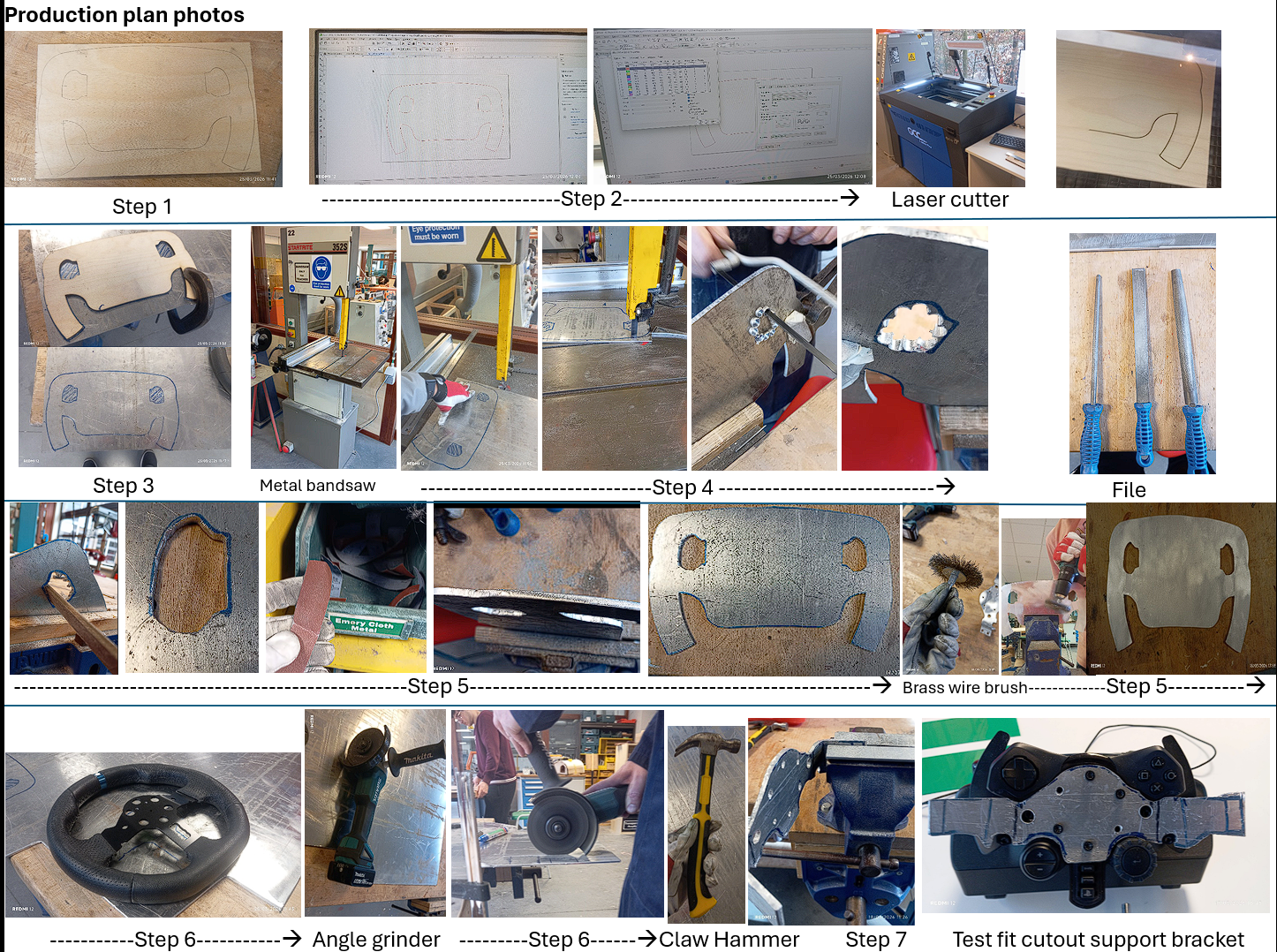

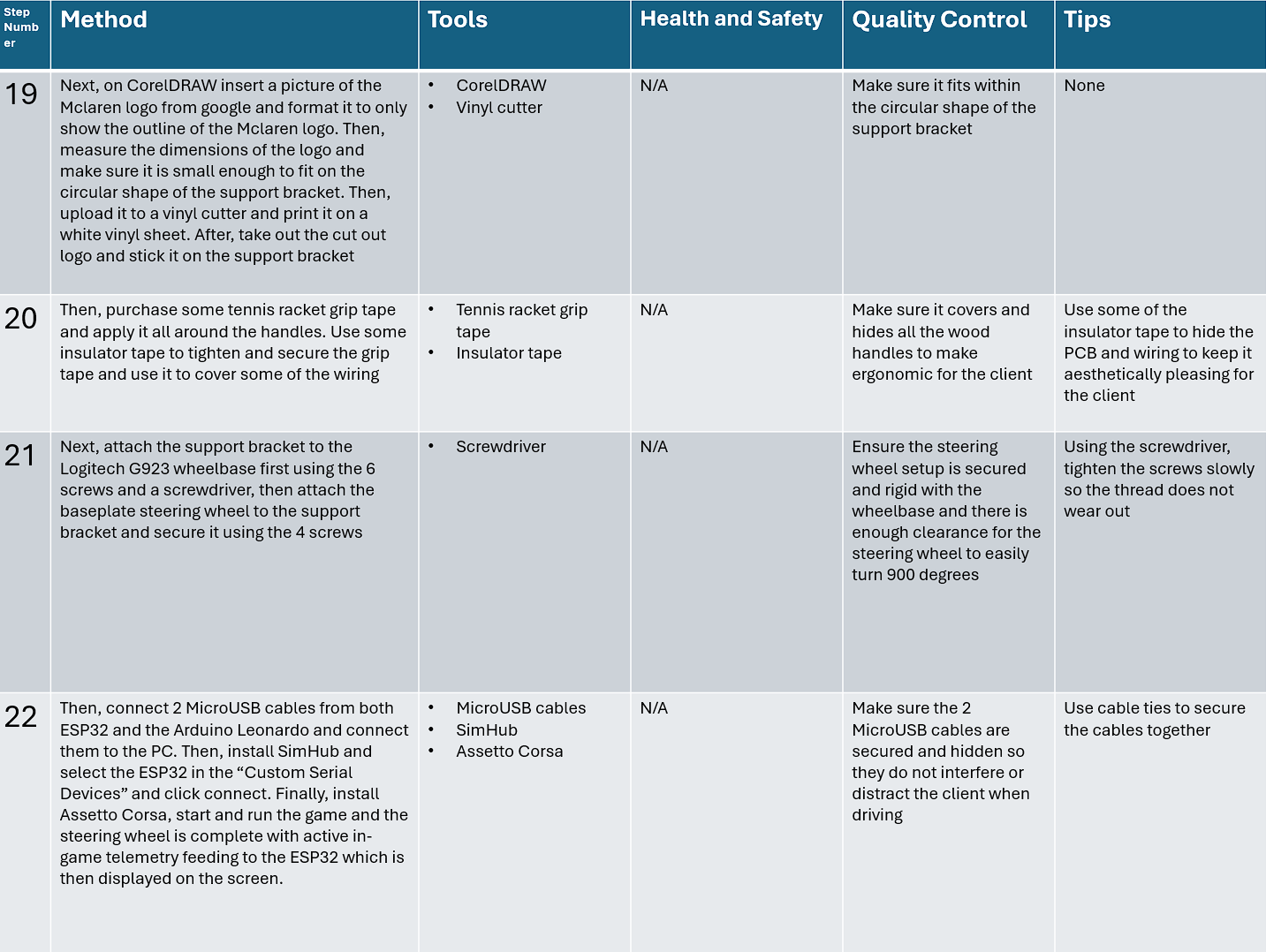

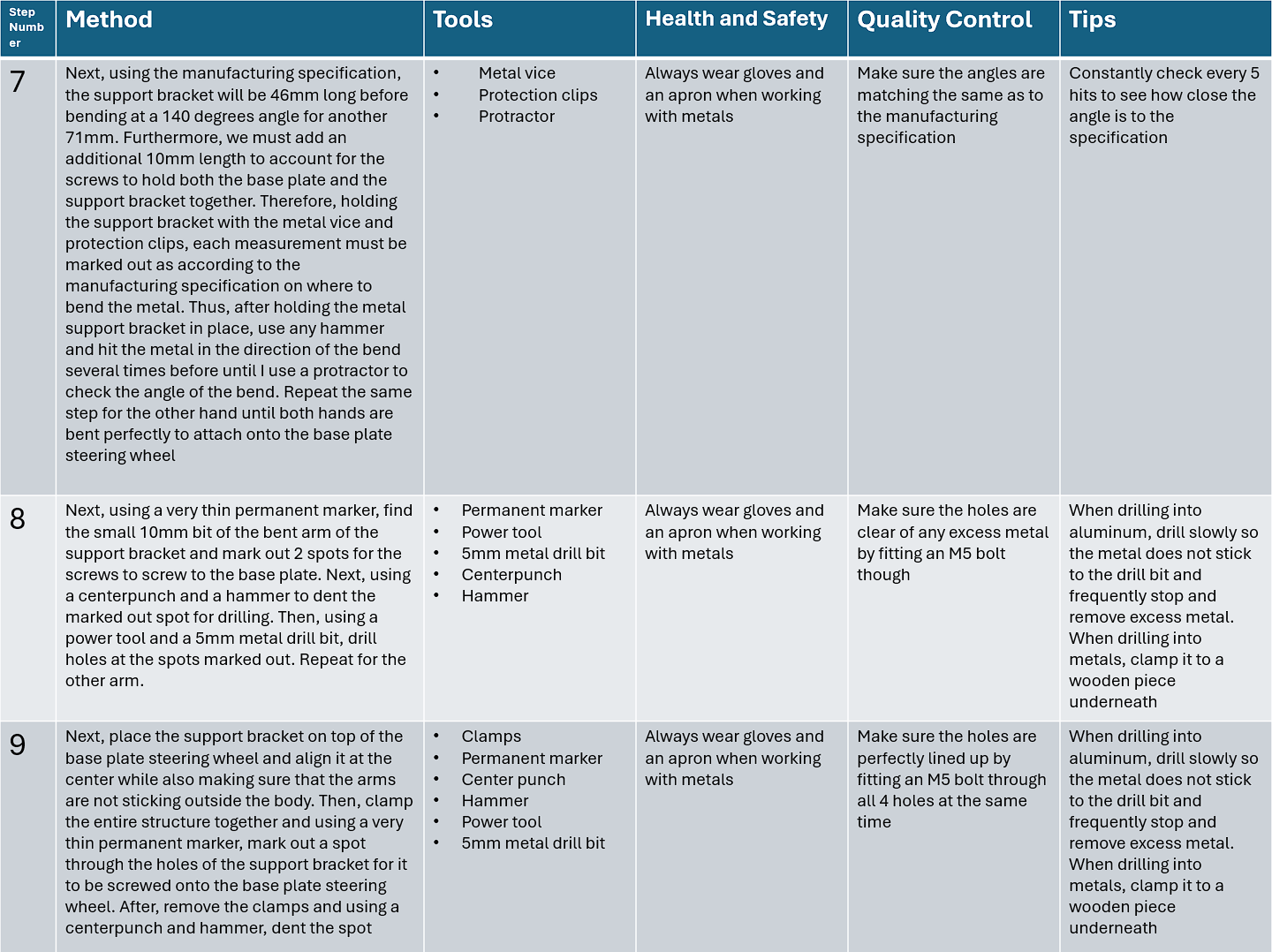

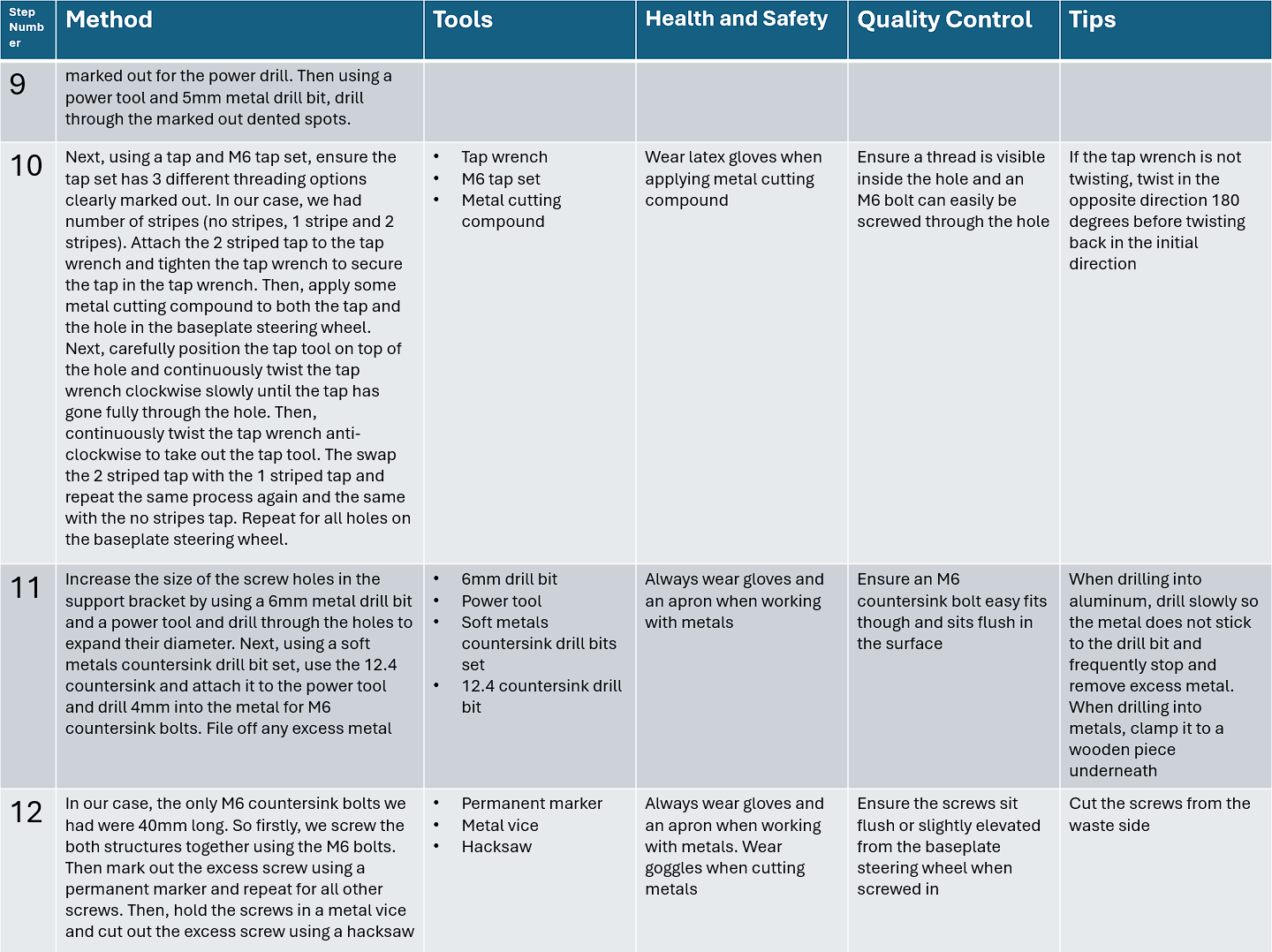

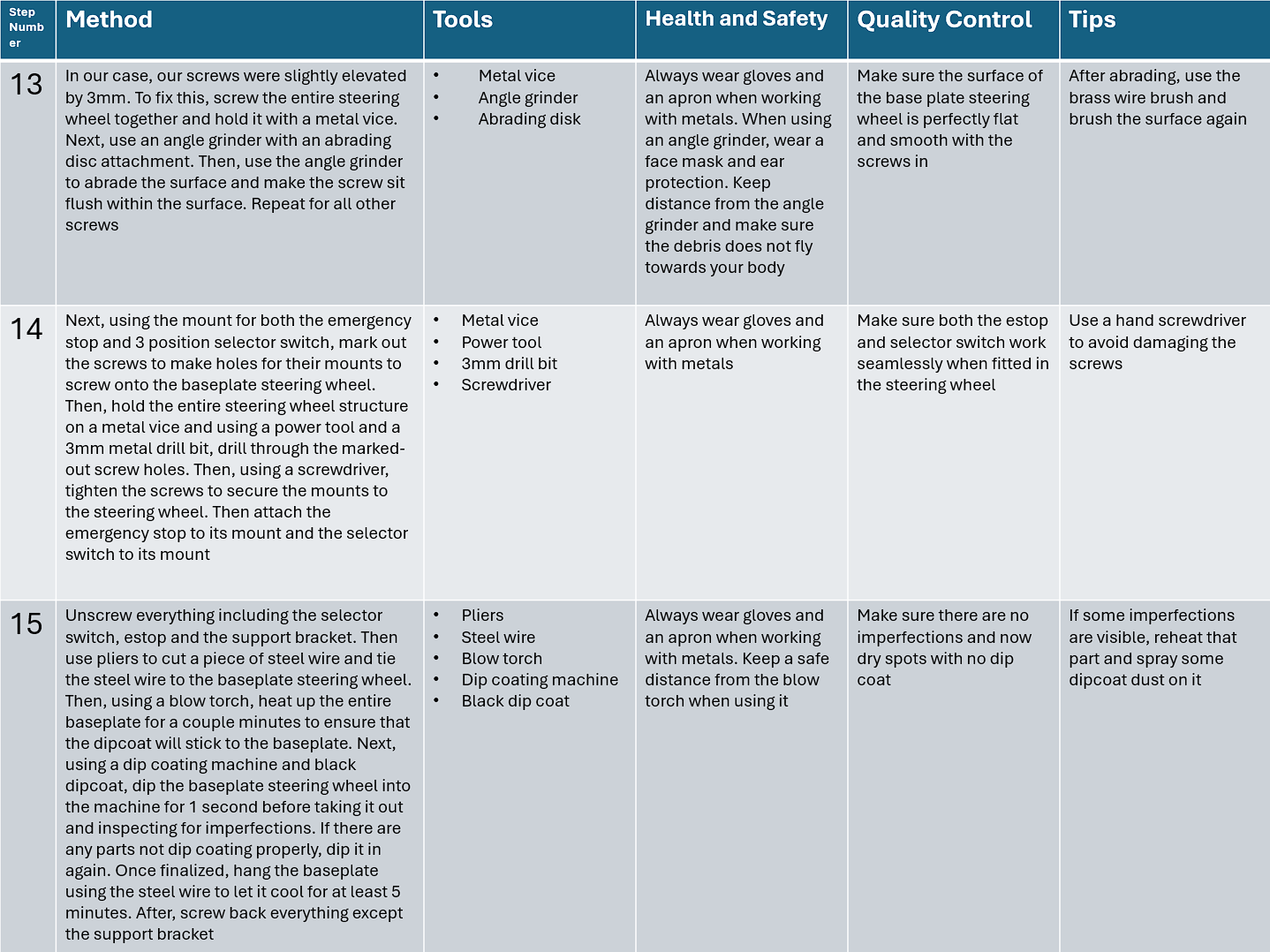

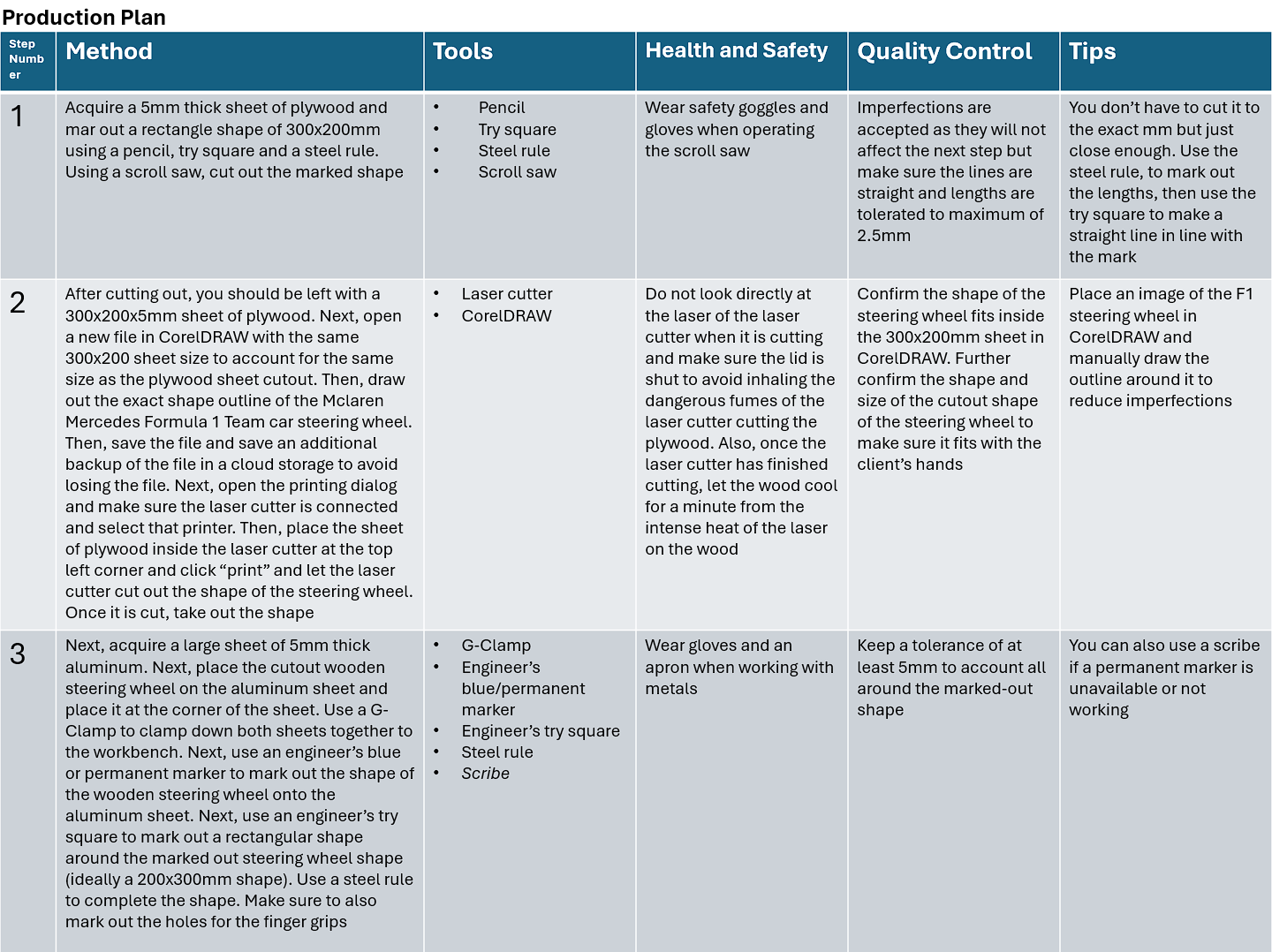

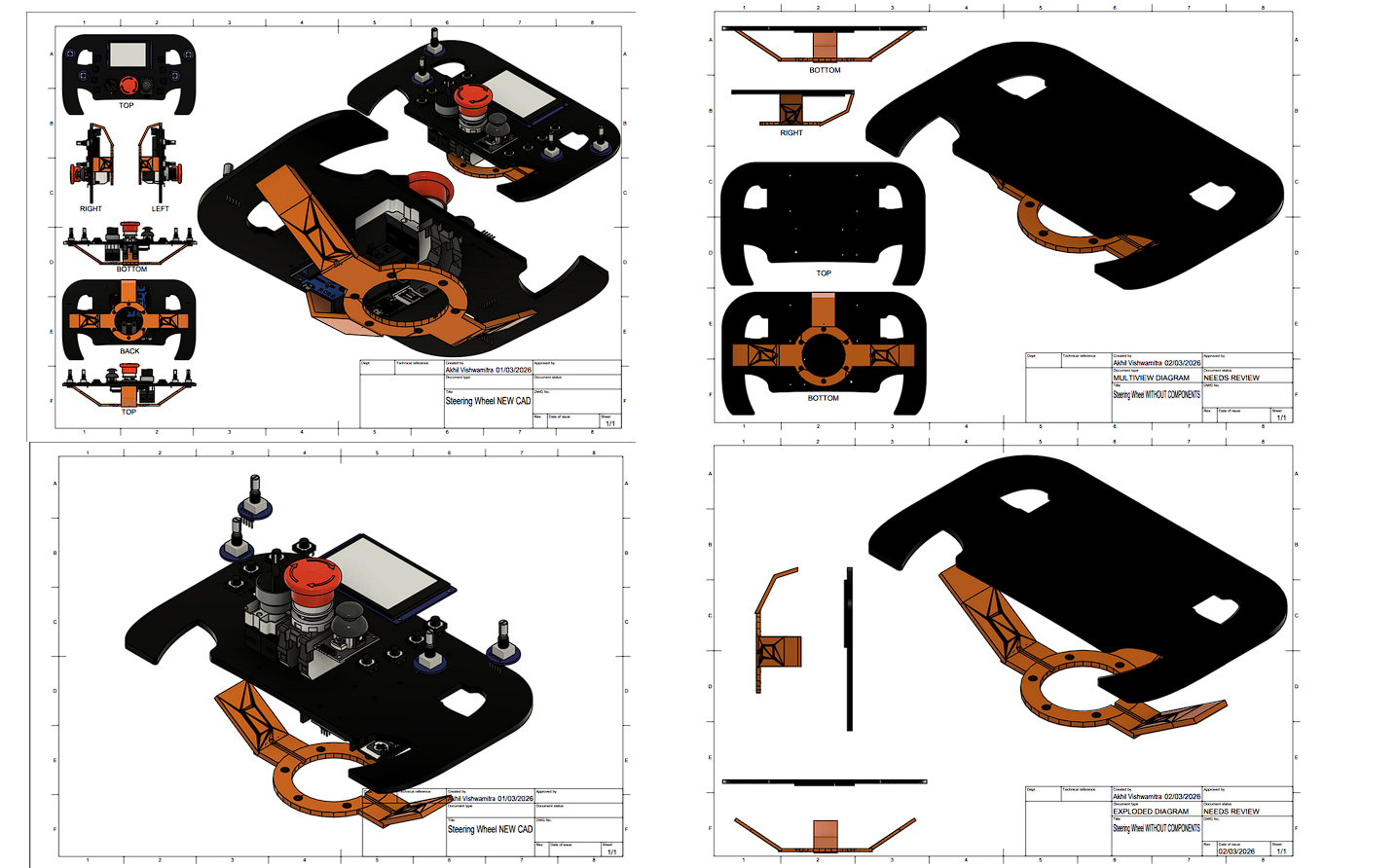

Read the following instructions in the PDF on how to assemble this steering wheel together

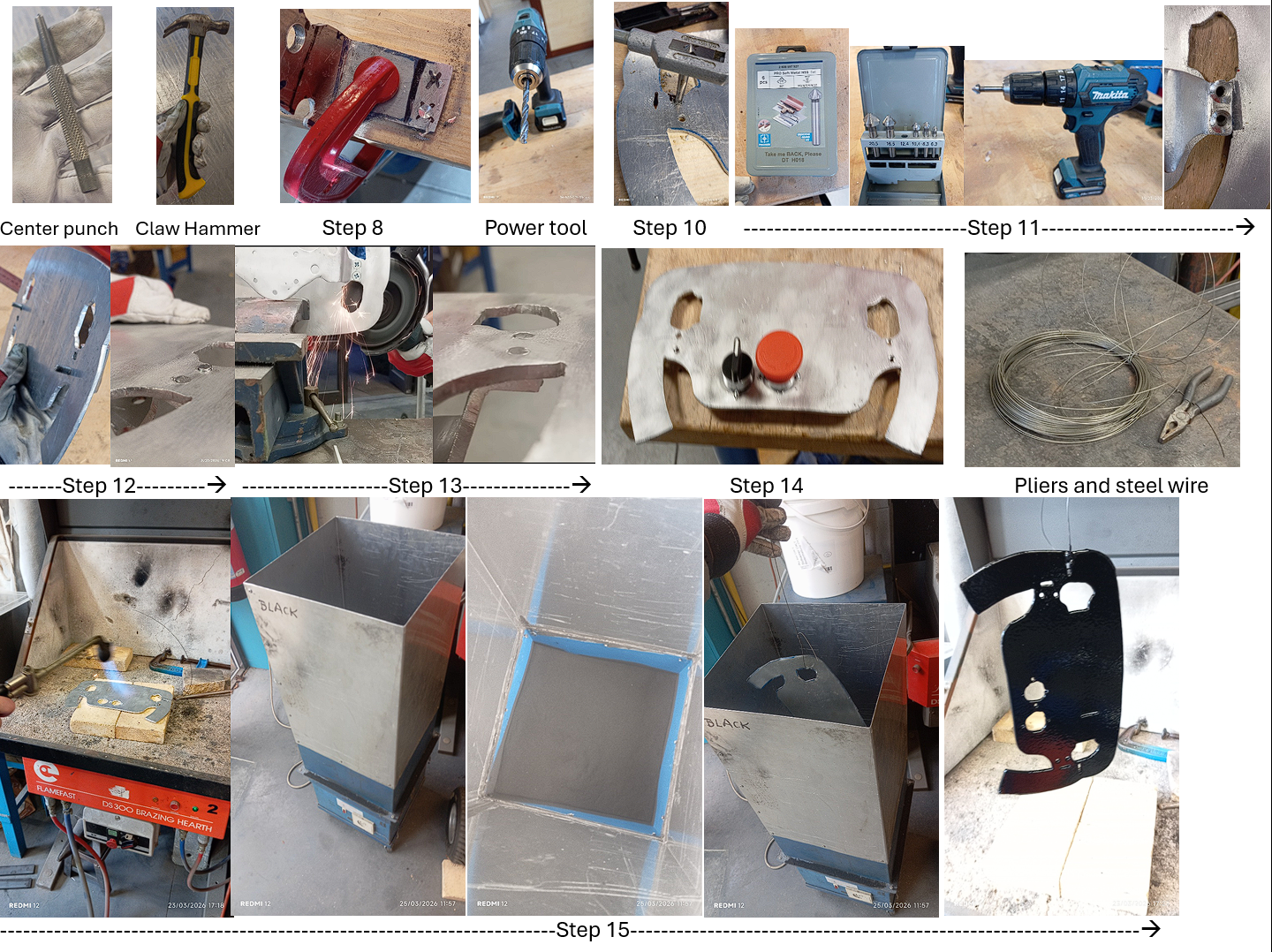

Follow the instructions in the pictures provided

Follow the instructions in the pictures provided

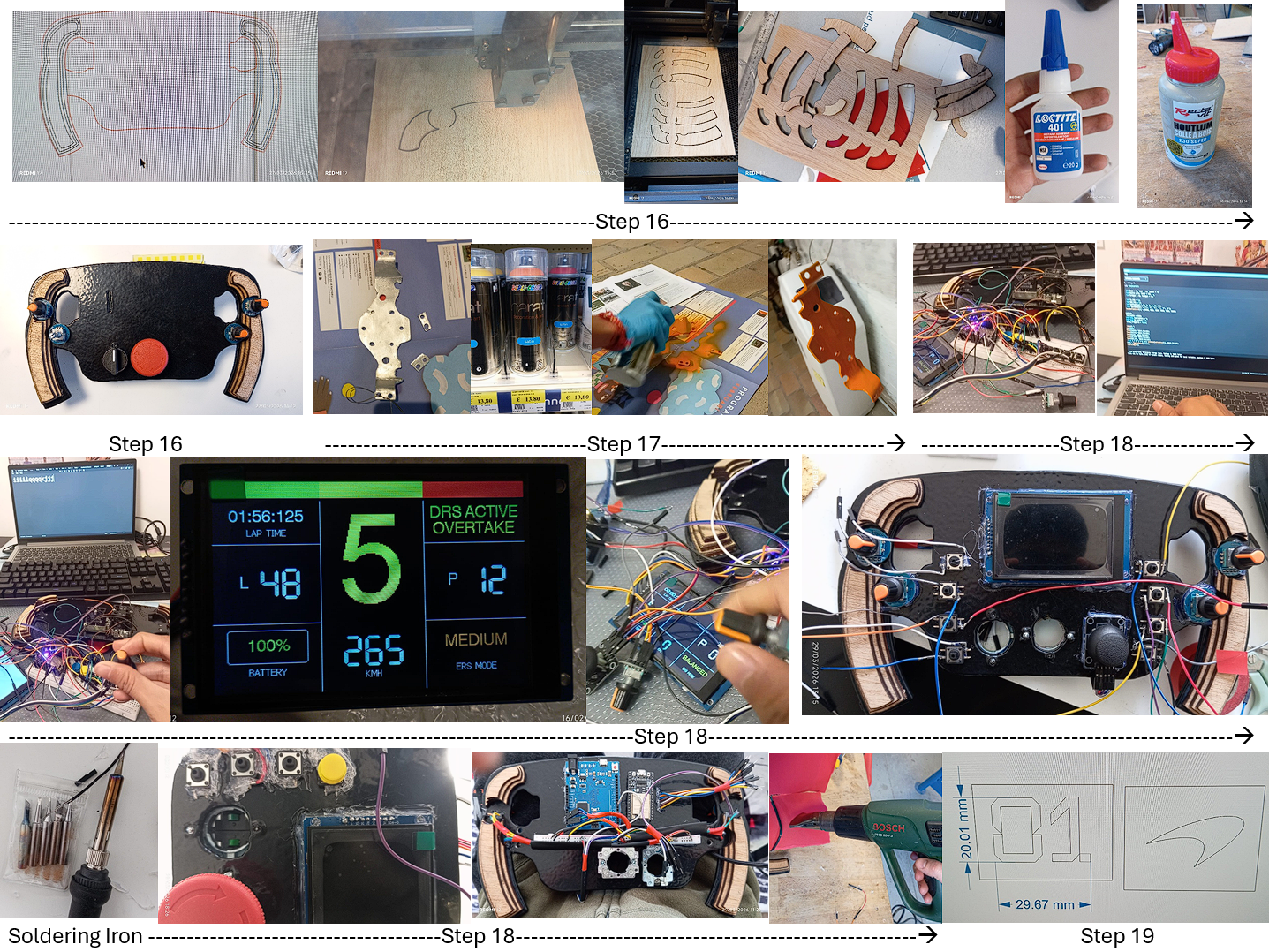

Follow the instructions in the pictures provided

Follow the instructions in the pictures provided

Follow the instructions in the pictures provided

Follow the instructions in the pictures provided

Download the arduino code from my github here: github.com/AV600LT/Custom-F1-style-steering-wheel-for-logitech-g923

Follow the instructions in the pictures provided

Watch the steering wheel in action on my linkedin here: https://www.linkedin.com/posts/akhilvishwamitra992_engineering-productdesign-simracing-ugcPost-7448029682685497344-RGrj?utm_source=share&utm_medium=member_desktop&rcm=ACoAAGAp0sMBmOphSK1jMfwaQuVFc6COup5iPlg

Test it out in assetto corsa!!
