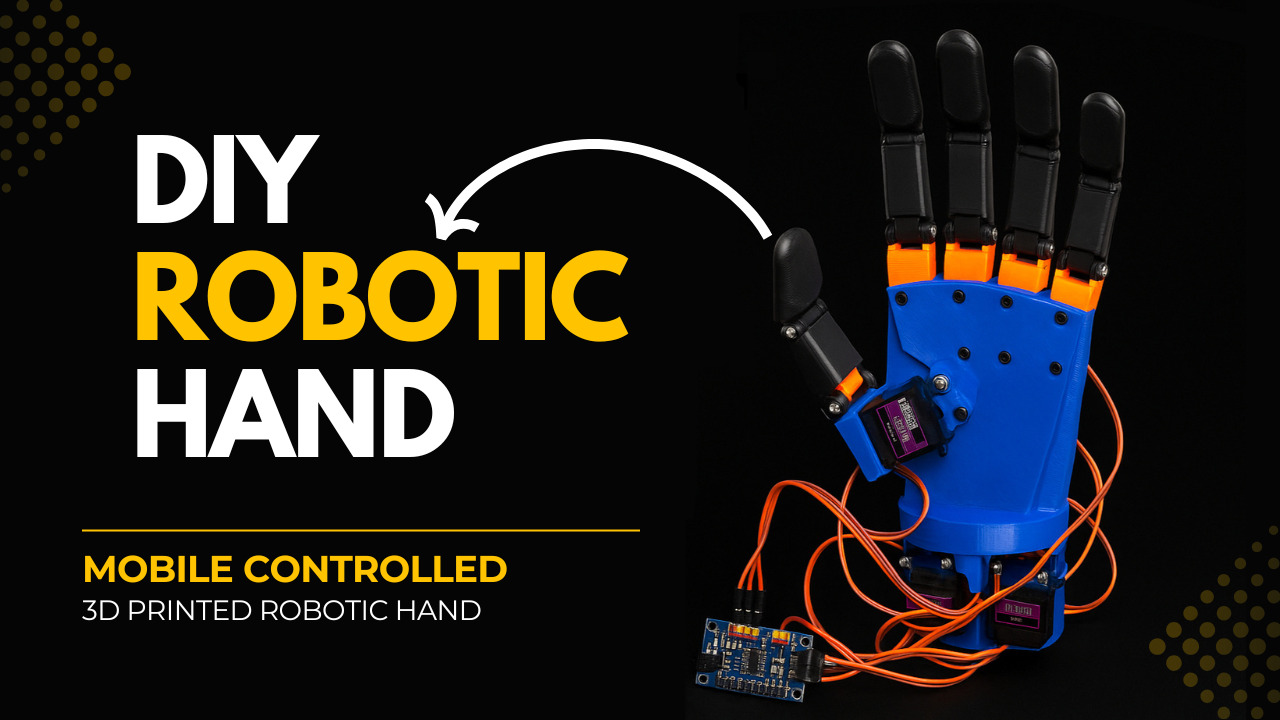

DIY 3D Printed Robotic Hand Controlled by Mobile | ESP32 + MG90 Servo Project | Full Build Guide

Watch the full Video here - DIY 3D Printed Robotic Hand Controlled by Mobile | ESP32 + MG90 Servo Project | Full Build Guide

🧠 Introduction

In this project, I’ll walk you through how to make a fully functional 3D Printed Robotic Hand that you can control using your mobile phone. This hand uses MG90S servo motors, an ESP32 development board, and a PCA9685 servo driver to smoothly control each finger.

Whether you're an electronics hobbyist, a robotics student, or a maker looking for your next DIY challenge, this tutorial will help you build your very own robotic hand from scratch — complete with 3D printed parts and a wireless control interface.

Features

1. ️ 5-Finger robotic hand with palm and thumb
2.

3. Mobile-controlled via Web UI (no app needed!)
4.

5. ⚙️ Smooth motion using MG90S servo motors
6.

7. Fully 3D printed design
8.

9. ESP32 + PCA9685-based control system
10.

11. Easy to assemble with common tools
12.


🖨️ Step 1: 3D Print the Robotic Hand Parts

You’ll need to 3D print the following components:

1. 🖐️ Palm base
2.

3. 👉 4 Finger segments
4.

5. 👍 Thumb segment
6.

7. 🔩 Servo holders for each joint
8.


Recommended settings:

1. Material: PLA or PETG
2.

3. Layer Height: 0.2 mm
4.

5. Infill: 20%
6.

7. Supports: Enabled (for overhangs)

🔧 Step 2: Assemble the Mechanical Structure

1. Mount each MG90S servo into a servo holder using M3 screws.

1. Attach servo holders to the palm using bolts.

1. Fix the fingers onto the servo arms using screws.Repeat the process for all 4 fingers and finally the thumb.

🔌 Step 3: Wiring the Electronics

🧩 Connections:

Component

Connect To (ESP32)

PCA9685 VCC

3.3V / 5V

PCA9685 GND

GND

PCA9685 SDA

GPIO 21

PCA9685 SCL

GPIO 22

Servo Motors

Channels 0 to 4 on PCA9685

🧠 Step 4: Code & Web Interface

Upload the code using the Arduino IDE.

✅ Libraries Needed:

1. Wire.h
2.

3. Adafruit_PWMServoDriver.h
4.

5. WiFi.h
6.

7. ESPAsyncWebServer.h
8.


🔗 [Get the full source code DM me]

After uploading, your ESP32 will host a simple web server interface with buttons to control each finger.

📱 Open the IP address on your mobile browser (shown in Serial Monitor), and start controlling the robotic hand in real-time!

🧪 Step 5: Test the Robotic Hand

Now that everything is set up:

1. Try gripping objects like bottles, pens, or even small tools.
2.

3. Calibrate the servo angles in the code if any fingers don’t move correctly.
4.

5. Tune the motion for a smoother response.

🧼 Optional Improvements

1. Add feedback sensors for touch or pressure
2.

3. Use flex sensors on a glove for gesture control
4.

5. Add a Bluetooth interface for offline use
6.


Print in different colors for a custom aesthetic

🤝 Sponsor: JLCMC – Mechatronics Made Easy!

This project was proudly sponsored by JLCMC.

They provide high-quality mechanical parts like aluminum enclosures, gearboxes, shafts, and more — starting at just $0.5!

Why JLCMC?

✅ Superfast global shipping

✅ Custom part selection

✅ High precision

✅ $70 welcome coupon with my link

🔗 [Sign up now and claim your $70 coupon –https://jlcmc.com/?from=elec]

🧾 Conclusion

Building a 3D Printed Robotic Hand is not just a fun project — it’s a great learning experience for those interested in robotics, servo control, and ESP32-based IoT systems.

You now have a functional robotic hand you can control from your phone! If you liked this project, don't forget to:
