DIY Bluetooth Speaker Guitar Amp (Using a Pocket POD)

Want a super affordable and portable guitar practice rig? This project shows you how to turn a basic Bluetooth speaker into a mini guitar amp using a Line 6 Pocket POD. You can even add backing tracks via wired or Bluetooth input.

Perfect for home practice, travel, and worship prep setups.

Required:

1. 3.5mm (1/8”) Headphone Splitter
2. USB to 3.5mm Audio Adapter

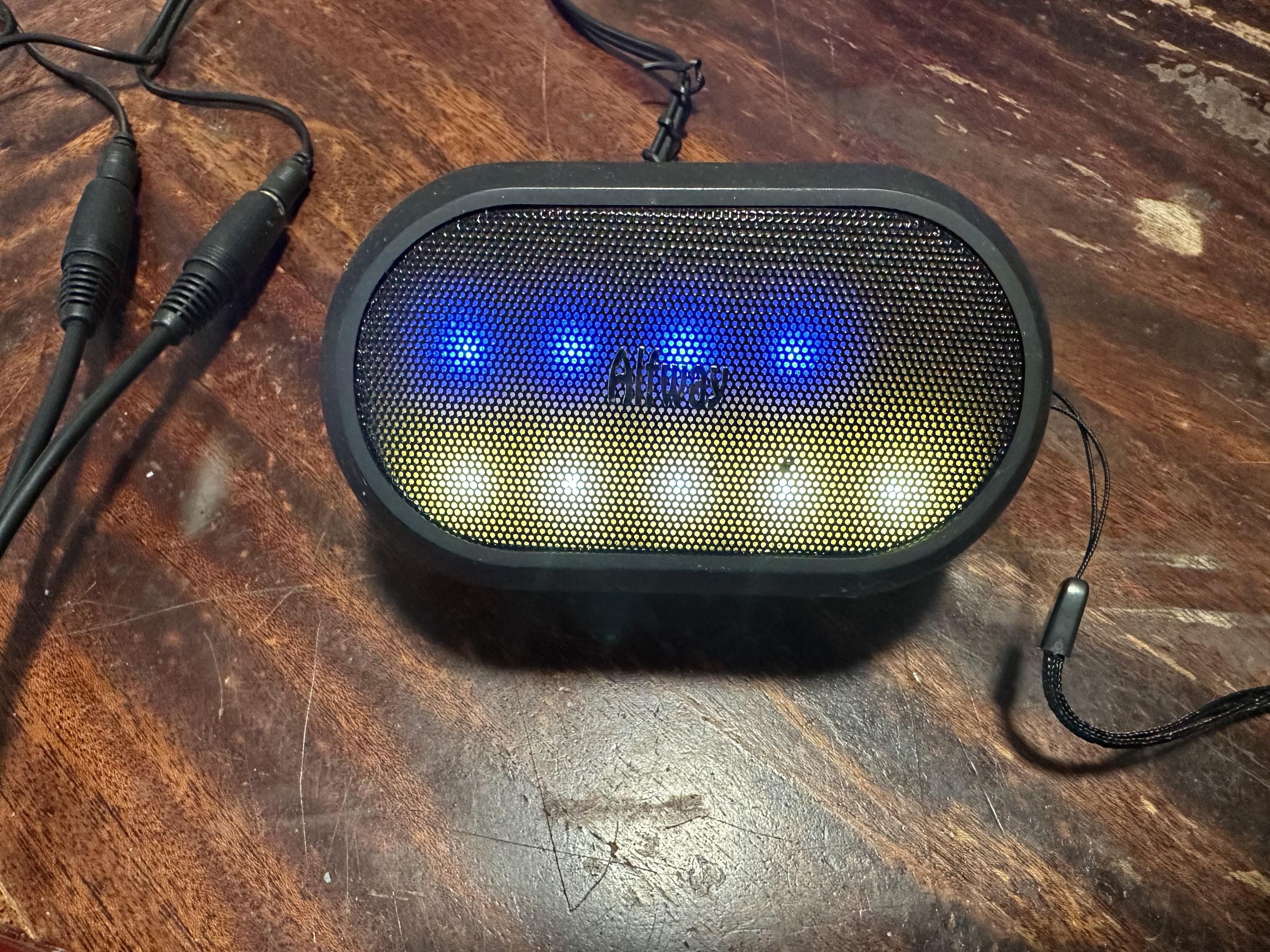

3. Bluetooth Speaker (with AUX input)

Optional:

1. Bluetooth Audio Receiver (for wireless backing tracks)
2. Power Bank (for portable power)

The idea is simple:

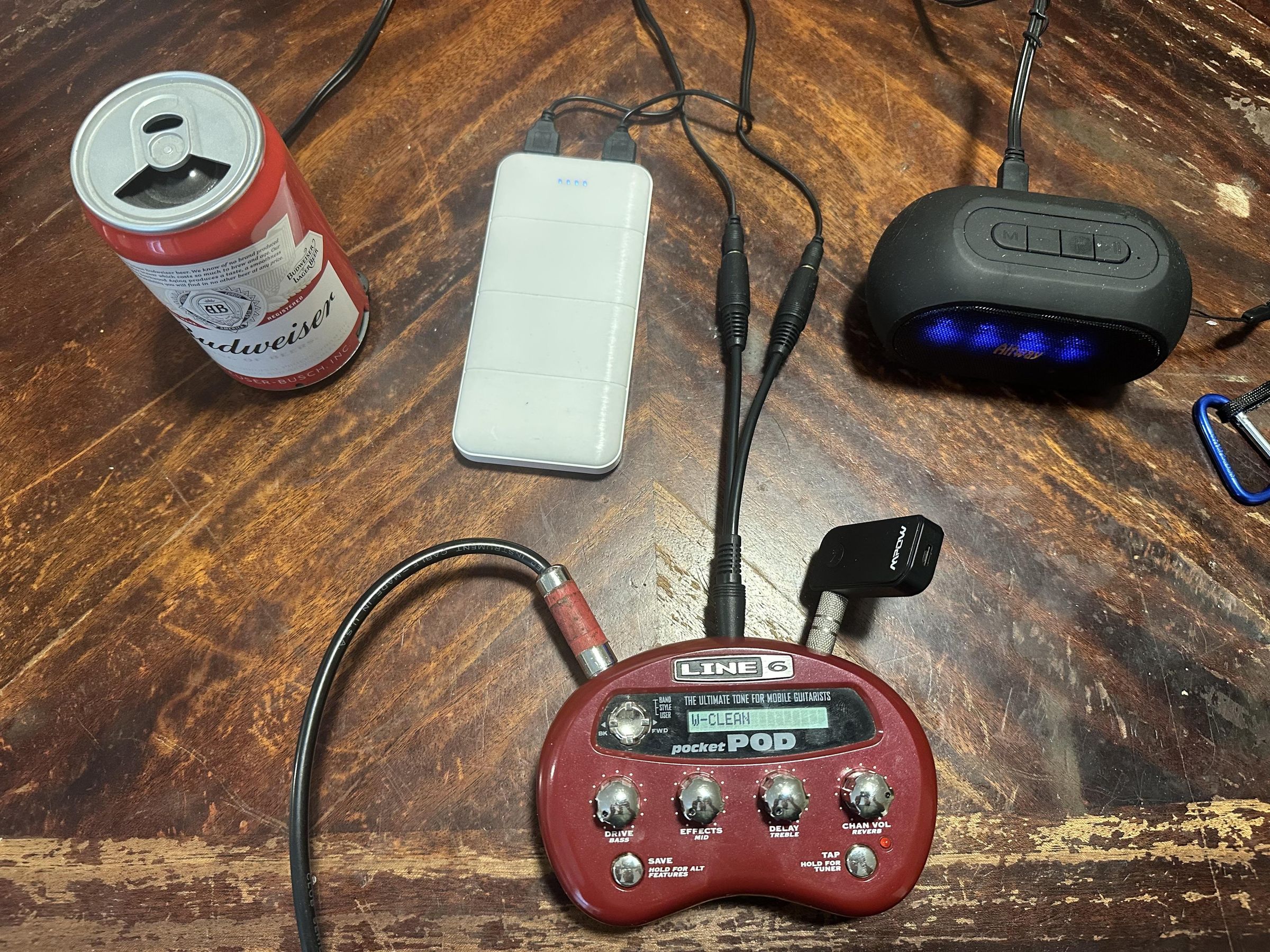

Guitar → Pocket POD → Splitter → Speaker

The Pocket POD acts as your amp + effects, while the Bluetooth speaker becomes your “cabinet.”

Connect Your Guitar

1. Plug your guitar into the input of the Pocket POD
2. Select your preferred tone (clean, drive, ambient, etc.)

Connect to the Speakers

1. Plug the headphone output of the Pocket POD into the headphone splitter
2. Connect one end of the splitter to your Bluetooth speaker’s AUX input

👉 You should now hear your guitar through the speaker!

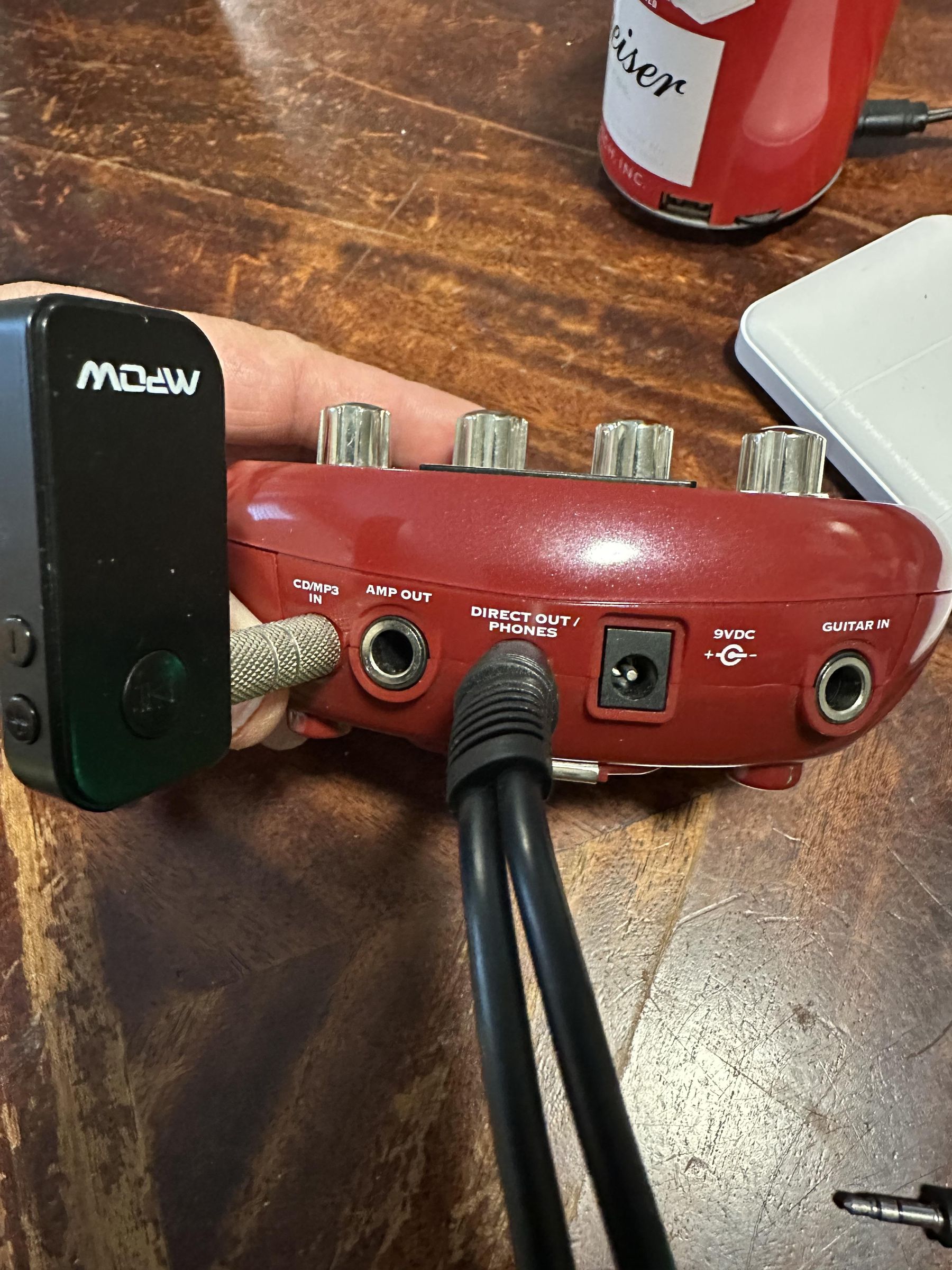

1. Connect your phone or tablet into the pocket POD CD/MP3 input
2. Play your backing tracks

⚠️ Note: This is a passive mix, so adjust volumes carefully.

Add Backing Tracks (Bluetooth Option)

1. Plug a Bluetooth receiver into the pocket POD CD/MP3 input
2. Pair your phone to the receiver
3. Play your backing tracks wirelessly

Use a power bank to power:

1. Bluetooth speaker
2. Bluetooth receiver (if used)

Now you have a fully portable practice rig 🎶

Dial in Your Tone

Recommended settings on the Pocket POD:

1. Output Mode: Line/Studio
2. Volume: 60–70% (to avoid distortion)
3. Amp Models:
4. Clean: Brit Class A / Boutique
5. Drive: Boutique / Modern

1. Headphone splitters are NOT true mixers
2. Volume balance between guitar and tracks may vary
3. Avoid connecting two powered outputs together
4. Small speakers won’t reproduce deep bass well

🚀 Final Result

You now have:

✔ A budget-friendly guitar amp

✔ A Bluetooth jam rig

✔ A portable practice setup

💡 Optional Upgrades

1. Replace splitter with a mini mixer for better audio control
2. Use higher-quality portable speakers for improved tone
3. Add headphones for silent practice

🎶 Conclusion

This DIY setup is one of the easiest ways to practice guitar anywhere without a traditional amp. It’s affordable, flexible, and perfect for quick sessions or travel.

Happy playing
