DIY Hardware Trawl


We will show you how to make a trawl using 40$ supplies from any hardware store.

Supplies


You will need the following supplies :

1) A wooden plank

2) Air conditioner Duct

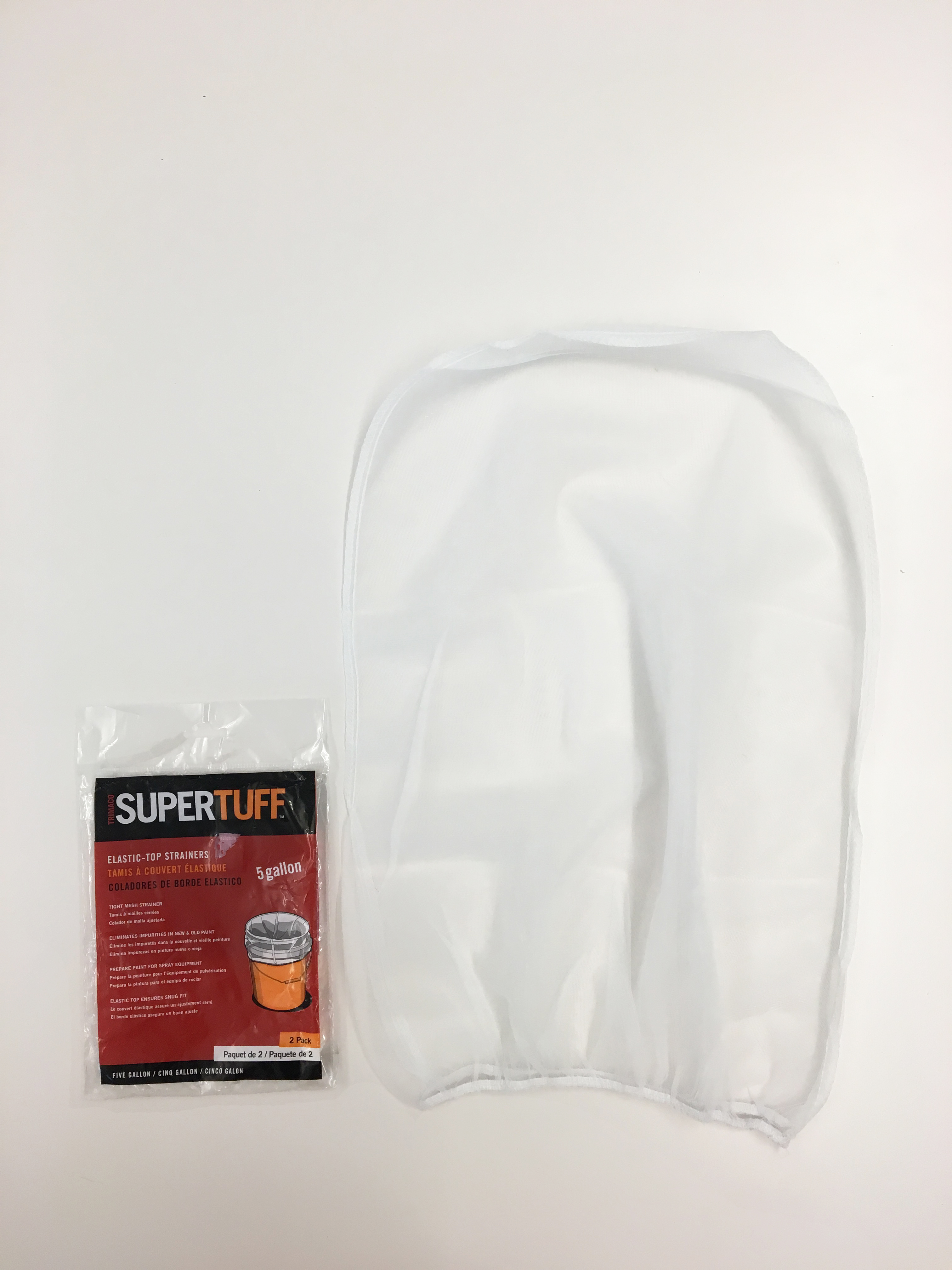

3) Paint Filters (1 Pack)

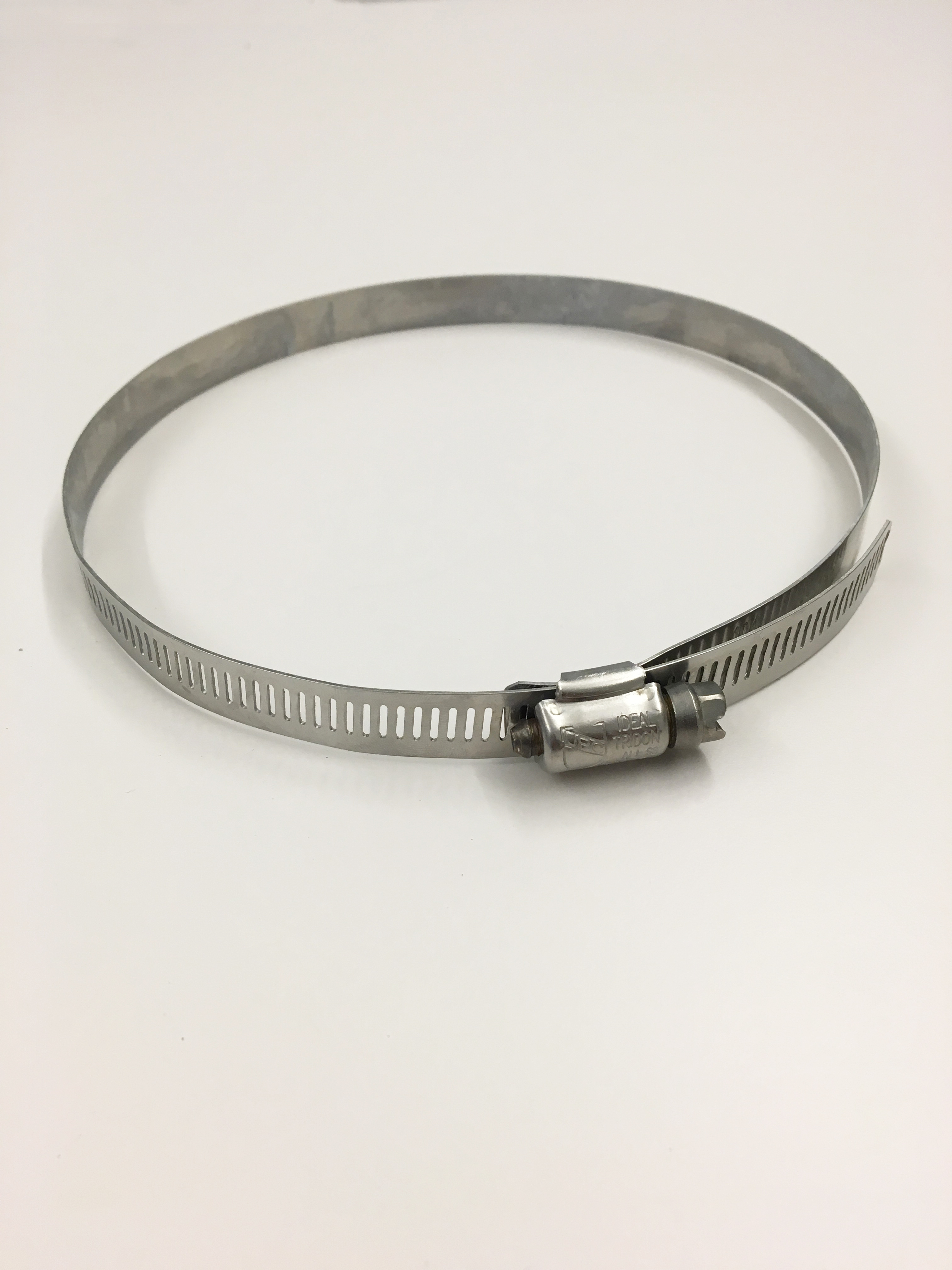

4) Worm gear clamp

5) 4 round head screws

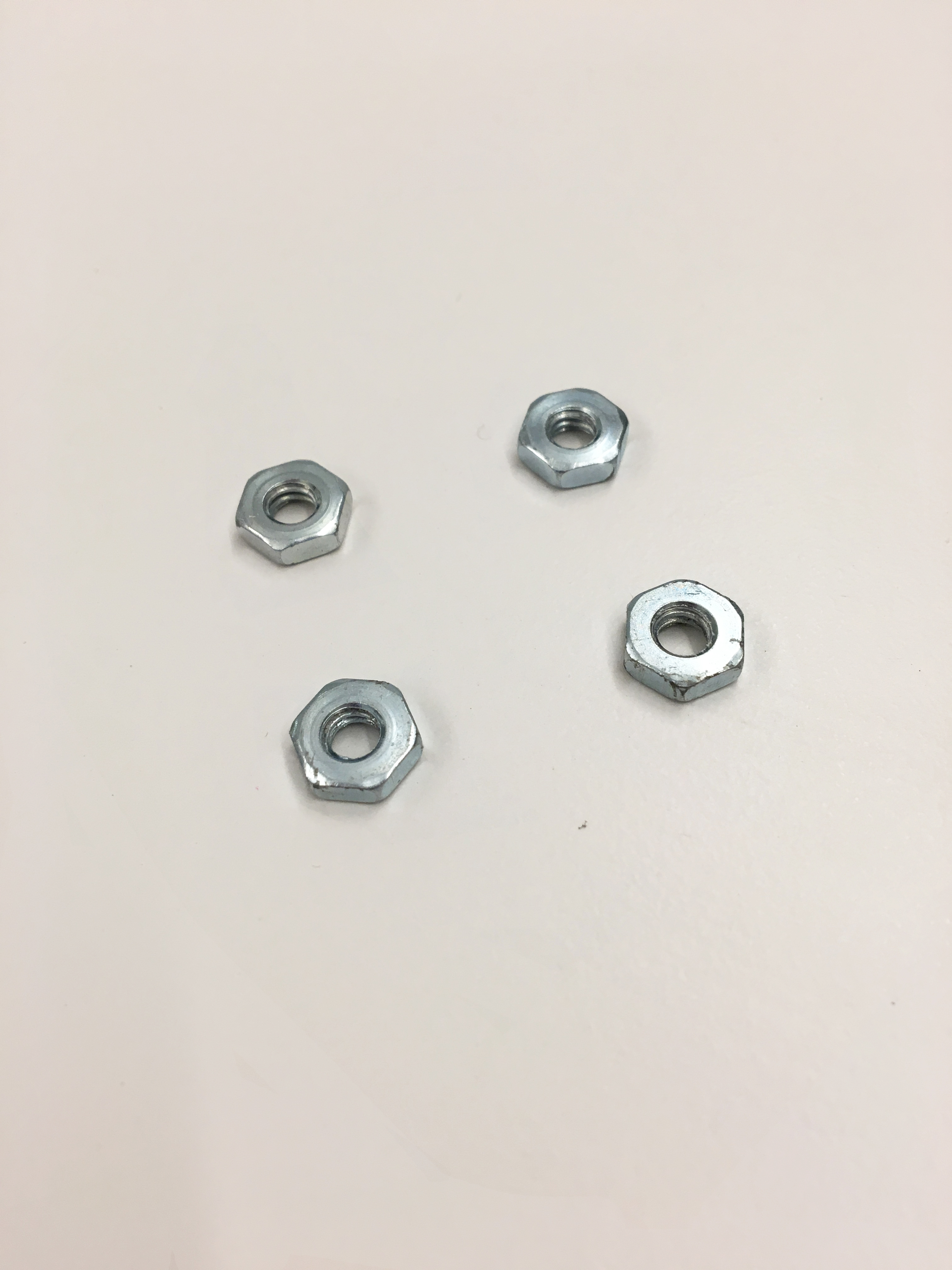

6) 4 Bolts

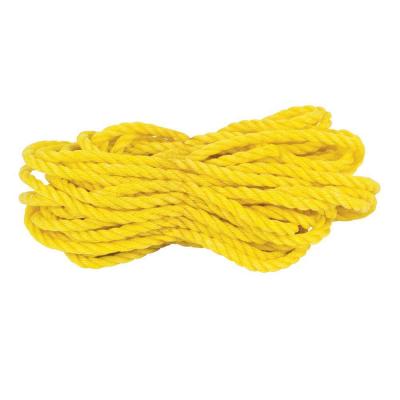

7) Rope

Drill Holes Into the Wooden Plank and the Duct

2016-09-18 18.17.19.jpg
2016-09-18 18.18.15.jpg
2016-09-18 18.19.52.jpg

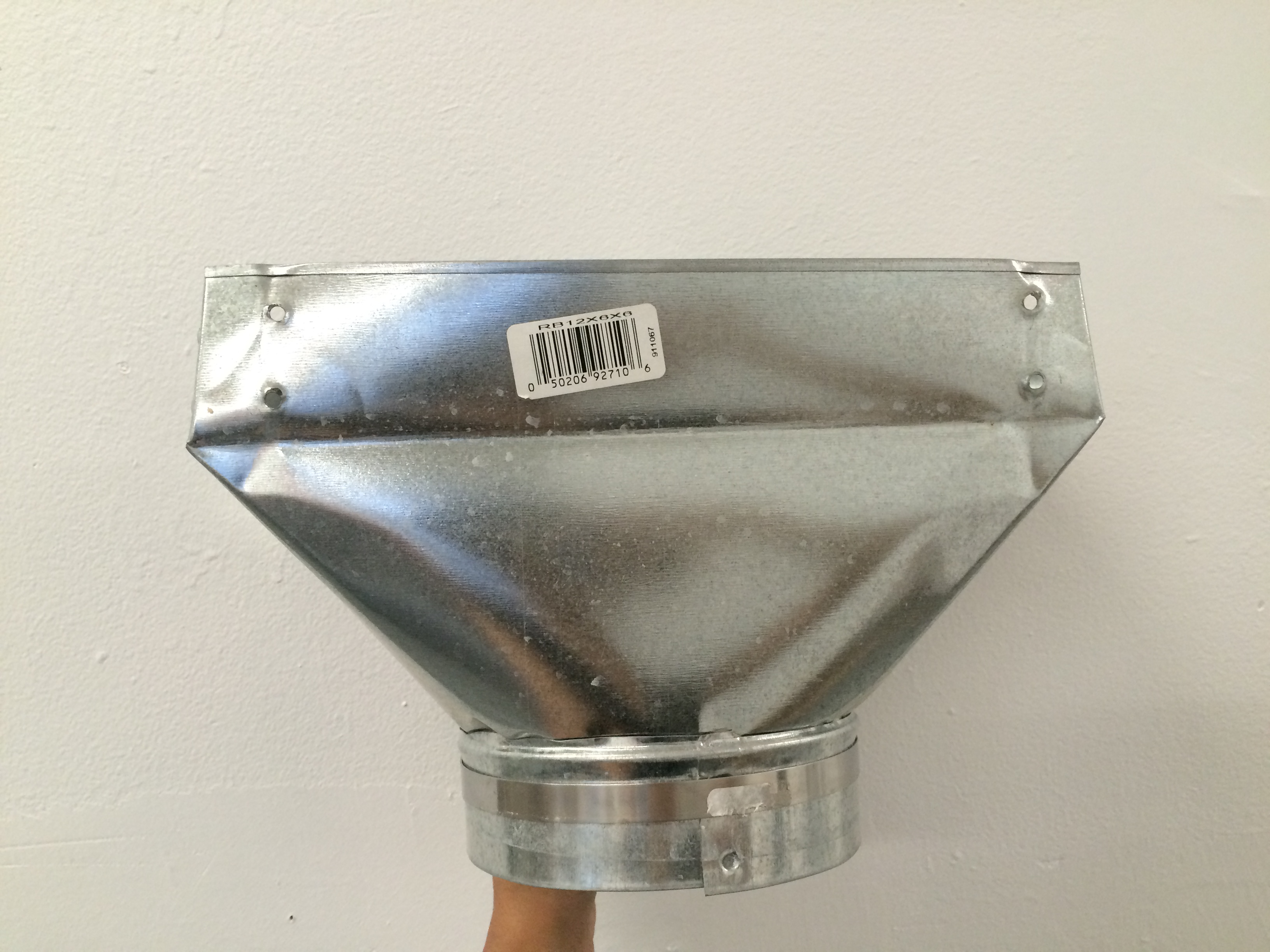

Align the duct in center on one side of the wooden plank. Mark four points (two on each side) on the wooden plank and duct to drill the holes. (Image 1 & 2) (insert dimensions)

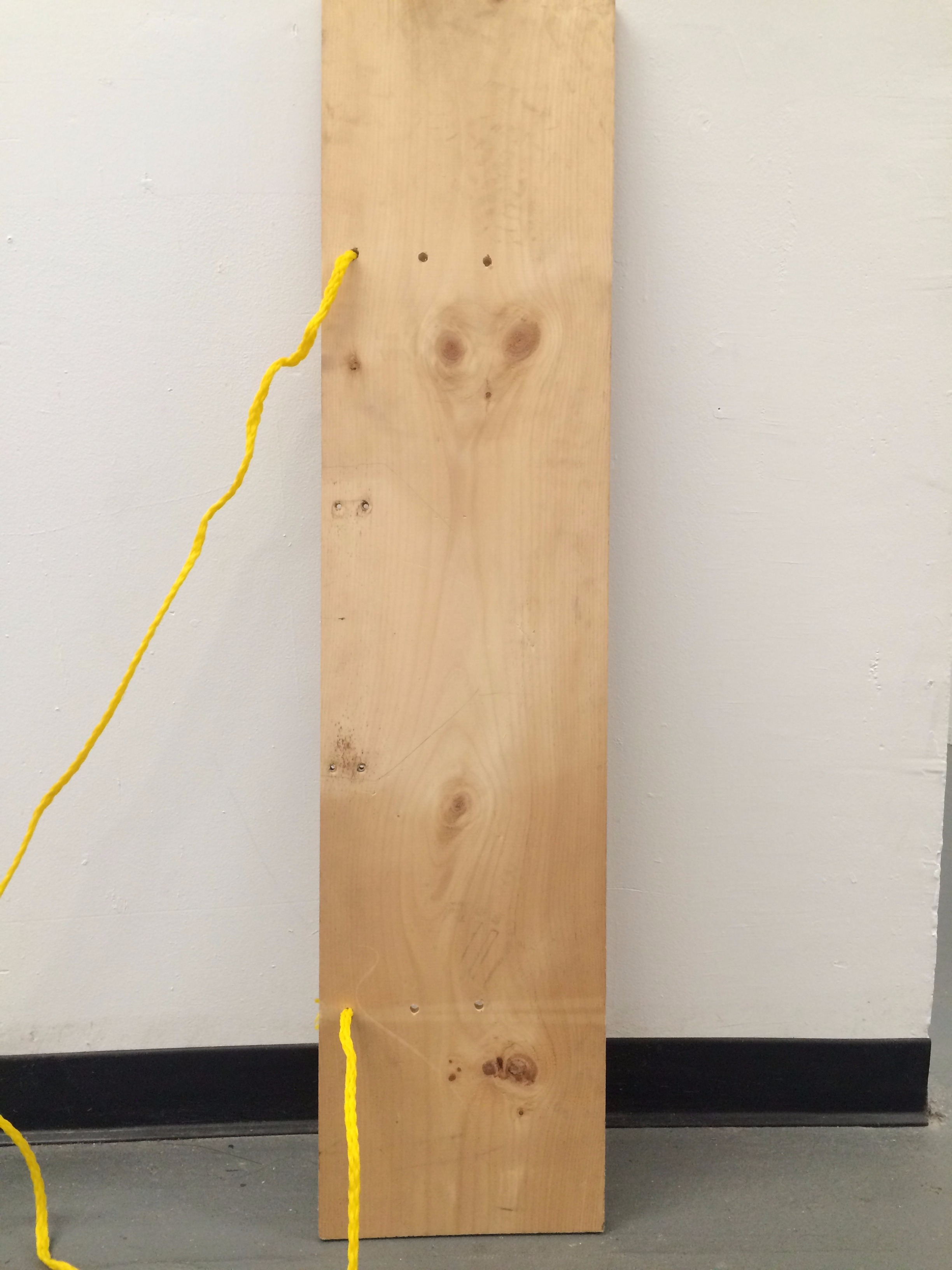

Drill two more holes in the plank (Image 3) (insert dimensions)

Screw in the Duct Onto the Wooden Plank

2016-09-18 18.24.51.jpg
2016-09-18 18.22.49.jpg

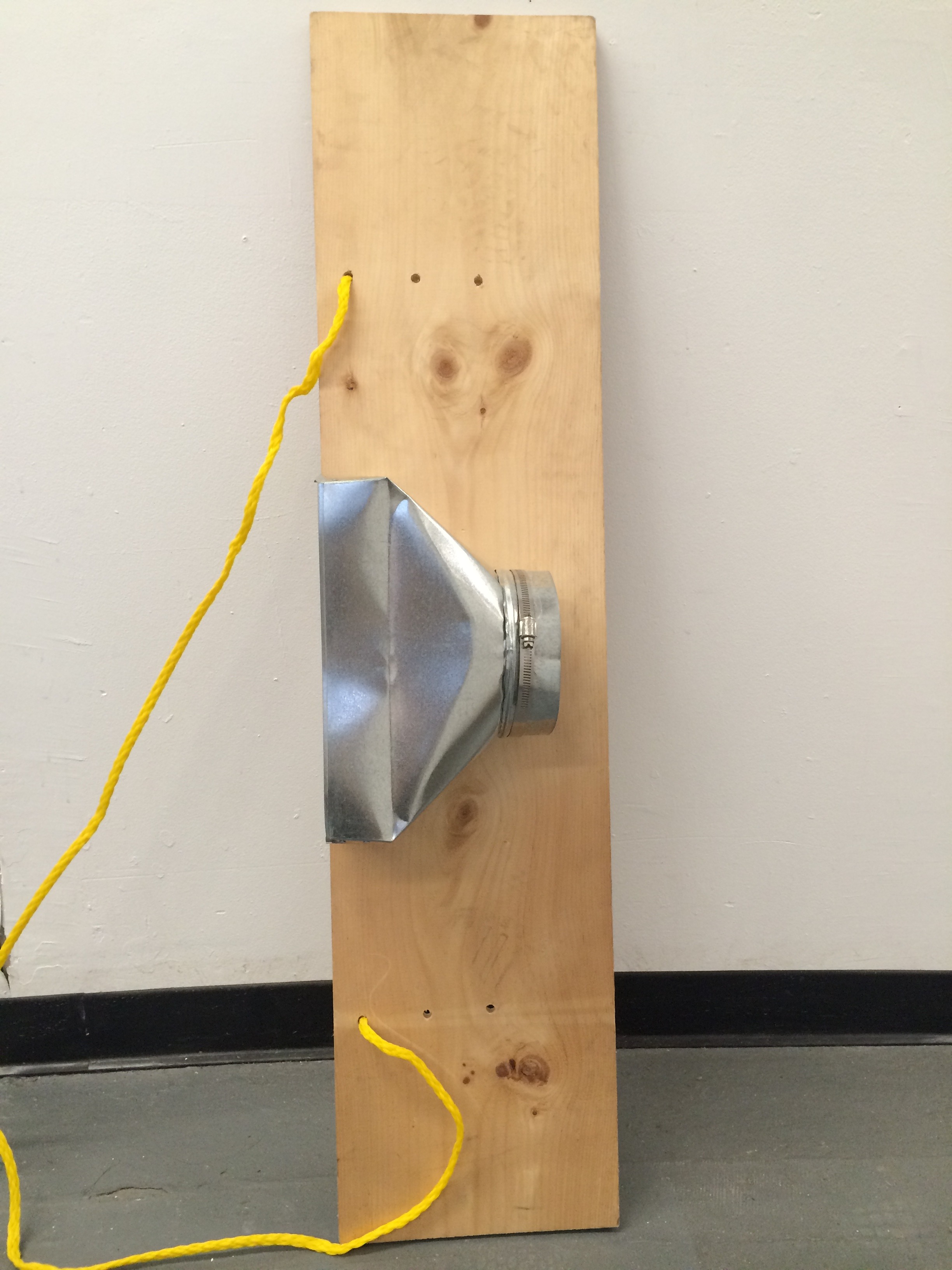

Using the screws and bolts, fix the duct on the plank

Attach the Filter and Worm Gear Clamp

2016-08-04 10.42.28.jpg
2016-08-04 10.43.05.jpg

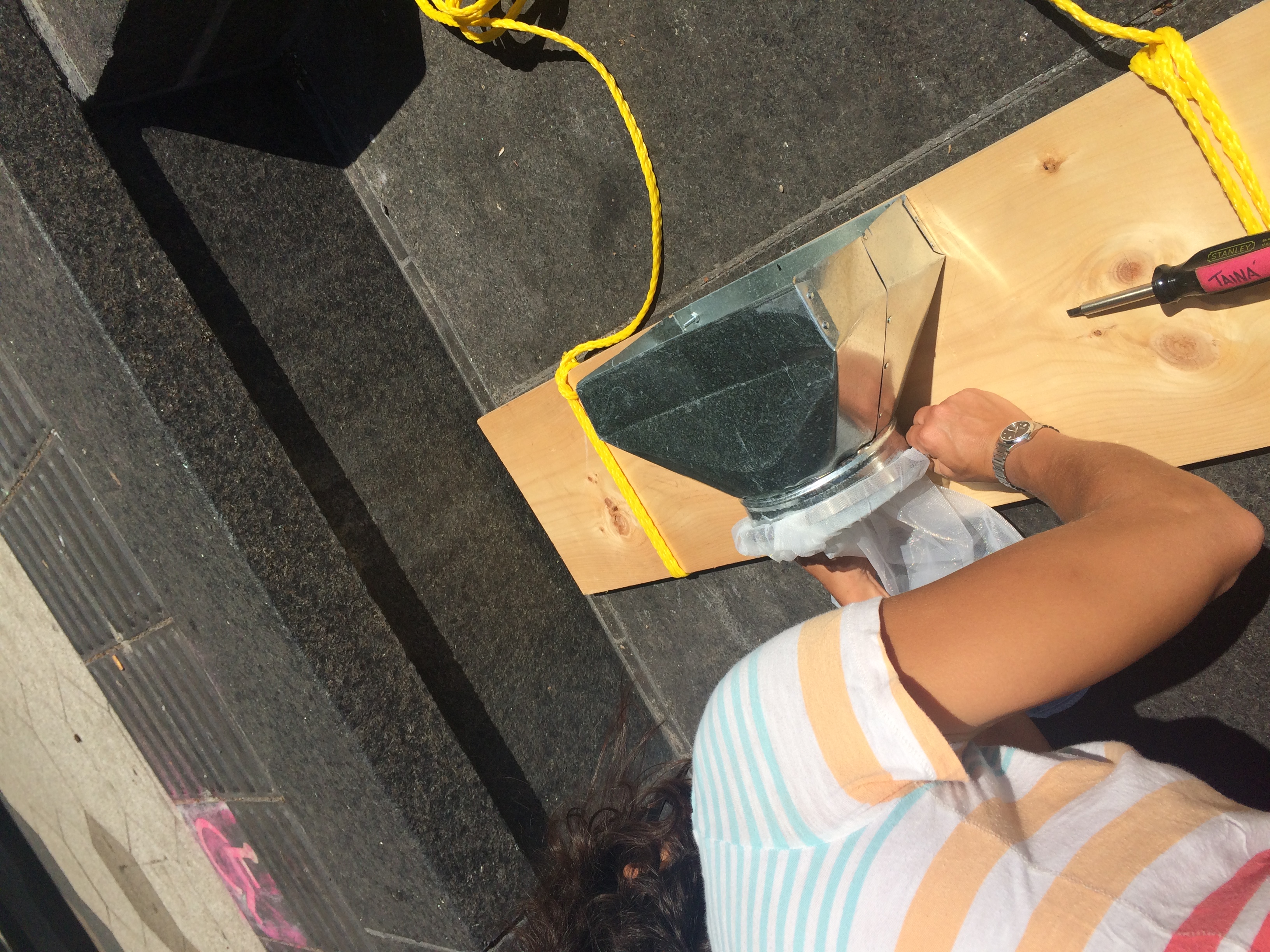

Attach the filter to the duct and lock it using the worm gear clamp

Tie the Rope

2016-08-04 10.43.41.jpg
2016-09-18 18.23.19.jpg

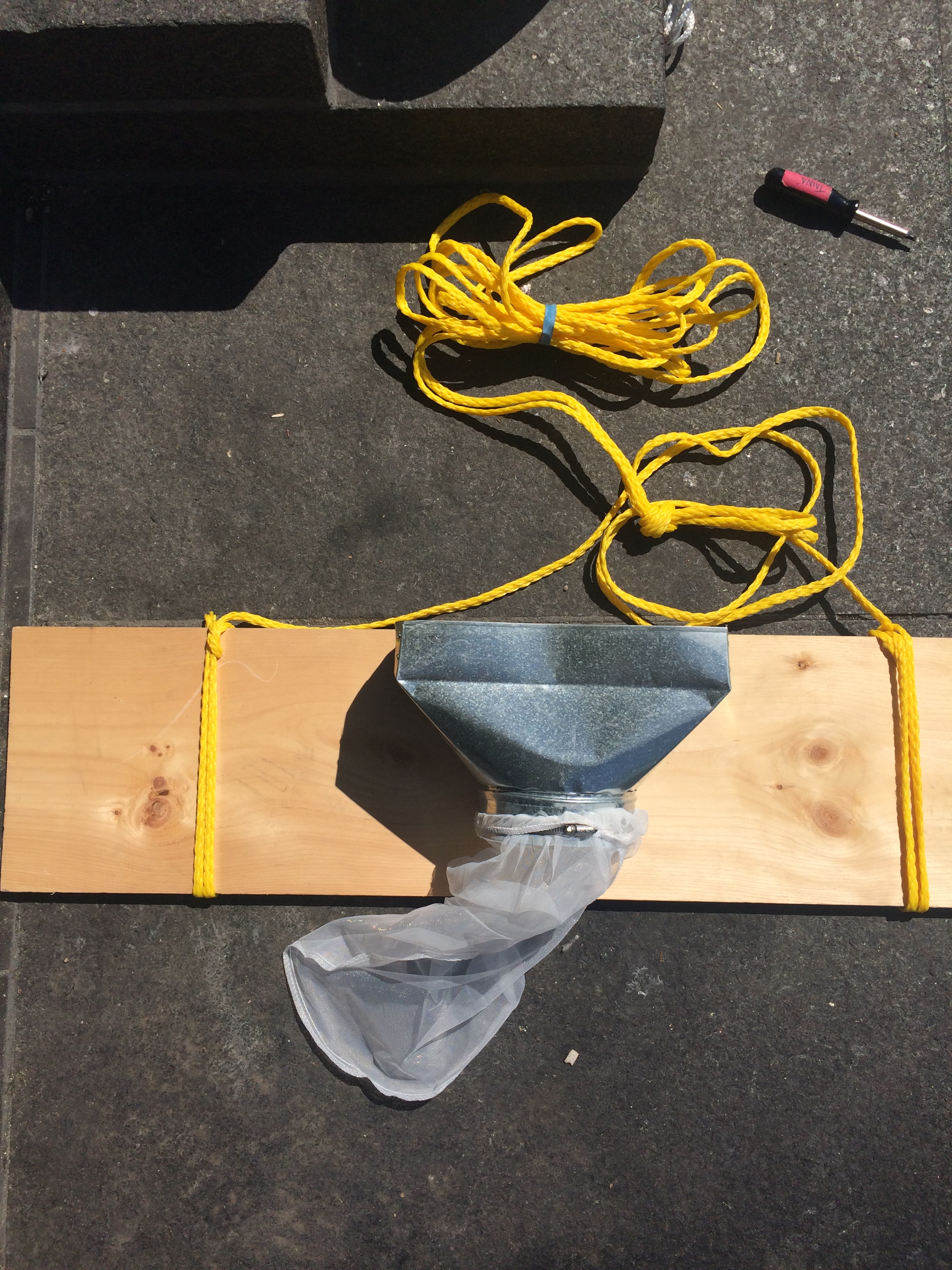

Tie the rope on to the wooden plank

You're Ready to Trawl!


Process Samples


Check out how to process the samples collected.
