DIY Laser-Cut Botanical Wooden Tissue Box

by thunderlaser-nolan in Workshop > Laser Cutting

17 Views, 0 Favorites, 0 Comments

DIY Laser-Cut Botanical Wooden Tissue Box



A botanical wooden tissue box brings a calm, natural touch to any room while keeping everyday tissues within reach.



With laser cutting, you can turn a single 3mm plywood sheet into a decorative box cover with delicate botanical cut-out patterns and clean, snap-fit joints.



This project is simple, gift-friendly, and easy to customize with different leaf, flower, or vine designs.



For more plywood laser cutting guidance, see: Plywood Laser Engraving and Cutting Guide.

Supplies

  1. Thunder Bolt laser cutting machine (or another Thunder Laser model)
  2. One 3mm plywood sheet — flat, clean, and dry
  3. LaserMaker software (free) — LightBurn or RDWorks also work
  4. Botanical Wooden Tissue Box project file (.dxf), attached to this Instructable

Laser settings for 3mm plywood: cutting speed 10mm/s, max power 30%, min power 10%, HIGH air assist.

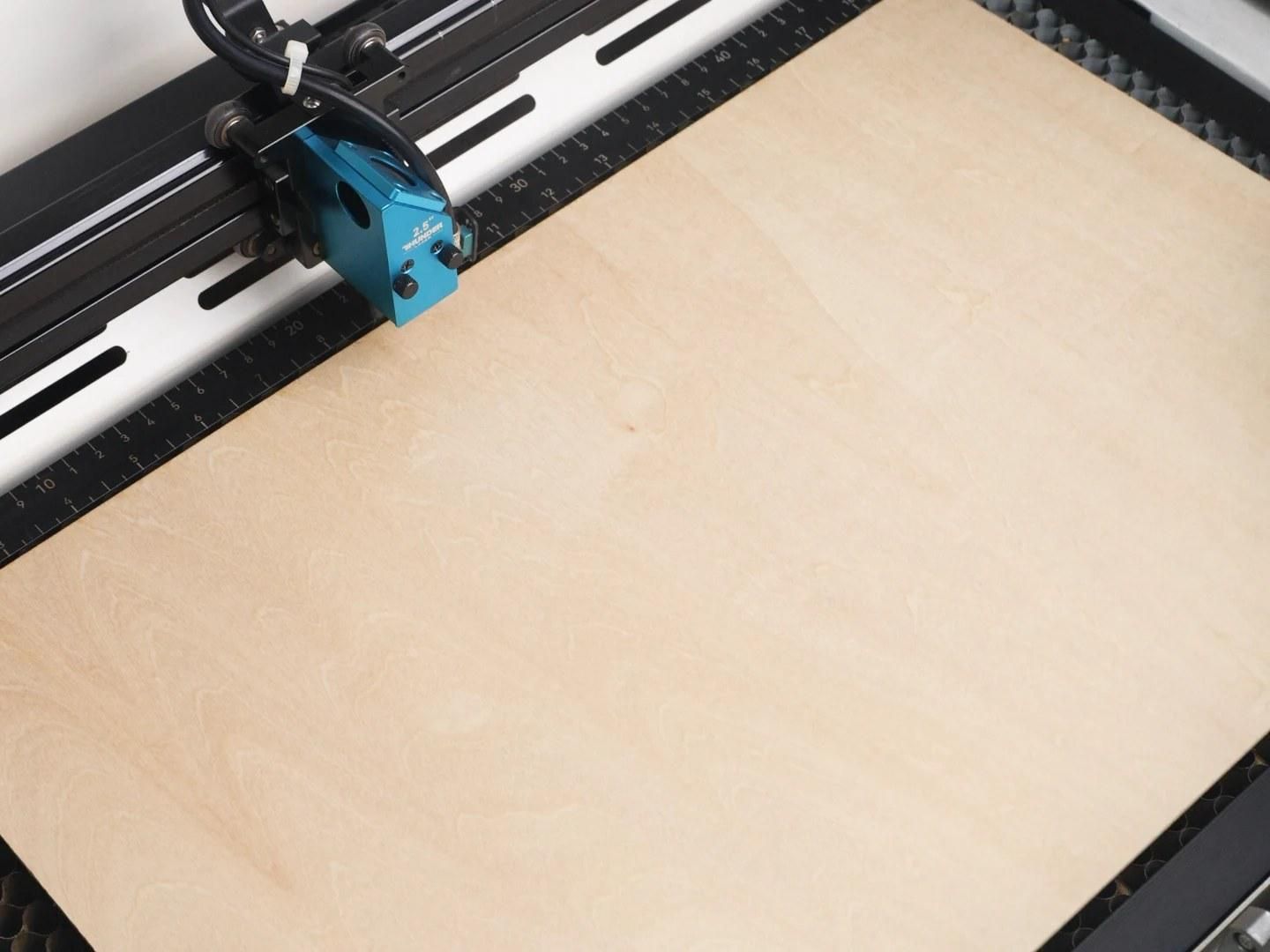

Prepare & Position the Material


Place the 3mm plywood flat on the laser work bed and make sure the surface is clean, dry, and stable.

Check that the plywood is not warped, because a flat sheet helps the laser cut the tissue box panels more accurately. If needed, use pins or magnets to keep the material from moving during cutting.

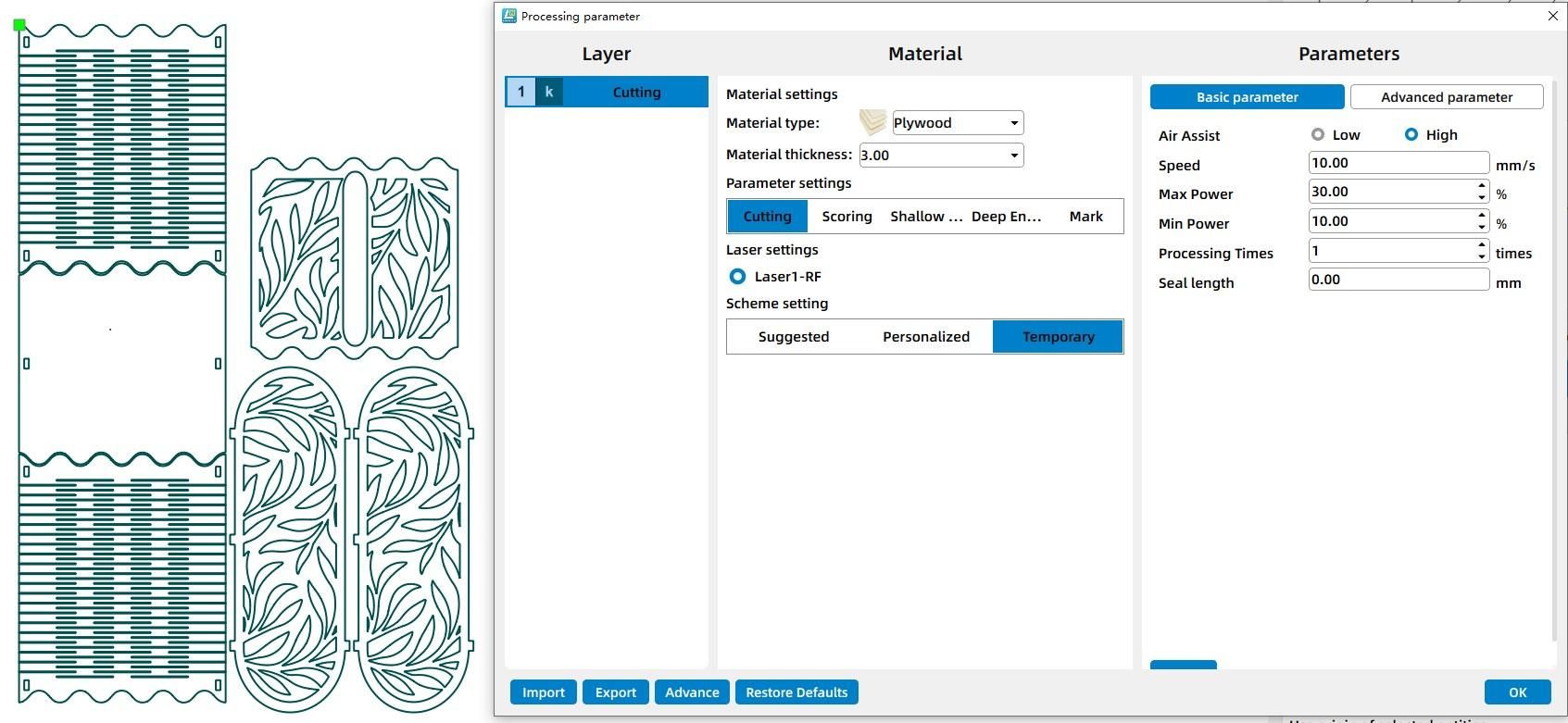

Import & Adjust the Design File


Import the botanical wooden tissue box design into your laser software and adjust the size to fit your plywood sheet.

Check all cut lines, slot positions, and the top and bottom panel layout before processing. Since this is a tissue box cover, make sure the panels and connecting tabs match the 3mm material thickness so they fit together smoothly after cutting.

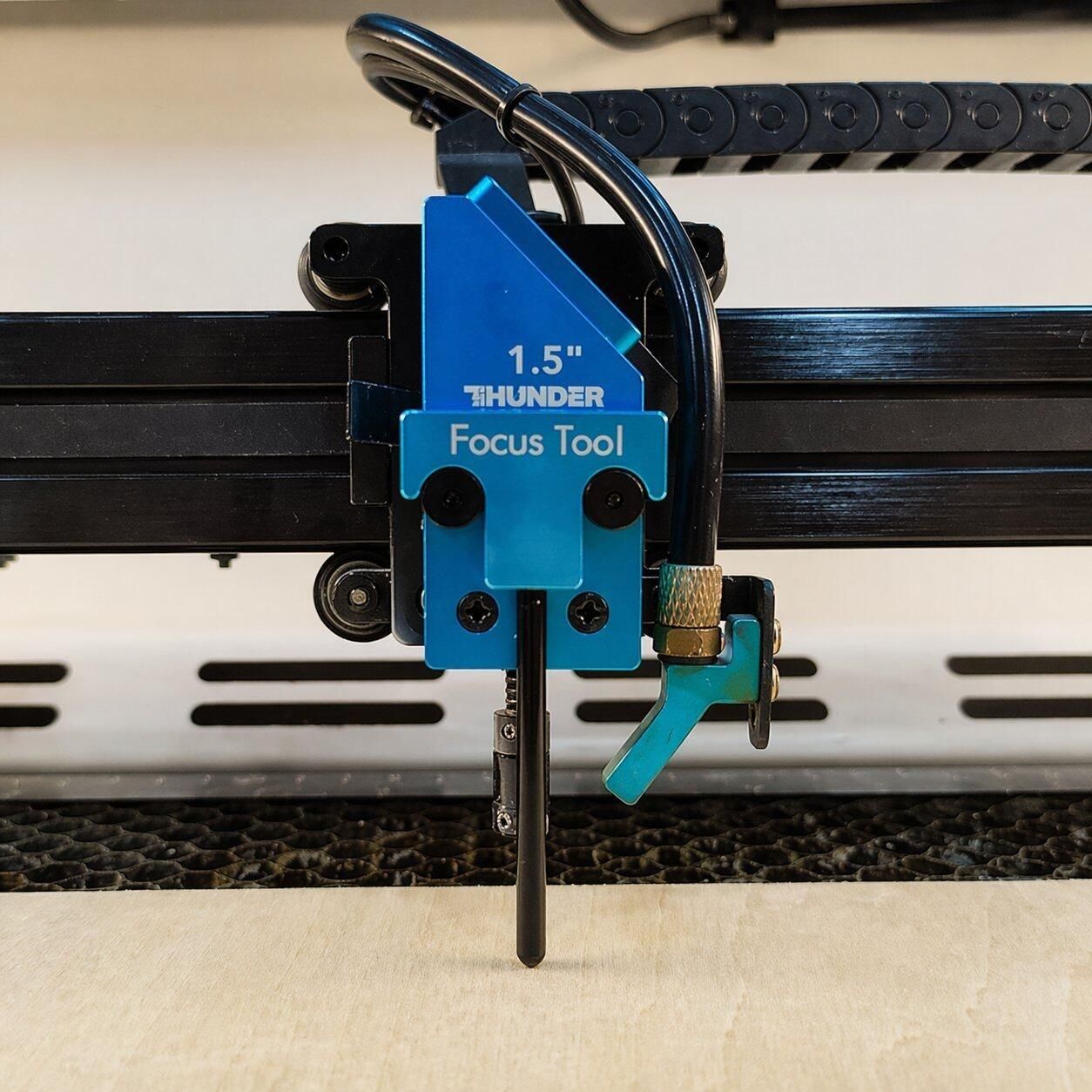

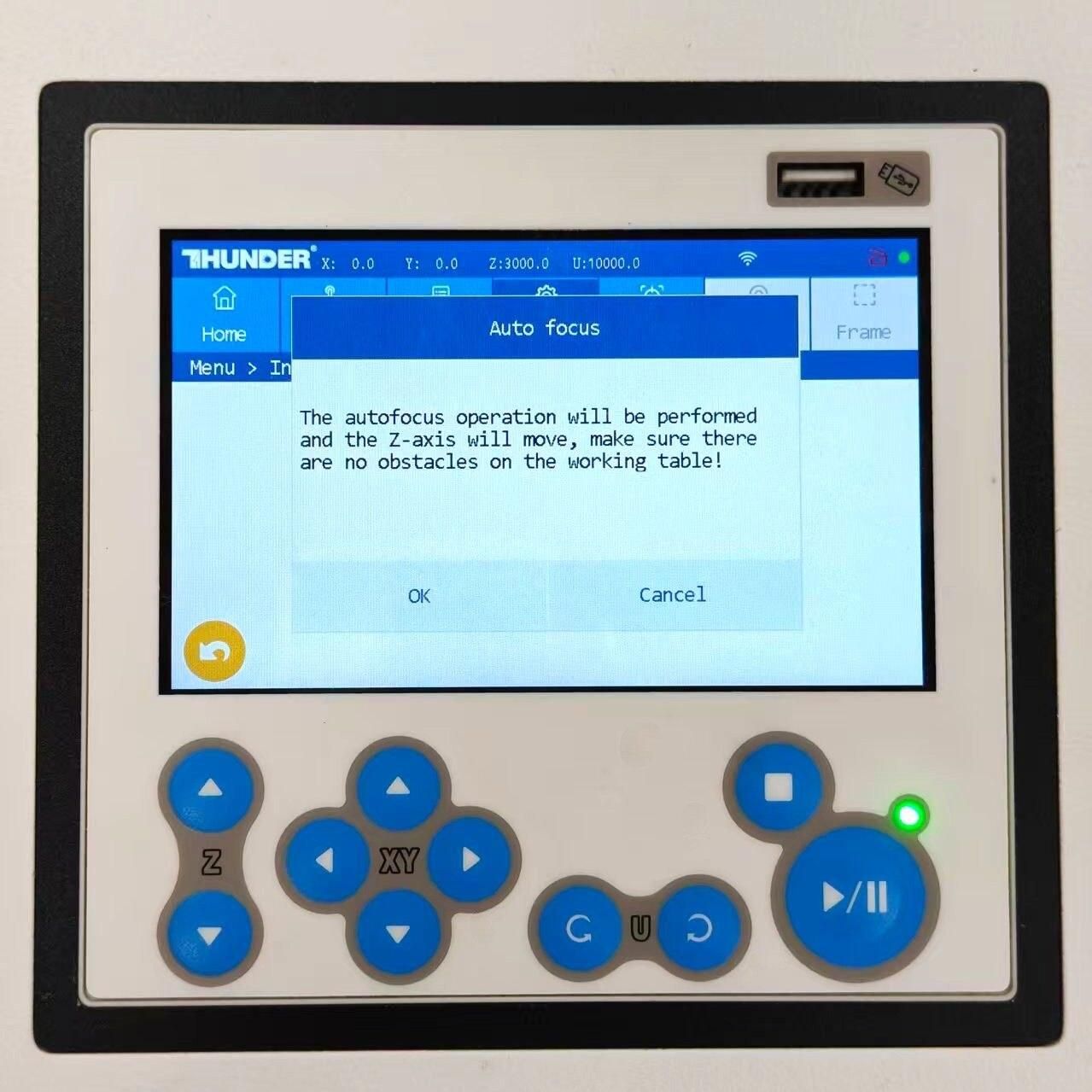

Set the Correct Laser Focus


Set the correct laser focus before cutting the plywood.

Good focus helps the laser cut through the 3mm plywood cleanly and keeps the edges of each panel neat. This is especially important for a laser cut tissue box because the decorative botanical cut-outs and tight slots need clean, accurate edges.

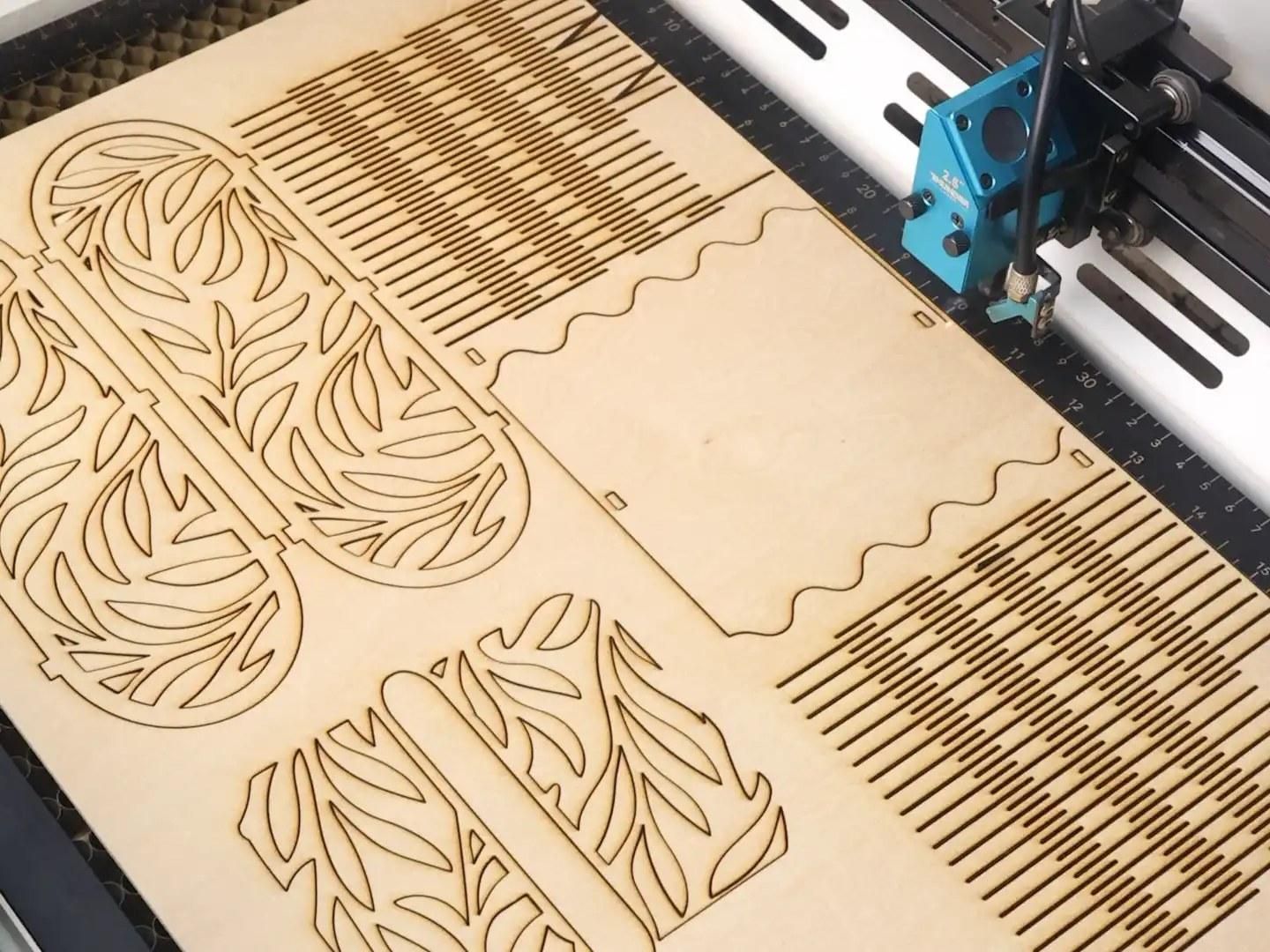

Frame the Design & Start Laser Cutting

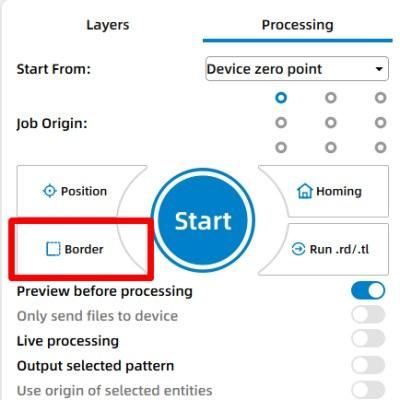

Run the Frame function first to confirm that the full botanical tissue box design fits within the plywood sheet.

Make sure the frame stays inside the material and leaves enough space around the edges. Once the position is correct, start cutting with air assist set to HIGH, and stay near the machine to watch for smoke, flame-ups, or material movement.

Post Processing


Remove the cut plywood pieces from the laser bed and clean off any dust or soot from the edges.

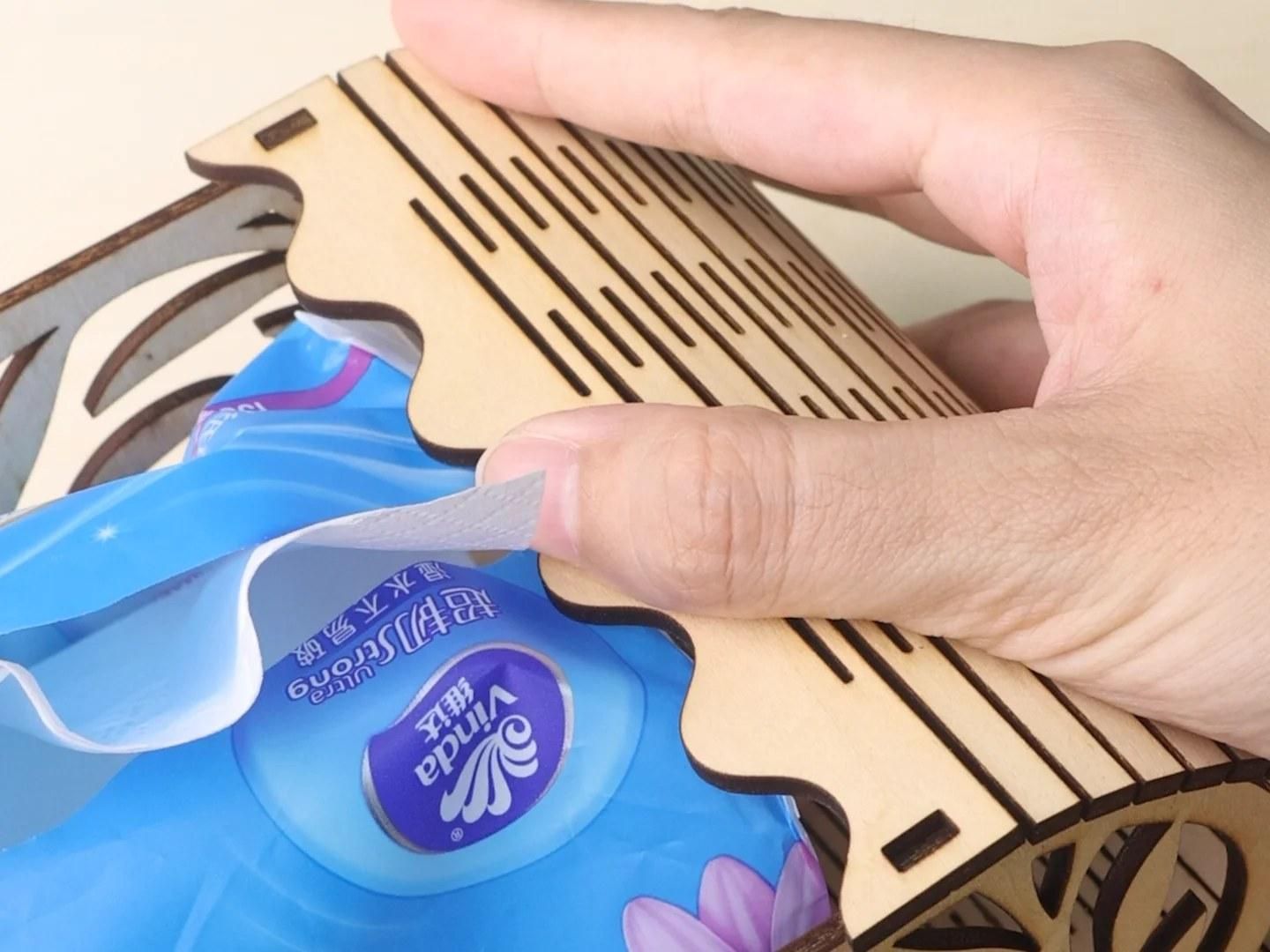

Assemble the tissue box cover according to the design, fitting each panel and tab into place. Lightly sand any rough edges if needed, then finish the wood with stain, oil, or paint to match your room and place the cover over a standard tissue box.

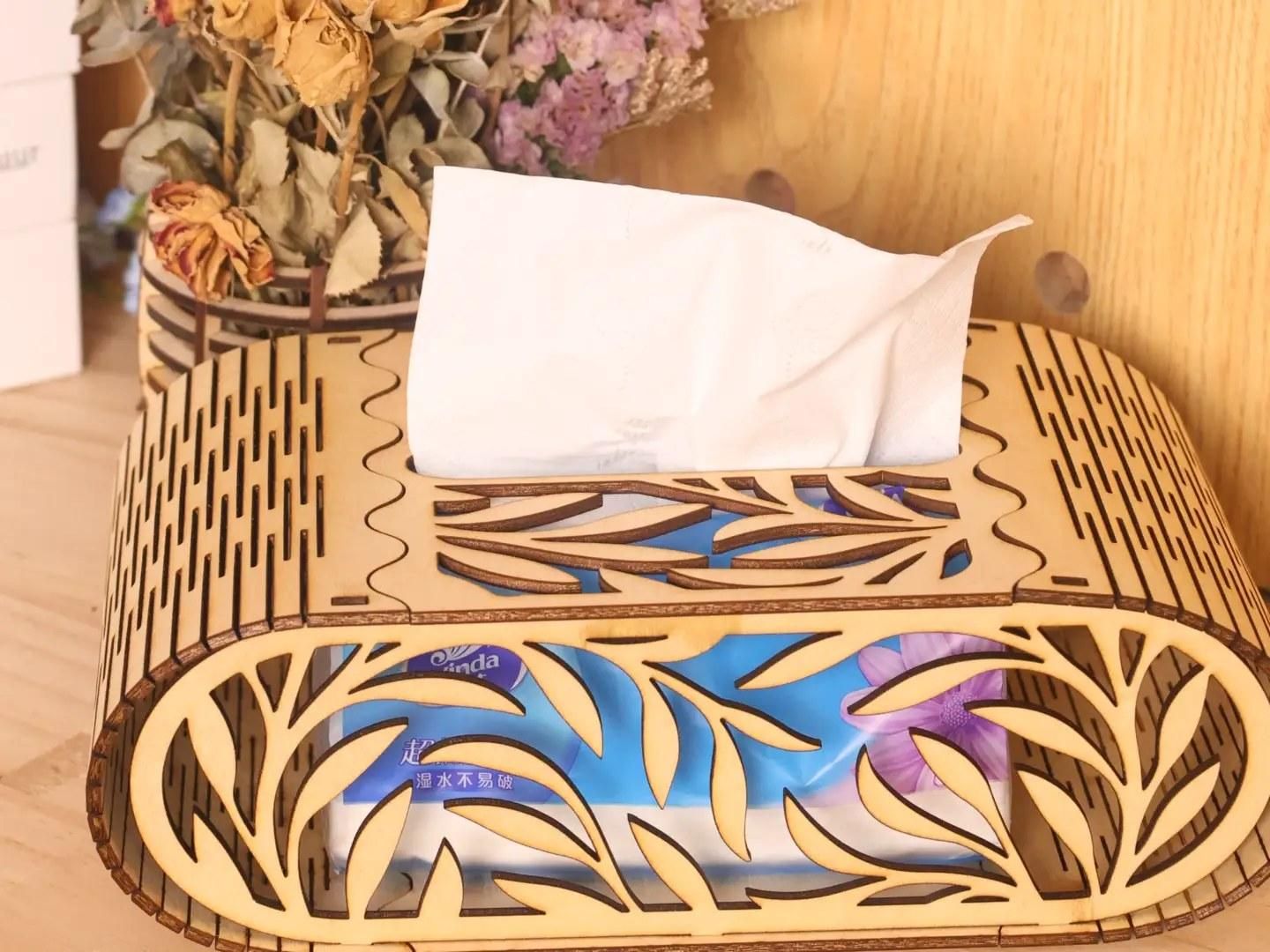

Come and Try!

My botanical wooden tissue box is ready. What about yours?

Try changing the leaf, flower, or vine pattern, the box size, or the panel layout to create a custom plywood tissue box cover for your desk, living room, bedroom, or workspace.
