DIY Laser-Cut Wooden Wall Lantern for Cozy Home Decor

A wooden wall lantern can instantly make a room feel warmer and more inviting.

With laser cutting, a simple sheet of 3mm plywood can become a decorative wall light with clean cut-out details and a natural handmade look.

This project is easy to customize for bedrooms, hallways, cafés, holiday decor, or cozy home corners.

For more plywood laser cutting guidance, see:Plywood Laser Engraving and Cutting Guide .

Key Information

Laser Machines

Thunder Bolt

Material Needed

3mm Plywood

Software Used

LaserMaker

Compatible Software

LightBurn /RDWorks

Tested by

Thunder Laser Application Team

Setting 1

Laser Cutting 3mm Plywood

Speed: 5mm/s

Max Power: 30%

Min Power: 10%

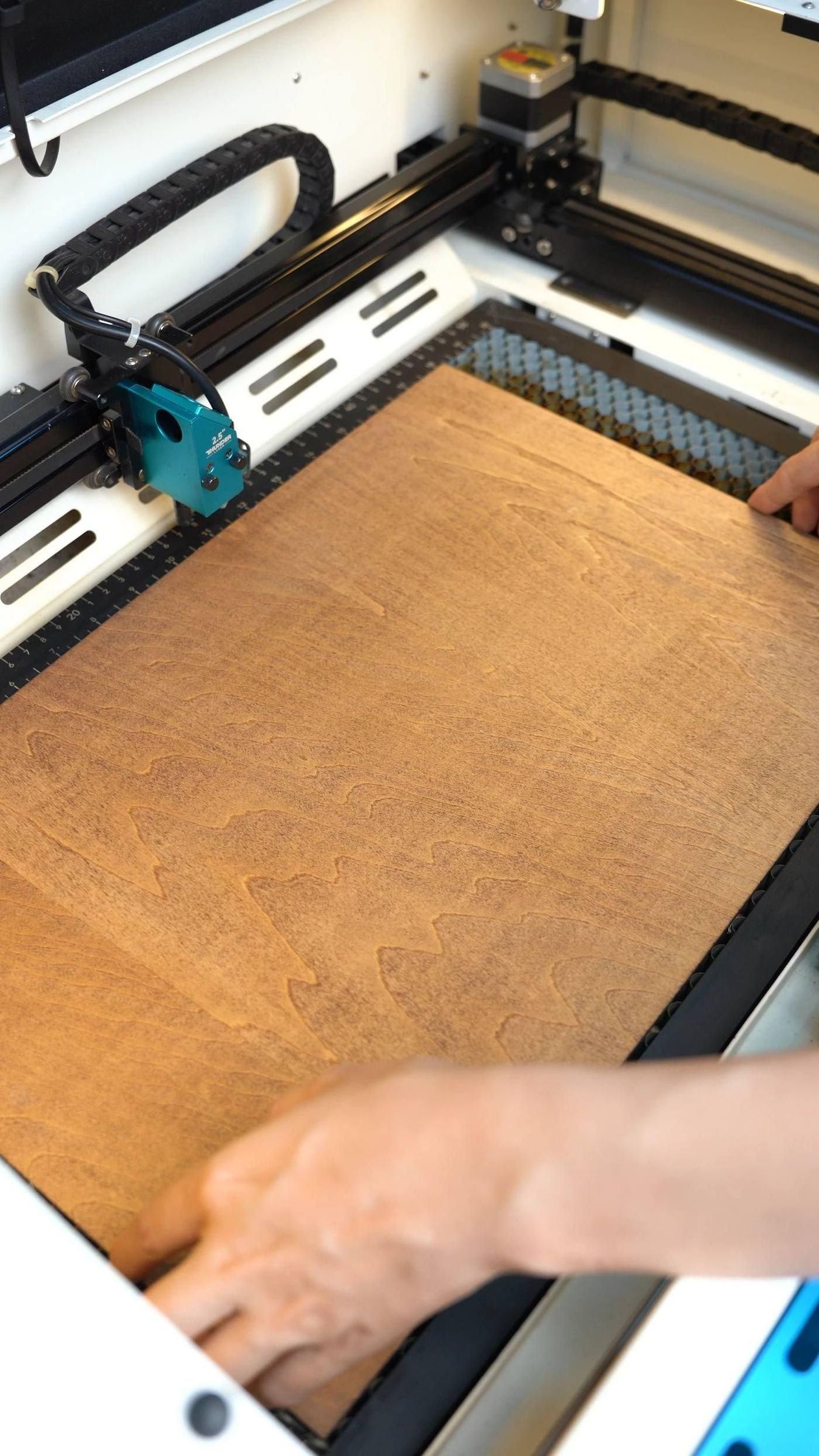

Place the 3mm plywood flat on the laser work bed and make sure the surface is clean, dry, and stable.

Check that the plywood is not warped, because a flat board helps the laser cut the wall lantern parts more cleanly. If needed, use pins or magnets to keep the material from moving during cutting.

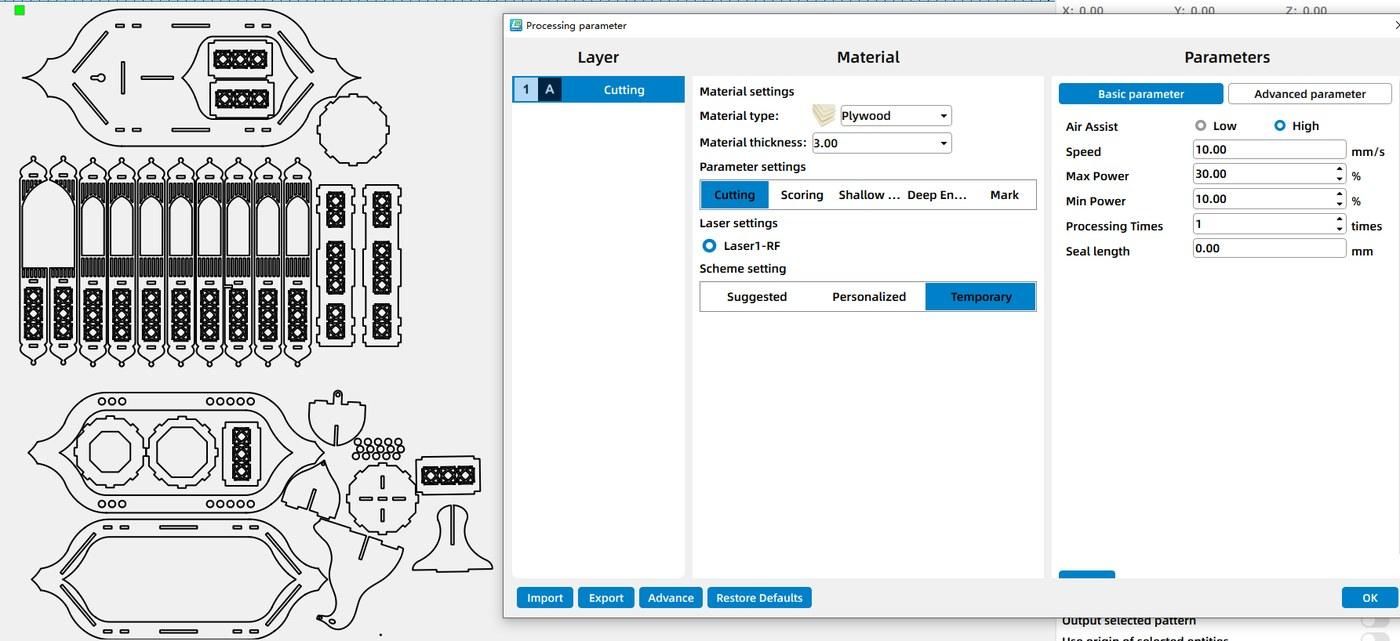

Import the wooden wall lantern design into your laser software and adjust the size to fit your plywood sheet.

Check all cut lines, decorative openings, and connection areas before processing. If the design includes slots or layered parts, make sure they match the plywood thickness so the lantern can be assembled smoothly later.

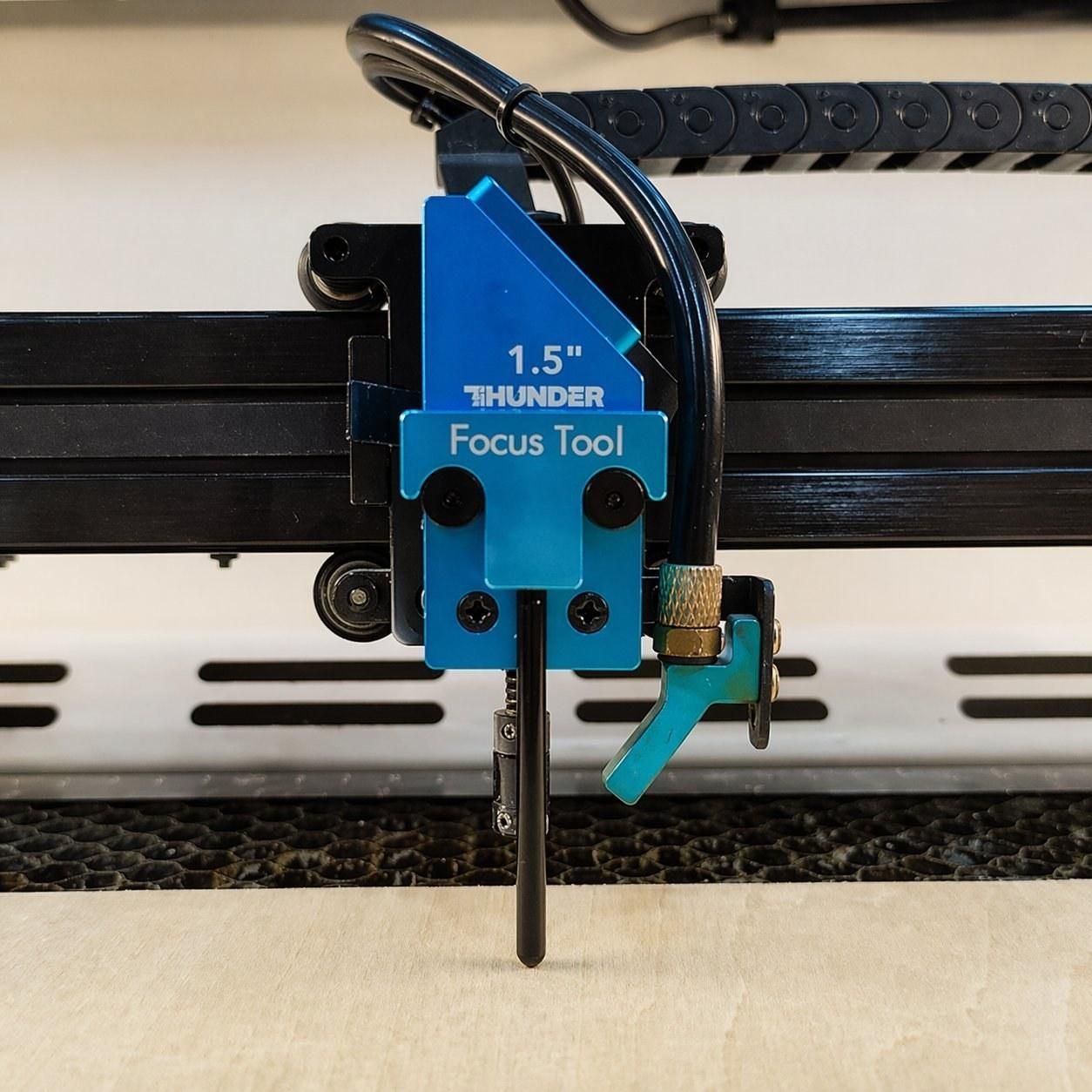

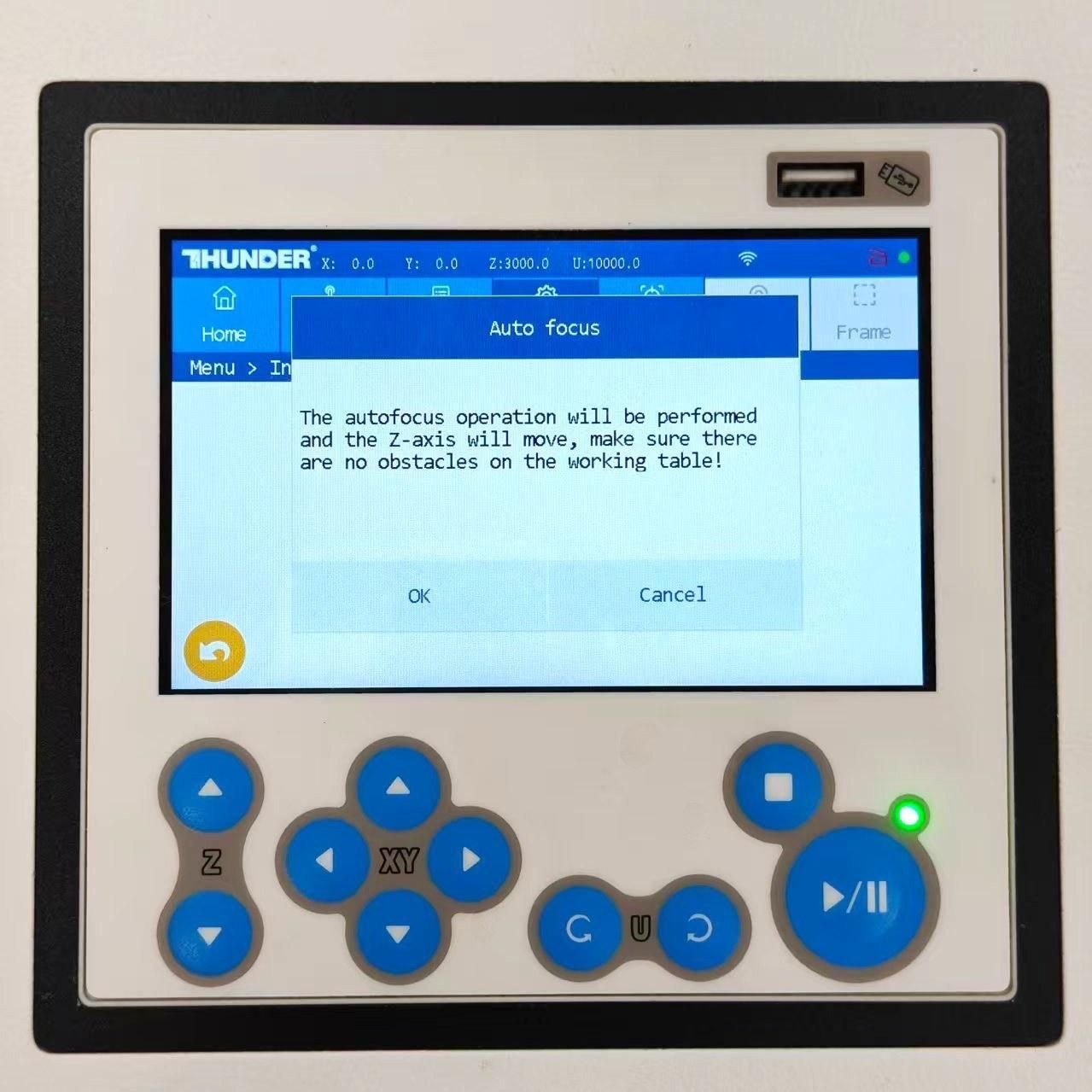

Set the correct laser focus before cutting.

Good focus helps the laser cut through the 3mm plywood cleanly and keeps the edges of the decorative pattern neat. This step is especially important for a laser cut wooden lantern because small cut-out details need sharp and even edges.

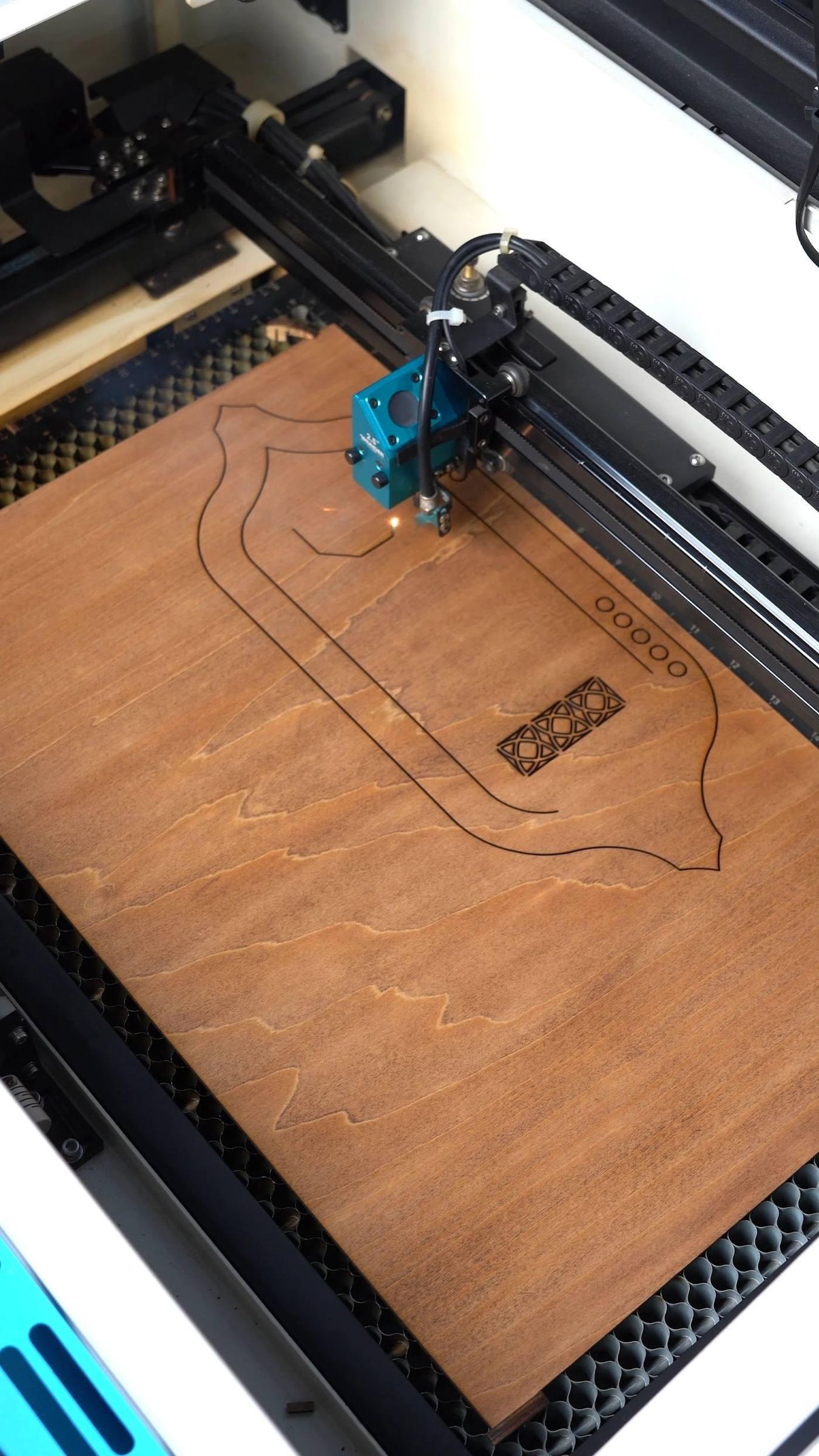

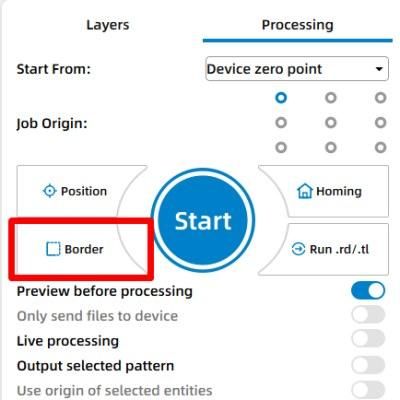

Run the Frame function first to confirm that the full wooden wall lantern design fits within the plywood sheet.

Make sure the frame stays inside the material and leaves enough space around the edges. Once the position is correct, start cutting and stay near the machine to watch for smoke, flame-ups, or material movement.

Remove the cut wooden pieces from the laser bed and clean off any dust or soot from the edges.

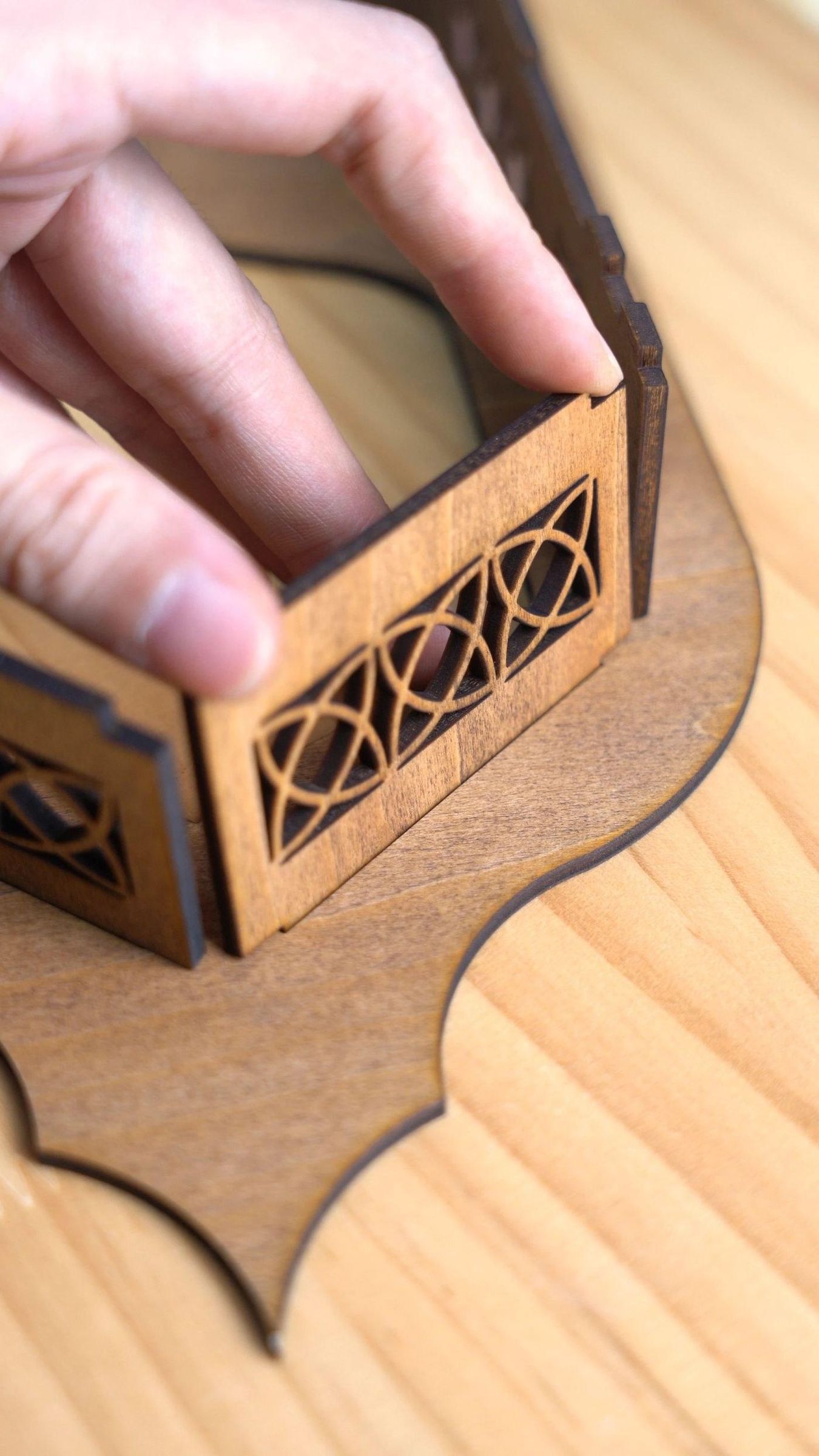

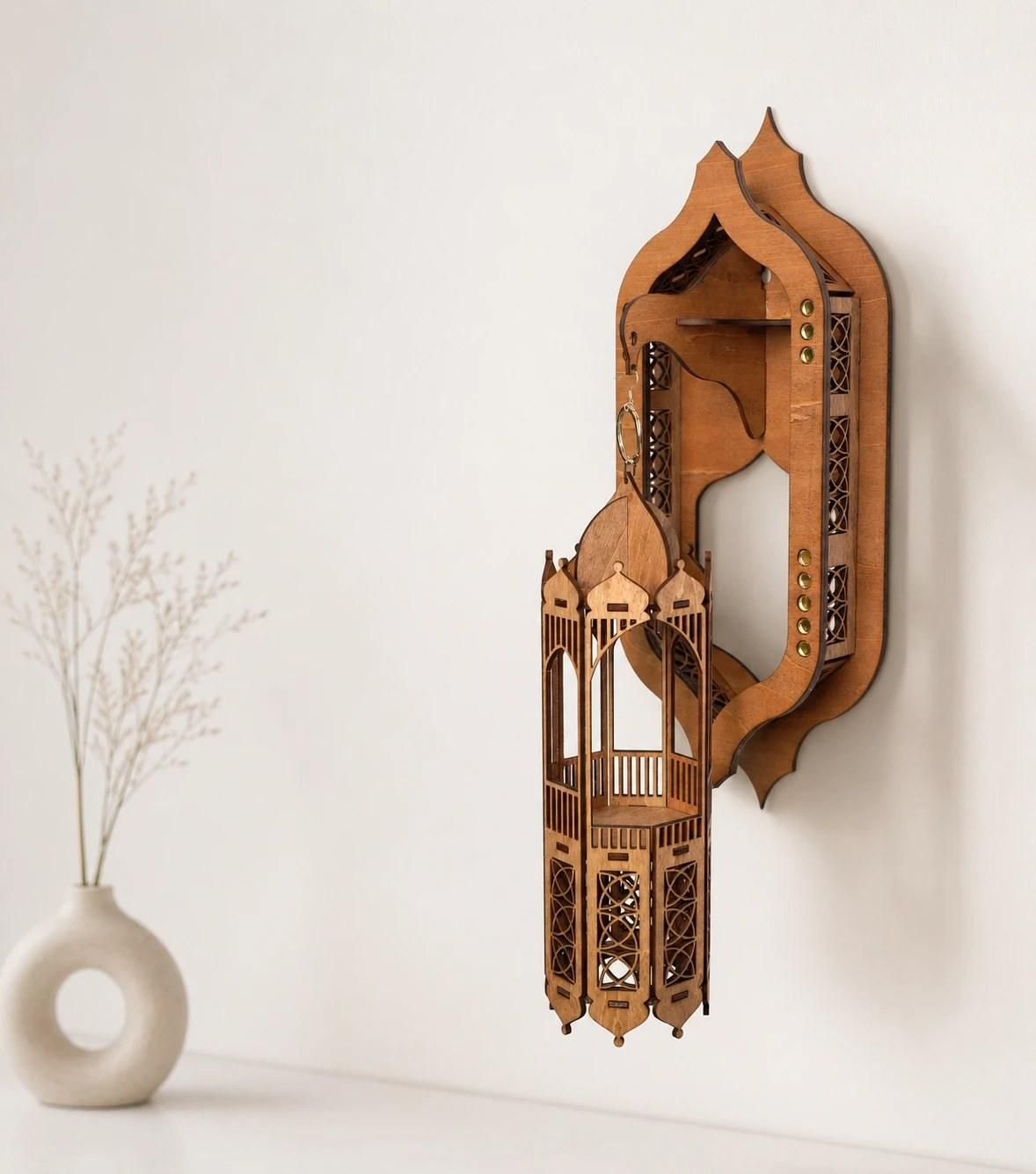

Assemble the plywood lantern according to the design, making sure each panel fits securely. If you want to add lighting, use a safe LED light source instead of an open flame, then hang the finished wooden wall lantern in your room, hallway, or display space.

Come and Try!

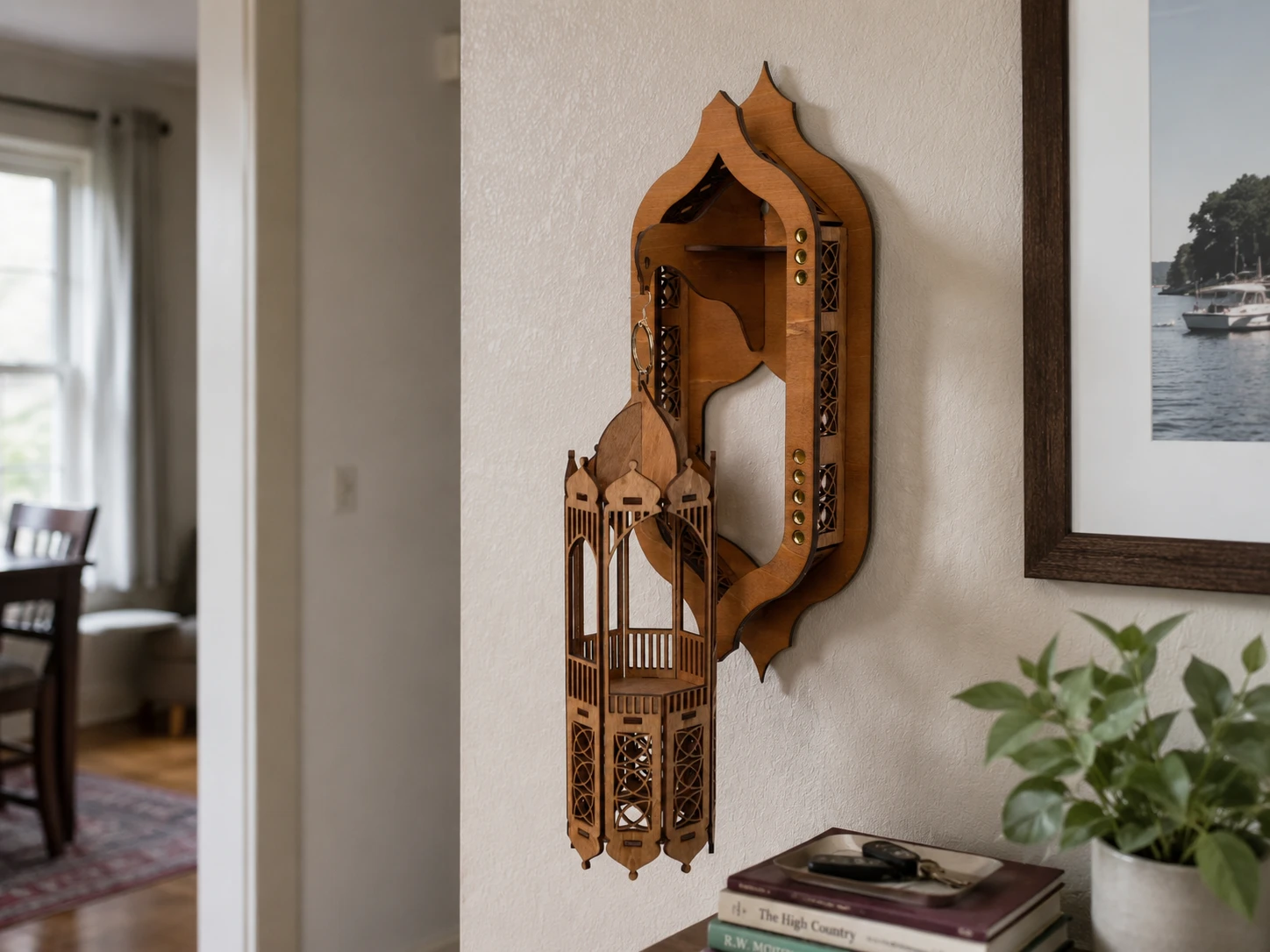

My wooden wall lantern is ready. What about yours?

Try changing the pattern, shape, or wood finish to create a softer, warmer look for your home, café, event space, or holiday display.
