DIY RC Bot
Why not explore this beautiful world of robotis with reduced complications?
Wondering how? With Dreamkit we have made things simpler for you. Here, we'll talk about everything related to remote-controlled robots, beginning from questions like "What is a remote-controlled robot?" to "How can you build one at home?", we have got it all covered. So, let’s get started from the basics.
Things Required
1. Dream Kit
2. Cardboard
3. Chart Paper
4. Double side gum tape
5. BO motors and wheels
6. Caster wheel
7. Android phone with Bluetooth RC app
How It Works
How it works Here, the motor driver module is used to drive the motor in the direction as directed by the bluetooth app. The bluetooth app is initially paired with the bluetooth of the Dreamkit HUB and for changing the direction, a button is pressed in the app and corresponding data is sent to the HUB. By analysing the data from the app, direction of the motor is controlled by the HUB. The motor driver modules are connected and programmed as shown in the below steps.

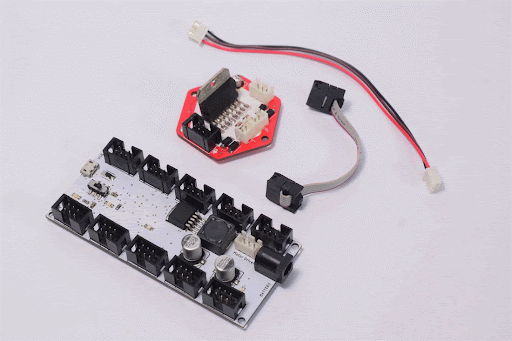

Connections
Programming Dream Kit With DK Studio
Connect the HUB to your computer using a USB cable and make sure the HUB is in USB mode. Open DK studio software in your computer choosing the correct port number and click on ‘Connect’. The modules connected will appear in the module box. If not, press connect again. Your connected modules will appear. Place the blocks as shown below and click on ‘Upload’.
Click here to download the DK Studio Software

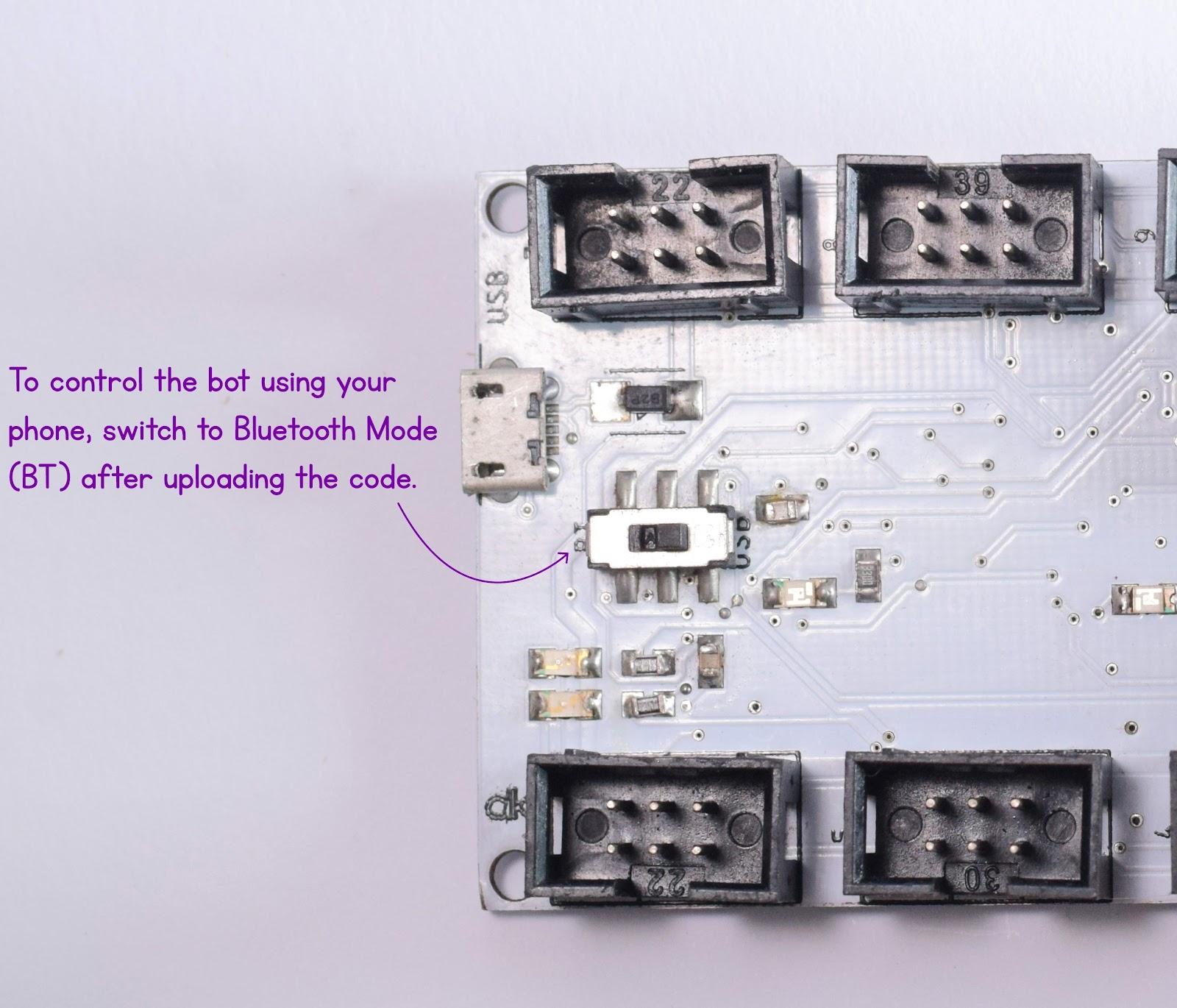

After Uploading the Program Switch to Bluetooth Mode As Shown in Image Below.

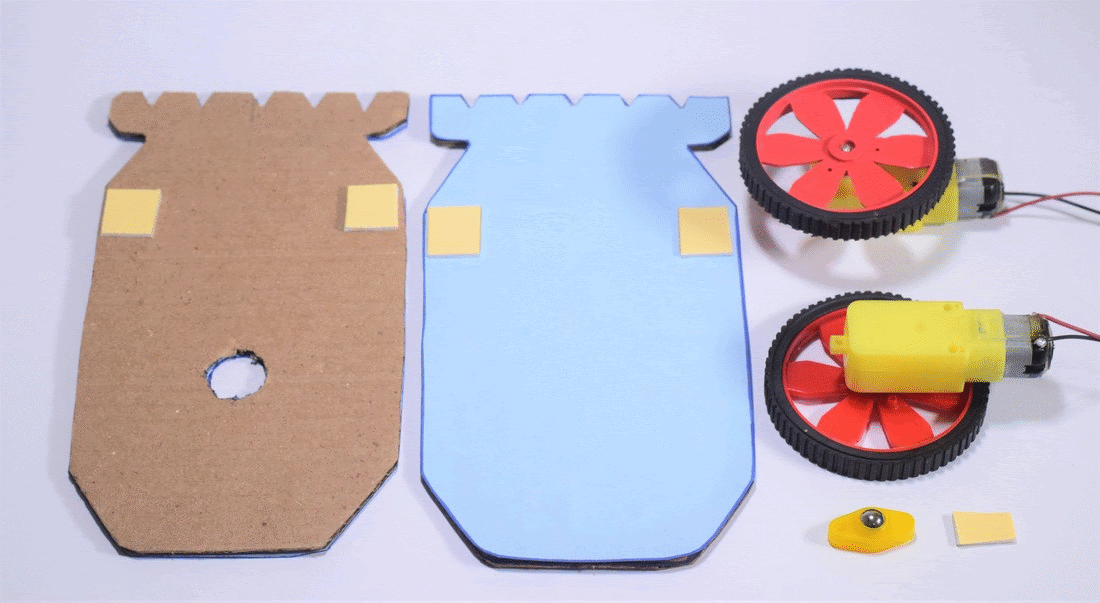

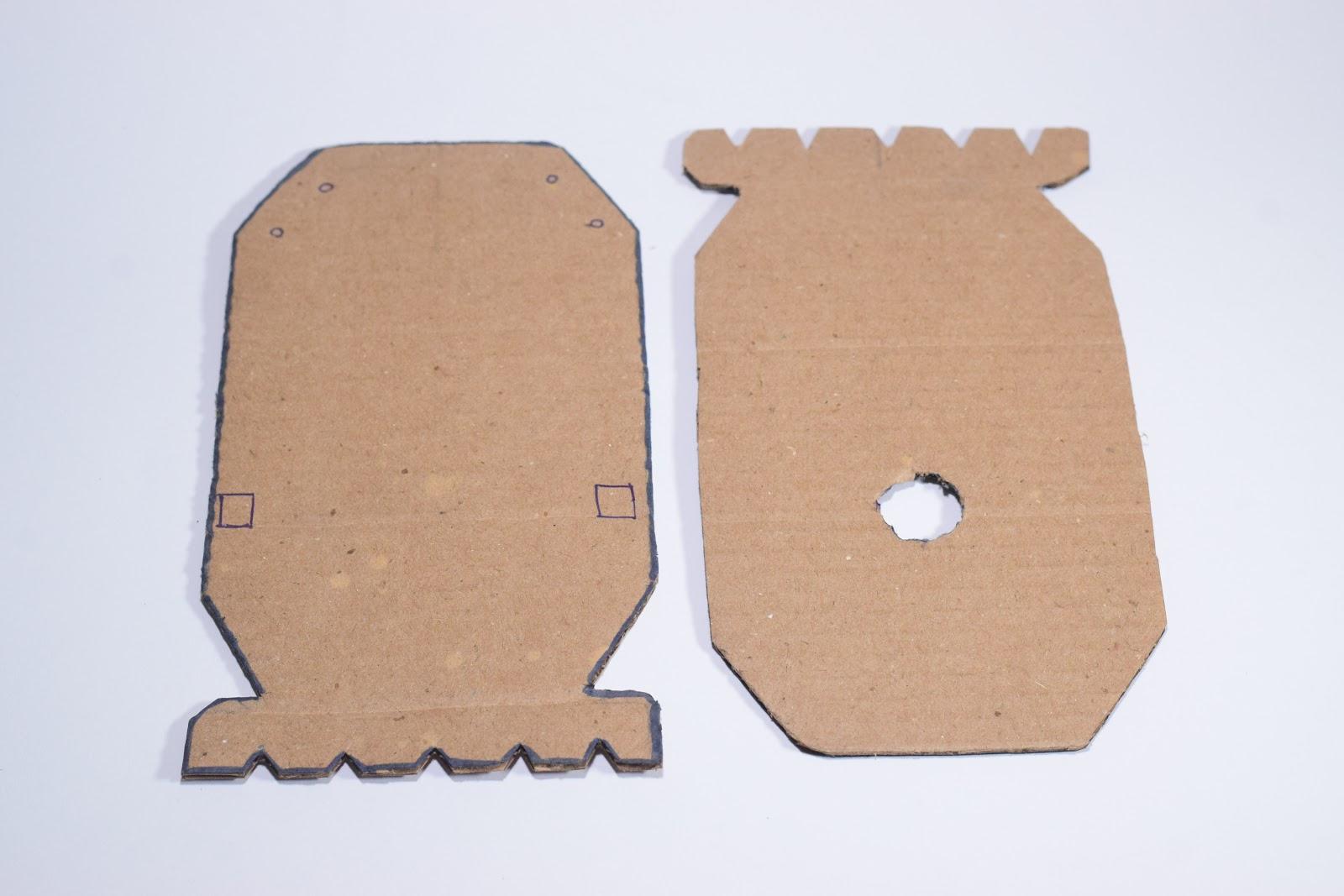

Build Your Model Take a Cardboard Piece and Cut the Chassis in the Shape As Shown Below. (you Can Change the Design of the Bot As Per Your Preference)

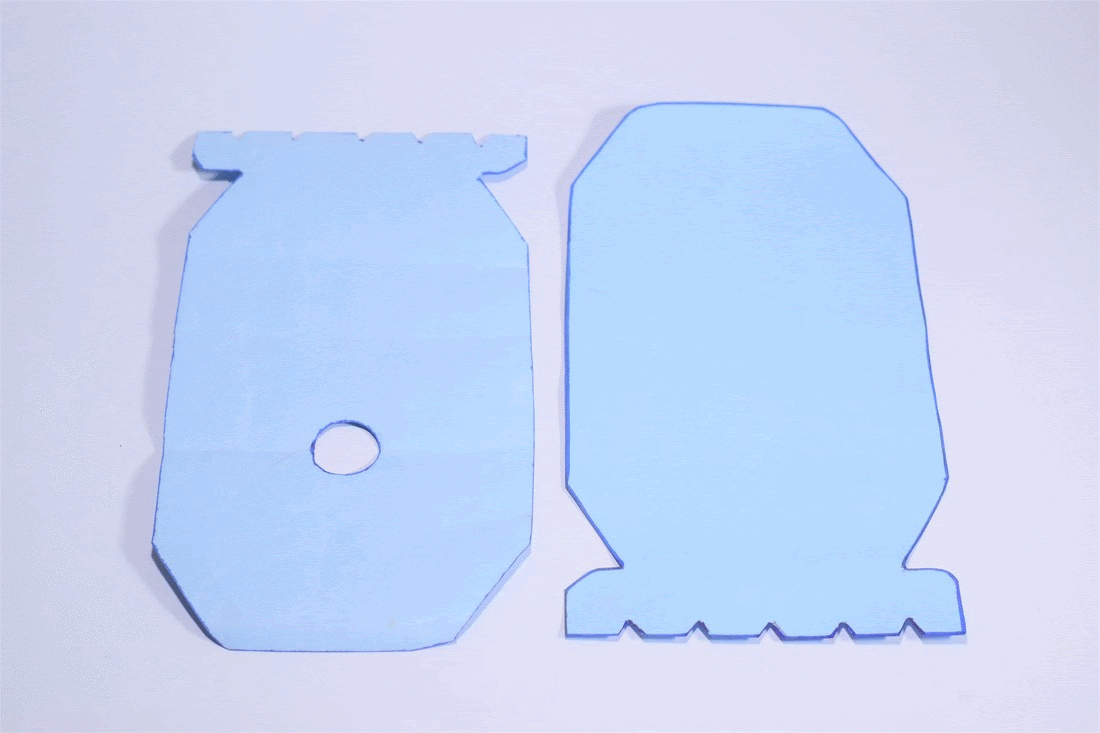

Stick the Chart Paper to the Bot Chassis.
Fix the Motors Onto the Base As Shown Below.

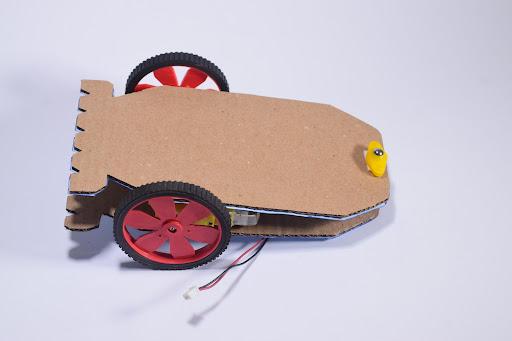

Attach the Top and Fix the Caster Wheel at the Bottom Front Part of the Bot.

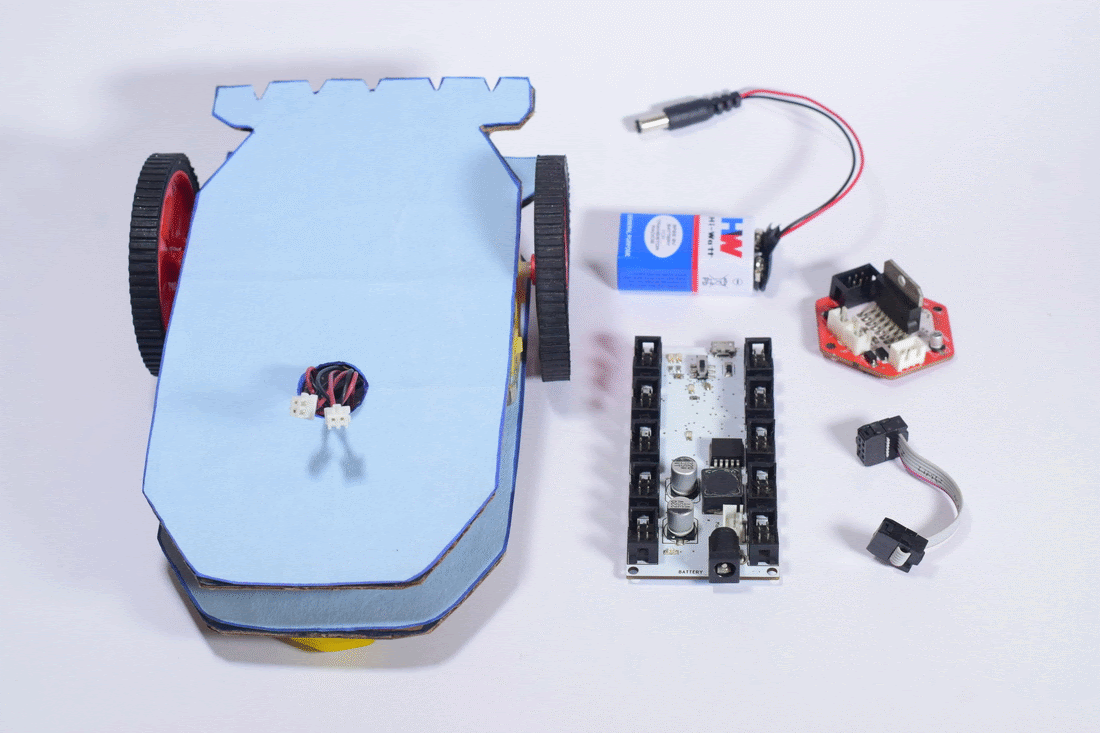

Place the Components at the Top Part and Make the Connections As Shown in Below.
Upload the program. Pair your bluetooth to the HUB and connect it with the Remote Controller App.
Decorate your bot with your own creativity and enjoy driving. :)

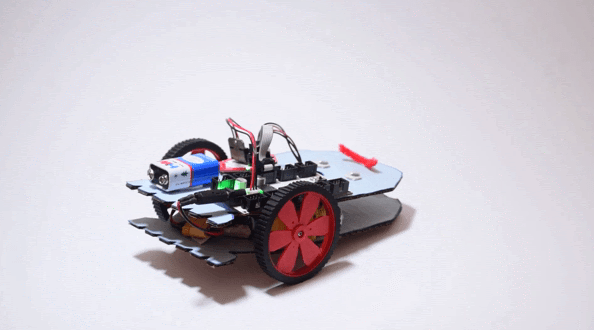

Awesome!!! You Have Created Your Own RC Bot :)
Once you complete the project share it on Instagram with Tag #dreamkit and #CreatedWithDreamKit
Happy creating !!!
