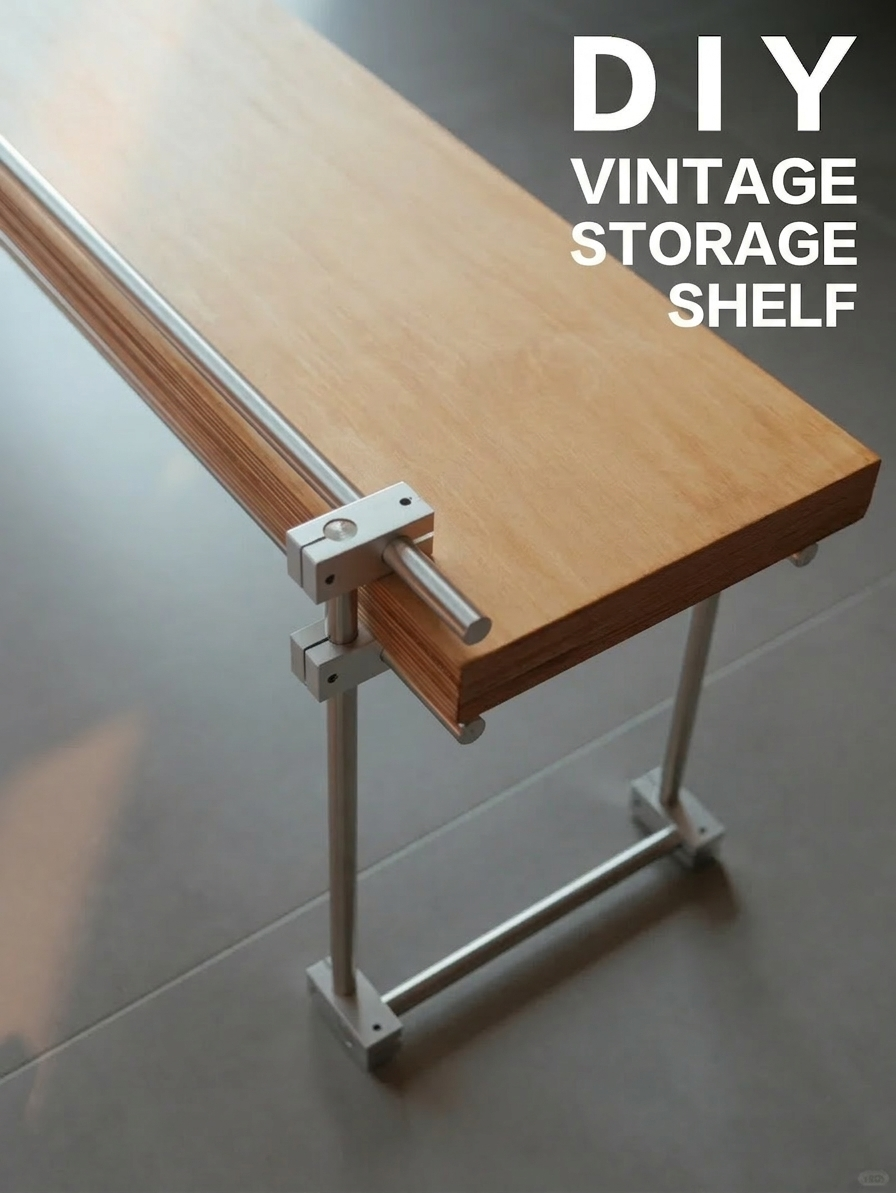

DIY Vintage-Style Kitchen Shelf (No Drilling, Beginner Friendly!)

Running out of counter space? Me too. This is a no-drill, modular kitchen shelf built from hardwood rods and clamps. It looks like something you'd find in a vintage shop — but you made it yourself, for a fraction of the price. Works for small kitchens, renters, or anyone who refuses to put holes in their walls.

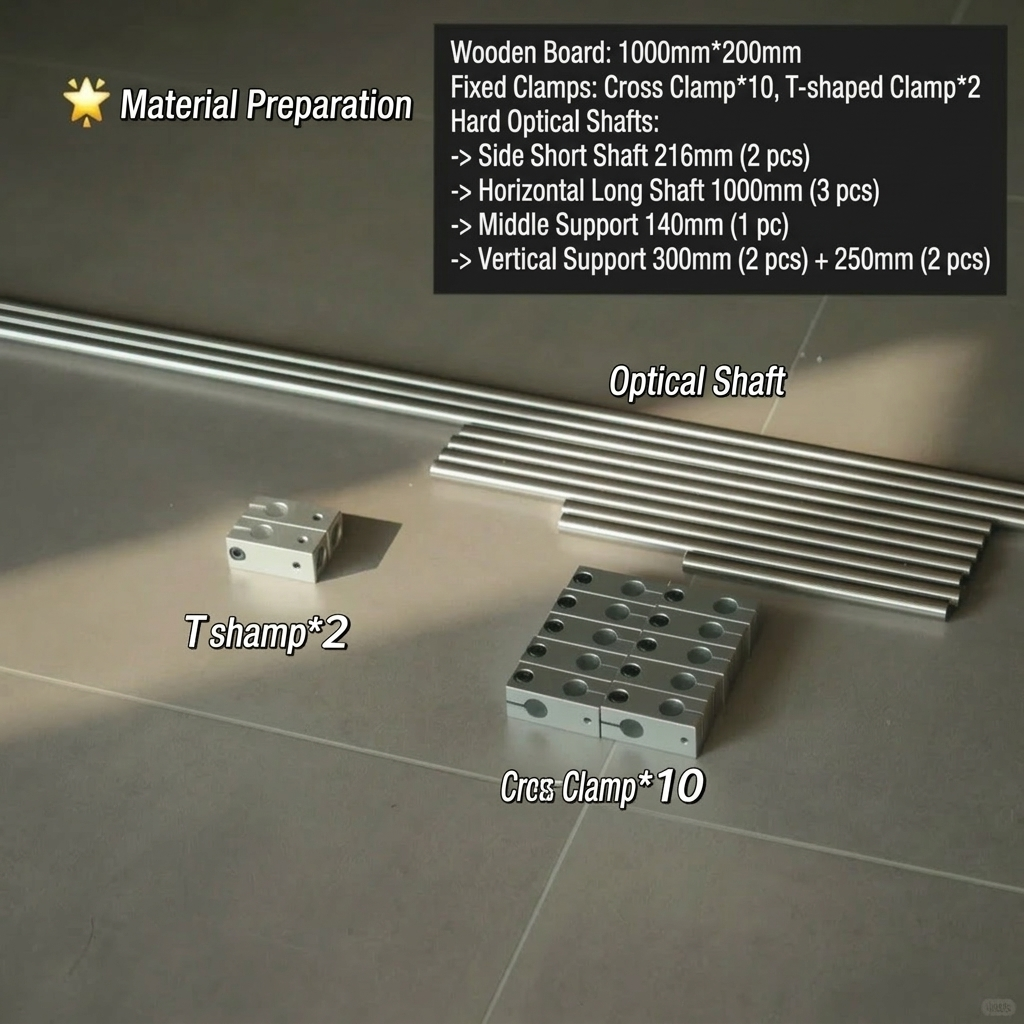

Here's everything you need before you start:

Wood Board:

1. 1 piece: 1000mm x 200mm (any hardwood works; I used natural wood + red oak finish wax)

12mm Hard Chrome Linear Shaft Rods:

1. 2x short edge rods — 216mm each
2. 3x long rods (shelving surface + front rail) — 1000mm each
3. 1x mid-board support rod — 140mm
4. 4x vertical column rods — 2x 300mm + 2x 250mm

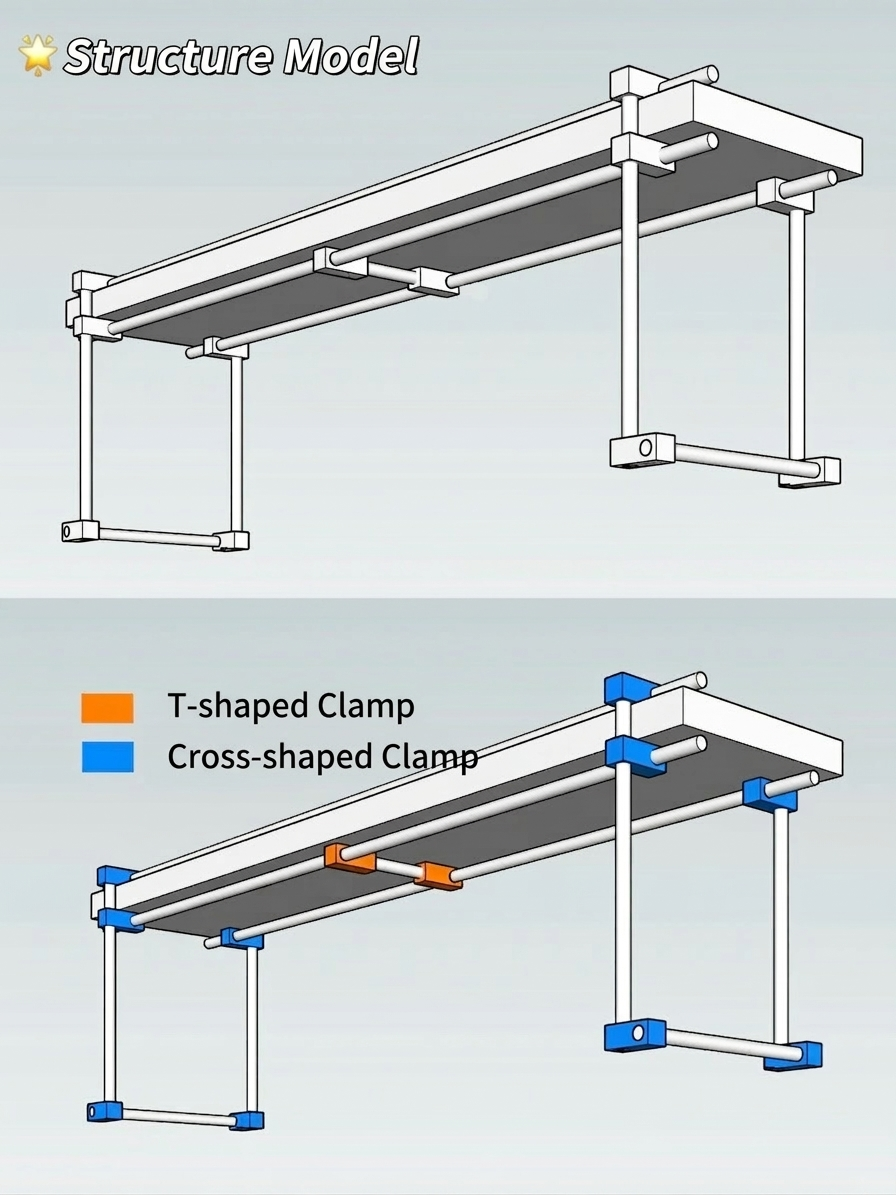

Rod Clamp Connectors:

1. 10x same-diameter cross clamps ( cross joint clamps)
2. 2x T-shaped clamps (T-joint clamps)

Optional Finish:

1. Cotton cloth + wood wax oil (I used a thin coat to match the red oak shelf already in my kitchen)

Tools:

1. Hex wrench / Allen key (to tighten all the clamps)
2. Measuring tape
3. Soft cloth for finishing

Pro Tip for the Perfect Vibe

A minimalist shelf like this looks best when paired with customized seating. If you're building a bench to match this aesthetic, you can find premium custom-made cushions over at my workshop, uscushion.com, to complete the look.

Happy building! If you make one, share a photo in the comments. I'd love to see your version.

Before assembly, finish your wood board so it's ready to drop in at the end.

1. Sand the surface lightly if needed (start with 120-grit, finish with 240-grit).

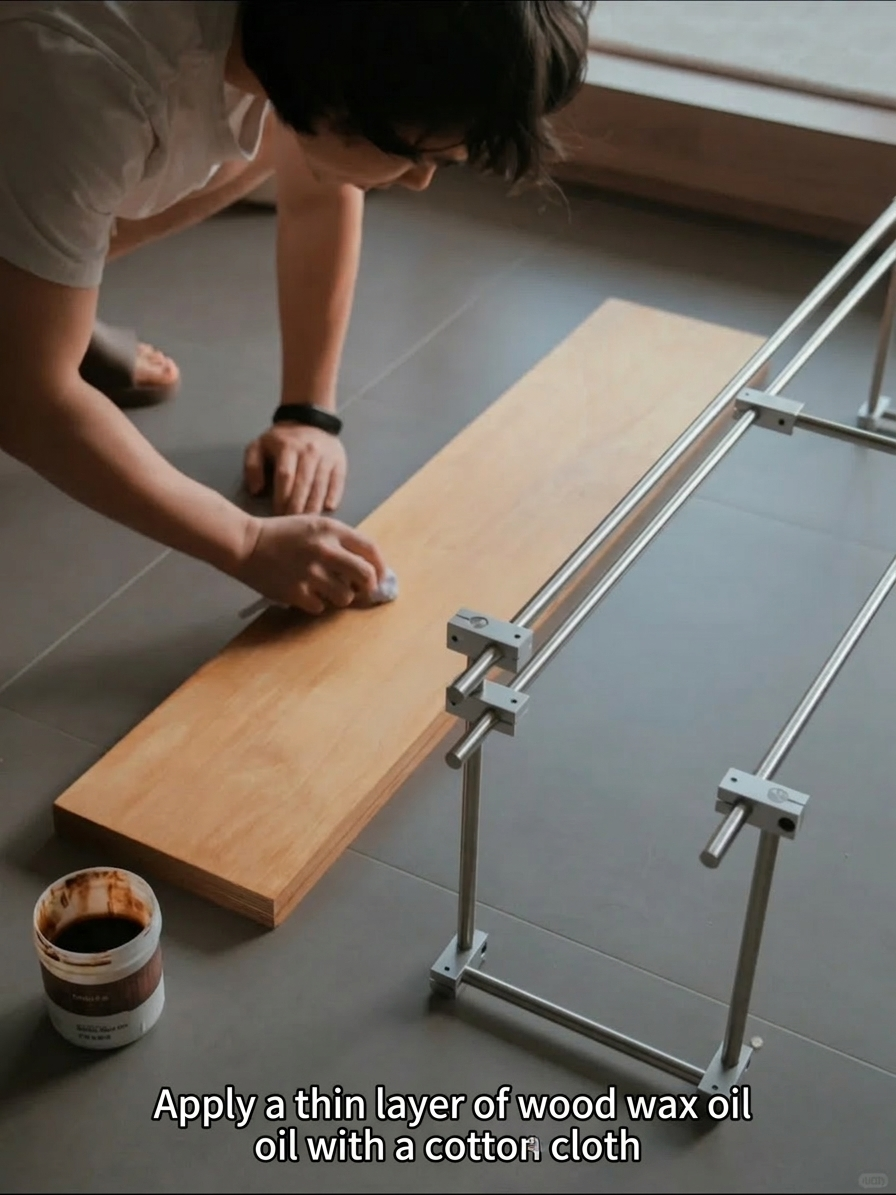

2. Dip a cotton cloth in wood wax oil and apply a thin, even coat — less is more.
3. Let it dry fully (follow wax oil instructions, usually 30–60 minutes).
4. Buff gently with a dry cloth.

Color matching tip: I had a red oak shelf nearby, so I used just one thin coat of clear wax oil on raw wood. It blended perfectly. Test on a scrap piece first if you're color-matching.

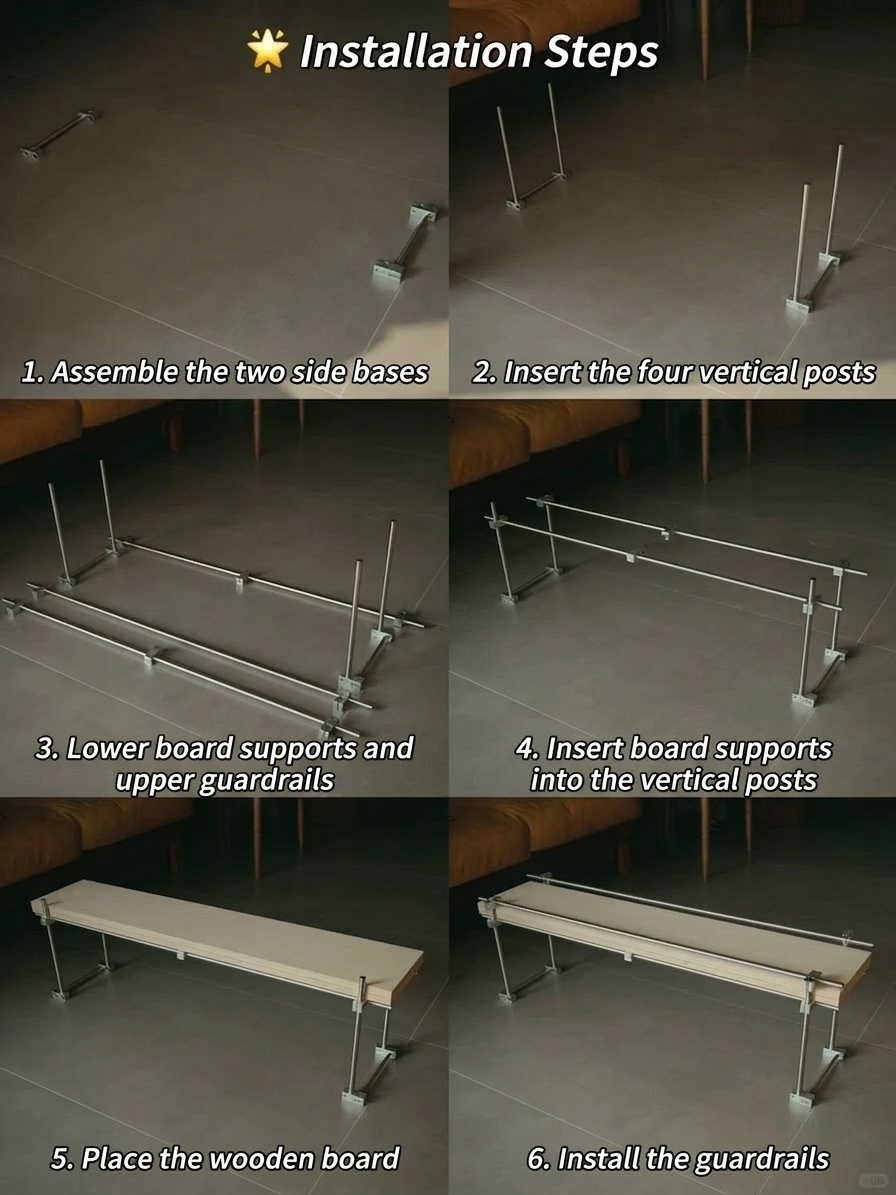

This is the foundation. Take your time to get it square.

1. Lay out your 2x 300mm vertical rods (these are the taller back legs).
2. Connect them at the top using a long 1000mm rod through two cross clamps. This is your back top rail.
3. Attach the 2x 250mm vertical rods at the front using the same method — connect them with another 1000mm rod through two more cross clamps.
4. Now connect the front and back frames with the 2x 216mm short edge rods, one on each side, using cross clamps at each corner.

You now have a rectangular base frame standing on 4 legs.

Check for wobble: Before tightening everything fully, set the frame on a flat surface and adjust until all 4 legs sit evenly. Then tighten the clamps.

1. Insert the 140mm support rod horizontally across the middle underside of the shelf area using your 2x T-clamps. This prevents the wood board from sagging in the center.
2. Add the third 1000mm rod across the front top as a safety guardrail. Connect it with cross clamps on both sides.

This front rail keeps things from sliding off the shelf — very useful for bottles, jars, and small appliances.

1. Lay your finished wood board flat across the top of the frame.
2. It should rest securely between the back rail, the two side rods, and the front guardrail.
3. No fasteners needed — the rail system holds the board in place.

Check that the board sits flush and level. If it shifts, adjust the rod positions slightly before final tightening.

Go through every single clamp joint with your hex wrench and tighten firmly.

1. Cross clamps: tighten both screws evenly
2. T-clamps: make sure both axes are locked

Give the shelf a gentle shake test. It should feel solid with zero wobble.

Load test: Once tightened, I placed full jars, a kettle, and small appliances on it without any issue. The cross-clamp rod system is surprisingly strong.

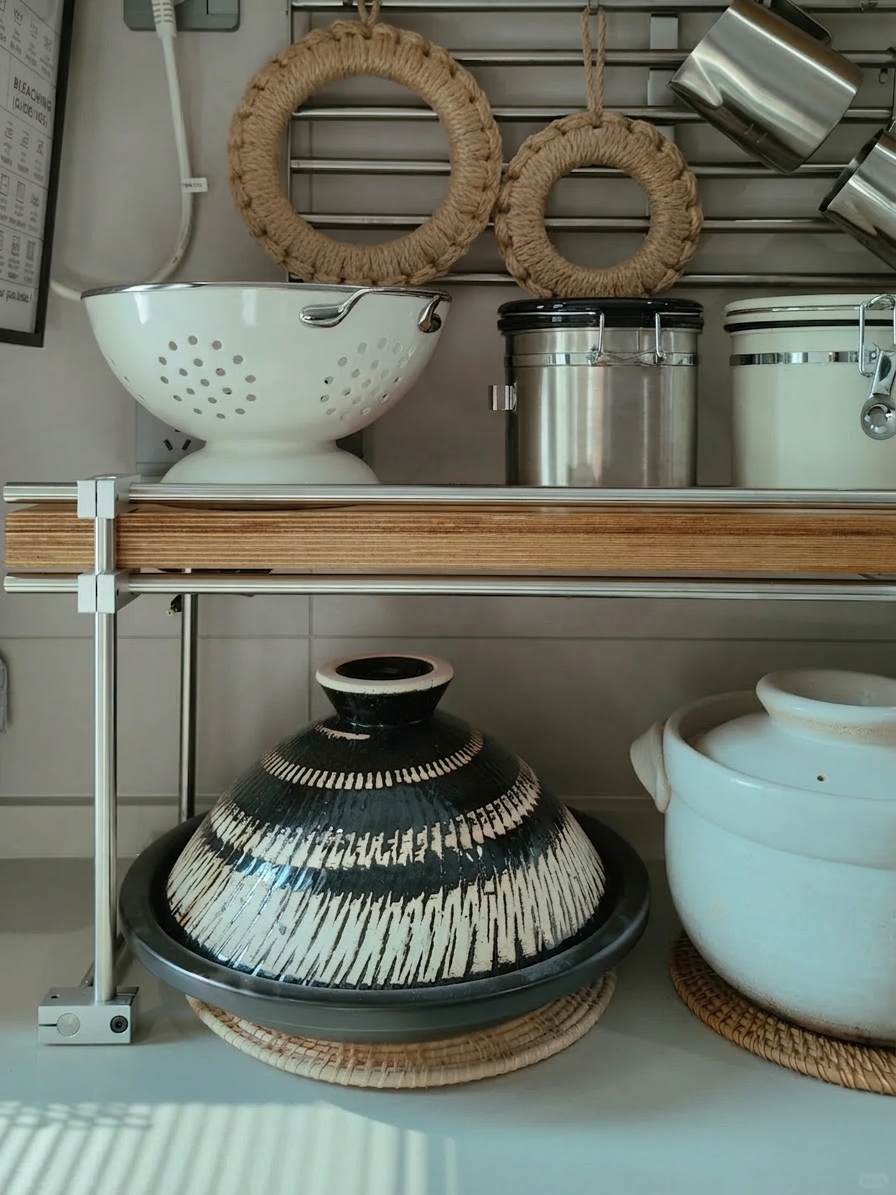

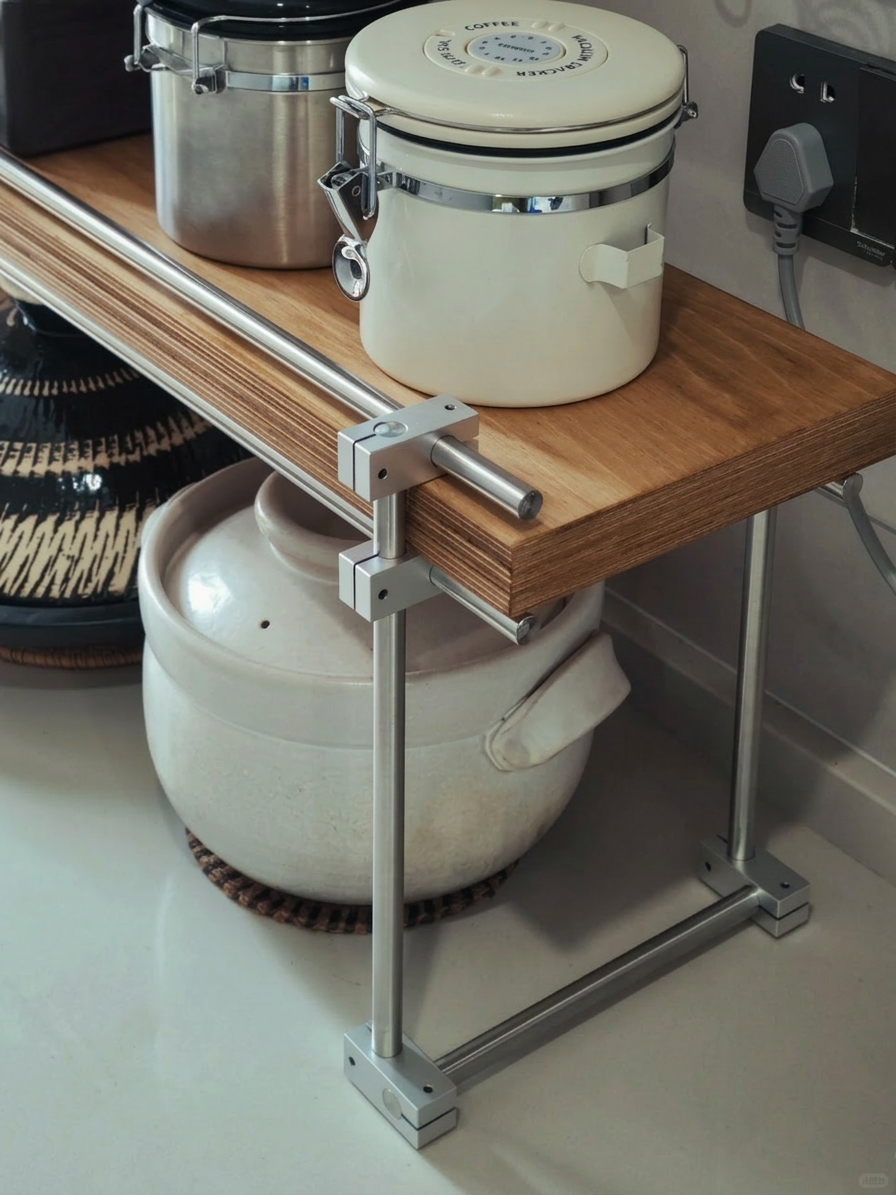

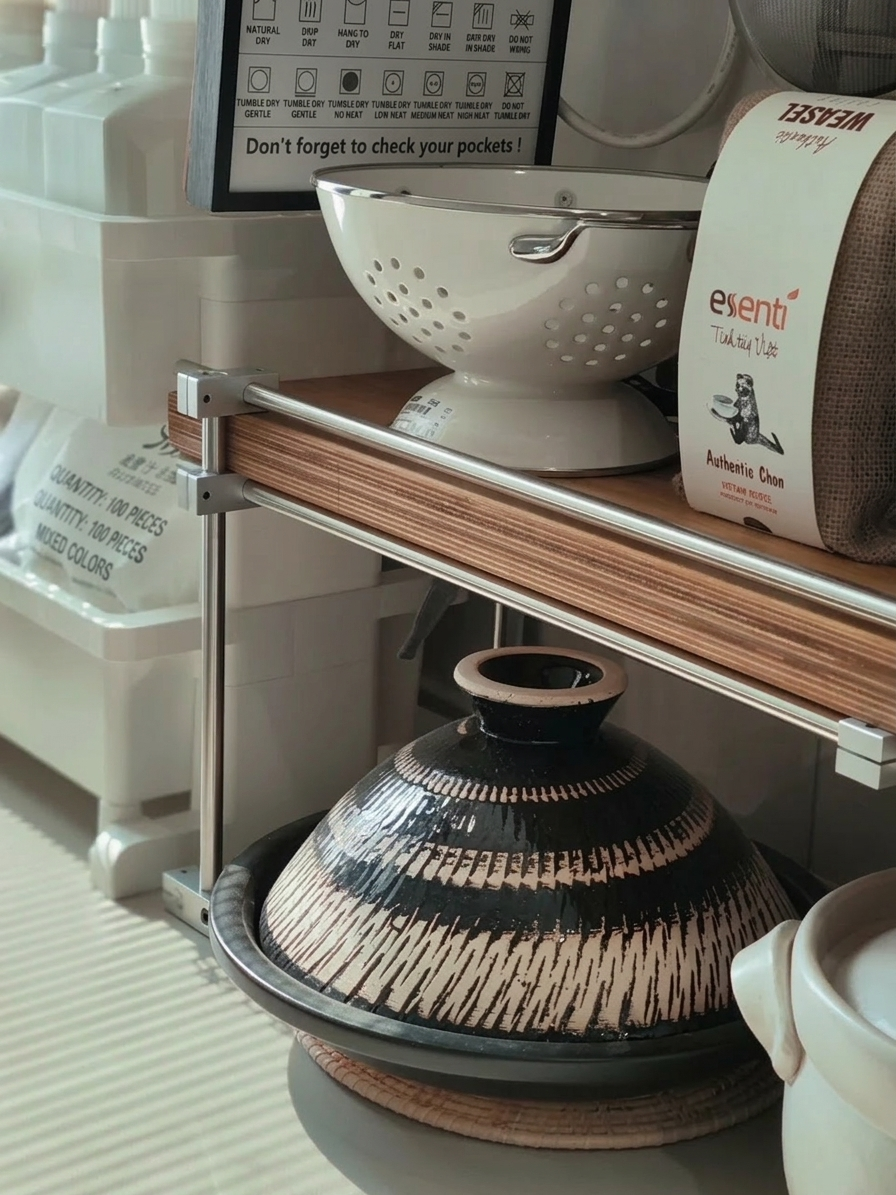

Now the fun part.

1. Group items by height for a balanced look
2. Mix textures: ceramic, glass, and wood look great together
3. Add a small plant or a basket for warmth
4. The chrome rods give it a vintage industrial feel that pairs well with natural wood and matte finishes
