Eagle Arm Lift, a Knex Ball Machine Lift

Hello!

This are the instructions for the fifth new lift in my knex ball machine Elysium.

It has two entrances and two exits on each side, and a big counterweight in the middle.

This lift works best when integrated in a ball machine (it can be a little flimsy when not in a ball machine).

When you encounter a problem or have a question, you can always send me a message.

Thanks for watching / building!

~Sandroknexmaster~

If you want you can count the pieces before you start building.

Here is a list with all pieces included in this lift, named by their original colour:

RODS:

Green: 70

White: 38

Blue: 147

Yellow: 144

Red: 65

Grey: 16

Total rods: 480

CONNECTORS:

Dark-grey: 48

Light-grey: 22

Orange: 41

Red: 38

Green: 4

Yellow: 53

White: 17

Purple: 158

Blue: 18

Total connectors: 399

OTHER:

Blue spacer: 50

Silver spacer: 43

Tan clip: 2

Y-clip: 22

Small blue gear: 1

Big yellow gear: 1

Medium hub: 22

Medium tire: 22

Motor: 1

Total other: 164

Grand Total: 1043

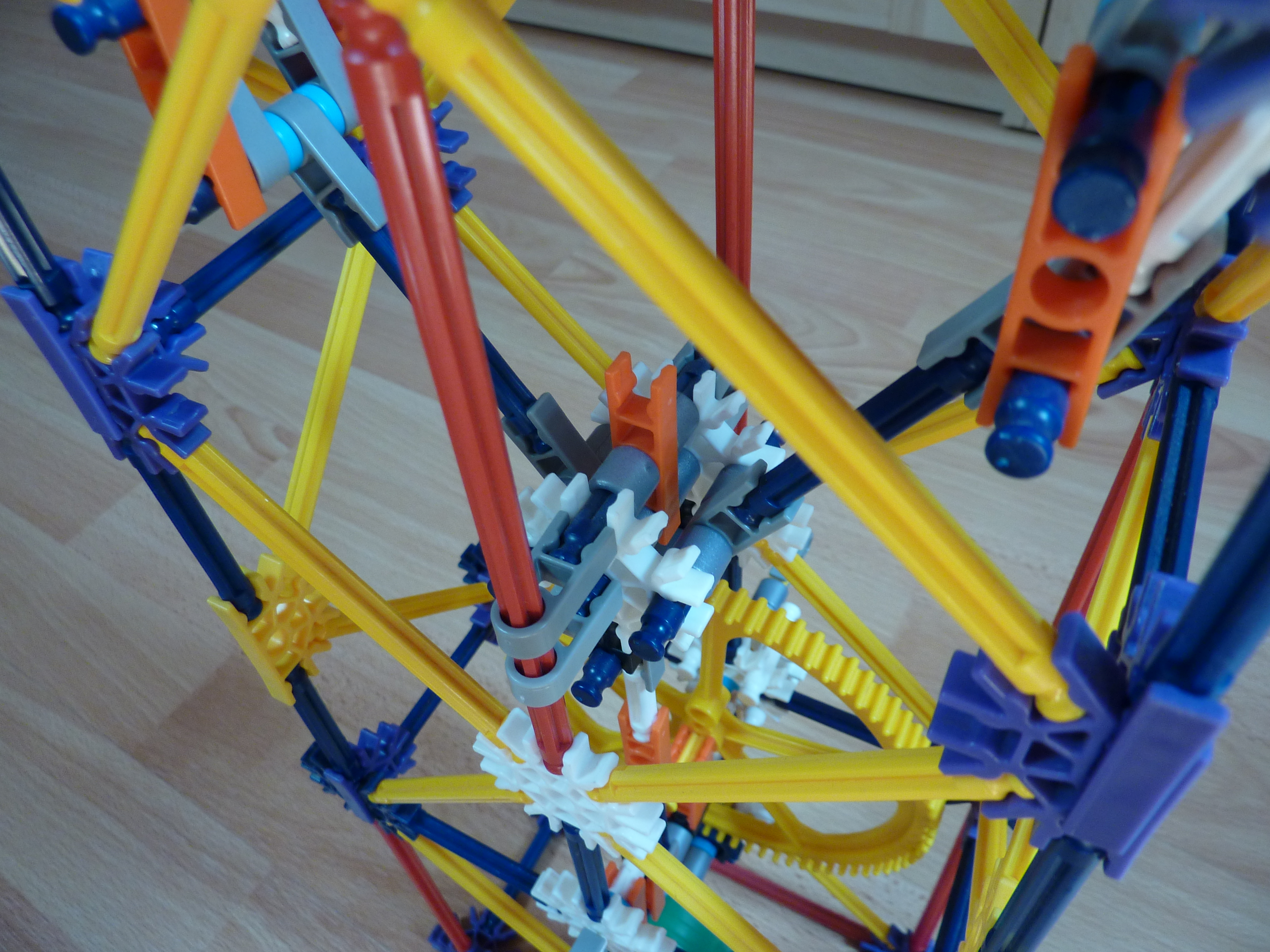

In this first part, we will start with the motor and the gears.

This counterweight helps pushing the arms up. You can always replace the wheels with something else if you don't have enough of them.

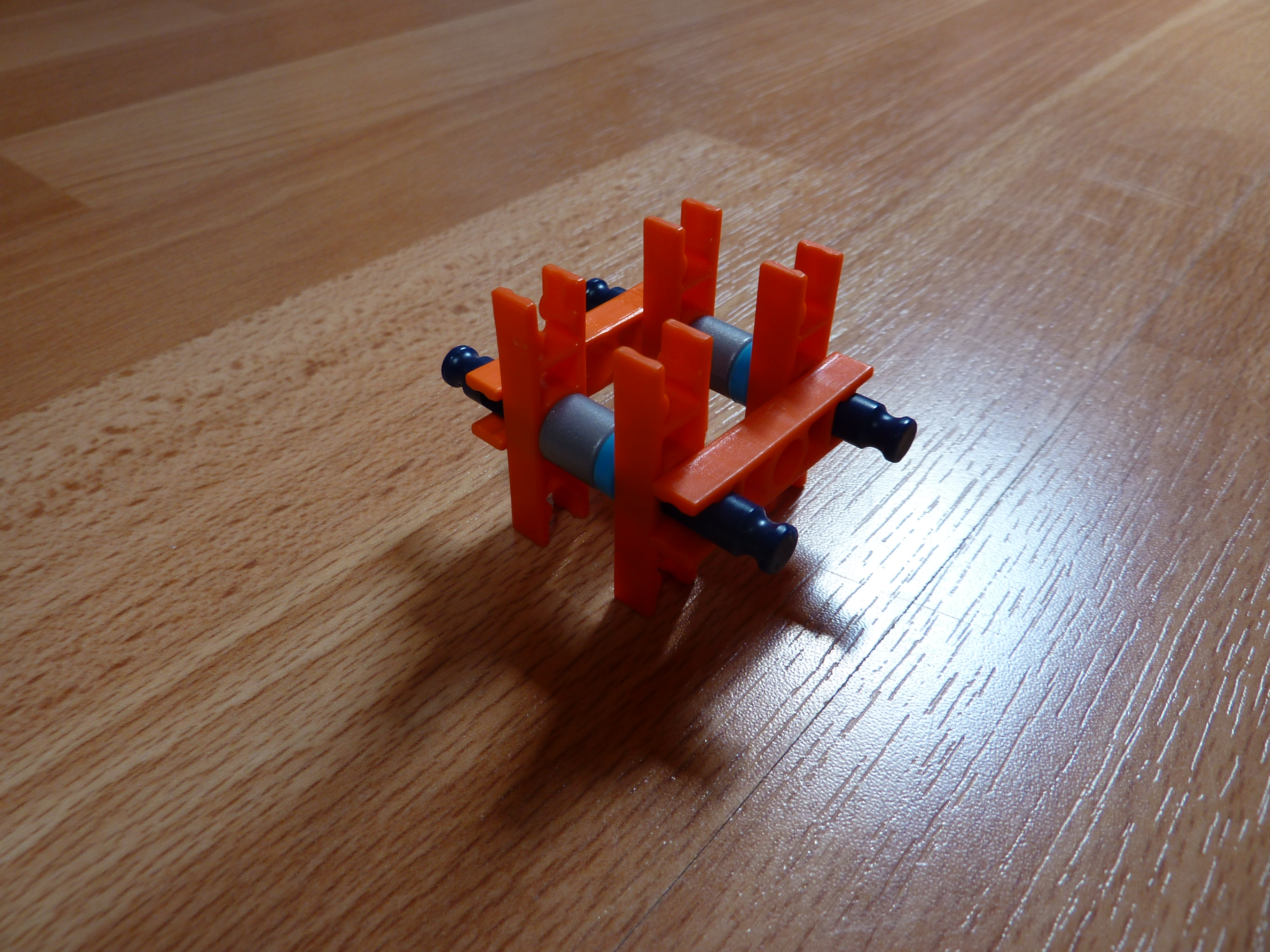

In this step we build two frames that will hold the entrances and exits.

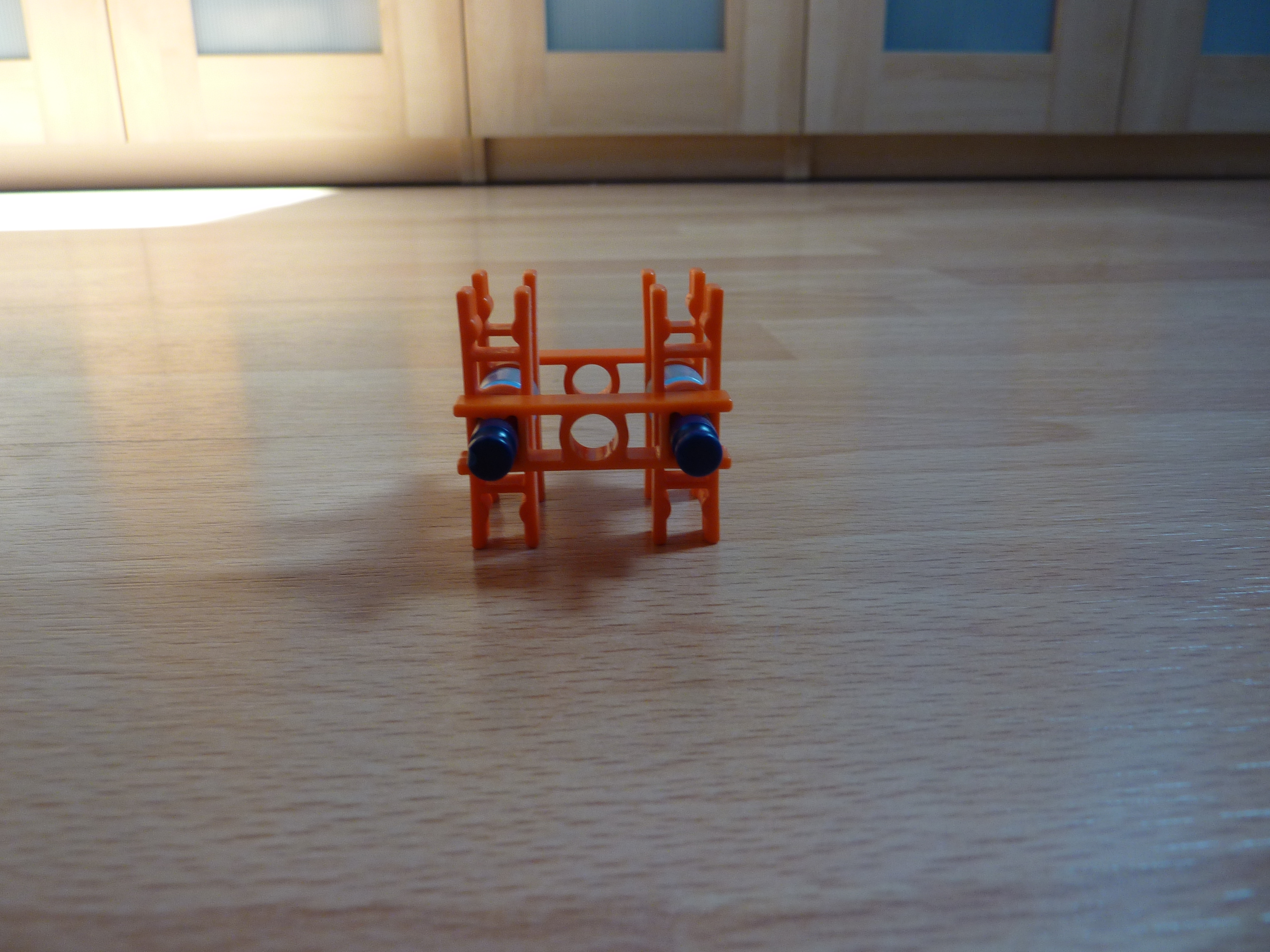

In this step we add the entrances and exits for both sides of the lift.

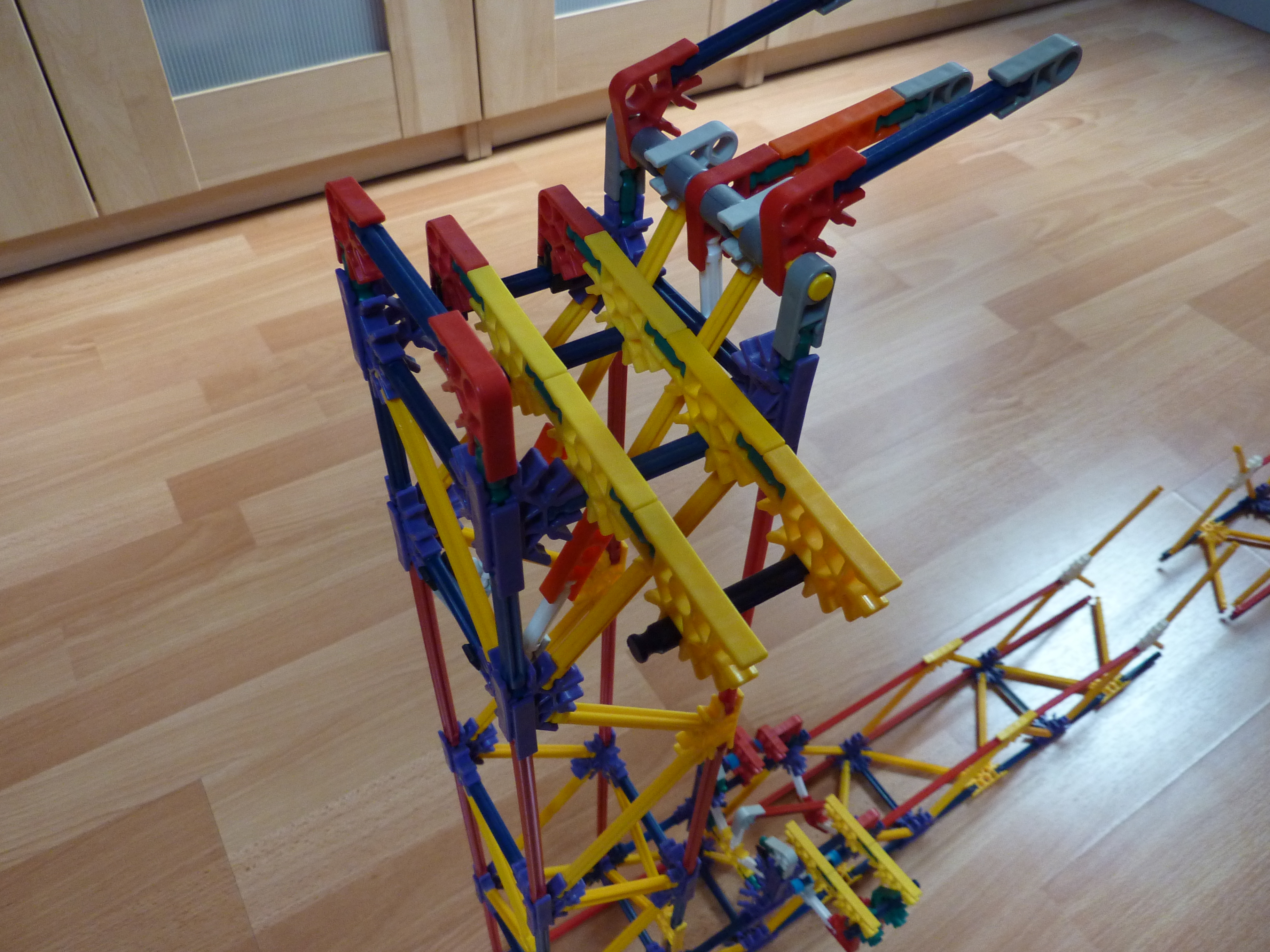

In this last step, we're going to make the arms.

The Eagle Arm Lift is finished!

Always slide the switch of the motor to the left.
