Floor Double Arm Lift, a Knex Ball Machine Lift
by sandroknexmaster in Living > LEGO & K'NEX
7397 Views, 20 Favorites, 0 Comments
Floor Double Arm Lift, a Knex Ball Machine Lift
Hello everyone!
The Floor Double Arm Lift is the first of 2 lifts first seen in my ball machine Revolution.
This one is a double arm lift. Nothing special you'd say. But...
It's a bit different than a standard arm lift because the balls enter directly from the floor, not from an entrance track (as the title says).
When it's not in a ball machine, I think the Floor Double Arm Lift looks quite ugly. But it looks better when you build a ball machine around it.
If you're going to build this lift, please read the image notes, they might come in handy!
You can always send me a question if necessary with a comment or PM.
I hope you like it and thanks for watching / building!
~Sandroknexmaster~
Piece Count
If you want you can count the pieces before you start building.
Here is a list with all pieces included in this lift, named by their original color:
RODS:
Green: 230
White: 126
Blue: 132
Yellow: 67
Red: 76
Gray: 29
Total rods: 660
CONNECTORS:
Dark-grey: 19
Light-grey: 17
Orange: 44
Red: 15
Green: 12
Yellow: 59
White: 116
Purple: 98
Blue: 40
Total connectors: 420
OTHER:
Blue spacer: 22
Silver spacer: 41
Tan clip: 5
Y-clip: 9
Small blue gear: 1
Large yellow gear: 1
Motor: 1
Total other: 80
Grand Total: 1160

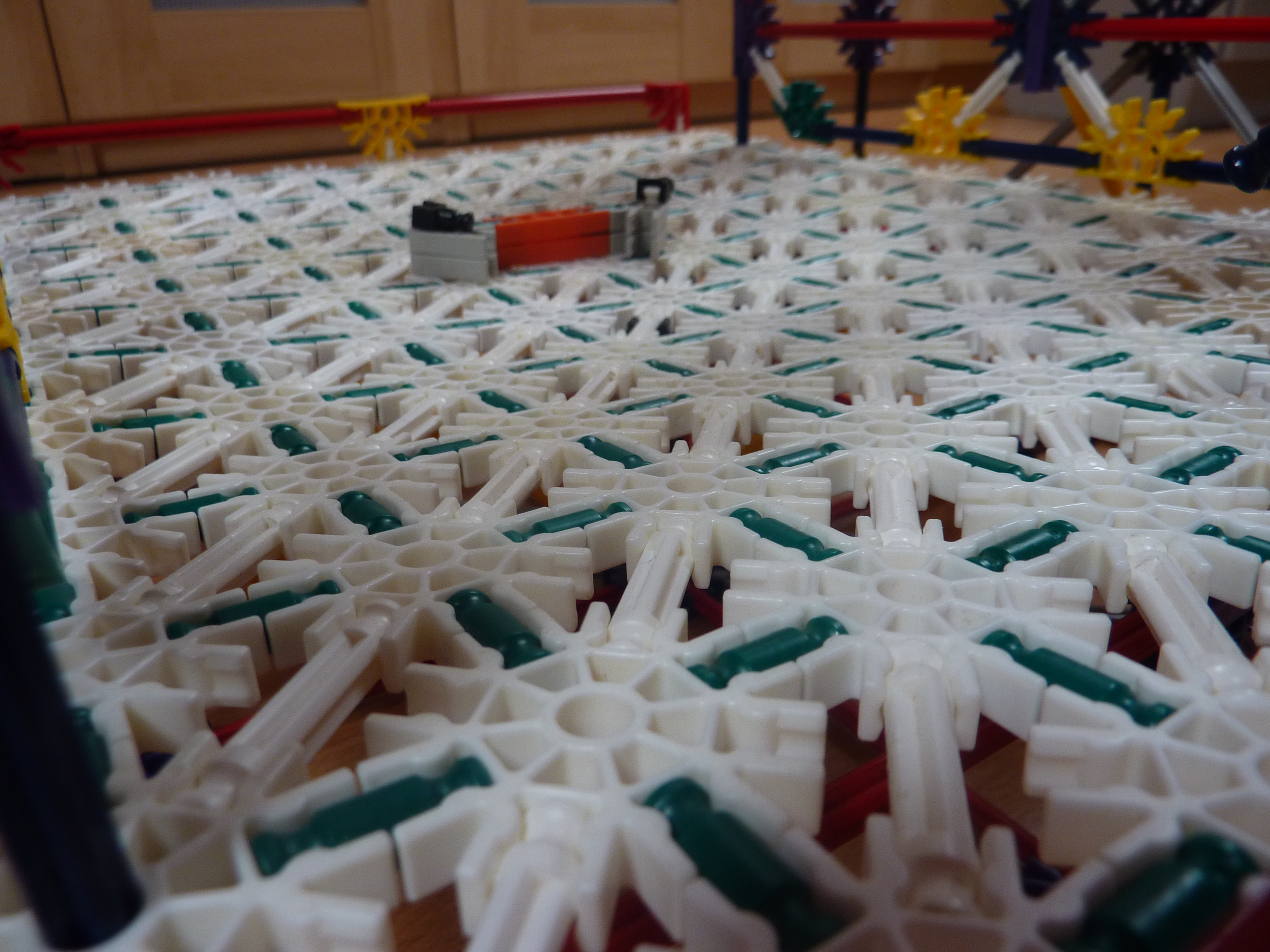

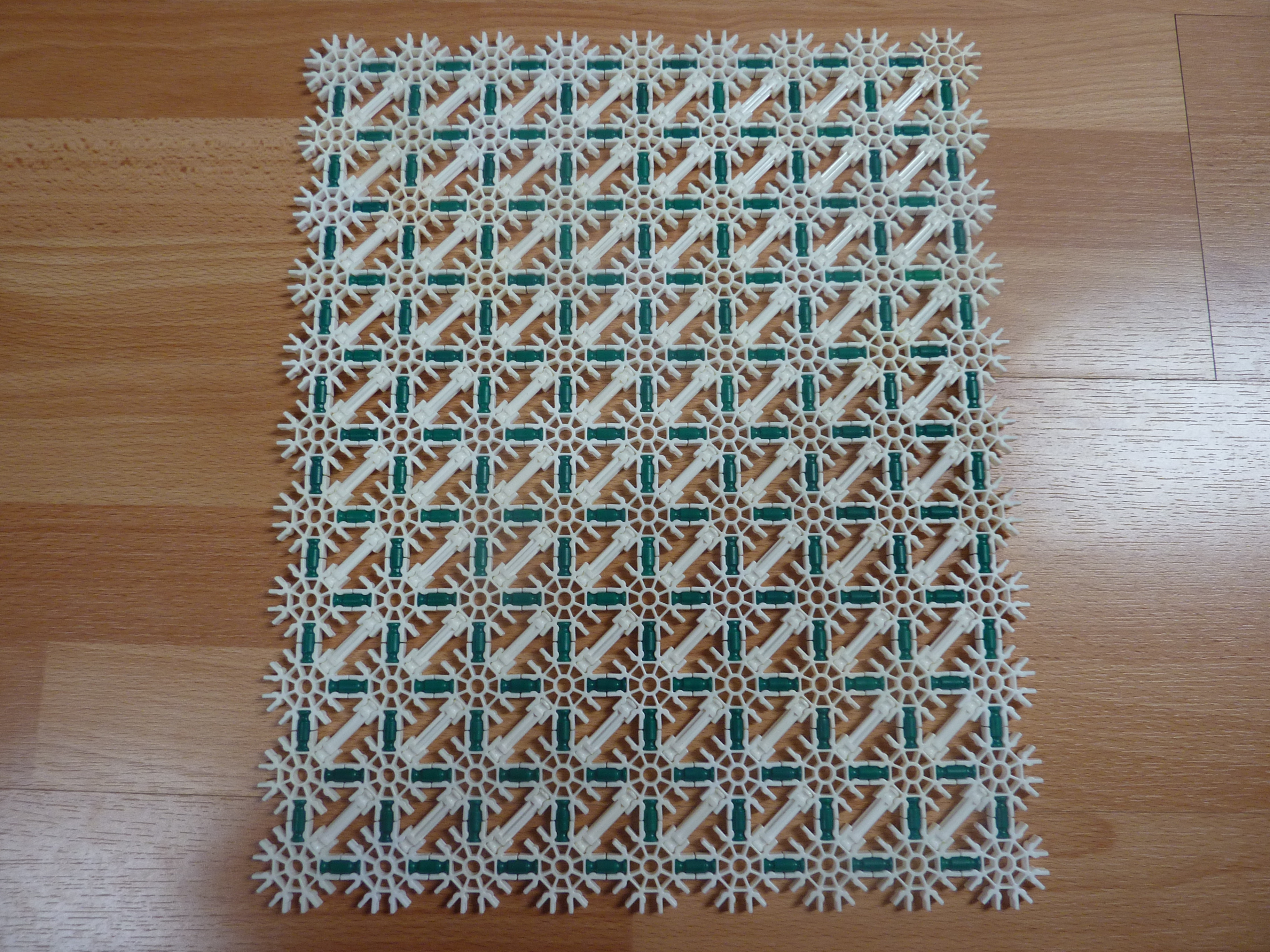

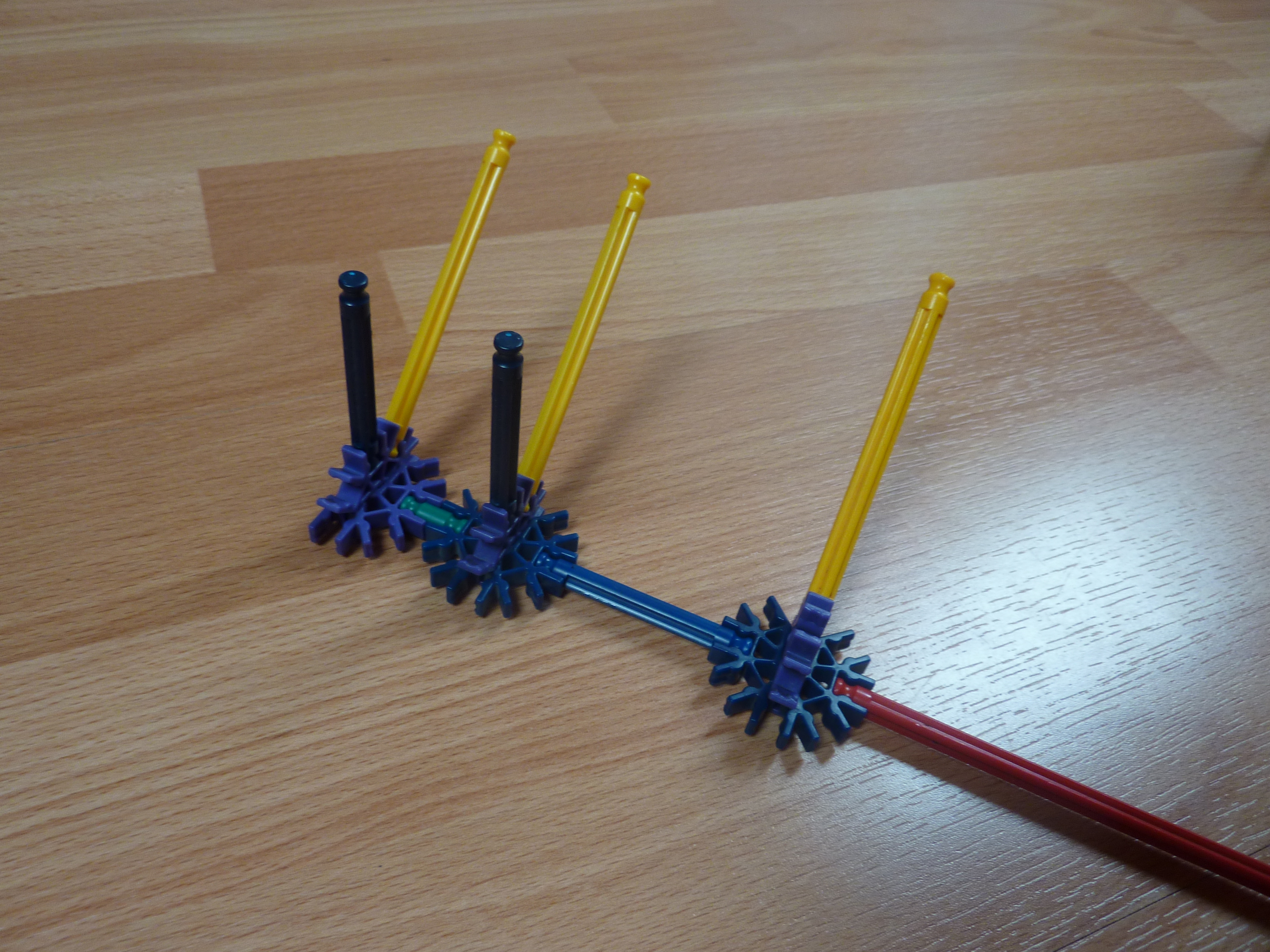

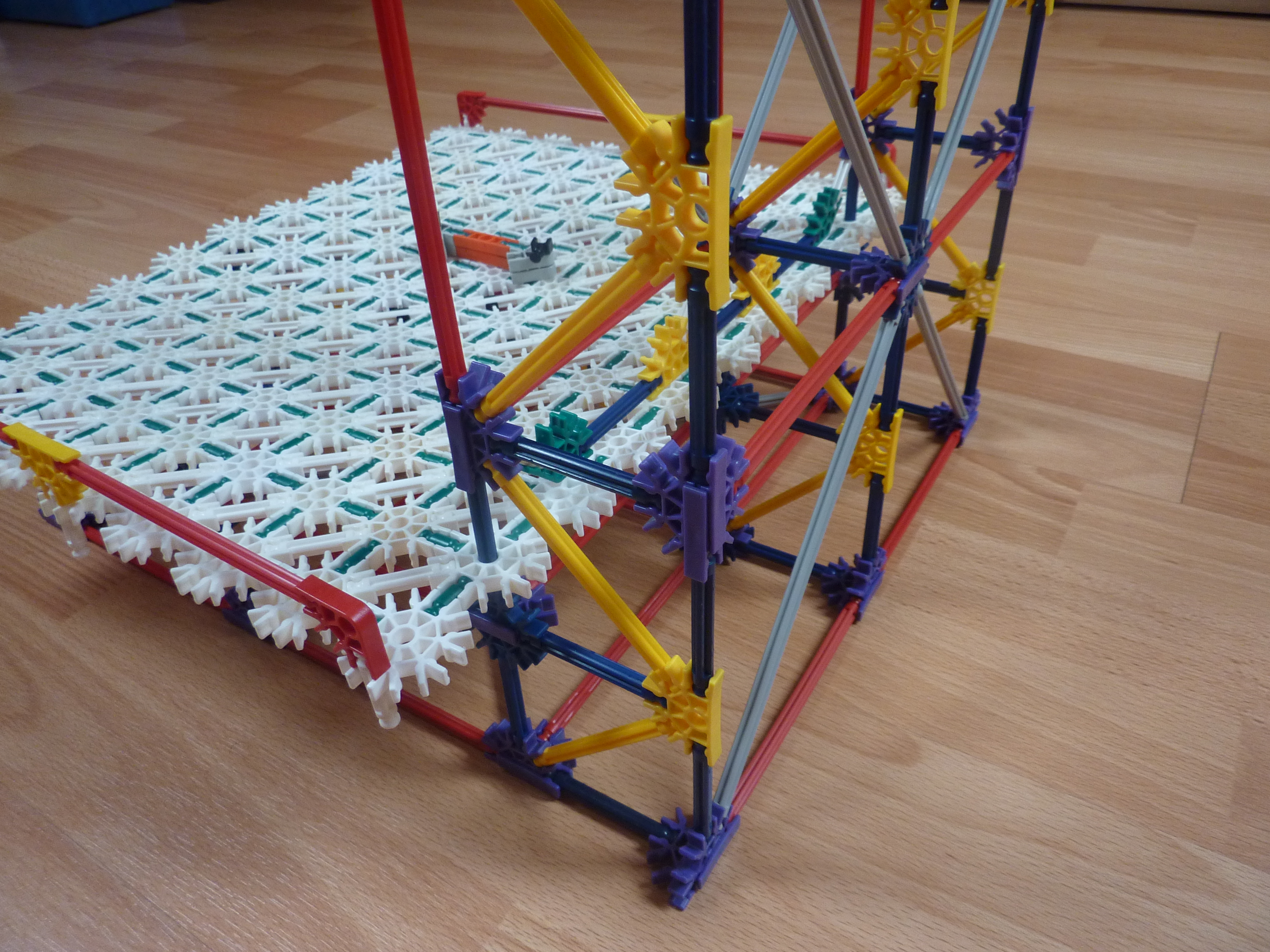

Floor

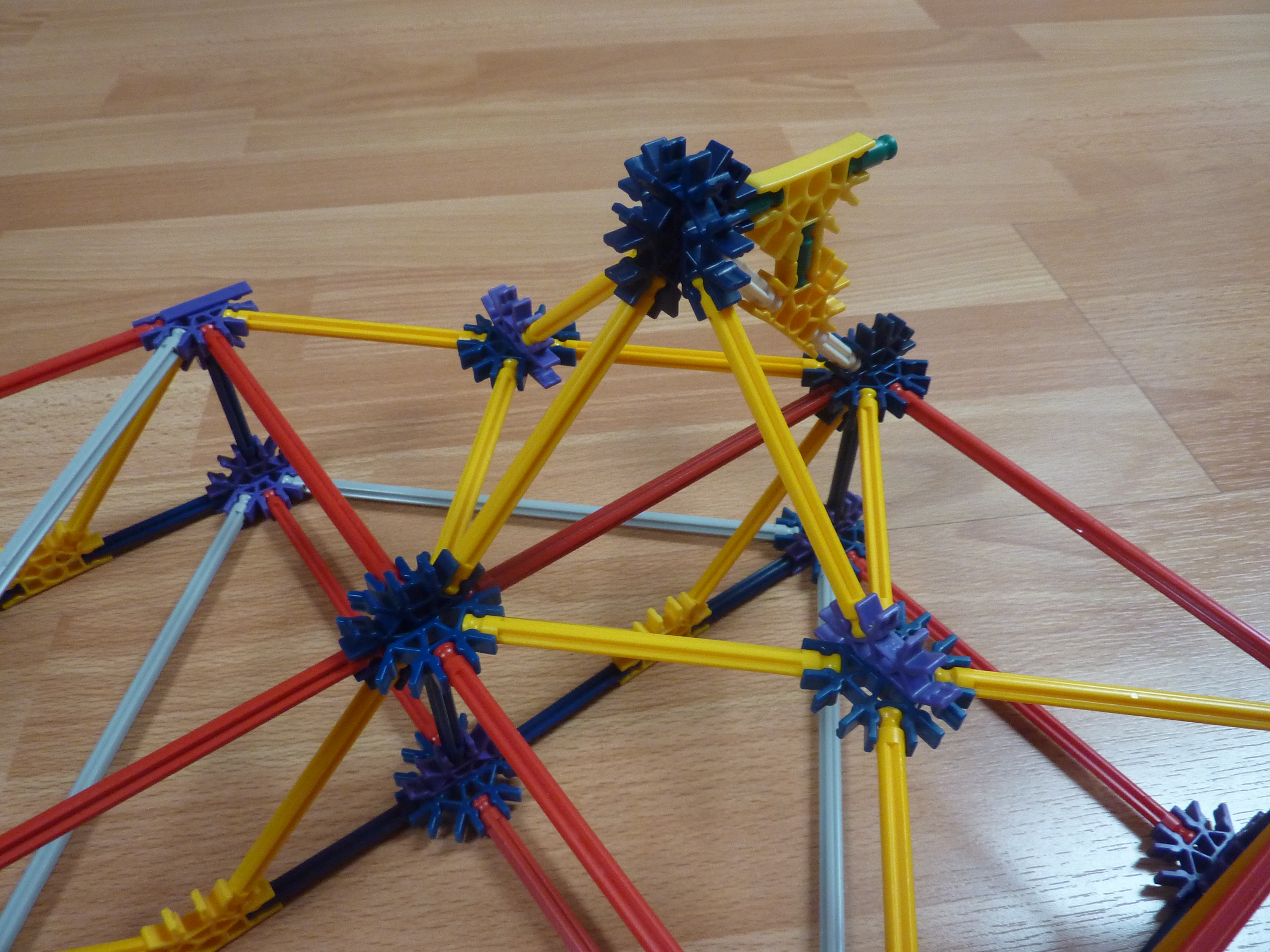

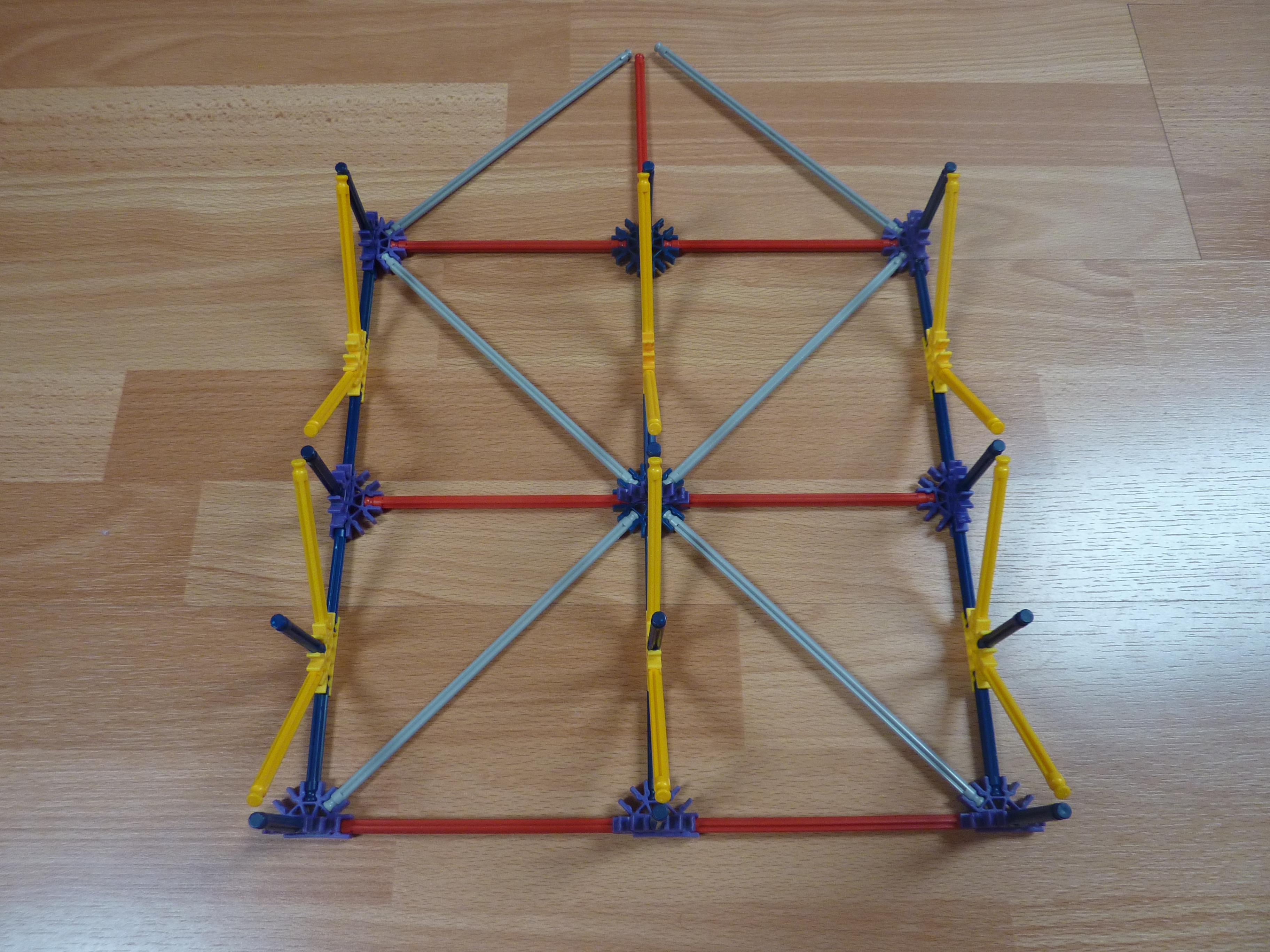

The first step contains the floor and the base underneath it.

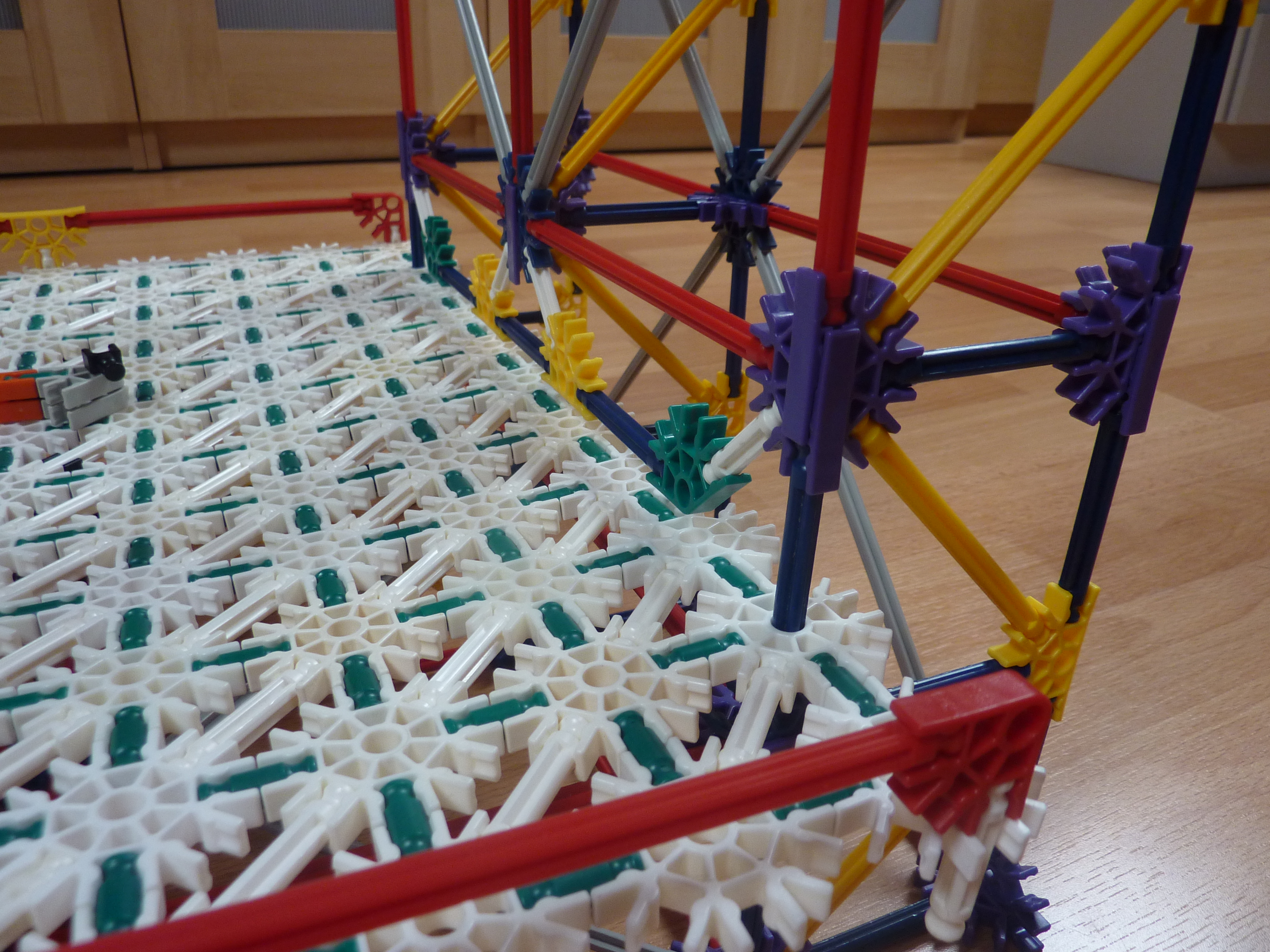

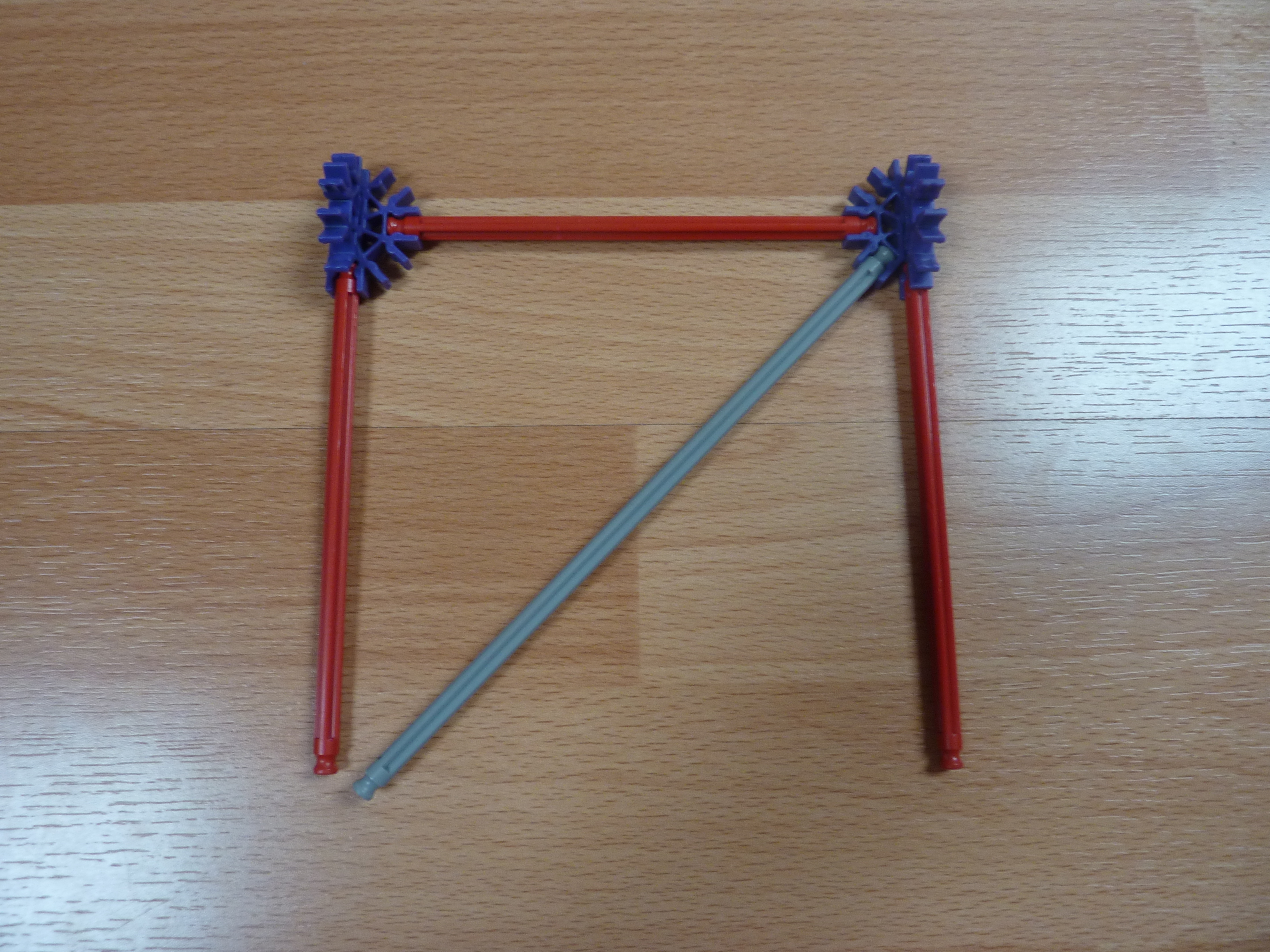

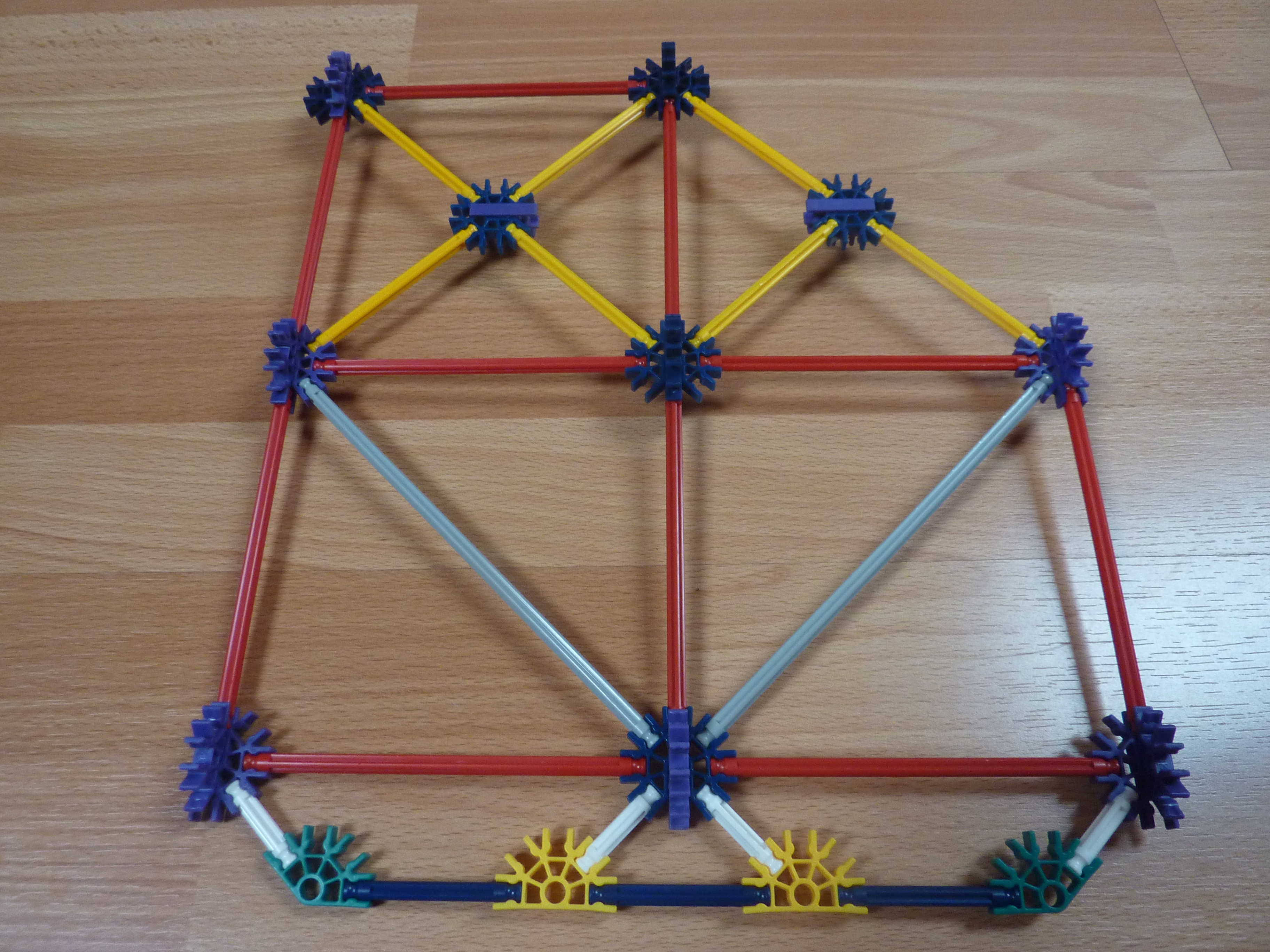

Frame (Part 1)

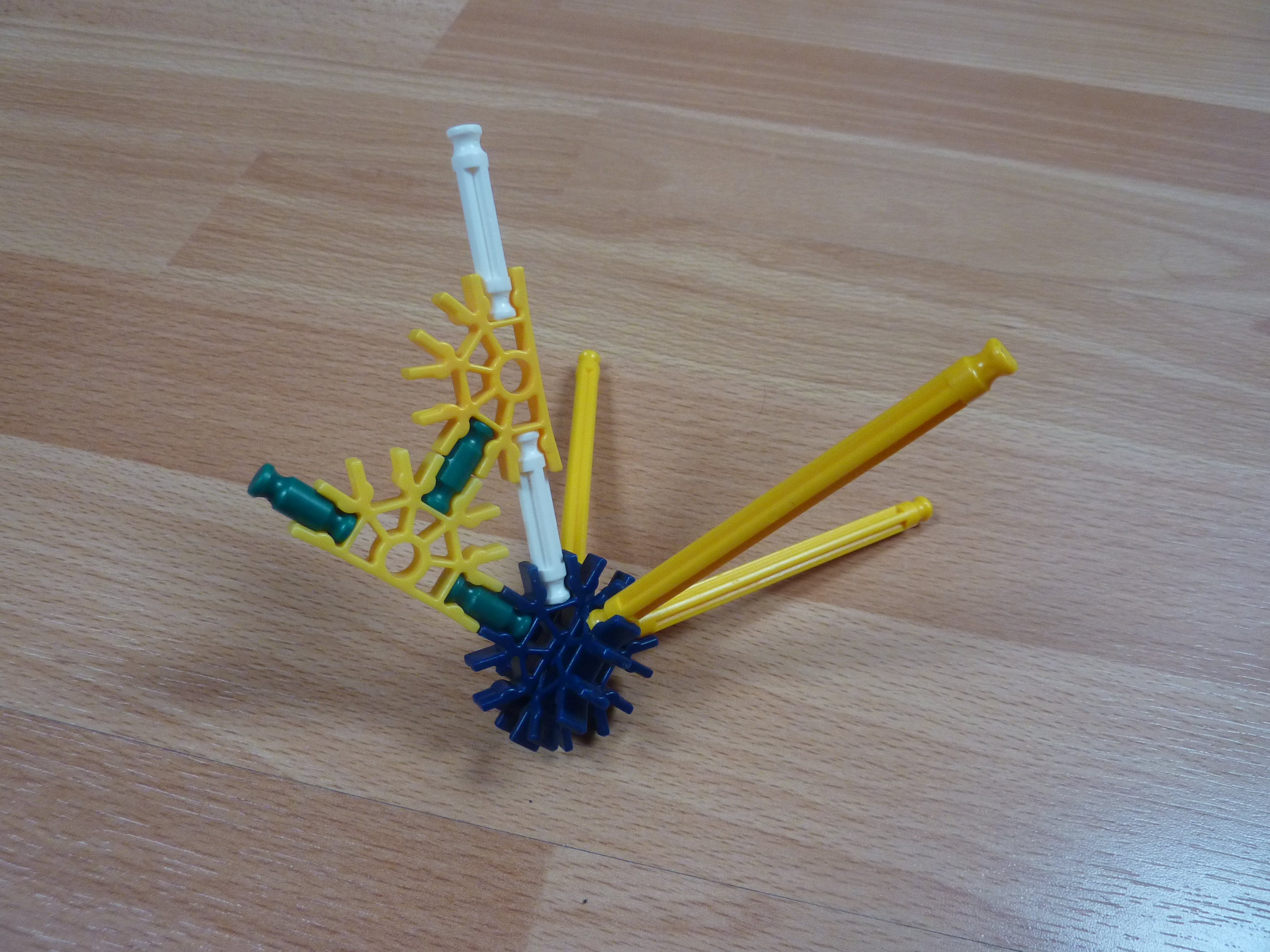

The first part of the frame. There are 2 parts in total.
Frame (Part 2)
Second part of the frame.

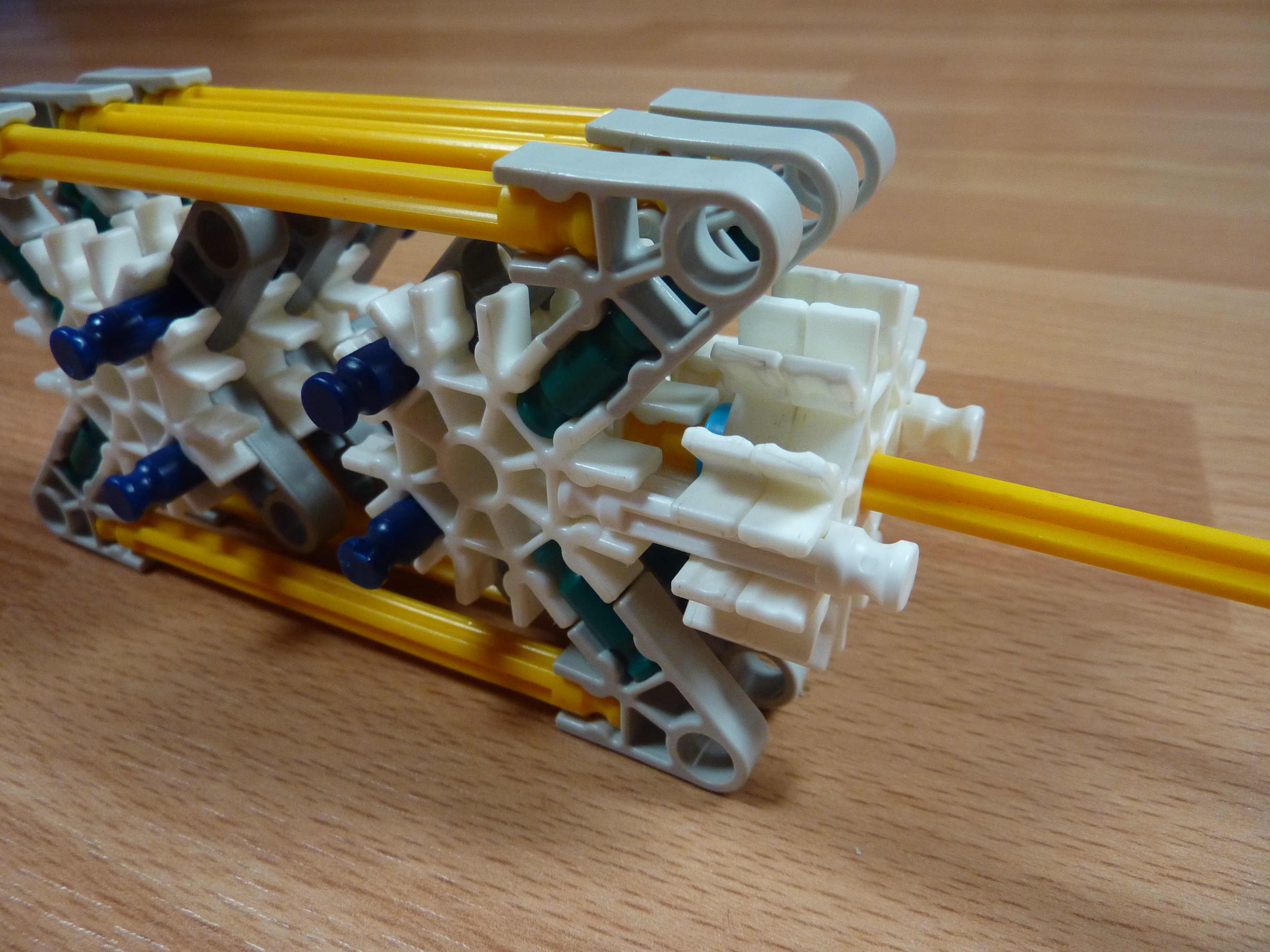

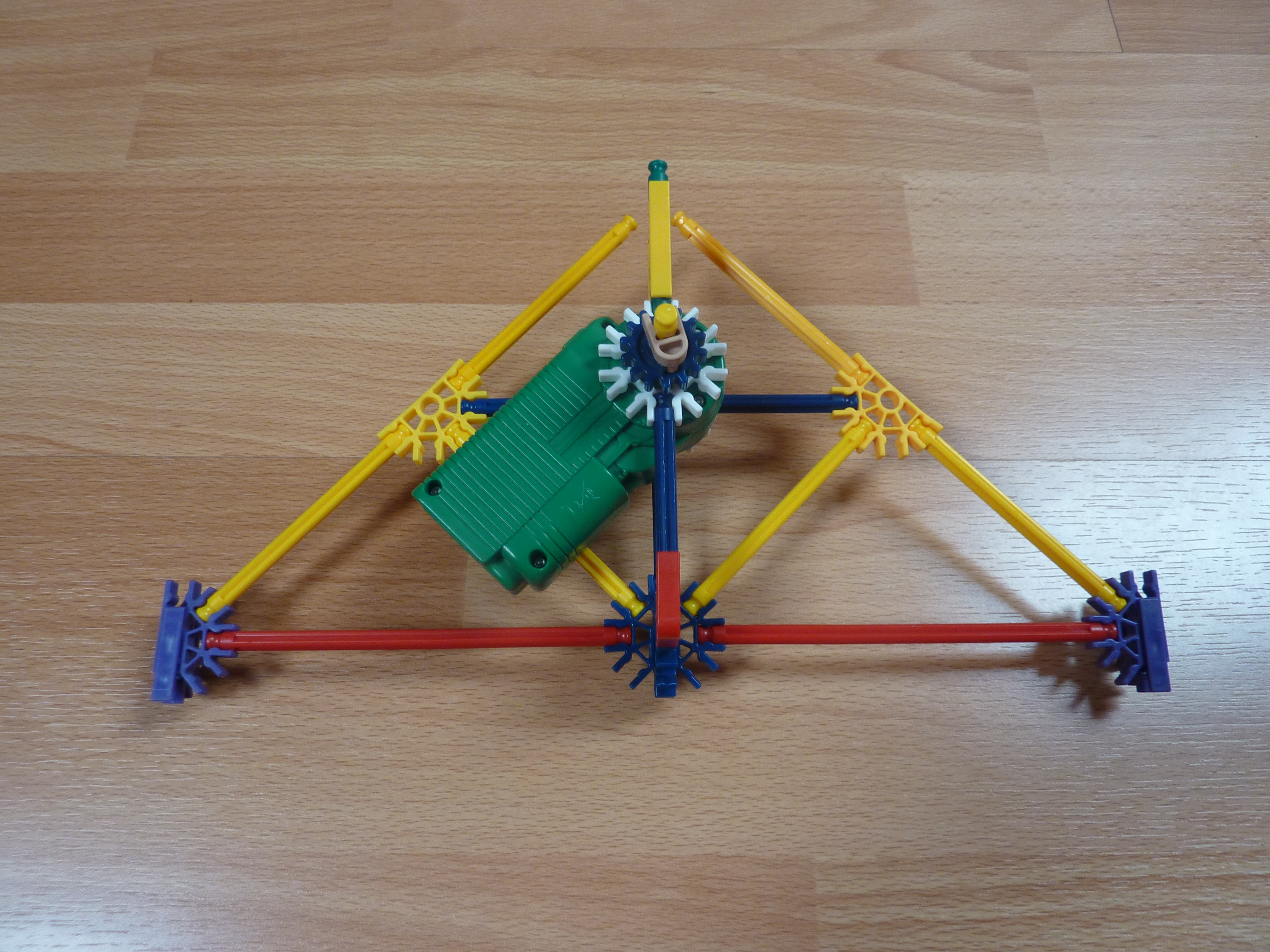

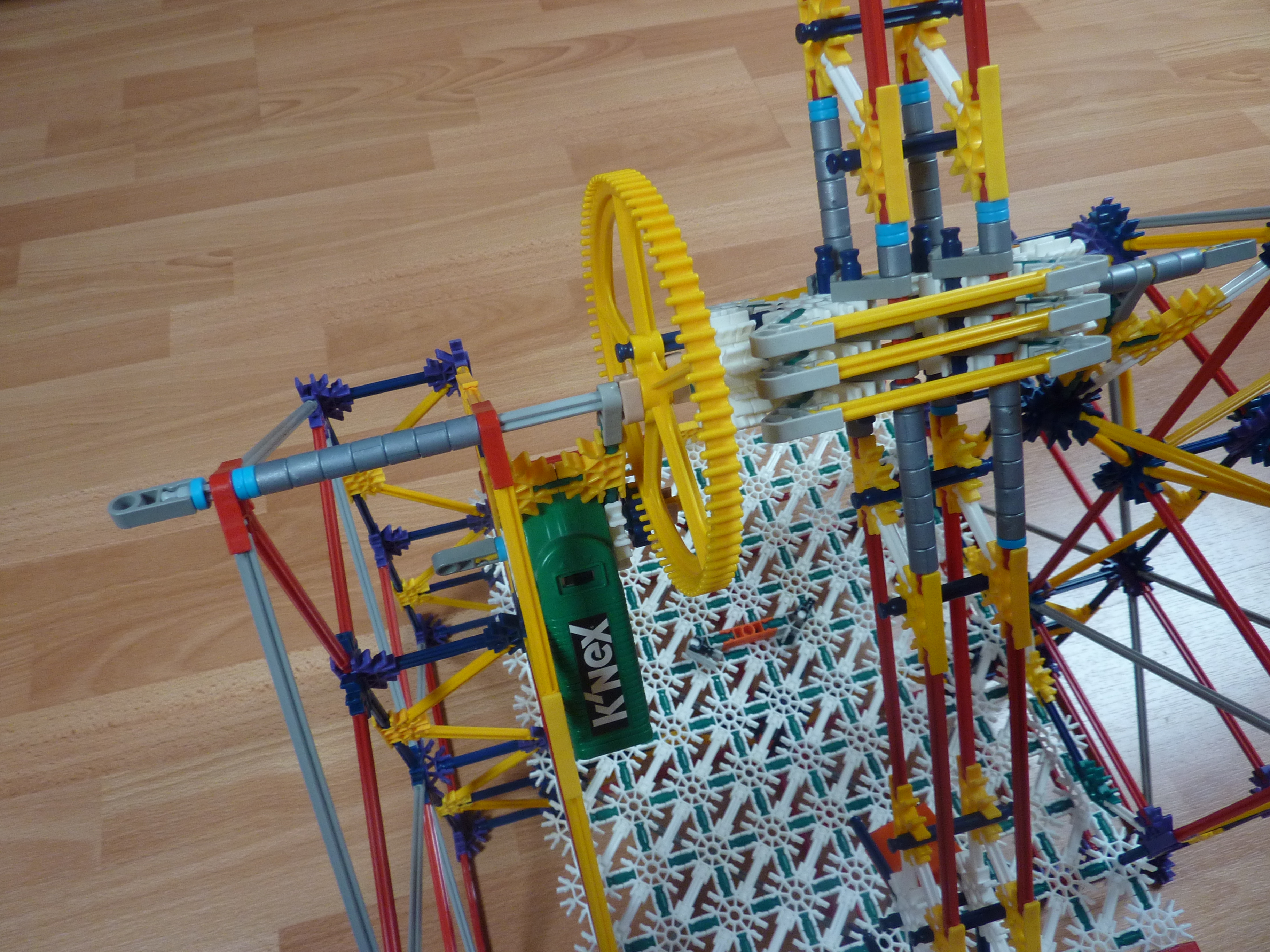

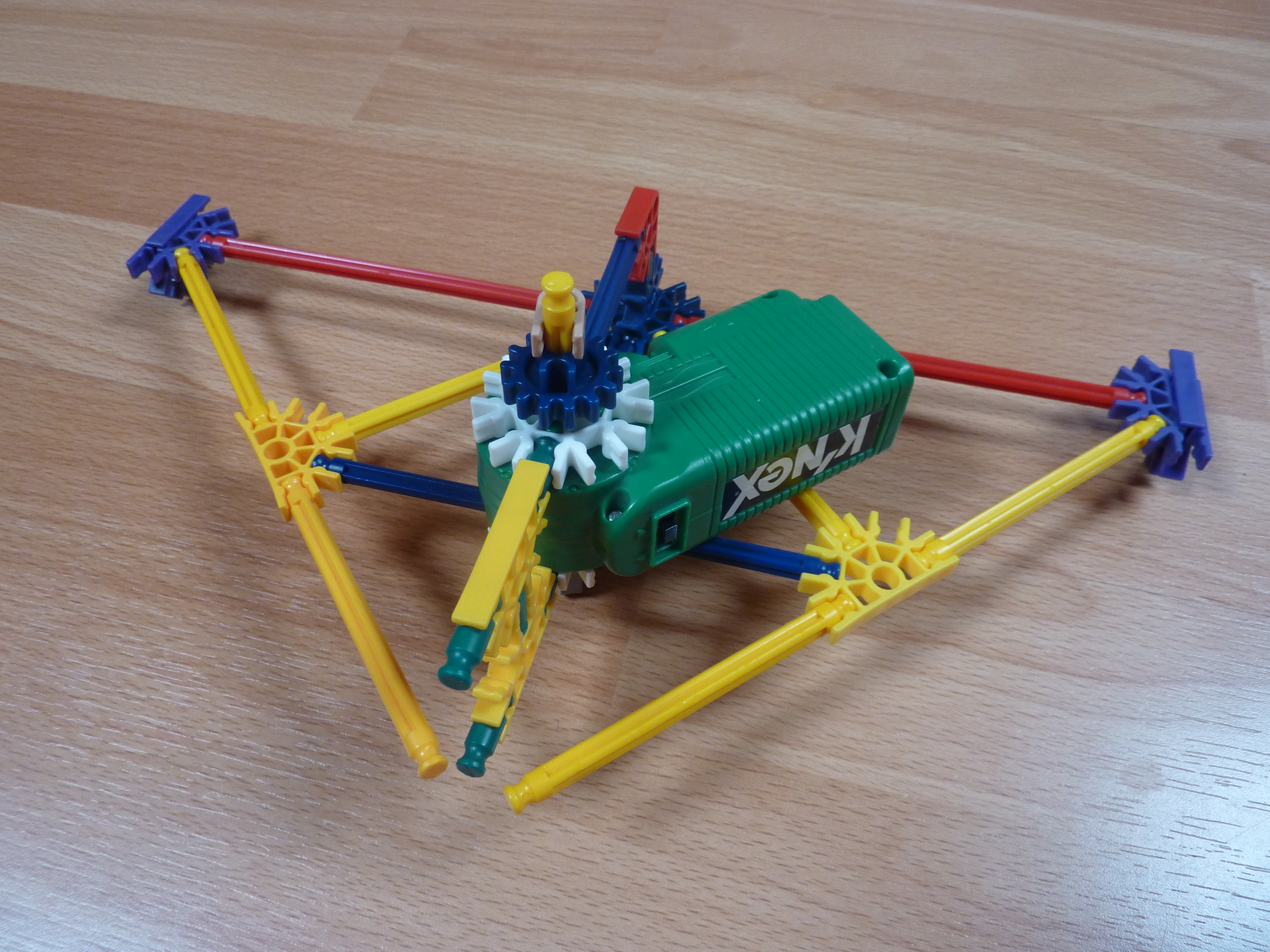

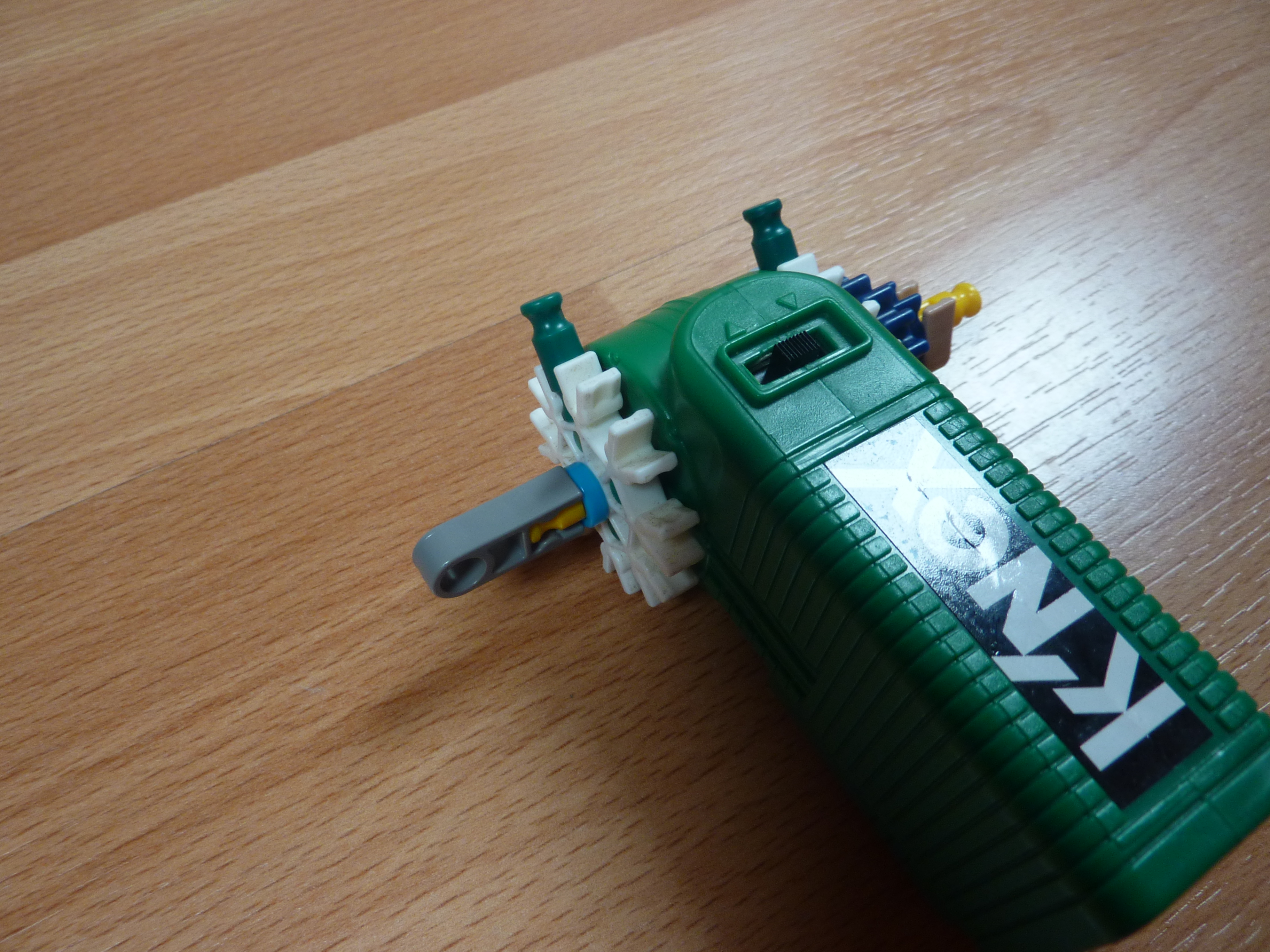

Motor

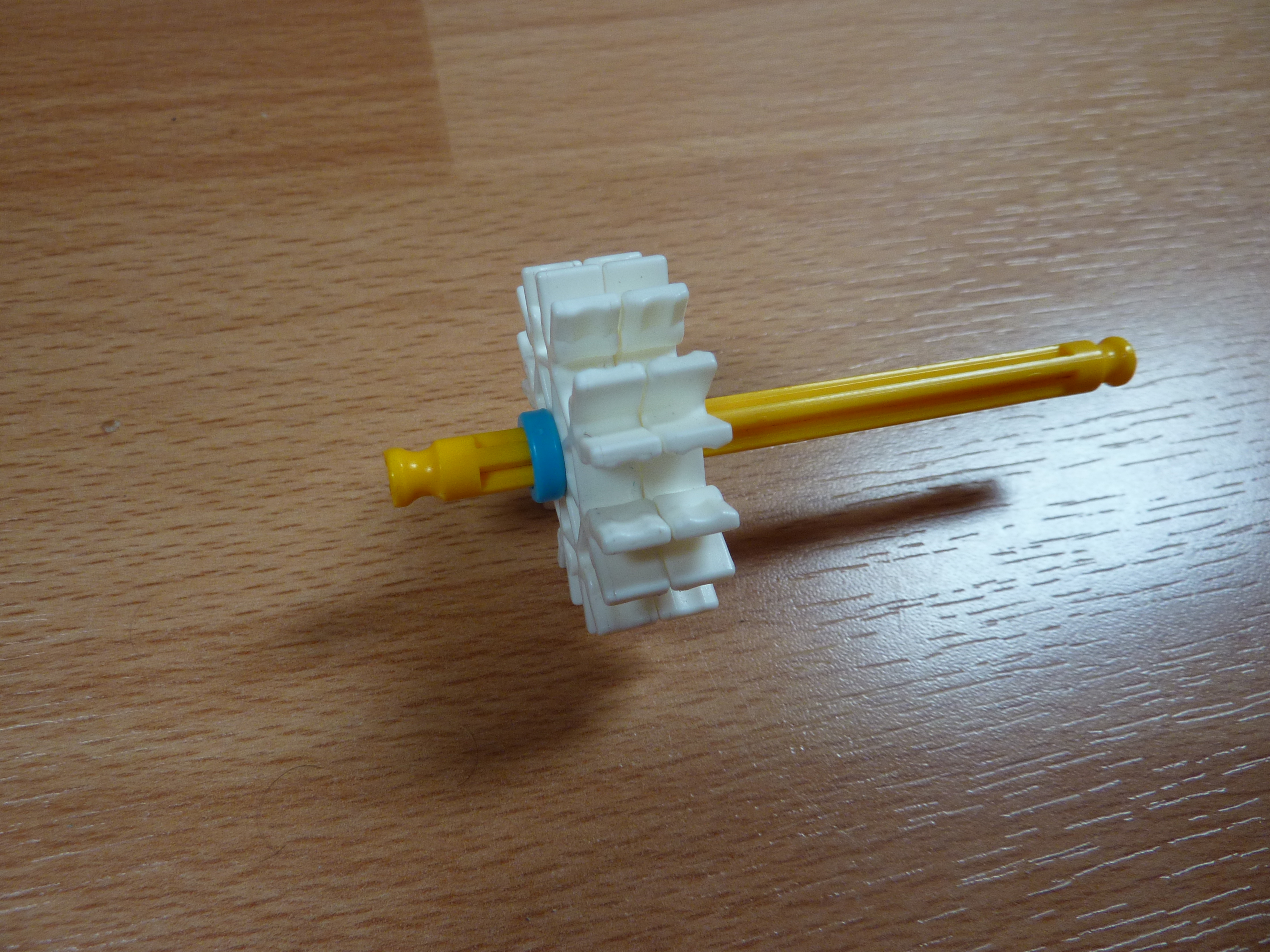

The motor section.

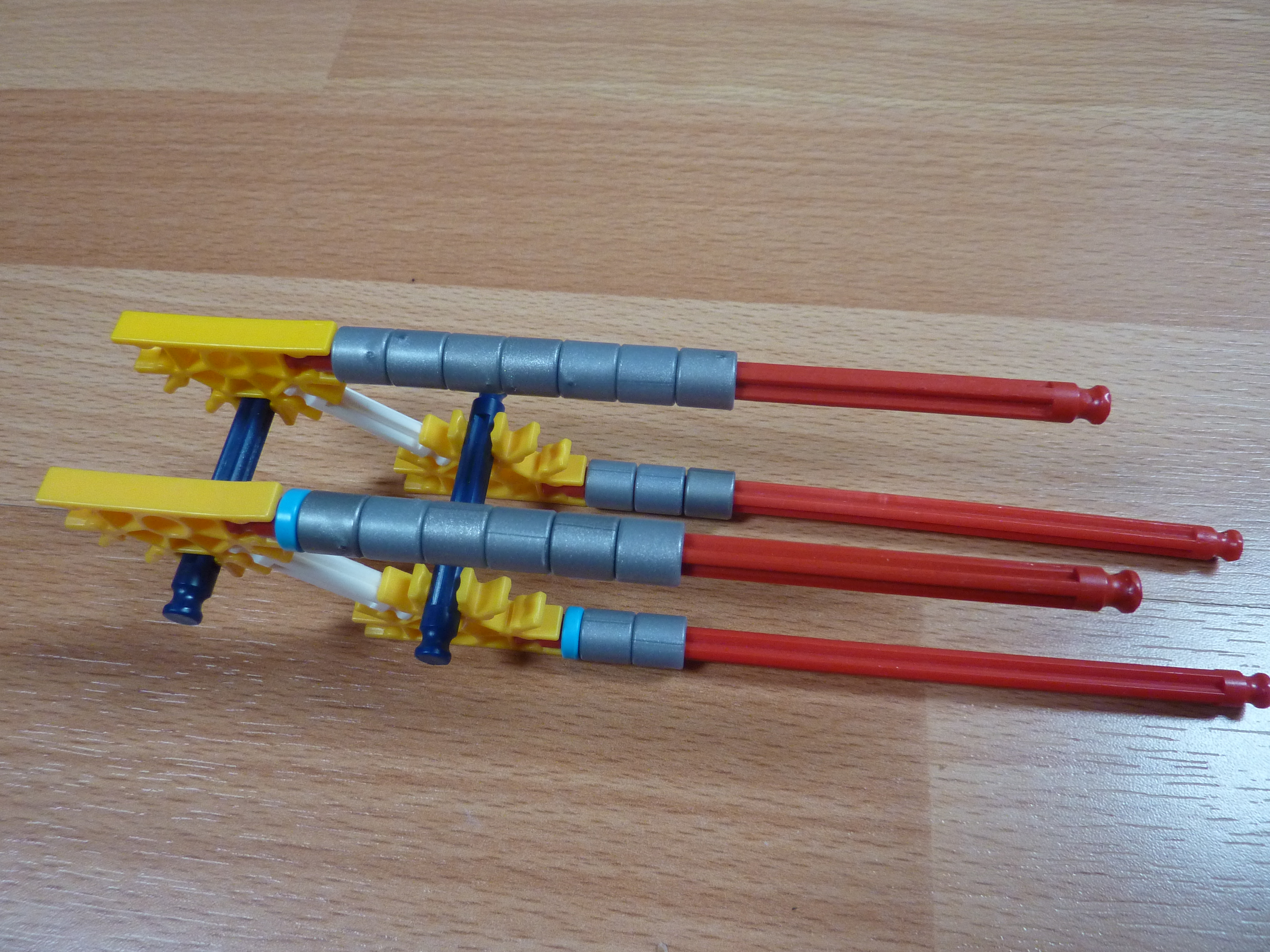

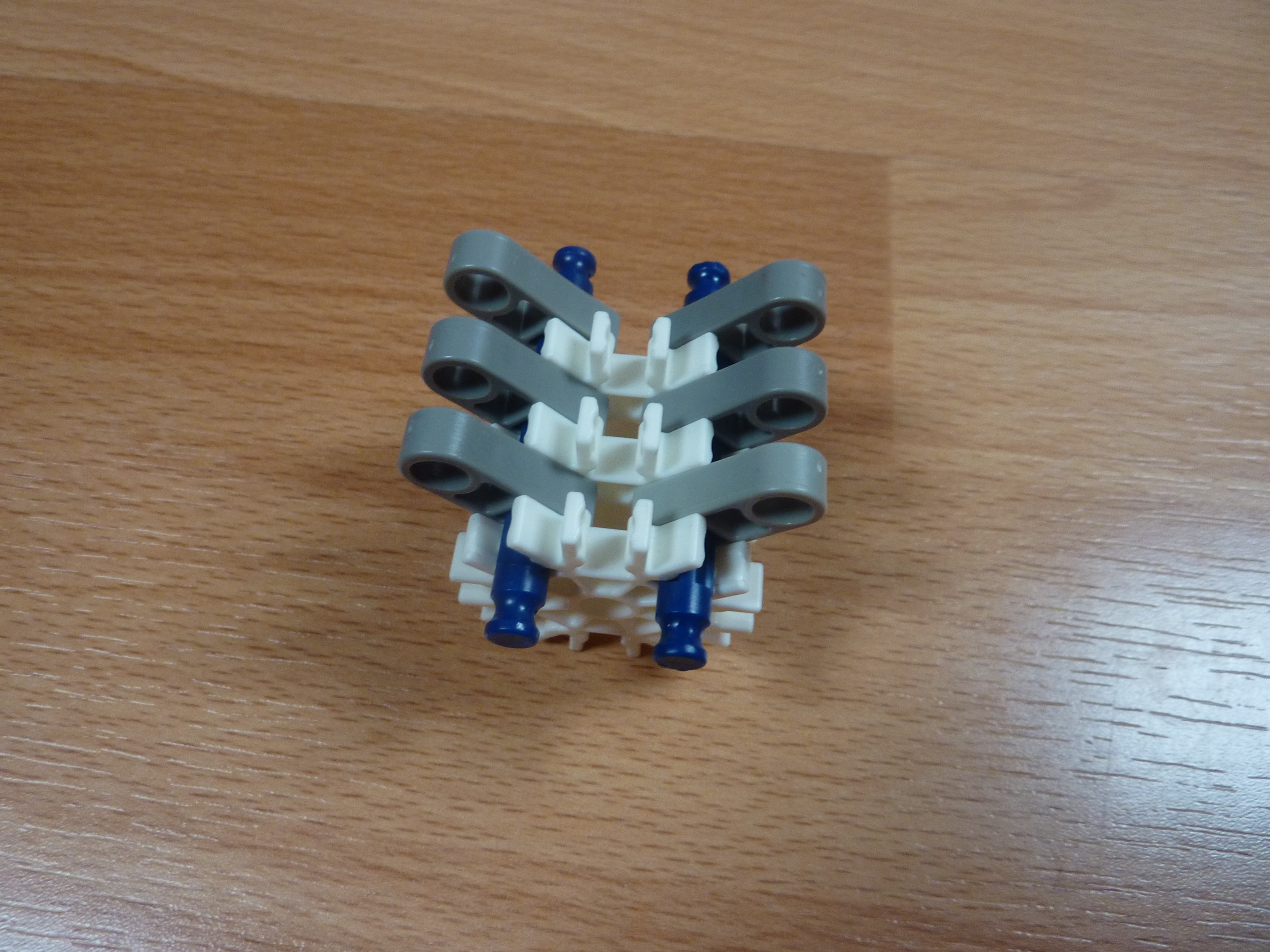

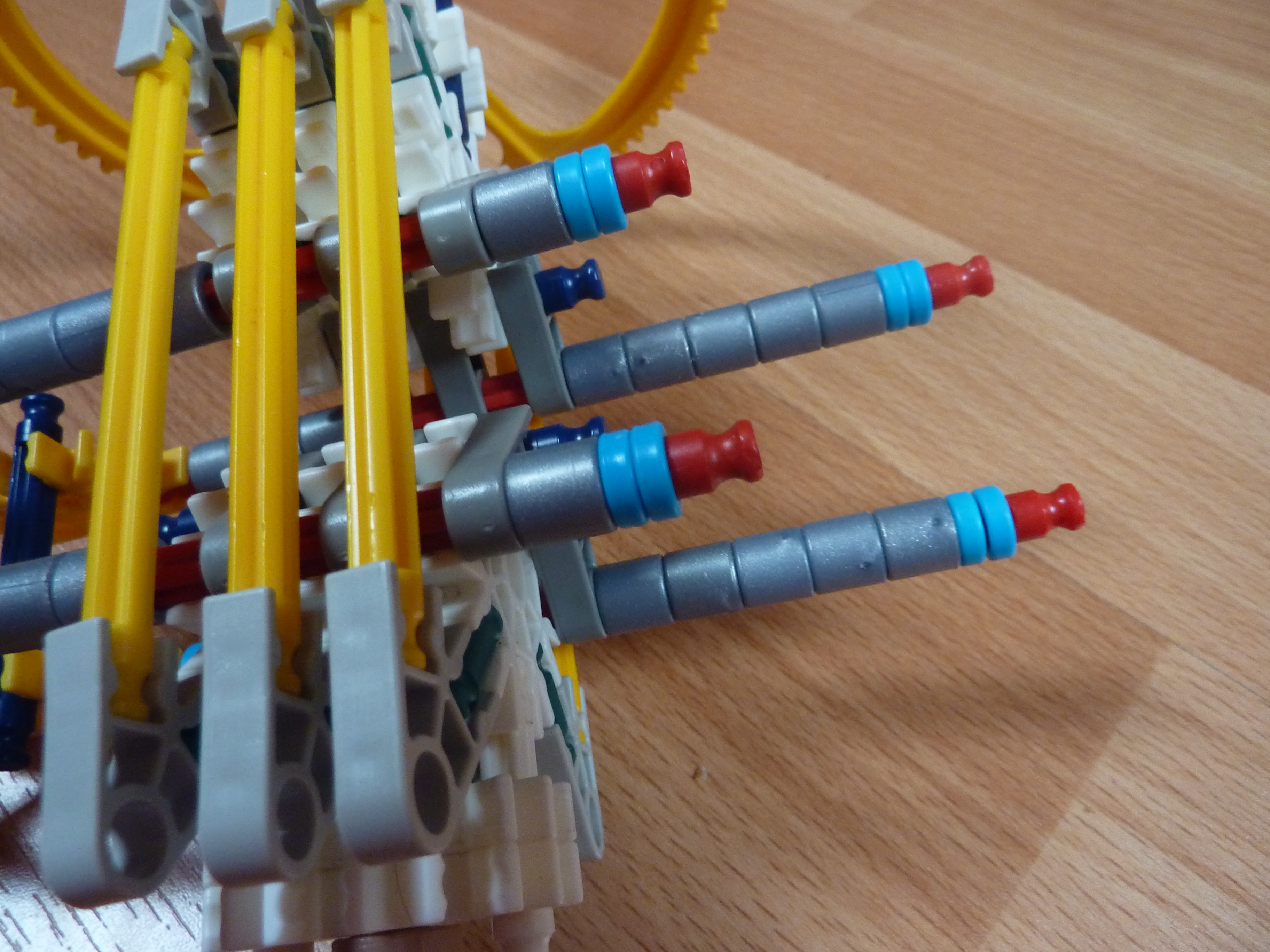

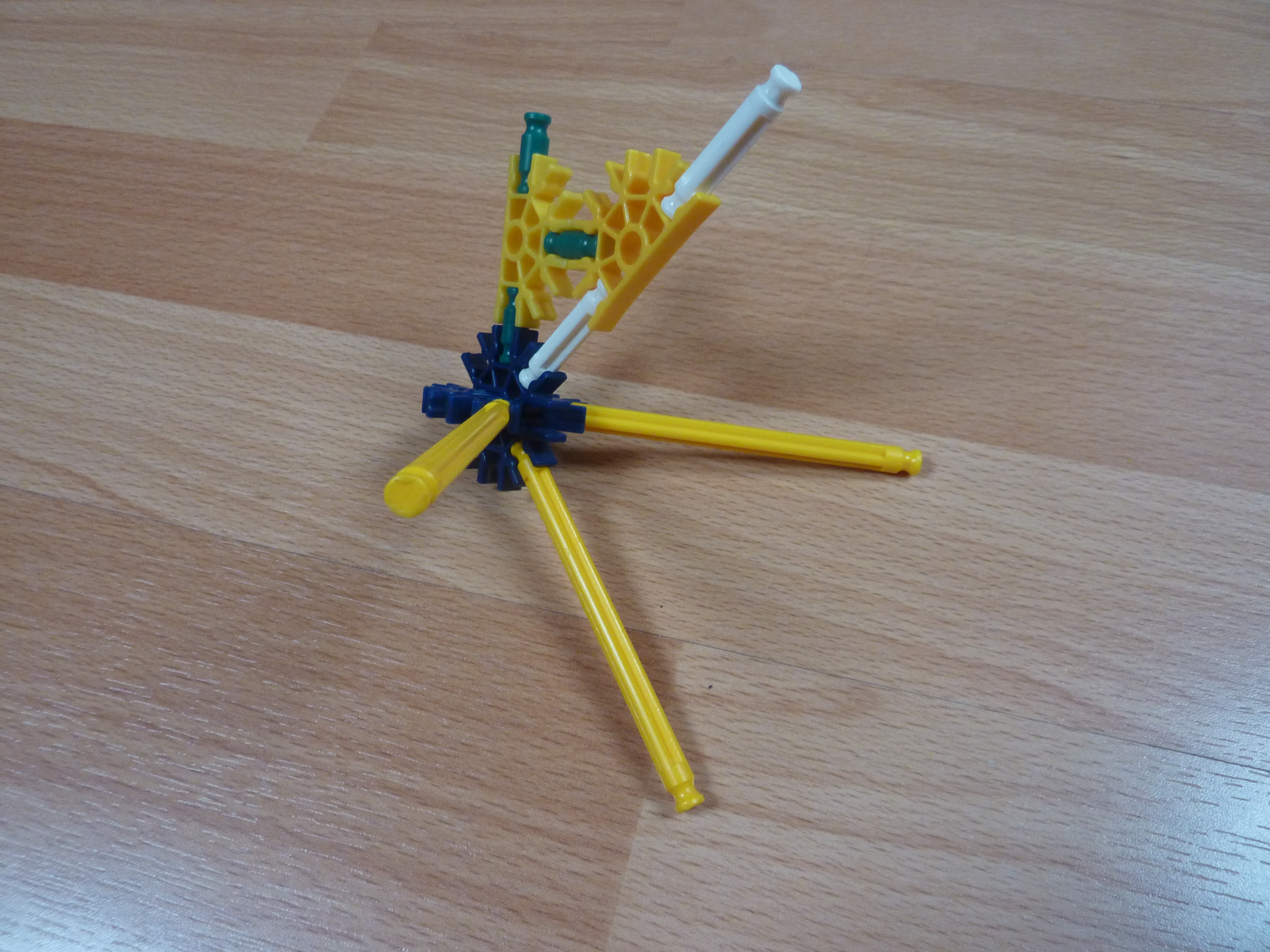

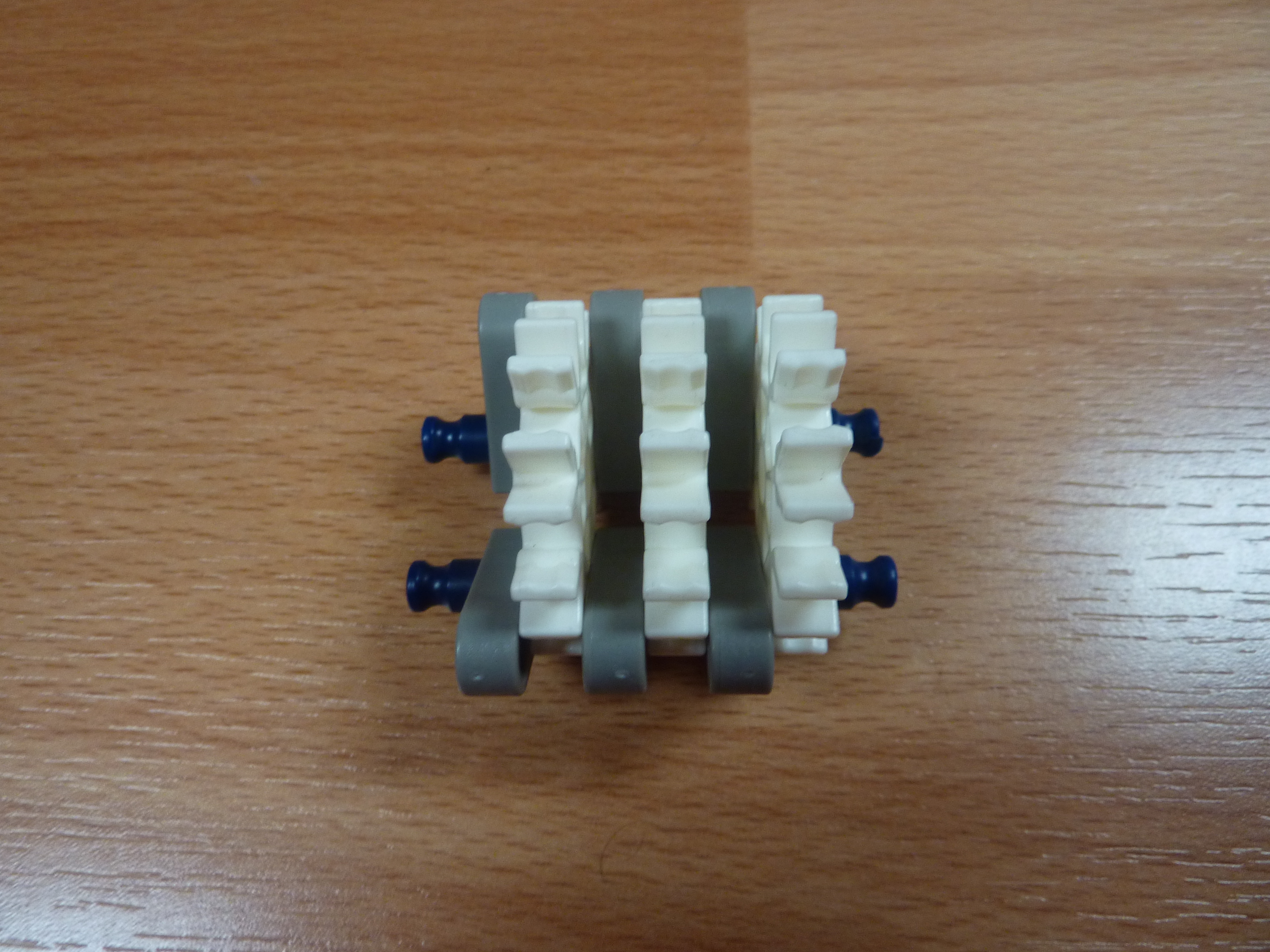

Arms

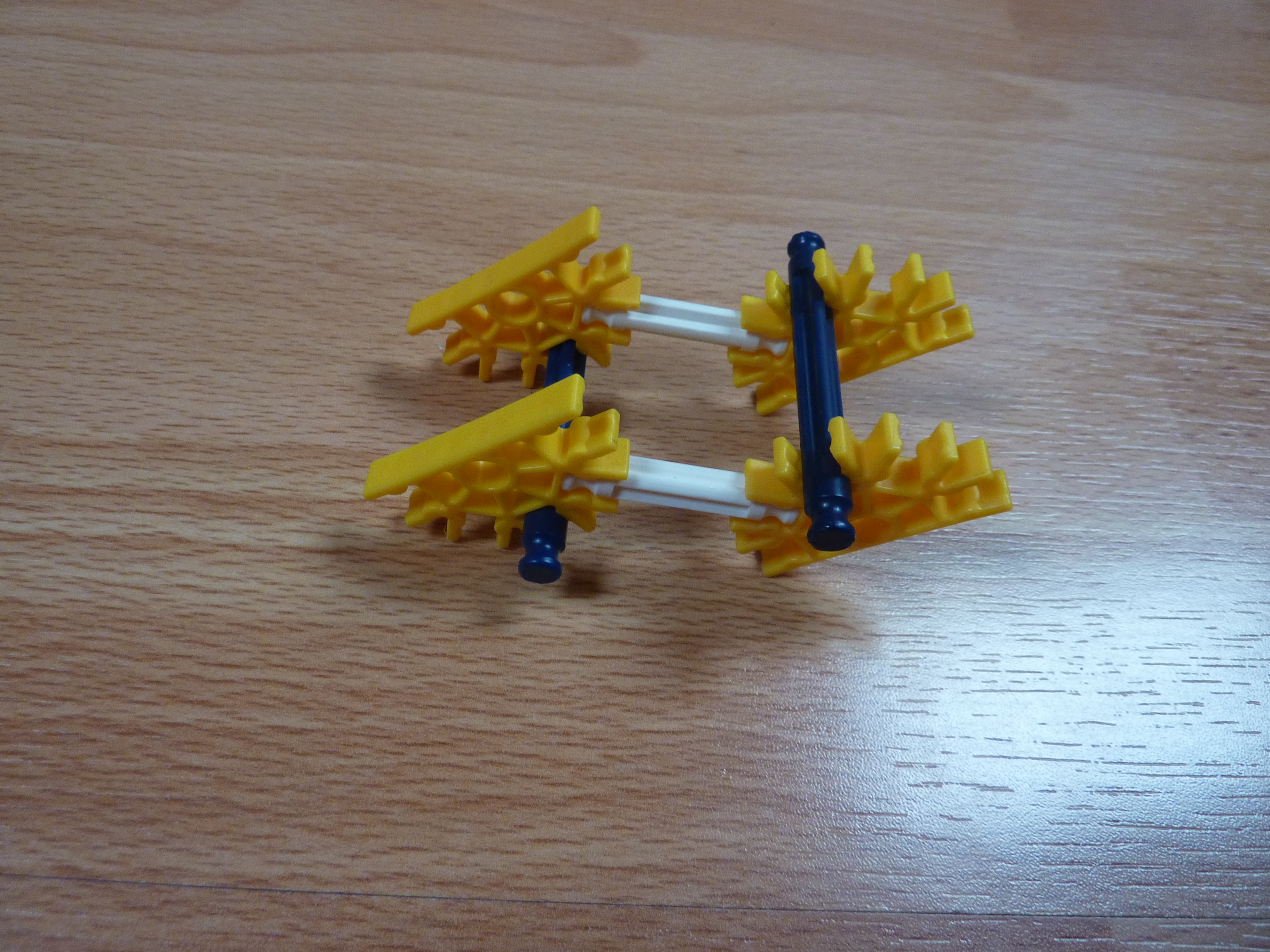

In this step we're going to make the arms.

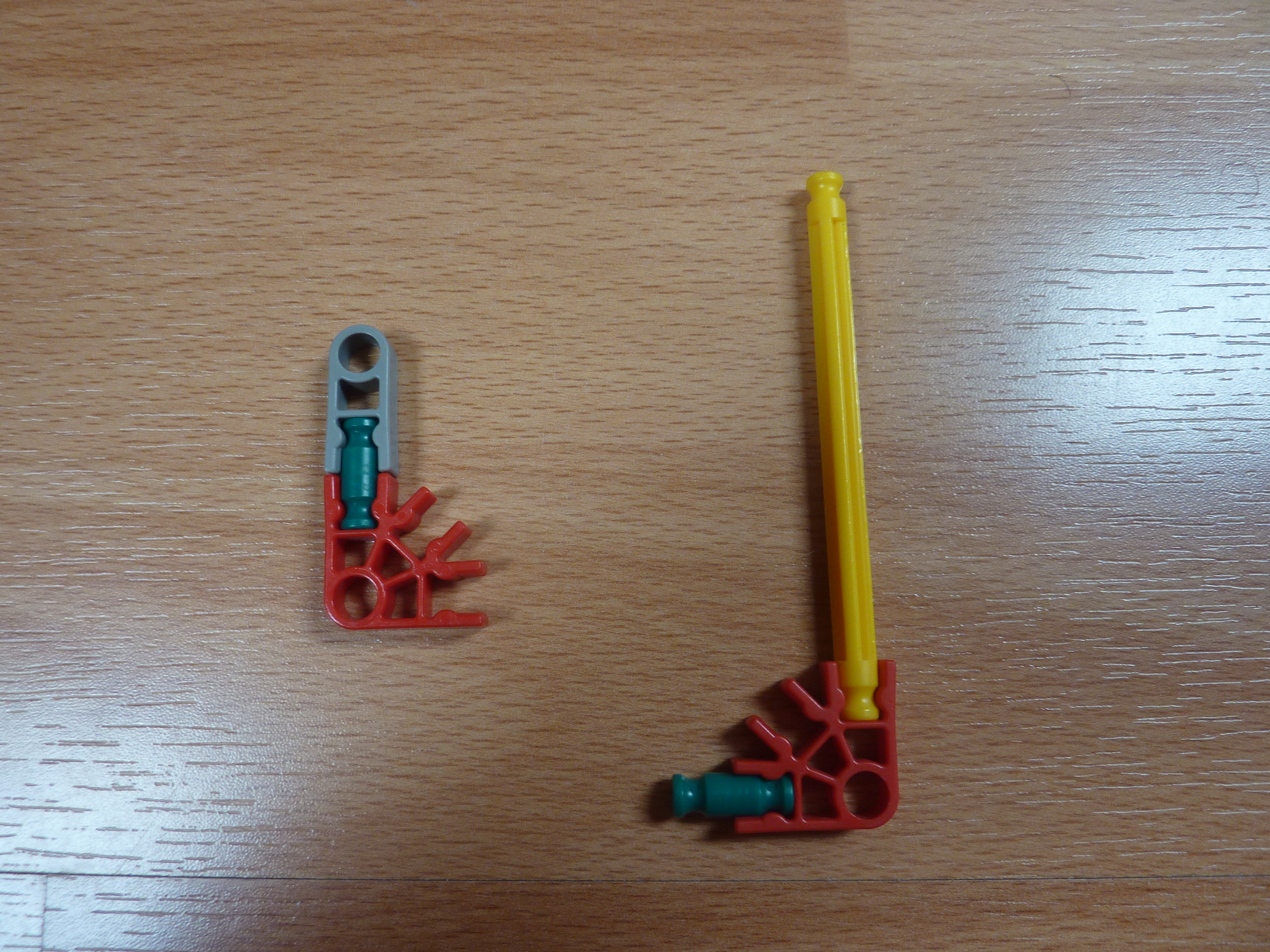

Exit

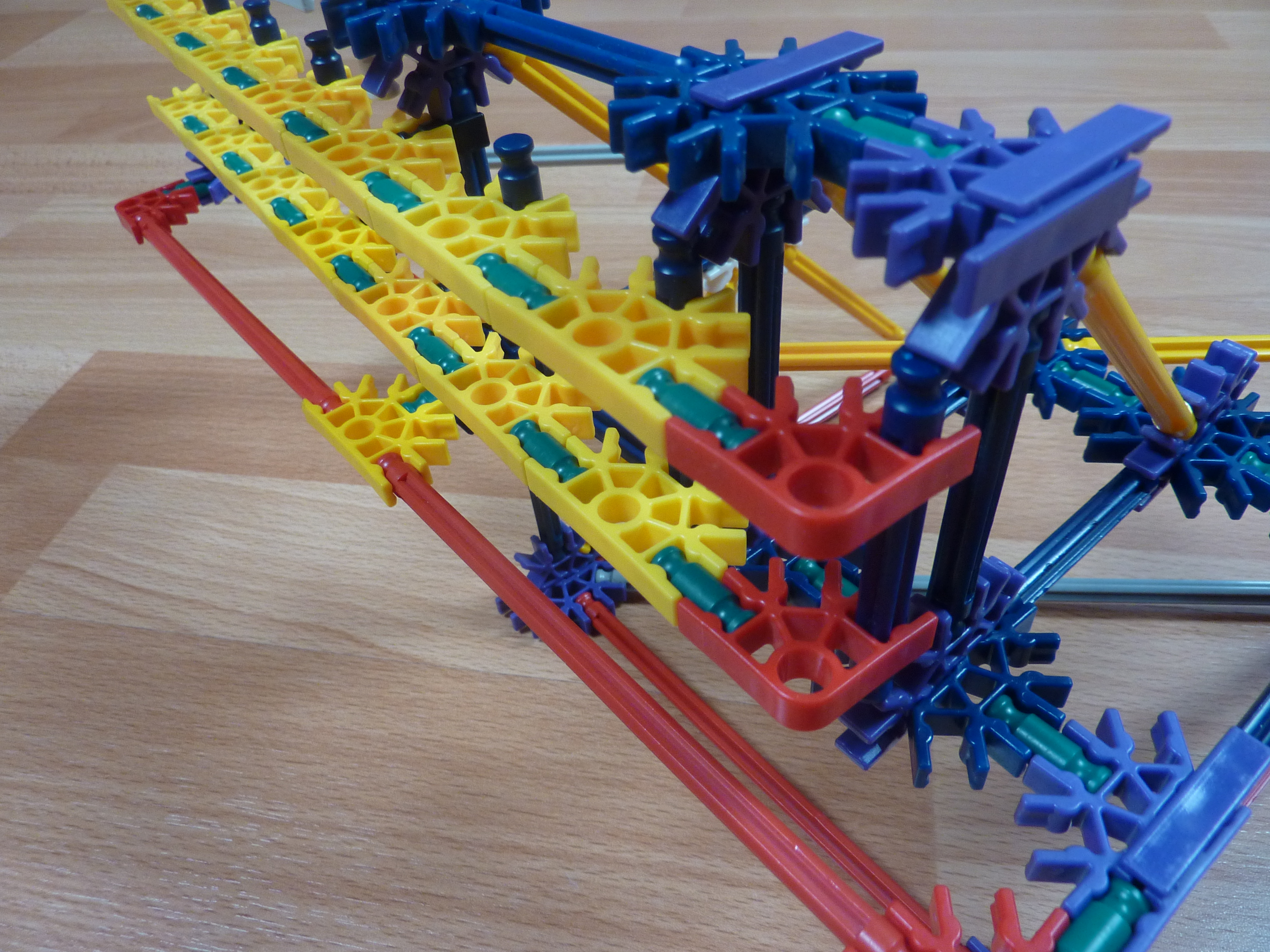

The last step!

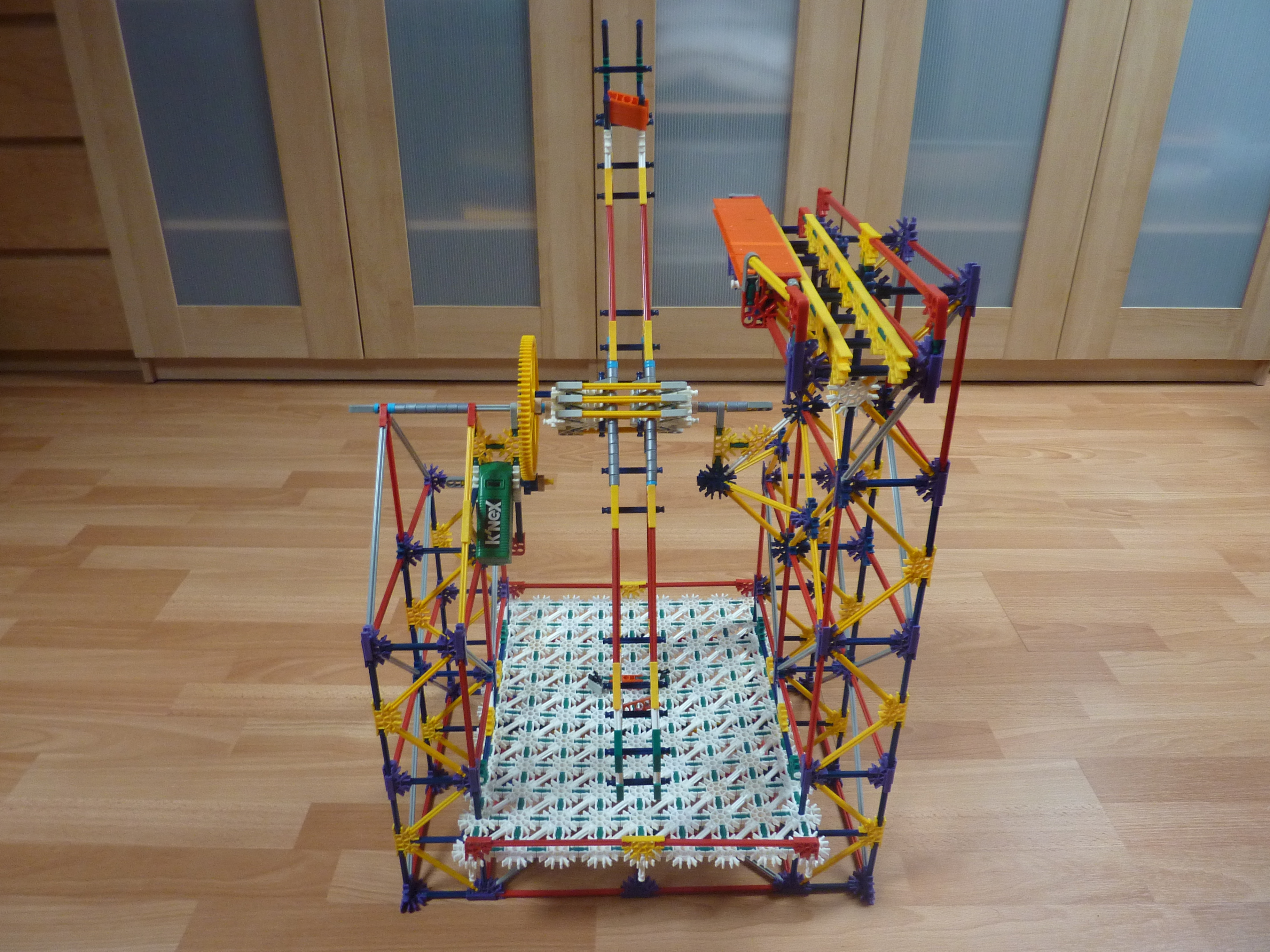

Finished!
Your Floor Double Arm Lift is finished! Congrats!
Always slide the switch of the motor to the left.
If you have built this lift, you can always send me a picture so I can add it to this step.
Thanks for watching / building!
~Sandroknexmaster~
