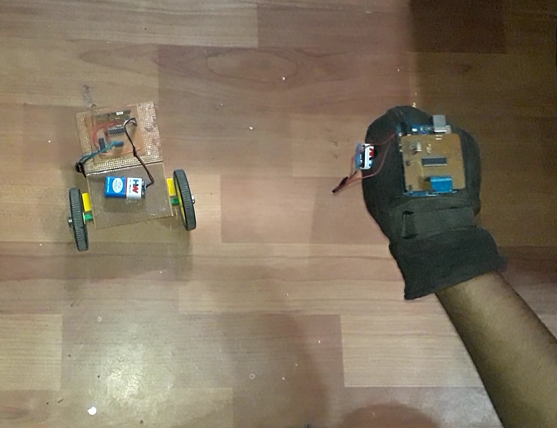

Gesture Controlled Robotic Car

Hi,

This is my 13th instructable and in this tutorial, I'm going to show you, how to build a simple Gesture Controlled Robotic Car by using Arduino, accelerometer and RF modules.

Before getting started just hit the vote button because i need a new laptop for my projects i think you guyzz help me...

let's start with component we need

1. Arduino Board

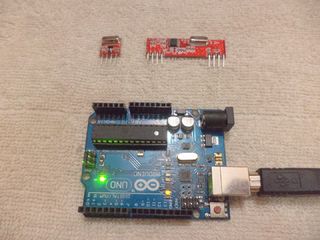

2. RF315/433 module
3. Wires, Pins
4. Accelerometer
5. L293d

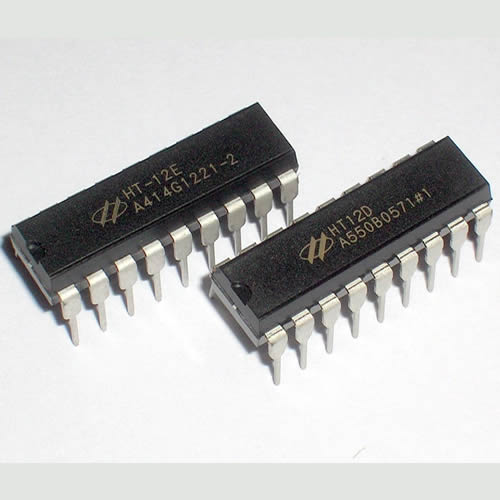

6. Encoder and Decoder

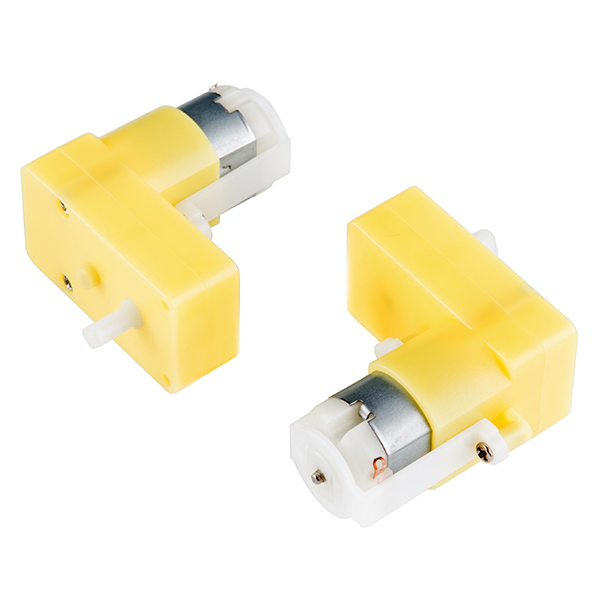

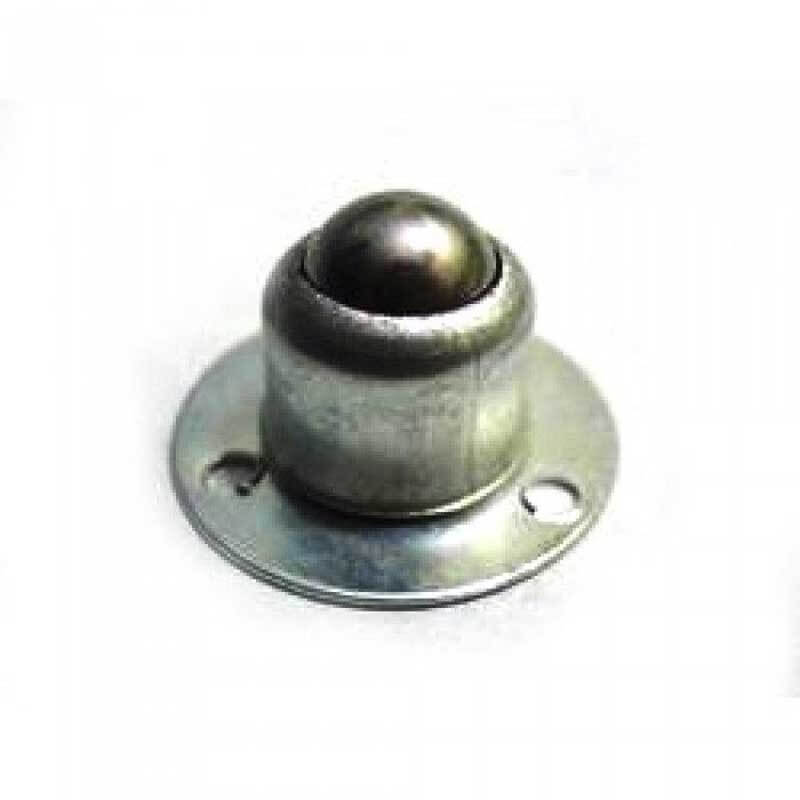

7. Motors, Wheels & Caster Wheel

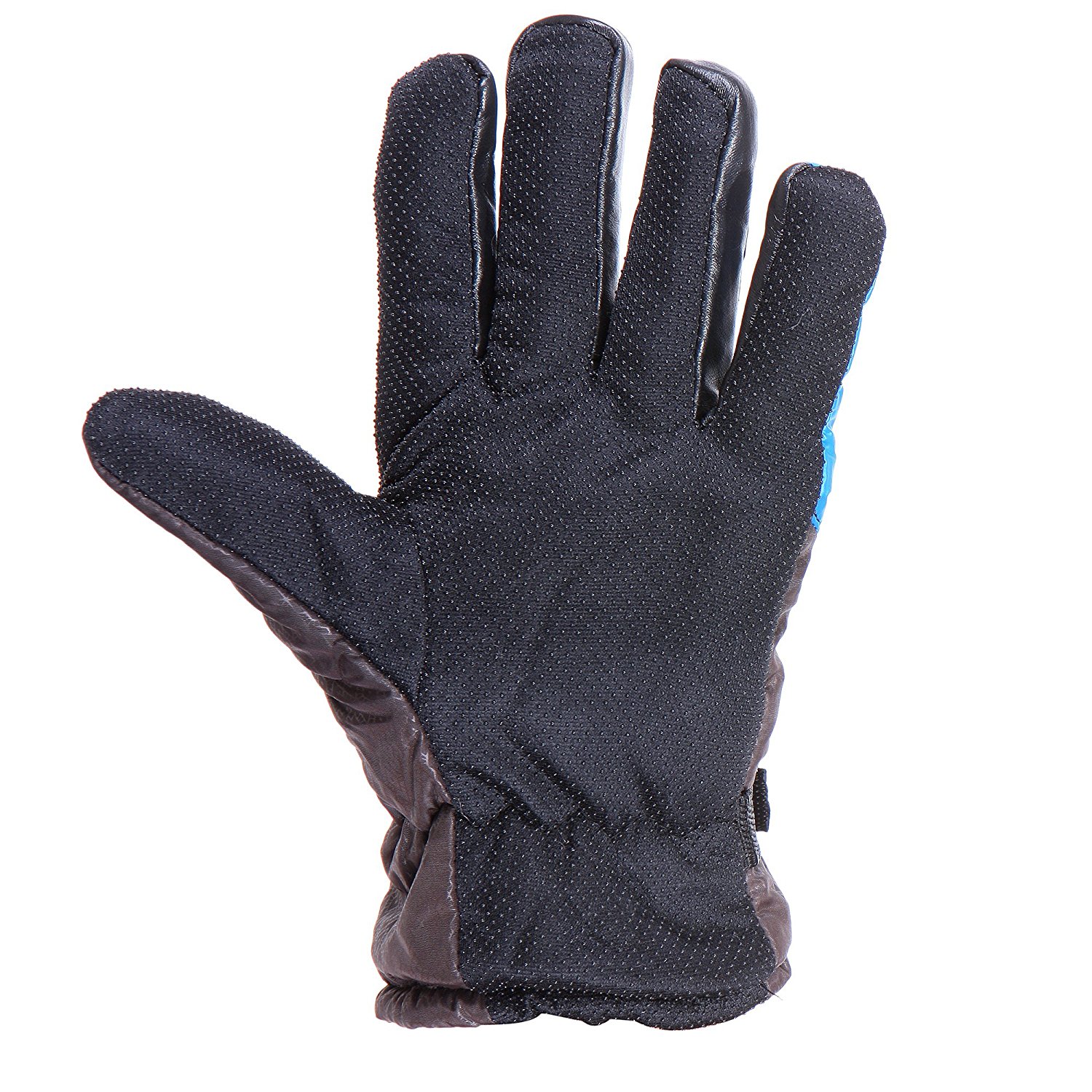

8. Glove
9. General purpose pcb, Soldering iron

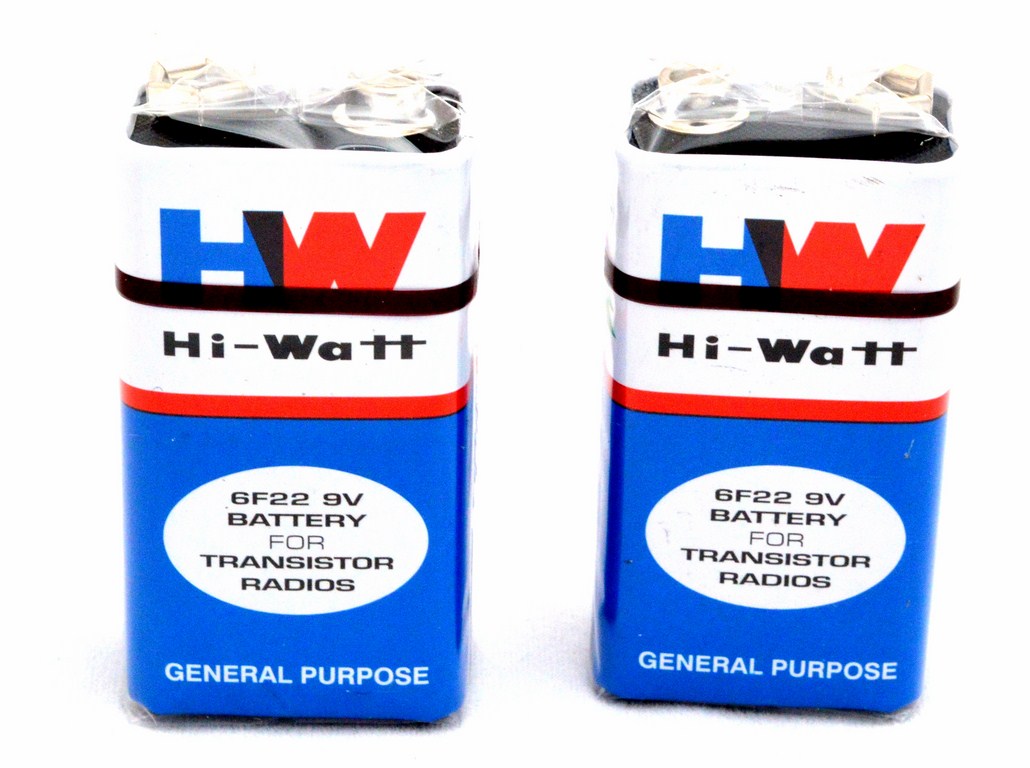

10. Power source

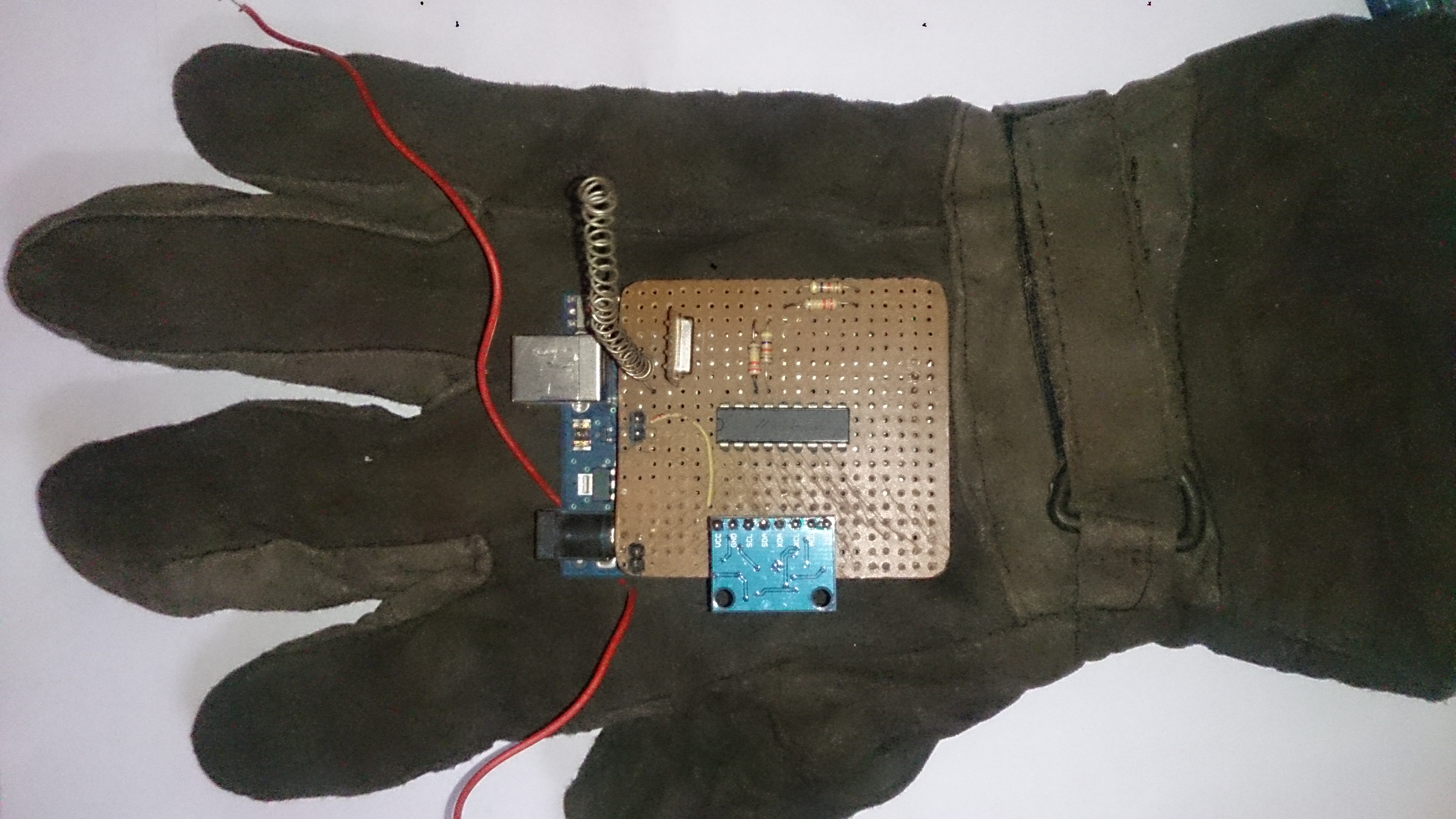

Make connection as mention below for the glove

For Gyroscope.

• Connect "SDA" from your accelerometer to analog pin 4(A4) of the Arduino.
• Connect "SCL" from your accelerometer to analog pin 5(A5) of the Arduino.
• VCC to arduino 3.3v pin.
• GND to arduino GND pin.

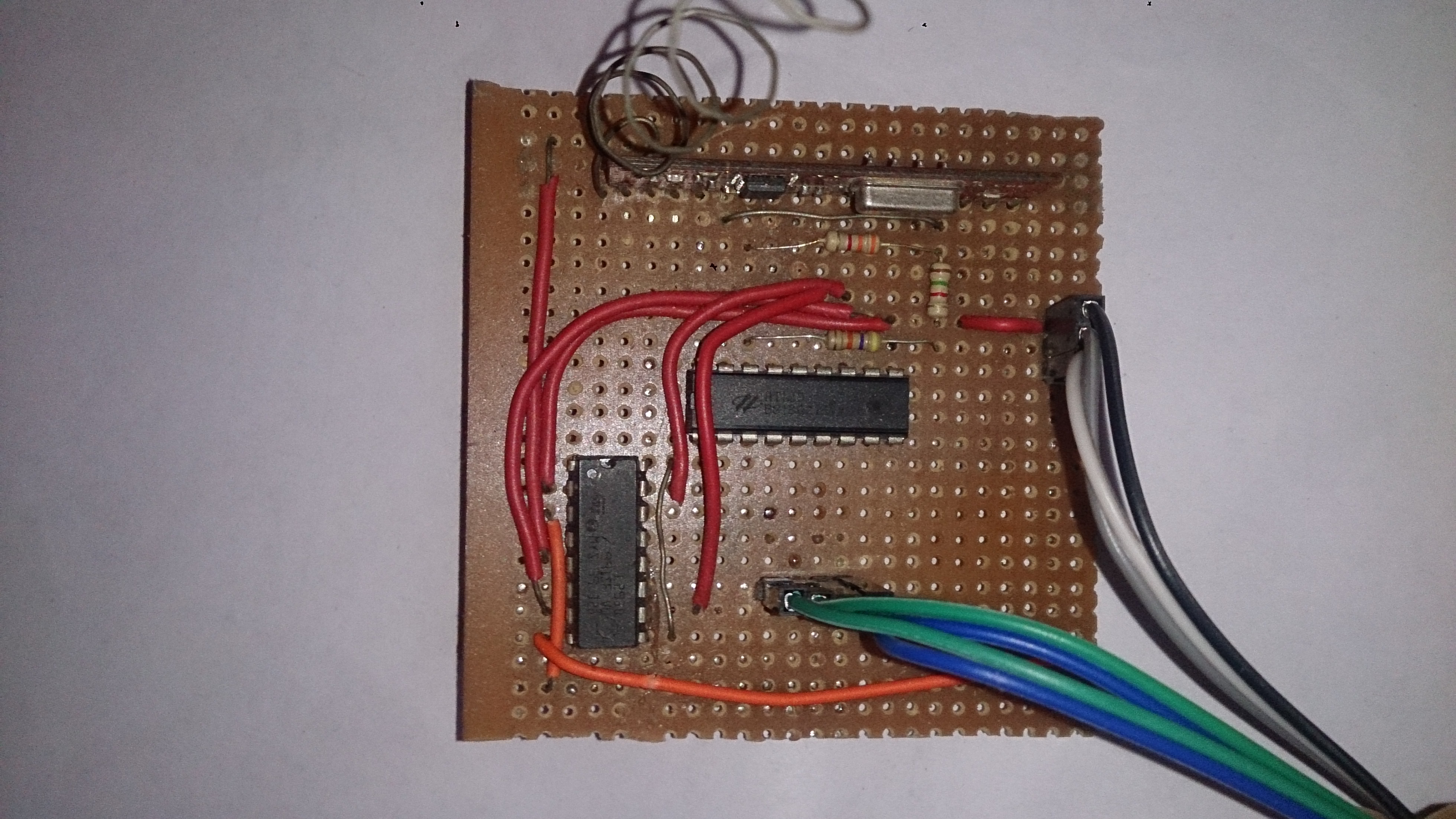

For Transmitter Module

• Connect VCC to arduino 5v pin.
• Connect GND to arduino GND pin.

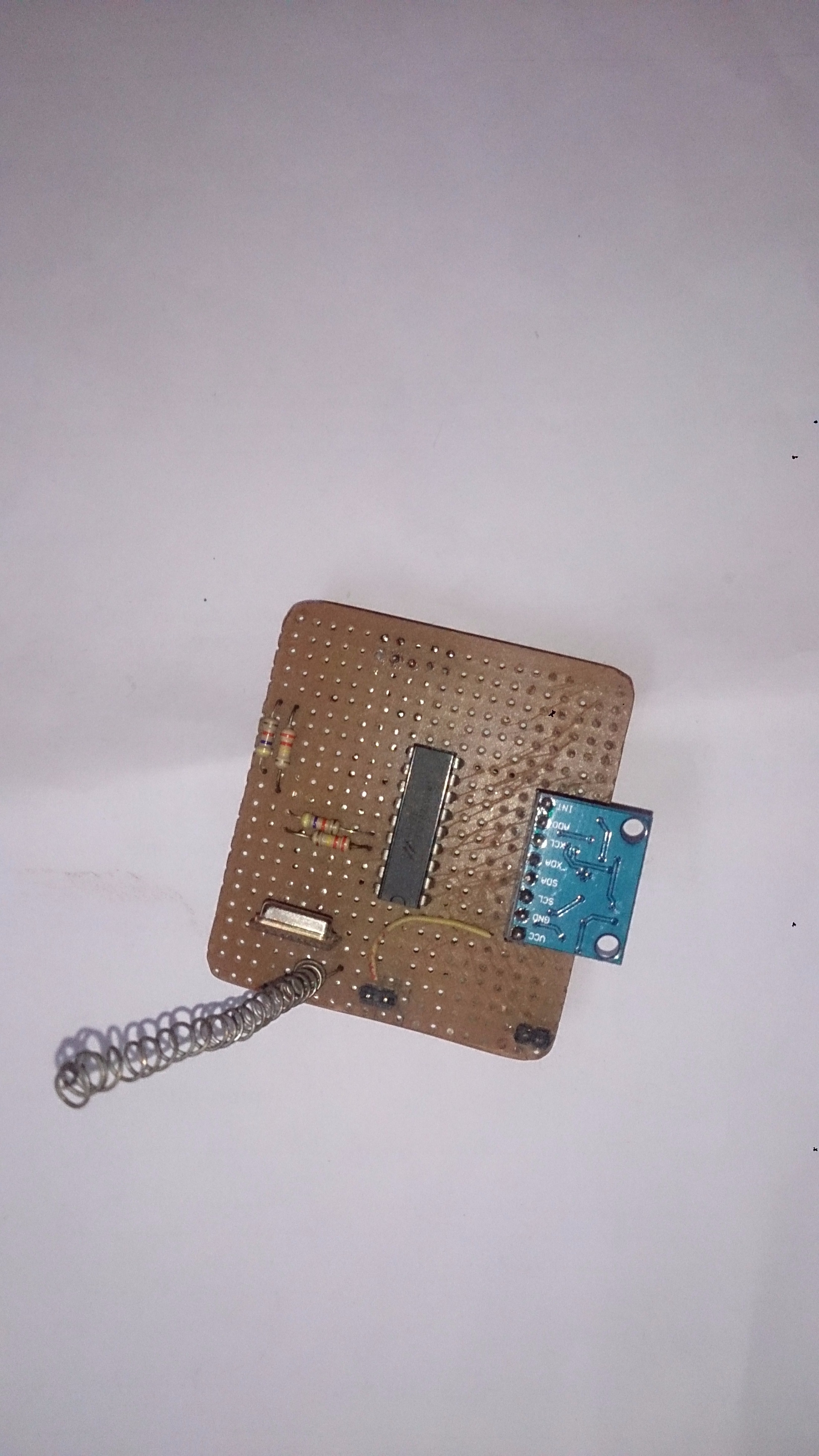

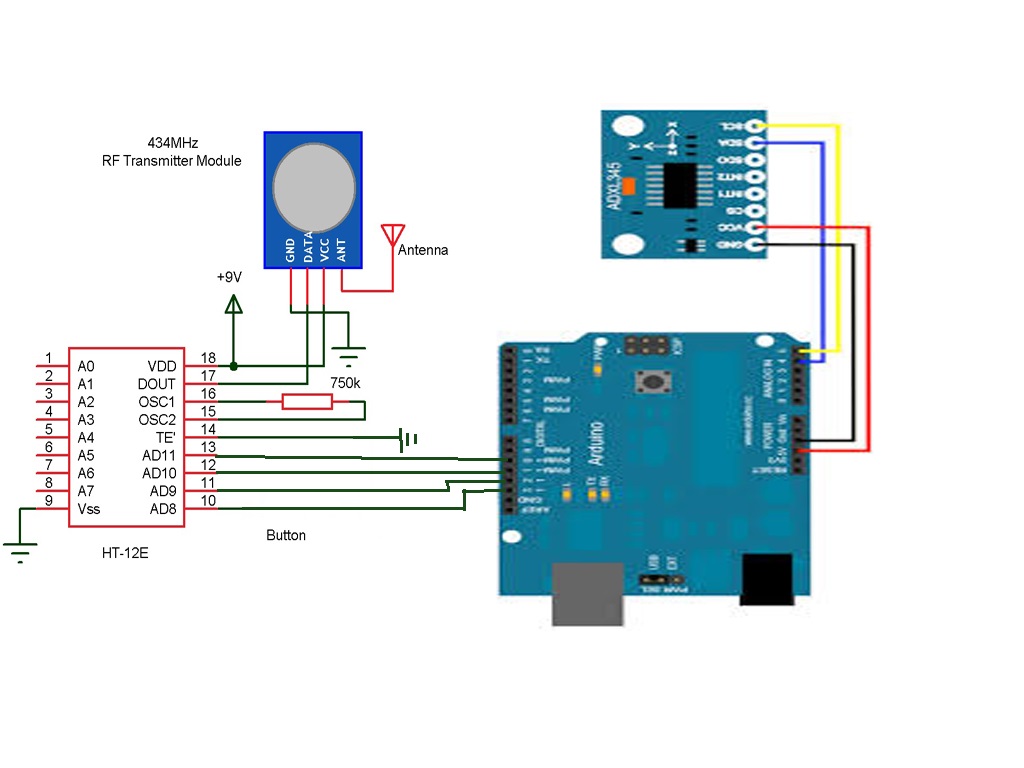

• Connect Rest of pins of ENCODER & TRANSMITTER as per the Figure 1.
• At last connection for battery.

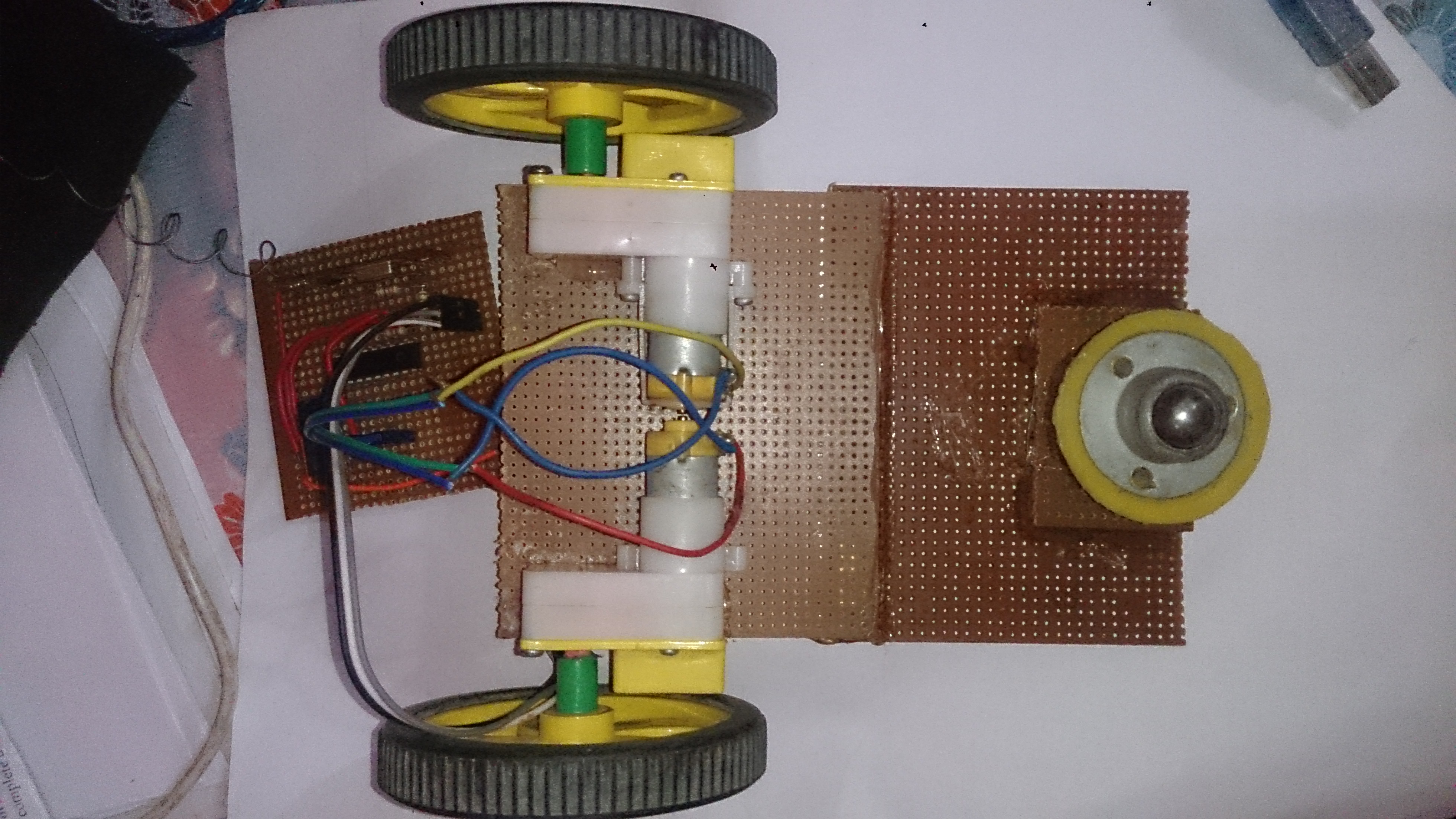

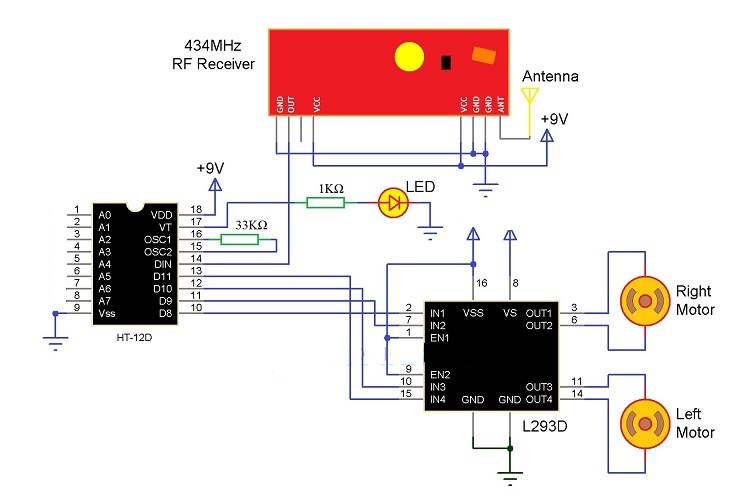

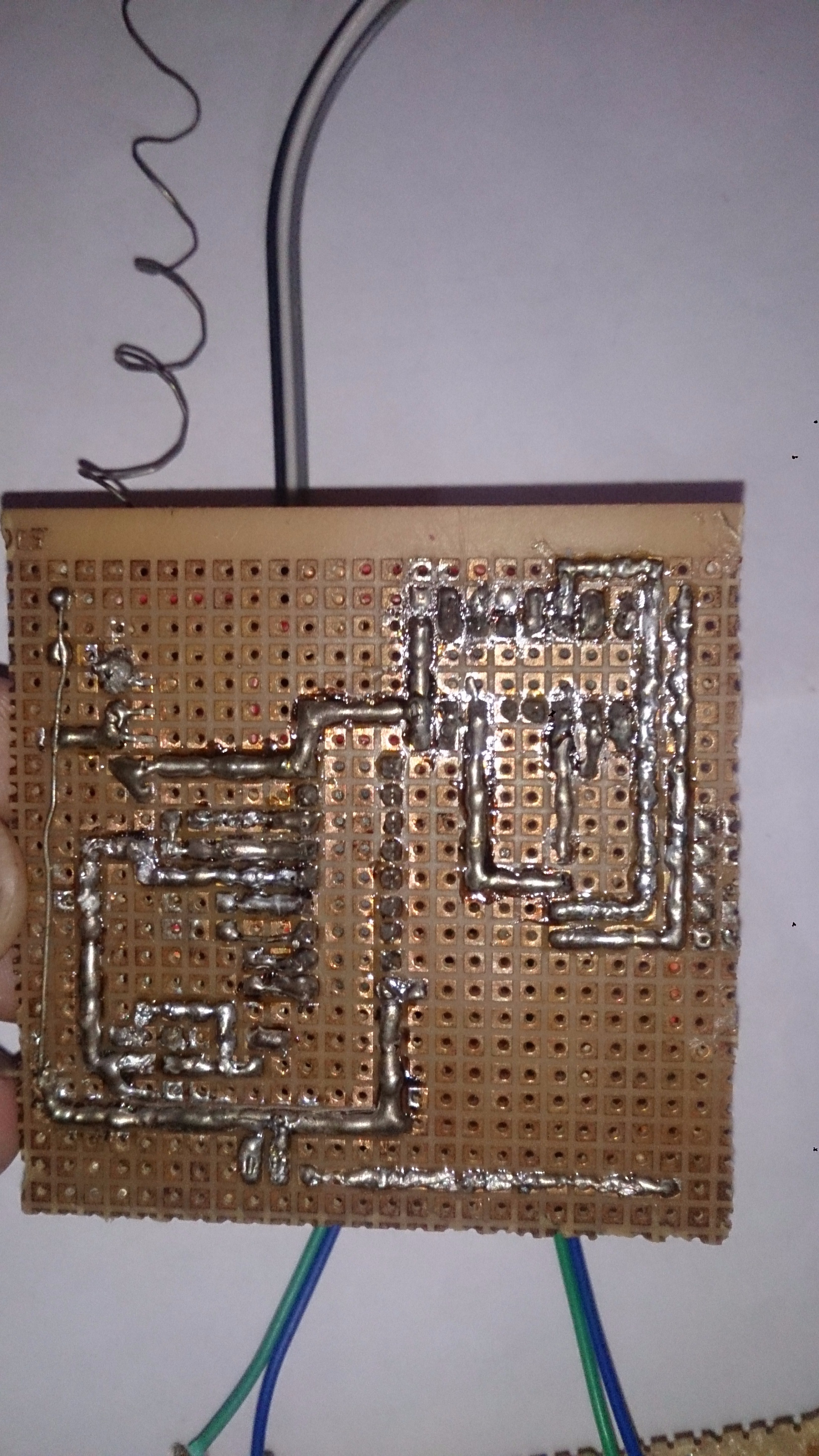

Make connection as mention in Figure 5. for the receiver(robotic car).

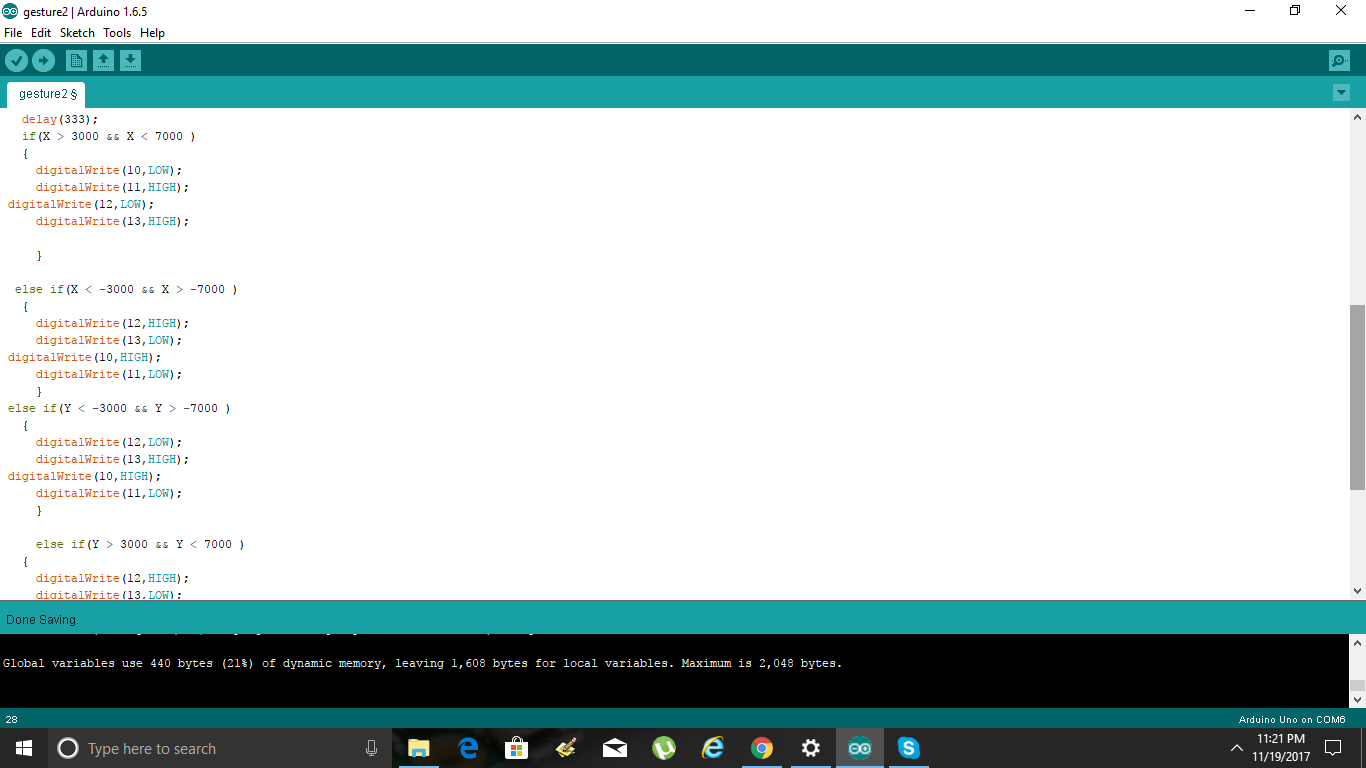

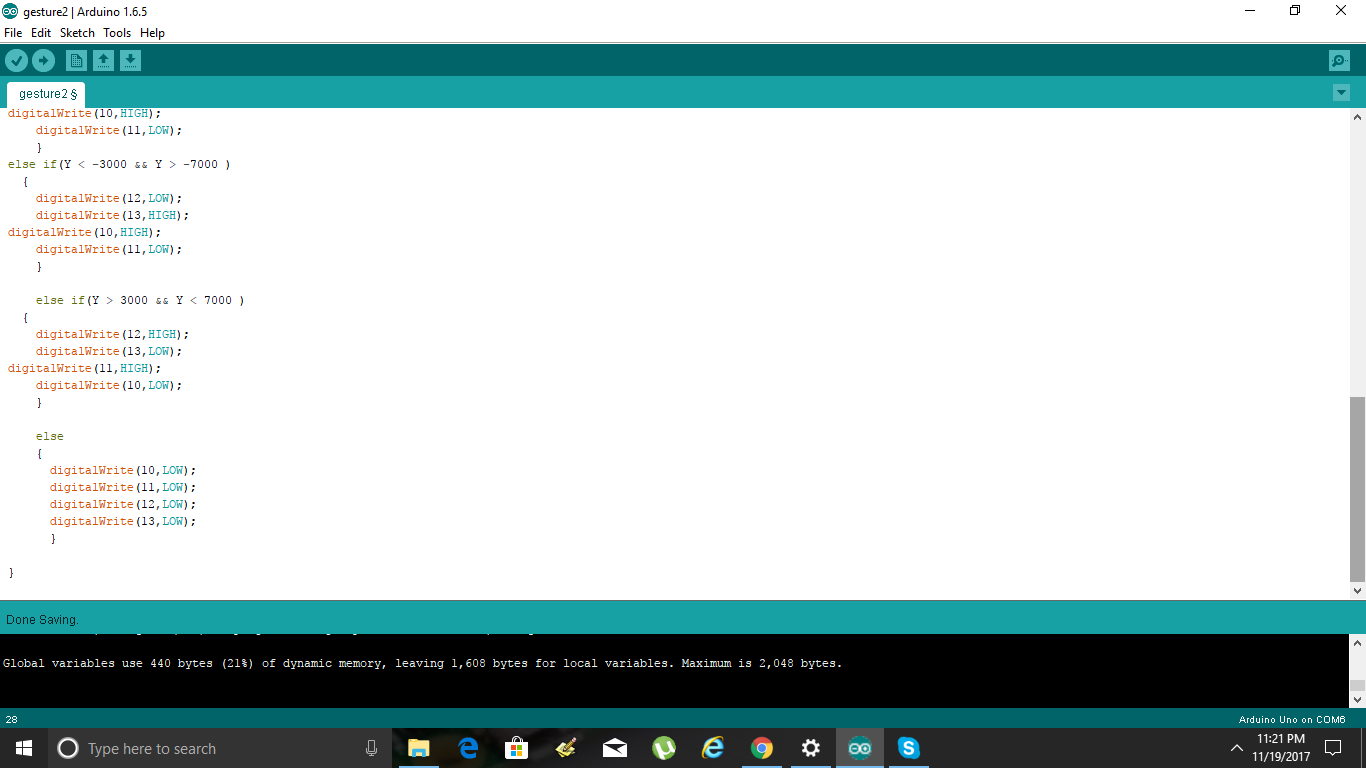

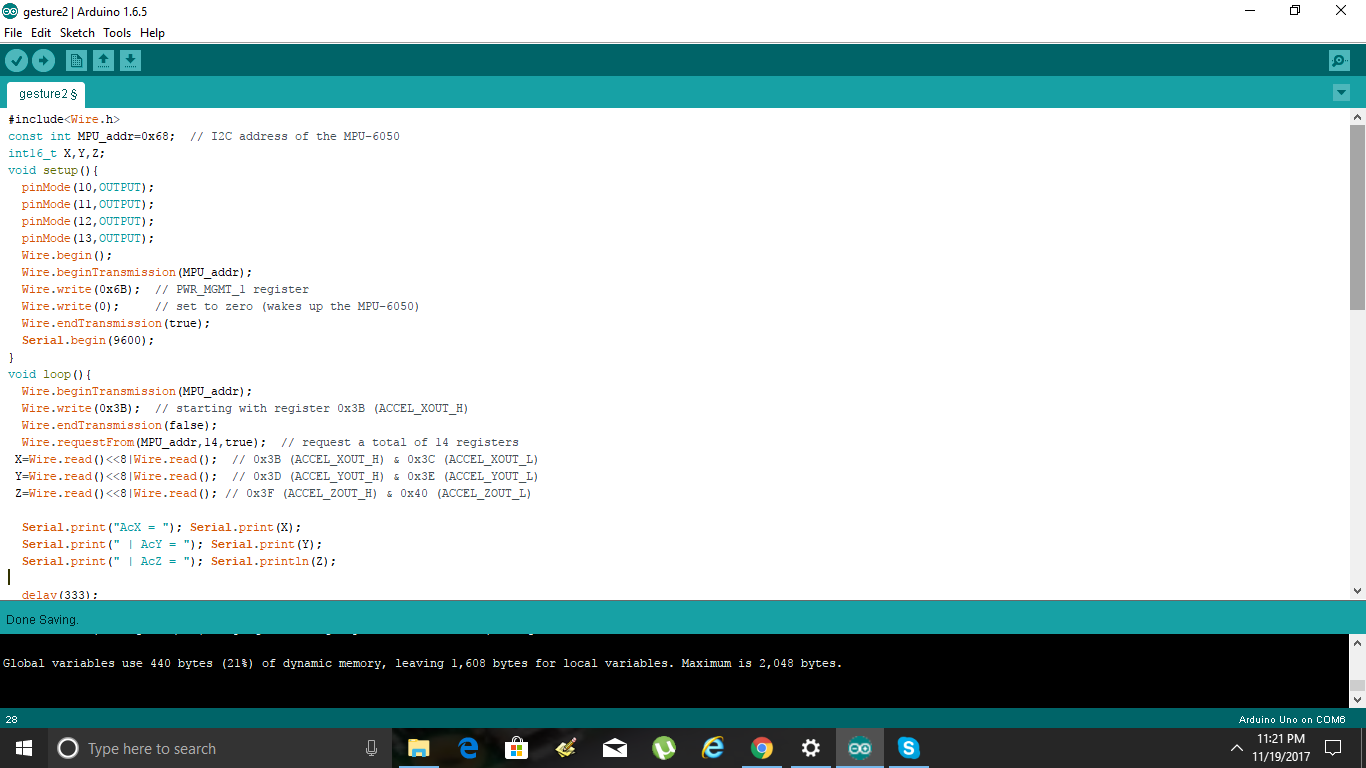

#include<wire.h>
const int MPU_addr=0x68;  // I2C address of the MPU-6050
int16_t X,Y,Z;
void setup()
{
  pinMode(10,OUTPUT);
  pinMode(11,OUTPUT);
  pinMode(12,OUTPUT);
  pinMode(13,OUTPUT);
  Wire.begin();
  Wire.beginTransmission(MPU_addr);
  Wire.write(0x6B);  // PWR_MGMT_1 register
  Wire.write(0);     // set to zero (wakes up the MPU-6050)
  Wire.endTransmission(true);
  Serial.begin(9600);
}

void loop()
{
  Wire.beginTransmission(MPU_addr);
  Wire.write(0x3B);  // starting with register 0x3B (ACCEL_XOUT_H)
  Wire.endTransmission(false);
  Wire.requestFrom(MPU_addr,14,true);  // request a total of 14 registers
 X=Wire.read()<<8|Wire.read();  // 0x3B (ACCEL_XOUT_H) & 0x3C (ACCEL_XOUT_L)
 Y=Wire.read()<<8|Wire.read();  // 0x3D (ACCEL_YOUT_H) & 0x3E (ACCEL_YOUT_L)
 Z=Wire.read()<<8|Wire.read(); // 0x3F (ACCEL_ZOUT_H) & 0x40 (ACCEL_ZOUT_L)

  Serial.print("AcX = "); Serial.print(X);
  Serial.print(" | AcY = "); Serial.print(Y);
  Serial.print(" | AcZ = "); Serial.println(Z);

  delay(333);
  if(X > 3000 && X < 7000 )
  {
    digitalWrite(10,LOW);
    digitalWrite(11,HIGH);
    digitalWrite(12,LOW);
    digitalWrite(13,HIGH);
    }
 else if(X < -3000 && X > -7000 )
  {
    digitalWrite(12,HIGH);
    digitalWrite(13,LOW);
    digitalWrite(10,HIGH);
    digitalWrite(11,LOW);
    }
else if(Y < -3000 && Y > -7000 )
  {
    digitalWrite(12,LOW);
    digitalWrite(13,HIGH);
    digitalWrite(10,HIGH);
    digitalWrite(11,LOW);
    }
    else if(Y > 3000 && Y < 7000 )
  {
    digitalWrite(12,HIGH);
    digitalWrite(13,LOW);
    digitalWrite(11,HIGH);
    digitalWrite(10,LOW);
    }

    else
    {
      digitalWrite(10,LOW);
      digitalWrite(11,LOW);
      digitalWrite(12,LOW);
      digitalWrite(13,LOW);
      }
}
