HC - 06 ( Slave Module ) Changing " NAME " Without Use " Monitor Serial Arduino " ...that " Works Easily " : Faultless Way !
After " Long Time " trying Changing Name onto HC - 06 ( slave Module ) , using " serial monitor of the Arduino , without " Sucess " , I found another easy way and im Sharing now !
Have Fun Buddies !

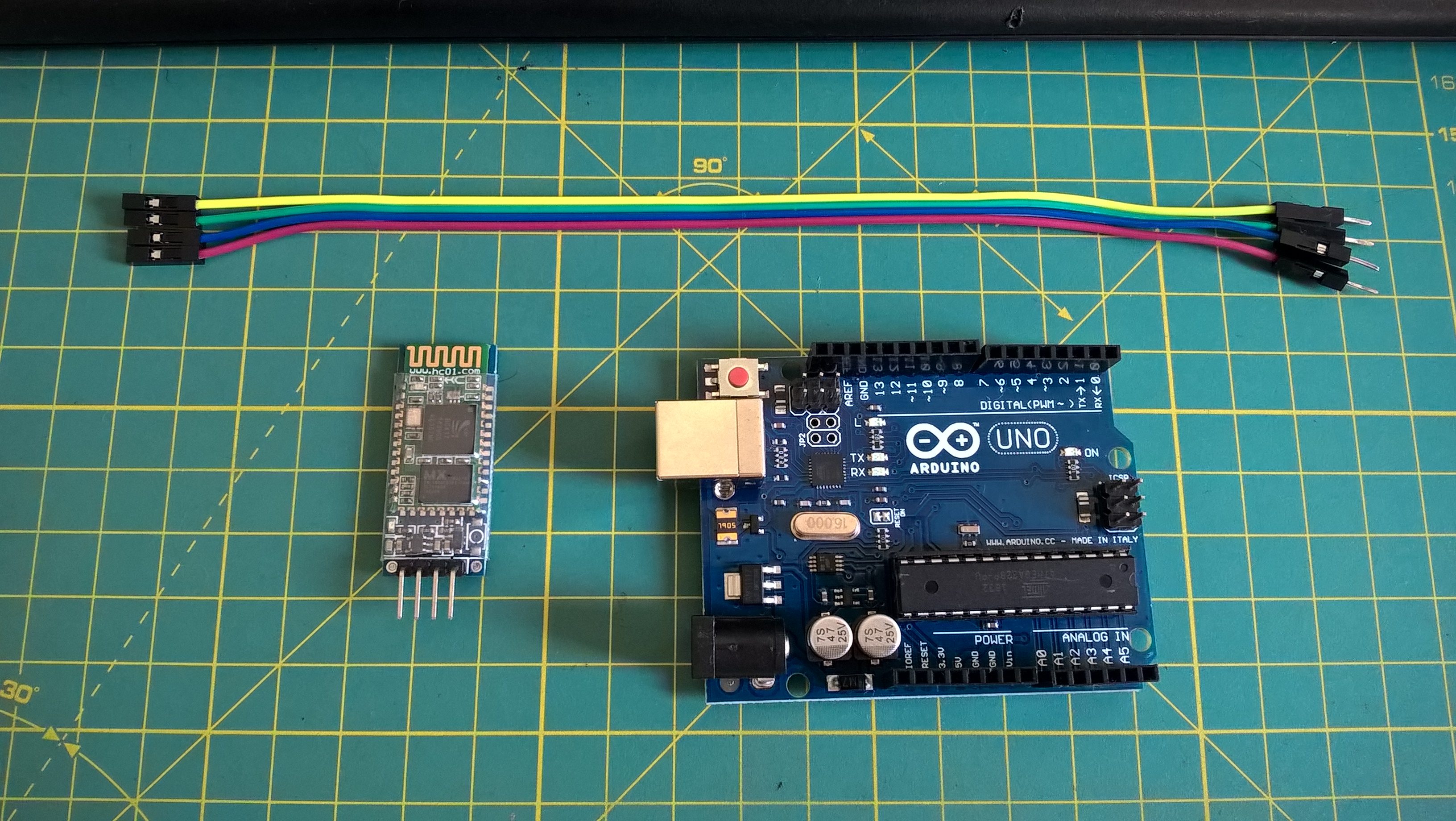

All List : Arduino UNO , HC - 06 (Module - Slave) , 4 Wires ( Male to Female ).

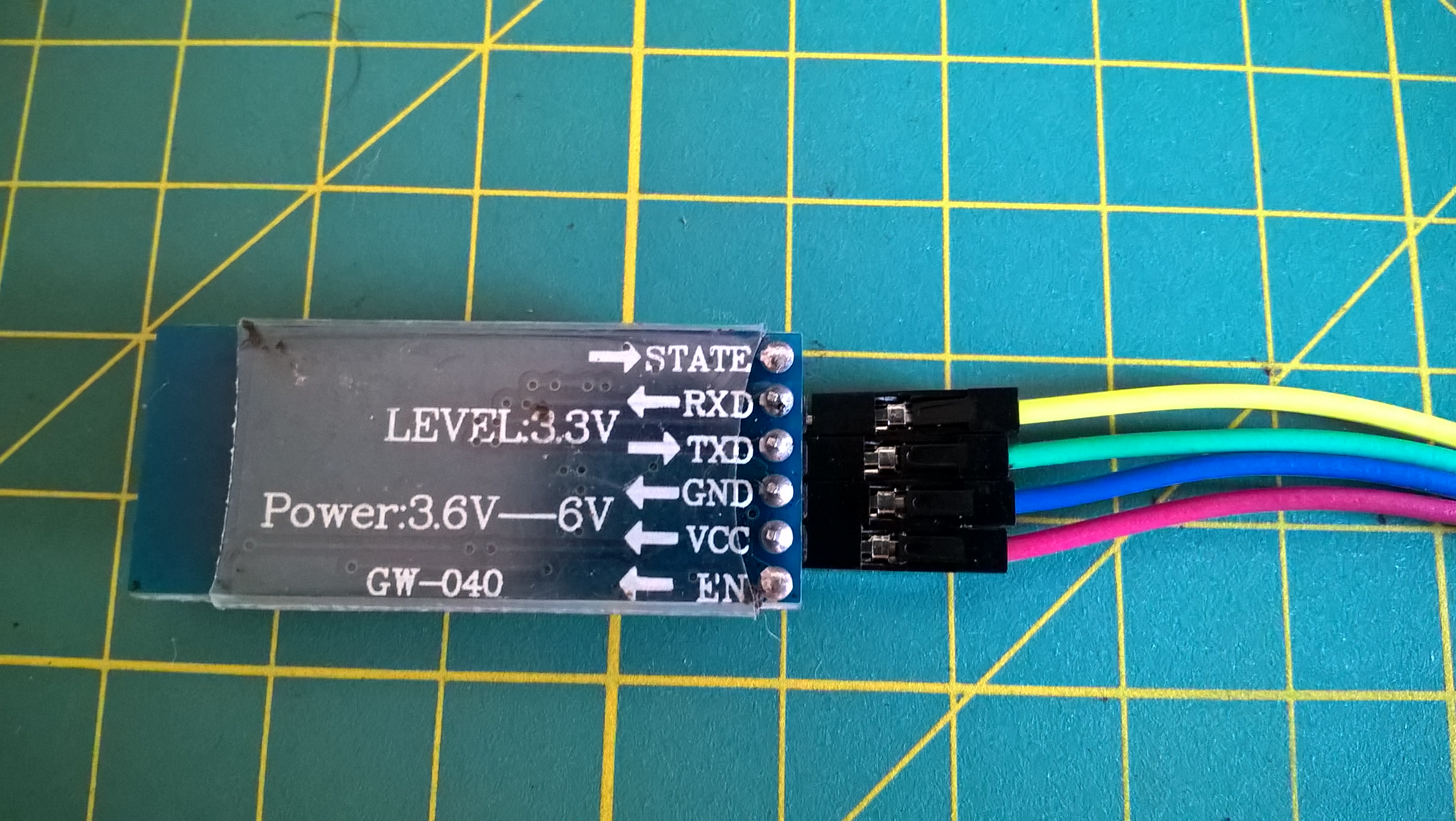

Conections :
- Module - TX pin -- Arduino RX pin
- Module - RX pin -- Arduino TX pin
- Module - GND pin -- Arduino GND pin
- Module - PWR pin -- Arduino 12 ( Digital ) pin ( The magical Works here ! )
Strech !
- After upload the Stretcher onto Arduino UNO
- Hook-up the Wires ( 4 - four )
- Remind ! Cross the TX - RX pin between Both ( Module x Arduino )
- Press the Resset Button of Arduino ...Wait till ( TX ) pin of Arduino Stop Blinking
- That´s all after the Main Led ( Arduino Relight = ON stedy )
- Congrats Well Done !
