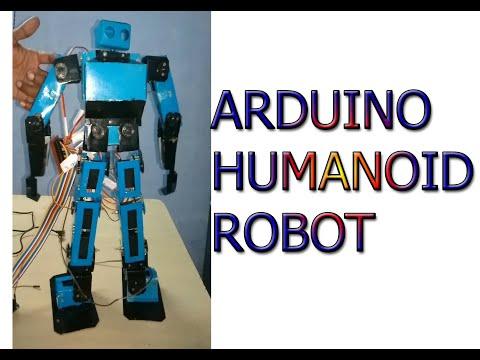

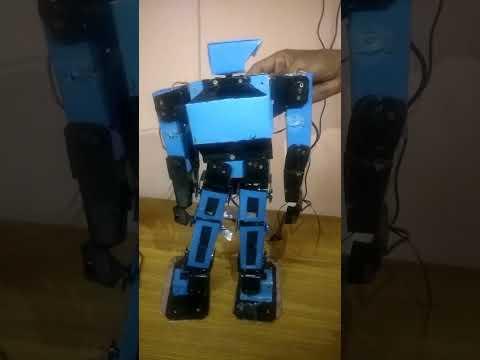

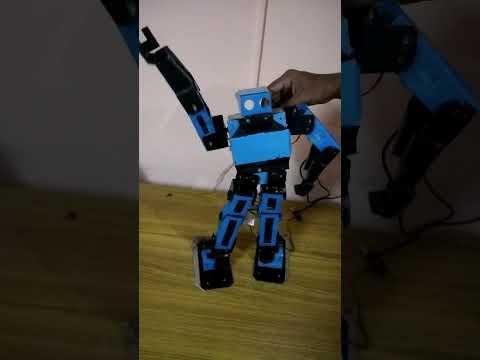

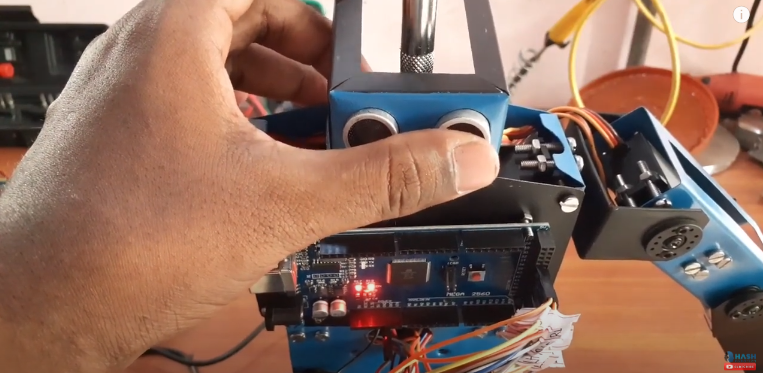

HOW TO MAKE ARDUINO BASED HUMANOID ROBOT //HUMANOID ROBOT DANCING //

WE ARE GOING TO MAKE A HUMANOID ROBOT. IT CAN BE DANCABLE AND WALKABLE.

METERIALS REQUIRED:

ARDUINO MEGA

ARDUINO USB CABLE

BLUETOOTH MODULE HC-05

JUMPER WIRE

SERVO MOTOR MG995

12V BATTREY

ULTRASONIC SENASOR

METAL SHEET 0.3MM

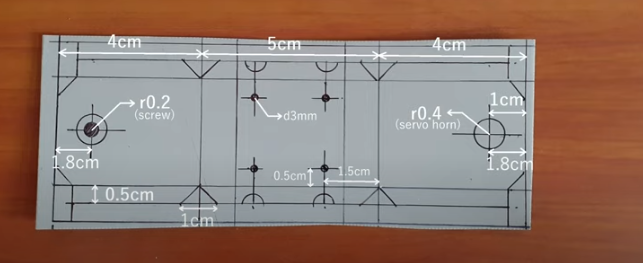

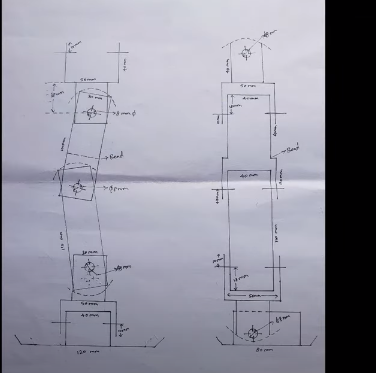

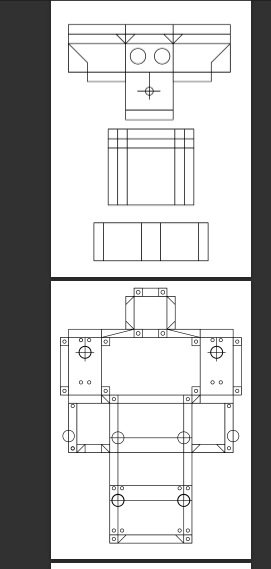

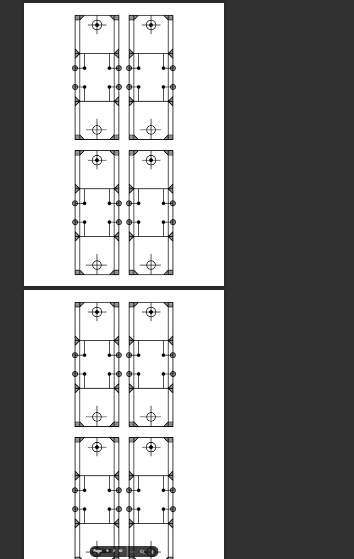

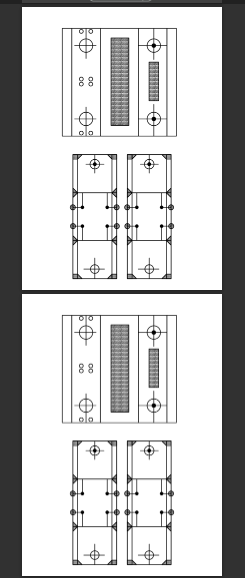

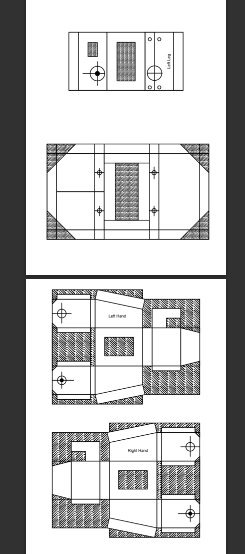

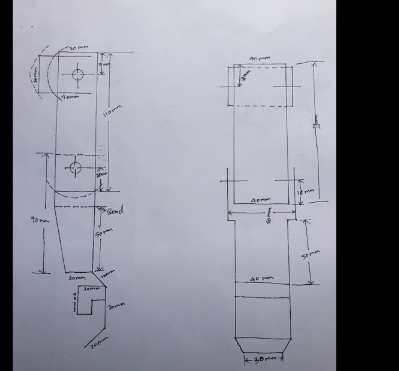

THIS IS THE REQUIRED DIMENSION . DRAW THIS DIMENSION IN METAL SHEET

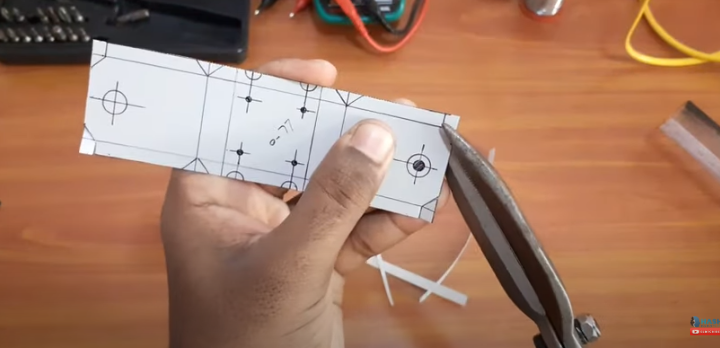

DRAW THIS DIMENSION IN METAL SHEET .THEN CUT IT USING CUTTER.

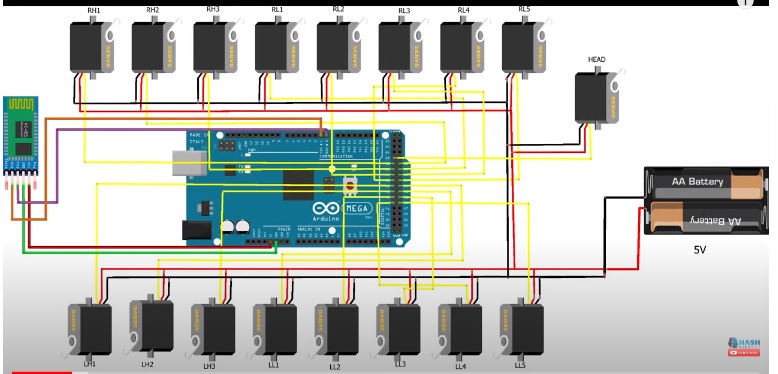

THIS IS THE CIRCUIT DIAGRAM.

THEN CODE IS GIVEN BELOW . UPLODE THID CODE USING ARDUINO IDE.

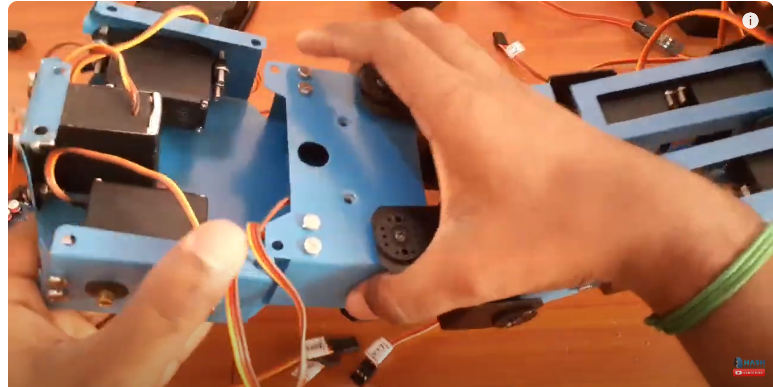

THEN ASSEMBLE THE ALL PARTS.

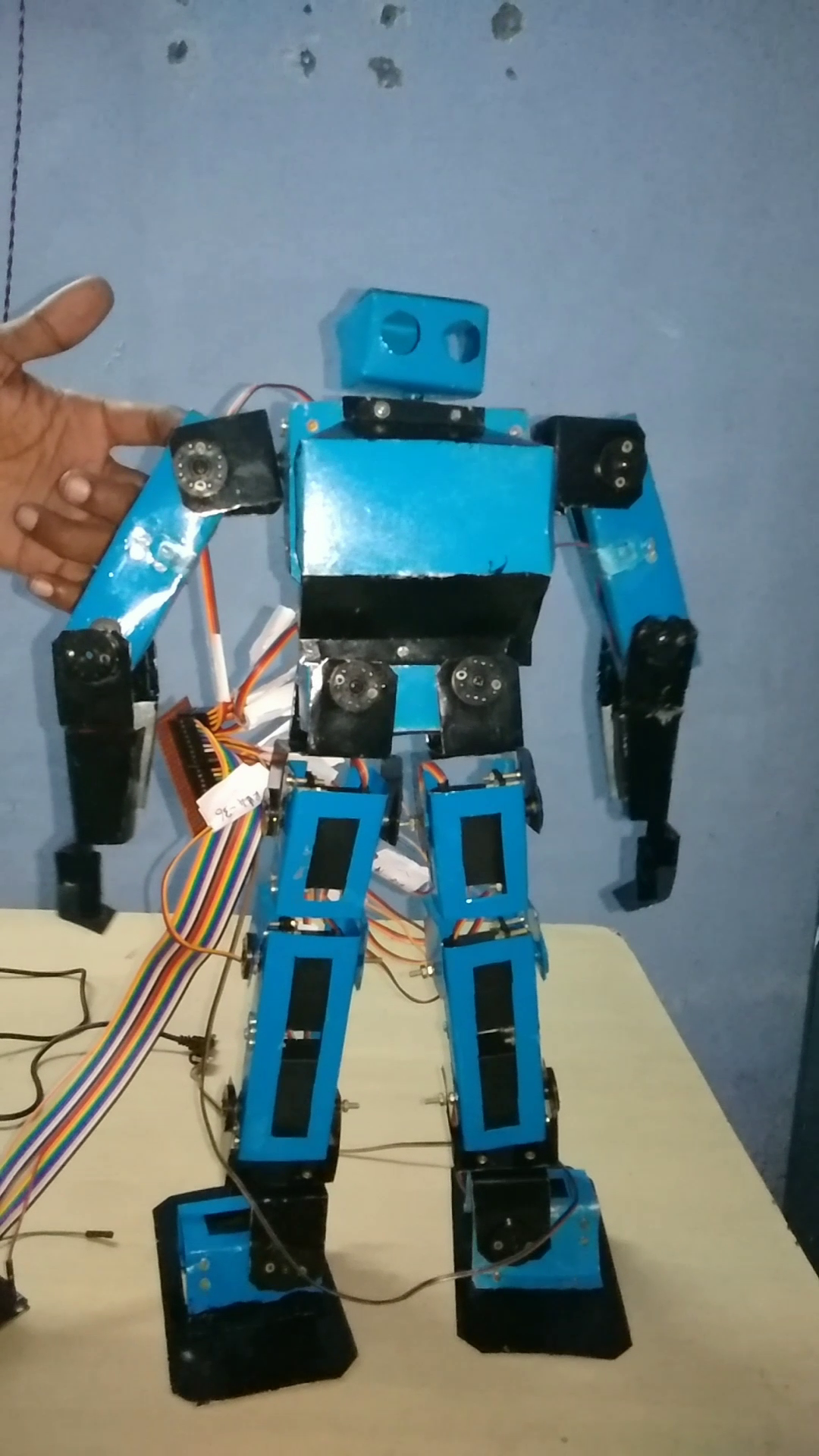

THEN POWER ON THE ROBOT AND ENJOY
