How to Build an Outdoor Hammock Stand $25
by Woodbrew in Outside > Backyard
234867 Views, 565 Favorites, 0 Comments
How to Build an Outdoor Hammock Stand $25
What to see more projects? Check out our YouTube Channel:) https://goo.gl/2s5Mwt
Materials Needed: (affiliate links)
- (7) 2x4x8
- (2) Stainless steel Eye Hooks http://amzn.to/2uCbnWO
- Hammock http://amzn.to/2uJF599
- Timberlok Screws http://amzn.to/2sIZ2eQ
Tools Needed:
- Circular saw: http://amzn.to/2u2TO0y
- Square: http://amzn.to/2u36ODl
- Drill: http://amzn.to/2oIg0aa
Cut Your Boards to Length
Follow the cut diagram above to make all your cuts. All the angles are 25ยบ and be sure to orientate them the correct way.
Assemble the Two Arms
Use the Yellow and Red pieces to create the arms. Sandwich these boards together using some Timberlok screws.

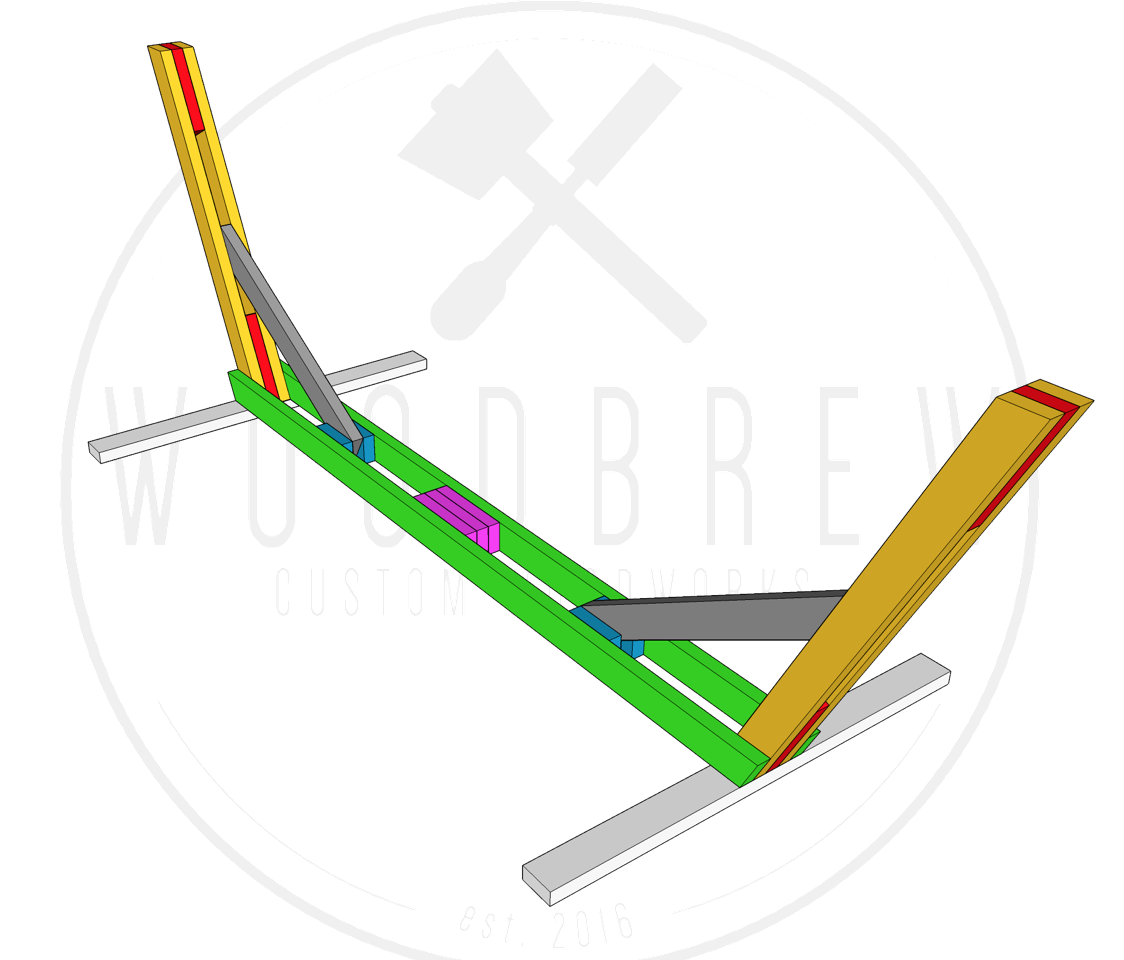

Assemble the Frame
Use the color coded diagram to help with the assembly. Use more 4.5" Timberlok screws.
Add the Feet
Flip over the frame and add your two feet. Be sure to center these to the frame.
Add the Supports
Eye ball a good angle and screw these in place. All that matters is that this section looks good. They just add support to the frame. Be sure to step back and make sure you are doing each side the same.
Add the Eye Screws
Use Stainless steel eye screws here. Pre drill and use a screw driver to screw them in. We used these: http://amzn.to/2u2GdEK
Move Into Place
Find a nice place for your hammock and Relax! Your All DONE!
