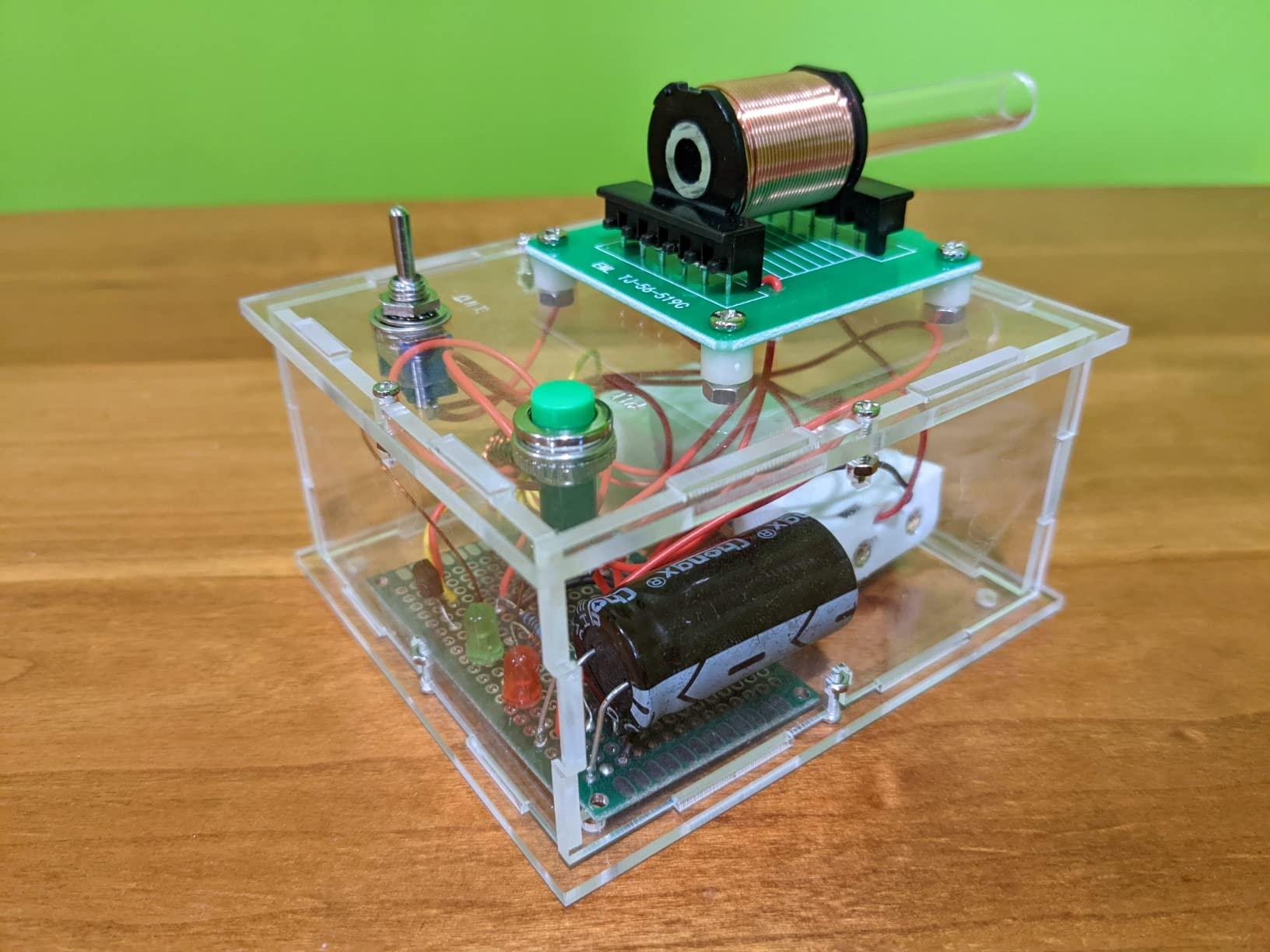

How to Bulid a Fun Electromagnetic Transmitter Toy by Yourself
Build it with your kids, it can strengthen the interaction between parents and children.
This DIY Kit is a good project to hone soldering skills. On one side you understand the working principle of electromagnetic transmitters and learn the basics of electronic technology and on the other side you get a small shooting game toy.
TJ-56-519A is a DC 3V High Voltage Electromagnetic Transmitter DIY Kit. It can simulate an electromagnetic transmitter and convert electrical energy into magnetic energy, thereby injecting a metal cylinder.

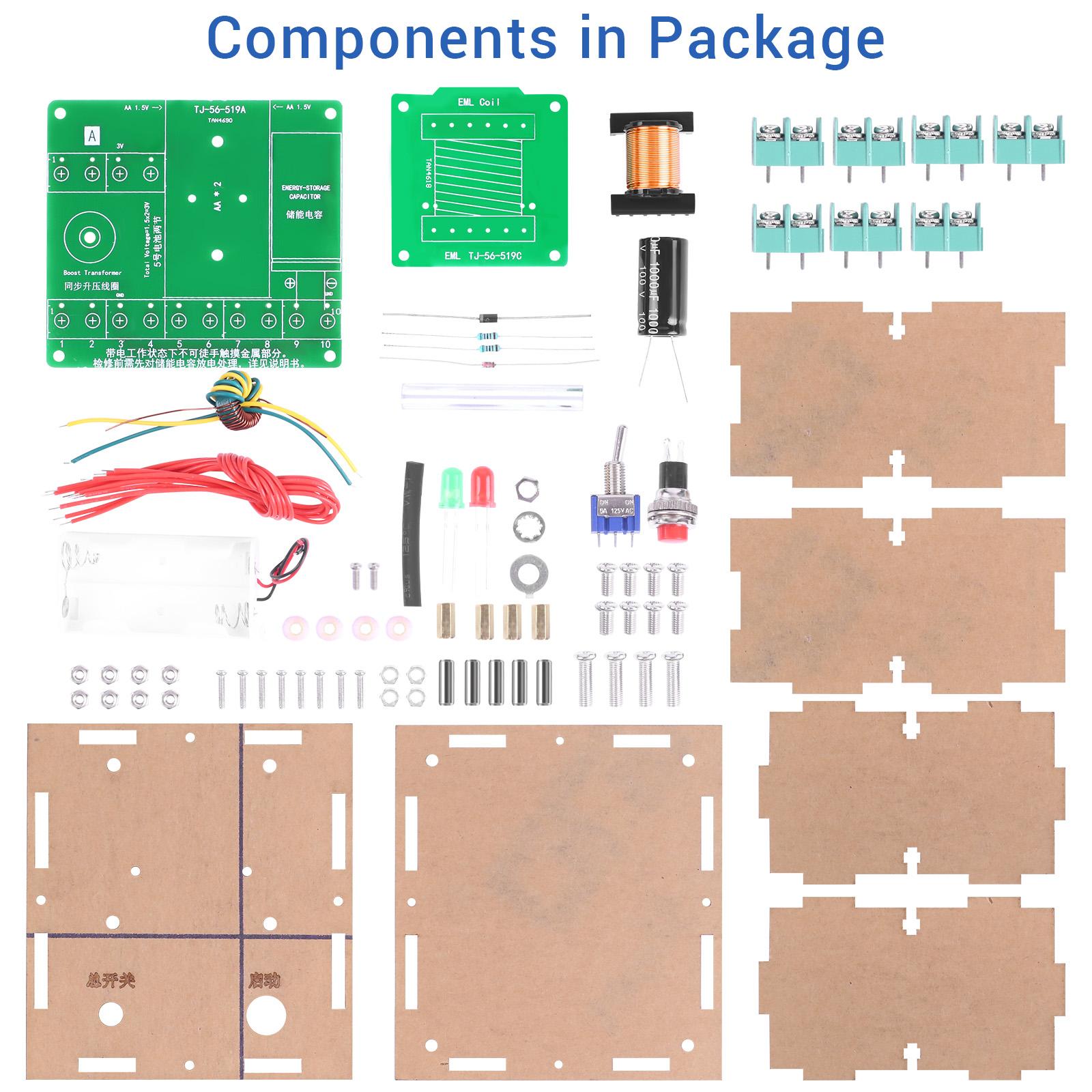

Supplies
Getting started with basic electronics is easier than you might think. This Instructable introduce the installation step by step, will hopefully demystify the basics of electronics so that anyone with an interest in building circuits can hit the ground running.
Let's do it!
Using Step:

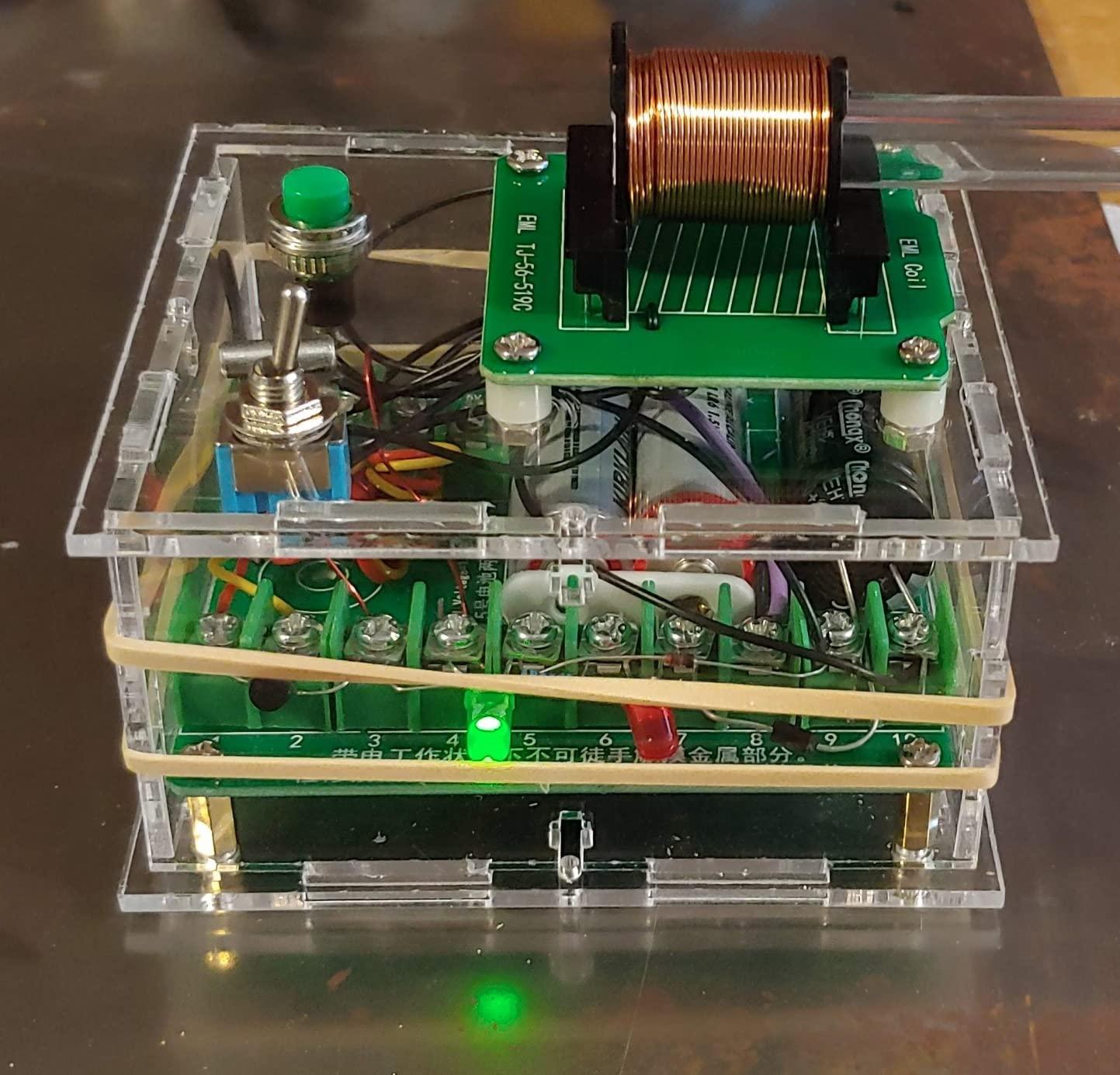

1>. Turn ON left blue toggle power switch then the green power indicator will turn ON.
2>. The circuit starts to charge the capacitor.
3>. The Red charged indicator will turn ON(Note:Just shining slightly!!!) after 2~3 minute. That is means the capacitor is fully charged.

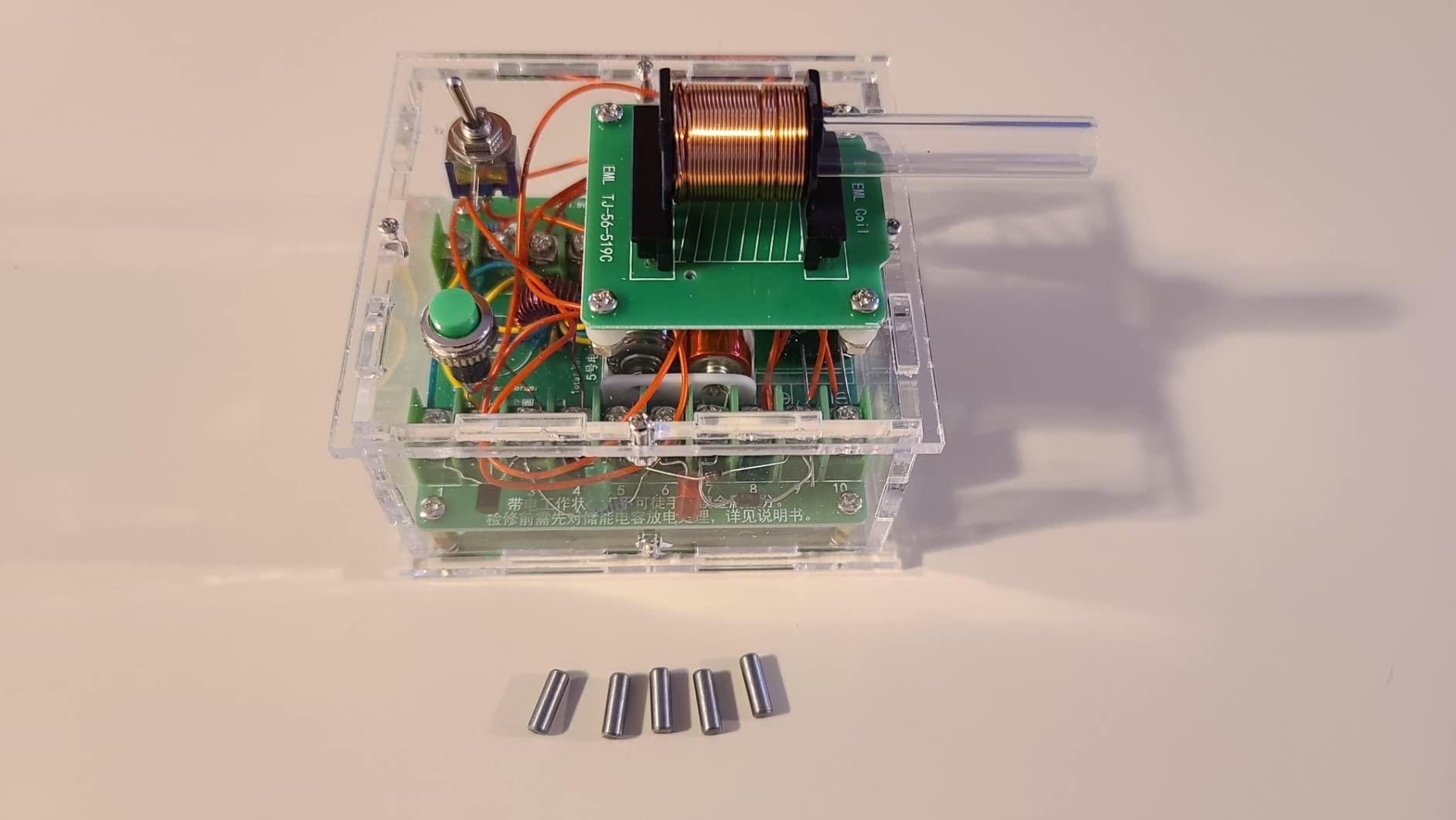

4>. Place 1pcs M4*12mm Iron Pillar on Transparent Plastic Tube and align.
5>. Press Red Momentary Start Switch to transmit Iron Pillar.
Splicing Terminal Blocks for Later Installation on PCB
Installation Tips:
1>.User needs to prepare the welding tool at first.
2>.Please wear anti-static gloves or anti-static wristbands when installing electronic components.
3>.The package is DIY kit.It need finish install by user.
4>.The soldering iron can't touch the components for a long time(1.0 second), otherwise it will damage the components.
5>.Pay attention to the positive and negative of the components.
6>.Strictly prohibit short circuit.
7>.User must install the LED according to the specified rules.Otherwise some LED will not light.
8>.Install complex components preferentially.
9>.Make sure all components are in right direction and right place.
10>.Check that all of the LED can be illuminated.
Install 1pcs 5.1Kohm Metal Film Resistor at Pin-L* and Pin-L
Install 1pcs TO-92 S9013 Transistor at At Pin-1, Pin-2, Pin-3
Install 1pcs 5mm Green LED at Pin-4 and Pin-5
Install 1pcs 5mm Red LED at Pin-6 and Pin-7
Install 1pcs 5.1Kohm Metal Film Resistor at Pin-3 and Pin-6
Install 1pcs DO-35 1N4148 Diode at Pin-5 and Pin-9
Install 1pcs DO-41 2EZ91D5 Zener Diode at Pin-7 and Pin-9
Use a Knife to Scrape Off the Insulation Layer on the Surface of the Metal Wire on Magnetic Ring Coil About 10mm.
Connect Magnetic Ring Coil
Install 1pcs 1000uF 100V Electrolytic Capacitor at Pin-9 and Pin-10
Fix 1pcs 2*AA Battery Box by 2pcs M2*6mm Screw and 2pcs M2 Nut
Connect Power Wire Form Battery Box to PCB
Install 4pcs M3*10mm Copper Cylinder and 4pcs M3*6mm Screw on PCB As Bracket
Install 2pcs 20cm Red Wires on Smaller PCB
Install 1pcs Electromagnetic Coil on Smaller PCB
Connect 2pcs 20cm Red Wire to Blue Toggle Power Switch
Connect 2pcs 20cm Red Wire to Red Momentary Transmit Switch
Tear Off the Protective Film on the Black Acrylic Surface
Fixed Bottom Acrylic Plate by 4pcs M3*6mm Screw
Fixed 4pcs Acrylic Panels on the Side by 4pcs M2*10mm Screw and 4pcs M2 Nut
Fixed Two Switch on Top Acrylic Plate by Matching Screws and Gaskets
Fixed the Smaller PCB on Top Acrylic Plate by 4pcs M3*5mm Nylon Cushion and M3*12mm Screw and M3 Nut
Power Switch Wires Connect to Pin-L2 and Pin-3V; Transmit Switch Wires Connect to Pin-8 and Pin-9. Electromagnetic Coil Wires Connect to Pin-8 and Pin-10
Fixed the Top Acrylic Plate by 4pcs M3*6mm Screw
Install Transparent Plastic Tube on Electromagnetic Coil
