How to Fix a Cracked Bosch 18V Drill (GSR18V-50 Shell Swap)

If you work on job sites, you know the sound: your drill slips off a ladder, hits the concrete floor, and the plastic handle cracks right in half.

For the Bosch GSR18V-50 and GSB18V-50 18V Brushless Drills, the heavy metal chuck and the brushless motor usually survive a nasty drop without a scratch. But the plastic housing? Not so much.

Most people assume a cracked housing means the tool is garbage, and they spend over $120 on a new bare tool. Others wrap it in duct tape—which is dangerous because it traps heat and conductive dust, eventually killing the brushless motor.

The smartest fix is a 20-minute "guts swap." You don't need a new drill; you just need to transplant the perfectly good internal components into a brand-new empty shell. In this Instructable, I will show you how to safely perform this repair and save your tools from the landfill.

You only need a few basic hand tools and the correct OEM-spec replacement housing.

Materials Needed:

1. A broken Bosch GSR18V-50 or GSB18V-50 Drill

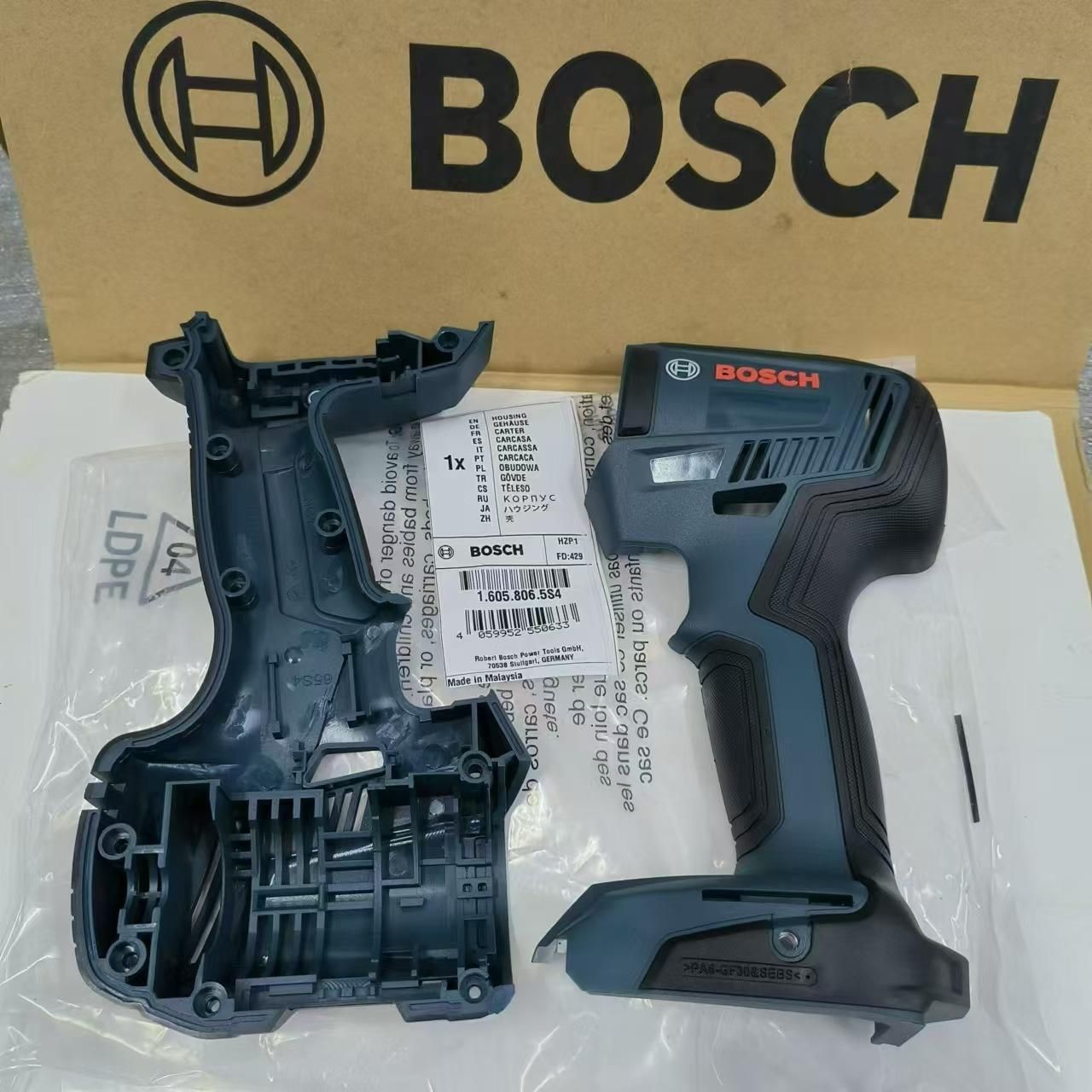

2. Bosch Replacement Housing Shell (I sourced this exact-fit OEM clamshell from FixPartHub. Make sure you get the right model so the internal ribs align perfectly).
3. Torx Screwdrivers (Bosch typically uses T10 or T15 security Torx screws)
4. A Smartphone (Absolutely crucial for taking reference photos)

Safety First: Never open a power tool with the battery attached. Remove your 18V battery and set it aside.

Lay the drill flat on your workbench. Using your Torx screwdriver, carefully remove all the screws holding the two halves of the plastic clamshell together. Keep them in a small magnetic tray so you don't lose them.

Once all the screws are out, gently pry the top half of the plastic shell straight up. It should lift away easily, exposing the internal mechanics.

Stop right here. Do not pull any parts out yet!

The internal architecture of a Bosch brushless drill is packed extremely tight. The thick power wires running from the battery terminal up to the motor and trigger sit in highly specific, molded routing channels.

Grab your smartphone and take 3 clear, close-up photos of how the wires are routed. If you do not put the wires back in these exact channels in the new shell, you will pinch and cut them when you screw the housing together. Your photos are your map.

One of the best things about Bosch engineering is the modular design. You do not need to unsolder a single wire.

You can carefully lift the entire internal assembly—the chuck, planetary gearbox, brushless motor, electronic control board, and trigger—straight up and out of the broken plastic shell as one large, connected unit.

Take the right half of your new FixPartHub replacement shell and lay it flat. Carefully lower your internal assembly into the new plastic. You will feel the heavy metal gearbox and the motor "seat" themselves into the reinforced plastic ribs.

Pull out your smartphone and look at the reference photos you took in Step 3. Press every single wire deeply into its designated channel in the new housing. Make sure no wires are crossing over screw holes.

Place the left half of your new clamshell over the assembly. It should close completely flush with zero resistance. If there is a gap, take it off and check your wires again. Do not force it!

Once it sits flush, drive all your Torx screws back into place. Slide your 18V battery onto the fresh rails, pull the trigger, and listen to it purr. You just resurrected a premium power tool, saved yourself a hundred bucks, and kept e-waste out of the garbage!
