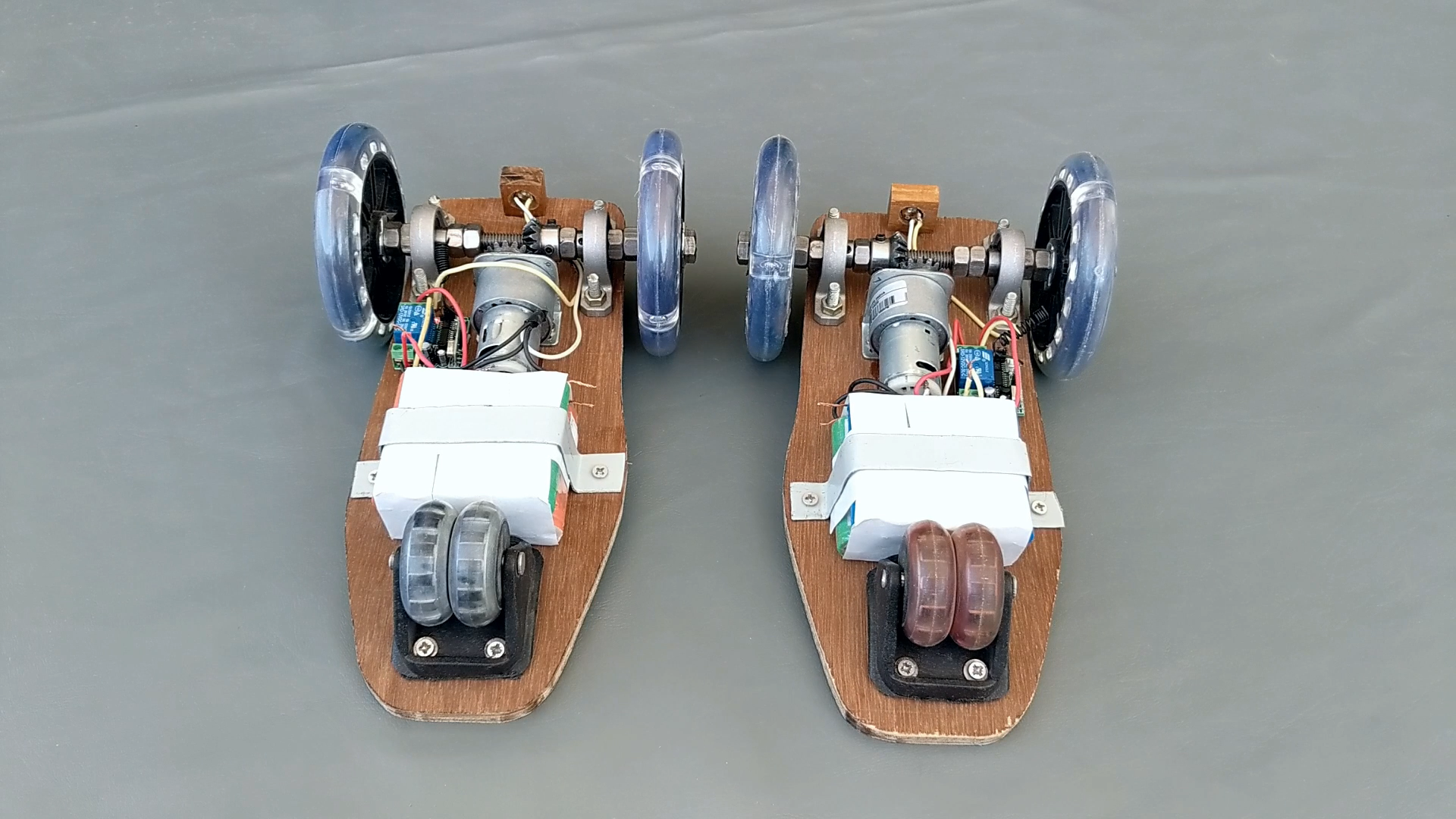

How to Make a Motorized Shoes / Skating at Home

Walking is difficult. You’ve got to use all those lousy leg muscles, not to mention overload your brain with orders to move each individual leg in a tiring synchronized motion. Thankfully now you can move effortlessly with these electric motorized shoes.

source: Navin Khambhala # crazyNK

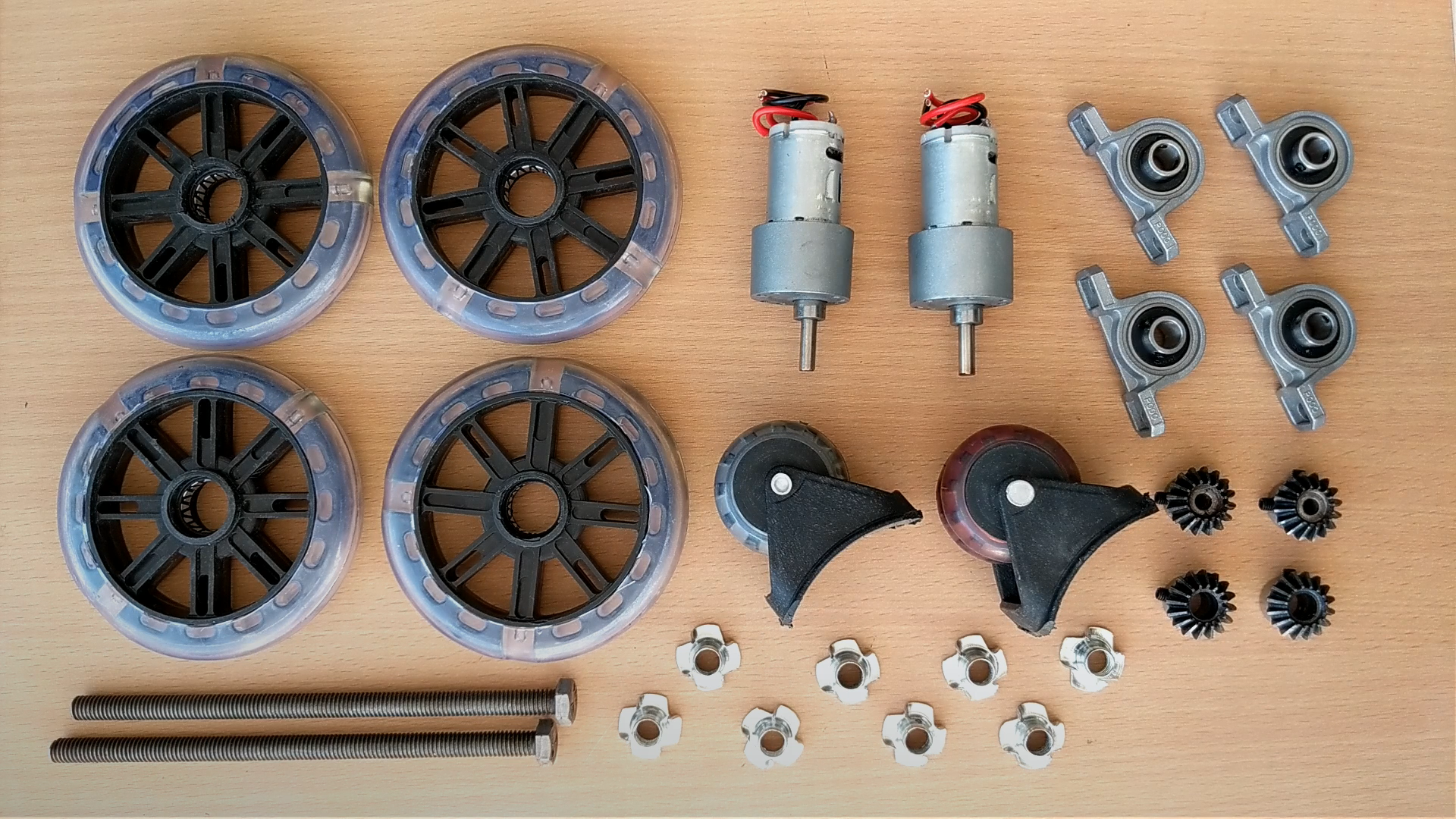

1. 12V DC Metal Gear Motor

Quantity: 2 Pieces, RPM: 200, Torque: minimum 30 kgcm

2. Bicycle Training Wheels

Quantity : 2 pair

3. Ball Bearing Pillow Block Mounted Support

Quantity: 4 pieces, Size: 10 mm (KP000 )

4. 90 Degree Steel Gears With Screws

Quantity and Size: 10mm (2 pieces) & 6mm (2 pieces)

5. Four Prong T Nut

Quantity: 8 pieces, Size: M10

6. Heavy Duty Caster with Twin Wheels Fixed

7. Nuts and bolts

Size: 10 mm length: 7 inches

8. 10A Relay 1 CH Wireless Remote Control Switch

Quantity : 2 pieces

9. 12V DC female socket

Quantity : 2 pieces

10. Clamp for Geared DC motor

Quantity: 2 pieces

11. 3.7 V Li-ion Battery

Recommended: Remove from old laptop battery or PowerBank

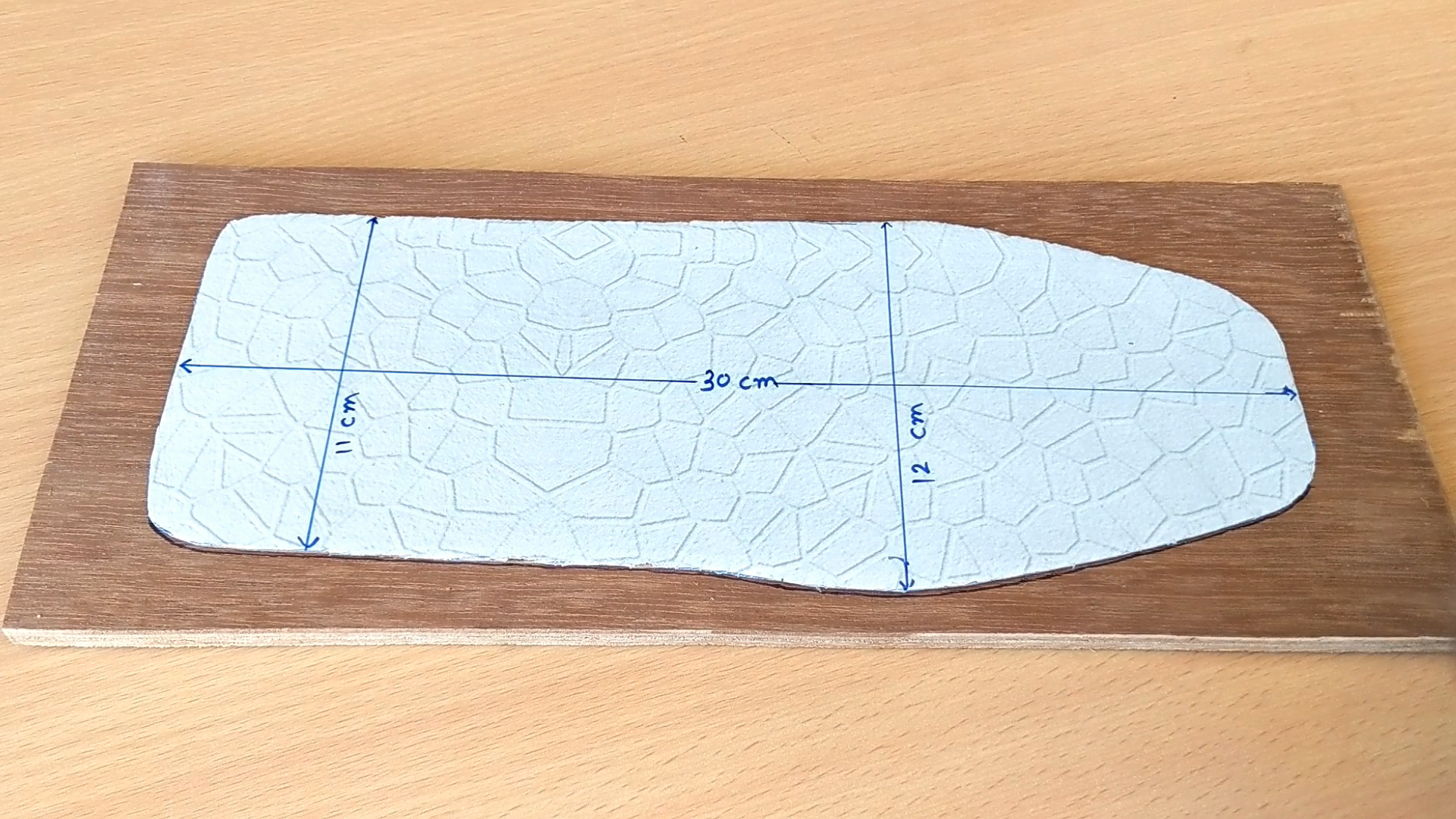

Use 8mm Plywood to make this part

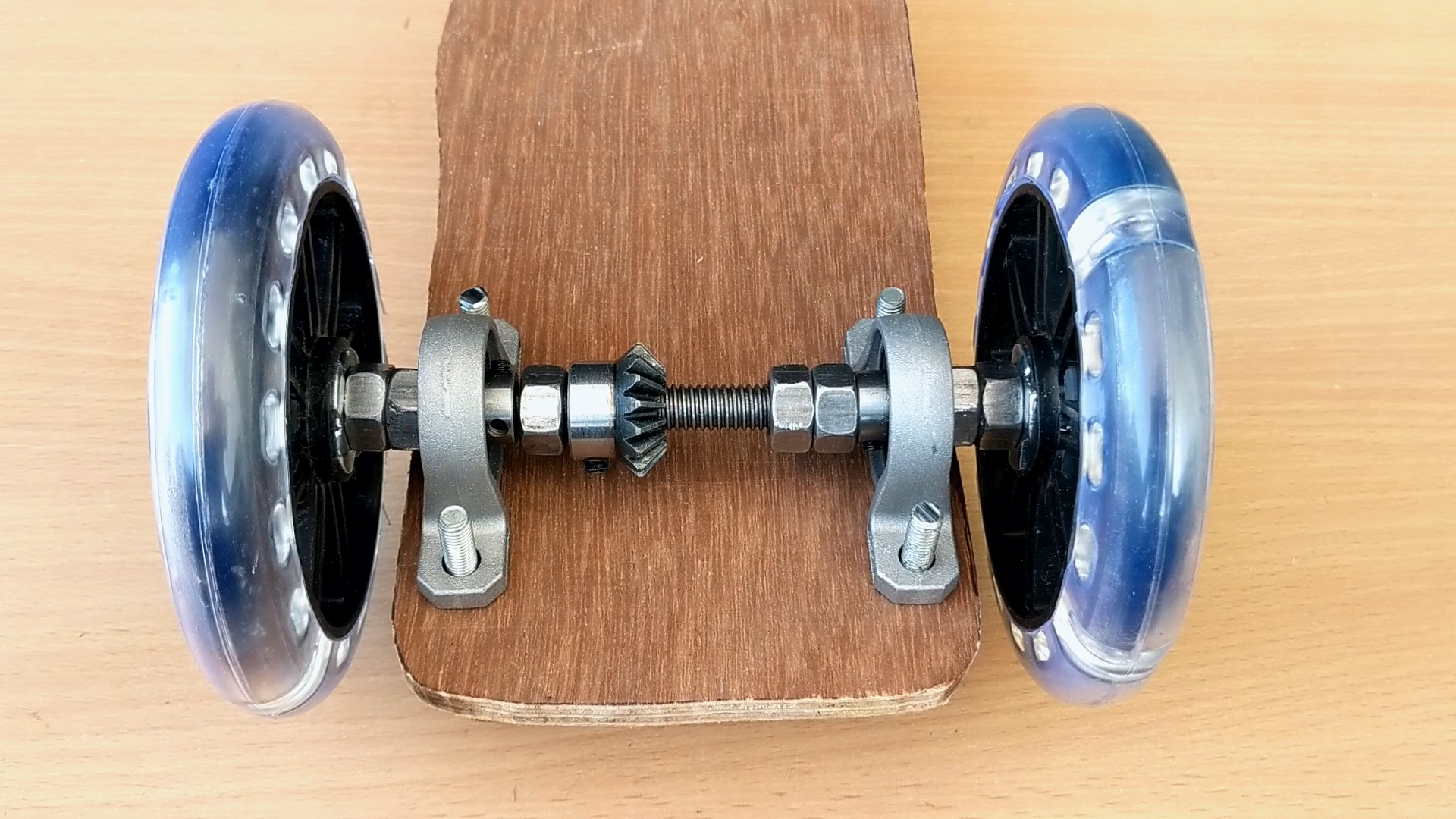

1. Fix two wheel, ball bearing support and gear on bolt using T nuts and normal nuts

2. Attach all part to wooden plate

1. Connect motor with gear on board with the help of motor clamp.

2. Also fix Caster Twin Wheels at the front of wooden board\.

Collect battery cell from old laptop or power bank (80 % cell are in working condition in old battery pack)

Fix 12V Female socket and Wireless relay switch and make connection between motor and battery.

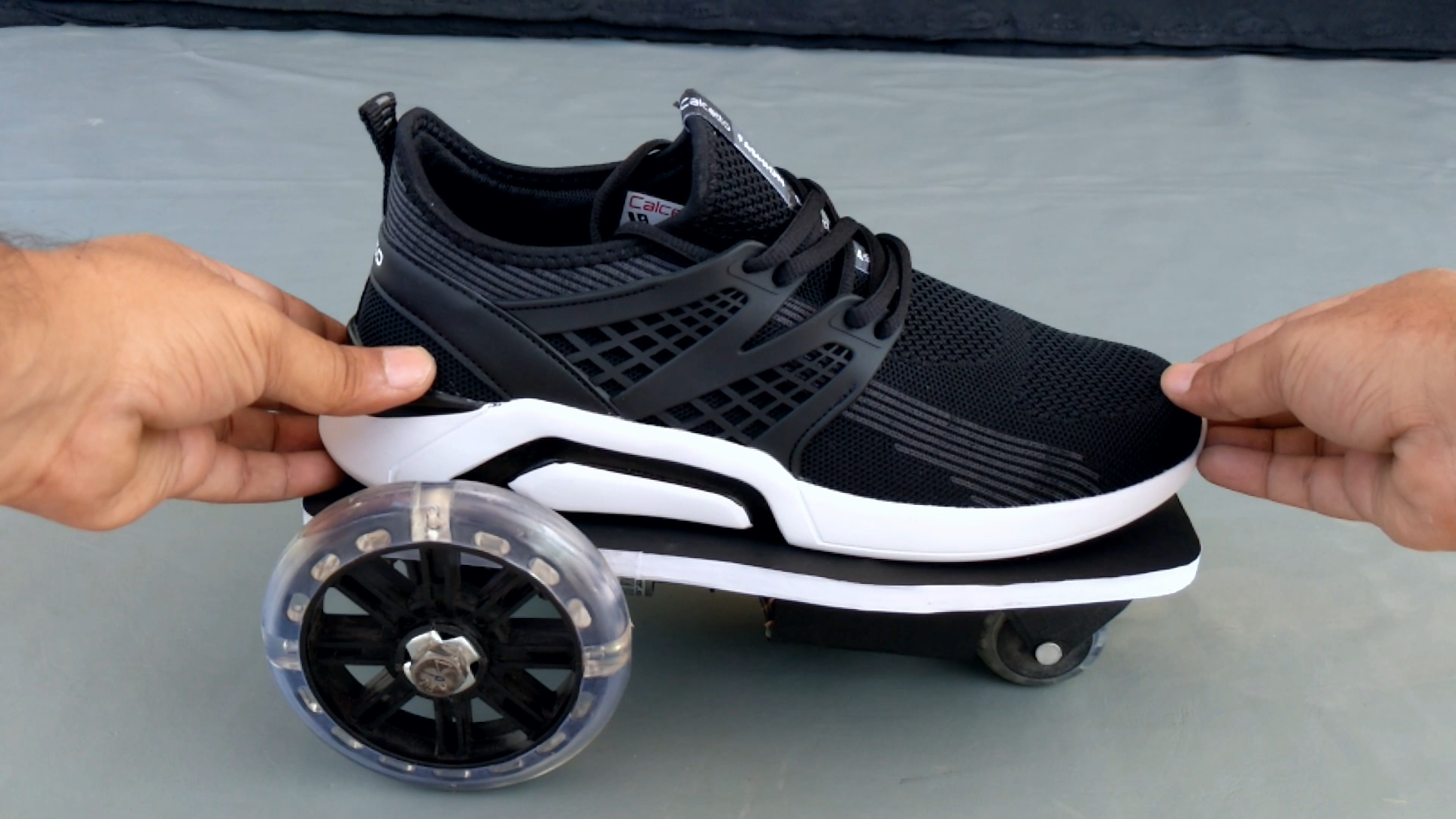

Fix Shoes on wooden board using adhesive solution

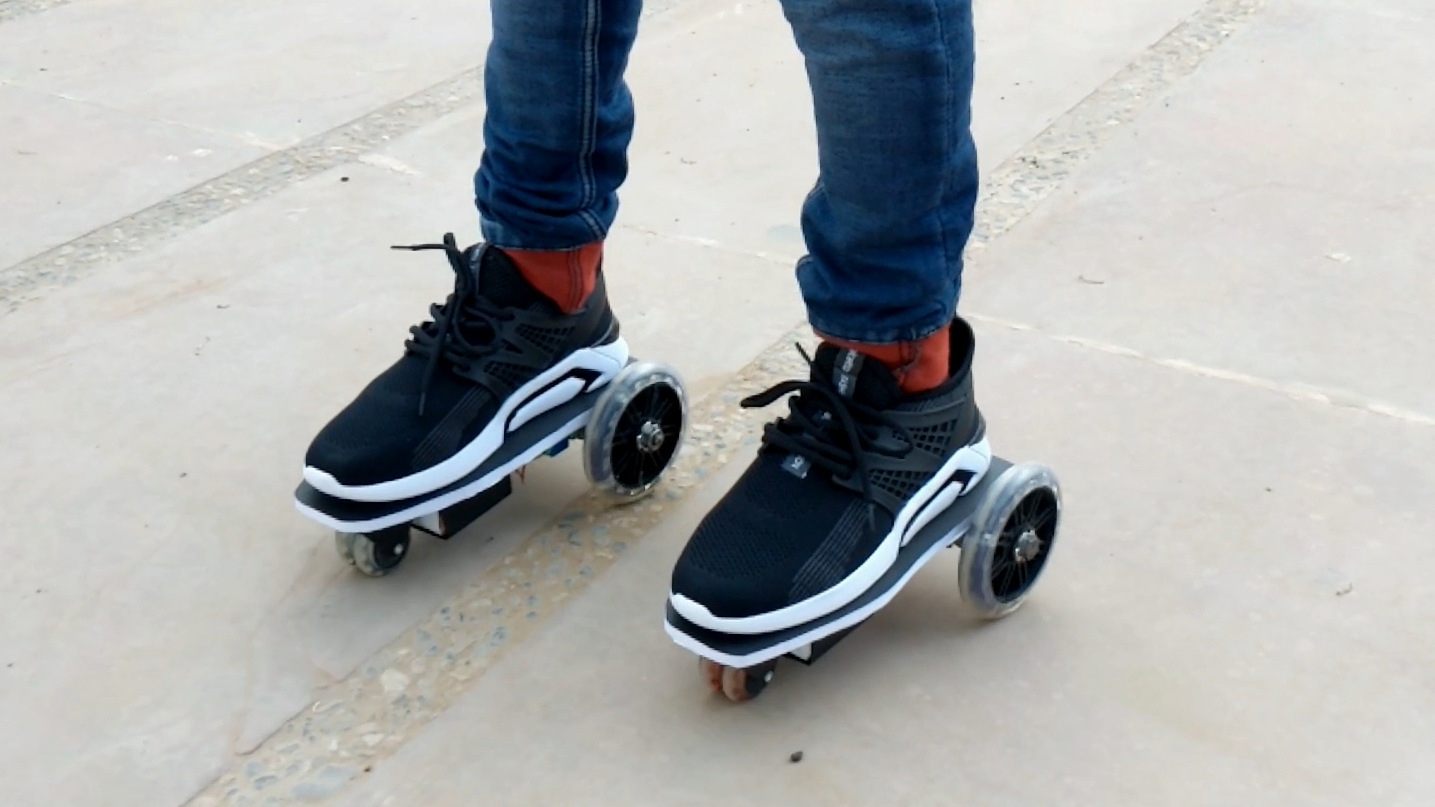

Learn normal skating before ride on this electric motorized shoes and make this vacation interesting.
