How to Connect Your 4 Button Battery Charger to Your Computer

You may have a hobbykign eco six, or whatever and want to connect it to your computer to log everything
this works on windows

you will need:

• a hobyking usb cable located here http://www.hobbyking.com/hobbyking/store/__9043__...
• spare servo cable with plug
• a charger
• a windows pc
• logview from here link

take apart the usb cable, you will see 3 contacts labeled gnd, sin, sin

strip the ends of the servo cable and solder in order to the board, make gnd and black on the cable so its easy to remember

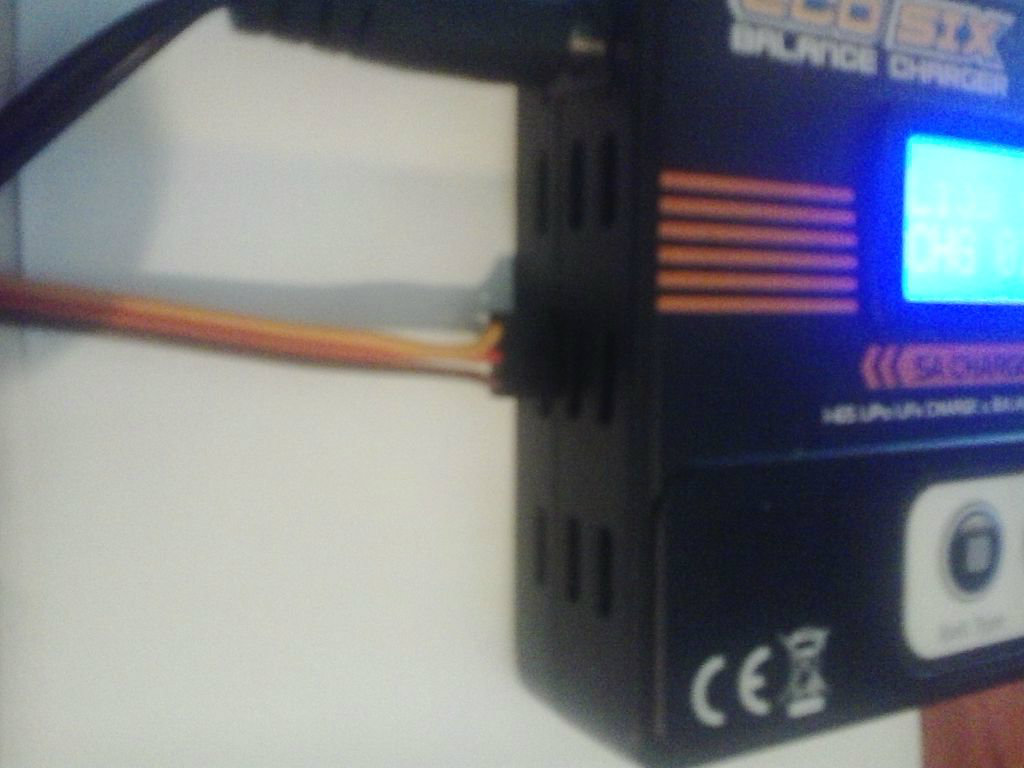

• plug the cable into the charger, gnd away from the input power
• plug into computer and install drivers

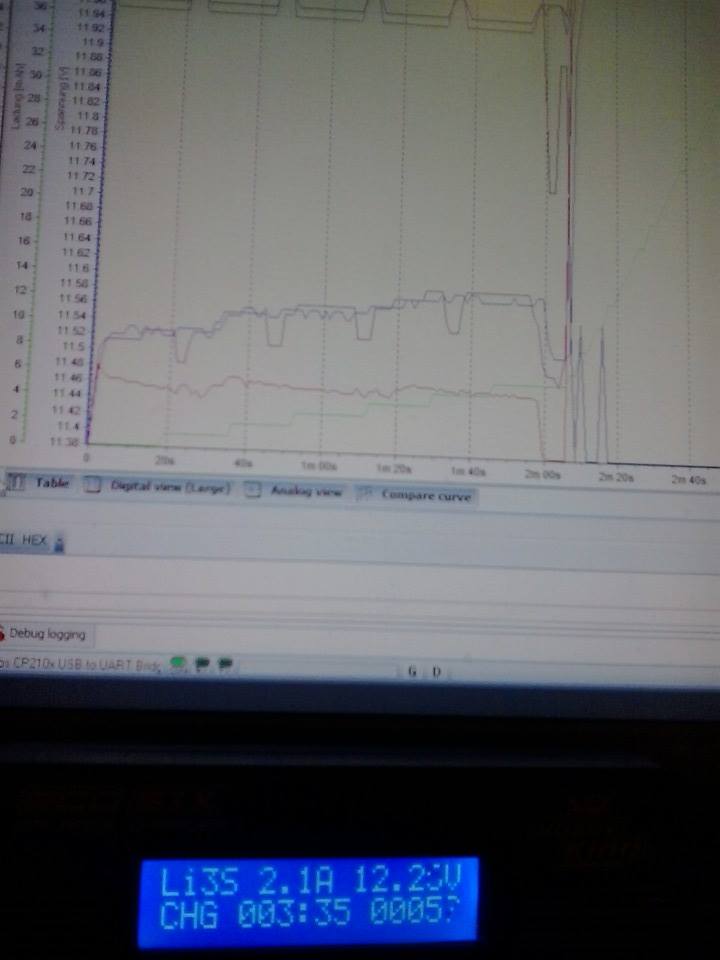

• install log view and set up the device to imax b6 and the port to the serial port of your cable
