During my adventures in Embedded Systems, I used to struggle with the limitations of microcontrollers where they had a very limited memory and processing power. Adding wireless communication, cellular connectivity, or GPS also required separate modules, which made my circuits more complicated and introduced additional points of failure.

That experience improved significantly once I learned how to build projects with single-board computers. These systems provide better performance and integrate many, if not all, of these communication capabilities onto a single board. Later, I used a Raspberry Pi to build a student attendance system for my electrical engineering graduation project.

With more than 75 million units sold, Raspberry Pi boards are among the best-known single-board computers (SBCs). They are widely used in maker spaces and are relatively easy to learn, with thousands of guides and tutorials available online. As mentioned in the introduction to this series, Raspberry Pi boards also provide interfaces for communicating with external sensors and devices through their GPIO pin headers. This makes the Raspberry Pi a robust platform for building sophisticated embedded systems.

This guide begins with installing Raspberry Pi OS on a microSD card and ends with using a webcam and computer vision to control an LED. Use the following table to navigate to your preferred step or simply start from the beginning.

Steps Covered in This Guide:

1. Preparing Raspberry Pi operating system

2. Setting up Raspberry Pi Desktop

3. Setting up MemryX MX3 Hardware

4. Installing MemryX Software

5. Running a simple Computer Vision example

6. Control LED light using webcam

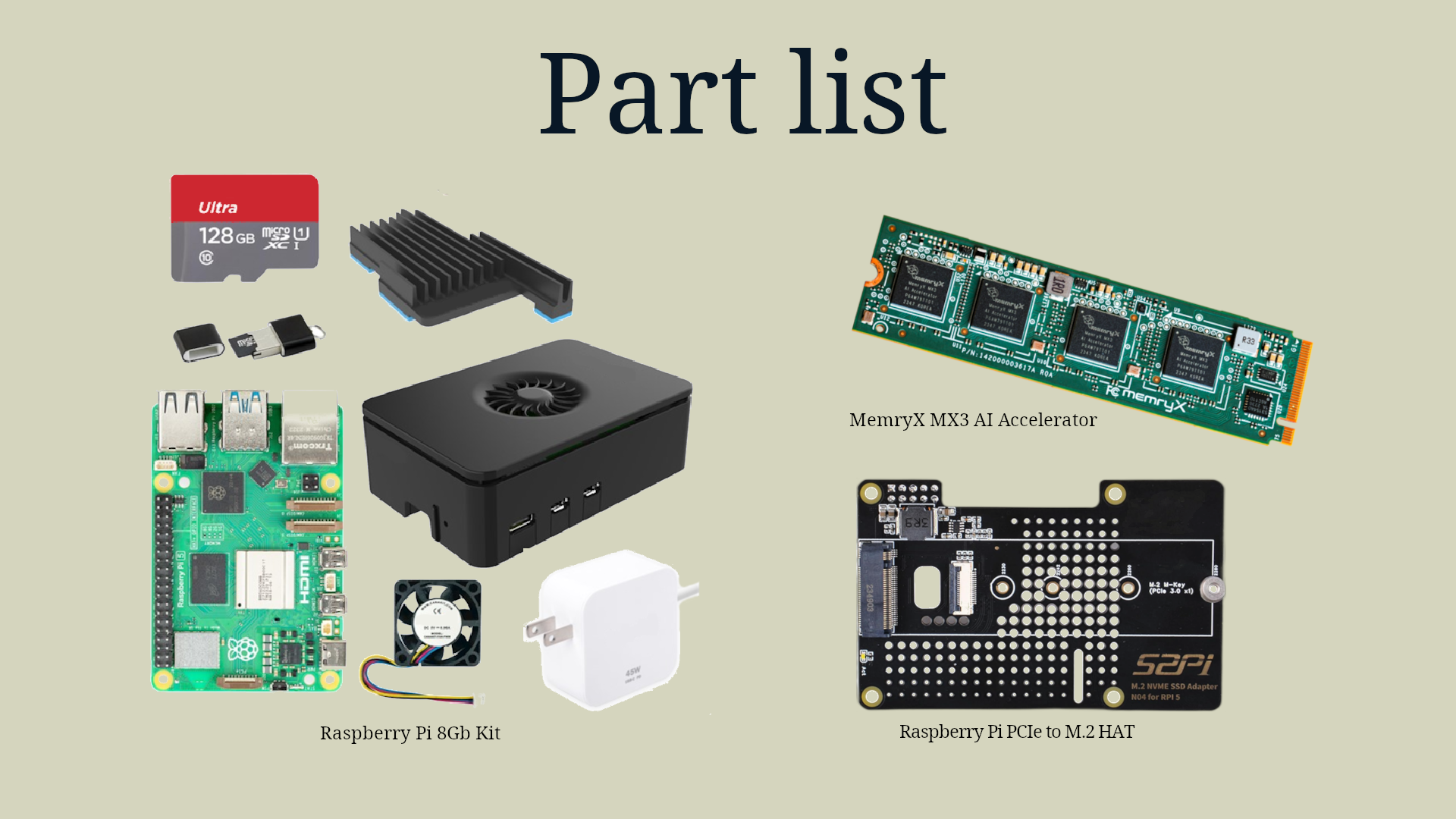

To complete this guide, you need the following:

1. Raspberry Pi 5 with 8GB RAM or more (A complete Raspberry Pi kit is strongly recommended)
2. MemryX MX3 EDGE AI Accelerator Amazon
3. PCIe HAT for Raspberry Pi Amazon
4. Monitor with HDMI input
5. Mouse and Keyboard
6. Webcam (Optional, to run the test examples)

The Raspberry Pi is an impressive piece of hardware. Small enough to fit in the palm of your hand, it has everything needed to operate as a complete Linux computer.

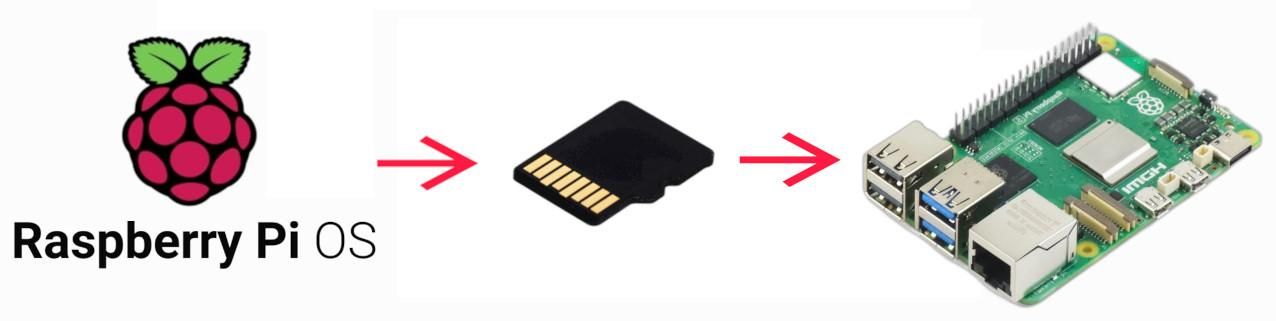

Let us begin by writing the Raspberry Pi OS image to a microSD card.

For this step, you will need the following:

1. MicroSD Card

2. MicroSD Card reader

3. Computer running Linux, macOS, or Windows

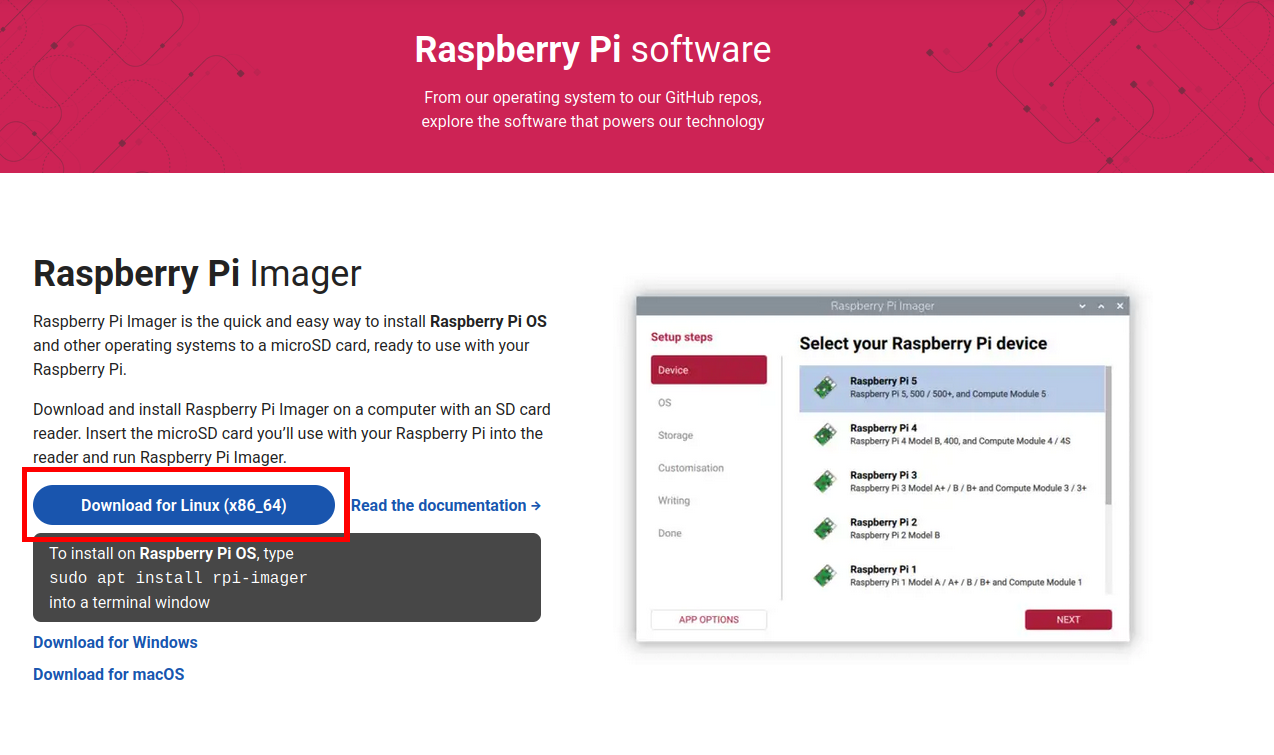

1. Download and install Raspberry Pi OS 64-bit Imager from the official download website, Select the version for your computer’s operating system.

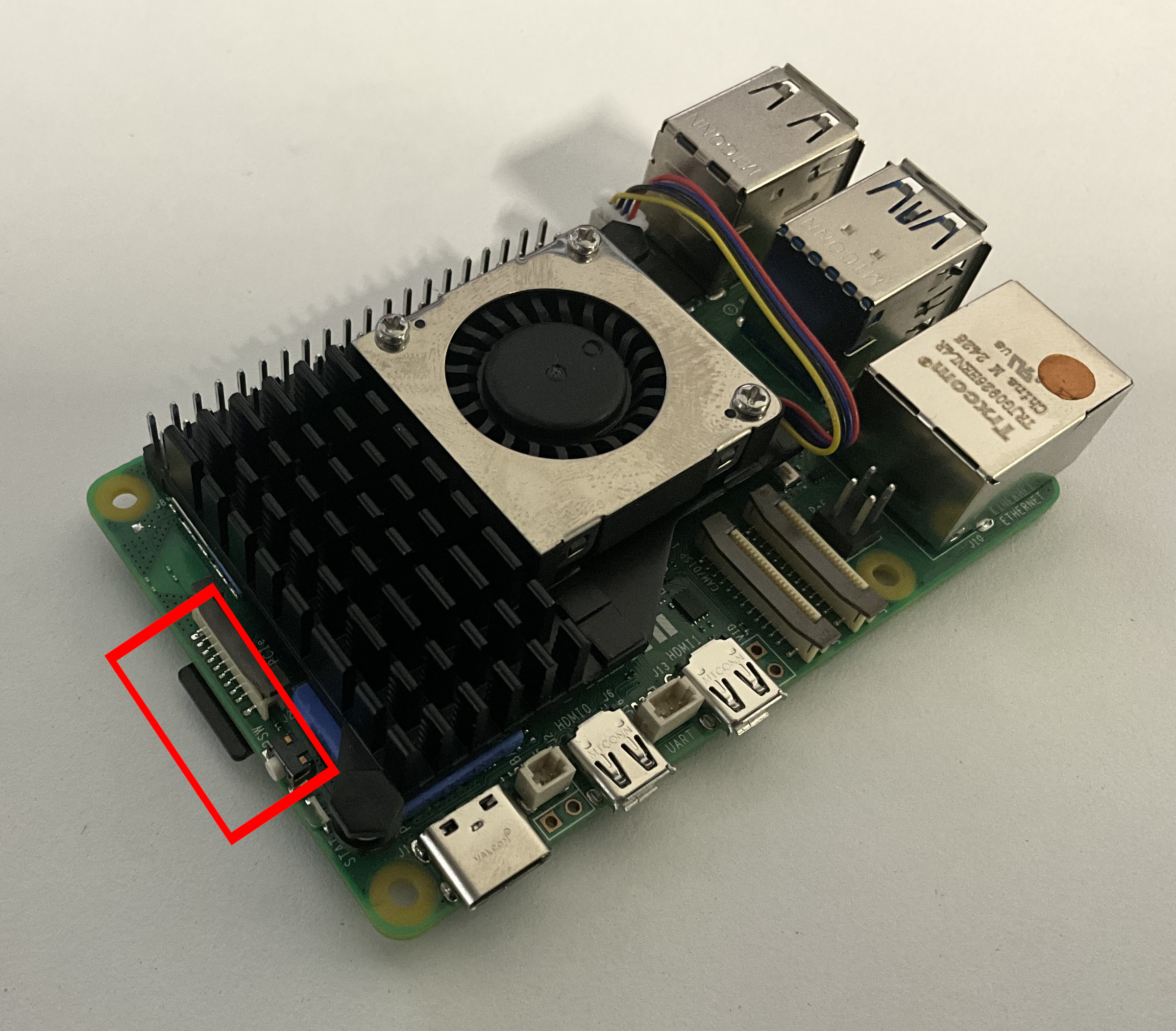

2. Insert the microSD Card in your computer using the MicroSD Card reader (Make sure to use a blank MicroSD card as the next step will completely erase the MicroSD card and all data stored on it)
3. Launch Raspberry Pi Imager

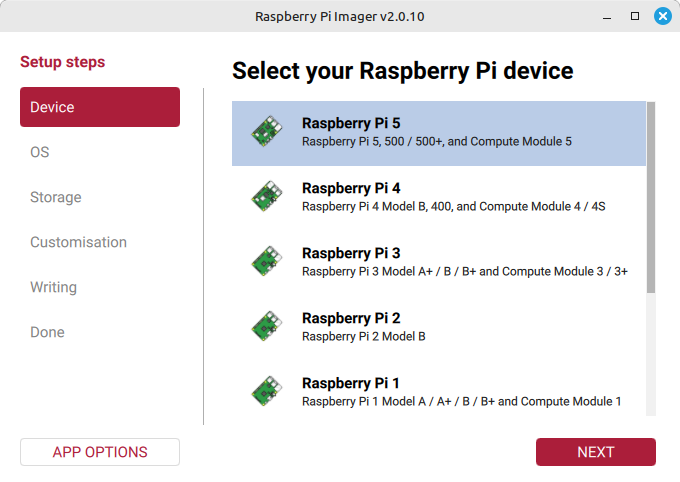

4. Choose your Raspberry Pi, in this case, Raspberry Pi 5

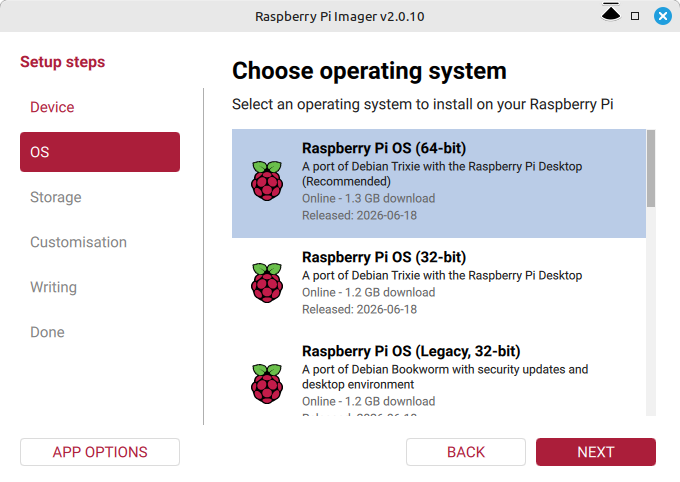

5. Choose Operating System, in this case, the latest 64-bit version of Raspberry Pi OS

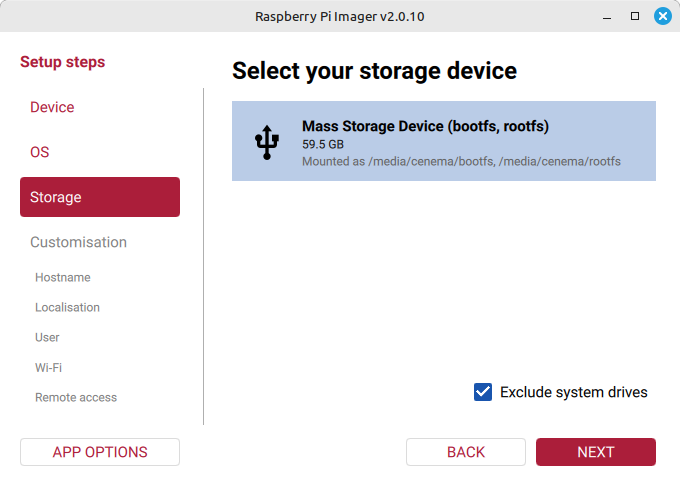

6. Select the microSD card as the storage device
7. In Customization, press "Skip Customization"

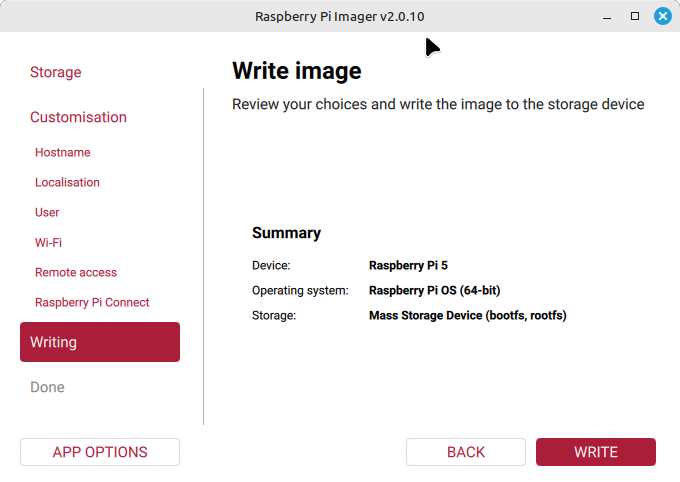

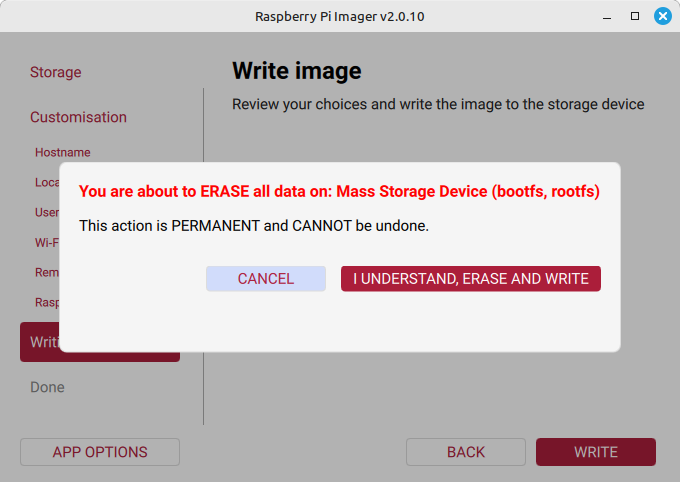

8. Click “Write” to erase MicroSD and start installing the OS

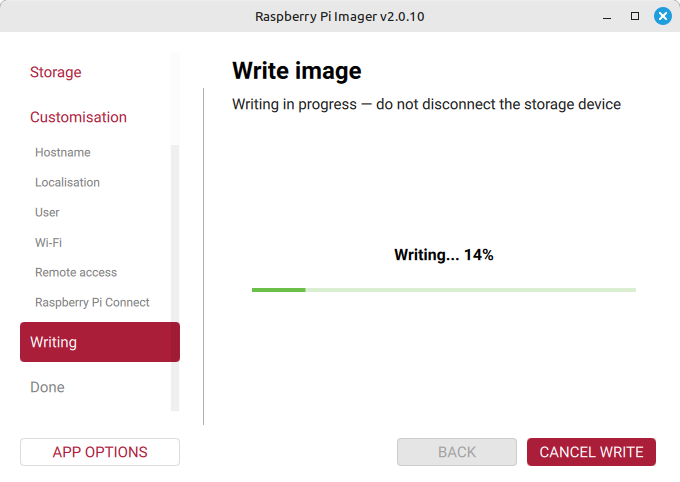

Raspberry Pi Imager will download the image and write it to the microSD card. This process may take several minutes, depending on your internet connection.

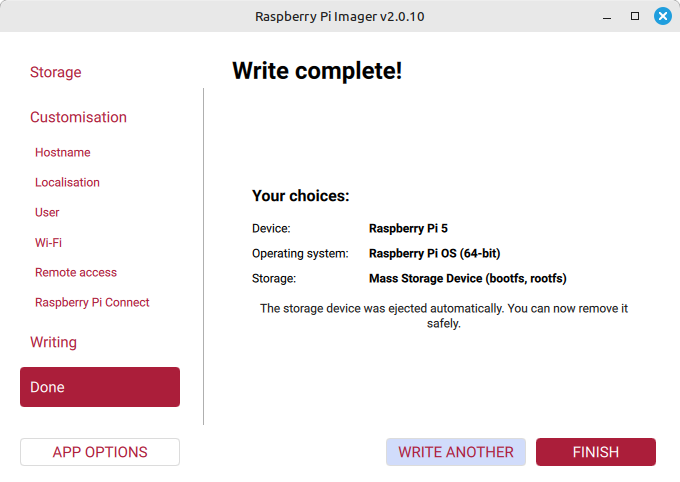

After Raspberry Pi Imager finishes writing the operating system, safely remove the microSD card from your computer. Insert the microSD card into the Raspberry Pi’s card slot in the correct orientation.

In this section, we will connect the Raspberry Pi, turn it on, and complete the initial desktop setup.

For this step, you will need the following:

1. Raspberry Pi 5

2. HDMI-to-micro-HDMI cable

3. Power supply adapter

1-Connect the Raspberry Pi

1. Connect one end of the HDMI-to-micro-HDMI cable to the monitor and the other end to the Raspberry Pi’s HDMI 0 port.
2. Connect the mouse and keyboard to the Raspberry Pi’s USB ports.
3. To use Ethernet instead of Wi-Fi, connect the network cable now. For the remainder of this guide, we will use Wi-Fi.
4. Connect the power adapter to a wall outlet, and then connect it to the Raspberry Pi’s USB-C power port.

2-Raspberry Pi Desktop Wizard:

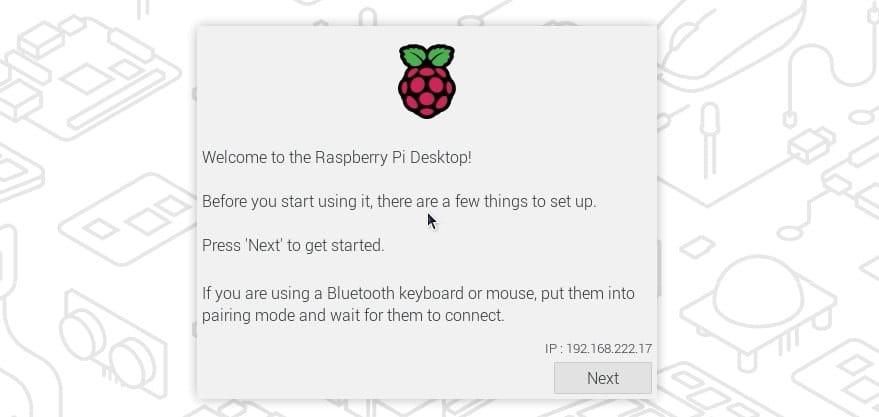

The “Welcome to the Raspberry Pi Desktop” window will appear. This setup wizard will guide you through preparing the Raspberry Pi for first-time use.

Complete the following steps:

1. Click “Next” on the welcome screen.
2. Select your country, language, and time zone. Check the “Use US keyboard” option if you are using a US keyboard layout.
3. Create a username and password for your Raspberry Pi. Choose a password that you can remember and store it securely, as you may need it when installing software or changing system settings.
4. Select your Wi-Fi network, click “Next,” and enter the network password. You can skip this step if you are using Ethernet.
5. Choose your preferred web browser. Either available option will work for this guide.
6. The next window will ask whether you want to update the system software. I recommend completing the update now. However, you can skip it and update the system later if you have limited internet connectivity or do not want to wait.
7. On the final page, click “Launch.”

Now that the Raspberry Pi desktop is fully set up and running, let us install the accelerator. MemryX provides detailed documentation for preparing the accelerator, and we will follow the same procedure described in its "Install hardware" guide.

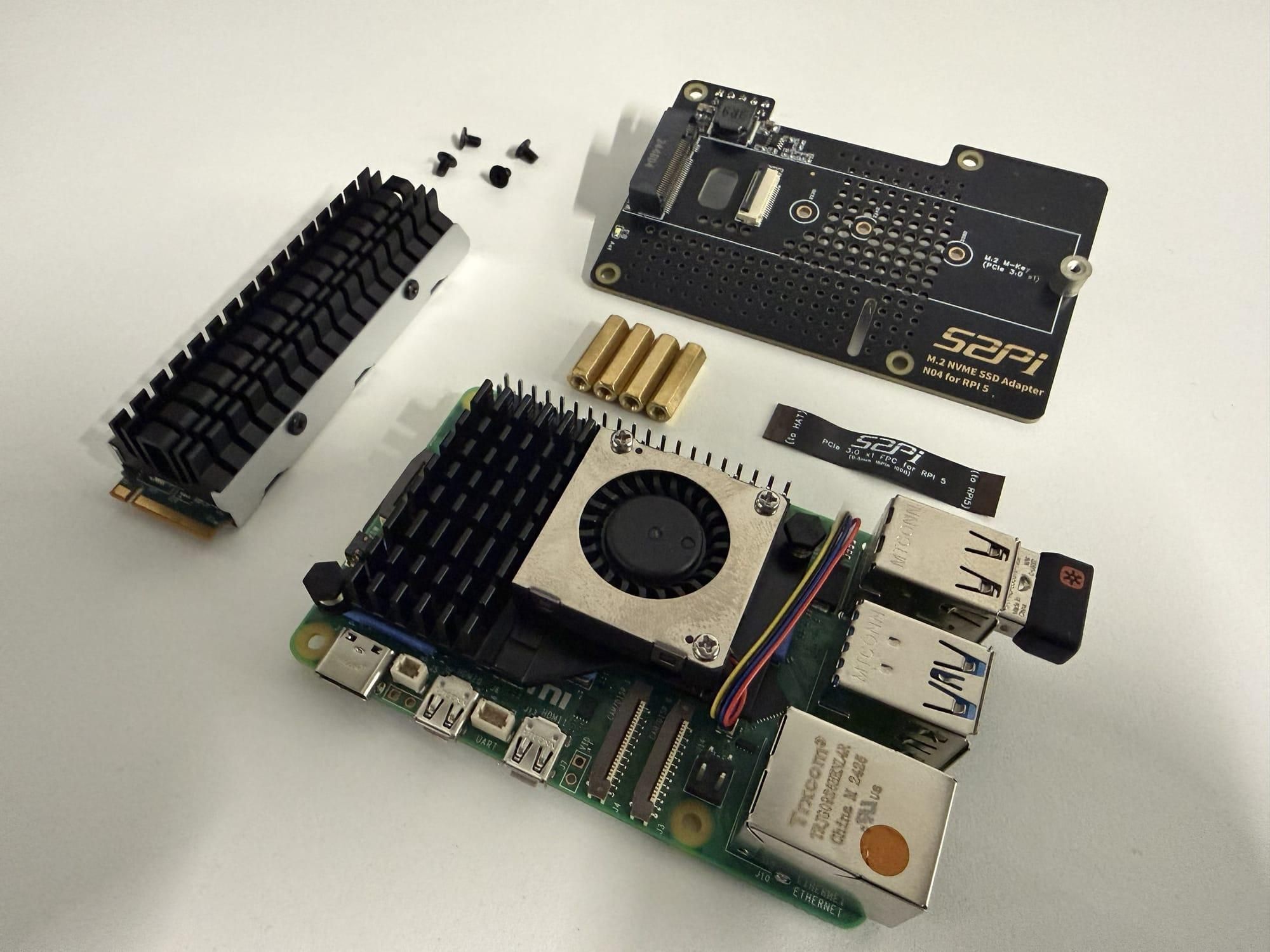

For this step, you need the following:

1. Raspberry Pi M.2 HAT

2. MemryX MX3 accelerator module

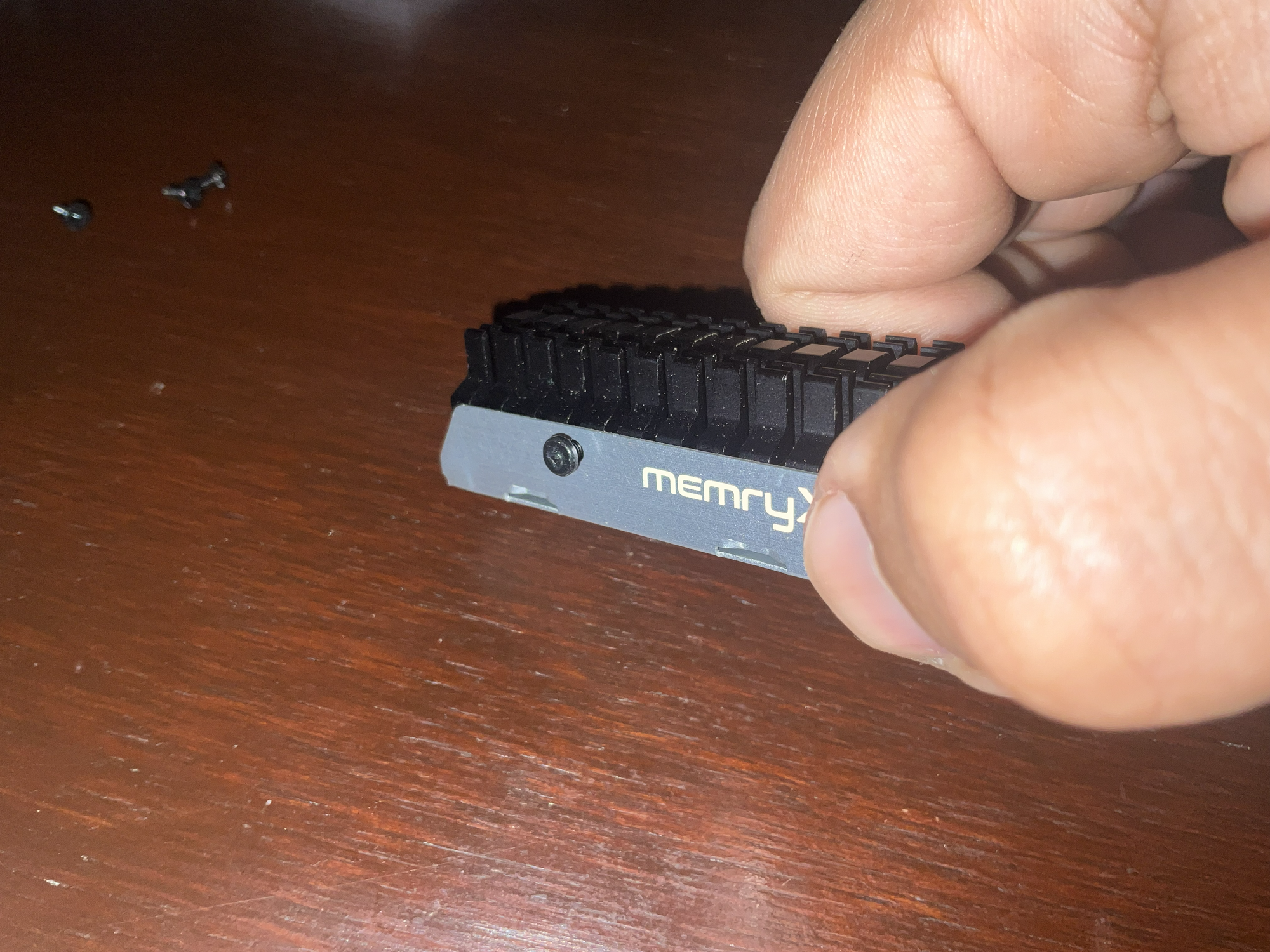

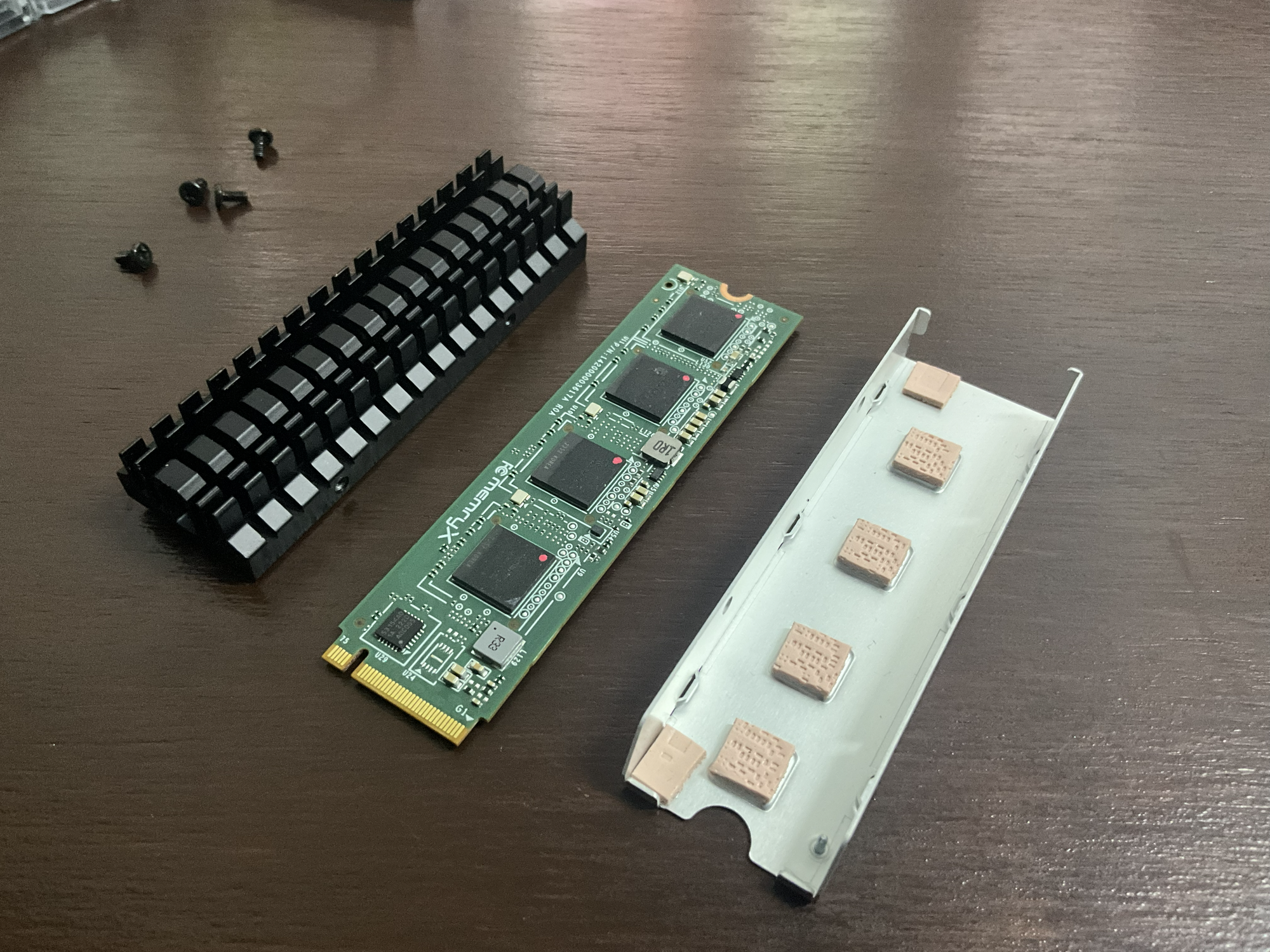

1: Prepare the accelerator

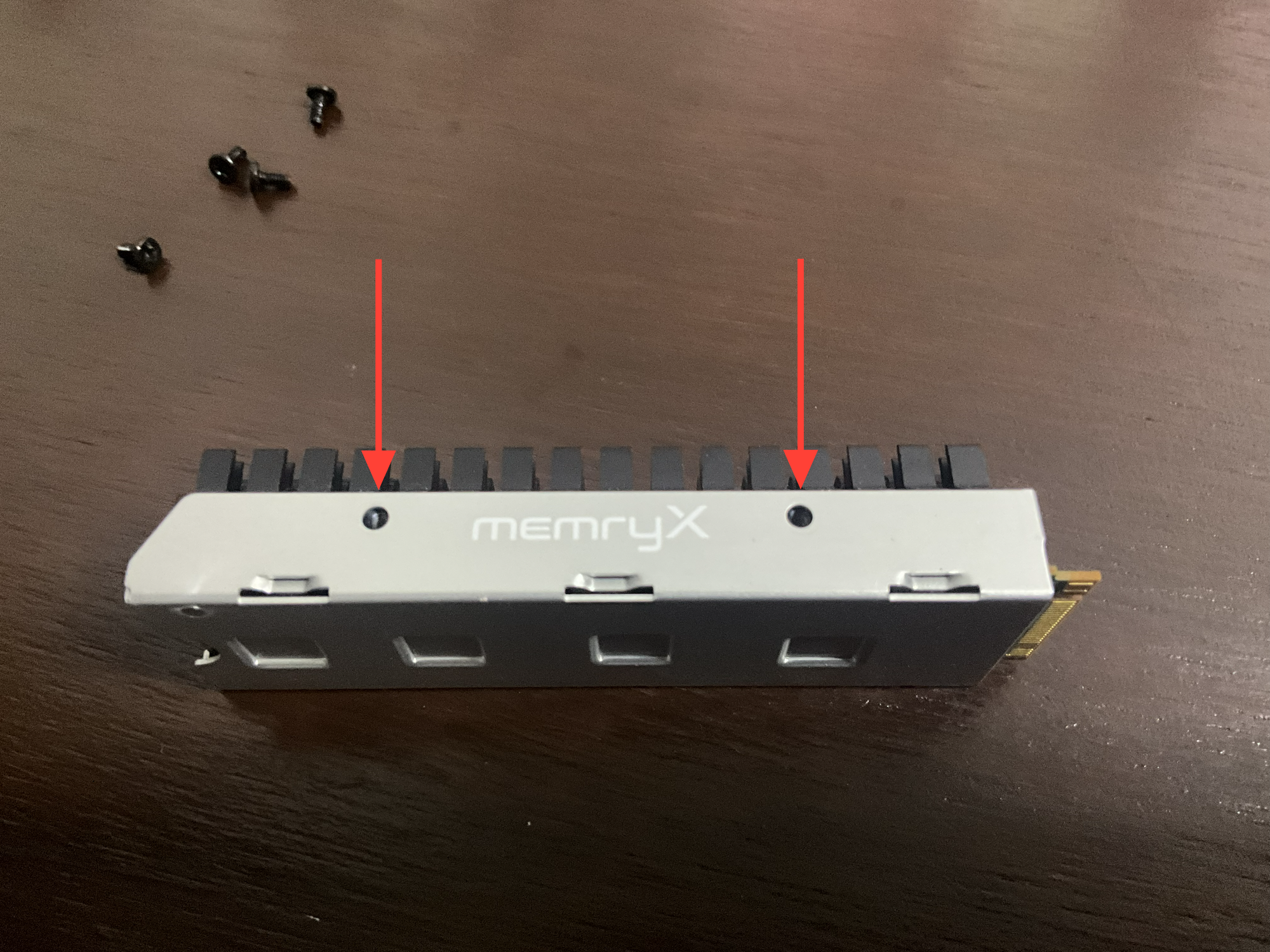

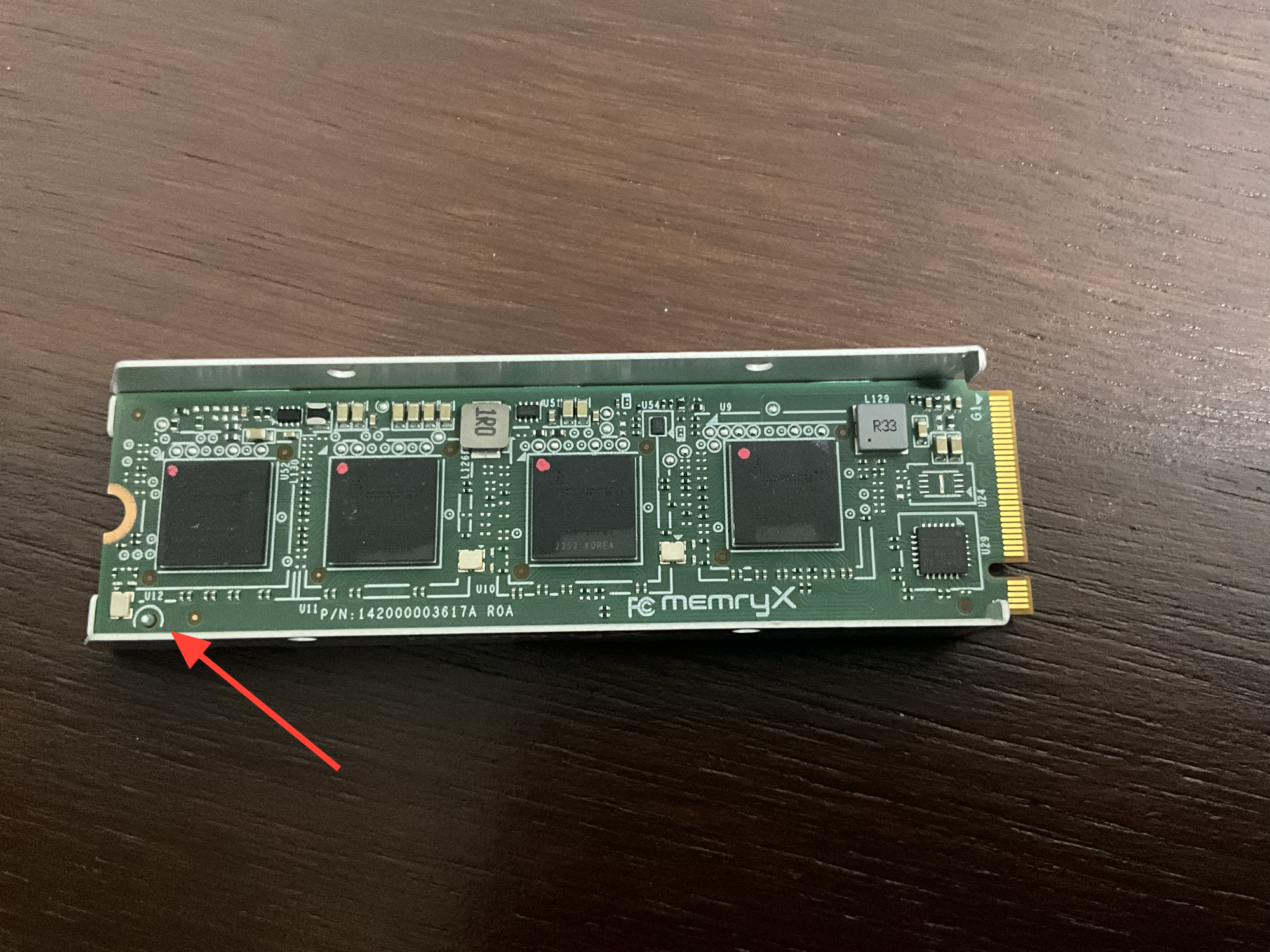

1. Place the accelerator on top of the gray heatsink bracket, facing upward. Make sure the small alignment post on the bracket fits securely inside the circular opening on the accelerator board.
2. Place the heatsink on top of the accelerator, making sure that the screw holes on the bracket align perfectly with the holes on the heatsink.
3. Insert the four black screws and tighten them gently. Avoid overtightening the screws. If you encounter unusual resistance, stop and realign the heatsink and bracket.
4. The accelerator is now ready for installation. Let us move to the next step.

-------------------------------------------------------------------------

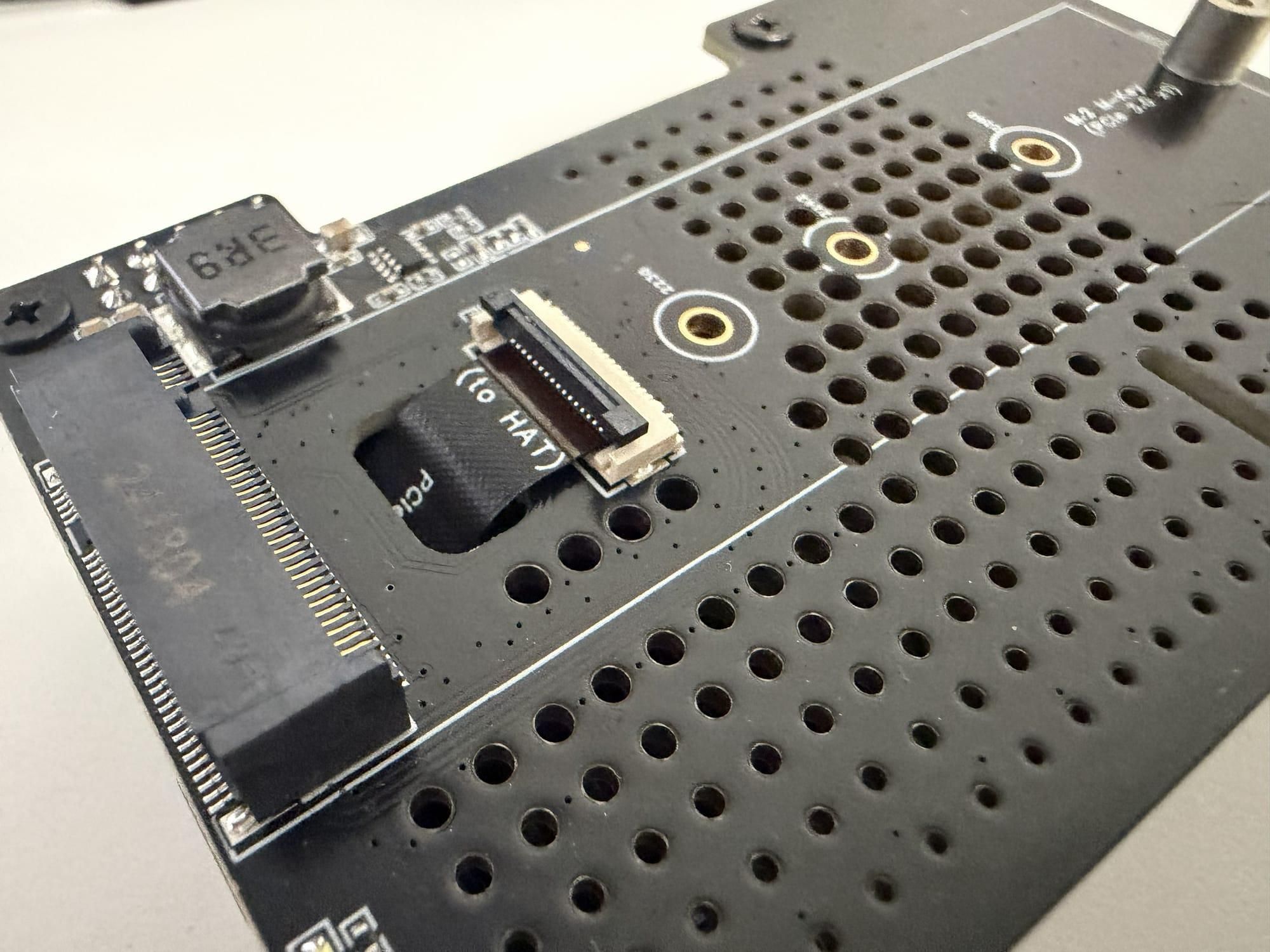

2: Install the Raspberry Pi HAT

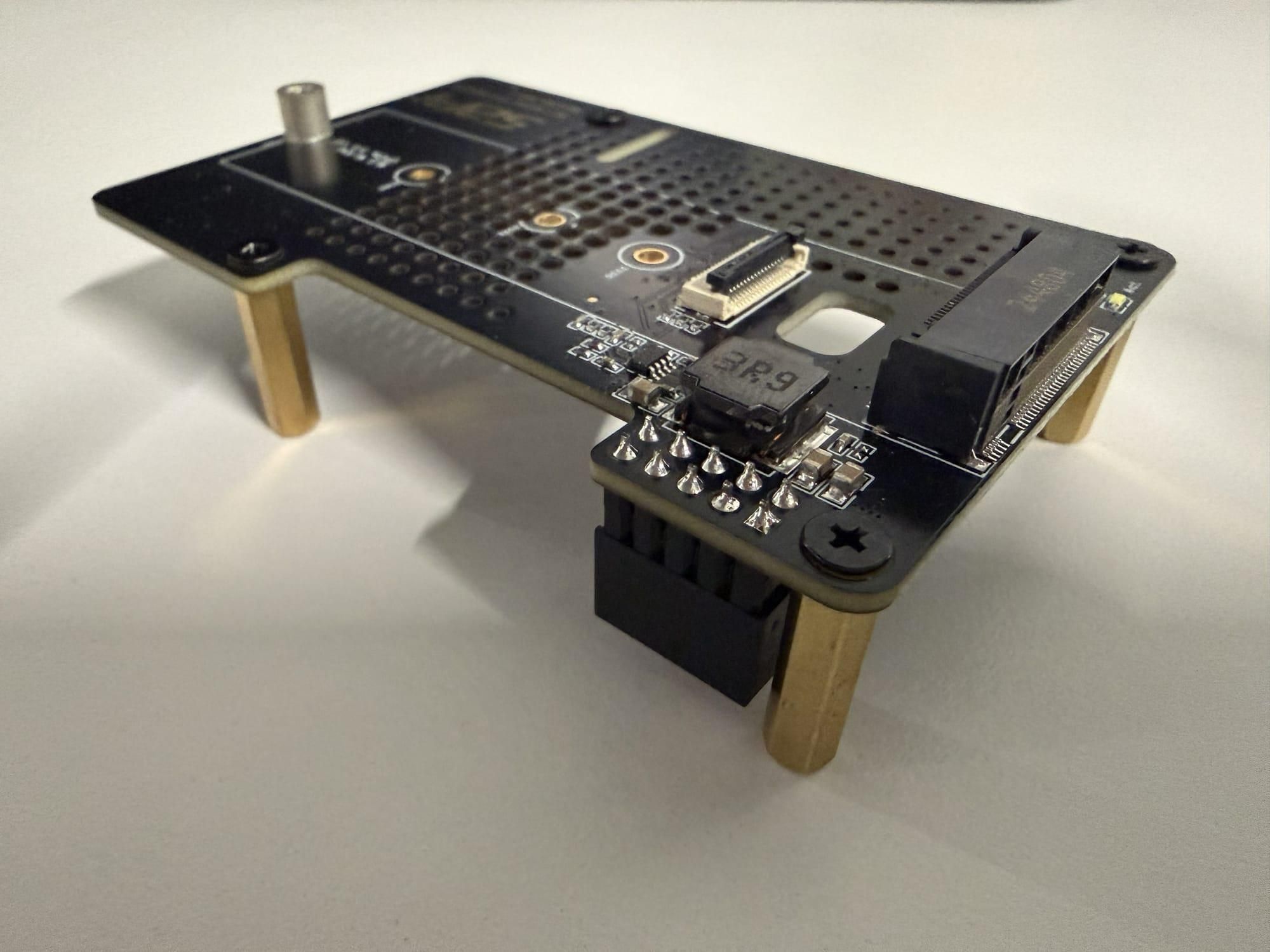

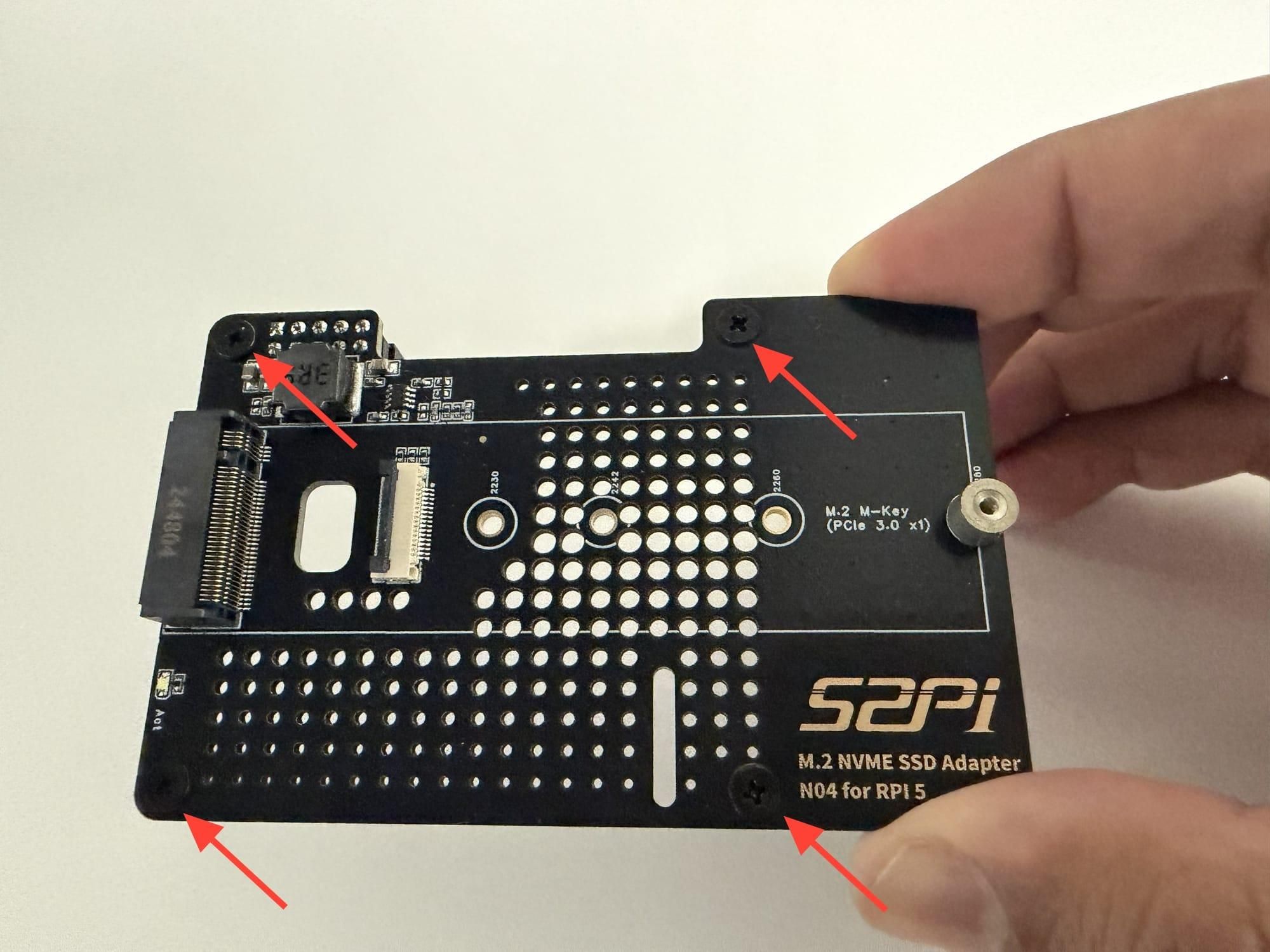

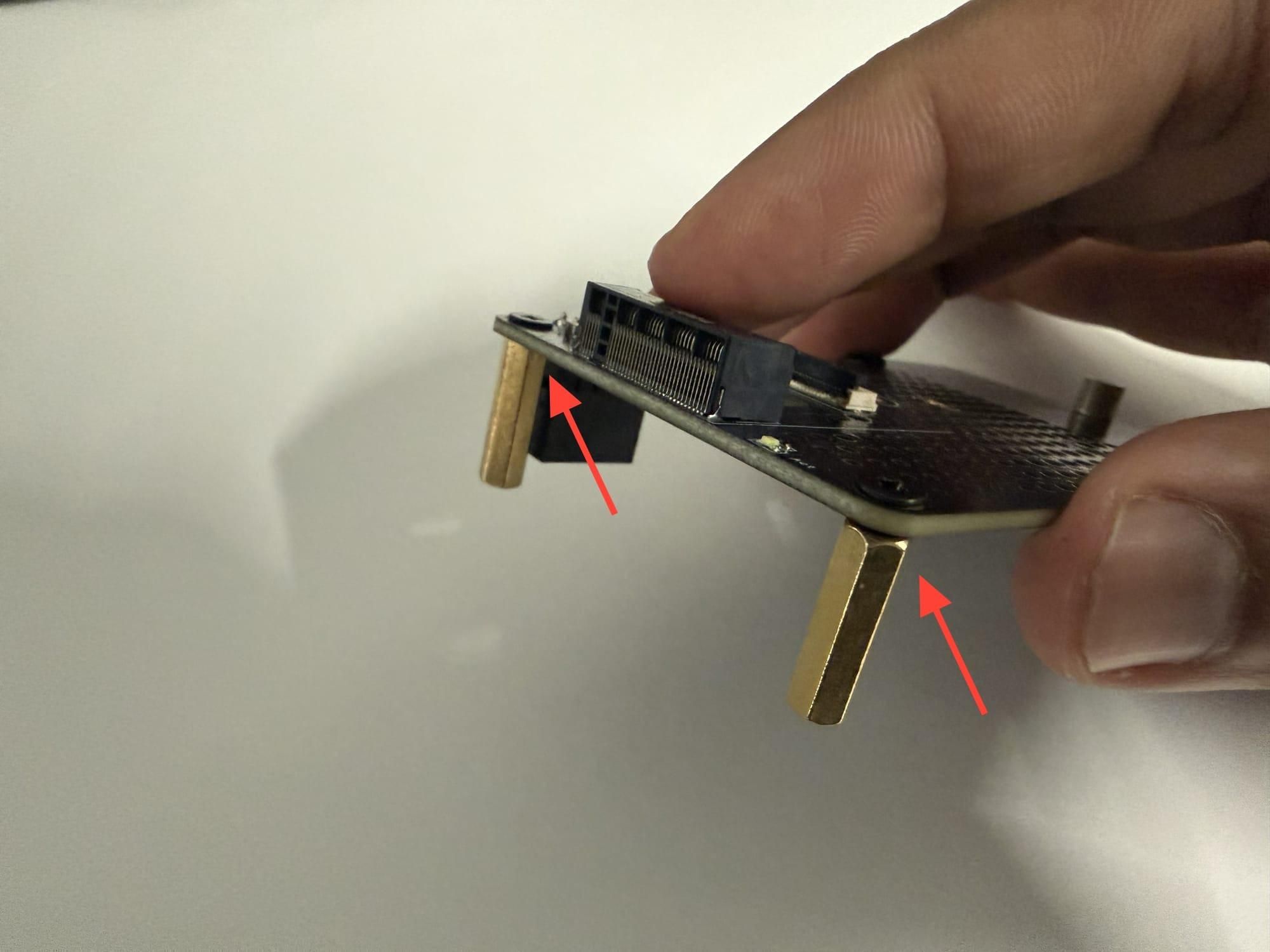

1. Take the four black screws included with the HAT and insert them into the designated mounting holes.
2. Secure the screws using the brass standoffs.
3. Repeat this process for all four screws.
4. Take the black PCIe ribbon cable that will connect the HAT to the Raspberry Pi’s PCIe port.

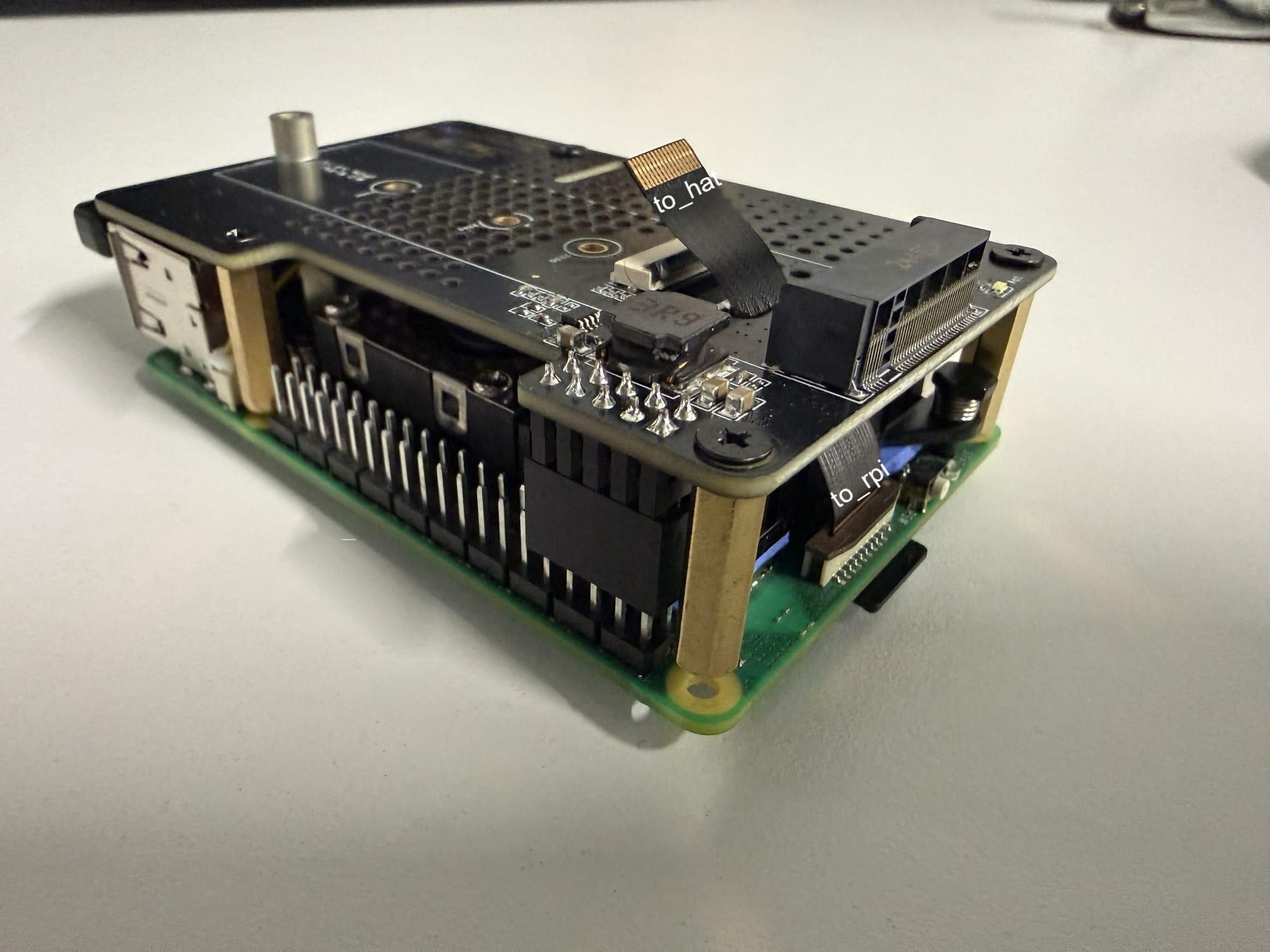

The ribbon cable has two labeled ends:

1. "To RPi"

2. "To HAT"

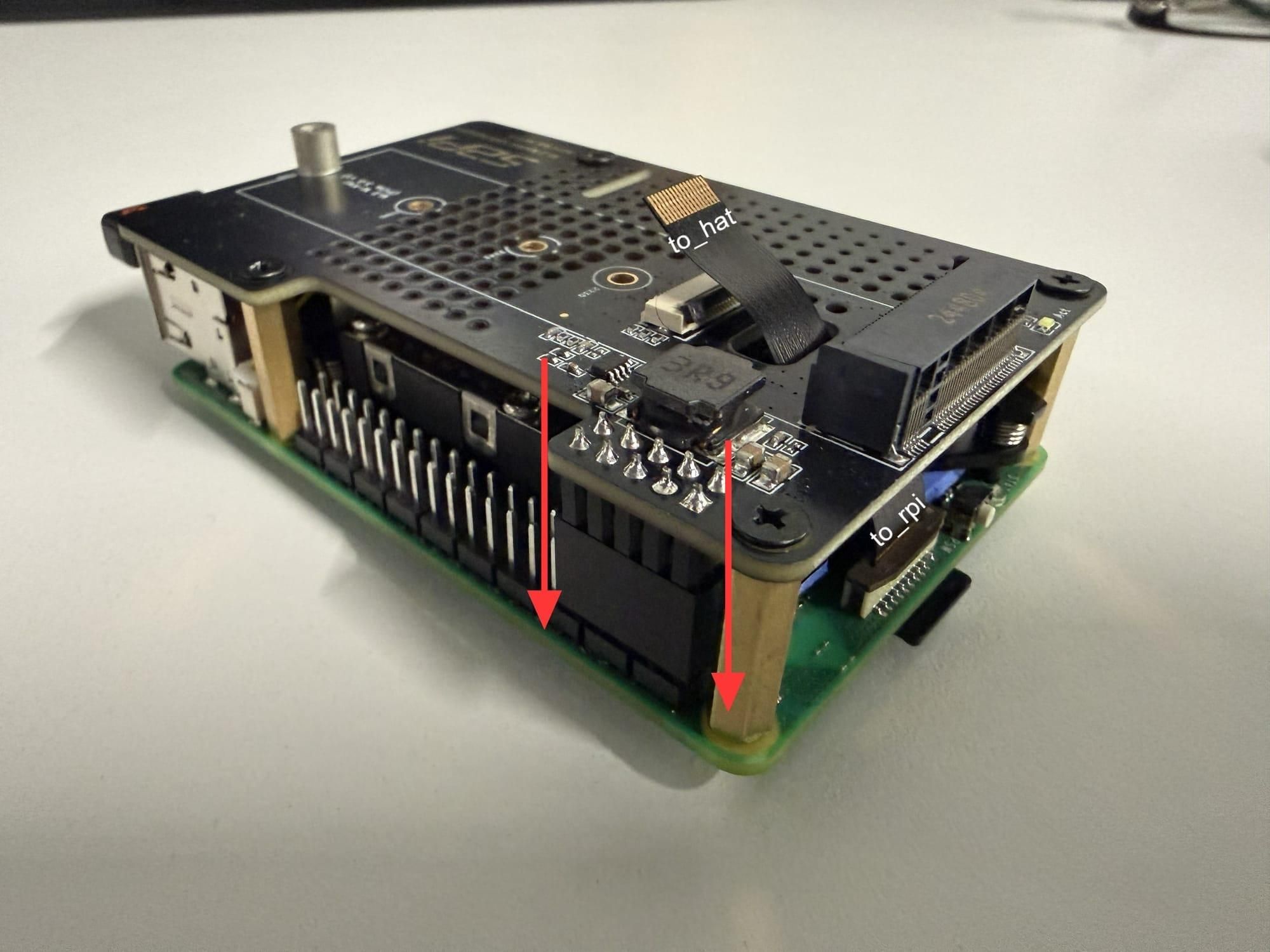

Be careful not to reverse the cable. The end labeled “To RPi” must connect to the Raspberry Pi. Also, make sure the printed markings face away from the Raspberry Pi.

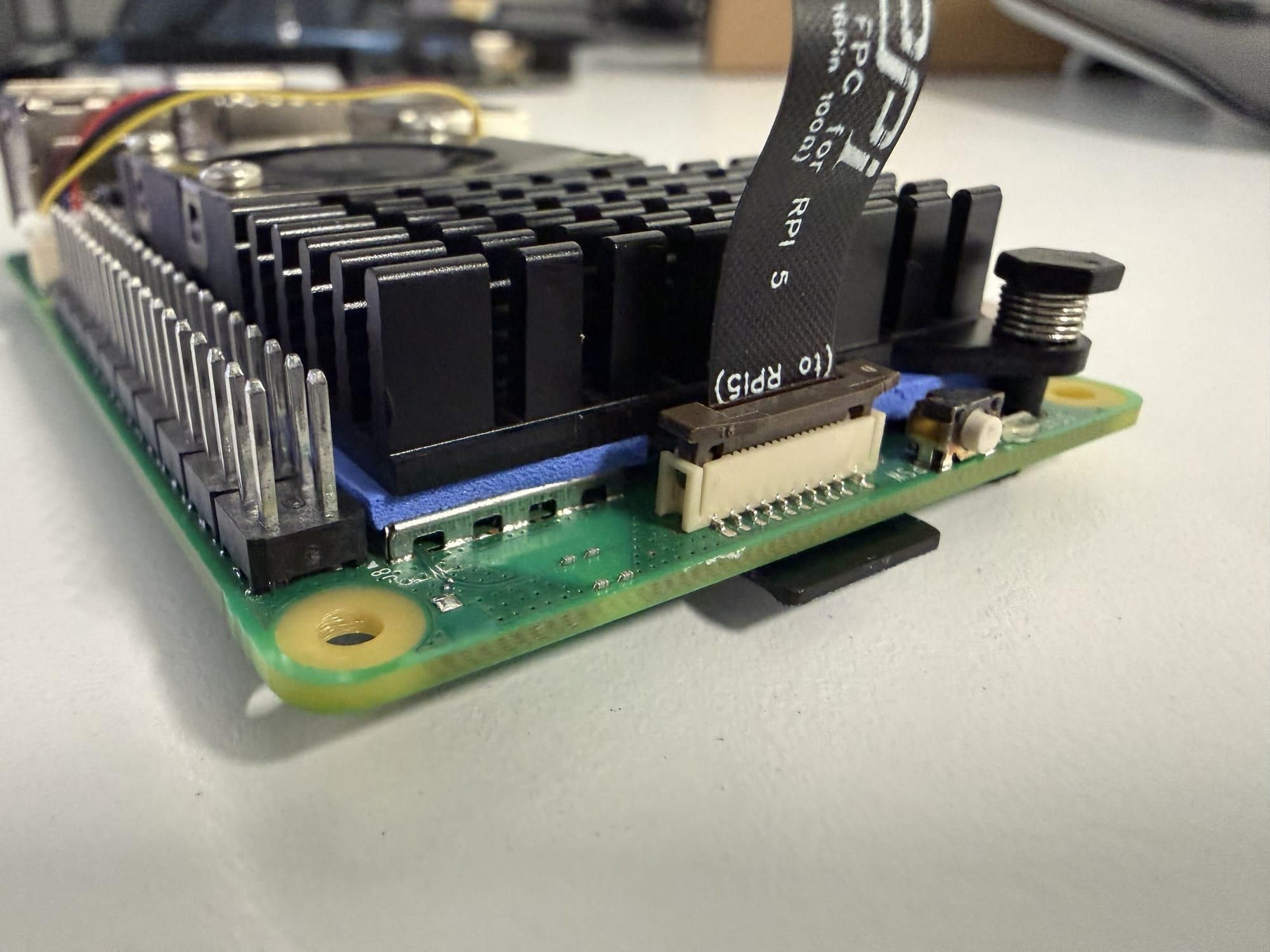

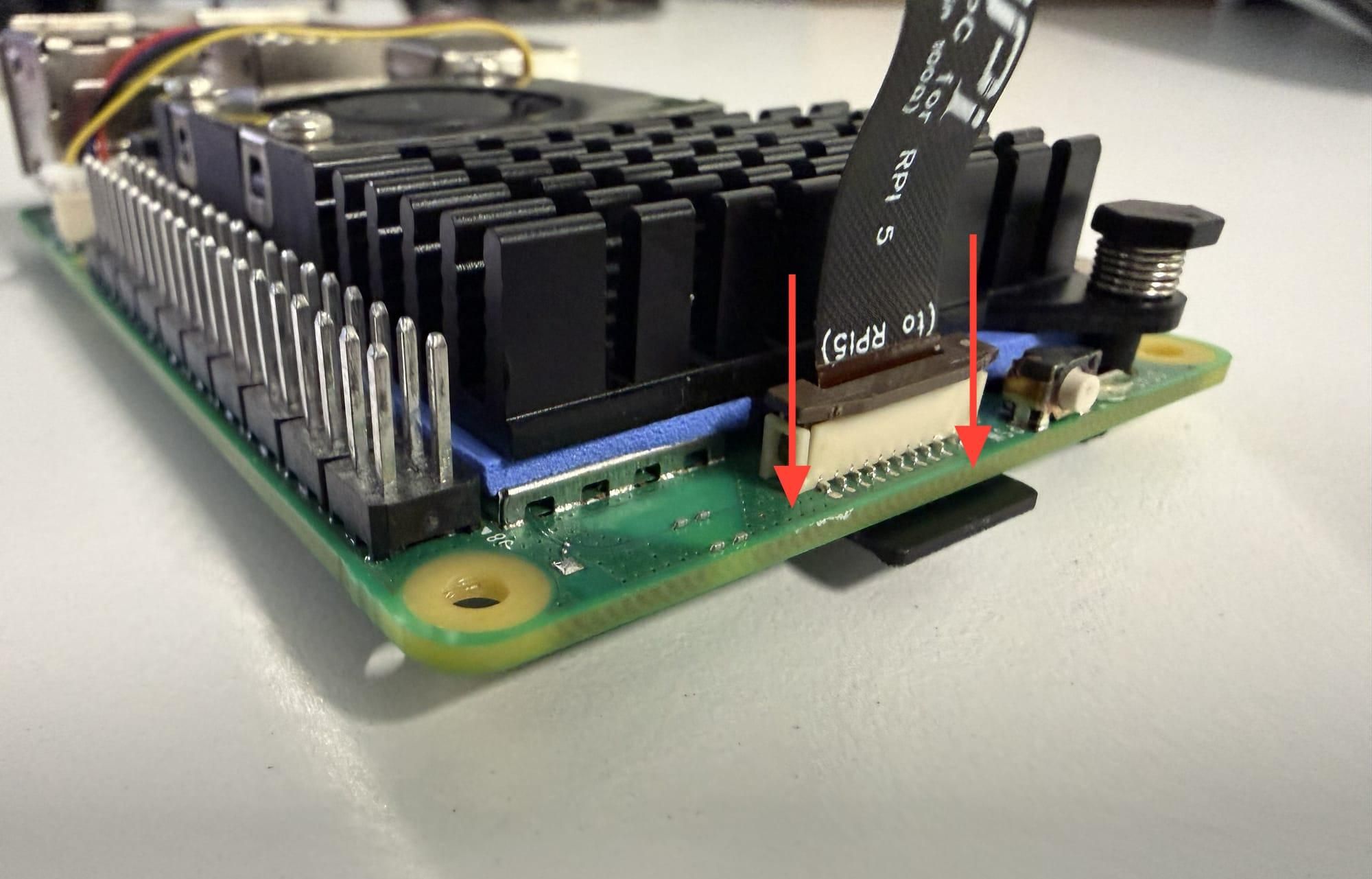

1. Insert the ribbon cable with the markings facing the microSD card.

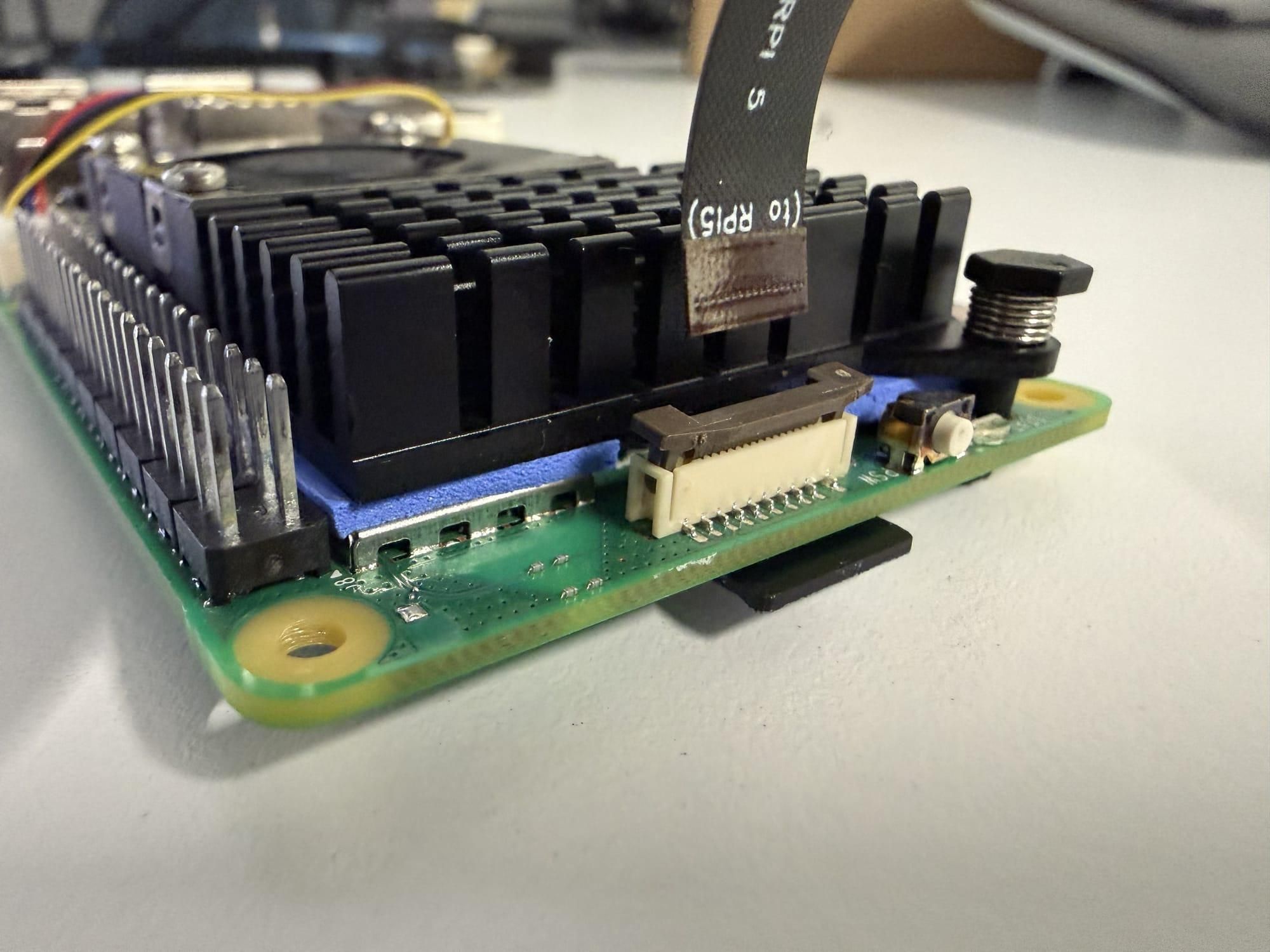

2. Gently push the brown locking tab downward to secure the ribbon cable in place.
3. You can now position the HAT on top of the Raspberry Pi. Before securing it, guide the other end of the ribbon cable through the opening in the HAT. Make sure the Raspberry Pi GPIO header is aligned correctly, as shown in the picture.
4. Once you have verified that the Raspberry Pi’s mounting holes are aligned with the brass standoffs and that the GPIO pins are inserted correctly, gently press the HAT into place.

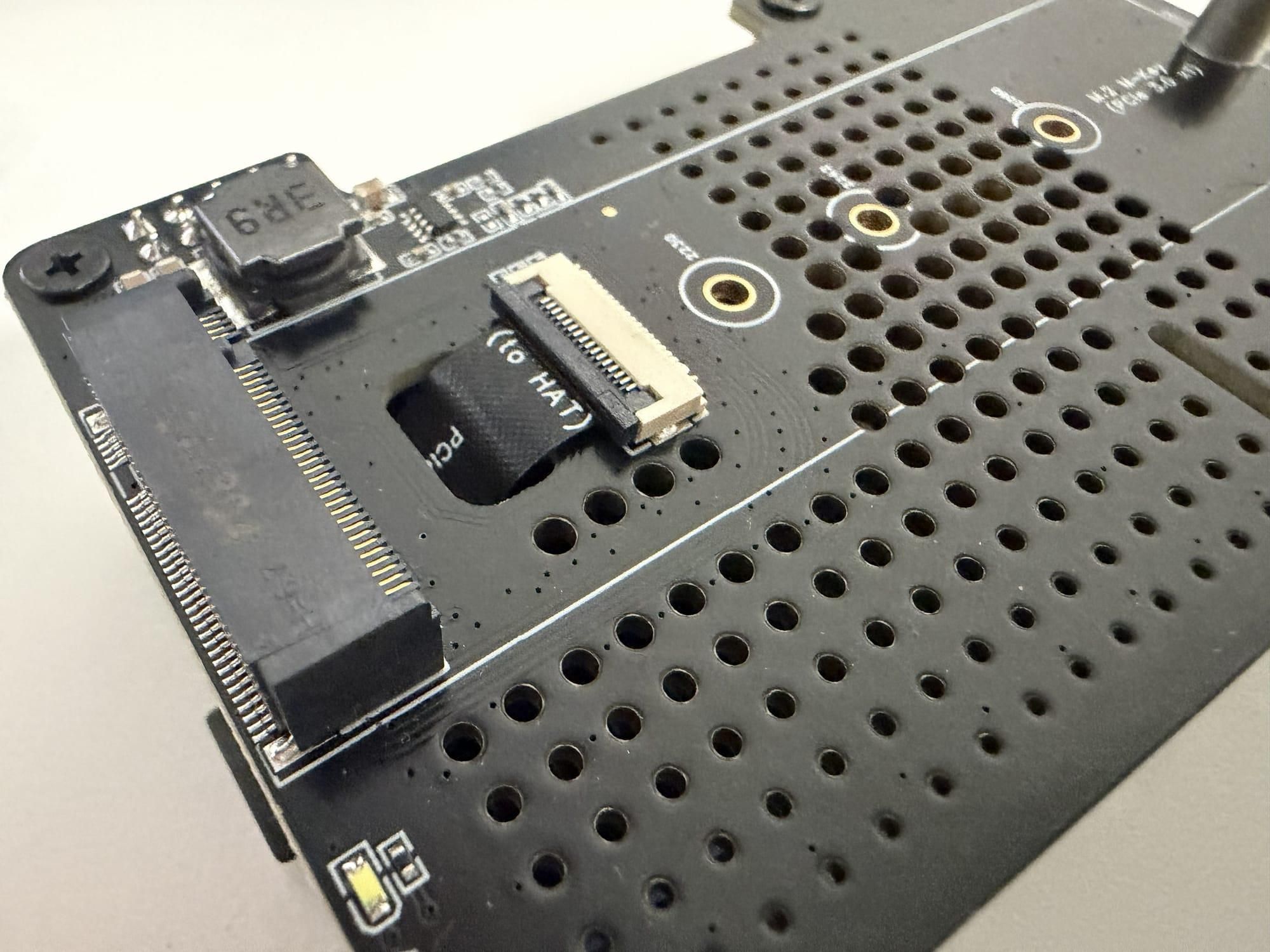

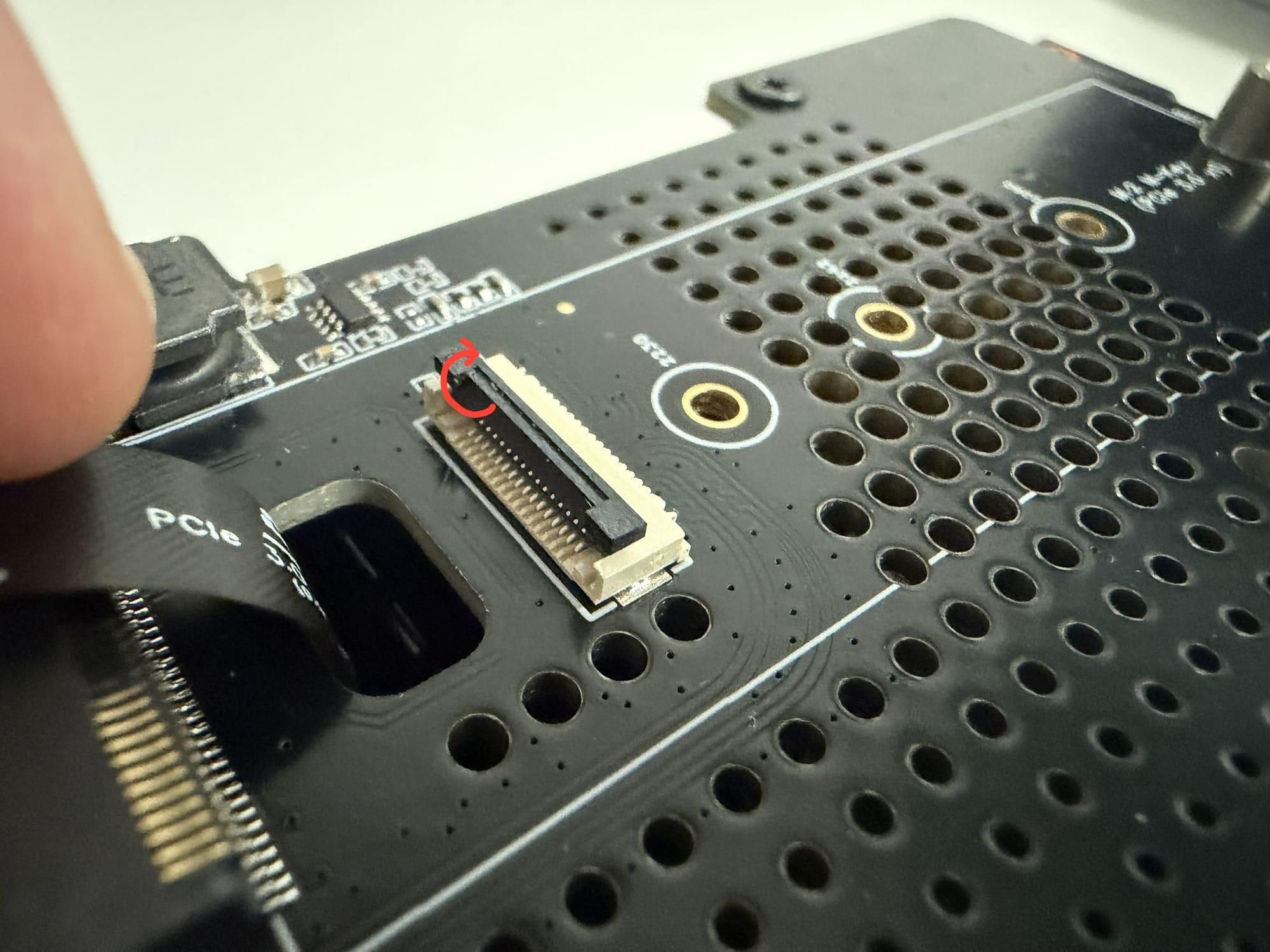

5. On top of the HAT, there is a small gray locking tab. Gently lift it to open the ribbon-cable connector.
6. Insert the other end of the ribbon cable into the connector. Move it gently until it is fully and securely inserted.
7. Push the gray locking tab downward to secure the ribbon cable in place.

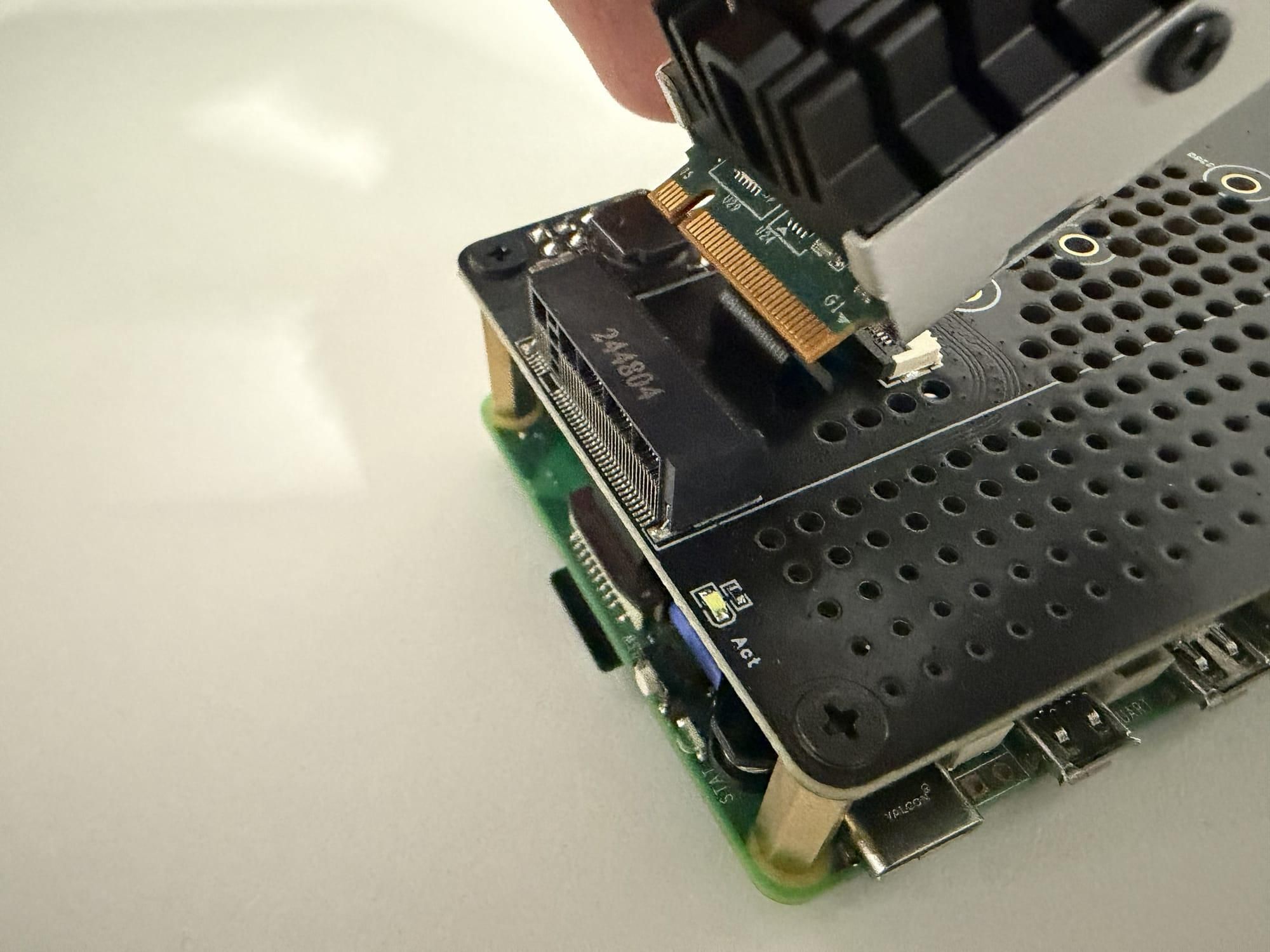

8. Take the MX3 module assembly and insert it into the M.2 slot.
9. Insert the module at approximately a 35-degree angle.

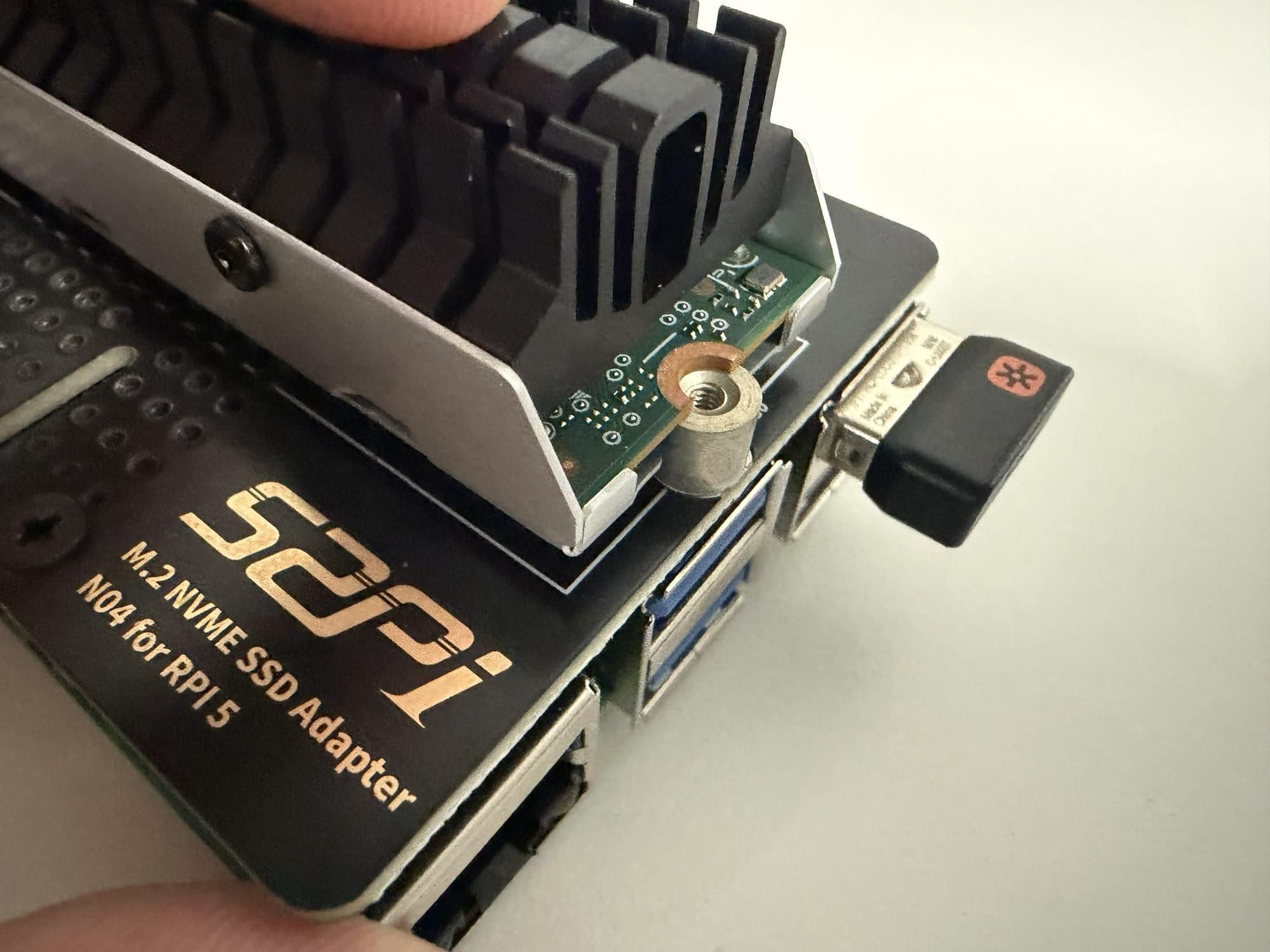

10. Gently lower the opposite end of the module until its mounting hole aligns with the corresponding hole on the PCB.

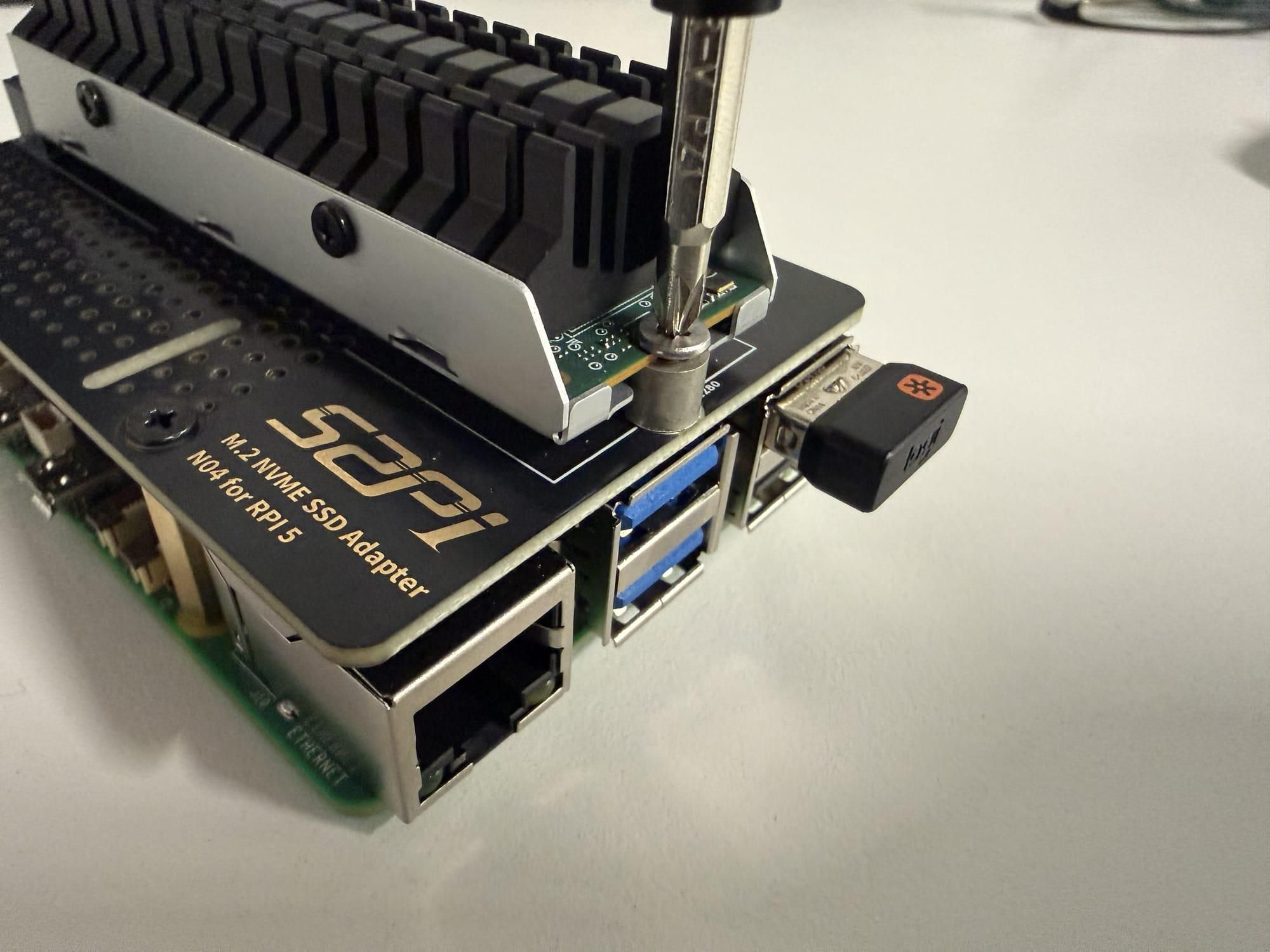

11. Finally, secure the module using the M.2 screw included with either the accelerator or the HAT. (Do not overtighten the screw, as this may permanently damage the PCB. Tighten it only until the module lies flat and is held securely in place. Do not force the screw.)

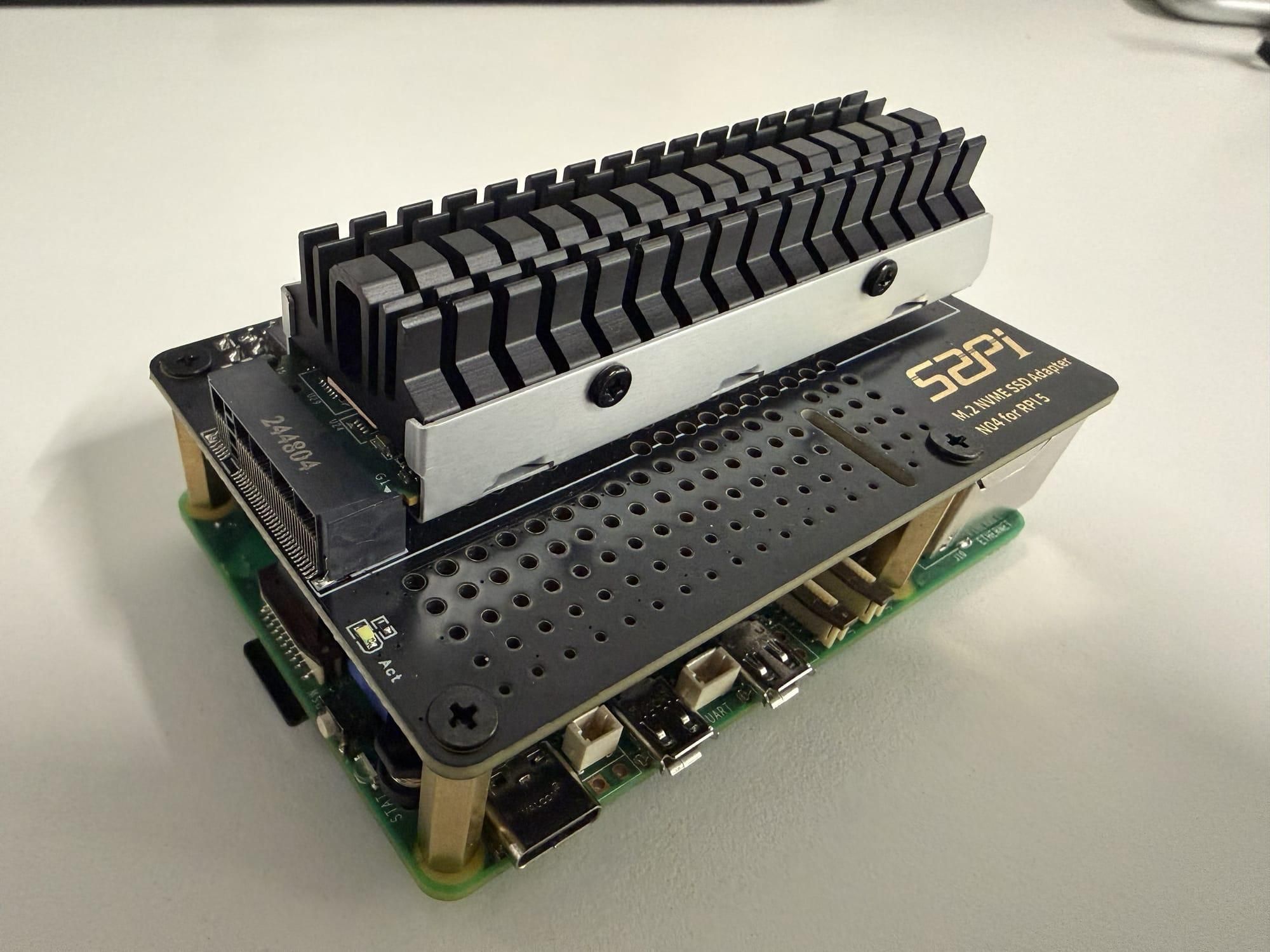

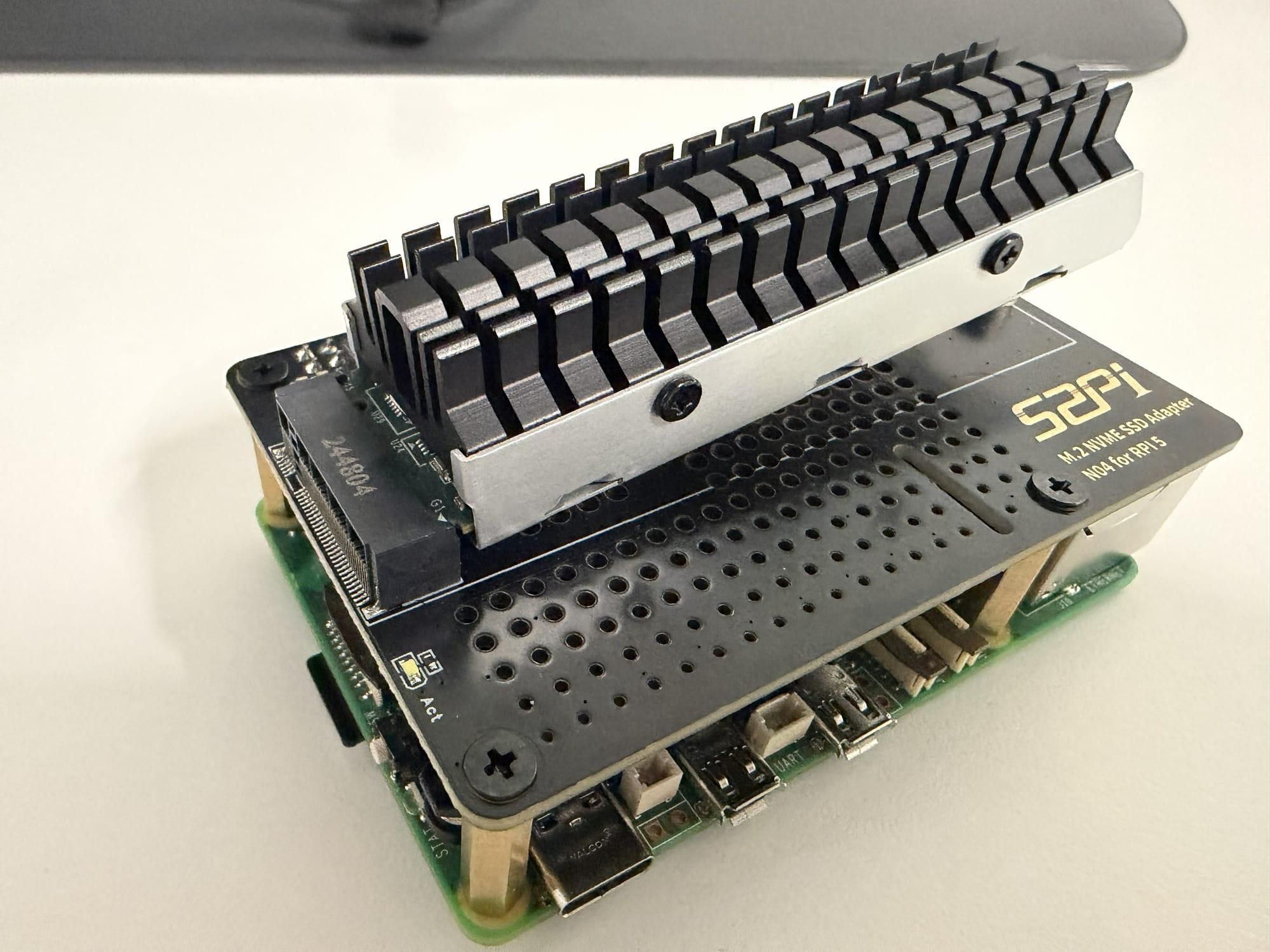

Great job! The MemryX MX3 accelerator is now successfully mounted on the Raspberry Pi.

In the previous section, we installed the MemryX MX3 accelerator on the Raspberry Pi 5 using an M.2 HAT.

Before we can begin running AI applications, we need to install the required MemryX drivers, runtime libraries, and SDK tools. In this section, we will walk through the complete software installation process.

Because Raspberry Pi OS is a Linux-based operating system, we will use the command line for the remaining steps.

The following instructions are intended specifically for the Raspberry Pi 5. The installation process may differ on other devices.

1: Installing runtime (Linux)

Connect the monitor, mouse, keyboard, and power supply, and then turn on the Raspberry Pi.

Open a terminal by clicking the terminal icon in the upper-left corner of the desktop or by pressing Ctrl+Alt+T.

Begin by updating the Raspberry Pi package lists and installed software. Enter your password if prompted.

After the Raspberry Pi restarts, open a terminal again. Install the kernel headers required by the driver:

Add the MemryX signing key:

Add the MemryX software repository:

Update the package list and install the MemryX drivers and runtime libraries. If prompted, enter y to confirm the installation.

After the installation is complete, run the following command to configure the board-specific settings:

When prompted, select Raspberry Pi 5 and press Enter.

Reboot the system so that the changes can take effect:

You can check the MX3 accelerator’s temperature at any time by running:cat /sys/memx0/temperatureThe accelerator may begin thermal throttling at 100°C. Make sure the system has adequate cooling, particularly when operating in a hot environment, such as a server room.

After the Raspberry Pi restarts, verify that the MemryX driver is installed by checking its version:

You should see output similar to the following: Installed: 2.2.1-3

MemryX also provides plugins and utility libraries that simplify application development. Many tutorials and sample applications rely on these additional components.

The download is approximately 1.4 GB and may take some time to complete.

The runtime installation is now complete. Next, we will install the MemryX SDK tools.

---------------------------------------------------------------------------------------------------------------

2: Installing MemryX tools

Raspberry Pi OS includes Python 3.13 by default. At the time of writing, the MemryX tools do not support this Python version. We will use uv to install Python 3.12 and create a compatible virtual environment.

Begin by installing uv:

Load uv into the current terminal session:

Install Python 3.12 and create a virtual environment:

Next, install the system dependencies required by the MemryX SDK tools. The download is approximately 111 MB.

After the dependencies have been installed, install the MemryX Python package. The download is approximately 2.2 GB.

The software installation is now complete. Verify the installation by checking the MemryX Neural Compiler version:

The command should display the installed SDK version, such as: 2.2.1

Note:

These instructions were tested with MemryX SDK 2.2. For the latest supported versions and installation steps, refer to the MemryX Developer Hub software installation guide.

Now that the hardware and software are installed on the Raspberry Pi, we can begin using the MemryX MX3 accelerator.

In this section, we will run two computer vision applications to demonstrate how the accelerator works and confirm that the installation was successful.

For this section, you will need the following:

-Raspberry Pi 5 with the accelerator and software installed using the previous steps, connected and running on screen

-Webcam

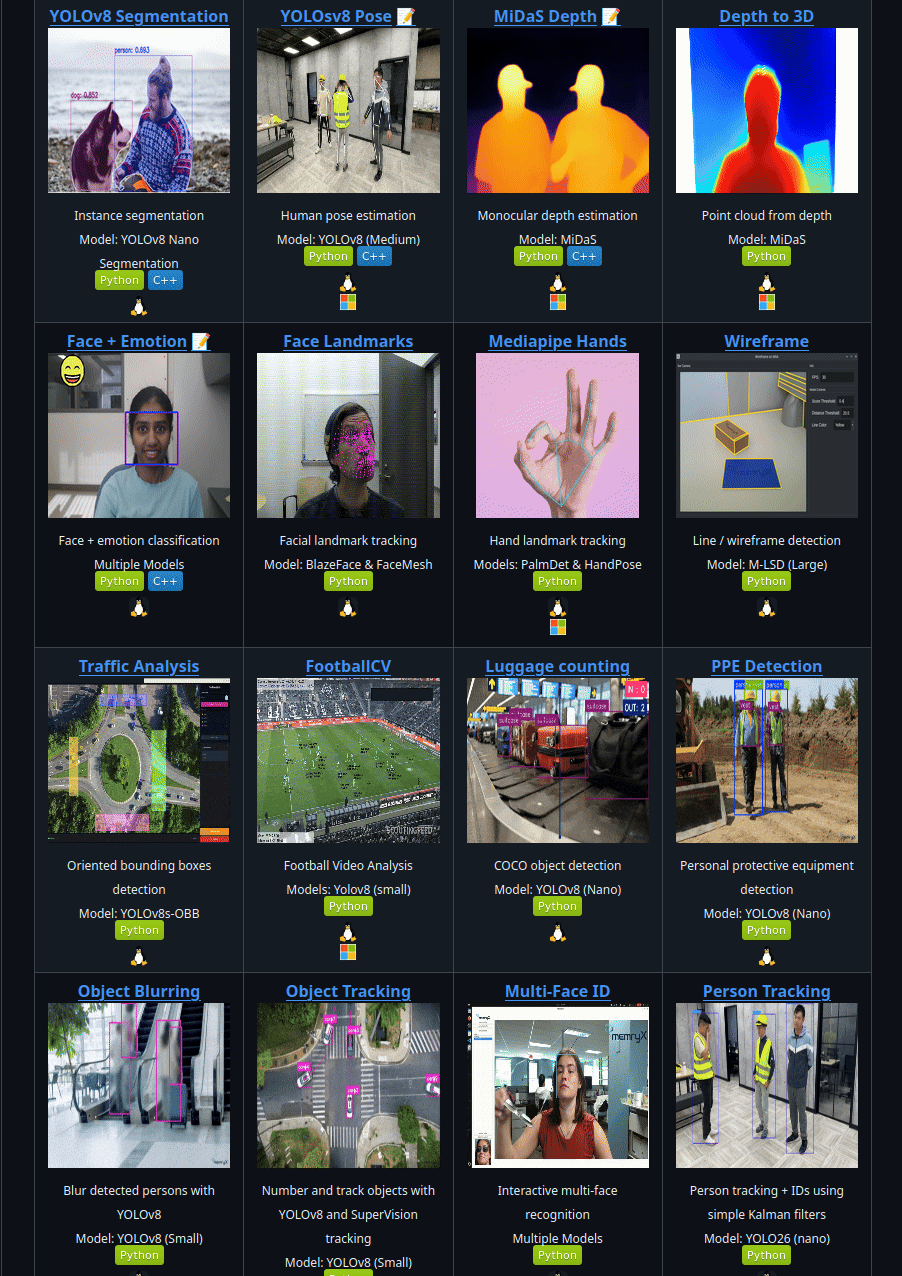

In addition to the accelerator hardware and software, MemryX provides many free, open-source examples. These examples are available in the MemryX Examples github page. Each example includes detailed instructions explaining how to download the required models, install dependencies, and launch the application.

For this guide, we will use the Mediapipe Hand Landmarks Tracking and Open-Vocab Segmentation YOLOE examples.

Before we begin, open a terminal on the Raspberry Pi and clone the complete MemryX Examples repository:

The complete set of examples is now available in the memryx_examples directory.

Before launching an example or using the accelerator, make sure to activate the virtual environment:

source ~/mx/bin/activate

---------------------------------------------------------------------------------------------------------------

1: Mediapipe Hand Landmarks Tracking

This example captures a live video stream, sends the frames to the MemryX accelerator, detects hands, highlights their landmarks, and displays the annotated video on the screen.

The example is simple to run and demonstrates many possibilities for gesture-controlled applications.

Begin by navigating to the example directory:

Install OpenCV:

Make a new folder, download the pre-trained models and extract it in that folder

You can compile your own model using mx_nc -v -m path/to/model

Just make sure to name it models.dfp and put it in the models folder

Navigate to the Python source directory:

Finally, connect your webcam and run the application:

Once the application starts, the webcam will activate and a window will display the live video feed.

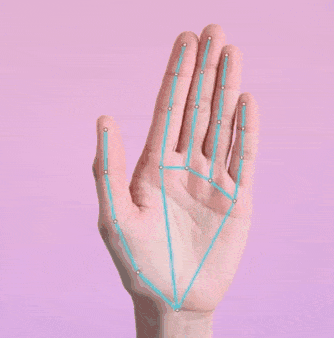

When a hand is detected, the application will highlight its landmarks. The model can also distinguish between the left and right hands.

You can now open the source code, understand how the application works, and extend it with your own functionality. Later in this series, we will use this example to control a seven-segment display using hand gestures.

---------------------------------------------------------------------------------------------------------------

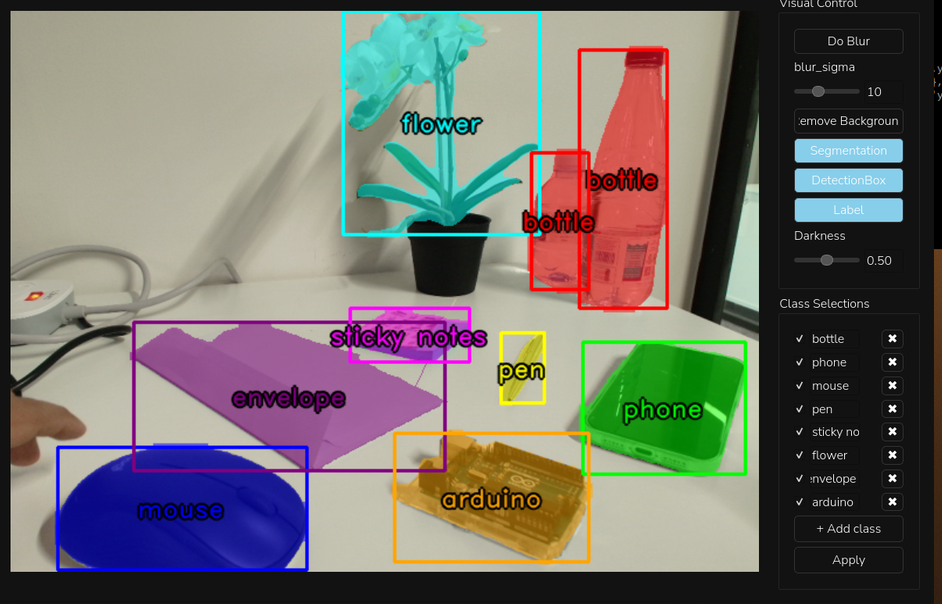

2: YOLOE Open-Vocabulary Segmentation

In this example, we will use YOLOE, a state-of-the-art open-vocabulary model.

The application allows you to enter the name of an object category you want to detect. It can then detect and segment matching objects in the live video stream.

This is an engaging example to experiment with, and it runs smoothly on the Raspberry Pi with the MemryX accelerator.

Navigate to the YOLOE example directory:

Install the required dependencies:

Download and extract the precompiled model:

You can compile your own model using mx_nc -v -m model

Just make sure to name it models.dfp and put it in the models folder

Navigate to the Python source directory and launch the application:

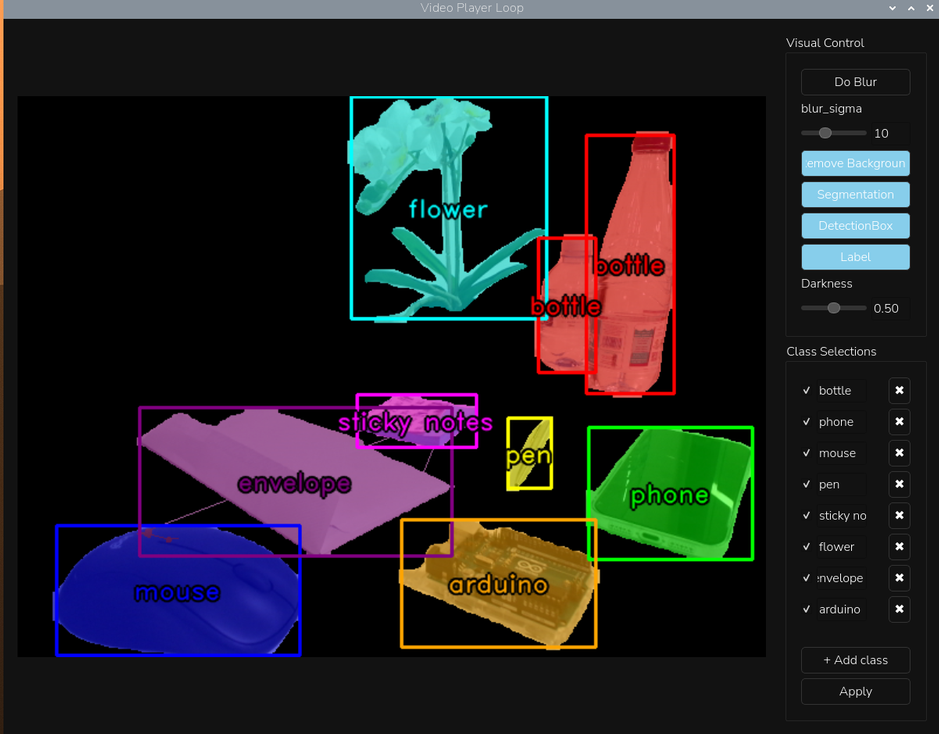

When the application starts, enter the name of an object class you want to detect and click “Apply.” The application will update the selected classes and briefly reconfigure the pipeline before inference resumes.

The application also provides several options, including enabling or disabling segmentation and removing the background so that only the detected objects are displayed.

6. Control an LED light using webcam

In the previous sections, we set up Raspberry Pi OS, installed the MemryX hardware and software, and ran several computer vision examples.

Now, we will use what we have learned to accomplish the main goal of this series: integrating computer vision into physical electronics projects.

As mentioned in the Introduction to this series, one of the best ways to begin working with electronic circuits is by turning an LED on and off. We will first build the circuit and test it using the Raspberry Pi’s GPIO pins. We will then add computer vision so that we can control the LED using hand gestures.

1: Blinking an LED

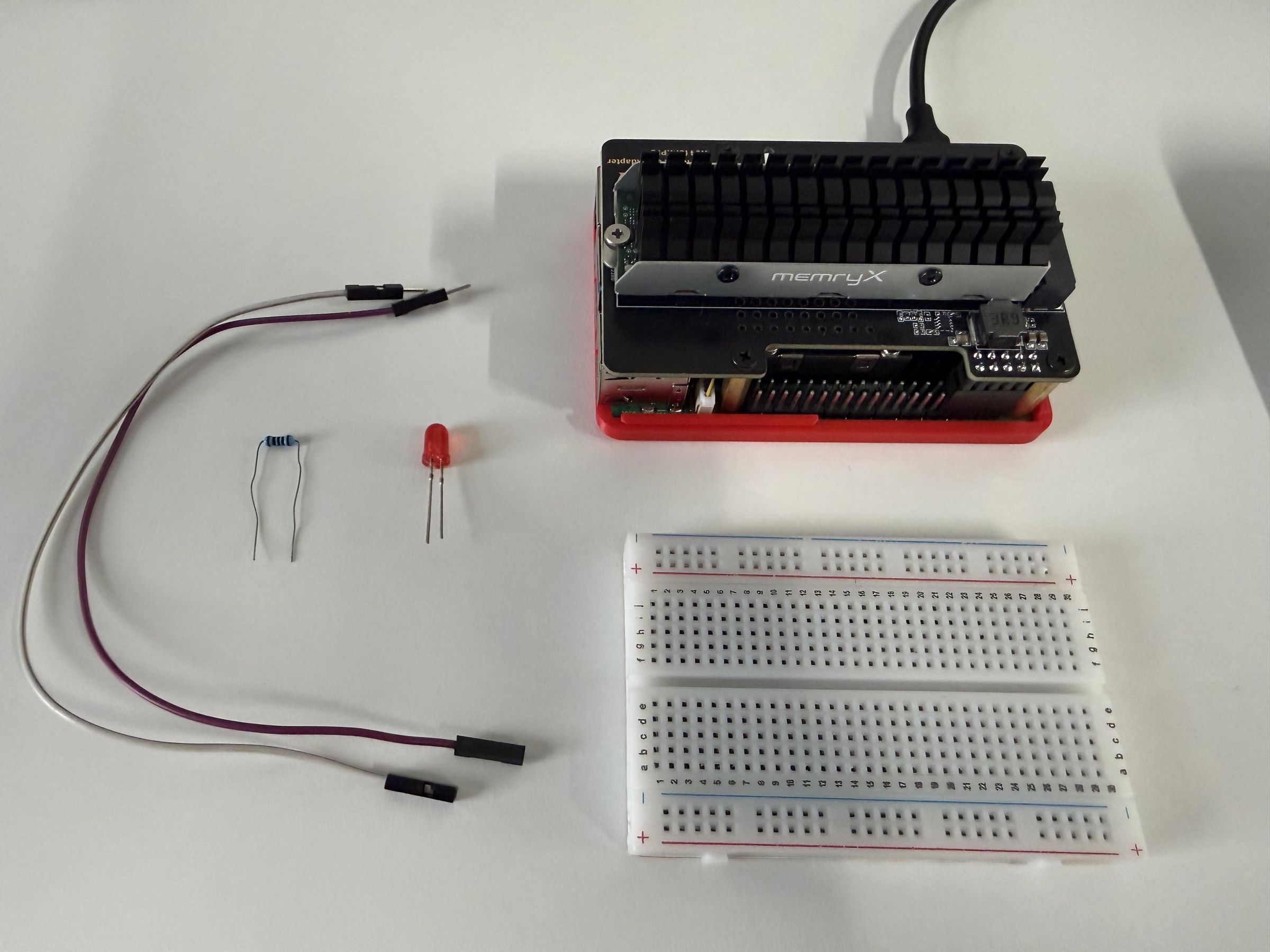

For this step, you will need the following:

-Raspberry Pi 5

-LED with color of your choice

-Male-to-Female cable x2

-100 Ohm Resistor (You can use any value from 100-330 Ohm)

-Breadboard

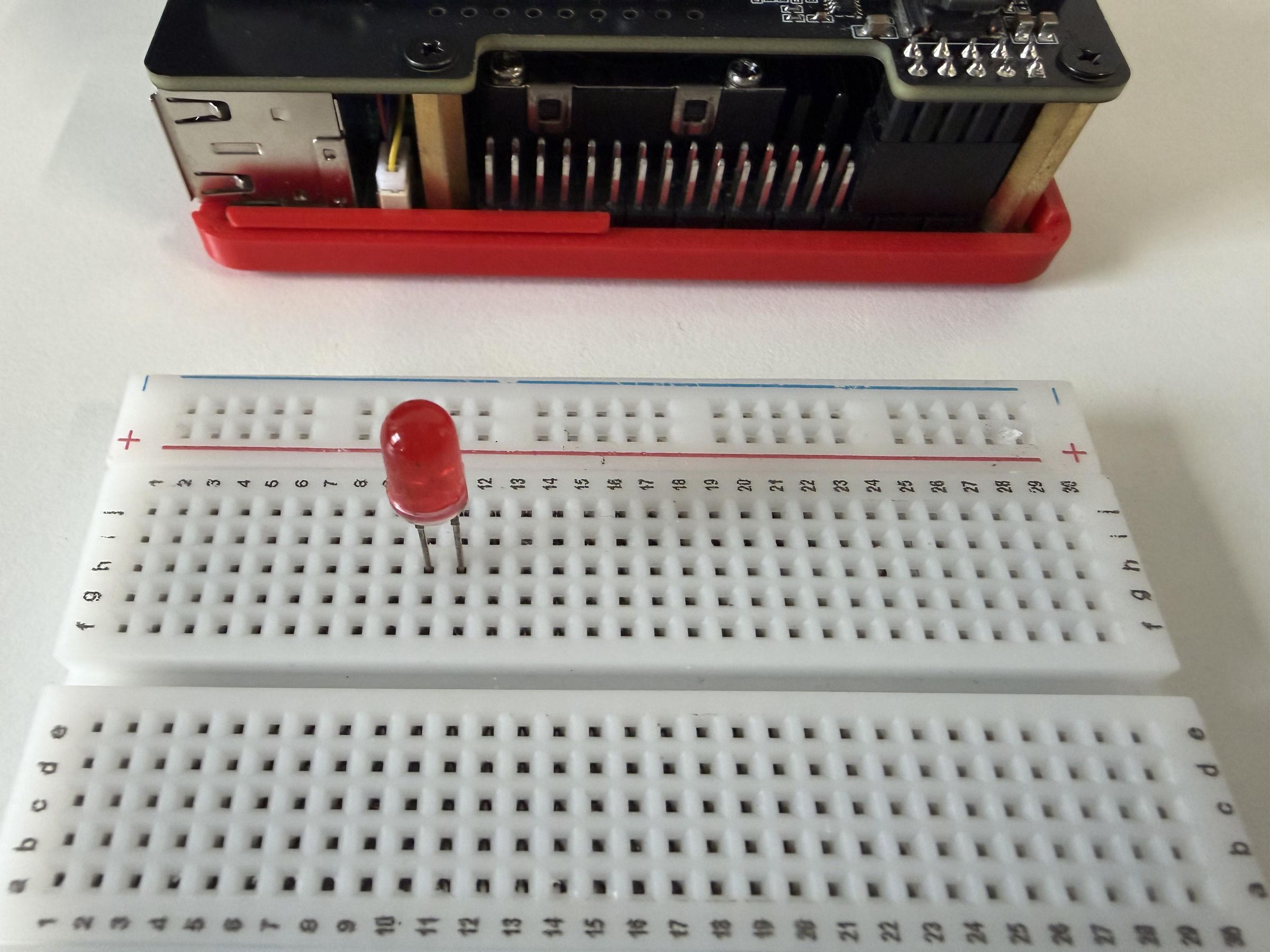

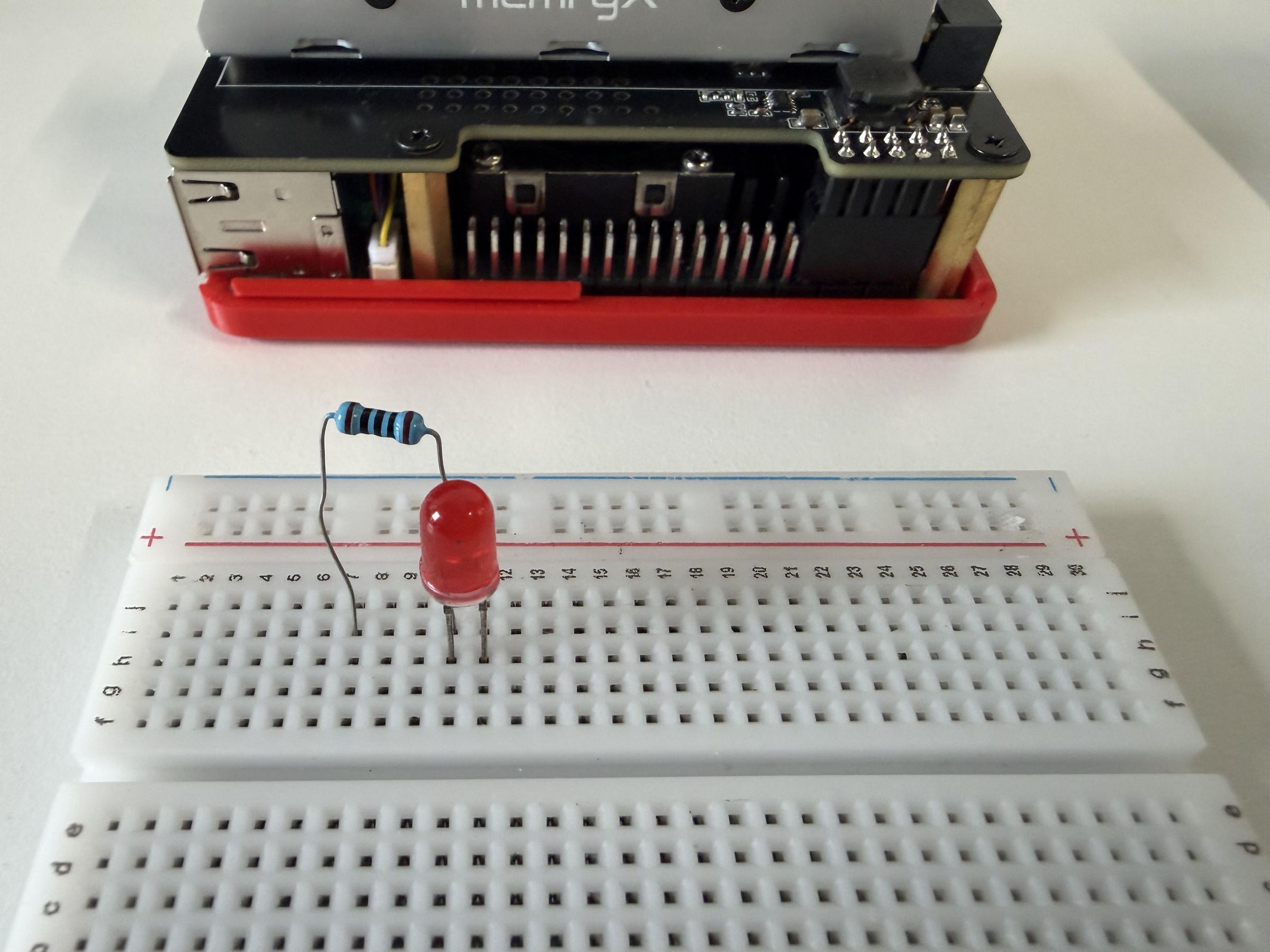

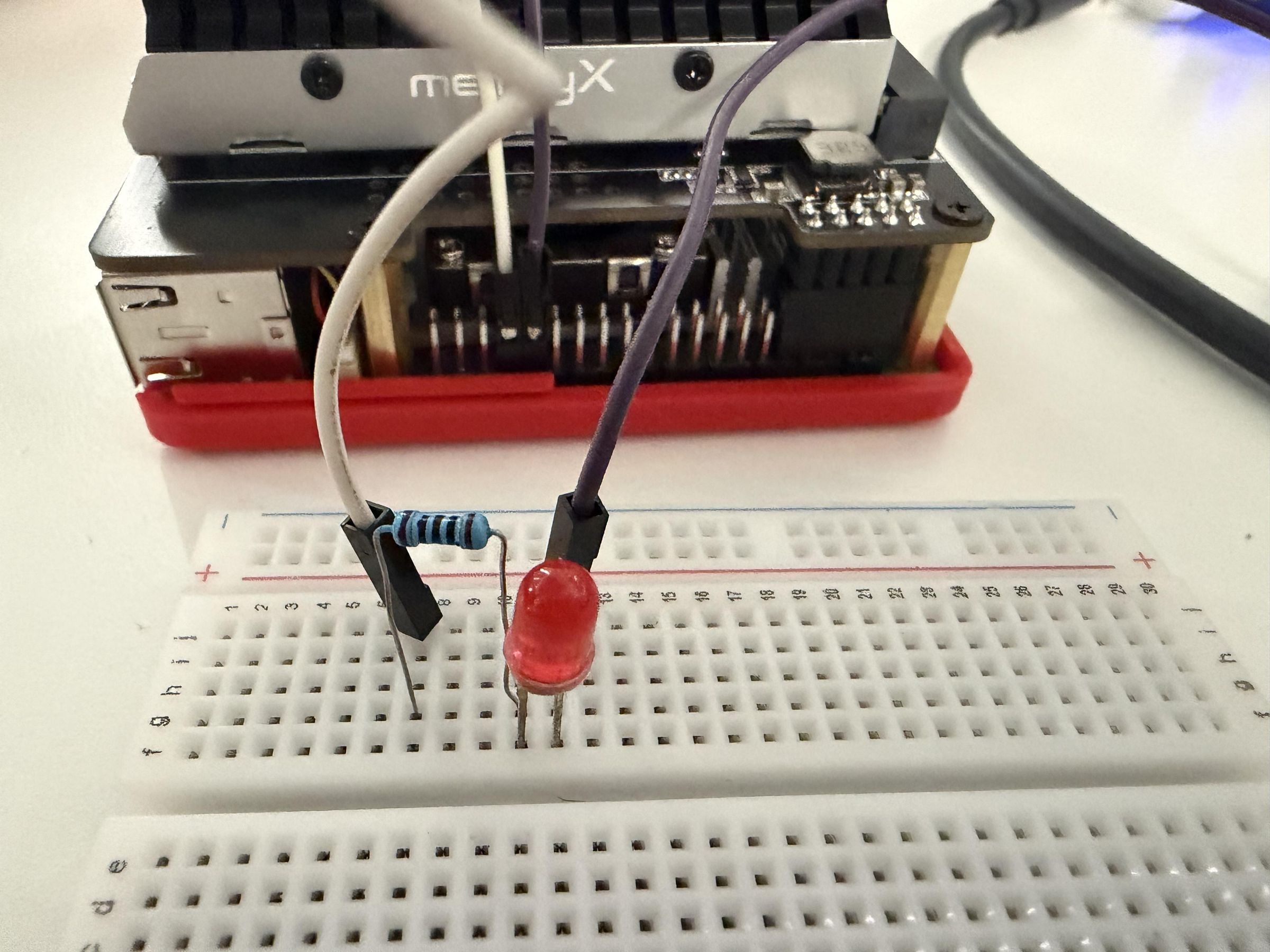

First, insert the LED into the breadboard.

Next, connect the resistor in series with the LED’s negative leg. The LED’s longer leg is typically the positive terminal, or anode, while the shorter leg is the negative terminal, or cathode.

Finally, complete the circuit as follows:

1. Connect one jumper wire from physical pin 32, which corresponds to BCM GPIO 12, to the LED’s positive leg.
2. Connect the second jumper wire from physical pin 34, or any available ground pin, to the free end of the resistor.

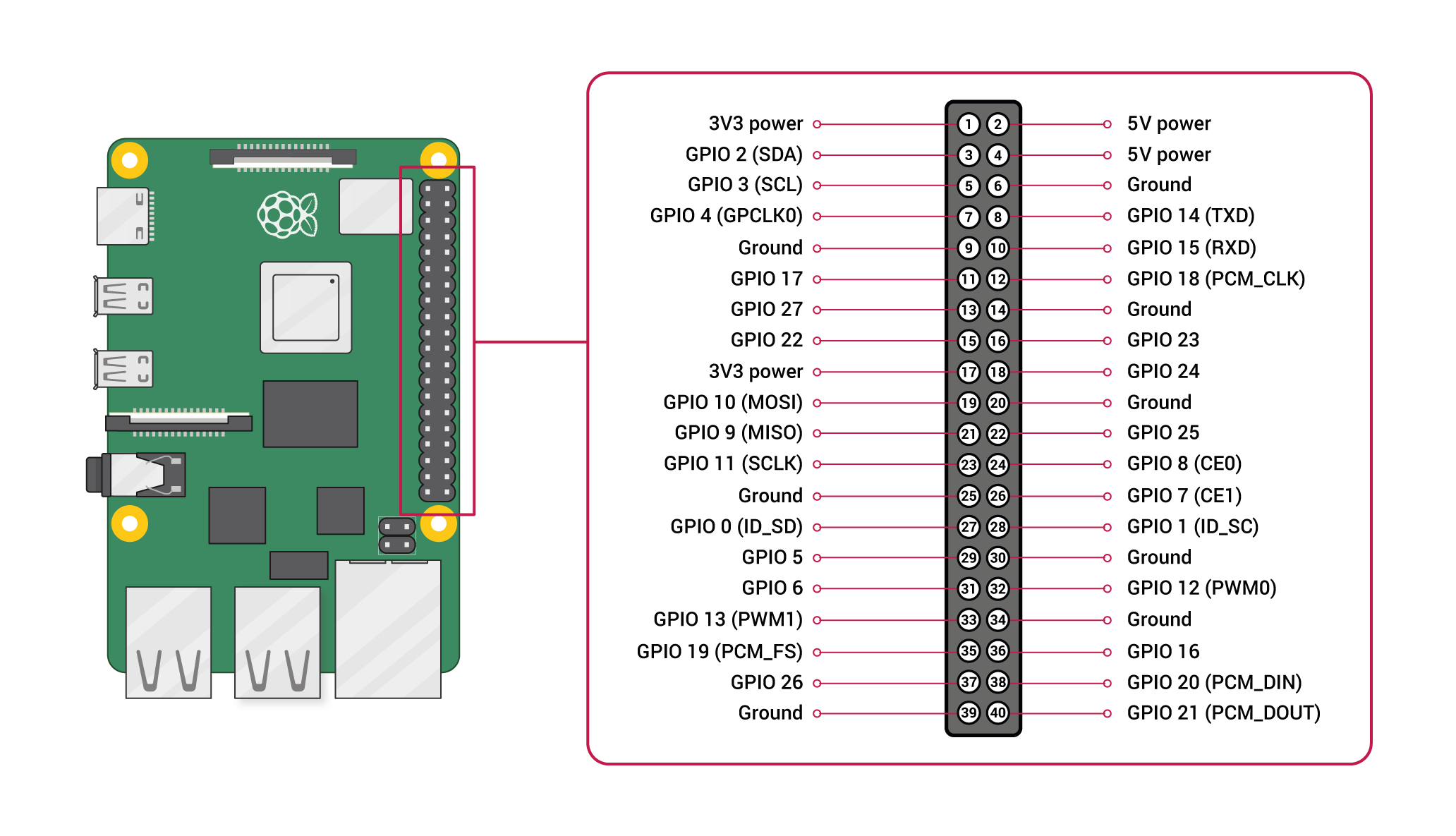

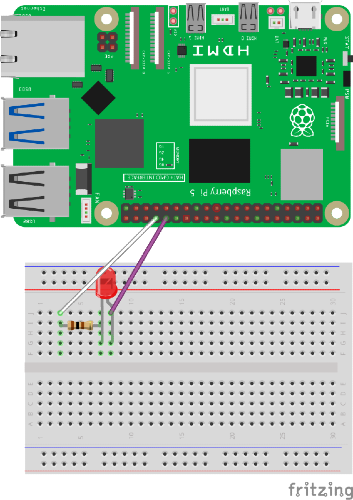

You can use the diagram to identify the Raspberry Pi’s pin numbers and functions.

also, the attached circuit diagram shows the completed wiring.

After building the circuit, let us write a Python program to control the LED.

Make sure to activate the virtual environment before continuing

uninstall the old GPIO library and install the robust new one:

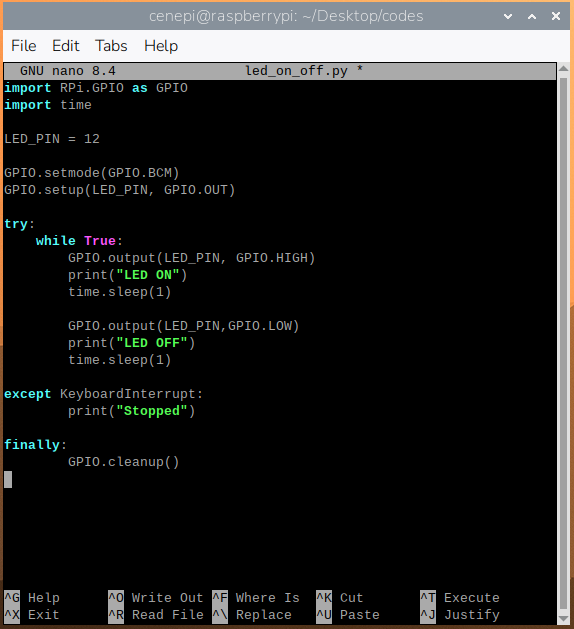

Create a new Python file named led_on_off.py. This guide uses Nano because it is lightweight, but you may use Visual Studio Code or any other text editor.

Copy and paste the following code into the file:

To save the file in Nano, press Ctrl+O, press Enter to confirm the filename, and then press Ctrl+X to exit.

Run the program:

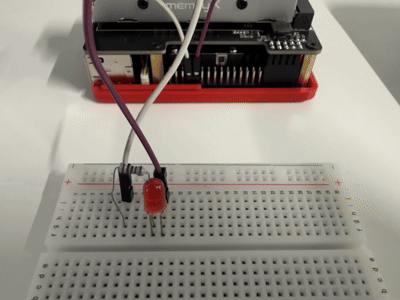

The LED should begin blinking, confirming that the circuit and Python program are working correctly.

After confirming that the circuit, connections, and program work correctly, we can move to the next step and control the LED using hand gestures.

---------------------------------------------------------------------------------------------------------------

2: Using MediaPipe Hands to Control an LED

In Section 5, we ran the MediaPipe Hands example. We then built and tested a simple blinking LED circuit.

In this final step, we will combine the two projects to create an application that controls the LED using hand gestures.

This section relies on the hardware, libraries, models, and circuit configured in the previous steps.

After activating the virtual environment, navigate to the MediaPipe Hands Python source directory:

If you did not run the Mediapipe example in Chapter 5, you need to download and unzip the pre-compiled model first.

Make a new file named led_hand_toggle

...and paste (or download) the code below in it. Then press CTRL+S and CTRL+X

Make sure to save the file in the correct directory, as the code relies on other codes that exists in that directory and will not work anywhere else

After saving the file, simply run it

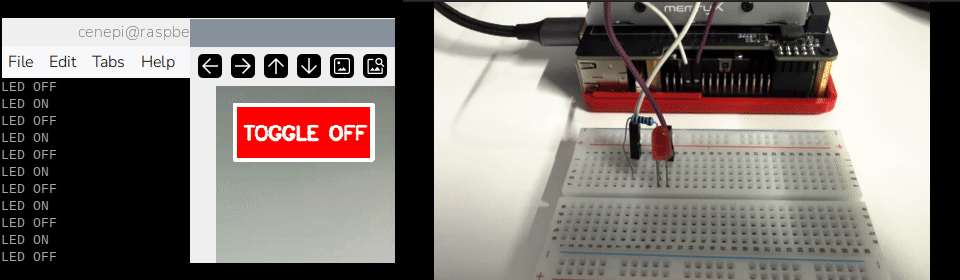

After launching the program, the camera window will appear with a box on top-left and it will start detecting and highlighting your hand. simply hover your hand over the box and you will see the LED turn on and off.

---------------------------------------------------------------------------------------------------------------

Conclusion

In this guide, we set up a Raspberry Pi 5 with the MemryX MX3 AI accelerator, installed the required runtime and SDK tools, ran real-time computer vision examples, and connected computer vision output to a simple physical circuit.

Blinking an LED is only the starting point. Once computer vision can interact with the Raspberry Pi’s GPIO pins, the same approach can be extended to gesture-controlled lighting, smart displays, robotics, automation systems, and many other embedded AI applications.

In future guides, we will build on this setup and explore additional ways to connect MemryX-accelerated computer vision with real-world hardware.
