Intro to Unity

This instructable is aimed at super beginners!

You will need to install Unity 4.x (Free or Pro).
http://unity3d.com/unity/download

Start up Unity and create a New Project. Don't worry about importing things yet!

Learn about the different Unity Windows are here:
http://unity3d.com/unity/workflow/integrated-editor

Let's set our layout to the Default layout.
Go to the Menu Bar and click on Window > Layouts > Default

1. Menu Bar
2. Object Manipulation Tools (Gizmo): Use this to pan the view and move, rotate, and resize objects.
3. Pivot Setting: This changes the location of the Gizmo to either be at the object's pivot point or the object's center.
4. Coordinate Settings: Use this to change whether to move an object in the global coordinate system or its local coordinate system (based on the object's rotation).
5. In-Editor Game Manipulation Tools: Use these to start/stop, pause, and step the game.
6. Layers: Change what layers are visible in your scene in case you want to work only on one set of objects.
7. Layout Menu: Change your current window layout.
8. Hierarchy Window: Game objects in here are part of the current scene. Manipulate them here.
9. Scene / Game / Animator viewer:  This is where you view your game. Navigate this by using right click with WASD or the mouse to pan/zoom/tilt.
10. Gizmo: This is a Gizmo. Use this to move, rotate, and resize objects based on the selected tool.
11. Inspector Window: This is where you change settings for a selected object.
12. Project Window: This is where all the assets for the project are stored.
13. Console Window: Errors, warnings, and print messages will all appear here. Use this to debug.
14. Message Bar: Whenever you have an error, warning, or message, it will show up down here. Go to the console to fix all your bugs.

We're going to start by importing some of Unity's Standard Assets.

In the Menu Bar, look under the Assets tab to Import some packages.

Assets > Import Package > Terrain Assets
Assets > Import Package > Character Controller

Let's add some mountains!

In the Menu Bar go to GameObject  > Create Other > Terrain

Select the terrain object by clicking on it in the Scene or in the object list in the Hierarchy window.

Click the Raise/Lower Terrain button in the inspector panel.

Left click and drag anywhere on the terrain in the Scene to raise the elevation.
Hold down shift to lower.
Experiment with different brush shapes and sizes.

Adding Textures

Now select the Paint texture tool in the Inspector.
Click the Edit Textures button under the Textures heading and select Add Texture.

In the window that appears click select Select in the box labelled Texture.
Double click Grass (Hill) in the window that appears.
Click Add at the bottom of the Add Terrain texture Window.

Add a few more textures using the same method.

Texture Painting

With the terrain and Paint Texture tool still selected select a texture other than grass.
Now, just as with the height modification, click and drag in the viewport to change the texture of the terrain.

Move your Main Camera

Find your camera by double clicking the Main Camera object in the list of objects on the left side of the screen under Hierarchy.

Enable the movement tool by clicking on the 4-directional arrow in the upper left.

You can move objects by dragging the arrows of the tool.
Move your Main Camera object so that the Camera Preview shows something interesting.

Game Object > Create Other > Directional Light

Try changing the Intensity of the light or play around with the direction and location.

Let's see what the player is looking at!

Now you can see things!

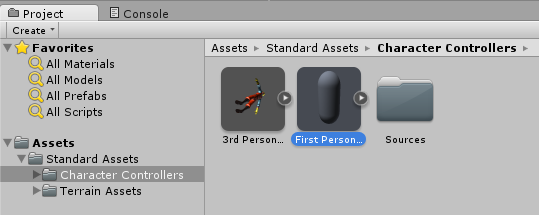

Locate the First Person Player Controller asset in the Project window.
Assets > Standard Assets > Character Controllers > First Person Controller

Add a player to the scene by dragging and dropping it into the Hierarchy window.

Rename it to Player by changing the name in the Inspector Window.
Note: if you do not press enter/return after renaming it, the name will not change.

Try positioning the Player on top of the terrain.

Make sure the Player isn't intersecting terrain, otherwise you'll fall through.

Delete Main Camera by right clicking on it's name in the Hierarchy and pressing Delete.

Press play. You should be able to walk around now :)

Let's get a nice building for free!

https://www.assetstore.unity3d.com/#/content/6298

Open in Unity. Download! Create account or log in as needed.
Import all the assets.

Assets > Import Package > Skyboxes
Check only the files relating to DawnDusk

Edit > Render Settings > Skybox Material

Drag and drop the  prefabs of the models into your scene.

Create Scripts Folder

Make a new Javascript Script called "Menu."

We'll start by adding the most basic Menu element for a first person shooter: locking and hiding the mouse when in game.

// True if the menu is open and mouse is unlocked
var MenuOpen : boolean = false;

function Start () {
    UpdateCursorLock();
}

function Update() {
    // Check whether the menu button was released
    if (Input.GetButtonUp("MenuOpen")) {
        MenuOpen = !MenuOpen;
        UpdateCursorLock();
    }
}

// Called each time the Gui needs to be drawn
function OnGUI () {
    if (!MenuOpen) {
        // Draw the crosshair

        // Center the text inside the label
        var centeredStyle = GUI.skin.GetStyle("Label");
        centeredStyle.alignment = TextAnchor.MiddleCenter;
        // Draw the label at the center of the screen
        GUI.Label (Rect (Screen.width/2-50, Screen.height/2-25, 100, 50), "+", centeredStyle);
    }
}

function UpdateCursorLock() {
    Screen.lockCursor = !MenuOpen;
    Screen.showCursor = MenuOpen;
}

To get the Menu on the scene, let's create an Empty Game Object (GameObject > Create Empty).

Let's call this "Menu."

Drag the script on to the Menu object.

We'll add more functionality to this later.

Let's add a Menu Open / Close button

Edit > Project Settings > Input.
Open the "Axes."
Under the Size in the Input Manager, edit the size to be 21.
Rename one of the new Inputs to be called "Menu Open" and inside it, set the "Positive Button" to be "escape"

Gun

Let's try out this gun:
https://www.assetstore.unity3d.com/#/content/10332

Drag in DartGun Prefab from Compressed Gas Pistol > Prefab > DartGun to the scene.

A prefab is like a Class but in 'object' form. It's the copy with good defaults that you can use for all your different levels.

Put DartGun in Player > Main Camera

Position/Rotate DartGun (Player > Main Camera > DartGun) according to the values below:

Position/Rotate inner DartGun (Player > Main Camera > DartGun > DartGun) according to the values below:

Let's create and shoot some bullets!

Create Sphere by going to GameObject > Create Other > Sphere

Rename the object to Bullet

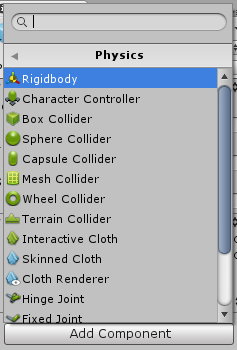

Add a new RigidBody to the Bullet object.
Click Add Component > Physics > RigidBody

Uncheck Use Gravity
Set Collision Detection to Continuous

Set the scale of the sphere's transform to 0.2, 0.2, 0.2

Let's create a new javascript Script called "Bullet."

// The speed the bullet moves
var Speed : float = .4;

// The number of seconds before the bullet is automatically destroyed
var SecondsUntilDestroy : float = 10;

private var startTime : float;

function Start () {
    startTime = Time.time;
}

function FixedUpdate () {
    // Move forward
    this.gameObject.transform.position += Speed * this.gameObject.transform.forward;

    // If the Bullet has existed as long as SecondsUntilDestroy, destroy it
    if (Time.time - startTime >= SecondsUntilDestroy) {
        Destroy(this.gameObject);
    }
}

function OnCollisionEnter(collision : Collision) {

    // Remove the Bullet from the world
    Destroy(this.gameObject);
}

Drag and drop the Bullet script from the Project Window (Assets > Scripts) to the Bullet Object in the Hierarchy Window.
Finally, let's make the Bullet into a prefab and delete it from the scene.
Create a prefab of the bullet by dragging the Bullet object into the Project window to the Assets > Prefabs in the Hierarchy Window.

Let's create a new javascript Script called "Gun."

// This is the bullet prefab the will be instantiated when the player clicks
// It must be set to an object in the editor
var Bullet : GameObject;

// Fire a bullet
function Fire () {
    // Create a new bullet pointing in the same direction as the gun
    var newBullet : GameObject = Instantiate(Bullet, transform.position, transform.rotation);
}

function Update () {
    // Fire if the left mouse button is clicked
    if (Input.GetButtonDown("Fire1")) {
        Fire();
    }
}

Drag and drop the Gun script from the Project Window (Assets > Scripts) to the Gun Object in the Hierarchy Window.

Drag and drop the Bullet Prefab into the Gun script where it says "None (Game Object)."

Remember to always apply changes to the prefab by going to the scene object > inspector window > prefab > apply.

Let's make sure the Player doesn't get shot!

Layers > Edit Layers

Create Bullet Layer
Create Player Layer

Select the Bullet object and set its layer to Bullet.

Select the Player and set to Player layer.
Say yes to changing the children.

Edit > Project Settings > Physics

Uncheck Bullet/Player and Bullet/Bullet

You will need to download the following Zombie:
http://www.mixamo.com/editor/new/86

Press yes to viewing the animation.
Click Download
Click Sign Up
Create Account
Click Download again
Click Checkout
Select FBX for Unity for Download Format
Click Download

Create Models Folder in the Projects window > Assets

Drag and Drop the Zombie into the Models Folder

If a warning window pops up when importing the model click Fix Now.

GameObject > Create Empty
Rename the GameObject to Zombie
Drag the Zombie model onto the Zombie Object

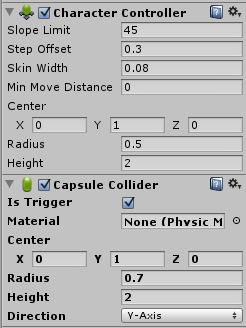

Put a Character Controller on the Zombie Object
In the inspector set the Center Y  to 1

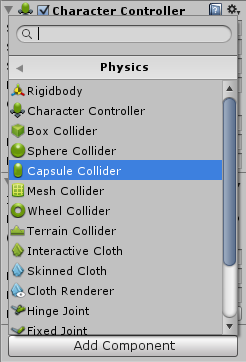

Add a Capsule Collider component
Add Component > Physics > Capsule Collider
** Make sure to copy the exact values over.

Create a new script named Zombie in your scripts folder.

var VisionDistance : float = 200;
var MovementSpeed : float = 2;
var Health : int = 2;

function FixedUpdate () {
    // Get the Player object
    var player : GameObject = GameObject.Find("Player");
    var characterController : CharacterController = GetComponent(CharacterController);

    // Get the position of the Zombie's eyes
    var eyePosition : Vector3 = transform.position;
    eyePosition.y += characterController.height;

    // Get the difference between the player and the Zombie positions
    // This creates a direction vector pointing in the direction of the Player.
    var lookDirection = player.transform.position - eyePosition;
    lookDirection = lookDirection.normalized;

    // Only look for the player or objects that are part of the scenery (terrain, buildings, etc.)
    var layerMask : int = 1 << LayerMask.NameToLayer("Player") | 1 << LayerMask.NameToLayer("Default");

    // The direction the Zombie will move, defaults to standing still
    var movementDirection : Vector3 = Vector3.zero;

    // hitInfo will contain information about what the Zombie can see.
    var hitInfo : RaycastHit;
    if (Physics.Raycast(eyePosition, lookDirection, hitInfo, VisionDistance, layerMask)) {
        // If the Zombie can see the Player move toward them.
        if (hitInfo.collider.gameObject == player) {
            movementDirection = lookDirection;
            movementDirection.y = 0;
            movementDirection = movementDirection.normalized;
        }
    }

    // Face and move in the chosen direction
    if (movementDirection != Vector3.zero) {
        transform.rotation = Quaternion.LookRotation(movementDirection, Vector3.up);
    }
    characterController.SimpleMove(movementDirection * MovementSpeed);
}

Put script on the Zombie.

Create Zombie Layer (Layers > Edit Layers)

Put Zombie into Zombie Layer so that the Zombie can 'see through' other zombies.

Drag and drop the Zombie into the Assets > Prefabs folder to create a prefab of it.

Locate the Zombie@walking_3 asset in the Models folder.

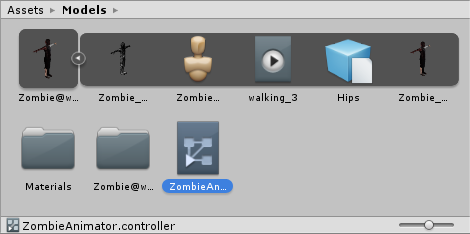

The same way you made a script, this time, make an Animator Controller

Project Window > Right Click > Create > Animator Controller

Name it Zombie Animator.Now double click on the Zombie Animator.

Now in the Project Window, locate the Zombie@walking_3 asset again.

Open up the asset by clicking the arrow next to it.

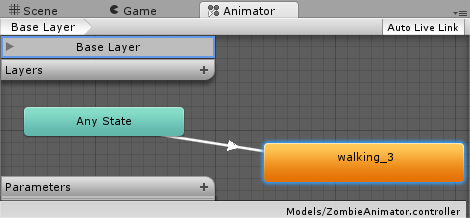

Now drag and drop the walking_3 animation into the Animator Window.

Connect the Any State to the walking_3 state by right clicking on Any State > Make Transition and then click on walking_3.

First, let's make sure that the walking 3 loops correctly by editing the Transition arrow (click on the Transition arrow).

Make sure the walking animation doesn't over lap and the arrows on the timeline are next to each other.

Next, let's make sure the animation isn't super duper slow by editing the walking_3 animation inside the Animator window.
Set the speed to around 3.4.

Now in your scene, go to the Zombie and drag the animator controller on to the animator object.
Uncheck Apply Root Motion and set the culling mode to Always Animate.

Finally, go to Prefab > Apply and apply the settings to the prefab. Make sure that the Zombie prefab now also has an animator controller!

Test it out in the scene!

Let's make a Spawner!

Create a new empty GameObject.
Name the object Spawner.
Create a new script named Spawner and add the following code to it:

// The object to be spawned
var SpawnObject : GameObject;

// in seconds
var SpawnStartDelay : float = 0;
var SpawnRate: float = 5.0;

function Start()
{
    InvokeRepeating("Spawn", SpawnStartDelay, SpawnRate);
}

// Spawn the SpawnObject
function Spawn()
{
    Instantiate(SpawnObject, transform.position, transform.rotation);
}

Add the script to the Spawner.
With the Spawner selected drag and drop the Zombie prefab into the Spawn Object property of the Spawner script.

You may notice that this script is very similar to the Gun script.

Make this into a prefab.

Place some in your map!

Let's give the player some health, the zombies some health and attack power, and the gun some attack power.

Add a new script called Player in the scripts folder.
The following code will allow the Player to be damaged, and restart the game when the player is killed.

// The number of times the Player can be damaged before the game restarts
var Health : int = 10;

// Minimum number of seconds between the player getting hurt
var DamageInvulnerabilityDelay : float = 2;

// Keeps track of the last time the Player was damaged
private var invulnerabilityStartTime : float;

function Start () {
    // Set initial value so the Player is temporarily invulnerable at spawn
    invulnerabilityStartTime = Time.time;
}

// Attempt to damage the player by the specified number of hit points
function Hurt(damage : int) {
    // If we have waited at least as long as DamageInvulnerabilityDelay
    if (Time.time - invulnerabilityStartTime >= DamageInvulnerabilityDelay) {
        // Damage the Player
        Health -= damage;

        // Reset the invulnerability timer
        invulnerabilityStartTime = Time.time;
    }

    // If the Player has no health left
    if (Health <= 0) {
        // Reload the level
        Application.LoadLevel(Application.loadedLevelName);
    }
}

If the zombie collides with the player, hurt the player.

Add the following function to the Zombie script.

// When the Zombie collides with something
function OnTriggerStay(other : Collider) {
    // Get the Player that the Zombie collided with, if any
    var player = other.gameObject.GetComponent(Player);

    // If it collided with something other than a Player player will be null
    if (player != null) {
        // Subtract one from the Player's health
        player.Hurt(1);
    }
}

If the bullet hits a zombie, hurt the zombie.
Replace the OnCollisionEnter function in the Bullet script with the following

function OnCollisionEnter(collision : Collision) {
    // Get the Zombie that the Bullet collided with, if any
    var zombie = collision.transform.gameObject.GetComponent(Zombie);

    // If it collided with something other than a Zombie zombie will be null
    if (zombie != null) {
        // Subtract one from the Zombie's health
        zombie.Health--;

        // If the zombie is out of health remove them from the game
        if (zombie.Health <= 0) {
            Destroy(collision.transform.gameObject);
        }
    }

    // Remove the Bullet from the world
    Destroy(this.gameObject);
}



Now let's improve our Menu script!

Let's add Resume, Restart, and Quit buttons as well as something telling us how much health is left.

Add both of these functions to the Menu script:

function DrawHUD() {

    // Get the health from the player
    var player = GameObject.Find("Player");
    var health = player.GetComponent(Player).Health;

    // Position
    var left = 10;
    var top = 10;
    var width = 100;
    var height = 25;

    // Make a background box
    GUI.Box (Rect (left, top, width, height), "Health: " + health);

    DrawCrosshair();
}

// Draw the menu
function DrawMenu() {
    var centerX = Screen.width/2;
    var centerY = Screen.height/2;

    // location of the menu
    var menuLeft = centerX - 50;
    var menuTop = centerY - 50;
    var menuWidth = 100;
    var menuHeight = 100;

    var buttonX = menuLeft + 10;
    var buttonWidth = 80;
    var buttonHeight = 20;
    var buttonDist = 25; // distance between each button

    // Make a background box
    GUI.Box (Rect (menuLeft, menuTop,menuWidth,menuHeight), "Menu");

    // Start / Resume
    if (GUI.Button (Rect (buttonX,menuTop + 1 * buttonDist,buttonWidth,buttonHeight), "Resume")) {
        MenuOpen = false;
        UpdateCursorLock();
    }

    // Restart
    if (GUI.Button (Rect (buttonX,menuTop + 2 * buttonDist,buttonWidth,buttonHeight), "Restart")) {
        Application.LoadLevel(Application.loadedLevel);
    }

    // Quit (Only works in the Build. Does not work in the eidtor!)
    if (GUI.Button (Rect (buttonX,menuTop + 3 * buttonDist,buttonWidth,buttonHeight), "Quit")) {
        Application.Quit();
    }
}

Now replace the OnGUI function with:

// Called each time the Gui needs to be drawn
function OnGUI () {
    if (!MenuOpen) {
        DrawHUD();
    } else {
        DrawMenu();
    }
    DrawCrosshair();
}

Enjoy visual feedback!

Make some more interesting Terrain.

Make some arms and fingers for the gun. Rotate them backwards on shoot to emulate recoil!

You could try, for instance, making the Zombie run to the player and then do gangnam style by downloading some animations:
http://www.mixamo.com/motions?page=1&order=relevance&free=1&limit=48
