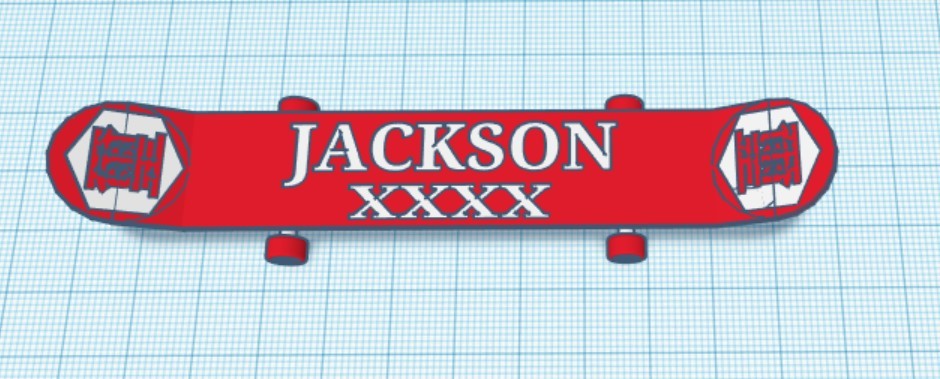

Jackson Skateboard
The design inspiration of my skateboard comes from my idol. Red is his color and is considered my gift to him. He was like a ray of sunshine in my life.
First Build a Board on Top of a Skateboard
Drag a cuboid from the base shape, 80mm long, 18mm wide and 1mm high.
Circular Arc on Both Sides of Skateboard
Drag out a cylinder 18 in diameter and 1 in height.Drag out another cuboid 18 by 9 by 1.Align the two centers and group them into one.
Raise the Arc Part by a Certain Angle
Align the semicircle with the plate, rotate it vertically by 25° to the left, shift it up by 3.8mm, and then shift it 1.1mm to the left.
One Arc Symmetrical Into Two Sides
Copy and paste the semicircle and rotate it 180° horizontally and shift it 96mm to the left.Select all and group them into one.
Make the Part Part of the Bearing Part Under the Plate
Drag out a cuboid 7mm long, 5mm wide, 1mm high.Drag out a wedge 6mm long, 2.5mm wide, 2mm high and rotate it vertically to the right parallel to the working plane.Drag out a roof 2.5mm long, 2.5mm wide, 2mm high and rotate 90° horizontally.
Assemble the Parts Together
Select the above three shapes and align them. Select the wedge and roof to lift them 1mm away from the working plane and align them with both sides of the cuboid.
Make a Screw
Drag out a polygon with a width of 1.5mm and a height of 0.5mm, then drag out a cylinder with a diameter of 1mm and a height of 0.75mm, align the two centers and divide them as a screw.
Call the Screw Pair Four
Lift the screw up 1mm from the working plane and move it to the position 0.5mm away from the edge of the cuboid. Copy and paste three of them and move them to the other three corners of the cuboid.
Make the Upper Part of the Bearing
在楔形物的滑块放置一个工作平面，并拖出直径为2.4mm，高度为1.5mm的圆柱体。圆柱体的直径为1.5mm，高度为2mm。圆柱体的直径为1mm，高度为1mm，再拖出另一个直径为2.6mm，高度为0.3mm的环，将上面四个中心的底部对齐，将圆环从底部移开1mm，选择全部分组为一个并选择颜色。
Combine the Upper and Lower Parts of the Bearing
将上一步中获得的图形垂直旋转90°，与楔形对齐并向下移动0.5mm。
Reinforced Bearing
拖出长3mm，宽1.5mm，高2mm的楔形，将其垂直逆时针旋转120°，水平旋转180°，使其与其他零件的中心对齐，选择所有零件以将其分组为一个零件，然后选择颜色。
Make the Bar of Skateboard Wheel and Link the Bearing With the Bar of Skateboard Wheel
要恢复原始工作平面，请将零件垂直旋转180°并将其从工作平面向上移动5mm。然后将直径为2mm，高度为25mm的圆柱体拖出。垂直旋转90°。
Make Two Pulley Wheels and Combine Them With Bearings and Bars
Drag out a wheel 5.5mm in diameter and 3mm in height, copy and paste, align with both sides of the column, select all parts to form a pulley and select color.
Combine the Upper and Lower Parts of the Skateboard
Duplicate one pulley so that the two pulleys are aligned with the plate and 2.5mm from the center of the plate.
