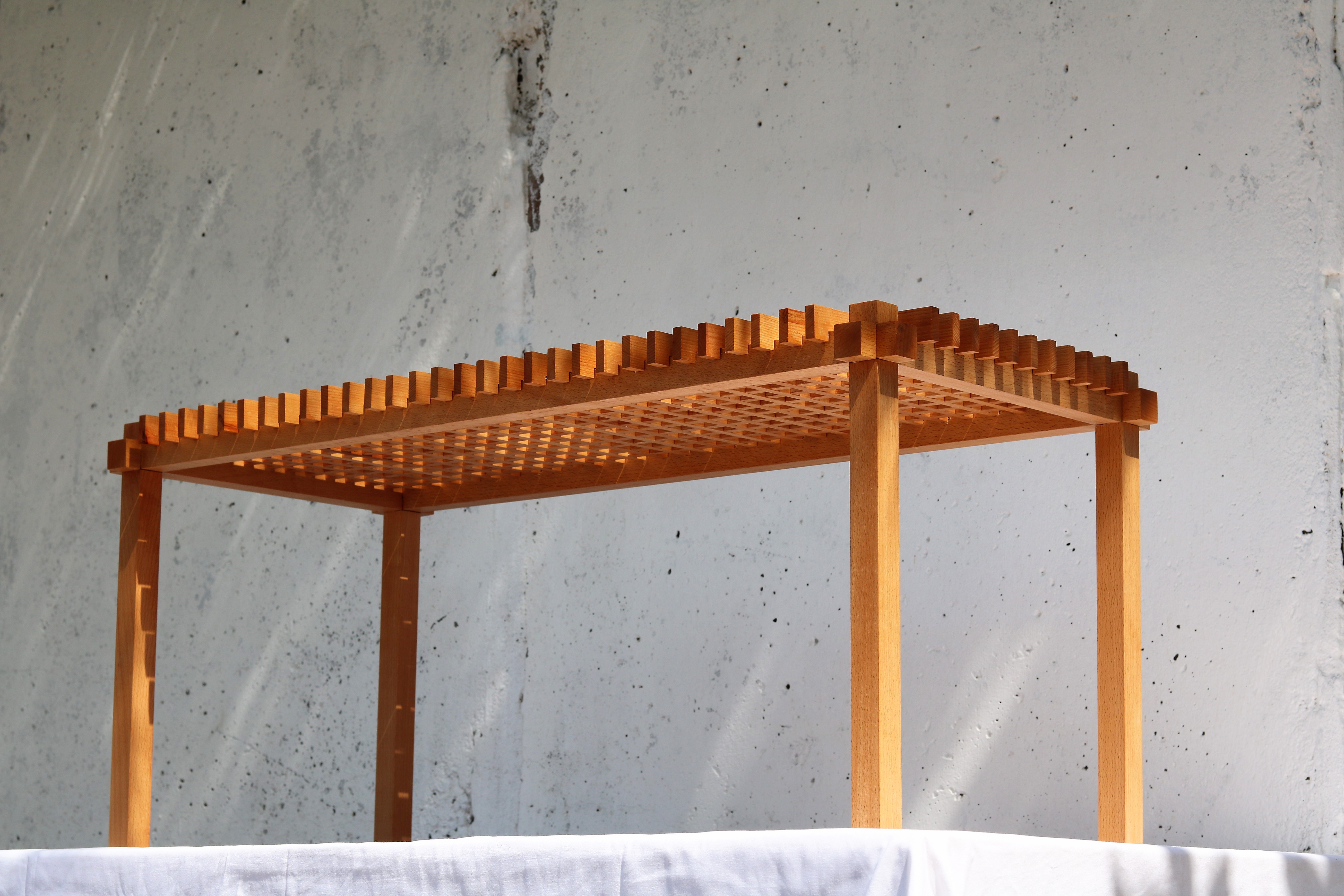

Build a 3D puzzle couch table

3D puzzle furniture is for people who want to play with their furniture. It is made of little puzzle pieces and everyone can build it. In this tutorial I teach you how to build all the puzzle pieces for the 3D puzzle couch table.

We wanted to design furniture for people who want to build their own furniture. This puzzle furniture is easily movable and will not take too much space. This is very good in case you want to move or you`d like to storage it.

Find more projects on our web page TOOLS TOGETHER

YOU WILL NEED

Clamps https://amzn.to/2M13SBN
Sander plus 120- and 180-grit sanding pads https://amzn.to/2ztGuog
Circular saw or table saw https://amzn.to/2P7vDFr
Drill / Driver plus assorted bits
Milling router https://amzn.to/2DZjhOJ
Wood chisel https://amzn.to/2Sc1xCs

The video was filmed with following equipments:

Camera https://amzn.to/2zuNHEp
Lens 1 https://amzn.to/2DMEM4i
Lens 2 https://amzn.to/2DMEM4i
Field monitor: https://amzn.to/2DMEM4i
Tripod: https://amzn.to/2DMEM4i The video was filmed with following equipment:

• Cut 41 pieces for the table top. 30 x shorter (1020 x 30 x 10) and 11 x longer (450 x 30 x 10) puzzles.

• Cut 4 pieces for table top frame.

You do not necessary have to own a milling router for milling the parts. It is also possible to mill with the saw or by hand with the chisel. We are using a milling router and I had to build for every piece a jig.

Sand before taking the puzzle pieces out of the jig. You will save time by doing so.
Then sand all the pieces one by one.

This is the step where we allowed ourselves to be very creative with tools by using a wrench for smoothing the corners and sculpting the wood. This is the heart of the Japanese lock. If you have a better idea to sculpt the wood then please leave us a comment!

We use the seamless oil for finishing. But you can also use polisher for more shinier effect.

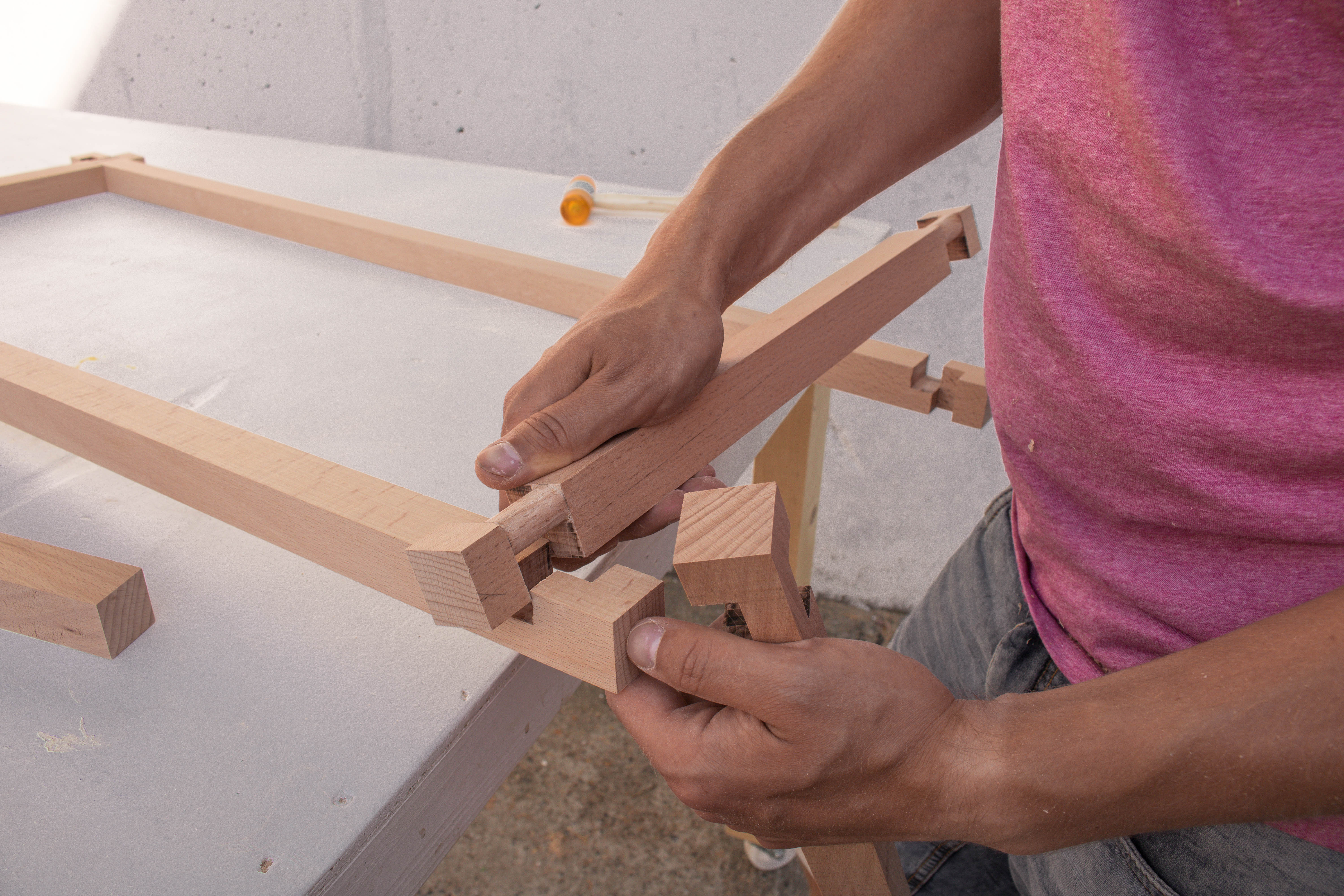

If you have done everything precisely then it should not be difficult to put all the pieces together
If there is some impreciseness then use a sanding paper to fix them and try again.

Assemble the table top by gently using a hammer. Be careful because you don`t want to break the puzzle pieces.
