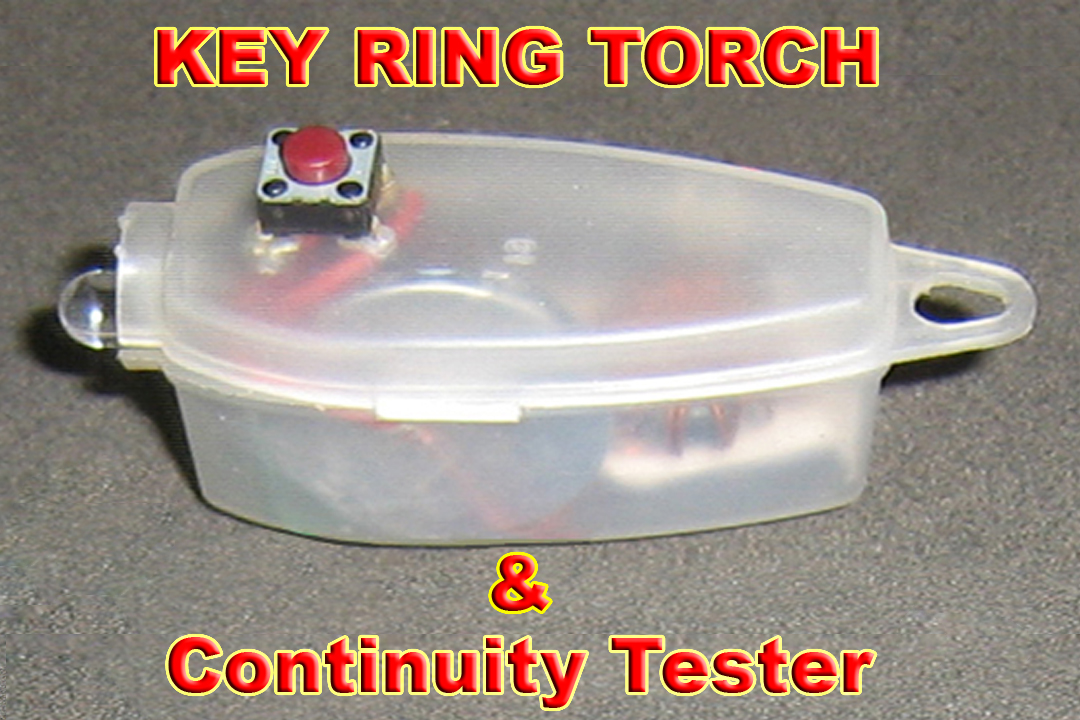

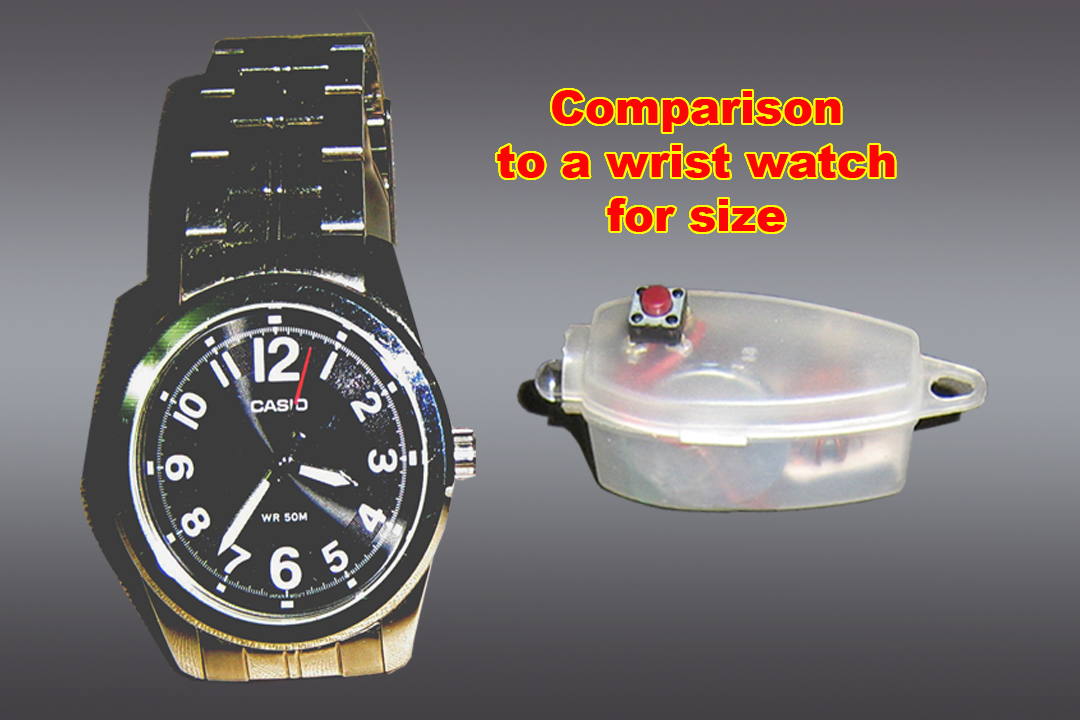

KEY RING TORCH

In this project a Joule Thief has been used as it is small and pocket size.

It also give long life to the battery.

The PVC cover of a toothbrush head is used as the container.

Discarded Motherboard Battery of 3 volt is used as a power source,

as it is small in size and packs a lot of power.

A micro switch is used because it cannot stay ON in your pocket by accident.

This can also be used as a Continuity Tester with a slight modification.

1. A small PVC container.

1. Micro Switch.

1. Disc type PC. Motherboard Battery.

1. Transistor BC 337

1. Electrolyte Capacitor 10uF / any Voltage.

1. Disc Capacitor 470pF

1. Resistor 2.2K

1. Ferrite core (taken out of a CFL light)

10. Turns of double 0.5mm copper wire for the coil.

1. Extra bright White 5mm LED.

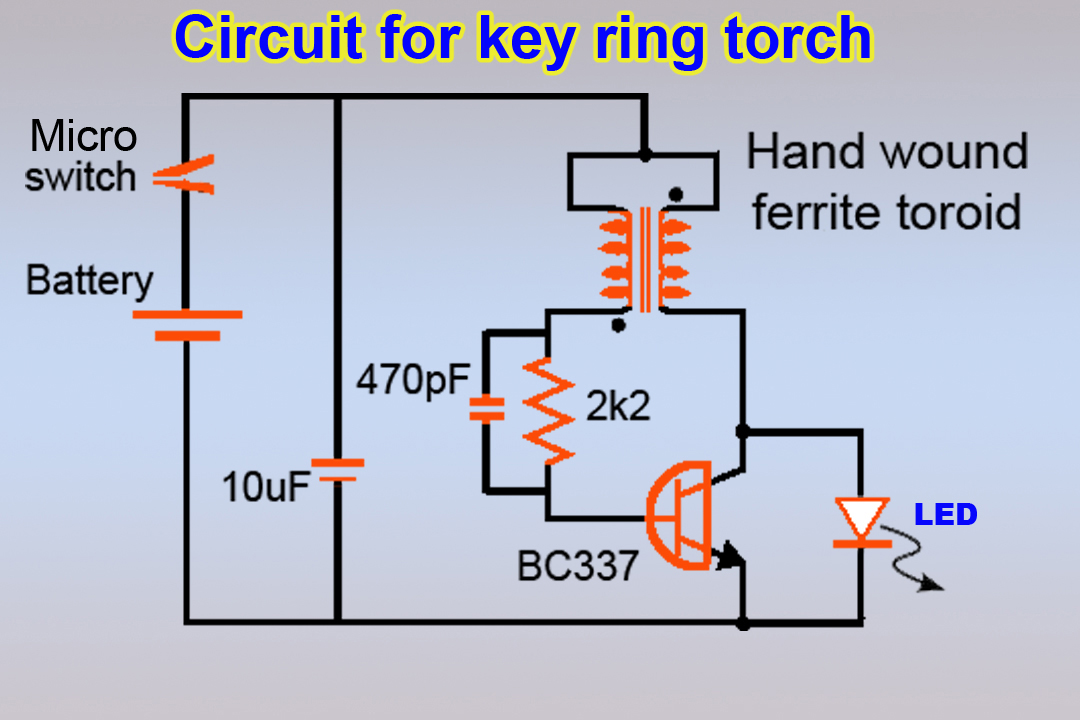

Follow the Circuit and solder the parts on a small  thin PVC sheet,

or a cardboard and cut to fit the PVC container.

Fix the Micro switch on top of the container.

Drill a small hole for the LED.

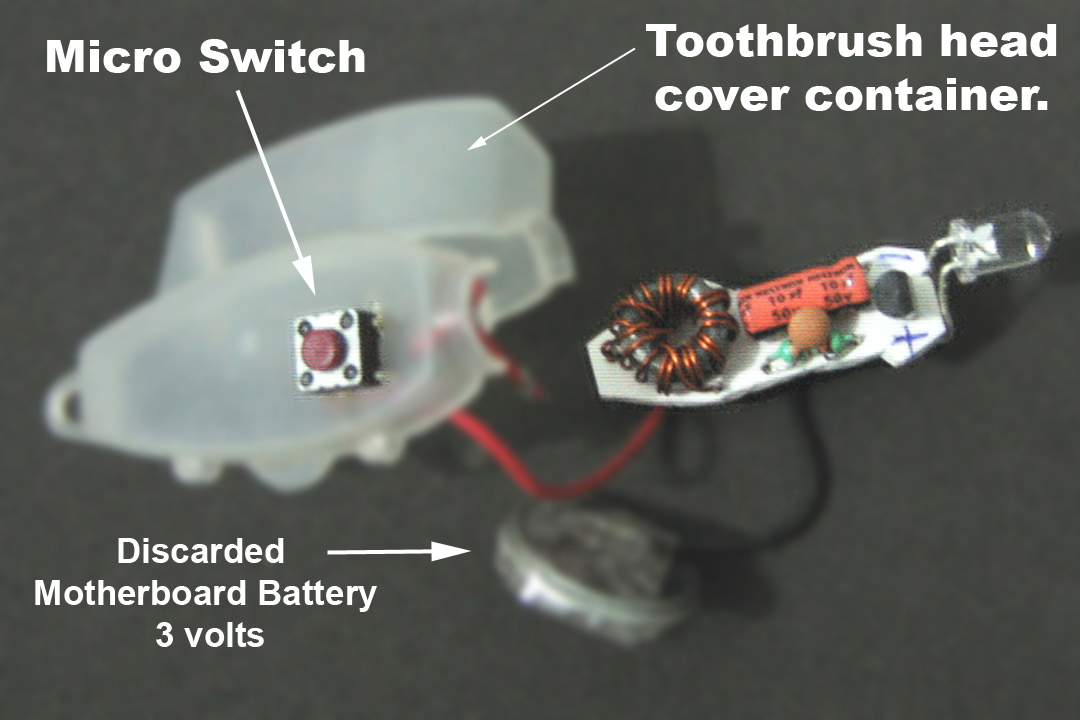

Here you can see how all the parts have been fixed on the PCB,

this is for your guidance.

This is an enlarged view of the PCB.

Maintain polarity.

This is the Circuit diagram of the Continuity Tester.

Only one change has been made, instead of the Micro Switch,

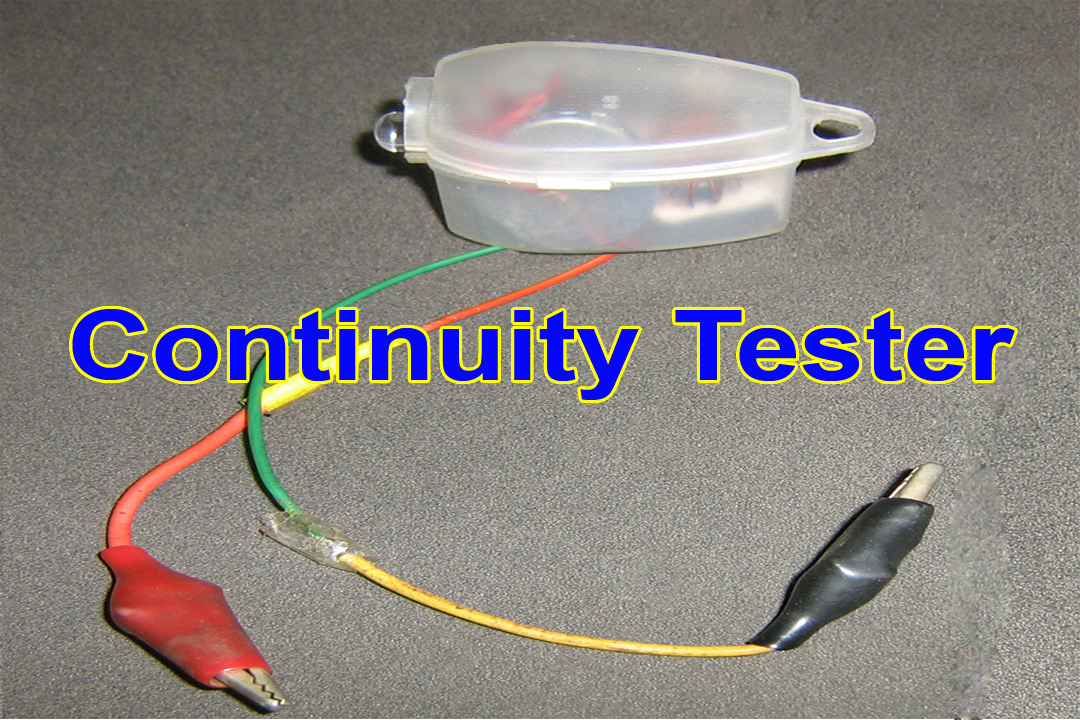

Photograph of the Continuity tester.
Enjoy…………
