K'nex Automatically Reversing Elevator Lift (by Austron) Instructions

So, here is finally instructions for an Austron's K'nex ball machine lift, it take me much time, so I don't know if I'll do it again. All the instructions are based on the Austron's video called "K'nex Automatically Reversing Lift". I will post soon(if I've enough time) an other instructions for an other Austron's lift...

You need all these pieces to build the lift :-)

If you don't have enough pieces or if you don't have a special piece, you can buy it on Knex.com or on KNEX User Group

Connectors : 894

dark grey : 59

grey : 10

red : 30

orange : 14

green : 44

yellow : 327

purple: 191

blue : 147

white : 72

Rods : 1515

green : 349

white : 315

blue : 366

yellow : 315

red : 132

grey : 27

dark : 6

pink : 5

Specials : 428

medium yellow gears : 6

medium red gears : 8

little blue gears : 2

big yellow gears : 2

white gears : 2

12 volts motors : 2

Y clips : 41

blue clips : 2

pink lock clips : 25

orange 3D clips : 2

chain parts : 168

big wheel (dark part) : 12

big wheel (grey part) : 15

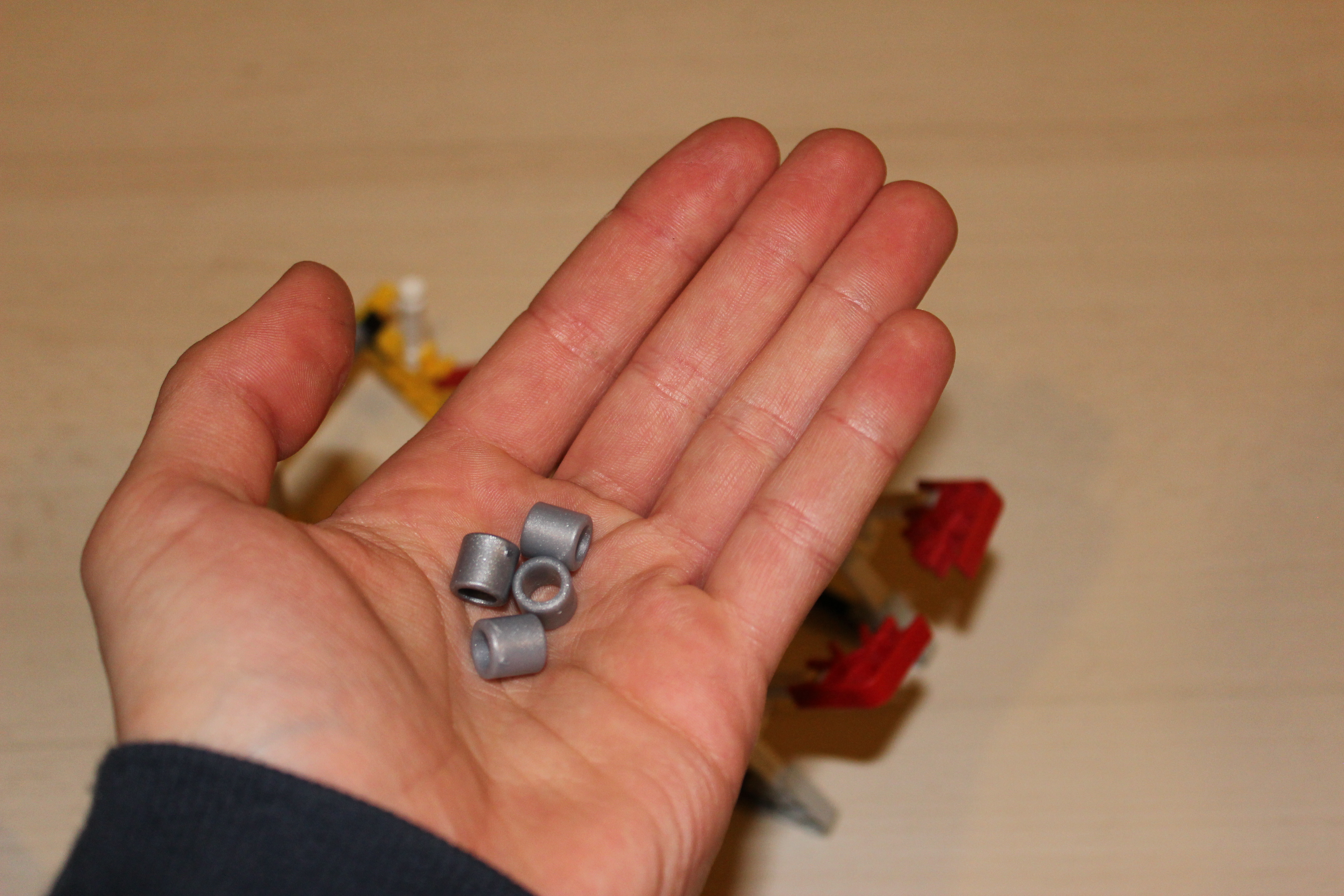

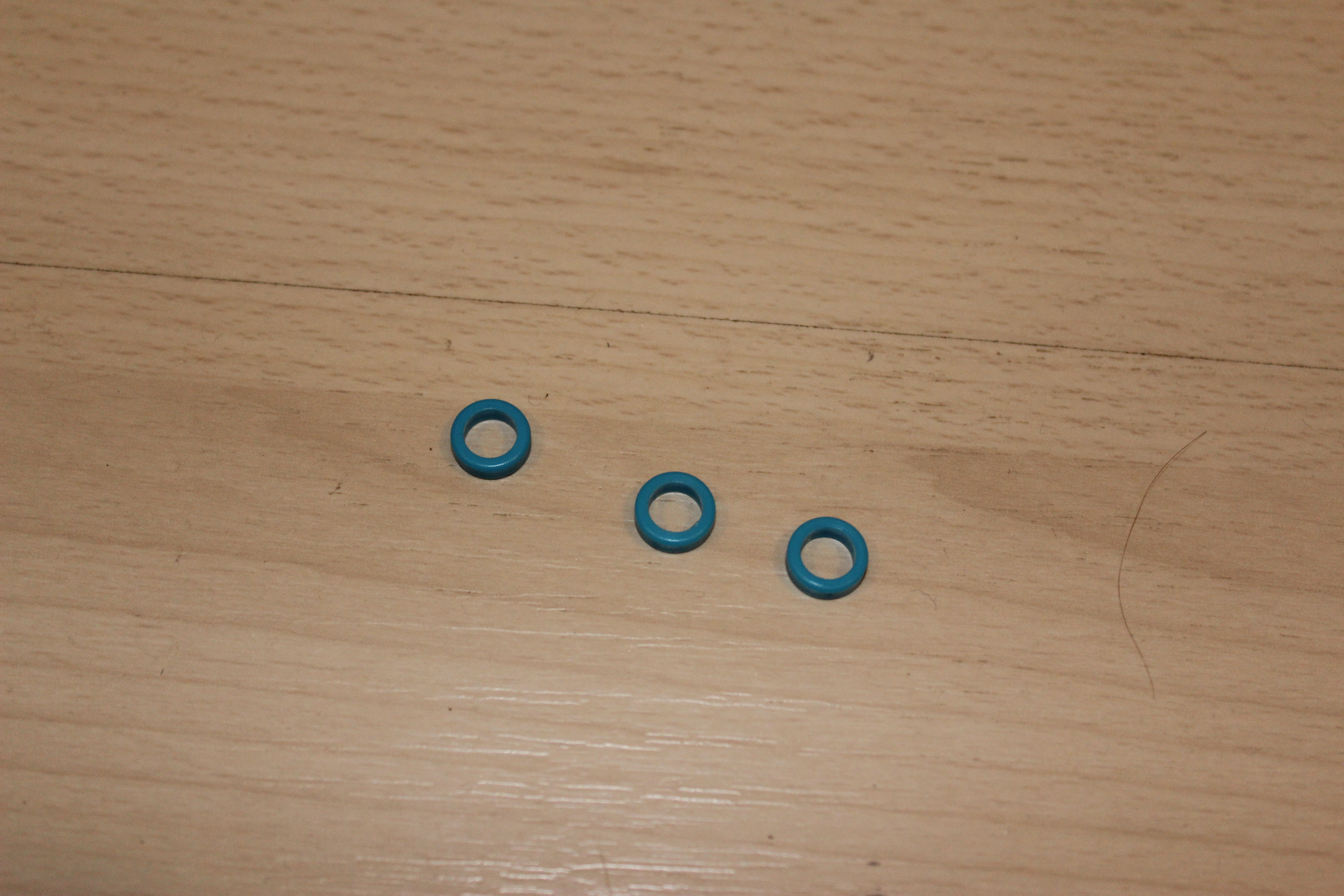

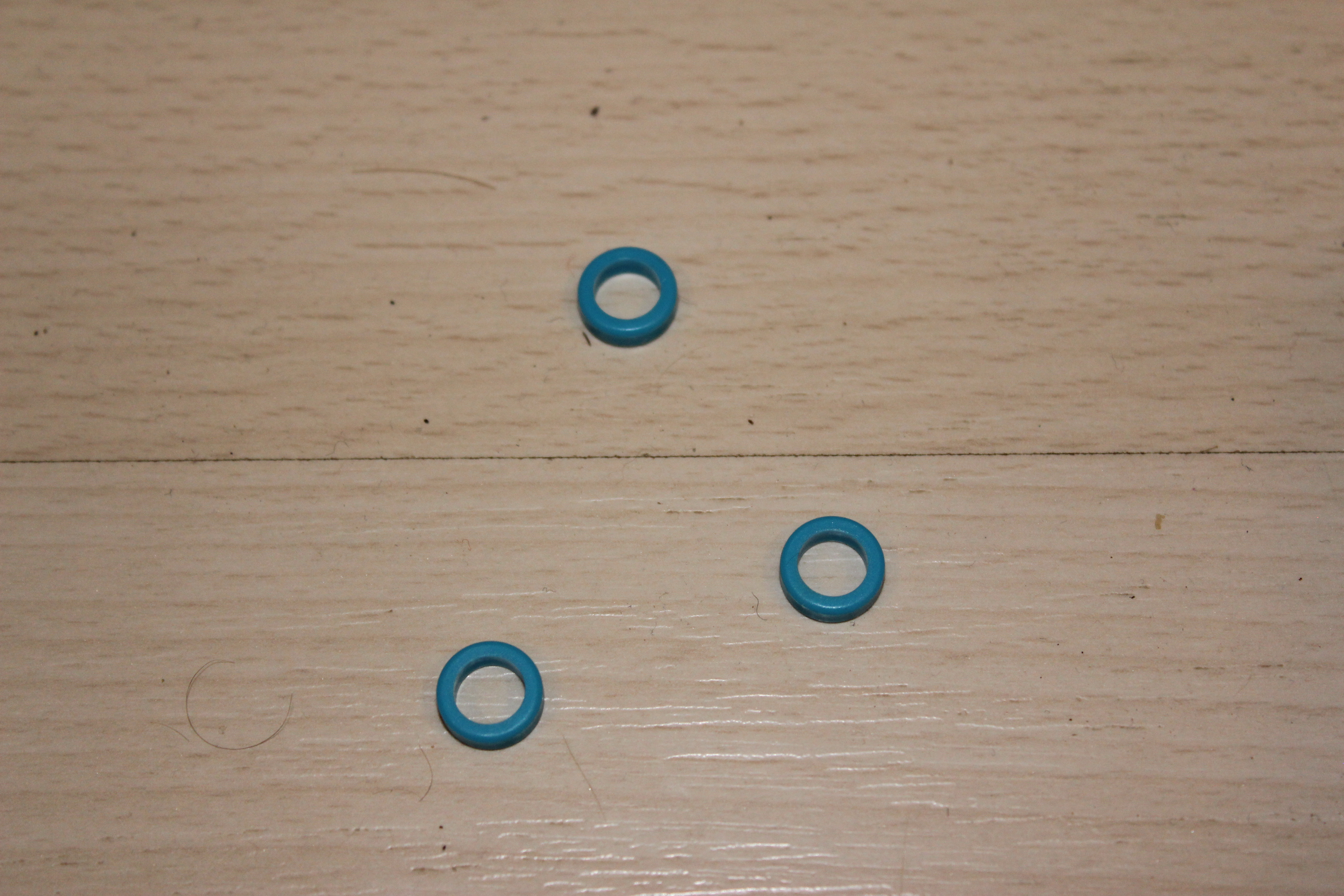

blue spacers : 130

grey spacers : 10

balls : at least 1

TOTAL : 2837

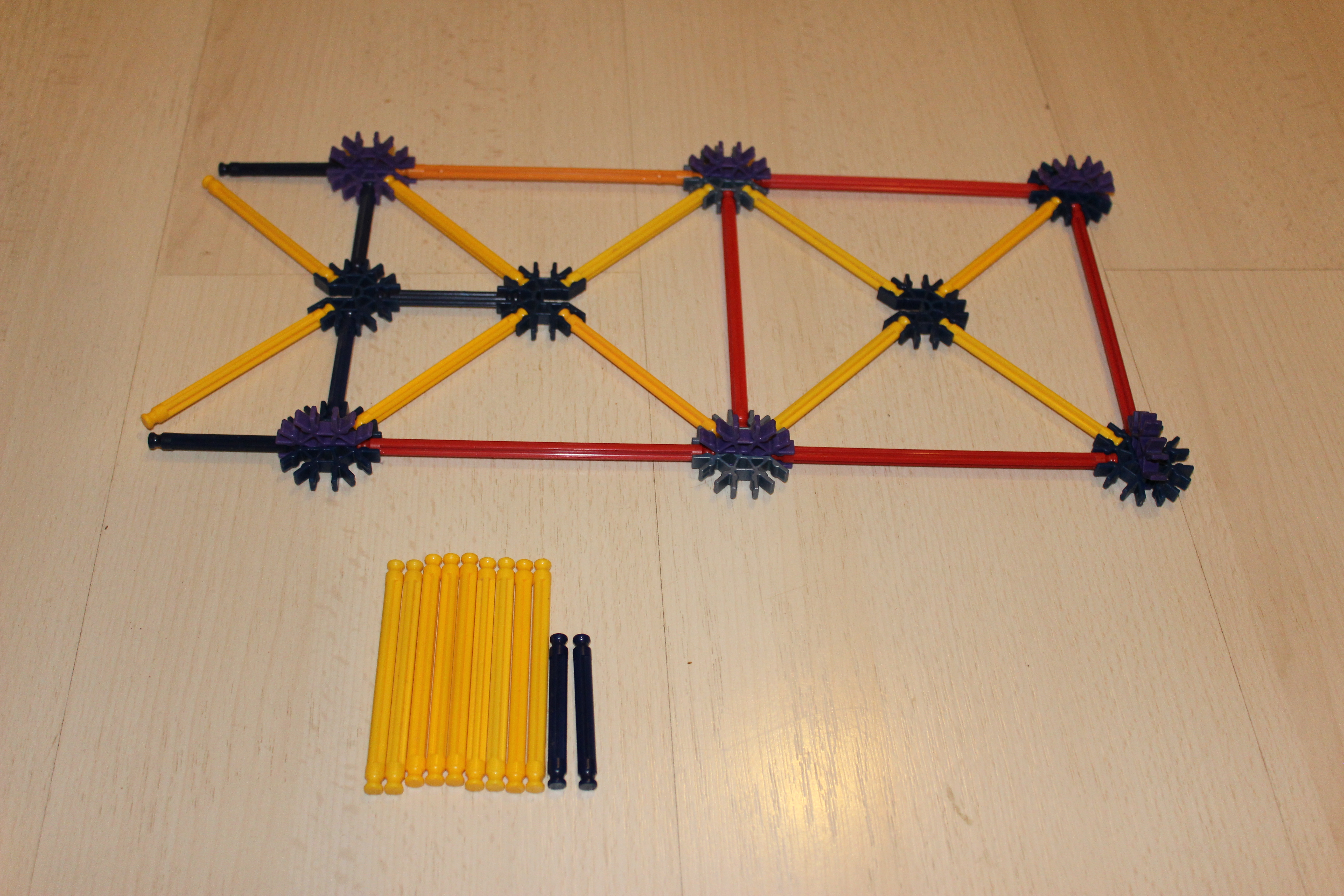

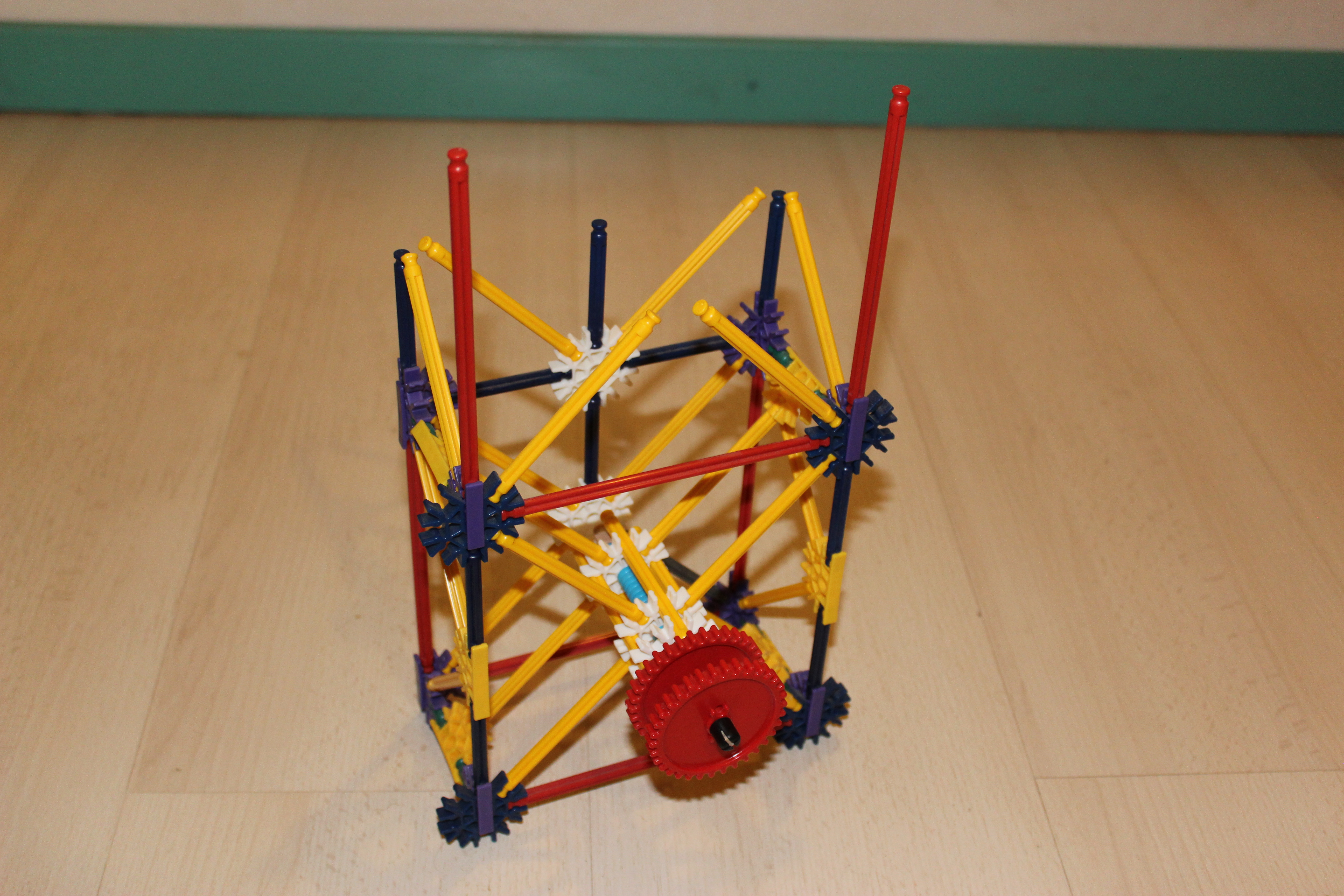

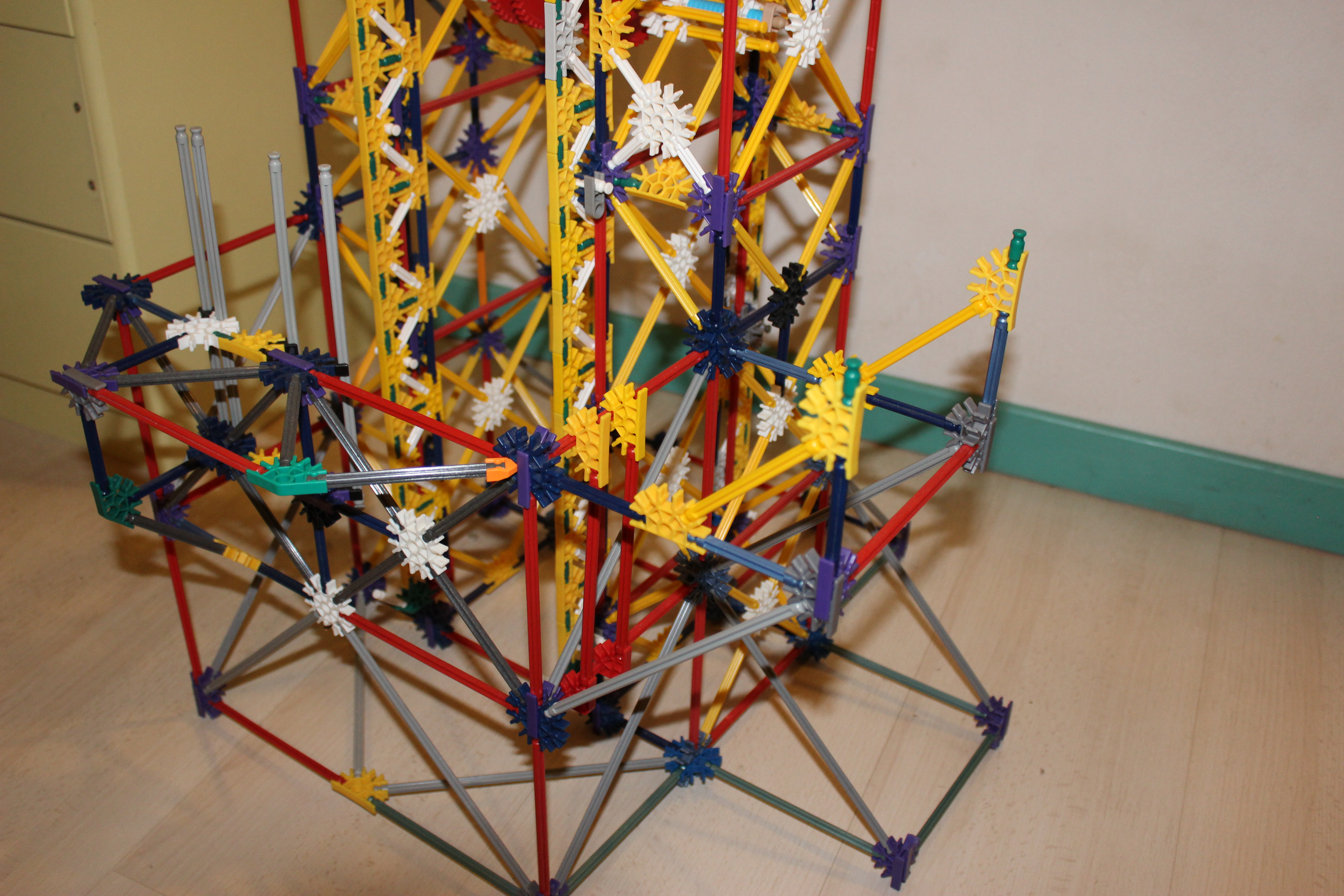

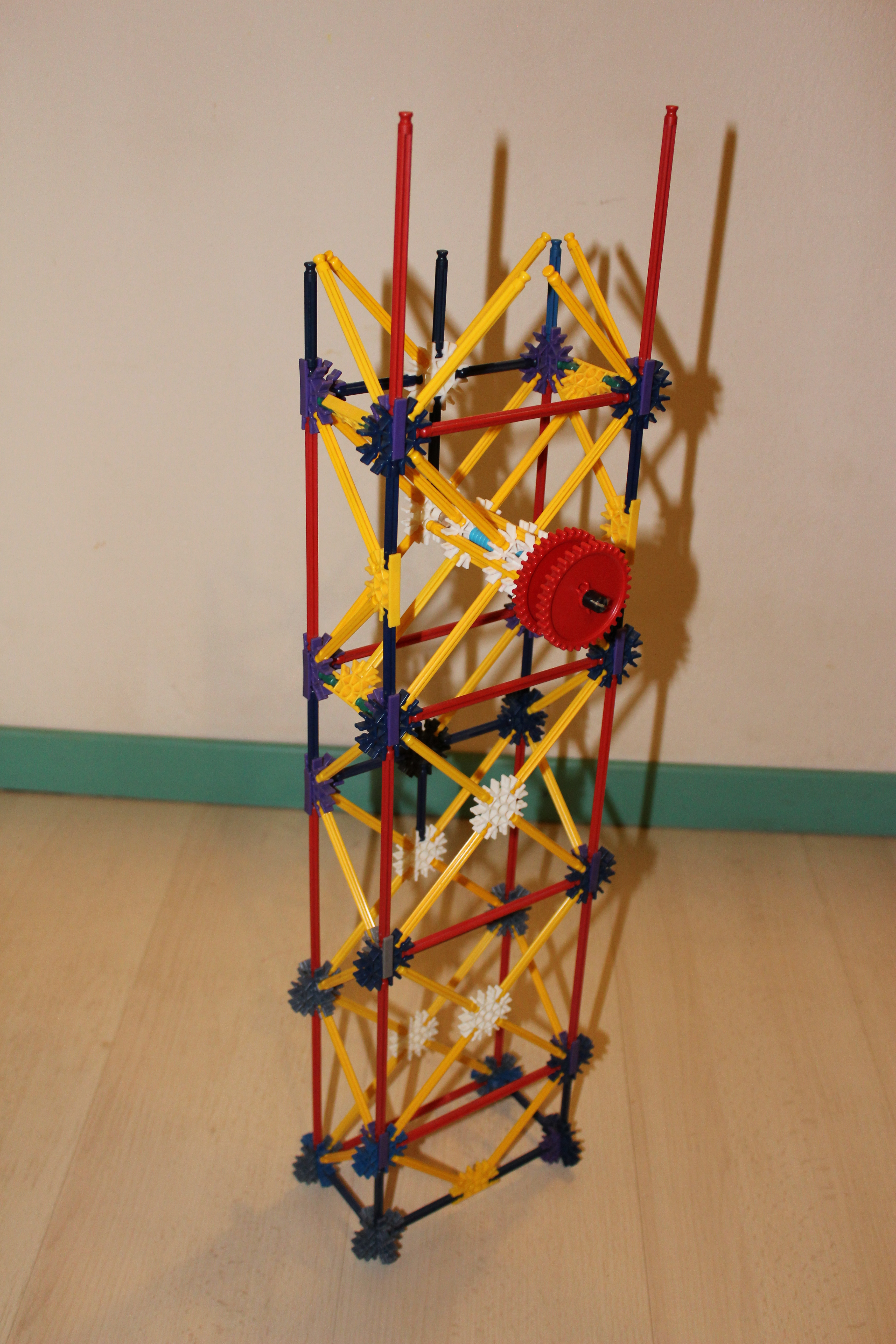

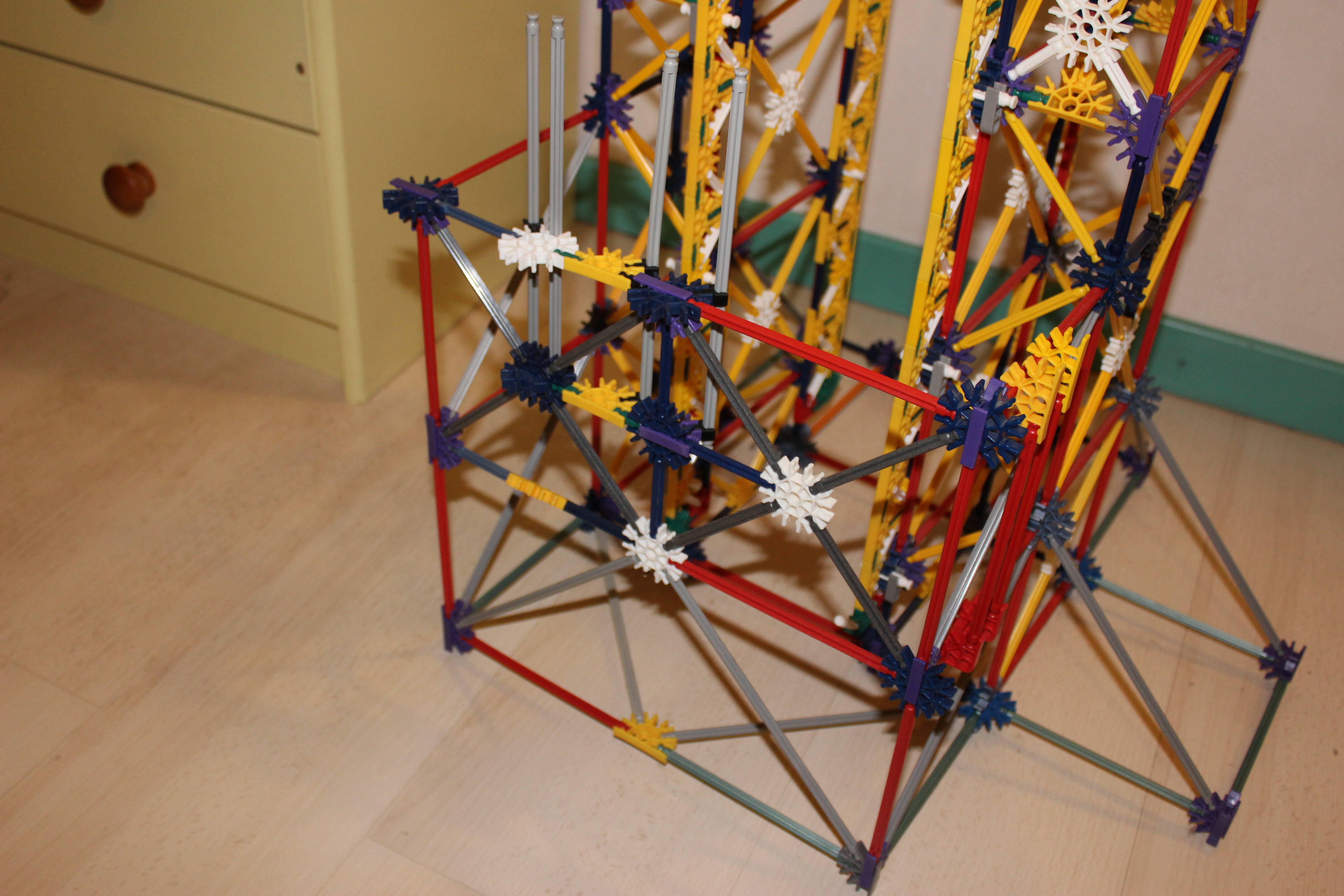

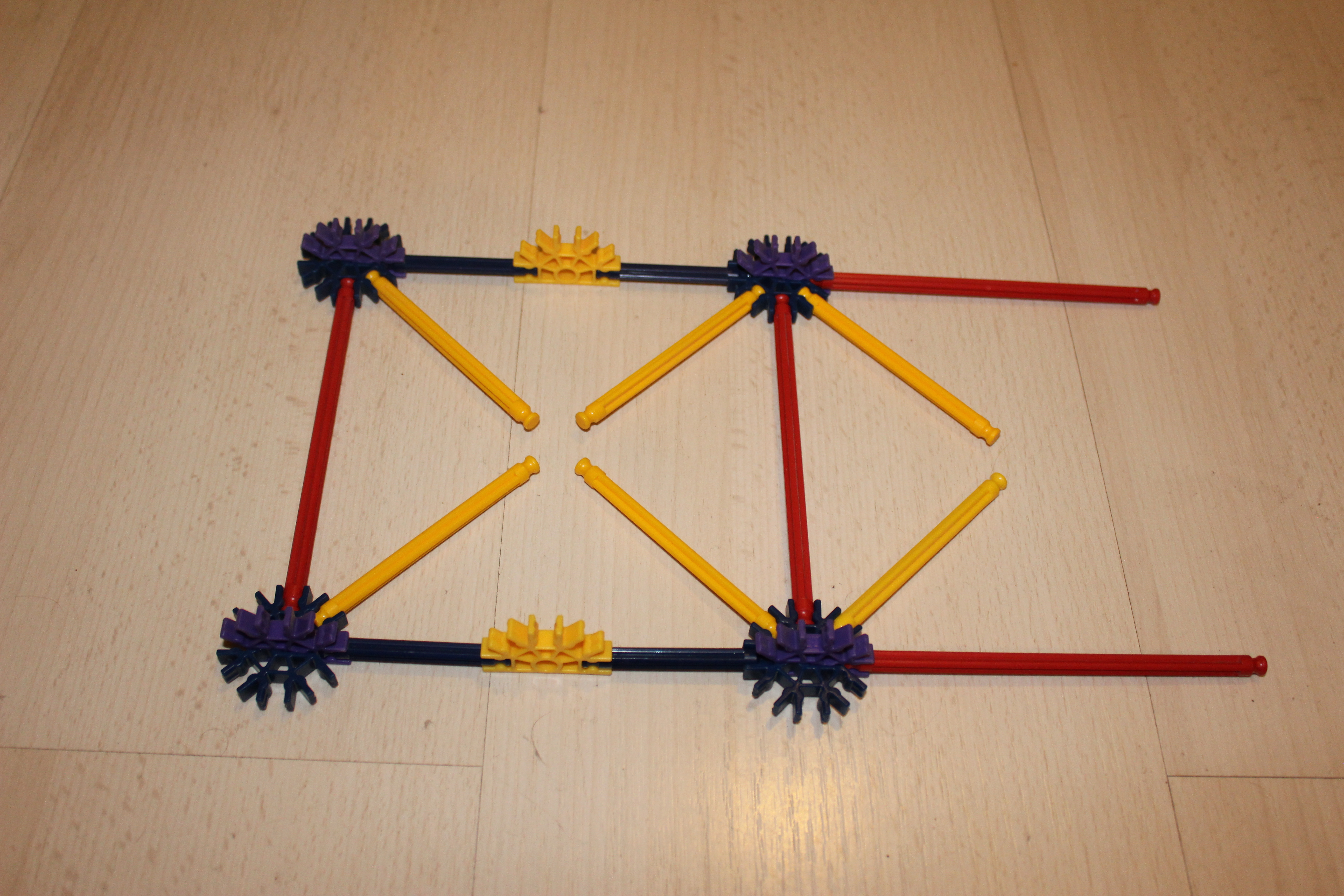

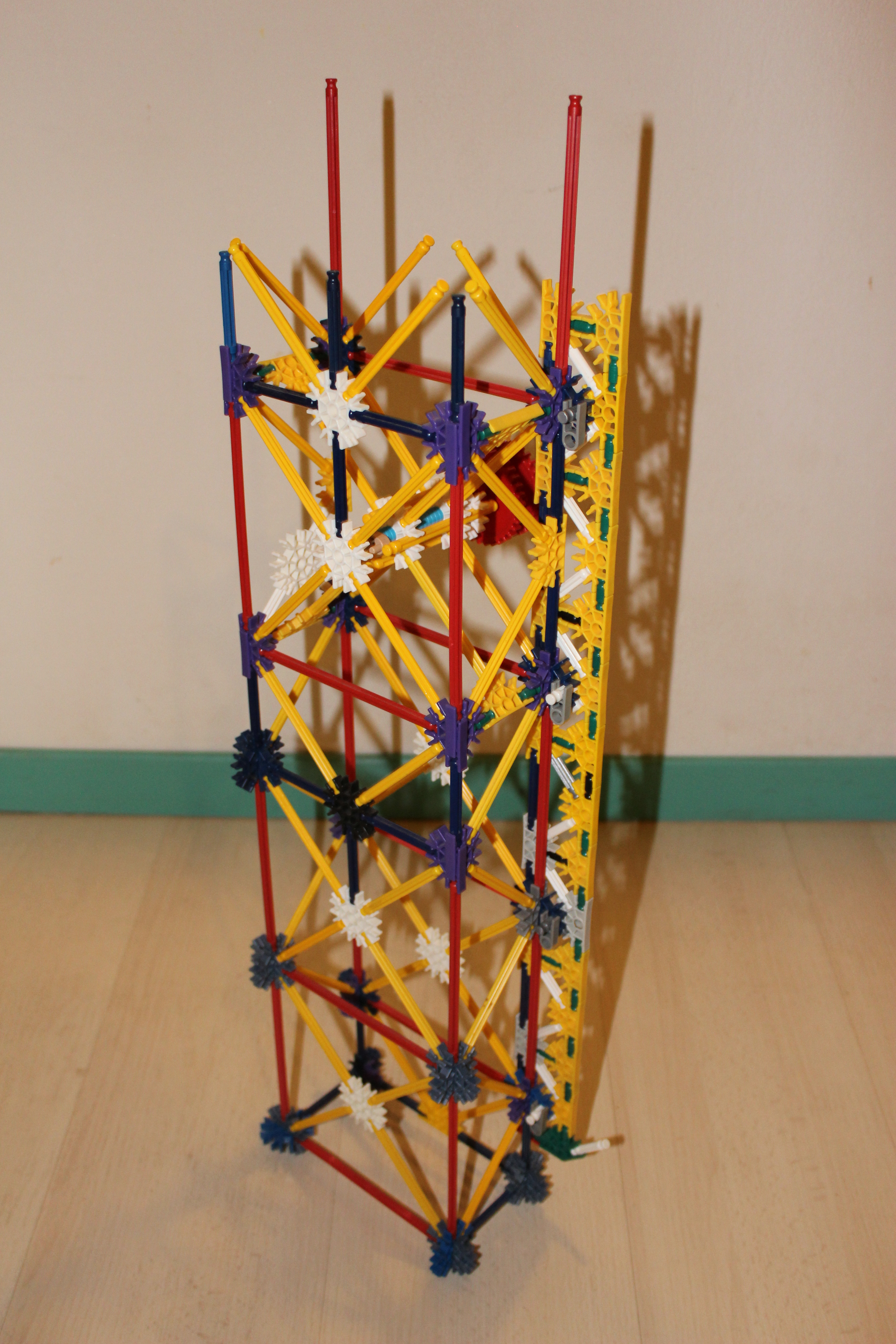

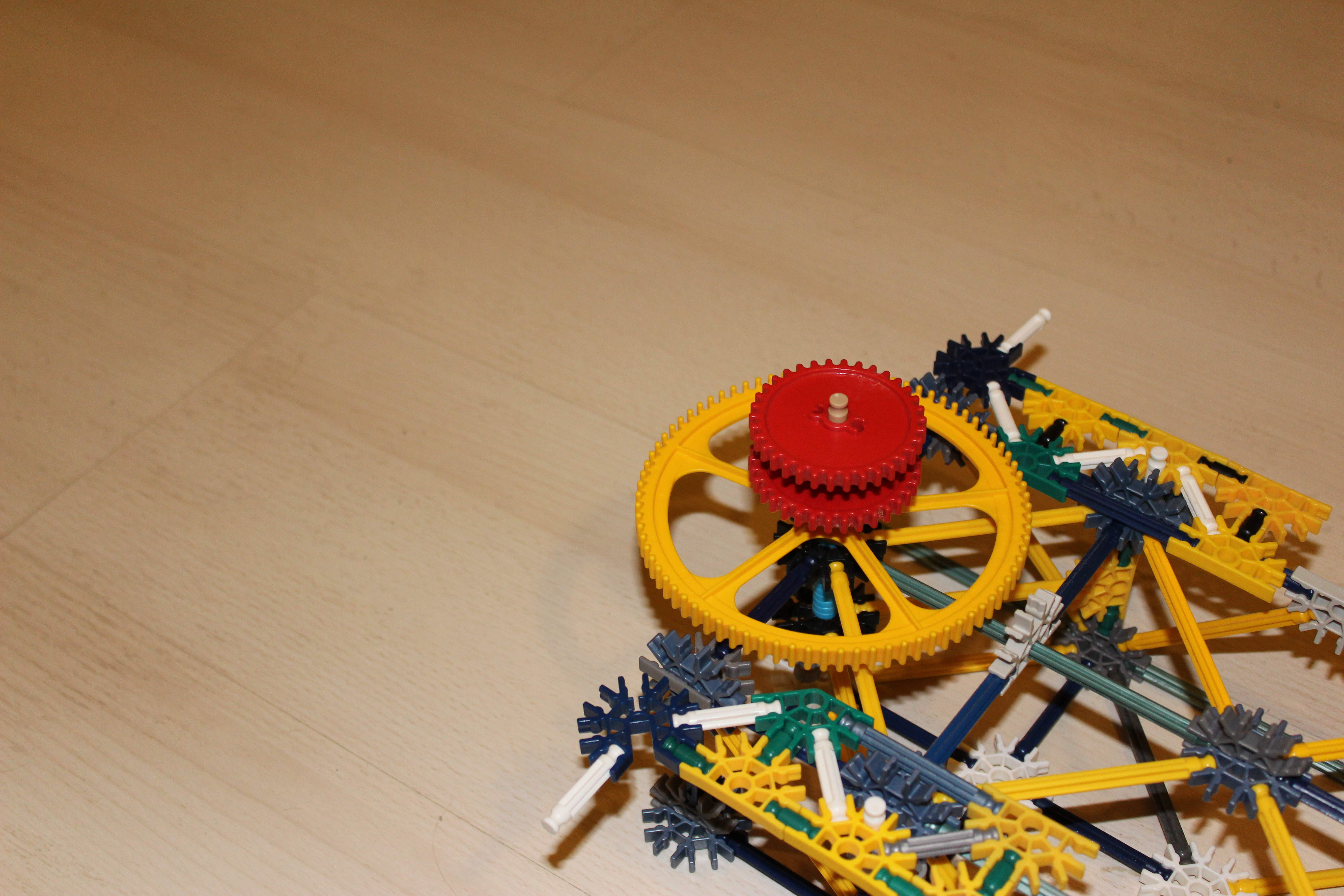

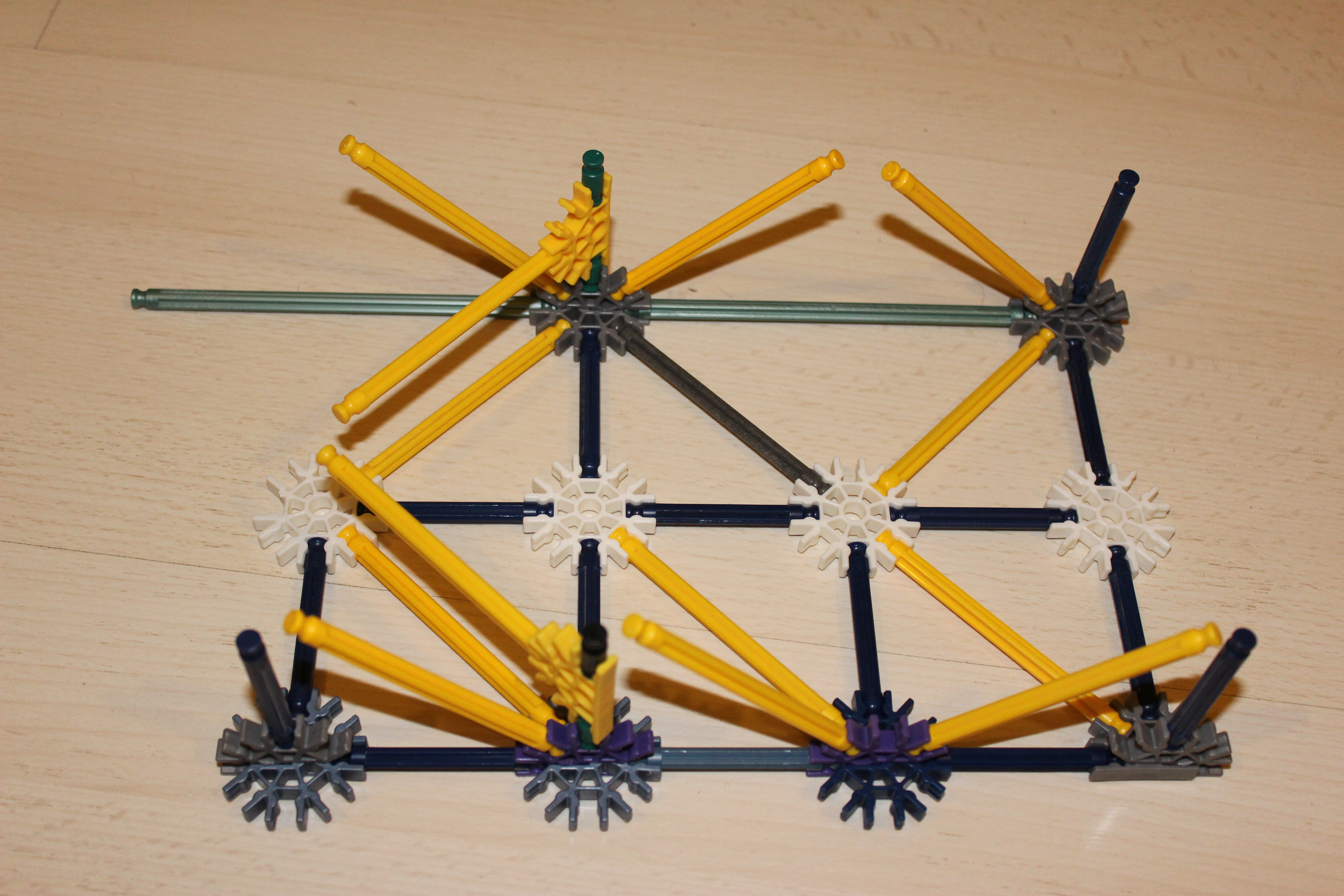

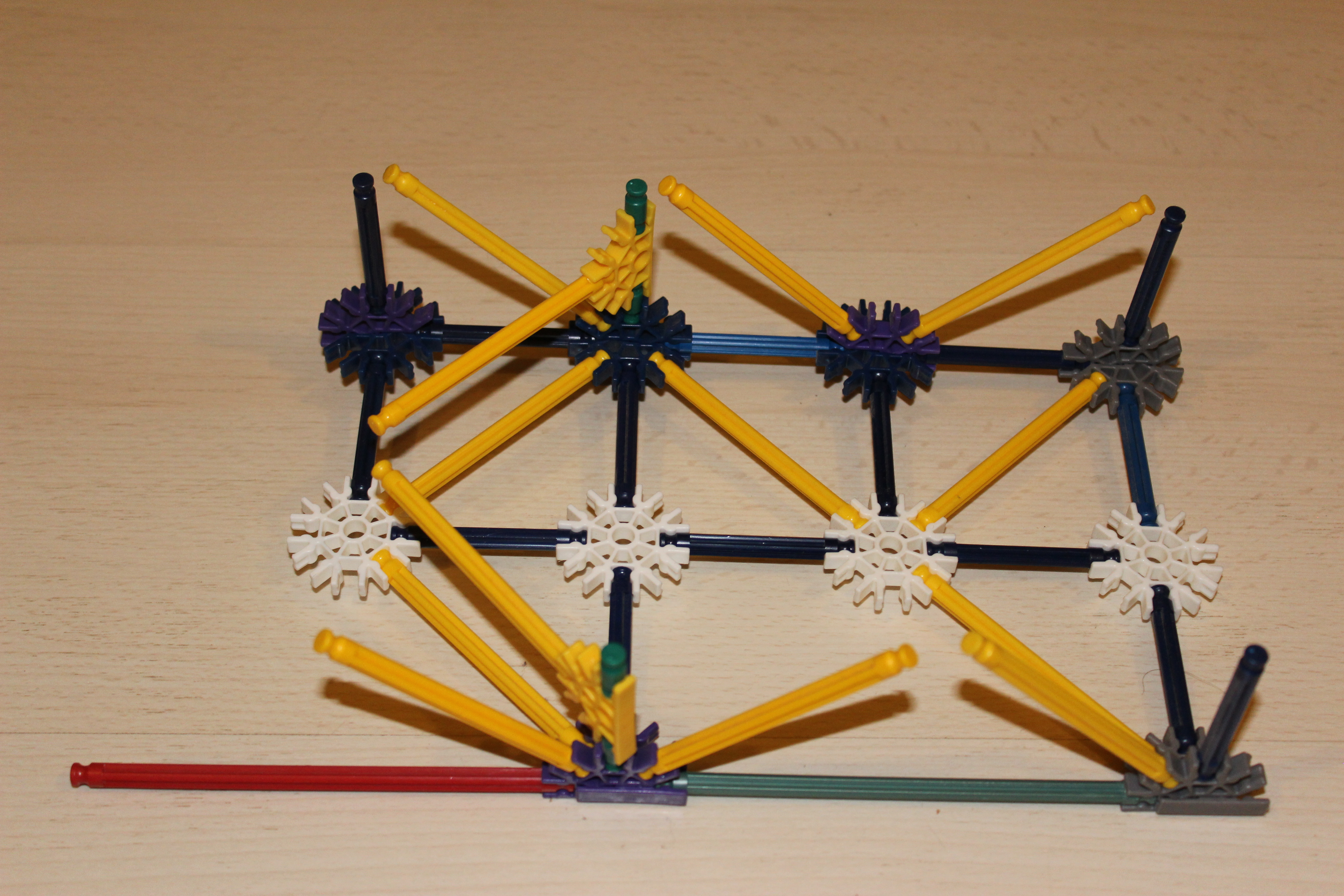

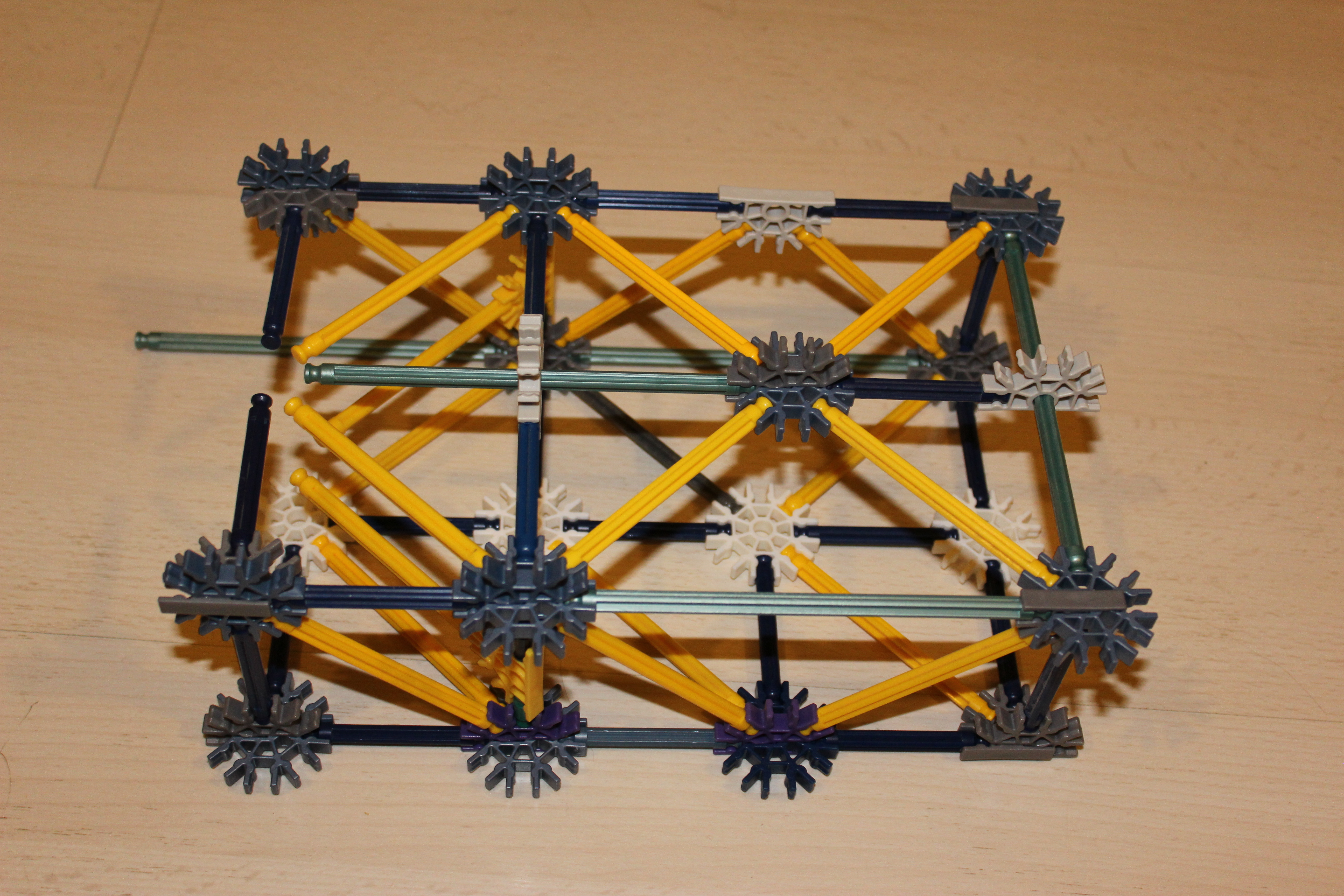

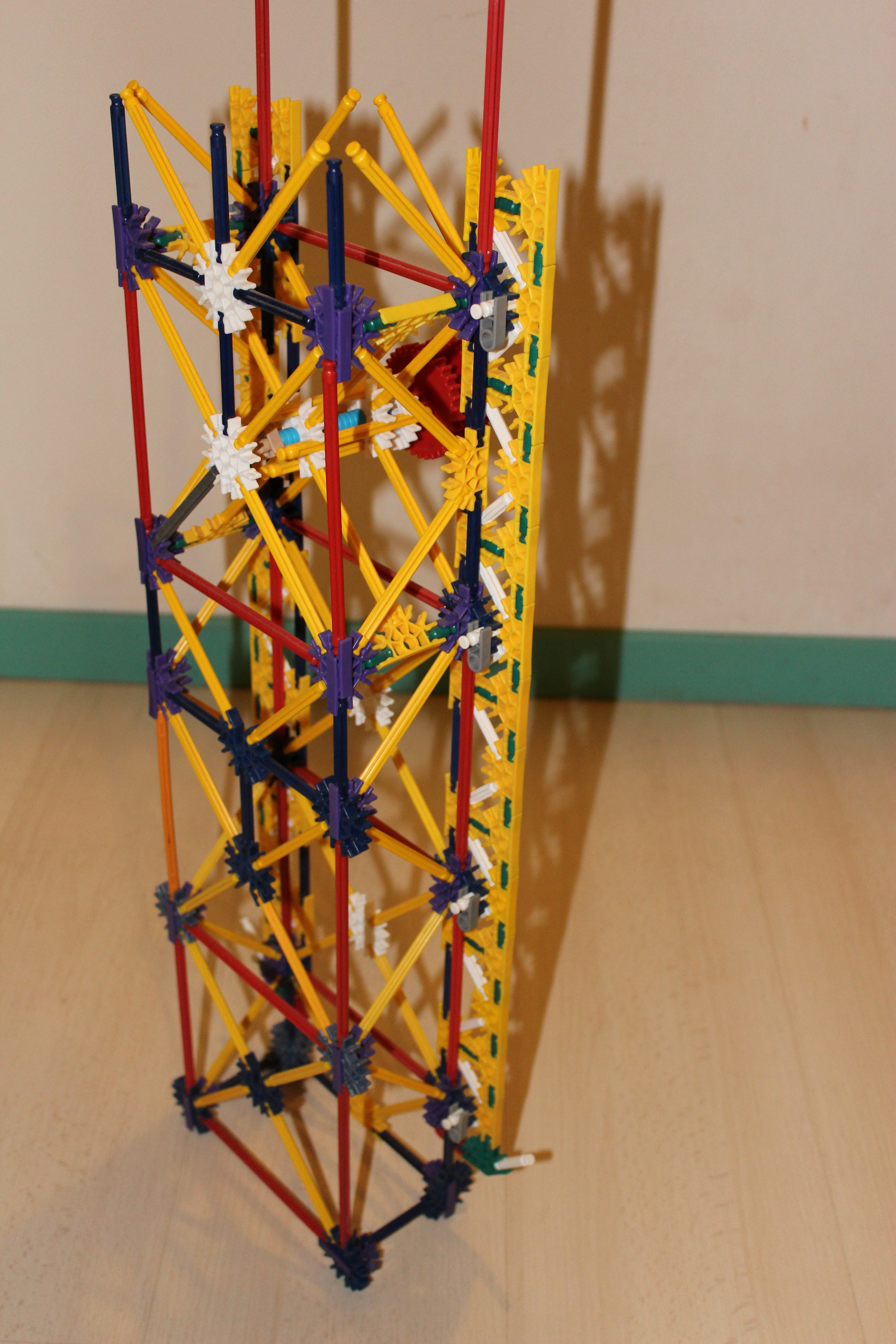

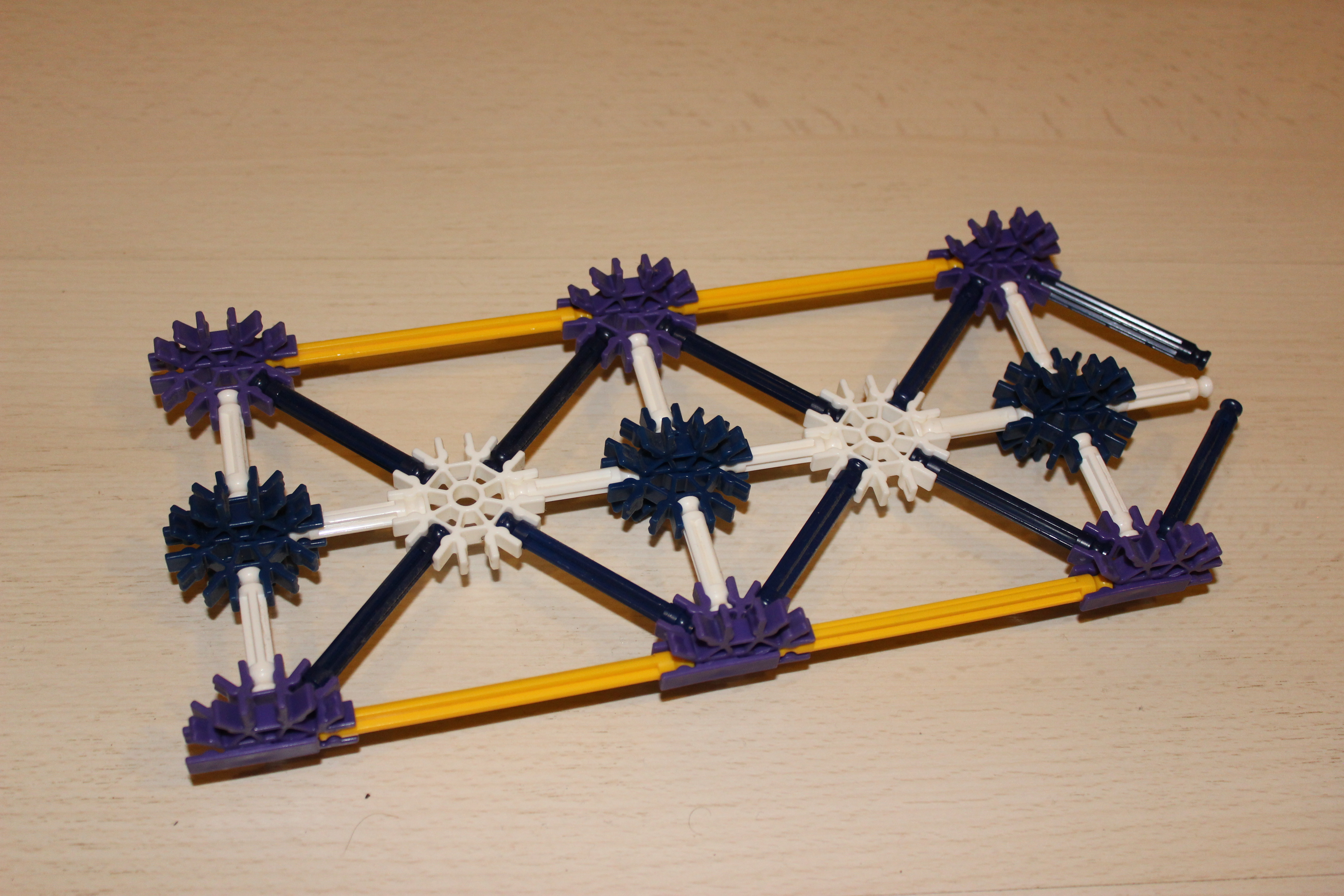

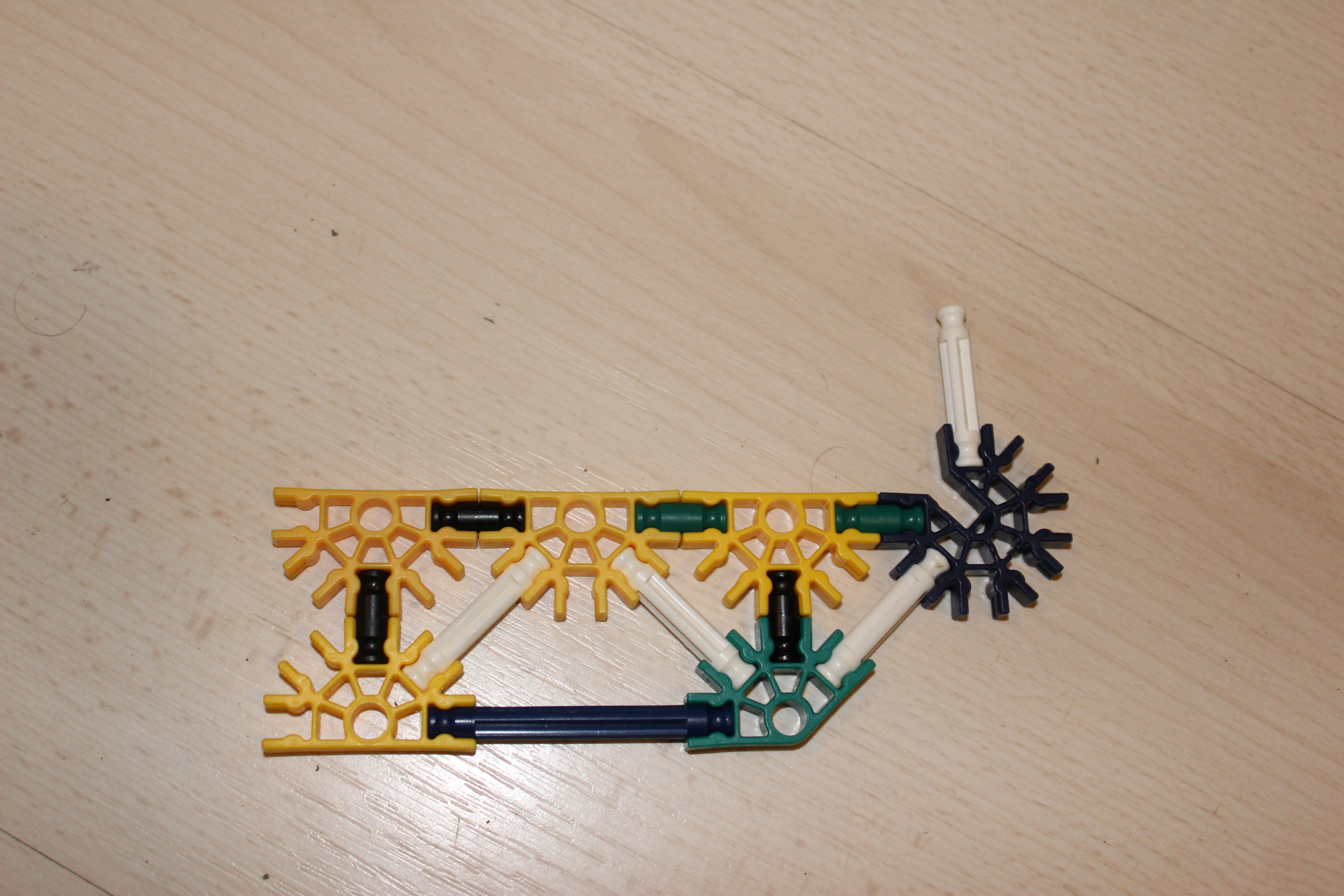

Let's start with the first tower of the bottom.

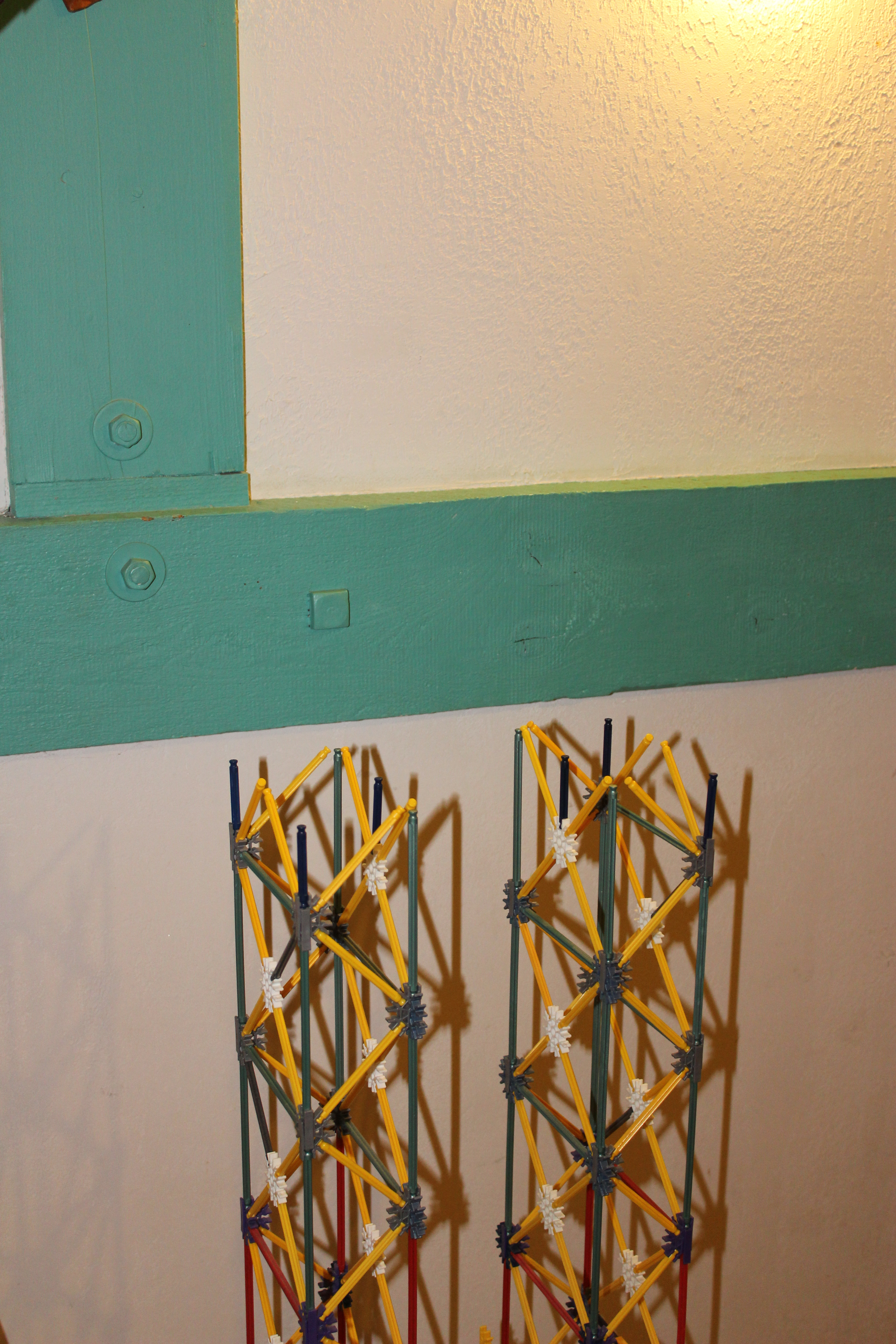

Now the second tower of the bottom

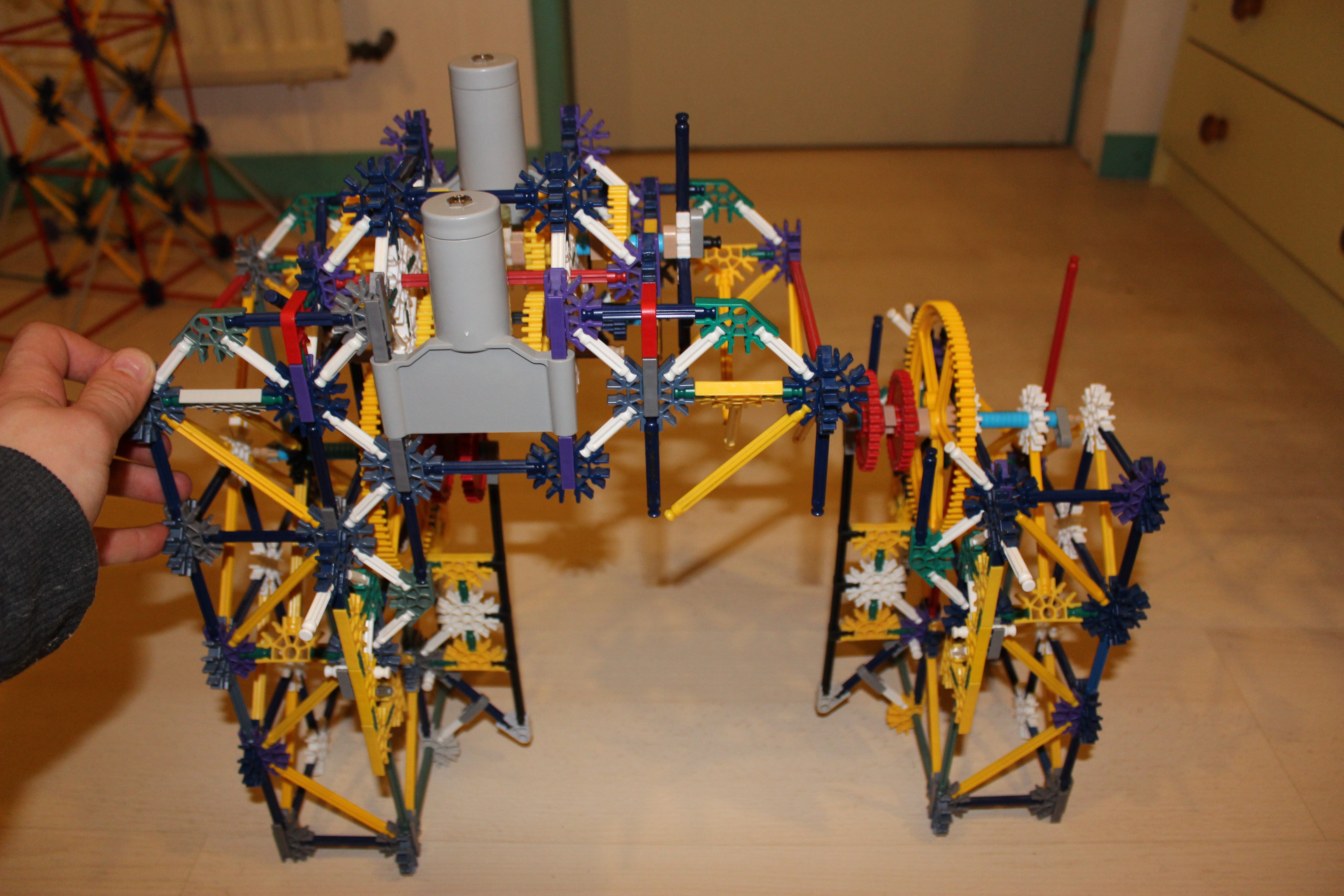

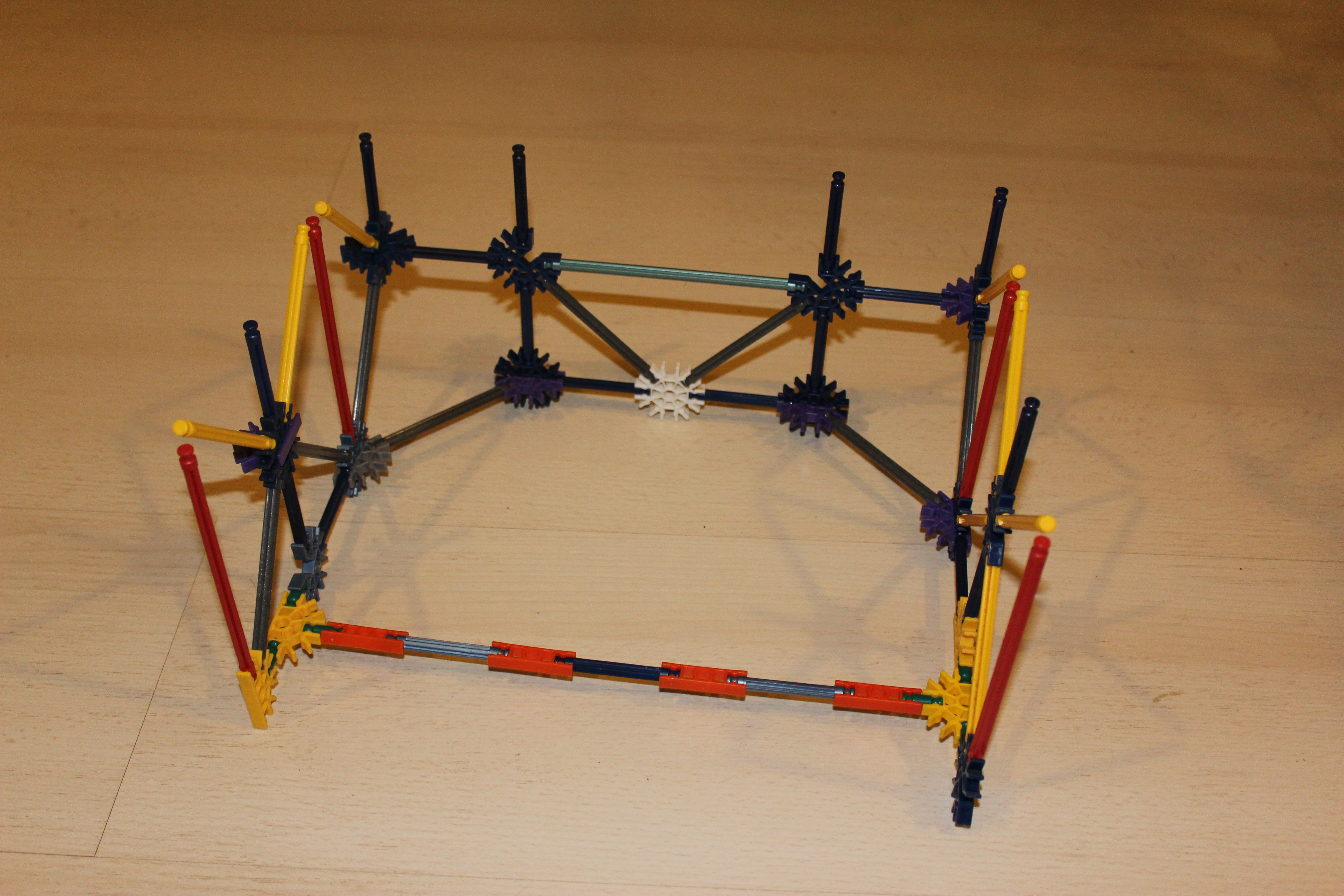

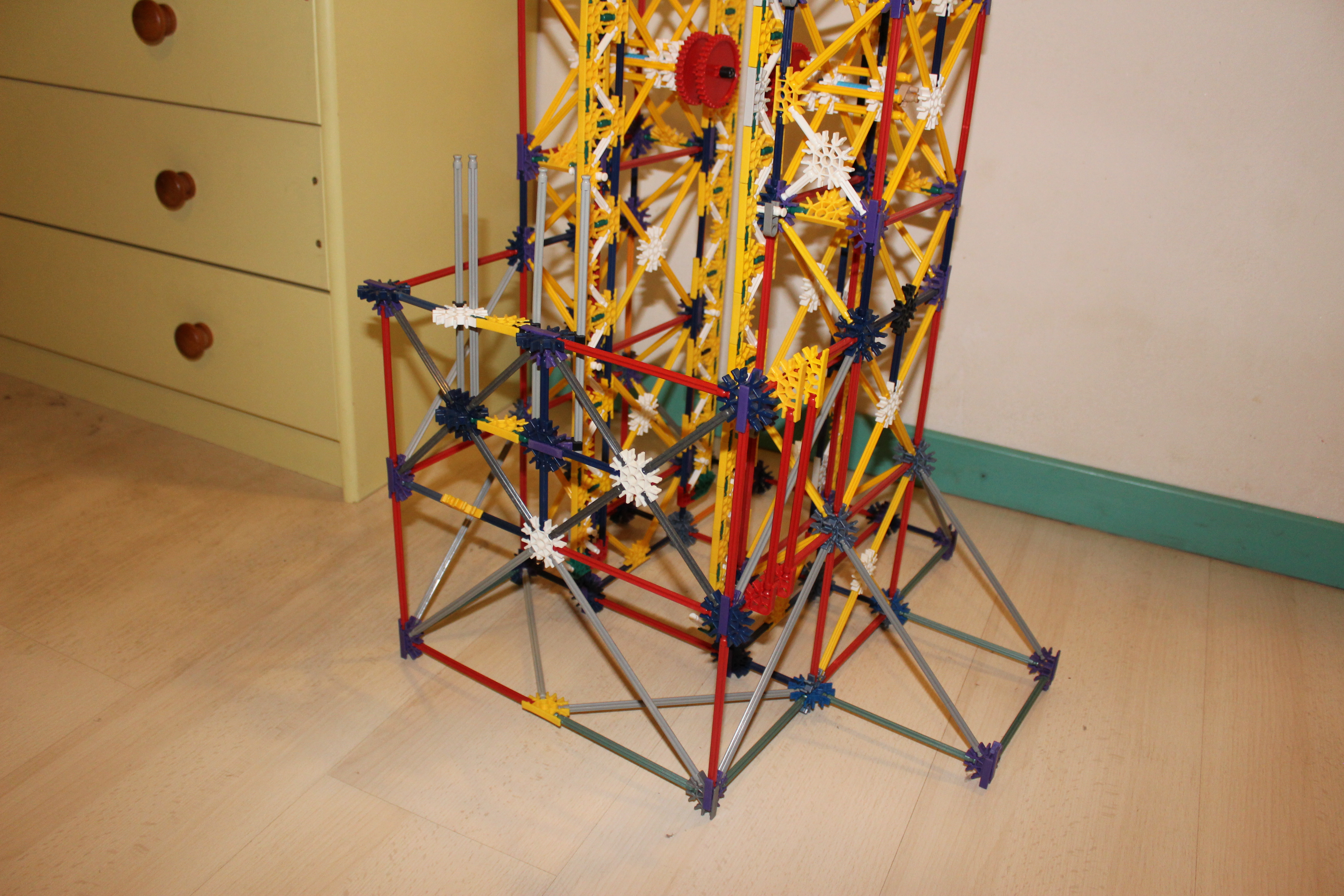

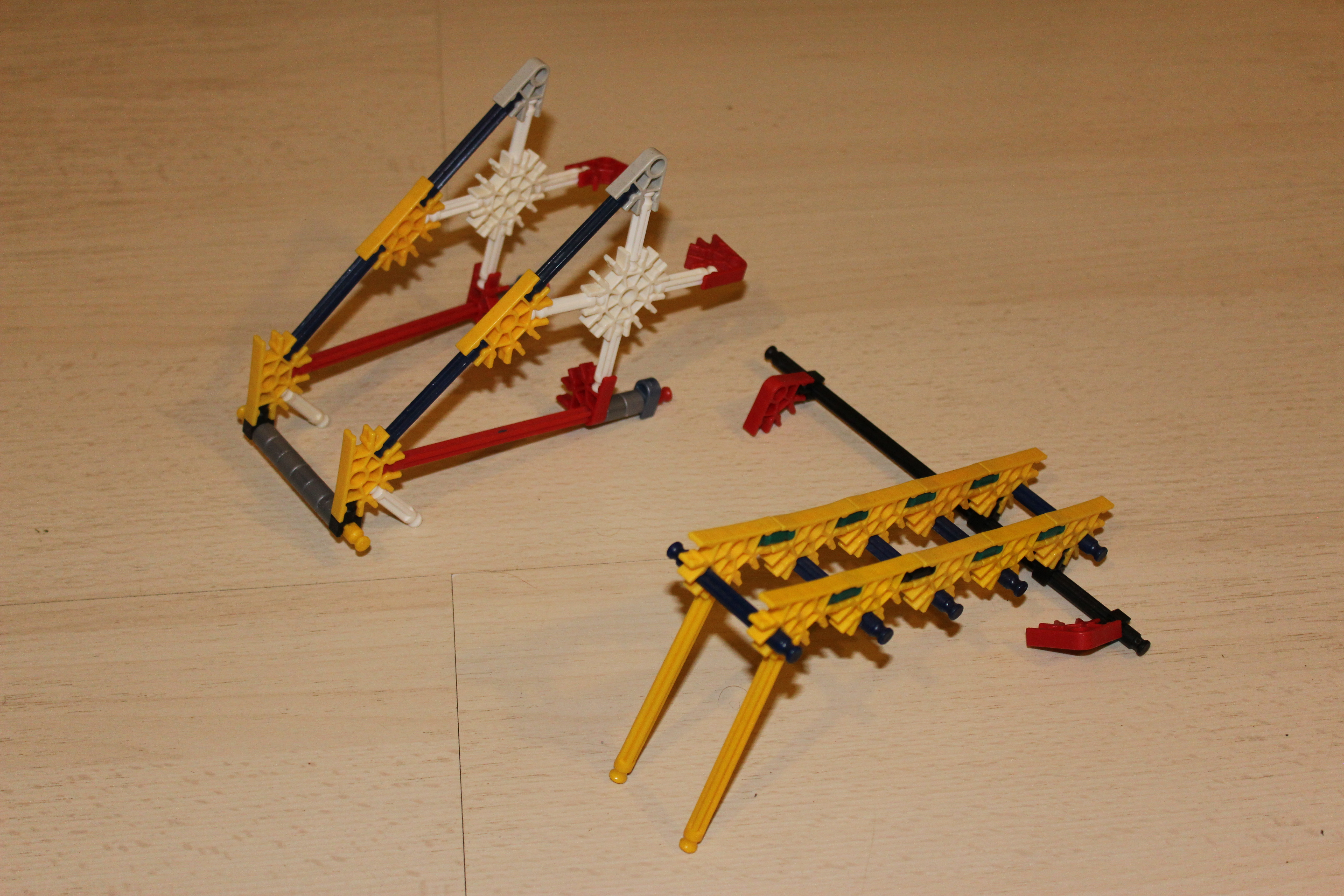

The last part of the bottom ;-)

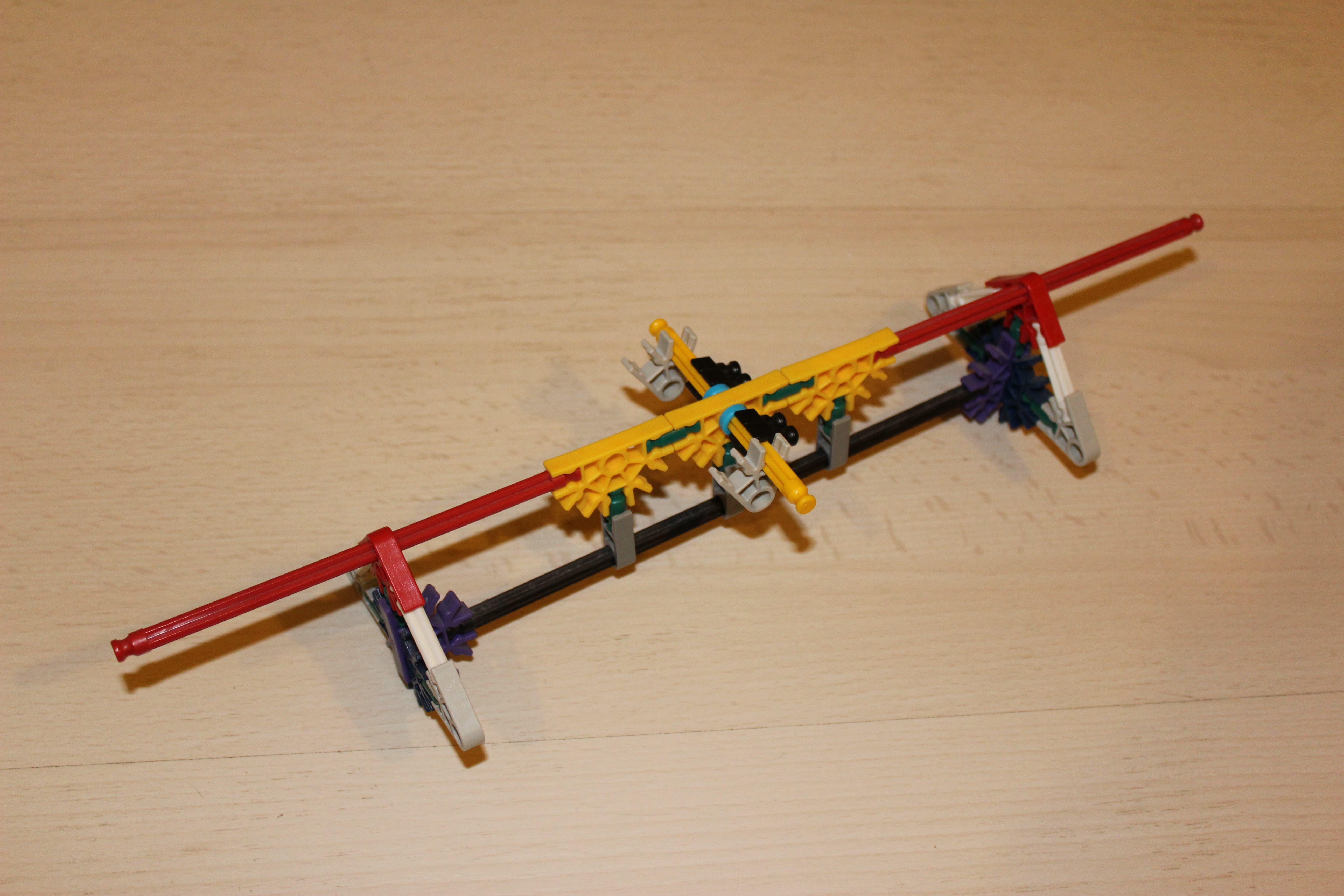

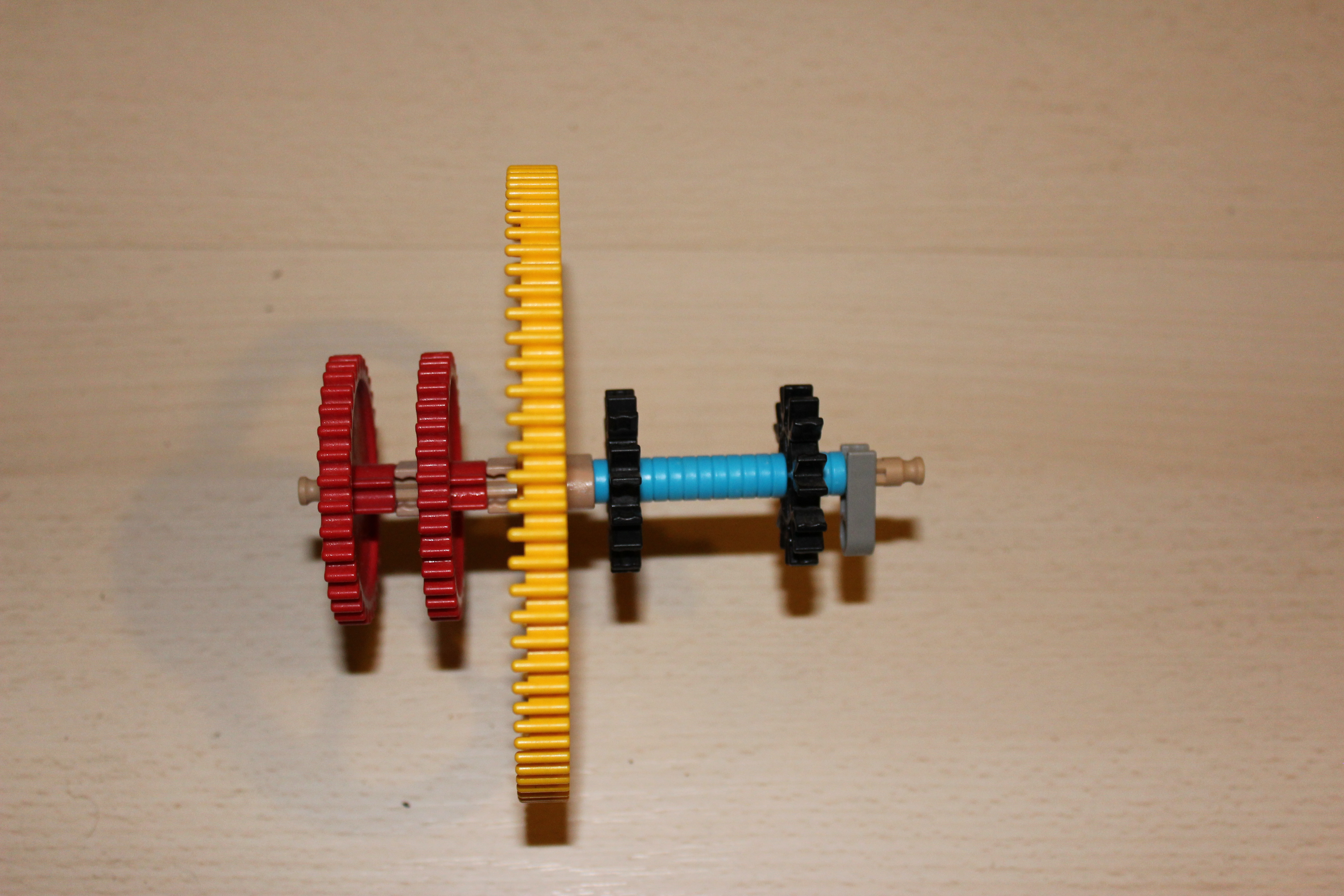

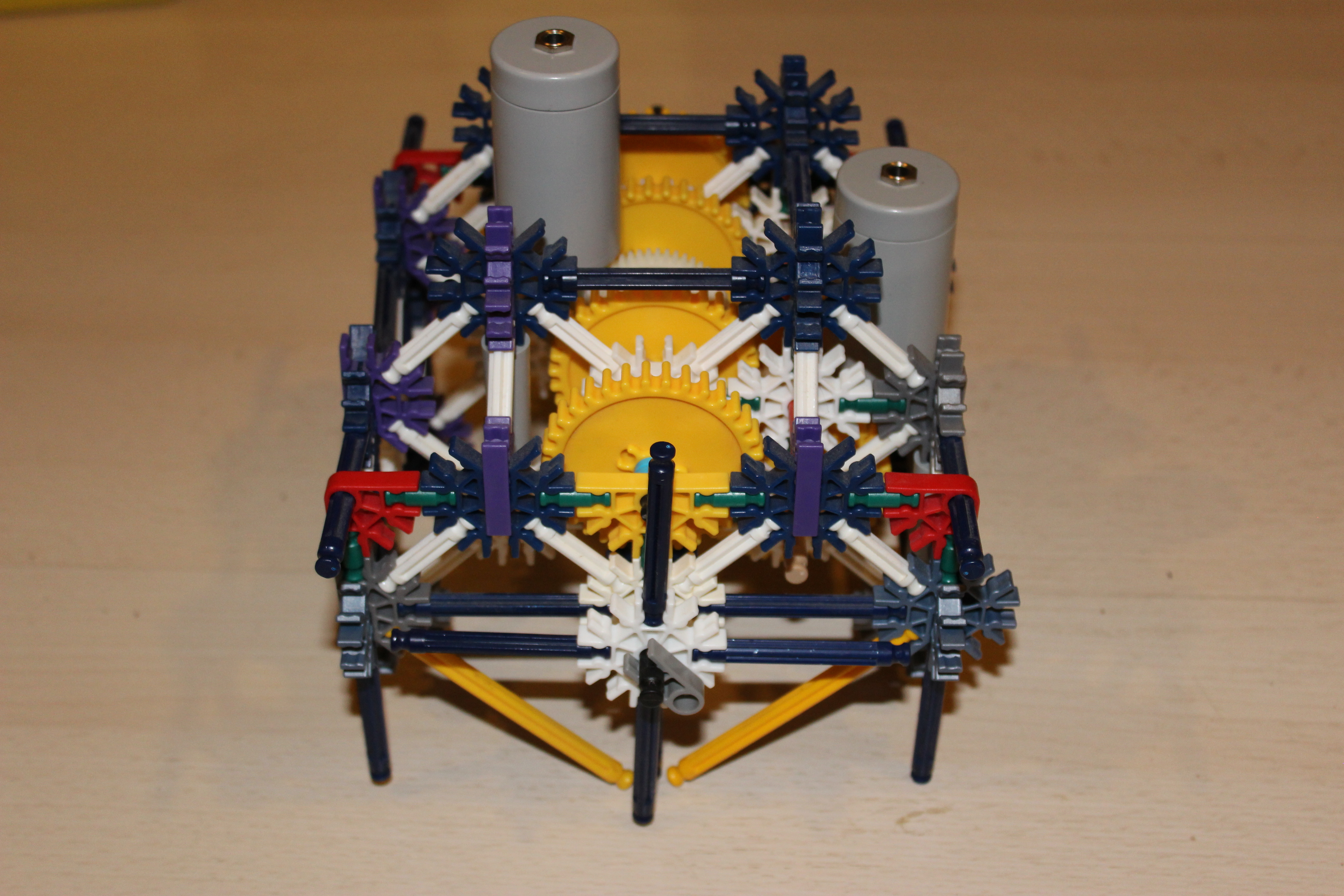

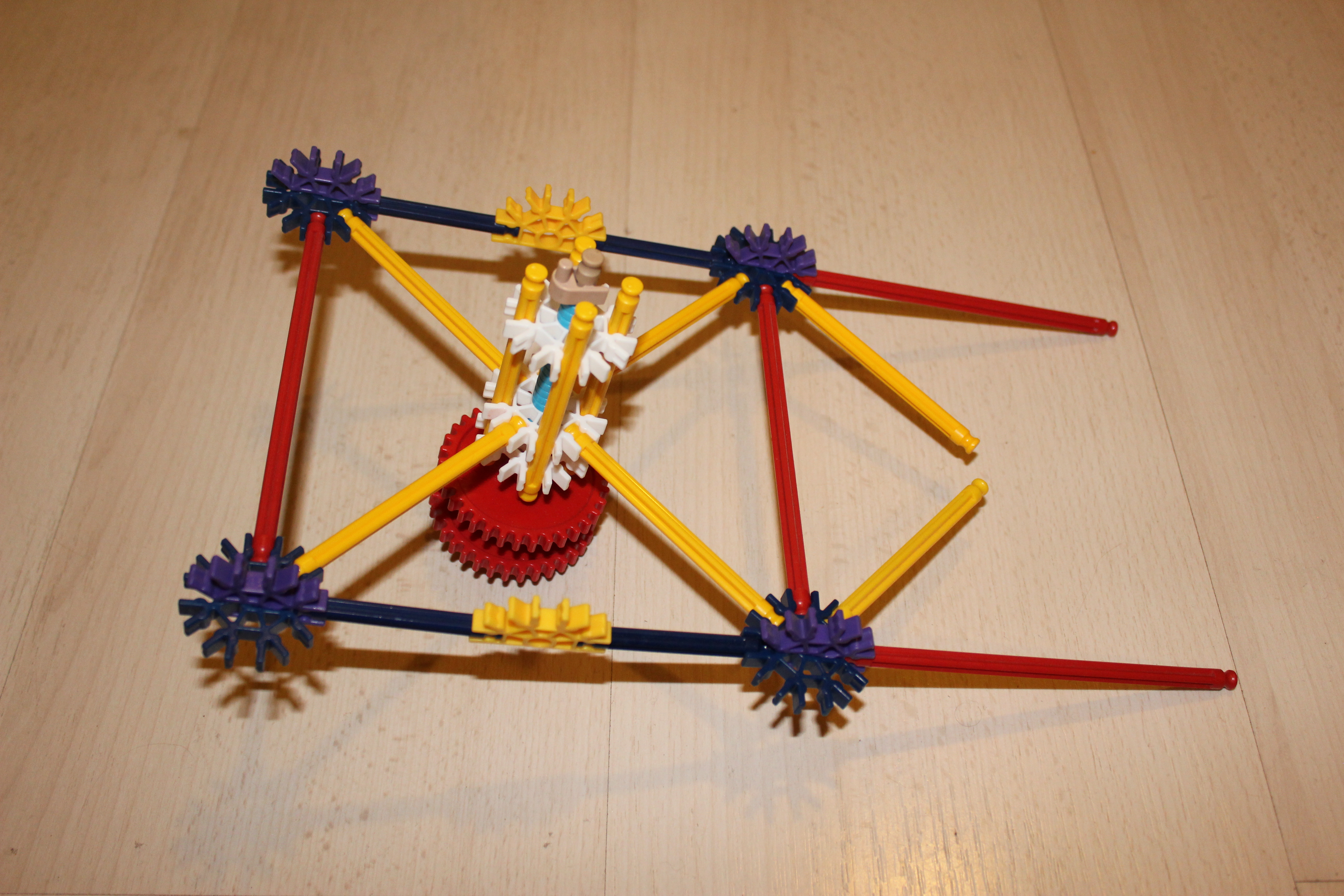

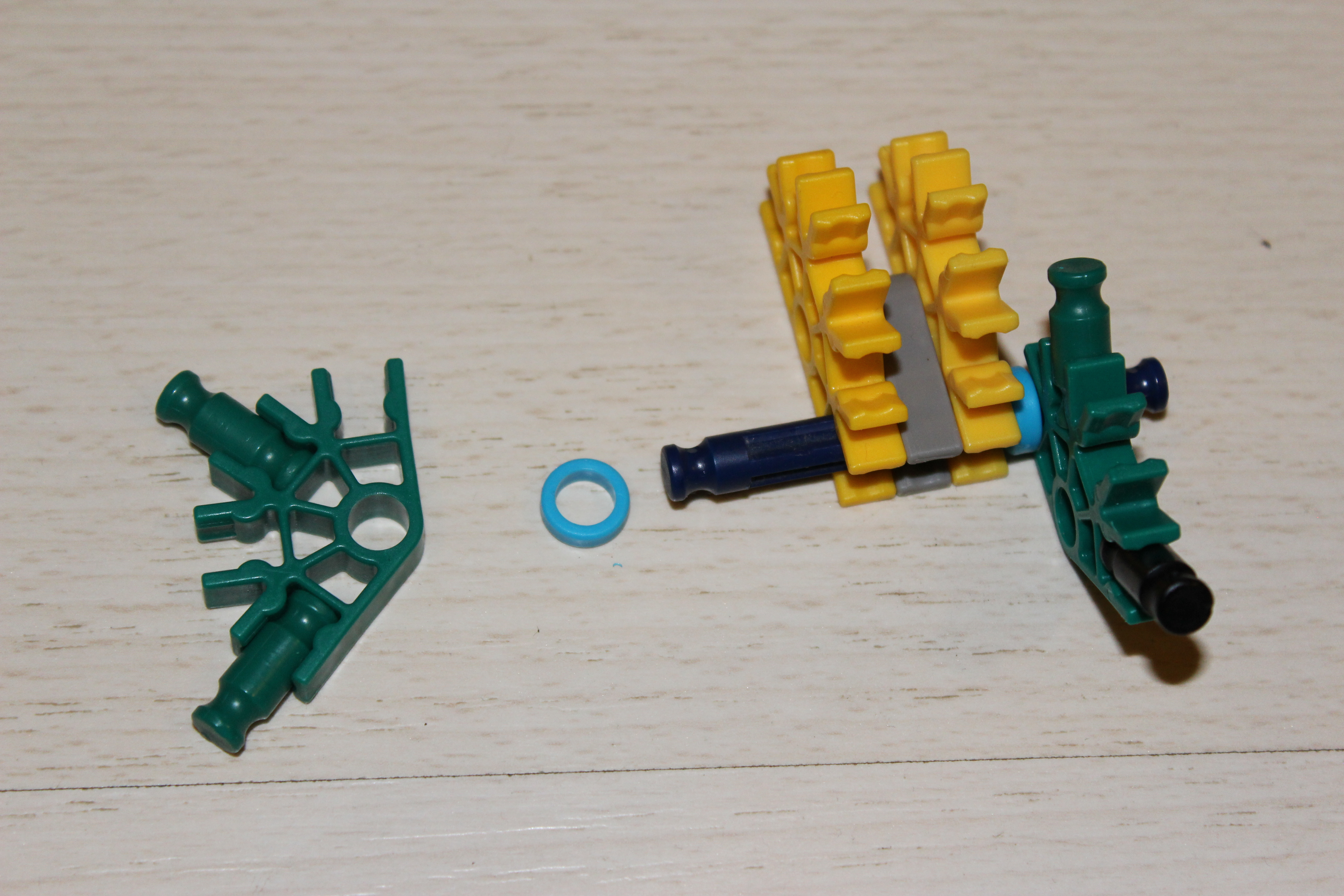

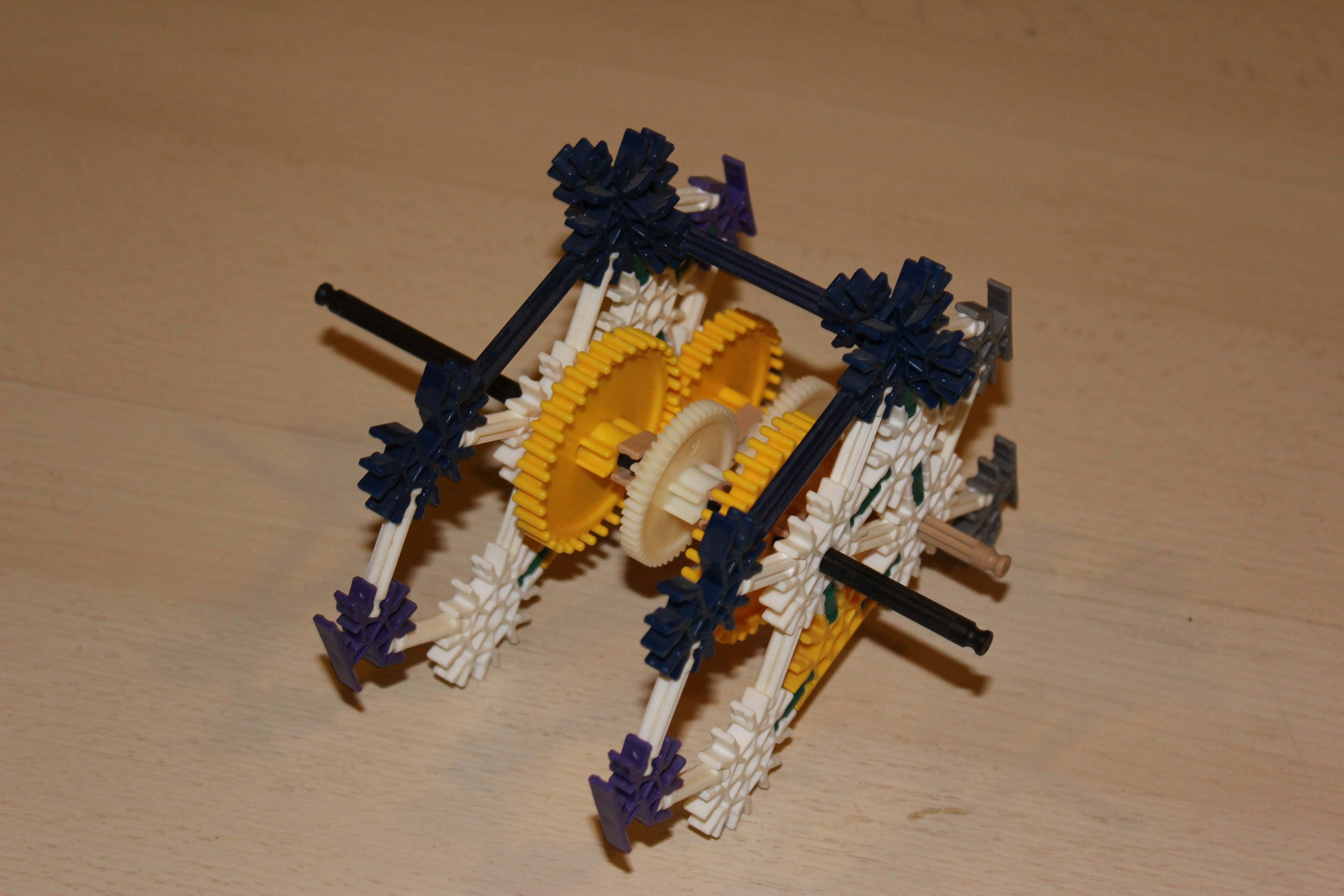

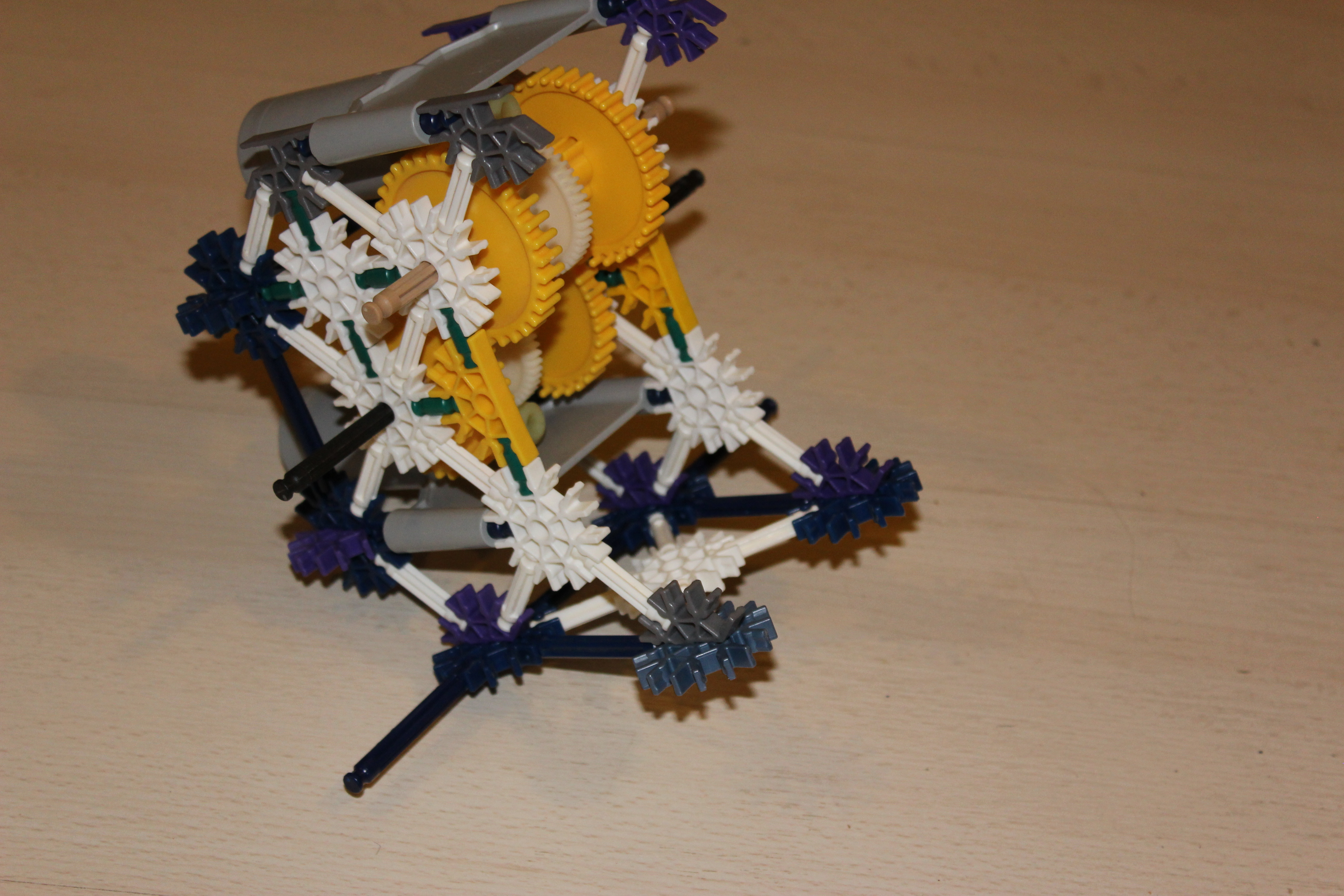

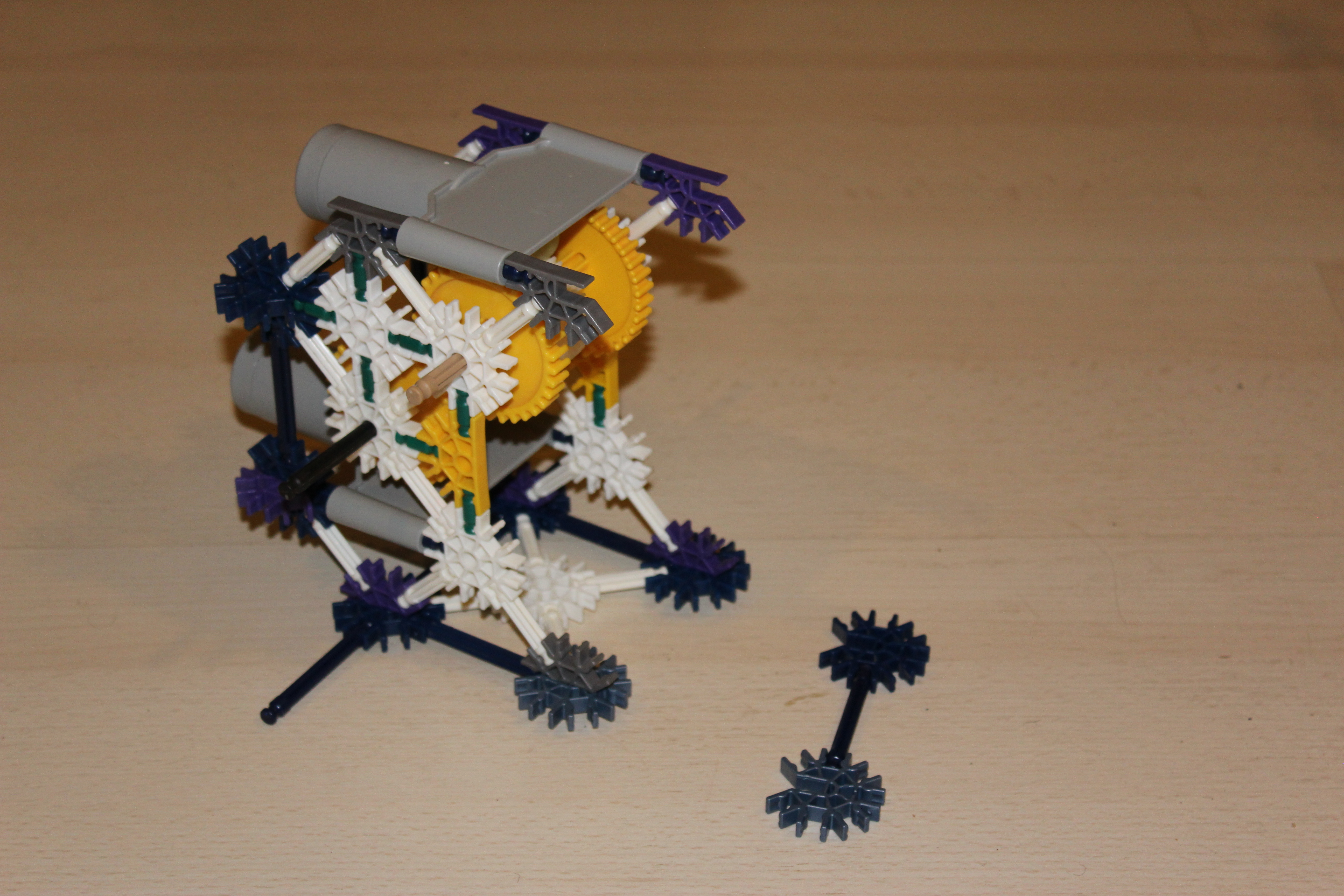

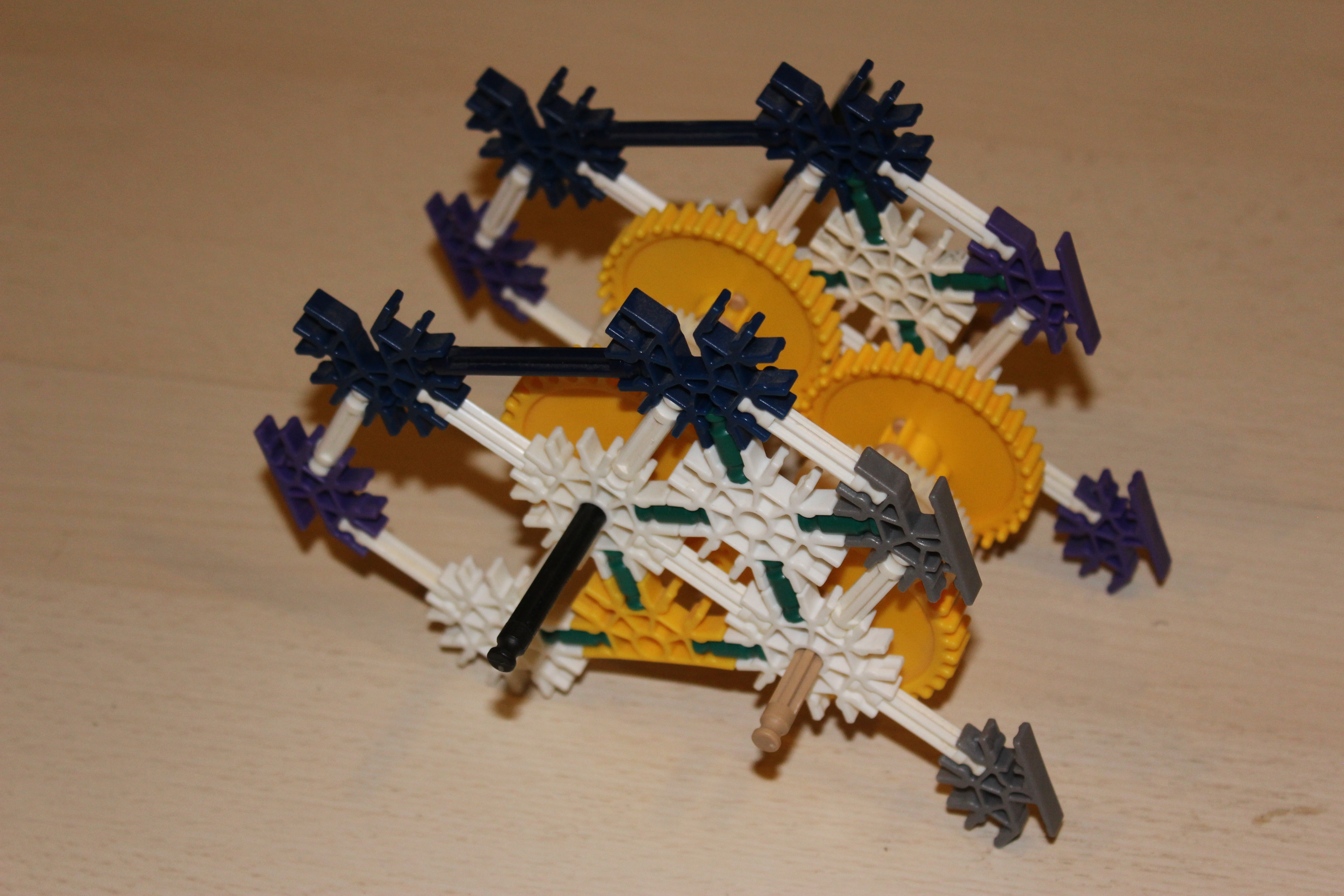

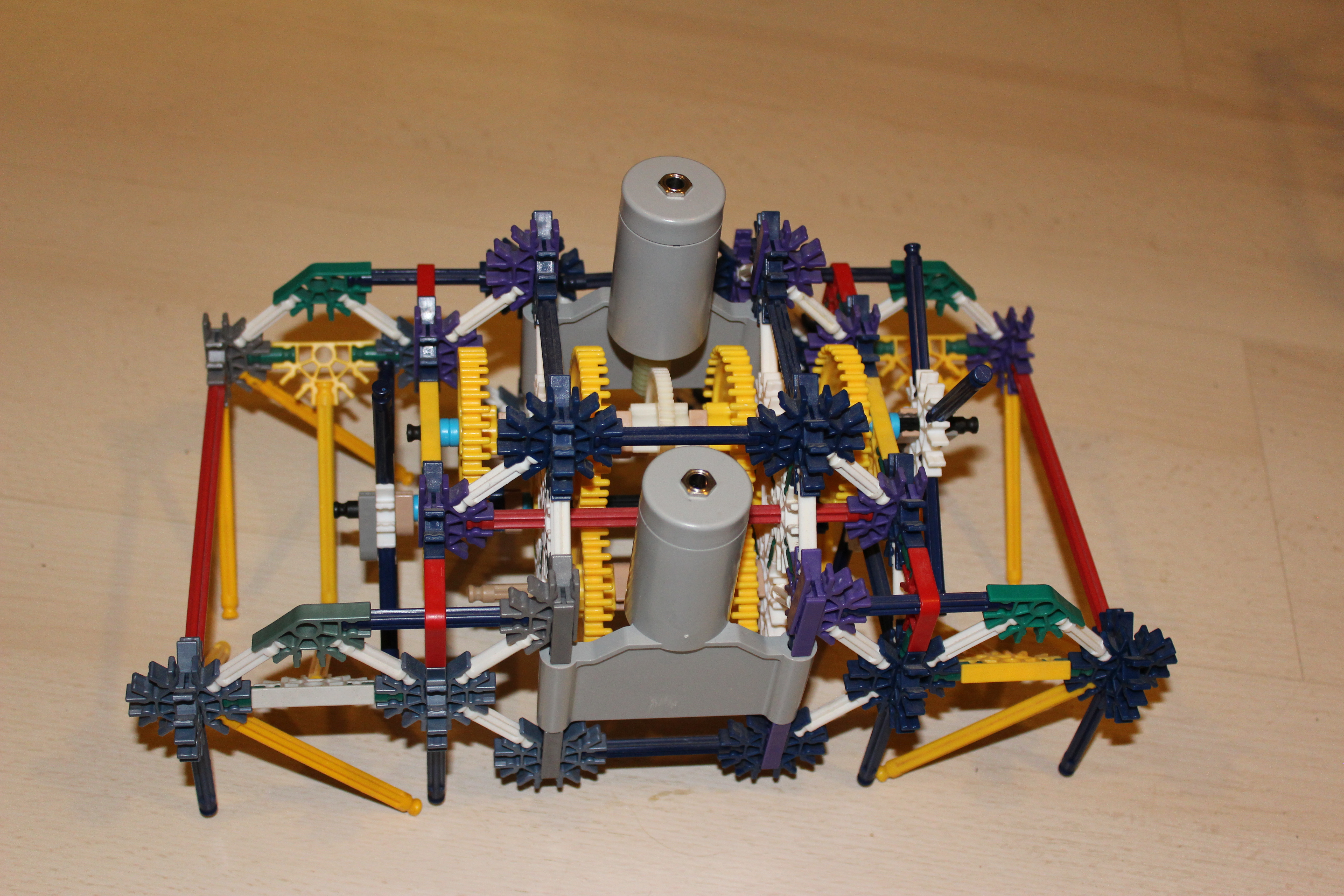

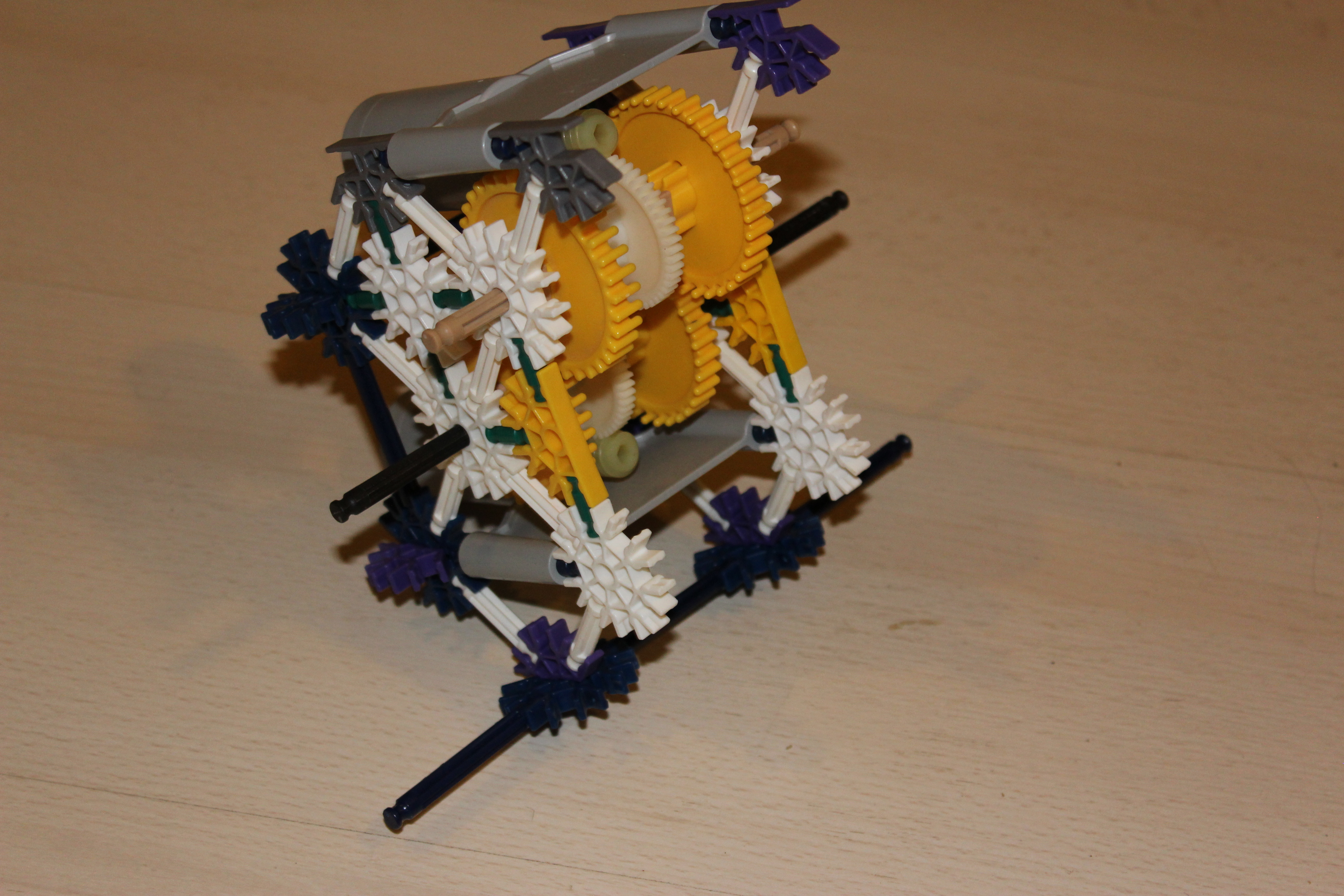

An important part of the lift...

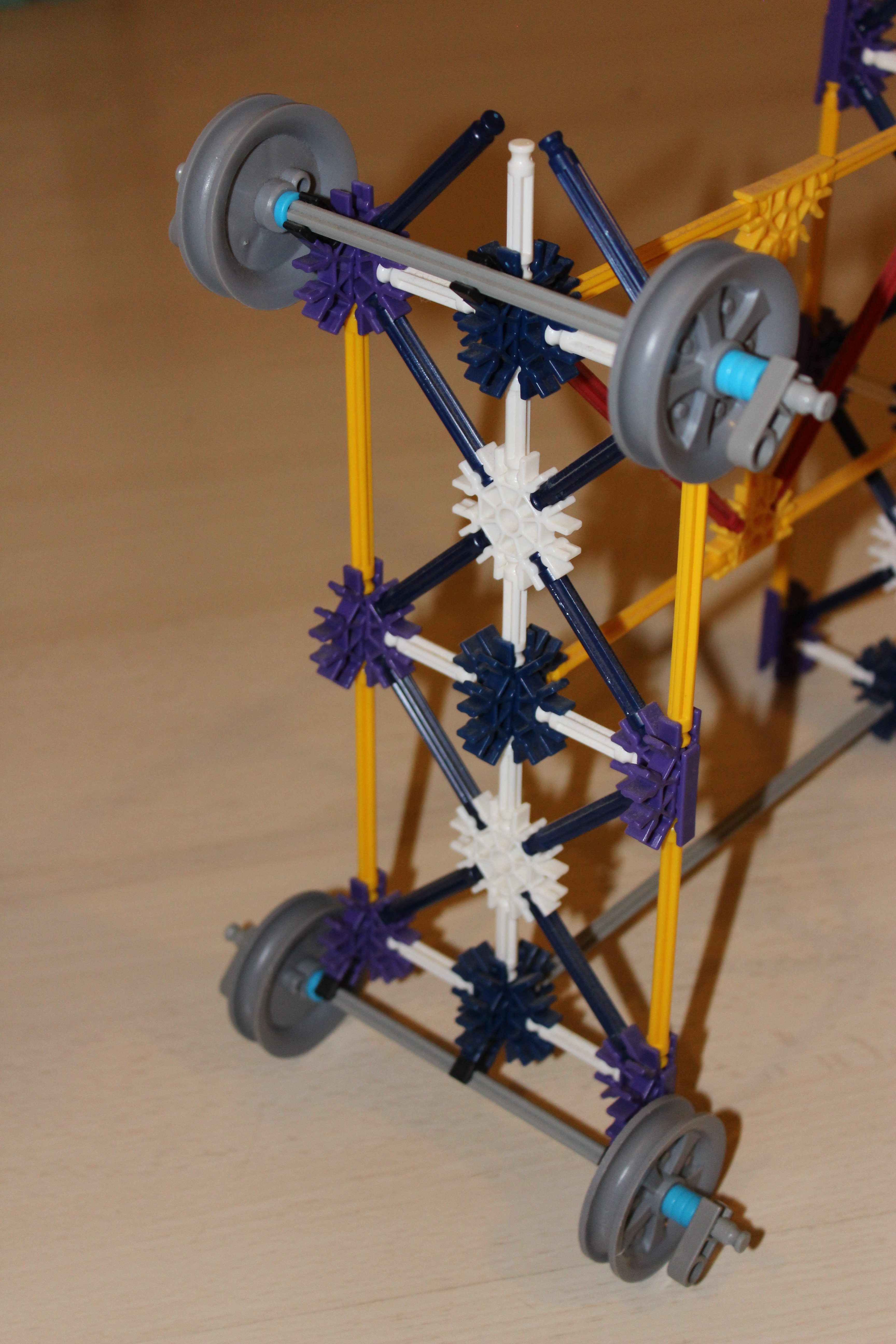

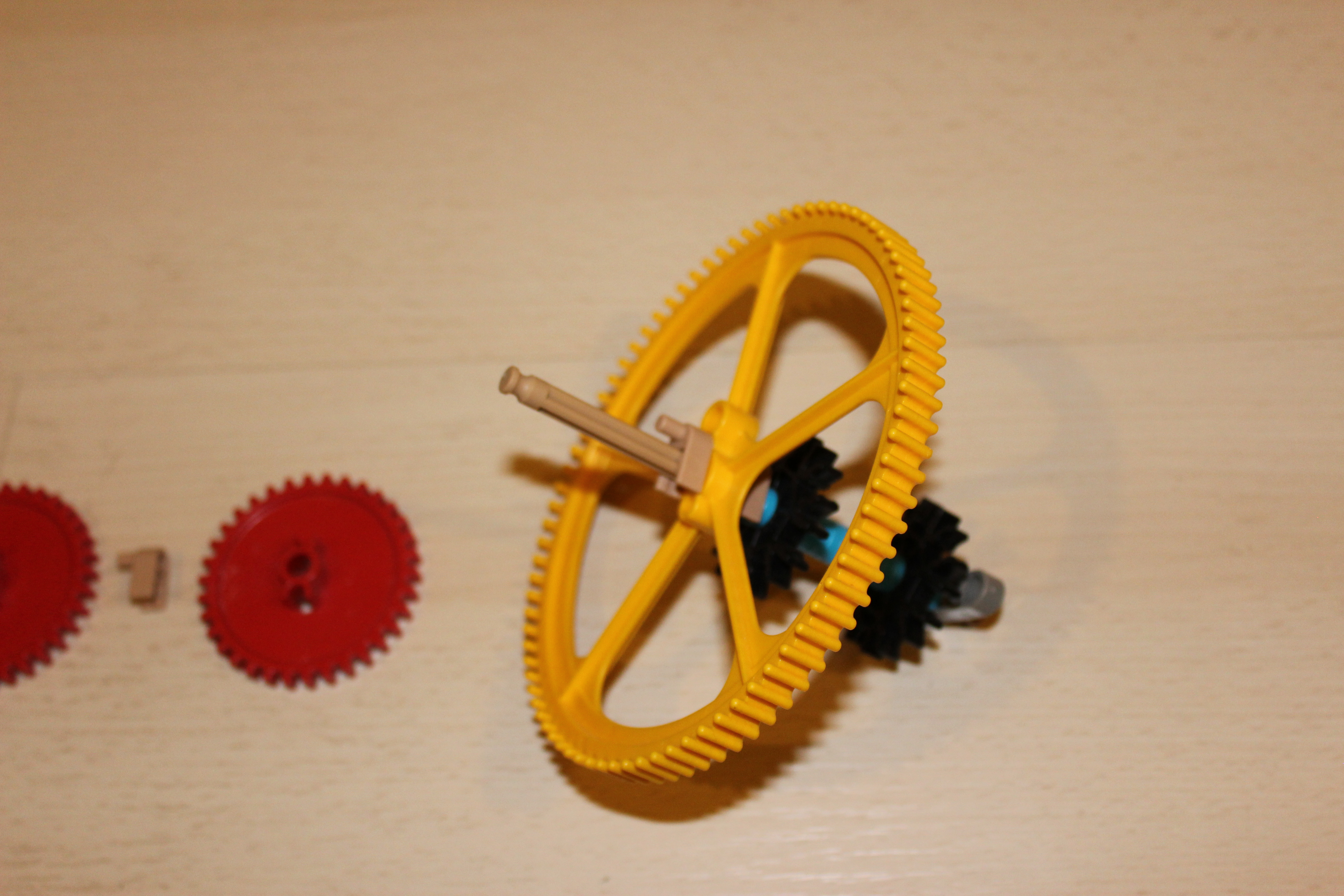

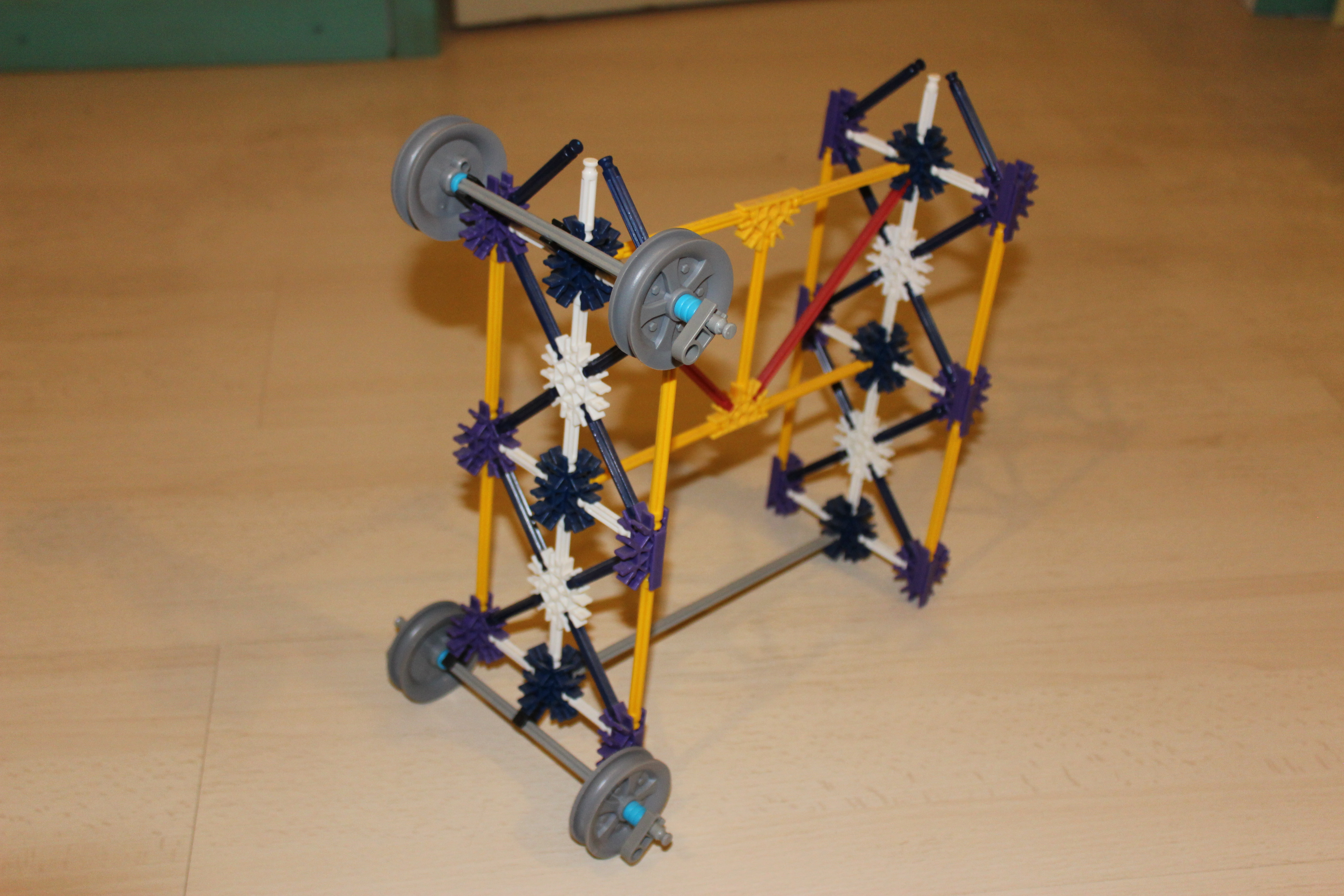

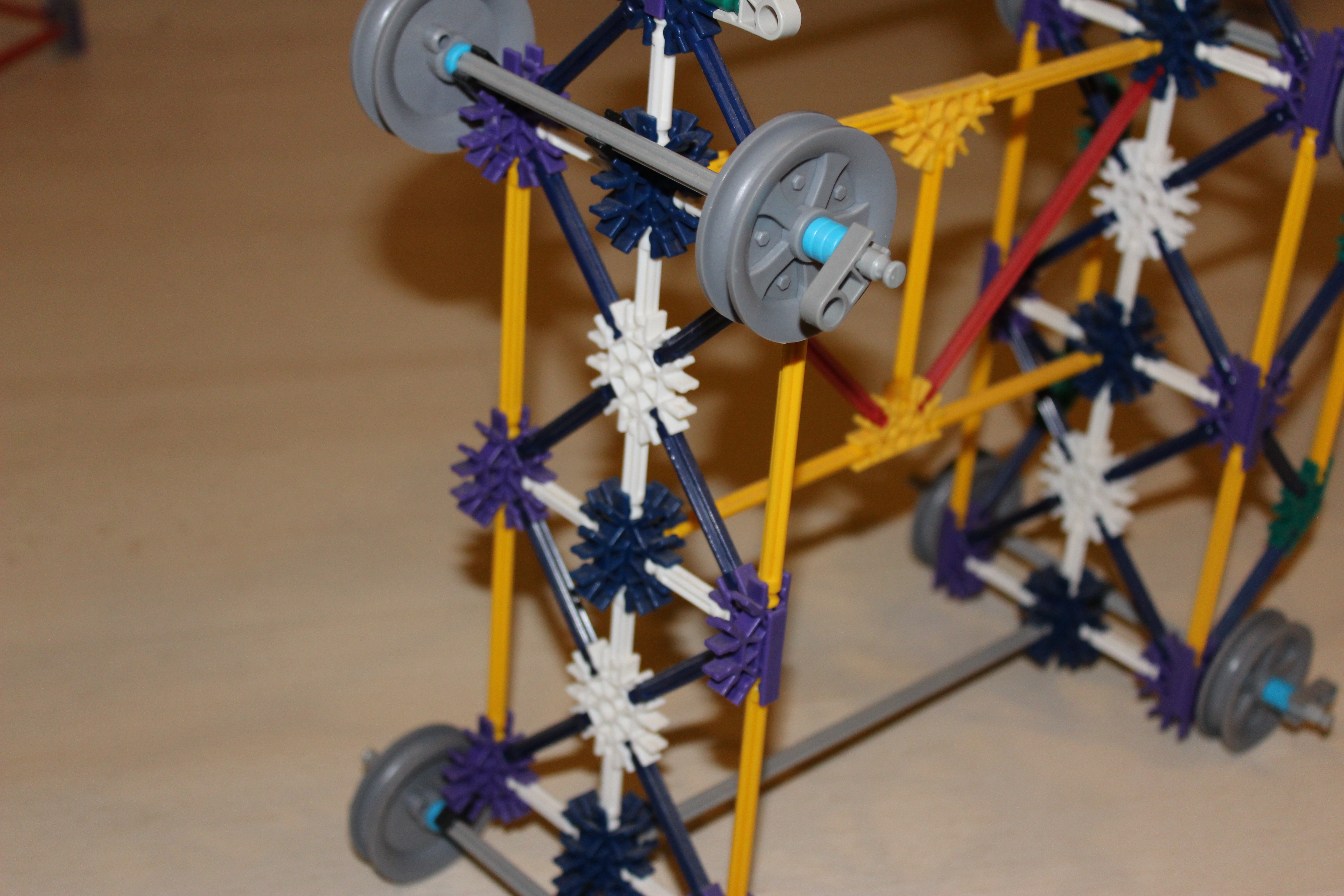

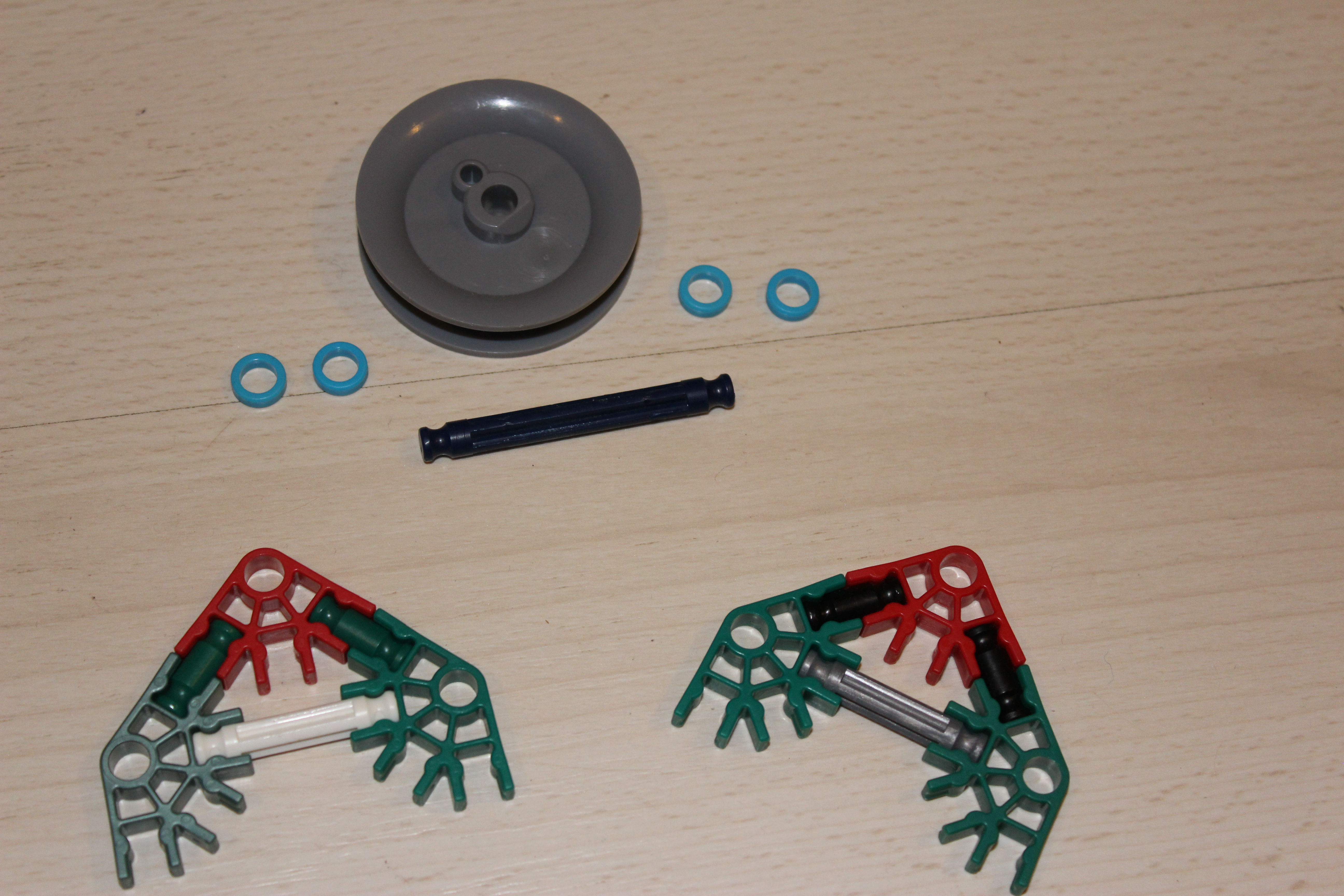

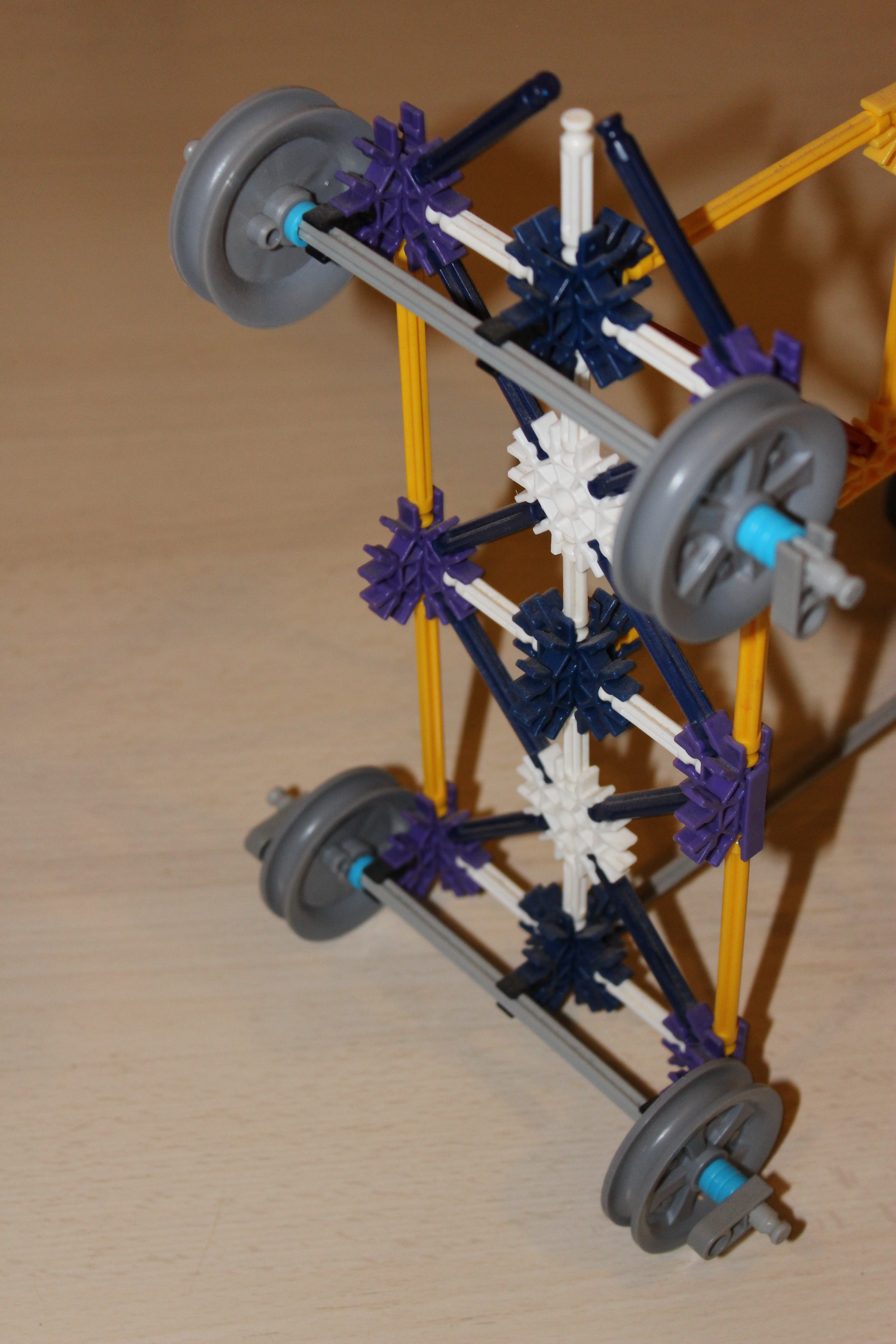

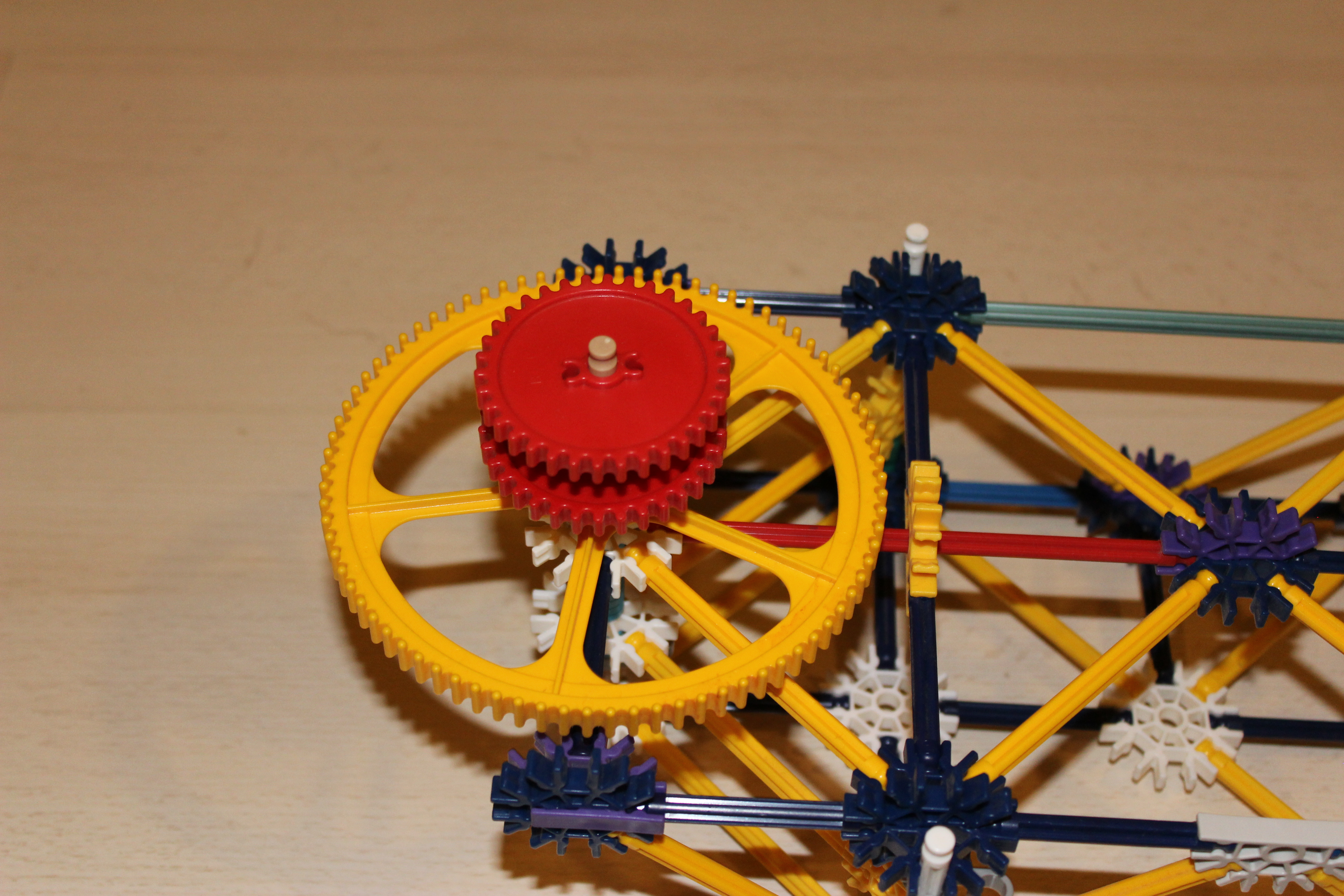

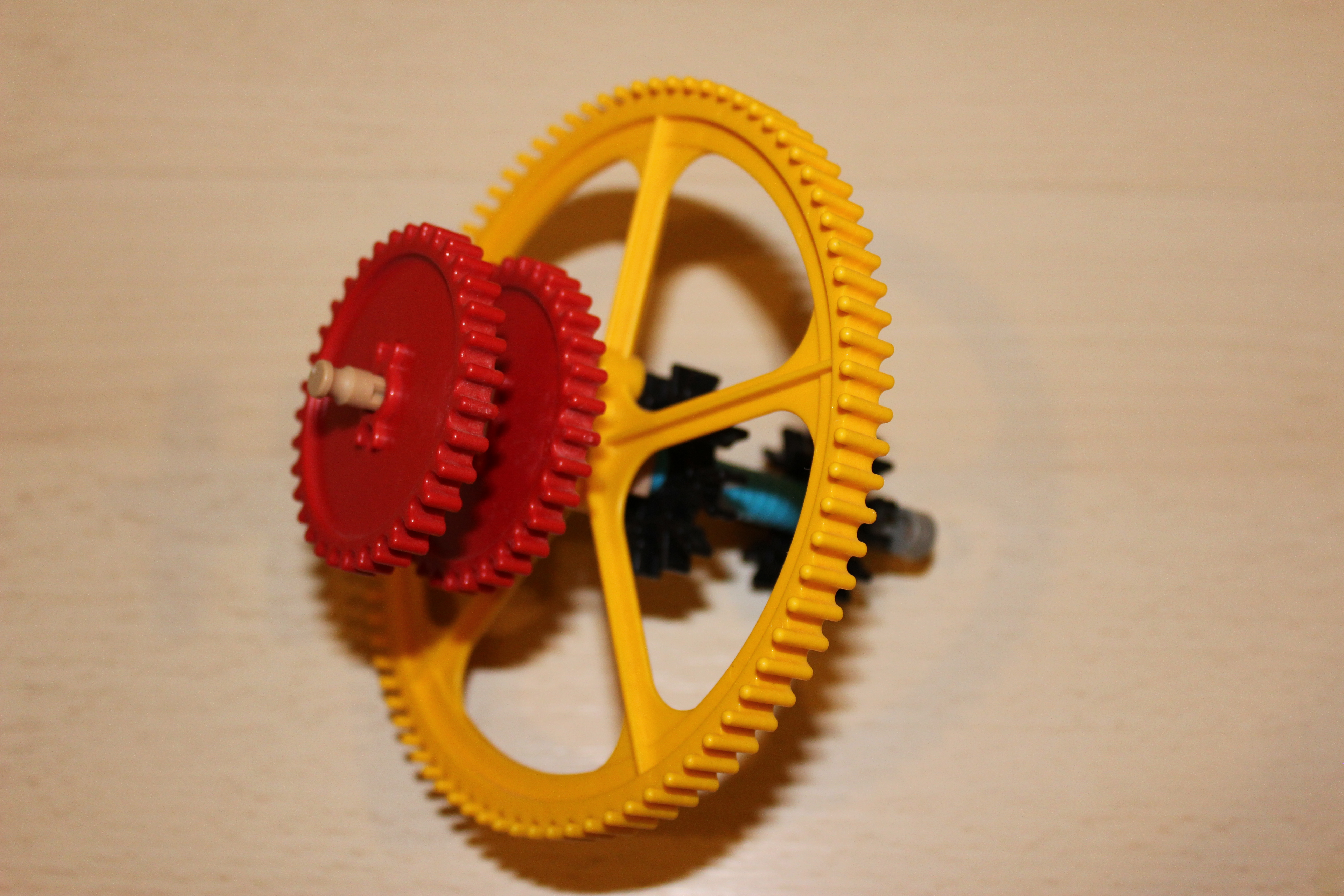

Watch out to the wheel's position !!!

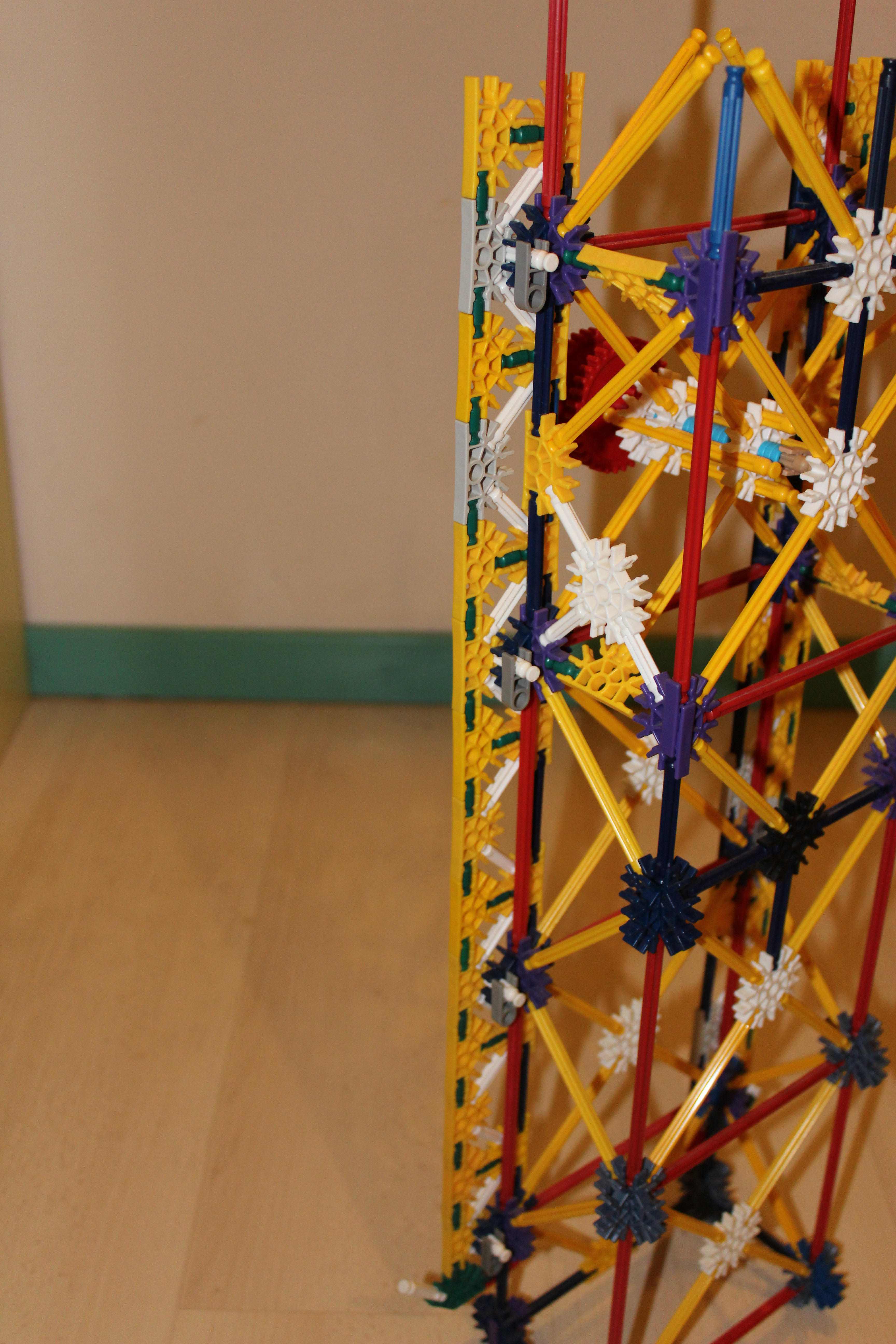

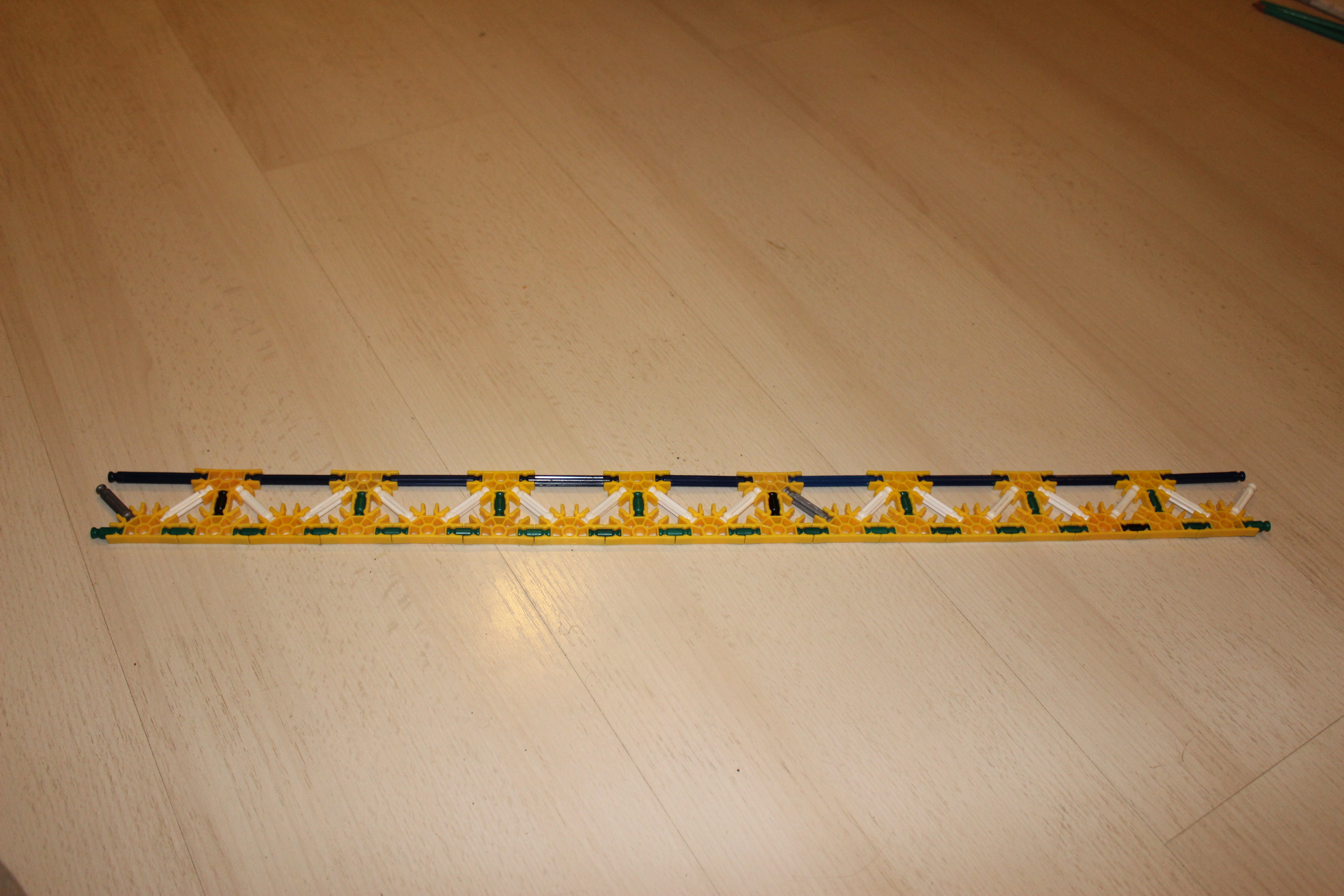

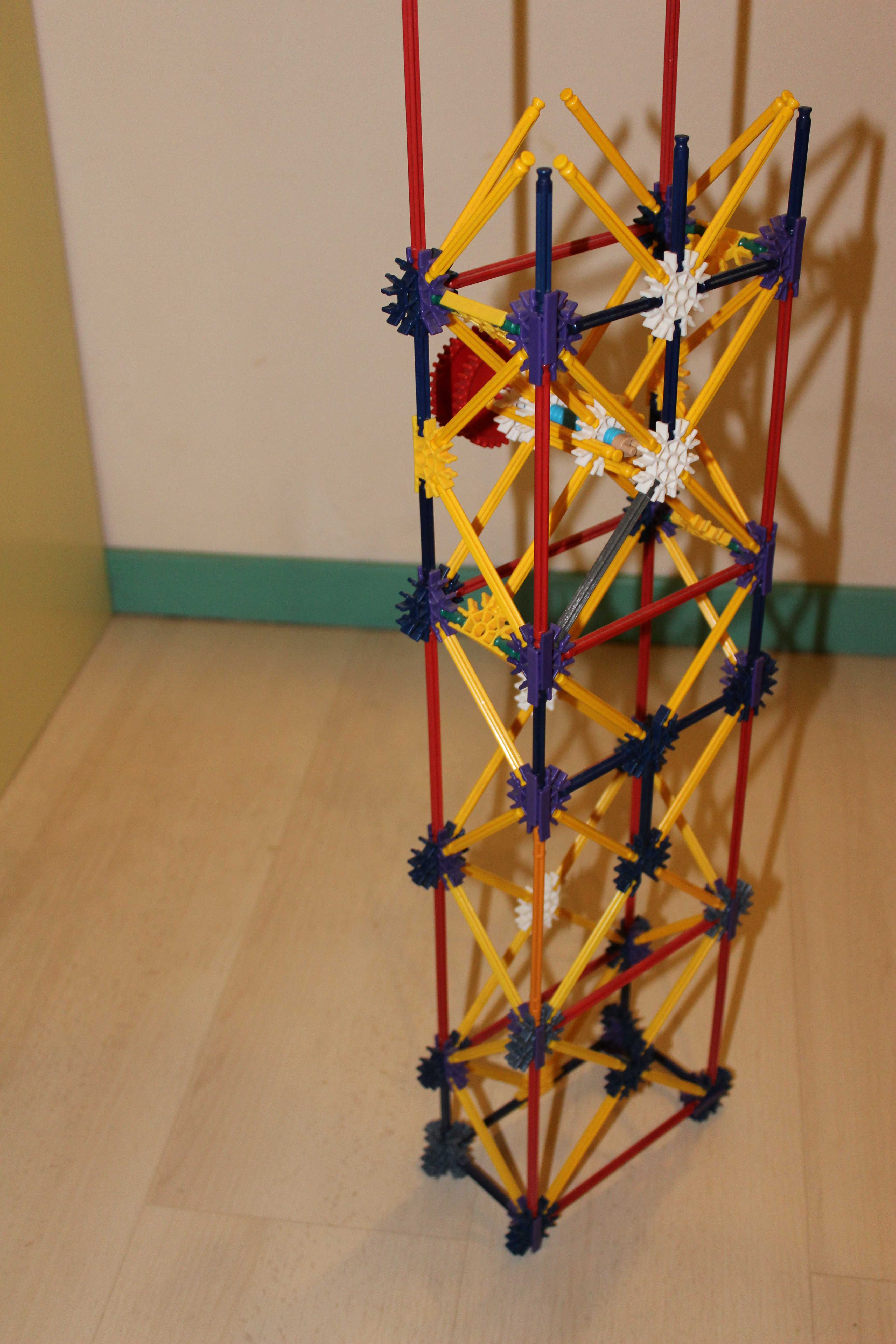

You can make it higher if you want to make a bigger lift. Don't forget to make the chain longer :-)

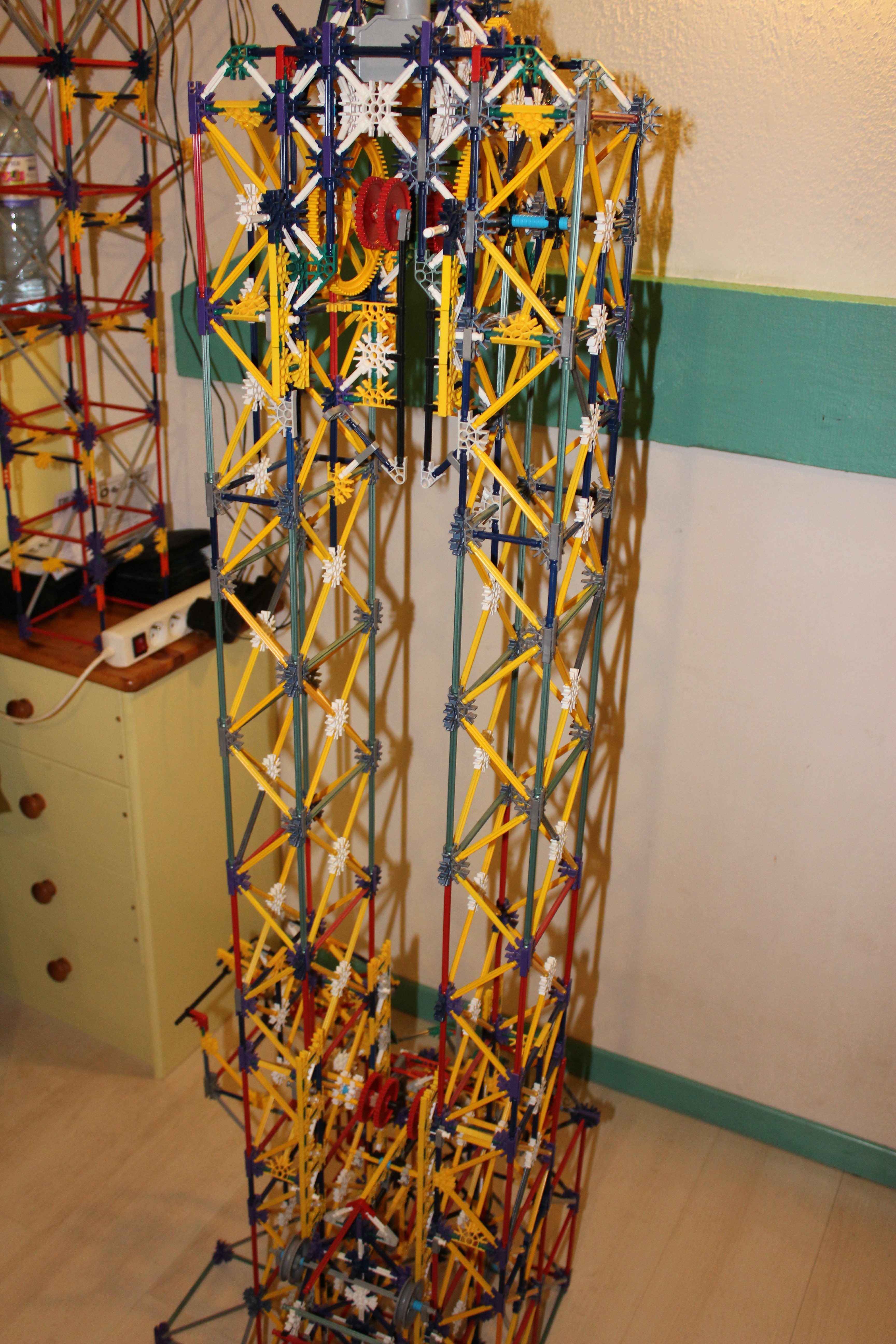

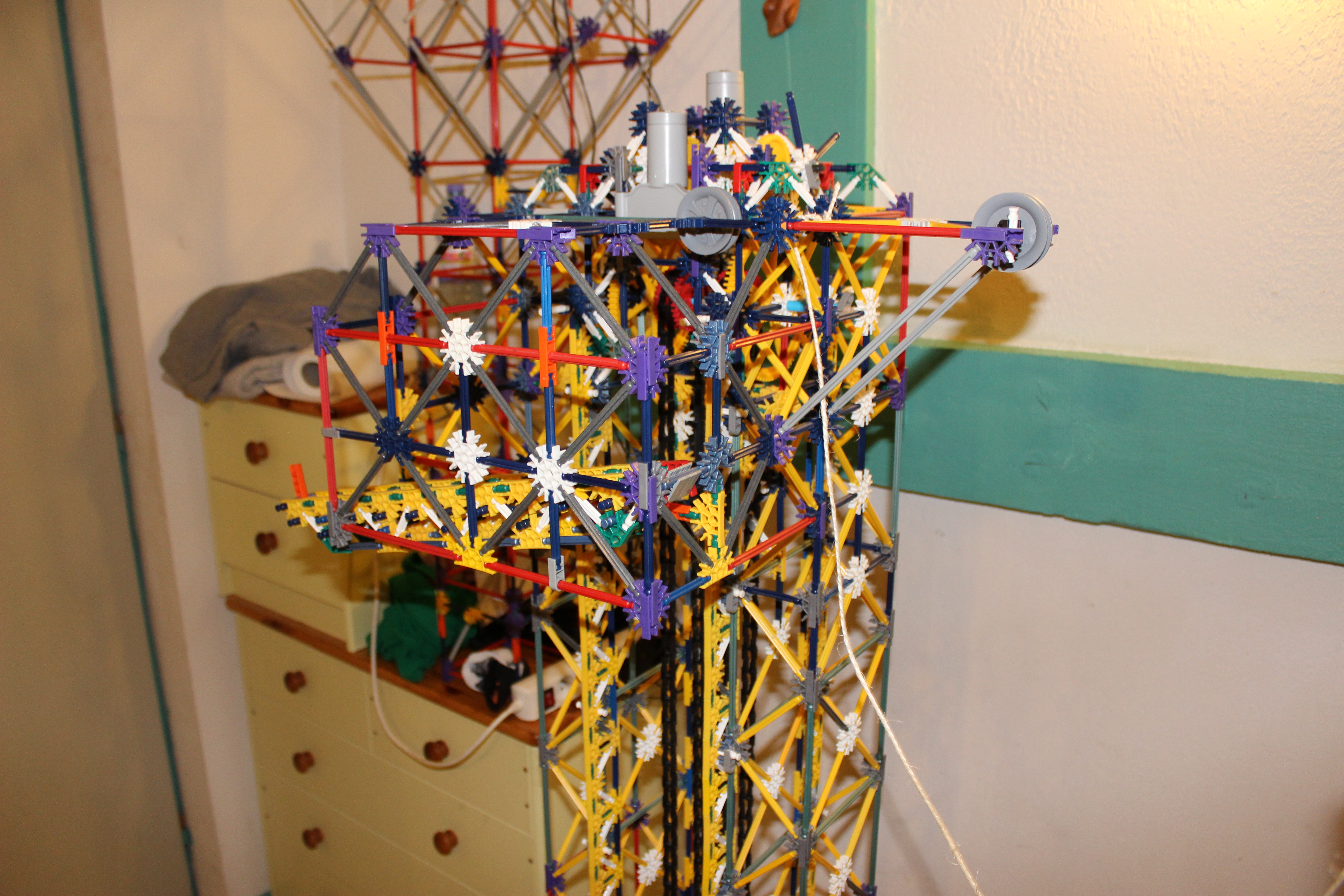

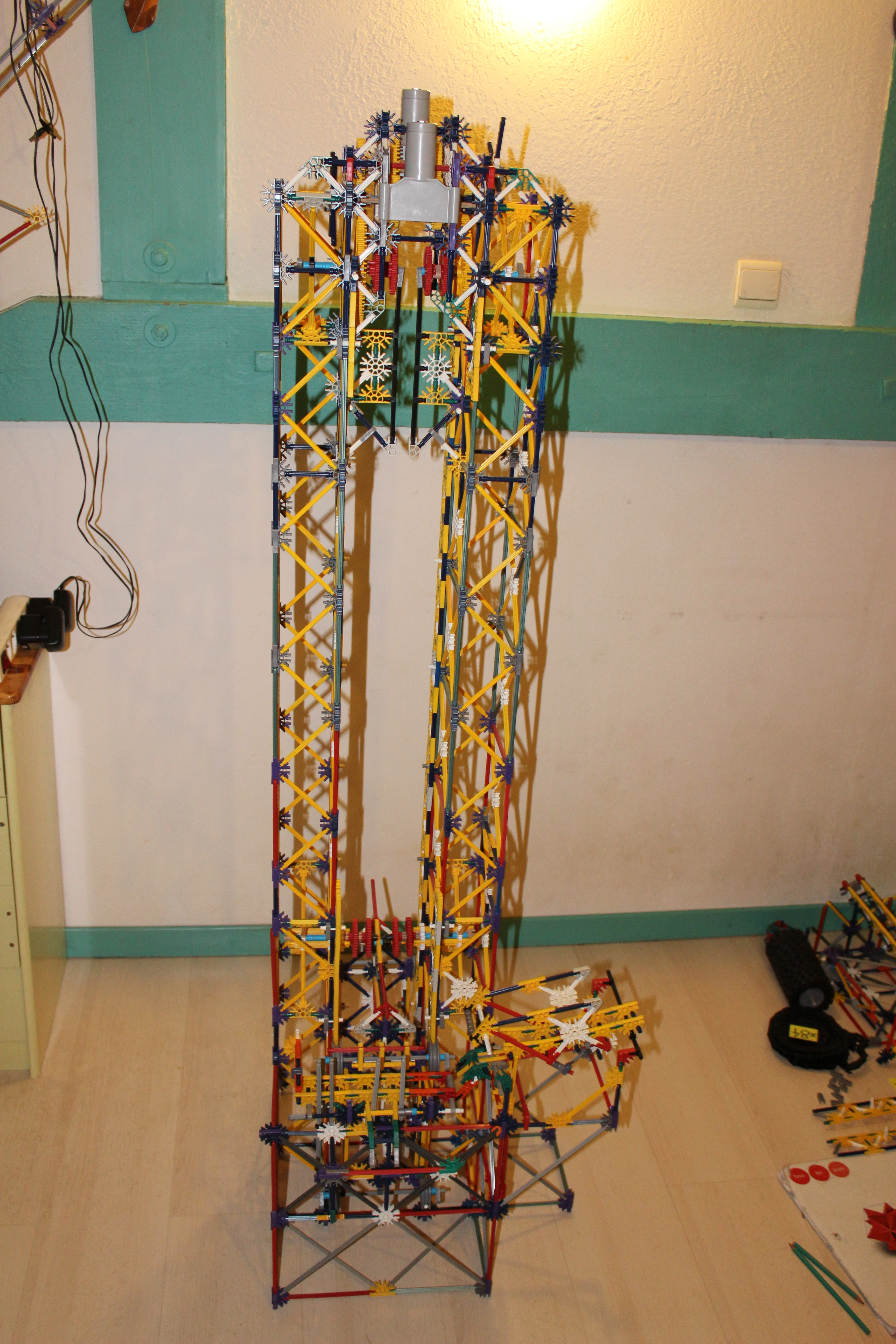

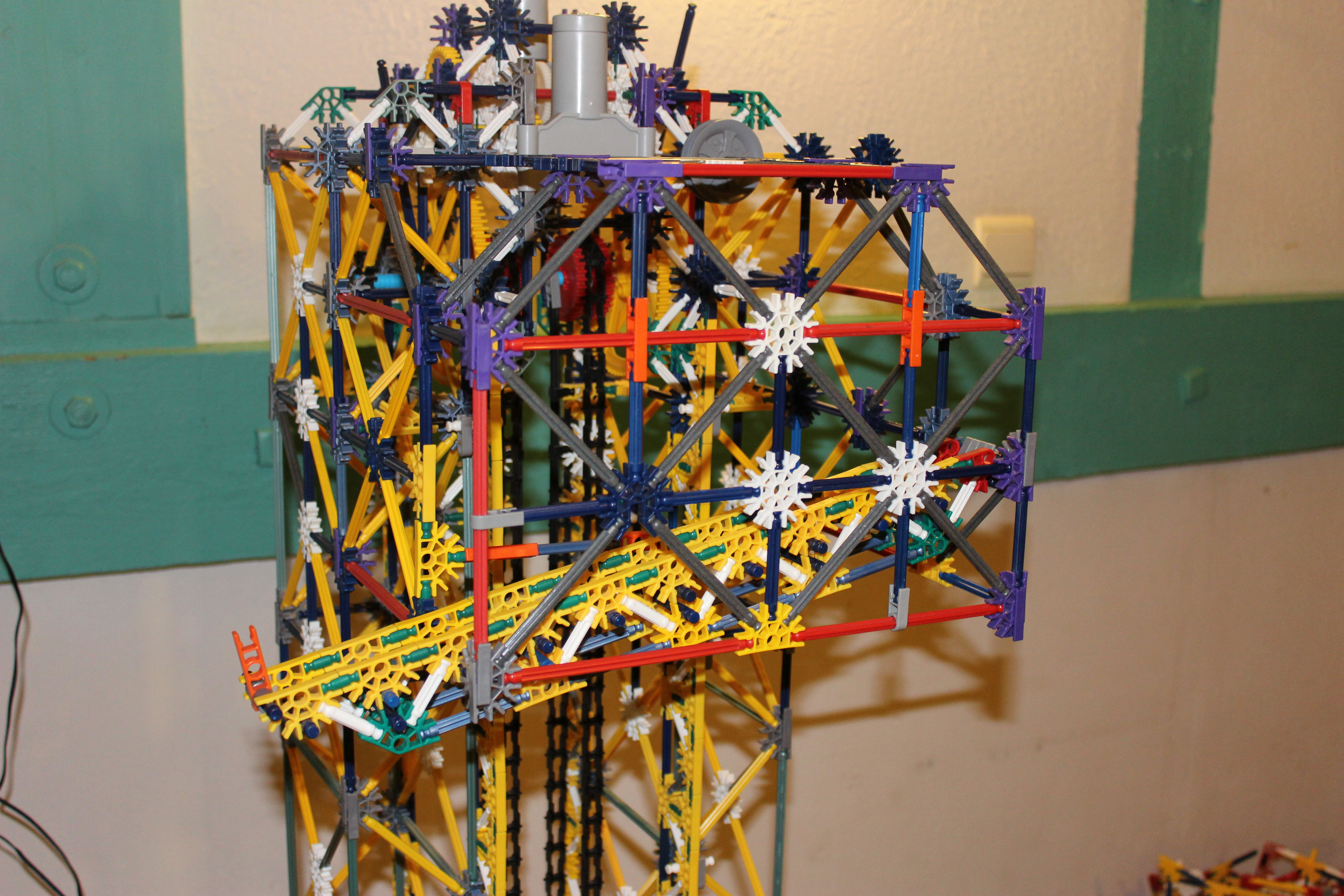

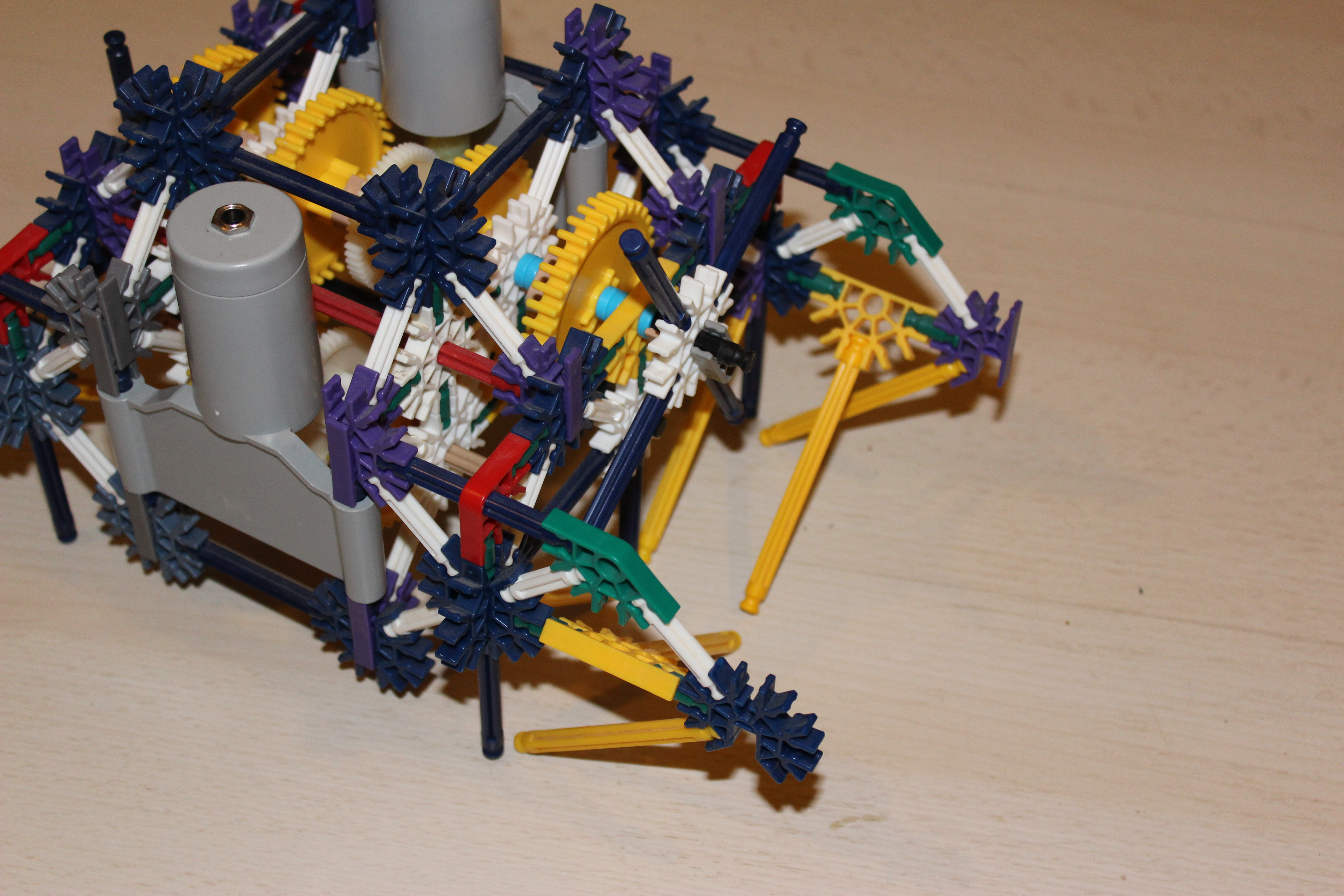

Here is the beast ^^

This step is looking exactly like the previous, but watch out ! Everything is reversed !!!

almost there...

You finished the hardest part :-)

Be careful, the 2 chain must be exactly in the same position !!!

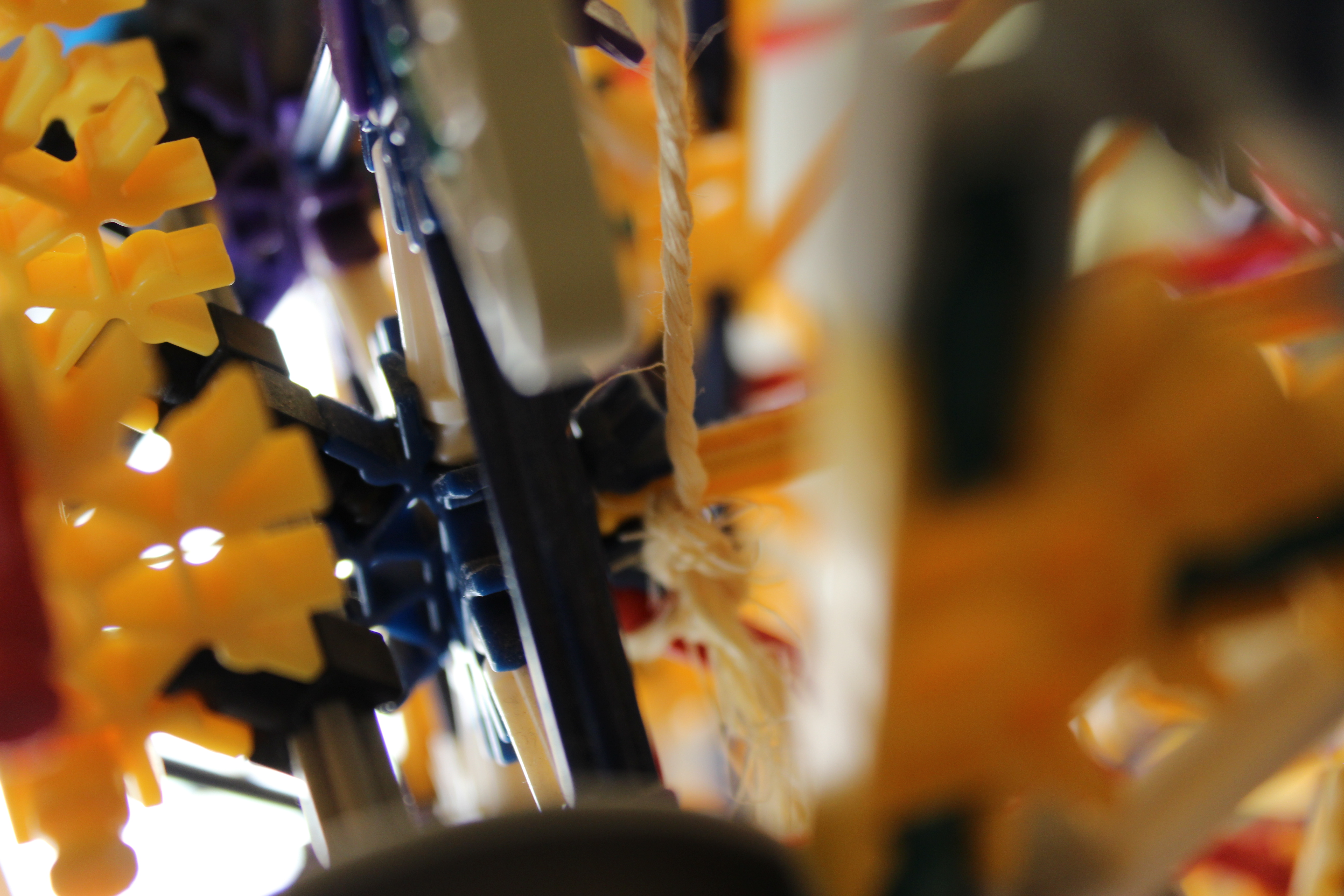

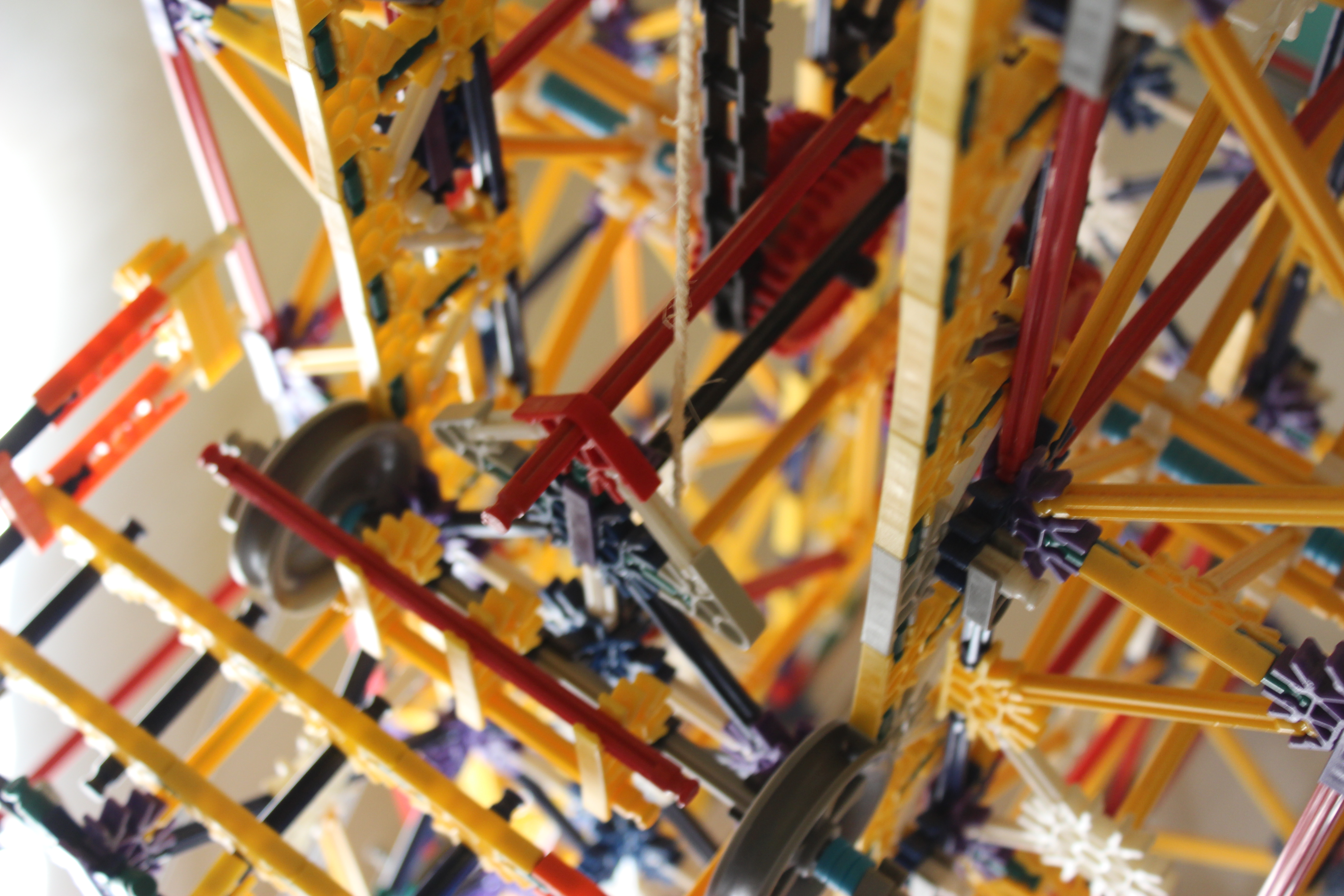

Do some test to ajust the wire's length :-)

If something went wrong, be sure that everything is well attached and that you don't missed anything in the instructions.

Big thanks to Austron :-D (original author of this lift)
