K'nex Incline Chain Lift Junior

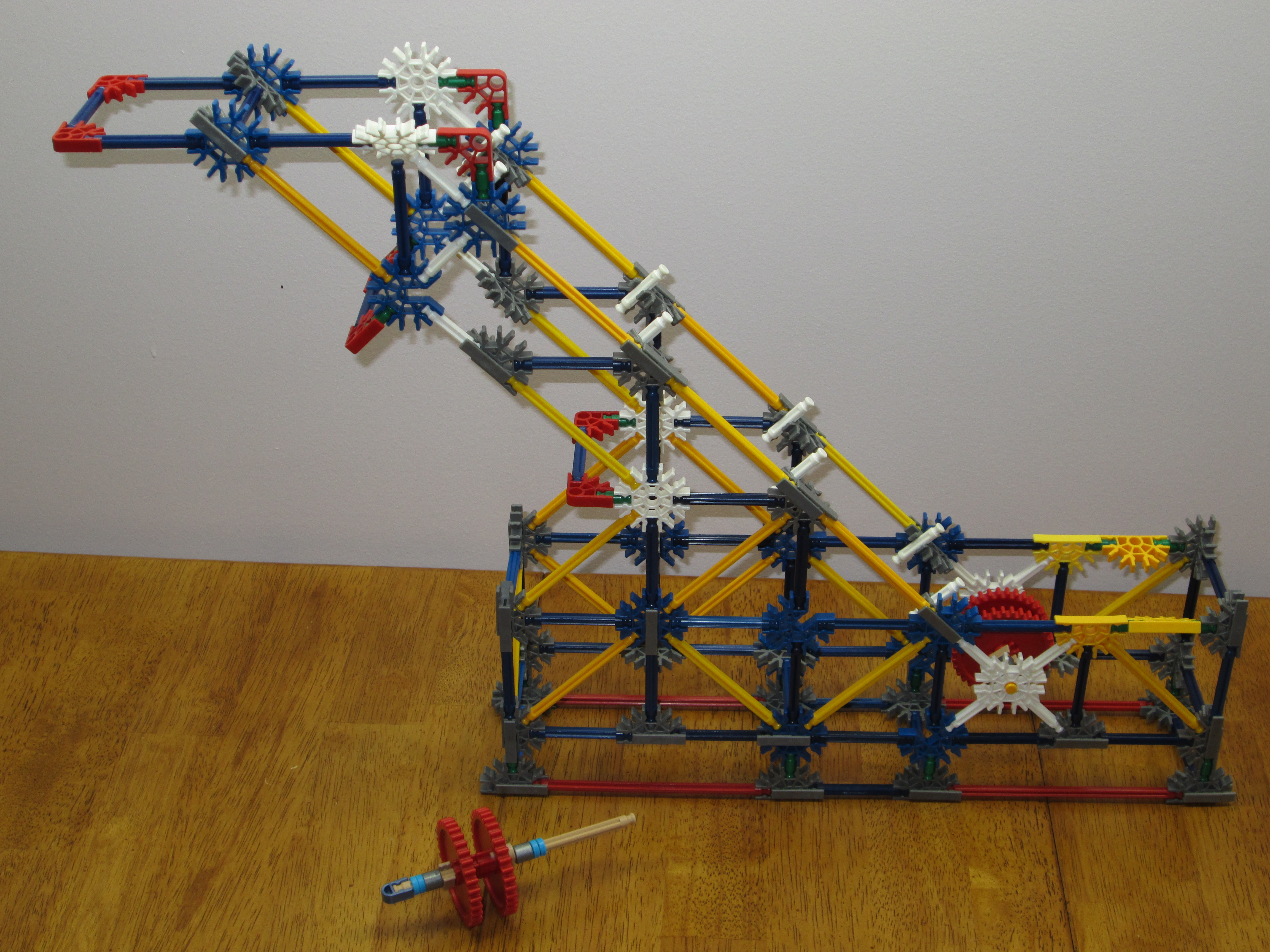

This is the K'nex Incline Chain Lift Junior that I designed. It is a smaller version of the K'nex Incline Chain Lift that I have also made into an Instructable. The design for Junior is the same as the larger version with some small changes made to it as needed.

I first built the track for the balls based on other K'nex builds. It worked quite well. However, I decided to design a track of my own.

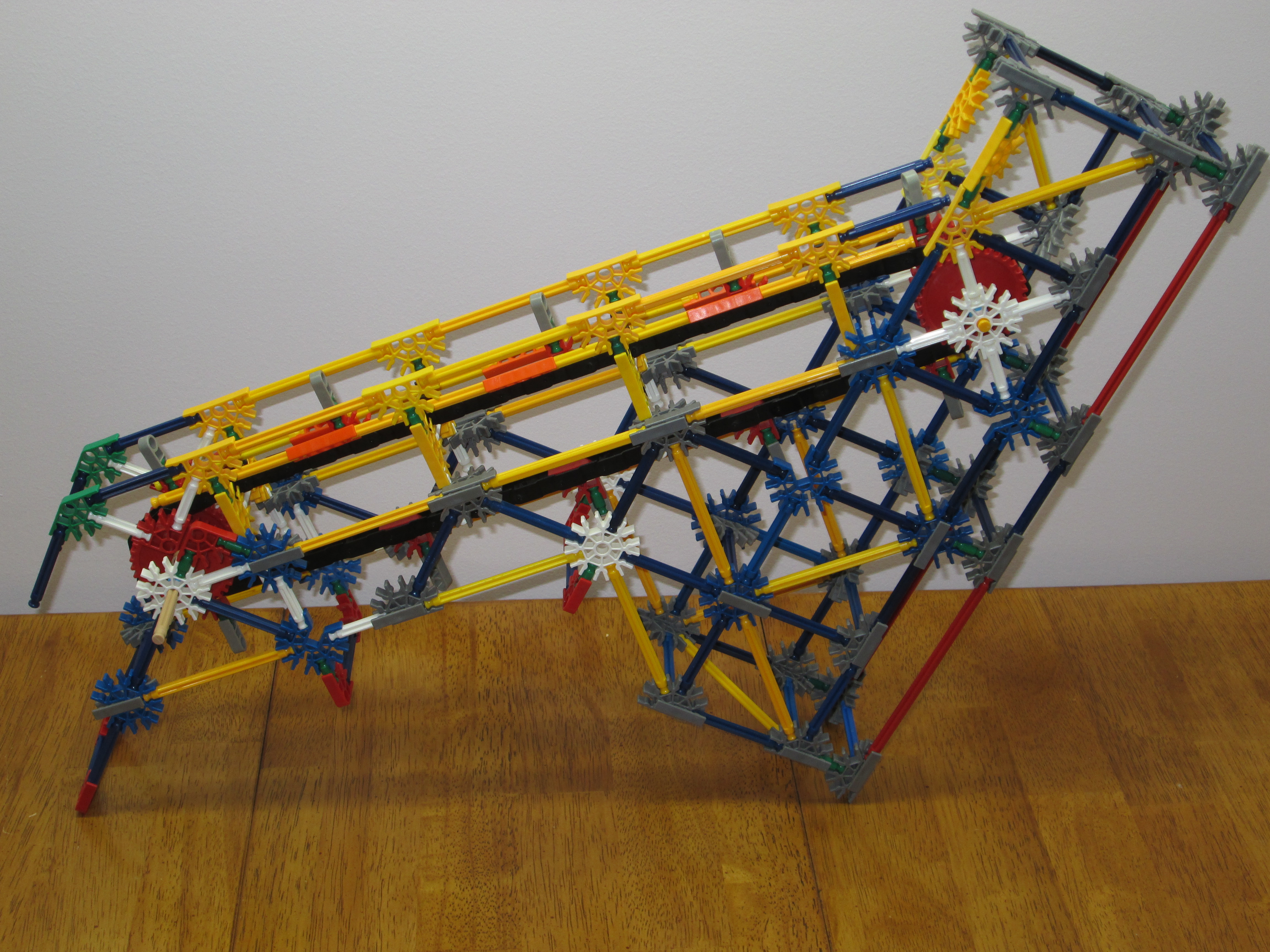

This version of the lift, uses the track design that I came up with. The track is quite smooth and the balls do not sit on the chain. Instead, the chain has a small channel of its own below the track.

Here are the counts of the pieces.

Rods (202 total)

• Green - 52
• White - 32
• Blue - 75
• Yellow - 38
• Red - 4 (5 if you don't have a Tan rod)
• Tan - 1 (Tan Rigid Rod. Use a red if none available)
• Grey - 0

Connectors (159 total) - (connection points in brackets)

• Blue Wheel-axle (1) - 1 (Can use the grey connector if none available)
• Grey (1) - 10
• Tan (2) - 0
• Orange (2) - 6
• Red (3) - 23
• Green (4) - 2
• Grey 3D (4) - 62
• Yellow (5) - 32
• Blue 3D (7) - 16
• White (8) - 7

Misc Parts (76 total)

• Red Gears - 4
• Silver Spacers - 4
• Blue Spacers - 8
• Tan Interlock Clip - 4
• Black Y Clip - 12
• Chain Links - 43
• Green Motor - 1 (Any motor will do - Just the speed will differ)

Grand total of 437 K'nex pieces

Let me know if you build this lift or had any troubles with my instructions so that I can update and change any part of it that may be causing a problem.
