Logic Probe W/display

This project is equipped with 5 Not Gates, 1 transistor, 8 resistors, and 1 Common Anode Display. The Logic Probe w/display is a project for identifying Zero (0) or Low, One (1) or High, or Pulse. For Zero, you will see illuminated the upper side of the display by simulating a "0" (Zero). For One, you will see illuminated the rest of display for forming a "P" without illuminating the upper side of the display by simulating a "1"(1). Finally, for a Pulse, you will see illuminated the display by forming a "P"(Pulse). And so you can detect "0's", "1's", and Pulses.

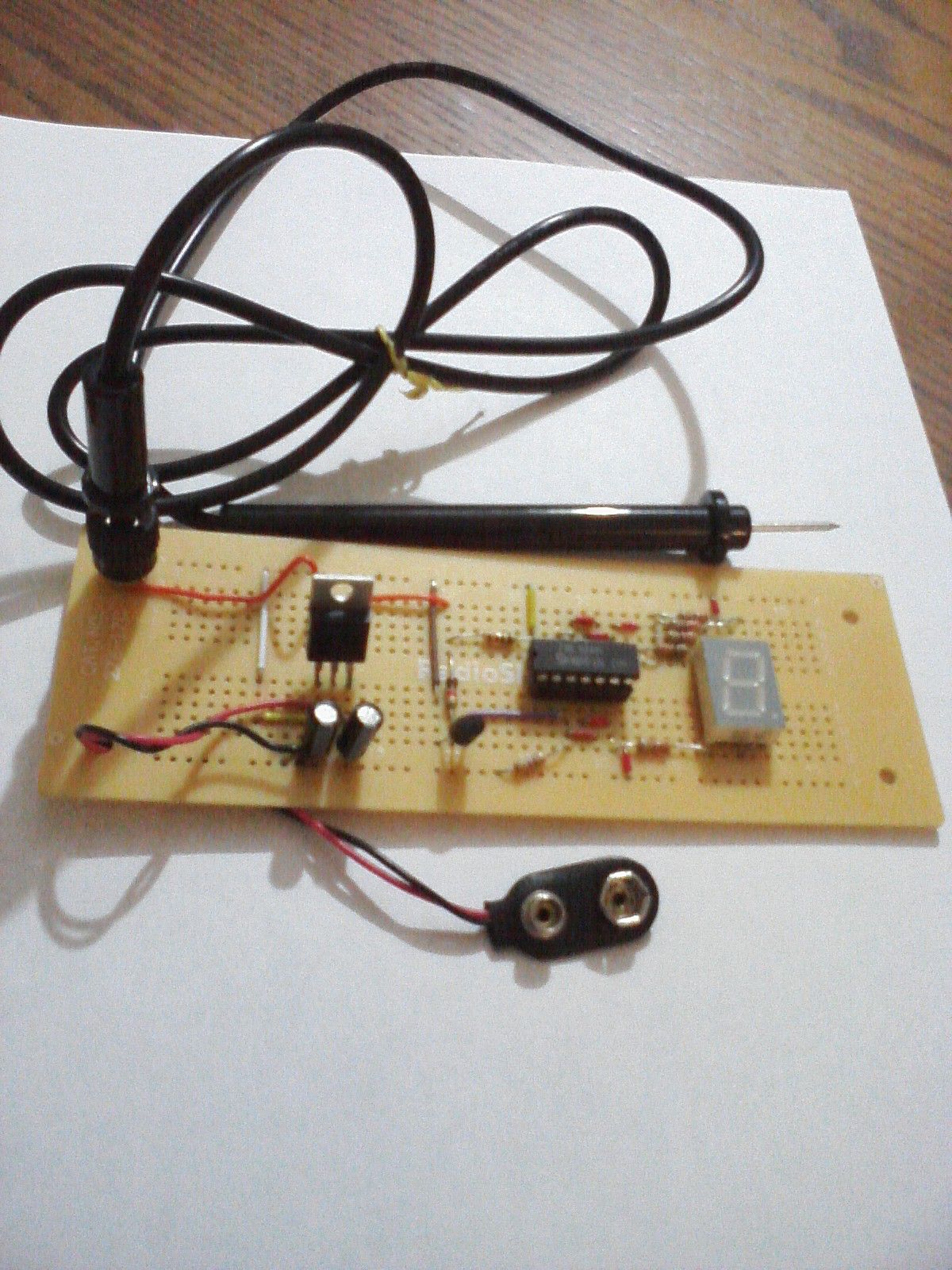

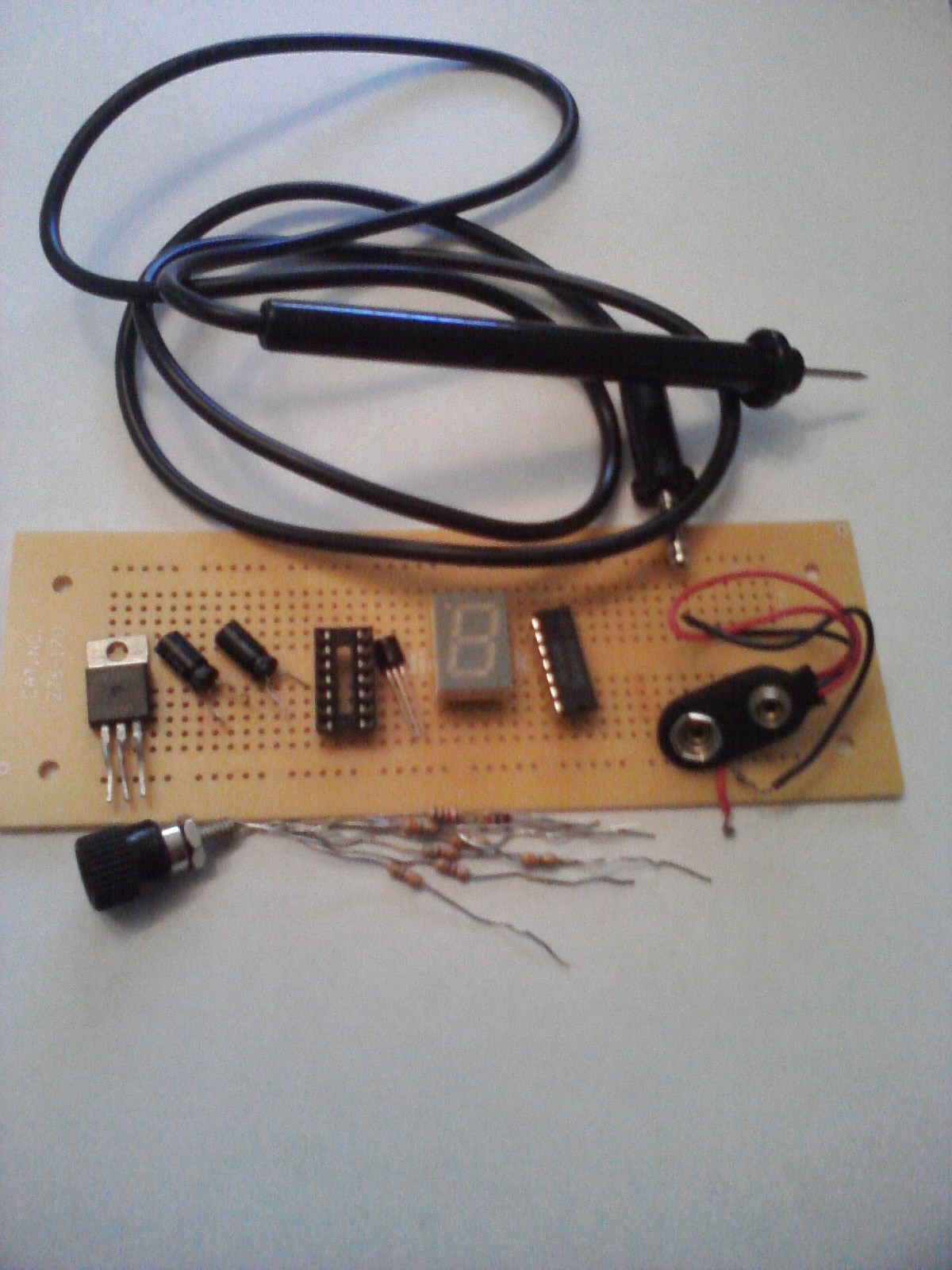

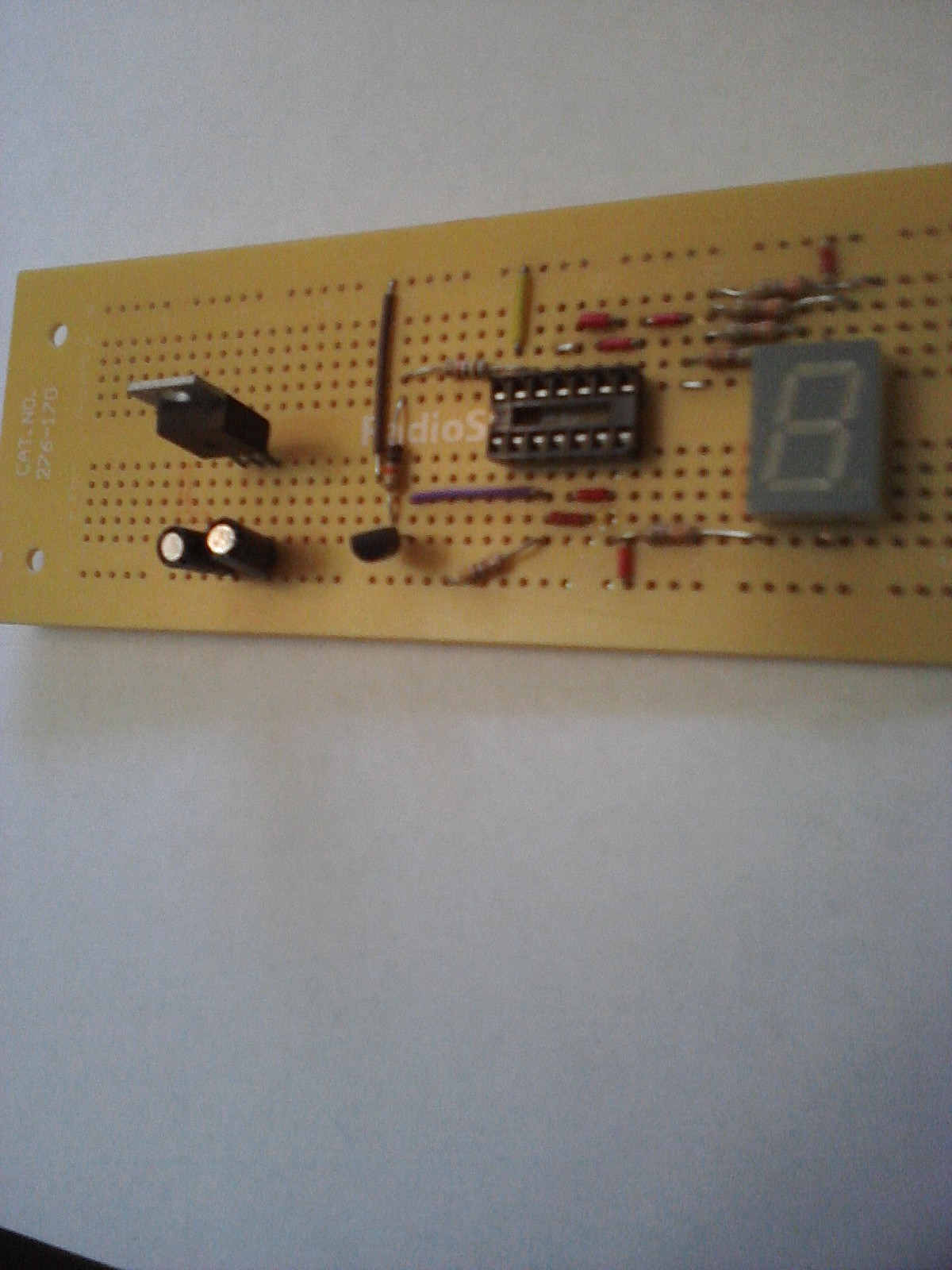

The list of materials is the following:
1 Prototype Board
1 Green Display CA
1 7404
1 IC-socket 14-pin
1 Transistor 2N3904
5 Resistors of 330 Ohm
1 Resistor of 470 Ohm
1 Resistor of 10K Ohm
1 Resistor of 1K Ohm
1 +5V Standard Regulator
2 Electrolytic Capacitors of 47 microF, 50V
1 Battery Clip, For 9 Volt
1 Test Leads, Banana, 42 inches, 1 Red, 1 Black
1 Binding Post, Breadboard, Screw, Type, Chassis Mount, 1 Black, 1 Red

9 V Battery is not included

Required tools or supplies:
Soldering iron
Solder
Wire stripper and cutter
Needle nose pliers
1 Jumper Wire Kit (Radio Shack Part # 276-173)

9 Volt Battery is not included

Probe Digital Circuits

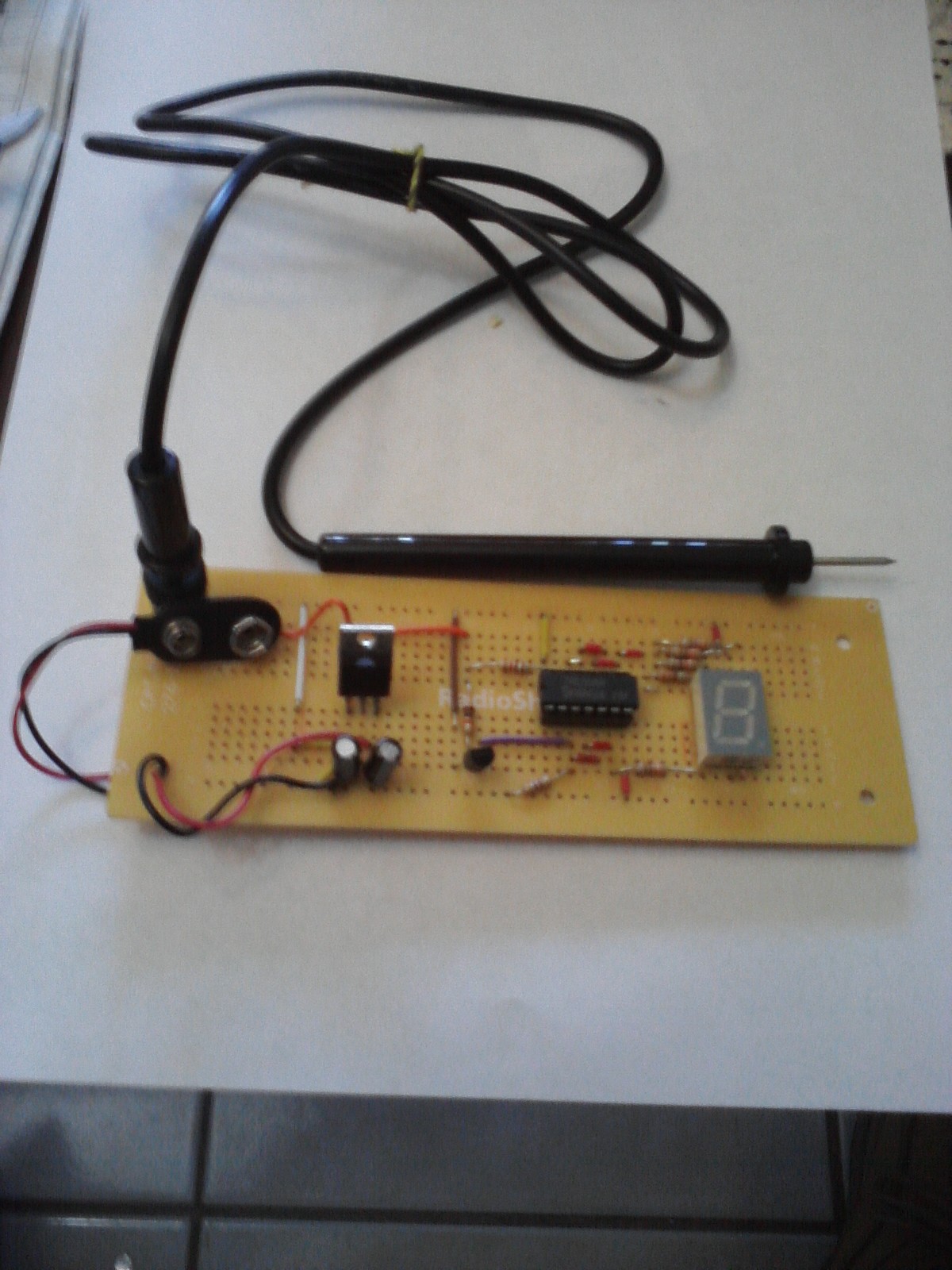

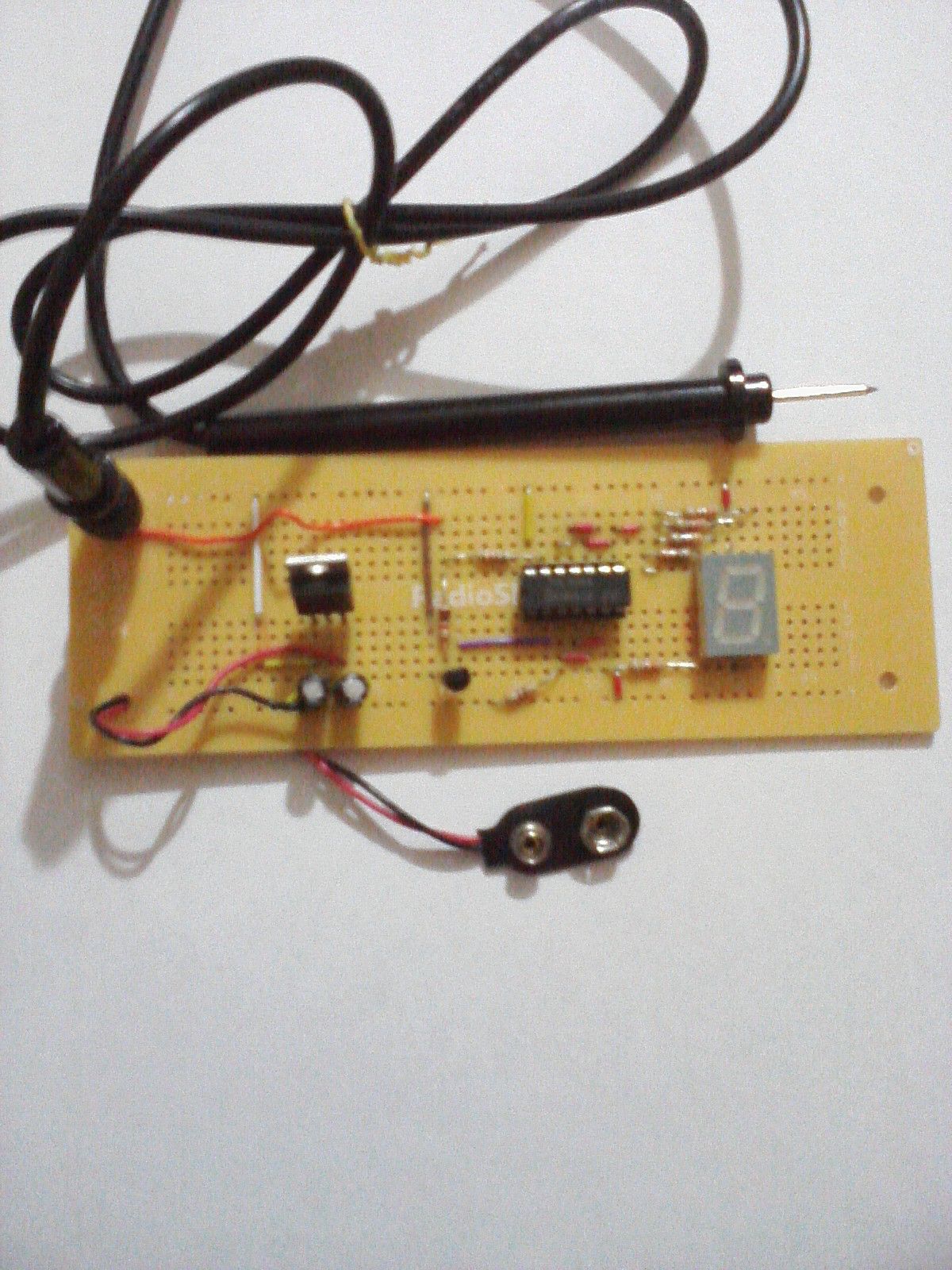

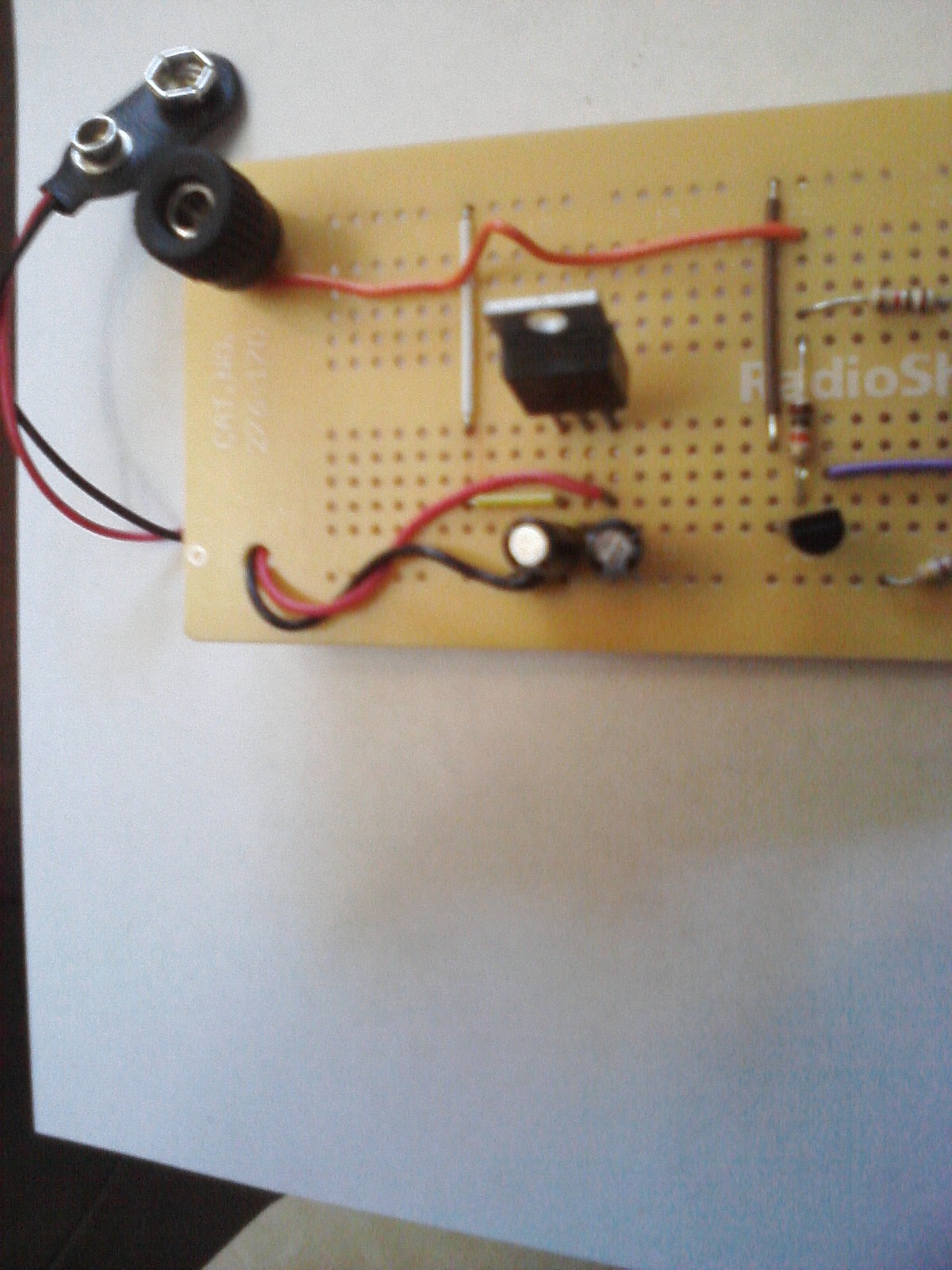

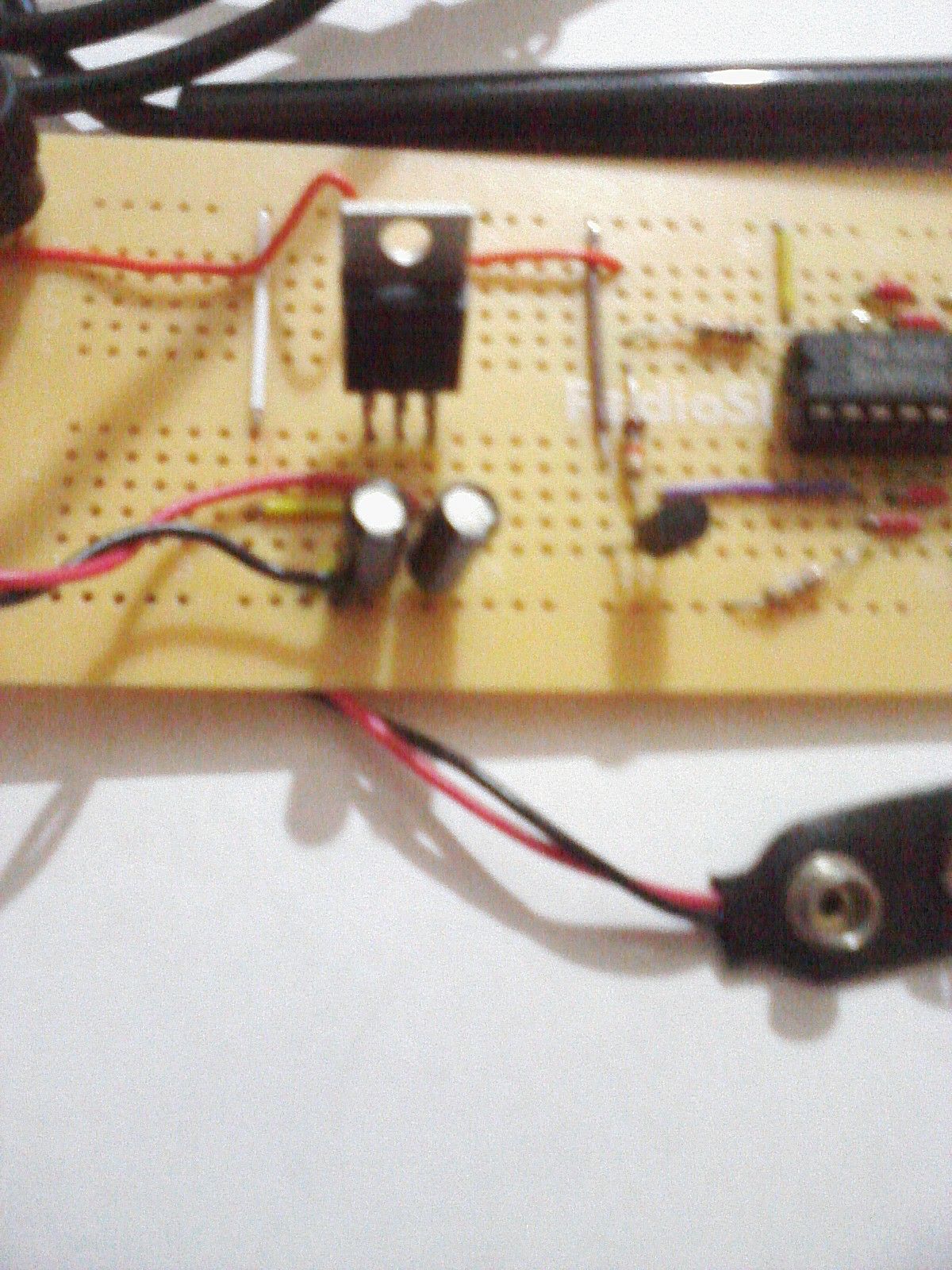

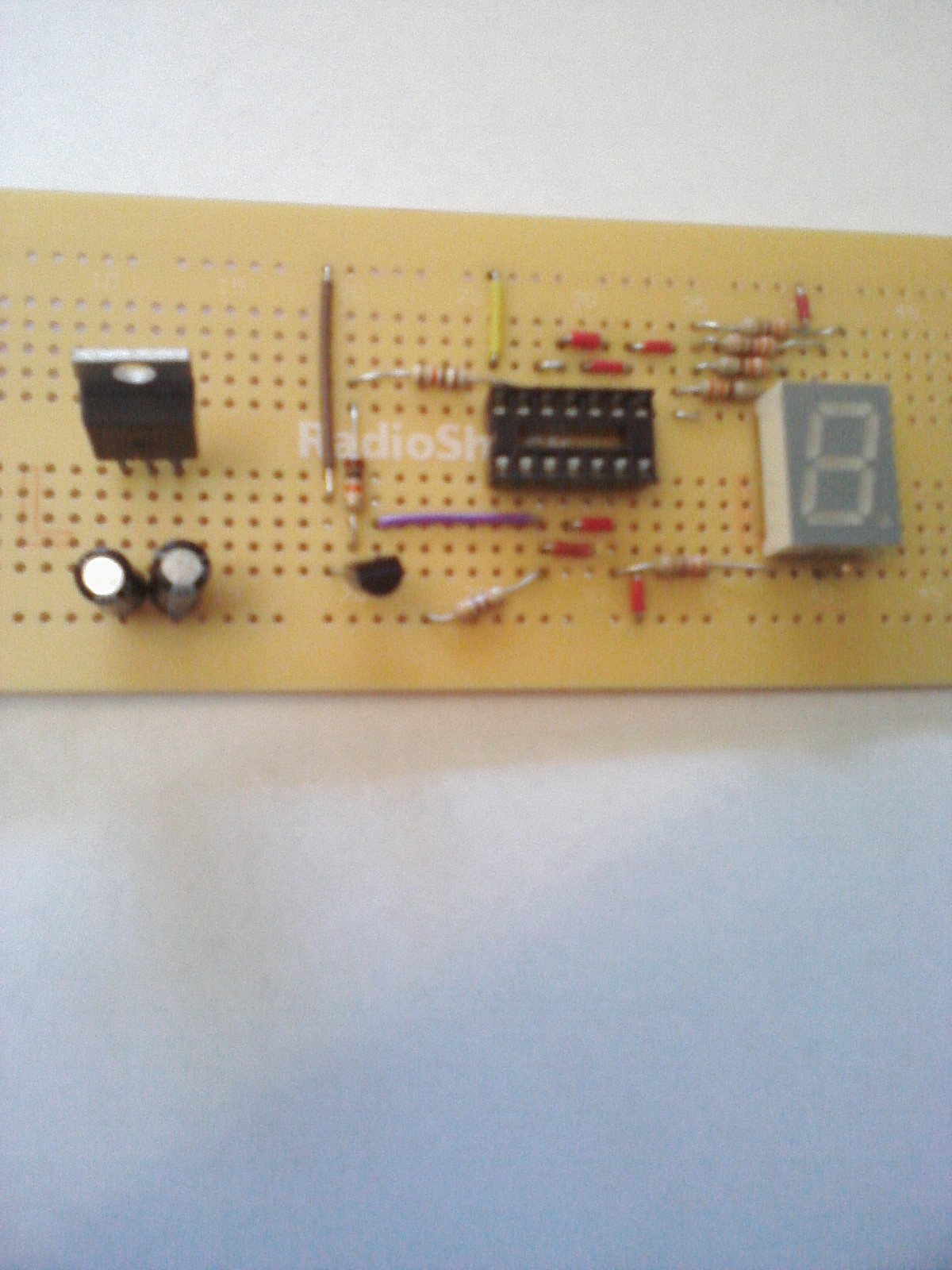

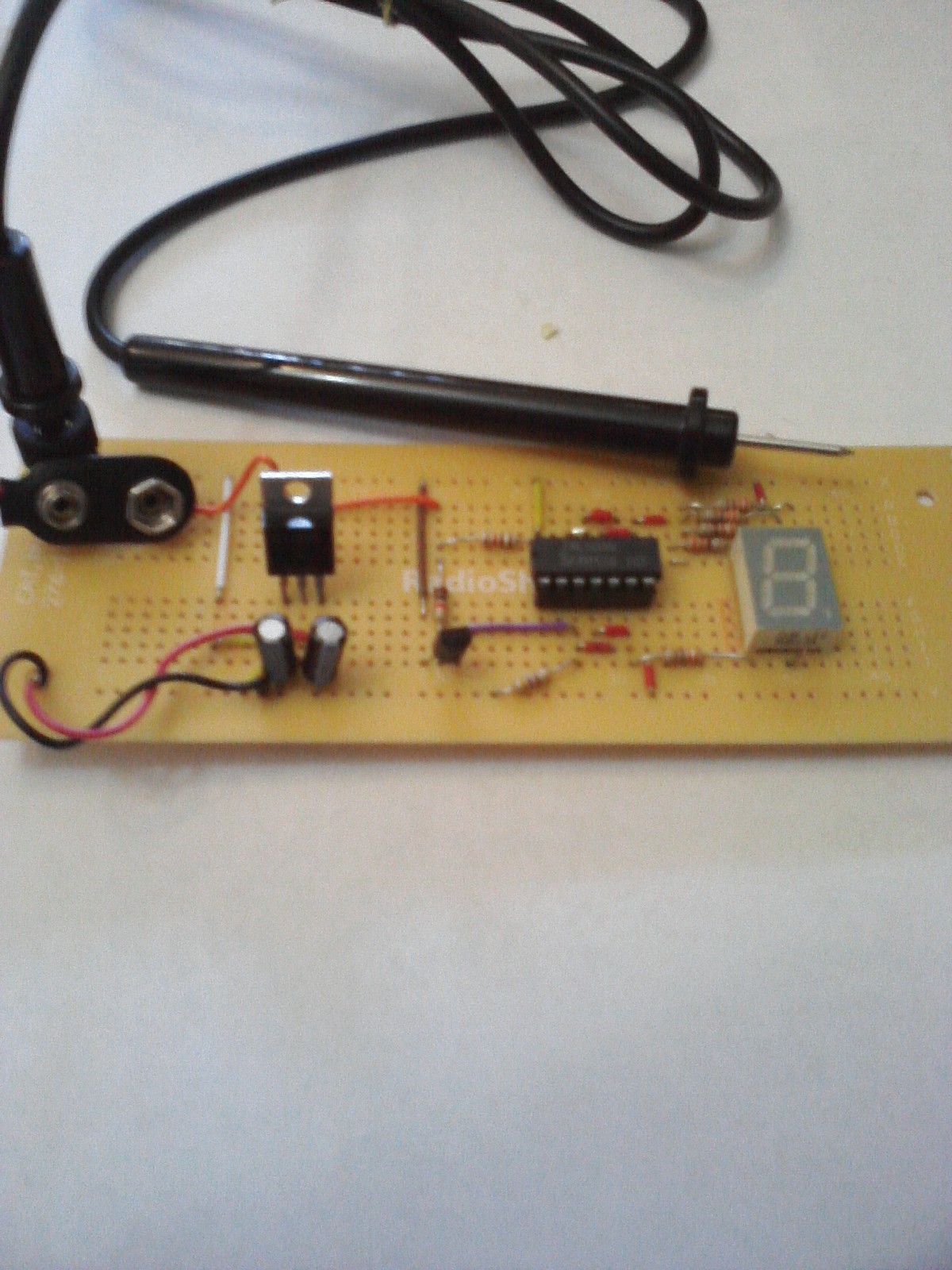

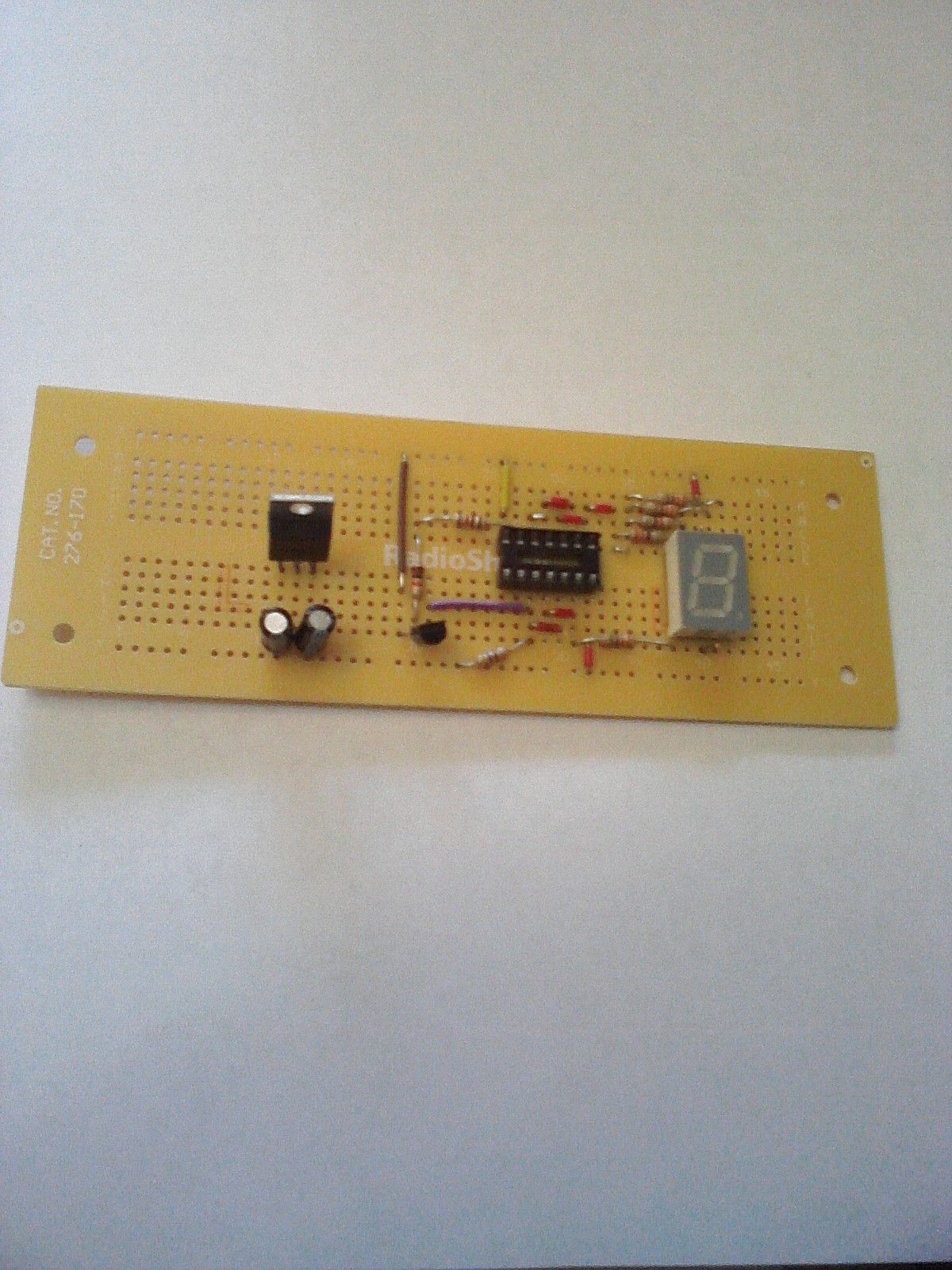

The sequence of pictures:

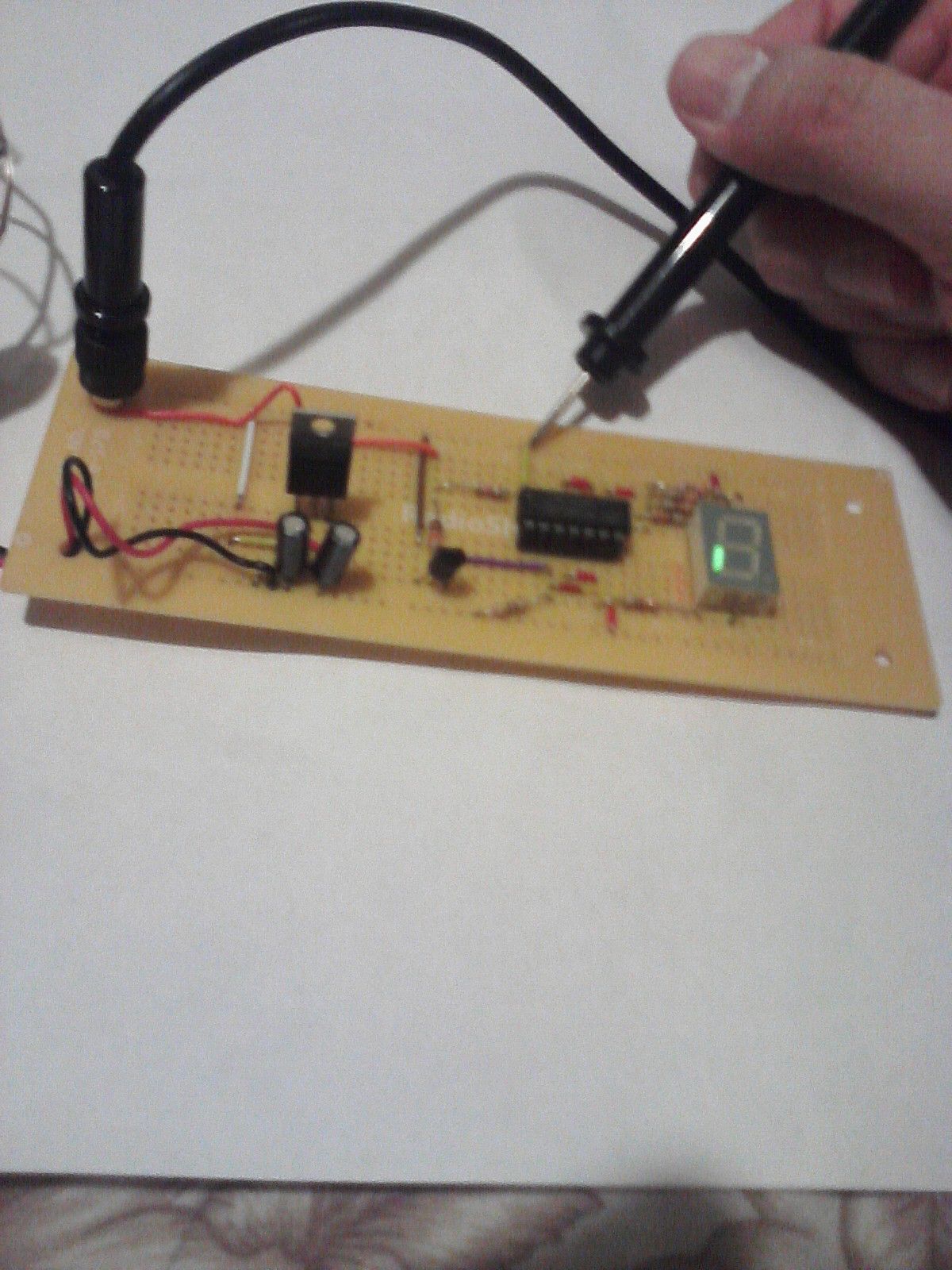

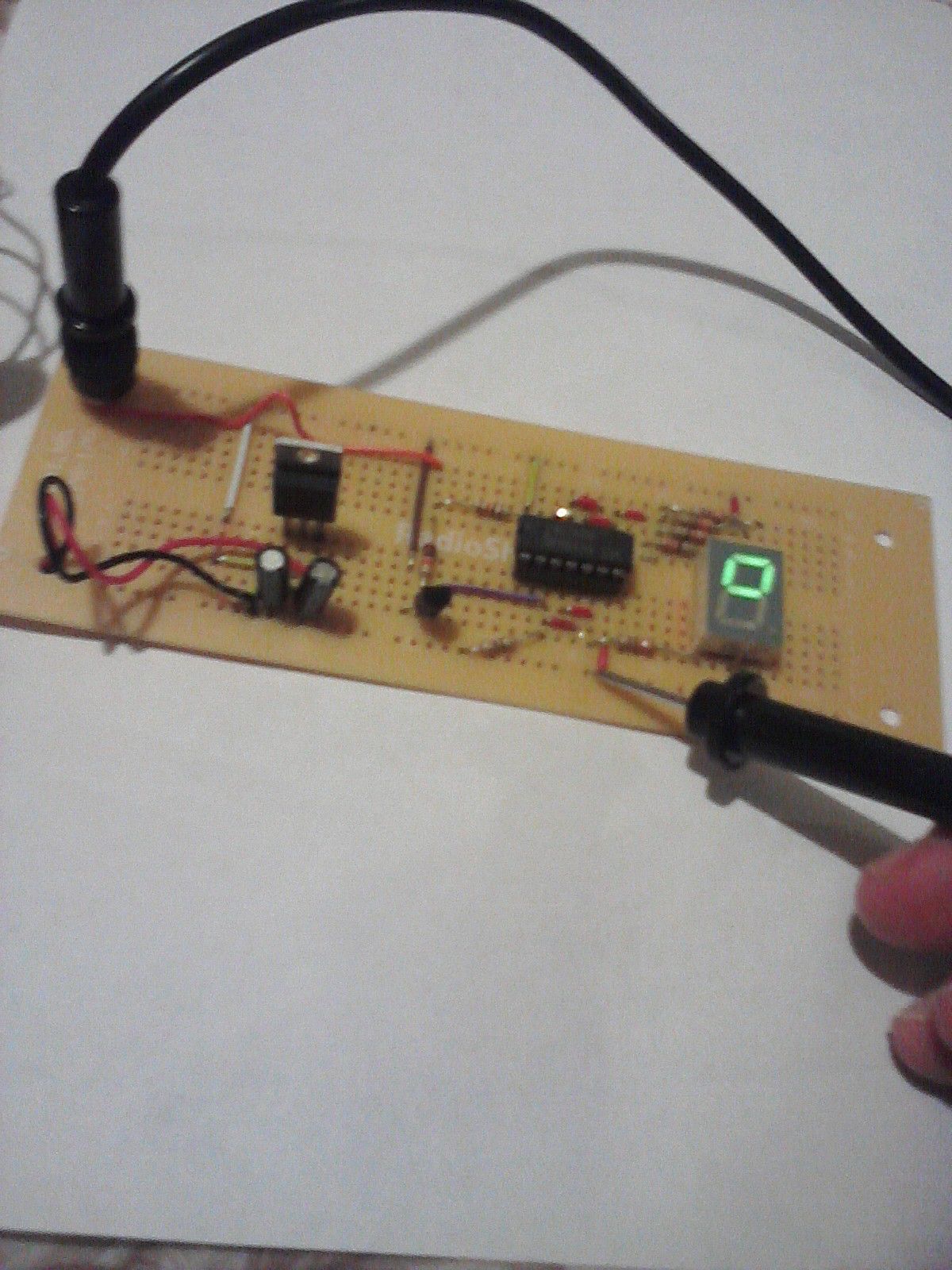

Low "0"
High "1"

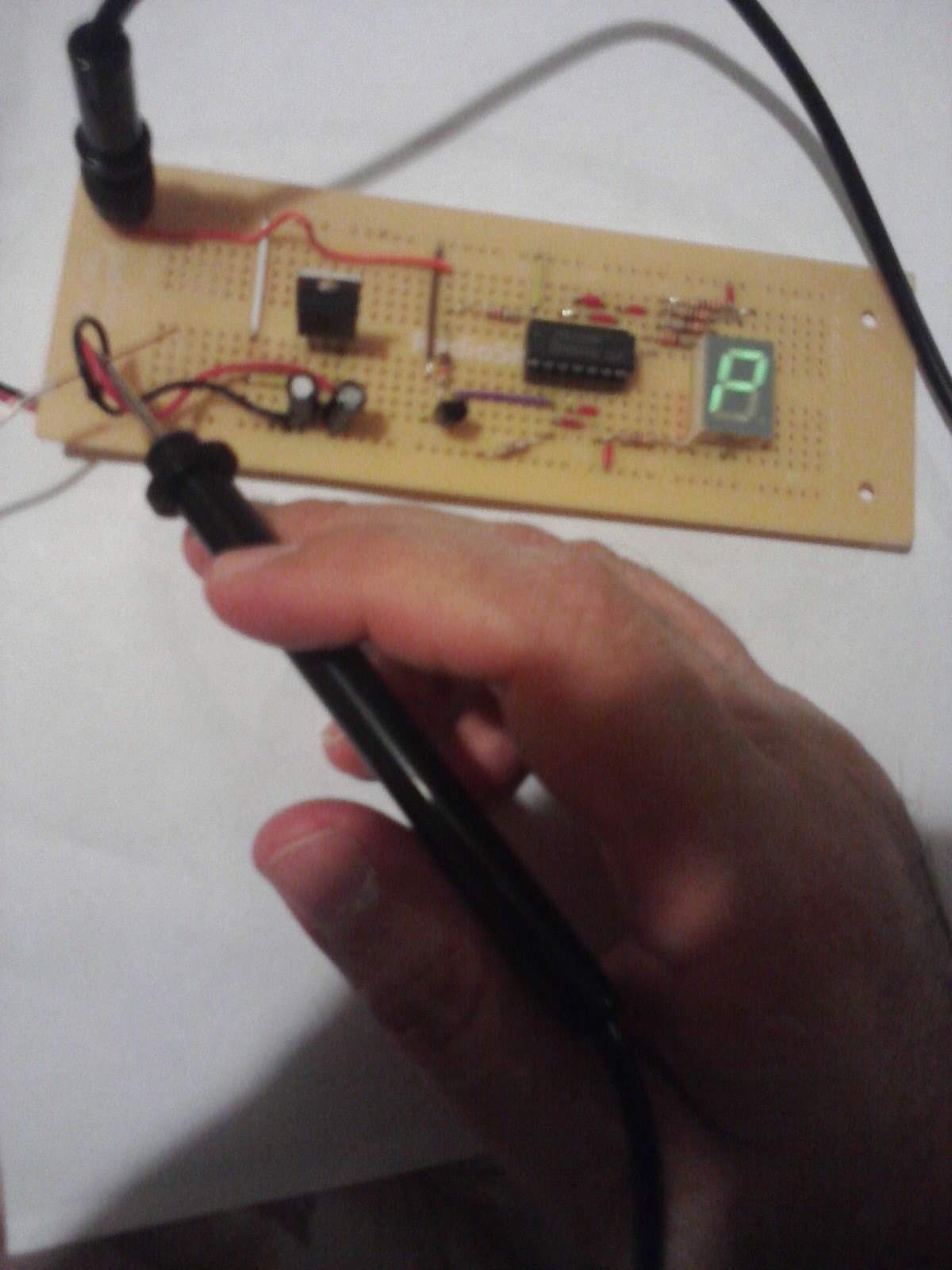

Pulse "P"
