Mini Portable 5V With USB-A Port

by braulio777 in Circuits > Electronics

3751 Views, 35 Favorites, 0 Comments

Mini Portable 5V With USB-A Port

Mini Portable 5v with USB.gif

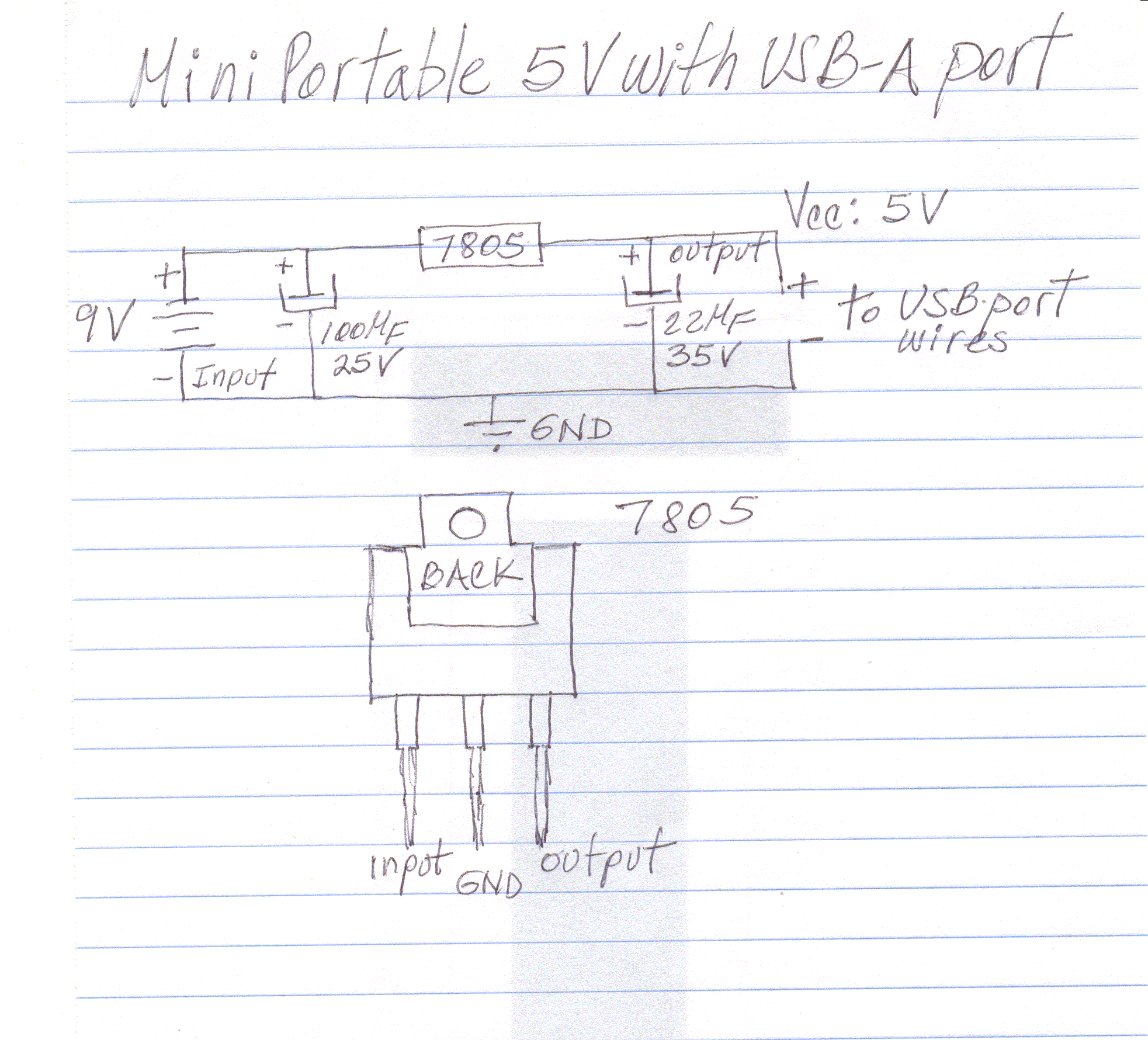

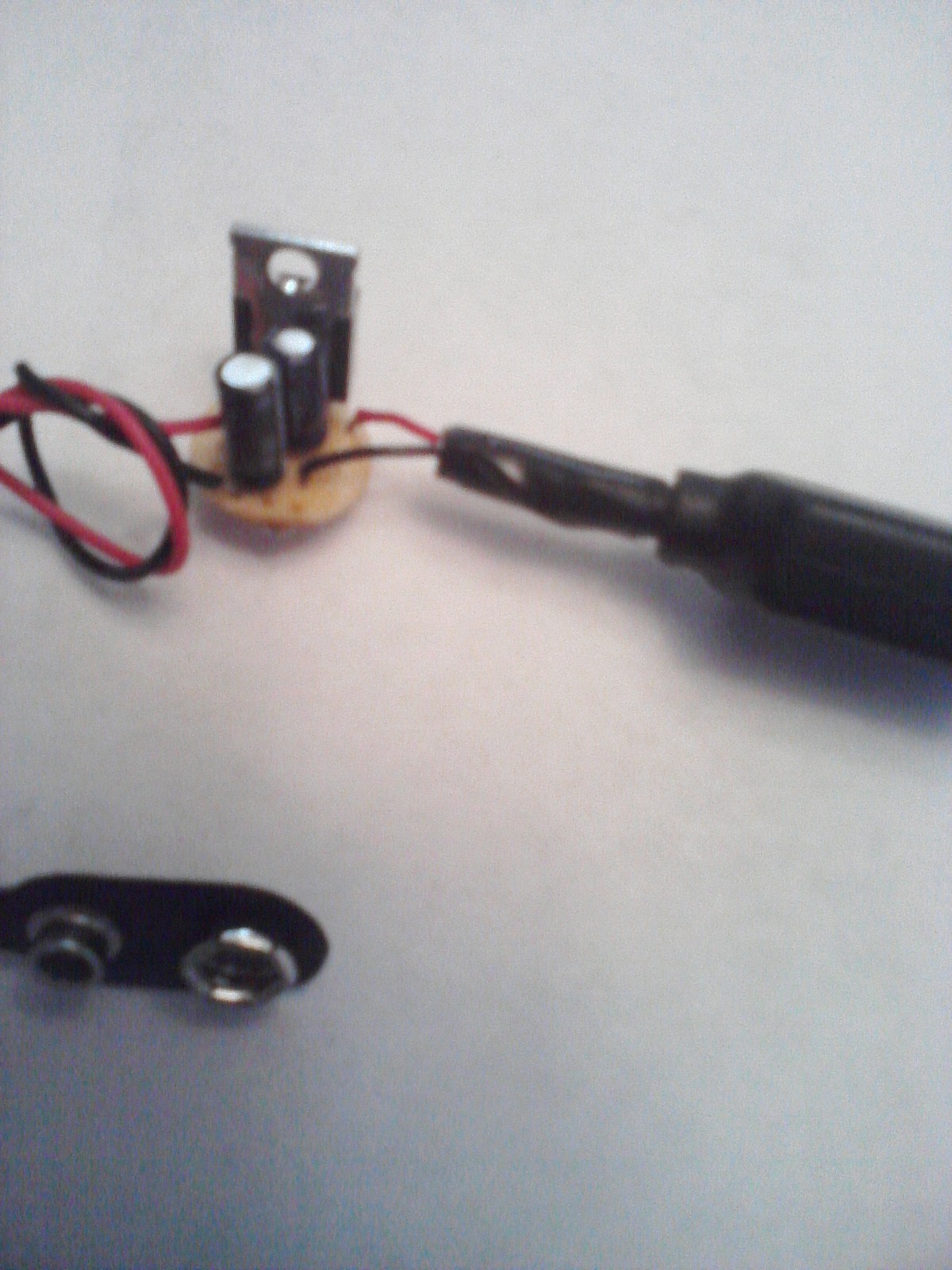

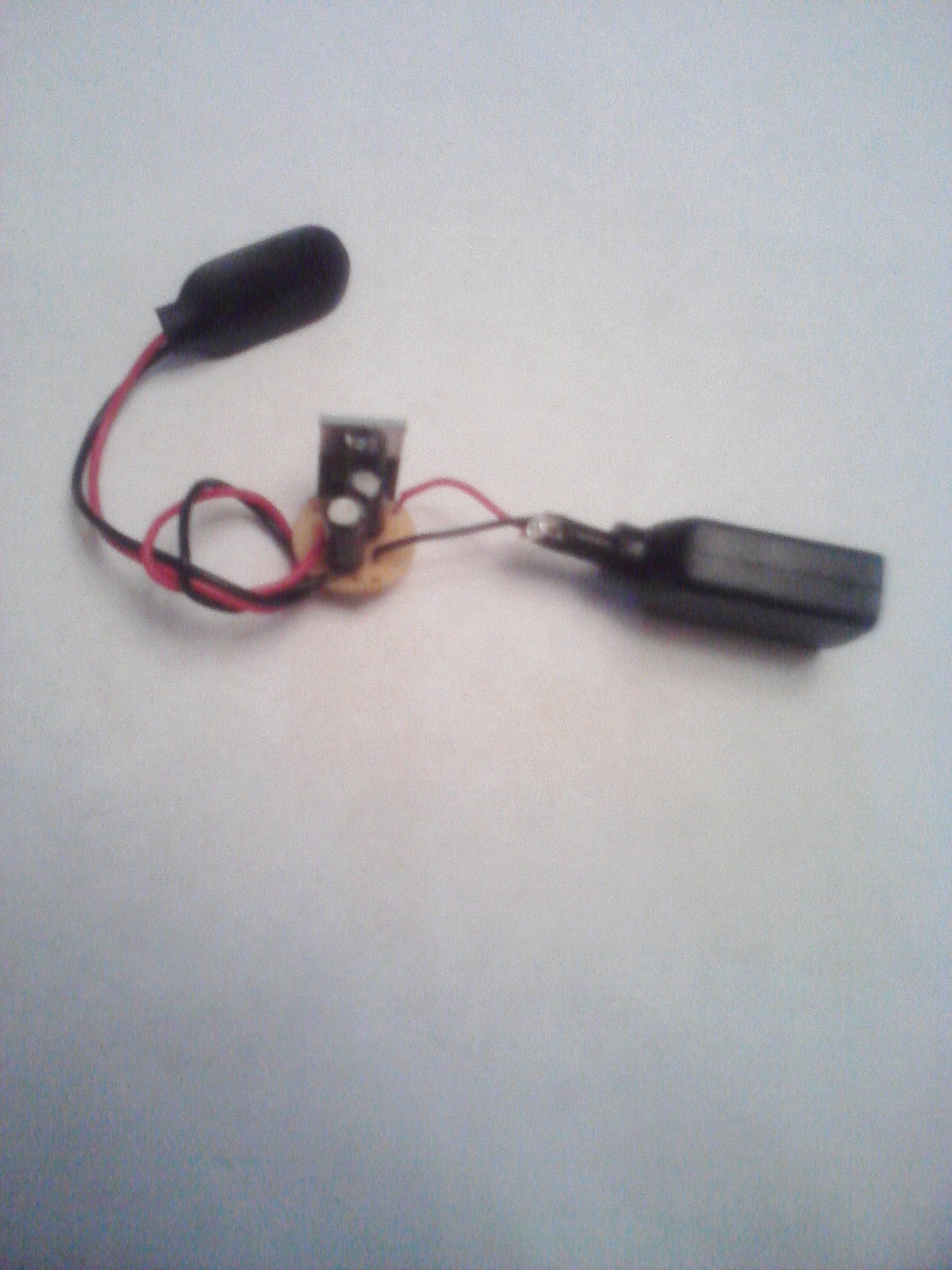

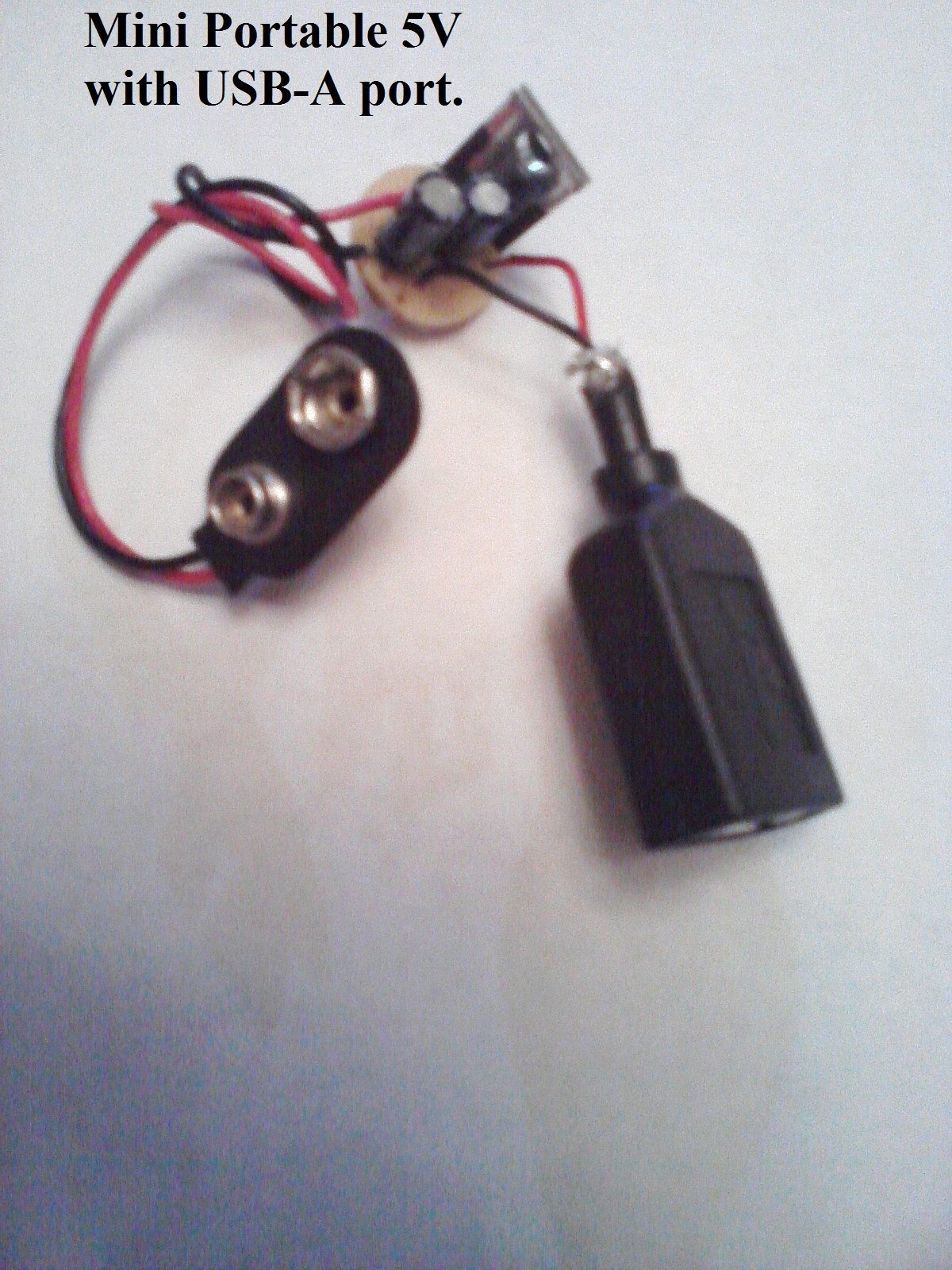

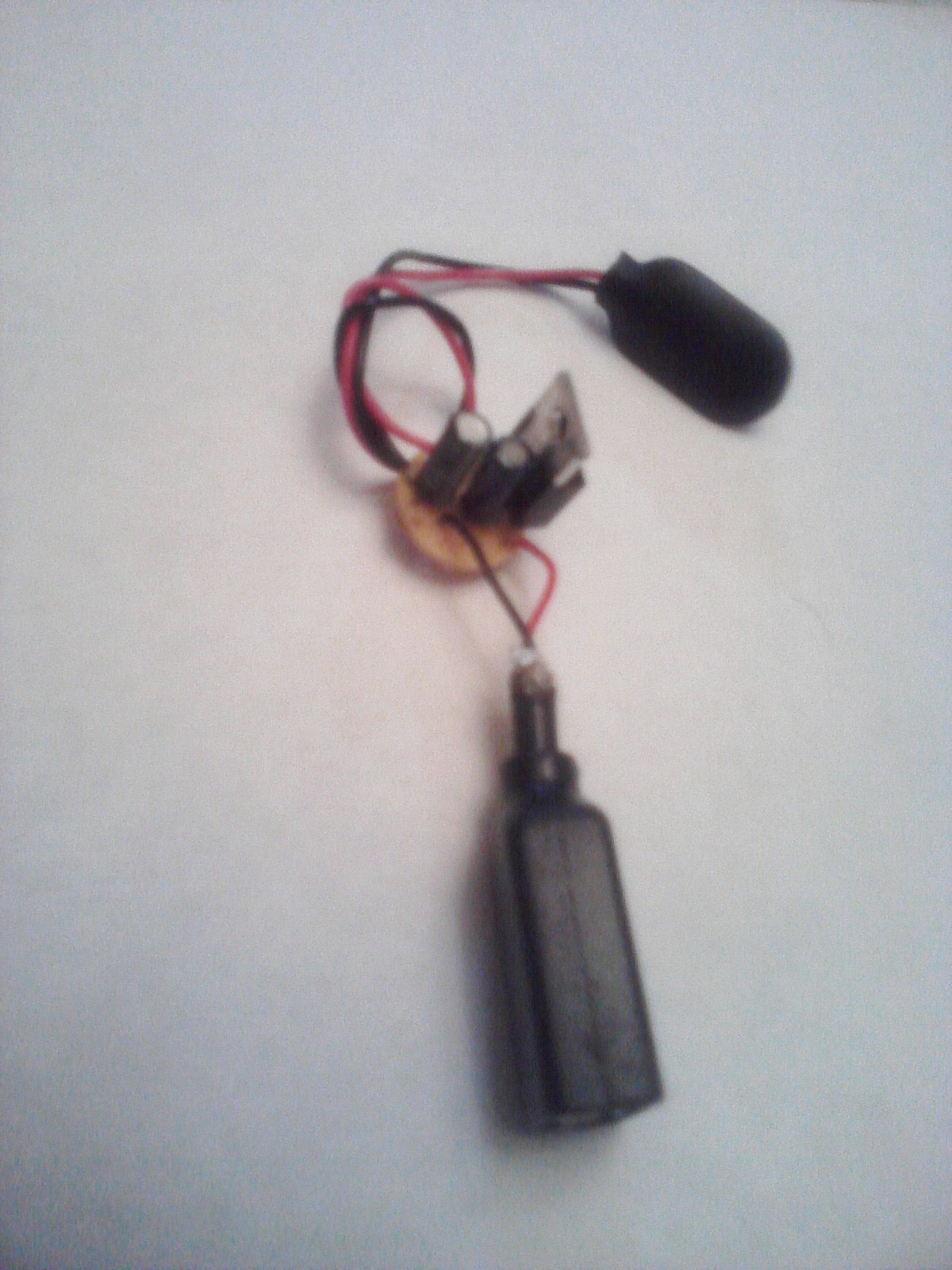

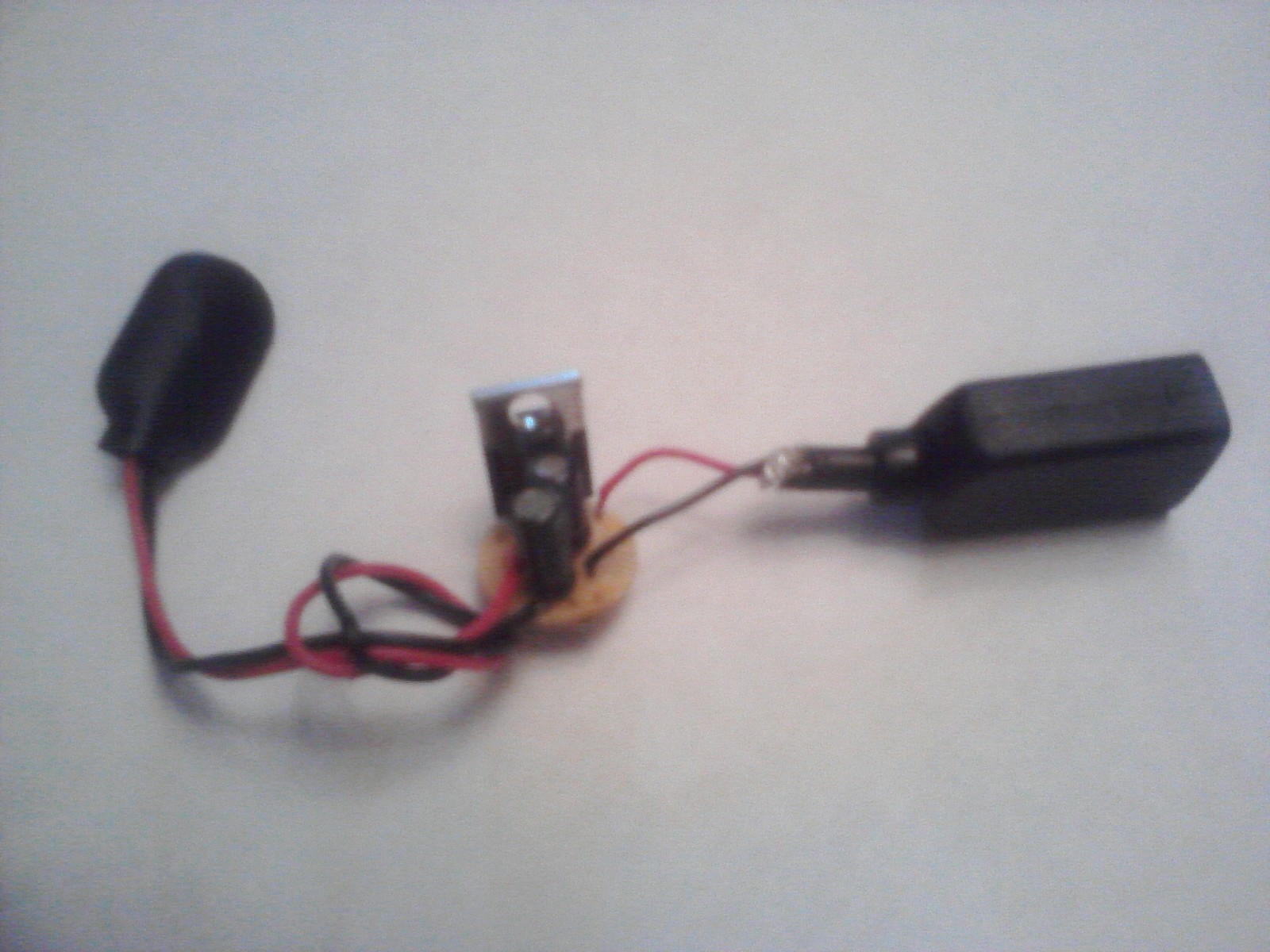

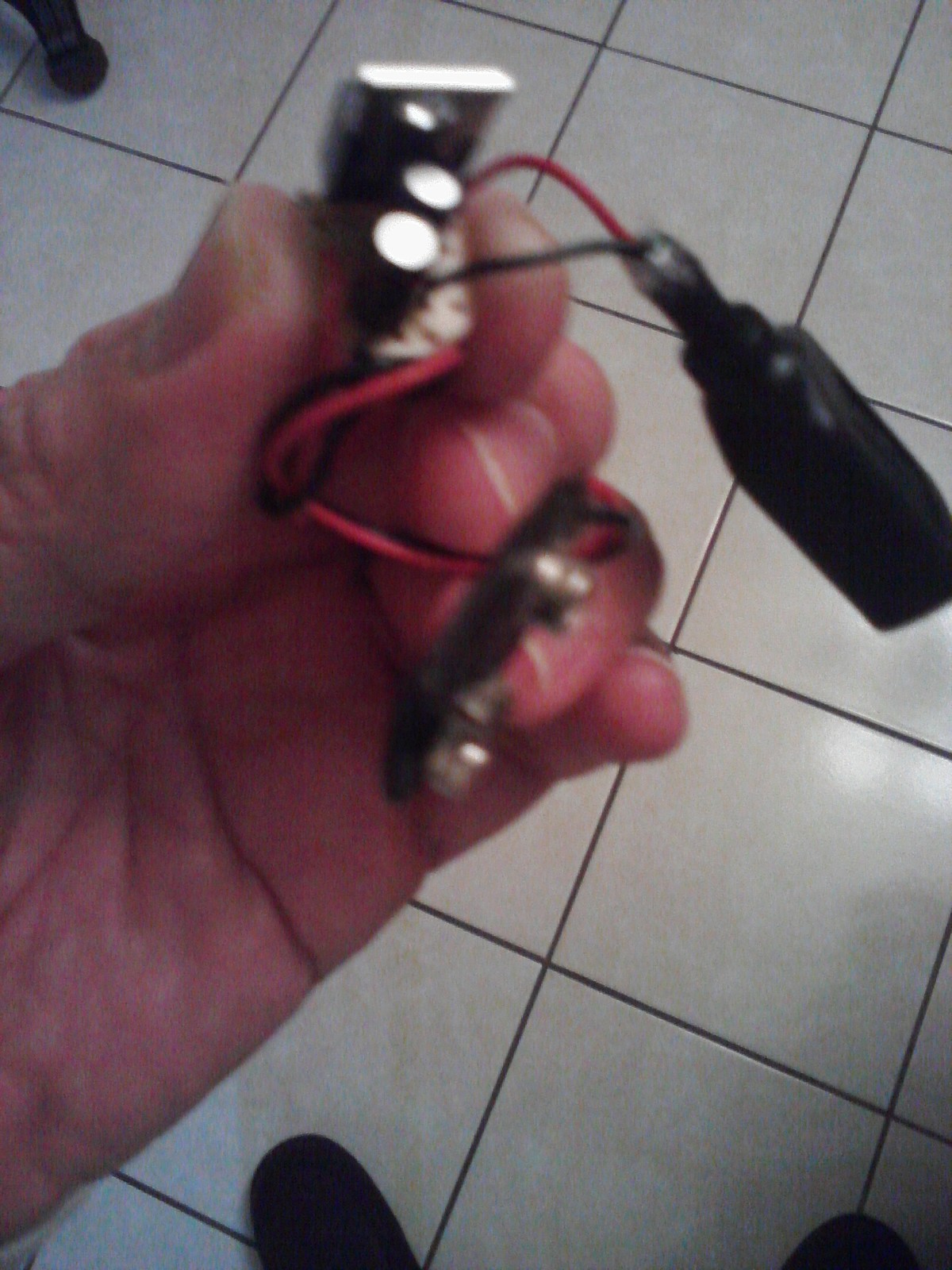

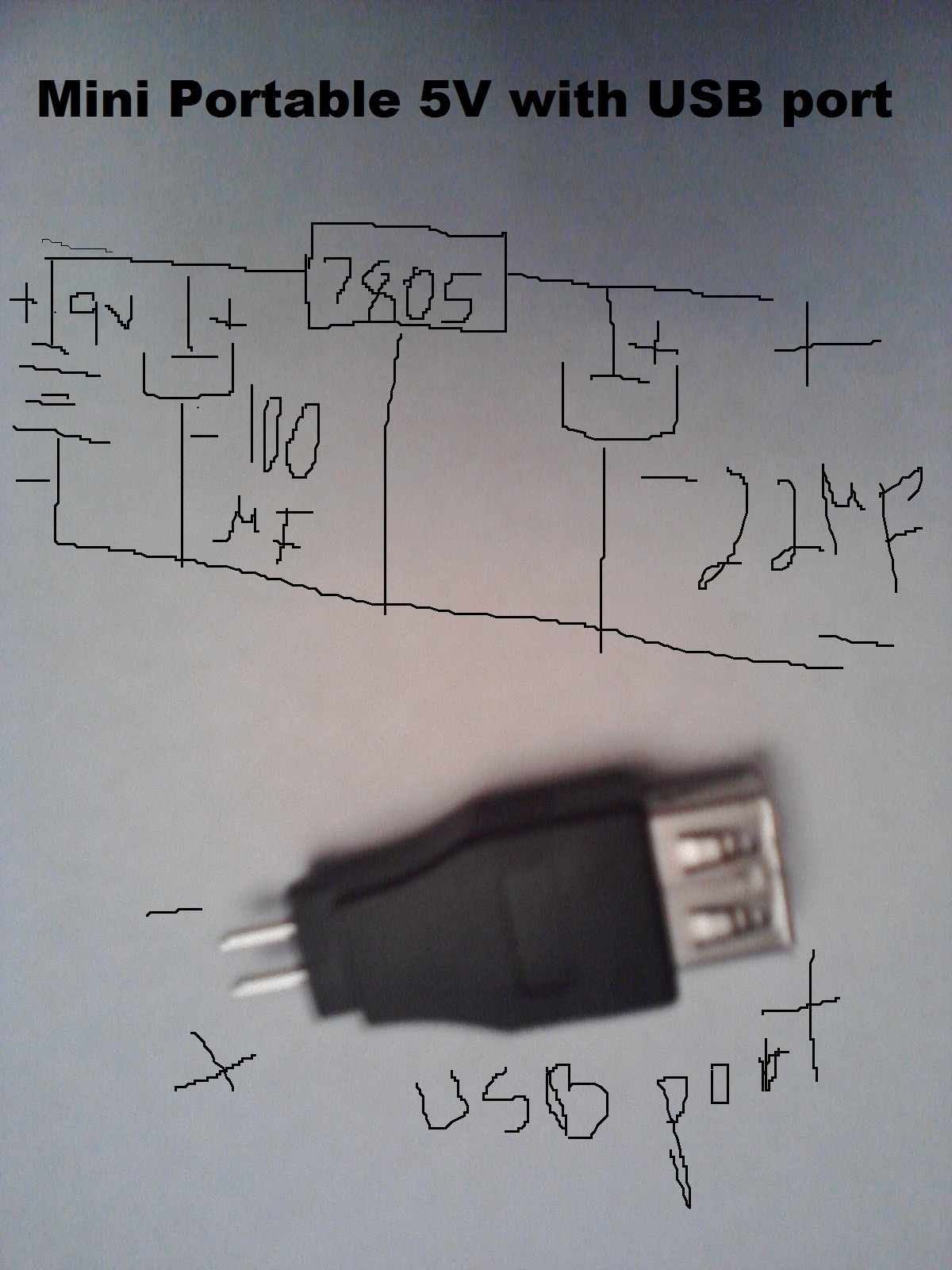

Mini portable 5Volt with USB-A port is ideal for Arduino and more electronic projects that need 5 Volts for working.  This project is mounted on a round PCB of 16mm diameter with an input of 9Volt and an output of 5V through an USB-A port.

List of Materials

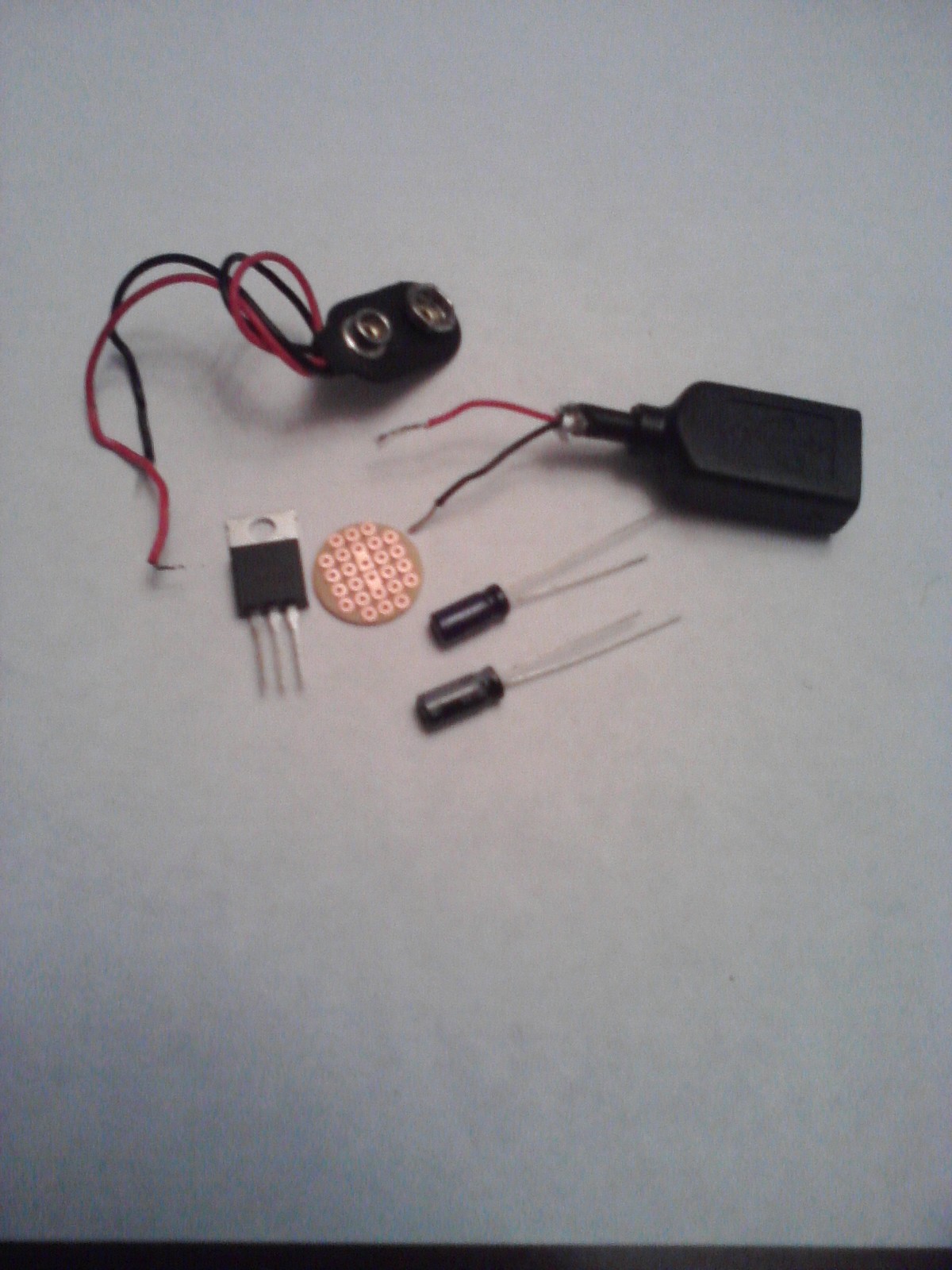

The parts are the following:

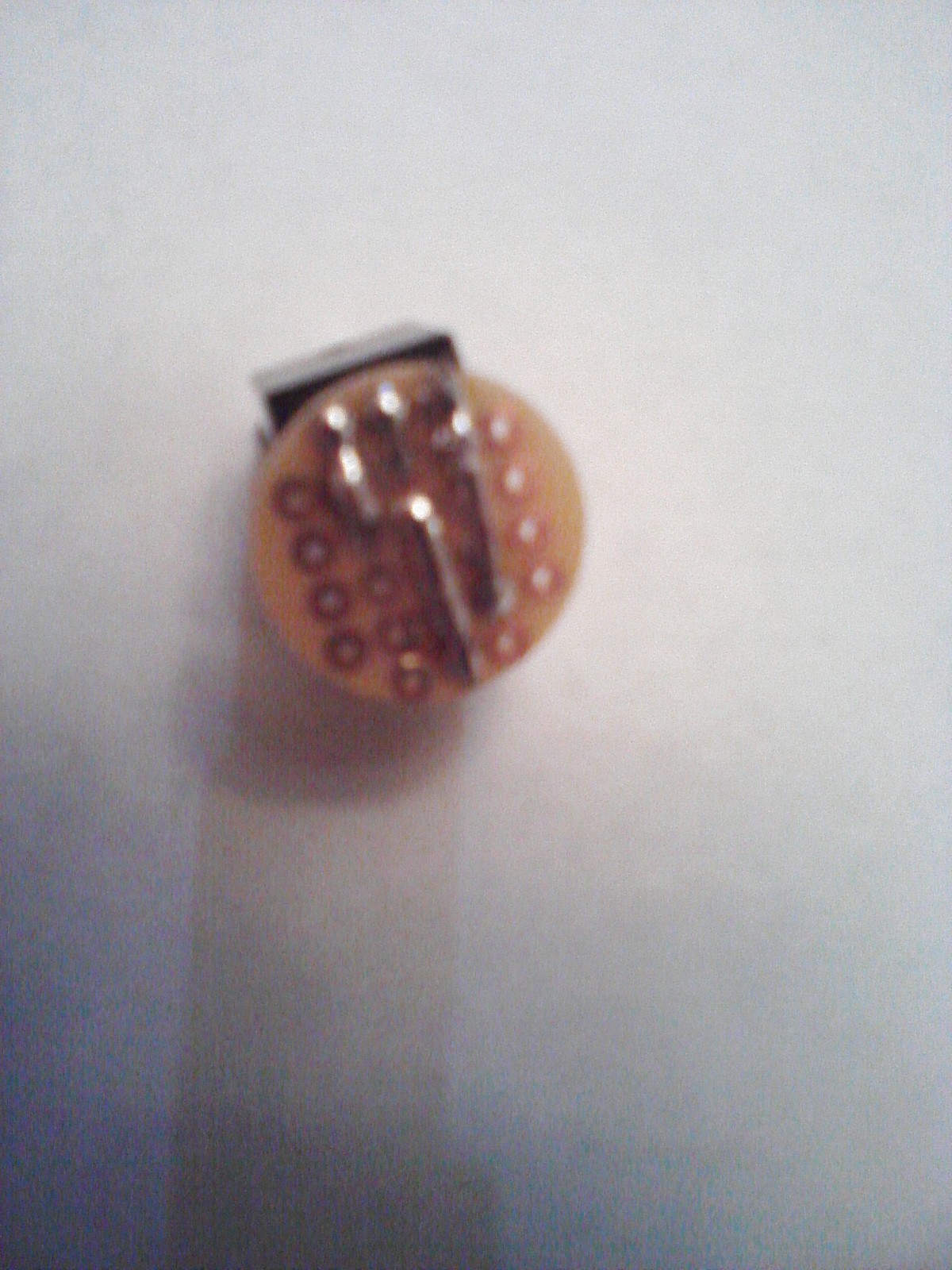

1 Round PCB of 16mm Diameter (Part No. 276-004, Radio Shack)
1 Electrolytic Capacitor of 100mF, 25V
1 Electrolytic Capacitor of 22mF, 25v
1 Voltage Regulator of +5V
1 Battery clip for 9V
1 9V Battery

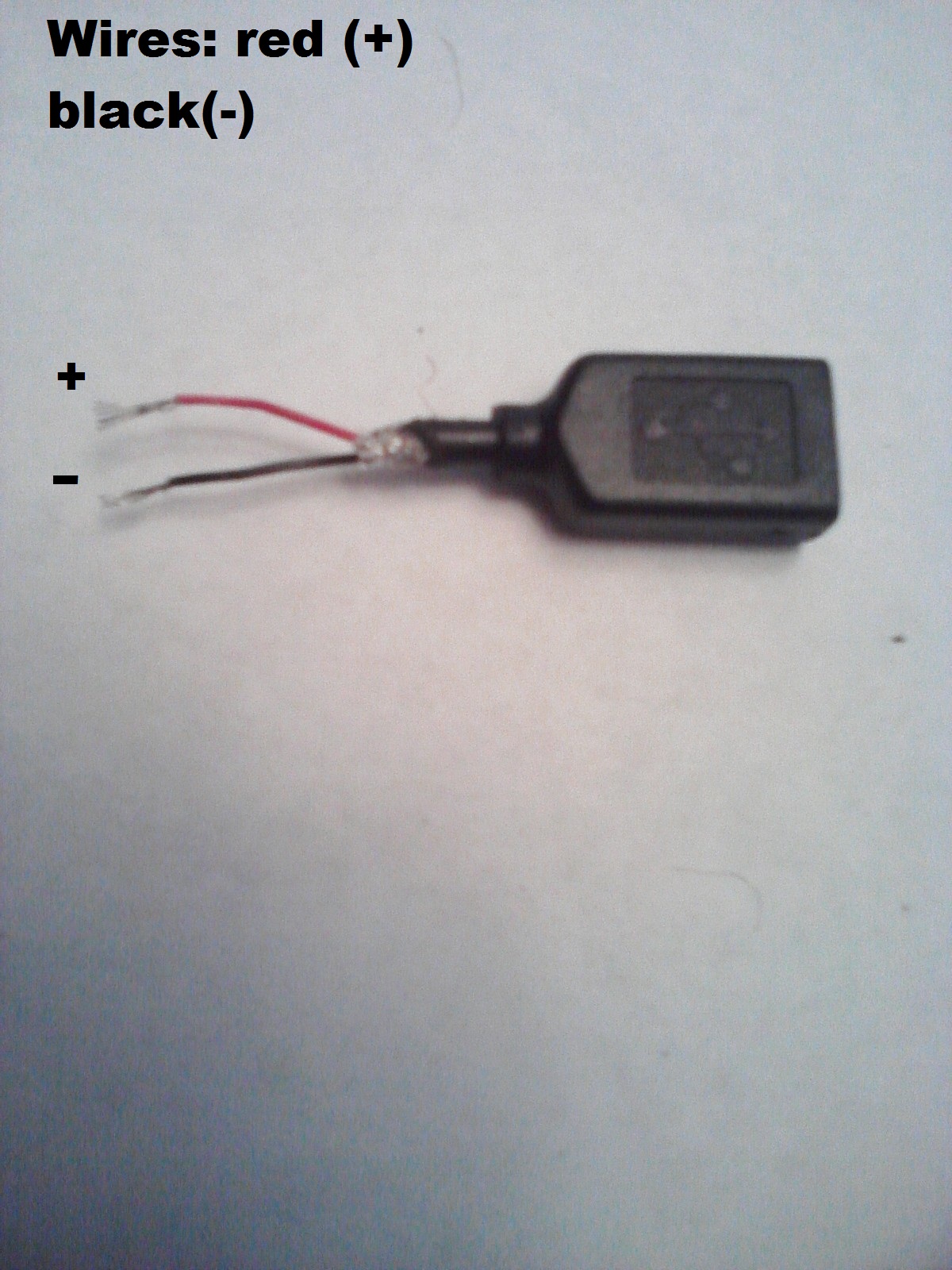

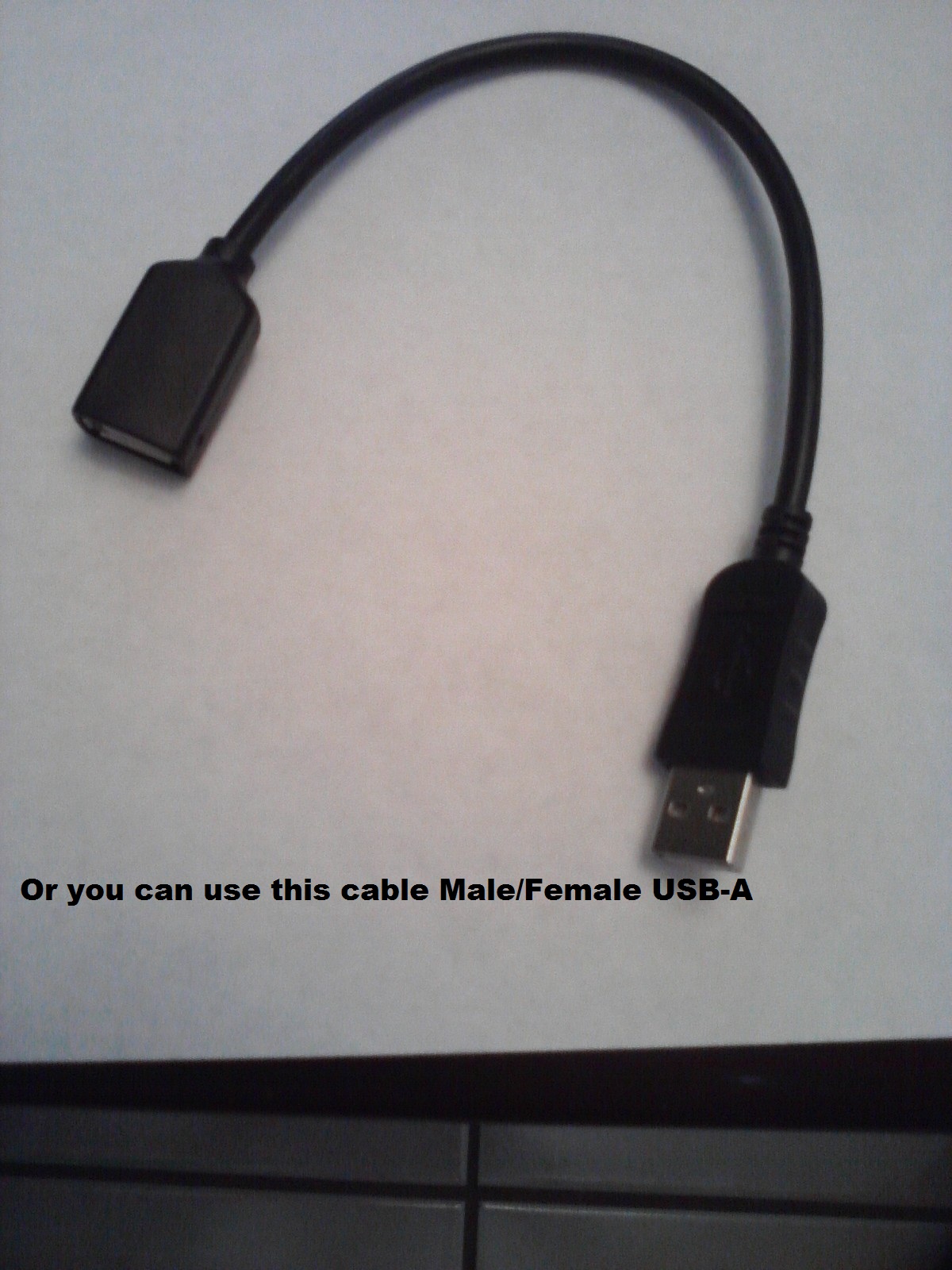

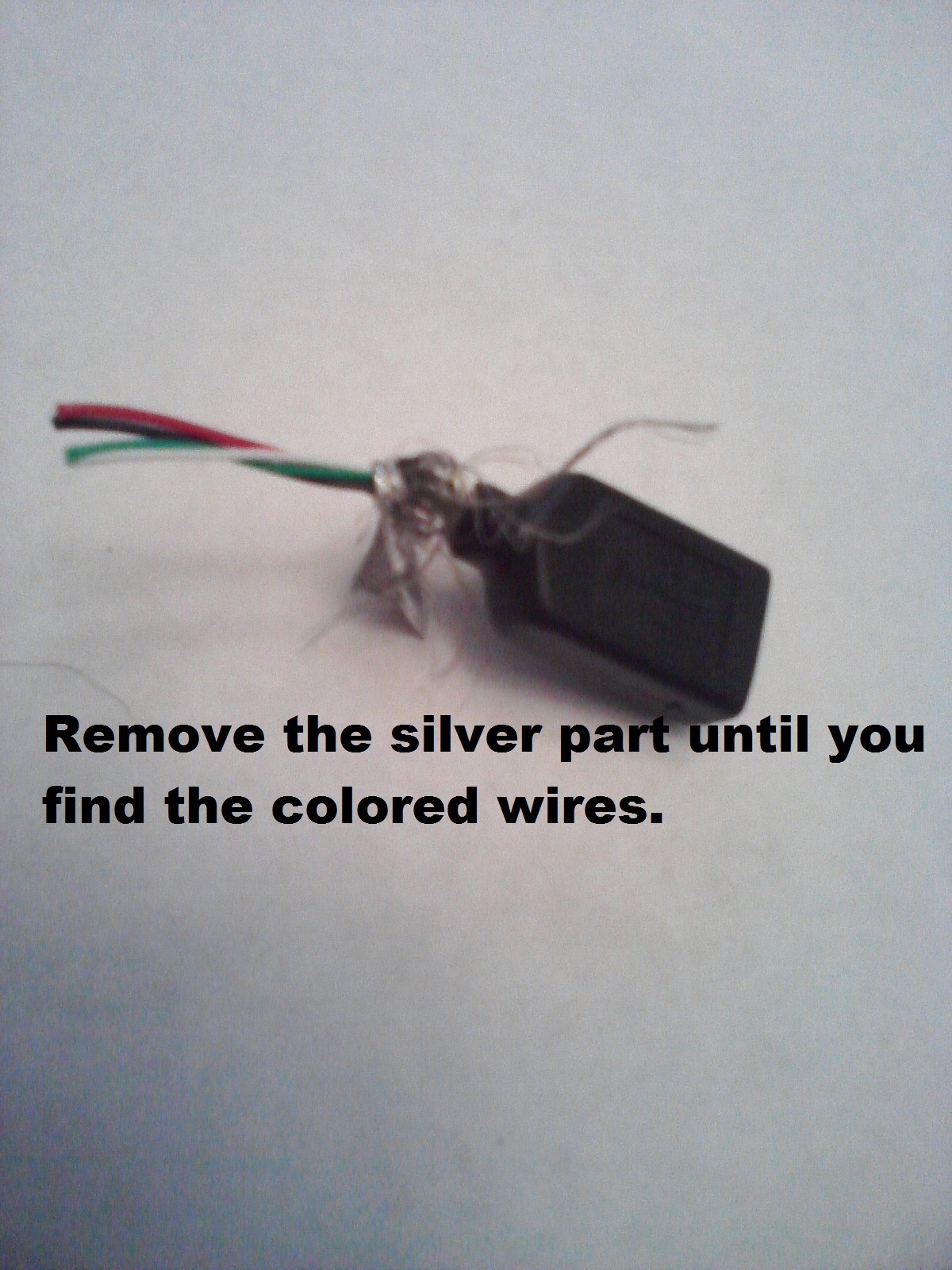

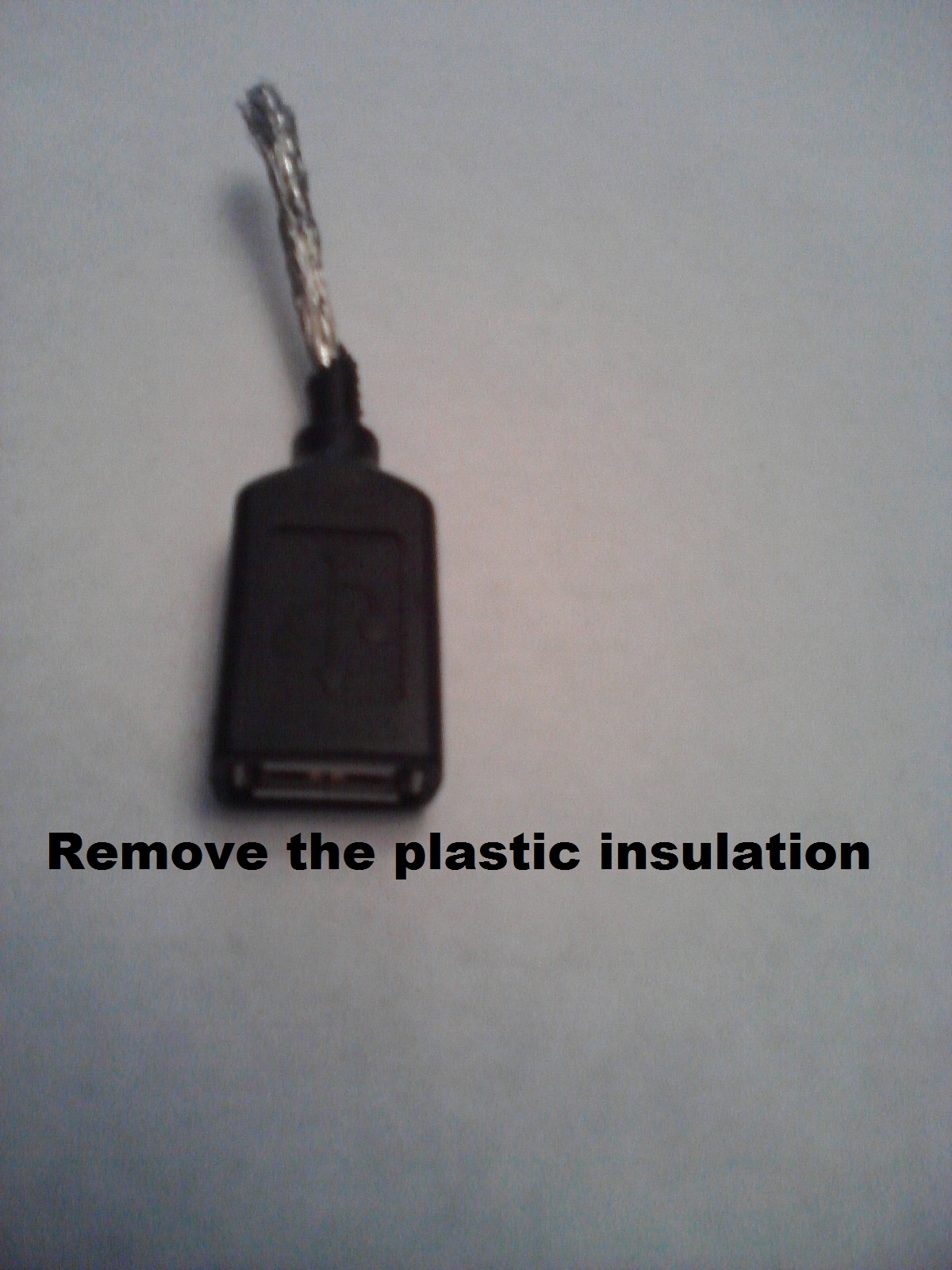

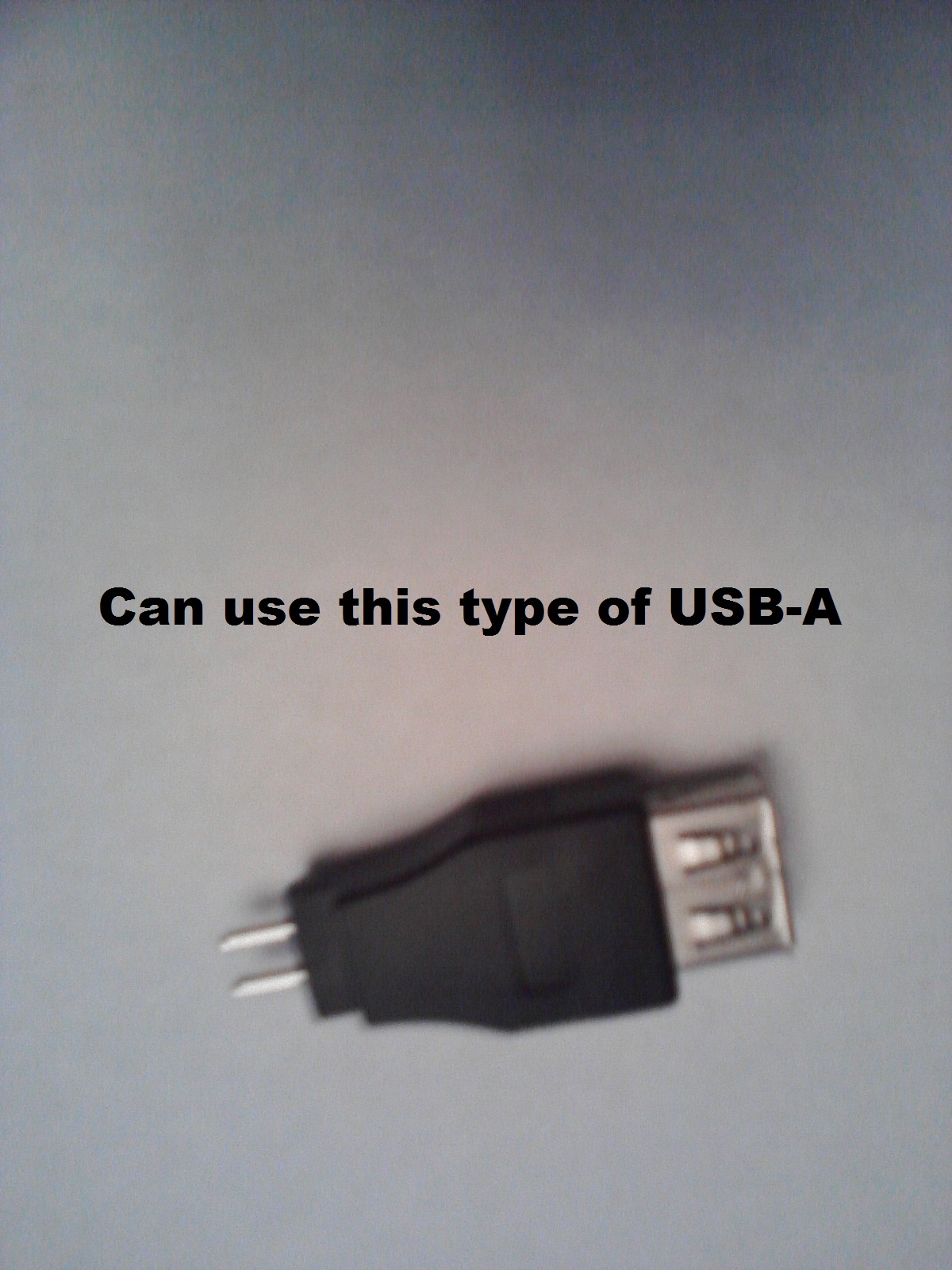

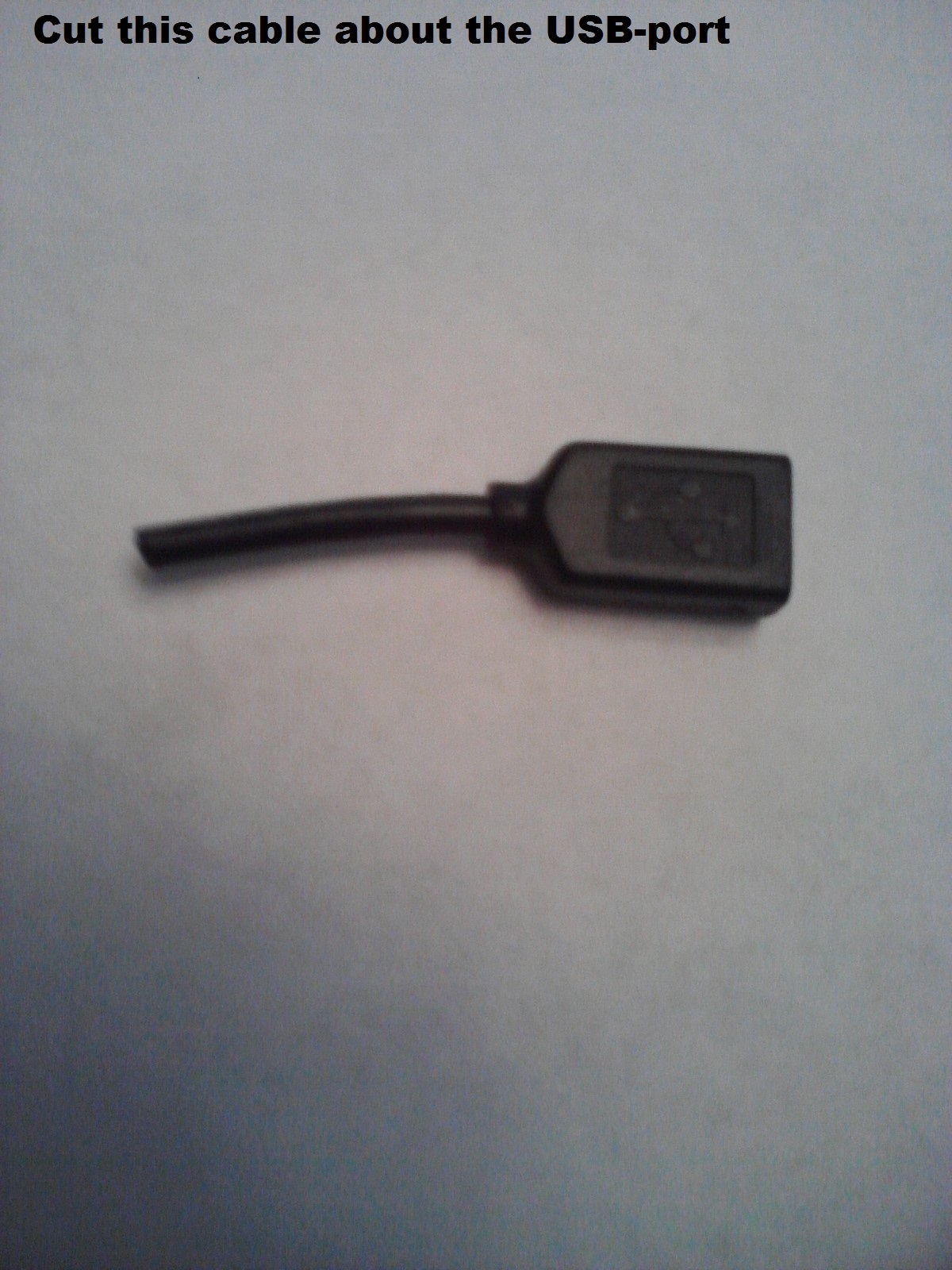

Do Your USB for Power Supply

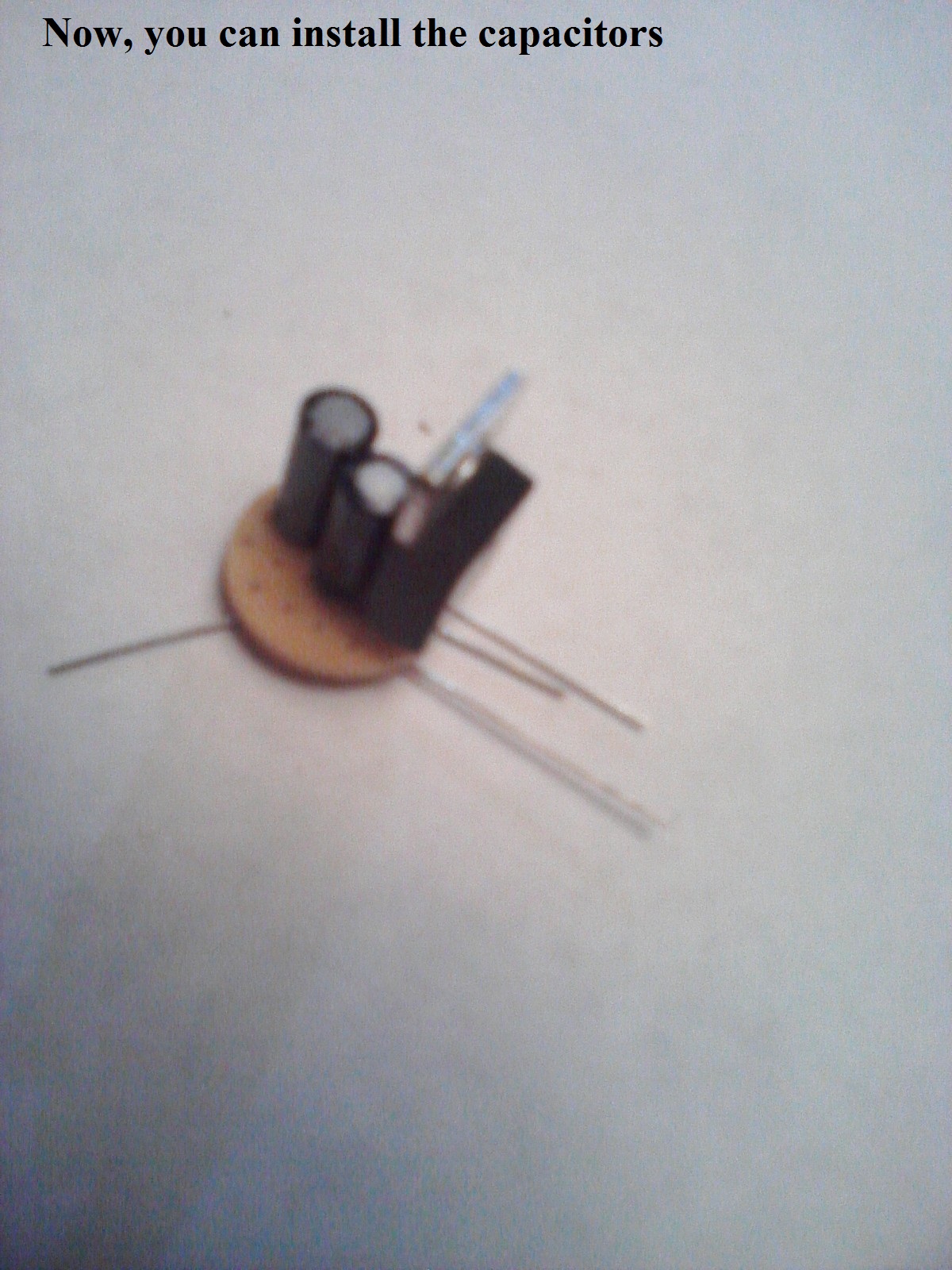

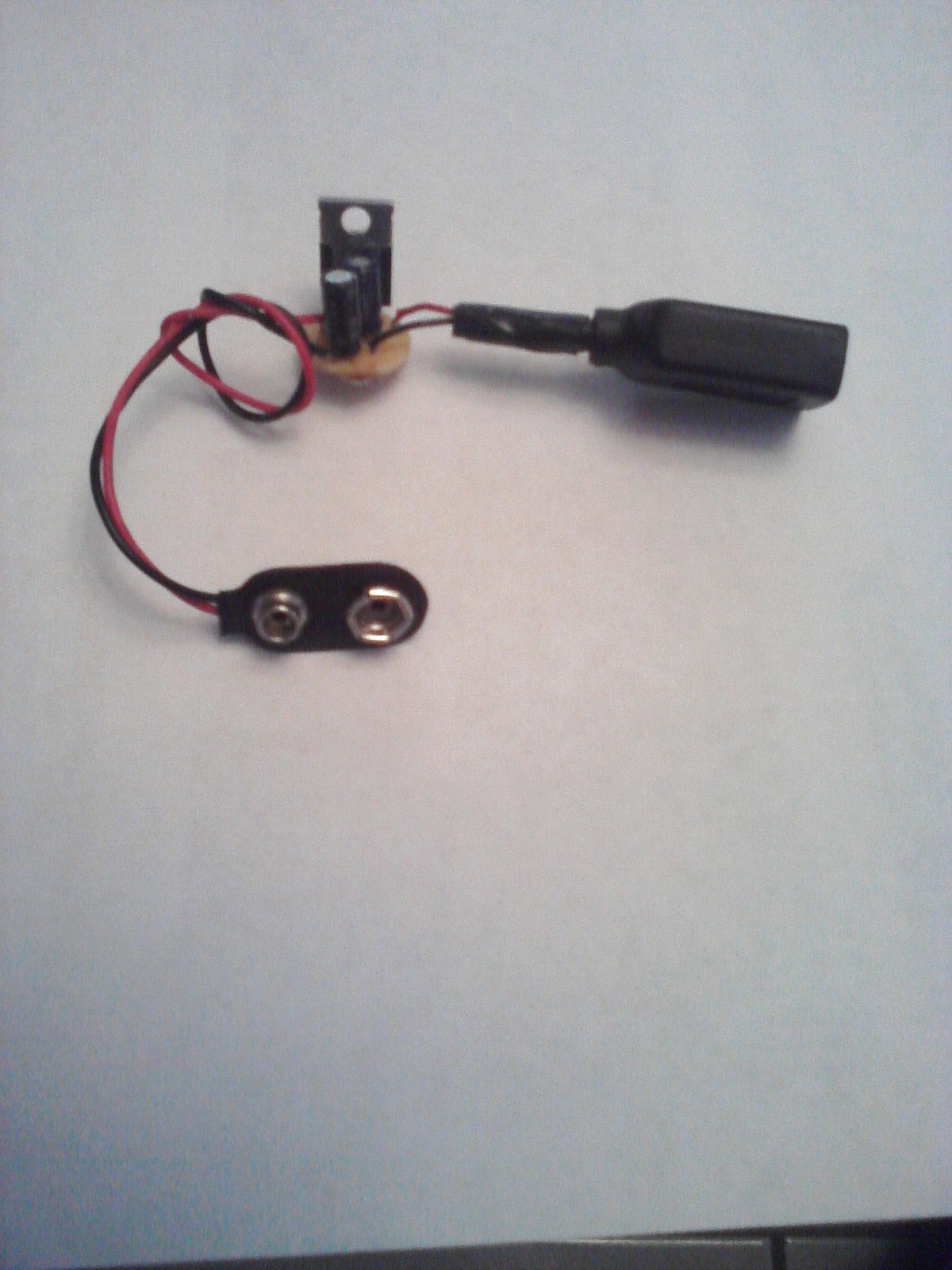

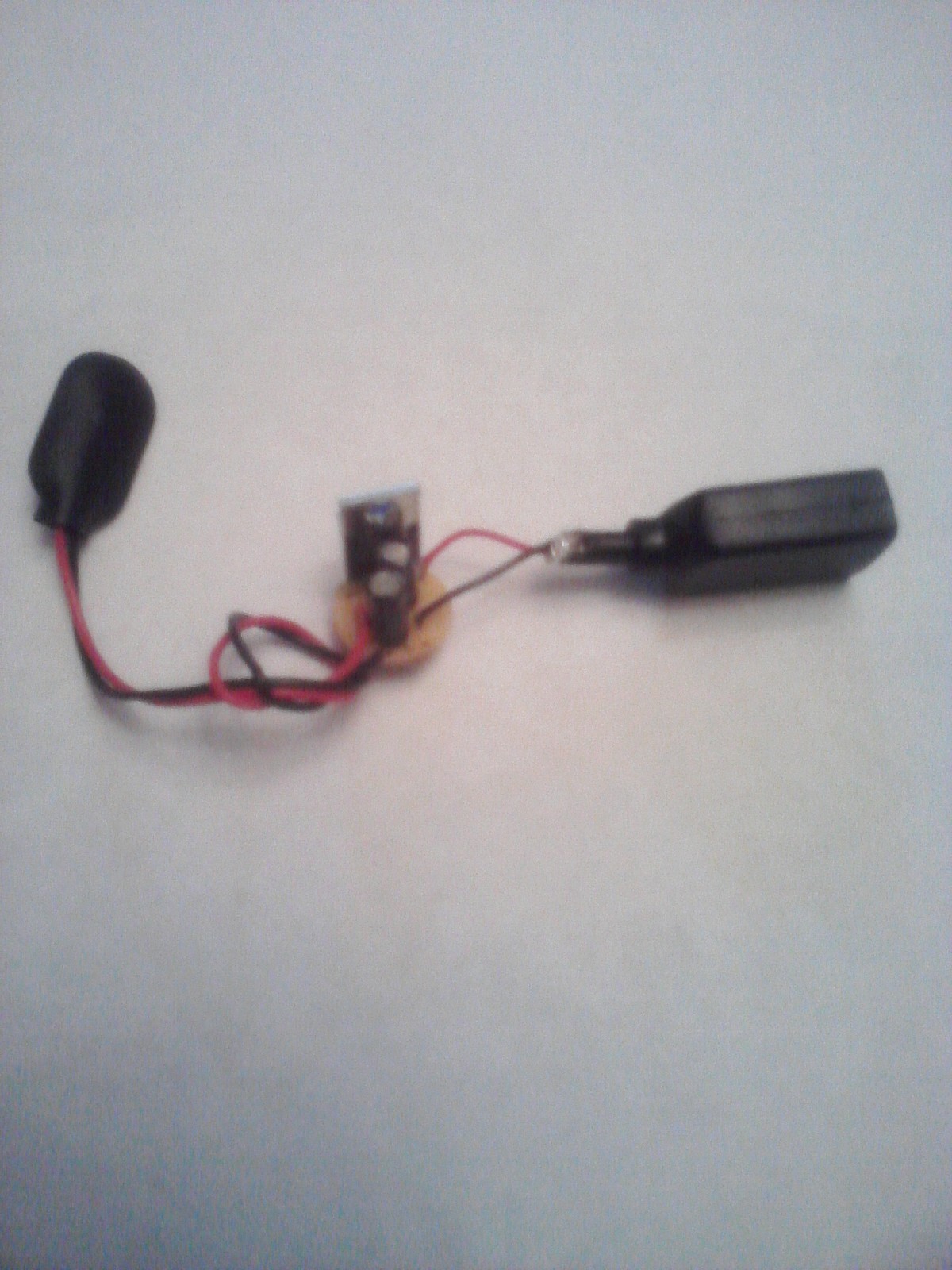

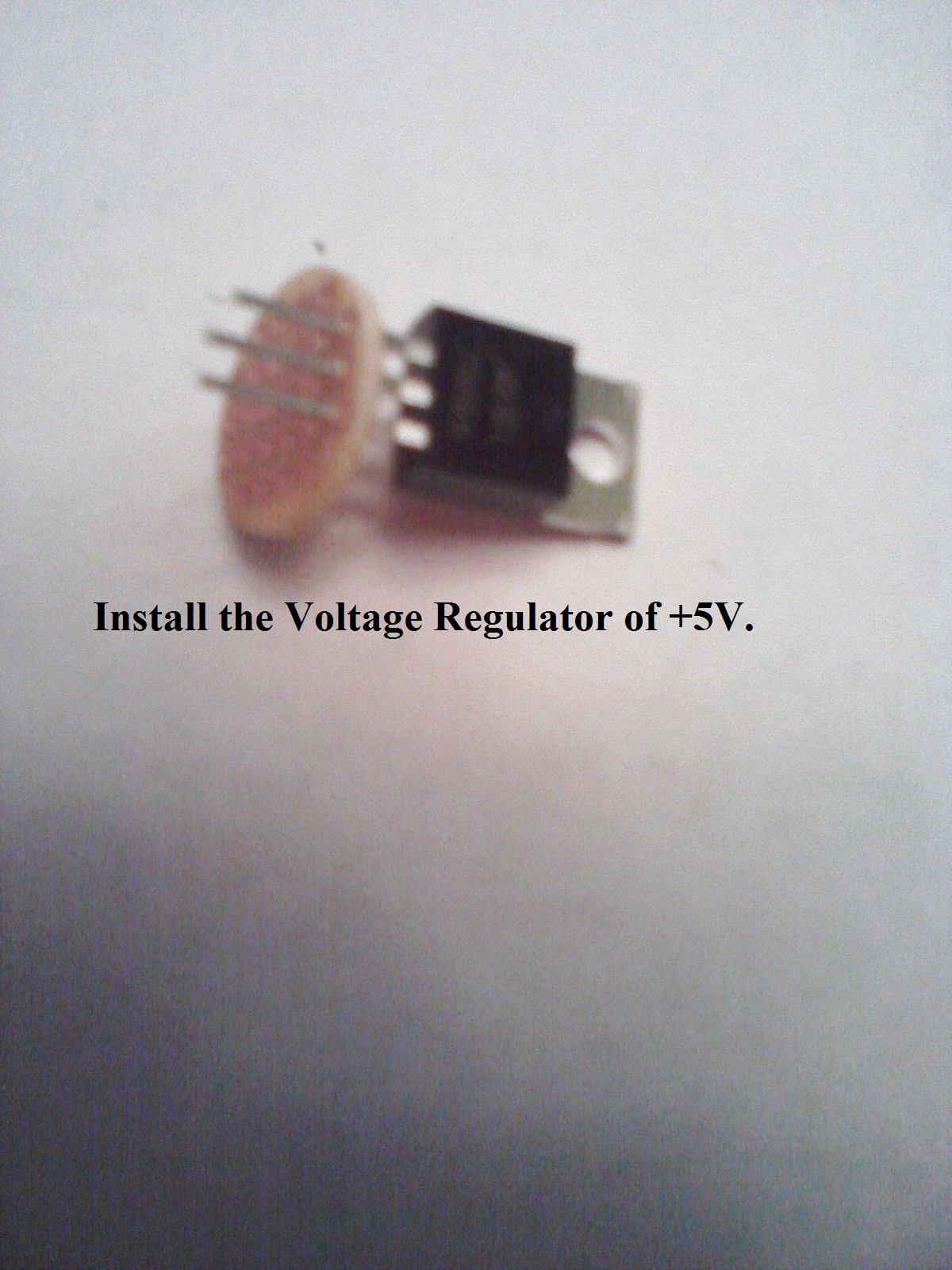

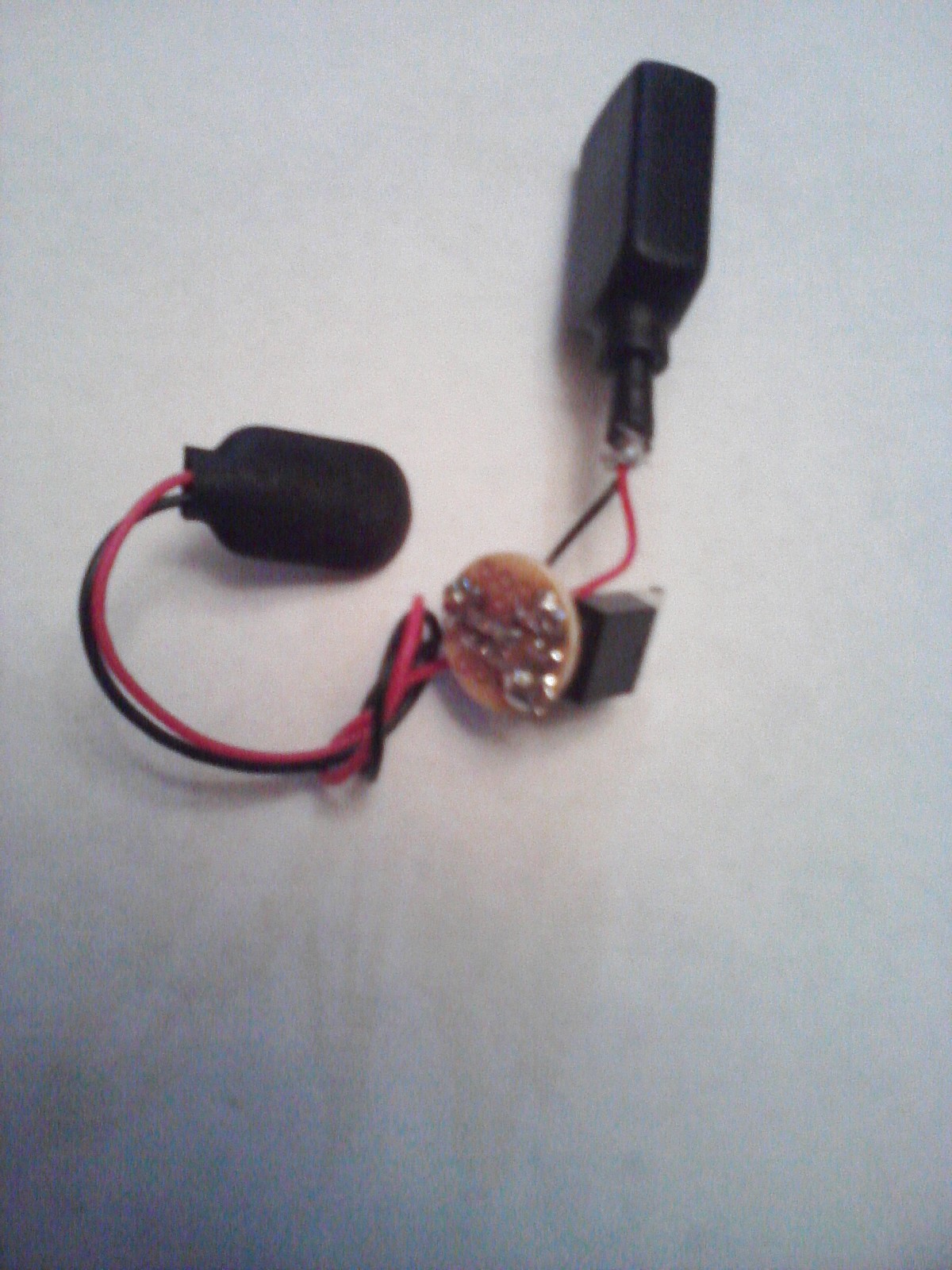

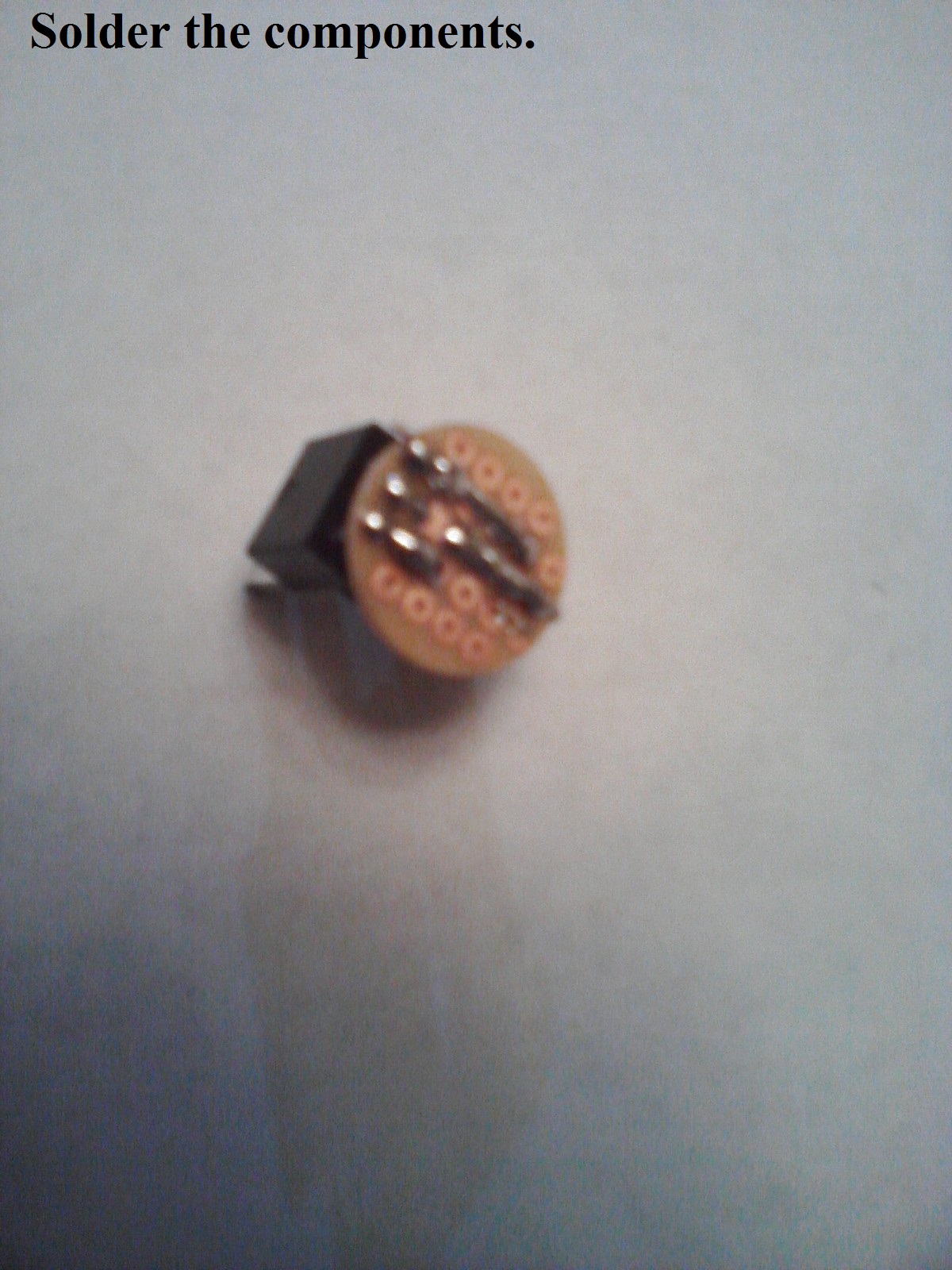

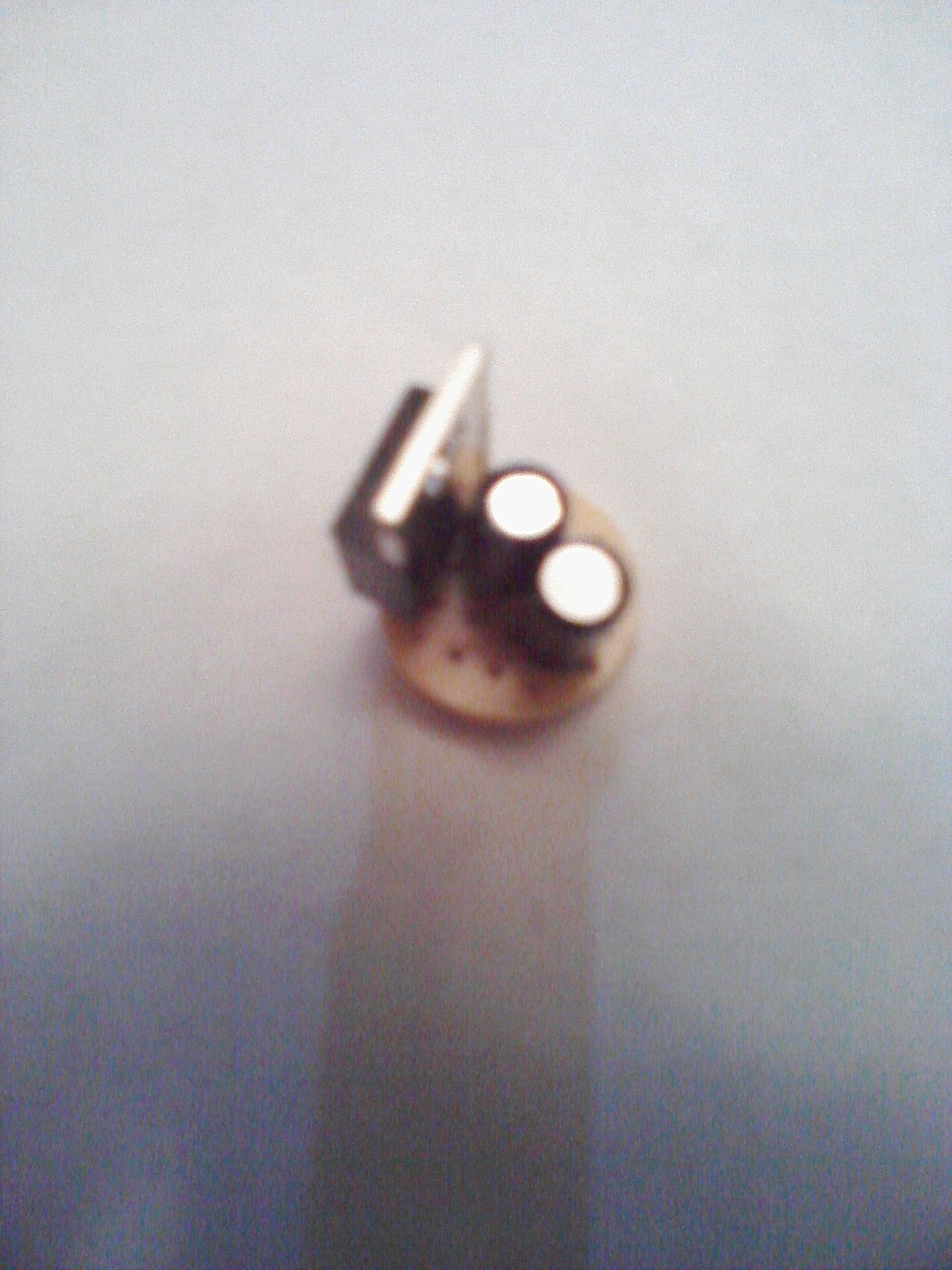

Mount the Components

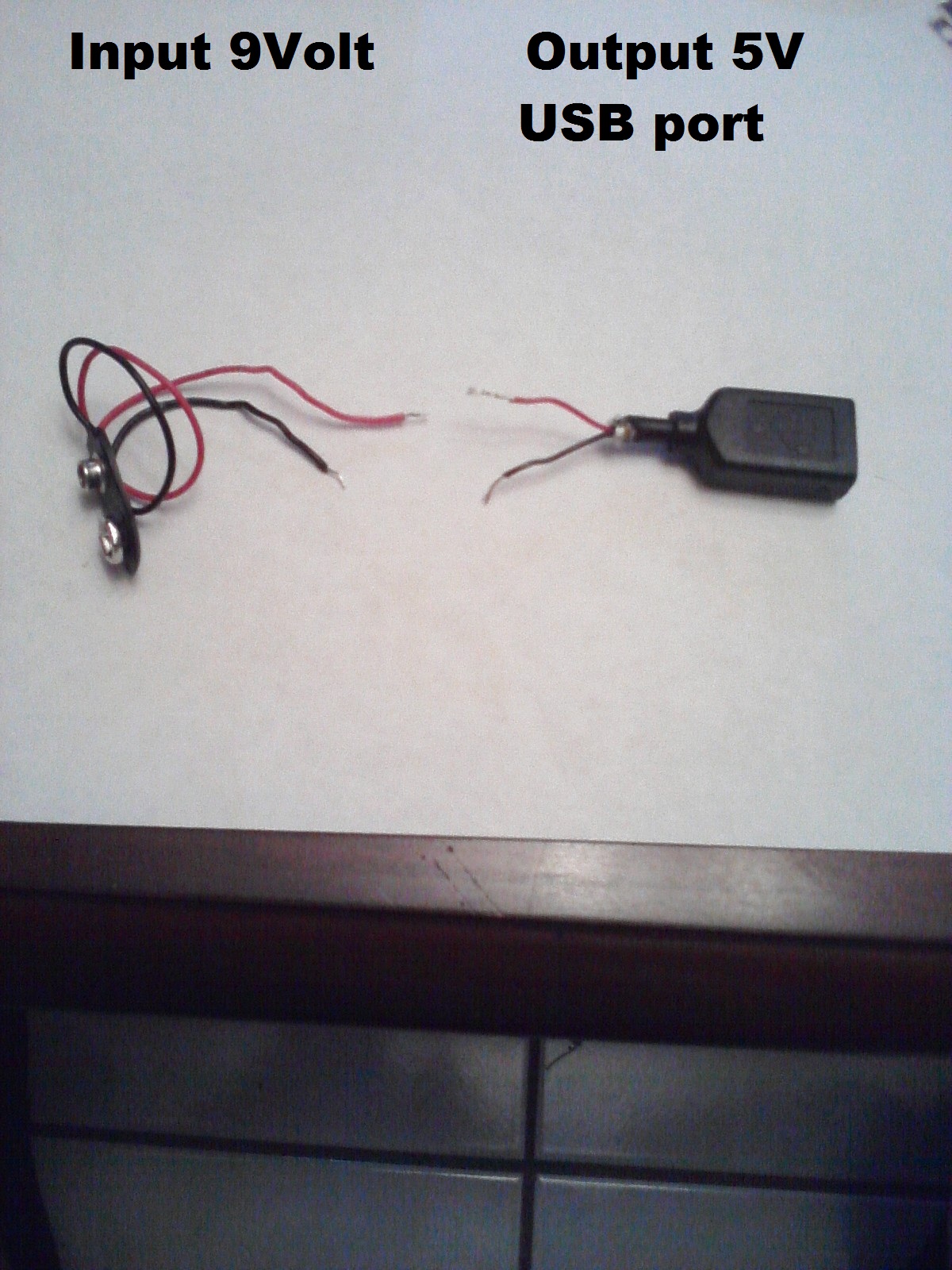

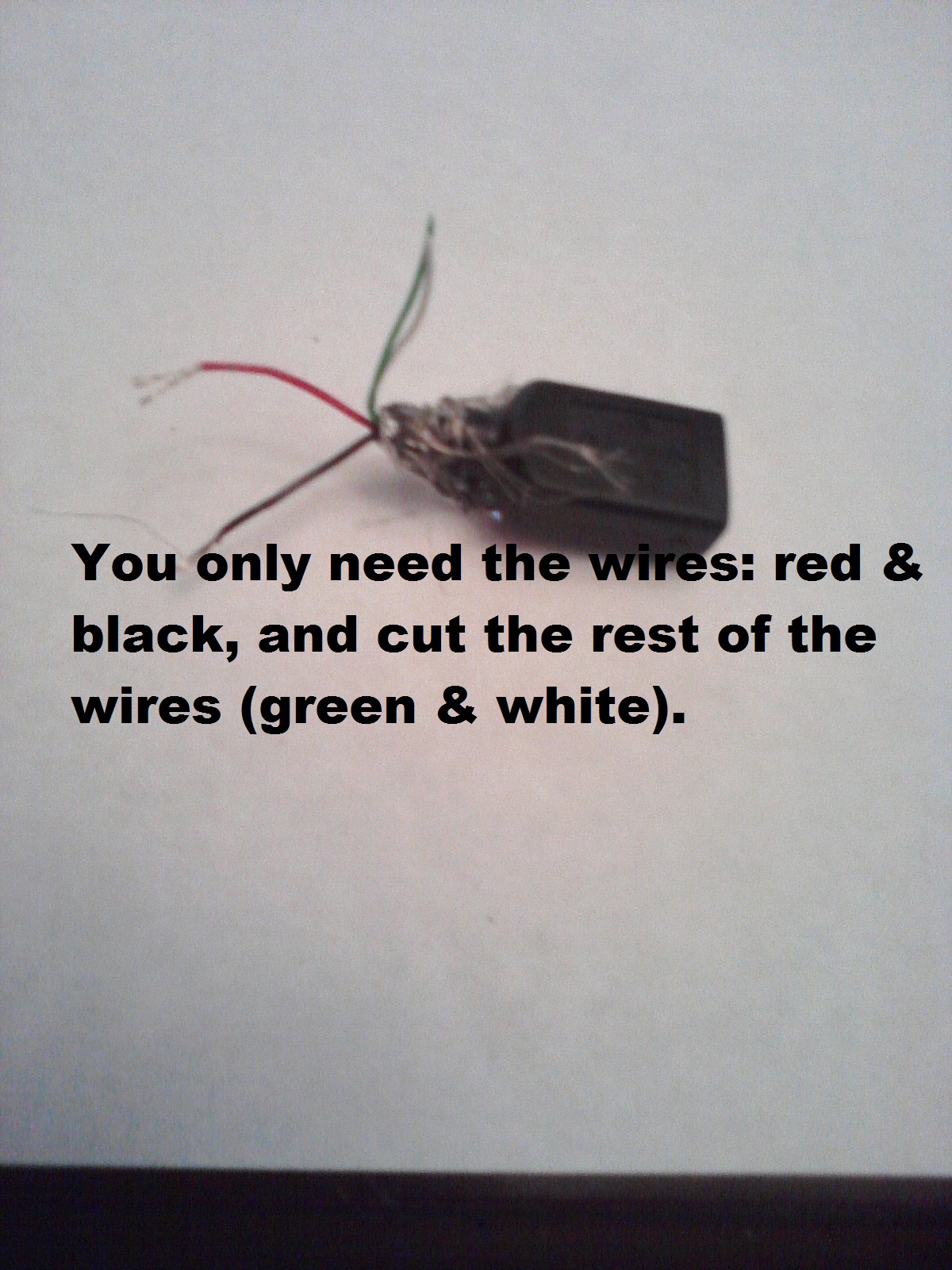

Identify the Input & the Output of Your Project

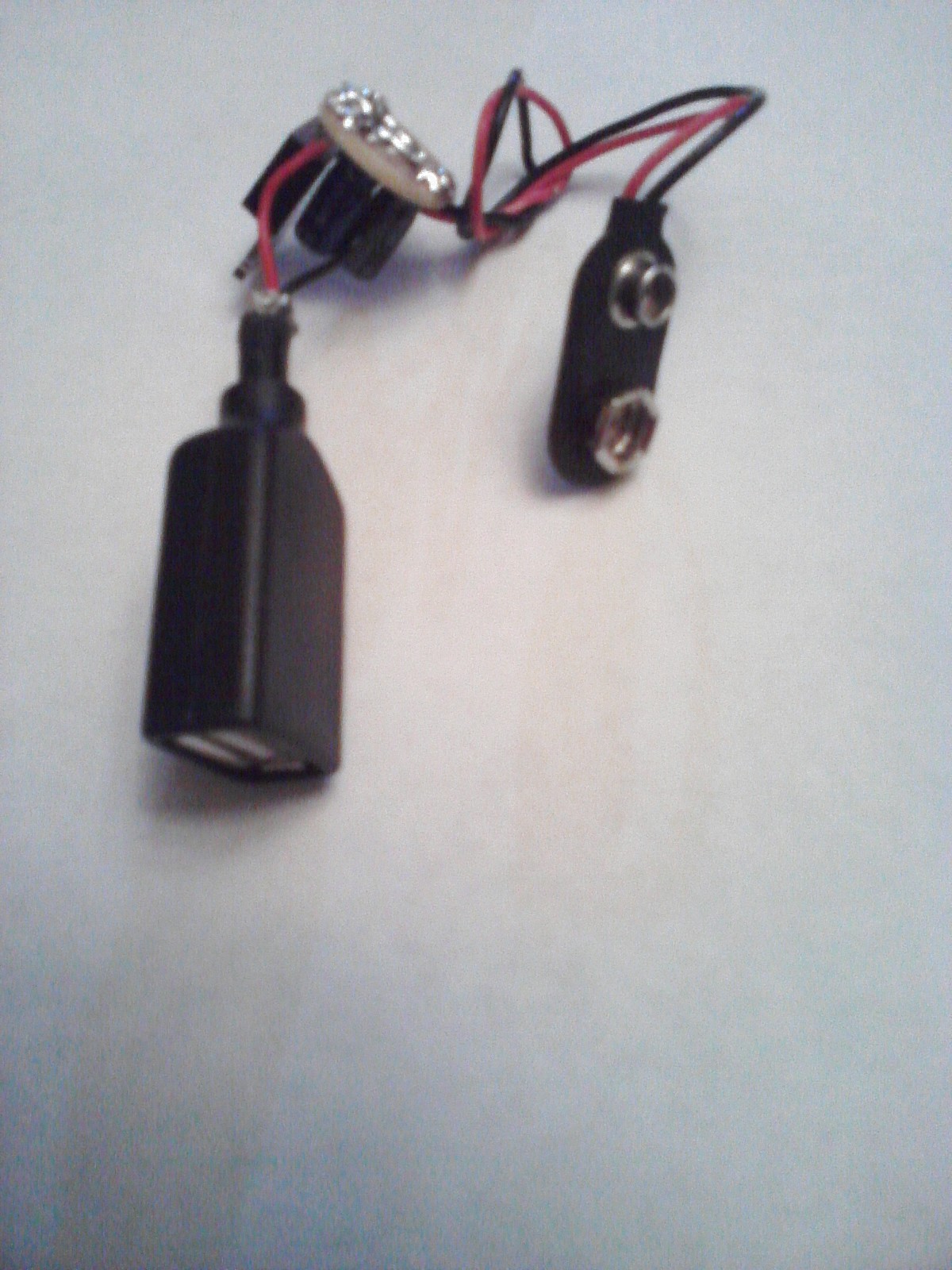

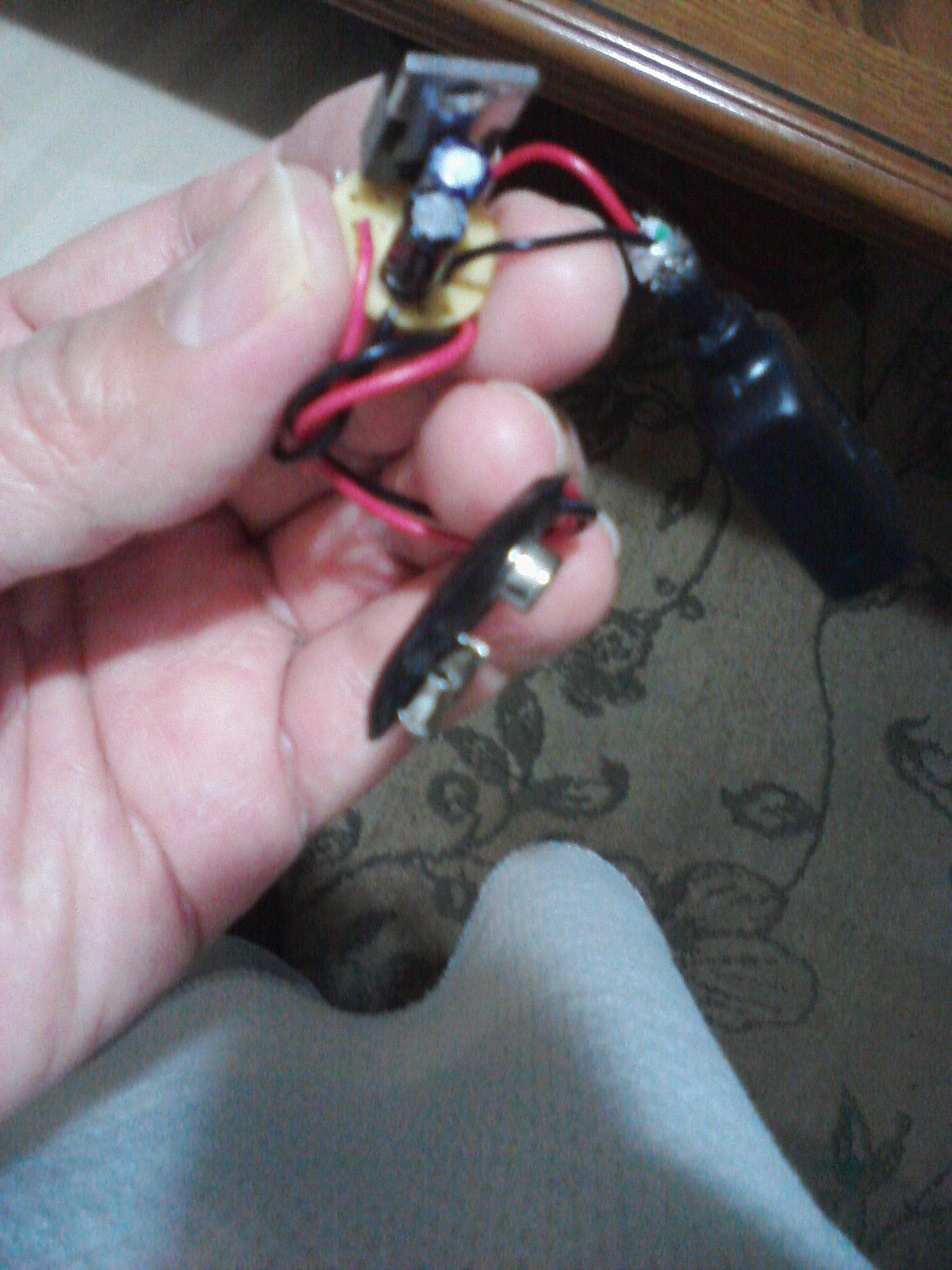

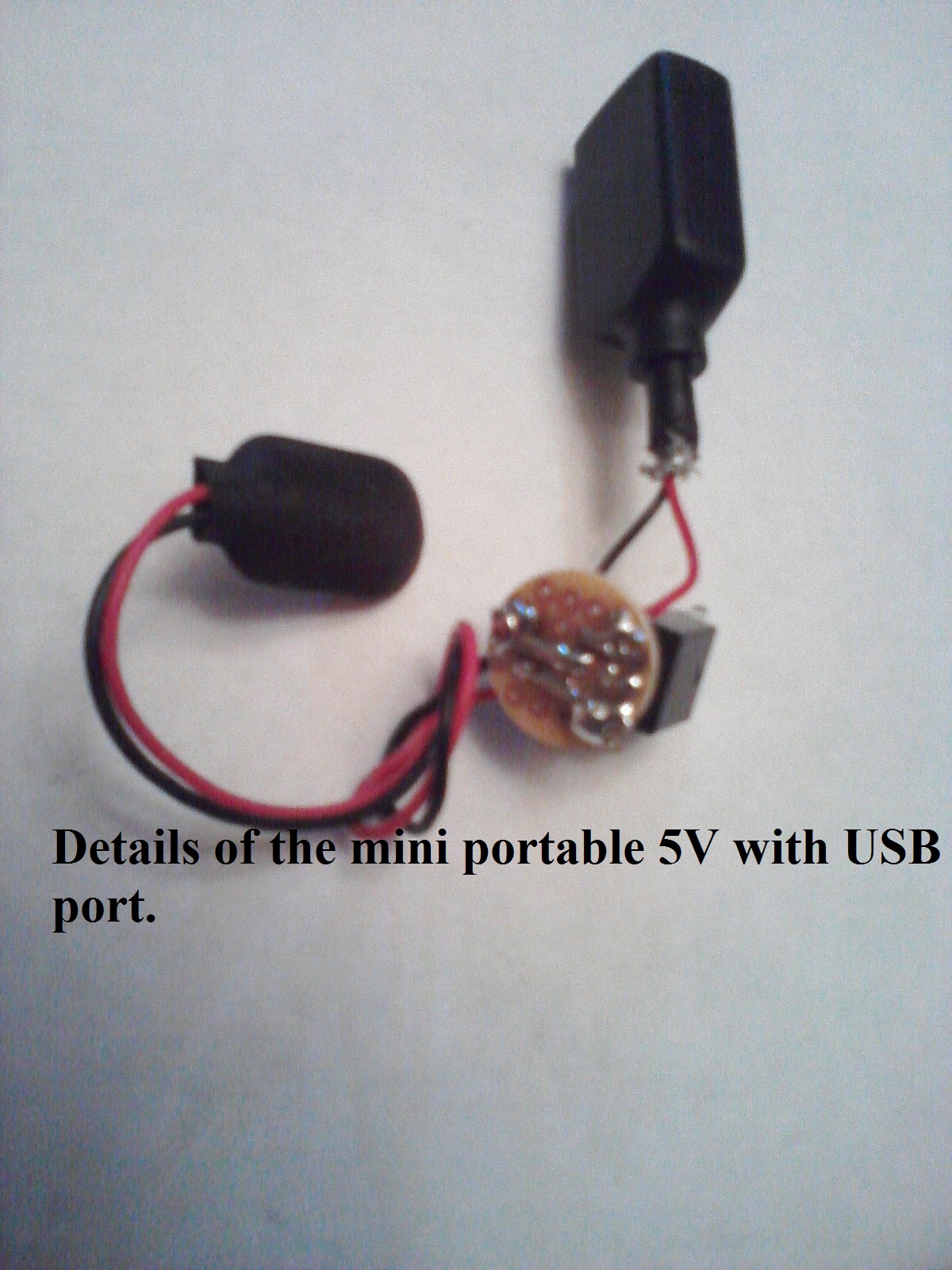

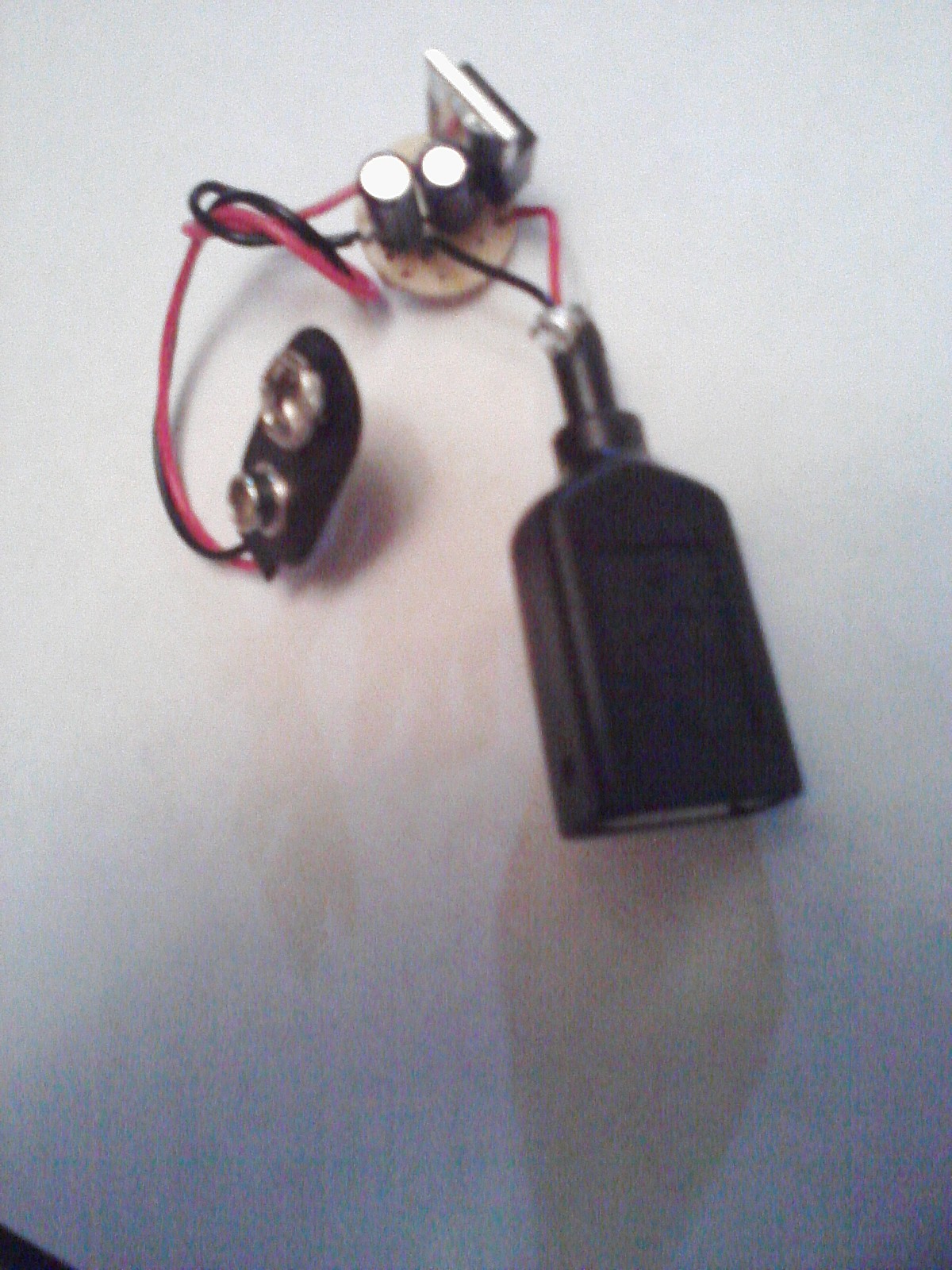

Connect Round PCB With the Input & the Output Showed in Step 4

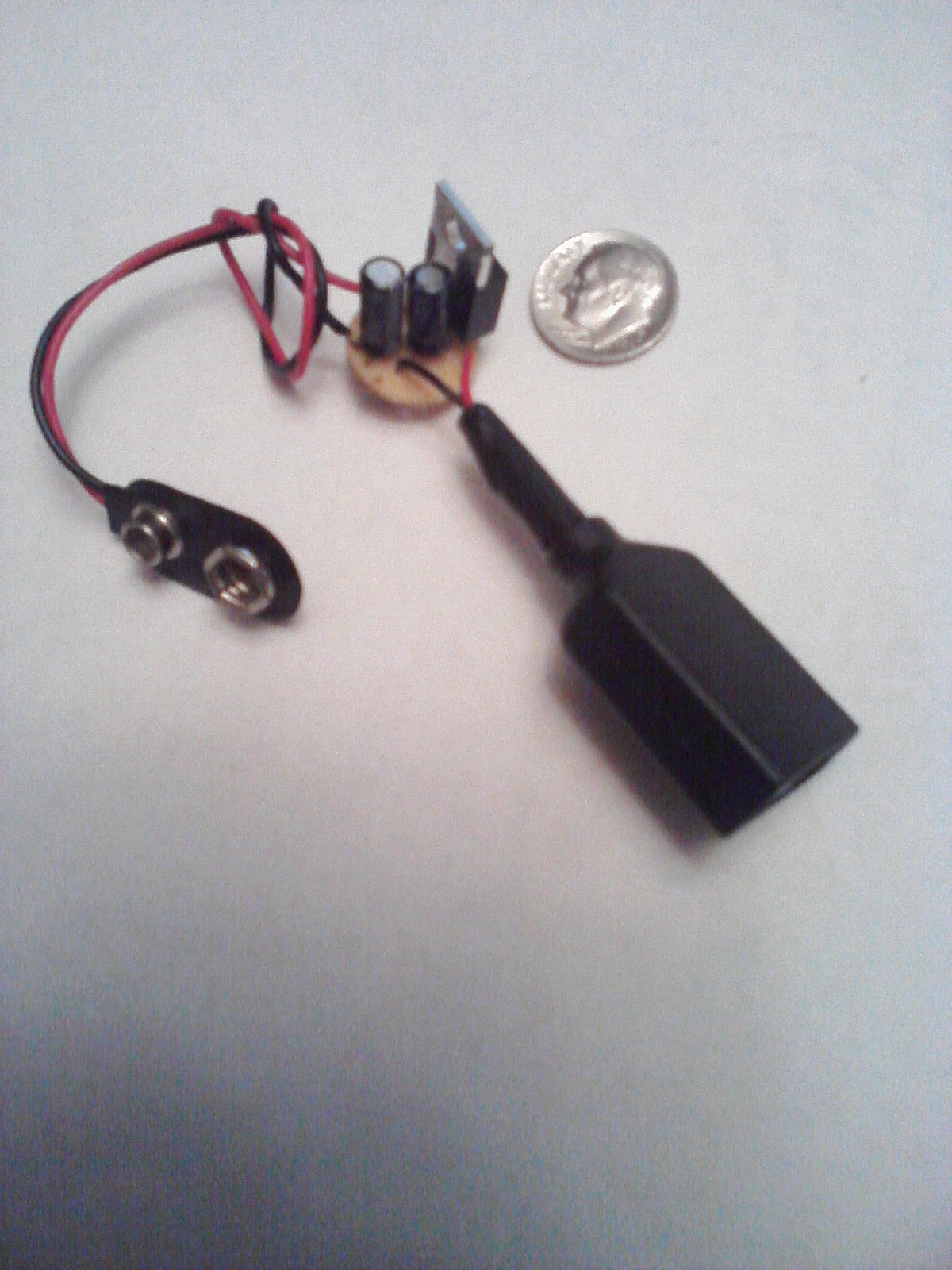

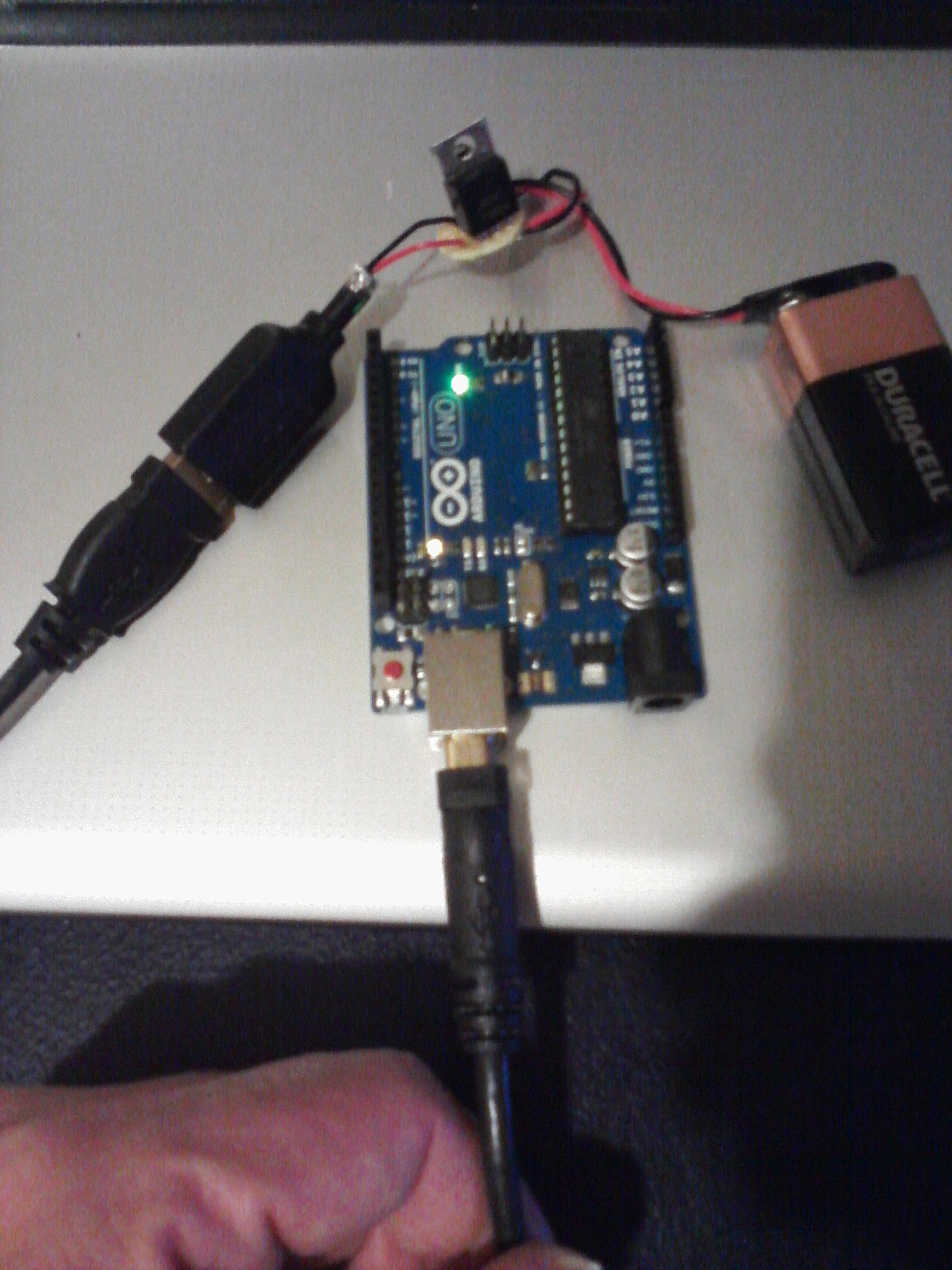

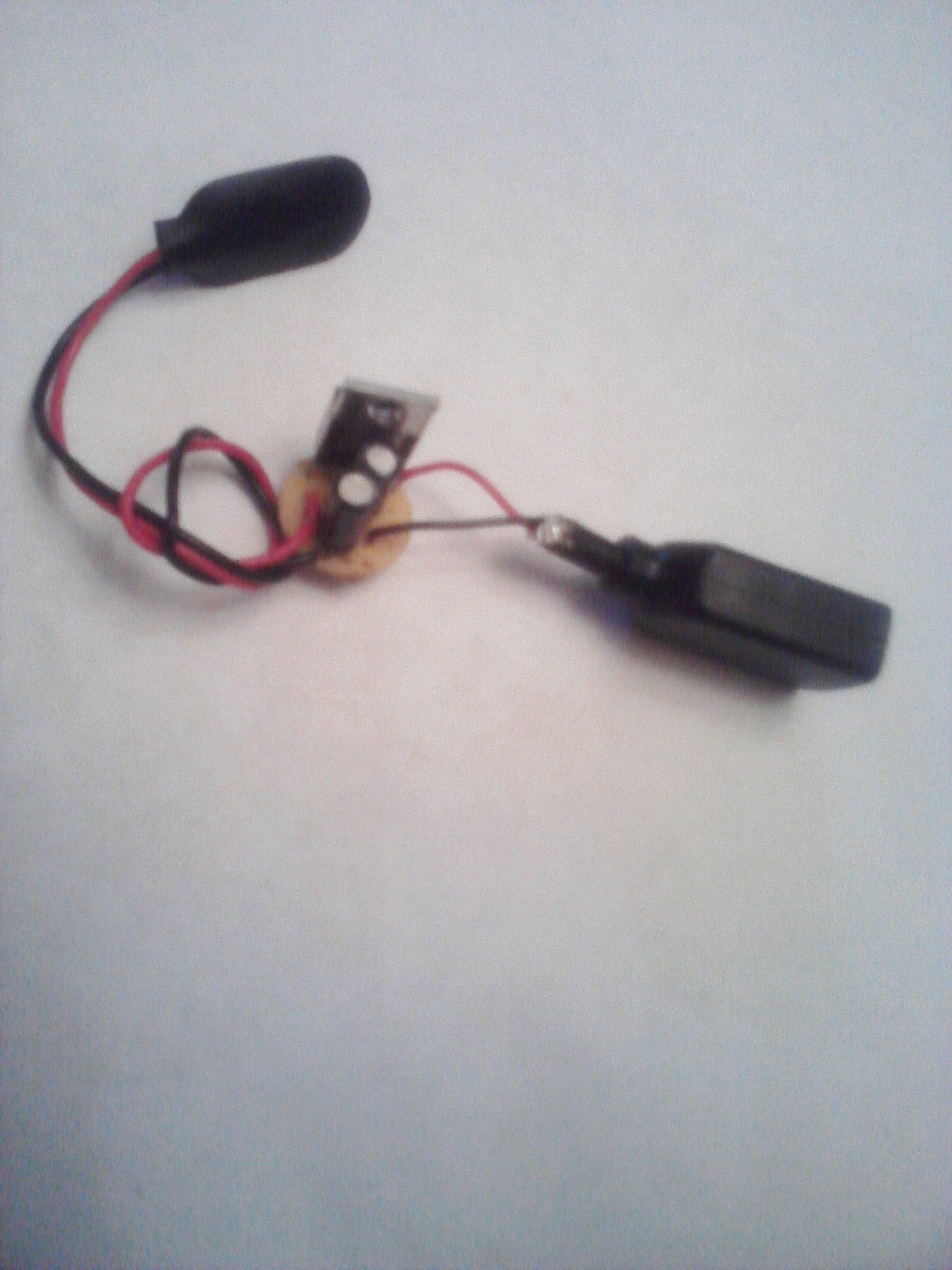

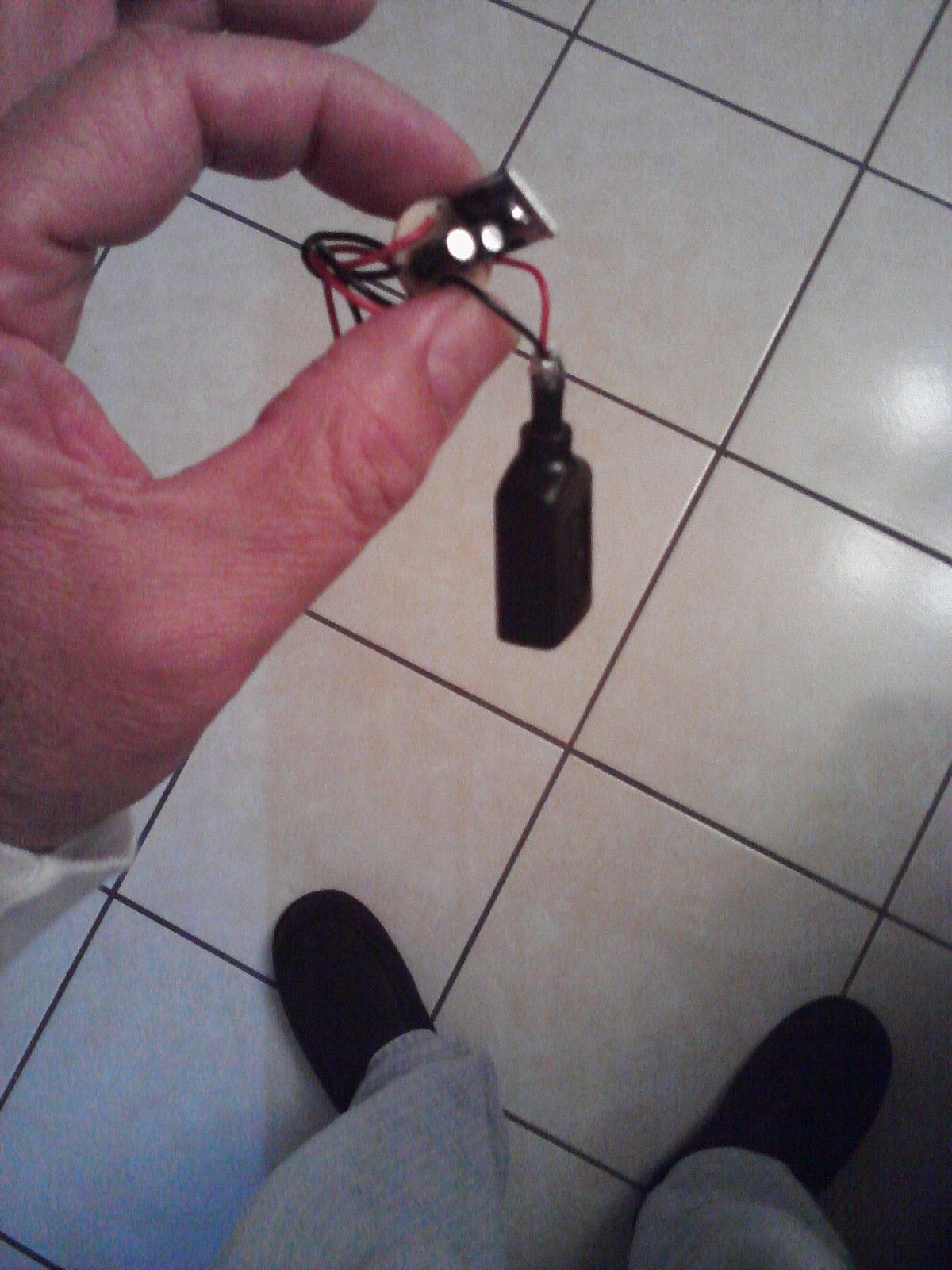

Mini Portable 5Volt in Action
