Mini Spinner : Cold Beer - Fast* (as in 1 Minute 30 Seconds)




Spinning an aluminium beer can on a block of ice will cool it to less than 5c in under 5 minutes. Various ways can achieve this: The Spinning Car, Electric Drill, Electric Screwdriver but none are as small and compact as the Mini Spinner.
The Mini Spinner was inspired in the search to have a compact way to cool beer while camping: As a frozen cartoon of water unfreezes, the water is drank and the remaining block of ice is used to cool beers by spinning a can on top. Having a multipurpose saves space and weight and results in more beers being able to be taken on a camping trip.
It's also my 'go to' way of cooling beer at home. No more space wars over beer vs food in the fridge. Just keep a 1-liter carton of ice in the freezer section and cool beers when required.
There's an environmental aspect too, as this project reuses the plastic clip-on-top packaging.
* To cool beer in one minute 30 seconds, go to Step 6.
Supplies
Clip on holder (came with the cans)
Toy Wheel

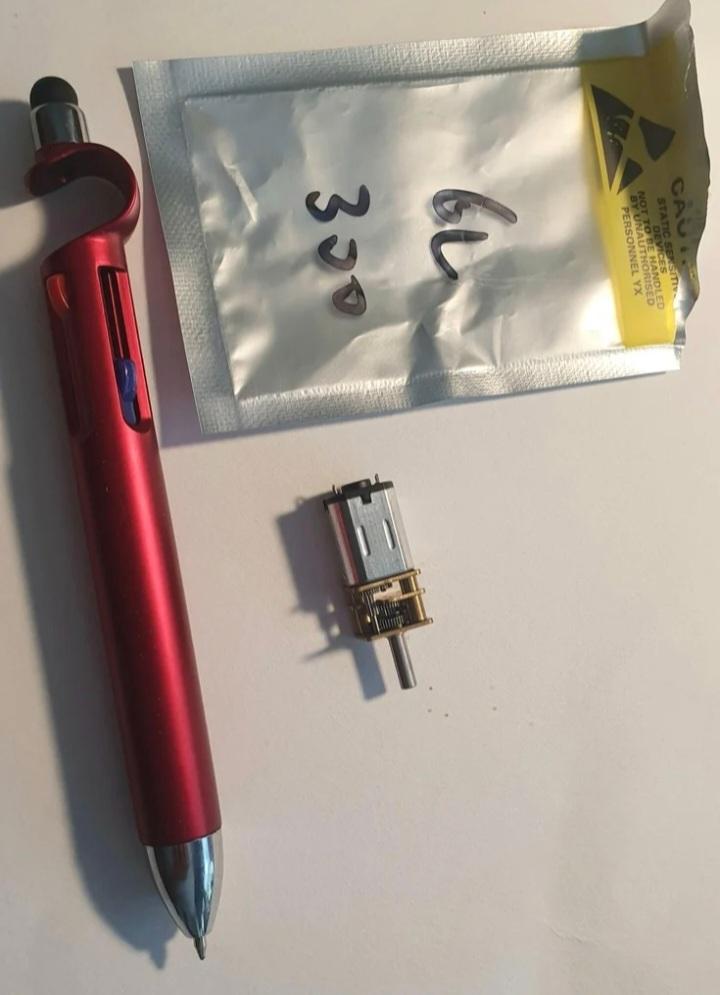

6-volt, 300 rpm motor with gears
USB C Battery connector
Shrink tubing
Clip-On, Clip-Off

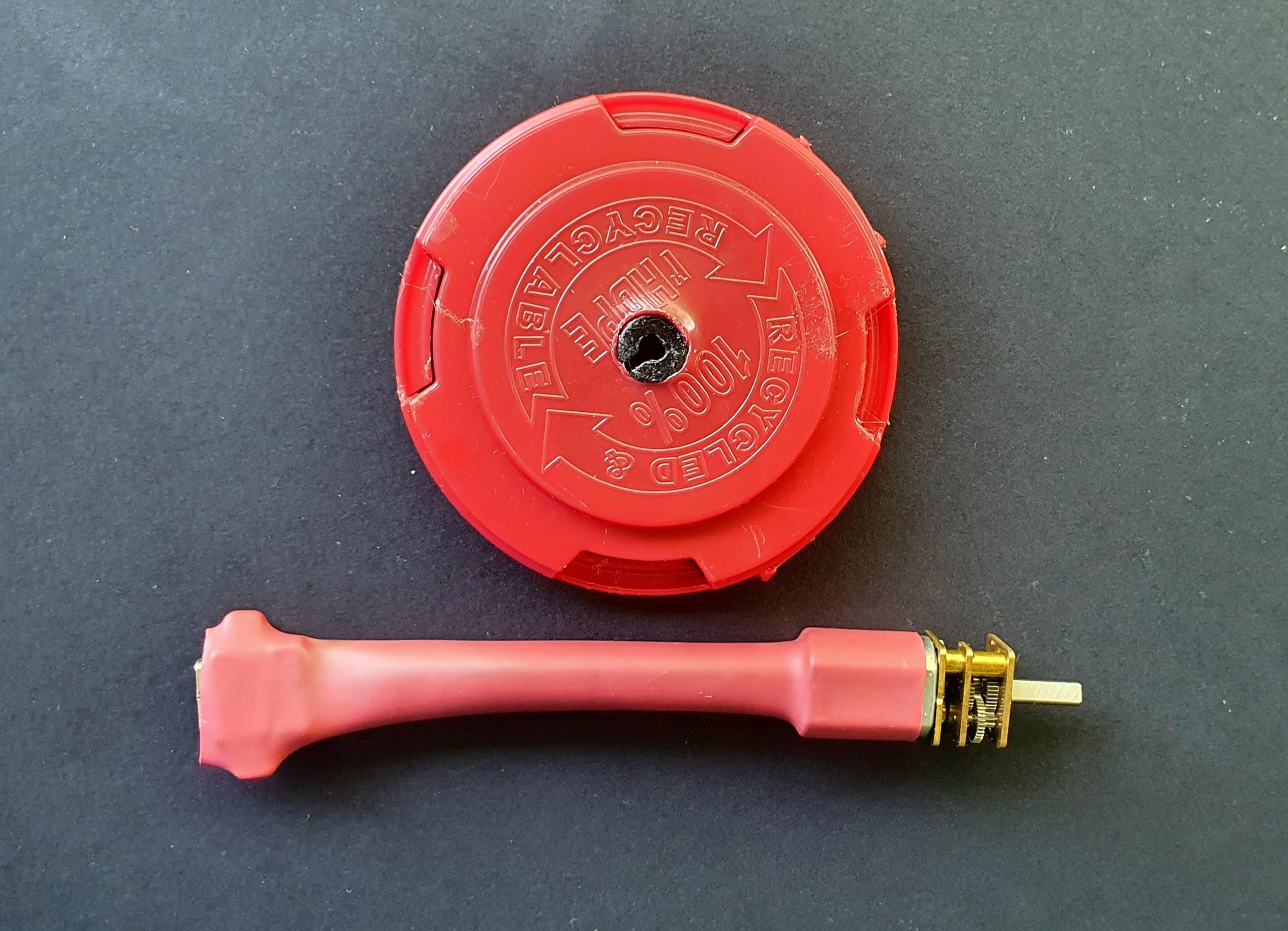

There are two parts to the Mini cooler: The motor and the can connector.

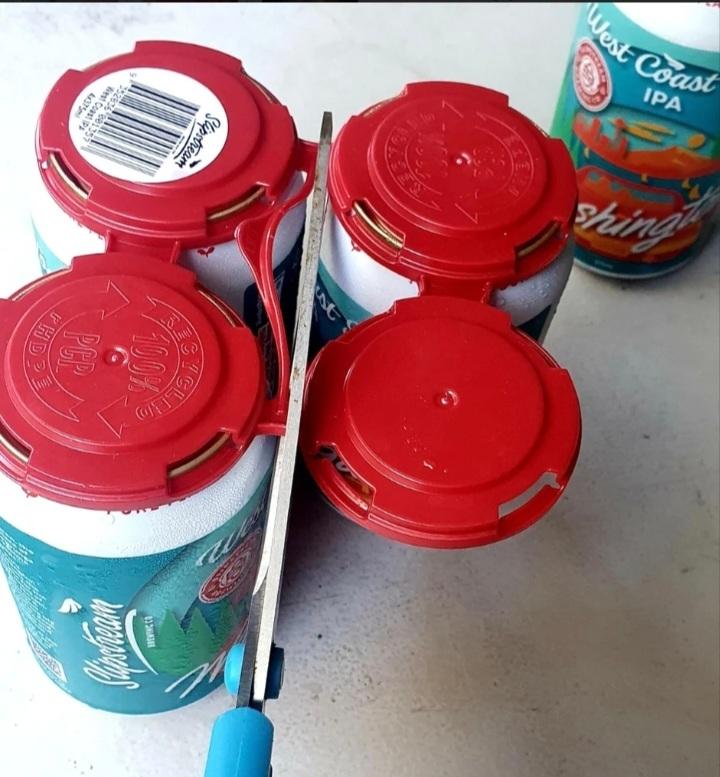

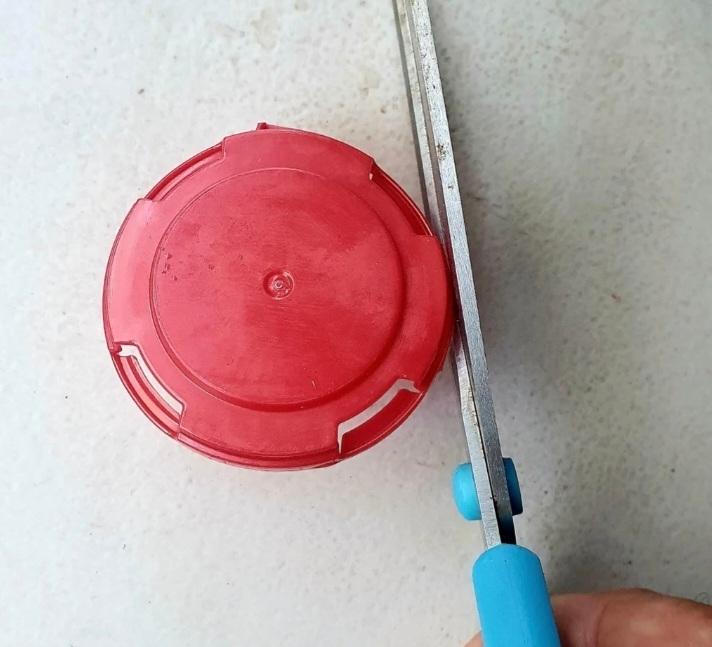

The can connector is made by cutting off a clip-on disk which the beer cans were purchased in with a pair of large scissors.
Can Connector

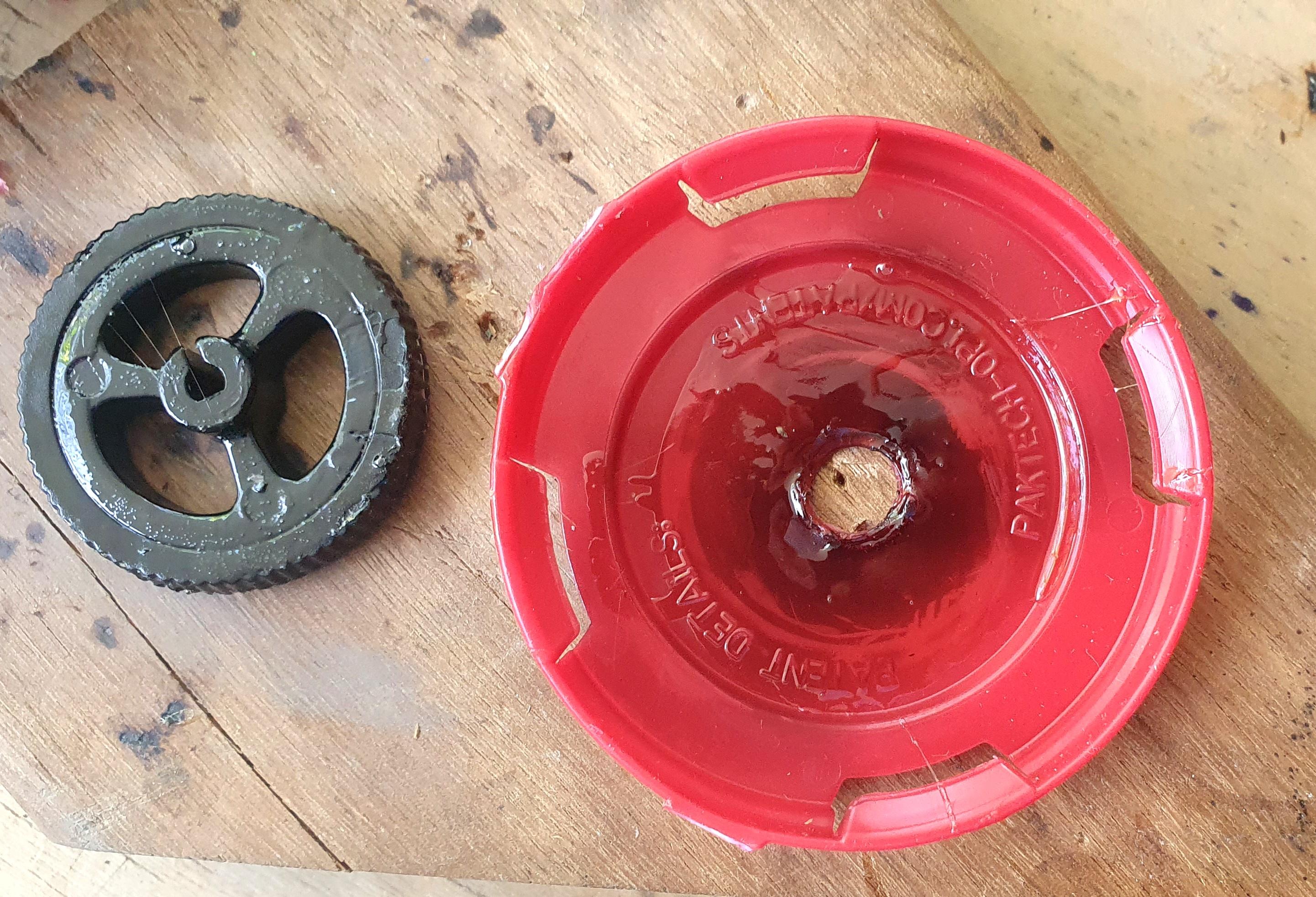

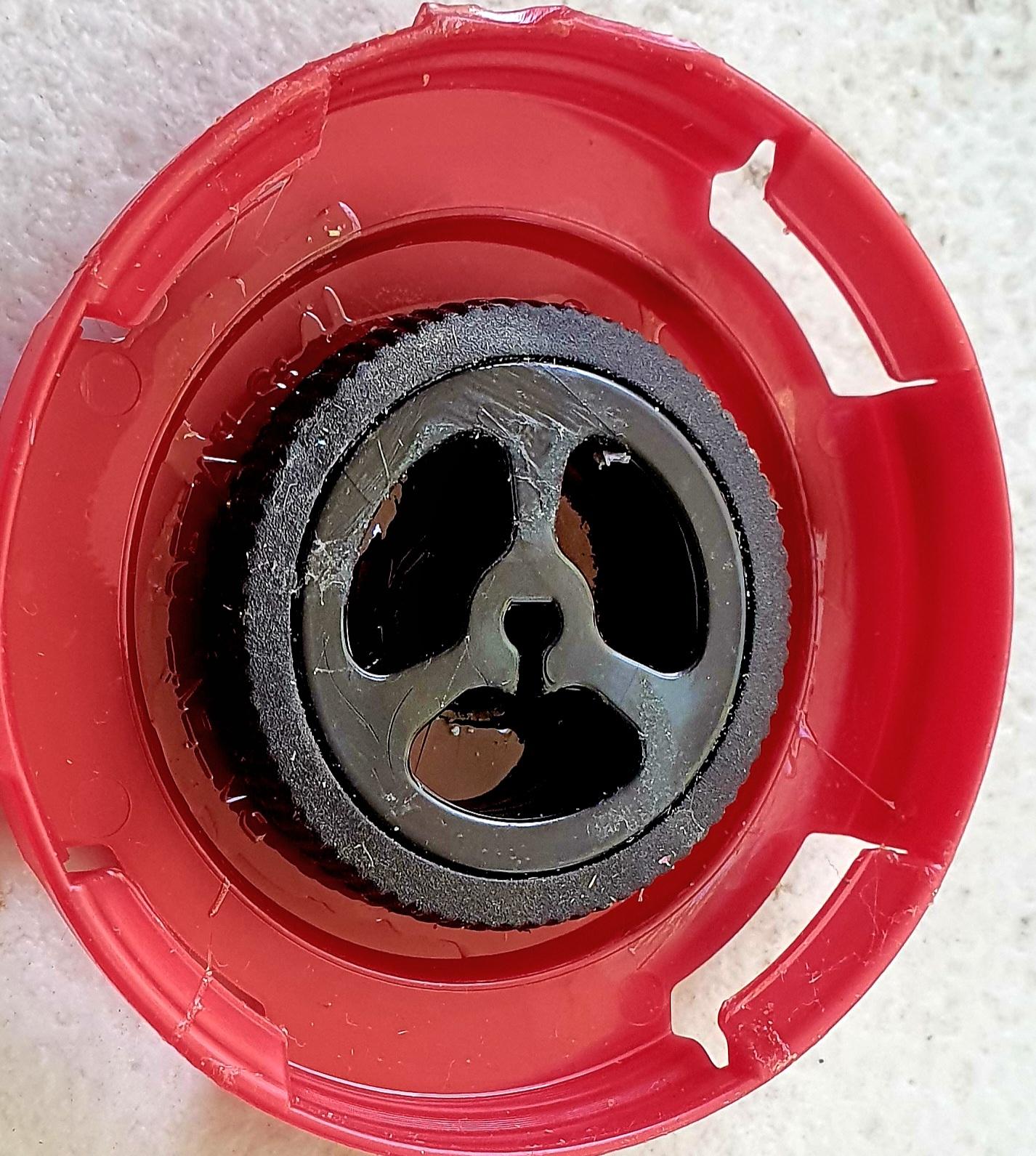

A good way to attach the plastic clip-on to the motor is using a toy wheel which has the same sized axle as the motor. While it could be fixed to the top of the clip-on, it looks better attached underneath.
Drill a hole into the center of the clip-on.
Apply contact adhesive to the side of the wheel and the underneath of the clip-on. When the glue is touch dry, join the wheel to clip-on.
Check that with the wheel fitted underneath, the clip-on still clips on to a can of beer.
Powering the Motor

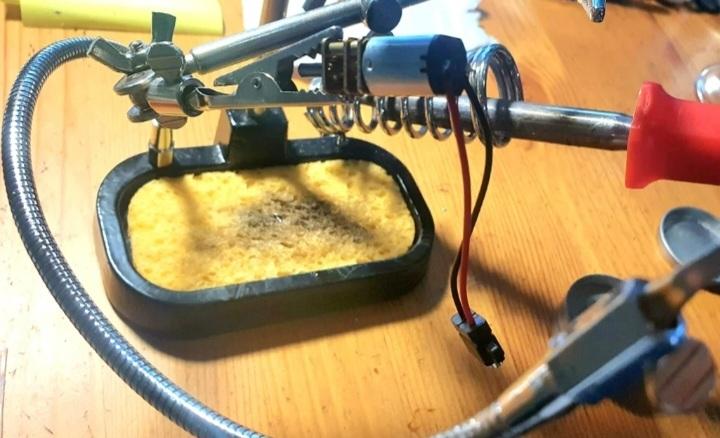

To enable this, solider on a USB C leed to the motor.

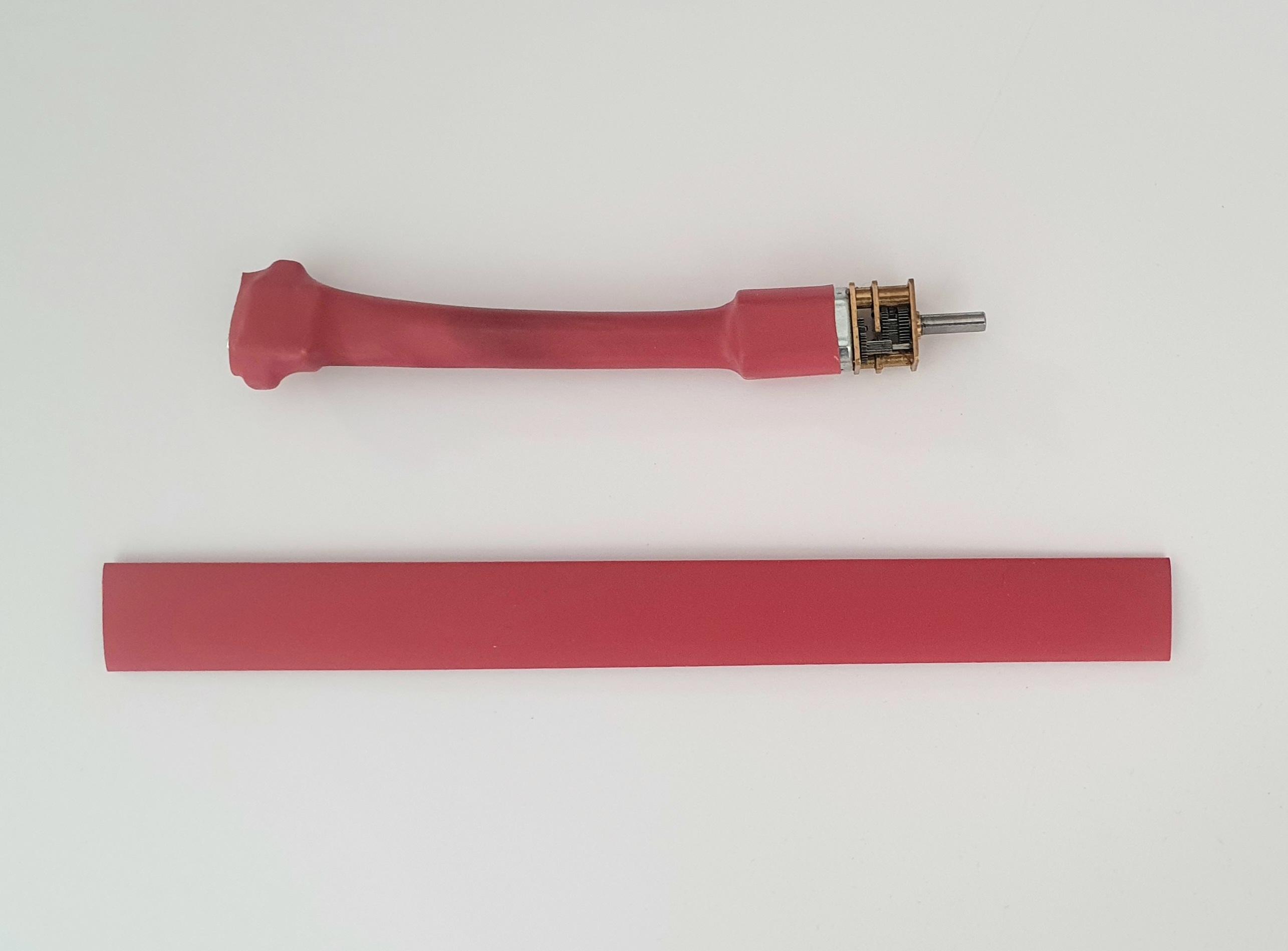

Heat Shrink

Operation

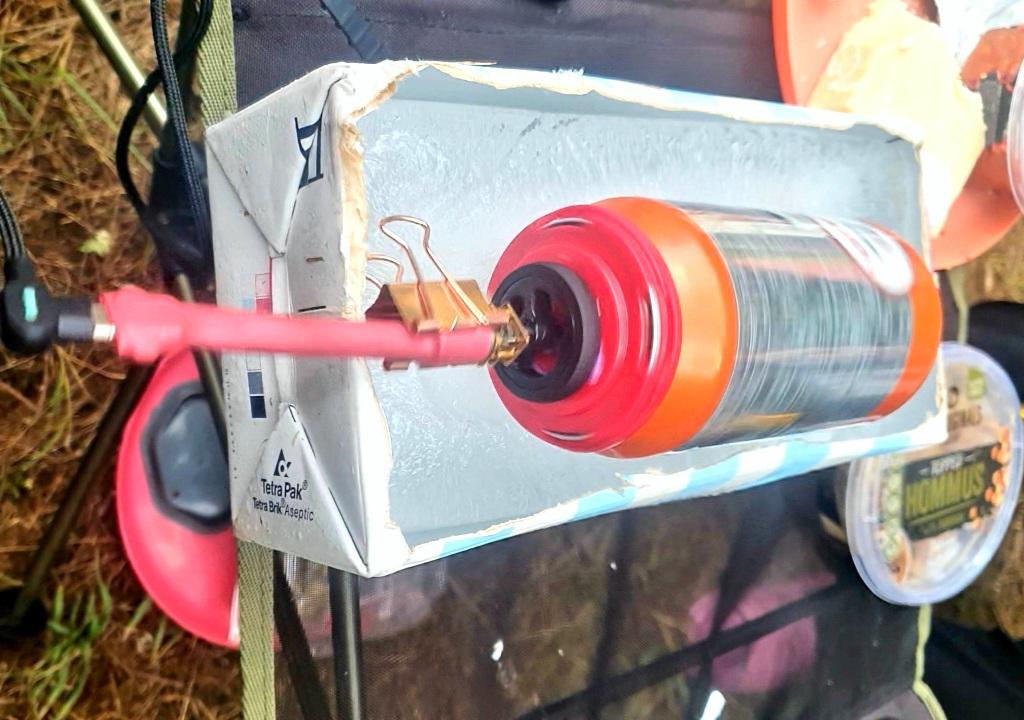

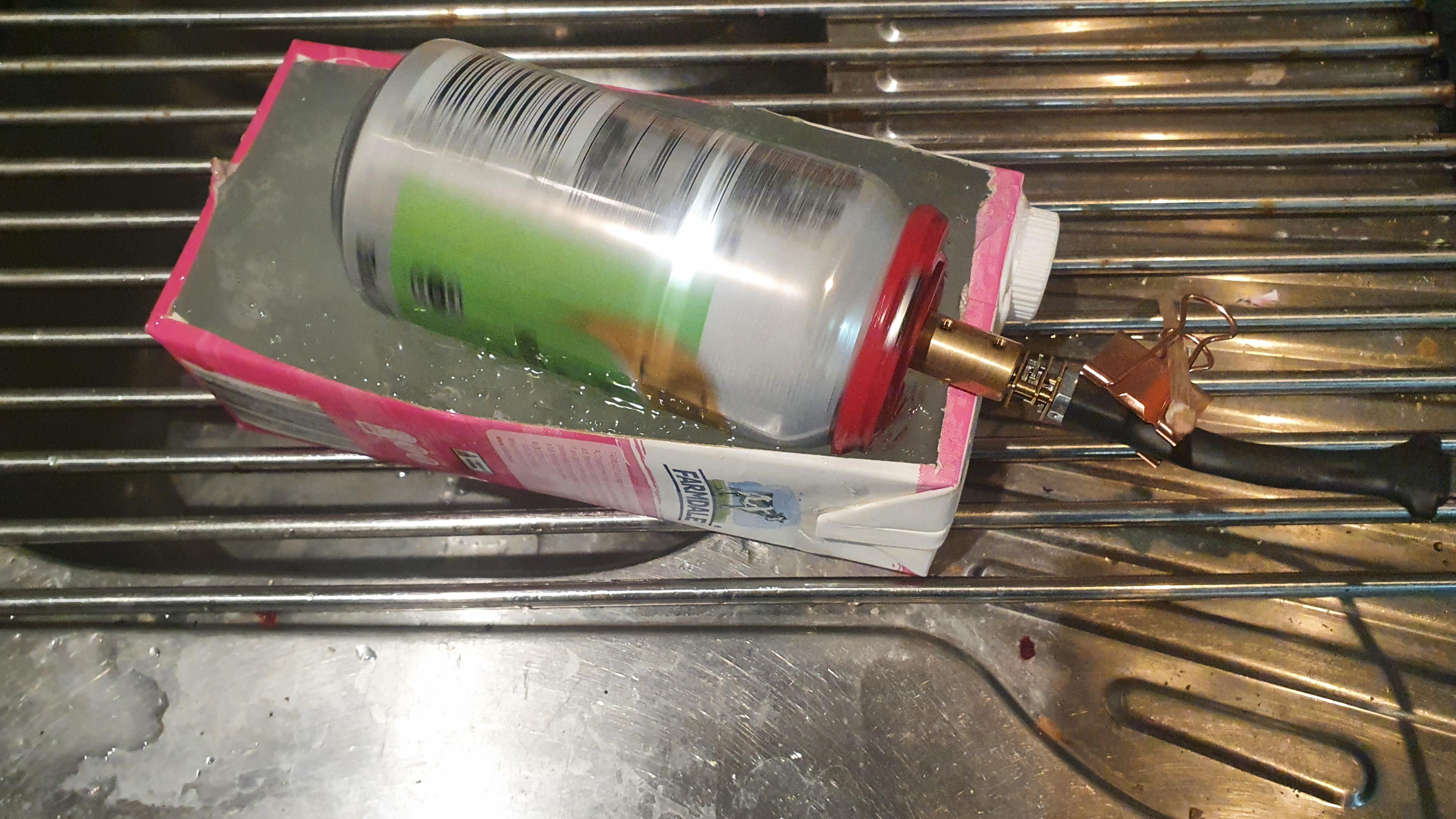

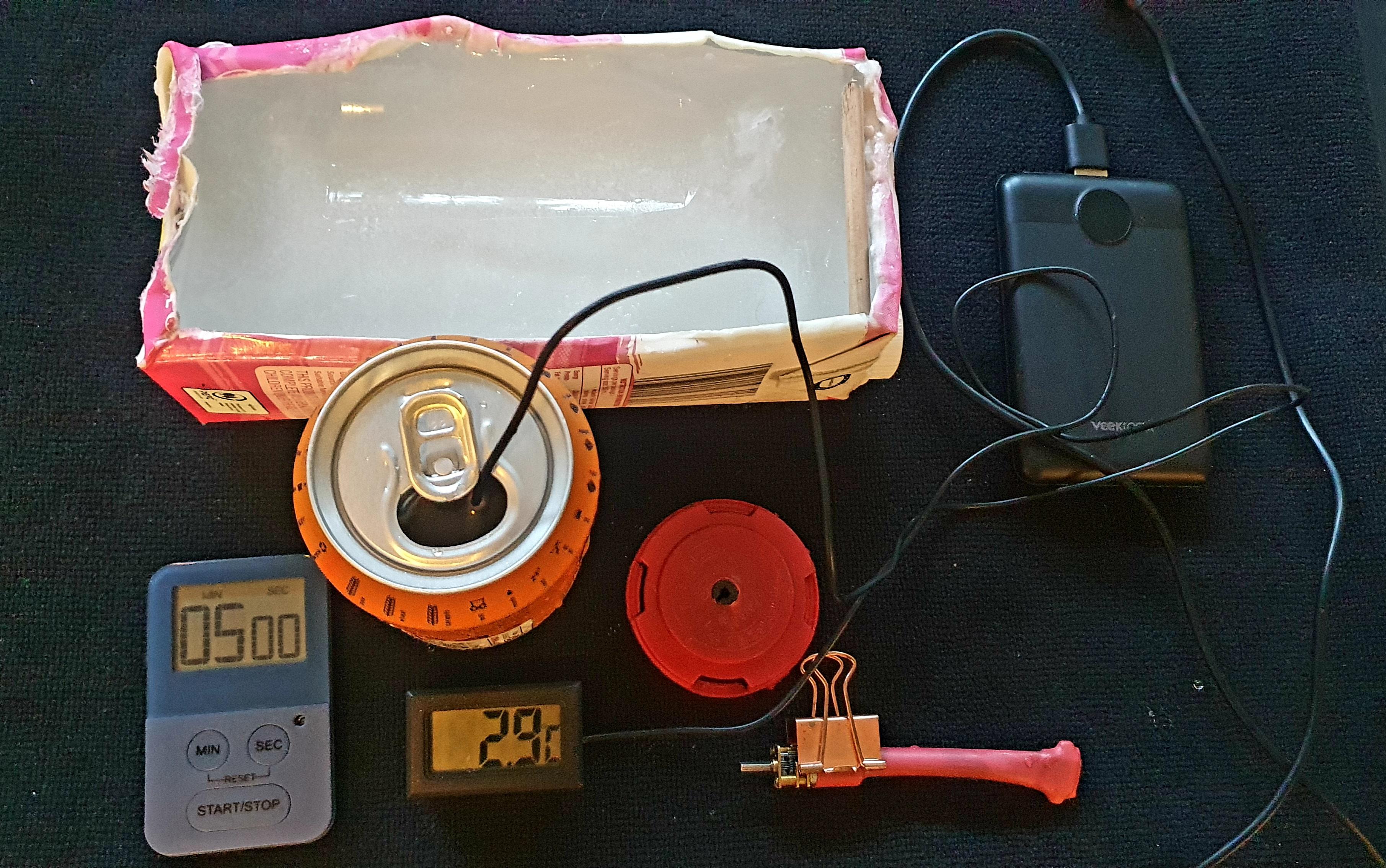

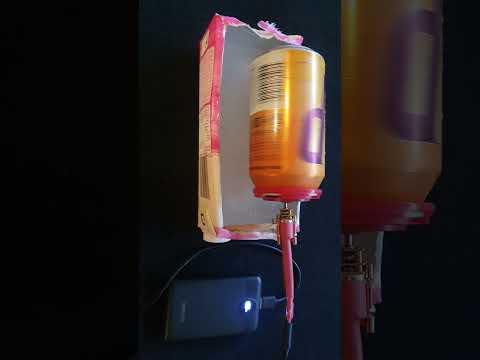

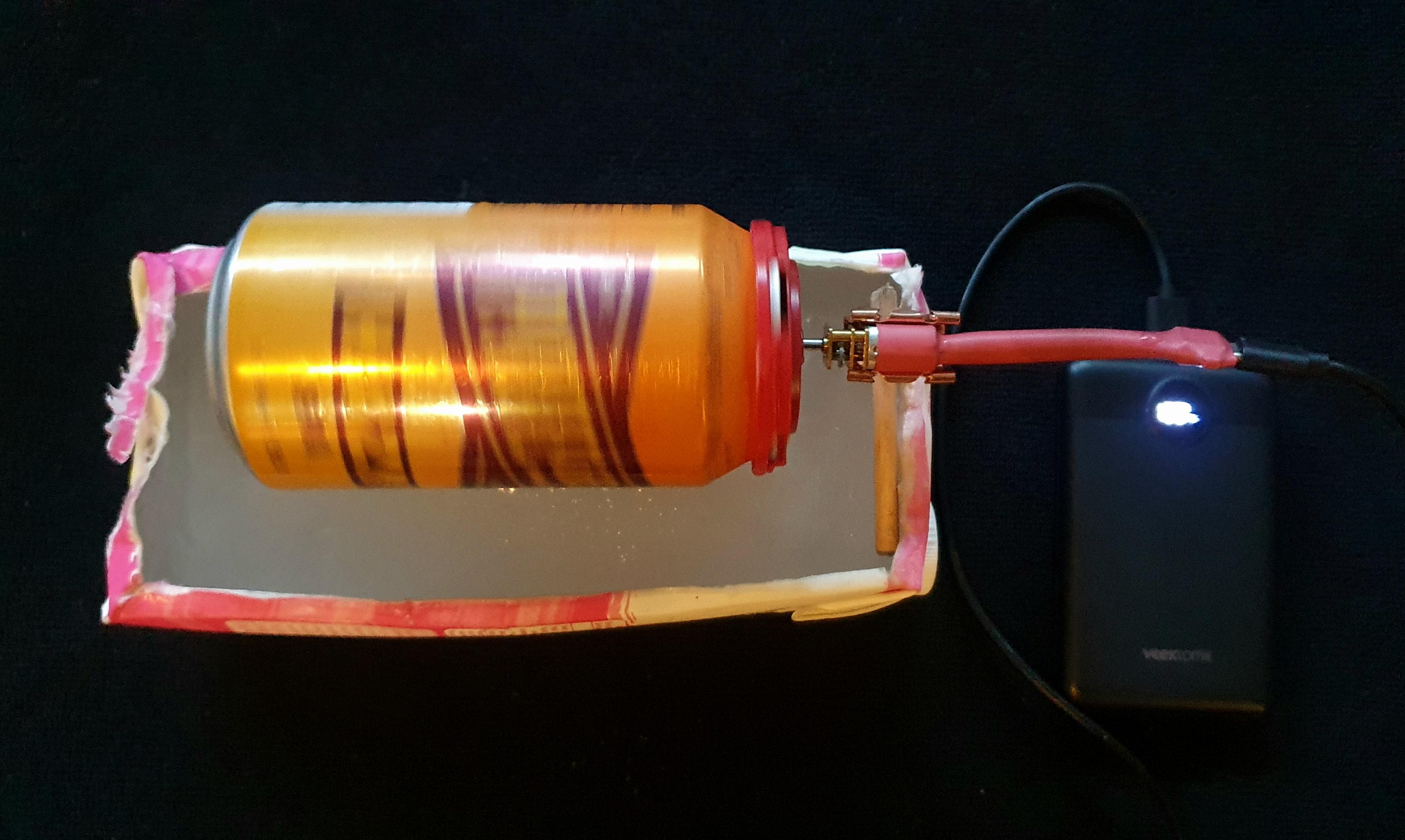

To use: Just clip in a beer can, attach the connector to the motor and lay the can on a 1 liter block of ice and connect to a 5 volt power bank.
I make the ice by filling an empty milk carton with water and then freezing it. Once frozen, the top side is removed with a knife making it ready for use.
To stop the kick back from the spinning motor, a bulldog clip can be clipped on to it.
The mini spinner was successfully used on a recent camping trip. It cooled all 4 beers to less than 5 degrees c and could have cooled more.
Turbo Charging the Cooling
![20230513_084310[1].jpg](/proxy/?url=https://content.instructables.com/F1Z/PUCK/LHXFJ2QL/F1ZPUCKLHXFJ2QL.jpg&filename=20230513_084310[1].jpg)
![20230515_201132[1].jpg](/proxy/?url=https://content.instructables.com/FA2/H3V5/LHXFJ2O8/FA2H3V5LHXFJ2O8.jpg&filename=20230515_201132[1].jpg)
![20230515_201426[1].jpg](/proxy/?url=https://content.instructables.com/FCZ/YMF1/LHXFJ2O9/FCZYMF1LHXFJ2O9.jpg&filename=20230515_201426[1].jpg)
![20230516_183832[1].jpg](/proxy/?url=https://content.instructables.com/FOA/IYDD/LHXFJ2OA/FOAIYDDLHXFJ2OA.jpg&filename=20230516_183832[1].jpg)
![20230517_144450[1].jpg](/proxy/?url=https://content.instructables.com/FUL/9VYS/LHXFJ2OB/FUL9VYSLHXFJ2OB.jpg&filename=20230517_144450[1].jpg)
Add 160 grams of salt to the carton before adding the water and freezing it. This will give you semi frozen ice which will cool a can of beer super quickly:

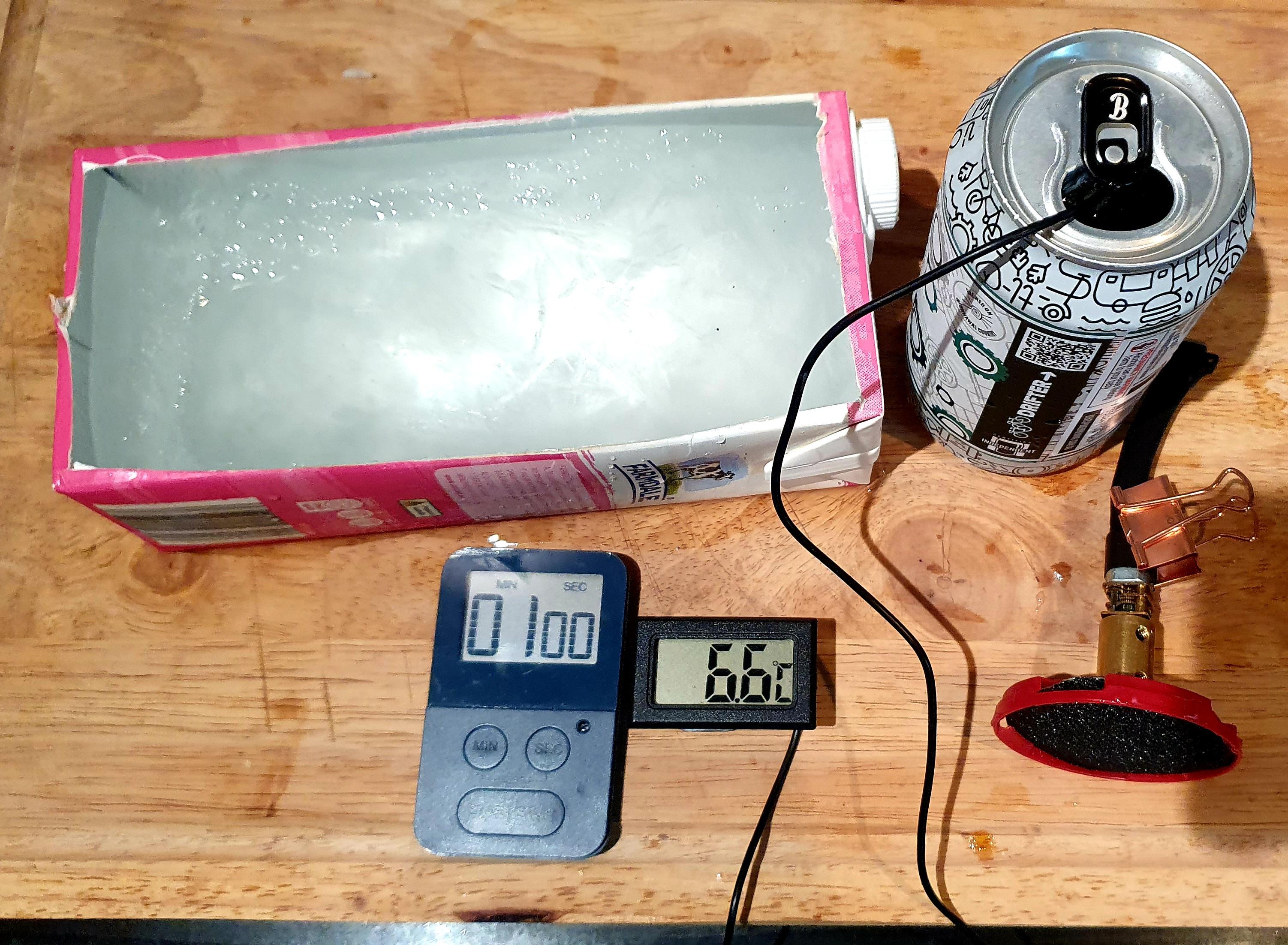

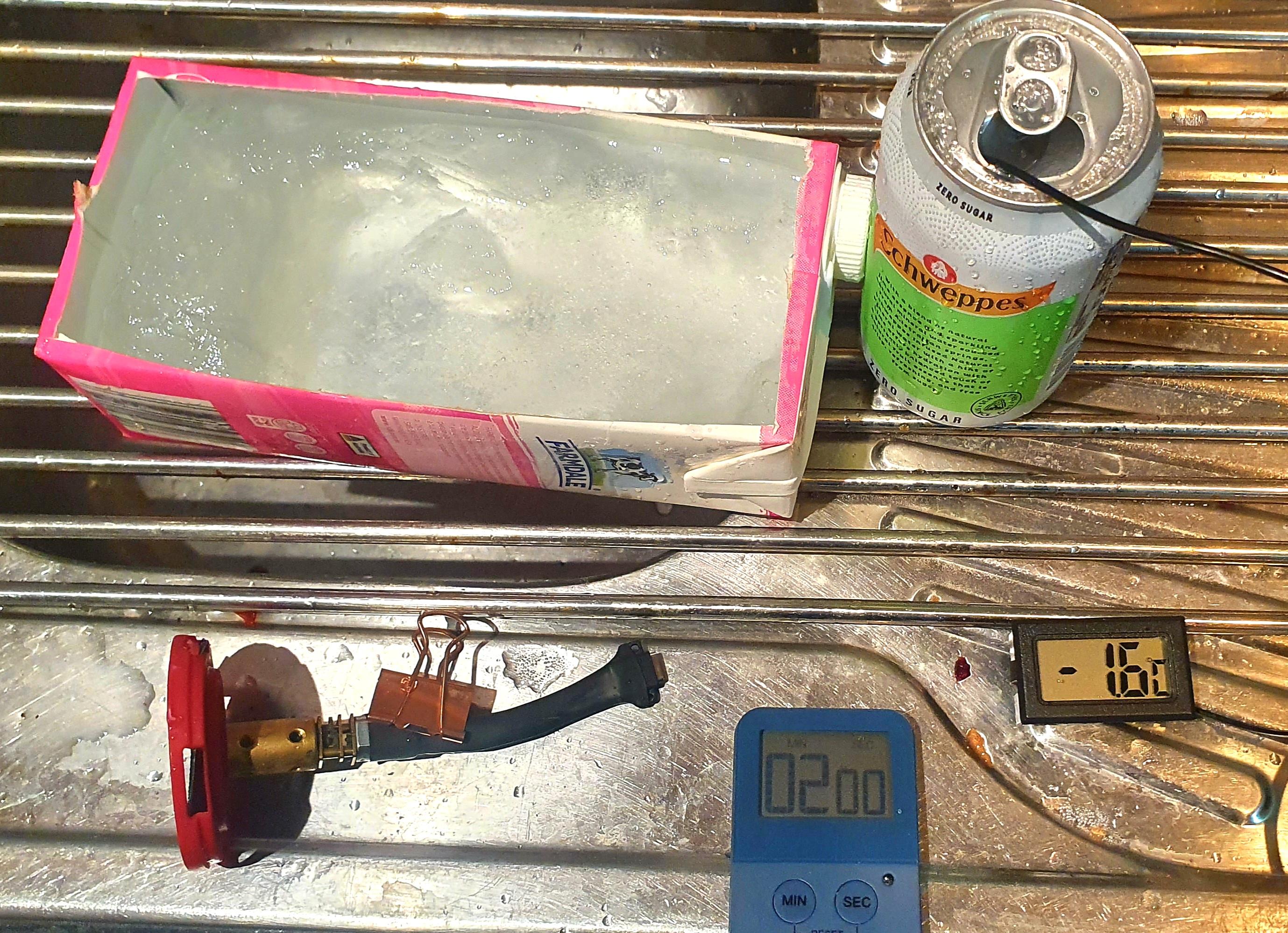

- After 2 mins of spinning: -1.6c
- After 1 mins of spinning: 6.6c

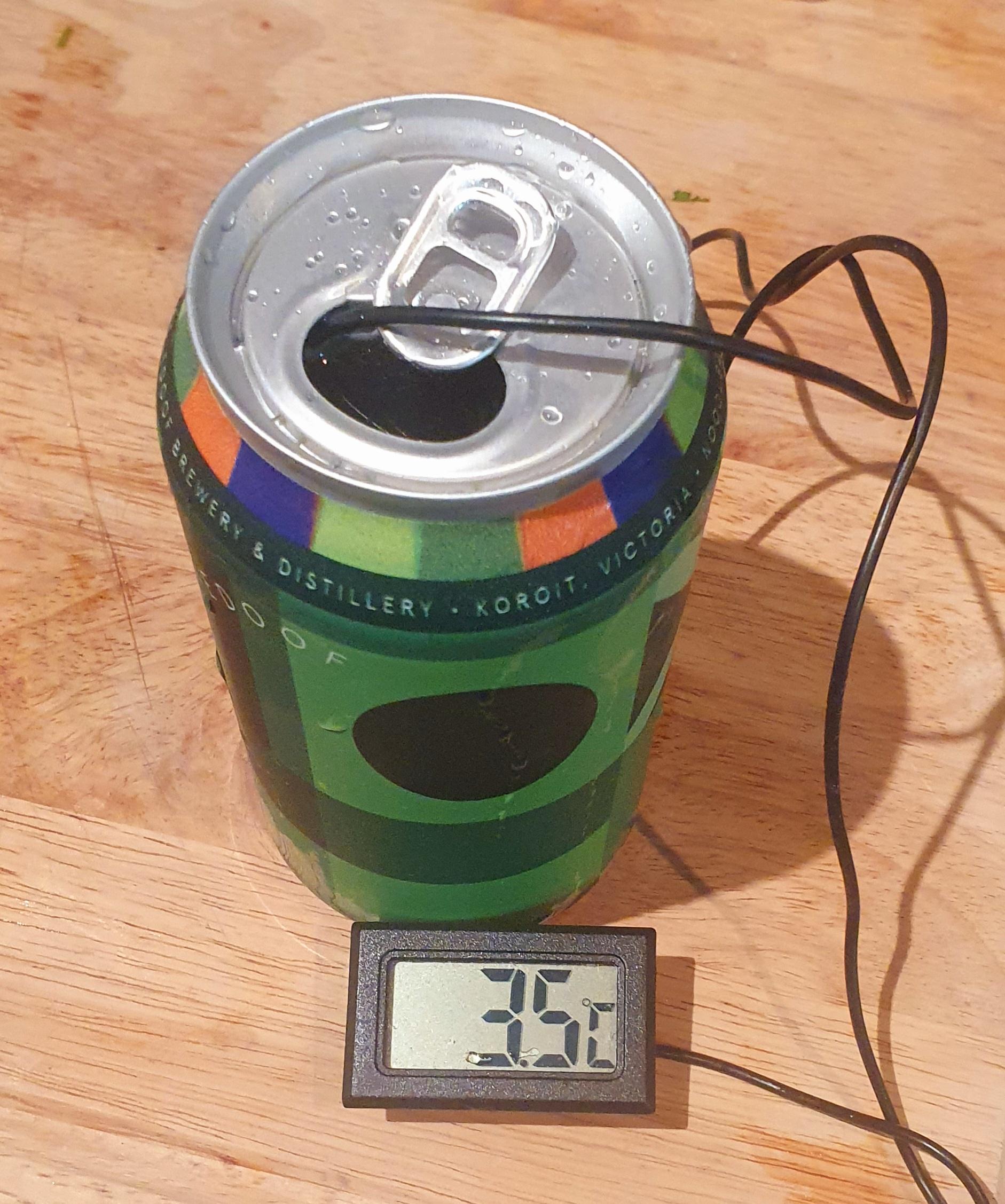

- Ideal time of 1min.30sec: 3.5c
The only downside is the salt infused ice is a bit messy and not the best for electric motors.
