NARROW GAP WELDING

Advanced Narrow Gap Welding Technology for Thick Materials

Narrow Gap Welding (NGW) is a specialized welding technique designed to efficiently join thick materials—typically those over 50 mm in thickness—by utilizing a reduced groove width. This approach minimizes the amount of filler material required and reduces welding time, making it both cost-effective and suitable for high-precision applications.

Narrow Gap Welding involves preparing a joint with a narrow groove, often as small as 3 degrees in bevel angle, compared to the standard 37.5 degrees. This design allows for deeper penetration with fewer passes, resulting in reduced filler metal consumption and shorter welding times. The technique is particularly advantageous for welding thick materials, such as pressure vessels, nuclear power plant components, and heavy structural elements.

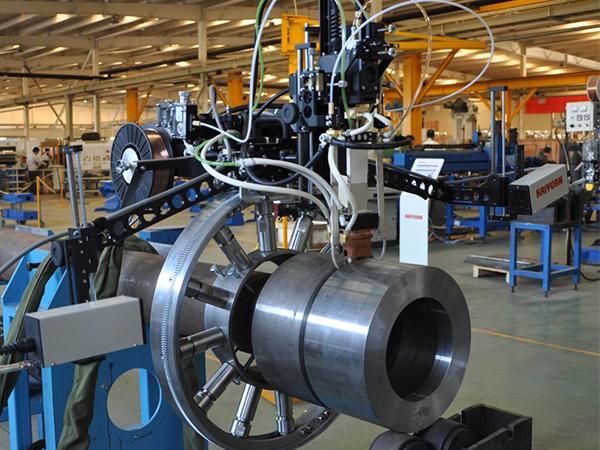

NARROW GAP TIG MACHINE FOR PRECISION FABRICATION

Narrow Gap TIG Welding (also known as Narrow Gap GTAW – Gas Tungsten Arc Welding) is a precision welding technique designed for joining thick materials with minimal groove width. Unlike conventional TIG welding, which uses a wider groove, narrow gap TIG welding employs a carefully prepared V-shaped or near-parallel groove with a small root opening. This enables deeper penetration, fewer passes, and precise control over heat input, making it ideal for critical applications where weld quality and material integrity are paramount.

This technique is particularly beneficial for materials that require minimal distortion and high structural reliability. By controlling heat input and limiting the groove size, narrow gap TIG welding minimizes residual stresses and preserves the mechanical properties of the base metal. The process produces clean, defect-free welds with superior root fusion, making it suitable for high-specification projects requiring precision welding, low heat input welding, and advanced welding automation.

Kaiyuan’s Narrow Gap TIG Welding solutions are designed to deliver consistent performance, improved productivity, and reliable weld quality for heavy fabrication industries. These automated systems support applications where accuracy and repeatability are essential. Explore our Welding Automation Solutions for advanced industrial welding equipment and customized automation systems.

Advanced Narrow Gap Welding Technology for Thick Materials

Narrow Gap Welding (NGW) is a specialized welding technique designed to efficiently join thick materials—typically those over 50 mm in thickness—by utilizing a reduced groove width. This approach minimizes the amount of filler material required and reduces welding time, making it both cost-effective and suitable for high-precision applications.

Narrow Gap Welding involves preparing a joint with a narrow groove, often as small as 3 degrees in bevel angle, compared to the standard 37.5 degrees. This design allows for deeper penetration with fewer passes, resulting in reduced filler metal consumption and shorter welding times. The technique is particularly advantageous for welding thick materials, such as pressure vessels, nuclear power plant components, and heavy structural elements.
