Pen Drive Data Sharing Device

Using this device we can access the data from a pendrive from many computers

1) 2 or more USB male port

2) USB female port

3) breadboard/PCB

4) led(optional)

5) soldering iron(optional)

6) soldering wire(optional)

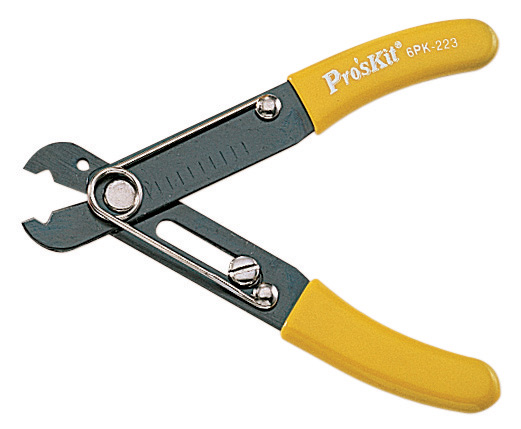

7) wire stripper

8) pendrive

When you open the wire of an USB cable there are 4 wires(red, black, green, white)

If there are five then ignore the fifth wire.

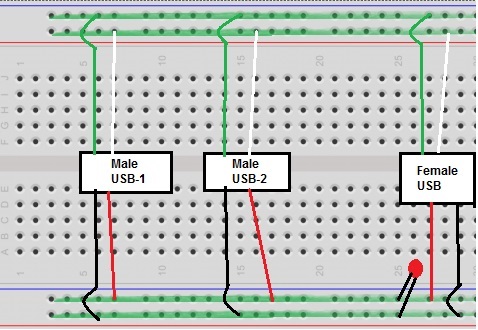

The color code of the wires is shown in the picture.

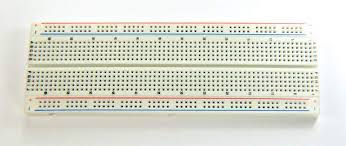

I have used a breadboard for this device. You can also use an PCB.

the main thing is that the wires of same color should be connected together.

The led is used to only make sure that the pendrive has got power.

Caution: Do not connect any of the wires in series.

The male USB port will go in the computer.

The female USB port will have the pendrive.
