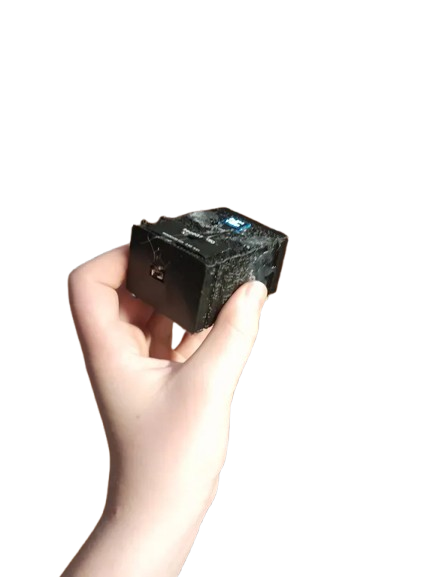

3D Printed Pocket Tilt-O-Meter 3000: Tiny ESP32C3 Tilt and Range Gadget

This project is a compact tool that combines two sensors, a digital level and ruler, designed to be easily recreatable and useful to the general public.

At its heart is a Seeed Studio XIAO ESP32-C3 microcontroller. It reads distance from an HC-SR04T ultrasonic sensor and tilt from an MPU6050 accelerometer/gyroscope. The measurements are shown in real time on a 64×32 SSD1306 I2C OLED display and on a WiFi page.

You can use it to:

Check if shelves, frames, or furniture are level
Measure distances like a digital ruler without a tape
Align projects in the workshop with both angle and distance feedback

Because the XIAO ESP32-C3 is small and low power, the whole device can be made very compact and portable. In this Instructable, I will show how to wire the parts, program the microcontroller, and use the screen to display distance and tilt clearly so you can use it as a handy level-and-ruler tool in your shop or on the go.

This project utilizes two very unique sensors and Autodesk Tinkercad for 3D Design.

(3/28 - I also utilized Autodesk Fusion for the awesome shots of the assembled 3D Model.)

Supplies

Seeed Studio XIAO ESP32-C3 microcontroller
HC-SR04T ultrasonic distance sensor
MPU6050 accelerometer and gyroscope module

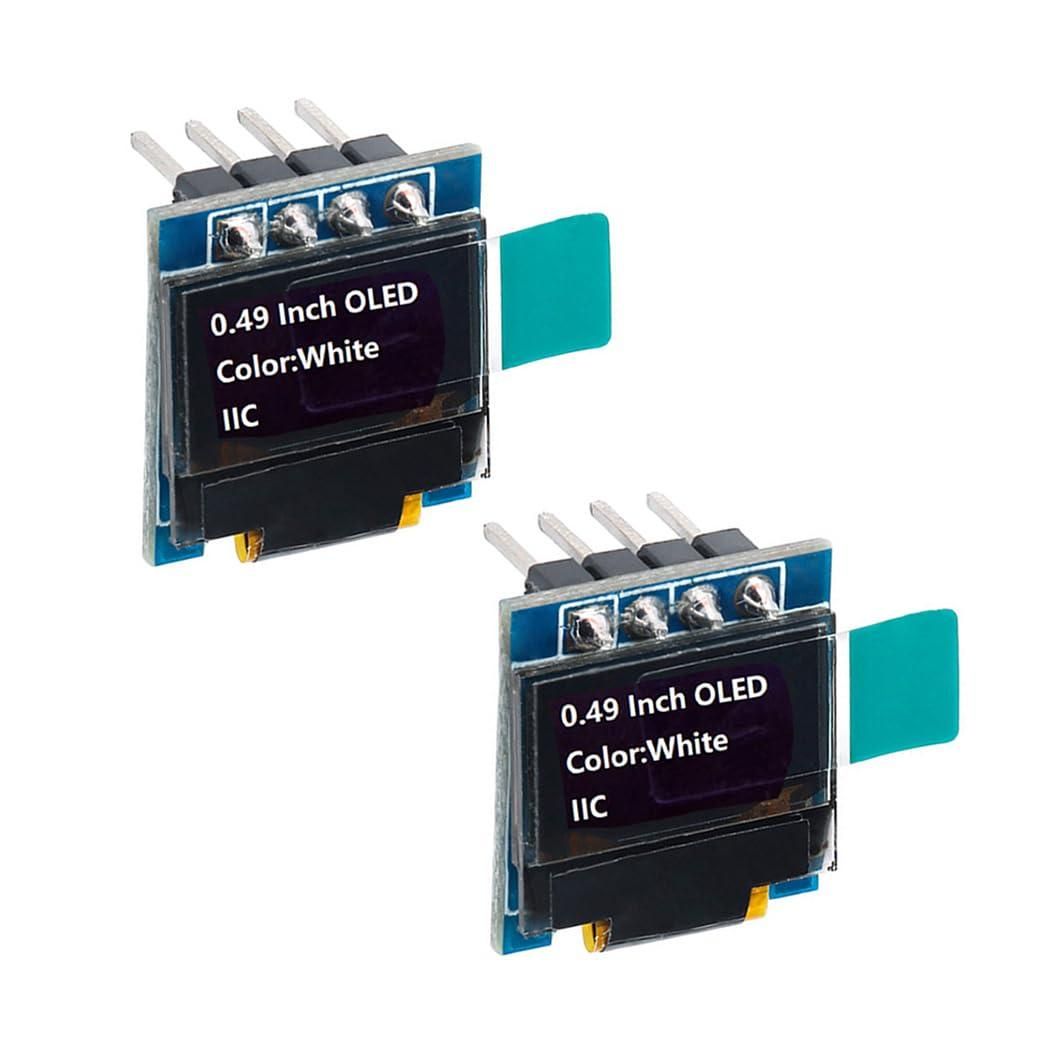

64×32 SSD1306 I2C OLED display
Soldering iron
Hot glue gun
USB-C cable for programming the XIAO ESP32-C3
Small 3.7v LiPo battery
Arduino IDE

Wiring

Power

VCC of all boards to ESP32 3v3 pin
GND of all boards to the ESP32 GND pin
LiPo + to BAT+ on ESP32 back
LiPo - to BAT- on ESP32 back

Signal

All SDA to D4
All SCL to D5

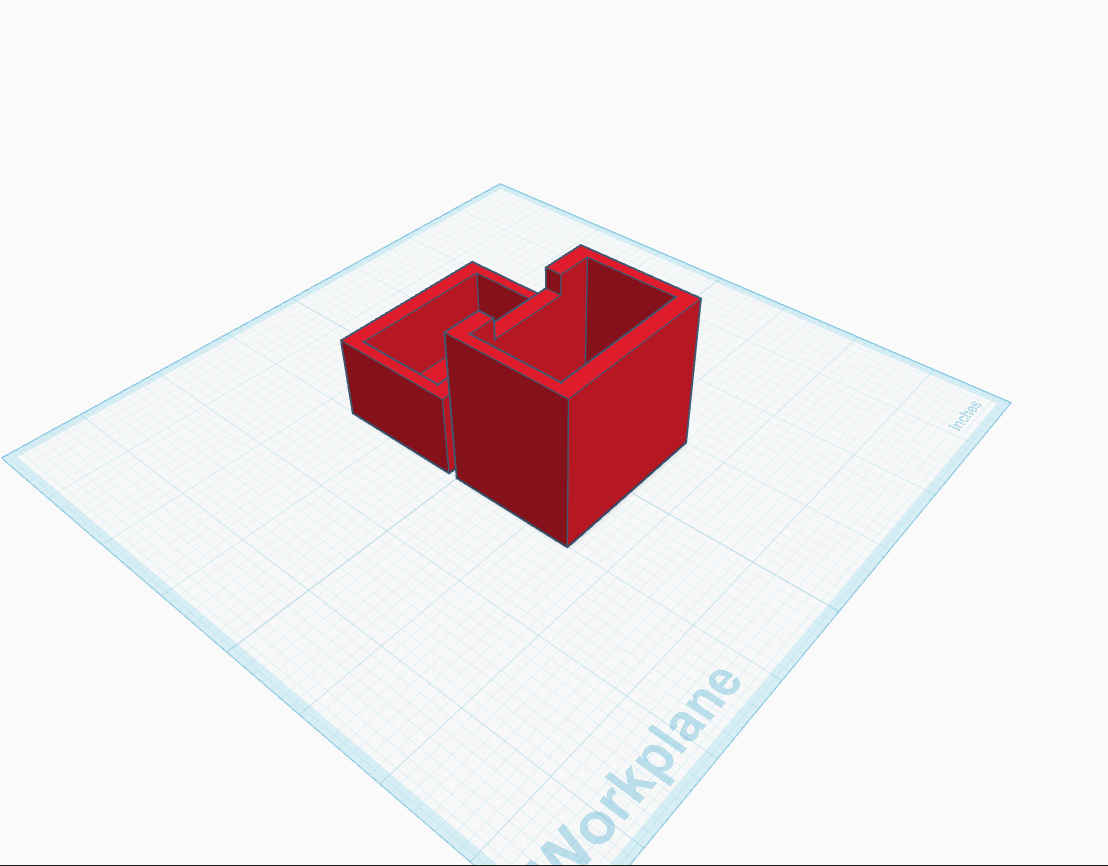

3D Printing From Autodesk Tinkercad

Download Tilt-O-Meter 3000.stl

(This was created with Autodesk TinkerCad, my favorite 3D modeling software, even though it is simple.)

Print it (I used Ender 3 V2)

Downloads

FMSGC76MMF88S4J.stl

Hot Glue, Everyone's Favorite Part

In the shorter end of the 3D printed parts, insert the HC-SR04T with the white plastic connector sticking out the hole on the end and glue it in.

Insert the power switch in the other hole on the other part.

On the short side of the parts on the outside, glue the screen.

On the longer part, glue the ESP32 in the small divot in the edge so the port sticks out.

Glue the MPU6050 to the inside of the opposite side on which you placed the LCD screen.

Plug the HC-SR04 cable/sensor into the white connector.

Coding in Arduino IDE

Get Arduino IDE and open a new sketch.

Paste this:

#include <WiFi.h>

#include <AsyncTCP.h>

#include <ESPAsyncWebServer.h>

#include <Wire.h>

#include <Adafruit_GFX.h>

#include <Adafruit_SSD1306.h>

#include <MPU6050.h>

const char* ssid = "Tilt-O-Meter 3000";

AsyncWebServer server(80);

AsyncWebSocket ws("/ws");

#define SCREEN_WIDTH 64

#define SCREEN_HEIGHT 32

Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, -1);

MPU6050 mpu;

float readings[3] = {0, 0, 0};

int readIndex = 0;

float currentAvgInches = 0;

unsigned long lastUpdate = 0;

float pitch = 0, roll = 0;

// --- SPIRIT LEVEL WEBPAGE (NO INTERNET NEEDED) ---

String getHTML() {

String ptr = "<!DOCTYPE html><html><head><title>Tilt-O-Meter 3000</title>";

ptr += "<meta name='viewport' content='width=device-width, initial-scale=1'>";

ptr += "<style>body{margin:0;background:#080808;color:#fff;font-family:sans-serif;text-align:center;}";

ptr += ".val{color:#00ffcc;font-size:3.5em;font-family:monospace;text-shadow:0 0 10px #00ffcc;}";

ptr += "#level{width:180px;height:180px;border:3px solid #444;border-radius:50%;margin:30px auto;position:relative;background:radial-gradient(#111,#000);}";

ptr += "#bubble{width:35px;height:35px;background:#00ffcc;border-radius:50%;position:absolute;top:72px;left:72px;box-shadow:0 0 20px #00ffcc;transition:0.05s;}";

ptr += ".target{width:40px;height:40px;border:1px solid #00ffcc;border-radius:50%;position:absolute;top:70px;left:70px;opacity:0.3;}</style></head>";

ptr += "<body><div style='margin-top:20px;letter-spacing:2px;font-size:0.8em;color:#888'>DISTANCE</div><div id='dist' class='val'>0.0</div><div style='font-size:0.7em;color:#888'>INCHES</div>";

ptr += "<div id='level'><div class='target'></div><div id='bubble'></div></div>";

ptr += "<div style='font-size:0.9em;color:#555'>XIAO ESP32-S3 LIVE</div>";

ptr += "<script>var websocket=new WebSocket('ws://'+window.location.hostname+'/ws');";

ptr += "websocket.onmessage=function(event){var data=JSON.parse(event.data);";

ptr += "document.getElementById('dist').innerHTML=data.d.toFixed(1);";

ptr += "var b=document.getElementById('bubble');";

ptr += "var x=72+(data.r*2.5); var y=72+(data.p*2.5);";

ptr += "b.style.left=Math.max(0,Math.min(145,x))+'px';";

ptr += "b.style.top=Math.max(0,Math.min(145,y))+'px';";

ptr += "if(Math.abs(data.p)<0.5 && Math.abs(data.r)<0.5) b.style.background='#00ff00'; else b.style.background='#00ffcc';};</script></body></html>";

return ptr;

}

void setup() {

Wire.begin(D4, D5, 100000);

display.begin(SSD1306_SWITCHCAPVCC, 0x3C);

display.clearDisplay();

mpu.initialize();

WiFi.softAP(ssid);

server.addHandler(&ws);

server.on("/", HTTP_GET, [](AsyncWebServerRequest *r){ r->send(200, "text/html", getHTML()); });

server.begin();

}

void loop() {

unsigned long now = millis();

ws.cleanupClients();

if (now - lastUpdate >= 100) {

lastUpdate = now;

Wire.beginTransmission(0x57);

Wire.write(0x01);

Wire.endTransmission();

delayMicroseconds(500);

Wire.requestFrom(0x57, 3);

if (Wire.available() >= 3) {

uint32_t val = ((uint32_t)Wire.read() << 16) | ((uint32_t)Wire.read() << 8) | Wire.read();

float newInch = (val / 1000.0) / 25.4;

if(newInch > 0.1) {

readings[readIndex] = newInch;

readIndex = (readIndex + 1) % 3;

currentAvgInches = (readings[0] + readings[1] + readings[2]) / 3.0;

}

int16_t ax, ay, az;

mpu.getAcceleration(&ax, &ay, &az);

pitch = atan2((float)ay, (float)az) * 180 / M_PI;

roll = atan2(-(float)ax, sqrt((float)ay * ay + (float)az * az)) * 180 / M_PI;

String json = "{\"d\":" + String(currentAvgInches, 1) + ",\"p\":" + String(pitch, 1) + ",\"r\":" + String(roll, 1) + "}";

ws.textAll(json);

display.clearDisplay();

display.setCursor(0,0);

display.setTextSize(1);

display.setTextColor(SSD1306_WHITE);

display.printf("In: %.1f\n", currentAvgInches);

display.println(abs(pitch) < 0.8 ? "LEVEL" : (pitch > 0 ? "TILT FWD" : "TILT BACK"));

display.printf("%s", abs(roll) < 0.8 ? "LEVEL" : (roll > 0 ? "TILT LEFT" : "TILT RIGHT"));

display.display();

}

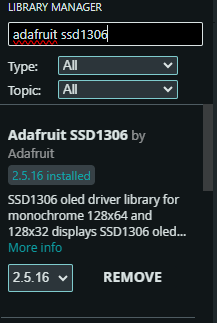

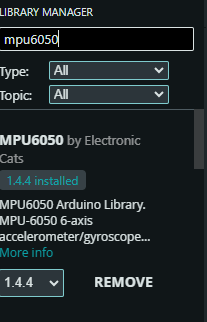

For both of these libraries, click on Library Manager, search for it, and install. Supporting images are in the step.

MPU6050 by Electronic Cats
Adafruit SSD1306 by Adafruit

Go to Preferences -> Additional Board URL's and paste this: https://espressif.github.io/arduino-esp32/package_esp32_index.json

Go to Board Manager, search ESP32, and click install.

Plug in your ESP32.

Select XIAO ESP32-C3 where it says Select Your Board

Select Upload!

Your screen should show the distance and how you need to tilt it.

WiFi Interface

Connect the antenna to the connector between the boot and reset buttons.

Look for a network called Tilt-O-Meter 3000. It should be an open network.

Connect to it, and go to 192.168.4.1 in a web browser.

The web interface should appear with the distance and a moving representation of the tilt!

Customization and Usage

Using It as a Level

Place the device on a shelf, frame, or piece of wood.
Watch the OLED:
When both pitch and roll say LEVEL, the surface is flat enough for most projects.
If it shows TILT FWD/BACK/LEFT/RIGHT, adjust the object until the text changes to LEVEL.
You can also use just the web interface and watch the “bubble” move into the center circle.

Using It as a Digital Ruler

Point the ultrasonic sensor at the target you want to measure (wall, cabinet, etc.).
Hold the enclosure so the sensor is roughly perpendicular to the target.
Read the distance in inches on either:
The OLED display, or
The WiFi page (the big distance readout).
This is handy for:
Quick room measurements
Checking clearances on the workbench
Measuring how far a drawer extends

Get out there and get measuring!!!

-James F
