Project NANO Ball Machine

This is the second ball machine on this site. This is an even smaller machine than DEUX and hopefully more of you will build it. This machine has only ONE path and is easier still to build, though it still uses a lot of pieces. This also has a somewhat requested component, the Red Ball Drop.



So without further Pause, I present NANO!

Friendly and Critical comments are welcome, Spam will be deleted. unless it's religious war spam!

Pieces:
Gray Rods: 0
Red Rods:17
Yellow Rods: 98
Blue Rods: 152
White Rods: 81
Green Rods: 61
Blue 3D Rods: 56
Purple 3D Rods: 64
White 8-Slot Connectors: 43
Yellow 5-Slot Connectors: 30
Orange Tabbed 5-Slot Connectors: 0
Green 4-Slot Connectors: 1
Red 3-Slot Connectors: 58
Orange 2-Slot Connectors: 19
Gray 2-Slot Connectors: 6
Gray 1-Slot Connectors: 8
Tan/Brown/Orange Tabbed Connectors: 2
Wheels: 0
Motors: 1
Balls: 1 (or more)
Gears: 4 Red
Chain Links: 50
Total: 707 Pieces

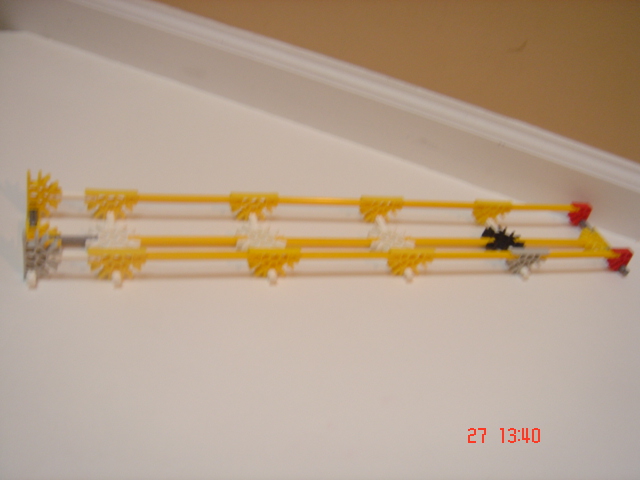

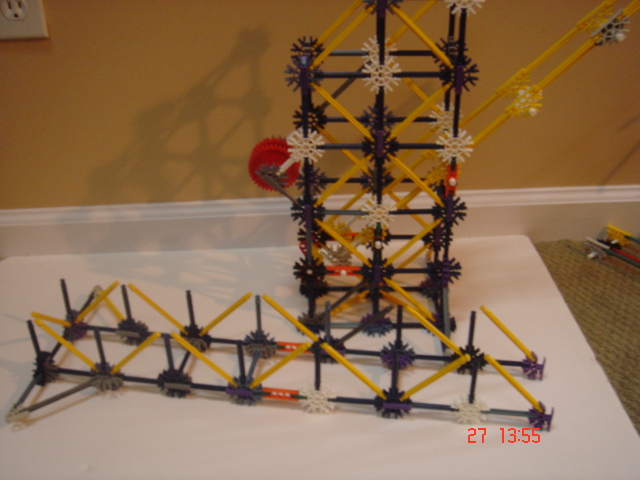

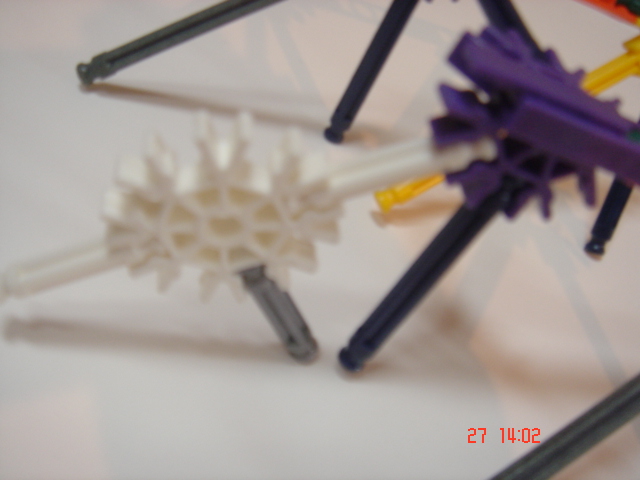

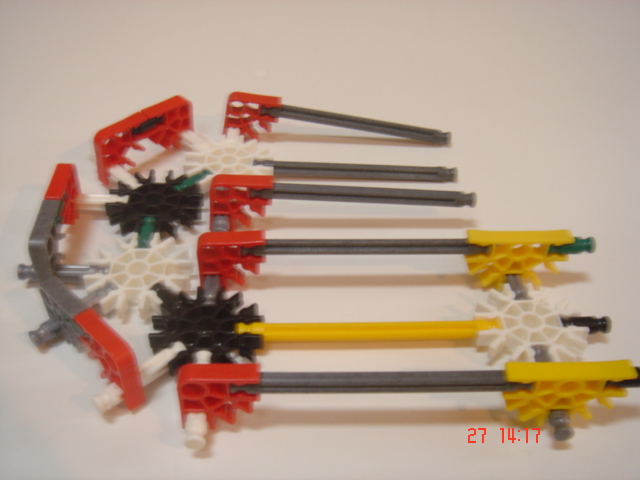

This is the medium upon which balls will travel upwards, propelled by the Claw Components.

Pieces:
Yellow Rods: 12
White Rods: 15
White 8-Slot Connectors: 4
Yellow 5-Slot Connectors: 12
Red 3-Slot Connectors: 2
Total: 45 Pieces

Set this part aside, you will need it in the following steps.

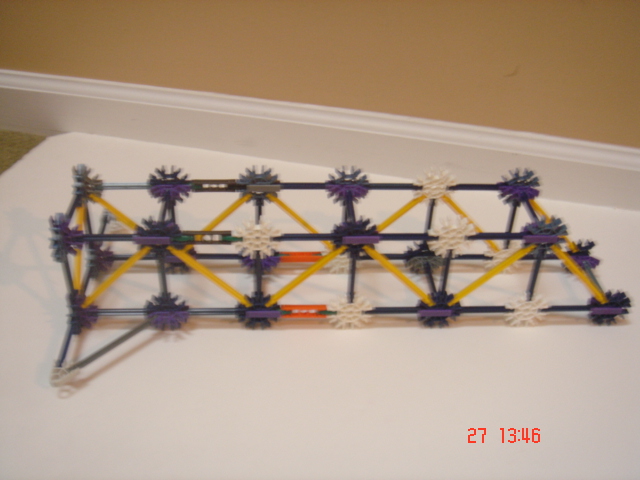

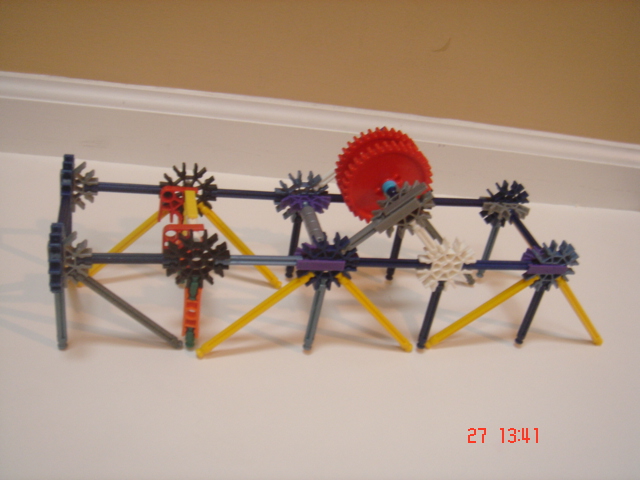

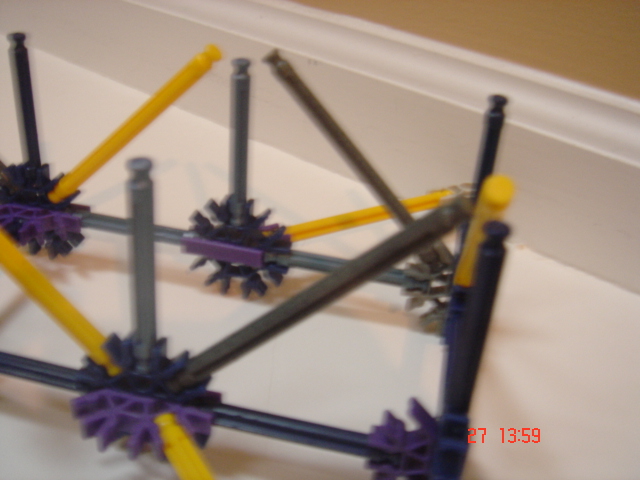

This is the front part of the frame.

Pieces:
Yellow Rods: 11
Blue Rods: 20
White Rods: 6
Green Rods: 4
Blue 3D Connectors: 6
Purple 3D Connectors: 10
White 8-Slot Connectors: 4
Yellow 5-Slot Connectors: 1
Red 3-Slot Connectors 2
Blue Bearings:4
Silver Bearings: 4
Gears: 2 Red
Total: 74 Pieces

Build this, then add on the Rising Path.

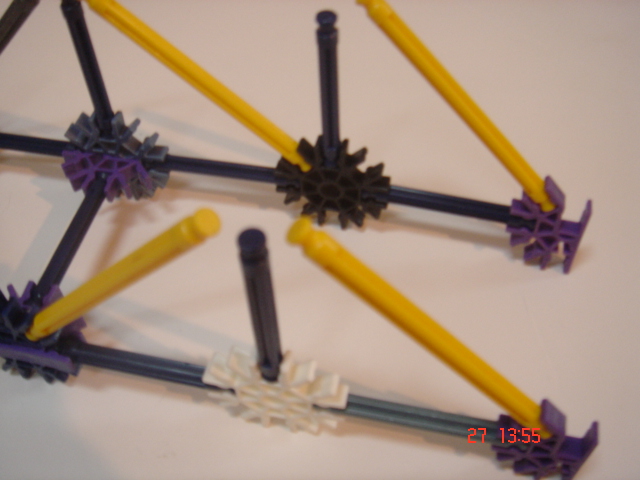

This is the second layer of the Frame

Pieces:
Yellow Rods: 15
Blue Rods: 40
Green Rods: 8
Blue 3D Connectors: 19
Purple 3D Connectors: 19
White 8-Slot Connectors: 7
Orange 2-Slot Connectors: 4
Gray 2-Slot Connectors: 2
Total: 114

Build this, then attach it to Steps 1&2.

This is the third part of the frame.

Pieces:
Yellow Rods: 17
Blue Rods: 32
Green Rods: 4
Blue 3D Connectors: 11
Purple 3D Connectors: 13
White 8-Slot Connectors: 3
Orange 2-Slot Connectors: 2
Gray 2-Slot Connectors: 2
Total: 84

Build this and connect it to Parts 1, 2, & 3.

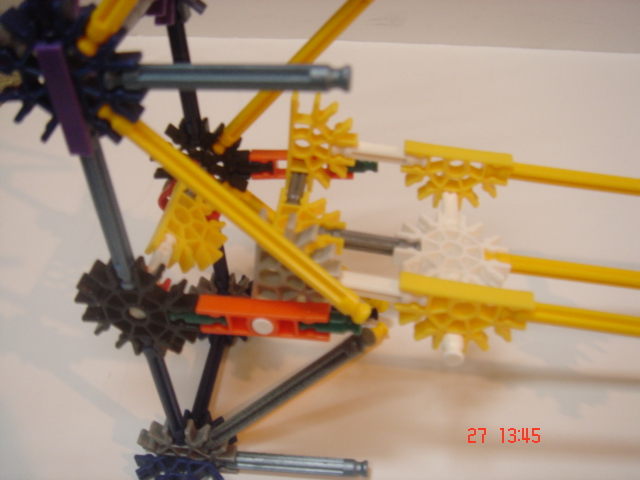

The Fourth large piece of the frame.

Pieces:
Red Rods: 1
Yellow Rods: 17
Blue Rods: 35
Green Rods: 4
Blue 3D Connectors: 13
Purple 3D Connectors: 13
White 8-Slot Connectors: 3
Red 3-Slot Connectors 1
Orange 2-Slot Connectors: 2
Gray 2-Slot Connectors: 2
Tan/Brown/Orange Tabbed Connectors: 1
Blue Bearings: 2
Silver Bearings: 1
Gears: 2 Red
Total: 97 Pieces

Build this, than attach it to the previous Steps.

This part extends the Frame by a small amount.

Pieces:
Yellow Rods: 3
Blue Rods: 5
White Rods: 3
Green Rods: 4
Blue 3D Connectors: 1
Purple 3D Connectors: 3
White 8-Slot Connectors: 1
Yellow 5-Slot Connectors: 2
Orange 2-Slot Connectors: 2
Total: 24 Pieces

Build it and connect it to the Frame.

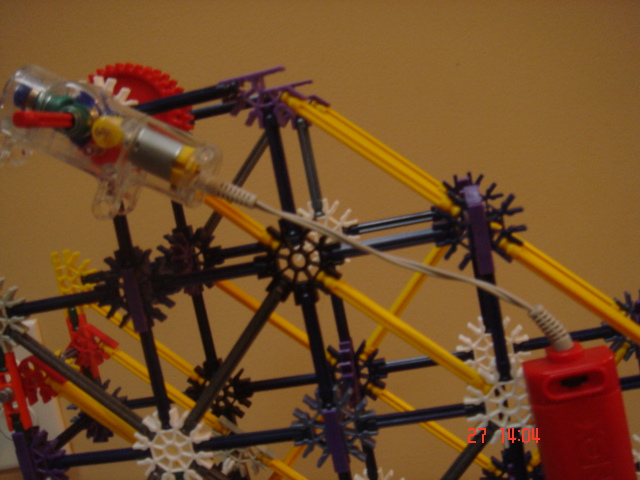

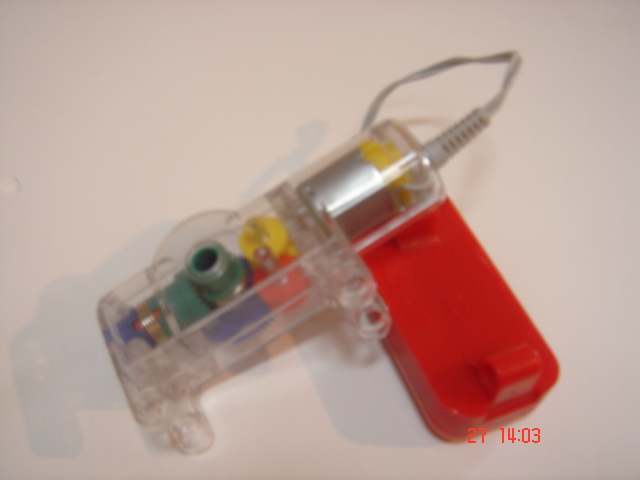

Simply attach the motor.

Pieces:
Motors: 1
Total: 1 Piece

A part that supports the Approach Path

Pieces:
Red Rods: 1
Yellow Rods: 1
Green Rods: 1
Green 4-Slot Connectors: 1
Red 3-Slot Connectors: 2
Total: 6 Pieces

This path approaches The Red Ball Drop.

Pieces:
Red Rods: 3
Blue Rods: 3
White Rods: 14
Green Rods: 6
White 8-Slot Connectors: 4
Yellow 5-Slot Connectors: 4
Red 3-Slot Connectors: 12
Total: 46 Pieces

Build and attach to designated spots.

This part supports the Red Ball Drop.

Pieces:
Red Rods: 2
Yellow Rods: 2
Yellow 5-Slot Connectors: 2
Red 3-Slot Connectors: 2
Total: 8 Pieces

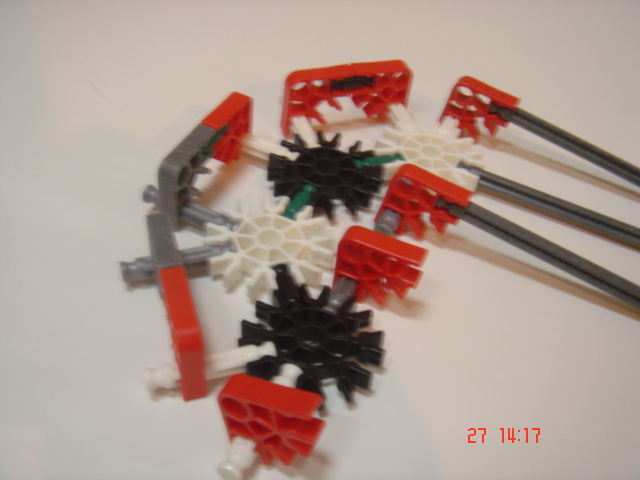

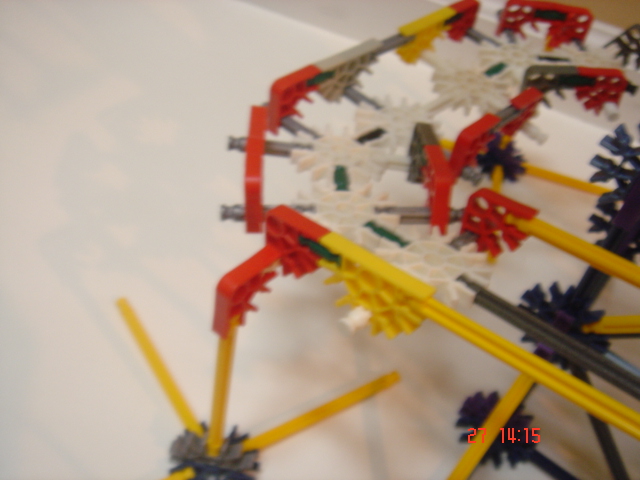

Here is the Red Ball Drop, A segment that makes the ball descend, while keeping it perpendicular to the ground.

Pieces:
Red Rods: 4
Blue Rods: 7
White Rods: 1
Green Rods: 4
Blue 3D Connectors: 2
Purple 3D Connectors: 2
Red 3-Slot Connectors: 6
Orange 2-Slot Connectors: 4
Gray 1-Slot Connectors: 6
Blue Bearings: 8
Silver Bearings: 4
Total: 48 Pieces

This is the first part of a long path at the end of the descent.

Pieces:
Yellow Rods: 3
White Rods: 23
Green Rods: 14
White 8-Slot Connectors: 8
Yellow 5-Slot Connectors: 3
Red 3-Slot Connectors: 17
Total: 68

These two support the first part of the Final Path.

Pieces;
Yellow Rods: 10
Blue 3D Connectors: 2
Purple 3D Connectors: 2
Red 3-Slot Connectors: 2
Total: 16 pieces

This is an elongated part of the Final Path.

Pieces:
Red Rods: 6
White Rods: 6
White 8-Slot Connectors: 3
Yellow 5-Slot Connectors: 5
Red 3-Slot Connectors: 1
Total: 21 Pieces

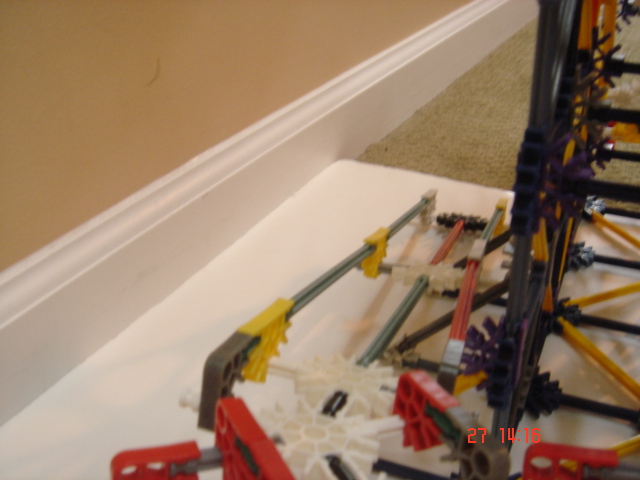

These parts hold up the end of the Final Path.

Pieces:
Yellow Rods: 1
Blue Rods: 9
White Rods: 1
Green Rods: 1
Blue 3D Connectors: 2
Purple 3D Connectors: 2
Red 3-Slot Connectors: 2
Orange 2-Slot Connectors: 1
Total: 19 Pieces

Build these but set them aside for now.

This is the end part of the Final Path.

Pieces::
Yellow Rods: 6
White Rods: 12
Green Rods: 9
White 8-Slot Connectors: 5
Yellow 5-Slot Connectors: 2
Red 3-Slot Connectors: 10
Total: 44 Pieces

Build this, then attach and attach the Auxiliary Supports III&IV

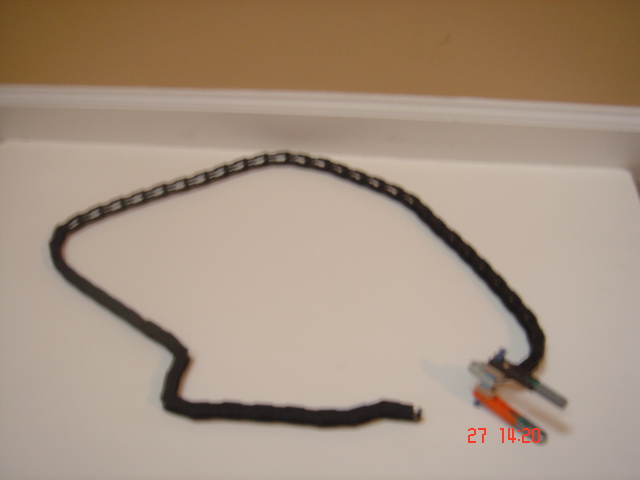

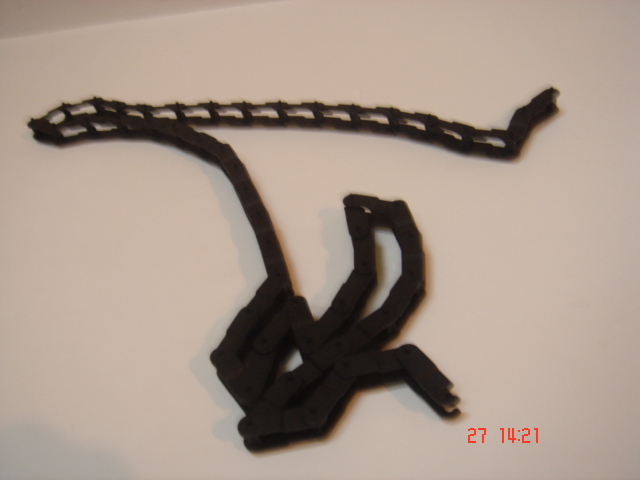

In this section you will make that final part, the Chain

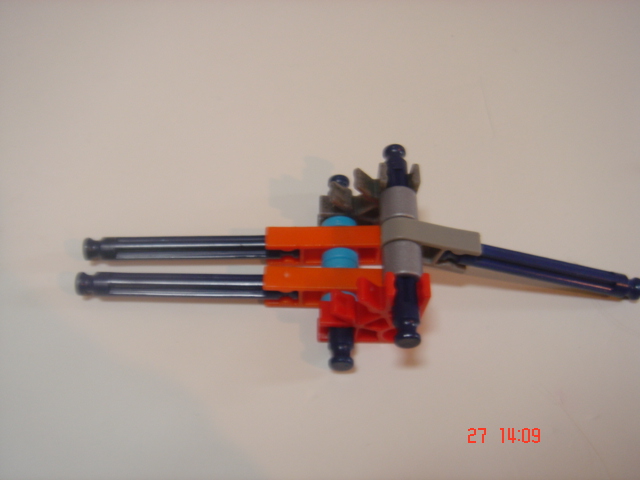

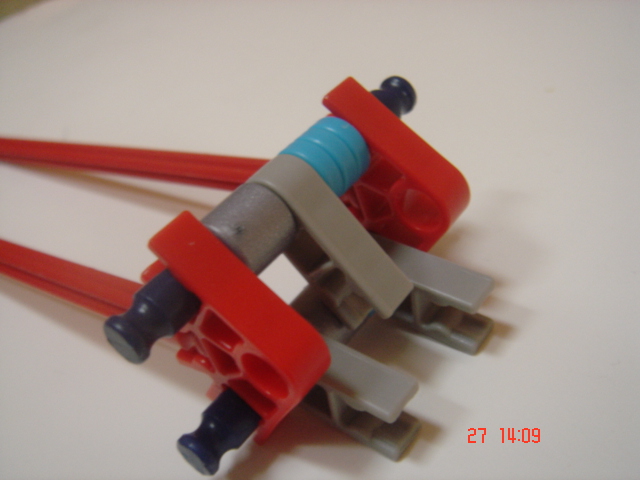

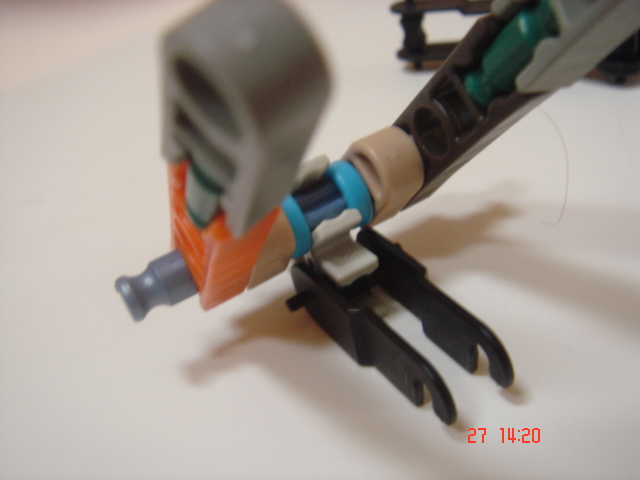

First, make the Claw. Then, make the chain and attach both to steps 1-16

Pieces:
Blue Rods: 1
Green Rods: 2
Orange 2-Slot Connectors: 1
Gray 2-Slot Connectors: 1
Gray 1-Slot Connectors: 2
Tan/Brown/Orange Tabbed Connectors: 2
Blue Bearings:1
Chain links: 50
Total: 60 Pieces

I only used one Claw, but you can use more if you want to use more than one ball.

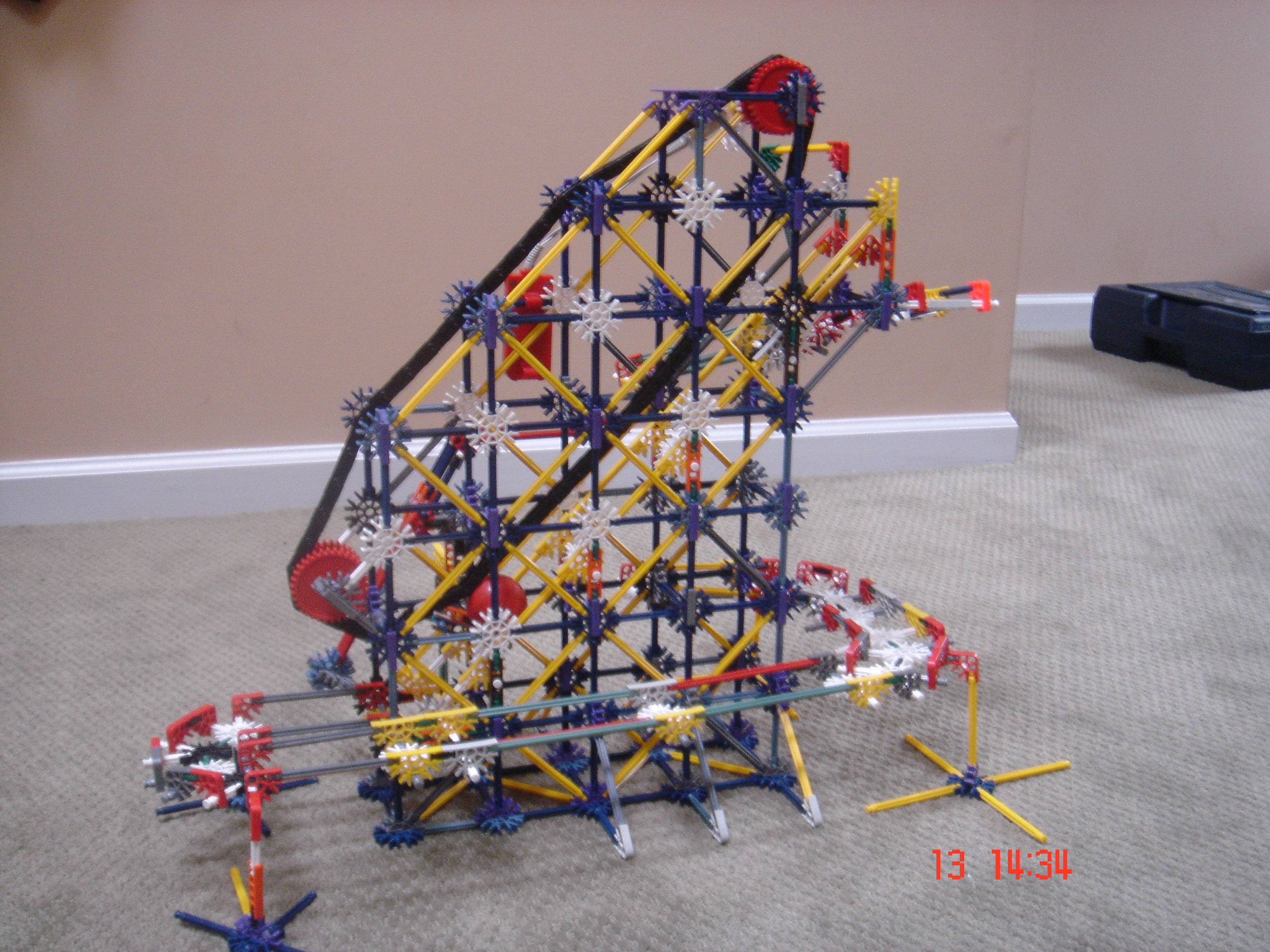

Congratulations! You Have Finished!
To turn on your NANO, turn the switch RIGHT.
Place a Ball on the Designated Stop shown Below,
and watch your machine Go.
Pieces:
Balls: 1 (or more)
Total: 1 (or more)

The NANO is an advanced piece of machinery,but it has its problems.


The most common problem is if the ball gets stuck - In this case just adjust the track.

Others:
P: My motor is not Running.
A: Either the batteries are dead or the motor is broken

If you have any other Questions, PM me and I will post the Solution


You For Reading,
-TM2koH
Trainman 2000 of Hyperborea
