REWINDING a DC MOTOR (RS-540 Brushed Type)

REWINDING A DC MOTOR (RS-540 brushed type)

REWINDING A RS-555 DC MOTOR (similar a RS-540 motor) to get much more speed in r.p.m. How to Upgrade DC Motor and Increase Speed.

The most important thing is the brushes that must be carbon-copper (metal-graphite), very important to support a large current; If they are carbon-graphite only, they will have enough resistance so they will heat up and wear out very quickly.

Video:


In spanish: http://reparar-cochesrc.blogspot.com/
http://reparar-cochesrc.blogspot.com/2017/10/rebob...

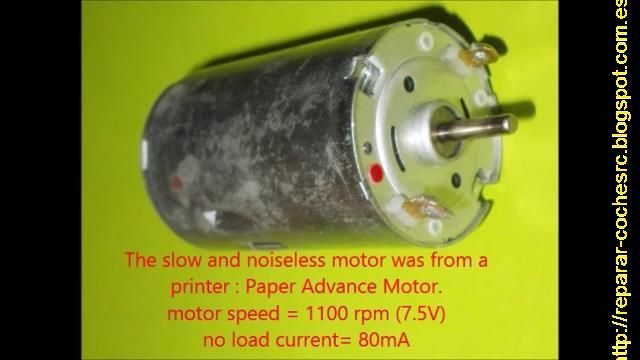

This Is a 555 Slow Motor: 1100 Rpm at 7.5V

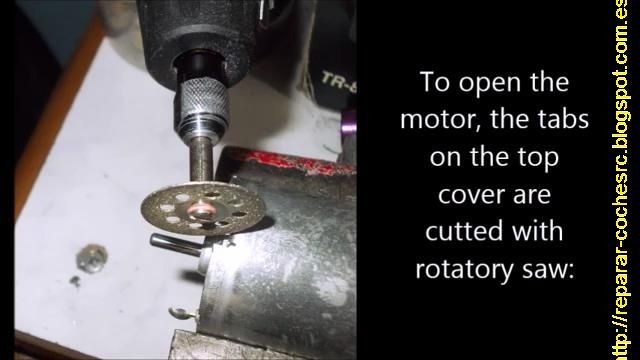

Opening the Motor

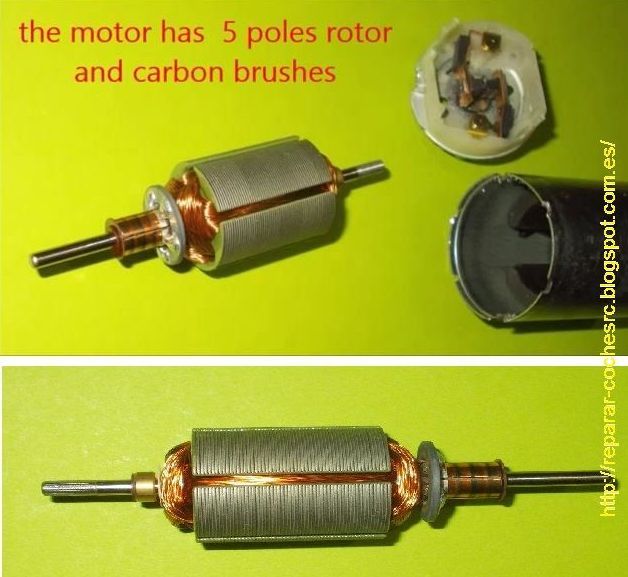

Rotor and Brushes


Cutting the Windings


The winding is 160 turns and the wire is 0.25mm diameter. Once I have counted the turns of the first winding, I cut the wires of the rest of the windings.

Winiding Diagram

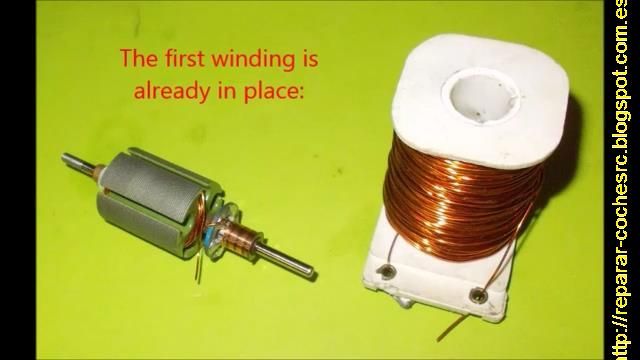

First Winding


The new wire is 0.65mm diameter and 9 turns for each winding.

Soldering

12NG A DC MOTOR (RS-540 brushed type).mp4_snapshot_00.59_[2020.03.24_17.25.16]_1.jpg

As there are 5 poles in the rotor, between the brushes always two windings in series (18 turns) remain.

Windings Are Finished

13A DC MOTOR (RS-540 brushed type).mp4_snapshot_01.06_[2020.03.24_17.25.39]_1.jpg

Mounting the Motor

15NG A DC MOTOR (RS-540 brushed type).mp4_snapshot_01.18_[2020.03.24_17.26.25]_1.jpg

Motor Curves: Speed (rpm)

18DC MOTOR (RS-540 brushed type).mp4_snapshot_01.30_[2020.03.24_17.27.27].jpg

According to the theory of operation of a DC motor, I have changed the ratio of turns of the wounds in 160/9 = 17

If you change the number of turns of the winding, no load speed (r.p.m.) and no load current and load current (A) are multiplied by the ratio (160/9 = 17): 17 * 1100 rpm = 18700 rpm 17 * 0.08 A = 1.36A

Curve Curves: Torque

20 DC MOTOR (RS-540 brushed type).mp4_snapshot_01.41_[2020.03.24_17.28.11].jpg

If you change the diameter of the winding wire, the no load and the no load current are same but the load current and the torque are multiplied by the ratio 0.65mm / 0.25mm = 2.6:

2,6 * 2,6 * Load Current 2,6 * Torque

Testing the Motor

22 DC MOTOR (RS-540 brushed type).mp4_snapshot_01.53_[2020.03.24_17.28.56]_1.jpg

To check the result, I measure the voltage of the LiPo battery connected to the motor, no load current and the no load speed of the motor with an optical probe that obtains a ratio 1000 rpm --> 0,1 V

I have put a gear with a piece of aluminum foil reflecting light on the motor shaft.

Measure the Speed and Voltage

23DING A DC MOTOR (RS-540 brushed type).mp4_snapshot_02.16_[2020.03.24_17.29.53]_1.jpg

Measure the No Load Current

24DC MOTOR (RS-540 brushed type).mp4_snapshot_02.19_[2020.03.24_17.30.15]_1.jpg

Result and Explanation

25A DC MOTOR (RS-540 brushed type).mp4_snapshot_02.25_[2020.03.24_17.30.46]_1.jpg

The theory is fulfilled, but not exactly: we do not take into account other factors: the rotor core has losses, limit of the magnetic flux for that core, high temperature due to the increase in the current,....

160 turns ------> 9 turns

1100 rpm --------> 17000 rpm

0.08 A -----------> 1.64A
