RGB Binary Counter

This binary counter was developed with the use of RGB LED's and a pair of switches for manipulating the results while an Arduino platform will program the project. That is, the binary code implies either lighting up green LED's or blue LED's when a switch 1 is high or a switch 2 is high respectively. Then the resulting binary code is one can even be lighting up red LED's when both switches are high or lighting up green or blue LED's when its respective switch is high.

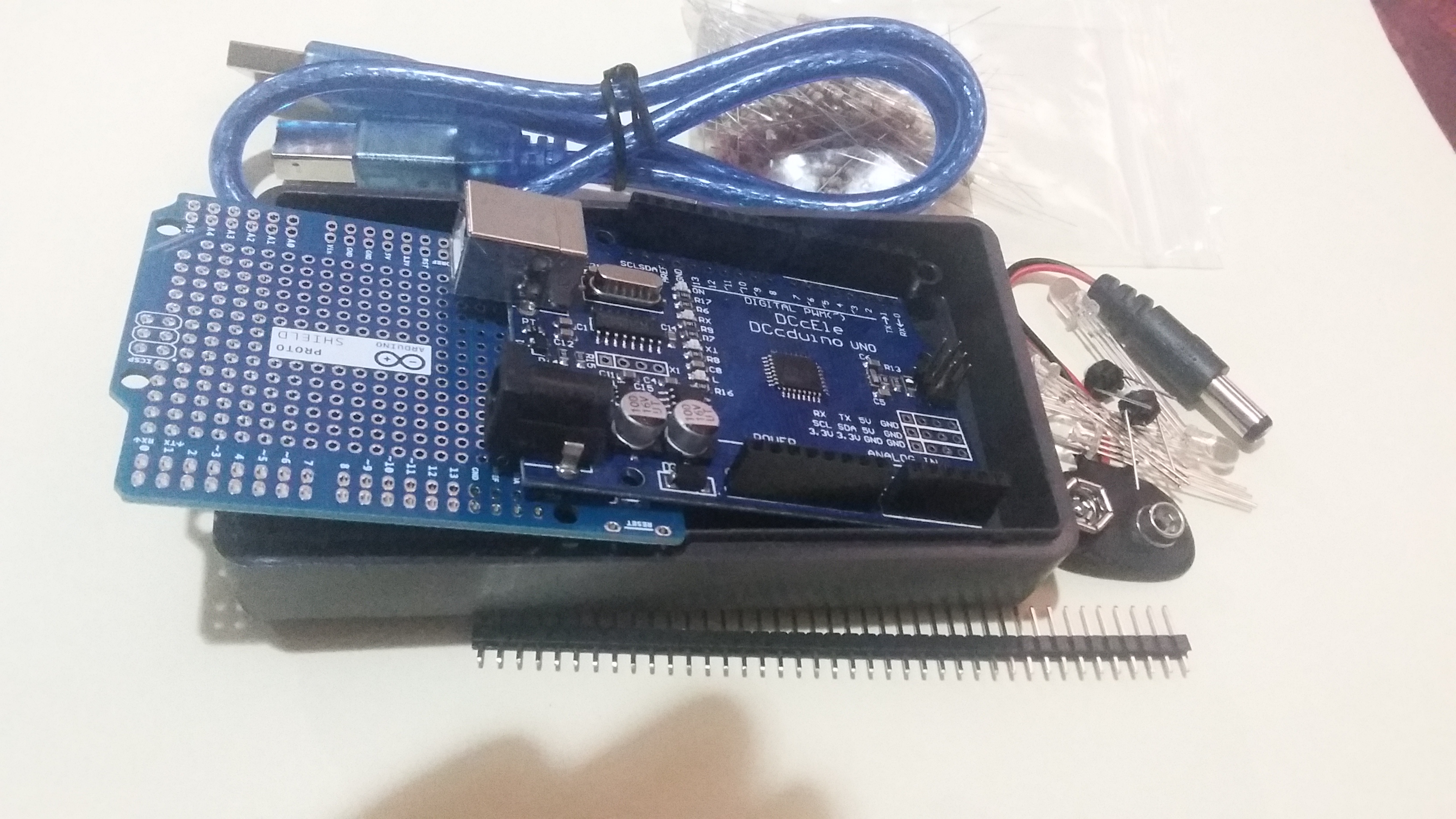

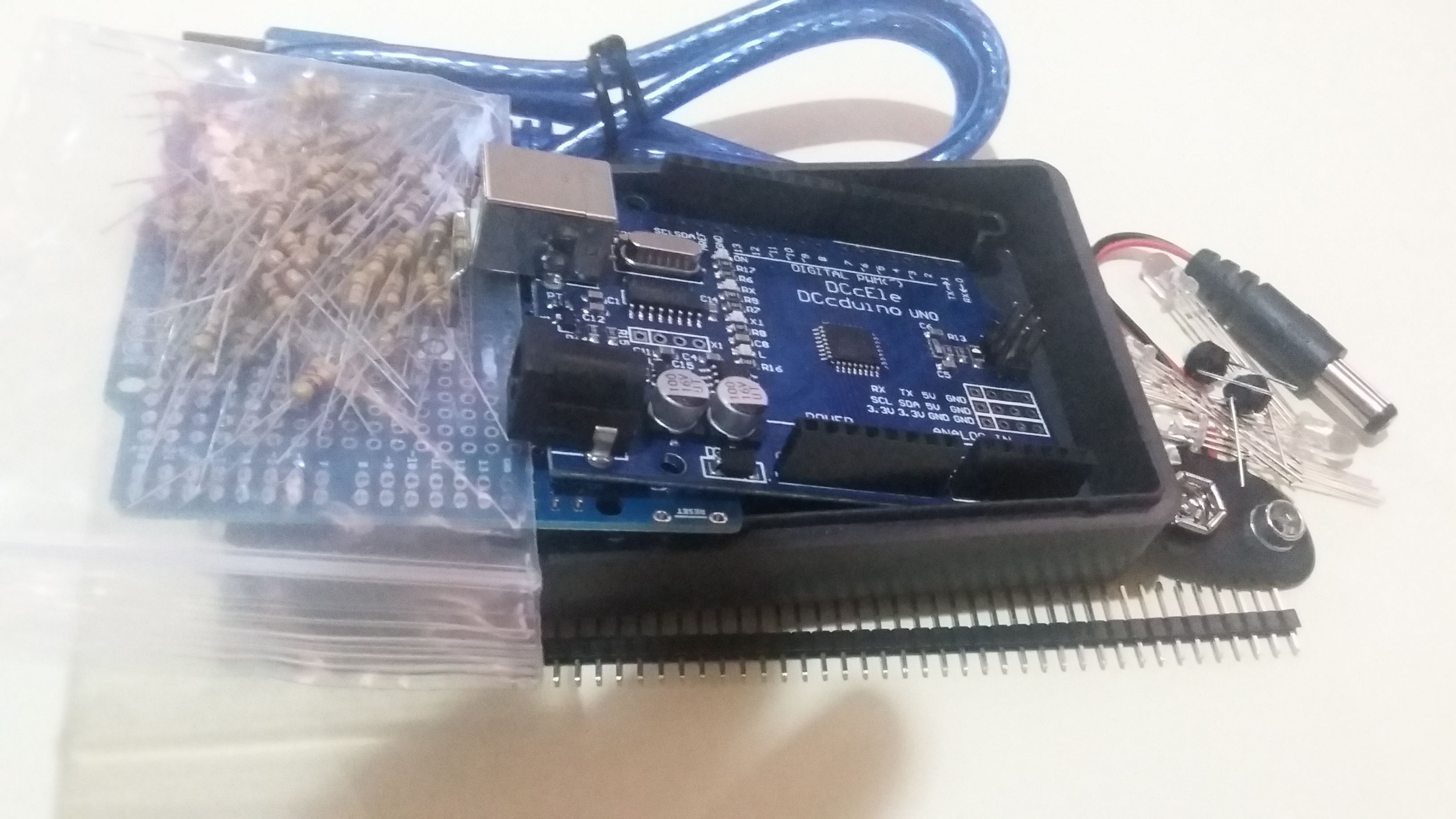

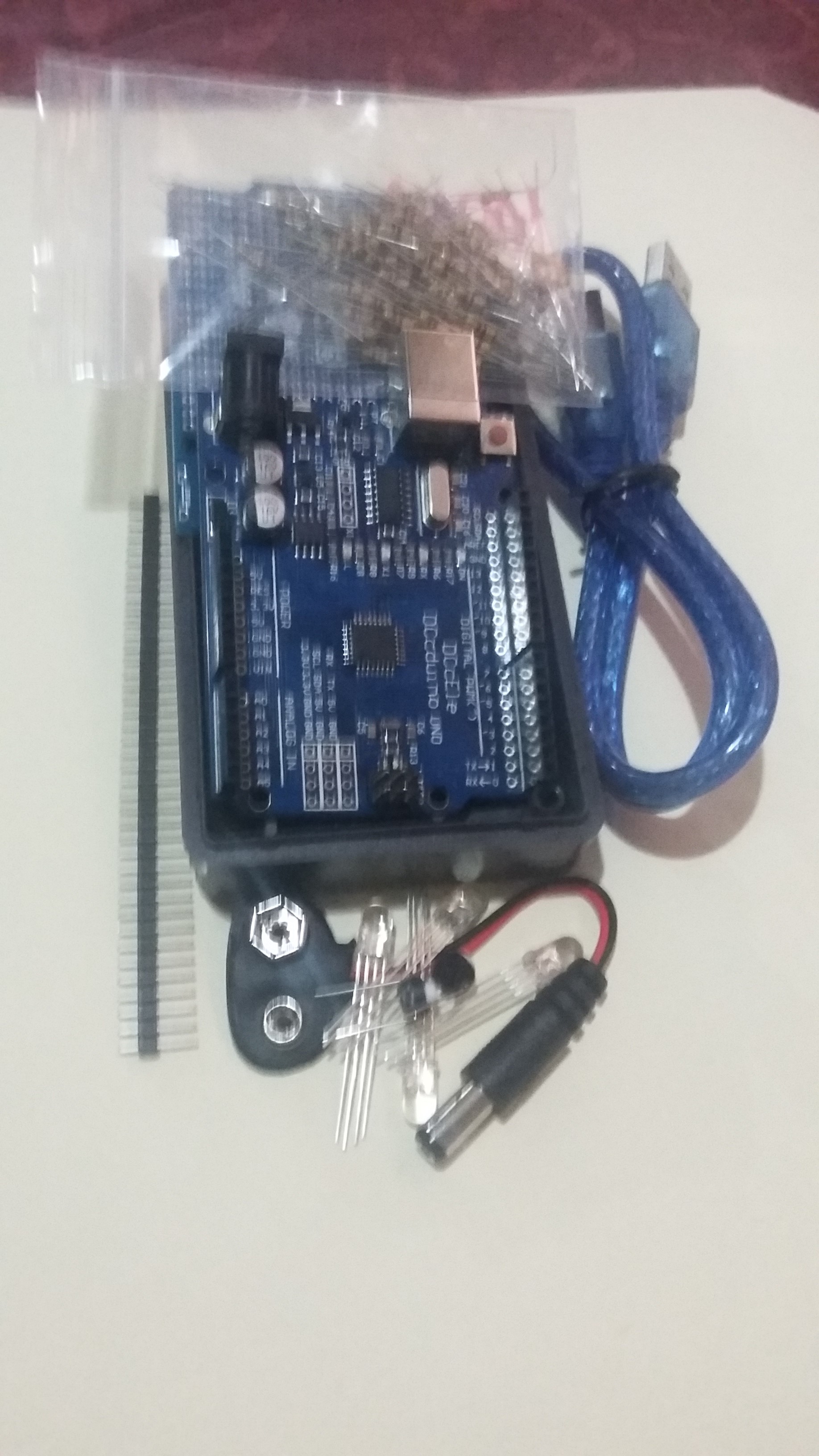

What you will need:
Soldering iron and solder

Wire strippers and cutter

Needle nose pliers

Multimeter

22 AWG wire, 1 meter

9 Volt Battery

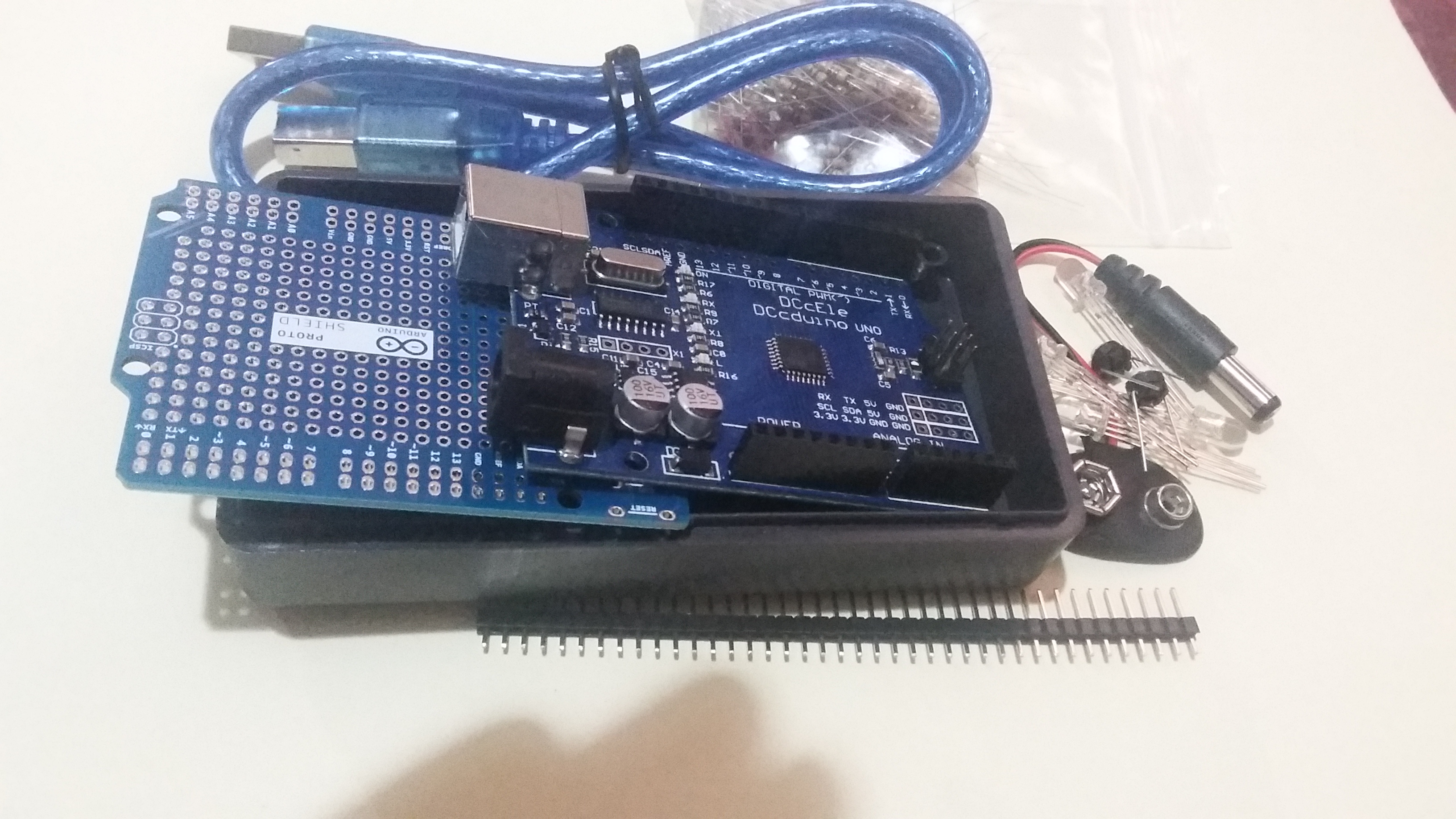

1 Arduino Uno Proto Shield (PCB only)

1 Arduino Uno R3 DIP Edition (Revision 3)

1 ABS Plastic Enclosure for Arduino Boards - Fits UNO or MEGA

1 Connector Unshrouded Header 40 Position 2.54mm Straight Thru-Hole 4

4-Pin 5mm Water Clear RGB LED - Common Cathode

4 LED Mounting Hardware LowPro T1-3/4 Clear

12 Resistor Carbon Film 470 Ohm 1/4 Watt 5%

2 Resistor Carbon Film 10k Ohm 1/4 Watt 5%

2 6.2mm Diameter SPST OFF-(ON) Round Tactile Pushbutton Switch - White Button

1 Cable USB2.0 A/B 3 Feet Black USB-A Male To USB-B Male

1 9V Battery Snap with 2.1mm Barrel Plug

This is an important step because it's the plan of your whole project. Observe carefully each part of the schematic so that you can complete the project successfully.

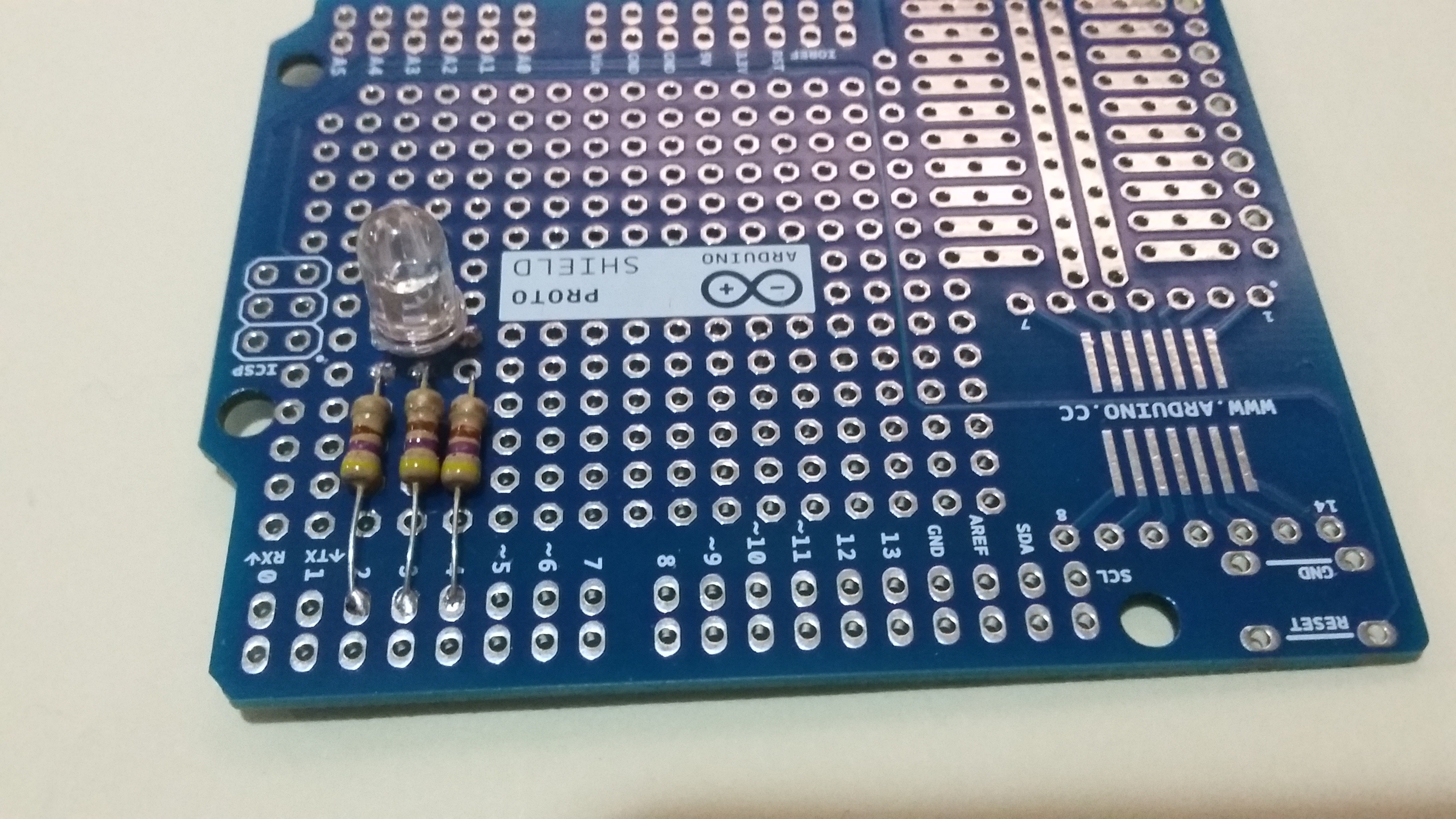

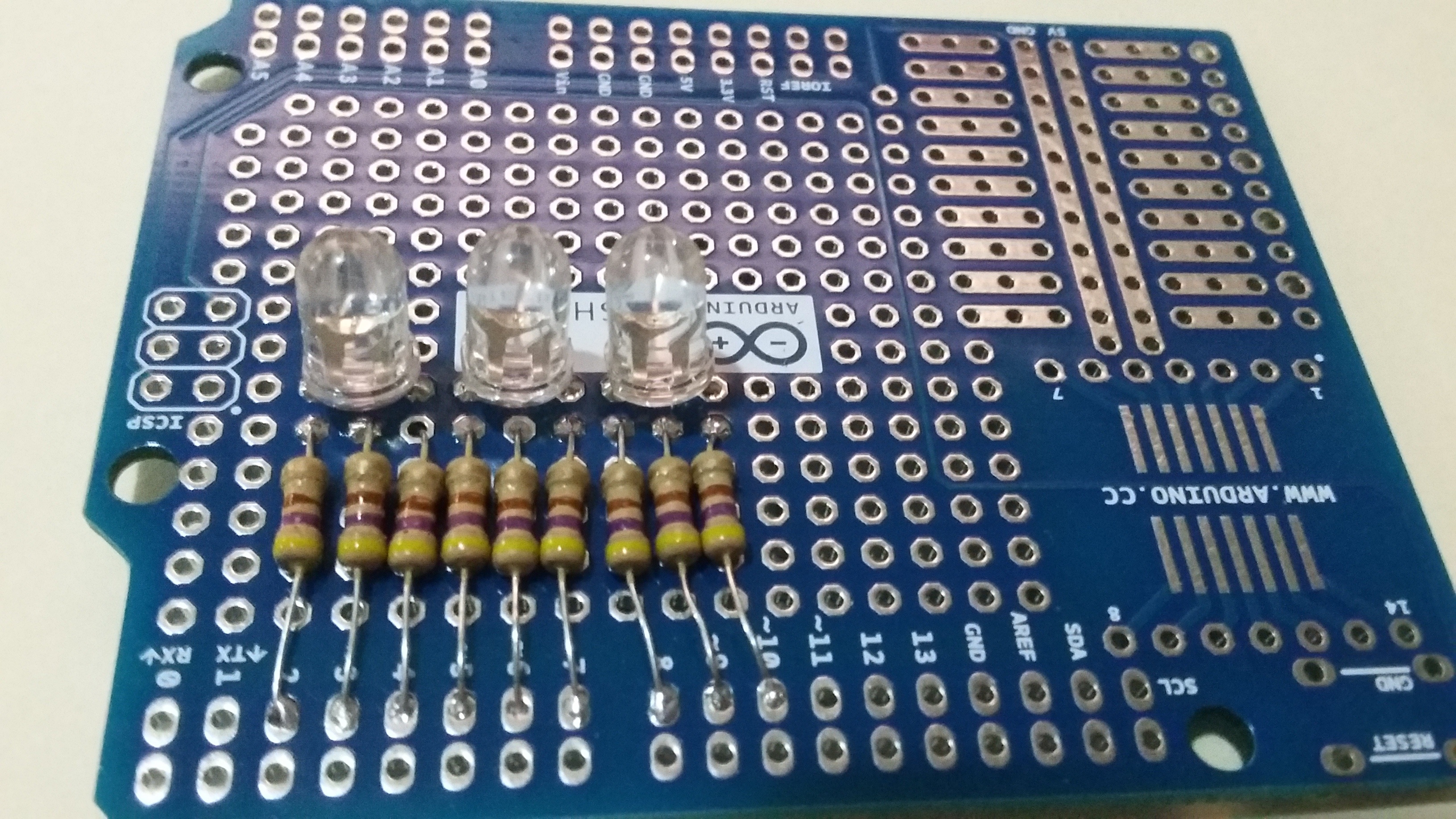

Install the first RGB LED in combination with its respective resistors; that is, connect one resistor to red pin, other to green pin, and the other to blue pin RGB LED while the remaining resistor leads to Arduino pin 2, 3, and 4 respectively.

Install the second RGB LED in combination with its respective resistors; that is, connect one resistor to red pin, other to green pin, and the other to blue pin RGB LED while the remaining resistor leads to Arduino pin 5, 6, and 7 respectively. Also, realize how the sequence is. Because you shouldn't forget the sequence of the RGB LED's, check the back side of your PCB so that you can see the common cathodes are d1, d2, d3, and d4 respectively from the first LED to the last LED.

Install the third RGB LED in combination with its respective resistors; that is, connect one resistor to red pin, other to green pin, and the other to blue pin RGB LED while the remaining resistor leads to Arduino pin 8, 9, and 10 respectively. Next, check the back side of your PCB so that you can see the arrange of the RGB LED's because the common cathodes are d1, d2, d3, and d4 individually from the first LED to the last LED.

Install the last RGB LED in combination with its respective resistors; that is, connect one resistor to red pin, other to green pin, and the other to blue pin RGB LED while the remaining resistor leads to Arduino pin 11, 12, and 13 respectively. Next, check the back side of your PCB so that you can see the arrange of the RGB LED's because the common cathodes are d1, d2, d3, and d4 individually from the first LED to the last LED.

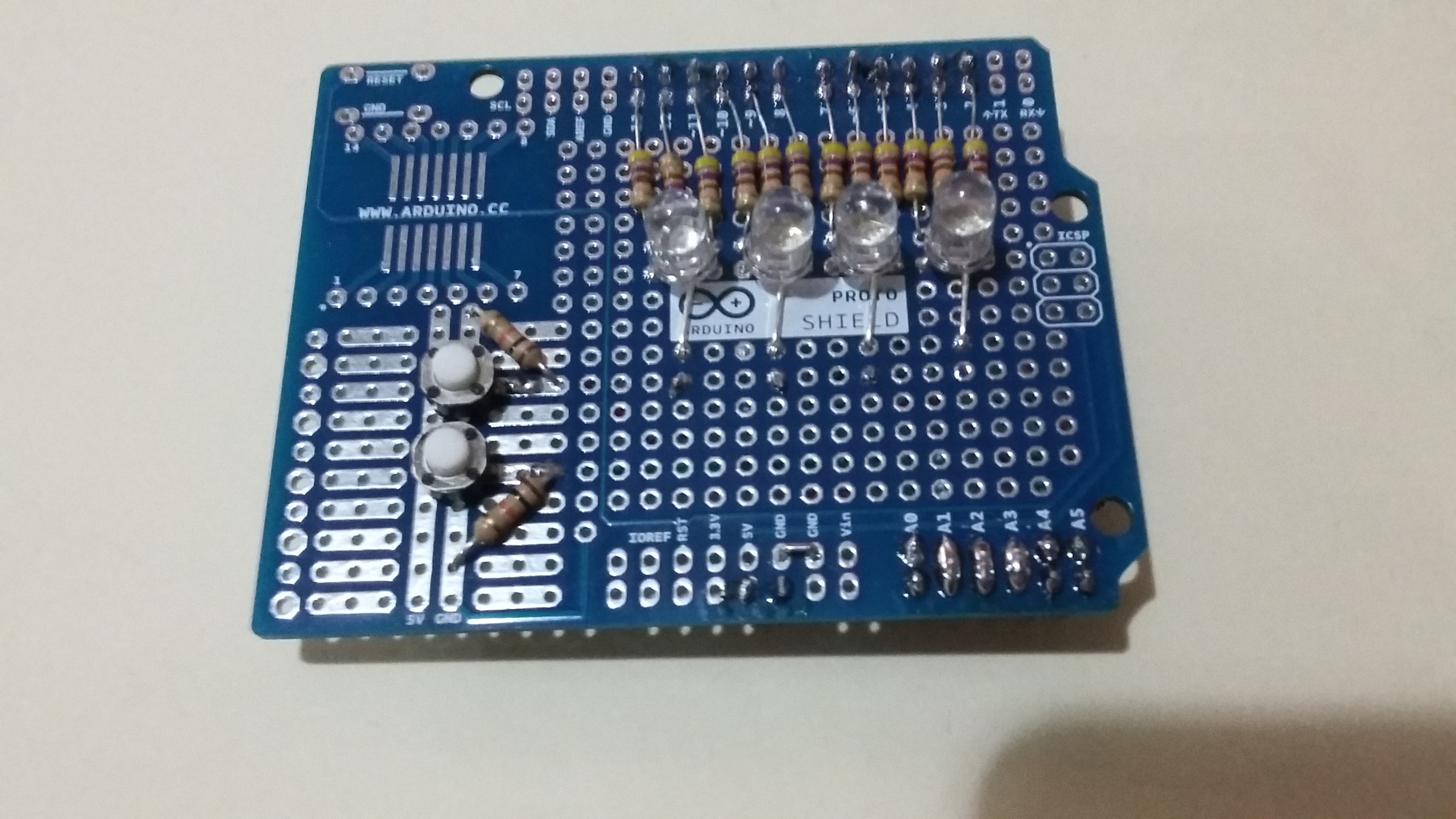

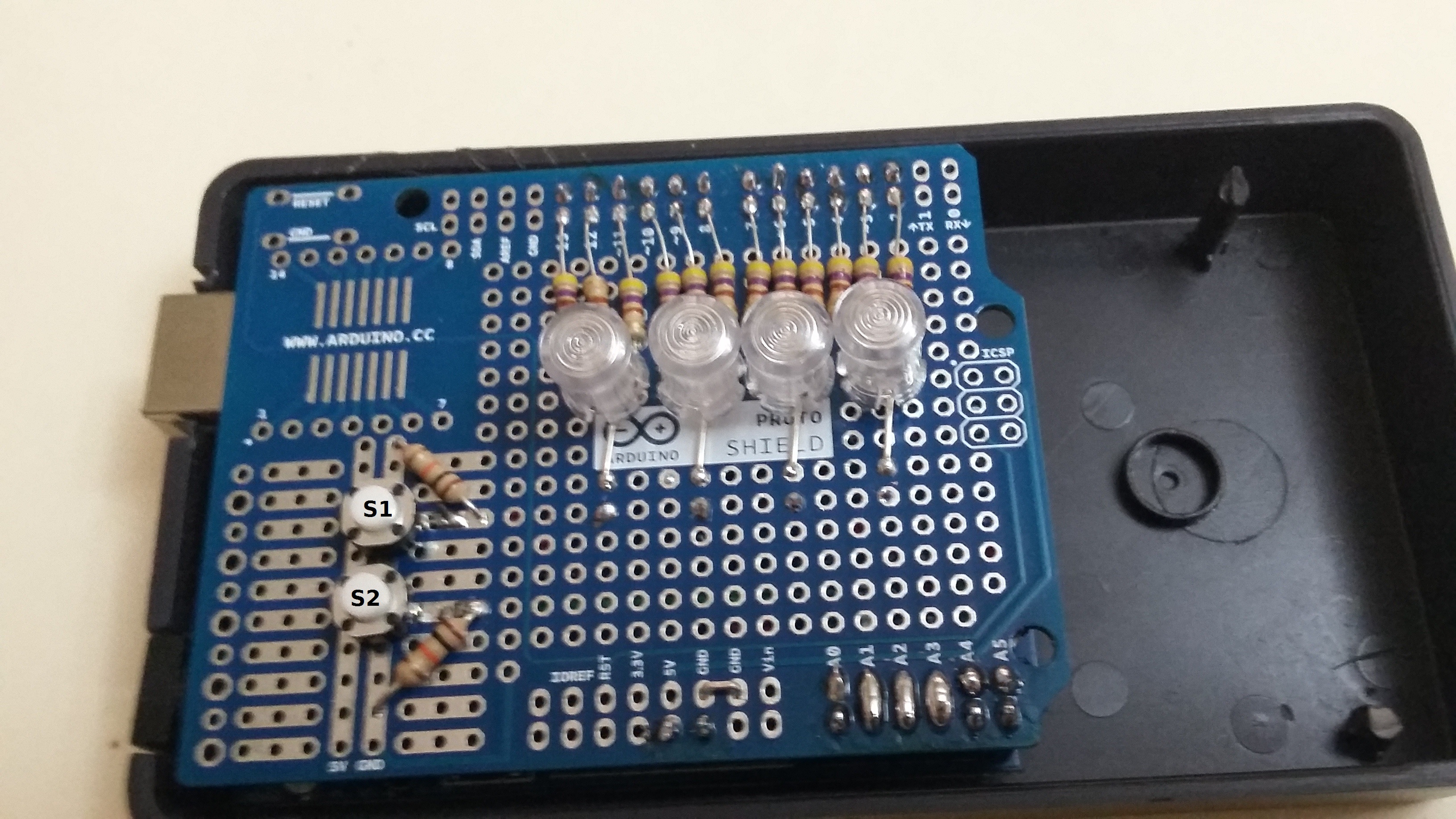

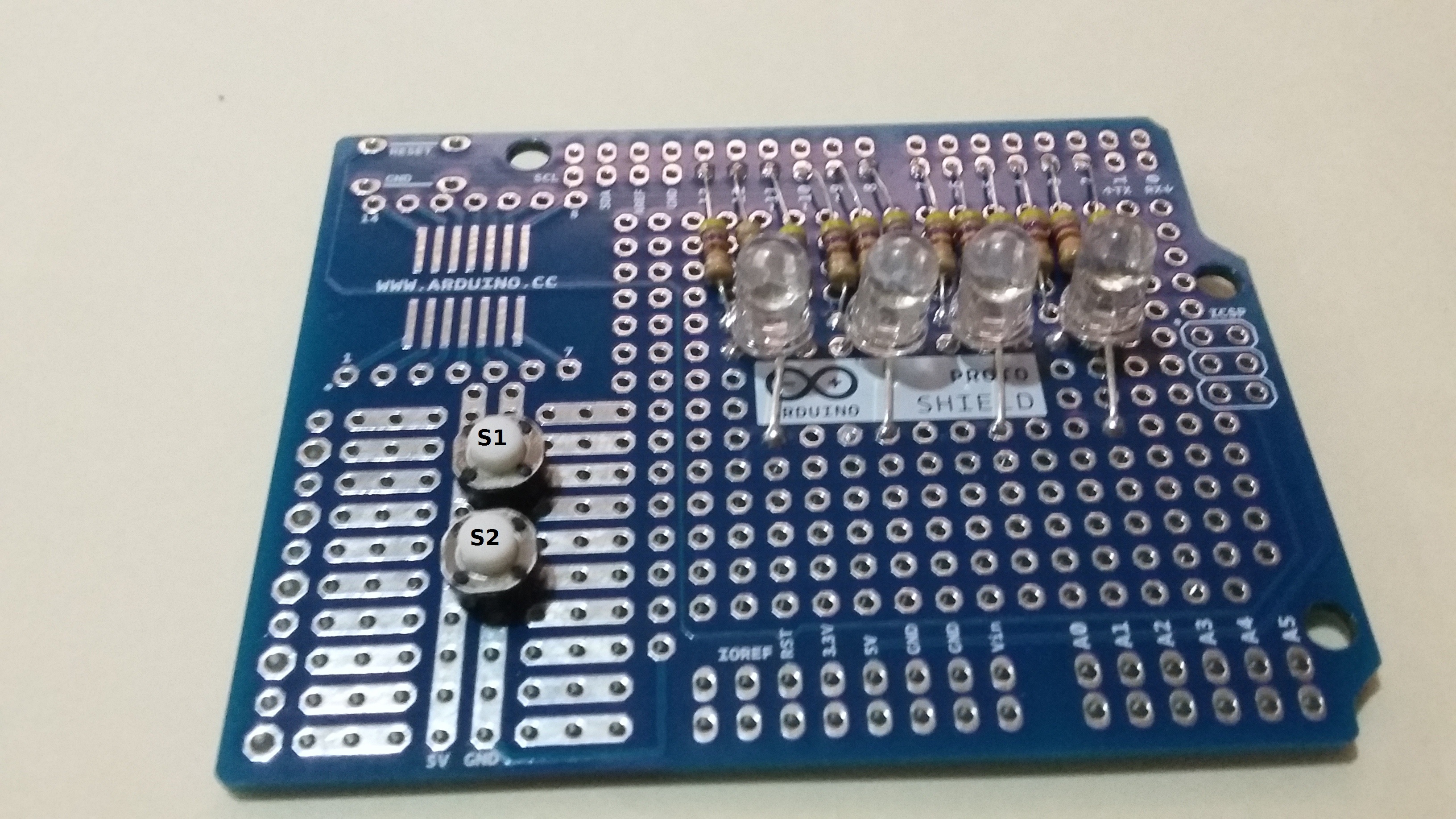

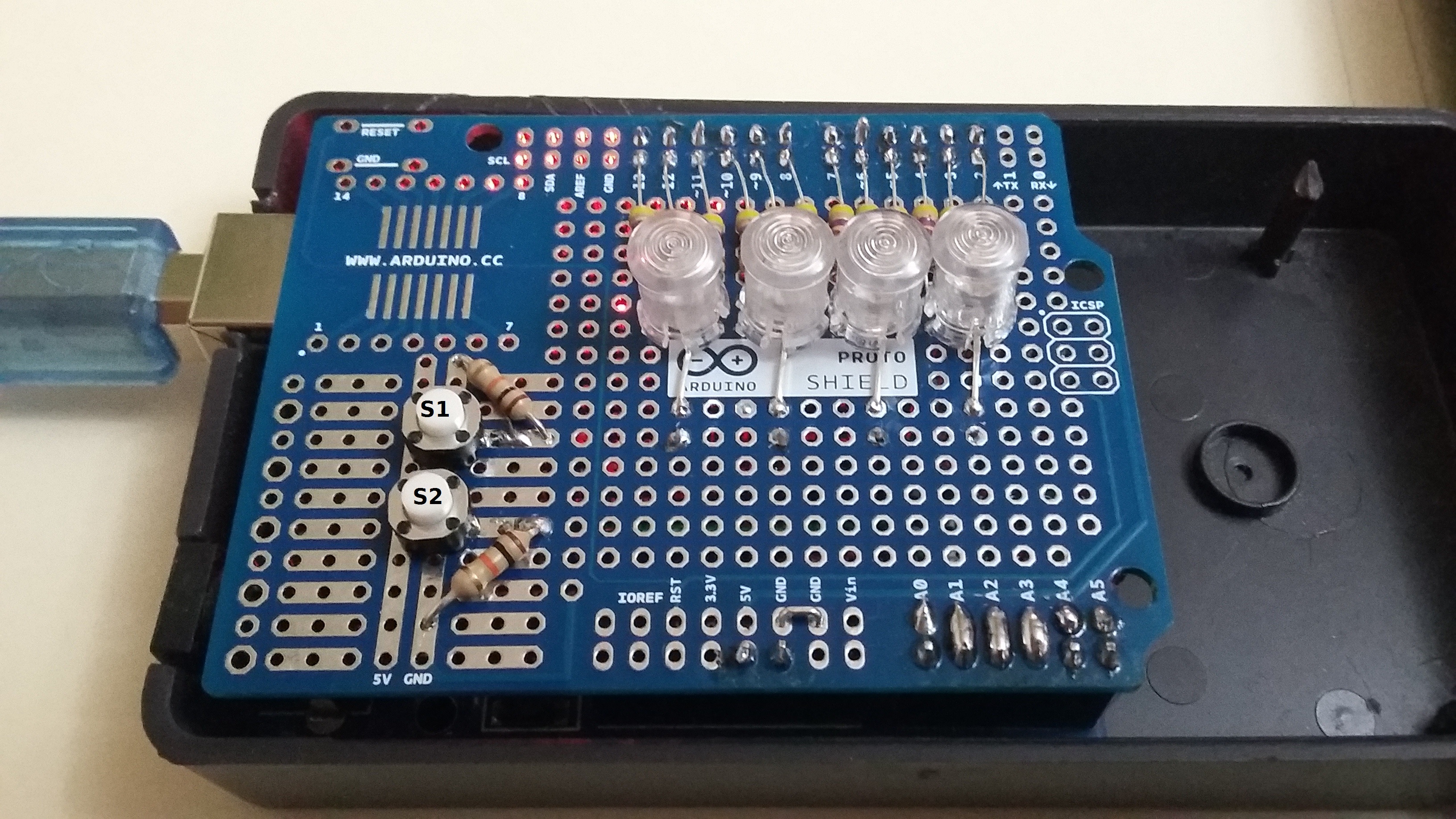

Installing the two switches (S1, and S2), you can see the precise position of each of them for making the respective connections correctly so that you can observe in the back side of your PCB, the installation of one pin of each switch on the 5V track while the remaining pins on a free track to be connected to the resistors of 10K and Arduino pins later.

Install each resistor of 10k to its respective switch while the remaining leads to GND, and note each resistor of 10K should both be connected to its corresponding switch pin and Arduino pin A0 (14),and A1 (15) respectively from switch1 (S1) to switch2 (S2).

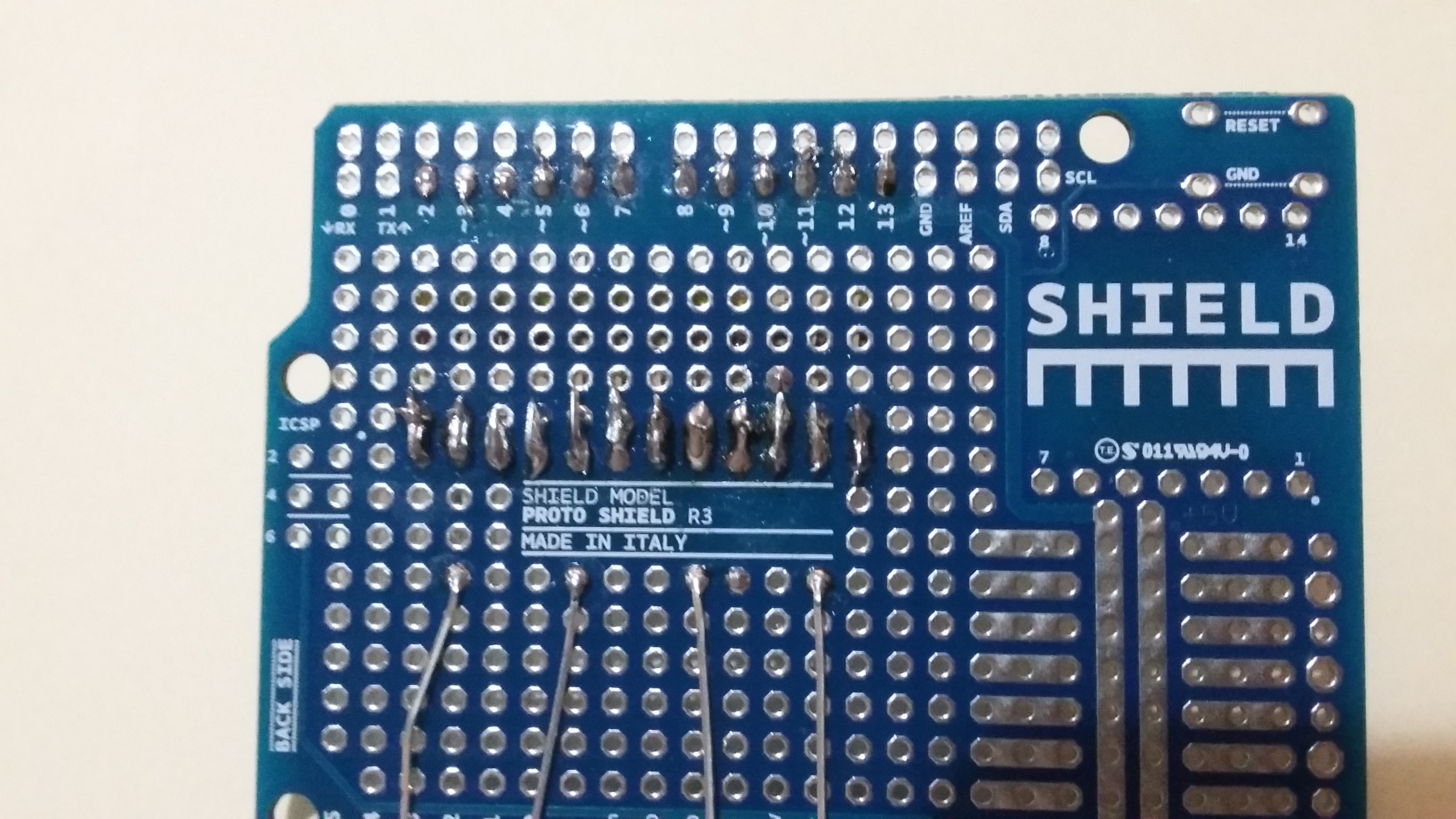

Connect d1, d2, d3, and d4 to A2 (16), A3 (17), A4 (18), and A5 (19) respectively.

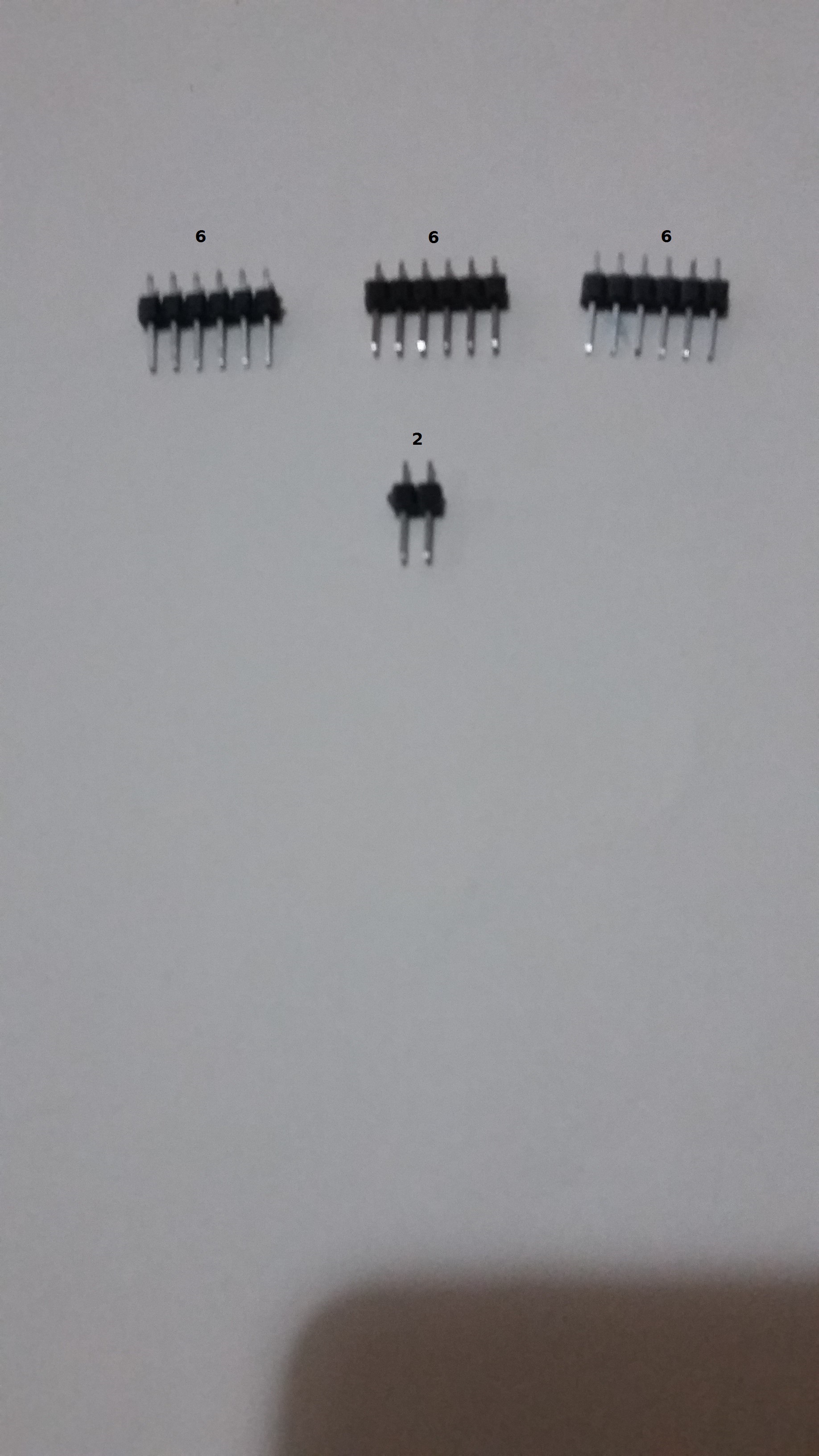

Cut the pins that you will need in next step.

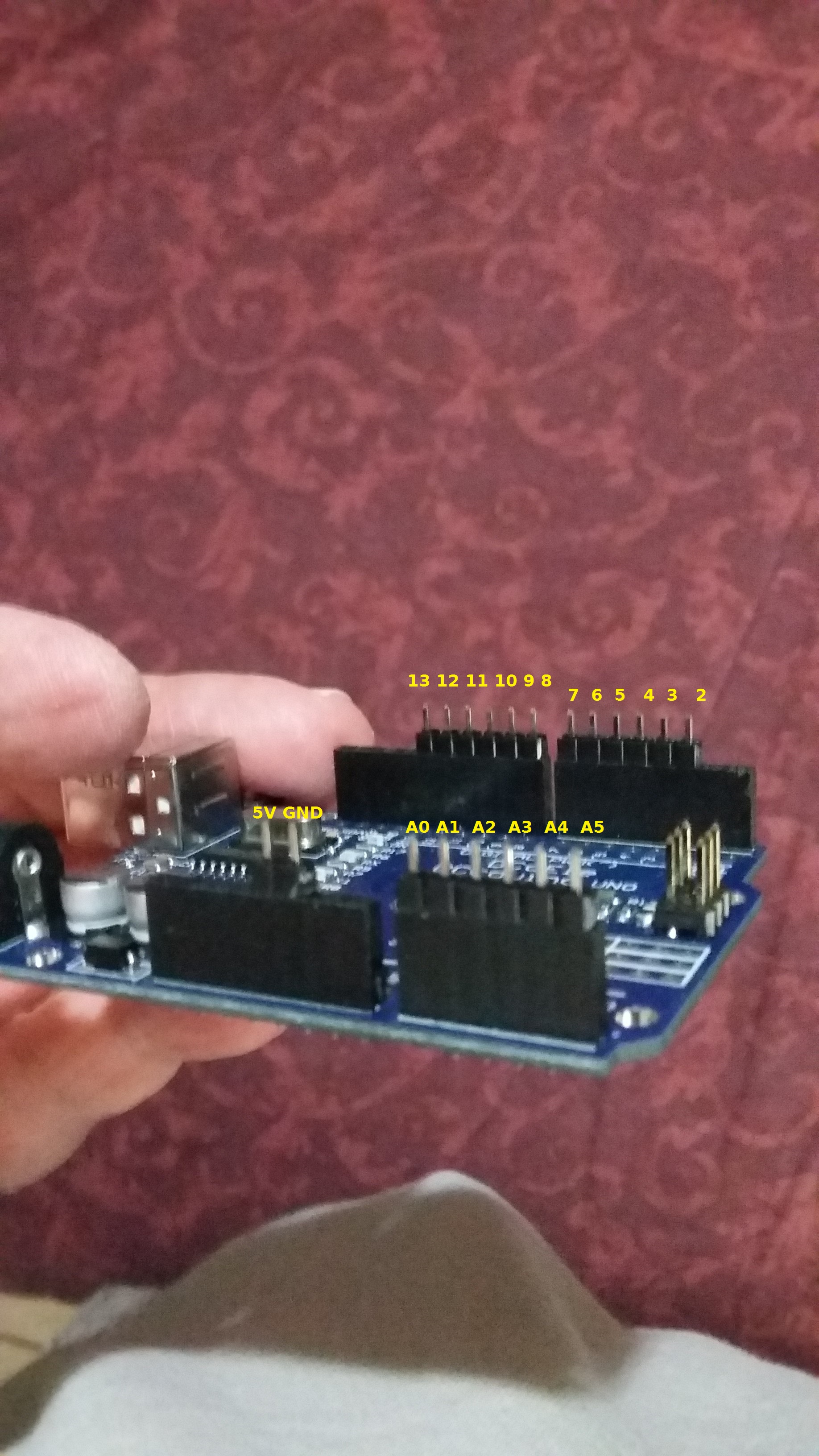

Insert the pins previously prepared in the step #10 in the Arduino Uno

Insert the PCB on the Arduino Uno so that you can solder the pins previously installed.

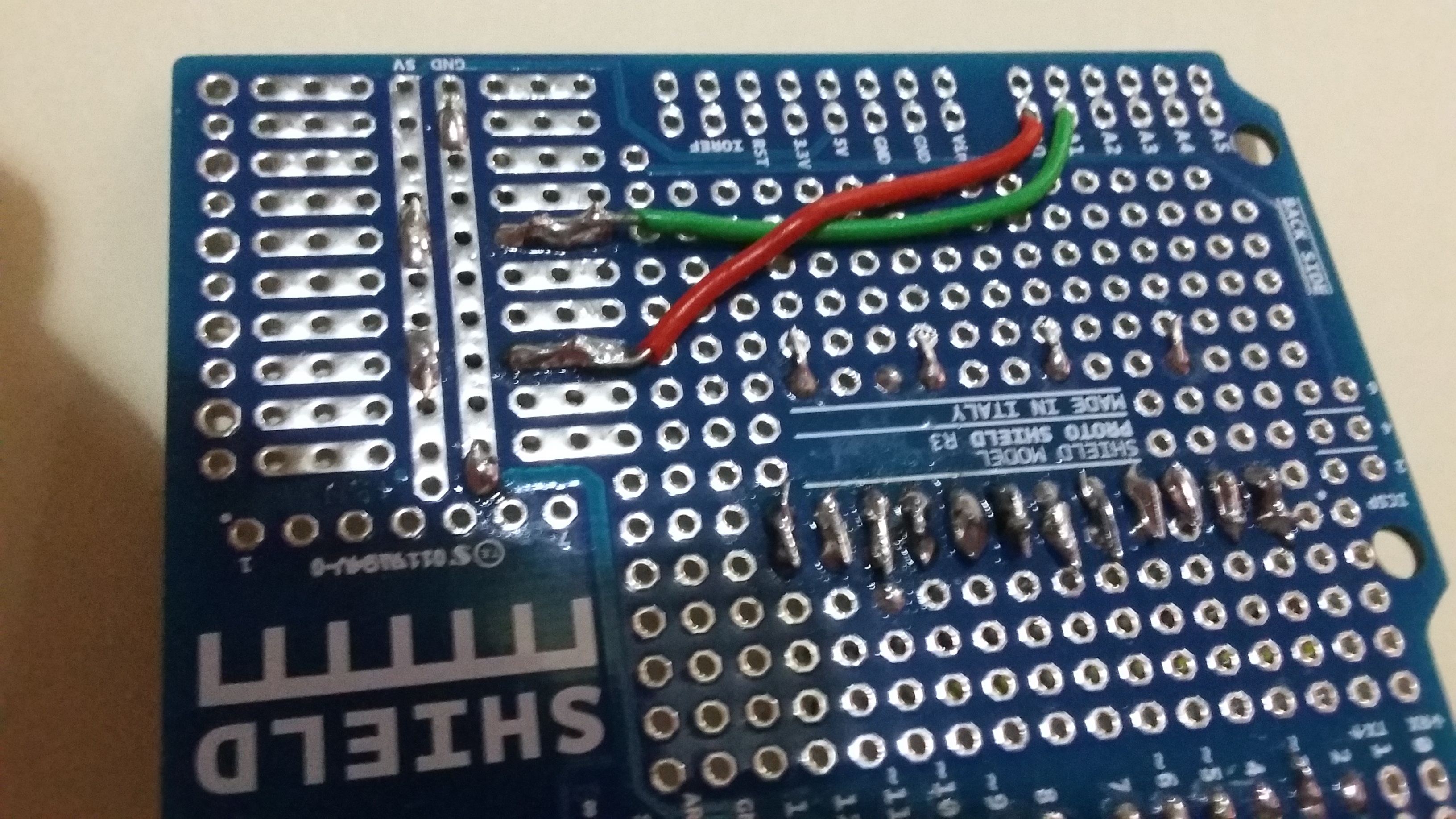

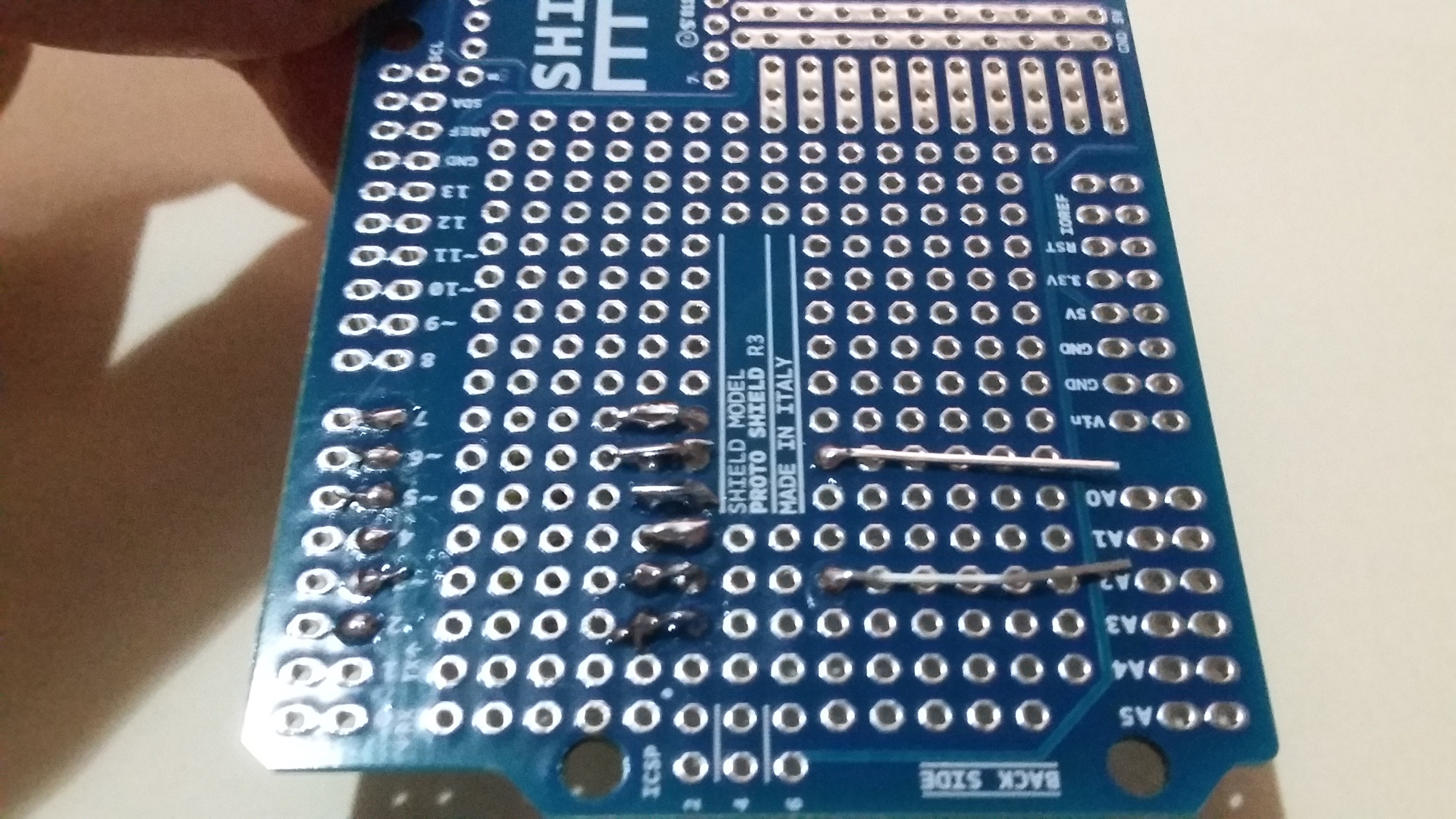

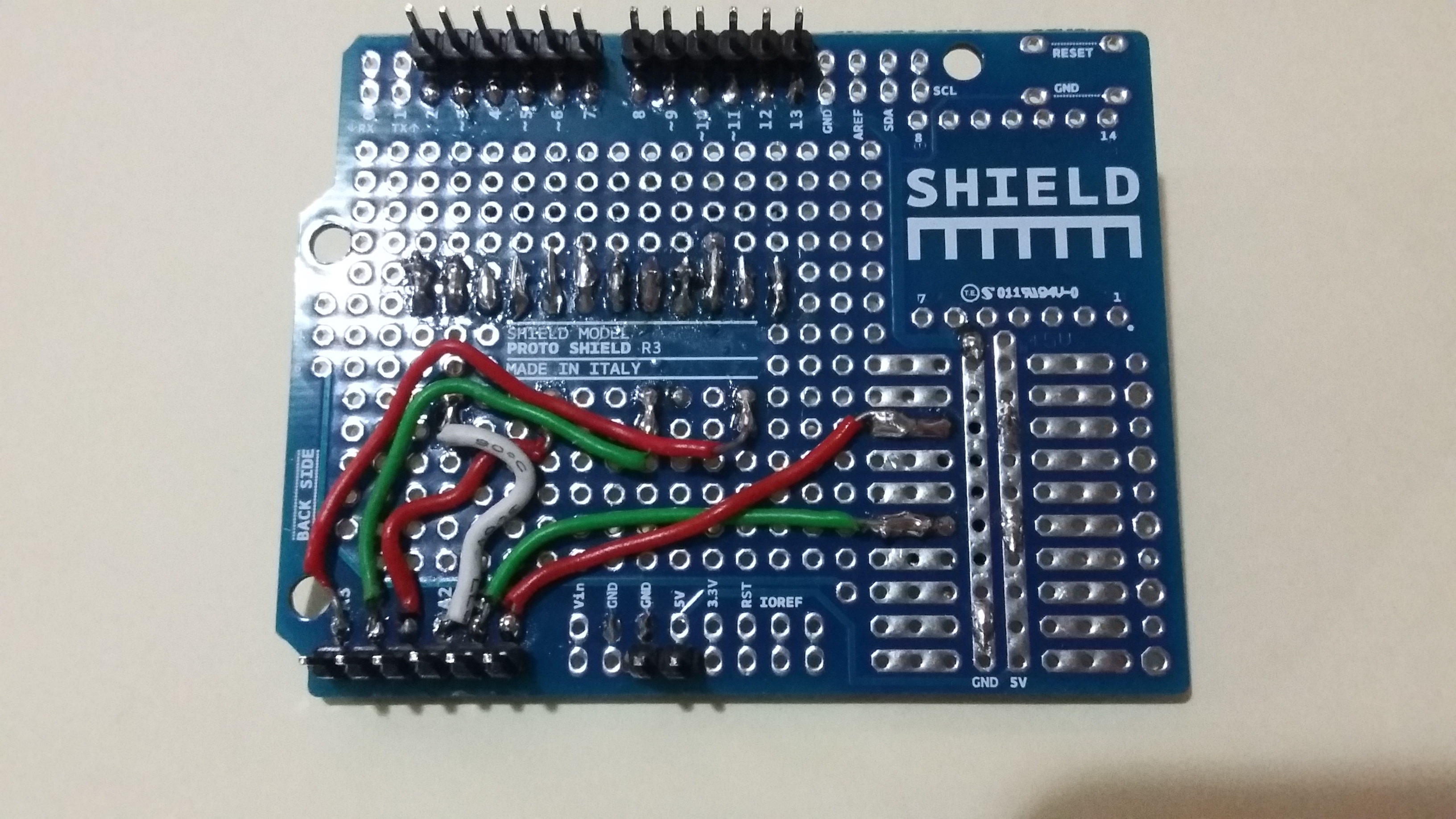

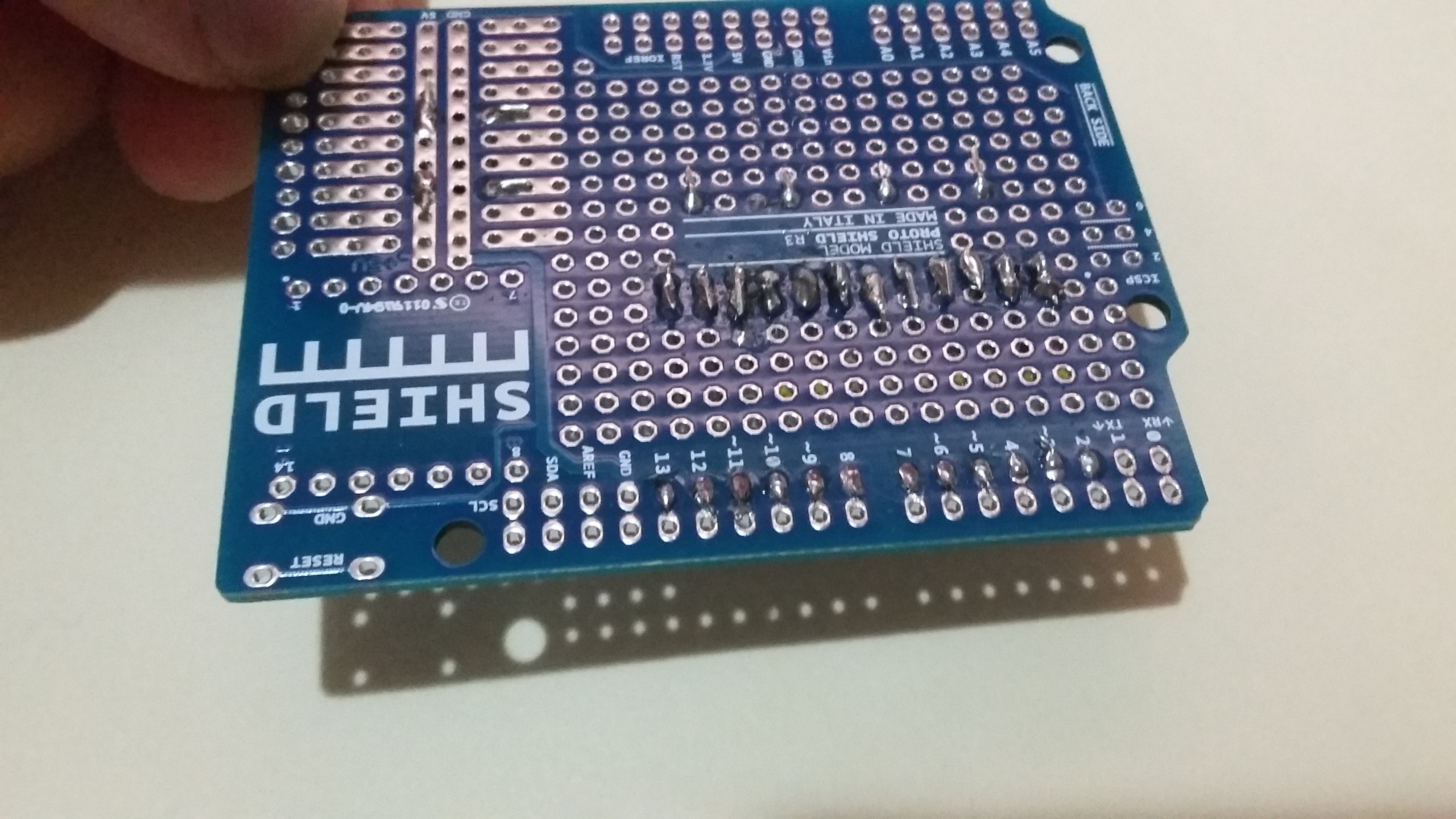

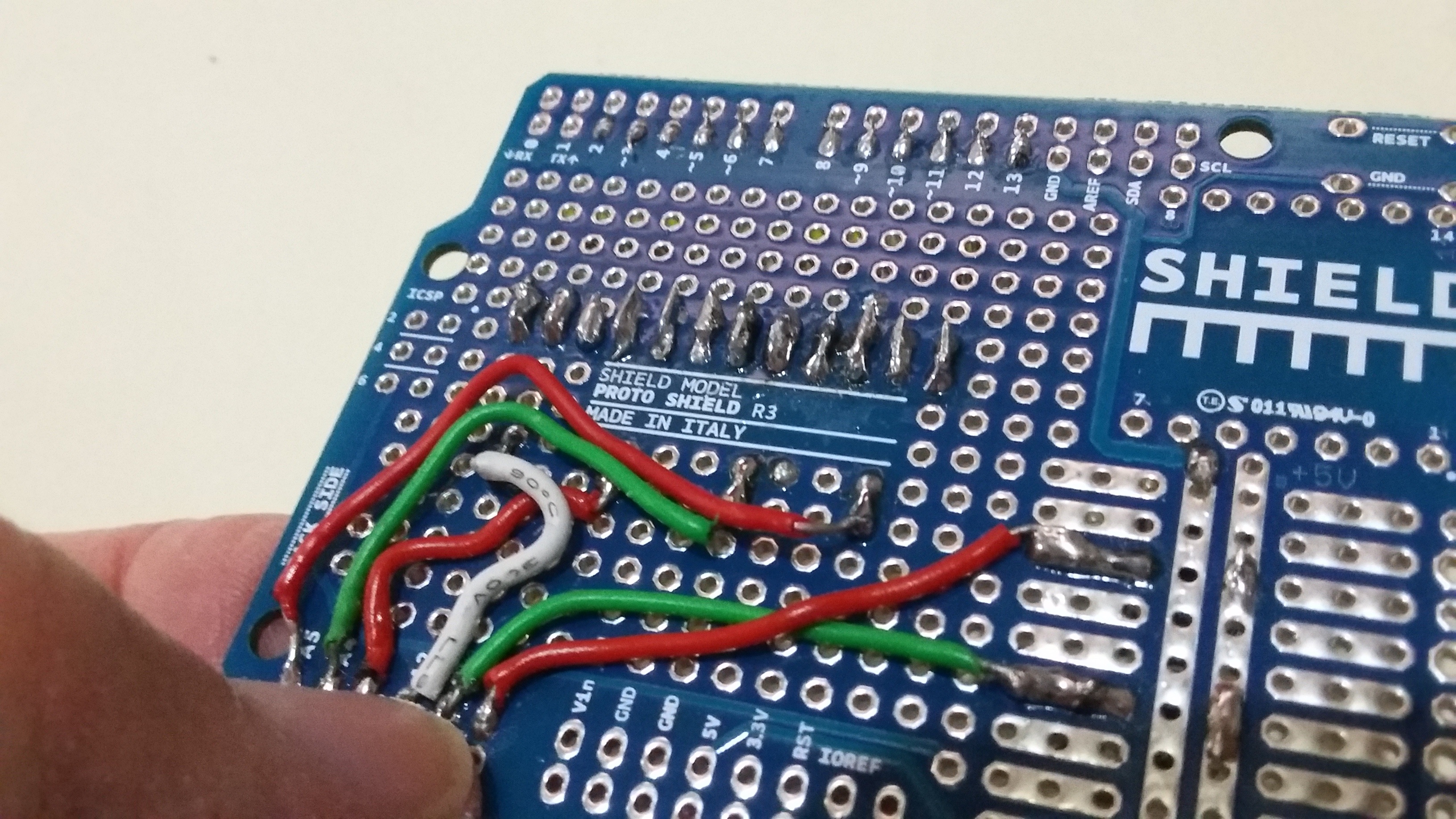

Uninstalling the PCB from Arduino, you can check the back side connections and observe if everything is OK in your project almost done.

Inserting the PCB on the Arduino again, you are ready to think about installing the LED Mounting Hardware in your RGB LED's.

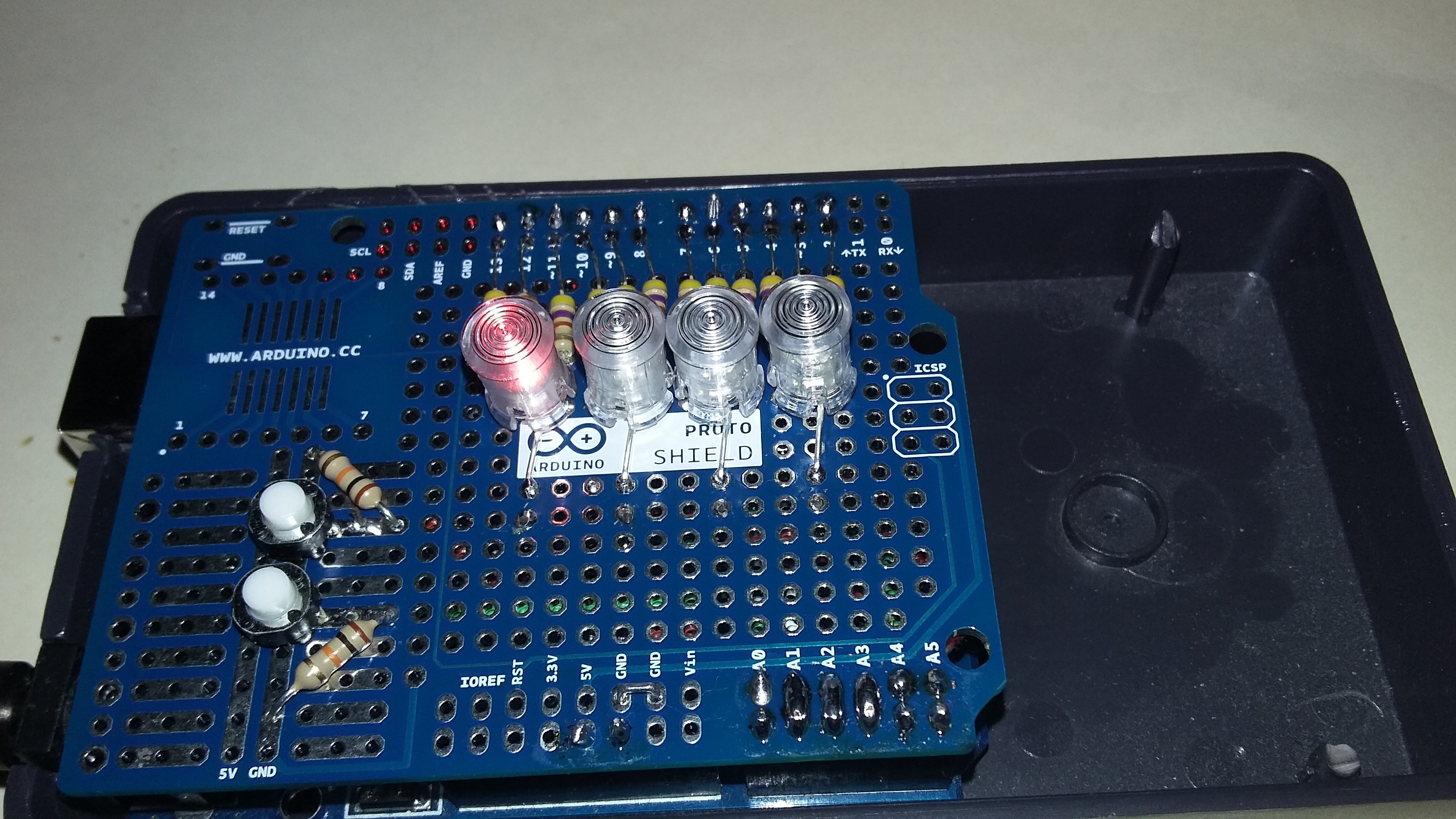

Insert the PCB again and mount the LED Mounting Hardware on each RGB of your project.

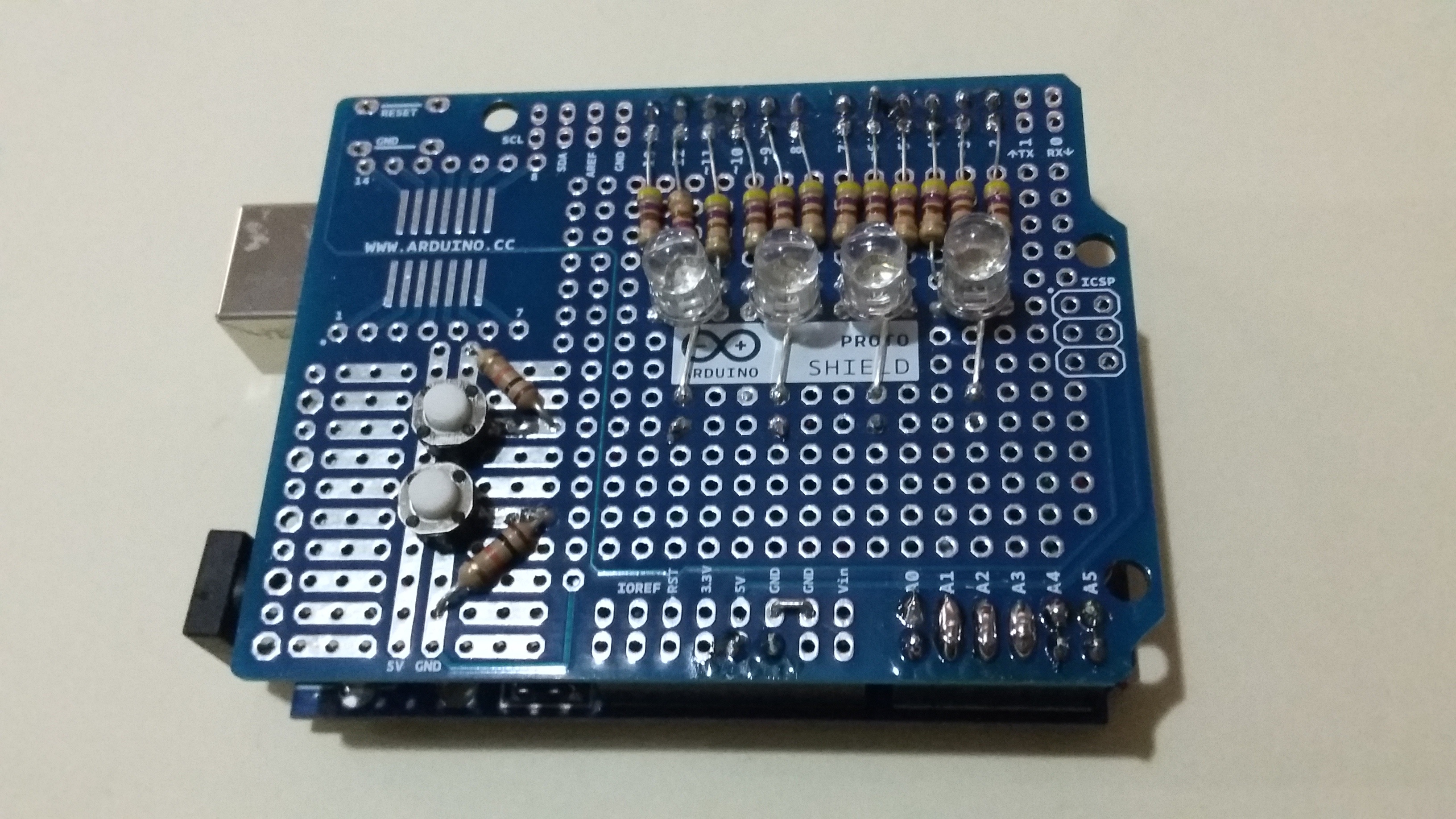

Install the project completed inside an Arduino enclosure

For uploading the code, go to: http://pastebin.com/7dSbeFLb

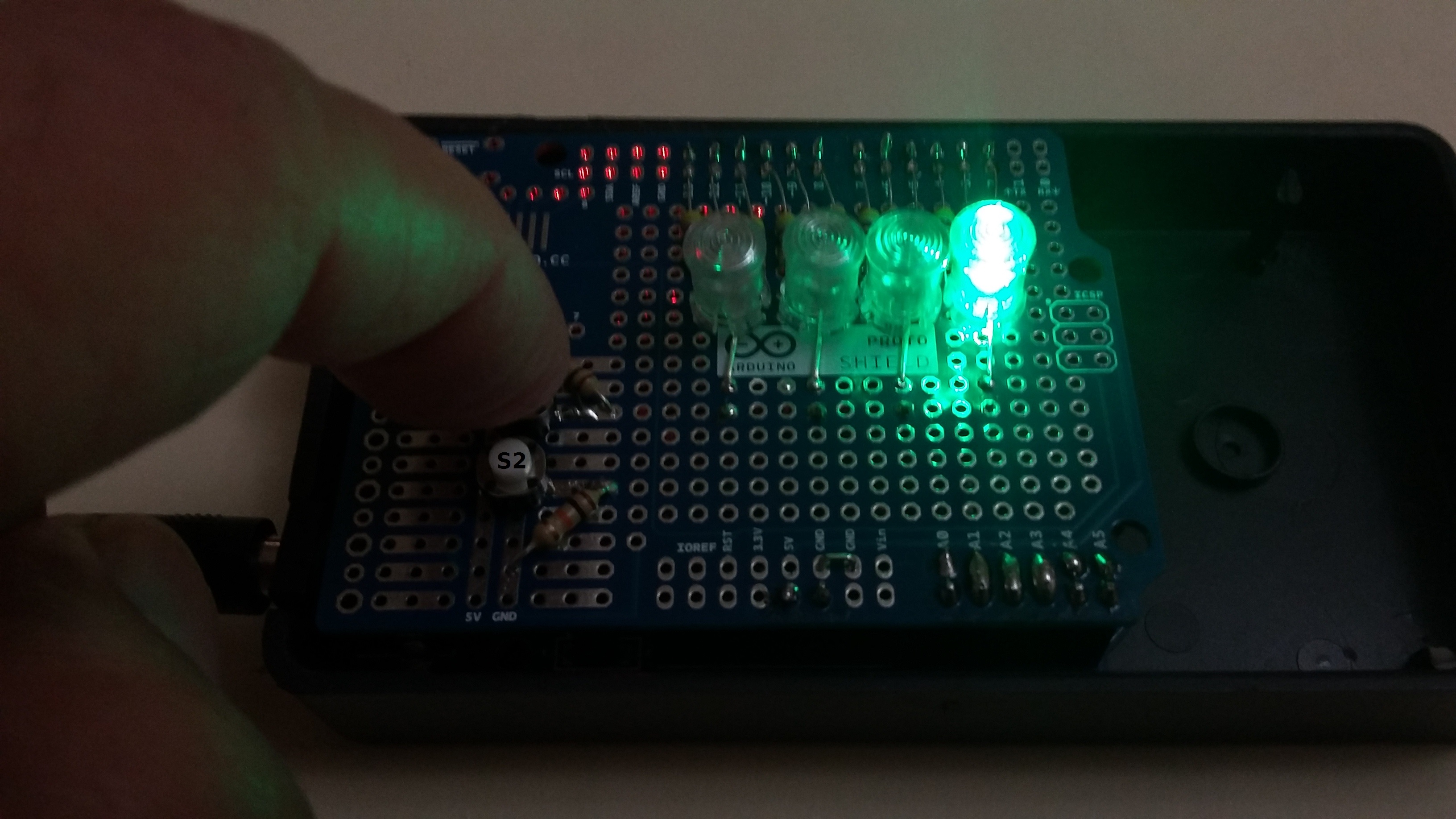

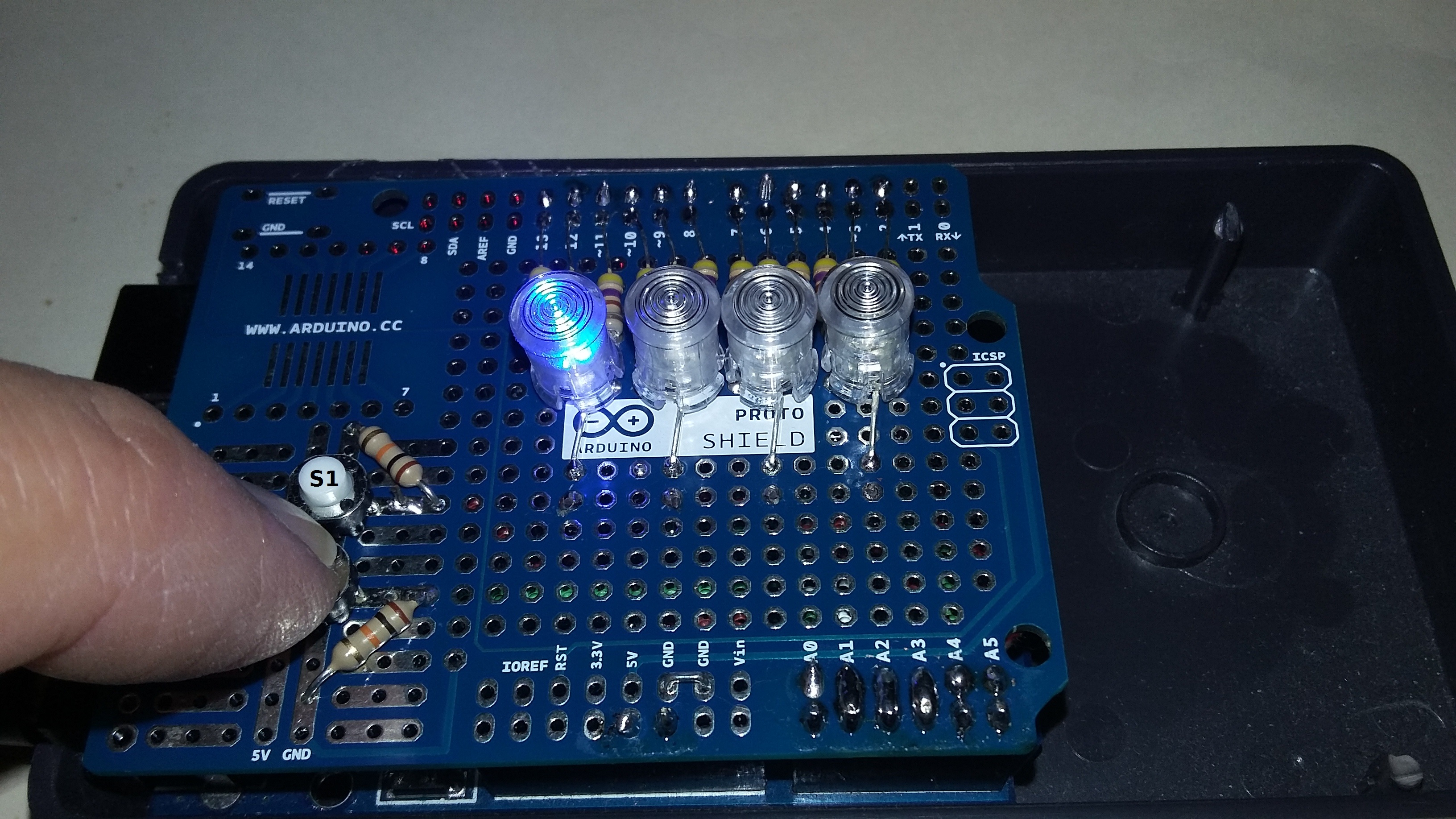

Pressing S1, the green LED's will light up and generate binary code from 1 to 15 (0001, 0010, 0011, 0100, 0101, 0110, 0111, 1000, 1001, 1010, 1011, 1100, 1101, 1110, 1111).

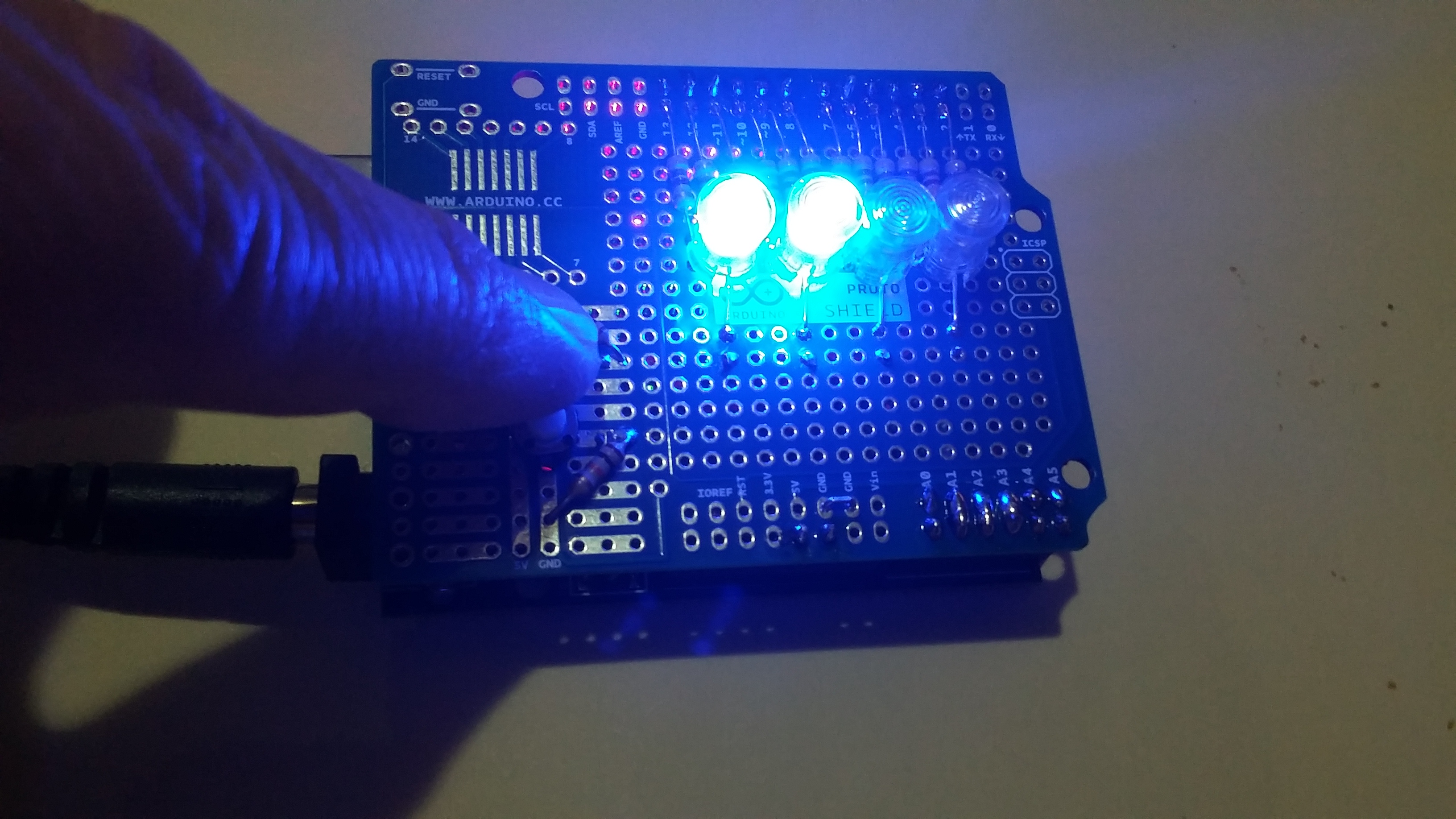

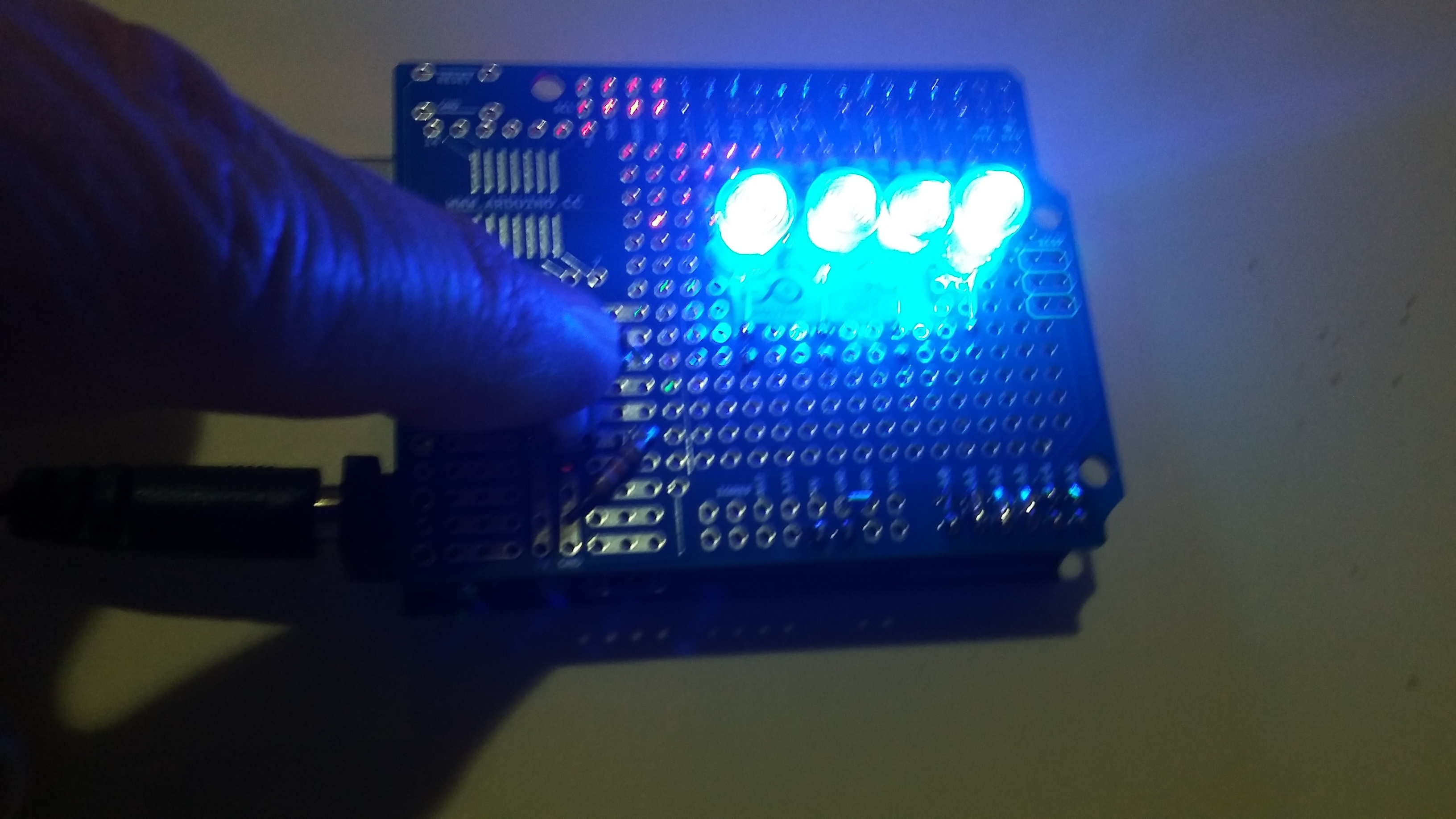

Pressing S2, the blue LED's will light up and generate binary code from 1 to 15 (0001, 0010, 0011, 0100, 0101, 0110, 0111, 1000, 1001, 1010, 1011, 1100, 1101, 1110, 1111).

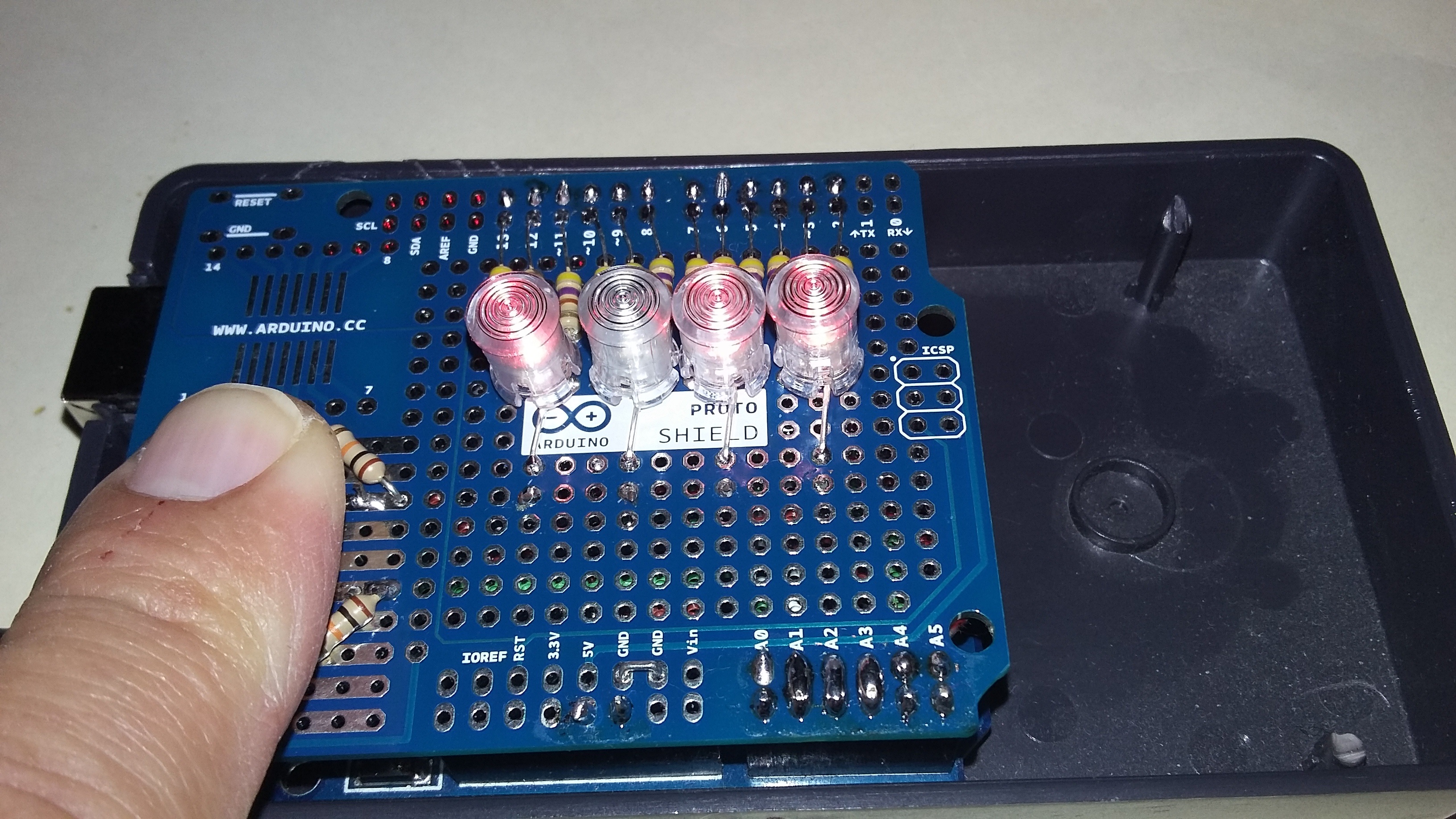

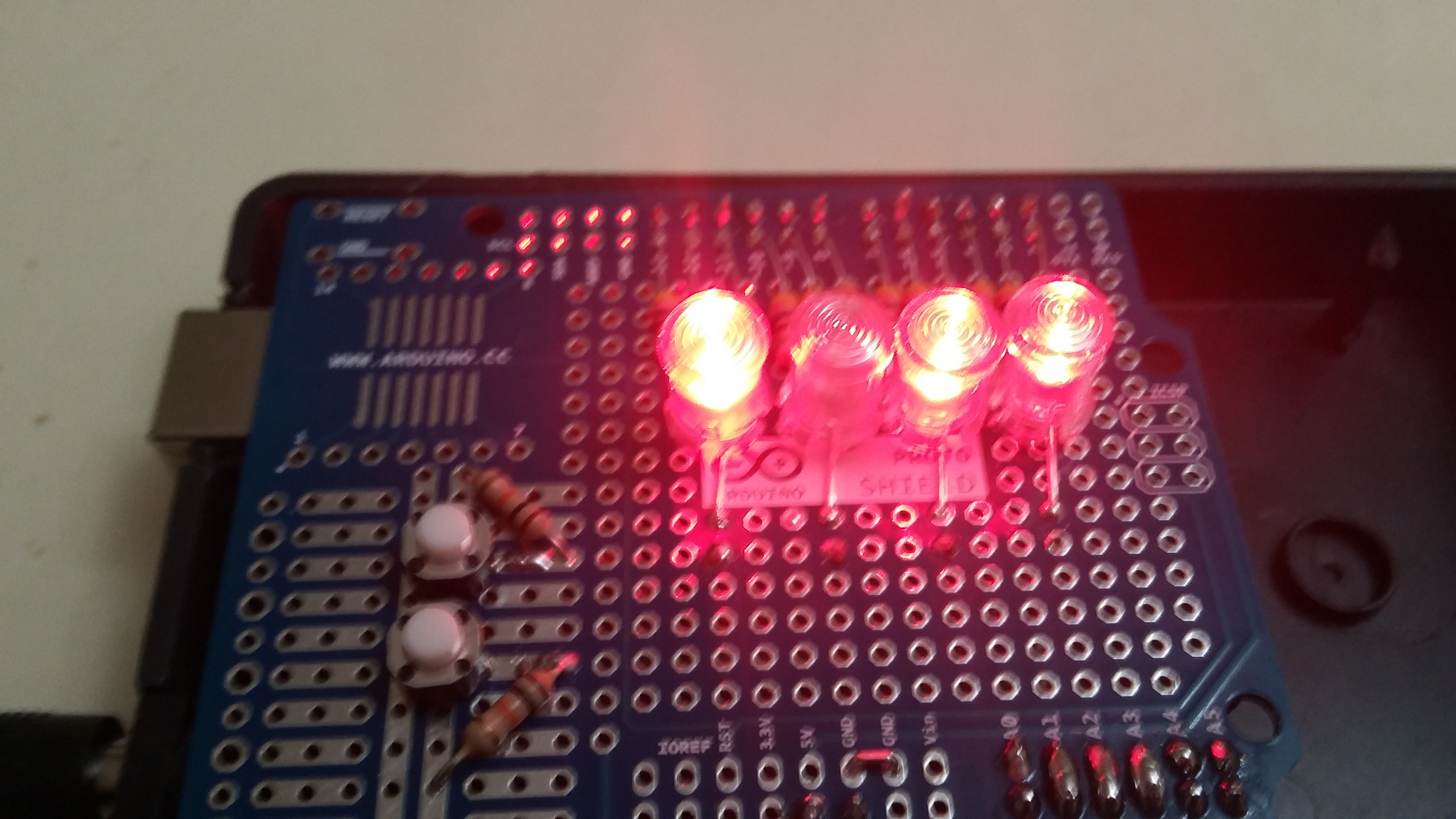

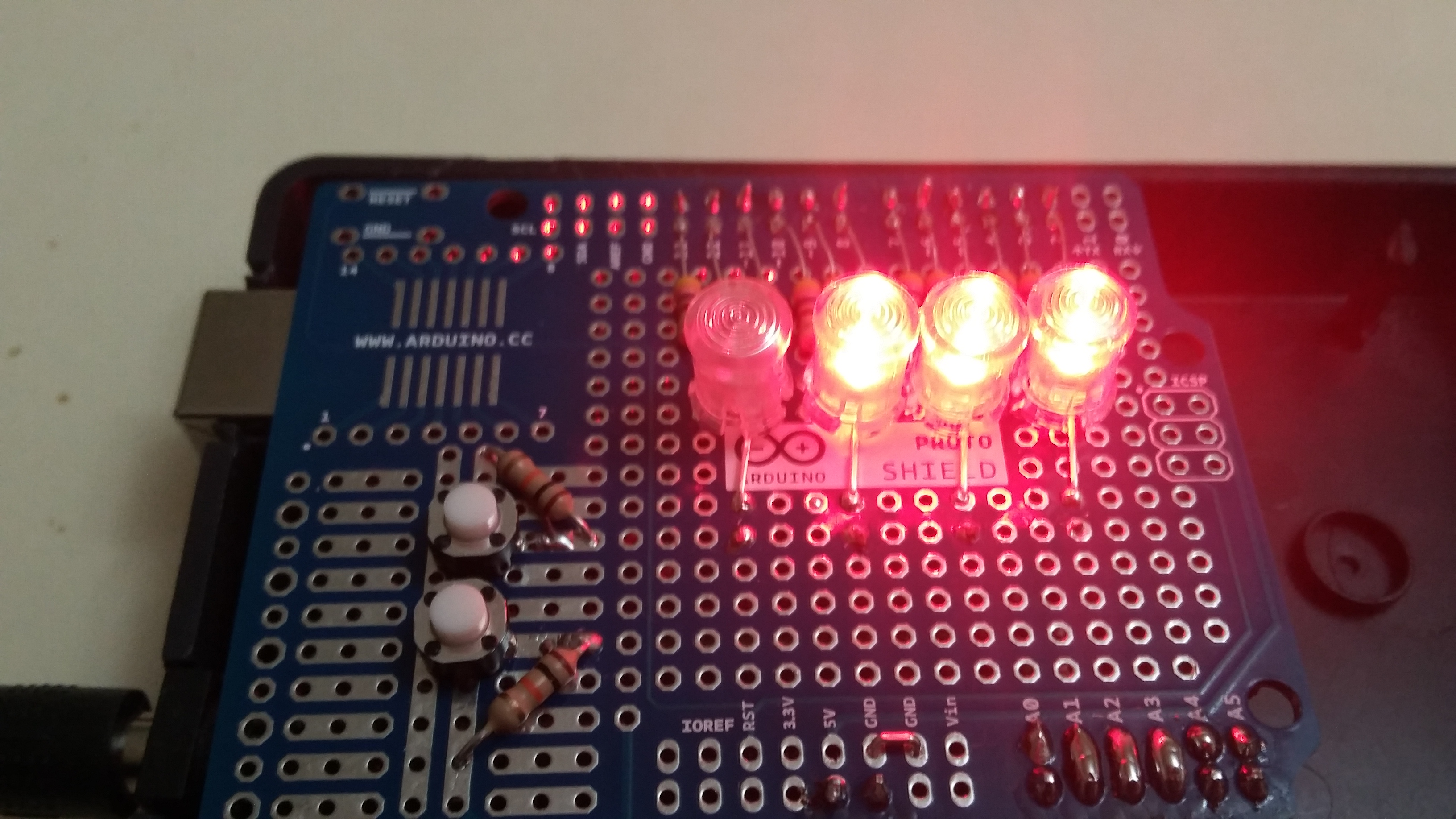

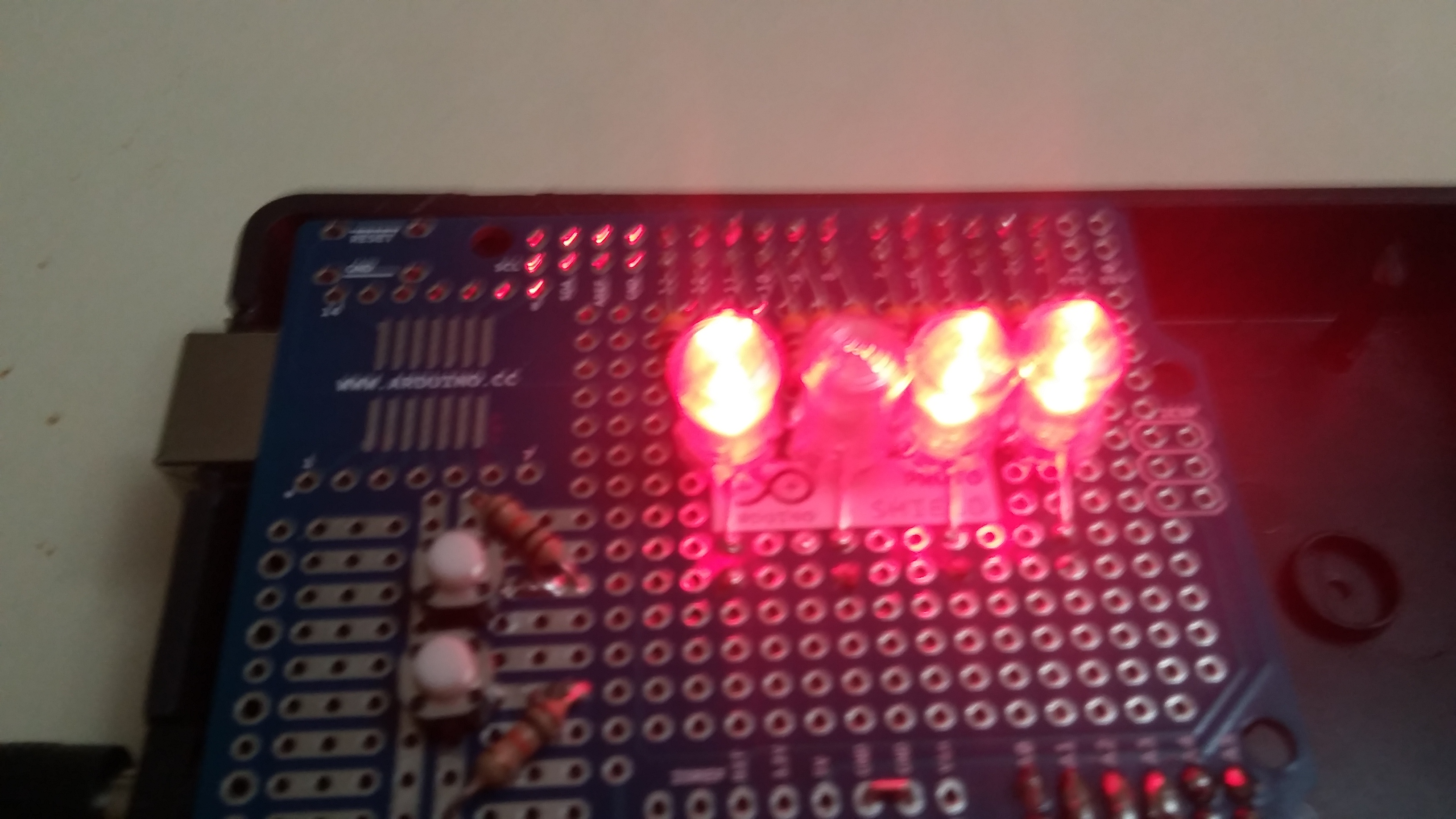

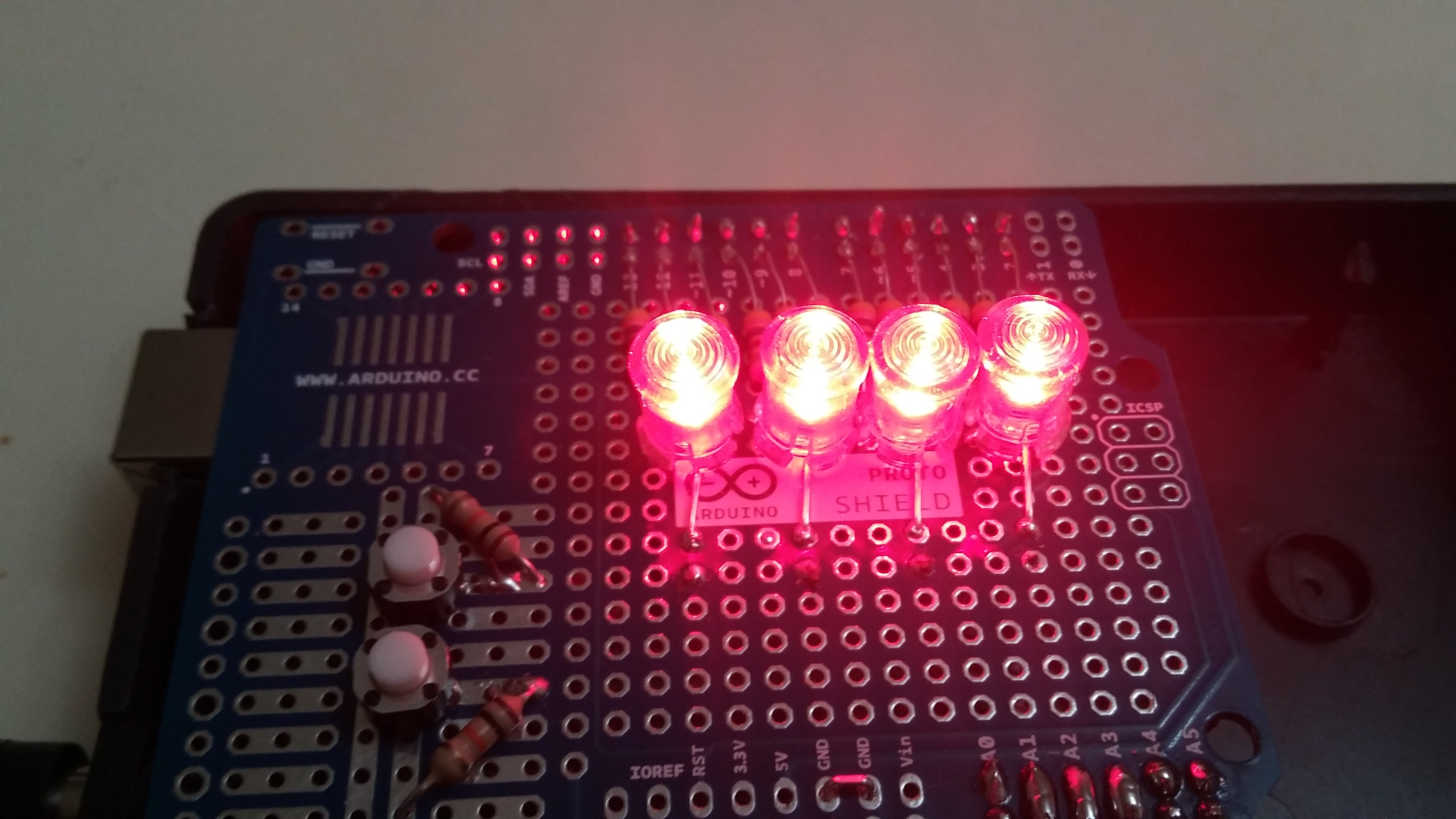

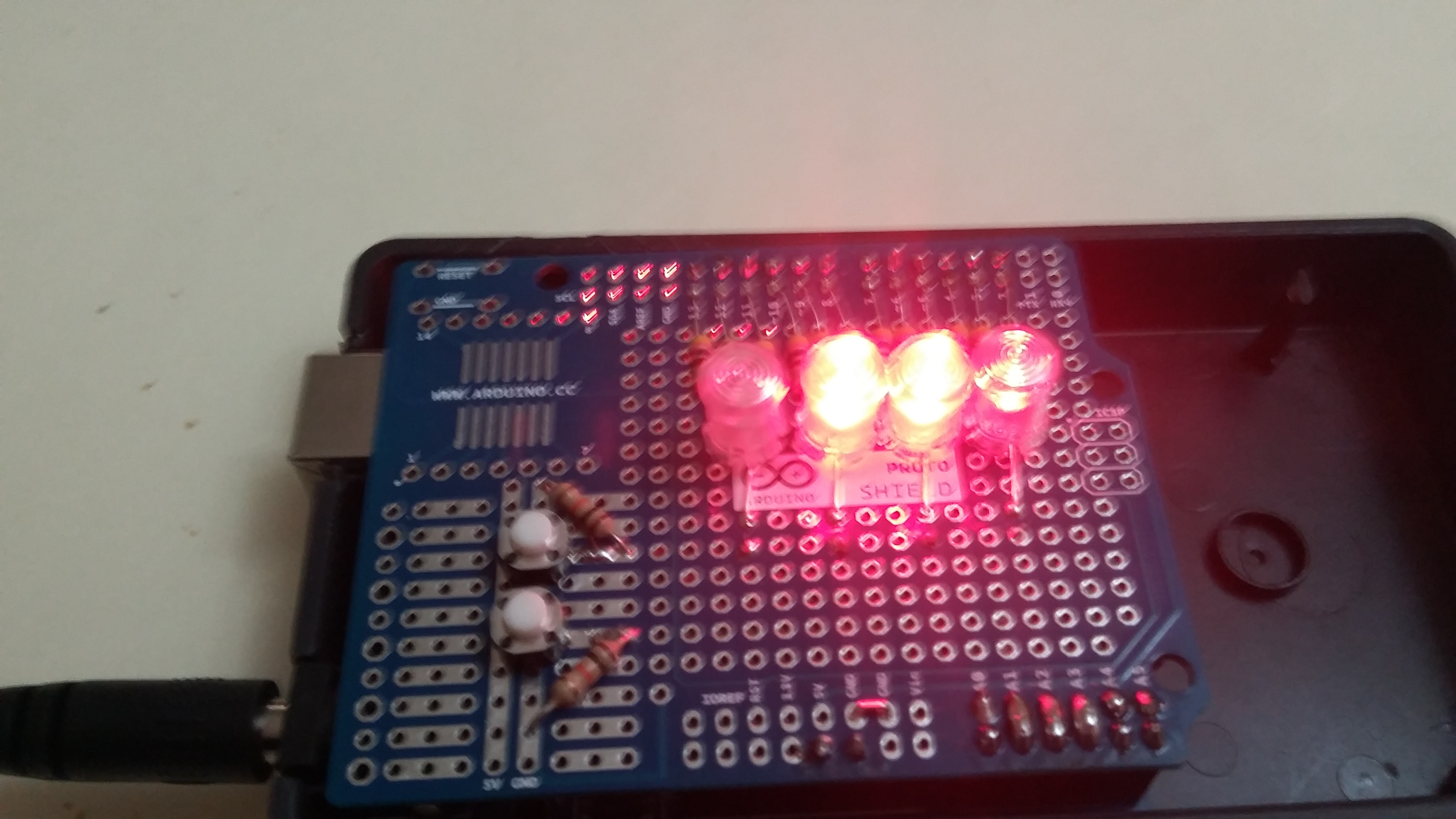

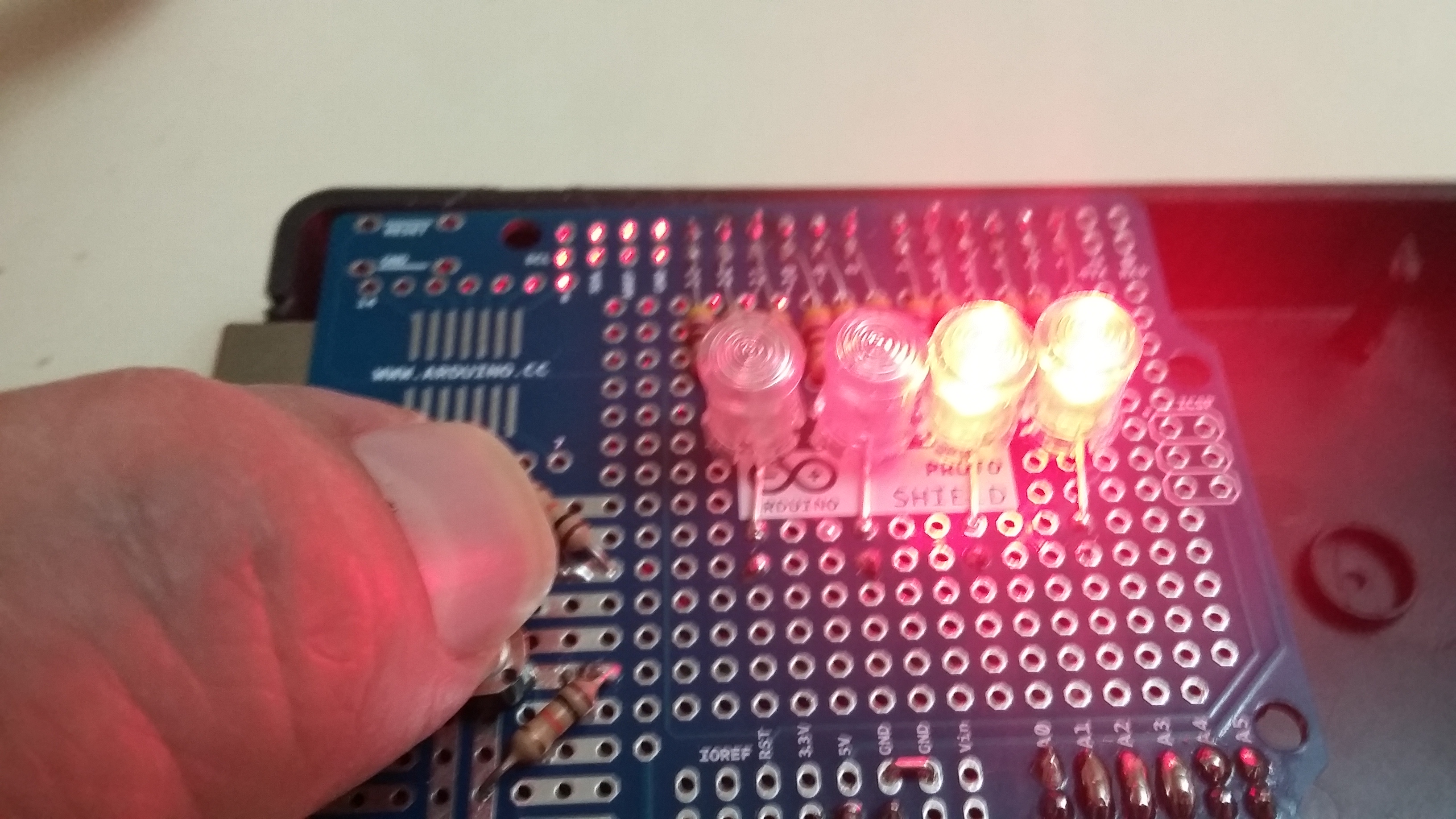

Pressing both S1 and S2, the red LED's will light up and generate binary code from 1 to 15 (0001, 0010, 0011, 0100, 0101, 0110, 0111, 1000, 1001, 1010, 1011, 1100, 1101, 1110, 1111).
