RGB LED Color Changer

ChatGPT Image Jun 25, 2026, 11_41_37 PM.png

Have you ever wondered how RGB LEDs create millions of different colors? In this beginner-friendly Arduino project, we'll learn how to control an RGB LED using PWM (Pulse Width Modulation) and automatically cycle through multiple colors.

This project is perfect for beginners who want to understand:

RGB LEDs
PWM signals
Color mixing
Arduino programming fundamentals

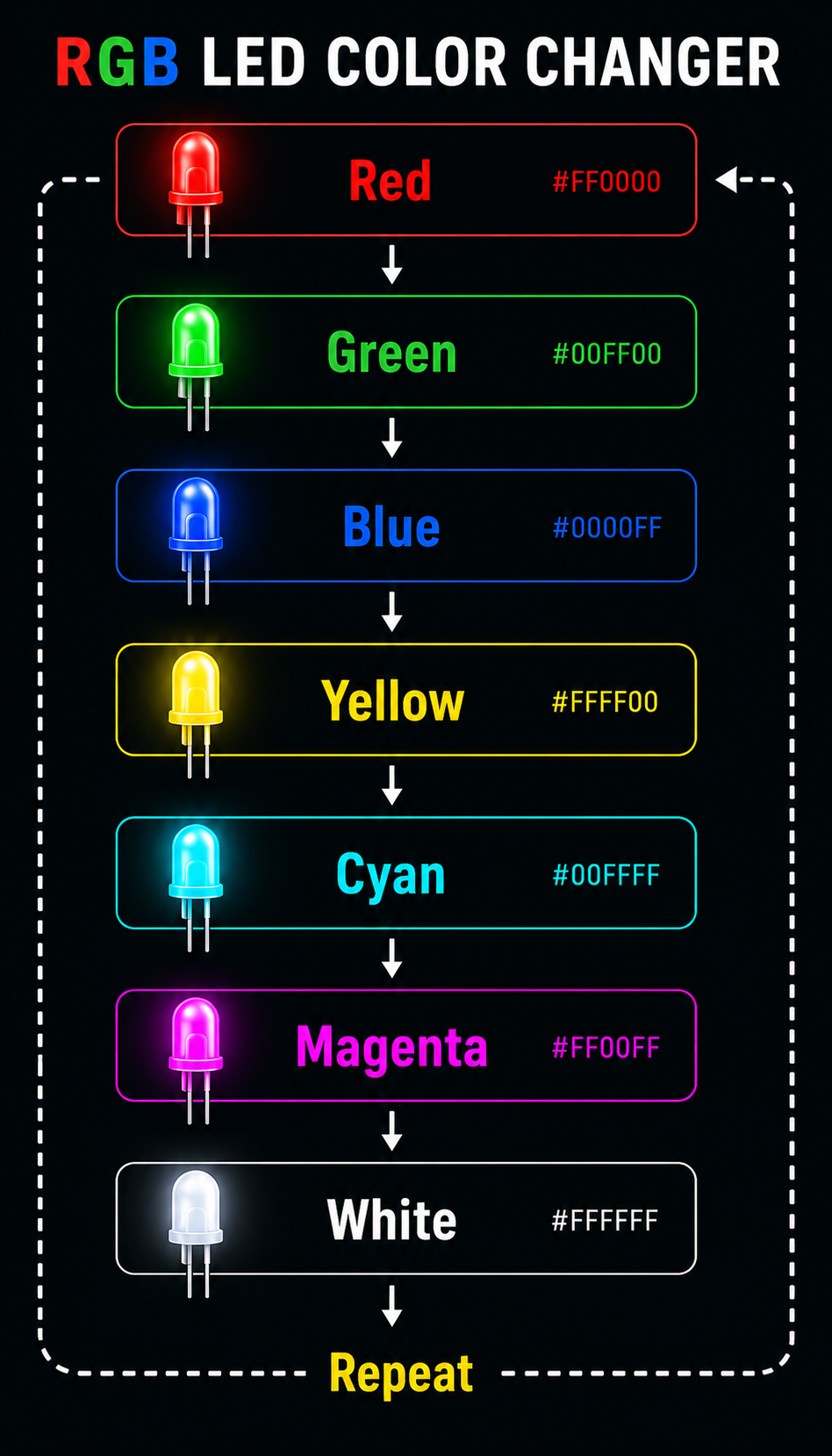

By the end of this tutorial, your RGB LED will smoothly change between Red, Green, Blue, Yellow, Cyan, Magenta, and White.

Supplies

Gather the Components:

QuantityComponent

1 Arduino Uno

1 RGB LED (Common Cathode)

1 220Ω Resistors

1 Breadboard

Several Jumper Wires

1 USB Cable

Understanding RGB LEDs

An RGB LED contains three LEDs inside a single package:

Red
Green
Blue

By adjusting the brightness of each LED, different colors can be produced.

Example Color Mixing

Identify RGB LED Pins

For a Common Cathode RGB LED:

Flat Side Facing You

Pin 1 → Red

Pin 2 → Common Cathode (-)

Pin 3 → Green

Pin 4 → Blue

Note: RGB LED pinouts may vary by manufacturer. Check your LED datasheet if colors don't behave correctly.

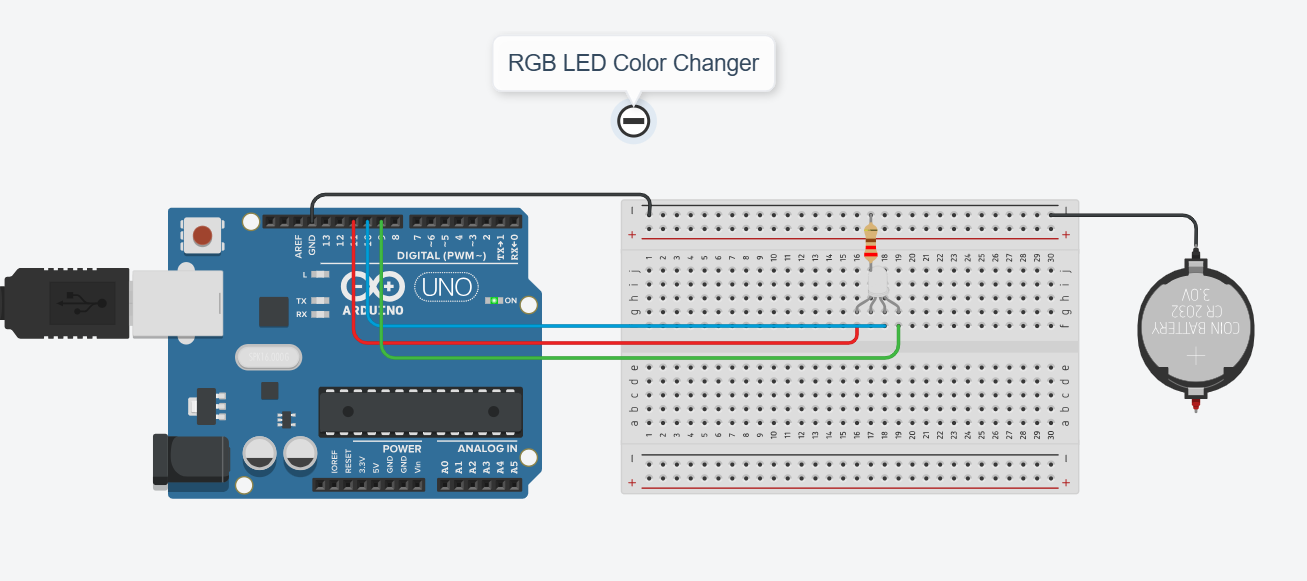

Circuit Diagram Arduino UNO

Arduino UNO

D11 ---- 220Ω ---- Red Pin

D10 ---- 220Ω ---- Green Pin

D9 ----- 220Ω ---- Blue Pin

GND ---------------- Common Cathode

Install Arduino IDE

If not already installed:

Download Arduino IDE.
Install it on your computer.
Connect Arduino Uno using USB.

Configure Arduino IDE

Open Arduino IDE and select:

Tools → Board → Arduino Uno

Then select:

Tools → Port → COM Port

Choose the port corresponding to your Arduino.

Upload the Code

Paste the following code into Arduino IDE.

// RGB LED Color Changer

const int RED = 11;

const int GREEN = 10;

const int BLUE = 9;

void setup()

{

pinMode(RED, OUTPUT);

pinMode(GREEN, OUTPUT);

pinMode(BLUE, OUTPUT);

}

void loop()

{

setColor(255, 0, 0); // Red

delay(1000);

setColor(0, 255, 0); // Green

delay(1000);

setColor(0, 0, 255); // Blue

delay(1000);

setColor(255, 255, 0); // Yellow

delay(1000);

setColor(0, 255, 255); // Cyan

delay(1000);

setColor(255, 0, 255); // Magenta

delay(1000);

setColor(255, 255, 255); // White

delay(1000);

}

void setColor(int redValue, int greenValue, int blueValue)

{

analogWrite(RED, redValue);

analogWrite(GREEN, greenValue);

analogWrite(BLUE, blueValue);

}

Click:

Verify ✓

Then:

Upload →

Wait until the upload completes.

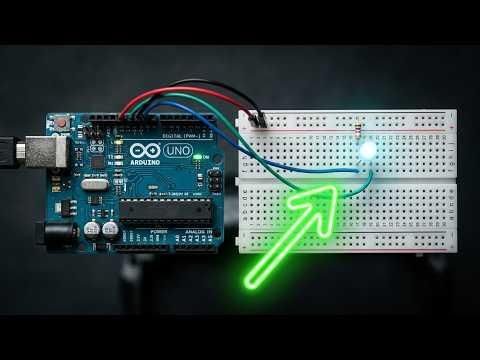

Observe the Output

How PWM Creates Colors

The function:

analogWrite(pin, value);

controls LED brightness.

Range:

0 = OFF

255 = Maximum Brightness

Example:

setColor(255, 100, 0);

Produces an orange color by mixing:

Full Red
Medium Green
No Blue

Create Your Own Colors

Try these values:

Orange

setColor(255, 80, 0);

Purple

setColor(150, 0, 255);

Pink

setColor(255, 20, 147);

Sky Blue

setColor(0, 191, 255);

Warm White

setColor(255, 180, 100);

Experiment and discover your favorite colors.

Smooth Color Fading

Replace the loop with this code:

for(int i=0;i<=255;i++)

{

analogWrite(RED,i);

delay(10);

}

This creates a smooth fade effect instead of sudden color changes.

Troubleshooting

RGB LED Doesn't Light

Verify wiring.
Check resistor connections.
Confirm common cathode is connected to GND.

Wrong Colors Appear

RGB LED pin order may differ.
Swap Red, Green, and Blue connections.

Upload Fails

Verify COM port.
Verify Arduino Uno board selection.

Future Improvements

You can enhance this project by adding:

Potentiometers for manual color control
Bluetooth control using ESP32
IR remote control
Sound-reactive color effects
Color fading animations
Smart home lighting projects

Conclusion

You have successfully built an RGB LED Color Changer using Arduino Uno. This project introduces PWM control, RGB color mixing, and Arduino programming concepts that are widely used in lighting systems, IoT devices, decorative electronics, and smart automation projects.

Happy Making! 🚀🔴🟢🔵
