Remote Sensor

by Utsource123 in Circuits > Electronics

1393 Views, 4 Favorites, 0 Comments

Remote Sensor


Hey friends, in this instructable I will show how to make a remote tester step by step.

Let's Get Started!

Take All Components As Shown

IR SENSOR.png

Component lists:

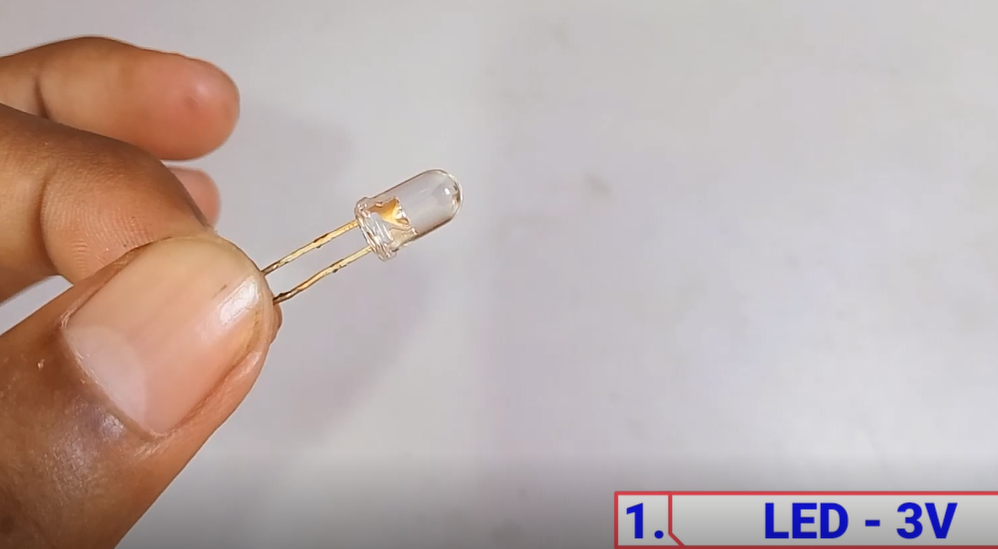

LED-3V × 1

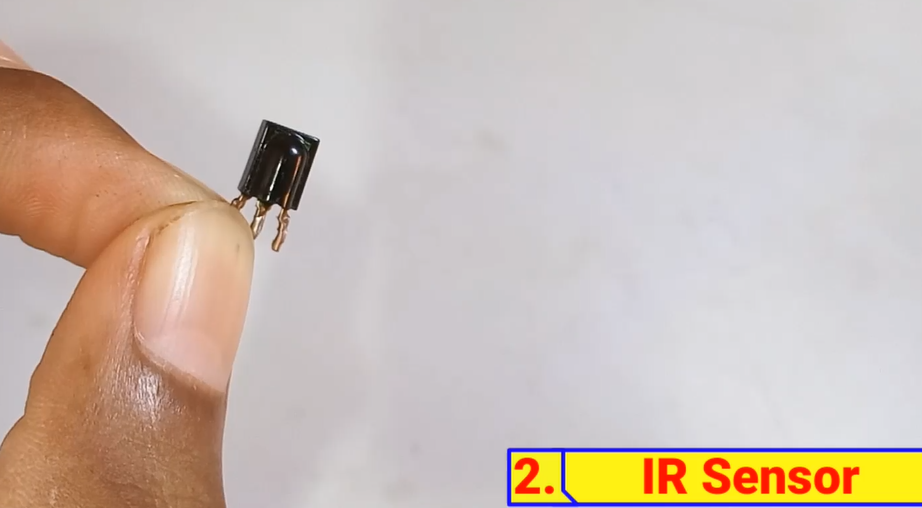

IR Sensor × 1

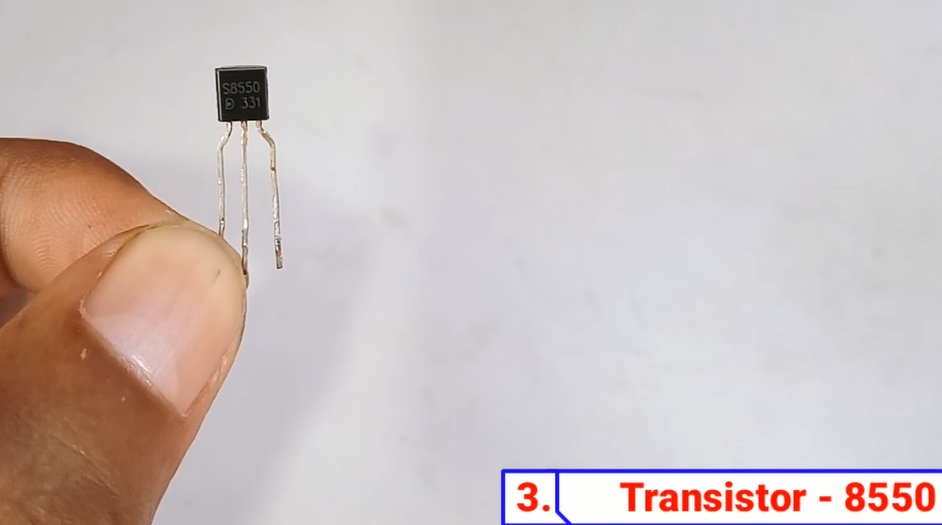

Transistor - 8550 × 1

Need Speaker and Wires


Speaker - 8 Ohm × 1

Connecting Wires× 1

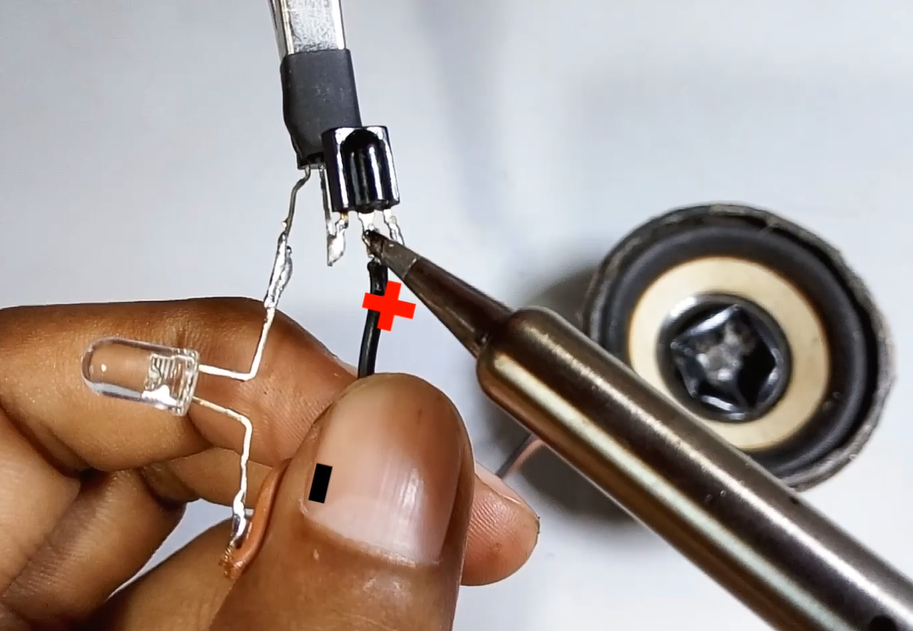

Connect Components As Shown in the Circuit Diagram.

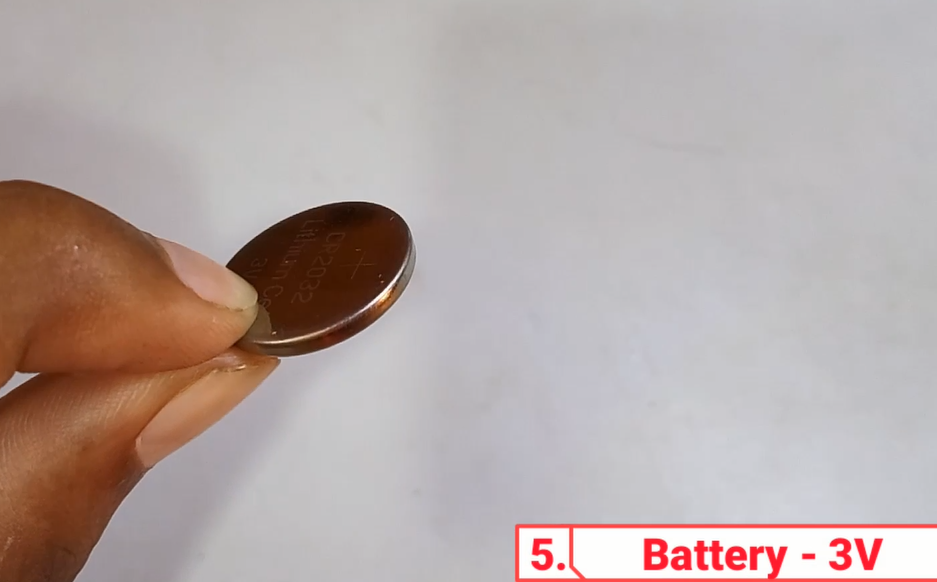

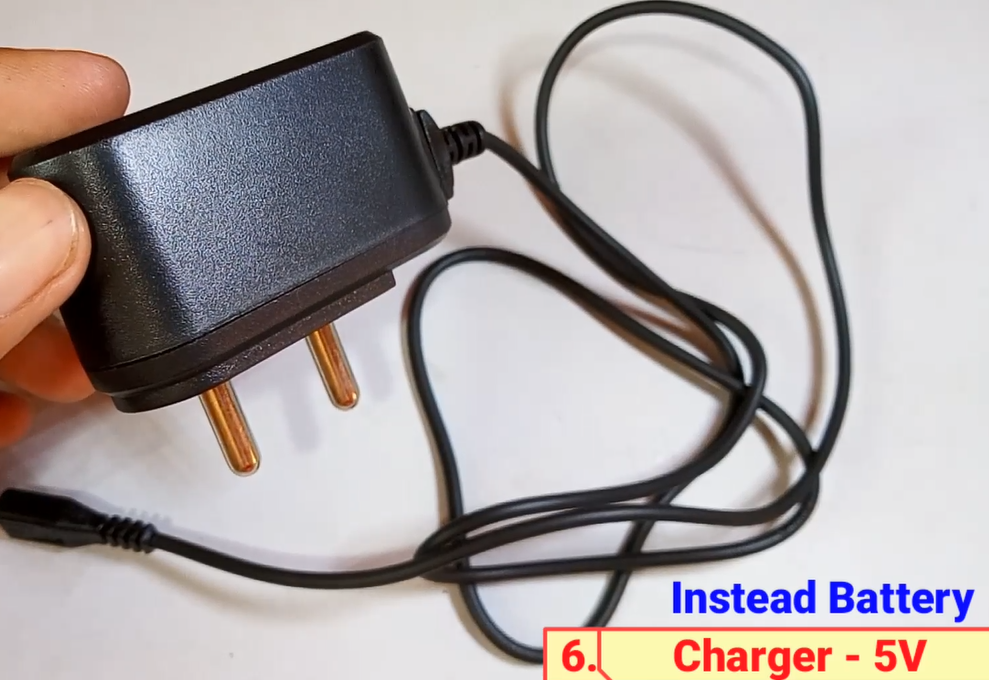

Now, Give Power Supply to the Circuit. DC Power Supply: 3-5V

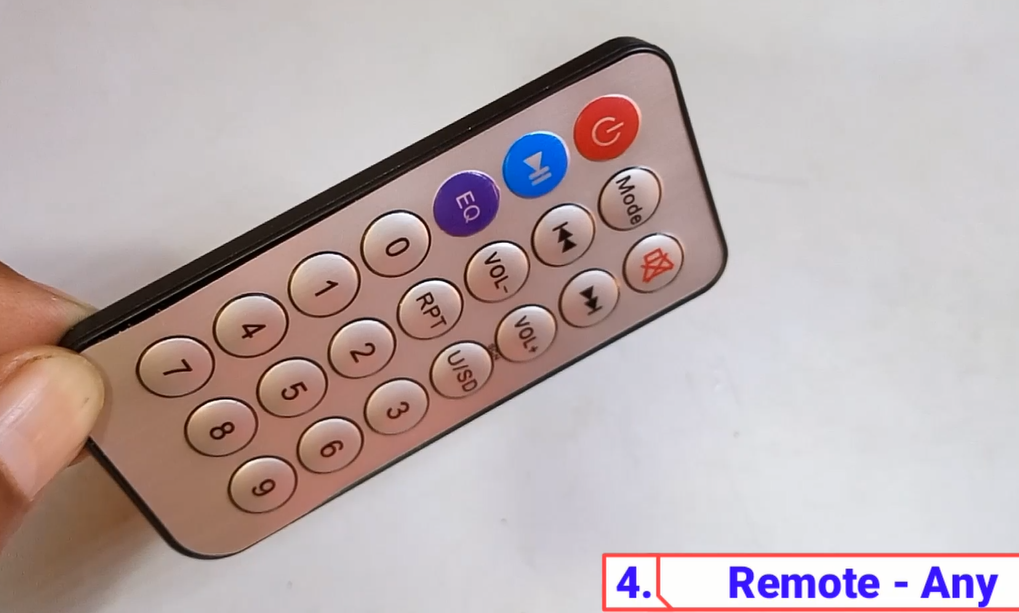

Press Any Button of Any Remote Towards IR Sensor.

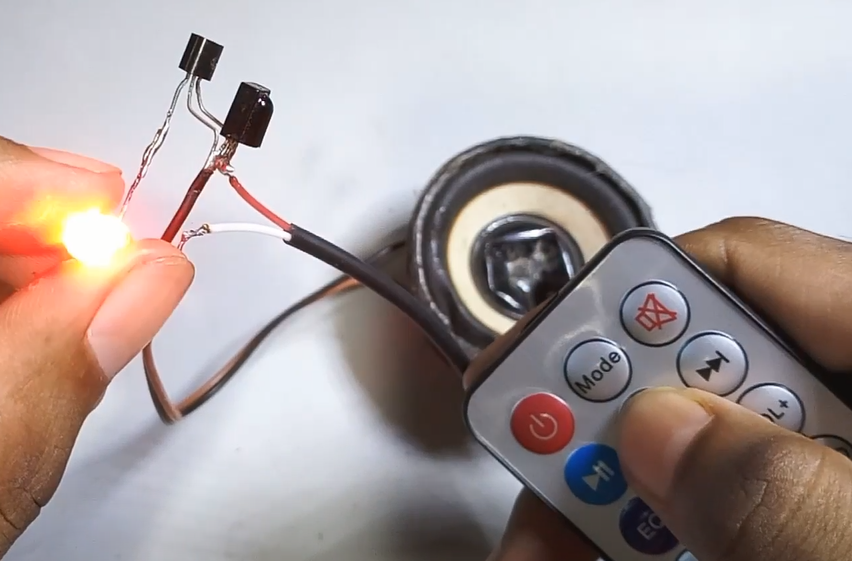

Now You Will Observe LED Is Blinking and Speaker Gives Blinking Sound.


I think it is going to work!

I know that there may be a lot of suggestions for improvement of this project,so please use the comment section and let me and others know.
