Retractable Green Shade: a Smart Heat Shelter for Plants

Summer heat can be harsh on plants, especially when the sunlight becomes too strong during the hottest part of the day. Instead of keeping a permanent shade over my plants, I wanted to make something that could open when the plants need sunlight and close when they need protection.

So I made this simple retractable green shade.

The best part is that it does not need to be removed every day—the shade stays in place and can be opened or closed whenever required.

1. Green shade net
2. Iron rods/pipes for the supporting pillars
3. Strong wire for the sliding tracks
4. Strong thread or cord
5. Small clips/hooks for attaching the net
6. Wire or binding material
7. A sturdy base for the iron rod
8. Pliers
9. Cutter
10. Drill or suitable tool for making holes
11. Measuring tape
12. Screws/fasteners, depending on the type of base you use

The basic idea is very simple:

Pull the thread → the green net moves → the shade opens or closes.

The green net is attached to a sliding arrangement and supported by wires stretched between the pillars.

When the opening thread is pulled, the net gathers toward one side.

When the closing thread is pulled, the net moves back across the plant area and creates a shaded roof.

Think of it like a curtain, but horizontally above your plants.

First, decide how much area you want to cover.

Measure:

The length of the plant area

The width of the area

The height at which you want the shade

Leave enough space for you to comfortably water and care for the plants.

I recommend keeping the shade slightly larger than the actual plant area so that the plants remain protected even when the sun moves during the day.

I first made the support structure that holds the retractable shade.

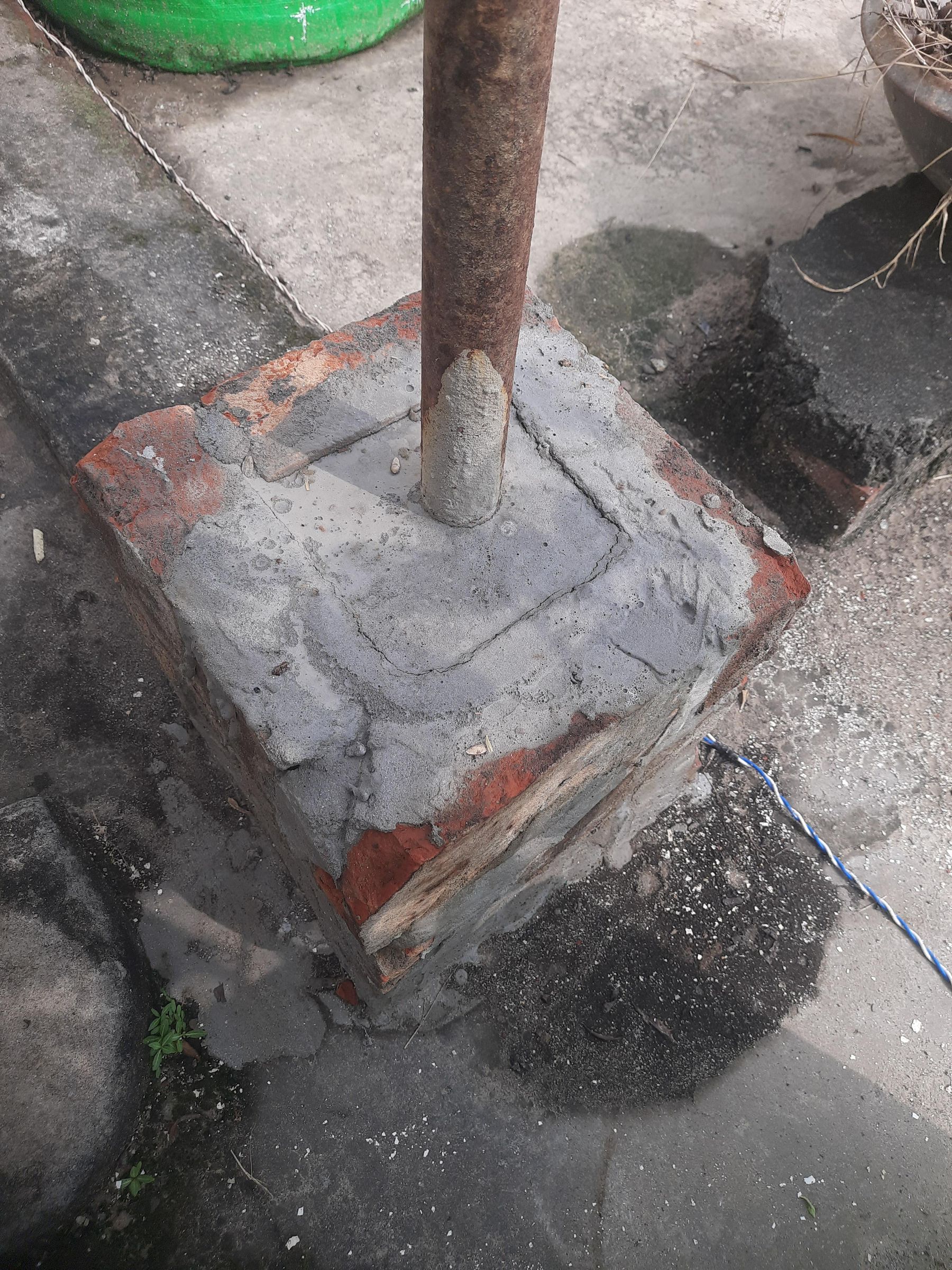

For one side, I prepared an iron rod/pillar and made a stable base so that it could stand upright without moving.

The pillar needs to be firmly fixed because the wires and the moving net will put some tension on it.

Make sure the pillar is straight and stable before continuing.

Tip: If your shade is large, do not rely on a lightweight or loose support. The stronger the frame, the smoother the shade will operate.

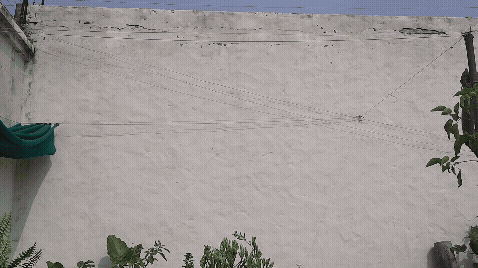

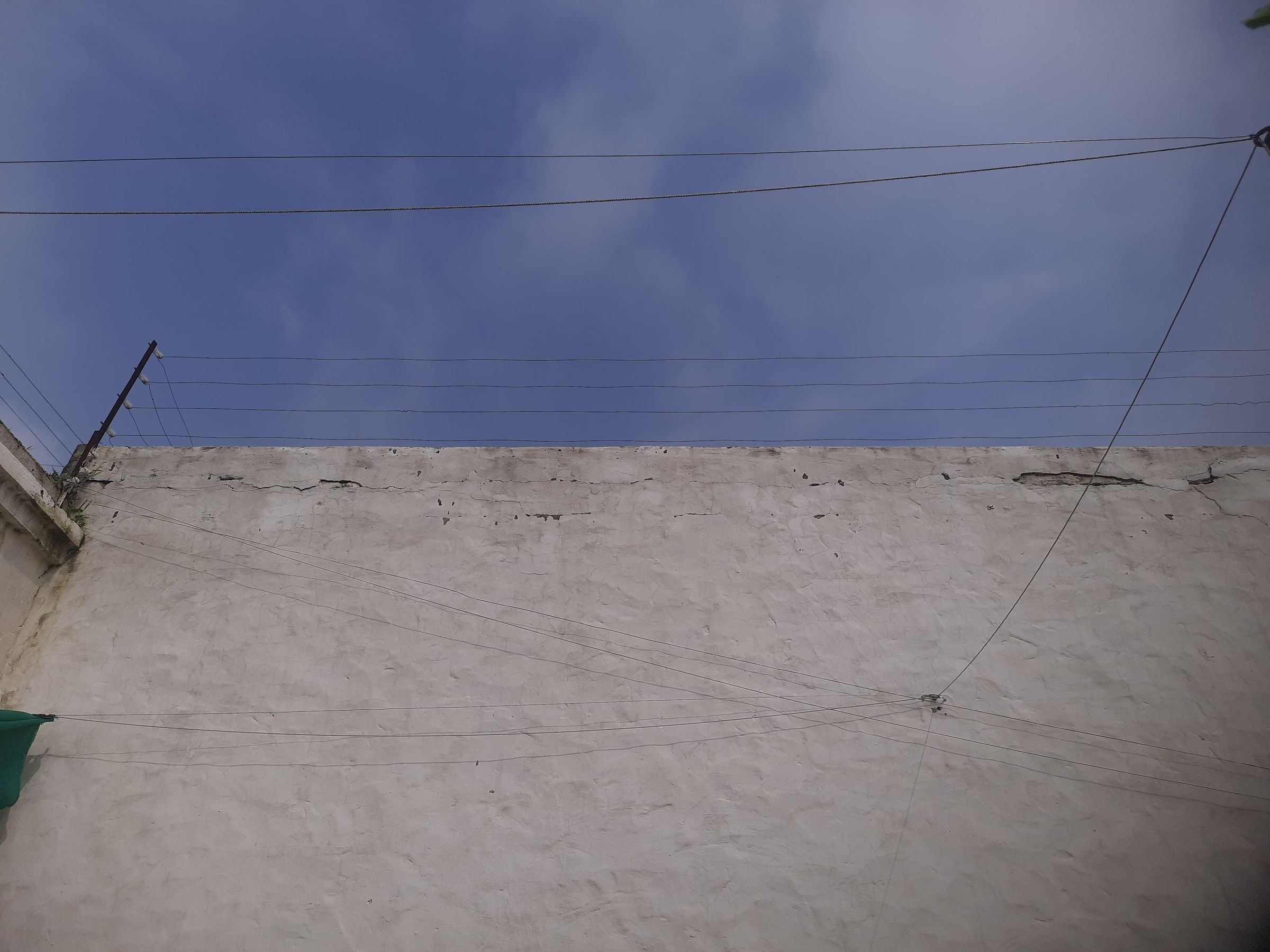

Now stretch strong wires between the supporting pillars.

These wires act as tracks for the green net.

The wires should be tight enough to support the net but not so tight that the pillars become unstable.

Check the alignment carefully.

The net should be able to move along the wires without getting stuck.

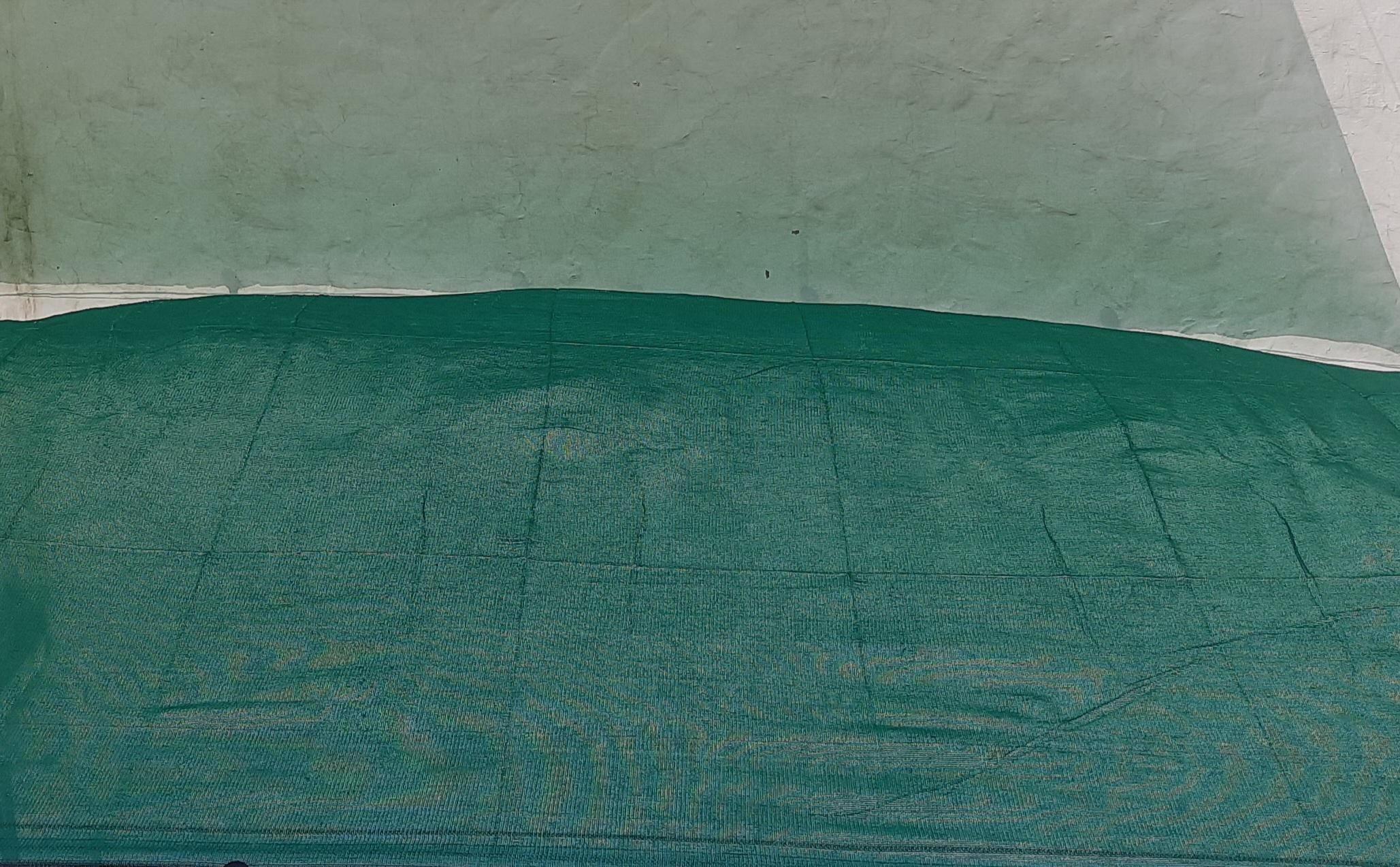

Cut the green shade net according to the size of your plant area.

Do not make it excessively heavy. A lightweight net will be much easier to move with the thread mechanism.

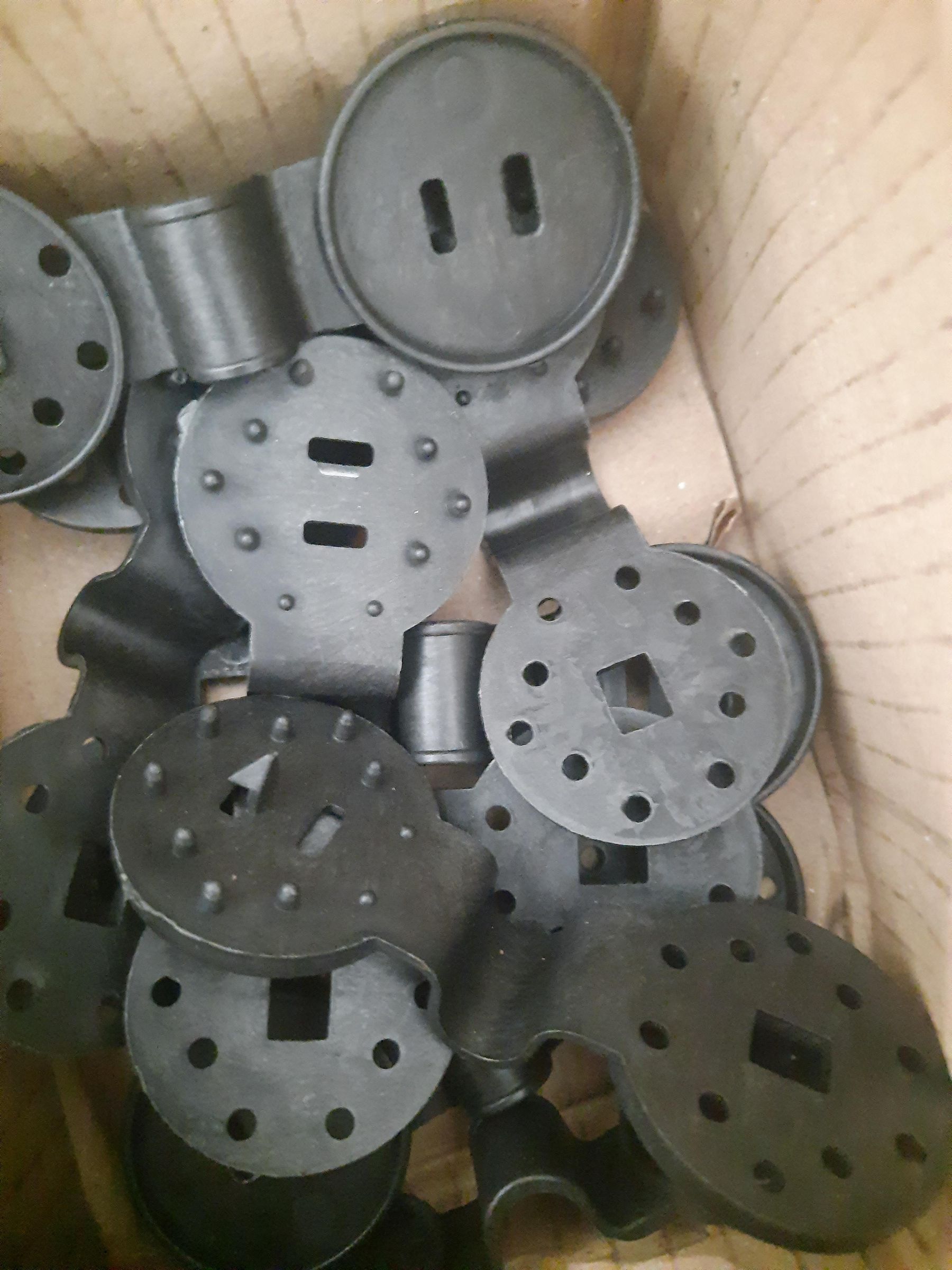

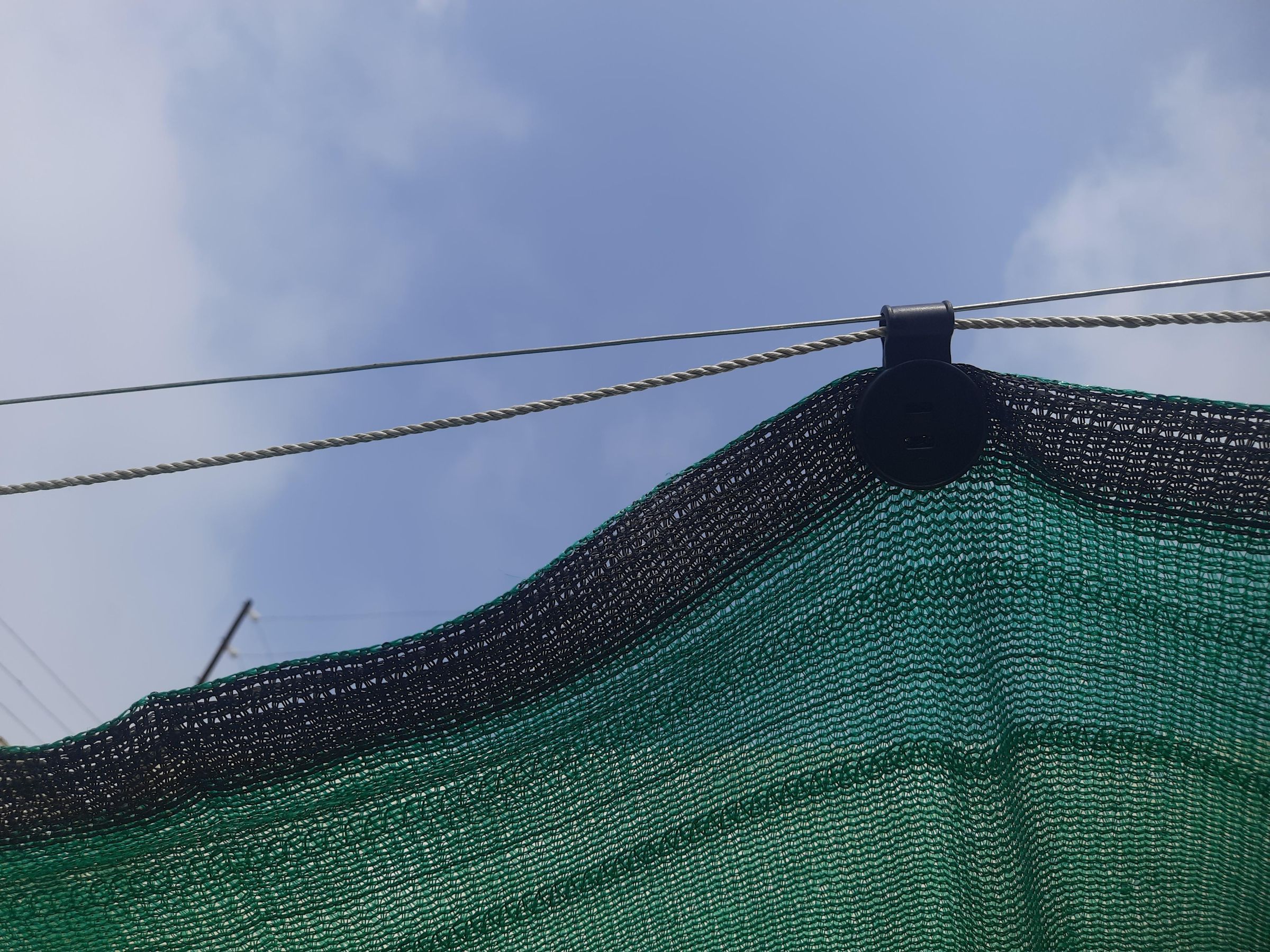

Now attach the green net to the wires using small clips, hooks, or loops.

Keep the attachment points evenly spaced.

The clips should hold the net securely while still allowing it to slide.

Do not attach the net so tightly that the clips cannot move.

This is the most important part for smooth operation:

The net must be held firmly, but it must also be free to slide.

Now comes the fun part—the mechanism that makes the shade retractable. 🧵

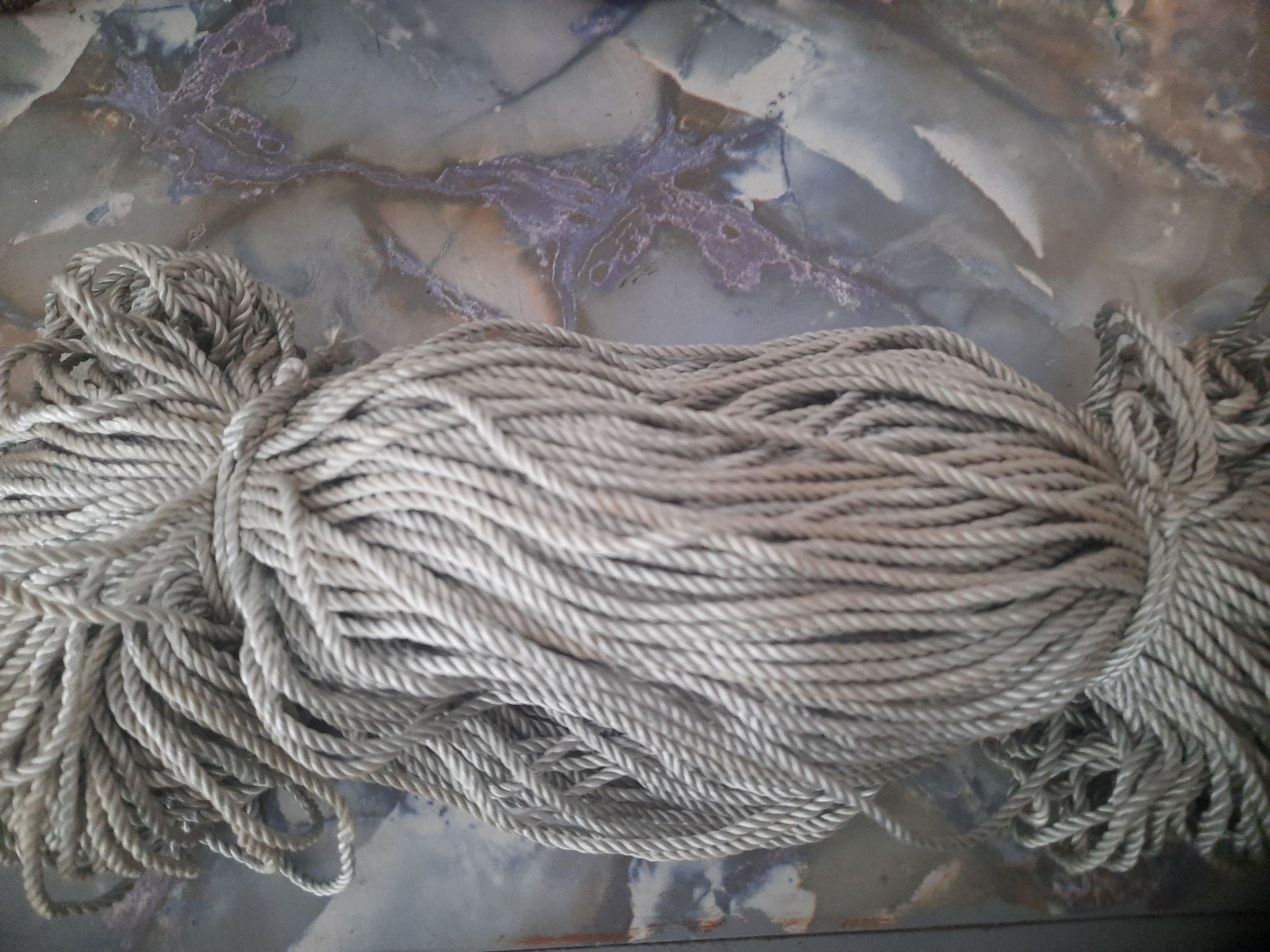

Attach a strong thread/cord to the moving section of the net.

Route the thread toward the side from which you want to operate the shade.

I used a simple pull arrangement so that pulling the thread from one side moves the net in one direction, while pulling the thread from the other side brings it back.

The principle is similar to opening and closing a curtain.

Make sure the thread does not cross unnecessarily or rub against sharp edges.

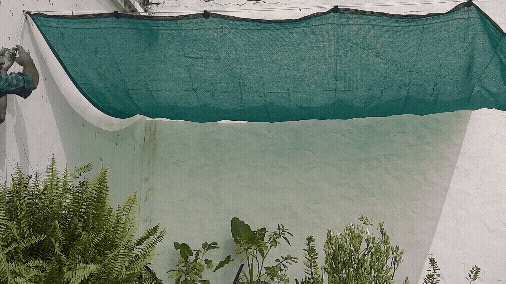

Before permanently fixing everything, test the system.

Pull the thread slowly.

The green net should gather and move toward the opening side.

Then pull the thread from the opposite side.

The net should travel back and cover the plant area.

If the net gets stuck:

Check whether the wires are properly aligned.

Check whether any clip is twisted.

Make sure the net is not rubbing against the pillar.

Reduce unnecessary tension in the thread.

Check that the sliding clips can move freely.

A small adjustment here can make the entire mechanism much smoother.

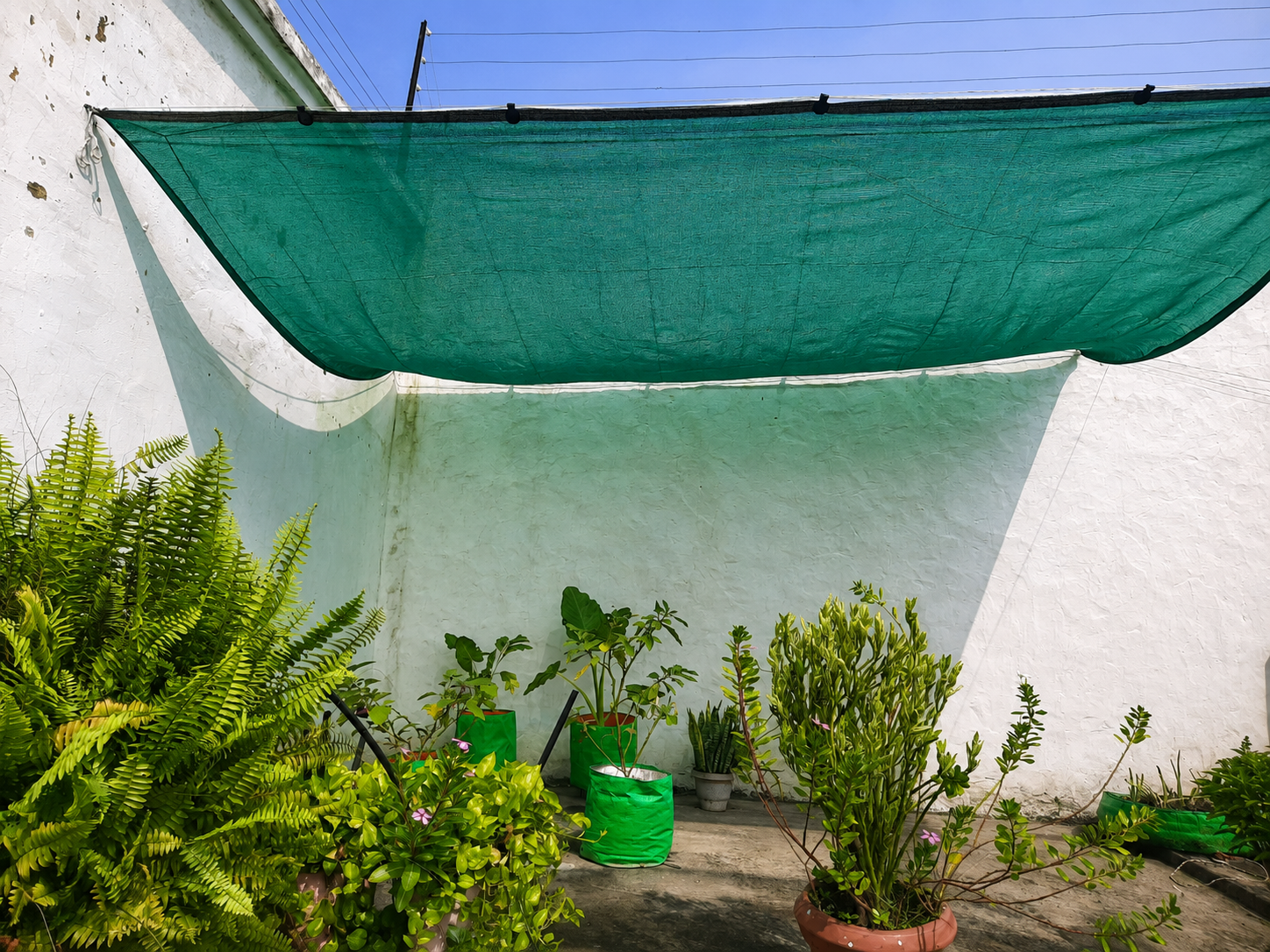

The shade is now ready! 🌱

During mild sunlight, I can keep the net open so the plants receive more direct sunlight.

When the sunlight becomes too intense, I simply pull the thread and bring the green shade over the plants.

Later, when the temperature drops or the plants need more sunlight, I pull the thread from the opposite side and retract the shade.

So instead of permanently covering the plants, I can control the amount of shade whenever I need it.

A permanent shade can sometimes be inconvenient because plants still need sunlight.

I wanted something that could provide protection during harsh heat while still allowing me to expose the plants to sunlight at other times.

This retractable design gives me both:

☀️ Sunlight when needed

🌿 Shade when needed

And because the mechanism is manually operated, there is no electricity or complicated machinery involved.
