Robot Spinner Arduino Based .

A Robot to spin a " Spinner " for us !

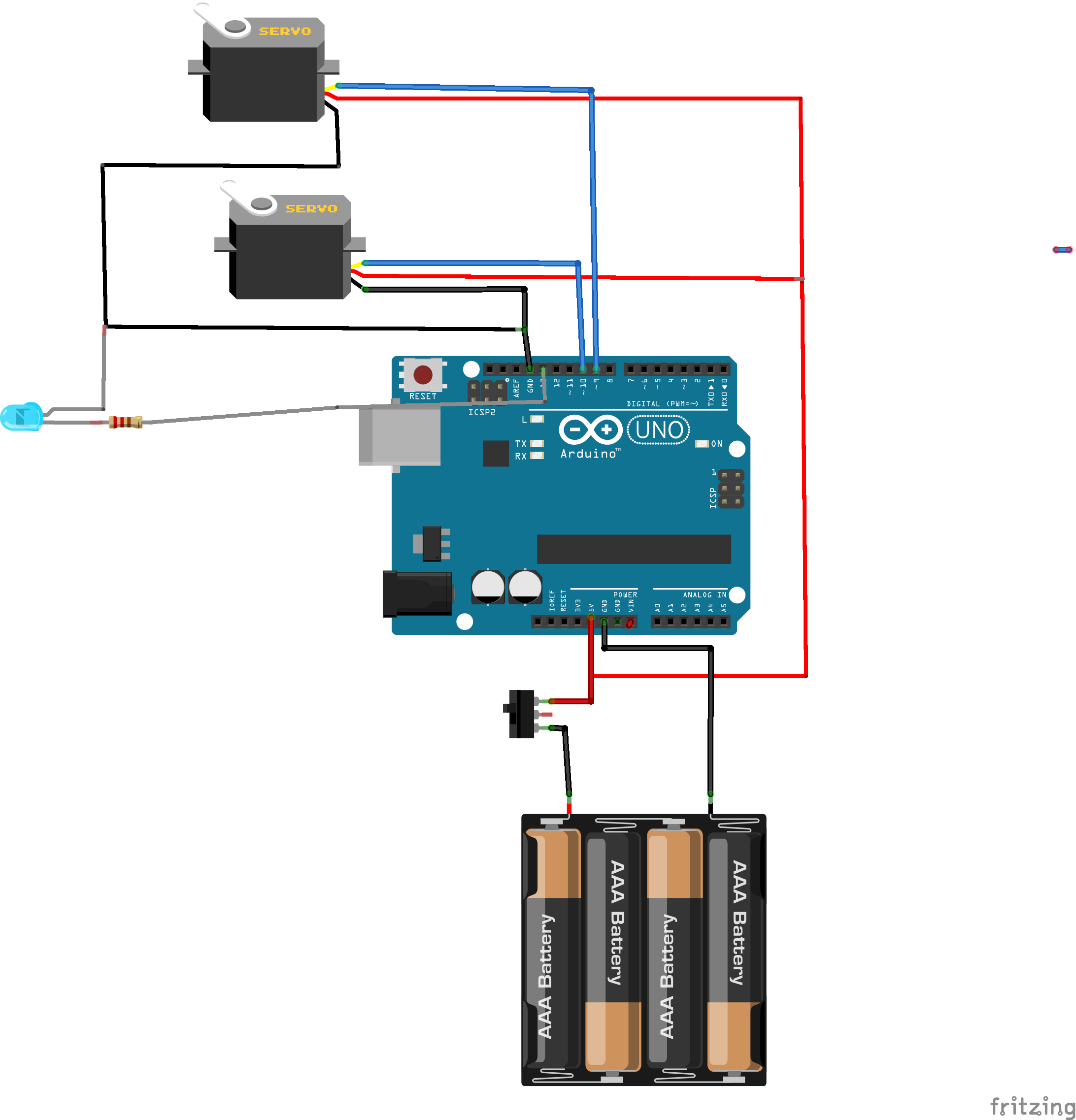

1. A Arduino - Uno R 3 ...you can use a ( D.I.Y. ) one like mine ...easily found onto NET...
2. Two Micro - Servos ( TG9 )
3. A Spinner
4. Wires
5. Solder
6. 1 Led 3mm ( high Intensity ) ...blink 1,5 secs
7. A base ( wood ) 5 x 5 pol .
8. Any wood to cut the arm ( forearm , bíceps & finger )
9. Hot Glue Stick & Gun .
10. Battery Holder ( 4 AA )
11. Bateries ( 4 AA)

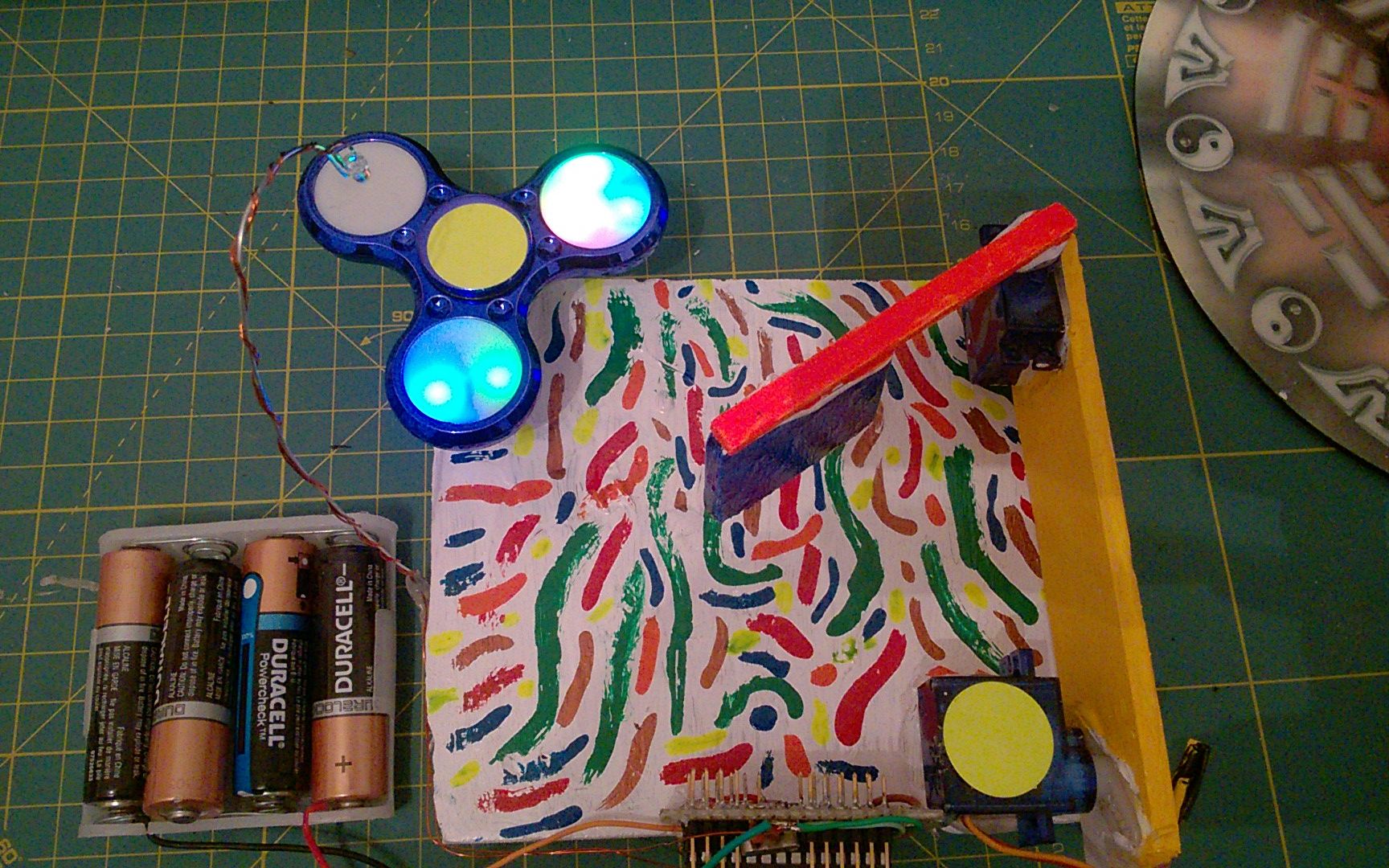

This is adjusted to Spin ...Hands off ...and play again ....

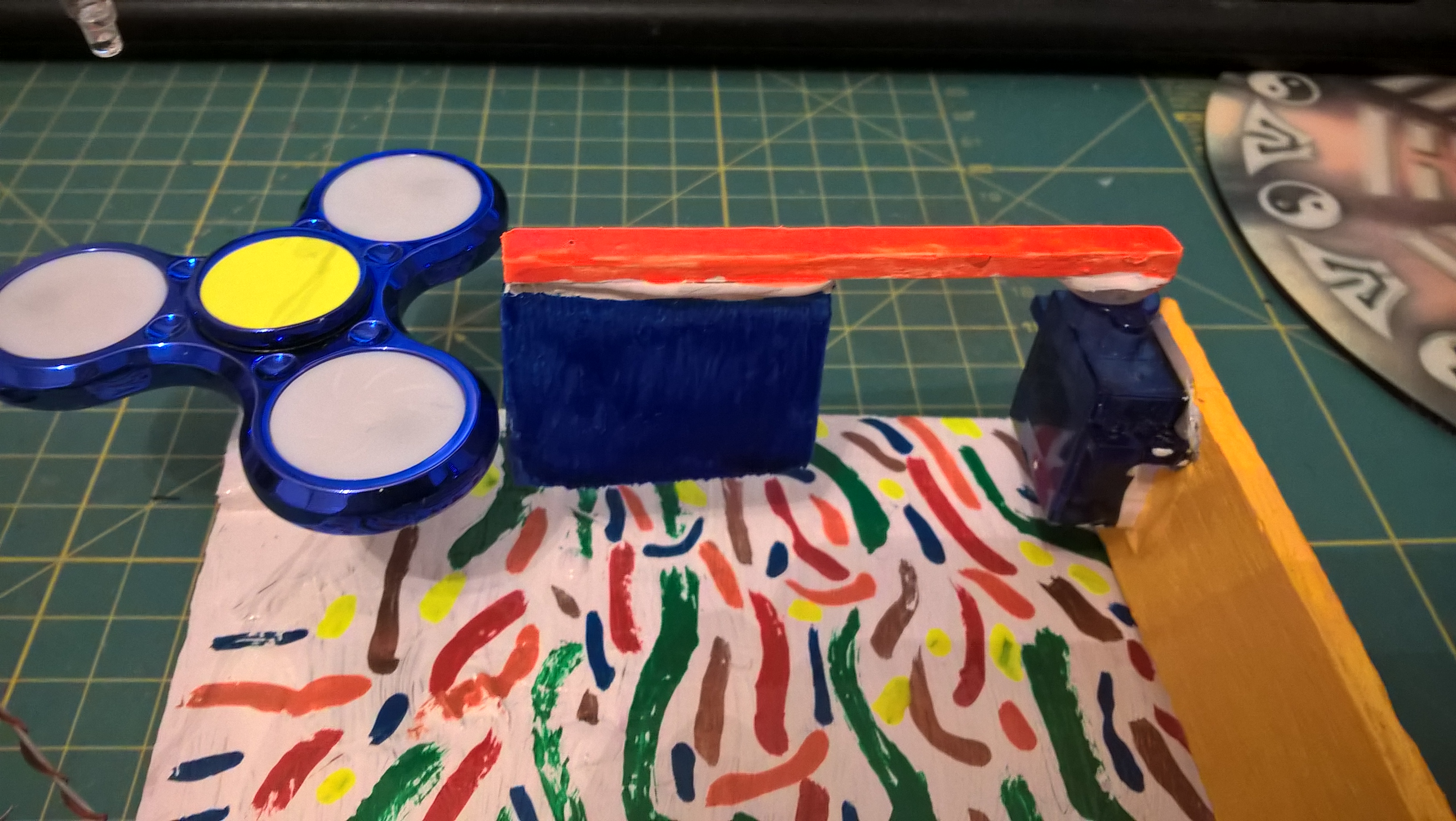

1. The (Base ) a quad piece of Wood 5 x 4 pol. ( painted multicolor )
2. The ( Bíceps ) you can use a piece of "balsa wood " measures : 4,5 x 1 pol. ( the Yellow one ...)
3. The ( Forearm ) a tiny piece " balsa wood too...) measuring 3 x 1/4 pol. ( the Orange one ...)
4. the ( Finger ) another piece ... b.w.... measures 1 1/4 x 1 pol . ( the Blue one ...)

• First Glue the 1st servo (right corner of the base) ...use a piece of wood

  " White one" to align with acc pic

• Glue the (yellow piece....Biceps ) at arm of 1st Servo ...
• Then glue the Arduino right beside of this ...Servo ( 1 st one)...
• Now Glue the another Servo at another end of Yellow piece ...
• Glue the Orange piece( forearm) at " arm " of 2nd Servo...
• ....Now the Blue piece ( finger ) at Orange one ( Forearm )

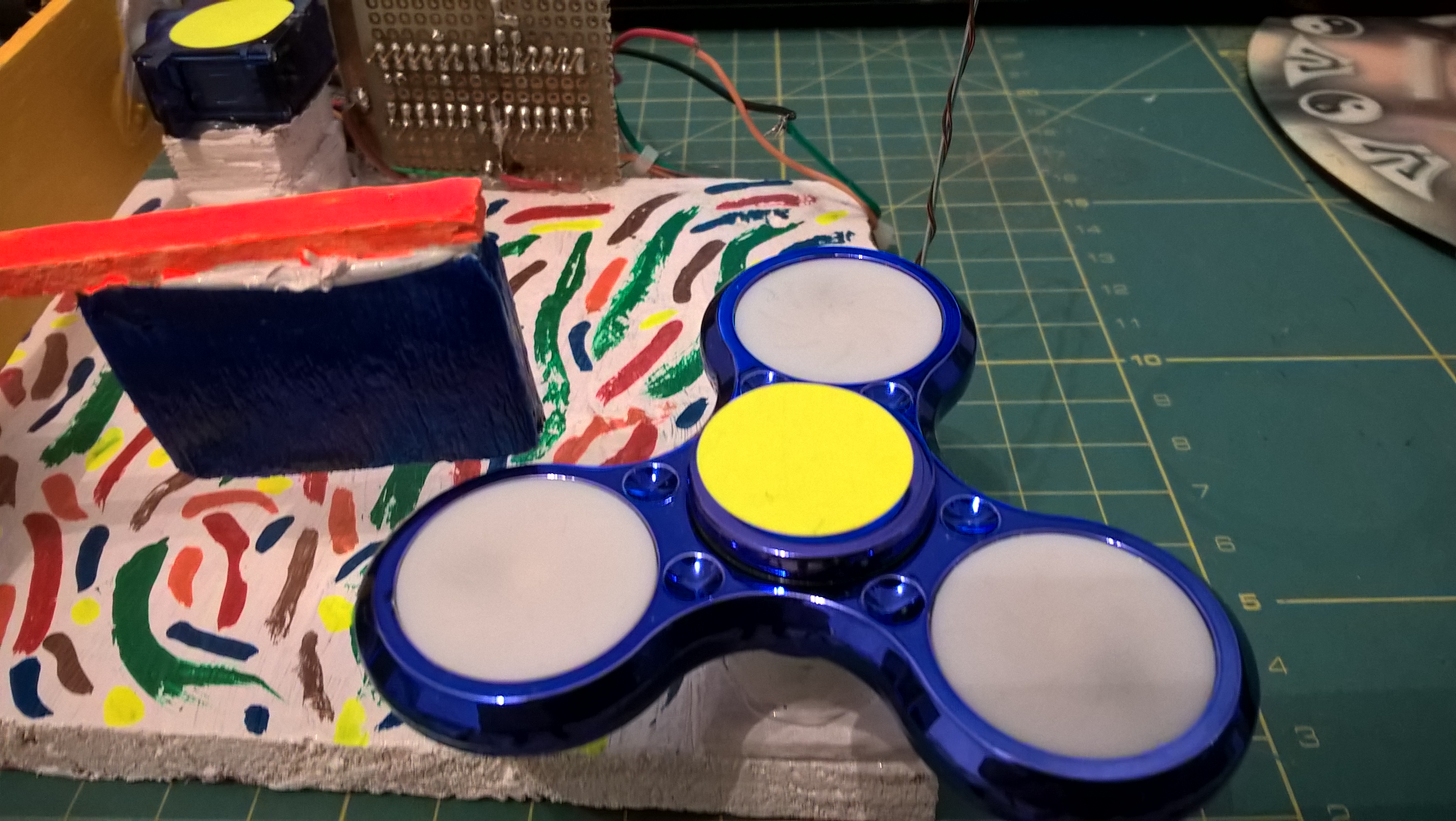

• Finally glue the "Spinner" at 1/2 pol pin ...it could be any round material ...plastic ...wood ...cutted & glued !
• ...That's All ... have Fun !
