Simple Arduino Tone Melody

Tone Melody w/Arduino

Simple Arduino Tone Melody is a way of beginning with Arduino projects because you are only going to upload the code from Arduino software directly without having to writing nothing.

Bill of Materials


What you will need:

1 Arduino Uno

1 Speaker of 8 Ohm

2-4" Copper wire #22

1 Soldering Station

1 Solder roll

1 USB-A to USB-B male cable

Preparing the Speaker

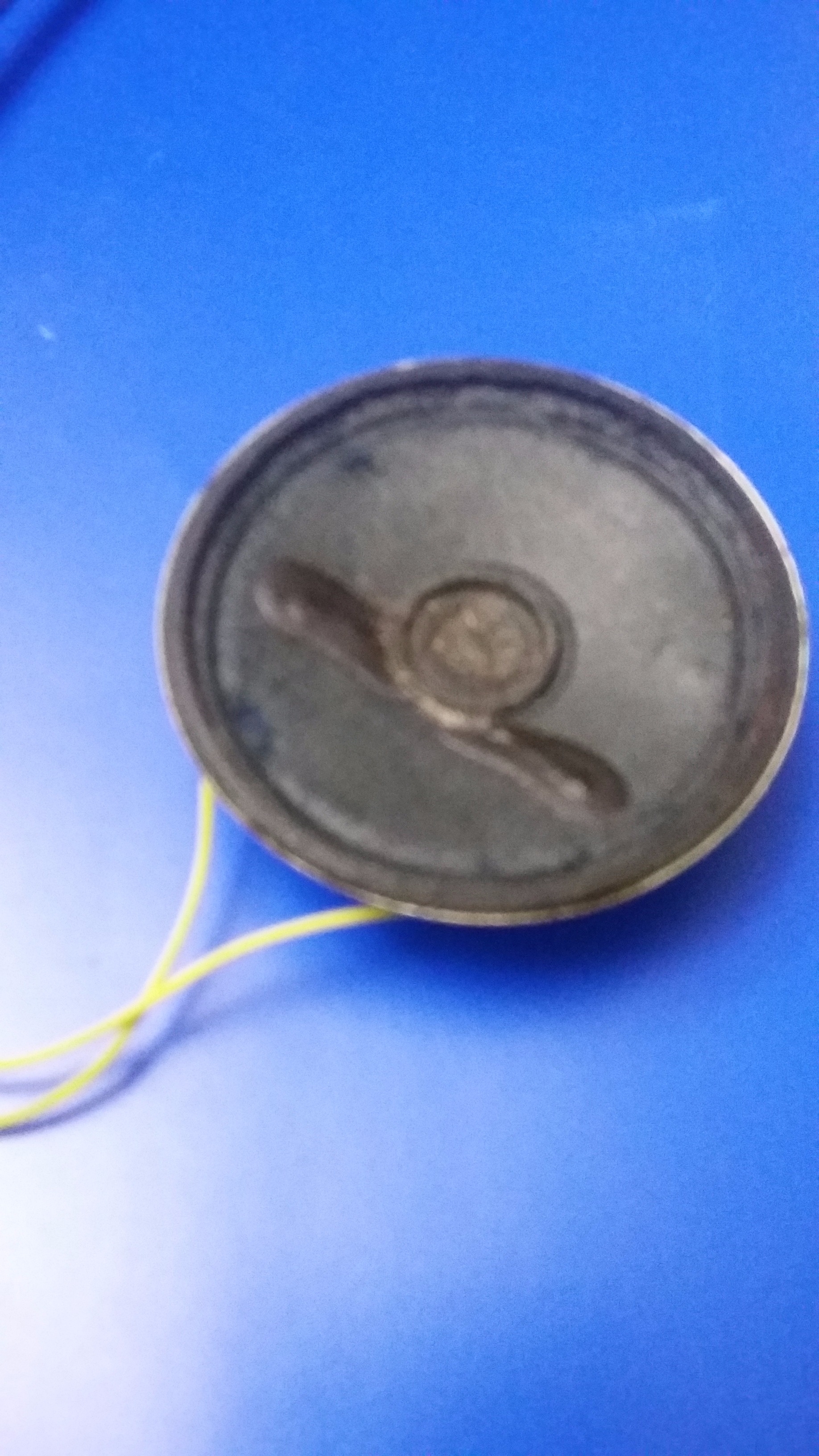

For preparing the speaker, you only have to solder the 2-4" cooper wires to the speaker's terminals.

Completing the Project

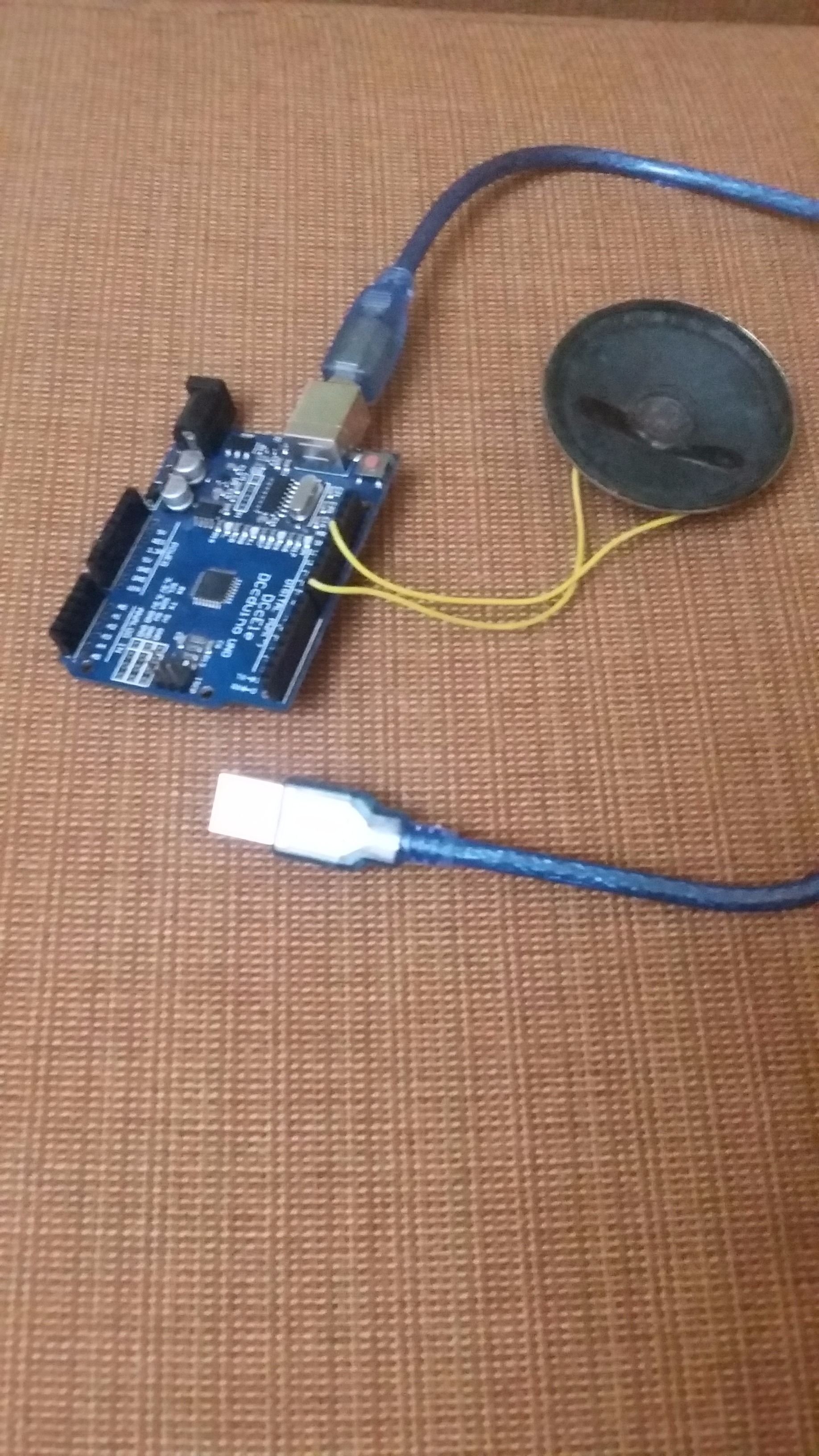

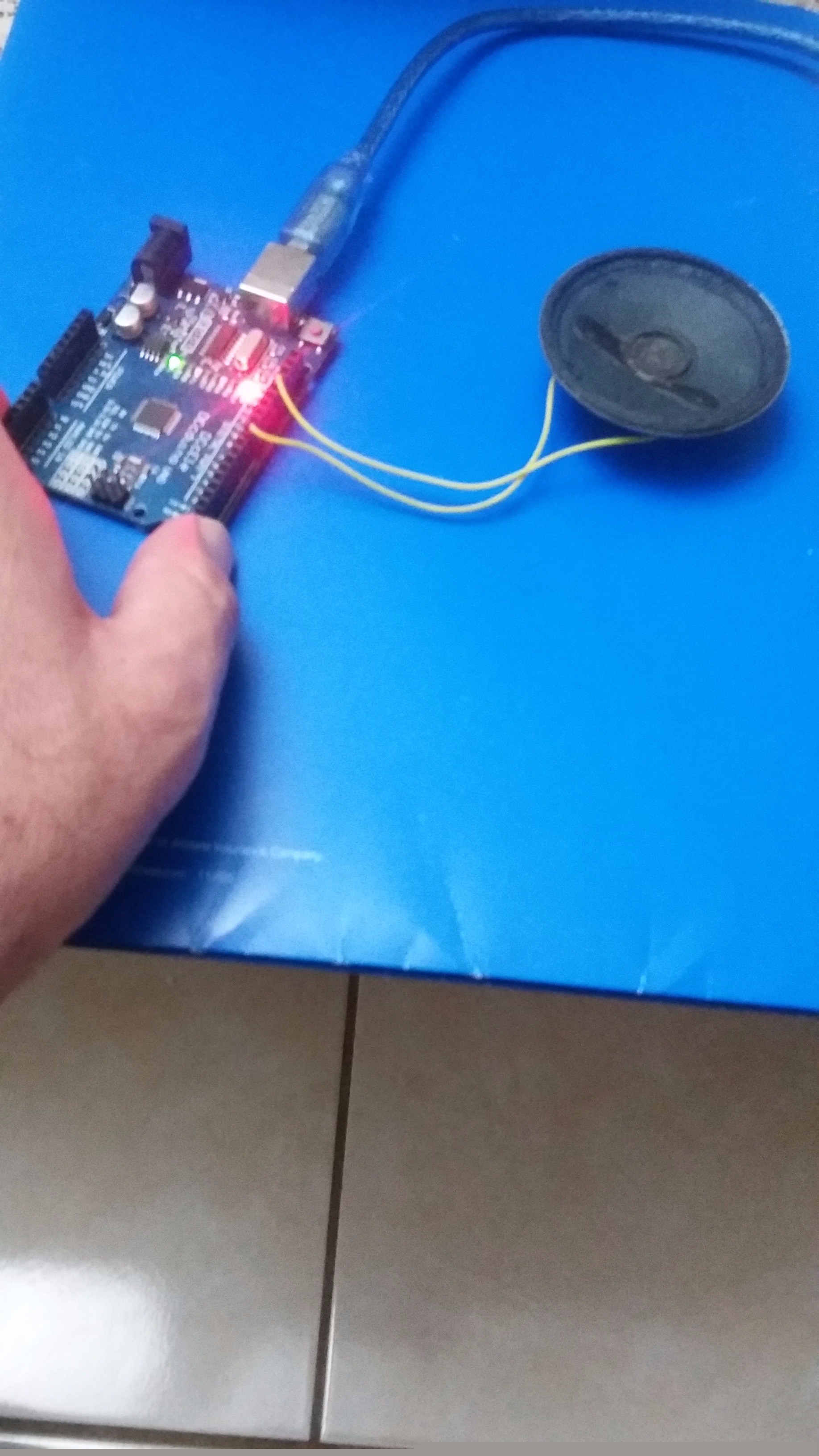

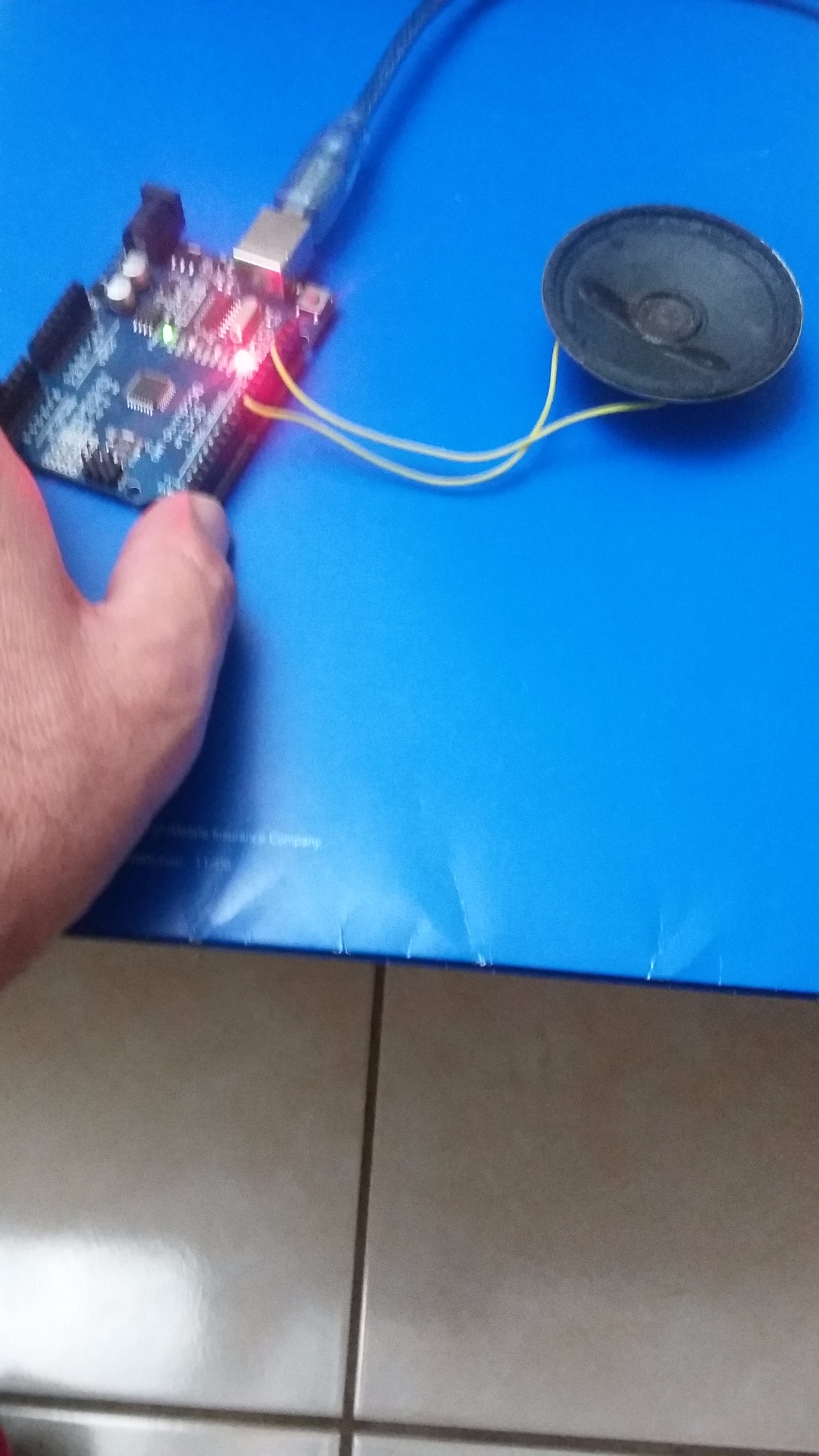

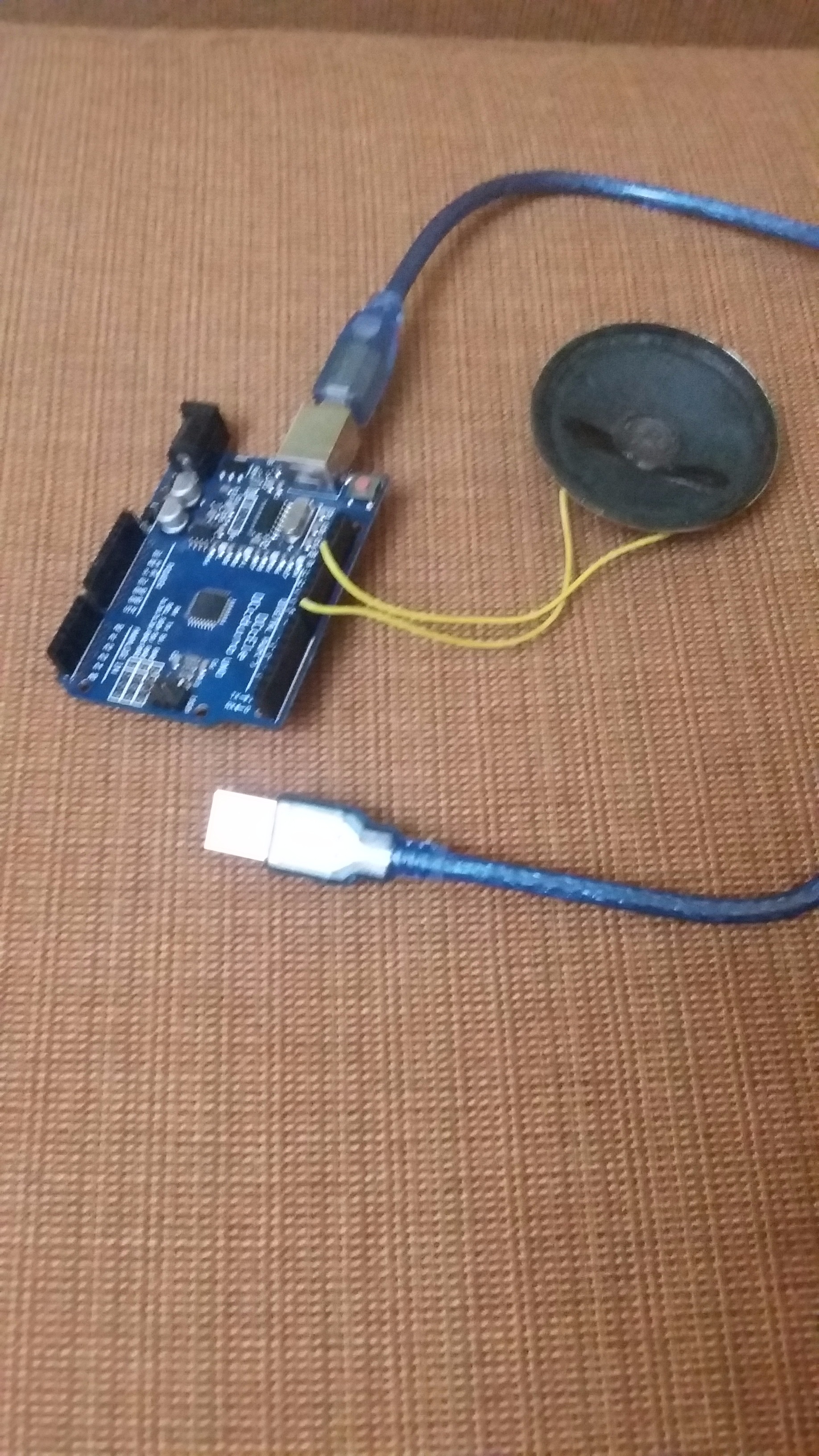

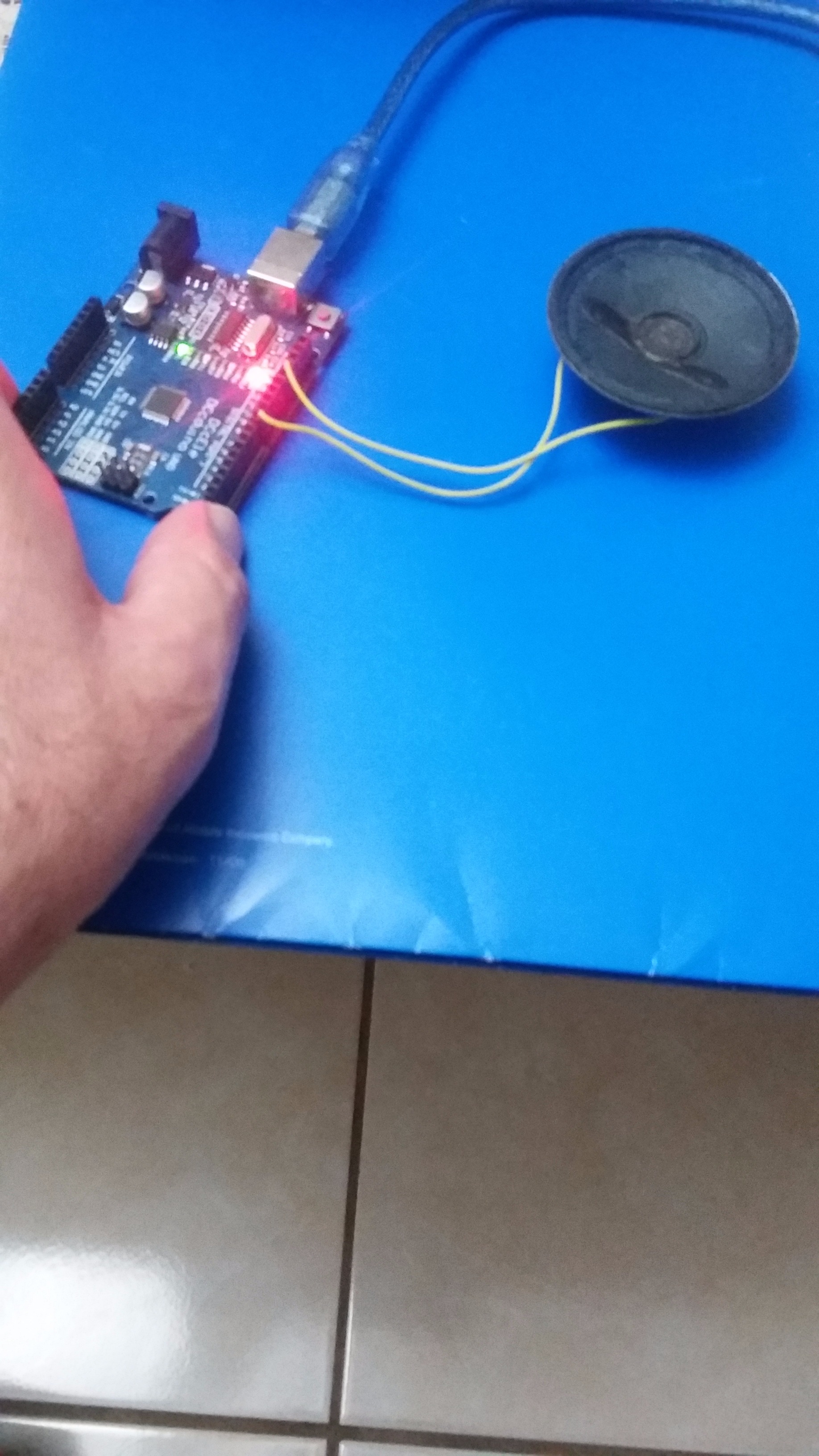

For completing the project, you only have to connect the wires that you left free from the speaker to Arduino GND & pin 8 respectively. Remember that you only have to run Arduino so that you can click on file-examples-Digital-ToneMelody and you will already be enjoying of your project.
