Project Overview

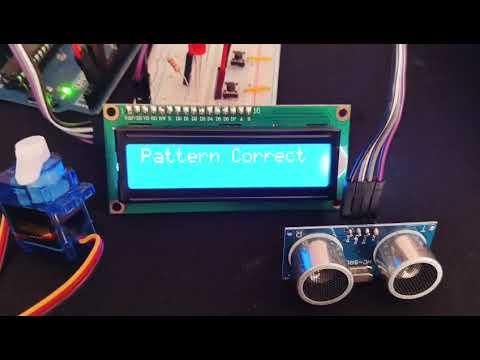

This project introduces a Smart Rhythm-Based Access System that replaces traditional keyholes with a movement-sensitive interface. Using an ultrasonic sensor for presence detection, the lock grants entry only when a specific, pre-programmed rhythmic pattern is entered via two tactile buttons.

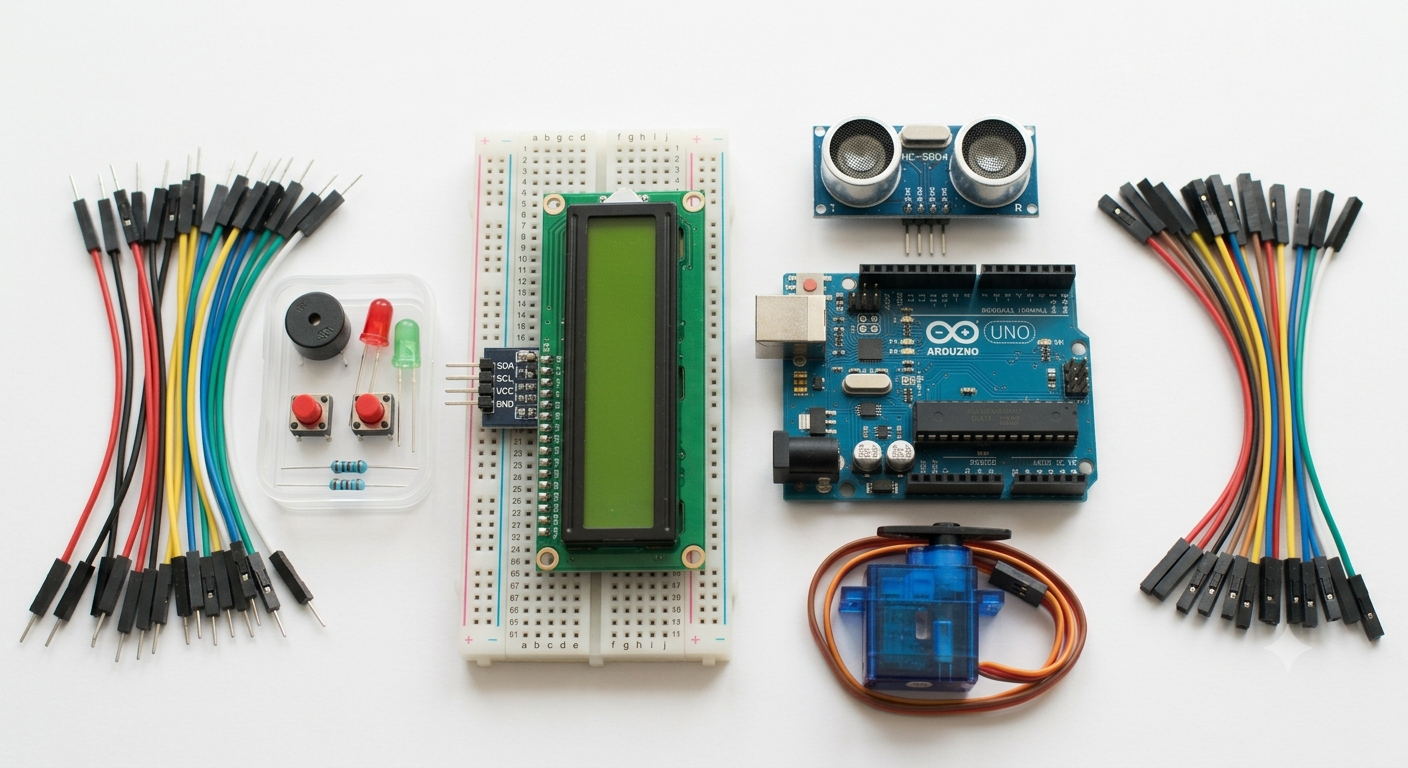

Components

1. Arduino UNO
2. Breadboard
3. Ultrasonic
4. LCD
5. I2C
6. Servo motor
7. Buzzer
8. 2 buttons
9. 2 leds
10. 2 resistors (220ohm)
11. Jumbers (M/M - M/F)

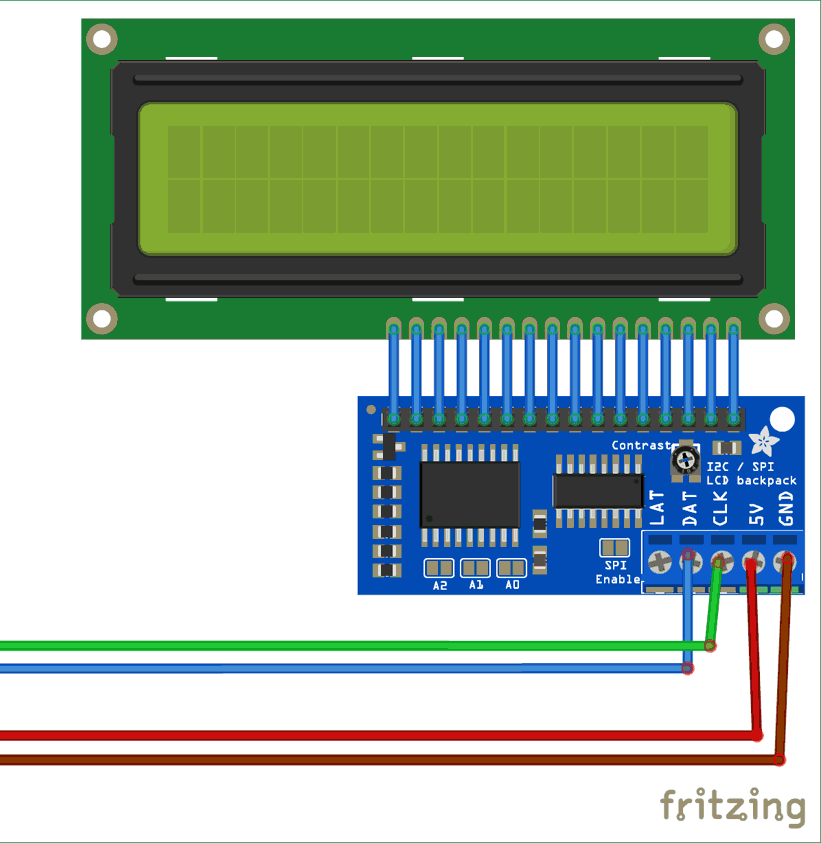

connect the LCD with I2C and connect the M/F jumpers with I2C and Ultrasonic and M/M jumpers with servo

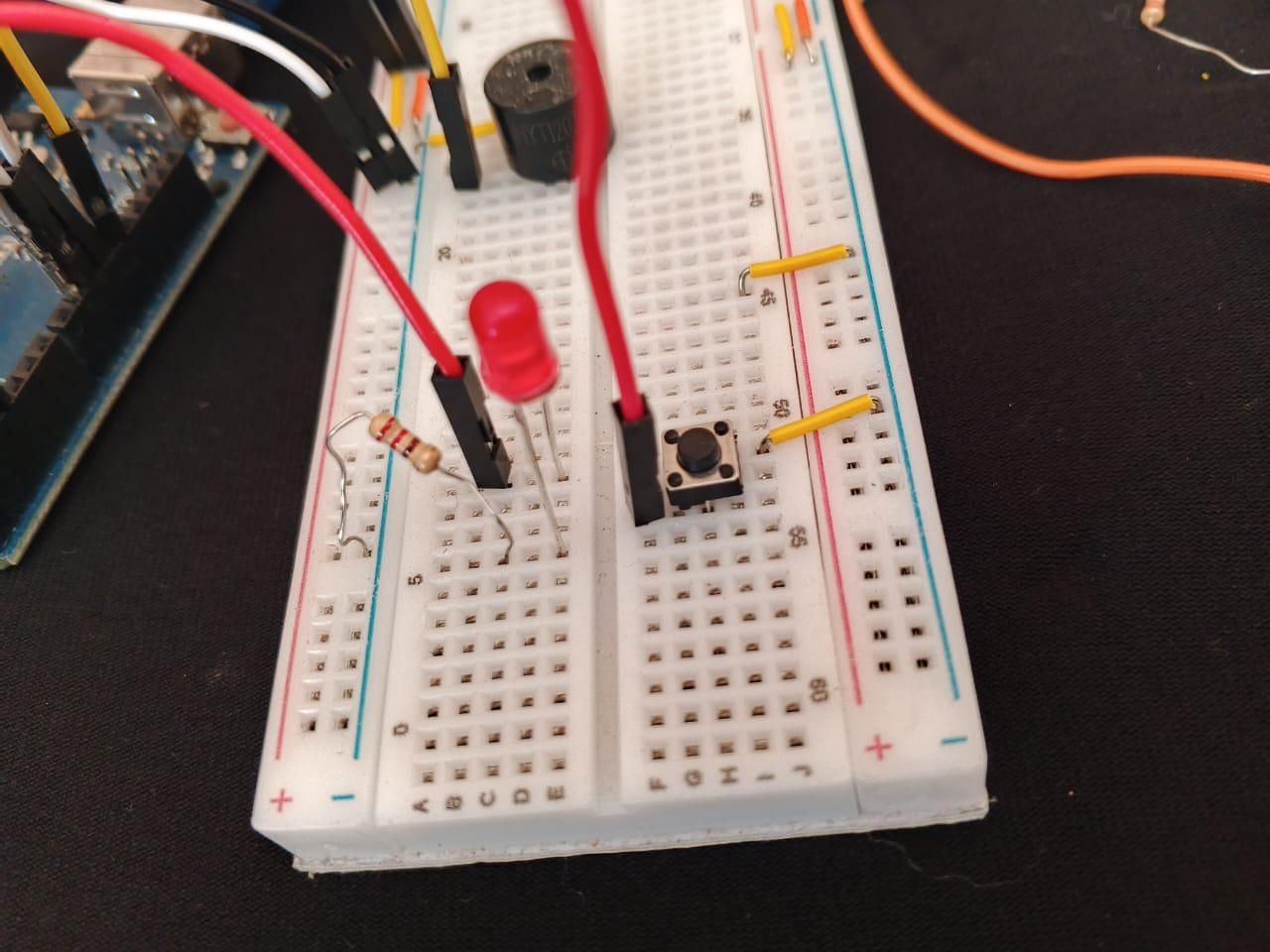

connect the - of the led with 220ohm resistor to ground and the + with pin 4 of the arduino, redo with another led and connect it to pin 5, connect a button led to ground and the other leg to pin 2

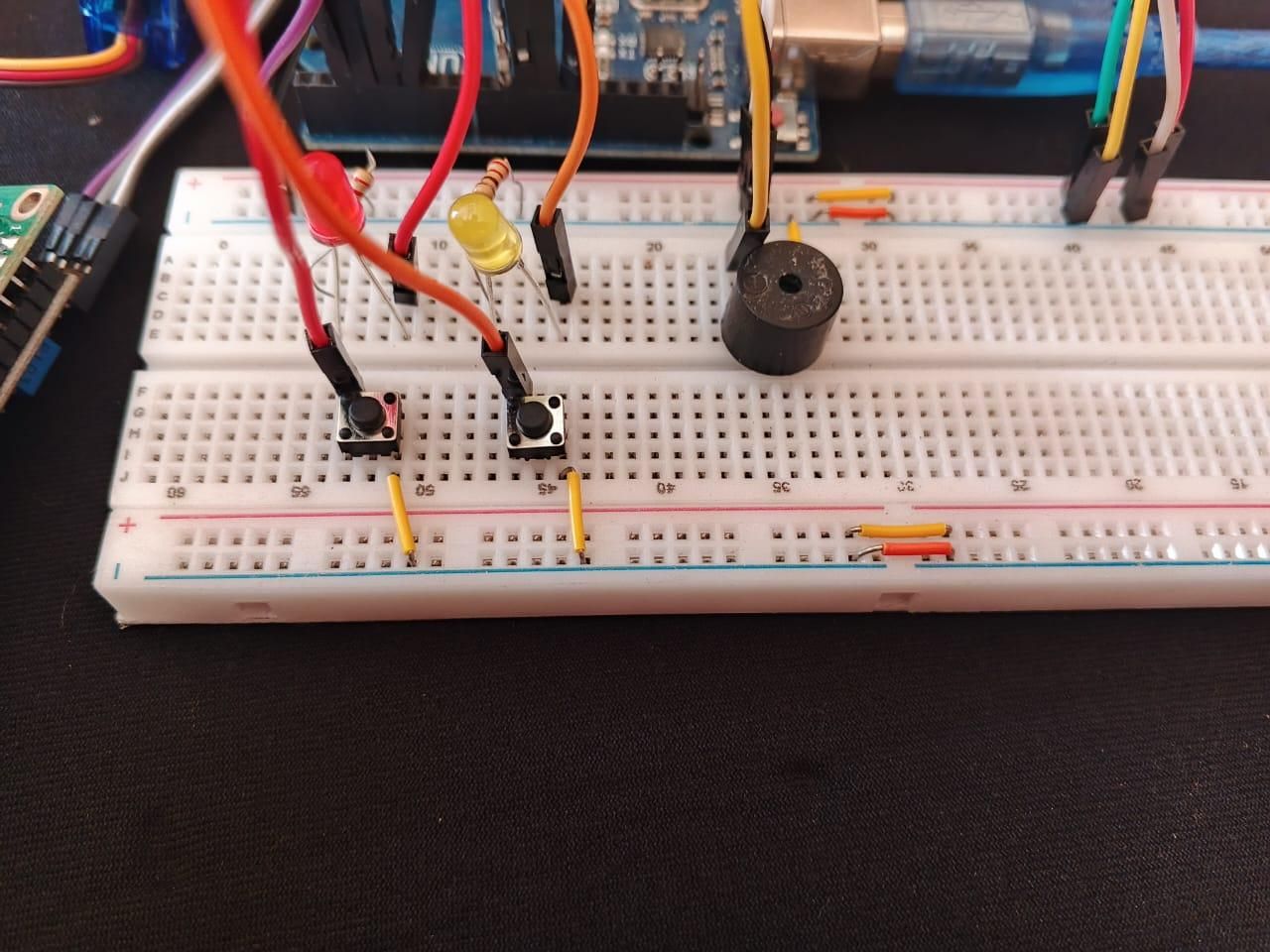

redo the button circuit and connect it to pin 3, add a buzzer connect the - leg to the ground and the + to pin 12

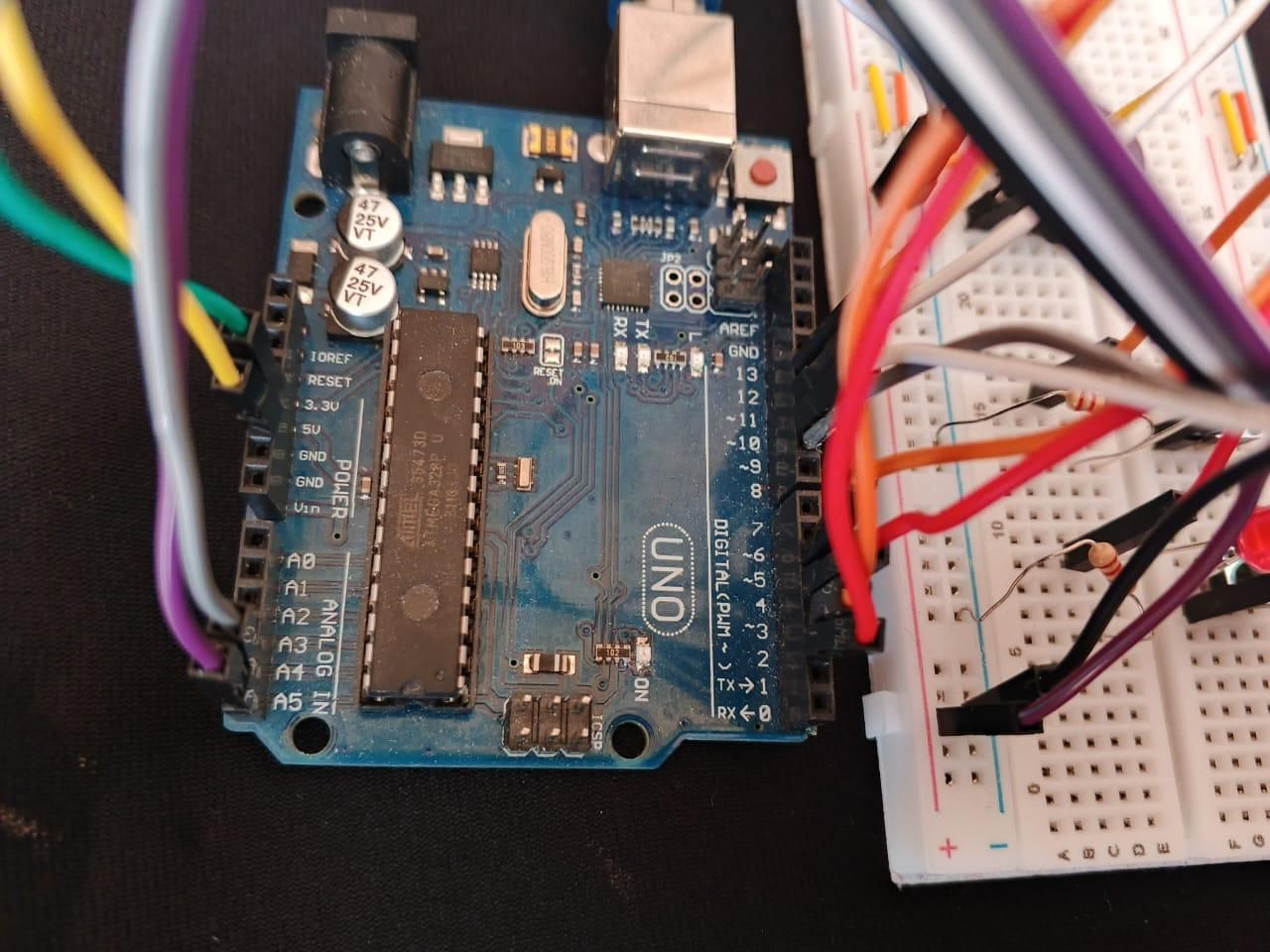

connect the I2C to A4 and A5 pins, connect servo to pin 11 and ultrasonic to pin 9 and 10, connect the 5v and Ground of the Arduino to the common ground and VCC of the breadboard

Code section

Arduino code link

https://drive.google.com/file/d/1Mn06NZa7iMc006wv9SVvvRRAG6CDKFkP/view?usp=sharing
