Solar LED Rechargeable Emergency Light

by sandilya.anisetty in Circuits > LEDs

7498 Views, 48 Favorites, 0 Comments

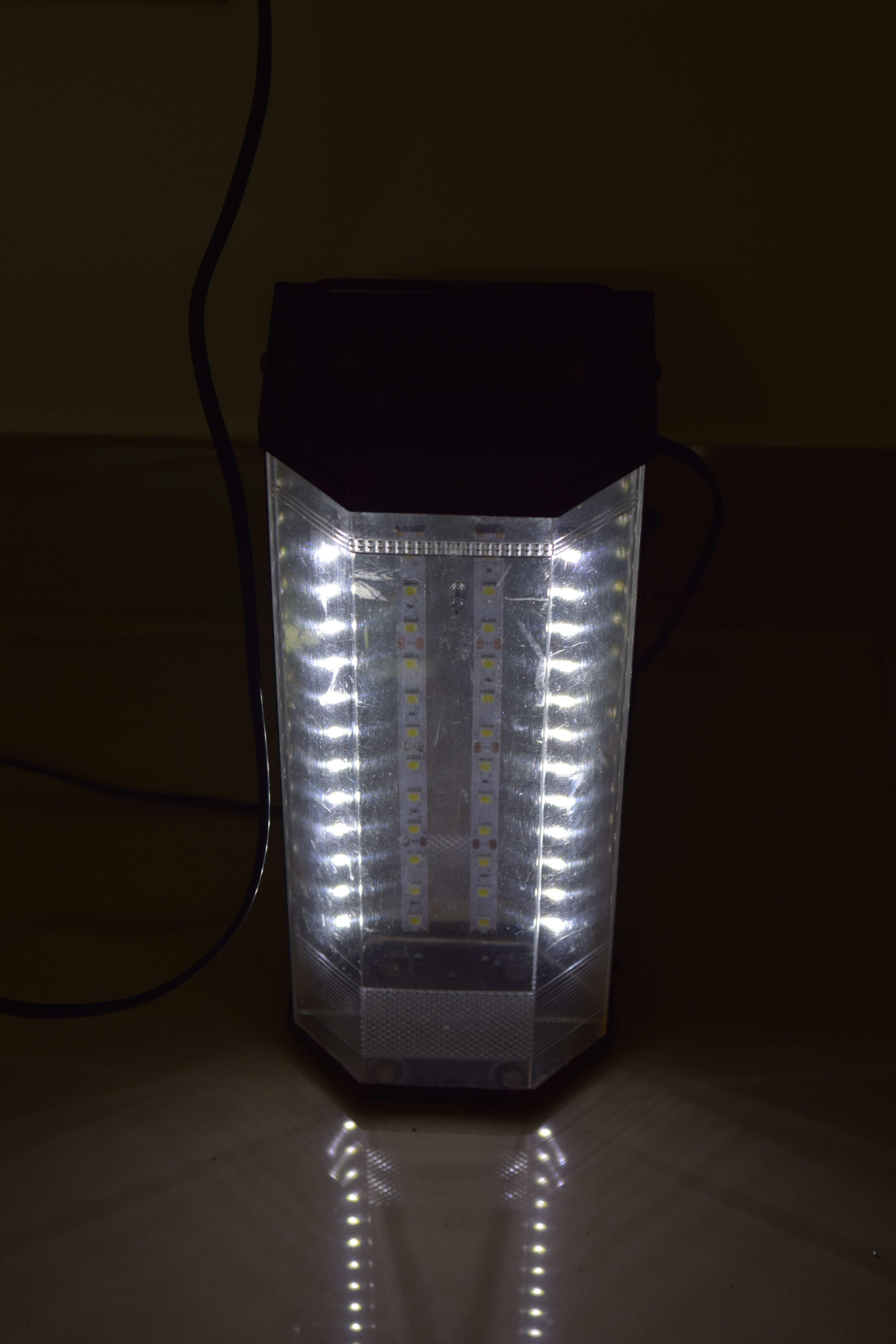

Solar LED Rechargeable Emergency Light

This is a 48 Led solar / AC rechargeable emergency light. Fully recharged battery works 9 hrs with 24 led's and 4.5 hrs with 48 led's. A SPDT switch is used to select 24 and 48 led's. Deep discharge warning before 10 minutes of actual deep discharge is incorporated. Generally many emergency lights deep discharge cut-off stops suddenly. We don't know when it stops. That is why I made my circuit to beep at low voltage for 10 mins so that we can aware before stopping suddenly. We have to switch OFF manually after beeping within 10 mins. I used Solar panel for charging which is renewable energy.

Parts Needed

  • Emergency Light cabinet
  • 6v 4.5ah rechargeable battery
  • 12v white LED strip

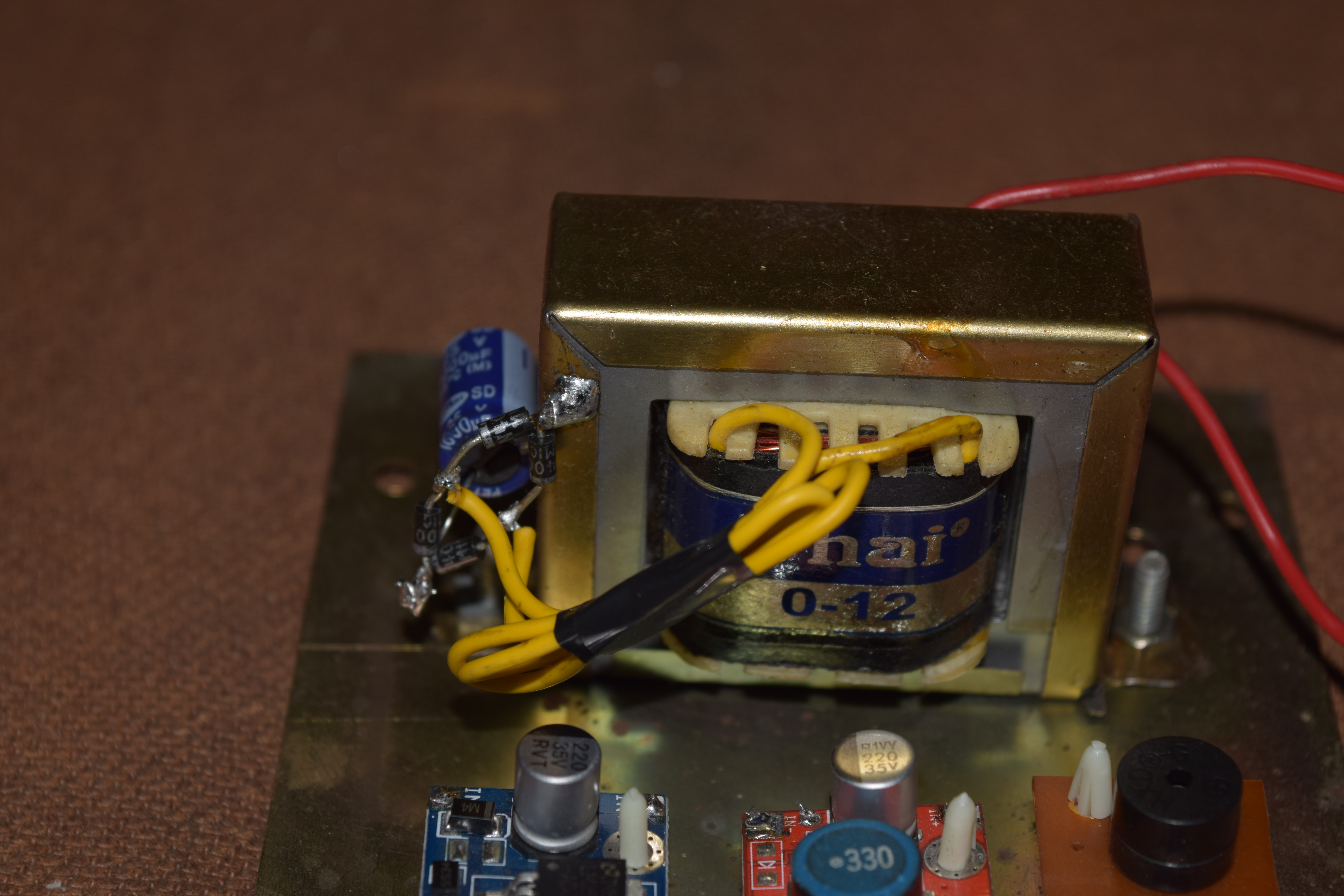

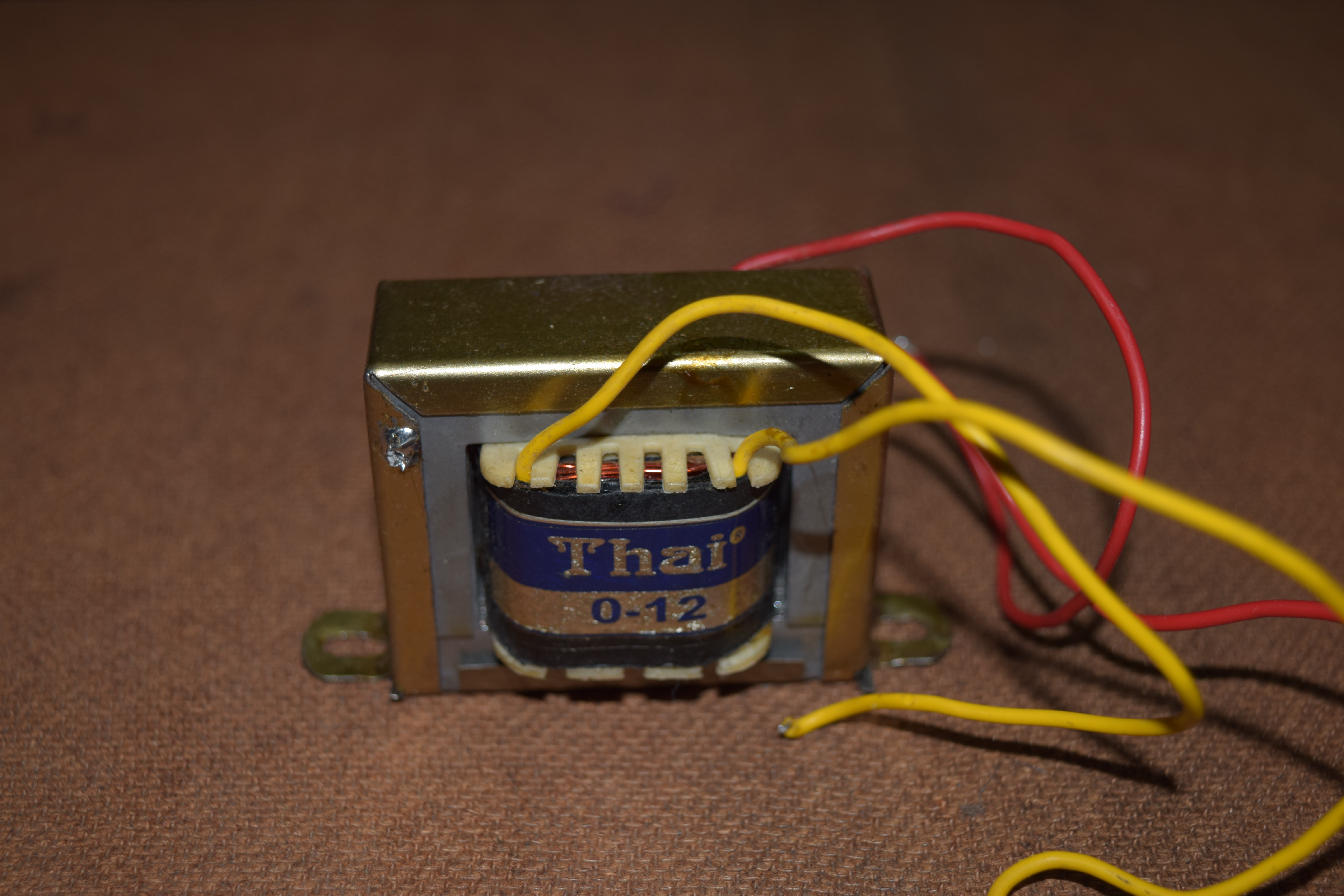

  • 12v 1amp transformer

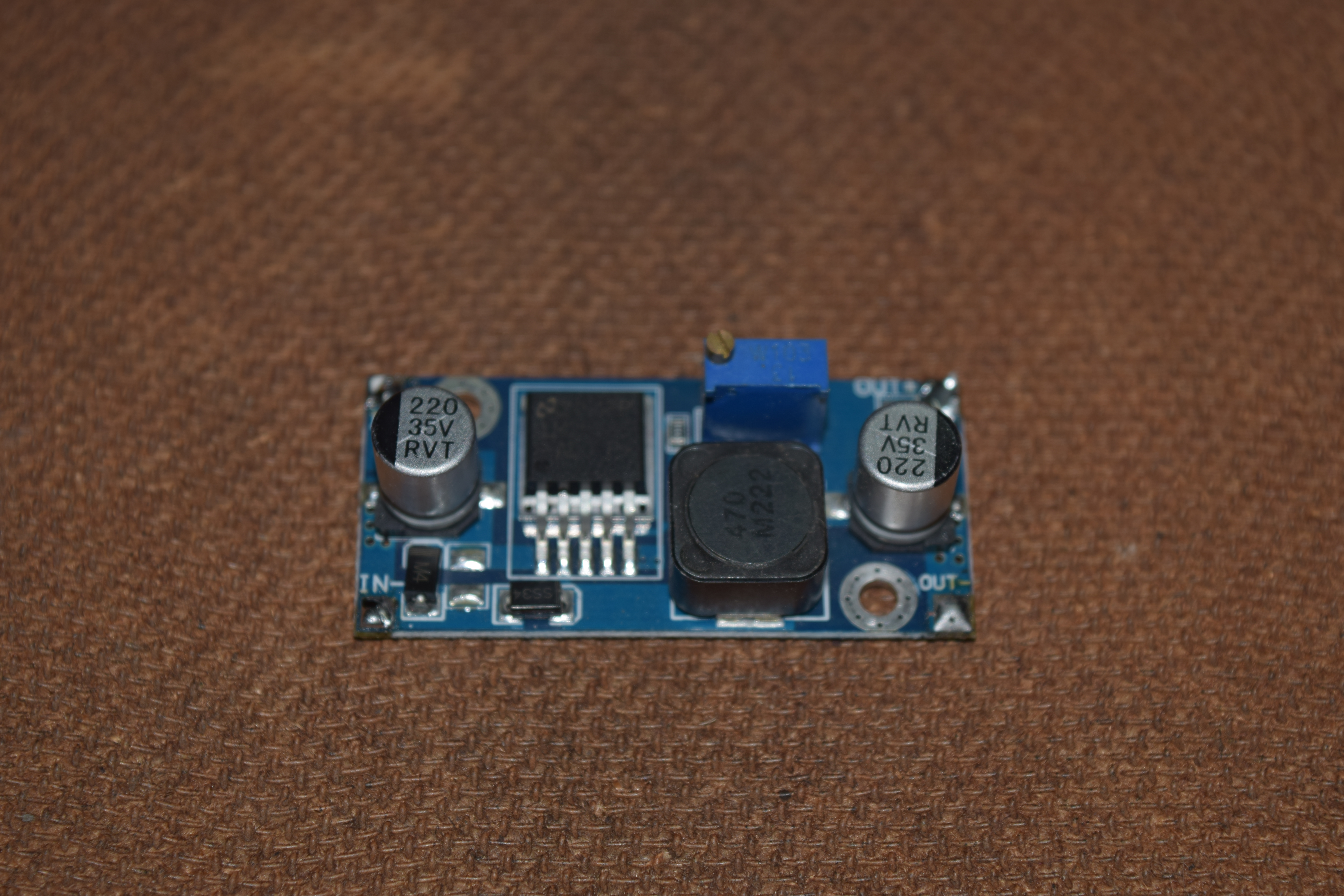

  • LM2596 DC stepdown module

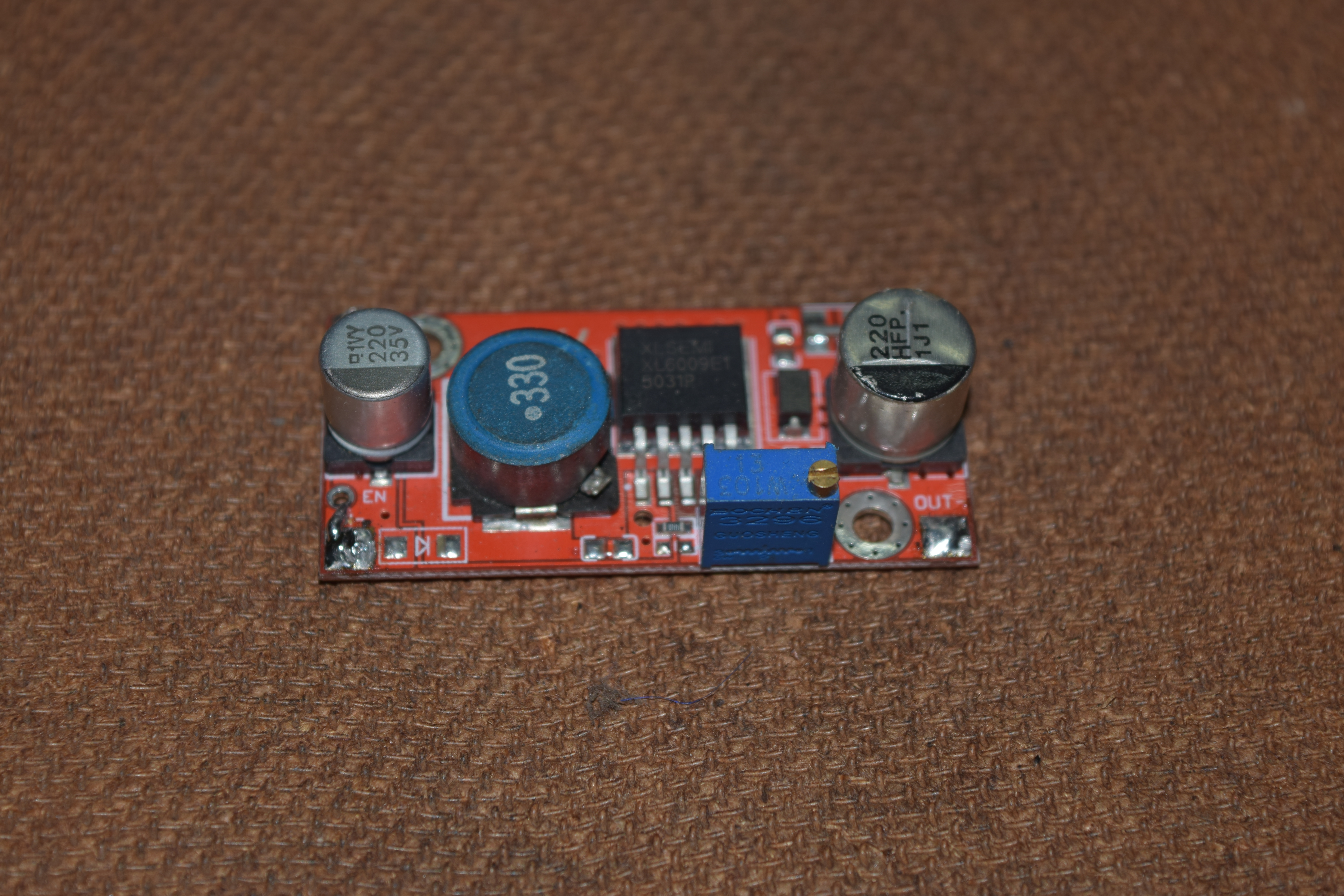

  • XL6009 DC stepup module
  • Mains chord
  • 12v solar panel

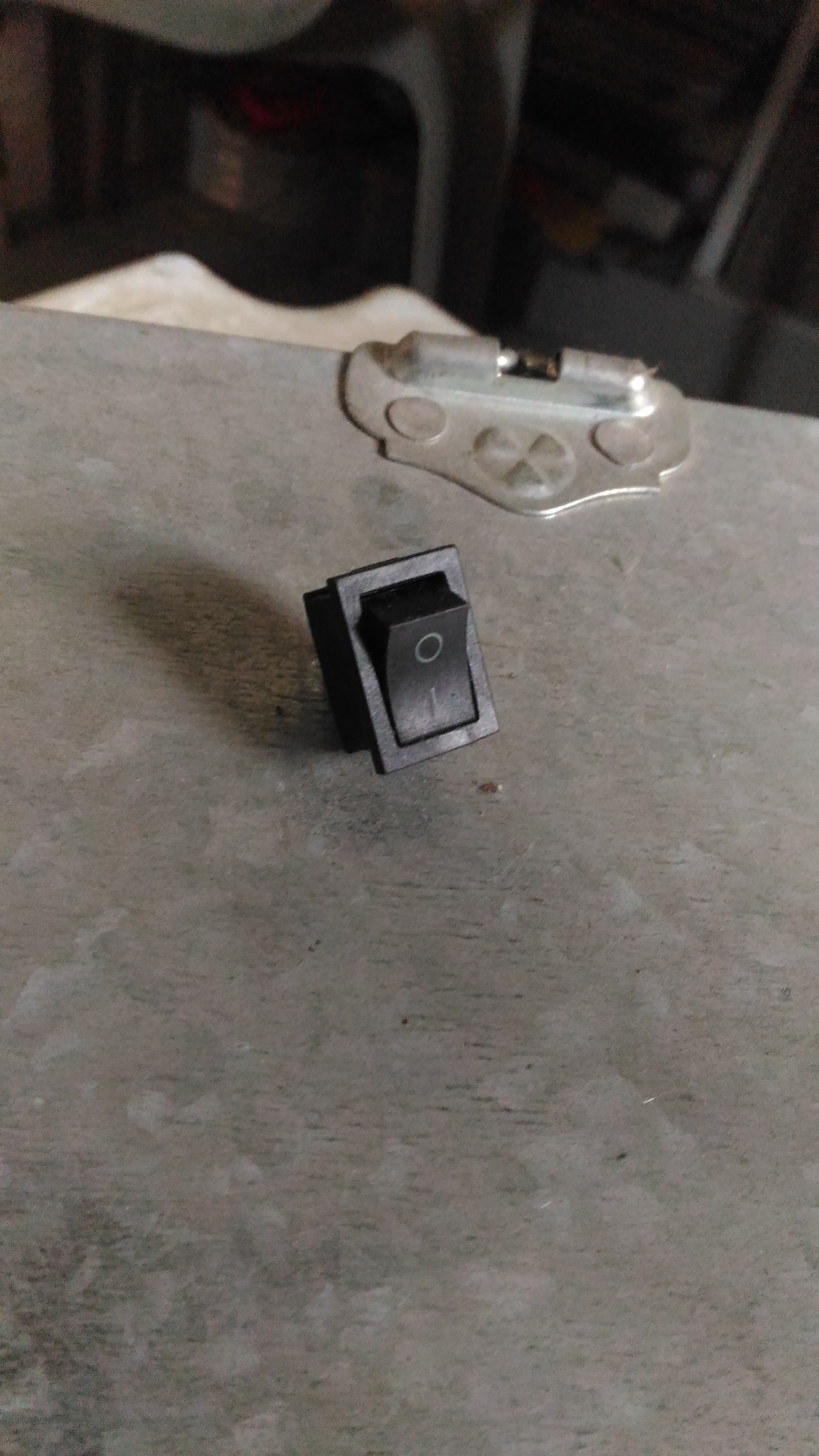

  • ON/OFF rocker switch * 1

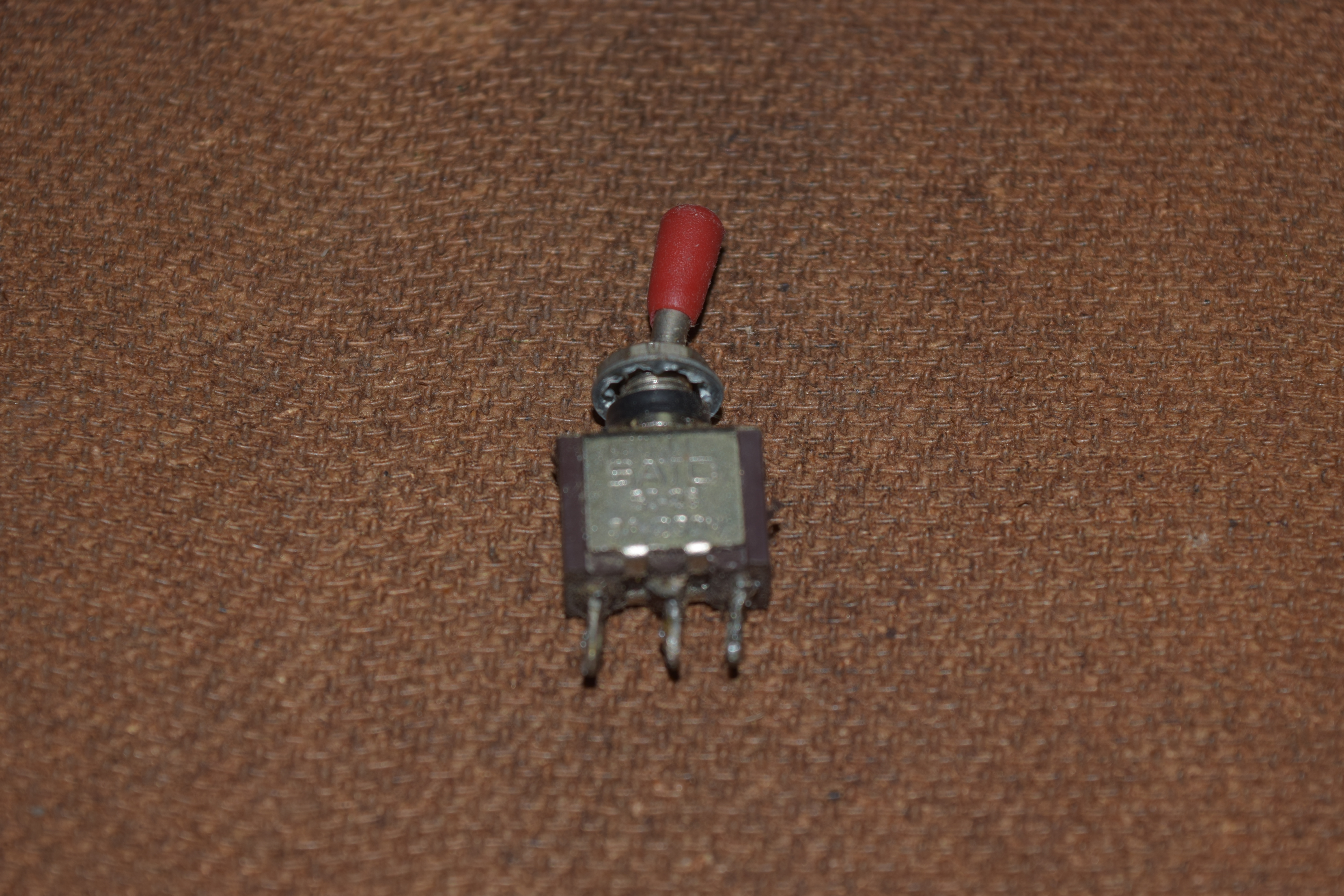

  • 3pin SPDT switch * 1

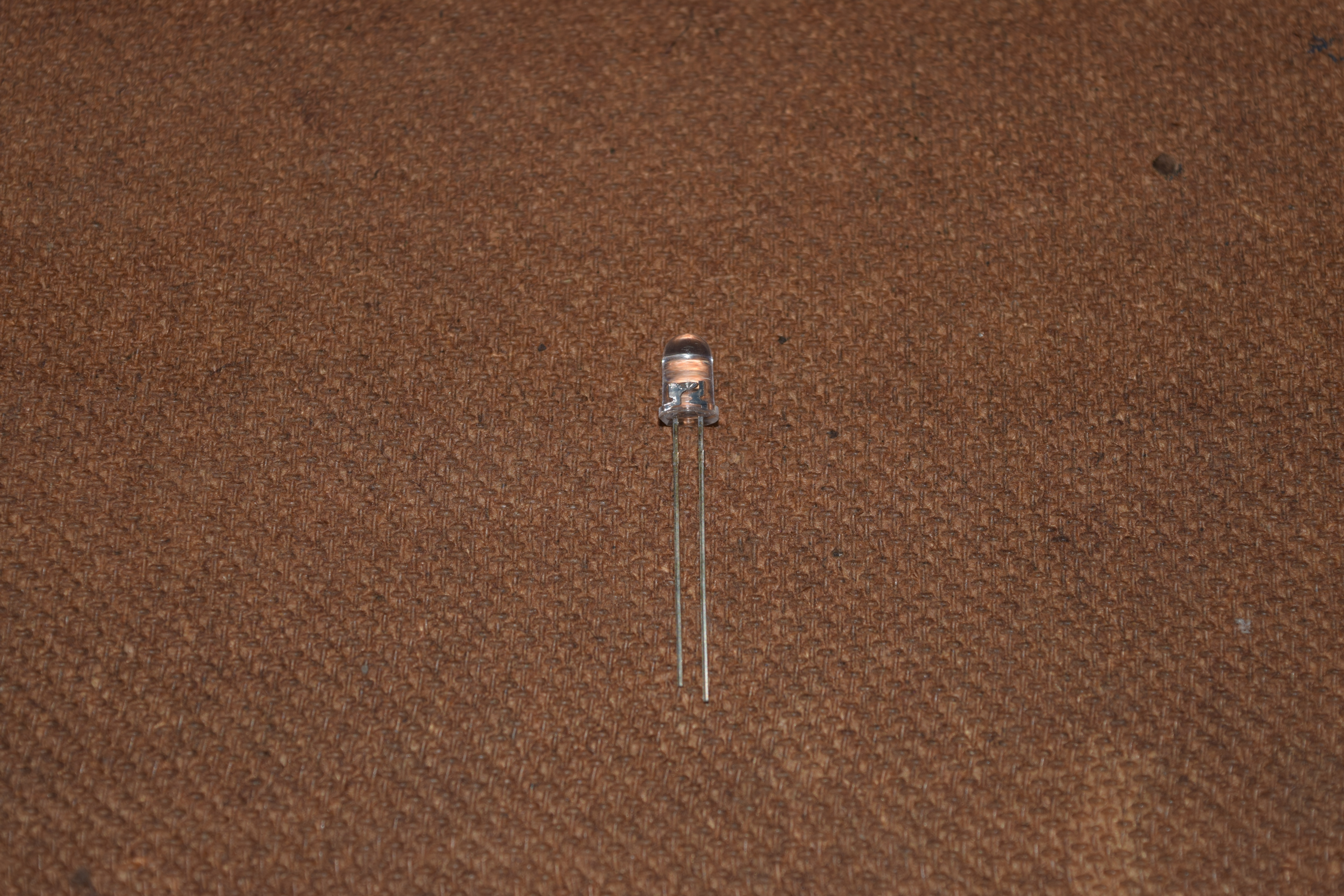

  • Green LED * 1

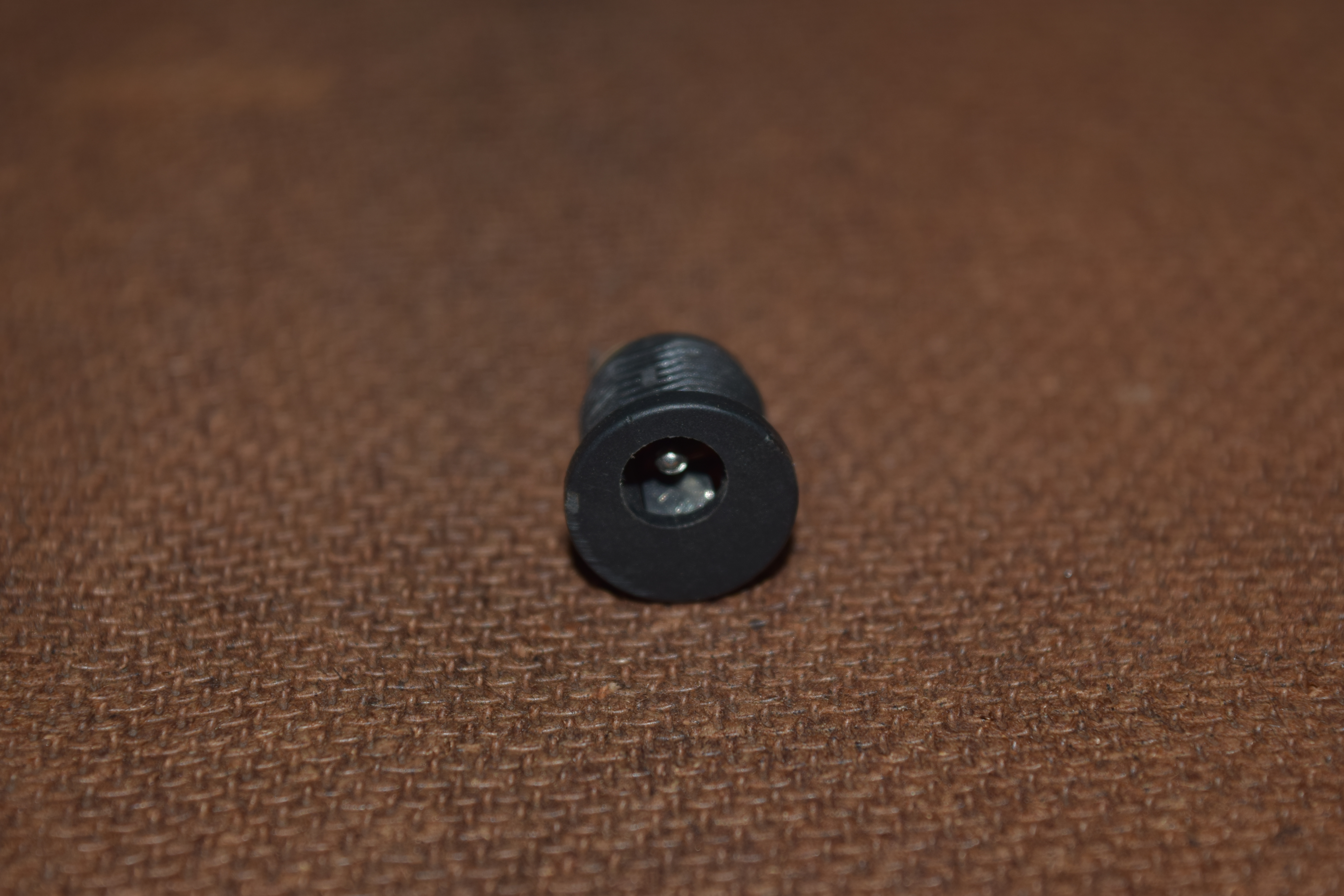

  • DC jack male and female

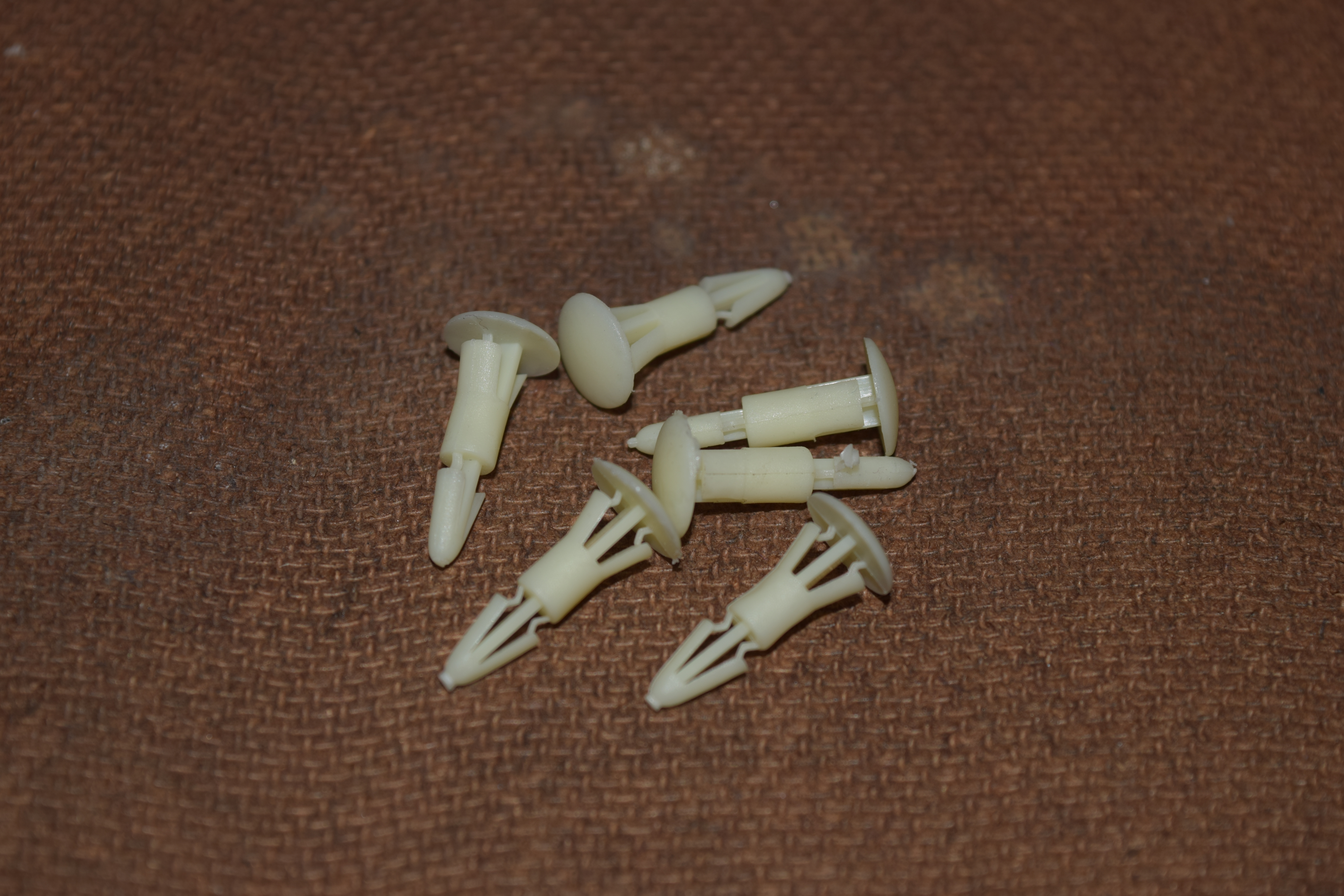

  • PCB plastic spacers * 6
  • 1k resistor * 1
  • 4007 diodes * 6
  • 5402 diode * 1
  • 1000mfd 25v * 1
  • 5v buzzer * 1
  • BC547 transissors * 2
  • 33k resistors * 2
  • 47k pot * 1
  • Wires

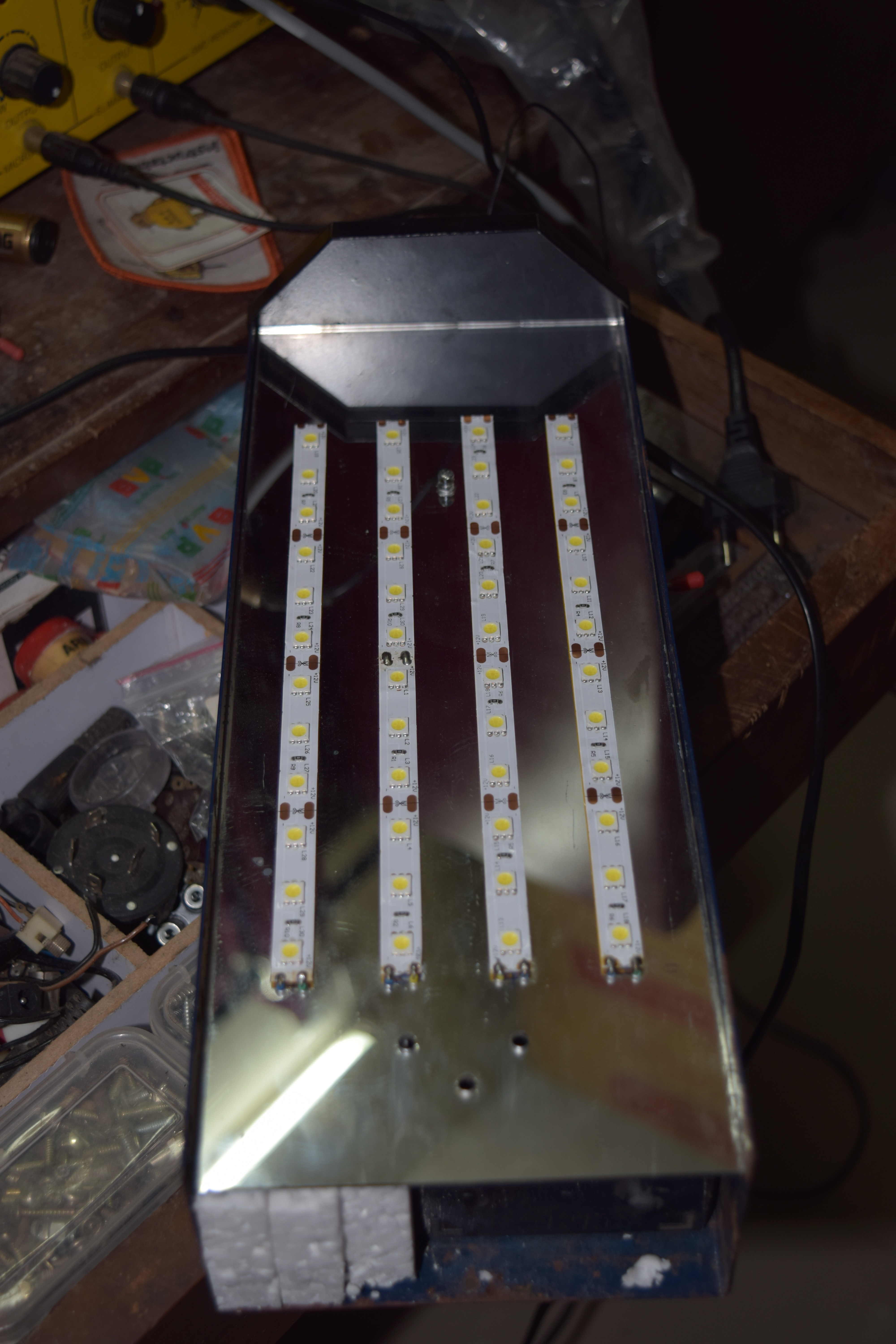

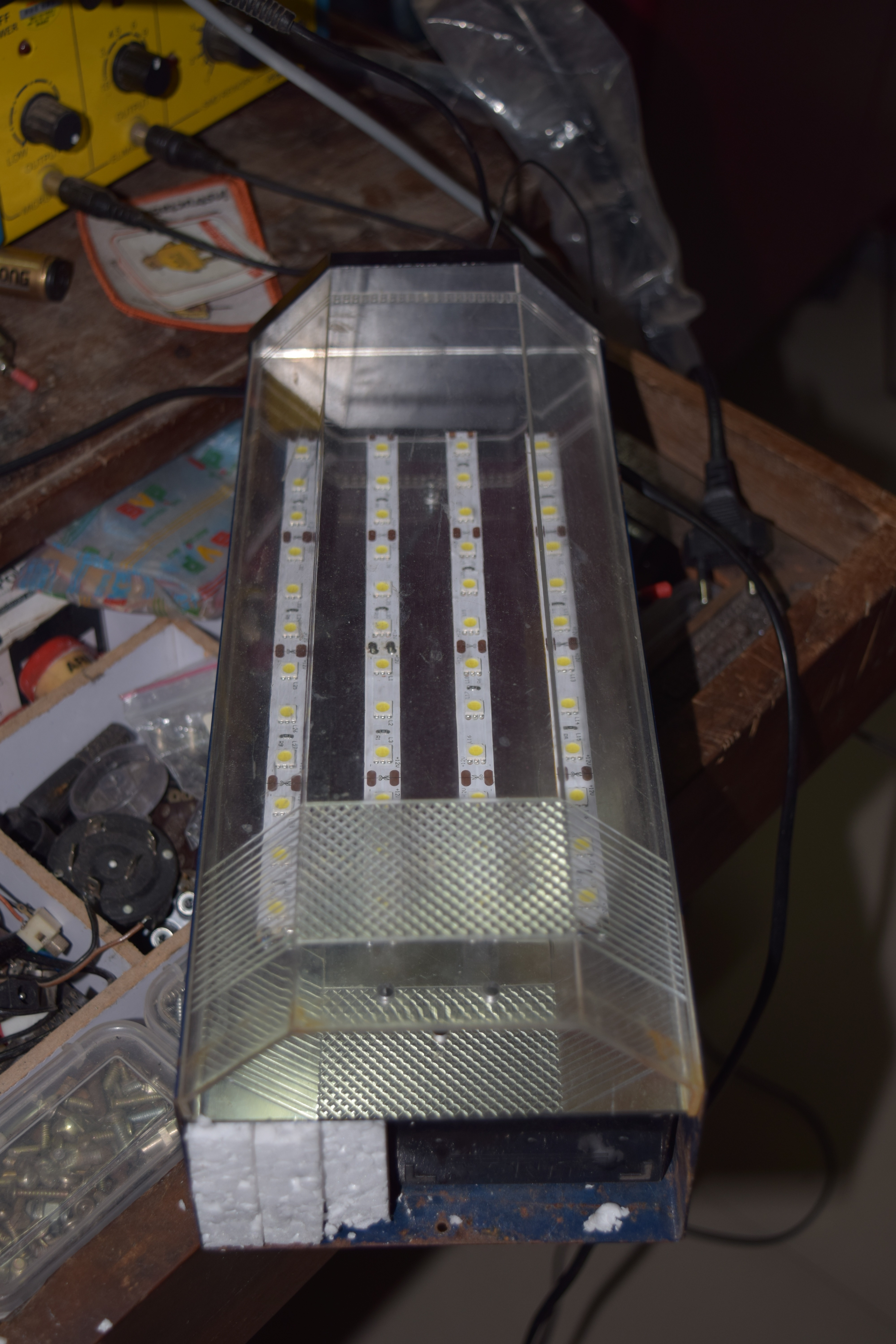

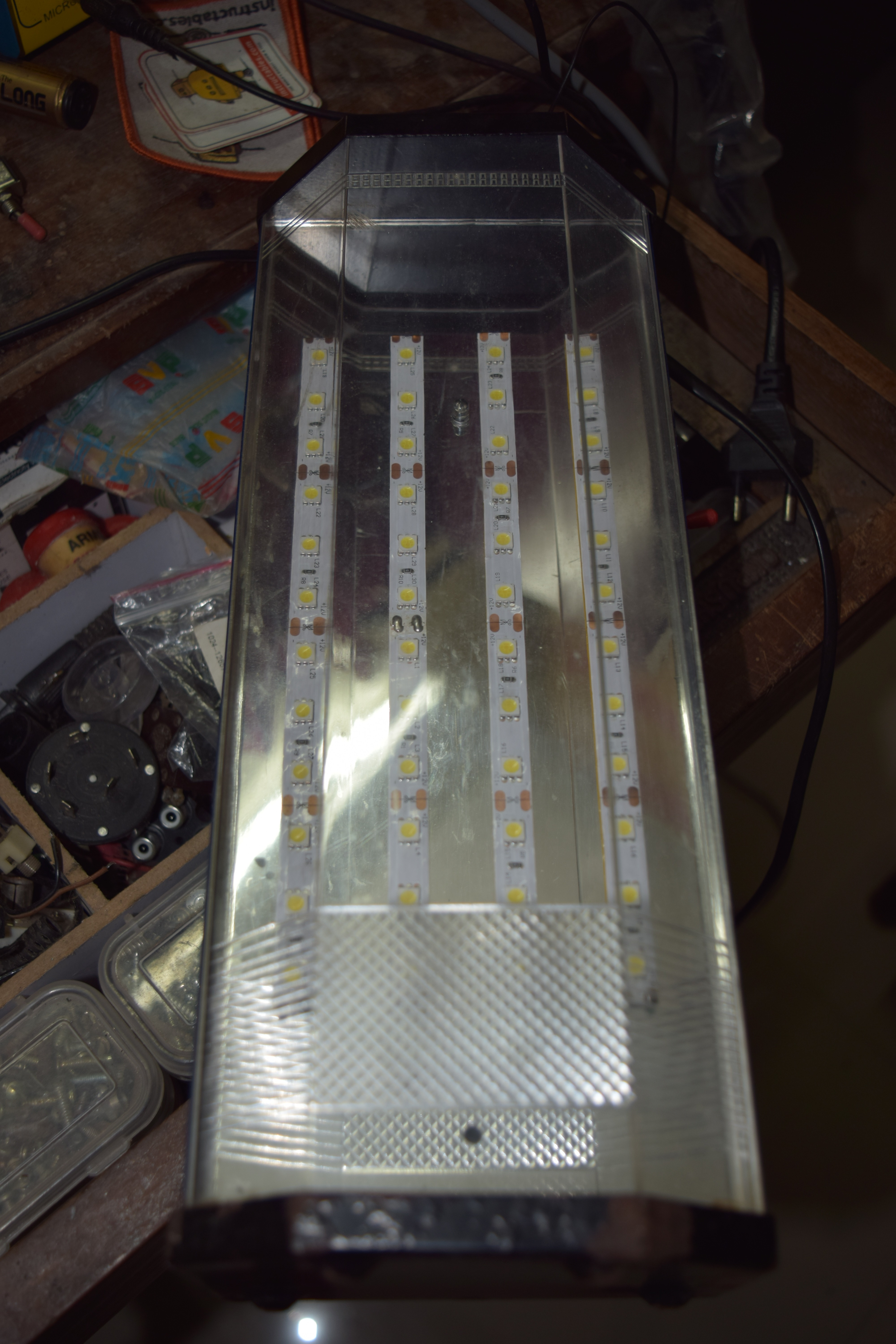

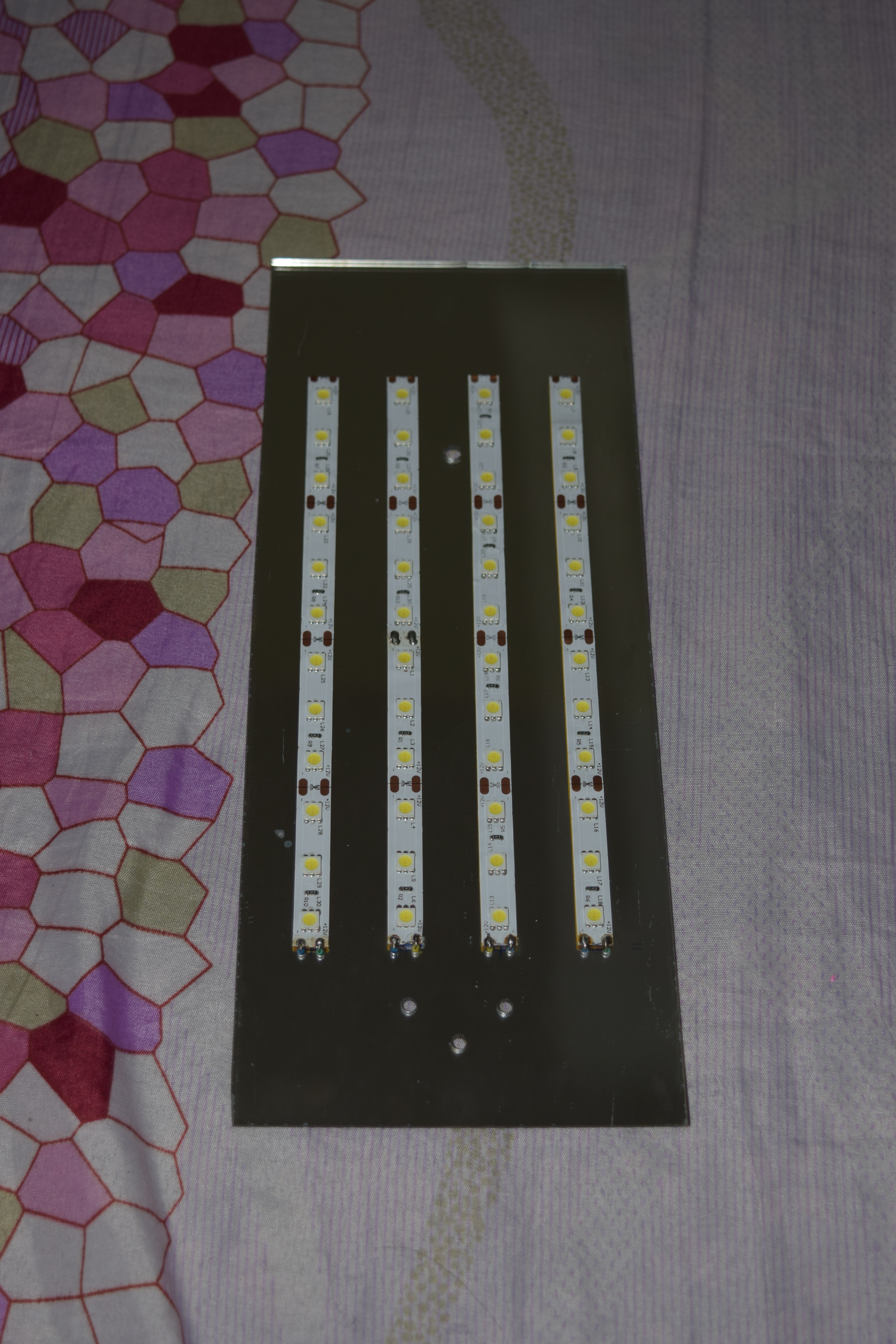

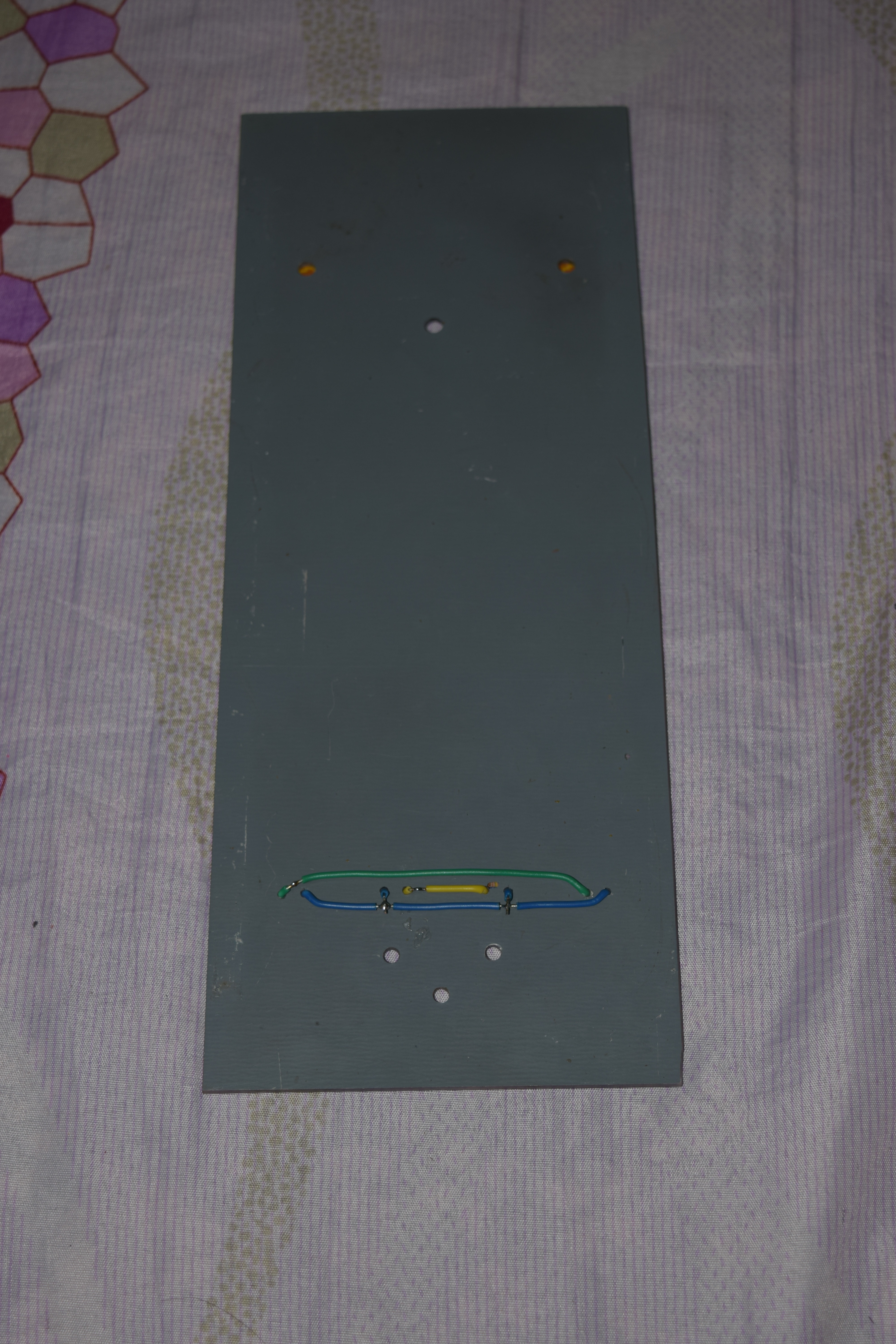

Preparing the LED Panel

  • Attach the LED strip to the mirror.

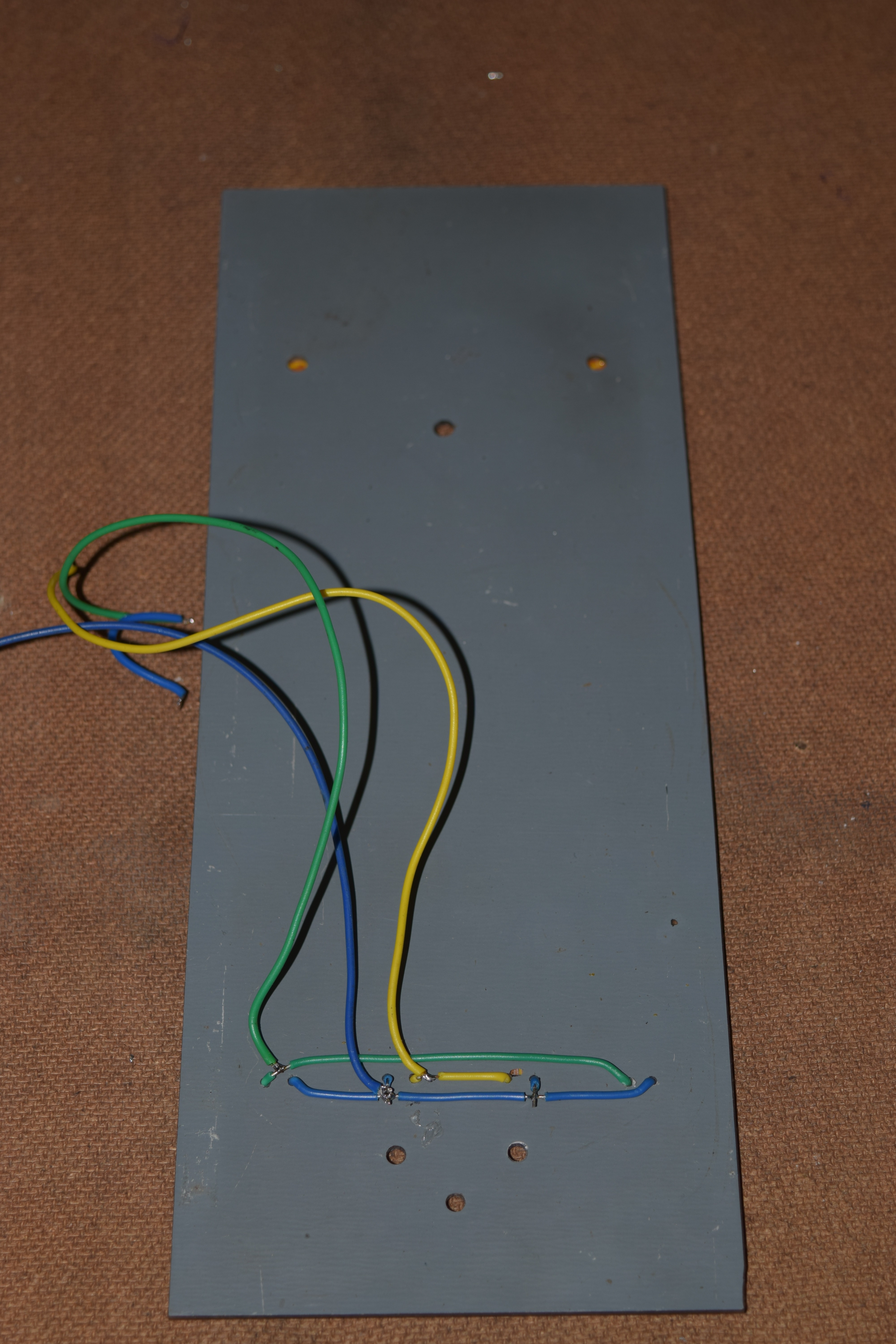

  • Solder the wires to LED strip as shown in pictures.
  • 1st and 4th strips are one set and 2nd and 3rd are one set.

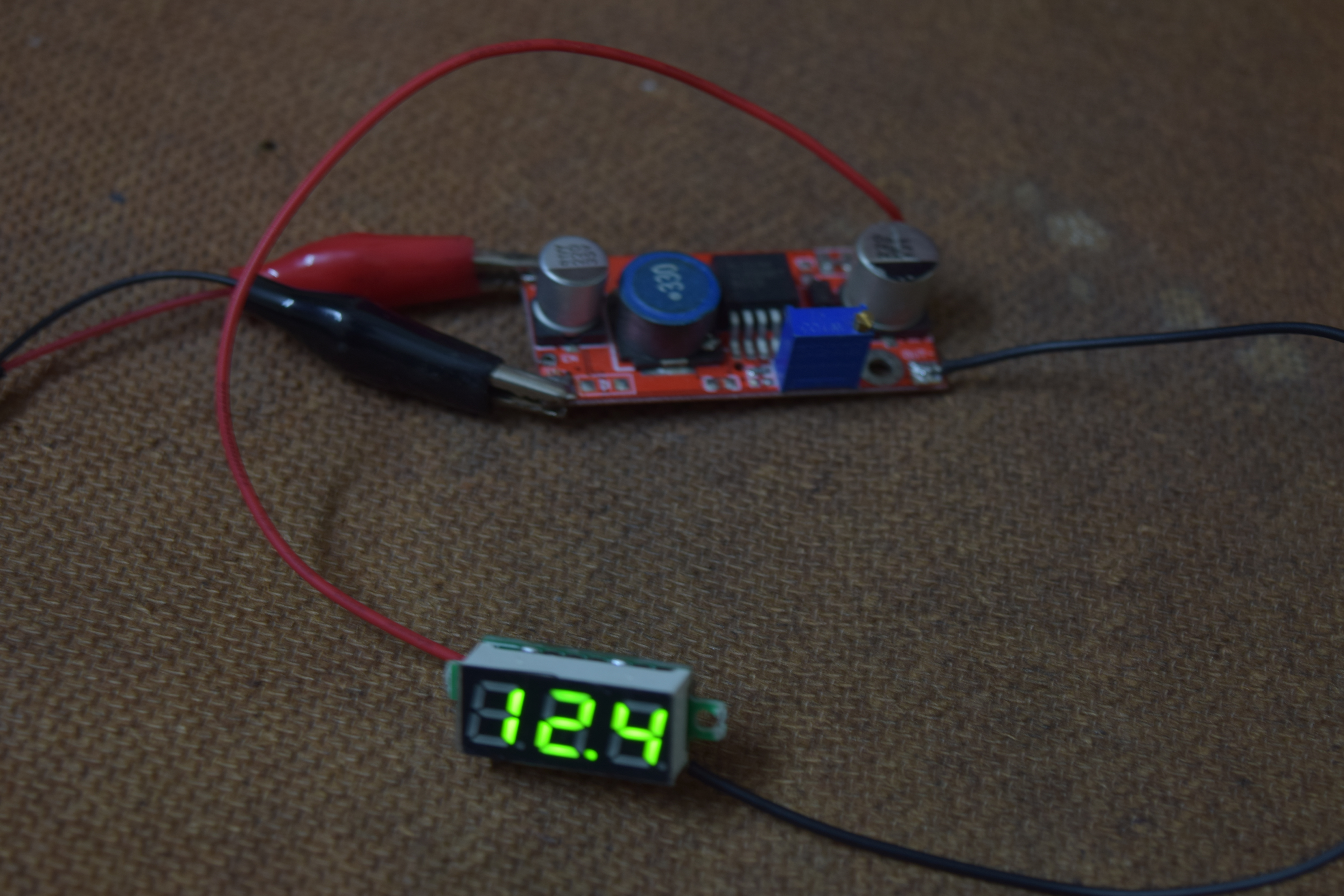

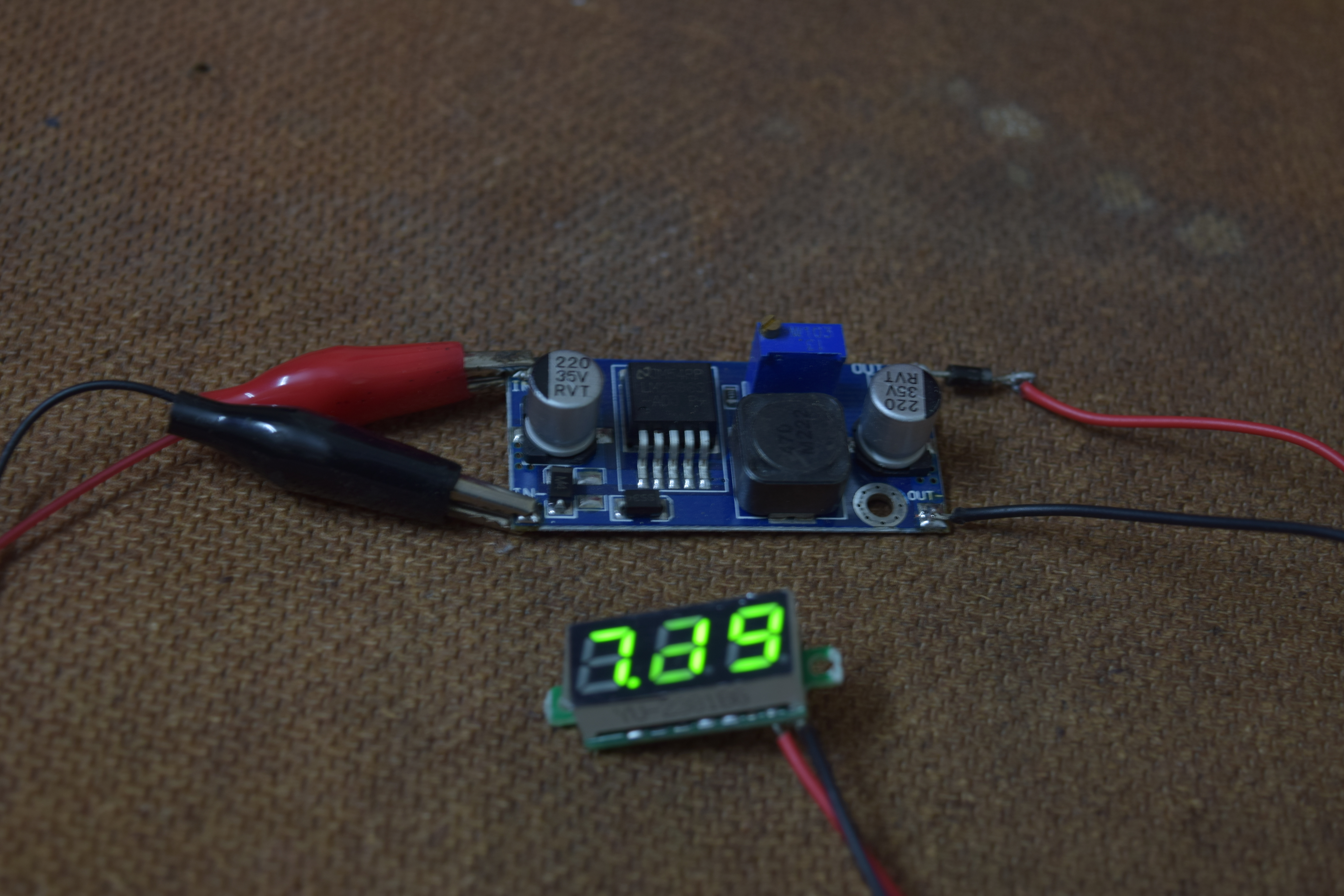

Setting the Voltages

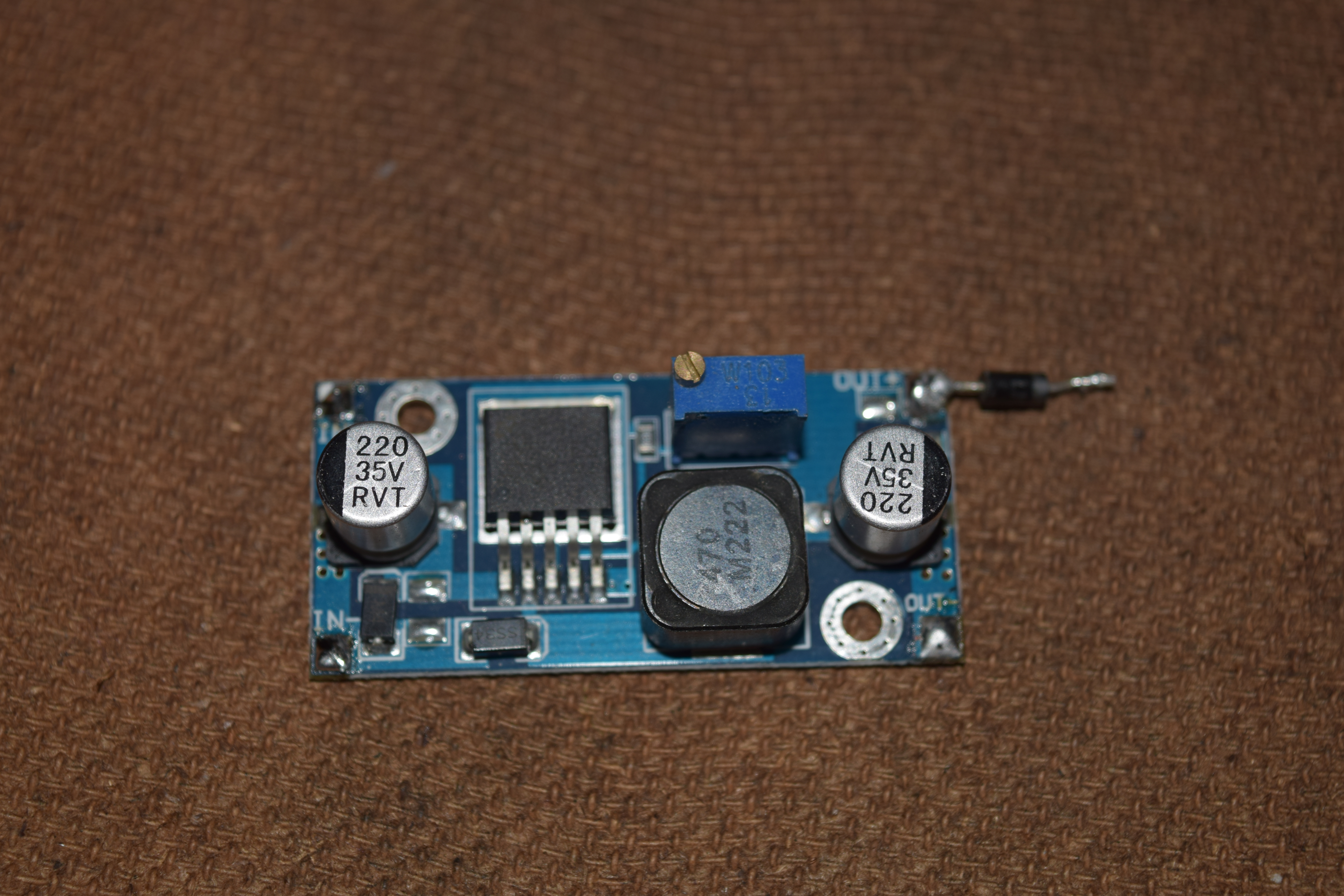

  • Solder a diode at step-down output in forward bias.
  • Set the voltage 7.2v after the diode.
  • Set the step-up voltage between 12v-14.2v.

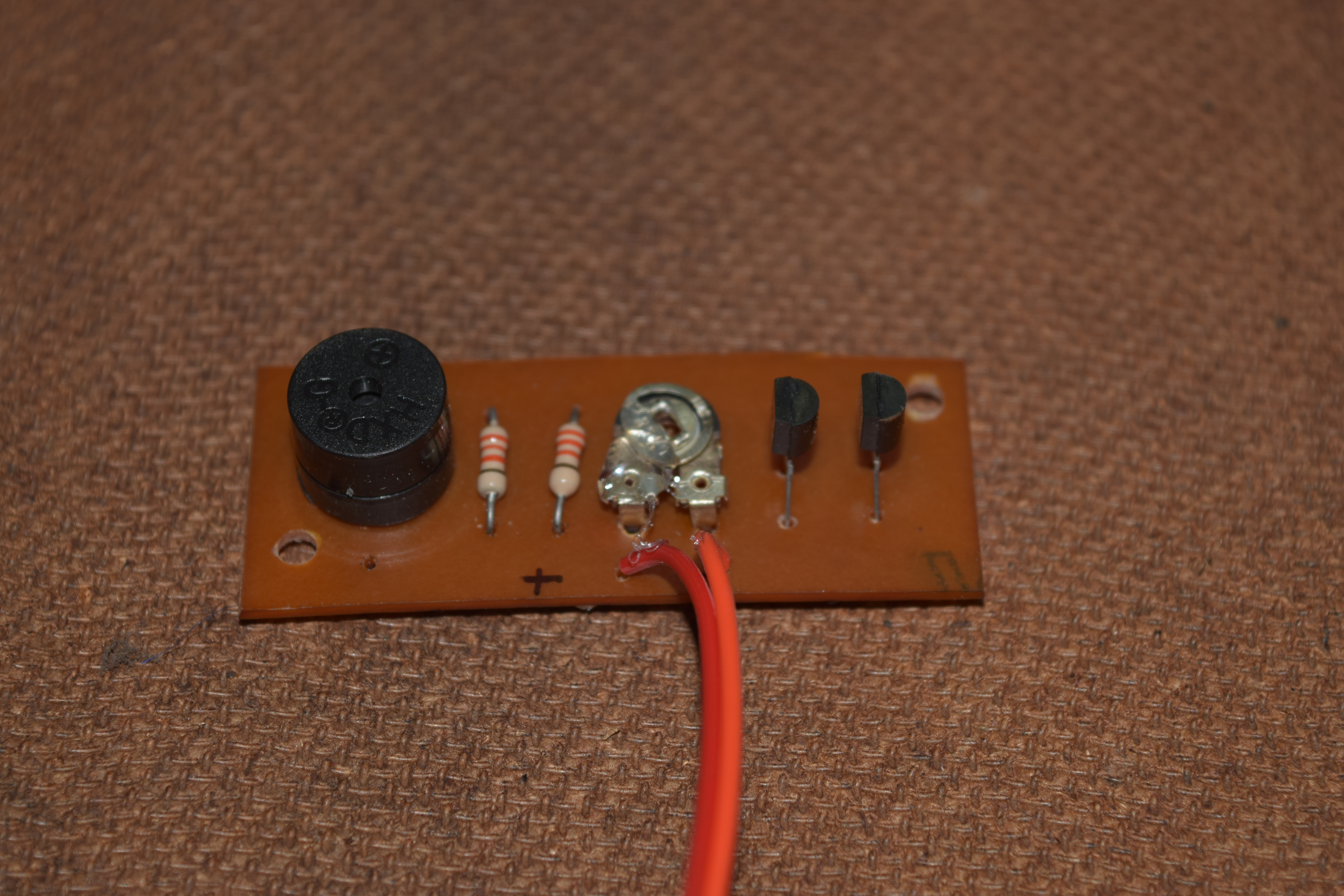

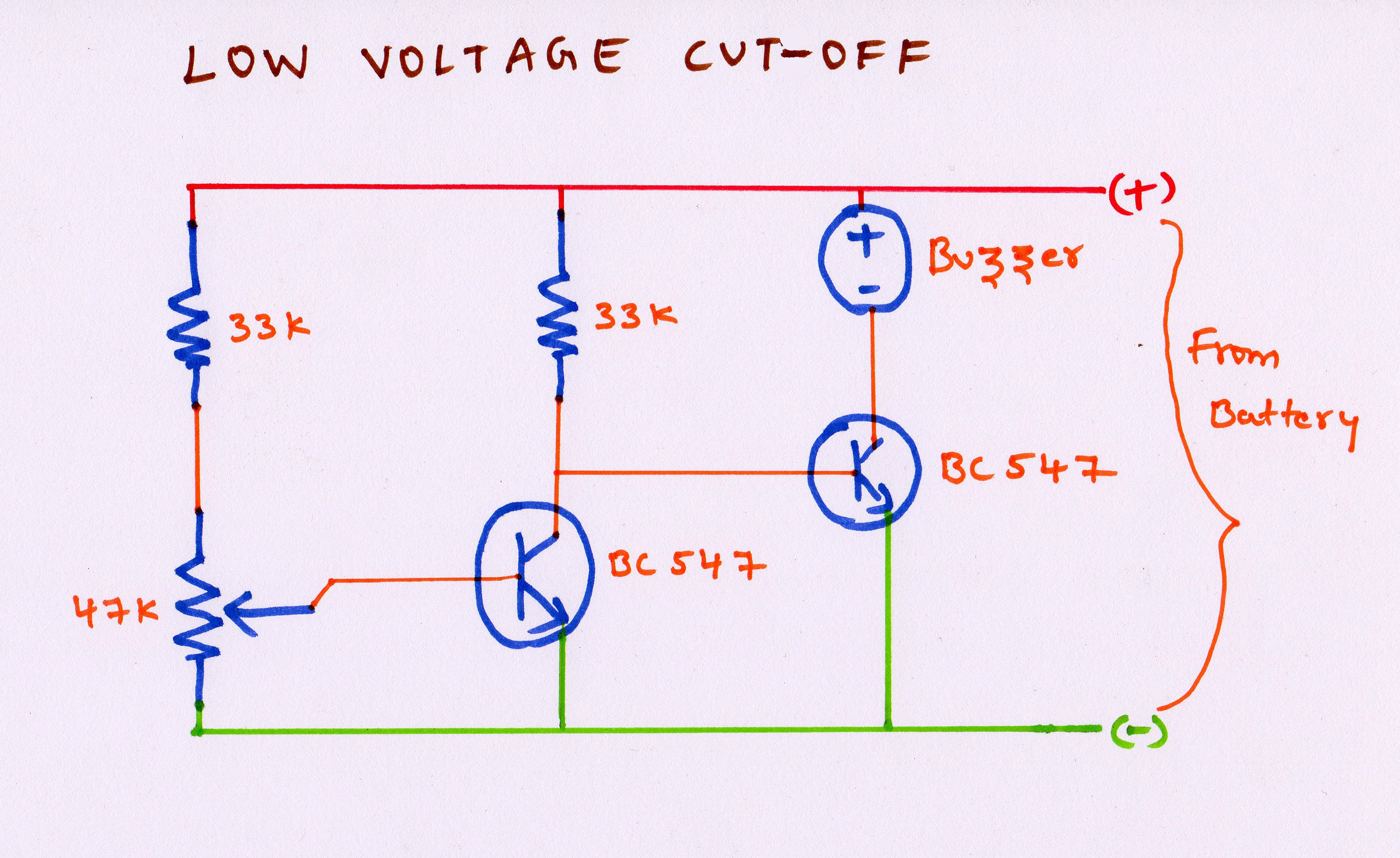

Deep Discharge Warning Circuit


Assemble the circuit. Adjust 47k preset so that buzzer beeps at 5.3v.

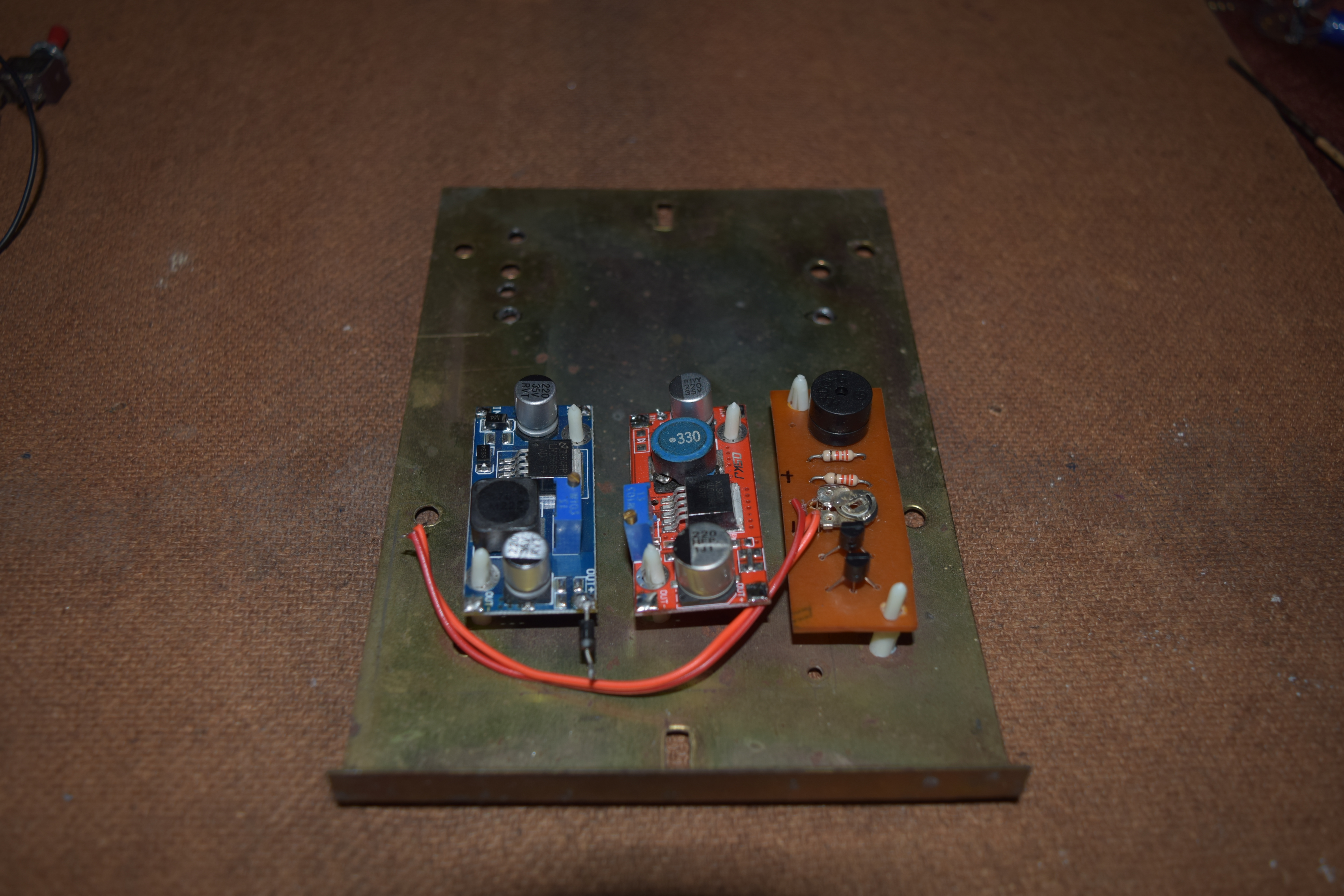

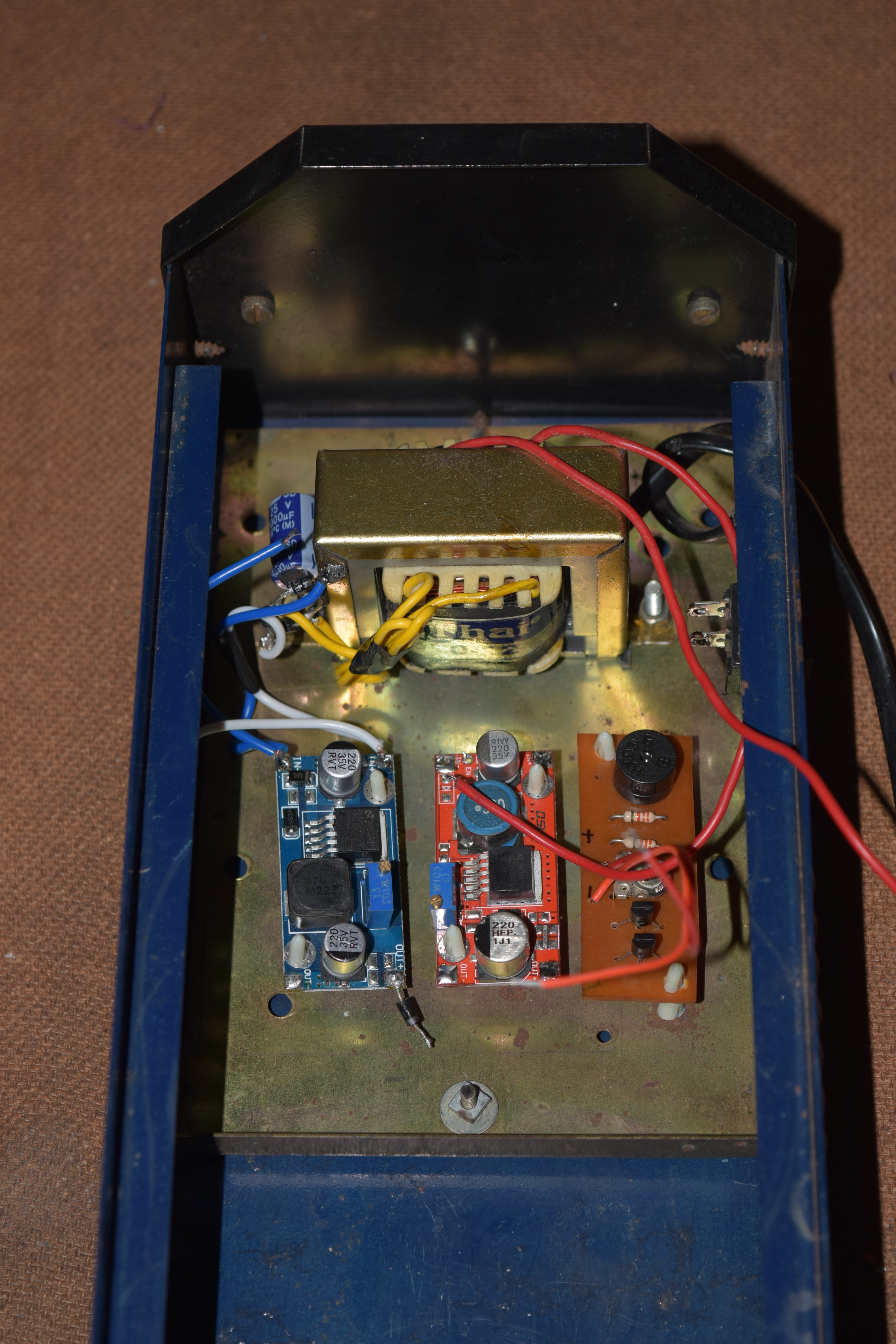

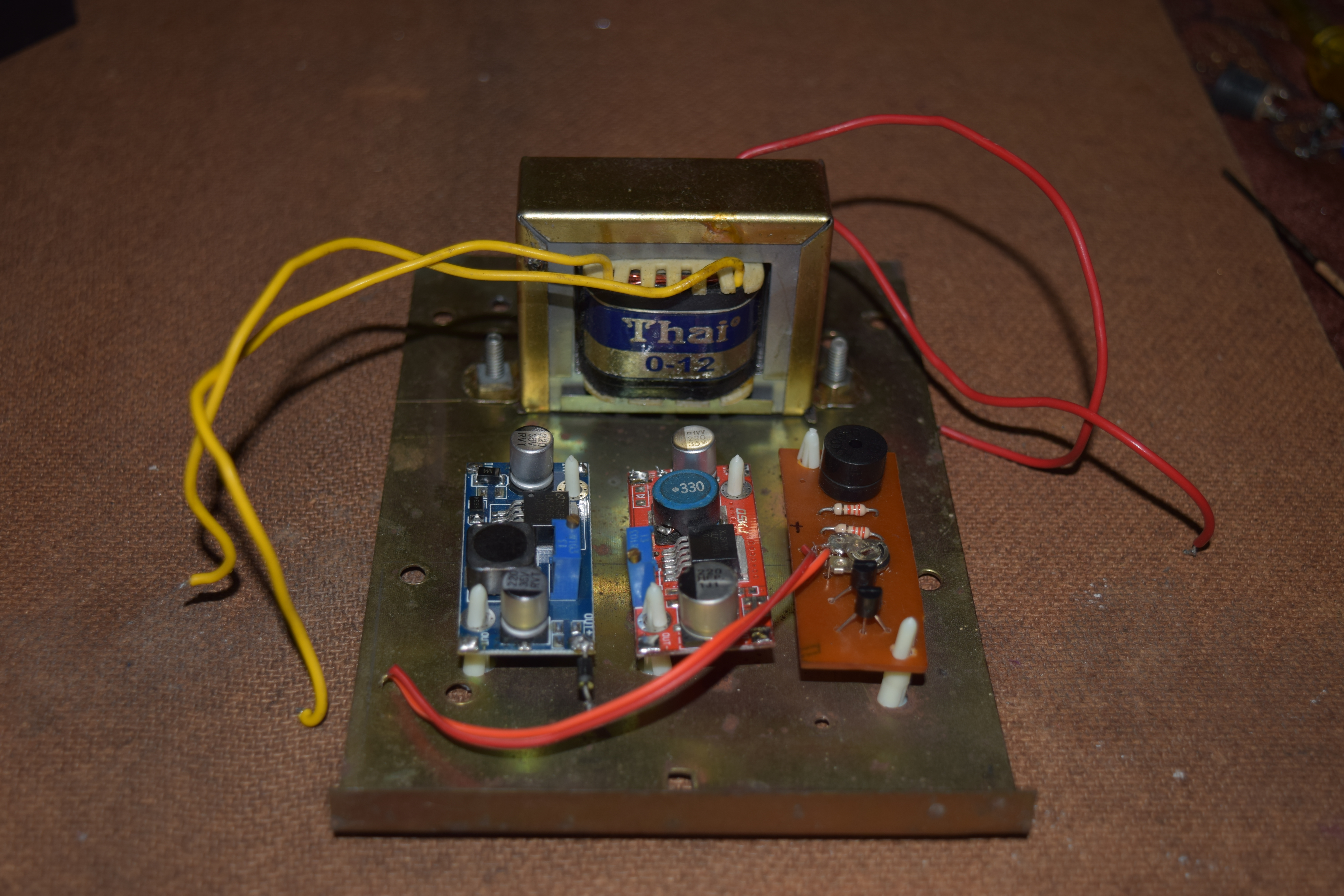

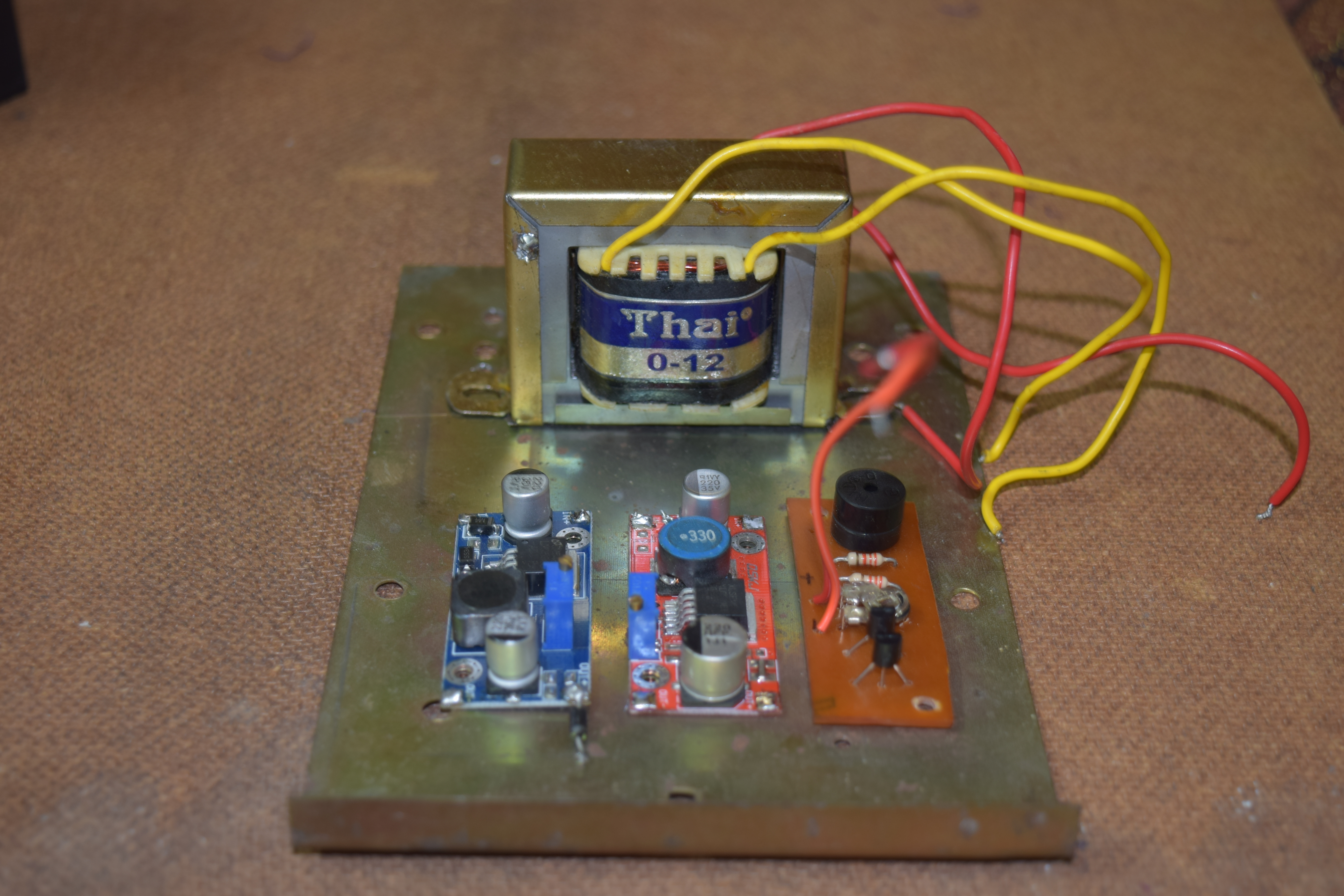

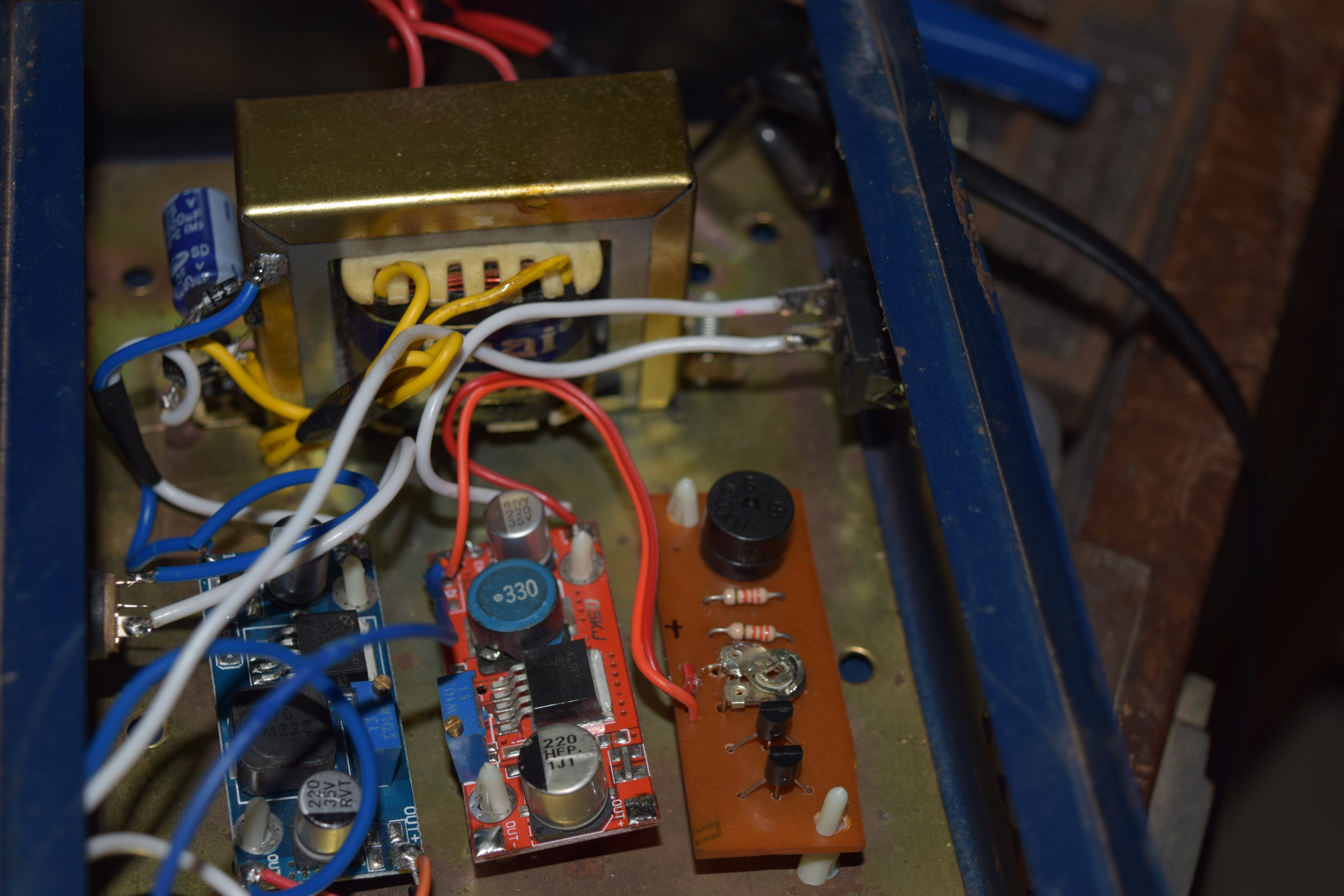

Installing Electronics

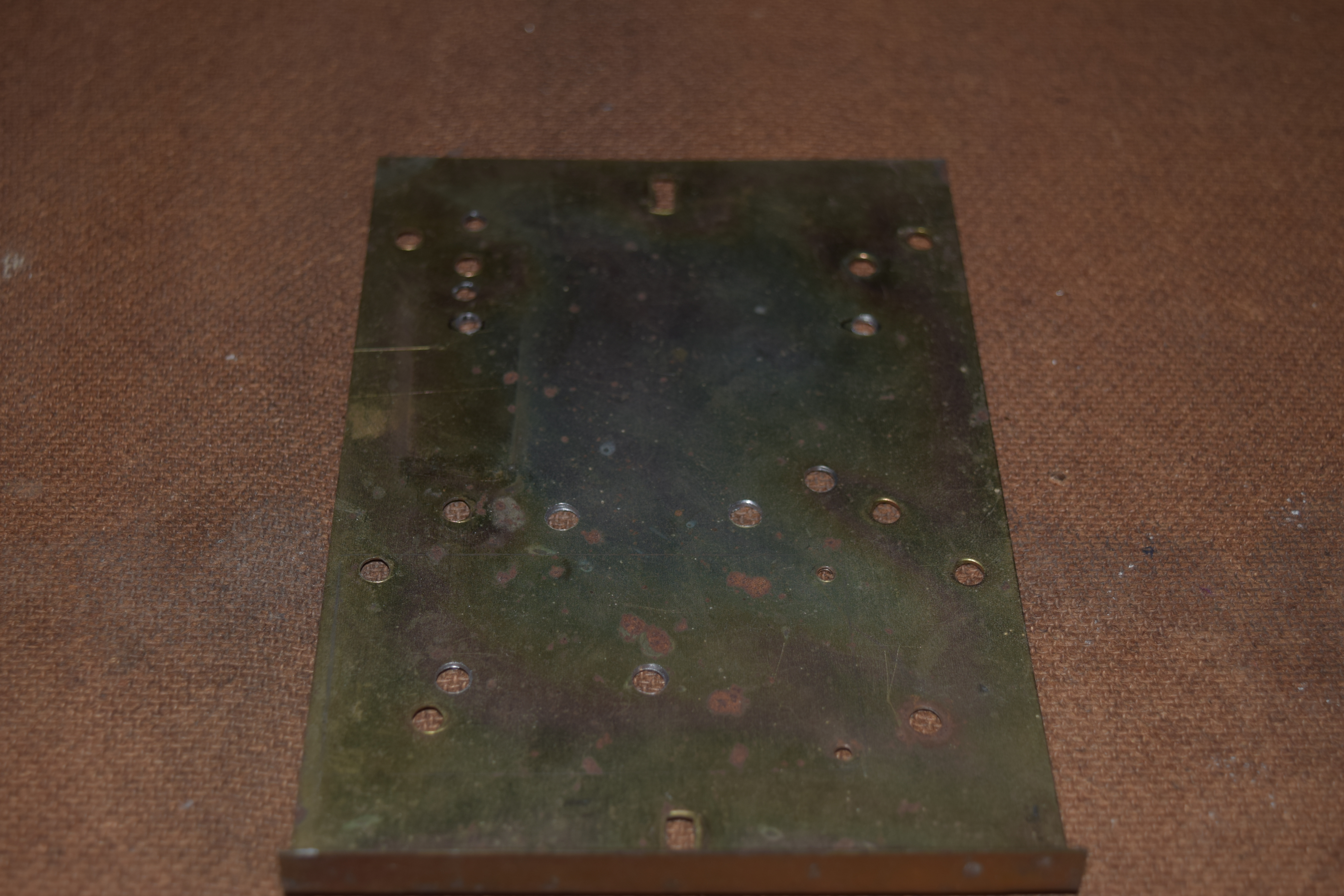

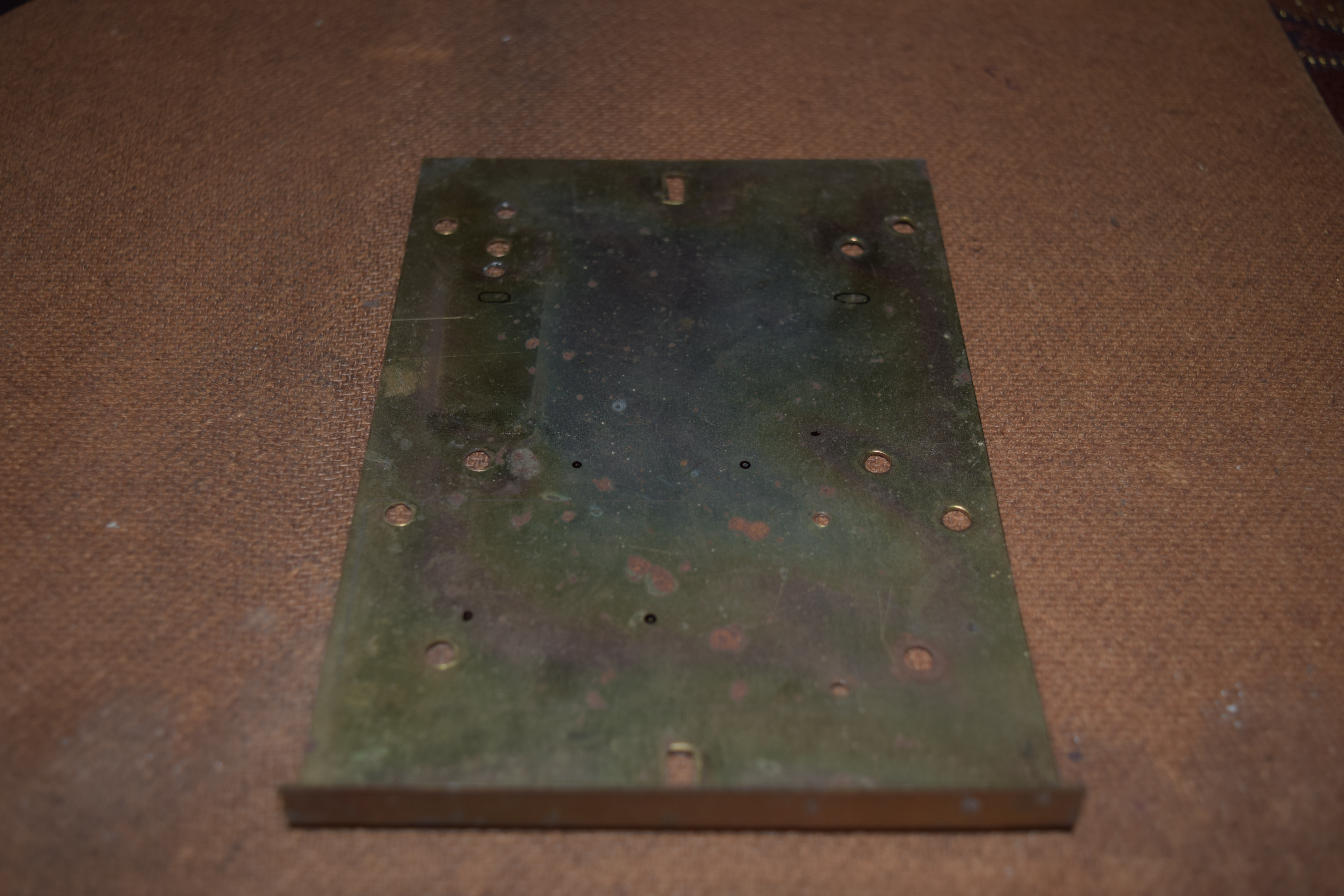

  • Place the electronics on base plate and make markings for the holes.
  • Drill the holes and assemble the electronics.

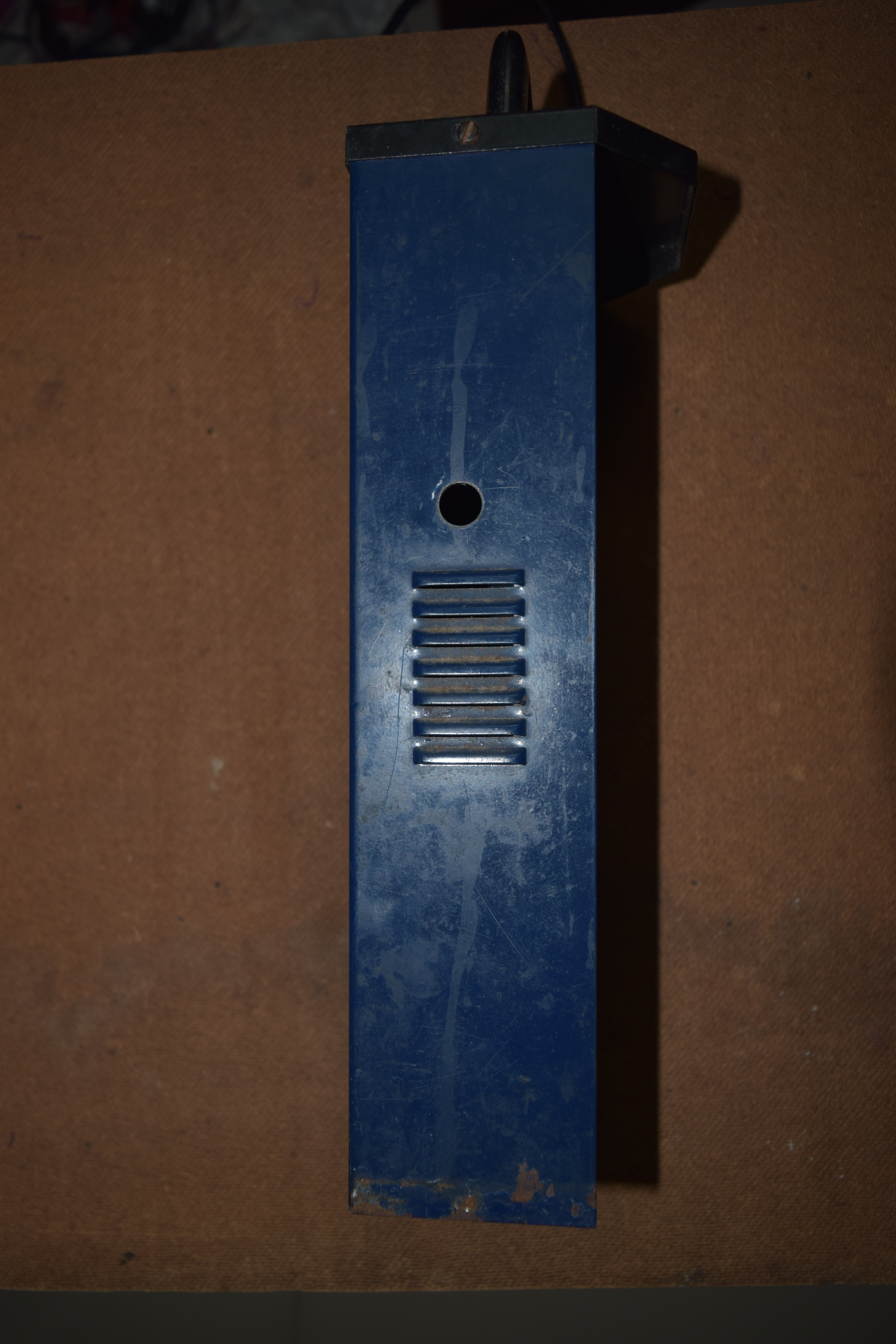

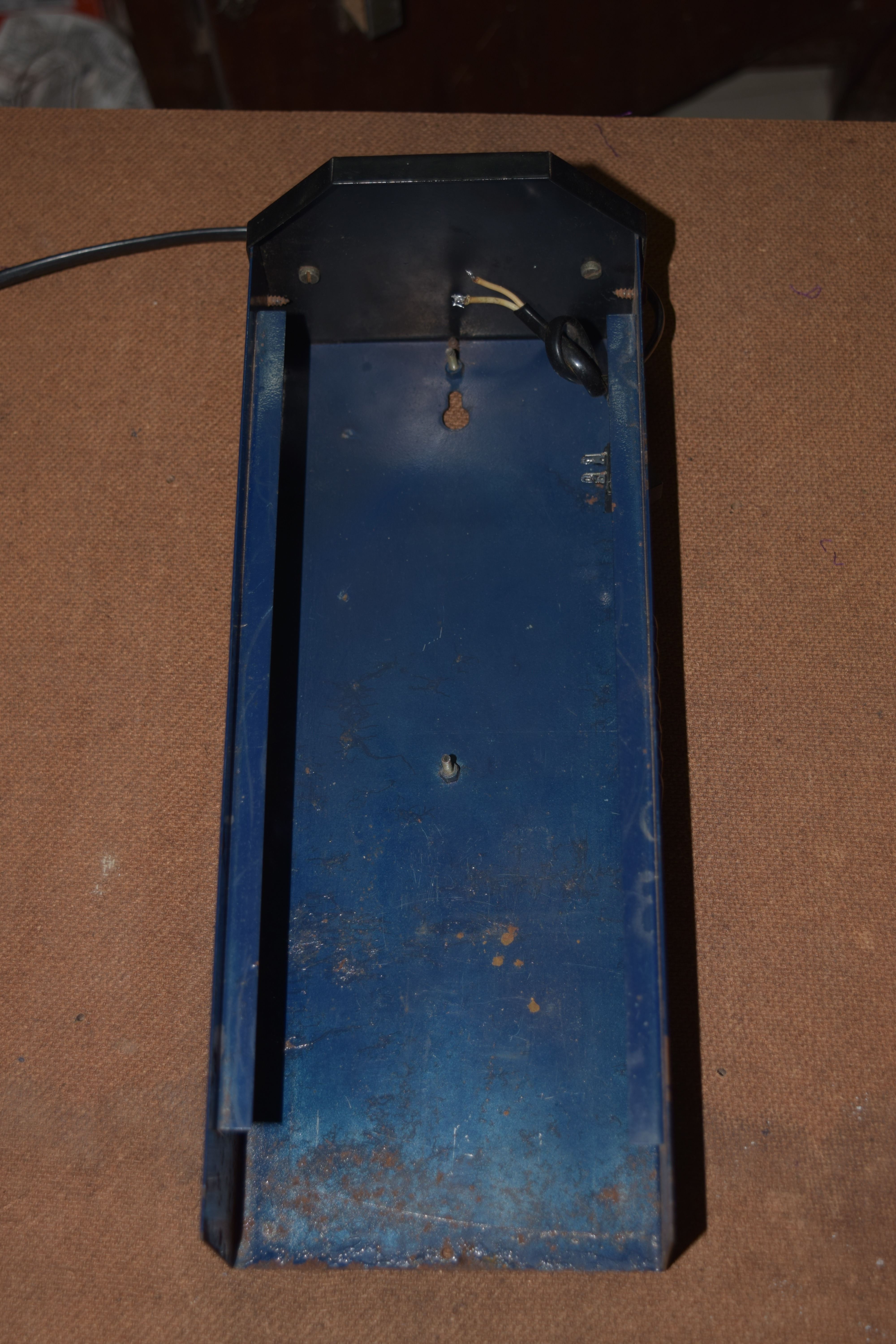

Preparing the Cabinet.

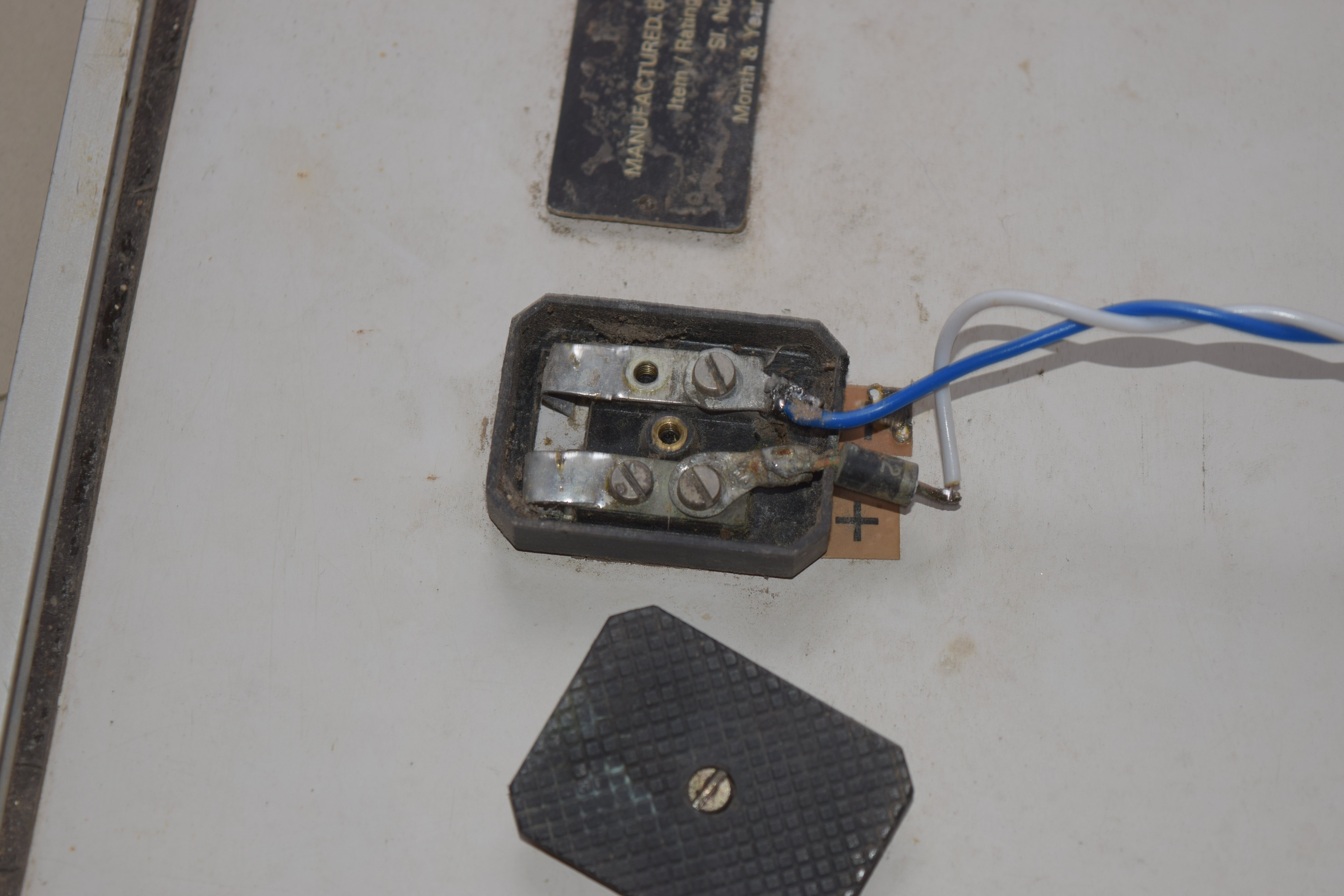

  • Install the mains chord.

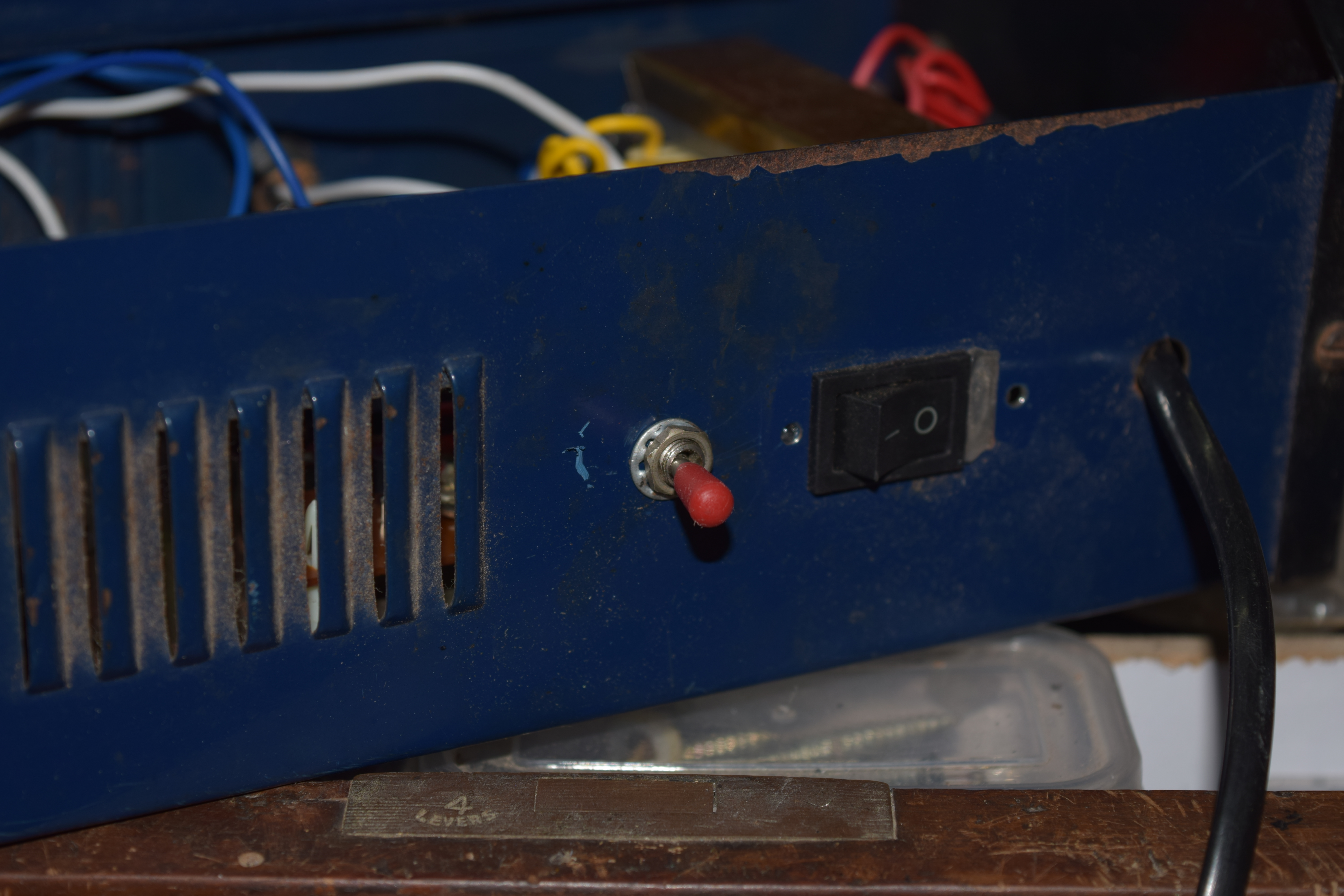

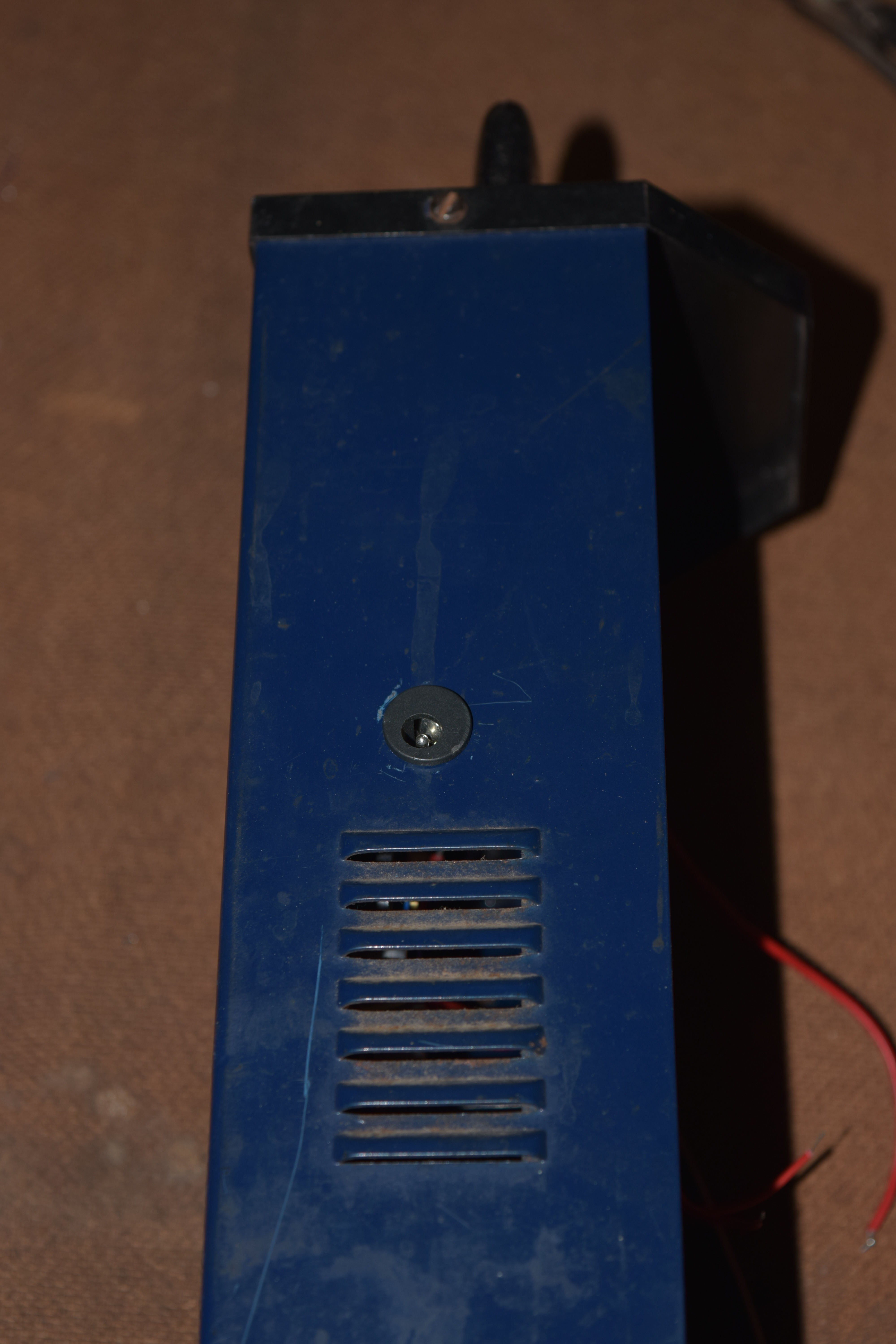

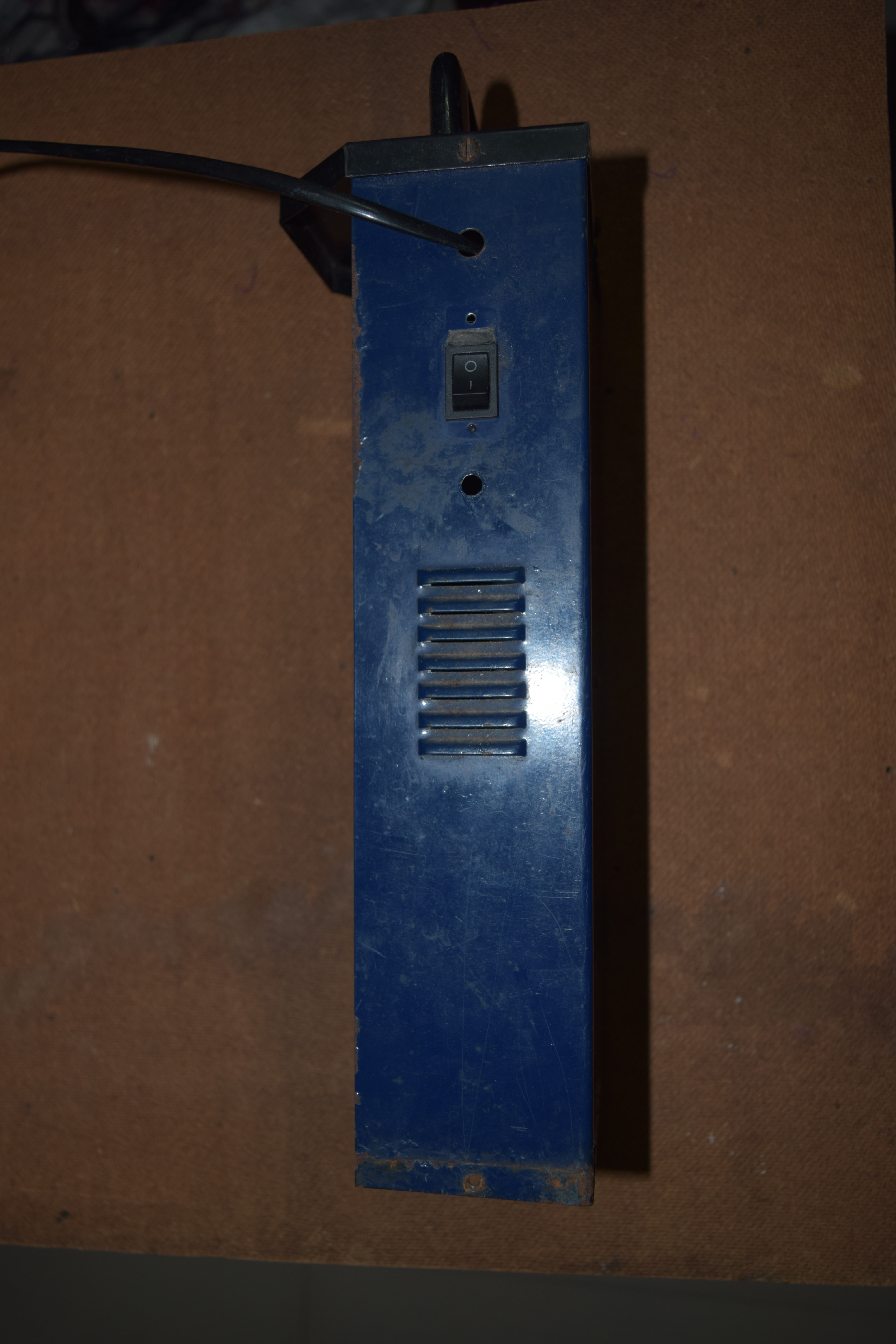

  • Drill holes switches and DC female jack.

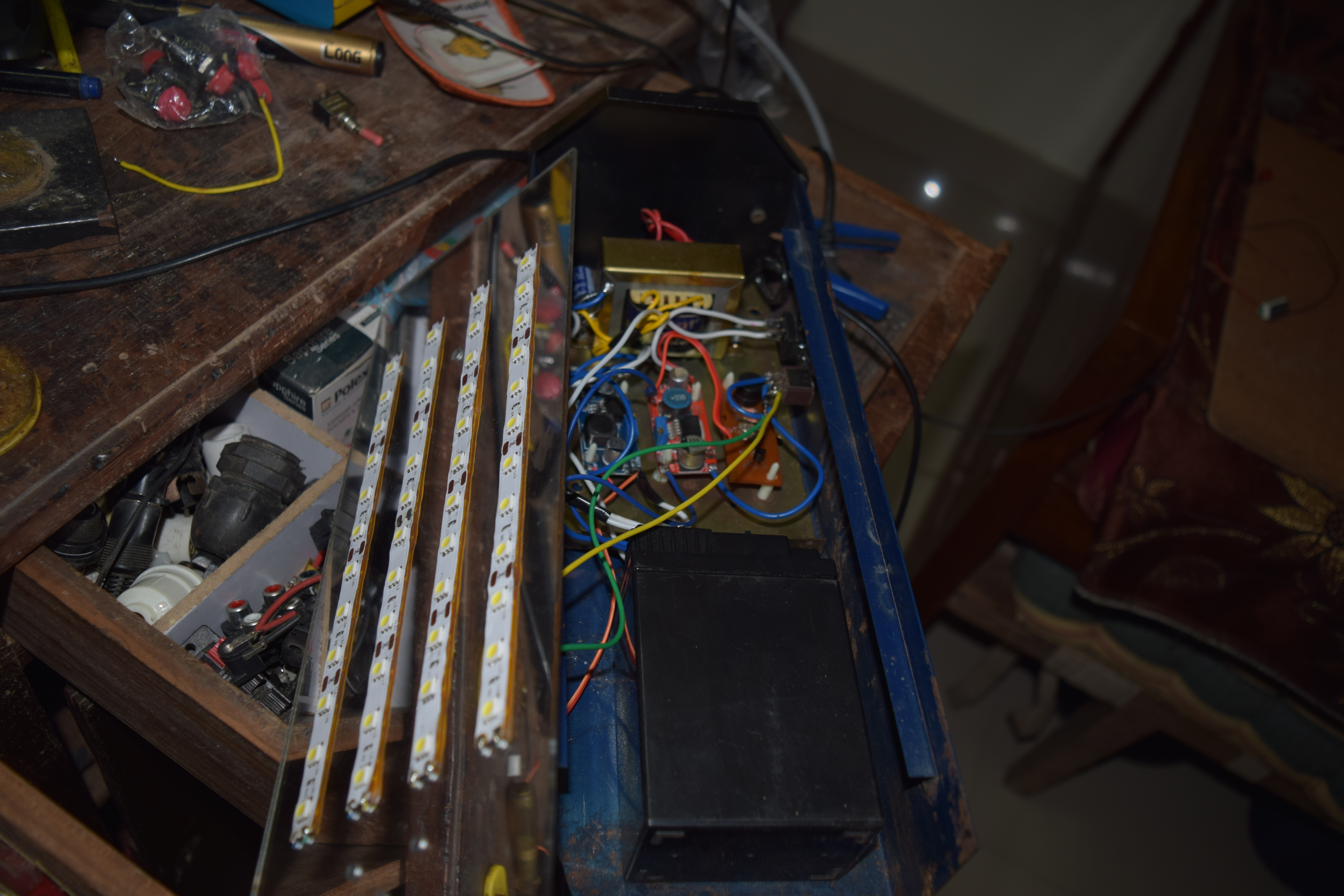

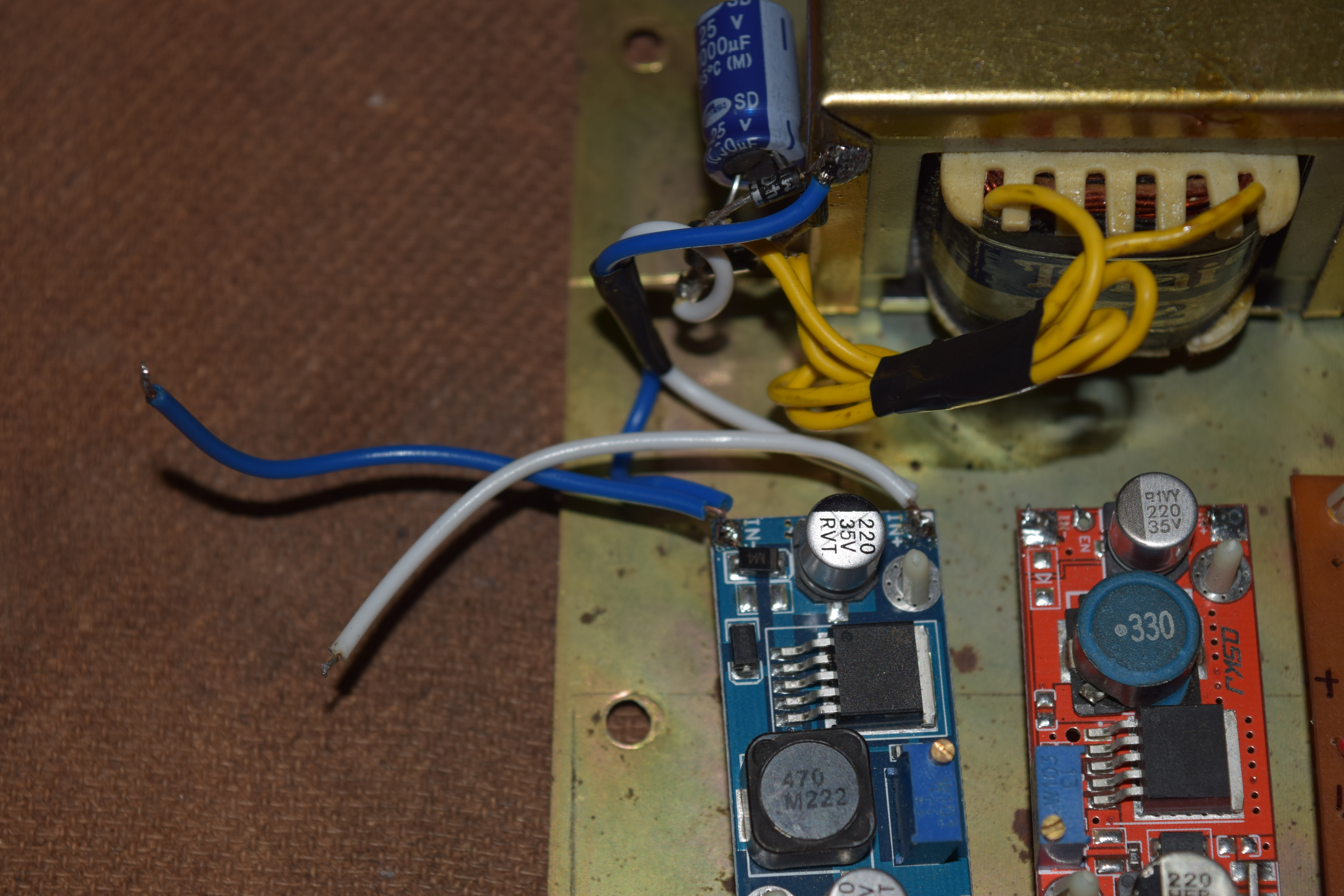

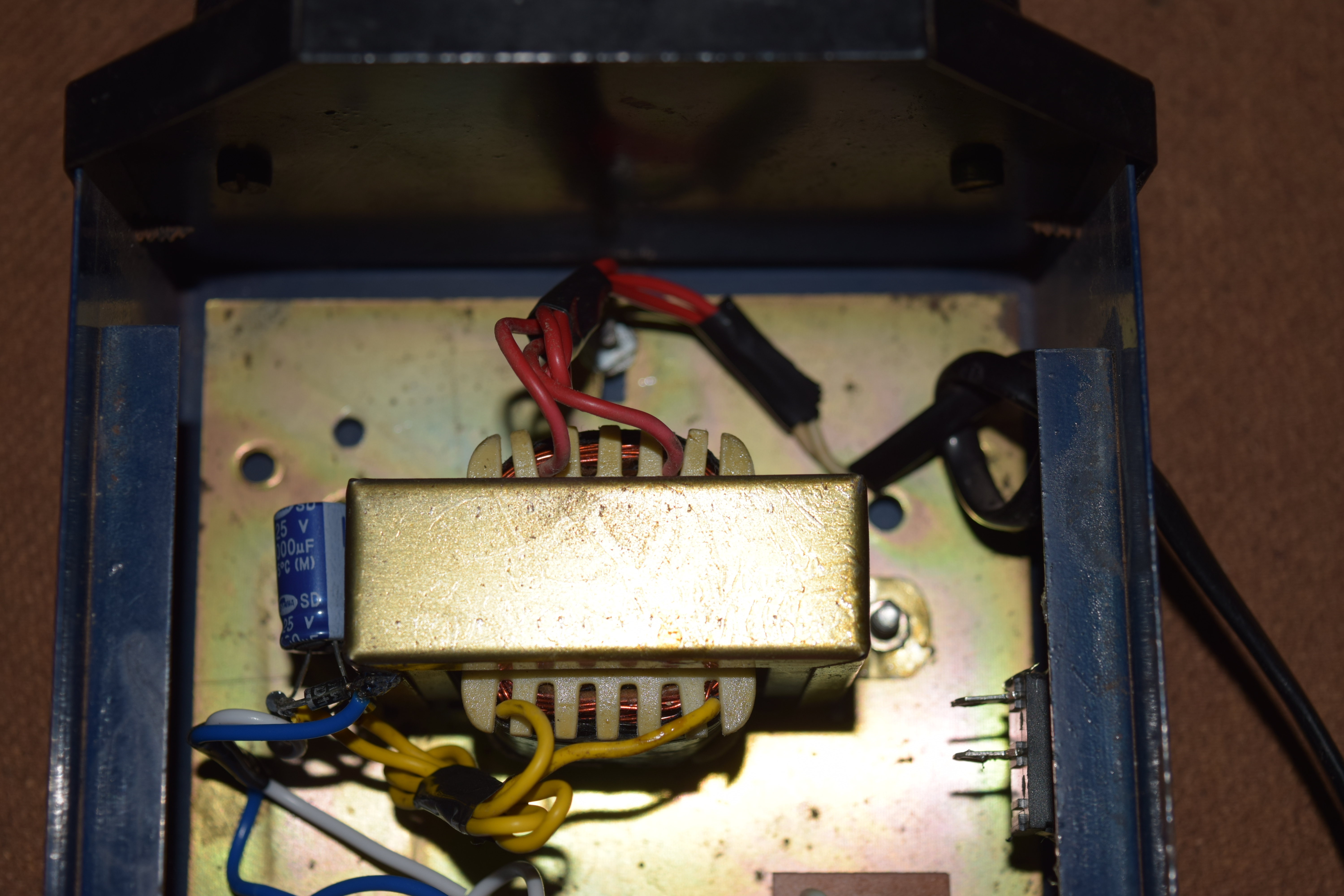

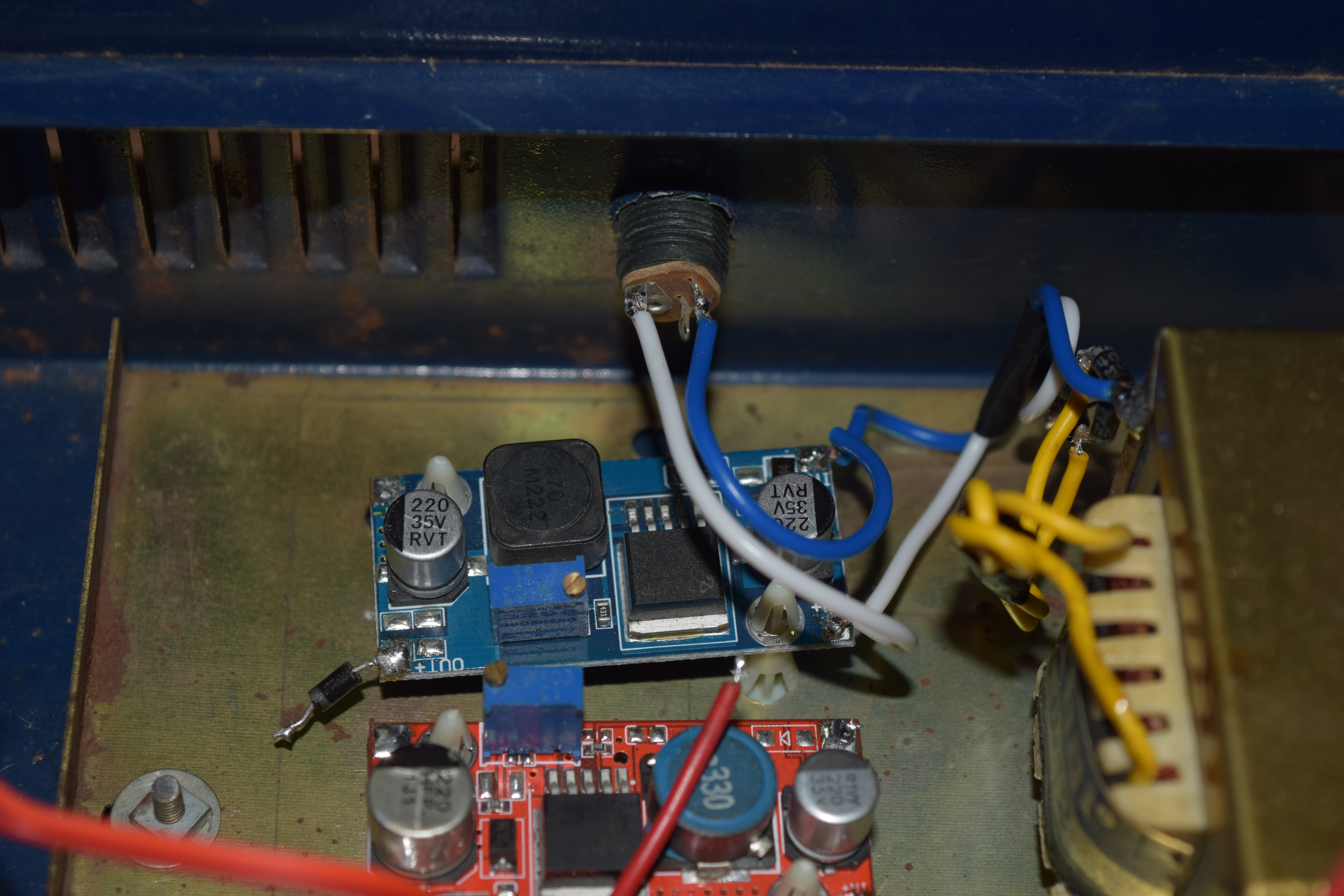

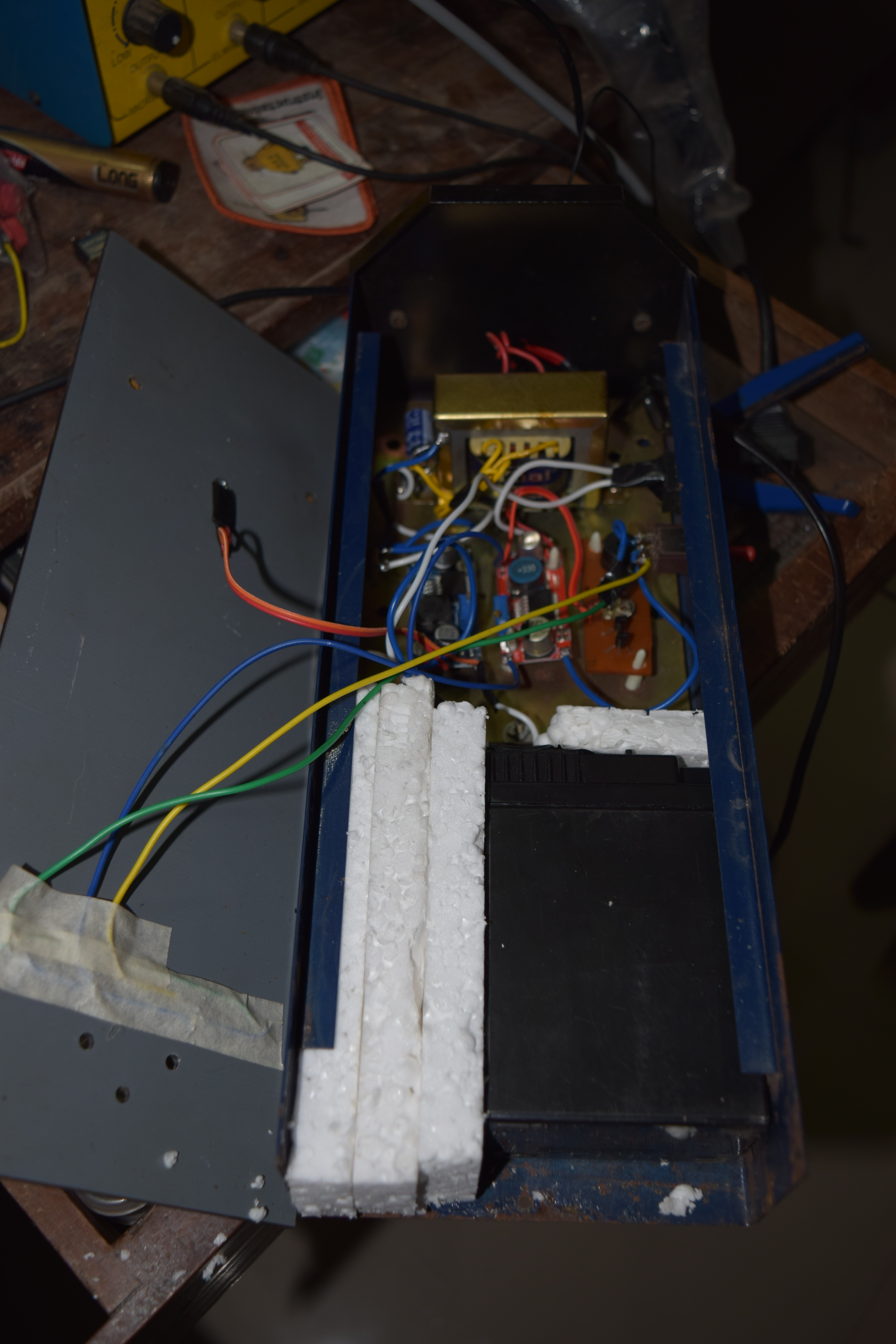

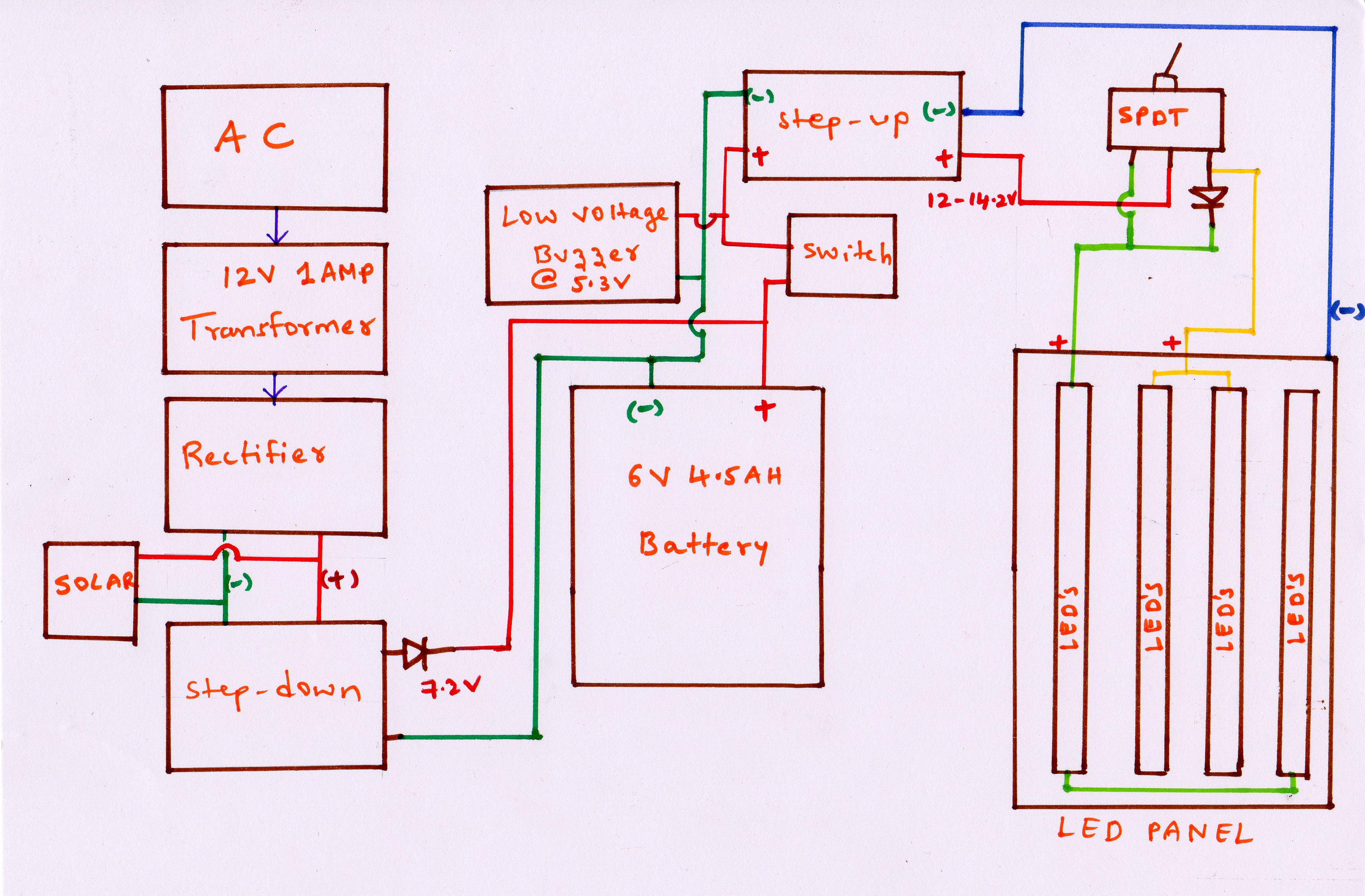

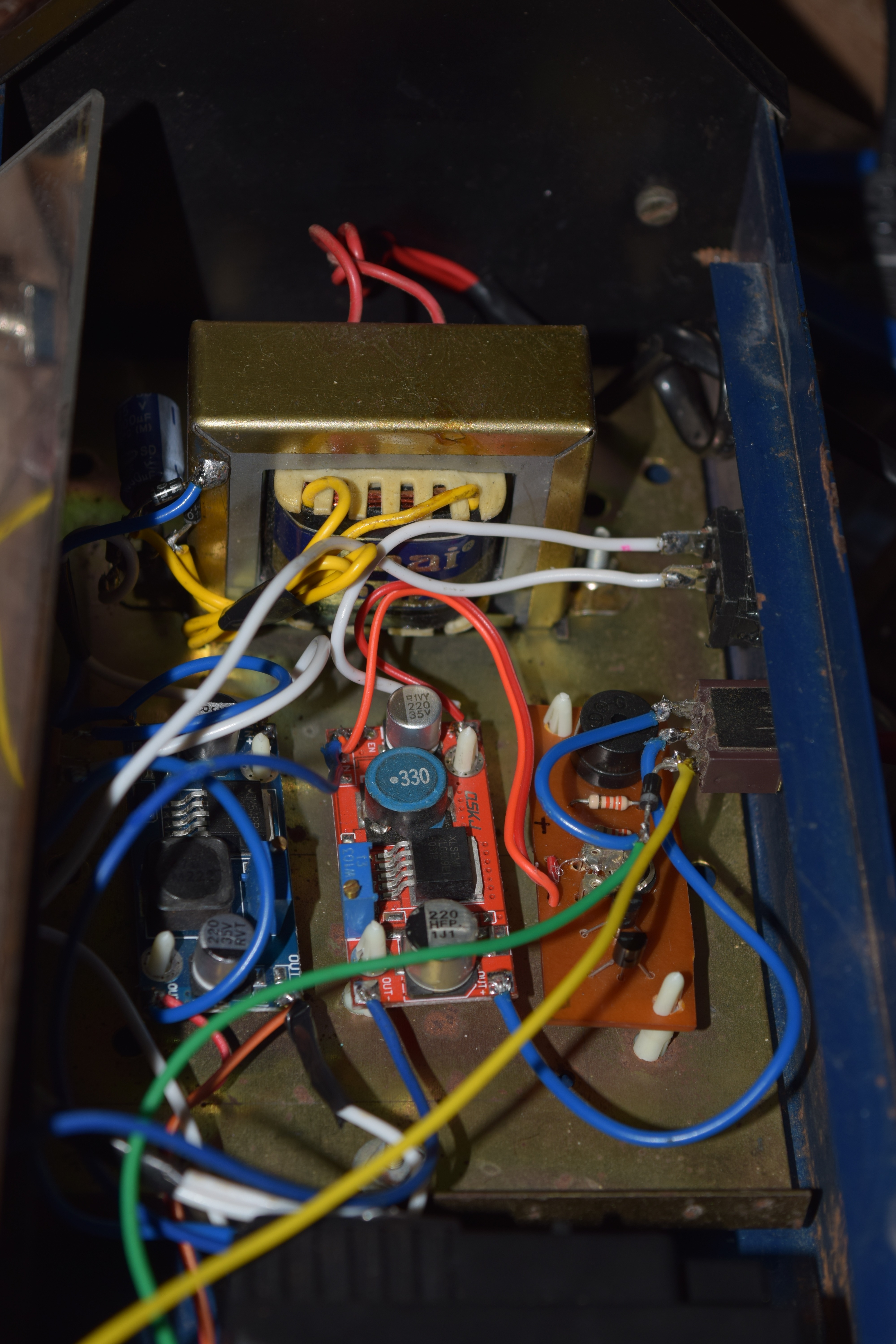

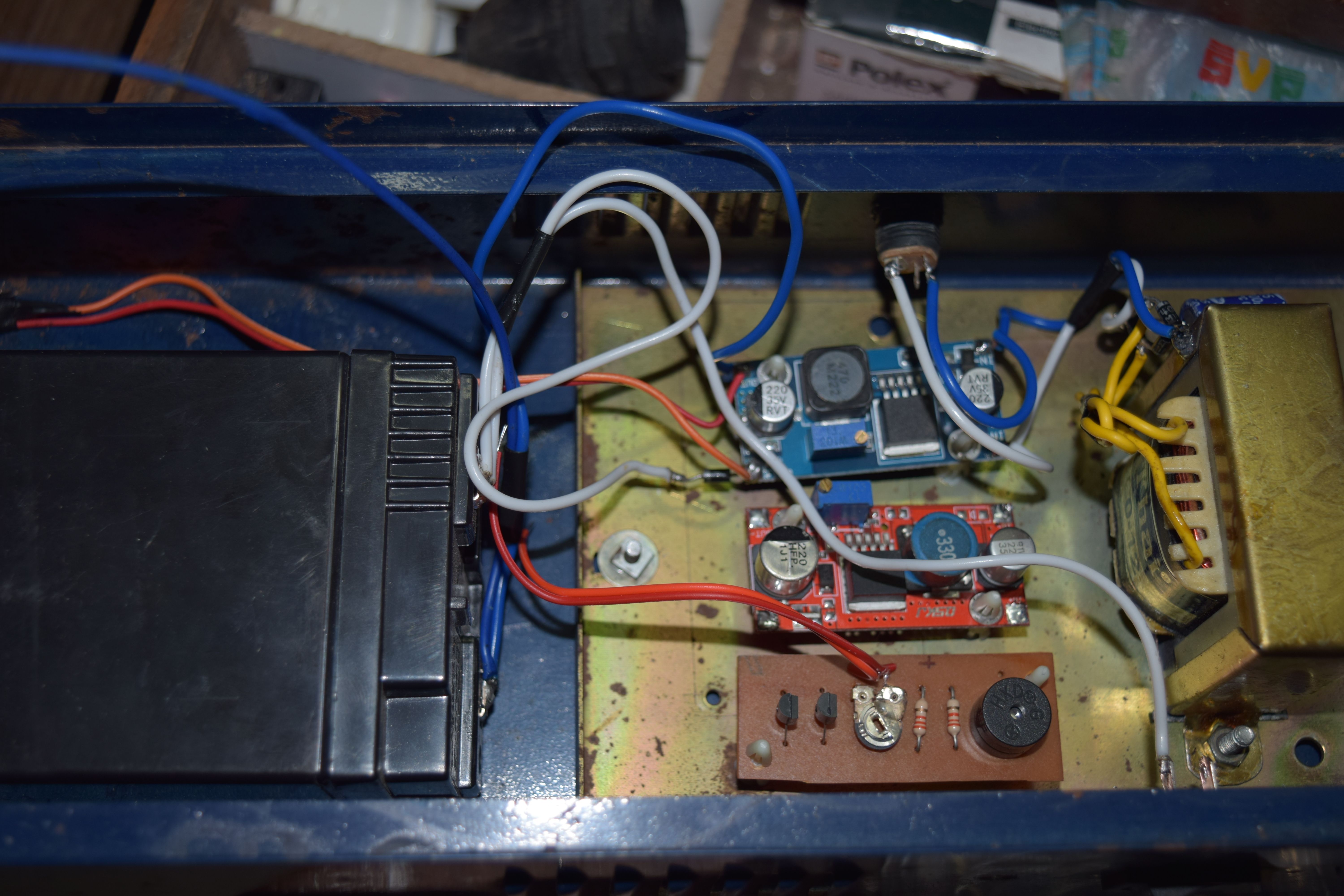

Wiring

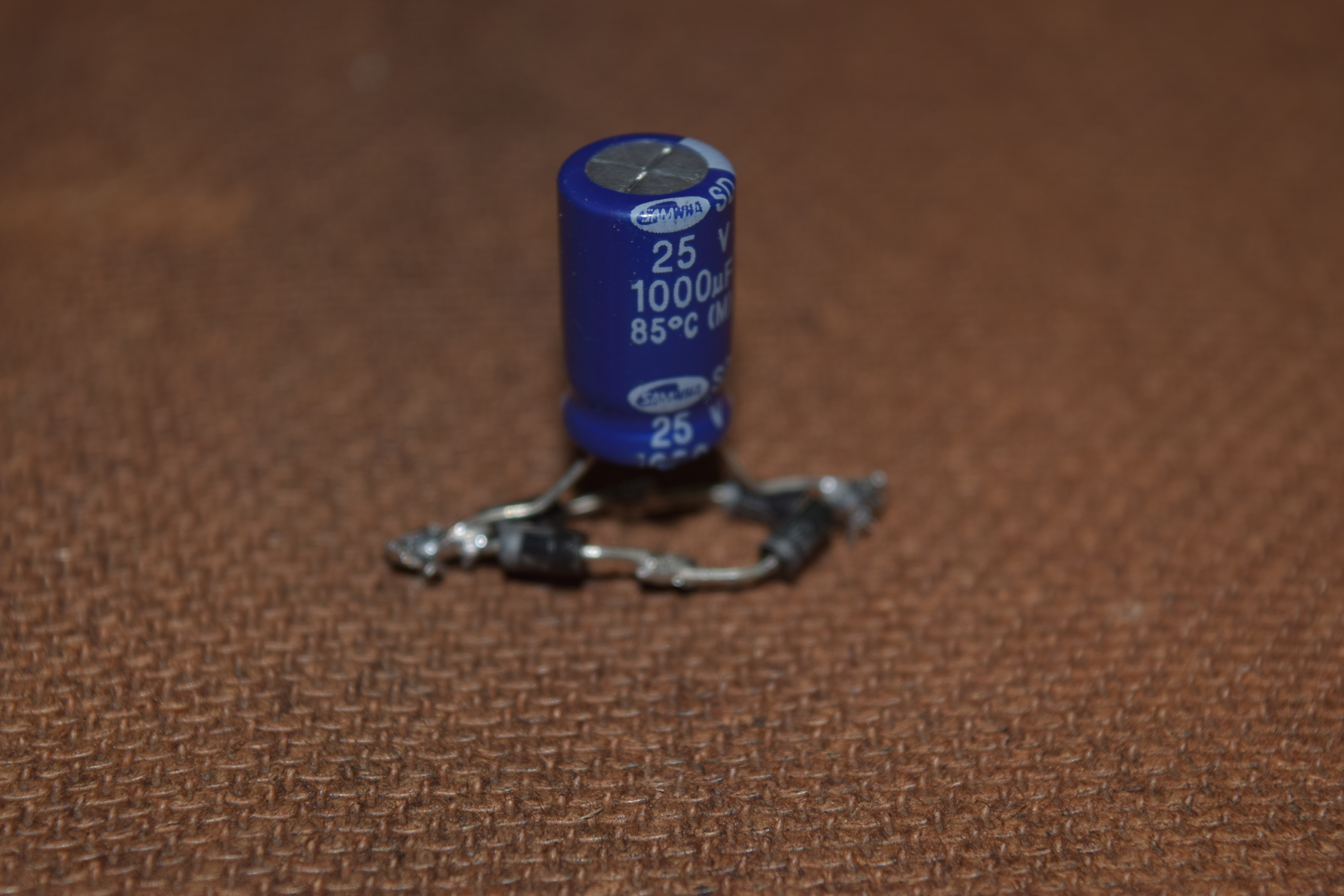

  • Make diode bridge rectifier.

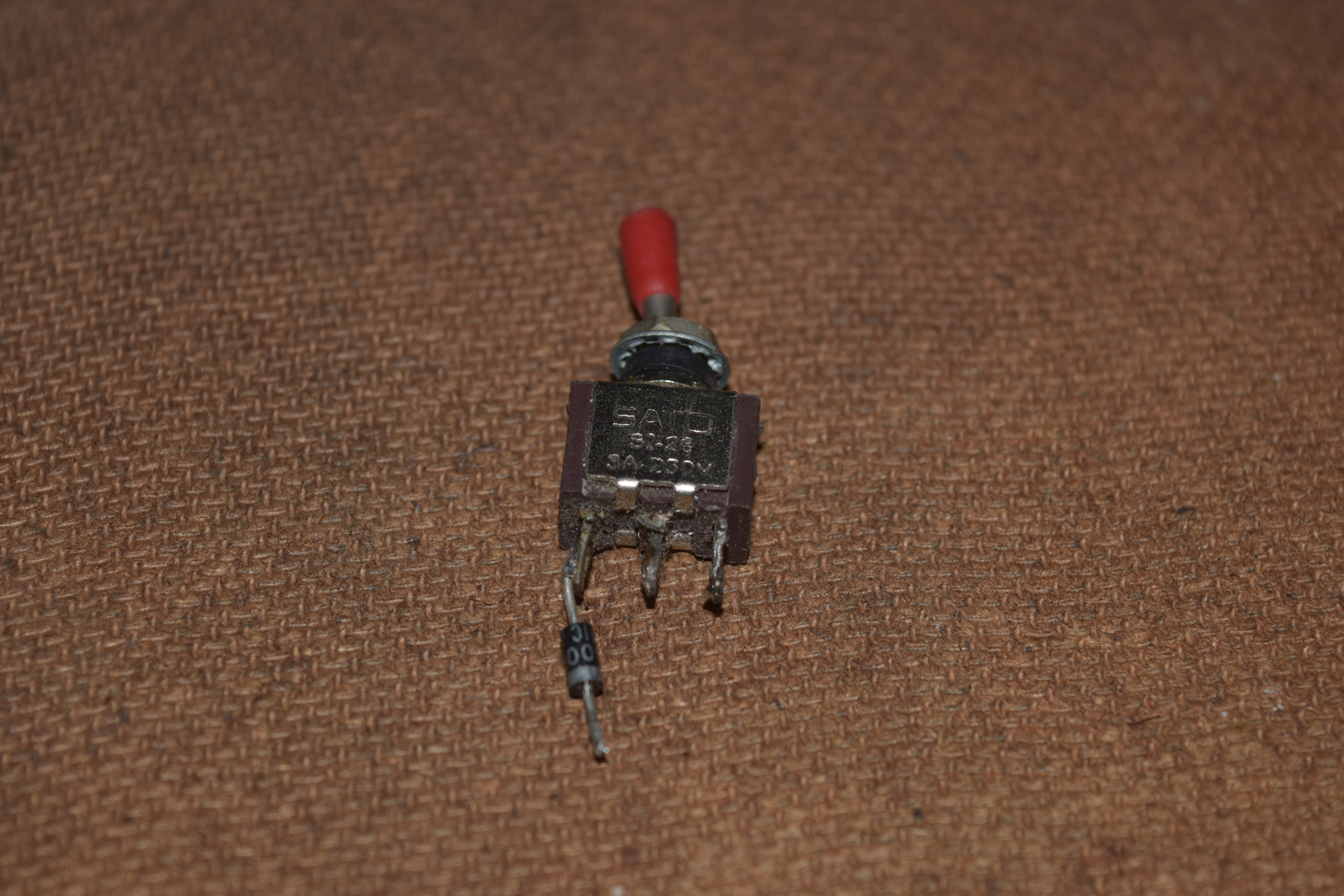

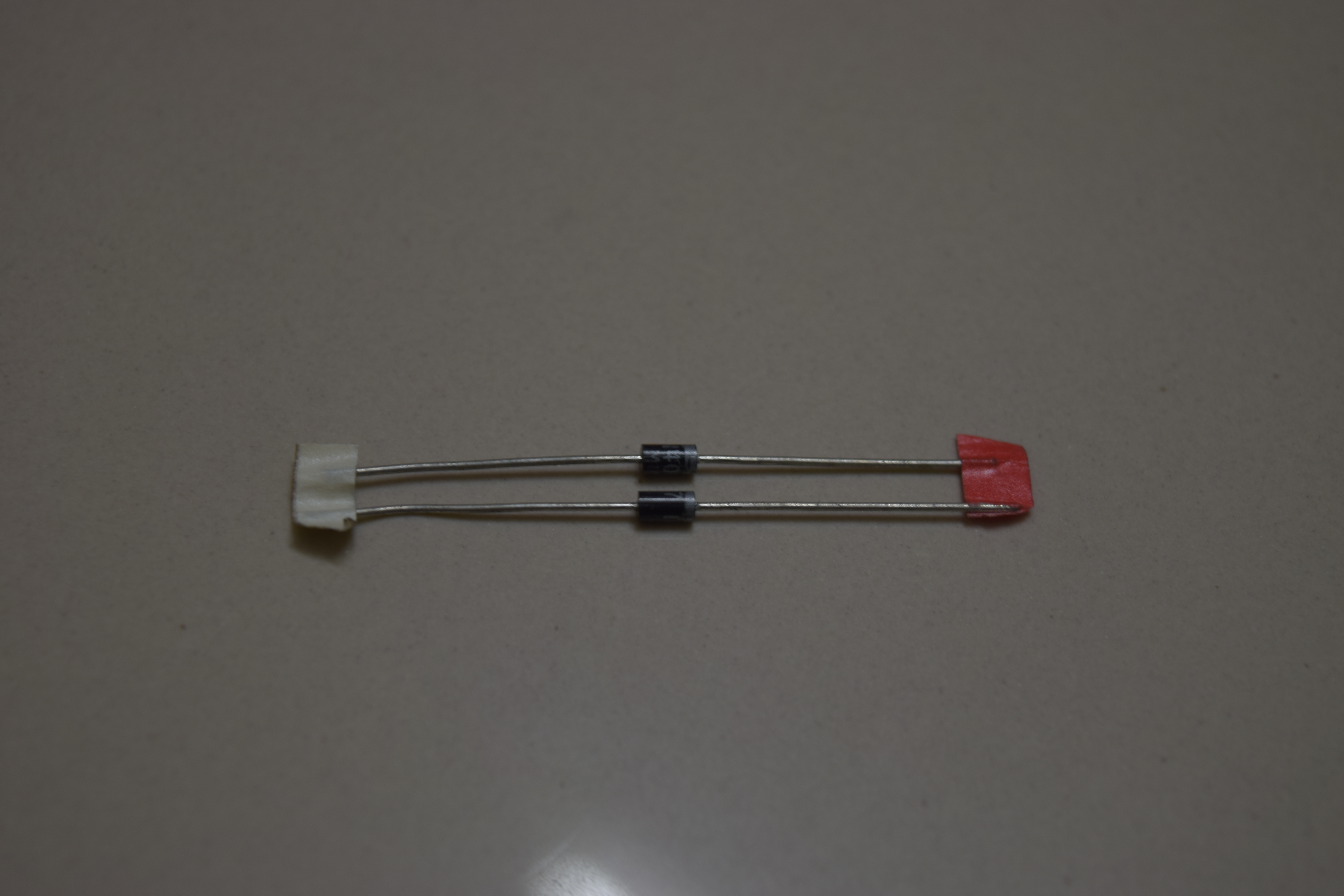

  • solder 1 diode to SPDT switch.
  • Start wiring all components as shown in pictures.

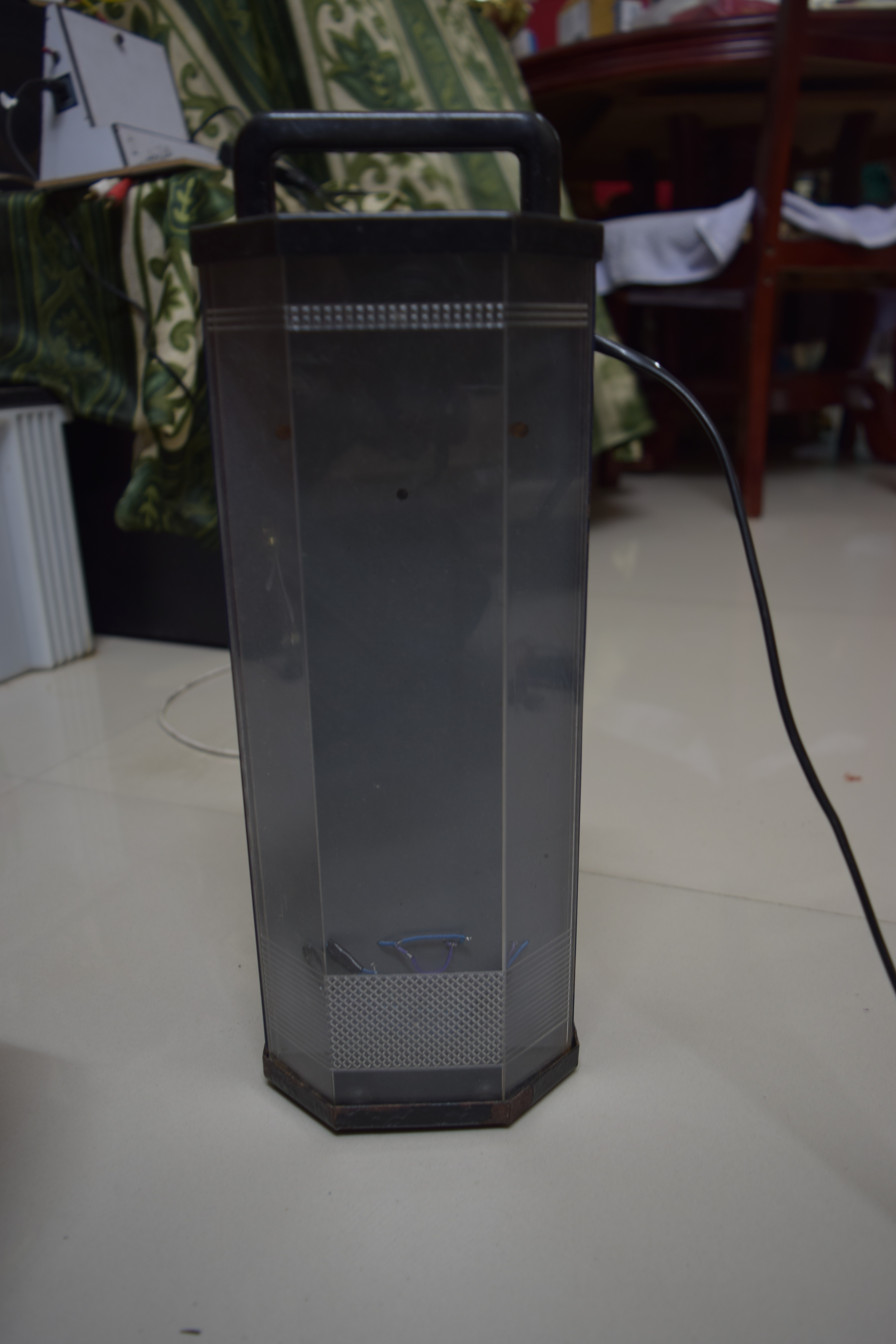

Assembling

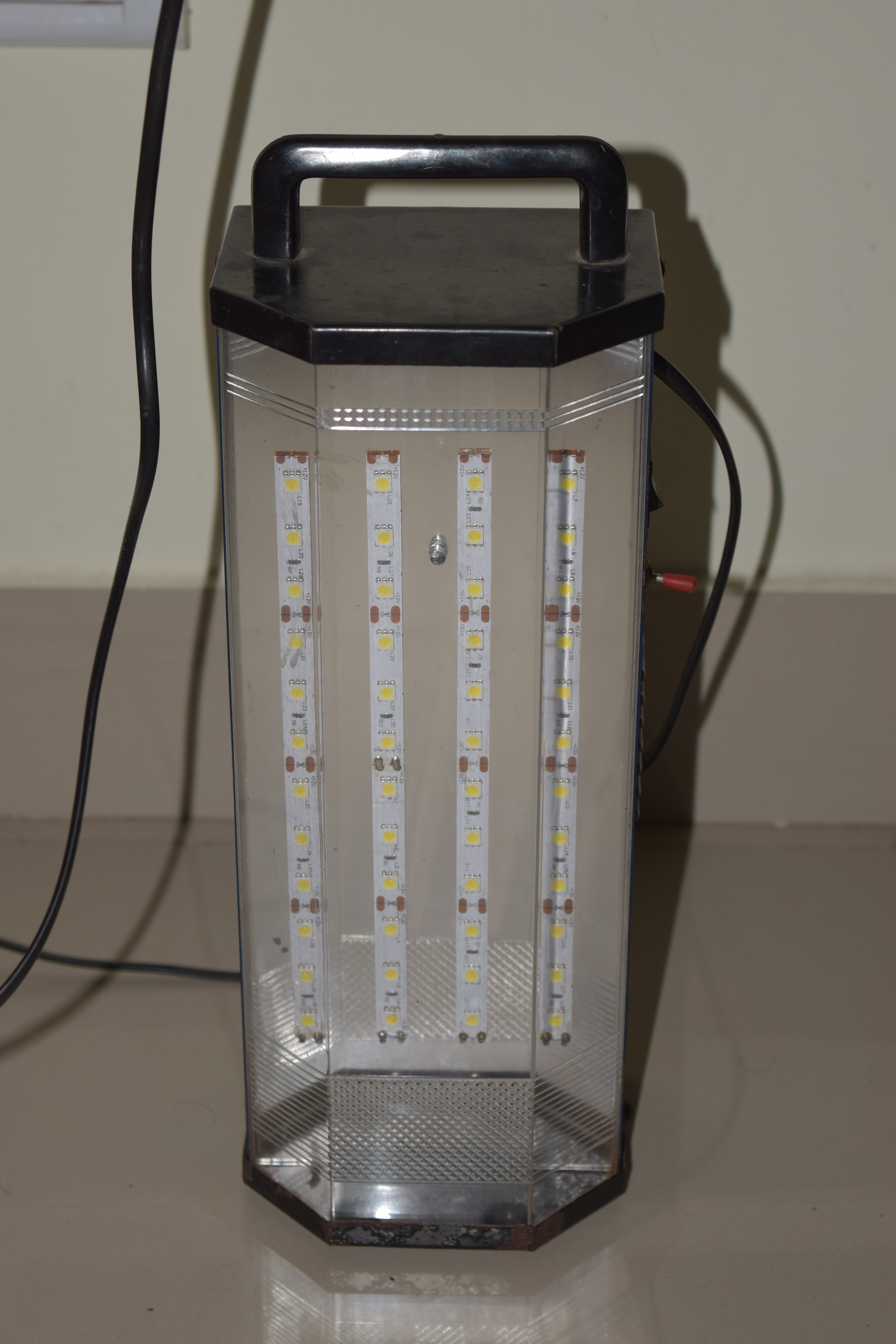

Assemble the light.

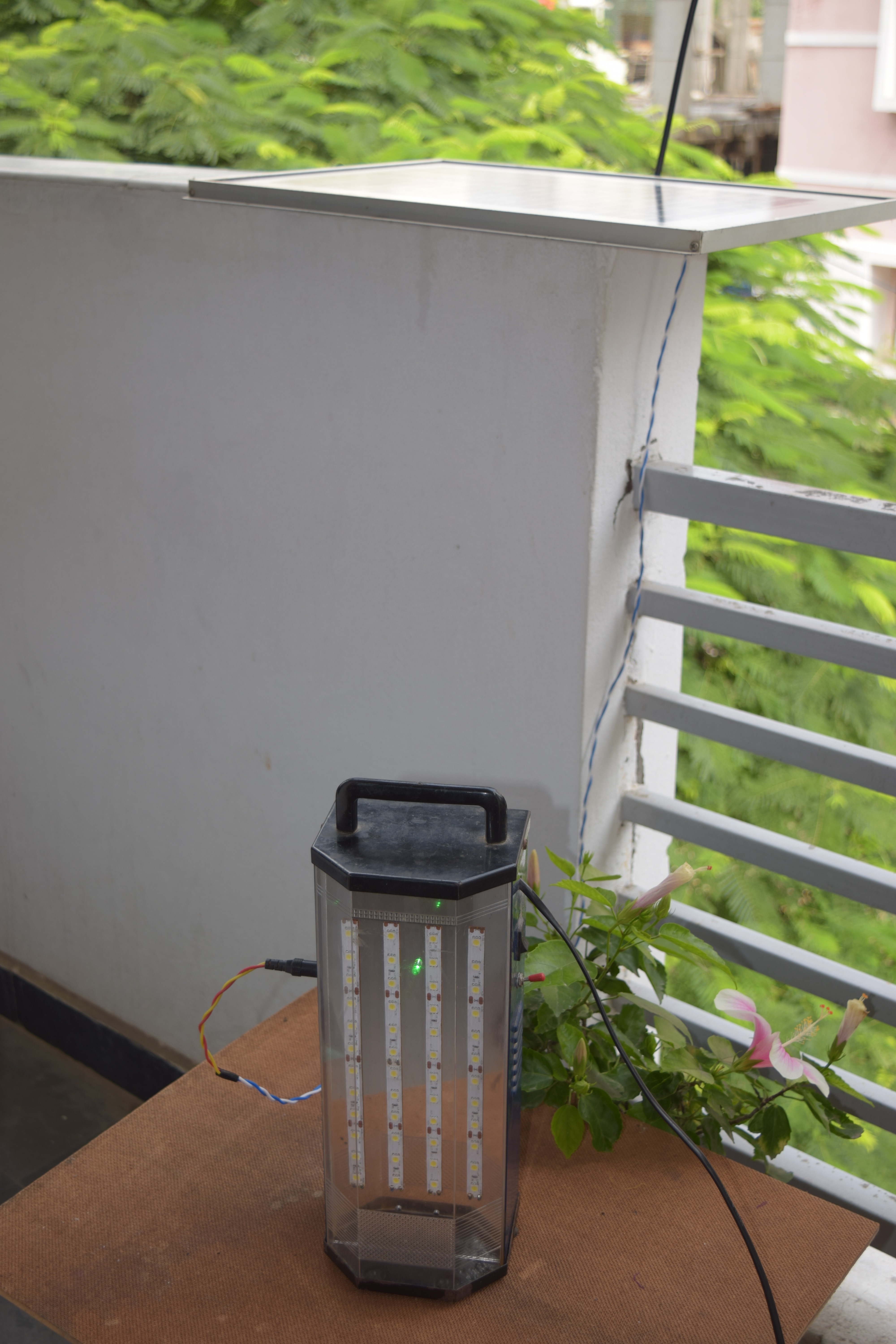

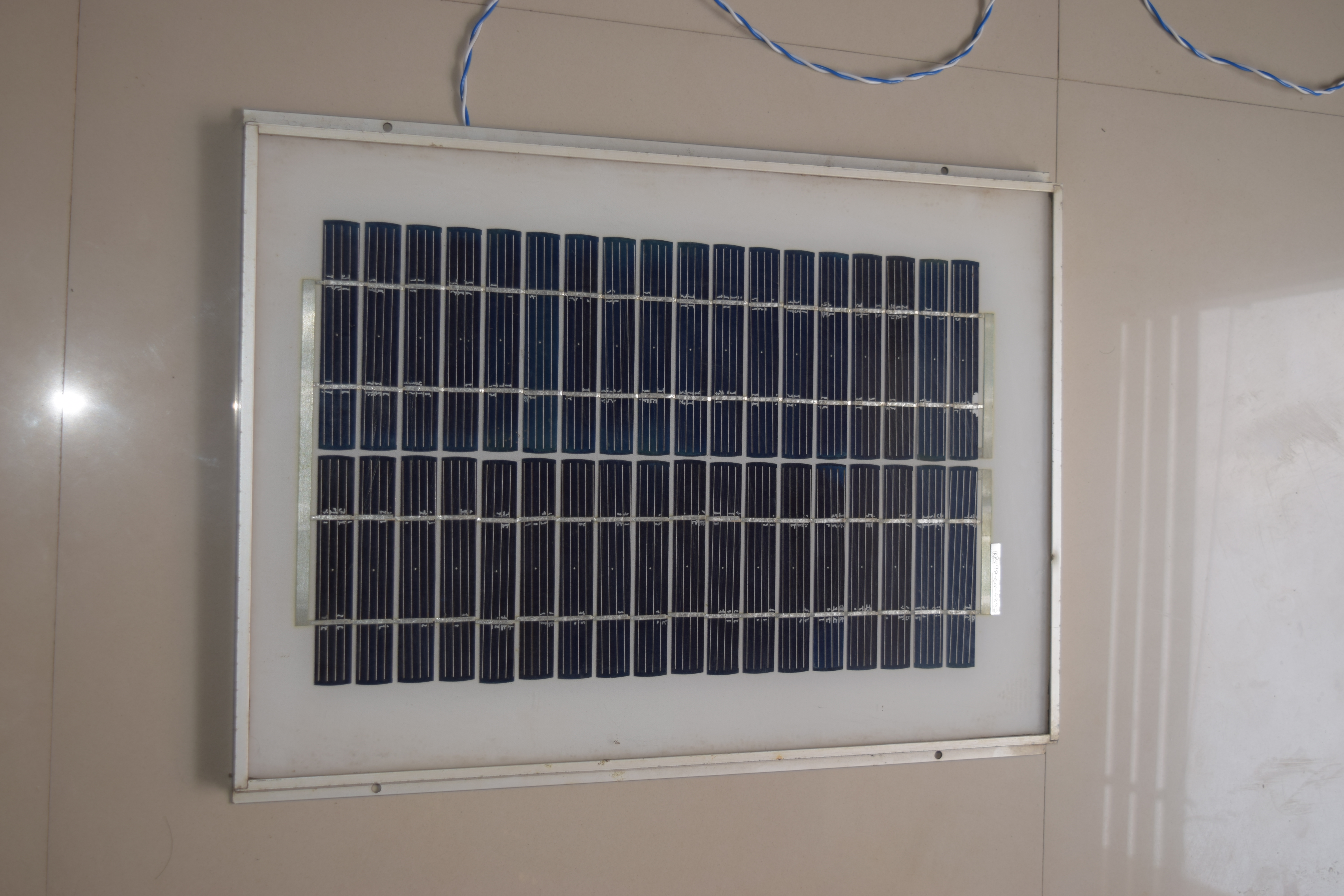

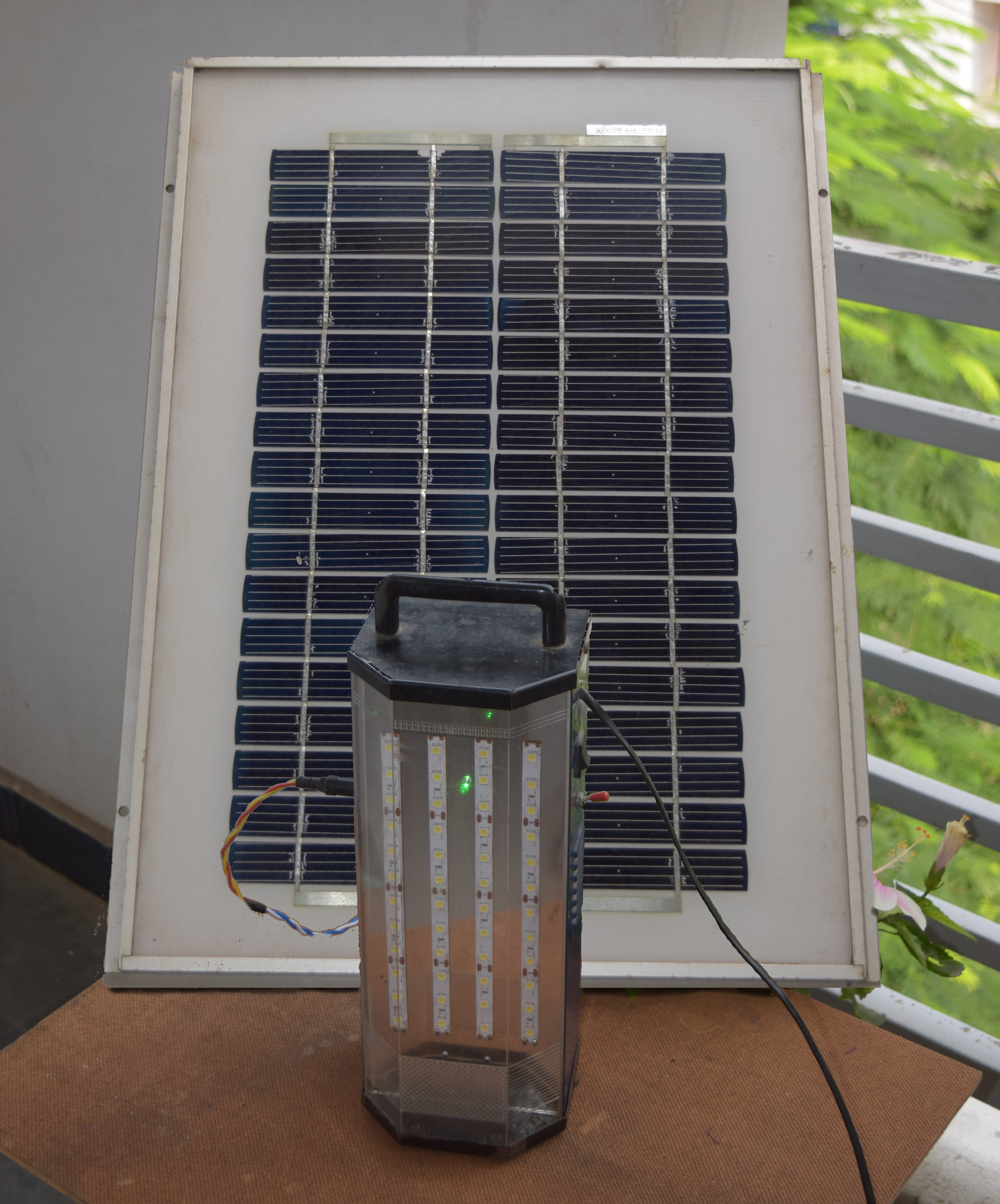

Preparing the Solar Panel

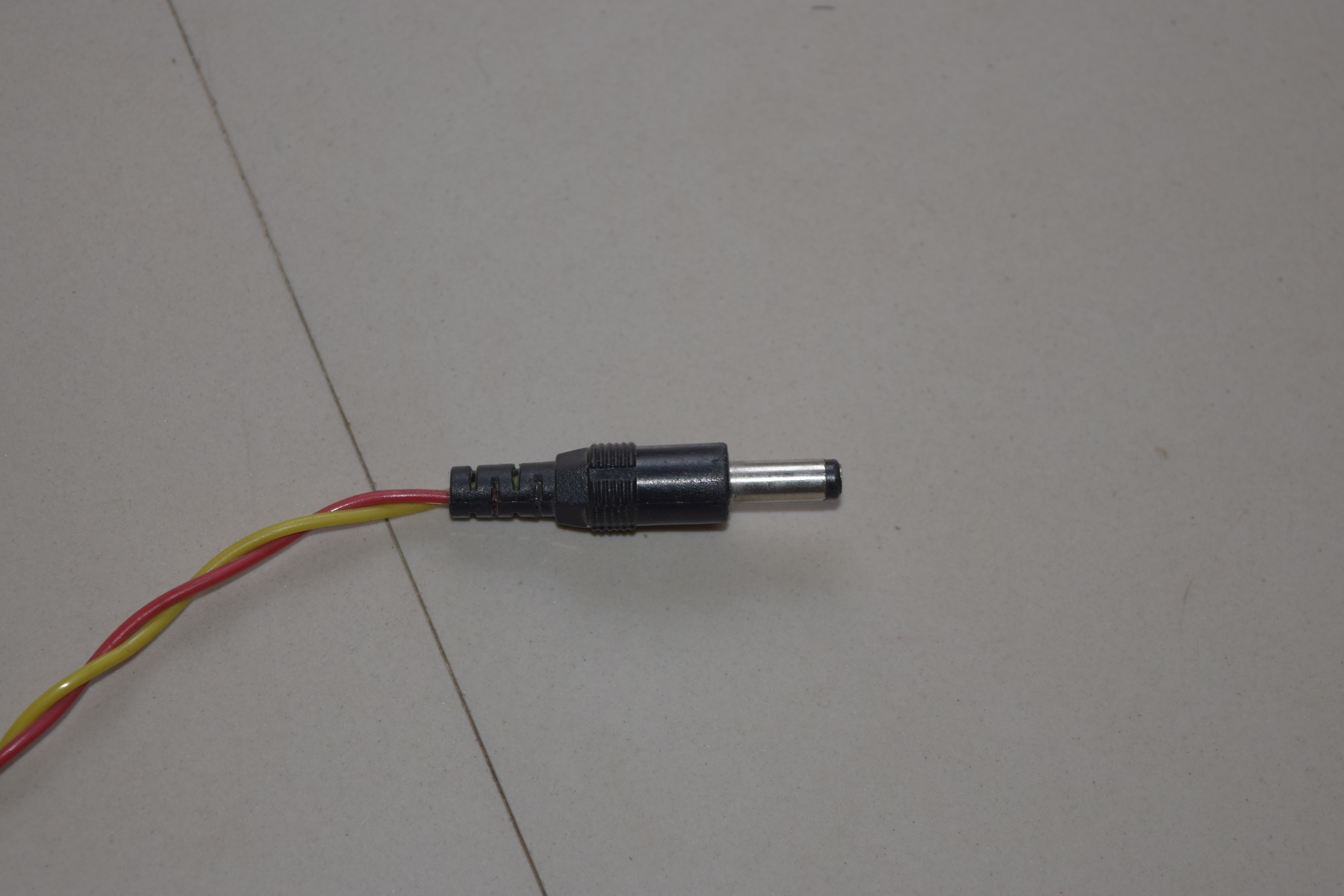

Solder 5402 diode to +ve terminal in forward bias to protect the solar panel. Solder DC male jack to it.

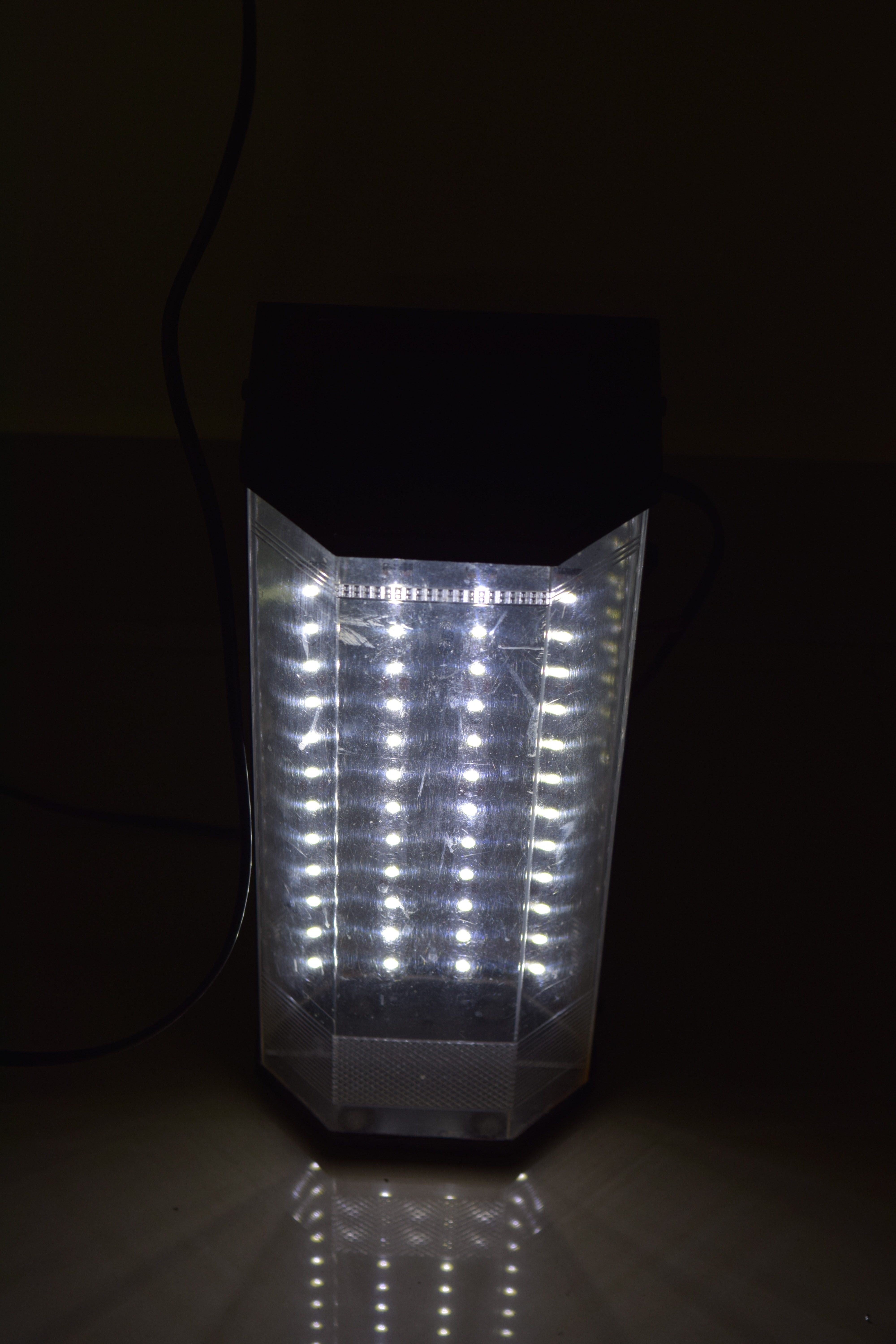

Testing

  • Plug the AC and check for charging.
  • Connect Solar panel and check.

Current consumption and battery backup time:

  • 700ma for 48 LED's @ 12.4v and backup for 4.5 to 5hrs.
  • 350ma for 24 LED's @ 12.4v and backup for 9 to 10hrs.
  • 1.2amp for 48 LED's @ 14v and backup for 2 to 2.5hrs.
  • 600ma for 24 LED's @ 14v and backup for 4 to 5hrs.
